User Manual 2 of 2

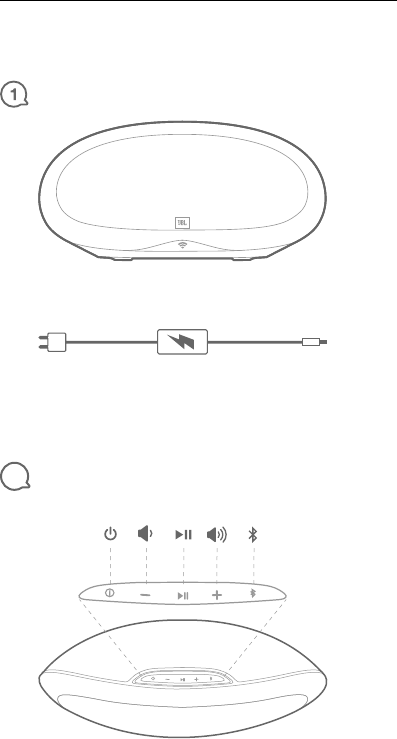

What’s in the box
x1
x1
2Buttons
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
3Wi-Fi Setup
Step 1: Download the JBL Wireless Setup app., scan QR code needed for both iOS App
Store and Google Play Store downloading
Step 2: Power on the speaker, then press and hold the “Play” to enter Wi-Fi
Step 3: Find Stream in the app, and follow the guide
Step 4: Select network and input password, till the indication of Wi-Fi
connected shown
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
4Google Cast play music procedure
Step 2: Play musicStep 1: Open Google Cast supported app
Step 3: Tap the cast icon and select “JBL GC150”

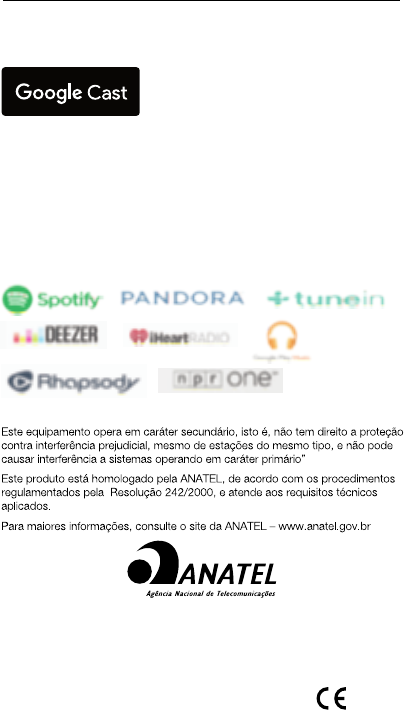

** Google Cast support app - refer to link - https://www.google.com/cast/apps/
5Spotify play music procedure
Step 1: Open Spotify app Step 2: Play music
Step 3: Tap the Spotify connect icon and select “JBL GC150”
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150

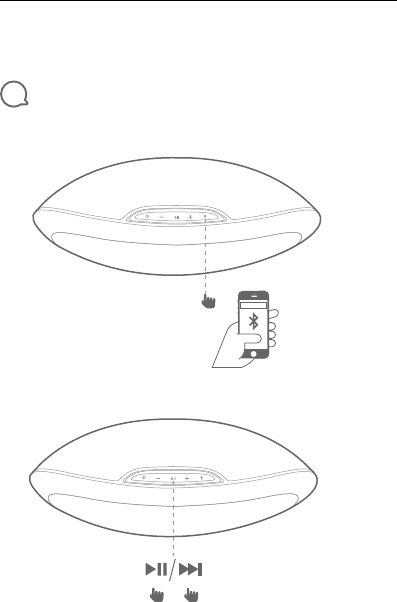

6Bluetooth
1. Bluetooth connection setup process
PLAYLIST 150
2. Music control process
x1 x2
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
8LED behavior
9Warning
Standby Power on Bluetooth
Pairing
Speaker
Connecting
Speaker
Connected NA NA
Bluetooth
Connected
(White) (White) (Blue) (Blue)
Care on Passive radiator
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
7Connections
Reset
EN
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
FR
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
ES
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
PT
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
DE
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
IT
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
NL
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
NO
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
FI
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
RU
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
SV
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
DA
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
JP
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
KO
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
CHS
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
CHT
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.0
• Transducer: 2 x 50mm
• Rated Power: 2 x 15W
•Frequency Response: 60 – 20KHz
• Maximum SPL: 92dB
• Power supply: 19VDC, 2.0A
• Power consumption in sleep mode: <2.0 Watts
• Dimension: 316 x 131 x 147 mm
• Weight: 1200g
• Bluetooth transmitter power: <4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G Wi-Fi Transmitter frequency range: 2.412 – 2.472 GHz
(2.4GHz ISM band, USA 11 channels, Europe and others 13 channels)
• Weight: 16.3kg
• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• 2.4G Wi-Fi network compatibility: IEEE 802.11 b/g/n
• 5G Wi-Fi Transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: <20dBm (EIRP)
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM,
64QAM, 256QAM
• 5G Wi-Fi network compatibility: IEEE 802.11 n/ac
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
The Bluetooth®word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by HARMAN International
Industries, Incorporated is under license. Other trademarks and trade names
are those of their respective owners.
Spotify Connect feature may not be used in countries where
Spotify service is not available.
Say hello to Spotify Premium
Spotify Premium lets you listen to millions of songs ad-free – the artists you love,
the latest hits and discoveries just for you. Simply hit play to hear any song you
like, at the highest sound quality.
Try Premium free for 30 days at spotify.com/freetrial
Your new speaker has Spotify Connect built in
Spotify Connect lets you control the music playing on your speaker, using the
Spotify app on your mobile, tablet or PC.
Listening is seamless. You can take calls, play games, even switch your
phone off – all without interrupting the music.
Learn more at spotify.com/connect
How to use Connect
You’ll need Spotify Premium to use Connect, see details overleaf.
Step 1 Add your new speaker to the same wifi network as your
phone, tablet or PC (see product user instructions for details).
Step 2 Open the Spotify app on your phone, tablet or PC, and play any song.
Step 3 If you’re using the app on a phone – tap the song image in the bottom
left of the screen. For tablet and PC move to step 4.
Step 4 Tap the Connect icon
Step 5 Pick your speaker from the list. If you can’t see it, just check it’s
connected to the same wifi network as your phone, tablet or PC.
All done! Happy listening.
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
Google Cast and the Google Cast badge are trademarks of Google inc.
The TM symbol must be used in the first or most prominent instance of Google
Cast in text. After the first instance it is no longer needed.
Assets that used “Google Cast” in text the logo or the badge must include the
following legal attribution:
Google Cast and the Google Cast badge are trademarks of Google inc.
Including Music streaming (priority as below)
1257-16-7120
1856
TR02920_A
Quick Start Guide
Guide de démarrage rapide
PLAYLIST 150
TR & Job No:
Job Description:
Date:
Other:
Developed by
RESTRICTED
DESIGN ADAPTATION / IMAGE / FINAL ART
IMPORTANT NOTE : THE PRINT/PDF IS FOR LAYOUT AND TEXT ILLUSTRATION ONLY. THE COLOURS INDICATED HERE MAY NOT APPEAR SAME IN THE FINAL PROOF. ALTHOUGH
EVERY EFFORT HAS BEEN MADE TO CHECK THE CORRECTION OF LAYOUT AND TEXT. IT IS CLIENT RESPONSIBILITY TO VERIFY BEFORE GIVING THE FINAL APPROVAL.
TR02920_Playlist_150_QSG_A
Version : 02
TR02920
2016-07-12
EDI01/RT_GP_UK02
N/A
EQUITY COLORS:
REPRESENTATION:
LTHBla ck
LTHCya n LTHMagenta LTHYellow
