OWNER’S MANUAL
JBL AUTHENTICS QI
USB POWERED WIRELESS CHARGER
Power: 5VDC by USB
Operation Frequency: 106 KHz
This is a Plug and play USB powered wireless charger, the use case is very simple and
convenient.
How to operate
Place your phone or other compatible device on the wireless charging area on top of JBL
AUTHENTICS QI. The charging indicator lights turn white and flash on and off while charging.
Adjust the position of your phone if the charging indicator lights blink quickly. When your phone is
fully charged, the charging indicator lights go off immediately.

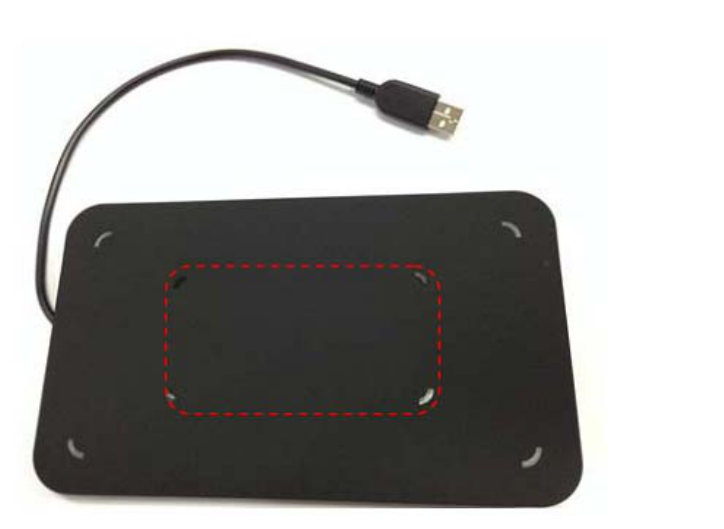

Note: make sure locate your phone on below red area.
FCC AND IC INFORMATION FOR USERS
This device complies with Part 15 of the FCC rules, operation is subject to the following two
conditions:
(1) This device may not cause harmful interference; and
(2)This device must accept any interference received, including interference that may cause
undesired operation.
Caution:
Changes or modifications not expressly approved by HARMAN could void the user’s authority to
operate the equipment.
To ensure proper use of this product, please read the owner’s manual carefully and retain it for
future use. Should the unit require maintenance or repair, please contact your local JBL service
center. Refer servicing to qualified personnel only.
The product may cause potential interference to your home electronic product.
Keeps this equipment operating with minimum distance 20cm between the product and other
electronic product.
Please unplug the product from USB port if you don’t use it.
Troubleshooting:
Adopt following measures by the user itself once the product is interfered.
1, Unplug USB cable and plug USB cable again.
2, If the product is getting high temperature, please stop using it, let it be colder and re-use again.
HARMAN International hereby declares that this equipment is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC and RoHS 2011/65/EU
Directive The declaration of conformity may be consulted in the support section of our Web site,
accessible from www.jbl.com.
© 2013 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of
HARMAN International Industries, Incorporated, registered in the United States and/or other
countries. Features, specifications and appearance are subject to change without notice.
![](/img.php?id=2139745&img=bg3.png)
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1)This device may not canse harmful interference, and
(2)this device must accept any interference received,including interference that
may cause undesired operation.
Caution: The user is cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
JBL Authentics Qi
