MANUAL RE0.2
Quick Setup Guide
JBL® ONBE AT RUMBLE™
WELCOME
Thank you for purchasing the JBL® OnBeat Rumble™ speaker dock. This quick setup guide
will show you how to connect and set up your dock.

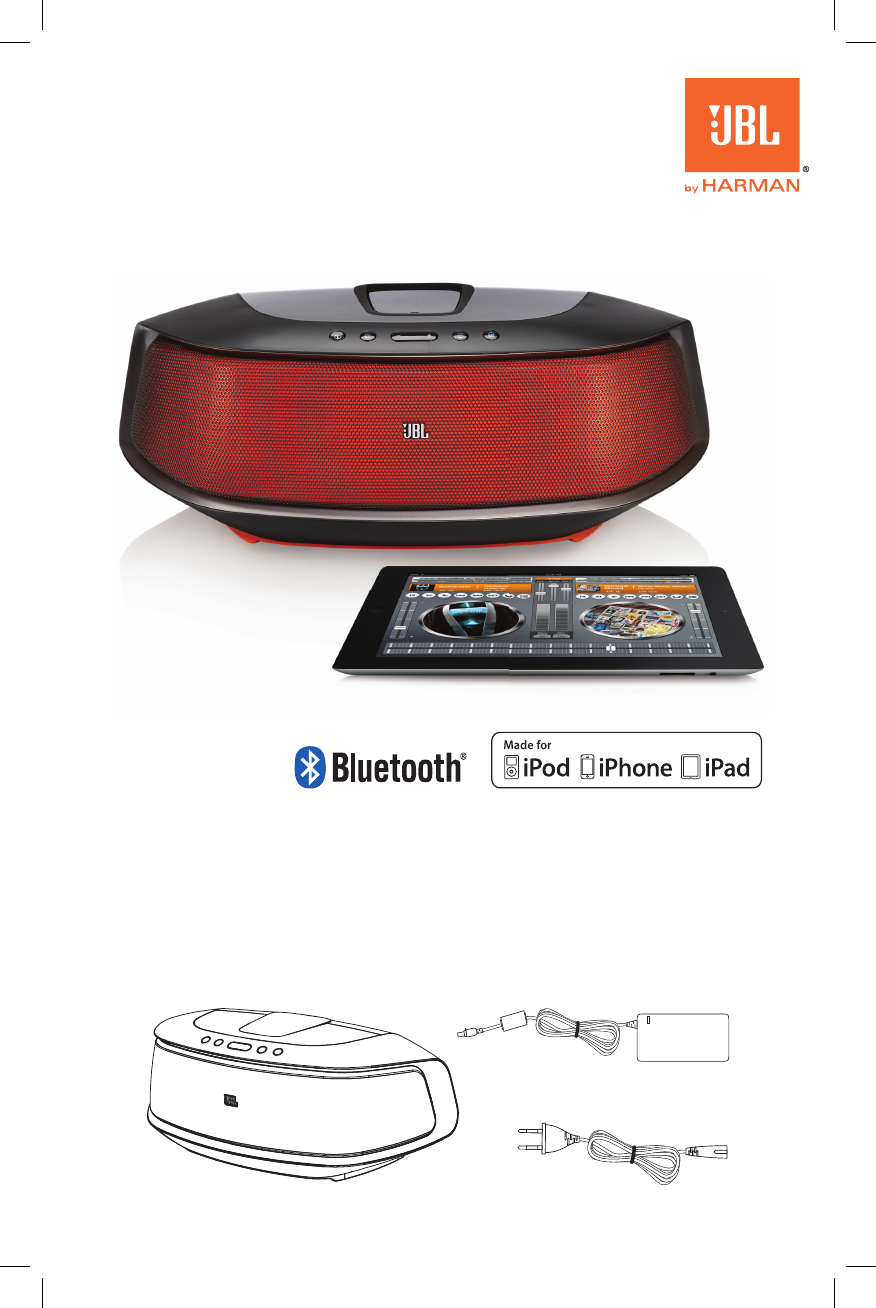

INCLUdEd ITEMS
AC Cord (varies by region)
Power Supply
JBL OnBeat Rumble Speaker Dock
2

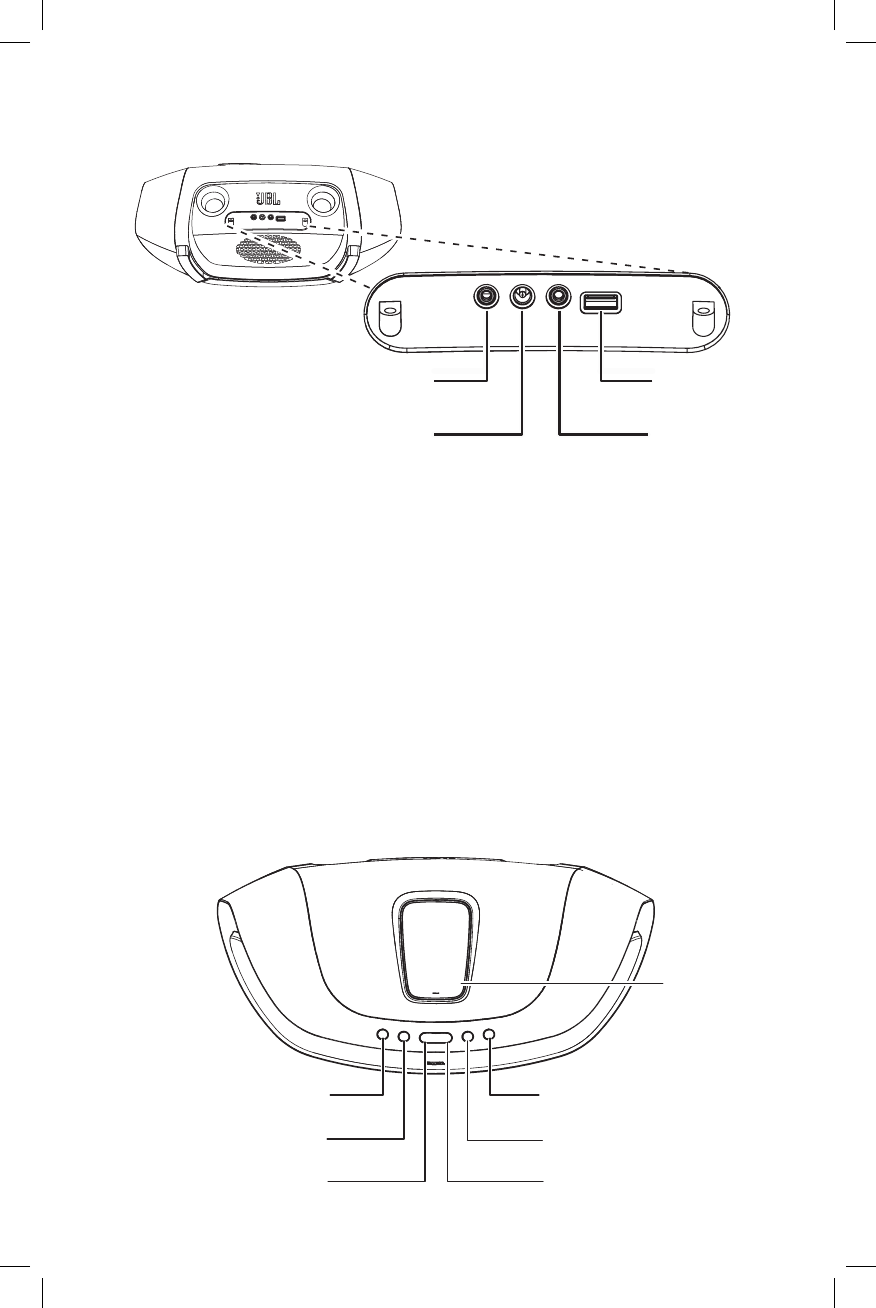

CONNECTIONS
Power
Connector Headphone
Connector
Auxiliary
Input USB
Connector
1. If you are going to use your JBL OnBeat Rumble speaker dock with another audio
source, plug one end of a 3.5mm (1/8") stereo cable (not supplied) into the dock’s
Auxiliary Input connector, and plug the other end into the audio source’s audio-out or
headphone-out connector.
2. If you want to use headphones (such as when previewing mixes with a DJ app), plug
them into the dock’s Headphone connector.
3. Plug the dock’s power supply into the Power connector on the rear of the dock and
then into a working AC power outlet. The dock will automatically turn on and go into the
Bluetooth® pairing mode (the Source button LED will be flashing blue).
4. The USB port can be used for charging your iPod, iPhone or iPad device.
PLACEMENT
Place the JBL OnBeat Rumble speaker dock on a shelf or table with the rear of its enclosure
at least 3" (76mm) away from a wall or other surface to allow the bass ports to operate
properly.
CONTROLS AND INDICATORS
Bass Boost Button
and LED
Volume Down
Button Volume Up
Button
Club EQ Button
and LED
Dock
Lid
Power Button
and LED
Source Button
and LED
3
www.jbl.com
Bass Boost button and LED: Press this button to enhance the bass performance. The
button’s LED will glow when Bass Boost is on.
Club EQ button and LED: Press this button to toggle between two EQ mode settings:
“Basic” and “Club.” The Basic setting offers a stereo perspective, while the Club setting
produces a high-energy, more focused sound. When the EQ is set to Club, the EQ LED will
glow white.
When you are using the JBL MusicFlow app, the following additional EQ settings are
available: Wider Stereo Movie, Rock Music, Jazz Music and Gaming.
Source button and LED: Press this button to cycle through the audio sources: Bluetooth,
docked device and Auxiliary Input. The Source button LED will glow to indicate the active
source: white for a docked device, blue for a paired Bluetooth device and amber for a
device connected to the Auxiliary input.
• If you begin to stream audio from a paired Bluetooth device or play audio from a device
connected to the dock while another source is playing, the dock will automatically switch
to the new source.
Power button and LED: When the dock is on, press the Power button to put it into the
standby mode. The button’s LED will glow solid amber when the unit is in standby. When
the dock is in standby, press the Power button to turn it on. The button’s LED will glow
solid white when the unit is on.
When the dock is in the standby mode, it will automatically turn on when it detects audio
playing from a Bluetooth-connected device or from a docked device.
When the dock is on, it will automatically enter the standby mode after 10 minutes of
inactivity (no audio input and no user-control operation). The button’s LED will glow amber
when the dock is in standby.
Note: When the dock enters the standby mode, it will also bring a docked device into
standby mode.
Volume Up/Down buttons: Press these buttons to raise and lower the dock’s
volume. To mute the sound, press both buttons at the same time. (The Power button LED
will flash white when the sound is muted.) To restore the sound, press either Volume button
or both buttons together.

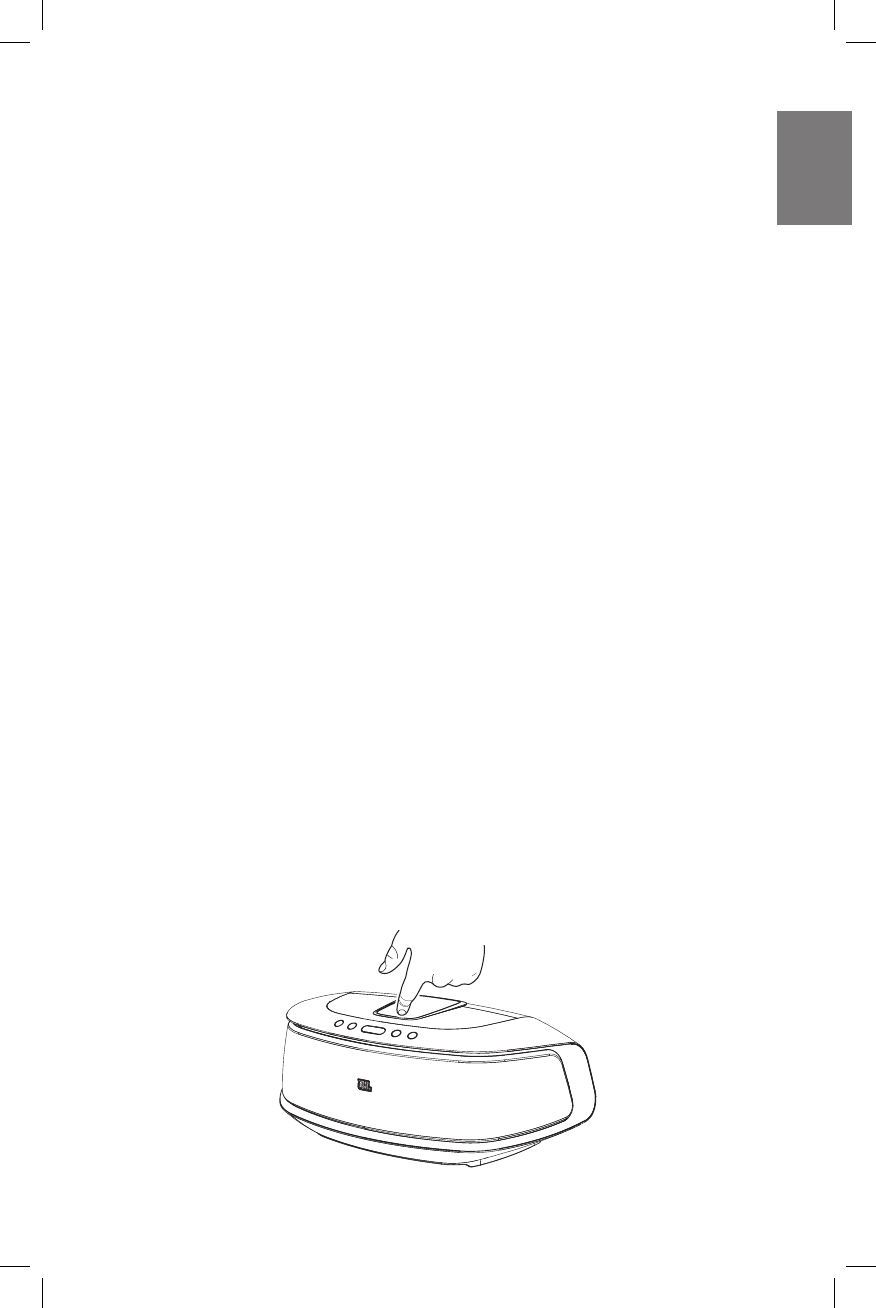

Dock Lid: Gently press down on the front edge of the dock lid to release it and reveal the
multi-pin Lightning docking connector. To close the dock, gently push the lid back in the
enclosure until it clicks.
English
4

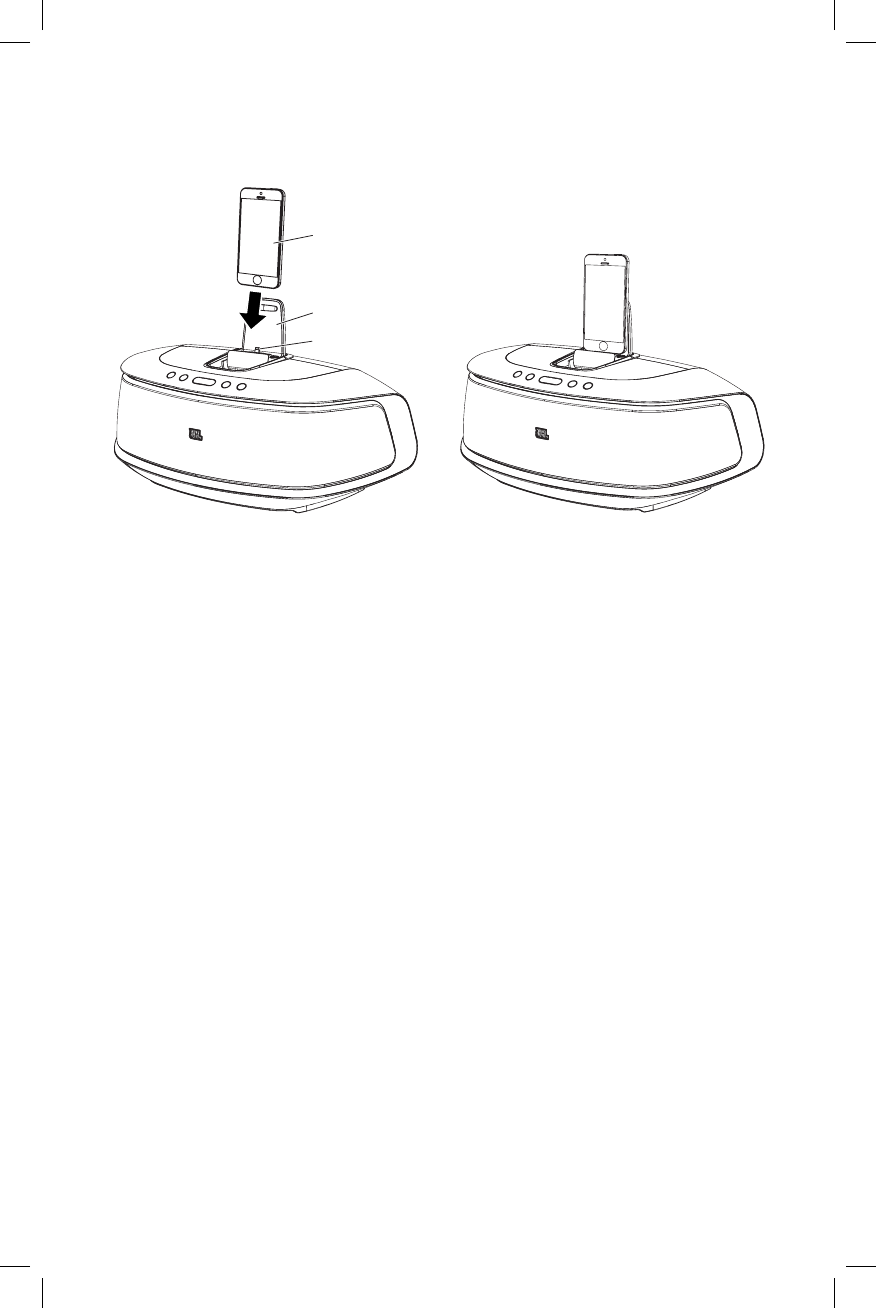

Docking connector: Place your device onto the Lightning connector located at the back
of the docking well so that it is firmly seated on the connector.
Made for
iPad 4th generation
iPad mini
iPhone 5
iPod touch 5th generation
iPod nano 7th generation
Dock Lid
Lightning
Connector
Note: We recommend that you disable the”Shake to Shuffle” feature on your iPod nano,
iPod touch and iPhone before docking the device on the JBL OnBeat Rumble speaker
dock.
BLUETOOTH WIRELESS STREAMING
To stream audio wirelessly to the dock from a Bluetooth-enabled device:
1. If the dock’s Source LED is not flashing blue, press the Source button until the LED
begins flashing blue to indicate that the unit is in the Bluetooth pairing mode.
2. Place the Bluetooth-enabled device in the pairing mode. Use the device’s Bluetooth
pairing menu to pair with the dock. (If the device requires a pairing code, use 0000.)
3. When the dock’s Source LED glows blue continually, it is paired with the device, and
you can stream audio via Bluetooth from the device to the dock.
To disconnect the Bluetooth device, press and hold the Source button. To pair the dock with
a different Bluetooth-enabled device, repeat Steps 2 and 3 with the new device.
5
www.jbl.com
APPS FOR YOUR JBL ONBEAT RUMBLE SPEAkER dOCk
In addition to the music-playback applications that come with your mobile device or tablet,
the JBL MusicFlow™ app can also be used with your JBL OnBeat Rumble speaker dock.
The JBL MusicFlow app is a free music player that enables you to create playlists on
the fly. Similar to a jukebox, the MusicFlow app lets you queue and play songs without
interruption, so you can enjoy a continuous flow of music while adding more songs or
removing old ones. An album-cover interface gives you access to all your music with a
sweep of your finger. Find it at the Apple App Store.
UPGRAdING FIRMWARE
You can upgrade the JBL OnBeat Rumble speaker dock’s firmware from within the
JBL MusicFlow app that is installed on a docked device. Follow the upgrade instructions
in the app.
SPECIFICATIONS
Low-frequency transducer: 1 x 4-1/2" (114mm) down-firing cone
High-frequency transducers: 2 x 2-1/2" (64mm) cones
Amplifier power (1% THD+N): 11W x 2 (full-range) + 28W (subwoofer)
Frequency response: 50Hz – 20kHz (–6dB)
Signal-to-noise ratio: >75dB
Bluetooth transmitter frequency range: 2.402GHz – 2.480GHz
Bluetooth transmitter power: 0dBm ~ 10dBm (EIRP)
Bluetooth transmitter modulation: GFSK/π/4-DQPSK/8-DPSK
Power consumption: 60W (max); <1.0W (standby, all regions except
USA and EU); <0.5W (standby, USA, EU)
Power supply: 18V DC, 3.3A
Dimensions (W x H x D): 453mm x 169mm x 223mm
(17-13/16" x 6-11/16" x 8-13/16")
English
CAUTION
THE EXCLAMATION POINT WITHIN AN EQUILA-TER-
AL TRIANGLE IS INTENDED TO ALERT THE USER
TO THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE PRODUCT.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
THE LIGHTNING FLASH WITH AN ARROWHEAD
SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE PRE-
SENCE OF UNINSULATED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY
BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE
A RISK OF ELECTRIC SHOCK TO PERSONS.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SEE MARKING ON BACK OF PRODUCT.
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with a dry cloth.
7.
Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8.
Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers)
that produce heat.
9.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10.
Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles and the point
where they exit from the apparatus.
11.
Only use attachments/accessories specified by the manu-
facturer.
12. Use only with the cart, stand, tripod, bracket or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as: when the power supply cord or plug has
become damaged, when liquid has been spilled or objects
have fallen into the apparatus, when the apparatus has
been exposed to rain or moisture, when the apparatus does
not operate normally, or the apparatus has been dropped.
15. Do not expose this apparatus to dripping or splashing and
ensure that no objects filled with liquids, such as vases, are
placed on the apparatus.
16. To completely disconnect this apparatus from the AC
mains, disconnect the power supply cord plug from the AC
receptacle.
17. The mains plug of the power supply cord shall remain
readily operable.
18. Do not expose batteries to excessive heat such as sun-
shine, fire or the like.
Important Safety Instructions
FCC AND IC REGULATIONS (USA AND CANADA ONLY)
FCC AND IC INFORMATION FOR USERS:
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS 210. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.”
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes (1) l’appareil nedoit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscep-
tible d’en compromettre le fonctionnement.”
RSS-102 Statement: This equipment complies with Industry Canada radiation exposure limits set forth for an
uncontrolled environment.
Déclaration CNR-102: Cet équipement est conforme à l’exposition aux rayonnements Industry Canada limites
établies pour un environnement non contrôlé.
RADIO A
nOTe: This equipment has been tested and found to comply with the limits for a Class B digital device, pursu-
ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: EXPOSURE TO RADIO FREQUENCY RADIATION
To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter.
CAUTION: Changes or modications not expressly approved in writing by HARMAN International may void the user’s authority to operate this equipment.
6
© 2012 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other
countries.
JBL OnBeat Rumble is a trademark of HARMAN International Industries, Incorporated.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such
marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those
of their respective owners.
Apple, iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other
countries. Lightning is a trademark of Apple Inc. iPad, iPod and iPhone not included. “Made for iPod,” “Made for
iPhone” and “Made for iPad” mean that an electronic accessory has been designed to connect specically to iPad, iPod
or iPhone, respectively, and has been certied by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPad, iPod or iPhone may affect wireless performance.
Features, specifications and appearance are subject to change without notice.
Part No. JBLP3890 Rev. A
HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
