Harman RC001 Remote Controller User Manual JBL Infinity Soundbar QSG 090516

Harman International Industries, Inc Remote Controller JBL Infinity Soundbar QSG 090516

Contents

User Manual

JBL/Infinity Soundbar Quick-Start Guide
IMPORTANT:Thisquickstartguidecontainsinformationaboutassembling,mountingand
connectingyoursoundbar.Forcompleteinstallation,connection,setupandoperation
information,downloadthefull[Soundbar]UserManualat[jbl.com][infinitysystems.com].
Includeditems
2xsoundbarspeakersections(left&right)
1xthreadedrod
2xmountingbracketbaseassemblies
2xmountingbrackettops
8xlongmountingbracketscrews
8xshortmountingbracketscrews
2xbridgeplates
8xbridgeplatescrews
1xlargehexwrench
1xsmallhexwrench
2xsafetywireassemblies
2xhighlevelaudioadapters
1xAVRCPremotecontrolandbattery
1xquickstartguide
1xsafetyinstructionbooklet
Assembly

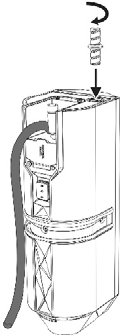

1.Handtightenthethreadedrodintothesoundbar’sleftspeakersection(withthecableattached).
[Insertillustration“Assembly_1_082316.ai”]

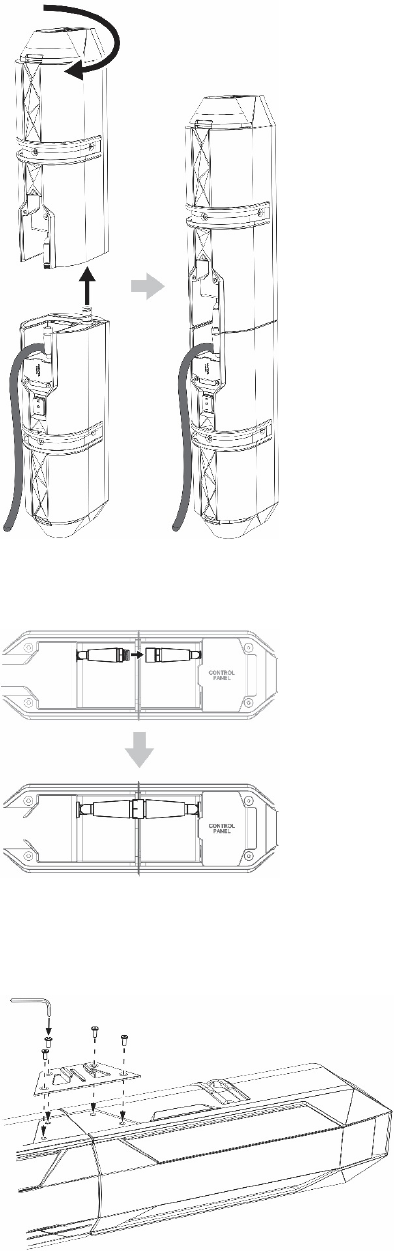

2.Screwthesoundbar’srightspeakersectionontotheportionofthethreadedrodthatisprotruding
fromtheleftspeaker.Whenthespeakeristhreadedallthewayontotherodthefrontsofbothspeakers
shouldbeproperlyaligned.
[Insertillustration:“Assembly_2_082316.ai”]
JBL/Infinity Soundbar Quick-Start Guide
3.Connecttheumbilicalcablesbetweenthetwospeakers.
[Insertillustration:“Assembly_3_082316.ai”]
4.Attachthebottombridgeplatetothetwospeakers,usingthesmallhexwrenchand4ofthebridge
platescrews.
[Insertillustration:“Assembly_4_082316.ai”]
JBL/Infinity Soundbar Quick-Start Guide

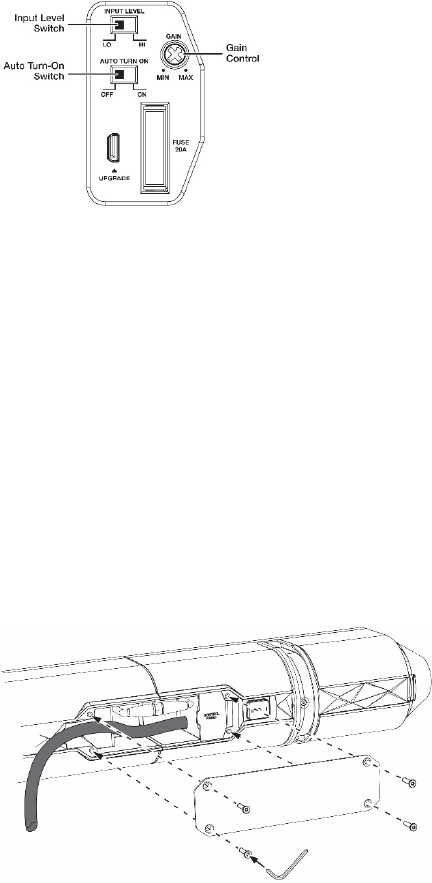

5.Beforeattachingtherearbridgeplate,youwillneedtosettheInputLevelswitch,AutoTurnOn
switchandGaincontrols:
[Insertillustration:“ControlPanel_082316.ai”]
a.Ifyouwillbeconnectingthesoundbar’saudioinputstothepreoutsofacarstereoheadunitor
otherlinelevelsource,settheInputLevelswitchinthe“Lo”position.Ifyouwillbeconnectingthe
soundbartothespeakerleveloutputsofacarstereoheadunit,settheInputLevelswitchinthe
“Hi”position.
b.IfyouhavesettheInputLevelswitchinthe“Lo”position,settheGaincontrol[TBD];ifyouhave
settheInputLevelswitchinthe“Hi”position,settheGaincontrol[TBD].Afteryoucompletethe
installationandbeginusingyoursoundbaryoucanfinetunetheGaincontrolsettingtomaximize
thesoundbar’sperformance.
c.Ifyouwantthesoundbartoautomaticallyturnonwhenitreceivesanaudiosignal,settheAuto
TurnOnswitchinthe“On”position.Ifnot,settheswitchinthe“Off”position.
6.Attachtherearbridgeplatetothetwospeakers,usingthesmallhexwrenchandtheremaining4
bridgeplatescrews.
[Insertillustration:“Assembly_5_082316.ai”]
Mounting

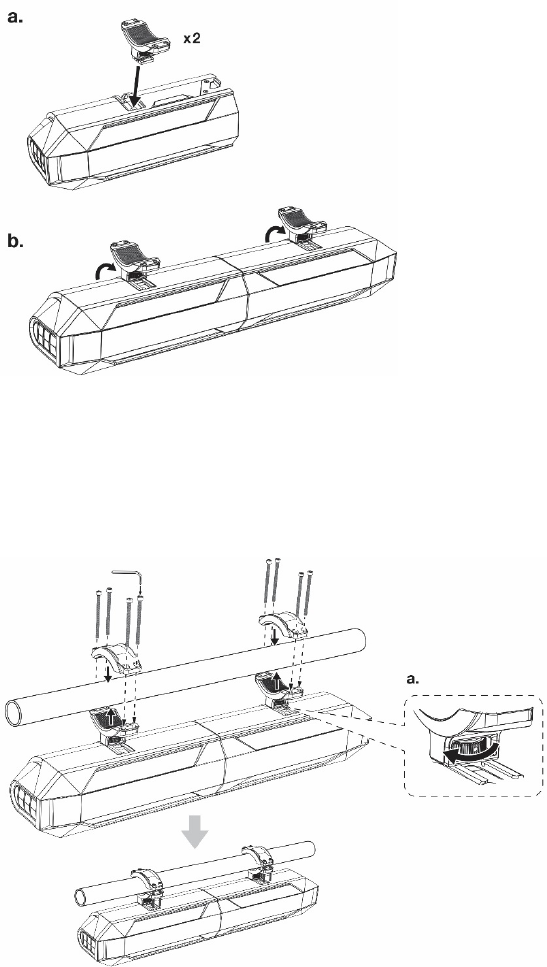

1a.Insertthe2mountingbracketbaseassembliesintothe2mountingtrackopeningsonthebottomof
thesoundbar.
1b.Slidethemountingbracketbasesinsidethetracksallthewayaroundtothetopofthesoundbar.
[Insertillustration:“Mounting_1_082816.ai”]
JBL/Infinity Soundbar Quick-Start Guide
2.Positionthesoundbarinthedesiredlocationagainstthevehiclemountingbar.Use4ofthesupplied
mountingbracketboltstosecureeachbrackettoptoabracketbase.(Twosetsofboltsaresupplied,
allowingthesoundbartobemountedtopipesuptoXXXindiameter.)
a.Whenthesoundbarisinthecorrectposition,tightenthemountingbracketadjustmentscrews.
[Insertillustration:“Mounting_2_082816.ai]
3.Installthe2safetyharnessassemblies[TBD]

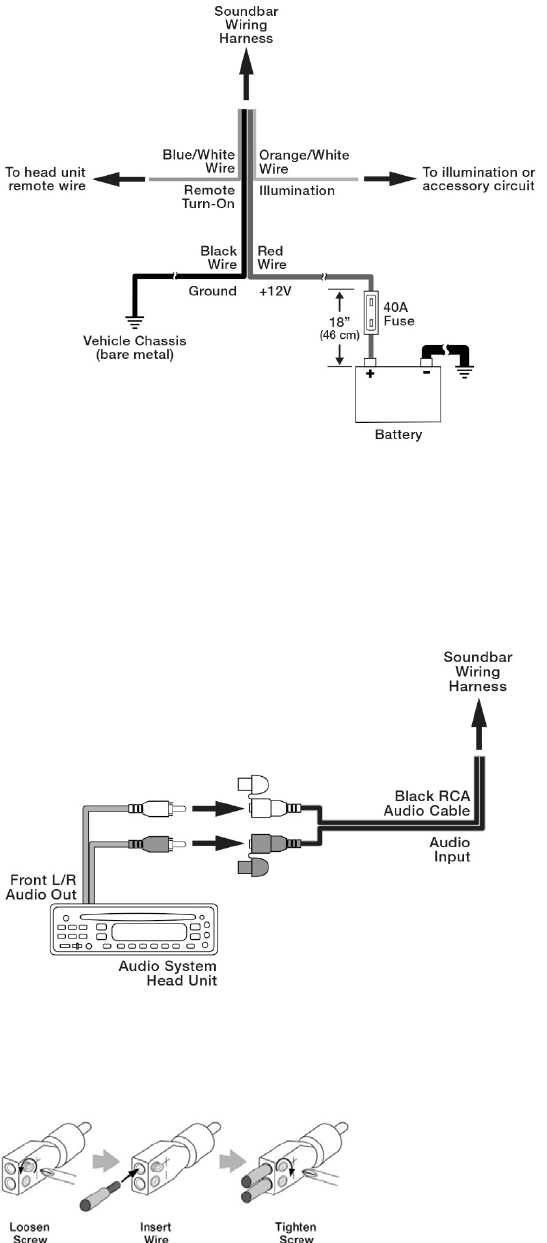

Ground,Power,IlluminationandRemoteConnections
IMPORTANT:Disconnectthevehicle’snegative(–)batteryterminalbeforebeginningtheinstallation.
Connectthesoundbar’s+12Vpower(red),ground(black),illumination(orange)andremoteturnon
(blue)wiresasshownbelow.
Usesandpapertoclearthepaintfromthemetalsurfaceatthegroundconnection.Useastartype
lockwashertosecuretheconnection.
Installafuseholderfora40Afuseonthepower(12V)wirewithin18”(46cm)ofthe(+)battery
terminal.Donotinstallthefuseintheholderatthistime.
JBL/Infinity Soundbar Quick-Start Guide
[Insertillustration:“PowerConnect_090516.ai”]

AudioInputandOutputConnections
Connectingtoanaudiosystemheadunit
Connectthesourceunit’sRCAlineoutputstothesoundbar’s(black)RCAaudioinputcable,asshownin
theillustrationbelow.
[Insertillustration:“HeadUnitConnect_090516.ai”]
IfyoursourceunitdoesnothaveRCAoutputsusethesuppliedbarewiretoRCAadapterstoconnect
thesourceunit’sspeakerwirestothesoundbar’saudioinputcable,asshownintheillustrationbelow.
[Insertillustration:“BareWireAdapters.ai”]
JBL/Infinity Soundbar Quick-Start Guide
Connectingtoamobilephoneorportableaudiodevice
Connectthemobilephone’sorportabledevice’sheadphoneporttothesoundbar’sblack3.5mmaudio
cable,asshownintheillustrationbelow.
[Insertillustration:“PhoneConnect_090516.ai”]
Connectingtoasubwooferorsecondaryamplifier
Connectthesubwooferorasecondaryamplifiertothesoundbar’s(gray)audiooutputcable,asshown
intheillustrationbelow.
[Insertillustration:“SubwooferConnect_090516.ai”]
Afteryouhavecompletedallofthesoundbarconnections:
1.Insertthe40Afuseintothefuseholderyouinstalledonthesoundbarpowerwire.
2.Reconnectthevehicle’snegative(–)batteryterminal.
3.Forcompletesetupandoperationinformation,downloadthefull[Soundbar]UserManualat
[jbl.com][infinitysystems.com].
Specifications
Frequencyresponse:20Hz20kHz
MaximumSPL:100dB
Totalamplifierpower:160watts
Drivers:4xlongexcursion4”woofers;2x1”tweeters
Dimensions(assembled,LxWxH):311/2”(800mm)x61/8”(155.5mm)x51/16”(128mm)
Weight(net):19.8lb(9kg)
JBL/Infinity Soundbar Quick-Start Guide
[InsertHarmanLogo]
HARMANInternationalIndustries,Incorporated
8500BalboaBoulevard,Northridge,CA91329USA
©2016HARMANInternationalIndustries,Incorporated.Allrightsreserved.
[JBL][Infinity]isatrademarkofHARMANInternationalIndustries,Incorporated,registeredintheUnited
Statesand/orothercountries.
AllRightsReserved.Features,specificationsandappearancearesubjecttochangewithoutnotice.
