S400BT Owner Manual
S400BT
Bluetooth stereo headset
User’s manual
Welcome to use this Bluetooth stereo headset, S400BT. Please read this
user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range wireless communication technology
that was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With
Bluetooth technology, we can achieve the highest transmission rate among
cell phones, computers, printers, PDAs and other devices. The max
transmission range of class II is 10 meters while the max transmission
ranges of class I can reach up to 100 meters.
2. About S400BT
S400BT is a Bluetooth V3.0 stereo headset. It supports the following
Bluetooth profiles:
HSP —— Headset Profile
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
You can enjoy music wirelessly by using S400BT. It has the following
features:
1) Pairing with a Bluetooth cell phone or PDA supporting HFP profile.
Answer a call, end a call and reject a call
Redial last number
Voice dial
Adjust the volume
Call transfer between the headset and your Bluetooth cell phone
Microphone mute
2) Pairing with a Bluetooth cell phone or Bluetooth transmitter supporting
A2DP profile.
Enjoy music wirelessly
Adjust the volume
Remote control pause/play
Remote control previous/next track
1
3) Easy to switch between the call and music, you will not miss the
incoming call during listening to music.
4) Every time the headset is turned on, it will connect to last connected
device automatically.
Note: In order to complete above function, the Bluetooth profiles of paired
device must be same as the headset. And even though the paired device and
the headset support the same Bluetooth profiles, functions may vary due to
specification differences of the paired devices.
Before use
1. Overview
1
2
3 4 5 6 7 8

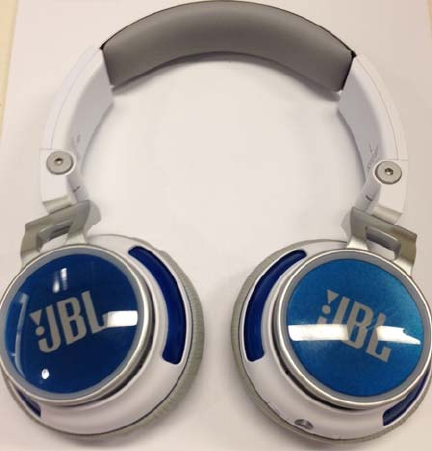

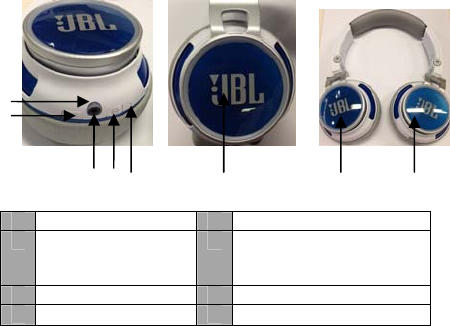

1 LED indicator 5 Built-in microphone
2 Bluetooth paring button 6 Multi-functions Touch panel
(Volume down/up,
next/previous song, pause /play)
3 Charging/aux-in port 7 Right speaker
4 Power button 8 Left speaker
2
2. Charging for headset
The headset comes with a built-in rechargeable battery, prior to using it, it is
recommended to charge the battery fully for the first time.
When the headset is low power, the headset emits five “Dong” tones every 5
minutes and the red LED flashes instead of blue LED. Please recharge the
battery of the headset.
The way of charging as following:
Using USB cable
1. Plug the special charging clip into the charging jack of headset, make it
clip the headset as pictures shown :
2. Plug another side of cable to the USB port of PC
Red light on: Charging
Red light off: Finish charging
3. It will takes about 2 hours to finish charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, fire or the like.
Getting started
1. Turning on/off the headset
Functions Operation LED indicator
Turning on Single press
p
ower button to
turn on the unit,
p
White on one secon
d
Turning off Press
p
ower button and hold to
turn off the unit Red LED on one
secon
d
Remark: In order to save power, the headset will turn off automatically if
no devices can be connected after 5 minutes.
2. Pairing the headset with Bluetooth devices
1) How to enter pairing mode
Functions O
p
eration LED indicator
Ente
r
ing
pairing
mode
When in BT Active mode,
single press to enter the BT
paring mode, press and hold for
2 seconds to exit
p
arin
g
mode.
Red and White LED
flash alternately
Remark: Pairing mode will last 2 minutes. If no devices can be connected
after 2 minutes, it will return to standby mode automatically.
2) Pairing headset with Bluetooth cell phone
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information. The general pairing procedures are as
follows:
1) Keep your headset and phone within 1 meter when pairing;
2) Make the headset enter pairing mode (please refer to “How to enter
pairing mode);
3) Activate your cell phone’s Bluetooth function and set your cell phone to
search for Bluetooth devices within range, and select “S400BT” from the
list of devices shown;
4) According to the indication, enter password or PIN No: “0000”. ( If the
mobile phone supports Bluetooth V3.0, password is not required.). If
prompted by your cell phone to connect, select “Yes” (this will vary
among cell phone models);
5) After successful paired, choose and connect “S400BT” from the list of
devices shown on cell phone;
6) After successful connecting, blue LED of headset will flashes twice
every 4 seconds
Remarks:
If pairing is failed, please turn off the headset first and then re-pair
according to steps 1～6 mentioned above.
After pairing is successful, the headset and the cell phone will remember
each other, they will no need to re-pair next time. The headset can
remember 8 paired devices, when the number of paired devices exceeds
8, the first one will be replaced.
Every time the headset is turned on, it will connect to last connected
device automatically. If you want to pair it with other devices, please turn
off the Bluetooth function of last connected devices first and pair the
headset with the new device according to steps 1～6 mentioned above.
3
Note:
Not all the mobile phones support all the functions listed above. Please
refer to your mobile phone user’s manual.
Different function and prompt tone according to different mobile phone.
When the volume is adjusted to max or min, you will hear one prompt
tone.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the headset by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
4. Playing music
When the headset connects to a mobile phone or Bluetooth transmitter
which supports A2DP, you can enjoy music wirelessly through the headset.
Gesture Functions and behavior
Tab
Play/Pause a track playing or answer/end the
call. (Only valid in BT Active mode.)
Quick Swipe Up Increase volume level by 1 step.
Quick Swipe Down Decrease the volume level by 1 step.
Slow Swipe Up Increase volume level continuously.
Slow Swipe Down Decrease the volume level continuously.
Swipe Forward
Change to next track. (Only valid in BT Active
mode.)
Swipe Backward
Change to previous track. (Only valid in BT
Active mode.)
Notes:
When playing music on some mobile phones, the music will be
transmitted to the mobile phone’s speaker instead of the headset. You
have to select “transmit the sound via Bluetooth” in the settings menu
and then choose “S400BT” as speaker device. The music will be
transmitted to the headset. Please refer to your mobile phone’s user’s
manual for further information.
When the volume is adjusted to max or min., you will hear one prompt
tone.
If you want to remote control last/next song, pause/play, it needs your
Bluetooth mobile phone or Bluetooth transmitter paired with the headset
to support AVRCP profile, please refer to the user’s manual of your
mobile phone or Bluetooth transmitter for further information.
Care and maintenance
Read the following recommendations carefully before using S400BT.
Following these you will be able to enjoy this product for many years.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
Don’t use this product during strenuous exercise. It may damage the
product if the sweat into product.
In case the product does’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
Specifications
Bluetooth version Bluetooth V3.0
Bluetooth
p
rofiles Headset, Hands free, A2DP, AVRCP
O
p
eratin
g
distance 10meters
Headset music time About 4 hours
Headset talk time About 4.5 hours
Headset standb
y
time A
pp
rox 150 hours
Char
g
in
g
in
p
ut DC5.0
V
500mA
Headset char
g
in
g
time About 2 hours
Batter
y
ca
p
acit
y
610mAH
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
US AND CANADA
FCC AND IC STATEMENT:
This device complies with Part 15 of the FCC rules and Industry
Canada license-exempt RSS 210. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference;
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
FCC/IC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC/IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment.
DÉCLARATION DE LA FCC ET D’IC
Cet appareil est conforme à la partie 15 des règles de la FCC, ainsi
qu’à la norme RSS 210 exempte de licence d’Industrie Canada. Son
fonctionnement est soumis aux deux conditions suivantes: (1) Cet
appareil ne doit pas provoquer d’interférences nuisibles; et (2) cet
appareil doit accepter toutes les interférences reçues, y compris celles
susceptibles d’entraîner un dysfonctionnement de l’appareil.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
DÉCLARATION DE LA FCC ET D’IC SUR L’EXPOSITION AUX
RADIATIONS
Cet appareil est conforme à la norme RSS 102 de la FCC/IC relative aux
limites d’exposition aux radiations dans un environnement non contrôlé
IMPORTANT
INFORMATION
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
INSTRUCTIONS FOR USERS ON REMOVAL, RECYCLING AND DISPOSAL OF
USED BATTERIES
To remove the batteries from your equipment or remote control, reverse the
procedure described in the owner’s manual for inserting batteries.
For products with a built-in battery that lasts for the lifetime of the product, removal
may not be possible for the user. In this case, recycling or recovery centers handle the
dismantling of the product and the removal of the battery. If, for any reason, it becomes
necessary to replace such a battery, this procedure must be performed by authorized
service centers.
In the European Union and other locations, it is illegal to dispose of any battery with
household trash. All batteries must be disposed of in an environmentally sound
environmentally sound collection, recycling and disposal of used batteries.
WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of
The symbol indicating ‘separate collection’ for all batteries and accumulators shall be
the crossed-out wheeled bin shown below:
DECLARATION OF CONFORMITY
HARMAN International hereby declares that this equipment is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/
EC, ErP 2009/125/EC Directive and RoHS 2011/65/EU Directive The declaration of
conformity may be consulted in the support section of our Web site, accessible from
www.jbl.com.
WEEE NOTICE
The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered
into force as European law on 13th February 2003, resulted in a major change in the
treatment of electrical equipment at end-of-life.
addition, to promote the reuse, recycling and other forms of recovery of such wastes
so as to reduce disposal.
The WEEE logo on the product or on its box indicating collection for electrical and
electronic equipment consists of the crossed-out wheeled bin, as shown below.
This product must not be disposed of or dumped with your other household waste.
You are liable to dispose of all your electronic or electrical waste equipment by
waste. Isolated collection and proper recovery of your electronic and electrical waste
equipment at the time of disposal will allow us to help conserving natural resources.
Moreover, proper recycling of the electronic and electrical waste equipment will
ensure safety of human health and environment. For more information about
electronic and electrical waste equipment disposal, recovery, and collection points,
please contact your local city center, household waste disposal service, shop from
where you purchased the equipment, or manufacturer of the equipment.
ROHS COMPLIANCE
This product is in compliance with Directive 2011/65/EU of the European Parliament
and of the Council of 8 June 2011 on the restriction of the use of certain hazardous
substances in electrical and electronic equipment.
EU BATTERIES DIRECTIVE 2006/66/EC
A new battery directive 2006/66/EC on Battery and Accumulator replacing directive
entered into force on the 26th September 2008. The directive applies to all types of
batteries and accumulators (AA, AAA, button cells, lead acid, rechargeable packs)
including those incorporated into appliances except for military, medical and power
tool applications.
The directive sets out rules for collection, treatment, recycling and disposal of
batteries, and aims to prohibit certain hazardous substances and to improve
environmental performance of batteries and all operators in the supply chain.
FOR EU COUNTRIES
AVIS CONCERNANT LES DEEE
La directive relative aux déchets d’équipements électriques et électroniques
(DEEE), adoptée comme loi européenne le 13 février 2003, a supposé un important
L’objectif principal de cette directive est de prévenir les DEEE et de favoriser la
réduire la mise au rebut.
Le logo des DEEE apposé sur cet équipement ou sur son emballage, qui indique la
collecte des équipements électriques et électroniques, est représenté sous la forme
d’une poubelle barrée, comme indiqué ci-dessous.
Ce produit ne doit pas être jeté avec les ordures ménagères. Il vous incombe de
vous rendant à un point de collecte approprié en vue de les recycler. Une collecte
isolée et une récupération appropriée de vos déchets d’équipements électriques
ou électroniques au moment de la mise au rebut nous permettent de contribuer à
la préservation des ressources naturelles. Par ailleurs, un recyclage approprié des
déchets d’équipements électriques ou électroniques assure la protection de la santé
humaine et de l’environnement. Pour obtenir de plus amples informations sur la
mise au rebut, la récupération et les points de collecte des déchets d’équipements
électriques ou électroniques, contactez votre mairie, votre service de collecte des
déchets, le magasin qui vous a vendu l’équipement, ou le fabricant du produit.
CONFORMITÉ À LA DIRECTIVE RELATIVE À L’UTILISATION DE CERTAINES
SUBSTANCES DANGEREUSES
Cet appareil est conforme à la directive 2011/65/UE du Parlement européen et du
Conseil du 8 juin 2011 relative à la limitation de l’utilisation de certaines substances
dangereuses dans les équipements électriques et électroniques.
DIRECTIVE 2006/66/CE RELATIVE AUX PILES ET ACCUMULATEURS
La nouvelle directive 2006/66/CE relative aux piles et accumulateurs est entrée
en vigueur le 26 septembre 2008. Cette directive s’applique à tous les types de
piles et accumulateurs (AA, AAA, pile bouton, pile/accumulateur plomb-acide, pile/
accumulateur rechargeable), notamment à ceux incorporés dans les appareils
s’agit d’outils électriques.
Cette directive établit des règles pour la collecte, le traitement, le recyclage et la
mise au rebut des piles et accumulateurs; elle vise par ailleurs à interdire certaines
substances dangereuses et à améliorer les performances environnementales des
piles et accumulateurs et de tous les opérateurs de la chaîne d’approvisionnement.
INSTRUCTIONS DE RETRAIT, DE MISE AU REBUT ET DE RECYCLAGE DES
PILES ET ACCUMULATEURS USAGÉS
Pour retirer les piles de votre équipement ou de la télécommande, inversez la
procédure d’insertion des piles décrite dans le mode d’emploi.
Cette procédure est impossible sur les équipements munis d’une batterie intégrée
dont la durée de vie correspond à celle du produit. Dans ce cas, les centres de
recyclage ou de récupération sont chargés du démantèlement du produit et du retrait
de la batterie. Si, pour quelque raison que ce soit, vous devez remplacer ce type de
batterie, adressez-vous à un centre de services autorisé.
Dans l’Union européenne et dans d’autres régions, il est illégal de jeter les piles ou
accumulateurs usagés avec les ordures ménagères. Les piles et accumulateurs
doivent être mis au rebut dans le respect de l’environnement. Contactez l’entreprise
chargée de la gestion des déchets pour obtenir de plus amples informations sur la
collecte, le recyclage et la mise au rebut écologiques des piles et accumulateurs
usagés.
AVERTISSEMENT: danger d’explosion si la pile n’est pas correctement remplacée.
Pour réduire les risques de brûlure ou d’incendie, veillez à ne pas démonter, écraser,
percer ou court-circuiter la pile, l’exposer à une température supérieure à 60°C
(140°F), ou la jeter au feu ou dans l’eau. Lorsque vous remplacez les piles, utilisez
Le symbole de la poubelle barrée, illustré ci-dessous, indique la collecte séparée de
l’ensemble des piles et accumulateurs:
DÉCLARATION DE CONFORMITÉ
HARMAN International déclare que cet équipement est conforme aux exigences
essentielles et autres dispositions pertinentes de la directive 1999/5/CE concernant
les équipements hertziens et les équipements terminaux de télécommunications, à
d’écoconception applicables aux produits liés à l’énergie, et à la directive 2011/65/
UE relative à la limitation de l’utilisation de certaines substances dangereuses dans
les équipements électriques et électroniques. Vous pouvez consulter la déclaration de
conformité à la section Support de notre site Web, à l’adresse www.jbl.com.
