Quick Setup Guide
JBL SoundfLy™ AiR
Plug-in AirPlay speaker
Welcome
Thank you for purchasing the JBL Soundfly™ Air plug-in AirPlay
speaker. Soundfly Air will fill your room with sound from your iPod,
iPhone, iPad, Mac or PC computer with iTunes, while plugging directly
into an AC outlet and remaining practically invisible.

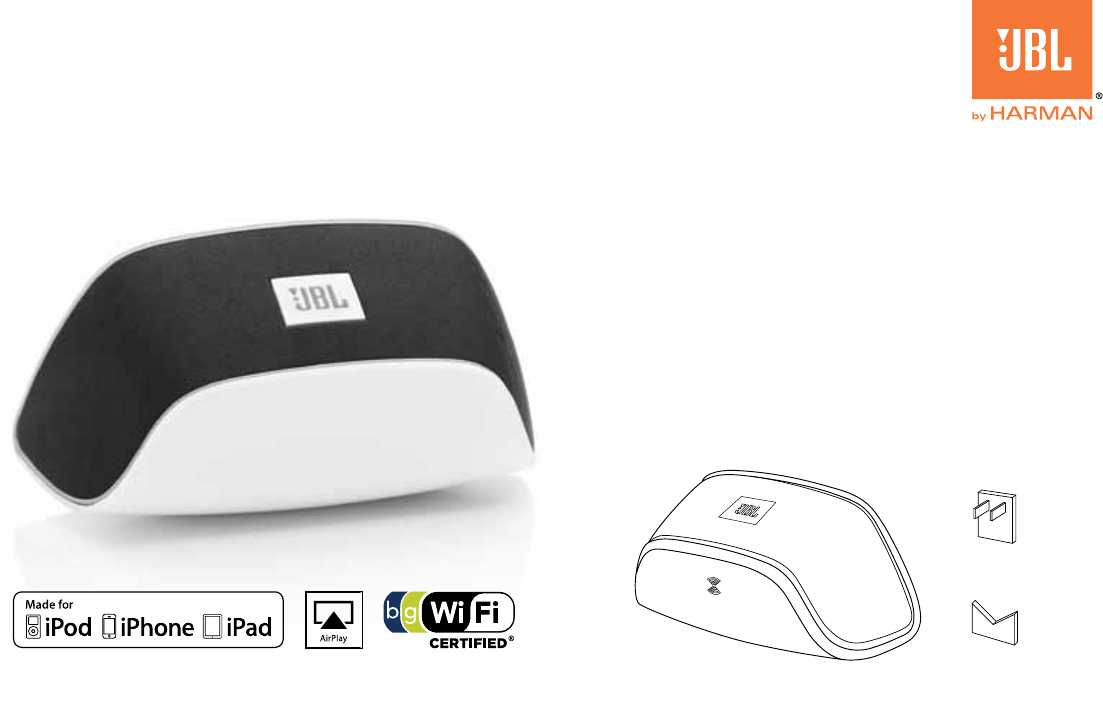

Included Items
JBL Soundfly Air
Unit AC Plug Adapter
(varies with region)
Support Pad
(varies with region)
2

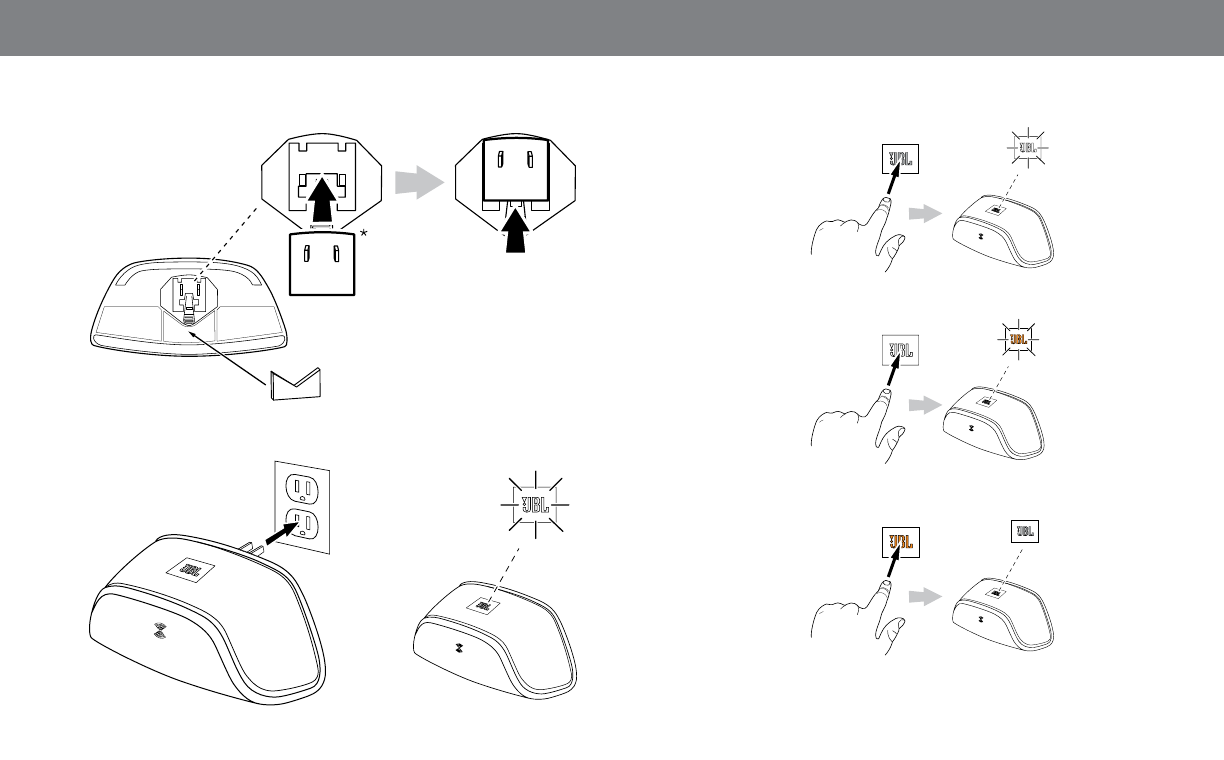

Plug soundfly AIr Into An Ac outlet
* If multiple adapters are supplied,
use the one that provides the most
secure fit in the AC outlet.
ON
turnIng soundfly AIr on And off
ON
SLEEP
ECO-STANDBY
3 sec.
Note: Soundfly Air will automatically enter the Sleep mode after 10
minutes of inactivity.
3
www.jbl.com
English
JoIn soundfly AIr WItH your WI-fI®
netWorK
Before you can stream audio to your Soundfly Air via AirPlay, you will
need to join your Soundfly Air with your home Wi-Fi® network. You will
only need to perform this operation one time.
IMPORTANT: Before performing the following steps, be sure your
home Wi-Fi network is operating.

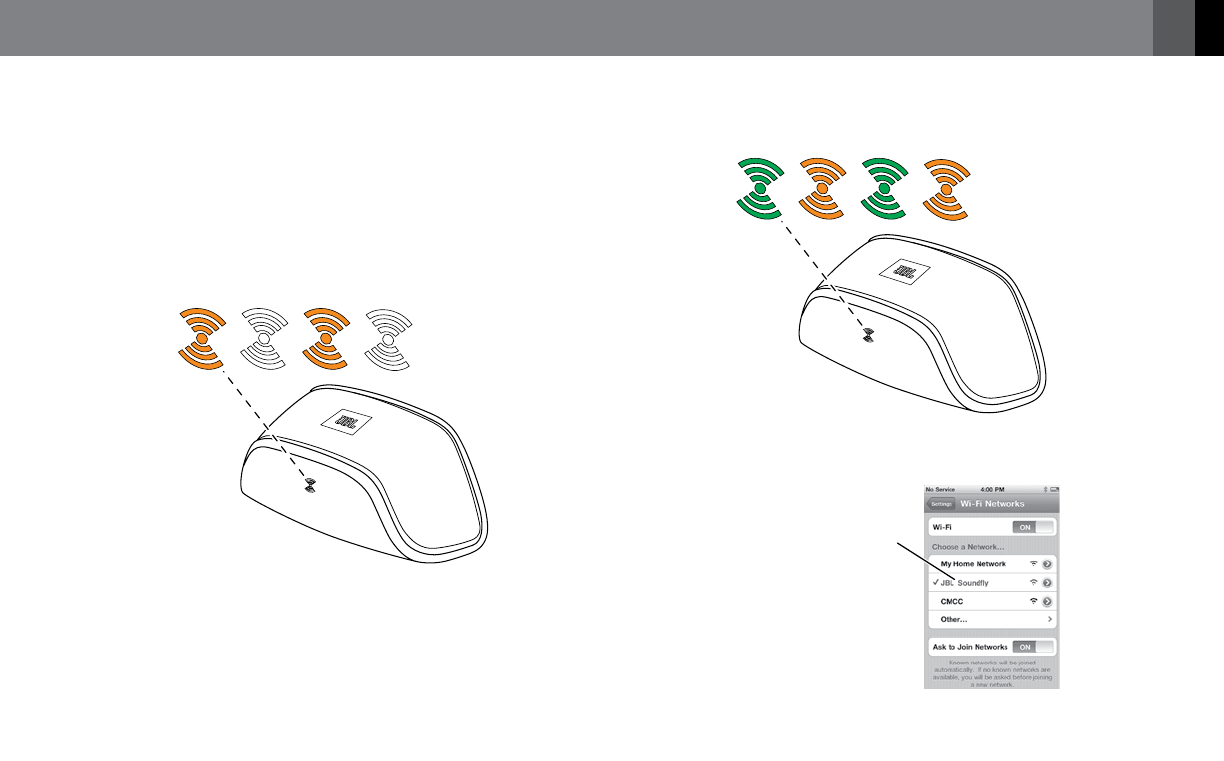

1. Make sure the Wi-Fi logo button’s LED is flashing amber.
2. Touch the Wi-Fi logo button for at least three seconds. The button’s
LED will alternately flash green and amber and Soundfly Air will be in
the Connect mode.
3. Open your iPod’s, iPhone’s or iPad’s Wi-Fi settings page and connect
to the “JBL Soundfly Air” network.
Select “JBL Soundfly”
Network
4
4. Once the iPod, iPhone or iPad is connected to the “JBL Soundfly
Air” network, open the device’s Web browser (Safari, Firefox, Internet
Explorer, etc.) and enter the following Web address: 192.168.1.1.
This address will display the JBL Soundfly Air’s Setup page.
• In the “Wireless Network SSID” drop-down box, select your home
Wi-Fi network’s name.
• If your network requires a password, enter it in the “WPA/WPA2
Passphrase” field.
5. Once the configuration is complete, Soundfly Air will connect to your
home Wi-Fi network, and its Wi-Fi button LED will change to solid
green.
IMPORTANT: Restore your iPod, iPhone or iPad Wi-Fi settings back to
your home Wi-Fi network.
Restore Device
to Your Home
Wi-Fi Network
You’re now ready to enjoy AirPlay streaming audio from your iOS
device!
5
www.jbl.com
English

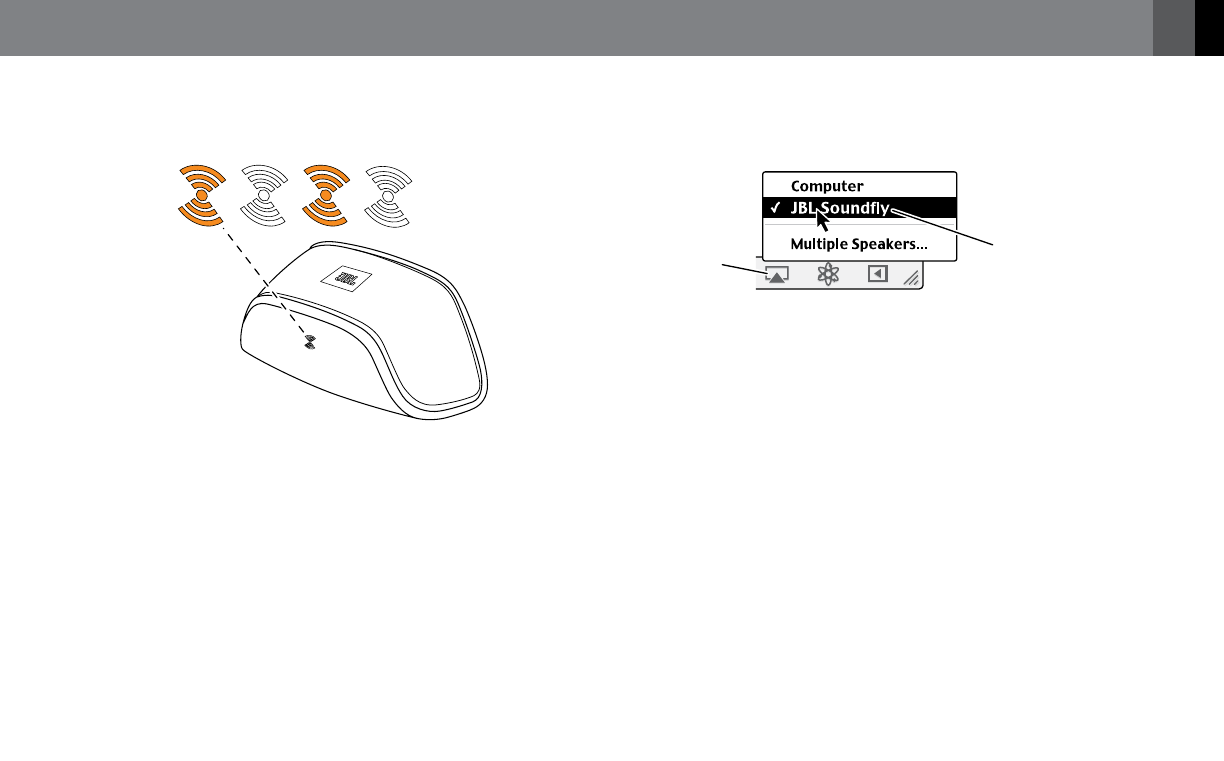

If The WI-fI CONNeCTION WAs UNsUCCessfUl
If Soundfly Air was unable to connect to your Wi-Fi network, the Wi-Fi
logo button LED will flash amber.
If this happens:
a) Touch the Wi-Fi button for more than three seconds to begin the
connection process again.
b) Repeat steps 2 – 5 to connect to your Wi-Fi network.
streAm AudIo to soundfly AIr
Your JBL Soundfly Air can play audio files or an Internet radio station
that is streaming from iTunes 10.1 (or newer) on a networked computer,
or from an iPod, iPhone or iPad with iOS 4.2 or later.
NOTE: Before you can begin AirPlay streaming, the JBL Soundfly Air
must be joined in the Wi-Fi network. (See Join Soundfly Air With Your
Wi-Fi Network, on page 3.)
To initiate streaming from the computer, launch iTunes, click on the
AirPlay button that appears at the bottom of the iTunes window, and
select “JBL Soundfly Air” in the pop-up list that appears.
AirPlay
button
Select
“JBL Soundfly”
from pop-up list
To initiate streaming from an iPod, iPhone or iPad tap the AirPlay button
on the screen and select “JBL Soundfly Air” in the speaker-selection list
that appears.
• If Soundfly Air is in the Sleep mode when you press Play in iTunes or
on the iPod, iPhone or iPad, Soundfly Air will automatically turn on,
and begin playing the streaming audio.
usIng tHe soundfly APP’s eAsy setuP
functIon
The free JBL Soundfly App has an easy setup function that simplifies
Soundfly Air’s Wi-Fi setup procedure.
1. Visit the iTunes App Store and download the JBL Soundfly Air app
into your iPod, iPhone or iPad.
6

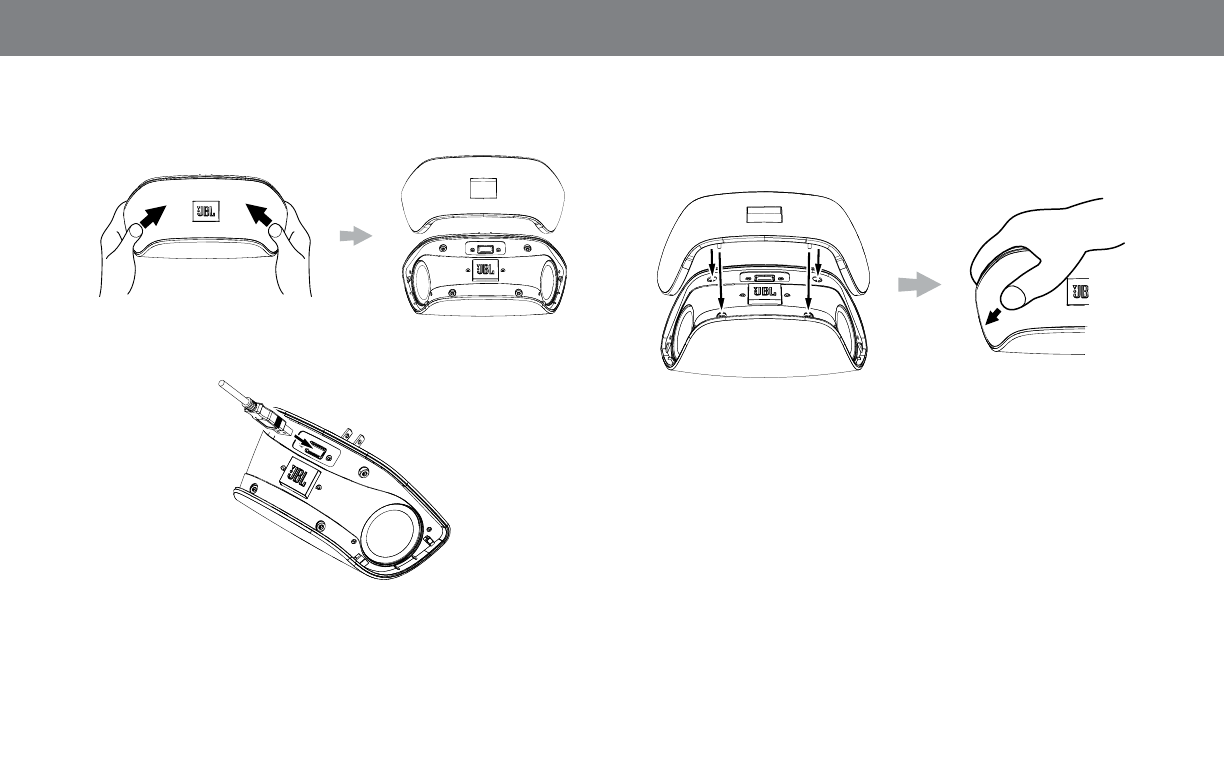

2. Unplug Soundfly Air from the wall outlet and remove its grille as
shown below.
3. Connect your iPod, iPhone or iPad to Soundfly Air’s USB port.
4. Plug Soundfly Air back into the wall outlet and wait until the power
LED illuminates solid white.
5. Launch the Soundfly Air app on your iPod, iPhone or iPad, and select
“Easy Setup.”
6. Follow the prompts in the app to complete the Wi-Fi setup.
7. Remove Soundfly Air from the wall outlet, remove the USB cable
from Soundfly Air and replace the grille as shown below.
8. Plug Soundfly Air back into the wall outlet. After the power LED
illuminates solid white the Wi-Fi LED should illuminate solid green to
indicate that Soundfly Air is joined with your Wi-Fi network.
NOTE: The JBL Soundfly App also allows you to change the EQ setting
to get the best sound wherever you plug in Soundfly Air.
7
www.jbl.com
English
troublesHootIng
syMPTOM POssIble PRObleM sOlUTION NOTe
No sound (Power button
LED is not illuminated)
Faulty AC connection Make sure that Soundfly Air is
plugged into a working AC outlet.
The Power button LED glows
white or amber when the unit is
receiving AC power.
No sound (Power button
LED glows amber.)
Soundfly Air is in Sleep mode. Touch the Power button. The Power button LED glows
white when the unit is on.
No sound (Power button
LED glows white.)
Soundfly Air is not joined with your
home Wi-Fi network.
Join Soundfly Air with your home
Wi-Fi network. See Join Soundfly Air
With Your Wi-Fi Network, on page 3.
The Wi-Fi LED illuminates solid
green when Soundfly Air is joined
with a Wi-Fi network.
The iOS device is out of range of
Soundfly Air
Move the device closer to Soundfly
Air.
Soundfly Air’s operational range is
approximately 33 feet (10m).
Sound crackles, hisses or
is distorted
The iOS device is overloading
Soundfly Air.
• Turn down the volume on the iOS
device.
• Set the EQ on the device to “Off”.
Loud hum or buzzing There is a ground loop with the AC
wiring.
• Unplug Soundfly Air and plug it into
a different AC outlet.
8
sPecIfIcAtIons
Amplifier power: 10 watts x 2
Frequency response: 60Hz – 20kHz
Signal-to-noise ratio: 80dB
Power requirement: 100V – 240V AC, 50Hz/60Hz
Power consumption: <0.5W (standby); 30W (maximum)
Dimensions (W x H x D): 7-1/2" x 2-13/16" x 3-5/8"
(71mm x 92mm x 190mm)
Weight: 0.9 lb (0.42kg)
9
www.jbl.com
English
fcc And Ic regulAtIons (usA And cAnAdA
only)
fCC ANd IC INfORMATION fOR UseRs
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt
RSS 210. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference; and (2) this device must accept any interference received,
including interference that may cause undesired operation.
RAdIO ANd TelevIsION INTeRfeReNCe
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and then on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Increase the separation between the equipment and the receiver.
• Connect the equipment to a different outlet so that the equipment and receiver are on
different branch circuits.
• Consult the dealer or an experienced radio/ TV technician for help.
NOTe: Changes or modifications not expressly approved by HARMAN could void the
user’s authority to operate the equipment.
Ic stAtement And WArnIng (cAnAdA only)
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe B est conforme à la norme NMB-003 du Canada.
ImPortAnt sAfety InstructIons
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has
two blades and a third grounding prong. The wide blade
or third prong is provided for your safety. If the provided
plug does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at the plugs, convenience receptacles and
the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specied by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as: when the power supply
cord or plug has become damaged, when liquid has been
spilled or objects have fallen into the apparatus, when
the apparatus has been exposed to rain or moisture,
when the apparatus does not operate normally, or the
apparatus has been dropped.
15. Do not expose this apparatus to dripping or splashing
and ensure that no objects lled with liquids, such as
vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC
mains, disconnect the power supply cord plug from the
AC receptacle.
17. The mains plug of the power supply cord shall remain
readily operable.
18. Do not expose batteries to excessive heat such as
sunshine, re or the like.
THE LIGHTNING FLASH WITH AN ARROWHEAD
SYMBOL, WITHIN AN EQUILATER AL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSUL ATED “DANGEROUS
VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE
THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
CAUTION
THE EXCL AMATION POINT WITHIN AN
EQUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE
SERVICING INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE PRODUCT.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
Hereby, HARMAN International Industries, Incorporated declares that this JBL
SOUNDFLY AIR is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC, ErP 2009/125/EC Directive and RoHS 2011/65/EU
Directive. The declaration of conformity may be consulted at the support section of our
Web site, accessible from www.jbl.com.
© 2012 HARMAN International Industries, Incorporated. All rights
reserved.
JBL is a trademark of HARMAN International Industries, Incorporated,
registered in the United States and/or other countries. Soundfly is a
trademark of HARMAN International Industries, Incorporated.
AirPlay, iPad, iPhone and iPod are trademarks of Apple Inc., registered
in the U.S. and other countries. “Made for iPod,” “Made for iPhone”
and “Made for iPad” mean that an electronic accessory has been
designed to connect specifically to iPod, iPhone and iPad, respectively,
and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards. iPod/iPhone/iPad
not included.
Wi-Fi and the Wi-Fi Certified logo are registered trademarks of the Wi-
Fi Alliance. Wi-Fi Certified is a trademark of the Wi-Fi Alliance.
Features, specifications and appearance are subject to change
without notice.
Part No. JBLP3272 Rev.: A
HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
For All Products:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
Install this apparatus in accordance with the
manufacturer’s instructions.
8. Do not install this apparatus near any heat
sources such as radiators, heat registers,
stoves or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding-type
plug has two blades and a third grounding
prong. The wide blade or the third prong
is provided for your safety. If the provided
plug does not t into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles and the point
where they exit from the apparatus.
11. Use only attachments/accessories
specied by the manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specied by the
manufacturer or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualied service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as when the power-supply cord or
plug is damaged, liquid has been spilled
or objects have fallen into the apparatus,
or the apparatus has been exposed to rain
or moisture, does not operate normally or
has been dropped.
15. Do not expose this apparatus to dripping
or splashing, and ensure that no objects
lled with liquids, such as vases, are
placed on the apparatus.
16. To disconnect this apparatus from the AC
mains completely, disconnect the power-
supply cord plug from the AC receptacle.
17. The mains plug of the power-supply cord
shall remain readily operable.
18. Do not expose batteries to excessive heat
such as sunshine, re or the like.
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
THE LIGHTNING FLASH WITH AN
ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
UNINSULATED “DANGEROUS VOLTAGE”
WITHIN THE PRODUCT’S ENCLOSURE THAT
MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK
TO PERSONS.
THE EXCLAMATION POINT WITHIN AN
EQUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE PRODUCT.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
cAutIoN
Fcc ANd Ic stAtEMENt For
usErs (usA ANd cANAdA
oNlY)
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
FEdErAl coMMuNIcAtIoN coMMIssIoN
INtErFErENcE stAtEMENt
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modications not expressly
approved by HARMAN could void the user’s
authority to operate the equipment.
For Products thAt trANsMIt rF
ENErgY:
FCC AND IC INFORMATION FOR USERS
This device complies with Part 15 of the FCC
rules and Industry Canada license-exempt RSS
210. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference; and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
FCC/IC Radiation Exposure Statement
This equipment complies with FCC/IC RSS-
102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should
be installed and operated with minimum distance
20cm between the radiator & your body.
For Products wIth rAdIo
rEcEIvErs thAt cAN usE
AN ExtErNAl ANtENNA (usA
oNlY):
cAtv (cAblE tv) or ANtENNA
grouNdINg
If an outside antenna or cable system is connected
to this product, be certain that it is grounded so as
to provide some protection against voltage surges
and static charges. Section 810 of the National
Electrical Code (NEC), ANSI/NFPA No. 70-1984,
provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna discharge unit, connection
to grounding electrodes and requirements of the
grounding electrode.
NotE to cAtv sYstEM INstAllEr:
This reminder is provided to call the CATV (cable
TV) system installer’s attention to article 820-40
of the NEC, which provides guidelines for proper
grounding and, in particular, species that the
cable ground shall be connected to the grounding
system of the building, as close to the point of
cable entry as possible.
IMPORTANT SAFETY INSTRUCTIONS
wEEE NotIcE
The Directive on Waste Electrical and Electronic
Equipment (WEEE), which entered into force as
European law on 13th February 2003, resulted
in a major change in the treatment of electrical
equipment at end-of-life.
The purpose of this Directive is, as a rst priority,
the prevention of WEEE, and in addition, to
promote the reuse, recycling and other forms of
recovery of such wastes so as to reduce disposal.
The WEEE logo on the product or on its box
indicating collection for electrical and electronic
equipment consists of the crossed-out wheeled
bin, as shown below.
This product must not be disposed of or dumped
with your other household waste. You are liable
to dispose of all your electronic or electrical
waste equipment by relocating over to the
specied collection point for recycling of such
hazardous waste. Isolated collection and proper
recovery of your electronic and electrical waste
equipment at the time of disposal will allow us
to help conserving natural resources. Moreover,
proper recycling of the electronic and electrical
waste equipment will ensure safety of human
health and environment. For more information
about electronic and electrical waste equipment
disposal, recovery, and collection points, please
contact your local city center, household waste
disposal service, shop from where you purchased
the equipment, or manufacturer of the equipment.
rohs coMPlIANcE
This product is in compliance with Directive
2011/65/EU of the European Parliament and
of the Council of 8 June 2011 on the restriction
of the use of certain hazardous substances in
electrical and electronic equipment.
For Products thAt INcludE
bAttErIEs
EU Batteries Directive 2006/66/EC
A new battery directive 2006/66/EC on Battery
and Accumulator replacing directive entered
into force on the 26th September 2008. The
directive applies to all types of batteries and
accumulators (AA, AAA, button cells, lead acid,
rechargeable packs) including those incorporated
into appliances except for military, medical and
power tool applications.
The directive sets out rules for collection,
treatment, recycling and disposal of batteries, and
aims to prohibit certain hazardous substances
and to improve environmental performance of
batteries and all operators in the supply chain.
Instructions for Users on Removal,
Recycling and Disposal of Used Batteries
To remove the batteries from your equipment
or remote control, reverse the procedure
described in the owner’s manual for inserting
batteries.
For products with a built-in battery that lasts for
the lifetime of the product, removal may not be
possible for the user. In this case, recycling or
recovery centers handle the dismantling of the
product and the removal of the battery. If, for any
reason, it becomes necessary to replace such
a battery, this procedure must be performed by
authorized service centers.
In the European Union and other locations, it is
illegal to dispose of any battery with household
trash. All batteries must be disposed of in an
environmentally sound manner. Contact your
local waste-management ofcials for information
regarding the environmentally sound collection,
recycling and disposal of used batteries.
WARNING: Danger of explosion if battery is
incorrectly replaced. To reduce risk of re or
burns, don’t disassemble, crush, puncture,
short external contacts, expose to temperature
above 60°C (140°F), or dispose of in re or water.
Replace only with specied batteries.
The symbol indicating ‘separate collection’ for all
batteries and accumulators shall be the crossed-
out wheeled bin shown below:
In case of batteries, accumulators and button
cells containing more than 0.0005 % mercury,
more than 0.002 % cadmium or more than
0.004 % lead, shall be marked with the chemical
symbol for the metal concerned: Hg, Cd or Pb
respectively. Please Refer to the below symbol:
For All Products ExcEPt thosE
wIth wIrElEss oPErAtIoN:
HARMAN International hereby declares that
this equipment is in compliance with the EMC
2004/108/EC Directive, LVD 2006/95/EC Directive,
ErP 2009/125/EC Directive and RoHS 2011/65/
EU Directive. The declaration of conformity may be
consulted in the support section of our Web site,
accessible from www.jbl.com.
For All Products wIth wIrElEss
oPErAtIoN:
HARMAN International hereby declares that this
equipment is in compliance with the essential
requirements and other relevant provisions
of Directive 1999/5/EC, ErP 2009/125/EC
Directive and RoHS 2011/65/EU Directive The
declaration of conformity may be consulted in the
support section of our Web site, accessible from
www.jbl.com.
www.jbl.com
© 2012 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.
Blu-ray Disc is a trademark of the Blu-ray Disc Association.
Features, specications and appearance are subject to change without notice.
HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
IMPORTANT SAFETY INSTRUCTIONS
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radioexempts de
licence. L'exploitationest autorisée aux deux conditions
suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement."
RSS-102 Statement: This equipment complies with Industry
Canada radiation exposure limits set forth for an uncontrolled
environment.
Déclaration CNR-102: Cet équipement est conforme à
l'exposition aux rayonnements Industry Canada limites
établies pour un enviro-nement non contrôlé.
