Quick Setup Guide
JBL SoundfLy™ Bt
Plug-in wireless speaker
Welcome
Thank you for purchasing the JBL Soundfly™ BT plug-in wireless
speaker. Soundfly BT will fill your room with sound from your portable
Bluetooth-enabled device while plugging directly into an AC outlet and
remaining practically invisible.

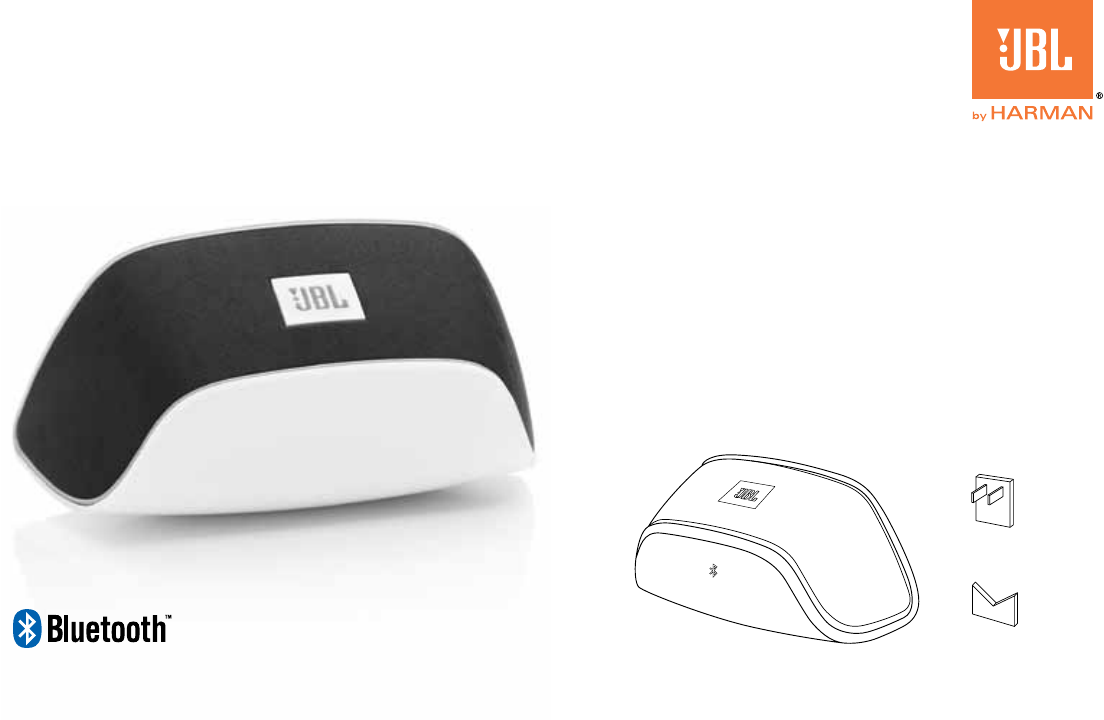

Included Items
JBL Soundfly BT
Unit AC Plug Adapter
(varies with region)
Support Pad
(varies with region)
2

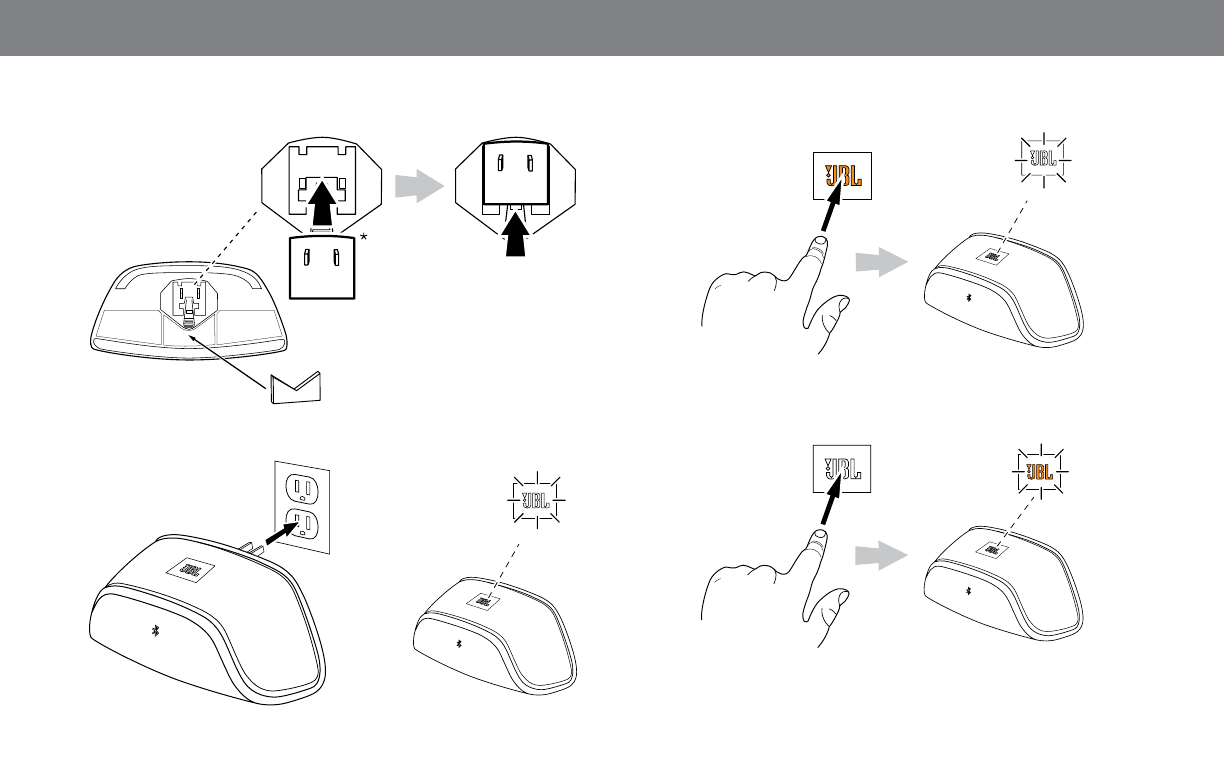

Plug soundfly Bt Into an ac outlet
* If multiple adapters are supplied,
use the one that provides the most
secure fit in the AC outlet.
ON
turnIng soundfly Bt on and off
ON
STANDBY
Note: Soundfly BT will automatically enter the Standby mode after 10
minutes of inactivity.
3
www.jbl.com
English

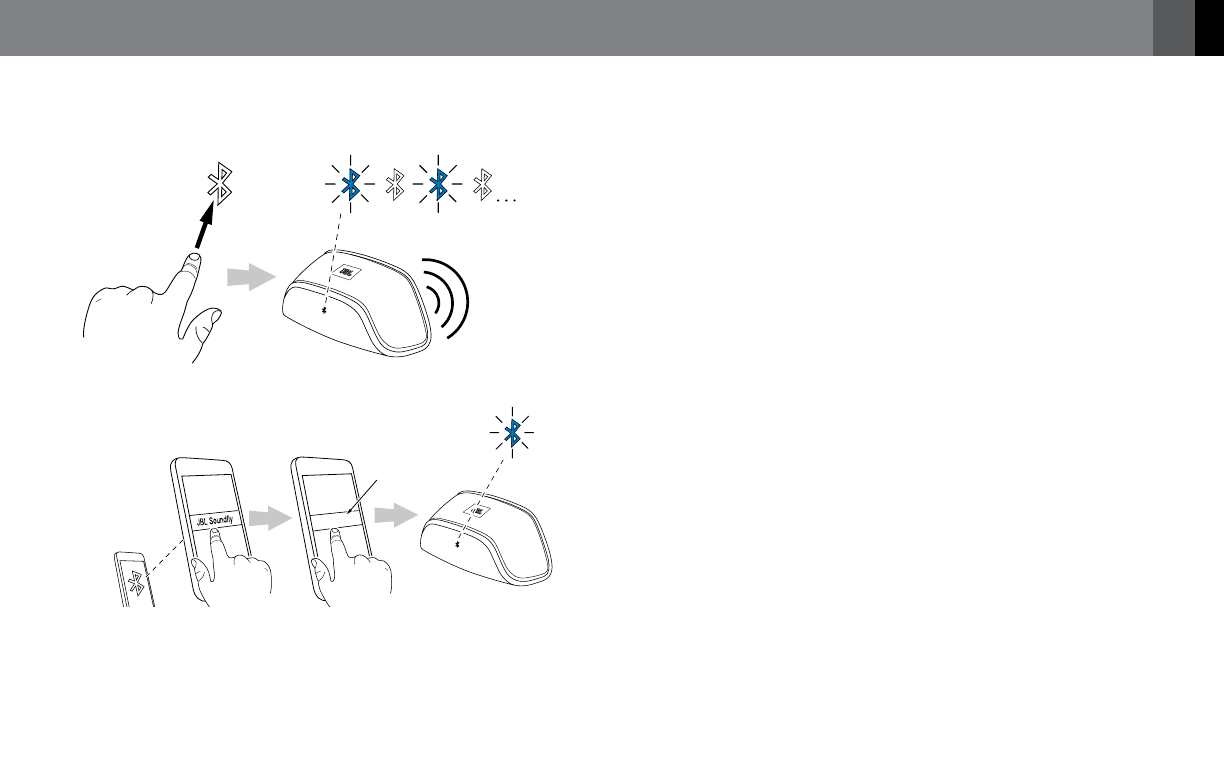

PaIr soundfly Bt WIth your Bluetooth
devIce
“ BLUETOOTH
IS IN PAIRING
MODE”
0000
If passkey
is required,
enter “0000”
NOTE: Bluetooth pairing between two devices does not have to be
repeated after a successful initial pairing unless you remove Soundfly
BT from the paired device’s Bluetooth device list. To un-pair Soundfly
BT from the current device, press and hold the Bluetooth logo button.
stream your audIo on soundfly Bt
Soundfly BT will automatically turn from Standby to On when it receives
a streaming audio signal from a Bluetooth-capable device. Use your
Bluetooth-enabled device to control the volume and other playback
functions. The maximum streaming range is approximately 33 feet
(10m) from the Soundfly BT unit.
JBl easy connect aPPlIcatIon
The JBL Easy Connect application is downloadable free from the
Android® Market at market.android.com. The JBL Easy Connect
Application features:
• Controls for Soundfly BT’s digital sound processing (DSP) that
enables you to get the best sound wherever you plug in Soundfly BT.
• A music player with a music browser function.
• One touch Bluetooth operation.
uPgradIng fIrmWare
Your Soundfly BT has upgradeable firmware that lets you take
advantage of new features and improvements as they become
available. Go to www.jbl.com for information about checking your unit’s
firmware version and instructions on upgrading to a newer firmware
version.
4
trouBleshootIng
Symptom poSSible problem Solution note
No sound (Power button
LED is not illuminated)
Faulty AC connection Make sure that Soundfly BT is
plugged into a working AC outlet.
The Power button LED glows
white or amber when the unit is
receiving AC power.
No sound (Power button
LED glows amber.)
Soundfly BT is in Standby mode. Touch the Power button. The Power button LED glows
white when the unit is on.
The Bluetooth-enabled device is out
of range of Soundfly BT
Move the device closer to Soundfly
BT.
Soundfly BT’s operational range is
approximately 33 feet (10m).
No sound (Power button
LED glows white.)
Soundfly BT is not paired with a
Bluetooth-enabled device.
Pair Soundfly BT with a Bluetooth-
enabled device. See Pair Soundfly
BT with Your Bluetooth Device, on
page 3.
The Pairing LED illuminates solid
blue when Soundfly BT is paired
with a Bluetooth-enabled device.
Sound crackles, hisses or
is distorted
The Bluetooth-enabled device is
overloading Soundfly BT.
• Turn down the volume on the
Bluetooth-enabled device.
• Set the EQ on the device to “Off”.
Loud hum or buzzing There is a ground loop with the AC
wiring.
• Unplug Soundfly BT and plug it into
a different AC outlet.
The Bluetooth-enabled device
does not pair with Soundfly
BT
Soundfly BT is not in pairing mode. Touch the Pairing button on Soundfly
BT.
The Pairing LED flashes blue when
Soundfly BT is in the pairing mode.
Bluetooth-enabled device’s battery
is low.
Recharge the device’s battery
following the instructions in its user
manual.
The device is not compatible with
Soundfly BT.
Verify compatibility with the device’s
manufacturer.
5
www.jbl.com
English
sPecIfIcatIons
Amplifier power: 10 watts x 2
Frequency response: 60Hz – 20kHz
Signal-to-noise ratio: 80dB
Power requirement: 100V – 240V AC, 50Hz/60Hz
Power consumption: <0.5W (standby); 30W (maximum)
Dimensions (W x H x D): 7-1/2" x 2-13/16" x 3-5/8"
(71mm x 92mm x 190mm)
Weight: 0.9 lb (0.42kg)
6
fcc and Ic regulatIons (usa and canada
only)
FCC and iC inFormation For uSerS
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt
RSS 210. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference; and (2) this device must accept any interference received,
including interference that may cause undesired operation.
radio and televiSion interFerenCe]
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and then on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Increase the separation between the equipment and the receiver.
• Connect the equipment to a different outlet so that the equipment and receiver are on
different branch circuits.
• Consult the dealer or an experienced radio/ TV technician for help.
note: Changes or modifications not expressly approved by HARMAN could void the
user’s authority to operate the equipment.
Ic statement and WarnIng (canada only)
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe B est conforme à la norme NMB-003 du Canada.
ImPortant safety InstructIons
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has
two blades and a third grounding prong. The wide blade
or third prong is provided for your safety. If the provided
plug does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at the plugs, convenience receptacles and
the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specied by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as: when the power supply
cord or plug has become damaged, when liquid has been
spilled or objects have fallen into the apparatus, when
the apparatus has been exposed to rain or moisture,
when the apparatus does not operate normally, or the
apparatus has been dropped.
15. Do not expose this apparatus to dripping or splashing
and ensure that no objects lled with liquids, such as
vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC
mains, disconnect the power supply cord plug from the
AC receptacle.
17. The mains plug of the power supply cord shall remain
readily operable.
18. Do not expose batteries to excessive heat such as
sunshine, re or the like.
THE LIGHTNING FLASH WITH AN ARROWHEAD
SYMBOL, WITHIN AN EQUILATER AL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSUL ATED “DANGEROUS
VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE
THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
CAUTION
THE EXCL AMATION POINT WITHIN AN
EQUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE
SERVICING INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE PRODUCT.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
Hereby, HARMAN International Industries, Incorporated declares that this JBL
SOUNDFLY BT is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC, ErP 2009/125/EC Directive and RoHS 2011/65/EU
Directive. The declaration of conformity may be consulted at the support section of our
Web site, accessible from www.jbl.com.
7
www.jbl.com
English
© 2012 HARMAN International Industries, Incorporated. All rights
reserved.
JBL is a trademark of HARMAN International Industries, Incorporated,
registered in the United States and/or other countries. Soundfly is a
trademark of HARMAN International Industries, Incorporated.
Android is a trademark of Google Inc. Use of this trademark is subject
to Google Permissions.
The Bluetooth word mark and logo are registered trademarks and
are owned by the Bluetooth SIG, Inc., and any use of such marks by
HARMAN International Industries, Incorporated, is under license.
Features, specifications and appearance are subject to change
without notice.
Part No. JBLP3271 Rev.: A
HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
