10.0 Parts List

When ordering Parts, please provide the Hoist code number and serial number located on the Hoist nameplate (see

Figure 10.1 below).

Reminder: Per Sections 1.1 and 3.14 to aid in ordering Parts and Product Support, record the Hoist code and serial

number in the space provided on the cover of this manual.

Figure 10

-1 AH Name Plate

The parts list is arranged into the following sections:

Section Page

10.1 Main Body……………………………………………………………….……………………………........48

10.2 Valve Body……………………………………………………………………………………………........50

10.3 Manipulator Control……..………………………………………………….……………………………...52

10.4 Optional Components…………………………………………………...…………………………………54

10.1 Main Body

48

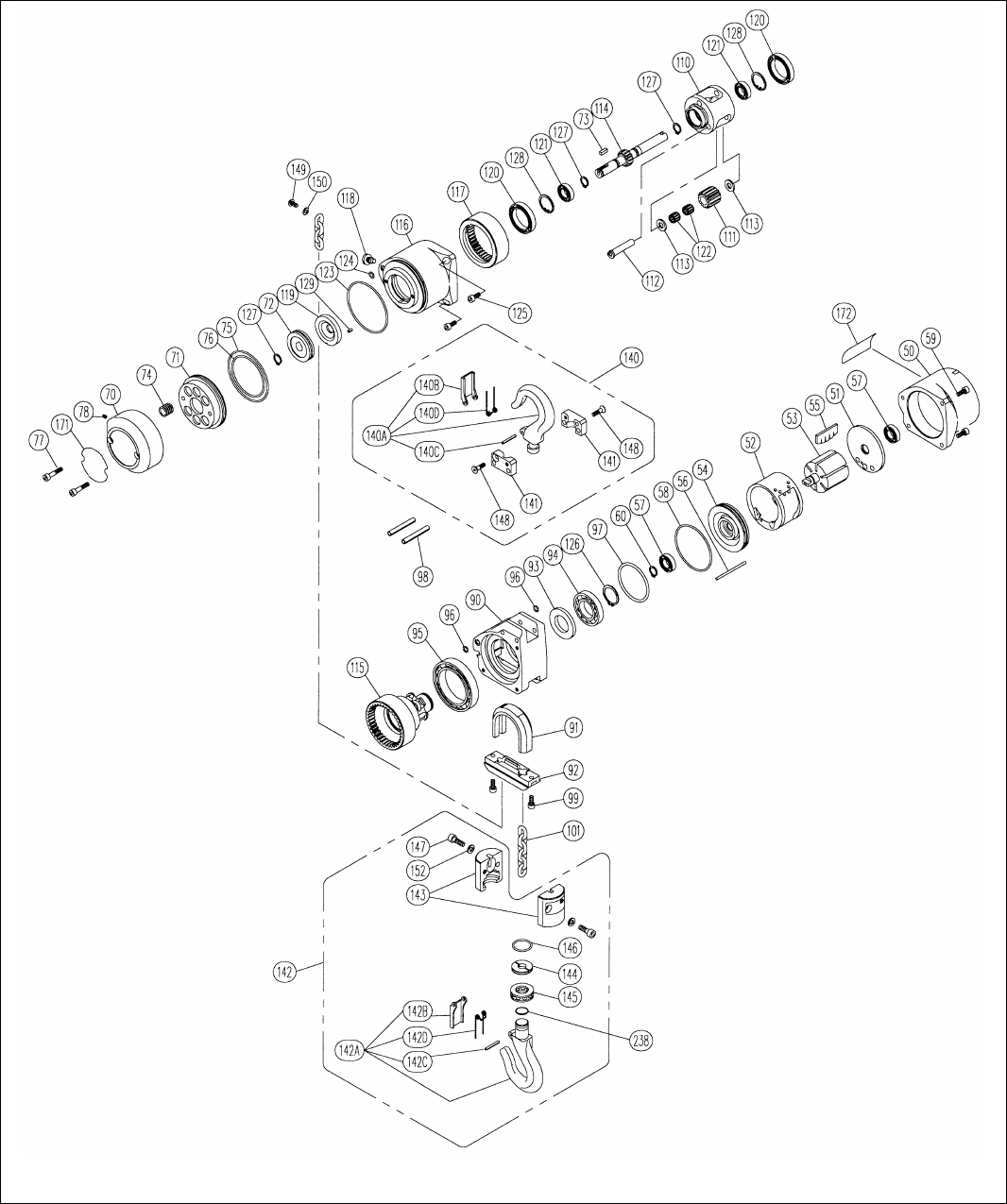

Figure 10-2 AH250 / AH500 Main Body

Main Body

49

Figure

Number Name Parts

Per

Hoist Part Number

50 Motor Case 1 AH426205790

51 Rear Plate 1 AH426205180

52 Cylinder 1 AH426205160

53 Rotor 1 AH426205150

54 Front Plate 1 AH426205170

55 Vane 6 AH137102018

56 Knock Pin 1 AH130402049

57 Bearing 2 9001208

58 O-Ring 1 AH131103044

59 Socket Bolt 3 9091227

60 Retaining Ring 1 9047112

70 Brake Cover 1 AH426205410

71 Brake Piston 1 AH426205400

72 Brake Disk 1 AH426205430

73 Key 1 AH130408079

74 Brake Spring 6 AH130802207

75 O-Ring 1 AH131103047

76 O-Ring 1 AH131103042

77 Socket Bolt 2 9091231

78 Set Screw 1 AH132104005

90

Wheel Housing

– Cord and Pendant Models 1 AH426205210

Wheel Housing

– Manipulator Model 1 AH426215210

91 Chain Guide 1 AH426205350

92 Chain Separator 1 AH136610025

93 Spacer 1 AH426205230

94 Bearing 1 9001207

95 Bearing 1 9001205

96 O-Ring 2 TCR131103004

97 O-Ring 1 AH131102006

98 Spring Pin 2 91481110

99 Socket Bolt 2 9091227

101 Load Chain ft (m) LCED125

110 Cage 1 AH426205240

111 Star Gear 3 AH426205250

112 Pin 3 AH426205260

113 Thrust Collar 6 AH426205270

114 Pinion 1 AH426205290

115 Load Sheave 1 AH426205300

116 Gear Case 1 AH426205310

117 Ring Gear 1 AH426205320

Figure

Number Name Parts

Per

Hoist Part Number

118 Lock Screw 1 AH426205890

119 Brake Plate 1 AH426205900

120 Bearing 2 9001206

121 Bearing 2 AH130113003

122 Needle Bearing 6 AH130170013

123 O-Ring 1 AH131103047

124 O-Ring 1 TCR131103004

125 Socket Bolt 3 9091227

126 Retaining Ring 1 9047125

127 Retaining Ring 3 9047112

128 Retaining Ring 2 9047224

129 Spring Pin 1 9148121

140 Top Hook Complete Set 1 AH42620557G

140A Top Hook Assy. 1 AH420810PAE

140B Hook Latch 1 AH420620P10

140C Spring Pin 1 TCR130603024

140D Latch Spring 1 TCR130802046

141 Top Yoke Pair 1 AH426205570

148 Hex Flat Head Machine Screw 2 AH132805018

142

Bottom Hook Complete Set –

250 lbs 1 AH42620593H

Bottom Hook Complete Set –

500 lbs 1 AH42620593G

142A Bottom Hook Assy. 1 AH42620593A

142B Hook Latch 1 AH420620P10

142C Spring Pin 1 TCR130603024

142D Latch Spring 1 TCR130802046

143 Bottom Yoke Pair – 250 lbs 1 AH42620580H

Bottom Yoke Pair – 500 lbs 1 AH426205800

144 Hook Thrust Plate Pair 1 AH426205910

145 Thrust Bearing 1 AH130121103

146 O-Ring 1 AH131103017

147 Socket Bolt 2 9091250

152 Spring Washer 2 AH131310006

149 Button Head Screw 1 AH131905010

150 Washer 1 9012510

170 Brand Name Plate 1 AH137309264

171 Name Plate – AH250 1 80064

Name Plate – AH500 AH137309262

172 Logo Name Plate 1 80063

238 O-Ring – Manipulator Model Only 1 AH131101015

10.2 Valve Body

50

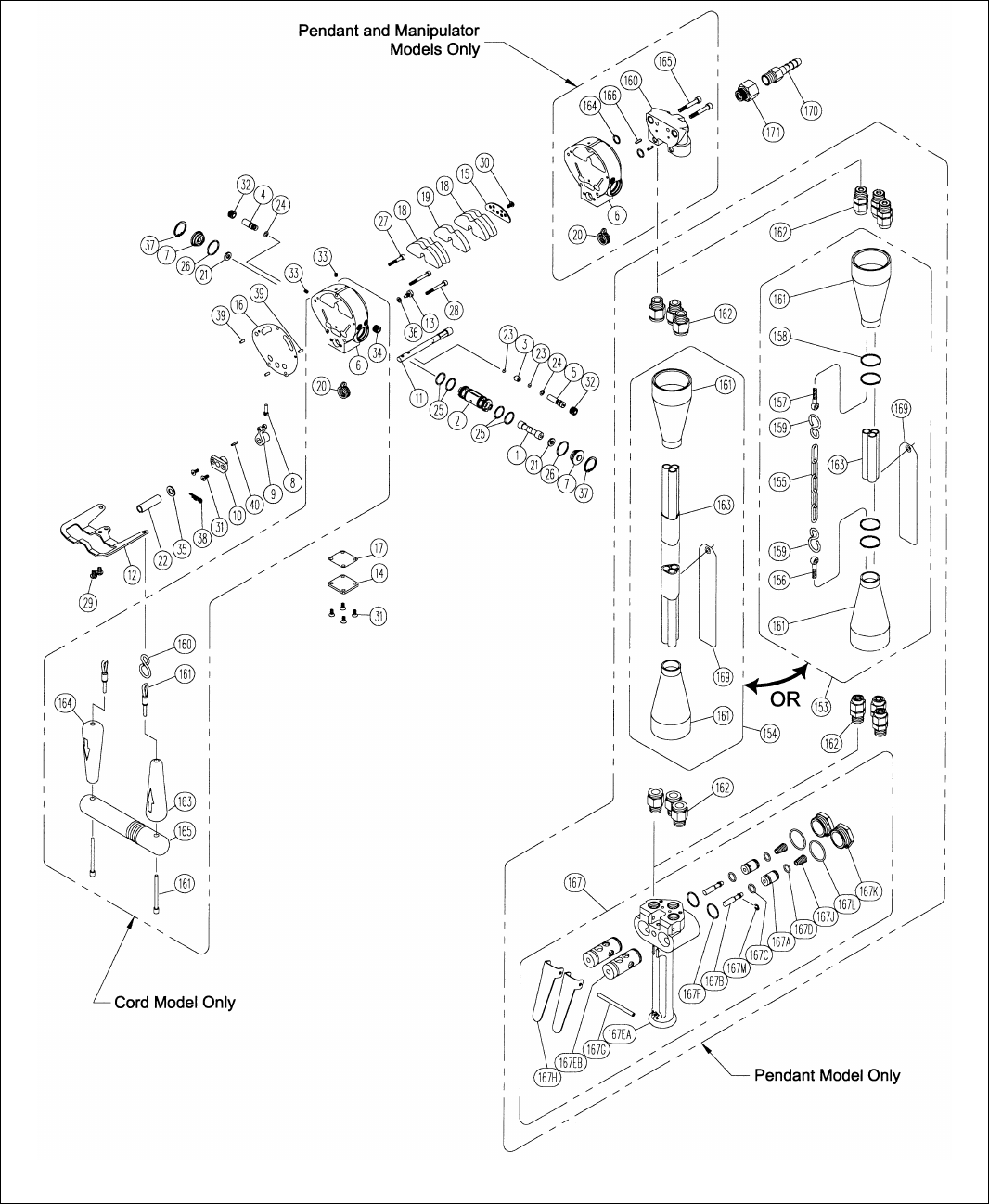

Figure 10-3 AH250 / AH500 Valve Body

Valve Body

51

Figure

Number Name Parts

Per

Hoist Part Number

1 Main Spool 1 AH426205010

2 Valve Bush 1 AH426205780

3 Shuttle 1 AH426205870

4 Valve Seat R 1 AH426205830

5 Valve Seat L 1 AH426205840

7 Side Cover 2 AH426205080

8 Valve Pin 1 AH426205850

9 Limit Lever 1 AH426205140

10 Limit Guide 1 AH426205100

11 Limit Shaft 1 AH426205460

12 Chain Lever 1 AH426205110

13 Stopper 1 AH426205860

14 Under Cover 1 AH426205470

15 Exhaust Plate 1 AH426205810

16 Valve Packing 1 AH136102151

17 Under Packing 1 AH136102153

18 Silencer S 4 AH137402022

19 Silencer F 1 AH137402021

21 Bumper 2 AH136406025

22 Protector 1 AH426205880

23 O-Ring 2 AH131117004

24 O-Ring 2 AH131103003

25 O-Ring 4 AH131103014

26 O-Ring 2 AH131103016

27 Socket Bolt 1 9091209

28 Socket Bolt 2 9091210

29 Button Head Screw 2 AH131905008

30 Button Head Screw 1 AH131904008

31 Hex Flat Head Machine Screw 6 AH132804010

32 Set Screw 2 AH132110008

33 Set Screw 3 AH132104005

35 Washer 1 9012513

36 Washer 1 9012510

37 Retaining Ring 2 9047222

38 Hair Pin Cotter 1 AH130790008

39 Parallel Pin 3 AH130406017

40 Spring Pin 1 9148116

170 Hose Stem 1 AH134803040

171 Inlet Bushing w/Screen 1 AH134703050

Pendant and Manipulator Models Only:

Figure

Number Name Parts

Per

Hoist Part Number

6 Valve Body 1 AH426206060

20 Valve Spring 1 AH130802209

160 Manifold Block 1 AH426206941

164 O-Ring 2 TCR131103008

165 Socket Bolt 2 9091232

166 Spring Pin 2 9148123

Cord Model Only:

Figure

Number Name Parts

Per

Hoist Part Number

6 Valve Body 1 AH426205060

20 Valve Spring 1 AH130802208

34 Hex Socket Pipe Plug 1 TCR134902003

160 S-Type Wire 2 TCR130802081

161R Red Cord (Down) ft (m) 9013102

161W White Cord (Up) ft (m) 9013101

163 Grip W 1 AH136602625

164 Grip R 1 AH136602626

165 Handle 1 AH136602627

Pendant Model Only:

Figure

Number Name Parts

Per

Hoist Part Number

153 Pendant Hose Assy.

(Three hoses) 1 60472

155 Cord Chain ft (m) ES625003

156 Eye Bolt 1 9044403

157 Eye Bolt 1 9044401

158 Split Ring A/R AH130802093

159 S-Type Wire 2 TCR130802081

161 Boot 2 AH136608250

163 Hose 3@ ft

(m) 9013141

169 Warning Tag 1 WTAG7

162 Hose Fittings 6 AH137291310

154 Pendant Tube Assy.

(Molded Tubing) 1 60471

161 Boot 2 AH136608250

163 Pendant Hose ft (m) AH1372400HS

169 Warning Tag 1 WTAG7

162 Tube Fitting 6 AH137288030

167 Pendant Valve CP 1 AH420215VBC

167A Throttle Valve 2 AH420215VB0

167B Push Rod 2 AH420215VC0

167C O-Ring 2 AH131118012

167D O-Ring 2 AH131117013

167E Pendant Valve Body CP 1 AH420215VRB

167EA Pendant Valve Body 1 AH420215VR0

167EB Bushing 2 AH420214VF0

167F O-Ring 2 AH131103016

167G Spring Pin 2 9148176

167H Pendant Valve Lever 2 AH420210VH0

167J Valve Spring 2 AH130802030

167K Pendant Valve Cap 2 AH420214V10

167L O-Ring 2 TCR131103022

167M E-Ring 2 AH130303004

10.3 Manipulator Control

52

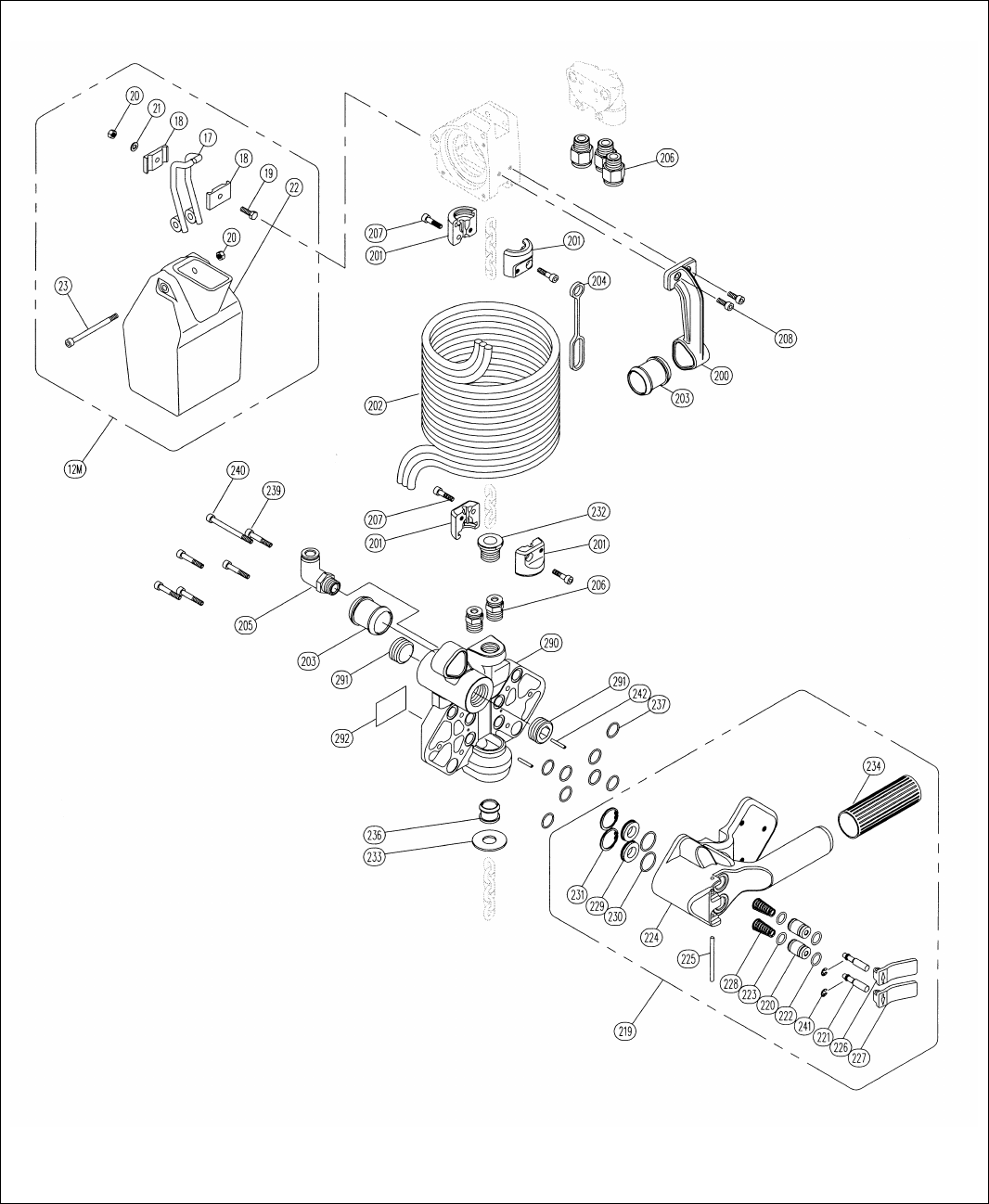

Figure 10-4 AH250M / AH500M Manipulator Control

Manipulator Control

53

Figure

Number Name Parts

Per

Hoist Part Number

12M Chain Basket CP 1 AH42621592C

17 Bucket Arm Assembly (pair) 1 pr. AH426205920

18 Arm Holder 2 AH426205820

19 Bolt 1 90933177

20 U-Nut 2 E2D853125

21 Washer 1 9012510

22 Chain Basket 1 AH139003026

23 Socket Bolt 1 9091239

200 Hose Arm 1 AH426215960

201 Hanger Half 4 AH426215B30

202 Coil Hose – Std. 6.5 ft lift 1 AH137202018

Coil Hose – Opt. 13 ft lift 1 AH137202019

203 Rubber Bushing 2 AH136608252

204 Hose Support 1 AH136608253

205 Tube Fitting 1 AH137289310

206 Tube Fitting 5 AH137290310

207 Socket Bolt 4 9091229

208 Socket Bolt 2 9091227

219 Throttle Valve Complete 1 AH42621597D

220 Throttle Valve 2 AH420215VB0

221 Push Rod 2 AH420215VC0

222 O-Ring 2 AH131118012

223 O-Ring 2 AH131117013

224 Throttle Valve Body CP 1 AH42621597B

225 Lever Pin 1 AH130402048

226 Throttle Lever Up 1 AH420985UY0

227 Throttle Lever Down 1 AH420985UZ0

228 Valve Spring 2 AH130802221

229 Spring Seat 2 AH426215B00

230 O-Ring 2 AH131103016

231 Retaining Ring 2 9047224

234 Grip 1 AH136608140

241 Retaining Ring 2 AH130303004

232 Rotary Joint 1 AH426215B40

233 Hook Protector 1 AH136201200

236 Rubber Bushing 1 AH136608251

237 O-Ring 8 AH131103013

238 O-Ring 1 AH131101015

239 Button Head Screw 5 AH131905030

Figure

Number Name Parts

Per

Hoist Part Number

240 Button Head Screw 1 AH131905060

242 Spring Pin 2 9148123

290 Shield 1 AH426215B20

291 Hex Socket Pipe Plug 2 AH134901006

292 Manipulator Warning Tag 1 AH137304071

10.4 Optional Components

54

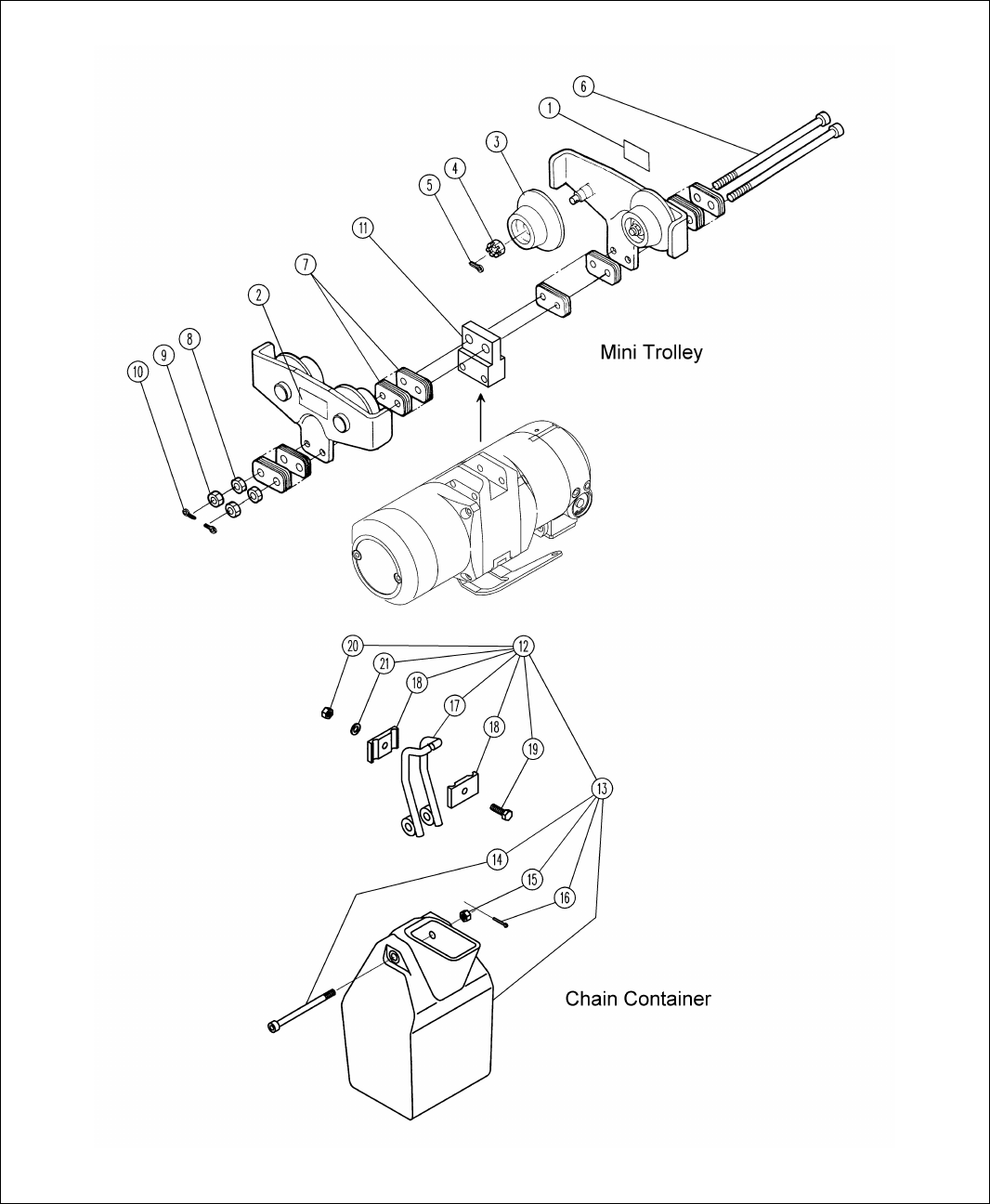

Figure 10-5 Optional Components

Optional Components

55

Mini Trolley:

Figure

Number Name Parts

Per

Trolley

Part Number

1 Name Plate C 1 ET25801525

2 Name Plate B 1 ET25800525

3 Track Wheel Assembly 4 ET255102525

4 Slotted Nut 4 M2049010

5 Split Pin 4 9009411

6 Socket Bolt 2 ET25115525

7 Adjusting Spacer 32 ET25116525

8 Nut 2 9093424

9 U-Nut 2 ET25155525

10 Split Pin 2 9009411

11 Suspender 1 60456

Chain Containers for Cord and Pendant Models*:

Figure

Number Name Parts

Per

Hoist

Part Number

10 ft Max. Lift 20 ft Max. Lift

12 Chain Container CP 1 K00037 K00038

13 Chain Container

– For Cord and Pendant

Models Only* 1 E2D1831125 E2D1835125

14 Socket Bolt BP 1 E2D854125

15 U-Nut 1 E2D853125

16 Split Pin 1 9009402

17 Bucket Arm Assembly (pair) 1 pr. AH426205920

18 Arm Holder 2 AH426205820

19 Bolt 1 90933177

20 U-Nut 1 E2D853125

21 Washer 1 9012510

*See page 52 & 53 “Manipulator Control” for the Manipulator Chain Container.
