Harsper HL-370V LCD Monitor TV User Manual ATT E Manual

Harsper Co., Ltd. LCD Monitor TV ATT E Manual

Users Manual

FCC ID : O5XHL-370V HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-FO5-0916 1/1 ATTACHMENT E. - USER’S MANUAL -

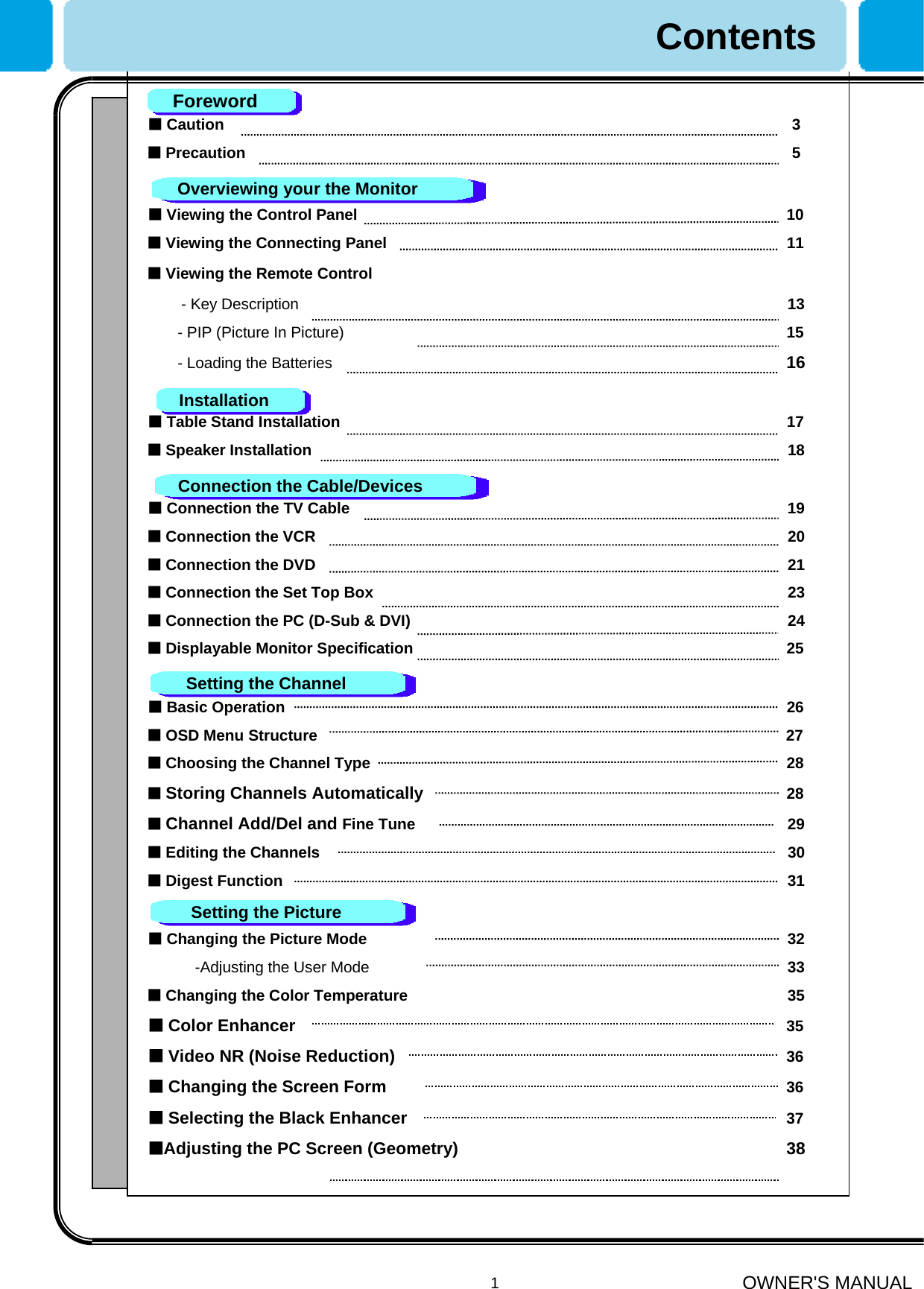

OWNER'S MANUAL1■Caution 3■Precaution 5■Viewing the Control Panel 10■Viewing the Connecting Panel 11■Viewing the Remote Control- Key Description 13- PIP (Picture In Picture) 15- Loading the Batteries 16■Table Stand Installation 17■Speaker Installation 18■Connection the TV Cable 19■Connection the VCR 20■Connection the DVD 21■Connection the Set Top Box 23■Connection the PC (D-Sub & DVI) 24■Displayable Monitor Specification 25 ■Basic Operation 26■OSD Menu Structure 27■Choosing the Channel Type 28■Storing Channels Automatically 28■Channel Add/Del and Fine Tune 29■Editing the Channels 30■Digest Function 31■Changing the Picture Mode 32-Adjusting the User Mode 33■Changing the Color Temperature 35■Color Enhancer 35■Video NR (Noise Reduction) 36■Changing the Screen Form 36■Selecting the Black Enhancer 37■Adjusting the PC Screen (Geometry) 38ForewordOverviewing your the MonitorInstallationConnection the Cable/DevicesSetting the ChannelSetting the PictureContents

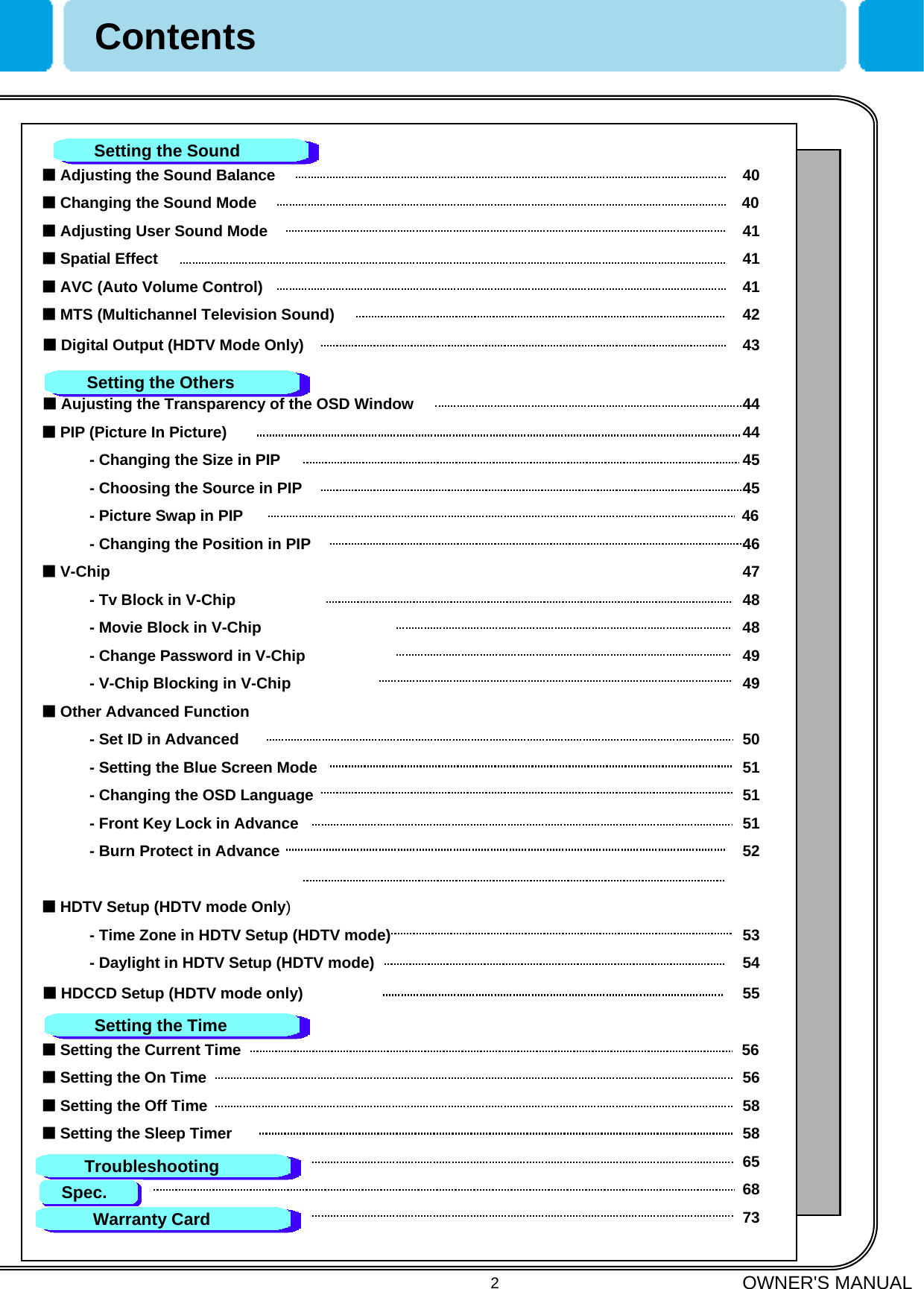

OWNER'S MANUAL2■Adjusting the Sound Balance 40■Changing the Sound Mode 40■Adjusting User Sound Mode 41■Spatial Effect 41■AVC (Auto Volume Control) 41■MTS (Multichannel Television Sound) 42■Digital Output (HDTV Mode Only) 43■Aujusting the Transparency of the OSD Window 44■PIP (Picture In Picture) 44- Changing the Size in PIP 45- Choosing the Source in PIP 45- Picture Swap in PIP 46- Changing the Position in PIP 46■V-Chip 47- Tv Block in V-Chip 48- Movie Block in V-Chip 48- Change Password in V-Chip 49- V-Chip Blocking in V-Chip 49■Other Advanced Function- Set ID in Advanced 50- Setting the Blue Screen Mode 51- Changing the OSD Language 51- Front Key Lock in Advance 51- Burn Protect in Advance 52■HDTV Setup (HDTV mode Only)- Time Zone in HDTV Setup (HDTV mode) 53- Daylight in HDTV Setup (HDTV mode) 54■HDCCD Setup (HDTV mode only) 55■Setting the Current Time 56■Setting the On Time 56■Setting the Off Time 58■Setting the Sleep Timer 58656873ContentsSetting the Sound Setting the OthersSetting the TimeTroubleshootingSpec.Warranty Card

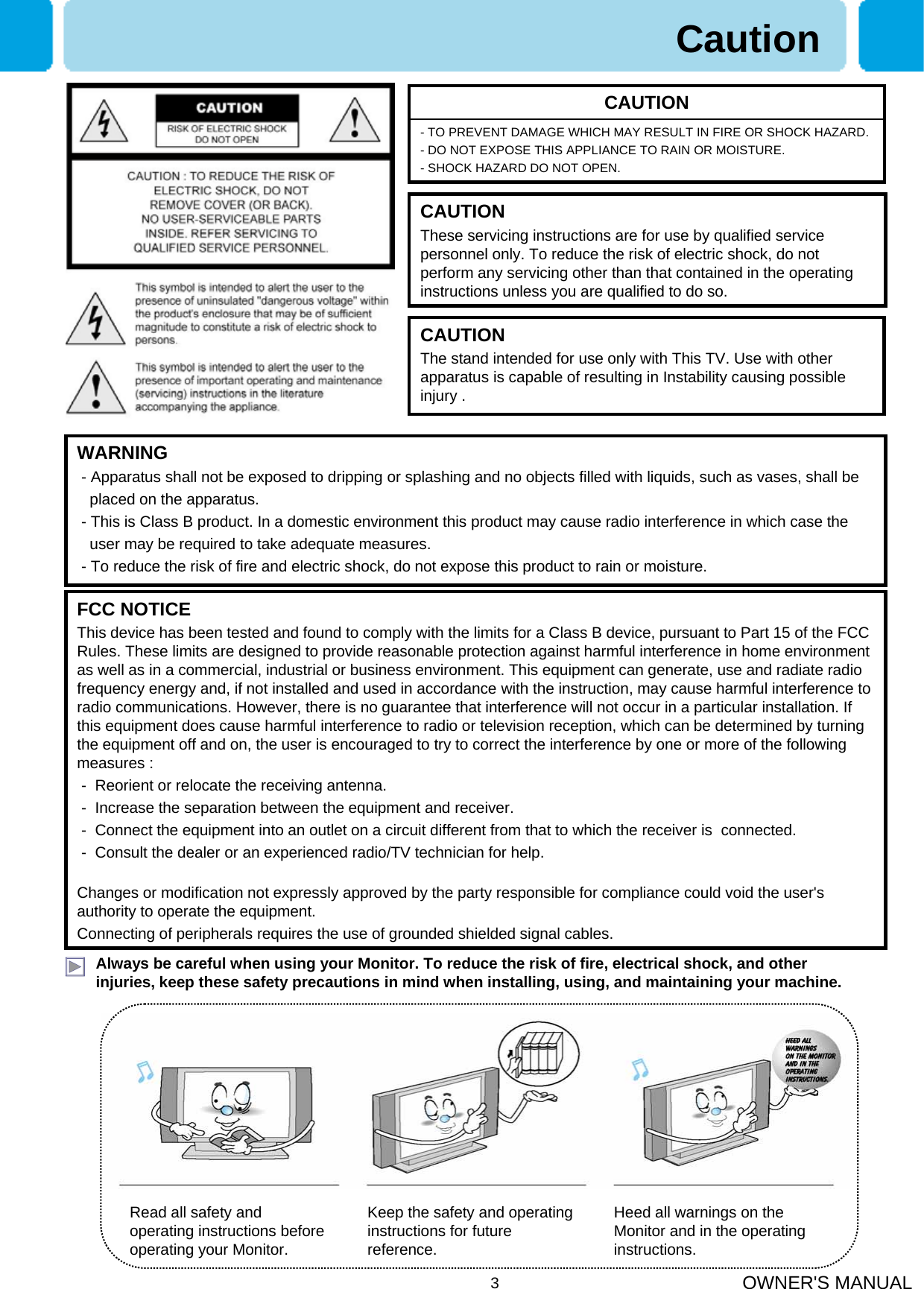

OWNER'S MANUAL3Always be careful when using your Monitor. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD. - DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONWARNING- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.- This is Class B product. In a domestic environment this product may cause radio interference in which case theuser may be required to take adequate measures.- To reduce the risk of fire and electric shock, do not expose this product to rain or moisture.FCC NOTICEThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in home environment as well as in a commercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.Read all safety and operating instructions before operating your Monitor.Keep the safety and operating instructions for future reference.Heed all warnings on the Monitor and in the operating instructions.CAUTIONThese servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operatinginstructions unless you are qualified to do so.CAUTIONThe stand intended for use only with This TV. Use with other apparatus is capable of resulting in Instability causing possible injury .Caution

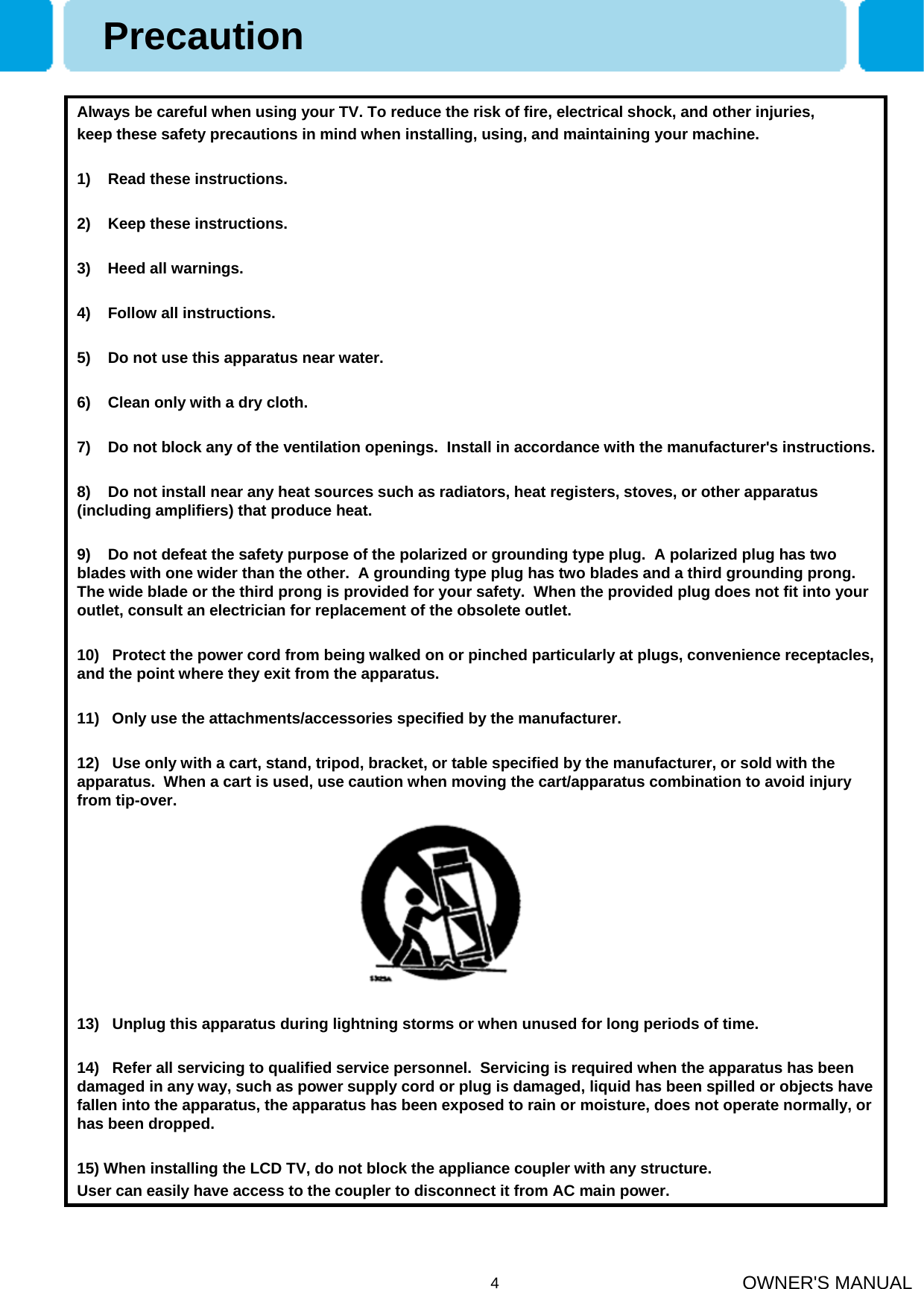

OWNER'S MANUAL4Always be careful when using your TV. To reduce the risk of fire, electrical shock, and other injuries,keep these safety precautions in mind when installing, using, and maintaining your machine.1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with a dry cloth.7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use the attachments/accessories specified by the manufacturer.12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time.14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15) When installing the LCD TV, do not block the appliance coupler with any structure.User can easily have access to the coupler to disconnect it from AC main power.Precaution
OWNER'S MANUAL5PrecautionSettingFollow all operating and use instructions.Do not use the Monitor where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits. When installing an outside antenna system, be extremely careful to keep from touching the power lines or circuits. Contact with such lines can be fatal.Bend antenna cable between inside and outside building to prevent rain from flowing in.-This may cause water damaged inside the Monitor and could give an electric shock.Ground outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides information about proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.Do not place an outside antenna in the vicinity of overhead power lines, other electric light or power circuits.- This may cause an electric shock.There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls.- This may cause an electric shock.CAUTIONIn case of the following cases, unplug the unit from the wall outlet and contact qualified service center.* When power supply code or plug is damaged * If liquid has been spilled on the unit or if alien objects have fallen into the unit.* If the monitor has been exposed to rain or water.* If the monitor does not operate normally by following the operating instructions.* If the monitor dropped or the cabinet has been damaged* When the monitor exhibits a distinct change in performance.

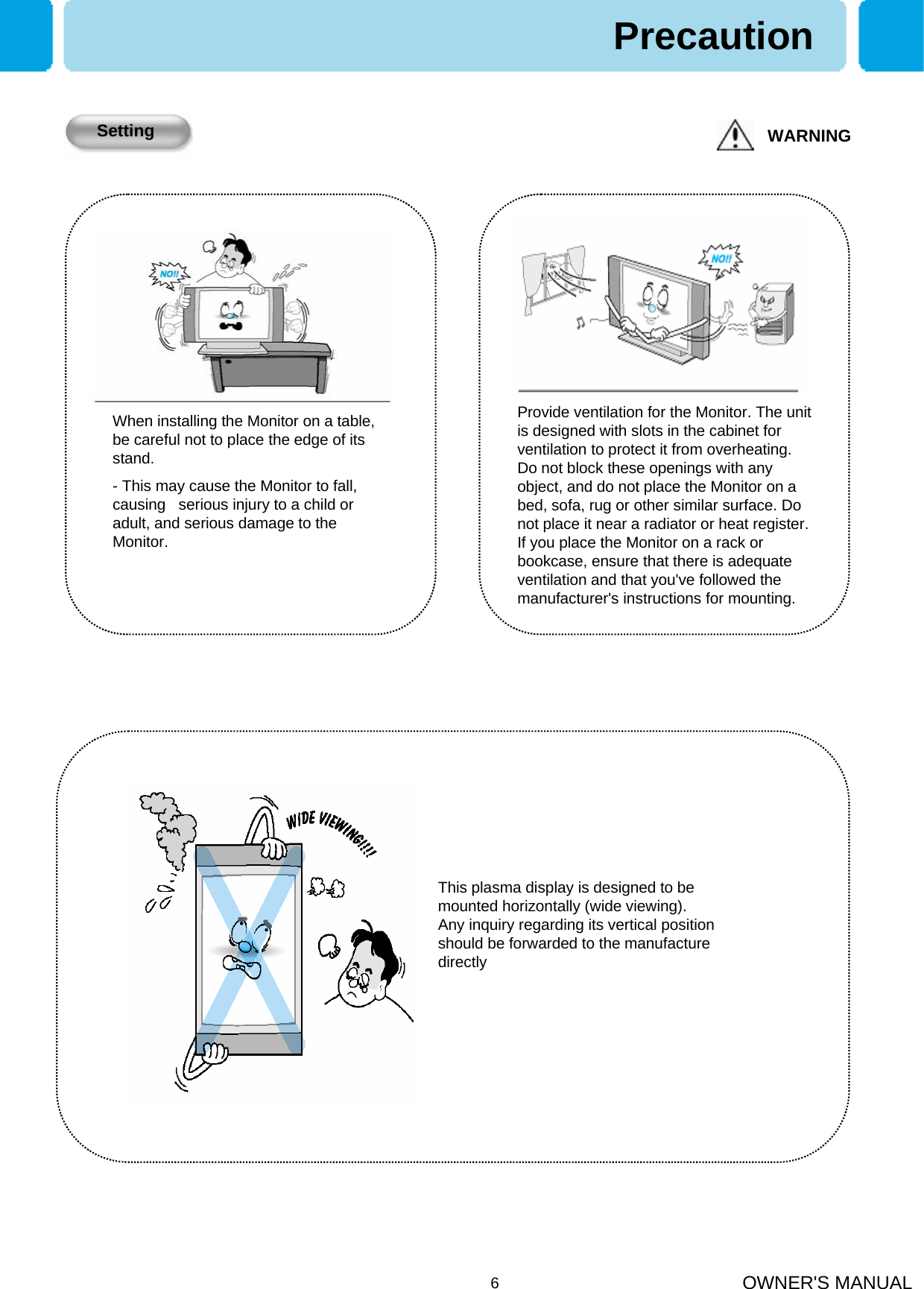

OWNER'S MANUAL6This plasma display is designed to bemounted horizontally (wide viewing).Any inquiry regarding its vertical position should be forwarded to the manufacture directlyPrecautionWARNINGSettingWhen installing the Monitor on a table, be careful not to place the edge of its stand.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.Provide ventilation for the Monitor. The unit is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not place the Monitor on a bed, sofa, rug or other similar surface. Do not place it near a radiator or heat register. If you place the Monitor on a rack or bookcase, ensure that there is adequate ventilation and that you've followed the manufacturer's instructions for mounting.

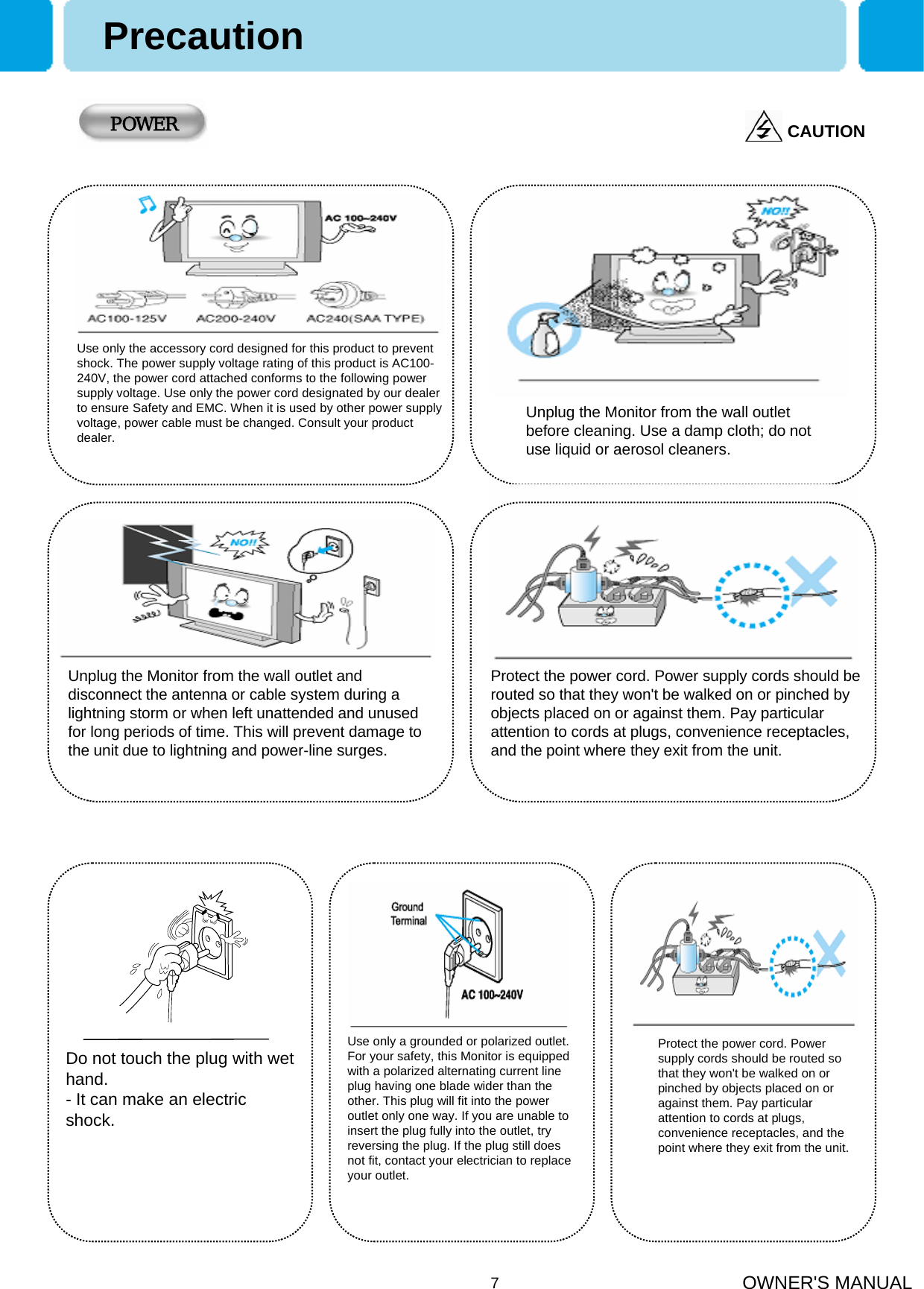

OWNER'S MANUAL7PrecautionUse only the accessory cord designed for this product to preventshock. The power supply voltage rating of this product is AC100-240V, the power cord attached conforms to the following power supply voltage. Use only the power cord designated by our dealerto ensure Safety and EMC. When it is used by other power supply voltage, power cable must be changed. Consult your product dealer.CAUTIONPOWERUnplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners.Unplug the Monitor from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-line surges.Protect the power cord. Power supply cords should be routed so that they won't be walked on or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.Use only a grounded or polarized outlet. For your safety, this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet.Do not touch the plug with wet hand. - It can make an electric shock.Protect the power cord. Power supply cords should be routed so that they won't be walked on or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
OWNER'S MANUAL8PrecautionCAUTIONOperationUpon completion of any service or repairs to this Monitor, ask the service technician to perform safety checks to determine that the Monitor is in a safe operating condition.Do not place anything containing liquid on top of the Monitor.-This may cause a fire or could give an electric shock.Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury.In case of smoke or strange smell from the Monitor, switch it off, unplug it from the wall outlet and contact your dealer or service center.- This may cause a fire or could give an electric shock.Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the Monitor.When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in additional damage to the unit.WARNINGOperationIf you make adjustments yourself, adjust only those controls that are covered by the operating instructions.Adjusting other controls may result in damage and will often requireextensivework by a qualified technician to restore the Monitor tonormal.Do not let children hang on or ride on the TV.

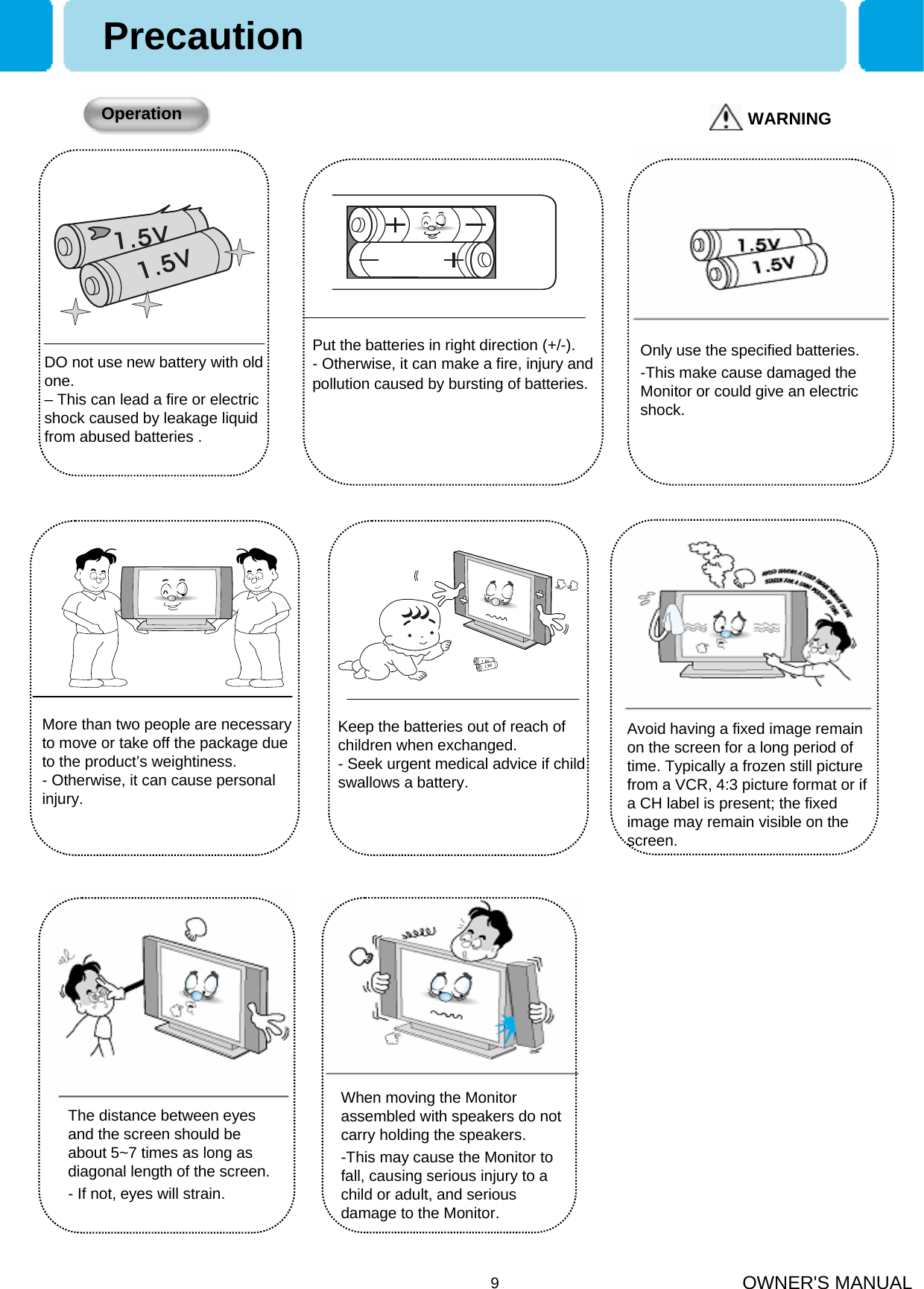

OWNER'S MANUAL9PrecautionDO not use new battery with old one.– This can lead a fire or electric shock caused by leakage liquid from abused batteries .Only use the specified batteries.-This make cause damaged the Monitor or could give an electric shock.Put the batteries in right direction (+/-).- Otherwise, it can make a fire, injury and pollution caused by bursting of batteries.WARNINGOperationMore than two people are necessary to move or take off the package due to the product’s weightiness. - Otherwise, it can cause personal injury.Keep the batteries out of reach of children when exchanged.- Seek urgent medical advice if child swallows a battery.Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR, 4:3 picture format or if a CH label is present; the fixed image may remain visible on the screen.When moving the Monitor assembled with speakers do not carry holding the speakers.-This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.The distance between eyes and the screen should be about 5~7 times as long as diagonal length of the screen.- If not, eyes will strain.

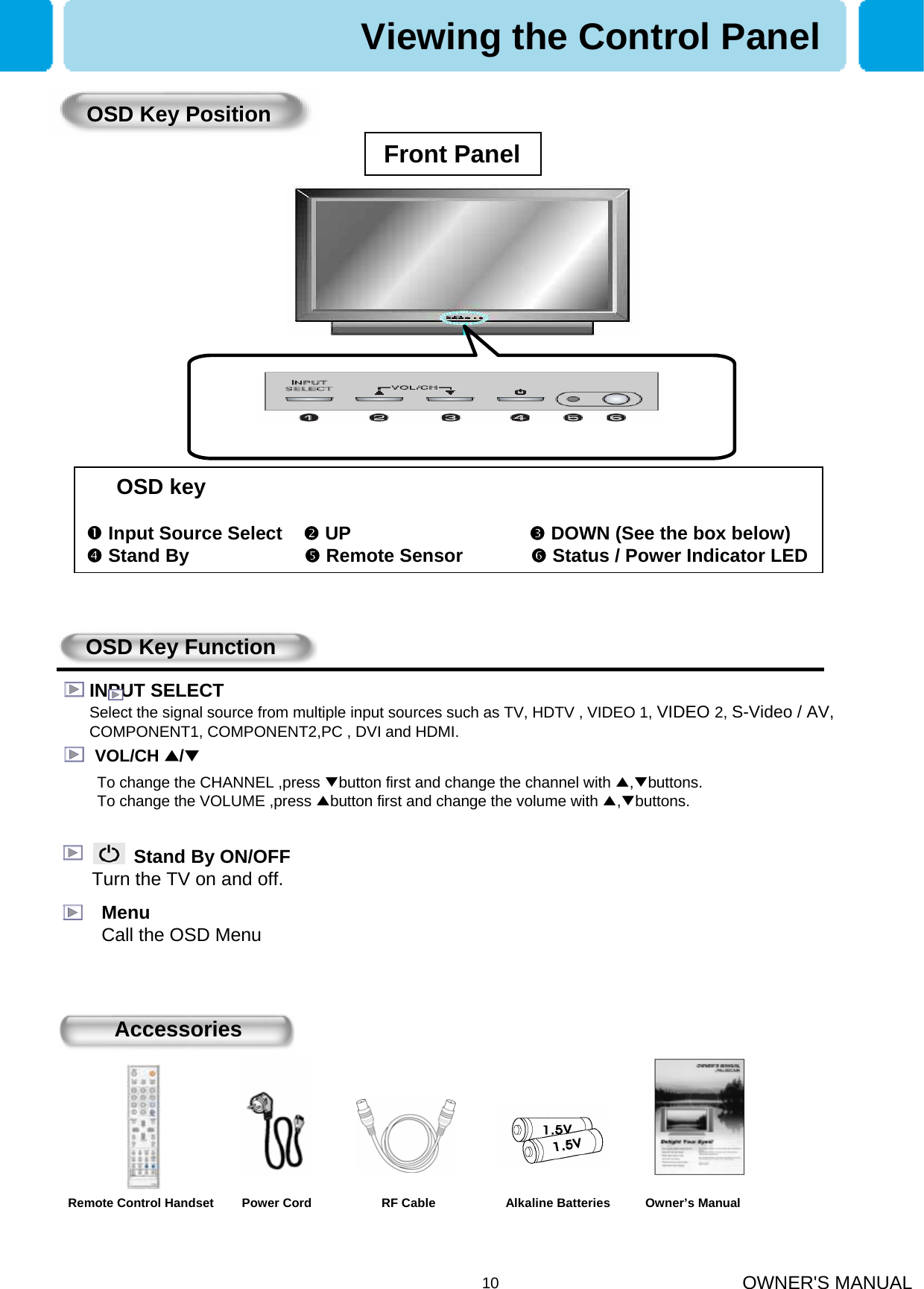

OWNER'S MANUAL10OSD Key PositionOSD Key FunctionINPUT SELECTSelect the signal source from multiple input sources such as TV, HDTV , VIDEO 1, VIDEO 2, S-Video / AV, COMPONENT1, COMPONENT2,PC , DVI and HDMI. VOL/CH ▲/▼To change the CHANNEL ,press ▼button first and change the channel with ▲,▼buttons.To change the VOLUME ,press ▲button first and change the volume with ▲,▼buttons. Stand By ON/OFFTurn the TV on and off.AccessoriesRemote Control Handset Power Cord RF Cable Alkaline Batteries Owner’s ManualViewing the Control PanelMenuCall the OSD MenuFront Panel OSD keynInput Source Select oUP pDOWN (See the box below)qStand By rRemote Sensor sStatus / Power Indicator LED

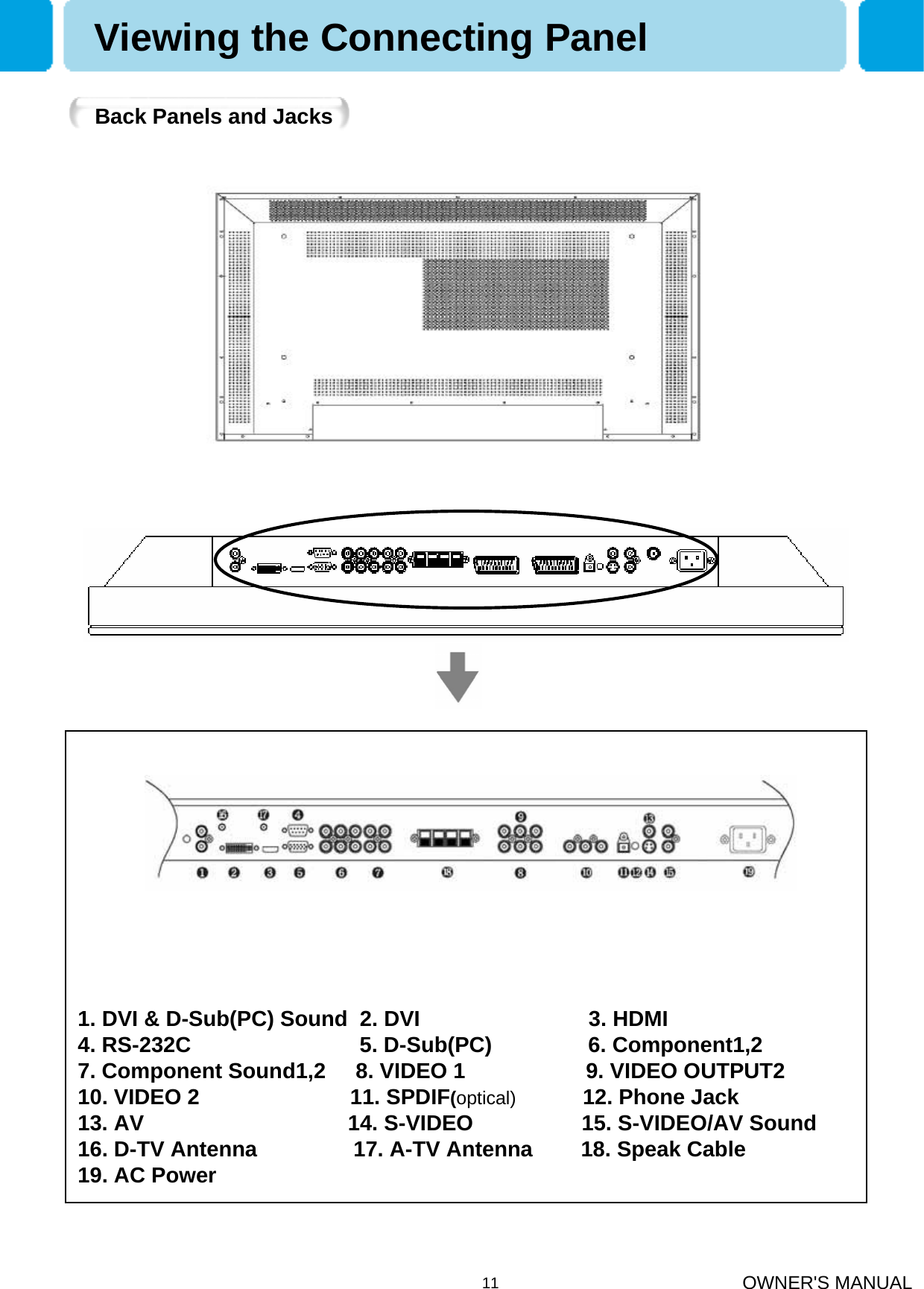

OWNER'S MANUAL111. DVI & D-Sub(PC) Sound 2. DVI 3. HDMI4. RS-232C 5. D-Sub(PC) 6. Component1,2 7. Component Sound1,2 8. VIDEO 1 9. VIDEO OUTPUT2 10. VIDEO 2 11. SPDIF(optical) 12. Phone Jack13. AV 14. S-VIDEO 15. S-VIDEO/AV Sound16. D-TV Antenna 17. A-TV Antenna 18. Speak Cable19. AC PowerBack Panels and JacksViewing the Connecting Panel
OWNER'S MANUAL12Viewing the Connection Panel• Cables connecting the PC vary according to the type of machine, so consult your product dealer.HDMI ConnectHDMI INPUTDVI-D 24 pinDIGITAL VIDEO INPUTMini D-Sub 15pinANALOG RGB INPUTRCA Pin JackCOMPONENT VIDEO INPUTMini Din 4 Pin S-VIDEO INPUTRCA Pin JackCOMPOSITE VIDEO OUTPUTRCA Pin JackCOMPOSITE VIDEO INPUTRCA Pin JackAUDIO INPUTConnectorsCTS88CTSRTS77RTSDSR66DSRDTR44DTRGND55GNDRXD23TXDTXD32RXDTVPC3-Wire (Non-standard)RS-232C Configurations-AC Power CableConnect (15) port.-RF CableConnect (16) and (17) port.-S-Video CableConnect (14) port.-Component CableConnect (6) port.-D-Sub(PC) CableConnect (5) port.-DVI, D-Sub(PC) Sound CableConnect (1) port.-DVI CableConnect (2) port.-SPDIF Cable( optical )Connect (11)-AV CableConnect (13) port.-Component & S-Video& AV Sound CableConnect (7) and (15) port.-RS-232C CableConnect (4) port.-SCART CableConnect (8), (9) , (10)port. -Phone Jack CableConnect (12) port.-HDMI CableConnect (3) port.

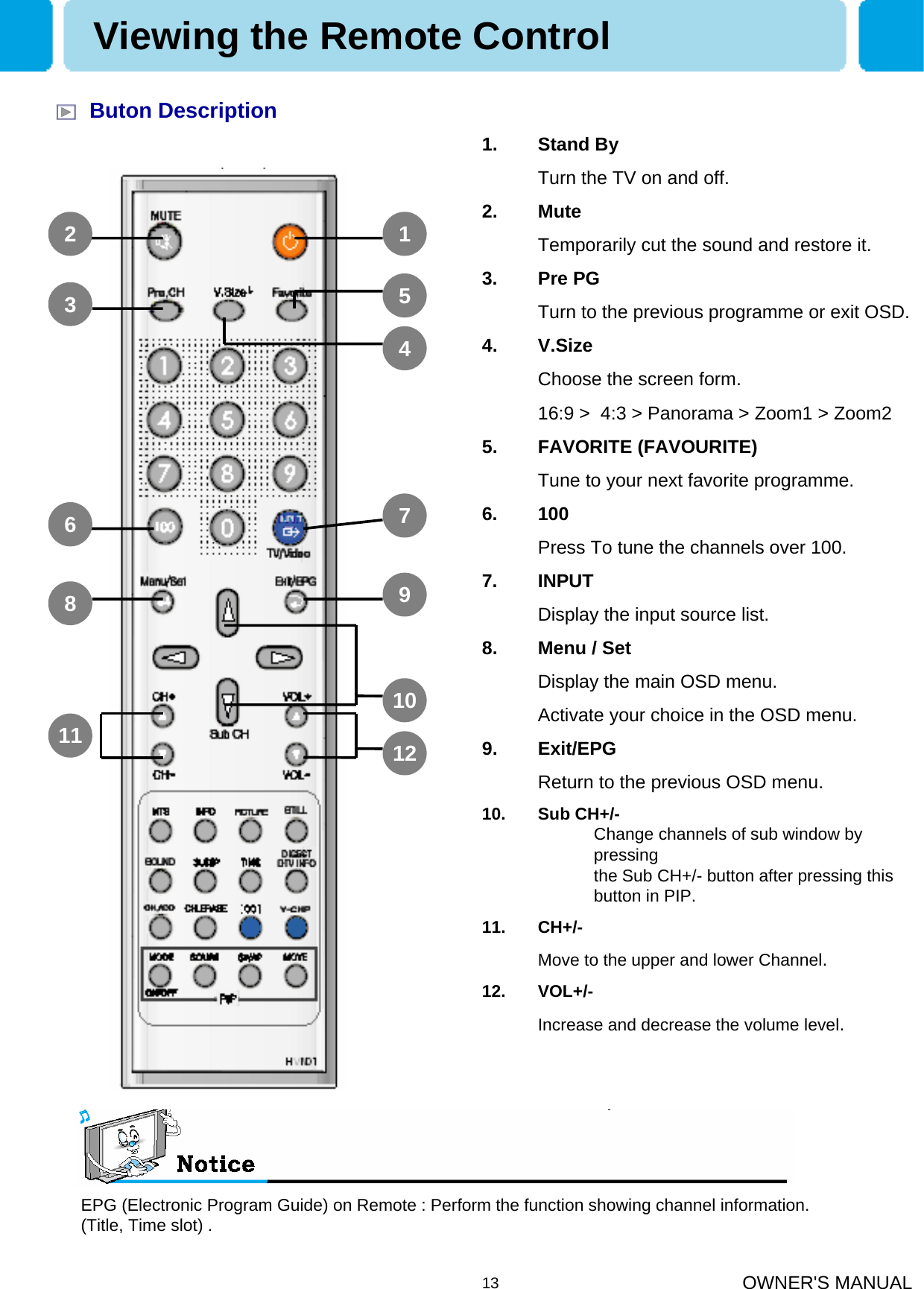

OWNER'S MANUAL131. Stand ByTurn the TV on and off.2. MuteTemporarily cut the sound and restore it.3. Pre PGTurn to the previous programme or exit OSD.4. V.SizeChoose the screen form.16:9 > 4:3 > Panorama > Zoom1 > Zoom25. FAVORITE (FAVOURITE)Tune to your next favorite programme.6. 100Press To tune the channels over 100. 7. INPUTDisplay the input source list.8. Menu / SetDisplay the main OSD menu.Activate your choice in the OSD menu.9. Exit/EPGReturn to the previous OSD menu. 10. Sub CH+/-Change channels of sub window by pressing the Sub CH+/- button after pressing this button in PIP.11. CH+/-Move to the upper and lower Channel.12. VOL+/-Increase and decrease the volume level.Buton DescriptionViewing the Remote Control123685479101211EPG (Electronic Program Guide) on Remote : Perform the function showing channel information. (Title, Time slot) .
OWNER'S MANUAL14Remote Control216591013143478121115161. MTSChoose the MTS (Stereo) mode. Each time it is pressed, different mode is selected.Mono > Stereo > SAP* You can select only available modes depending on the source.2. INFODisplay the current information about time, screen form, source and MTS mode.3. PICTUREThere are 4 picture modes. STANDARD > VIVID > MILD > USER4. STILLTemporarily freeze the screen and restore it.5. SOUNDChoose the sound equalizer settings. STANDARD > MOVIE > MUSIC > NEWS > USER6. SLEEPSet the preset time interval for automatic turn-off.OFF( Not work ) > 10min.> 20 > 30 > 60 > 90 > 120 > 150 > 1807. TIMEDisplay the current time on the screen.8. DIGEST / DTV INFODisplay the 16 TV programmes at the same time.9. CH ADDAdd the current channel to memory10. CH ERASEErase the current channel to memory.11. CC(CLOSED CAPTION)Set the close caption.Off-> Caption CC1-> Caption CC2-> Caption Text1-> Caption Text212. V-CHIPGet into V-Chip menu.PIP (Picture In Picture) Keys13. MODE ( On / Off)Activate PIP function and change the PIP window size and PIP mode.Small > Large > Twin (Half) > OFF14. SOURCEChange the PIP window source.15. SWAPSwap the main screen and the PIP window.16. MOVEMove the position of the PIP window. DTV Info. : Perform the function showing current channel information. (Title, Time slot, Closed Caption, Dolby)

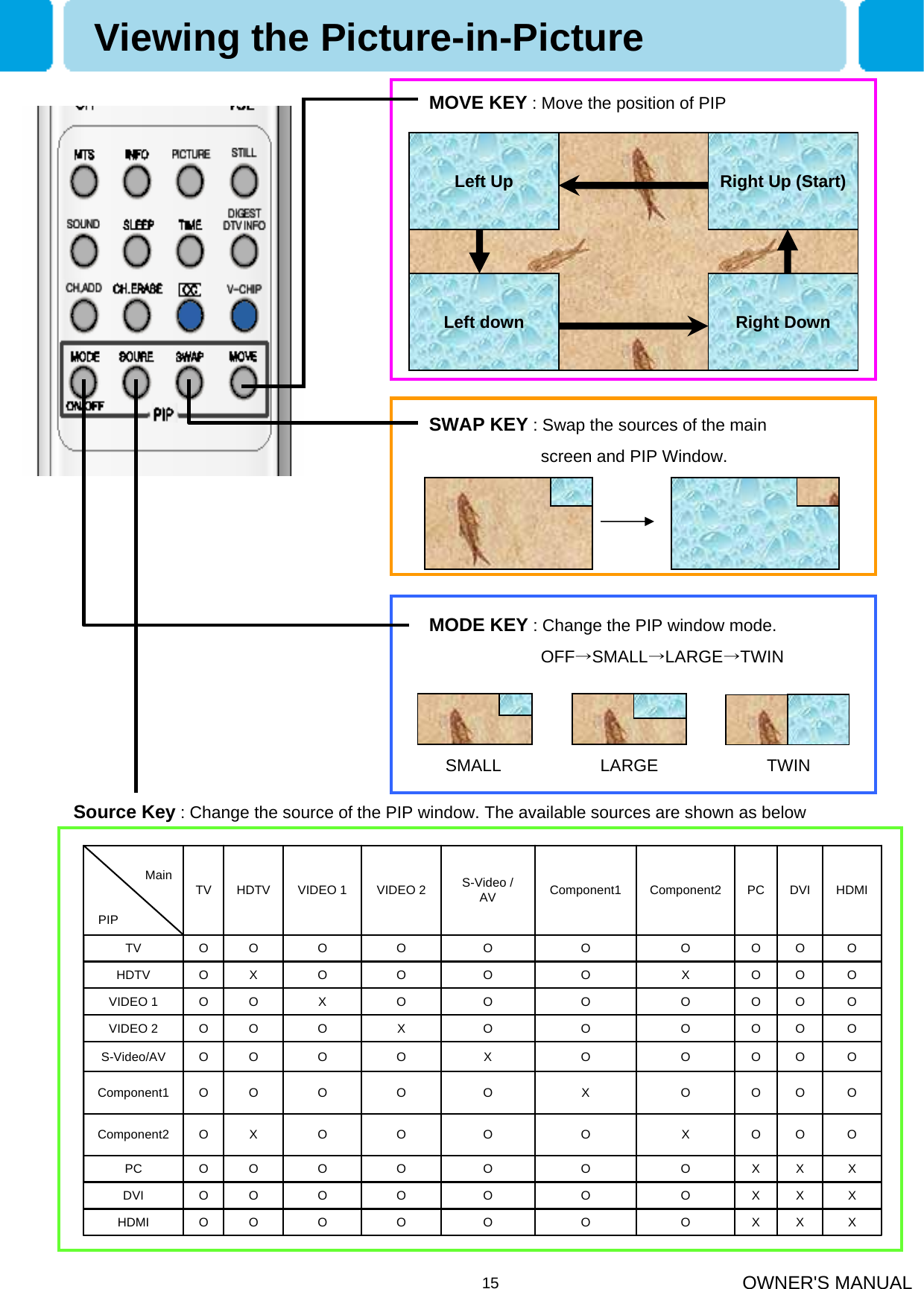

OWNER'S MANUAL15Right Up (Start)Left downLeft UpRight DownSMALL LARGE TWINSource Key : Change the source of the PIP window. The available sources are shown as belowMOVE KEY : Move the position of PIPSWAP KEY : Swap the sources of the mainscreen and PIP Window.MODE KEY : Change the PIP window mode.OFF→SMALL→LARGE→TWINViewing the Picture-in-PictureOOOXOOOOXOHDTVOOOXOOOOOHDTVXXXOOOOOODVIXXOOOOOODVIXXOOOOOOHDMIXXOOOOOOPCOOXOOOOOComponent2OOOXOOOOComponent1OOOOXOOOS-Video/AVOOOOOXOOVIDEO 2OOOOOOXOVIDEO 1OOOOOOOOTVHDMIPCComponent2Component1S-Video / AVVIDEO 2VIDEO 1TVMain PIP

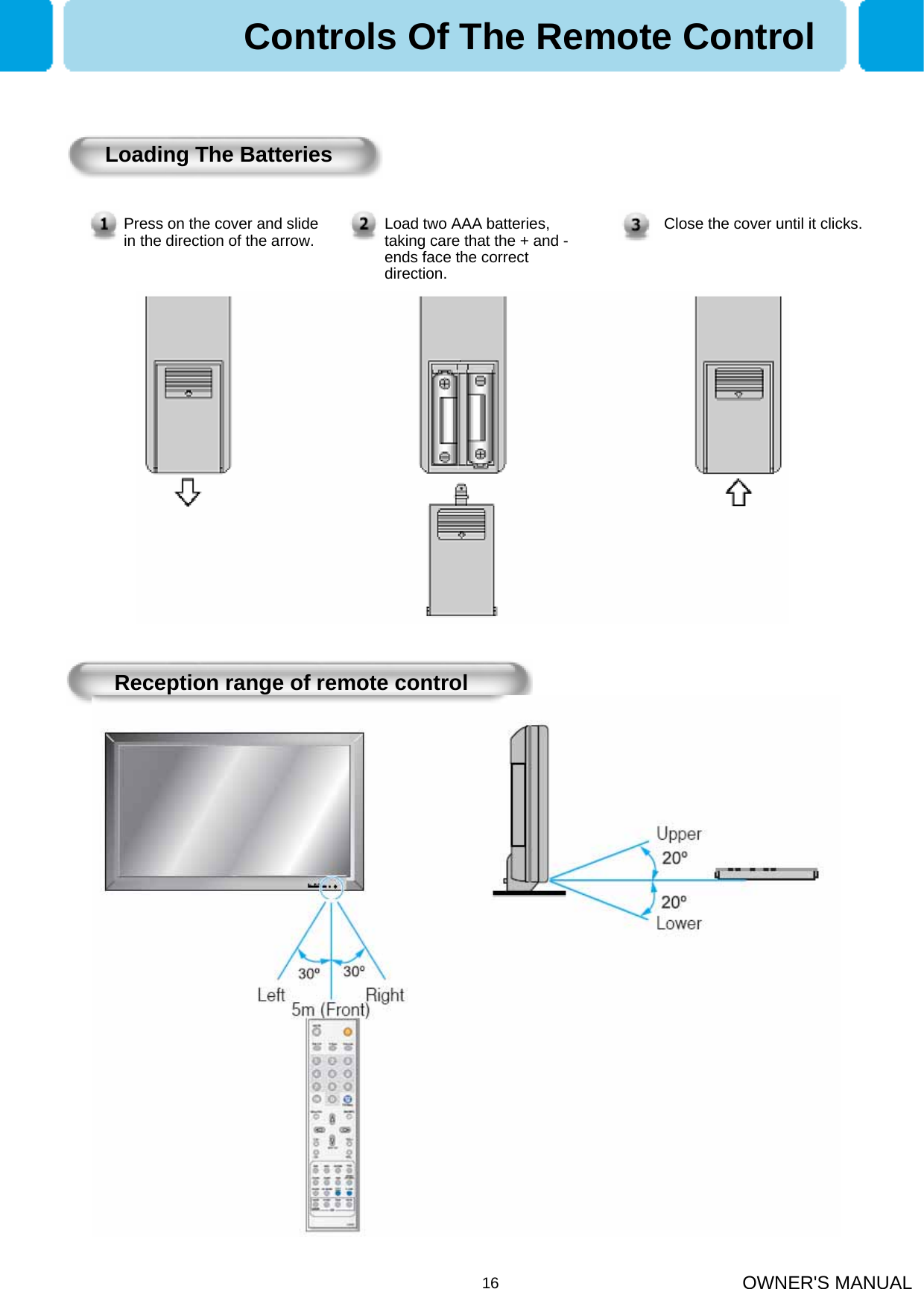

OWNER'S MANUAL16Press on the cover and slidein the direction of the arrow.Loading The BatteriesLoad two AAA batteries, taking care that the + and -ends face the correct direction.Close the cover until it clicks.Reception range of remote controlControls Of The Remote Control
OWNER'S MANUAL17Stand InstallationMonitor Installation40”, 42” ,46”32”, 37”, 40”

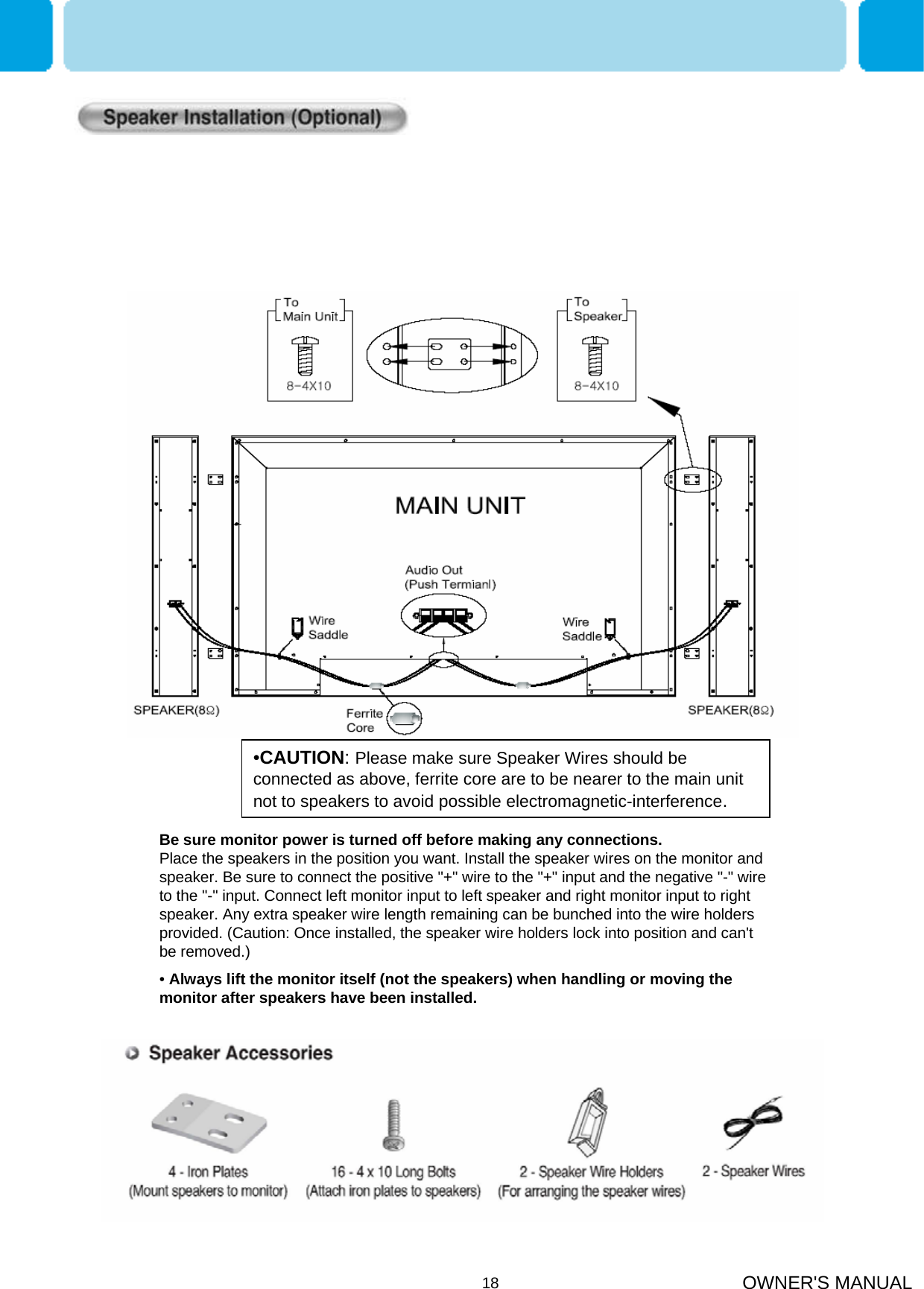

OWNER'S MANUAL18Be sure monitor power is turned off before making any connections. Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided. (Caution: Once installed, the speaker wire holders lock into position and can't be removed.)•Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed. •CAUTION: Please make sure Speaker Wires should be connected as above, ferrite core are to be nearer to the main unit not to speakers to avoid possible electromagnetic-interference.

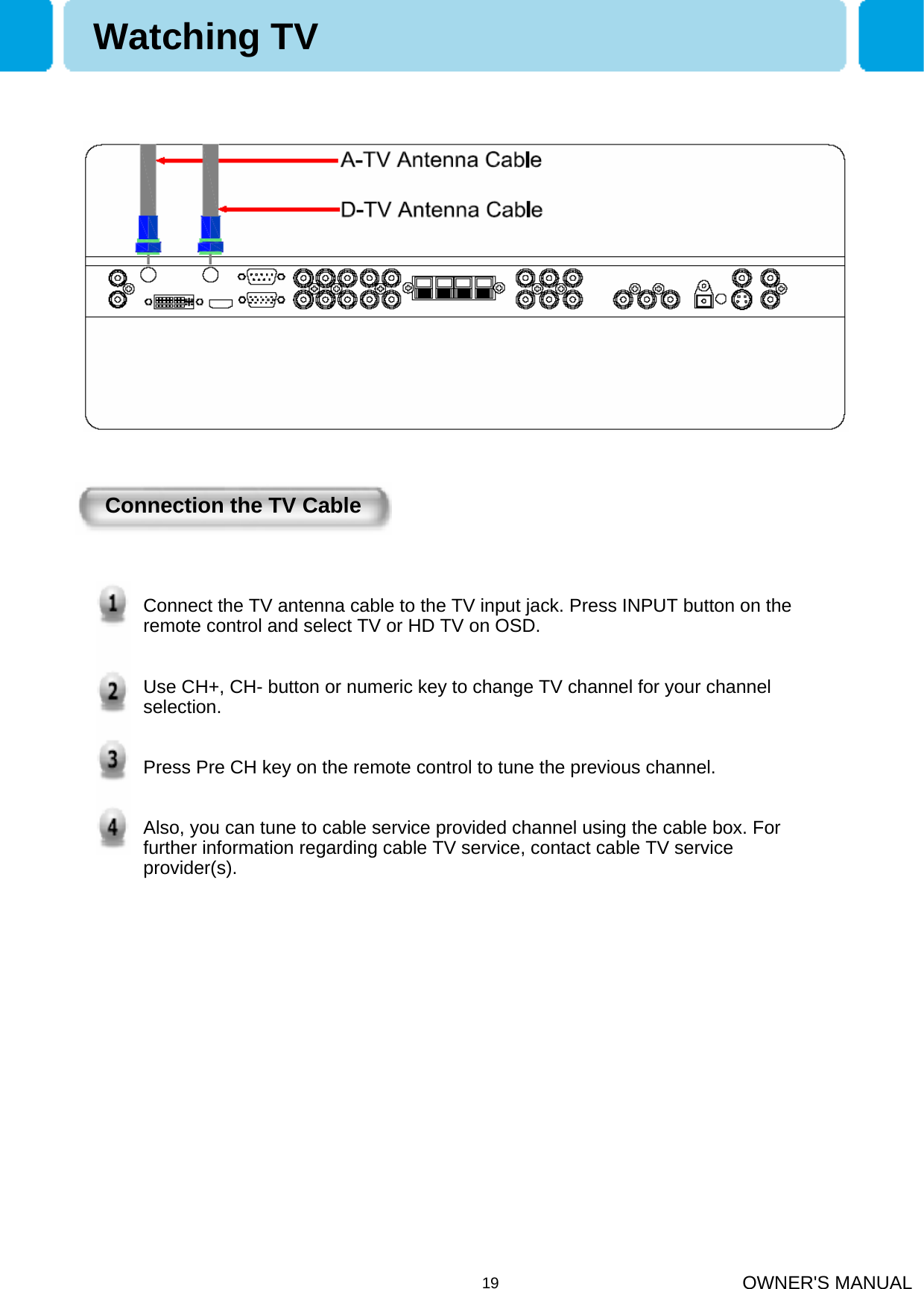

OWNER'S MANUAL19Connection the TV CableWatching TVConnect the TV antenna cable to the TV input jack. Press INPUT button on the remote control and select TV or HD TV on OSD.Use CH+, CH- button or numeric key to change TV channel for your channel selection.Press Pre CH key on the remote control to tune the previous channel.Also, you can tune to cable service provided channel using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).

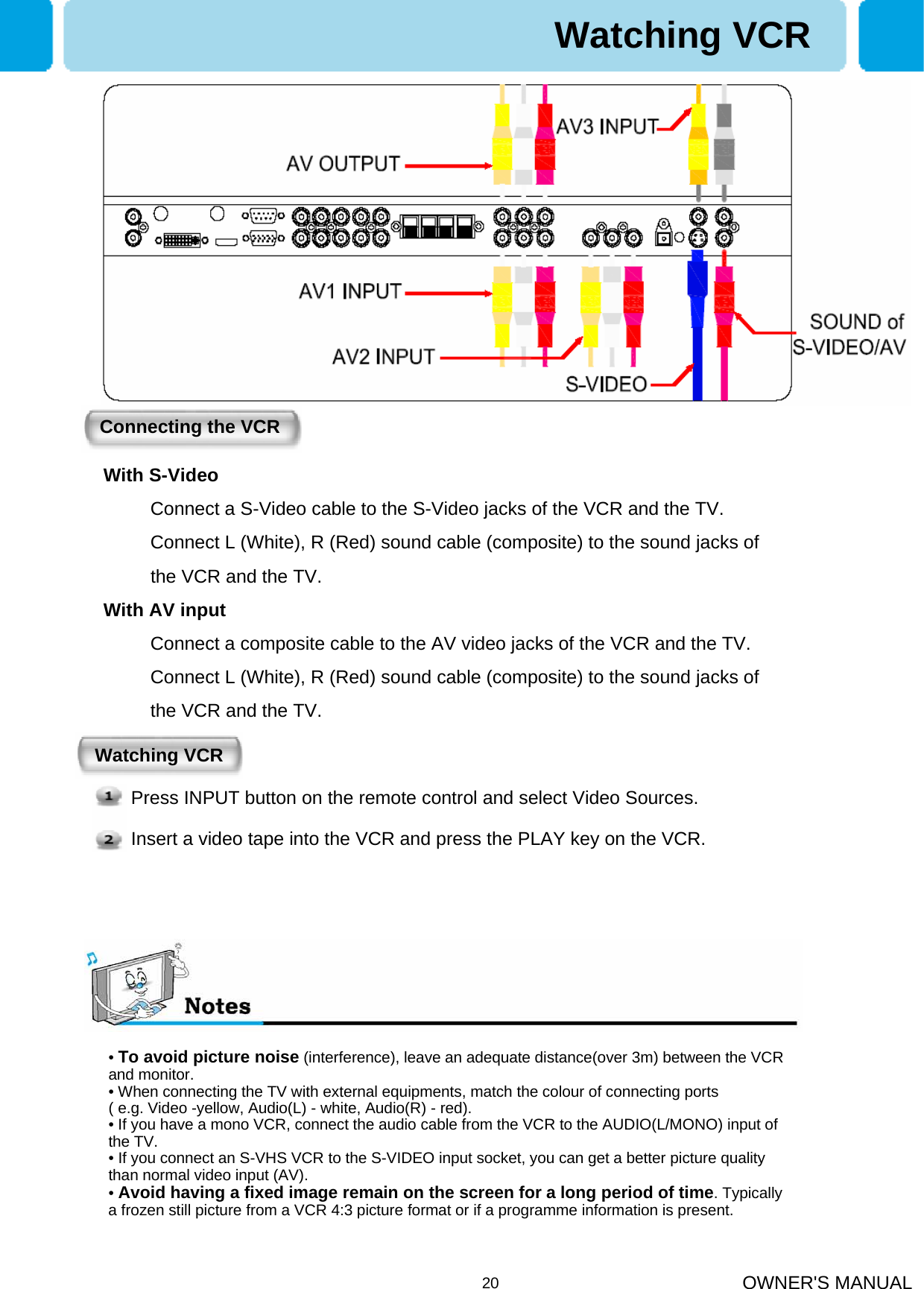

OWNER'S MANUAL20Watching VCRConnecting the VCRWatching VCRWith S-VideoConnect a S-Video cable to the S-Video jacks of the VCR and the TV.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the TV.With AV inputConnect a composite cable to the AV video jacks of the VCR and the TV.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the TV.Press INPUT button on the remote control and select Video Sources. Insert a video tape into the VCR and press the PLAY key on the VCR. •To avoid picture noise (interference), leave an adequate distance(over 3m) between the VCR and monitor.• When connecting the TV with external equipments, match the colour of connecting ports ( e.g. Video -yellow, Audio(L) - white, Audio(R) - red).• If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the TV.• If you connect an S-VHS VCR to the S-VIDEO input socket, you can get a better picture quality than normal video input (AV).•Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR 4:3 picture format or if a programme information is present.

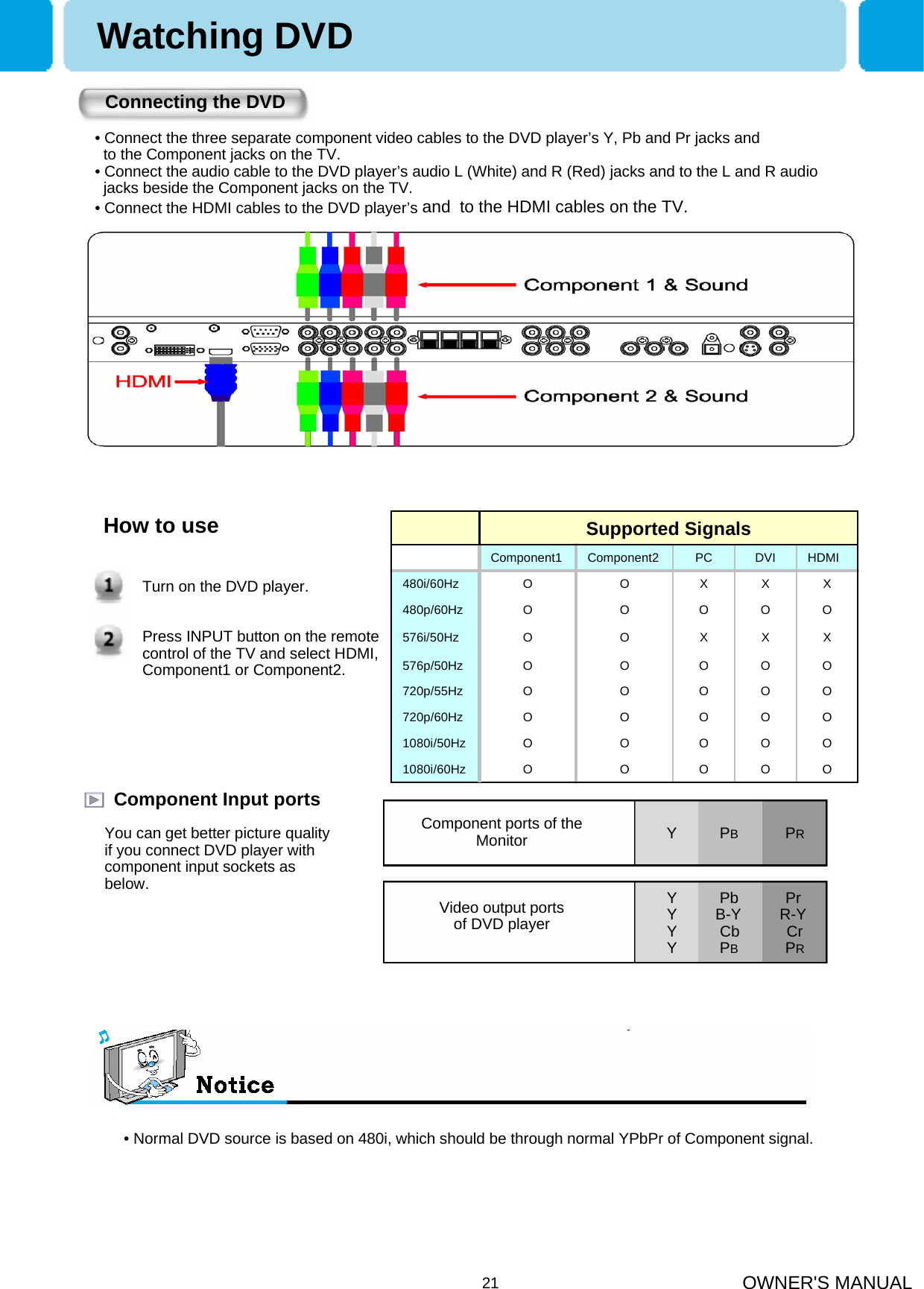

OWNER'S MANUAL21Connecting the DVDHow to useTurn on the DVD player.Press INPUT button on the remote control of the TV and select HDMI, Component1 or Component2.Component Input portsYou can get better picture quality if you connect DVD player with component input sockets as below.Component ports of theMonitorVideo output portsof DVD playerY PBPRY Pb PrY B-Y R-YY Cb CrY PBPR• Normal DVD source is based on 480i, which should be through normal YPbPr of Component signal.Watching DVD1080i/60Hz1080i/50Hz720p/60Hz720p/55Hz576p/50Hz576i/50Hz480p/60Hz480i/60HzOOOOOOOOOOOOOOOOOOOOOOOOOXXXOOOOOOOXXXOOHDMIDVIPCComponent2Component1Supported Signals• Connect the three separate component video cables to the DVD player’s Y, Pb and Pr jacks and to the Component jacks on the TV.• Connect the audio cable to the DVD player’s audio L (White) and R (Red) jacks and to the L and R audio jacks beside the Component jacks on the TV.• Connect the HDMI cables to the DVD player’s and to the HDMI cables on the TV.

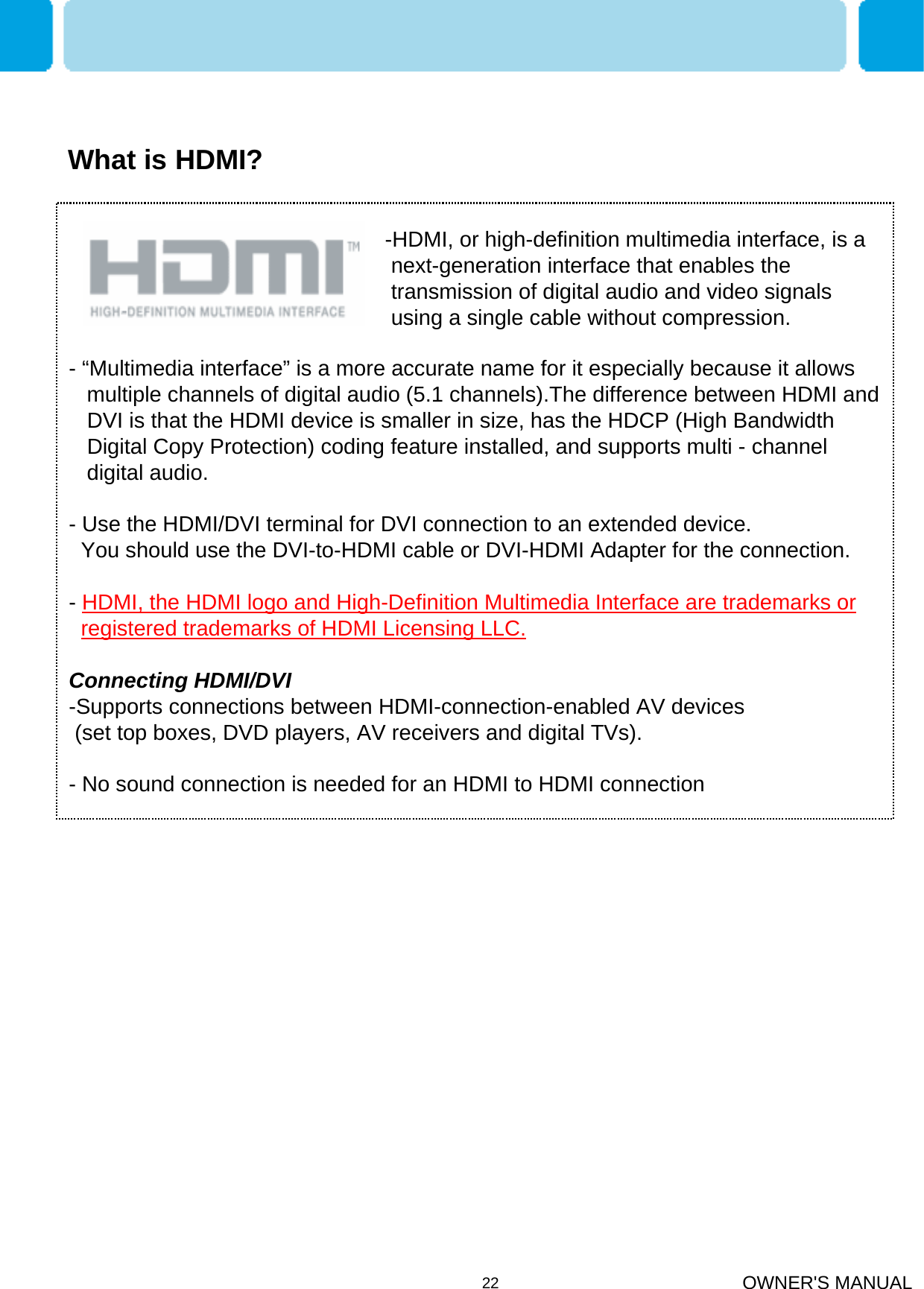

OWNER'S MANUAL22- “Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels).The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.- Use the HDMI/DVI terminal for DVI connection to an extended device.You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection.-HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.Connecting HDMI/DVI-Supports connections between HDMI-connection-enabled AV devices (set top boxes, DVD players, AV receivers and digital TVs).- No sound connection is needed for an HDMI to HDMI connection-HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.What is HDMI?

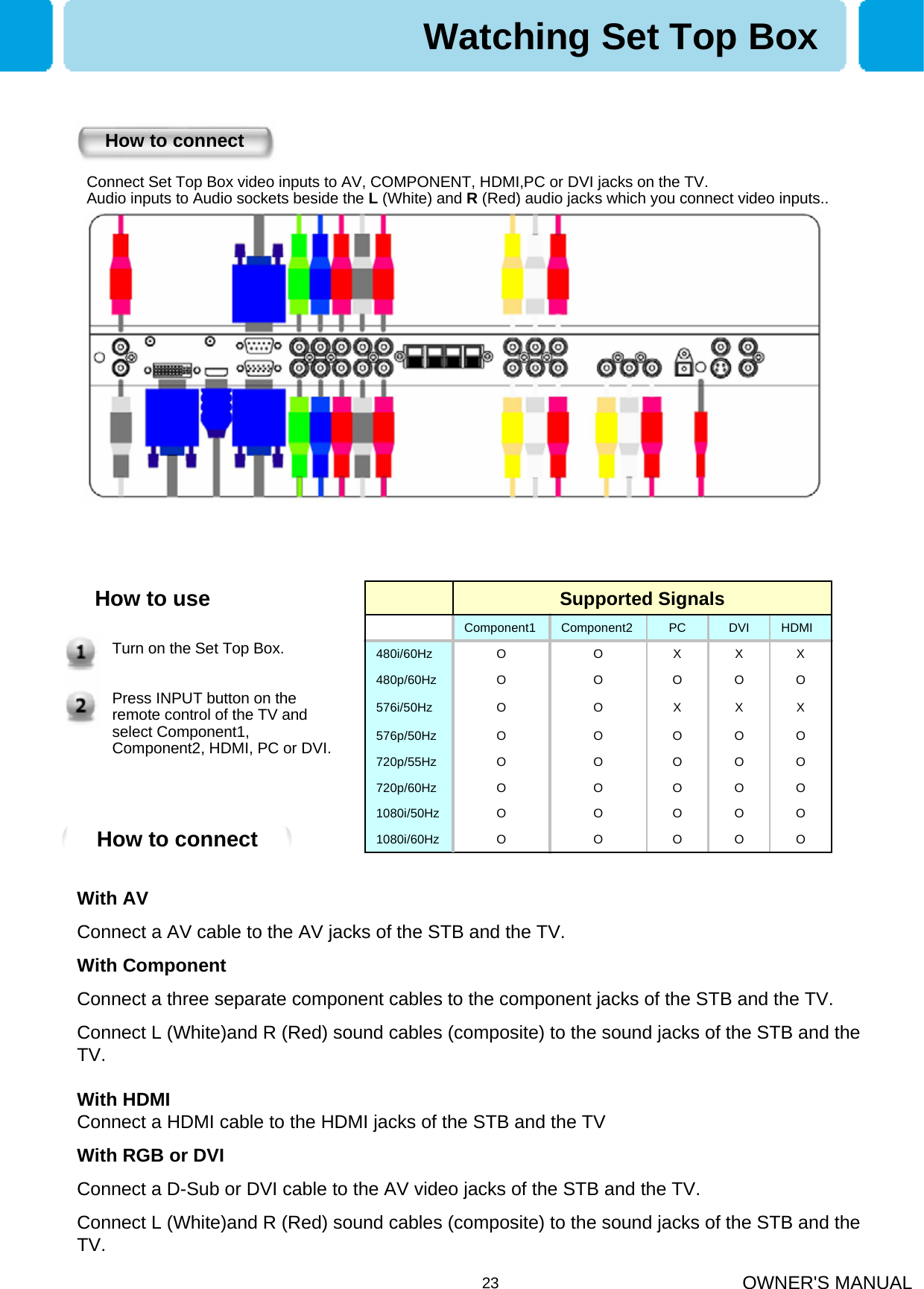

OWNER'S MANUAL23How to connectHow to useTurn on the Set Top Box.Press INPUT button on the remote control of the TV and select Component1, Component2, HDMI, PC or DVI.How to connectWatching Set Top Box1080i/60Hz1080i/50Hz720p/60Hz720p/55Hz576p/50Hz576i/50Hz480p/60Hz480i/60HzOOOOOOOOOOOOOOOOOOOOOOOOOXXXOOOOOOOXXXOOHDMIDVIPCComponent2Component1Supported SignalsConnect Set Top Box video inputs to AV, COMPONENT, HDMI,PC or DVI jacks on the TV. Audio inputs to Audio sockets beside the L(White) and R (Red) audio jacks which you connect video inputs.. With AVConnect a AV cable to the AV jacks of the STB and the TV.With ComponentConnect a three separate component cables to the component jacks of the STB and the TV.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the TV.With HDMIConnect a HDMI cable to the HDMI jacks of the STB and the TVWith RGB or DVIConnect a D-Sub or DVI cable to the AV video jacks of the STB and the TV.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the TV.
OWNER'S MANUAL24Connecting a PC to the TV• Connect a PC (15pin) video cable between the Video Output port on the PC and the PC port on the TV. Pin Configuration• 15Pin Signal Cable (based on protruded pin)To watch the PC screen1. Turn on the TV and press INPUTbutton to select the PC MODE.2. Turn on the PC and check for the PC requirements.3. Adjust the PC screen in Geometry menu.( See 38 page. )Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)DescriptionClock(DDC)15Vertical sync.14Horizontal sync.13Data(DDC)12Grounding11Sync Grounding10Resered9Blue(B) Grounding8Green(G) Grounding7Red(R) Grounding6Grounding(DDC)5Grounding4Blue(B)3Green(G)2Red(R)1DescriptionPin NO.Connecting The PC (D-Sub and DVI)

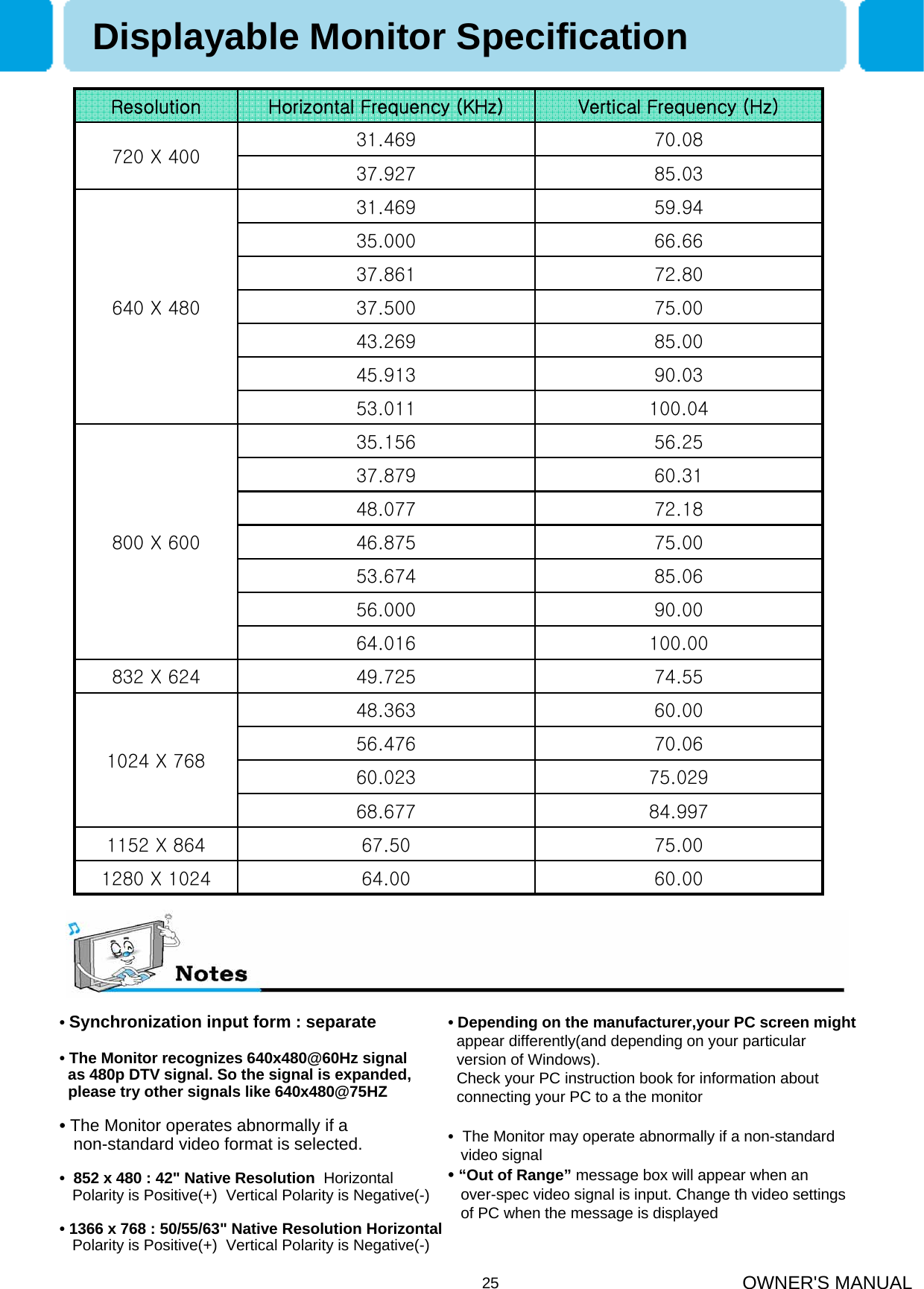

OWNER'S MANUAL25•Synchronization input form : separate• The Monitor recognizes 640x480@60Hz signalas 480p DTV signal. So the signal is expanded,please try other signals like 640x480@75HZ•The Monitor operates abnormally if a non-standard video format is selected.• 852 x 480 : 42" Native Resolution Horizontal Polarity is Positive(+) Vertical Polarity is Negative(-)• 1366 x 768 : 50/55/63" Native Resolution HorizontalPolarity is Positive(+) Vertical Polarity is Negative(-)• Depending on the manufacturer,your PC screen mightappear differently(and depending on your particularversion of Windows).Check your PC instruction book for information aboutconnecting your PC to a the monitor•The Monitor may operate abnormally if a non-standardvideo signal •“Out of Range” message box will appear when an over-spec video signal is input. Change th video settingsof PC when the message is displayedDisplayable Monitor Specification60.0064.001280 X 102475.0067.501152 X 86484.99768.67775.02960.02370.0656.47660.0048.3631024 X 76874.5549.725832 X 624100.0064.01690.0056.00085.0653.67475.0046.87572.1848.07760.3137.87956.2535.156800 X 600100.0453.01190.0345.91385.0043.26975.0037.50072.8037.86166.6635.00059.9431.469640 X 48085.0337.92770.0831.469720 X 400Vertical Frequency (Hz)Horizontal Frequency (KHz)Resolution

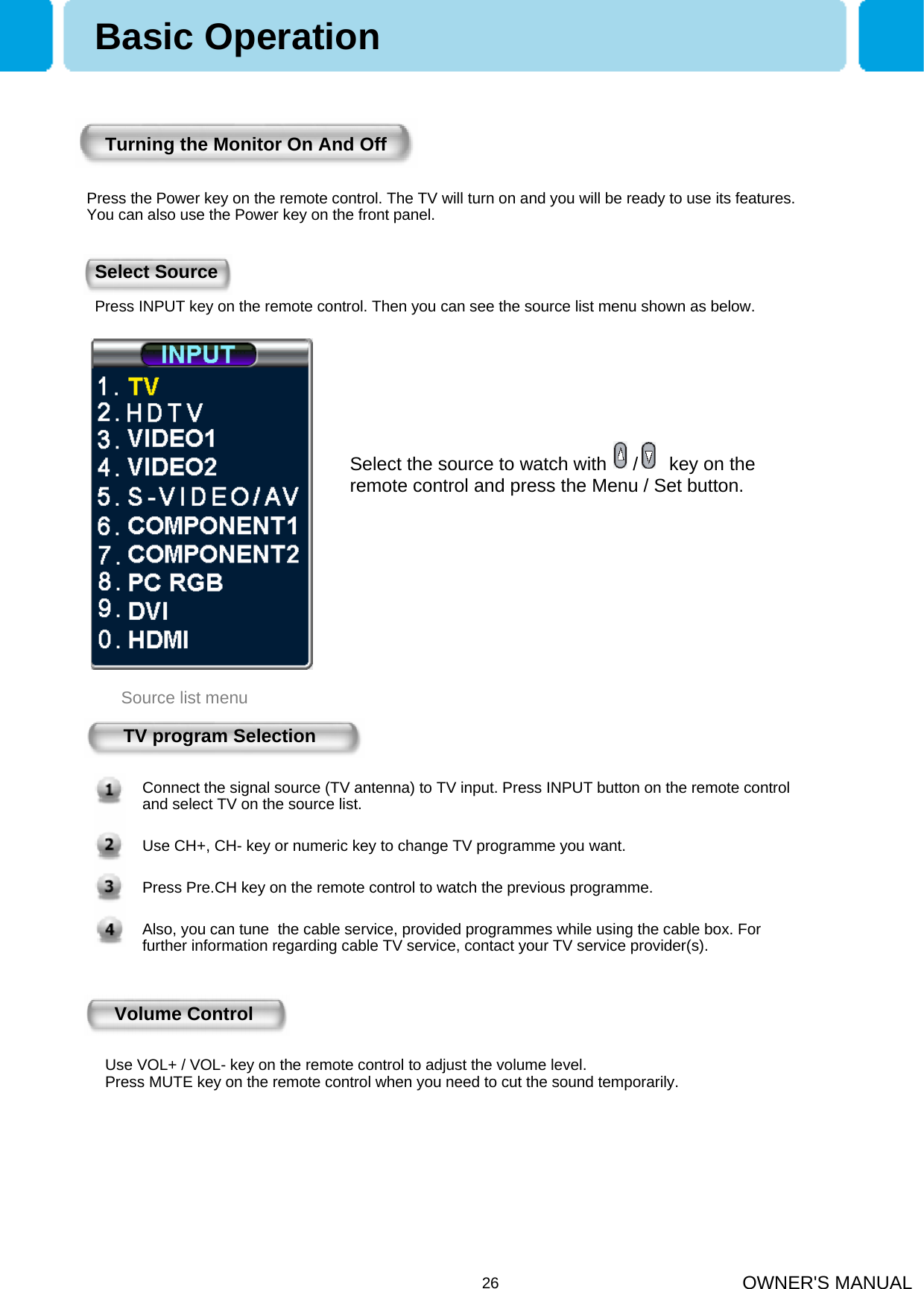

OWNER'S MANUAL26Turning the Monitor On And OffTV program SelectionConnect the signal source (TV antenna) to TV input. Press INPUT button on the remote control and select TV on the source list.Use CH+, CH- key or numeric key to change TV programme you want.Press Pre.CH key on the remote control to watch the previous programme.Also, you can tune the cable service, provided programmes while using the cable box. For further information regarding cable TV service, contact your TV service provider(s).Volume ControlUse VOL+ / VOL- key on the remote control to adjust the volume level.Press MUTE key on the remote control when you need to cut the sound temporarily.Select Source Source list menuBasic OperationPress the Power key on the remote control. The TV will turn on and you will be ready to use its features. You can also use the Power key on the front panel.Press INPUT key on the remote control. Then you can see the source list menu shown as below.Select the source to watch with / key on the remote control and press the Menu / Set button.

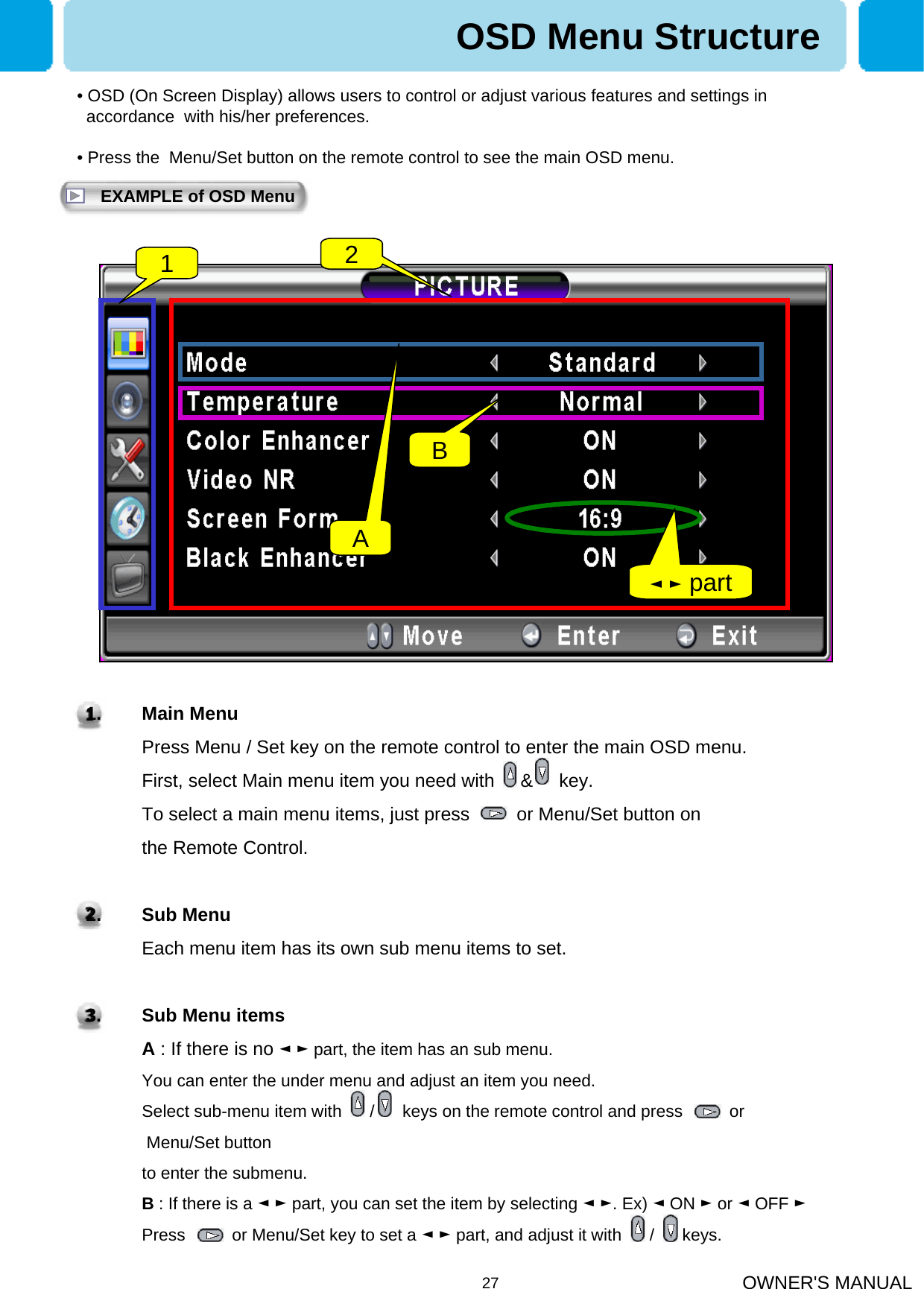

OWNER'S MANUAL27• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences. • Press the Menu/Set button on the remote control to see the main OSD menu.EXAMPLE of OSD MenuOSD Menu Structure12BA◄►part1. Main MenuPress Menu / Set key on the remote control to enter the main OSD menu.First, select Main menu item you need with & key.To select a main menu items, just press or Menu/Set button on the Remote Control.2. Sub MenuEach menu item has its own sub menu items to set.3. Sub Menu itemsA: If there is no ◄►part, the item has an sub menu. You can enter the under menu and adjust an item you need.Select sub-menu item with / keys on the remote control and press orMenu/Set button to enter the submenu.B: If there is a ◄►part, you can set the item by selecting ◄►. Ex) ◄ON ►or ◄OFF ►Press or Menu/Set key to set a ◄►part, and adjust it with / keys.
OWNER'S MANUAL28You can enter the TV menu and HDTV menu in TV mode only. (When you watch a TV programme.)Choosing the Channel TypeBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV.(i.e., an antenna, a standard cable system)Setting The Cahnnel (ATV)Storing the Channel Automatically* Analog Scan precedes Digital Scan on Auto Scan mode.Press Menu/Set button to display the main OSD menuSelect The TV main menu.Press Menu/Set button to enter the sub menu.Select Auto Scan With / Button and press Menu/Set Button on the remote control. Then the tuning bar will appear and scanning will start.1. Press Menu/set button to display the main OSD menu.2. Select the TV Main menu.3. Press Menu/Set to enter the sub menu.4. Select Channel Type(ATV) or Channel Type(DTV)5. Select the Channel Type(ATV) or Channel Type(DTV) with / button and press Exit button. You Can select Air or CABLE.(ATV Scan)(HDTV Scan)
OWNER'S MANUAL29Add/DelOnly scanned programmes can be stored as Favorite programmes.Fine TuneThe Fine Tuning function lets you manually adjust the TV’s tuner if you have difficulty tuning analog Channels.CHANNEL (TV)You can add or erase the current channel1. Press Menu/set button to display the main OSD menu.2. Select the TV main menu.3. Press Menu/Set to enter the Fine tune sub menu.4. Select Fine tune with / button and press Menu/Set button. Then you can see the adjust bar.5. Adjust the fine tune with or button.1. Press Menu/set button on the remote control to display the main OSD menu.2. Select the TV main menu with / key on the remote control.3. Press Menu/Set button to enter the sub menu. 4. Select Add/Del menu. 5. Select the Add/Del with / button and press Exit button. You Can select Add or Del.Fine Tune only operates on TV mode.

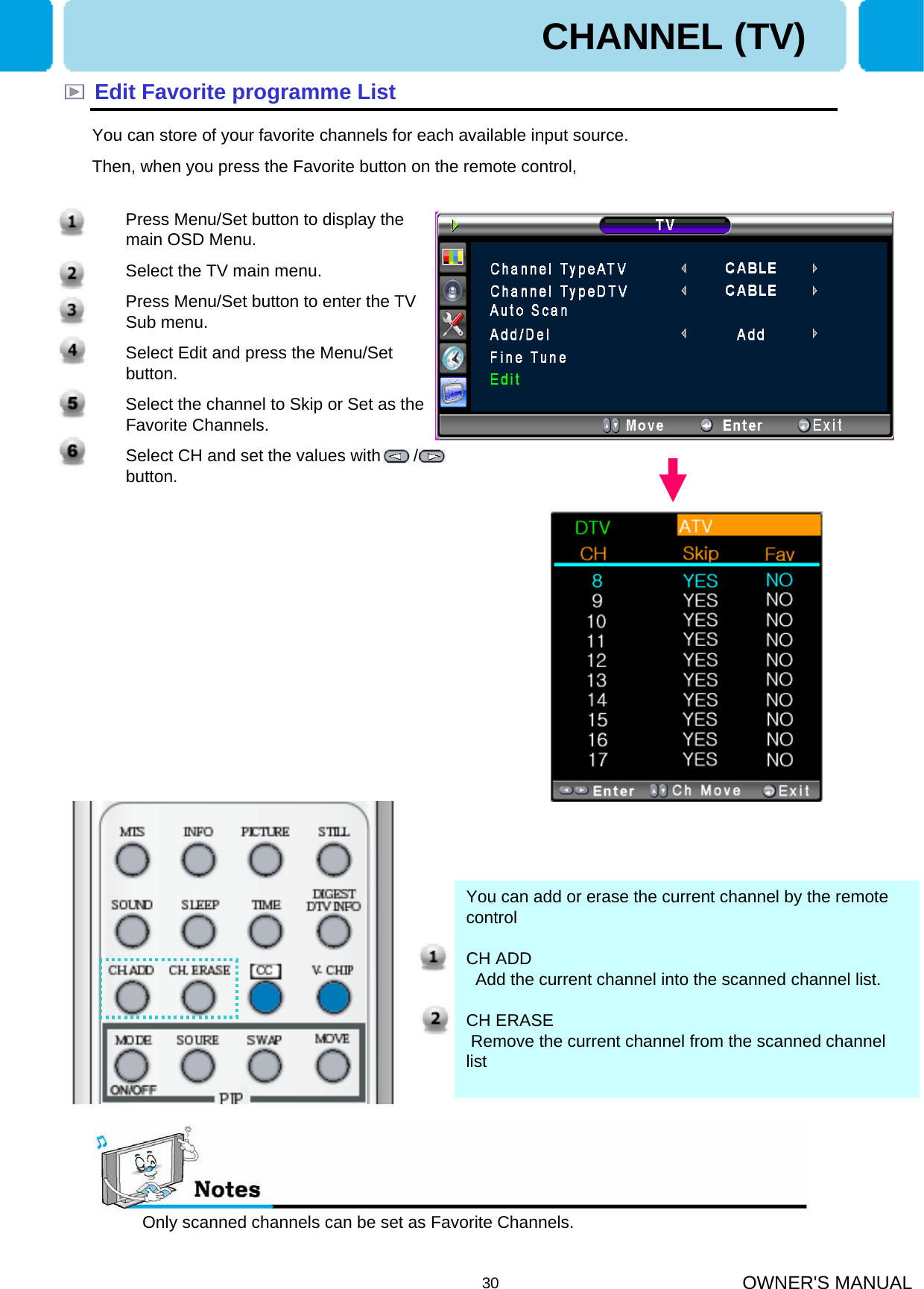

OWNER'S MANUAL30Edit Favorite programme ListOnly scanned channels can be set as Favorite Channels.CHANNEL (TV)You can add or erase the current channel by the remote controlCH ADDAdd the current channel into the scanned channel list.CH ERASERemove the current channel from the scanned channel list1. Press Menu/Set button to display the main OSD Menu.2. Select the TV main menu.3. Press Menu/Set button to enter the TV Sub menu.4. Select Edit and press the Menu/Set button. 5. Select the channel to Skip or Set as the Favorite Channels.6. Select CH and set the values with / button.You can store of your favorite channels for each available input source.Then, when you press the Favorite button on the remote control,

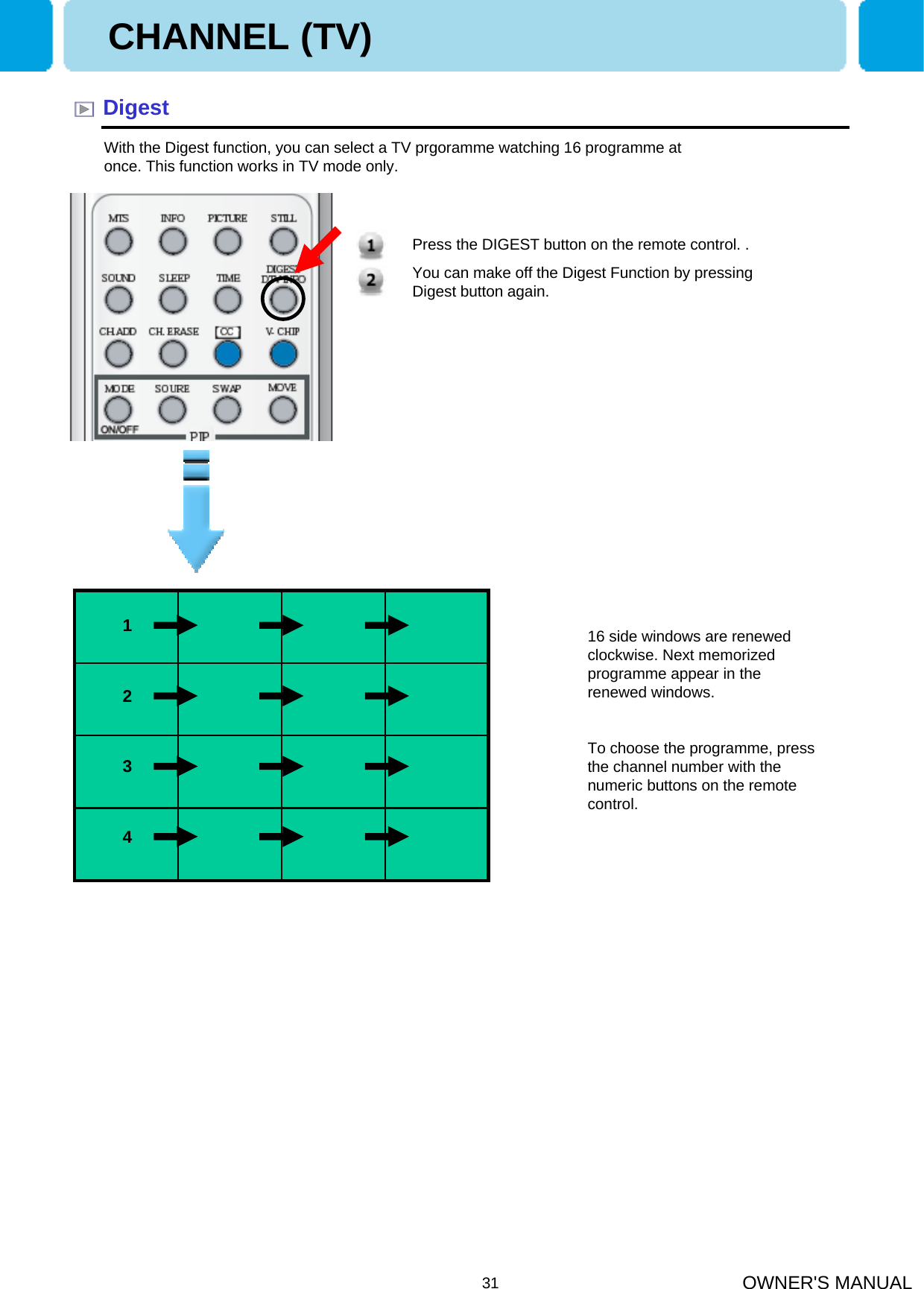

OWNER'S MANUAL31DigestWith the Digest function, you can select a TV prgoramme watching 16 programme at once. This function works in TV mode only.1. Press the DIGEST button on the remote control. .2. You can make off the Digest Function by pressing Digest button again.16 side windows are renewed clockwise. Next memorized programme appear in the renewed windows.To choose the programme, press the channel number with the numeric buttons on the remote control.CHANNEL (TV)1342

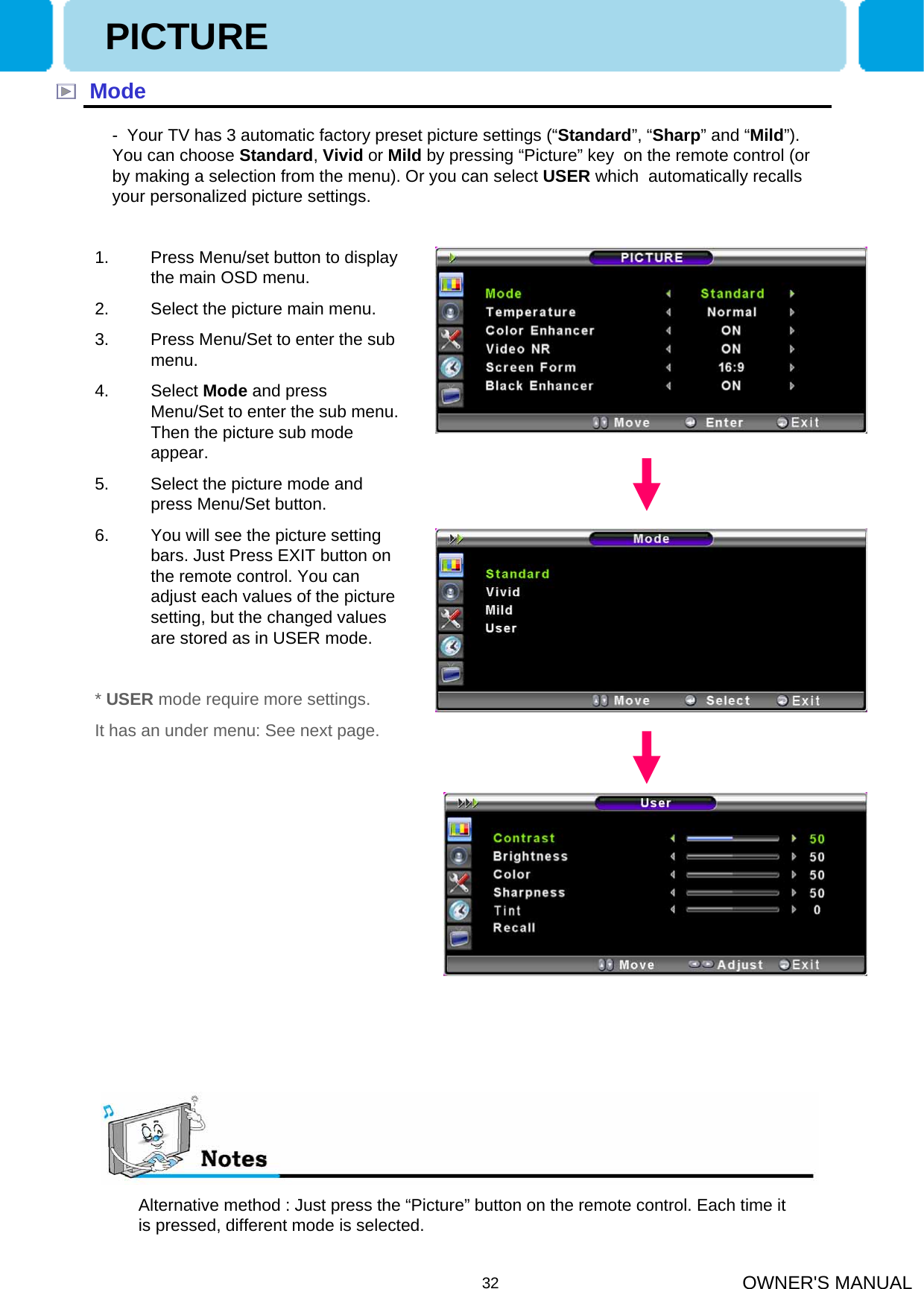

OWNER'S MANUAL32ModeAlternative method : Just press the “Picture” button on the remote control. Each time it is pressed, different mode is selected.- Your TV has 3 automatic factory preset picture settings (“Standard”, “Sharp” and “Mild”). You can choose Standard, Vivid or Mild by pressing “Picture” key on the remote control (or by making a selection from the menu). Or you can select USER which automatically recalls your personalized picture settings.1. Press Menu/set button to display the main OSD menu.2. Select the picture main menu.3. Press Menu/Set to enter the sub menu.4. Select Mode and press Menu/Set to enter the sub menu. Then the picture sub mode appear.5. Select the picture mode and press Menu/Set button.6. You will see the picture setting bars. Just Press EXIT button on the remote control. You can adjust each values of the picture setting, but the changed values are stored as in USER mode.* USER mode require more settings.It has an under menu: See next page.PICTURE

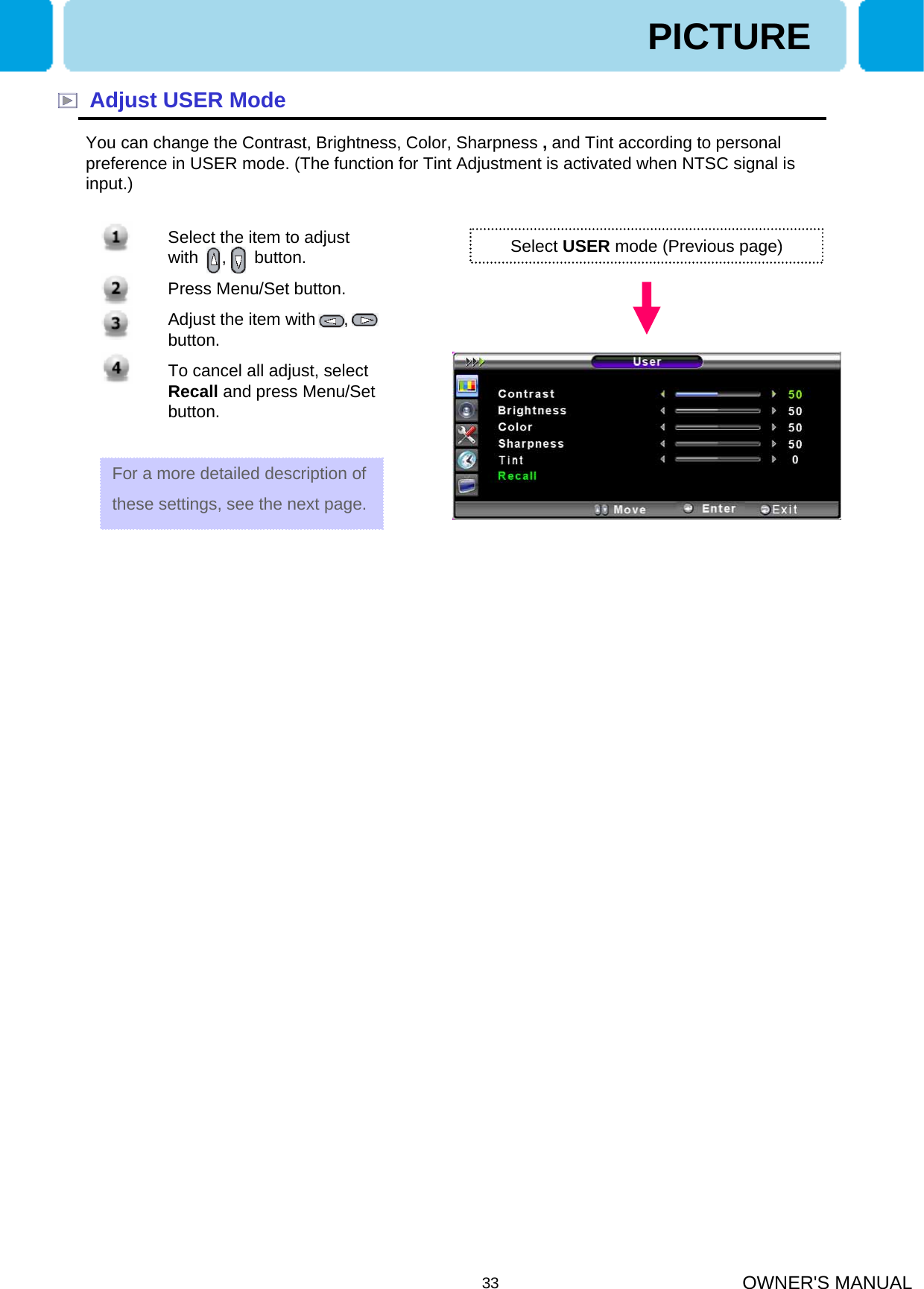

OWNER'S MANUAL33Adjust USER ModeYou can change the Contrast, Brightness, Color, Sharpness , and Tint according to personal preference in USER mode. (The function for Tint Adjustment is activated when NTSC signal is input.)Select USER mode (Previous page)PICTURE1. Select the item to adjust with , button.2. Press Menu/Set button.3. Adjust the item with , button.4. To cancel all adjust, select Recall and press Menu/Set button.For a more detailed description of these settings, see the next page.

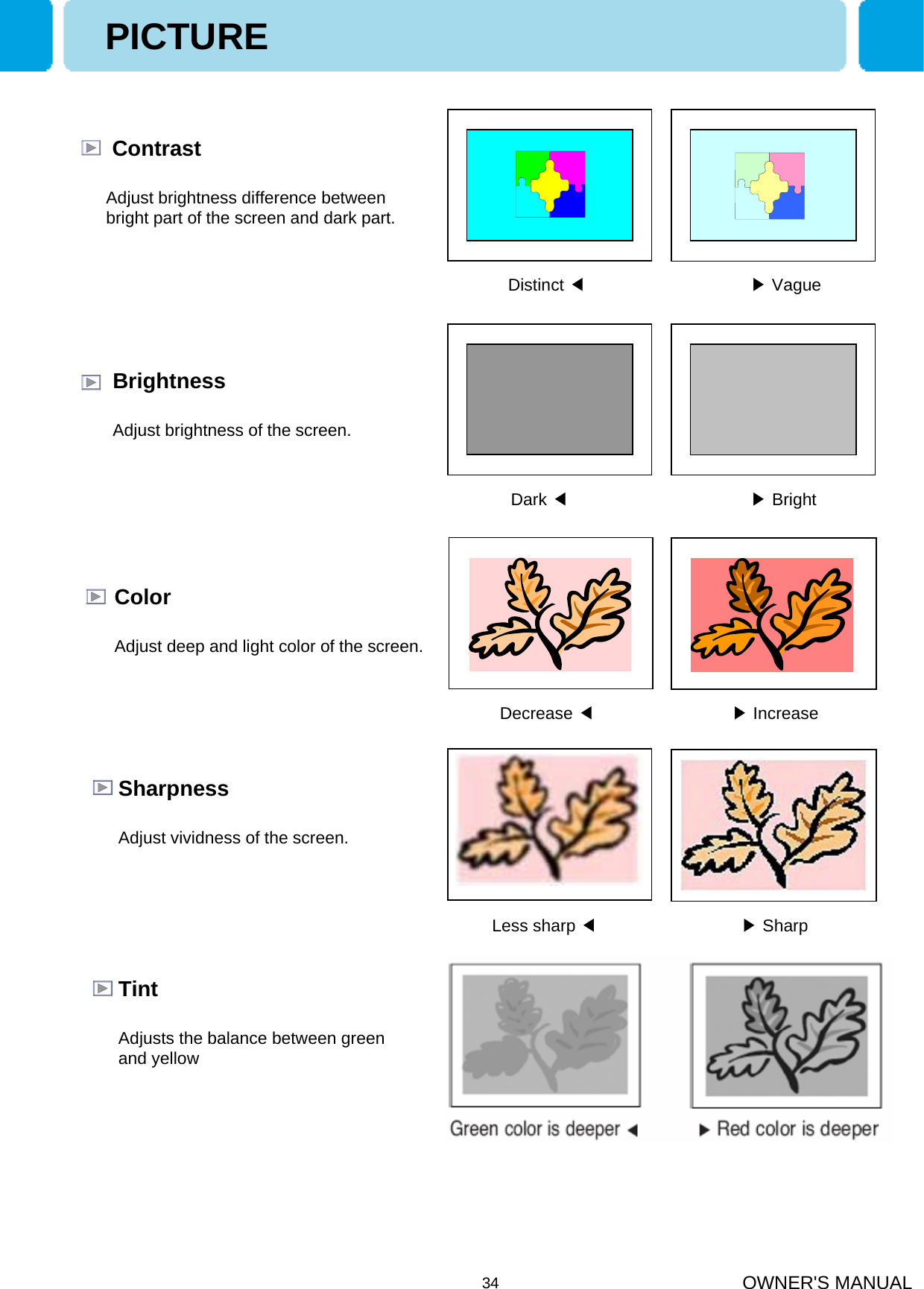

OWNER'S MANUAL34BrightnessAdjust brightness of the screen.Dark ◀▶BrightDistinct ◀▶VagueContrastAdjust brightness difference between bright part of the screen and dark part.Decrease ◀▶IncreaseColorAdjust deep and light color of the screen.Less sharp ◀▶SharpSharpnessAdjust vividness of the screen.PICTURETintAdjusts the balance between green and yellow

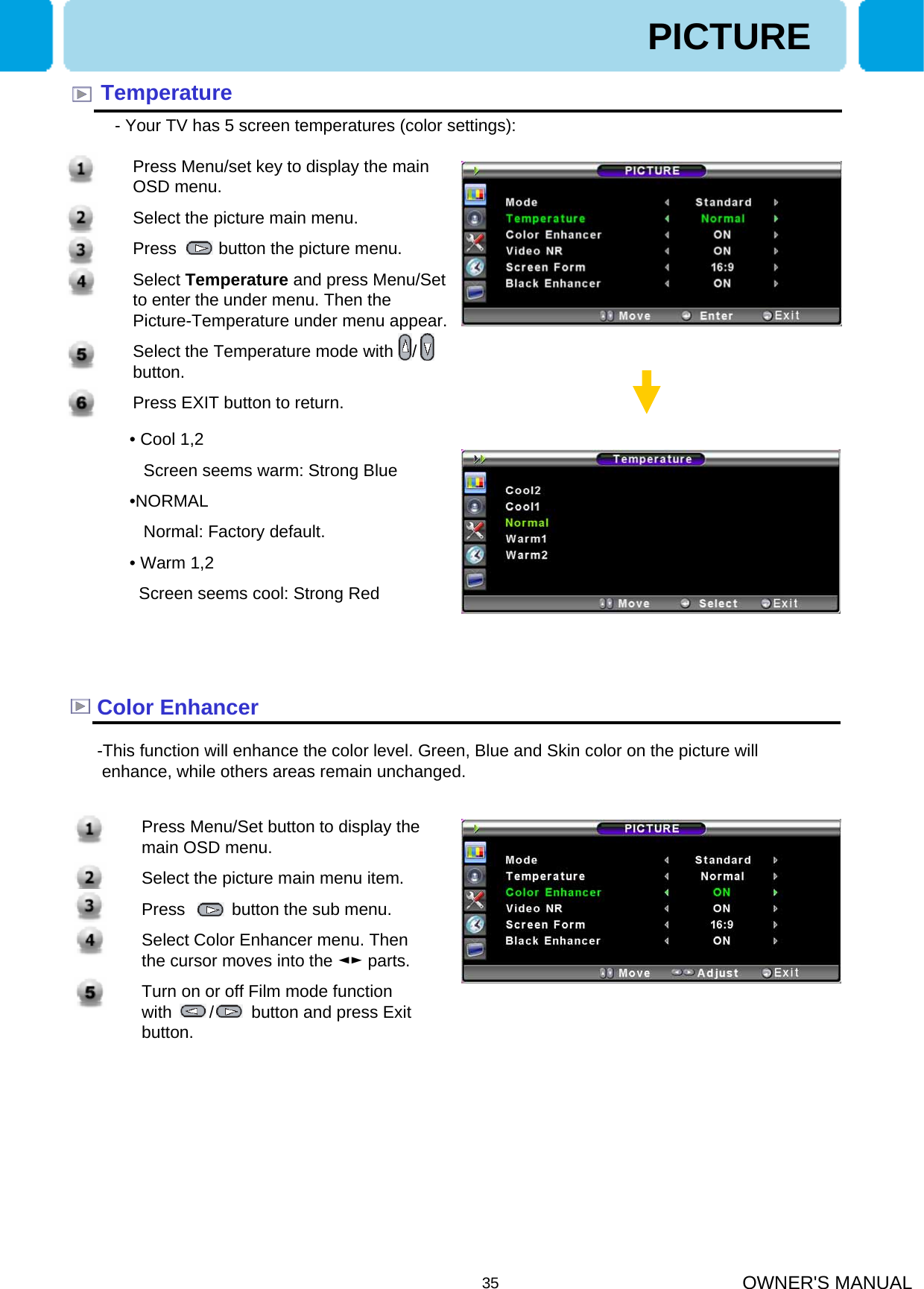

OWNER'S MANUAL351. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu item.3. Press button the sub menu.4. Select Color Enhancer menu. Then the cursor moves into the ◄► parts.5. Turn on or off Film mode function with / button and press Exit button.1. Press Menu/set key to display the main OSD menu.2. Select the picture main menu.3. Press button the picture menu.4. Select Temperature and press Menu/Set to enter the under menu. Then the Picture-Temperature under menu appear.5. Select the Temperature mode with / button.6. Press EXIT button to return.Temperature- Your TV has 5 screen temperatures (color settings): • Cool 1,2Screen seems warm: Strong Blue•NORMALNormal: Factory default.• Warm 1,2Screen seems cool: Strong RedPICTUREColor Enhancer-This function will enhance the color level. Green, Blue and Skin color on the picture will enhance, while others areas remain unchanged.

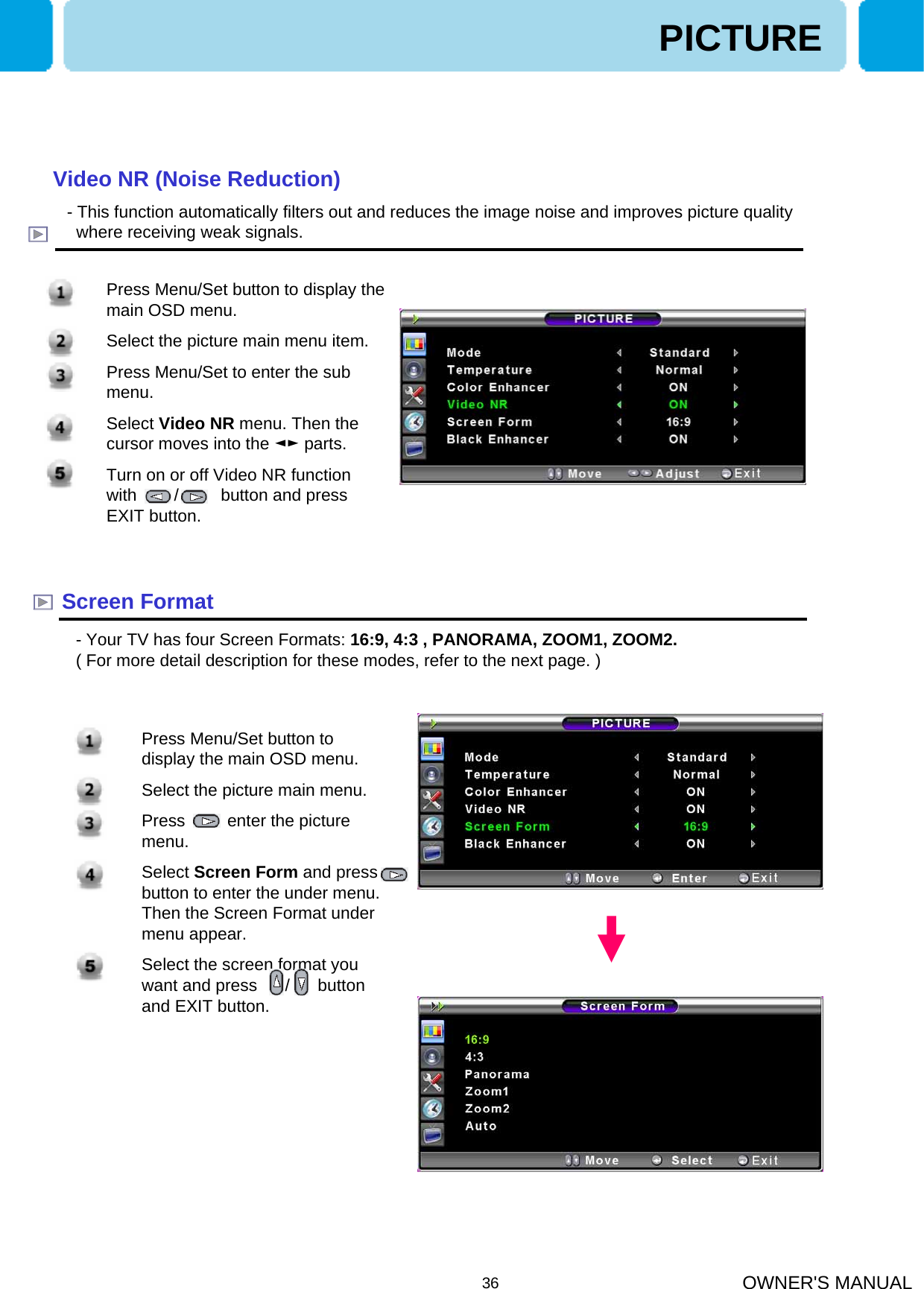

OWNER'S MANUAL36Screen Format- Your TV has four Screen Formats: 16:9, 4:3 , PANORAMA, ZOOM1, ZOOM2.( For more detail description for these modes, refer to the next page. )PICTUREVideo NR (Noise Reduction)- This function automatically filters out and reduces the image noise and improves picture qualitywhere receiving weak signals.1. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu item.3. Press Menu/Set to enter the sub menu.4. Select Video NR menu. Then the cursor moves into the ◄► parts.5. Turn on or off Video NR function with / button and press EXIT button.1. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu.3. Press enter the picture menu.4. Select Screen Form and press button to enter the under menu. Then the Screen Format under menu appear.5. Select the screen format you want and press / button and EXIT button.

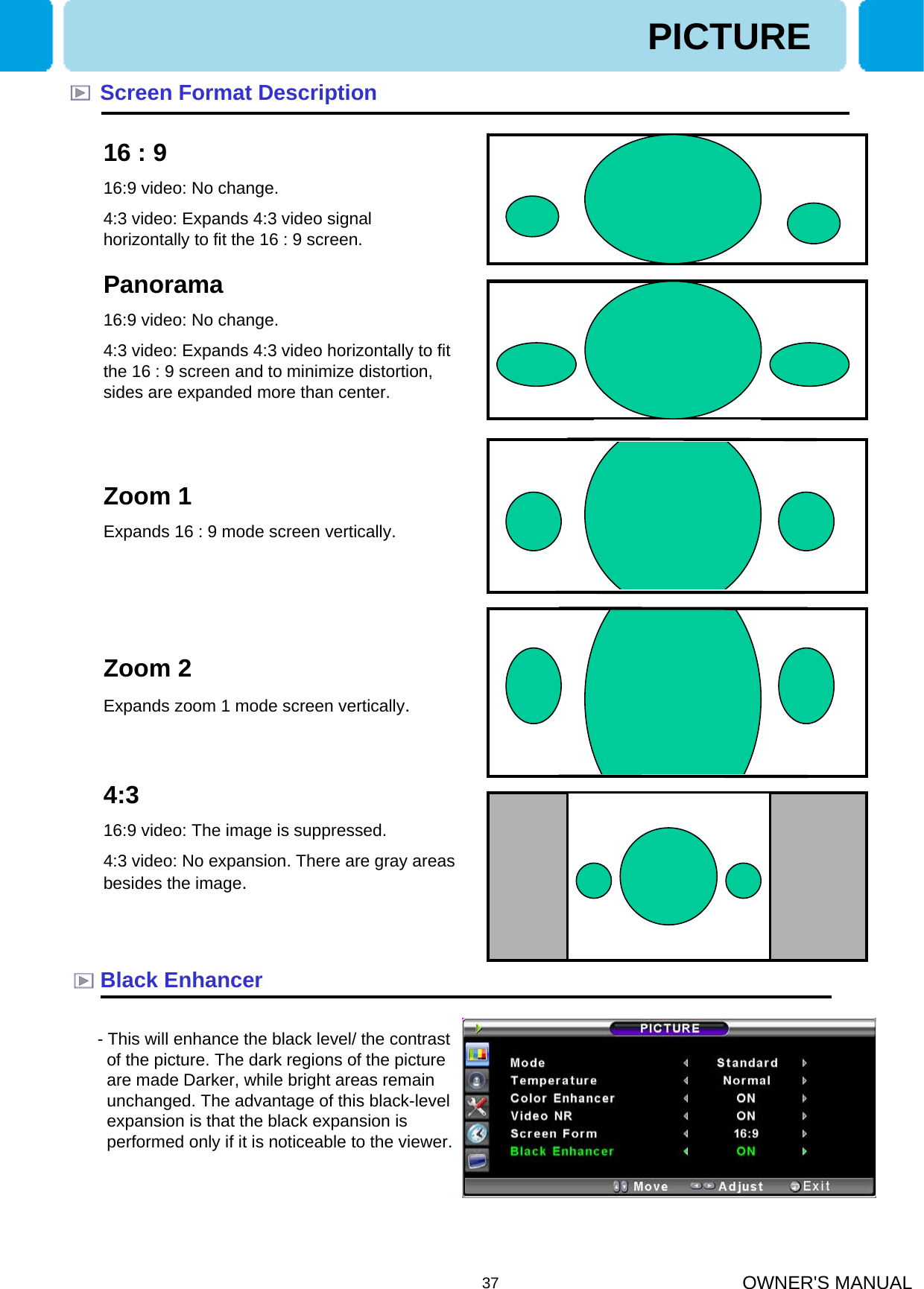

OWNER'S MANUAL37Screen Format Description16 : 916:9 video: No change.4:3 video: Expands 4:3 video signal horizontally to fit the 16 : 9 screen.Panorama16:9 video: No change.4:3 video: Expands 4:3 video horizontally to fit the 16 : 9 screen and to minimize distortion, sides are expanded more than center.Zoom 1Expands 16 : 9 mode screen vertically.Zoom 2Expands zoom 1 mode screen vertically.4:316:9 video: The image is suppressed.4:3 video: No expansion. There are gray areas besides the image.Black Enhancer- This will enhance the black level/ the contrastof the picture. The dark regions of the picture are made Darker, while bright areas remainunchanged. The advantage of this black-levelexpansion is that the black expansion is performed only if it is noticeable to the viewer.PICTURE

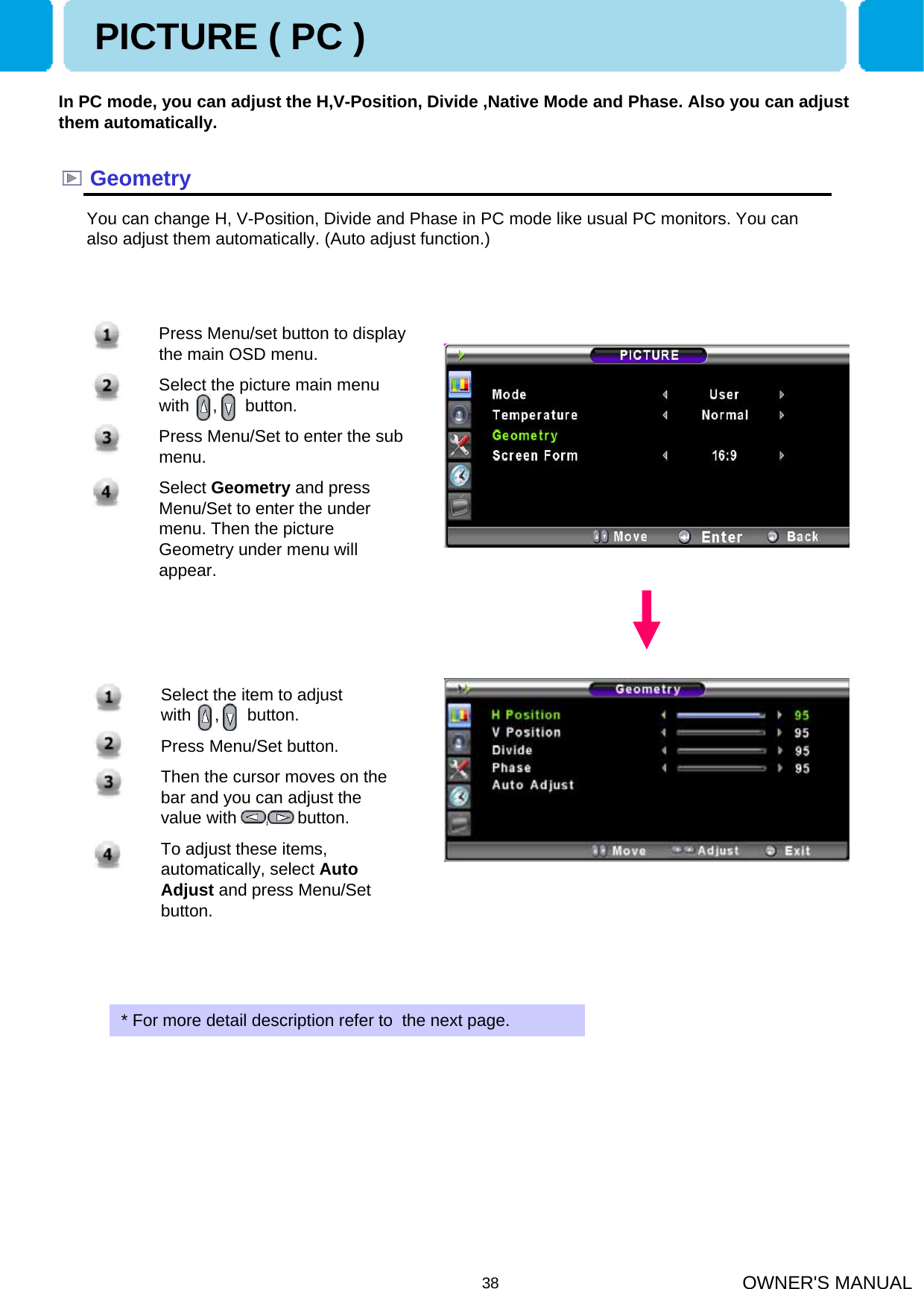

OWNER'S MANUAL38GeometryIn PC mode, you can adjust the H,V-Position, Divide ,Native Mode and Phase. Also you can adjust them automatically.You can change H, V-Position, Divide and Phase in PC mode like usual PC monitors. You can also adjust them automatically. (Auto adjust function.)* For more detail description refer to the next page.PICTURE ( PC )1. Press Menu/set button to display the main OSD menu.2. Select the picture main menu with , button.3. Press Menu/Set to enter the sub menu.4. Select Geometry and press Menu/Set to enter the under menu. Then the picture Geometry under menu will appear.1. Select the item to adjust with , button.2. Press Menu/Set button.3. Then the cursor moves on the bar and you can adjust the value with , button. 4. To adjust these items, automatically, select Auto Adjust and press Menu/Set button.

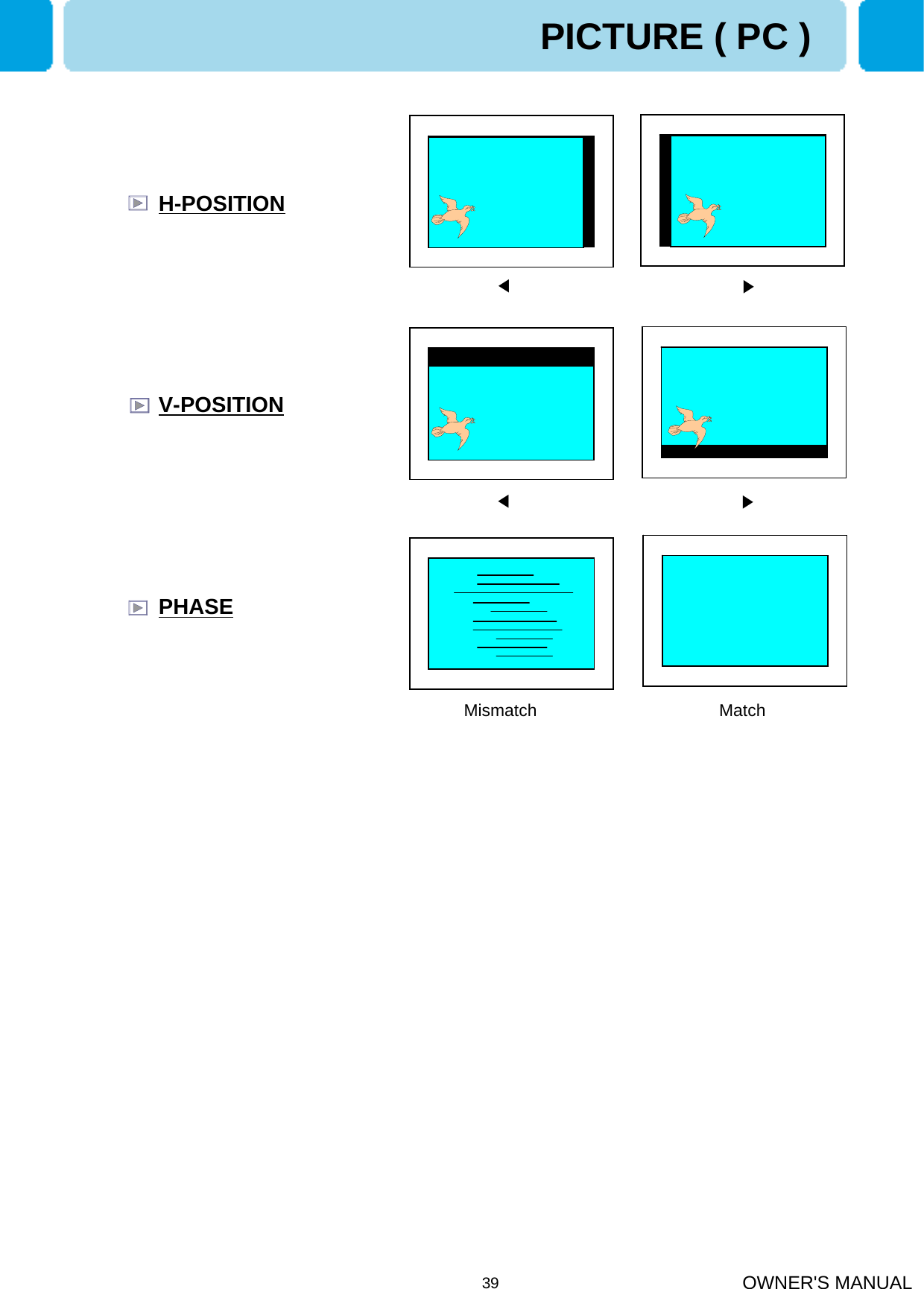

OWNER'S MANUAL39◀▶◀▶Mismatch MatchH-POSITIONV-POSITIONPHASEPICTURE ( PC )
OWNER'S MANUAL40In SOUND Menu, you can adjust balance, MTS ( Multi-Track Sound), AVC (Auto Volume Control) and select the equalizer settings.BalanceThis control allows you to adjust the balance of the left and right speaker output.Sound ModeYour TV has four automatic sound settings (“Standard”, “Movie”, “Music” and “News”) that are preset at the factory. You can activate either Standard, Movie, Music or News by pressing “SOUND” on the remote control (or by making a selection from the menu) or you can select “Custom” which automatically recalls your personalized sound settings.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select Mode and press Menu/Set to enter the sub menu. Then the Mode sub menu appear.5. Select the equalizer setting and press Menu/Set button.6. You will see the equalizer bars. Just press EXIT button on the remote control. You can adjust each values of equalizer, but the changed values are stored as in USER mode.* USER mode require more settings.It has sub menu: See next page.SOUND1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select Balance and press Menu/Set key.5. Adjust the balance with , keys and press Exit button.

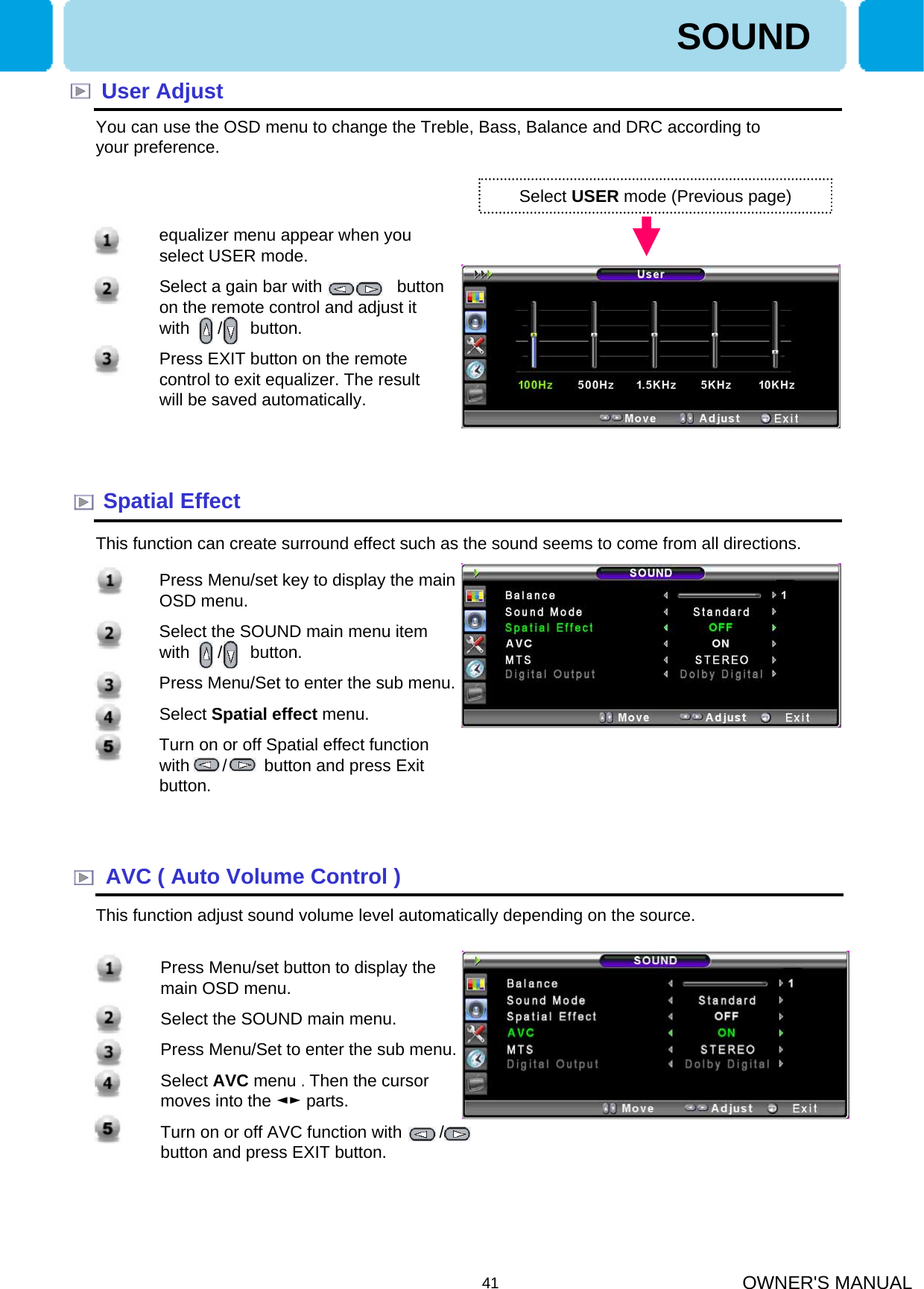

OWNER'S MANUAL41User AdjustYou can use the OSD menu to change the Treble, Bass, Balance and DRC according to your preference.Select USER mode (Previous page)Spatial EffectThis function can create surround effect such as the sound seems to come from all directions.AVC ( Auto Volume Control )This function adjust sound volume level automatically depending on the source.SOUND1. equalizer menu appear when you select USER mode. 2. Select a gain bar with , button on the remote control and adjust it with / button.3. Press EXIT button on the remote control to exit equalizer. The result will be saved automatically.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select AVC menu .Then the cursor moves into the ◄► parts.5. Turn on or off AVC function with / button and press EXIT button.1. Press Menu/set key to display the main OSD menu.2. Select the SOUND main menu item with / button.3. Press Menu/Set to enter the sub menu.4. Select Spatial effect menu.5. Turn on or off Spatial effect function with / button and press Exit button.
OWNER'S MANUAL42MTS- Select sound signal format from the input source. There are Mono, Stereo, SAP sound formats. ** The available sound formats are displayed. Usually, you can see Mono and Stereo.SOUND1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu with / button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select MTS and press Menu/Set to enter the sub menu. Then the MTS sub menu appear.5. Select the MTS format with / and press Menu/Set button.MTS (Multi Sounds) supports English, French and Spanish. The available languages vary according to TV programs from broadcasting stations.

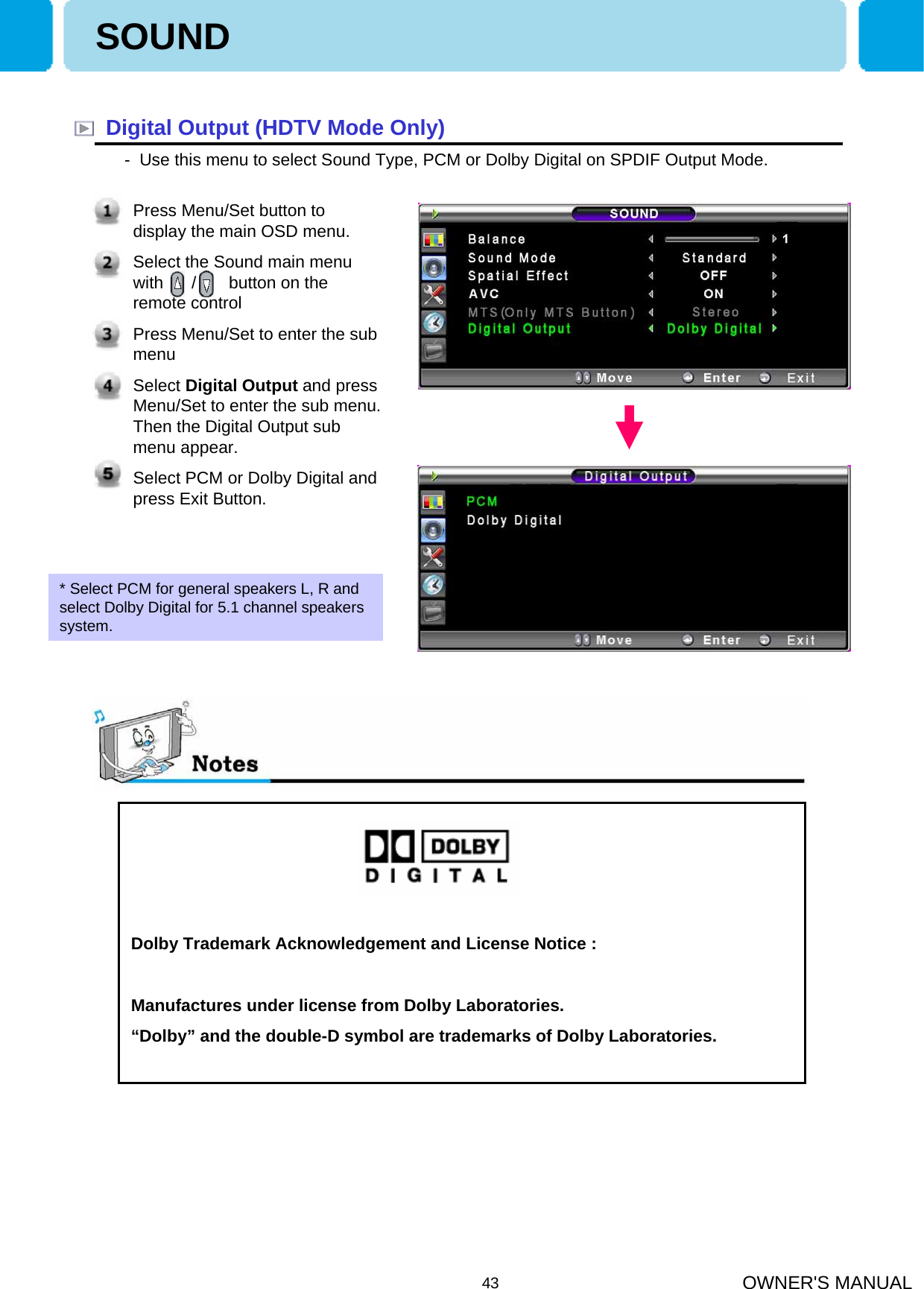

OWNER'S MANUAL43SOUNDDolby Trademark Acknowledgement and License Notice : Manufactures under license from Dolby Laboratories.“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.Press Menu/Set button to display the main OSD menu.Select the Sound main menu with / button on the remote controlPress Menu/Set to enter the sub menuSelect Digital Output and press Menu/Set to enter the sub menu. Then the Digital Output sub menu appear. Select PCM or Dolby Digital and press Exit Button.Digital Output (HDTV Mode Only)- Use this menu to select Sound Type, PCM or Dolby Digital on SPDIF Output Mode. * Select PCM for general speakers L, R and select Dolby Digital for 5.1 channel speakers system.

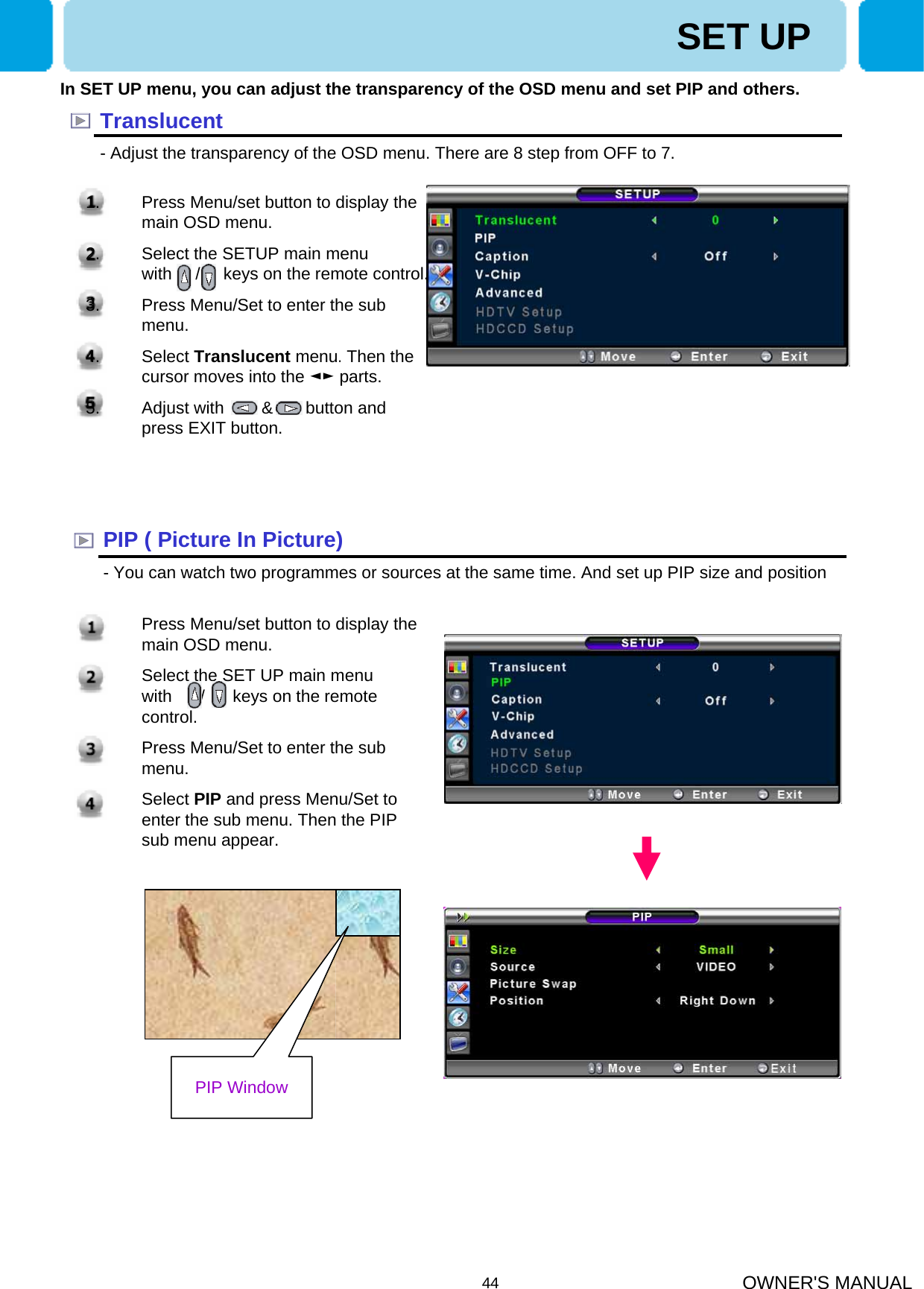

OWNER'S MANUAL441. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with / keys on the remote control.3. Press Menu/Set to enter the sub menu.4. Select PIP and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.In SET UP menu, you can adjust the transparency of the OSD menu and set PIP and others. Translucent- Adjust the transparency of the OSD menu. There are 8 step from OFF to 7.PIP ( Picture In Picture)- You can watch two programmes or sources at the same time. And set up PIP size and position PIP WindowSET UP1. Press Menu/set button to display the main OSD menu.2. Select the SETUP main menu with / keys on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Translucent menu.Then the cursor moves into the ◄► parts. 5. Adjust with & button and press EXIT button.

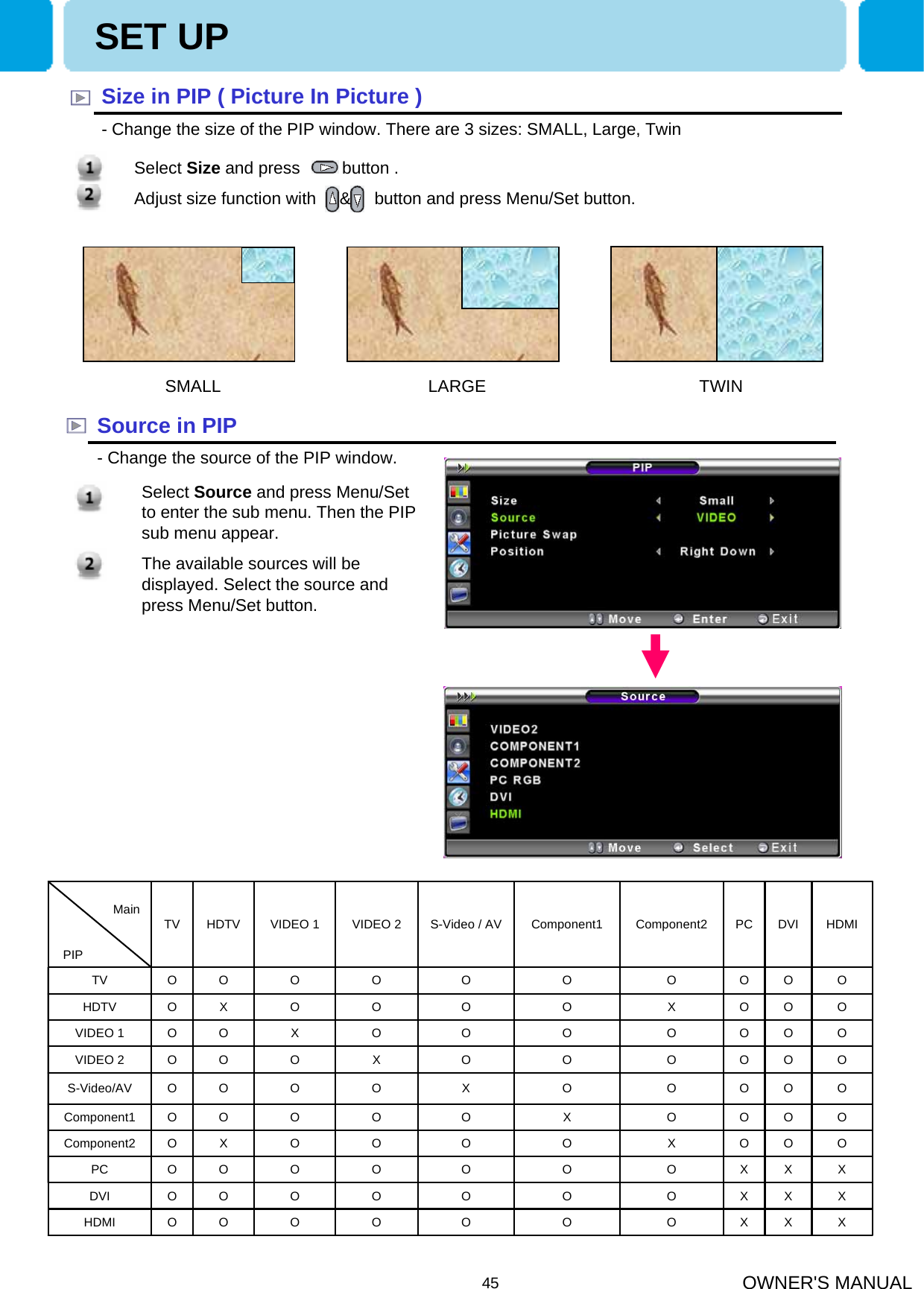

OWNER'S MANUAL45Size in PIP ( Picture In Picture )- Change the size of the PIP window. There are 3 sizes: SMALL, Large, TwinSMALL LARGE TWINSource in PIP- Change the source of the PIP window. 1. Select Source and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.2. The available sources will be displayed. Select the source and press Menu/Set button.SET UPOOOXOOOOXOHDTVOOOXOOOOOHDTVXXXOOOOOODVIXXOOOOOODVIXXOOOOOOHDMIXXOOOOOOPCOOXOOOOOComponent2OOOXOOOOComponent1OOOOXOOOS-Video/AVOOOOOXOOVIDEO 2OOOOOOXOVIDEO 1OOOOOOOOTVHDMIPCComponent2Component1S-Video / AVVIDEO 2VIDEO 1TVMain PIP 1. Select Size and press button .2. Adjust size function with & button and press Menu/Set button.
OWNER'S MANUAL461. Select Position with / button on the remote control and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.2. In Sub Menu, there are four positions. Select the position with / button on the remote control and press EXIT button.Picture Swap in PIP ( Picture In Picture )- Swap the sources of the main screen and the PIP window.* Select Picture Swap and press Menu/Set button.Position in PIP- Change the position of the PIP window. SET UP

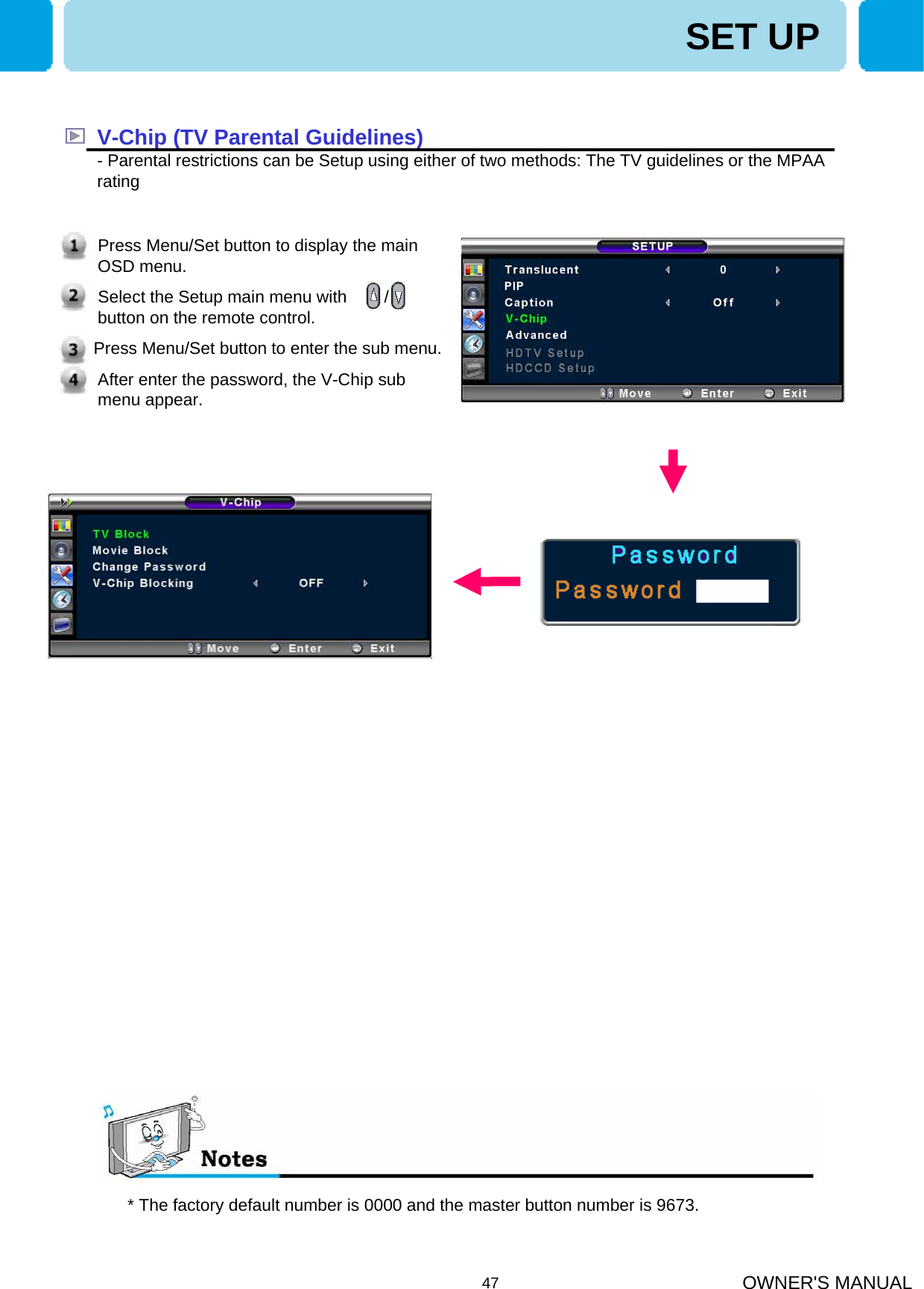

OWNER'S MANUAL47V-Chip (TV Parental Guidelines)- Parental restrictions can be Setup using either of two methods: The TV guidelines or the MPAA ratingSET UPPress Menu/Set button to display the main OSD menu.Select the Setup main menu with / button on the remote control.Press Menu/Set button to enter the sub menu.After enter the password, the V-Chip sub menu appear.* The factory default number is 0000 and the master button number is 9673.

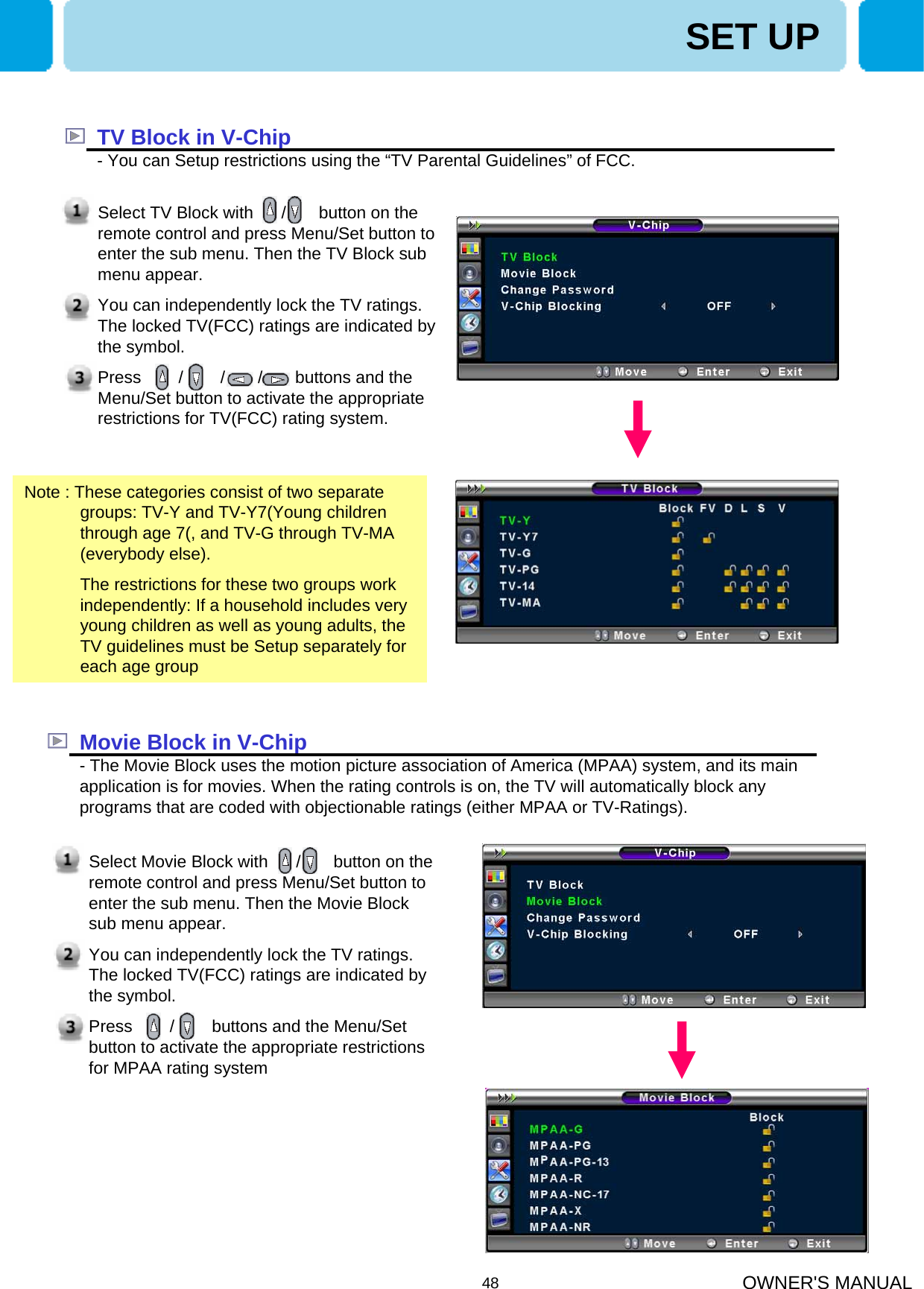

OWNER'S MANUAL48TV Block in V-Chip- You can Setup restrictions using the “TV Parental Guidelines” of FCC.SET UPSelect TV Block with / button on the remote control and press Menu/Set button to enter the sub menu. Then the TV Block sub menu appear.You can independently lock the TV ratings. The locked TV(FCC) ratings are indicated by the symbol.Press / / / buttons and the Menu/Set button to activate the appropriate restrictions for TV(FCC) rating system.Note : These categories consist of two separate groups: TV-Y and TV-Y7(Young children through age 7(, and TV-G through TV-MA (everybody else).The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be Setup separately for each age groupMovie Block in V-Chip- The Movie Block uses the motion picture association of America (MPAA) system, and its main application is for movies. When the rating controls is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).Select Movie Block with / button on the remote control and press Menu/Set button to enter the sub menu. Then the Movie Block sub menu appear.You can independently lock the TV ratings. The locked TV(FCC) ratings are indicated by the symbol.Press / buttons and the Menu/Set button to activate the appropriate restrictions for MPAA rating system

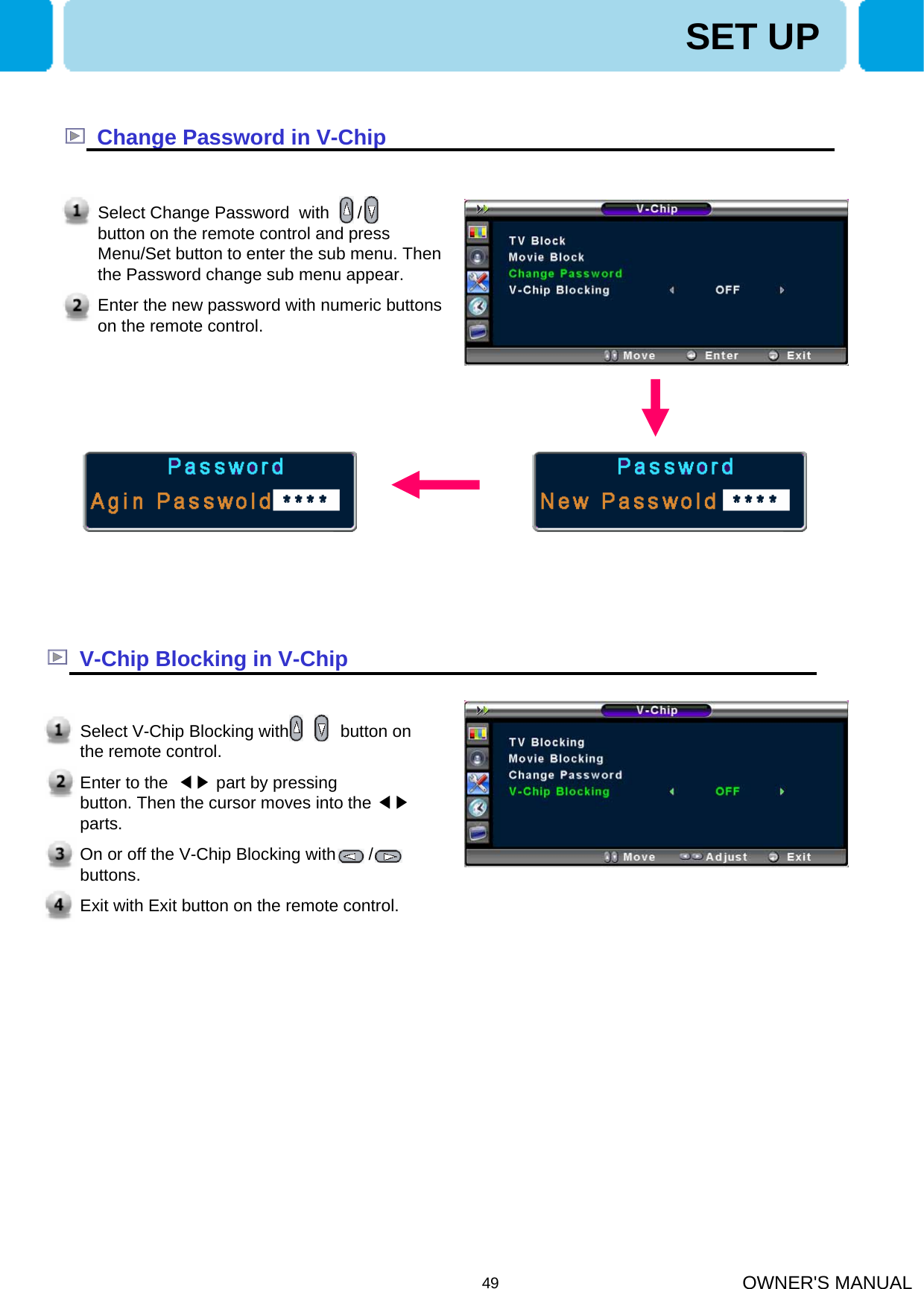

OWNER'S MANUAL49Change Password in V-ChipSET UPSelect Change Password with / button on the remote control and press Menu/Set button to enter the sub menu. Then the Password change sub menu appear.Enter the new password with numeric buttons on the remote control.V-Chip Blocking in V-ChipSelect V-Chip Blocking with / button on the remote control.Enter to the ◀▶ part by pressing button. Then the cursor moves into the ◀▶parts.On or off the V-Chip Blocking with / buttons.Exit with Exit button on the remote control.

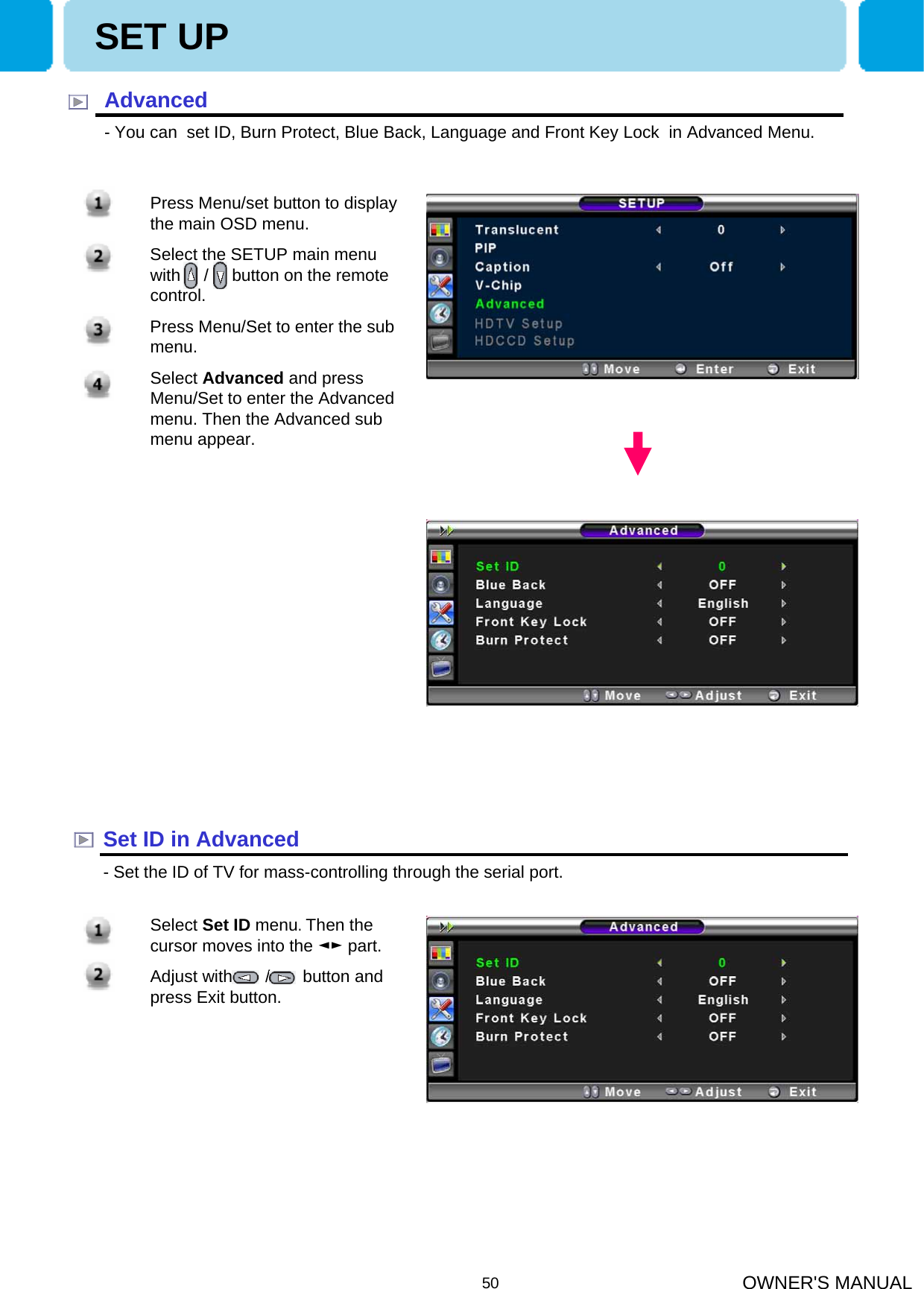

OWNER'S MANUAL50SET UPAdvanced- You can set ID, Burn Protect, Blue Back, Language and Front Key Lock in Advanced Menu.Set ID in Advanced- Set the ID of TV for mass-controlling through the serial port.1. Press Menu/set button to display the main OSD menu.2. Select the SETUP main menu with / button on the remote control. 3. Press Menu/Set to enter the sub menu.4. Select Advanced and press Menu/Set to enter the Advanced menu. Then the Advanced sub menu appear.SET UP1. Select Set ID menu. Then the cursor moves into the ◄► part.2. Adjust with / button and press Exit button.
OWNER'S MANUAL51Blue Back in AdvancedYou can set to display blue-color screen instead of noise screen.Language in AdvancedFront key Lock in AdvancedSet the language to use in OSD.Supported languages are English, French, Spanish.Lock the OSD panel of the TV monitor. It can protect the TV monitor from children’s power on/off or other operation by miss.1. Select language menu and press button to enter the ◄► parts. Then the cursor moves into the ◄►parts.2. Choose the Language with / button and press EXIT button.1. Select Front key Lock. Then the cursor moves into the ◄► parts.2. Turn the function on or off with / button and press EXIT button.SET UP1. Select Blue Back menu. Then the cursor moves into the ◄► parts. 2. Turn the function on or off with / button and press EXIT button.

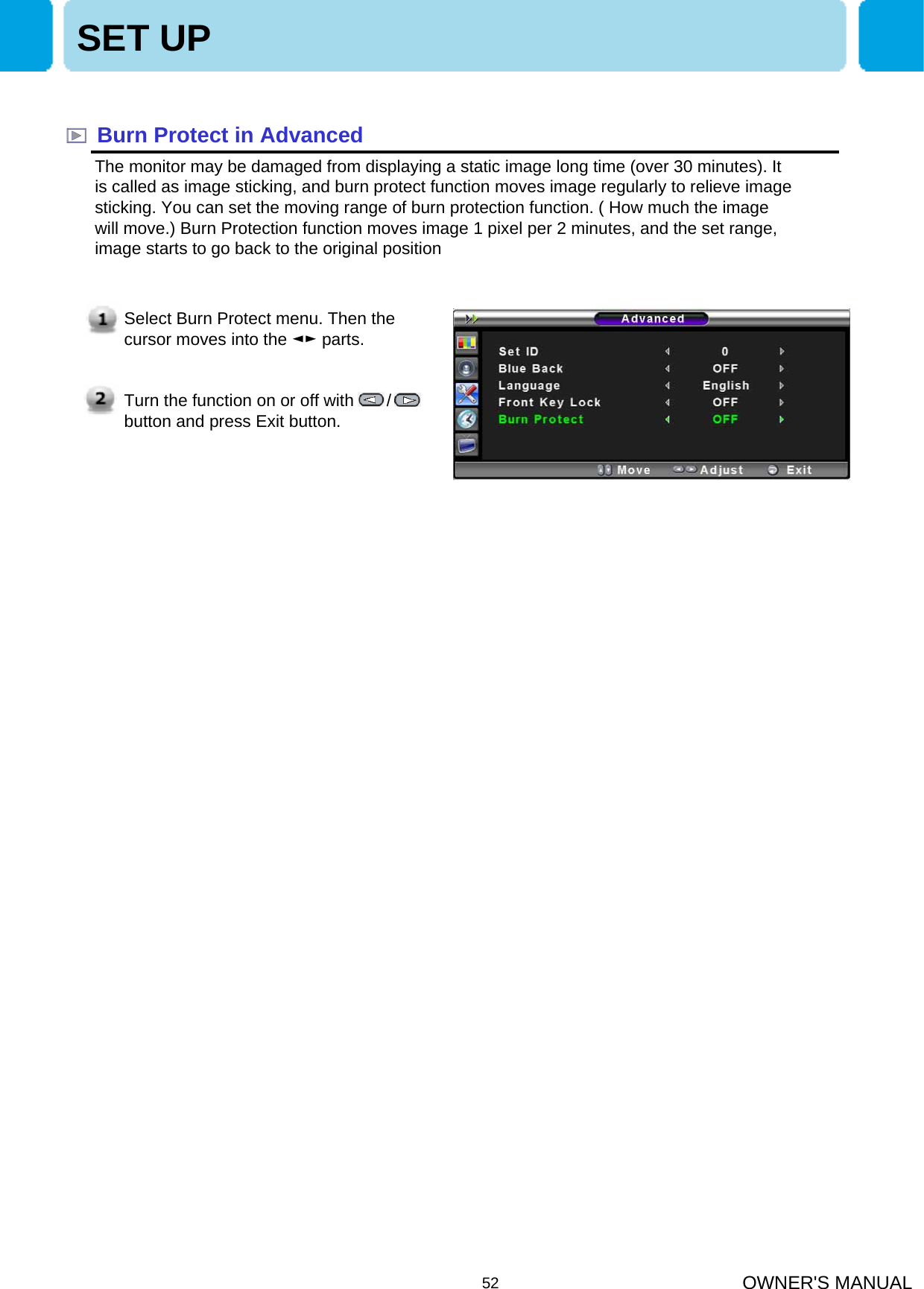

OWNER'S MANUAL52Burn Protect in AdvancedThe monitor may be damaged from displaying a static image long time (over 30 minutes). It is called as image sticking, and burn protect function moves image regularly to relieve image sticking. You can set the moving range of burn protection function. ( How much the image will move.) Burn Protection function moves image 1 pixel per 2 minutes, and the set range, image starts to go back to the original position SET UPSelect Burn Protect menu. Then the cursor moves into the ◄► parts. Turn the function on or off with / button and press Exit button.
OWNER'S MANUAL53SET UPHDTV Setup (HDTV mode)- Use this menu to set Time Zone and put Daylight Saving Time into effect. Time Zone in HDTV Setup (HDTV mode)- Use this menu to select or change Time Zone in the US. 1. Press Menu/set button to display the main OSD menu.2. Select the SETUP main menu with / button on the remote control. 3. Press Menu/Set to enter the sub menu.4. Select HDTV Setup and press Menu/Set to enter the HDTV Setup menu. Then the HDTV Setup sub menu appear.1. Select Time Zone menu and press button to enter the ◄► parts. Then the cursor moves into the ◄►parts.2. Choose the Time Zone with / button and press EXIT button.

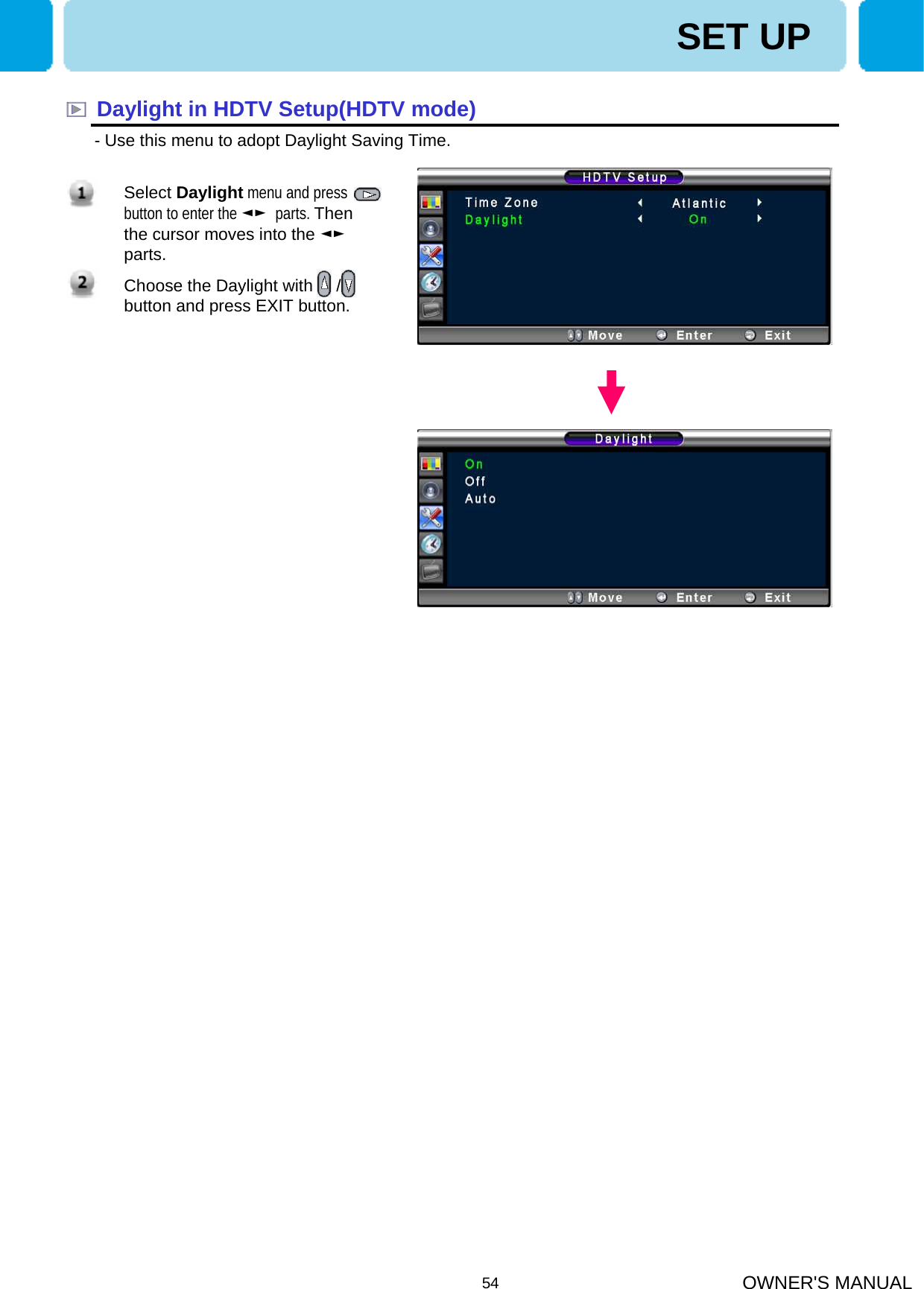

OWNER'S MANUAL54SET UPDaylight in HDTV Setup(HDTV mode)- Use this menu to adopt Daylight Saving Time. 1. Select Daylight menu and press button to enter the ◄► parts. Then the cursor moves into the ◄►parts.2. Choose the Daylight with / button and press EXIT button.
OWNER'S MANUAL55HDCCD Setup(HDTV Mode Only)- Use this menu to select a font style, a font type, a text color, a back color, a edge type, a edge color and a display type of subtitles. SETUPHDCCD SetupFont Style : Select a font style (Default, Serifmono ,Serif , Sanserifmono , Casual , Cursive)Font Type : Select a font type (Normal , Small , Large)Text Color : Select a text color (Black, White, Green, Blue, Yellow, Magenta)Back Color : Select a back color (Black, White , Green , Blue , Yellow , Magenta)Edge Type : Select an edge type (None, Raised, Depressed, Uniform, Drop-Shadow)Edge Color : Select an edge color (Black, White, Green, Blue, Yellow, Magenta)Display Type : Select a display type - Origin : Normal display of subtitles from broadcasting stations- User : User’s display set on HDCCP setup menu 1. Press Menu/set button to display the main OSD menu.2. Select the SETUP main menu with / button on the remote control. 3. Press Menu/Set to enter the sub menu.4. Select HDCCD Setup and press Menu/Set to enter the HDCCD Setup menu. Then the HDCCD Setup sub menu appear.

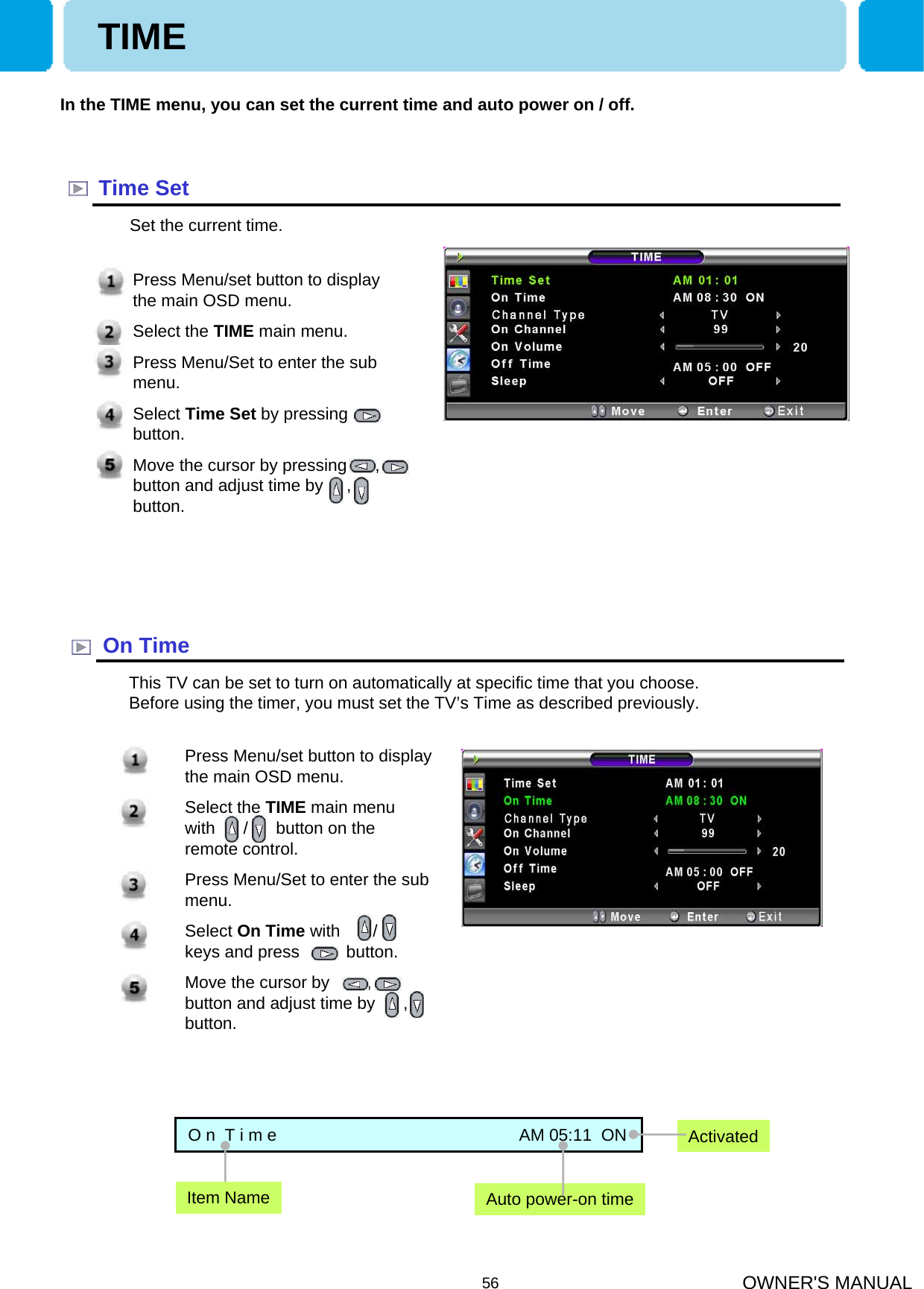

OWNER'S MANUAL561. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with / button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Time with / keys and press button. 5. Move the cursor by , button and adjust time by , button.In the TIME menu, you can set the current time and auto power on / off.Time SetSet the current time.On TimeThis TV can be set to turn on automatically at specific time that you choose. Before using the timer, you must set the TV’s Time as described previously.O n T i m e AM 05:11 ONAuto power-on timeActivatedItem NamePress Menu/set button to display the main OSD menu.Select the TIME main menu.Press Menu/Set to enter the sub menu.Select Time Set by pressing button. Move the cursor by pressing , button and adjust time by , button.TIME

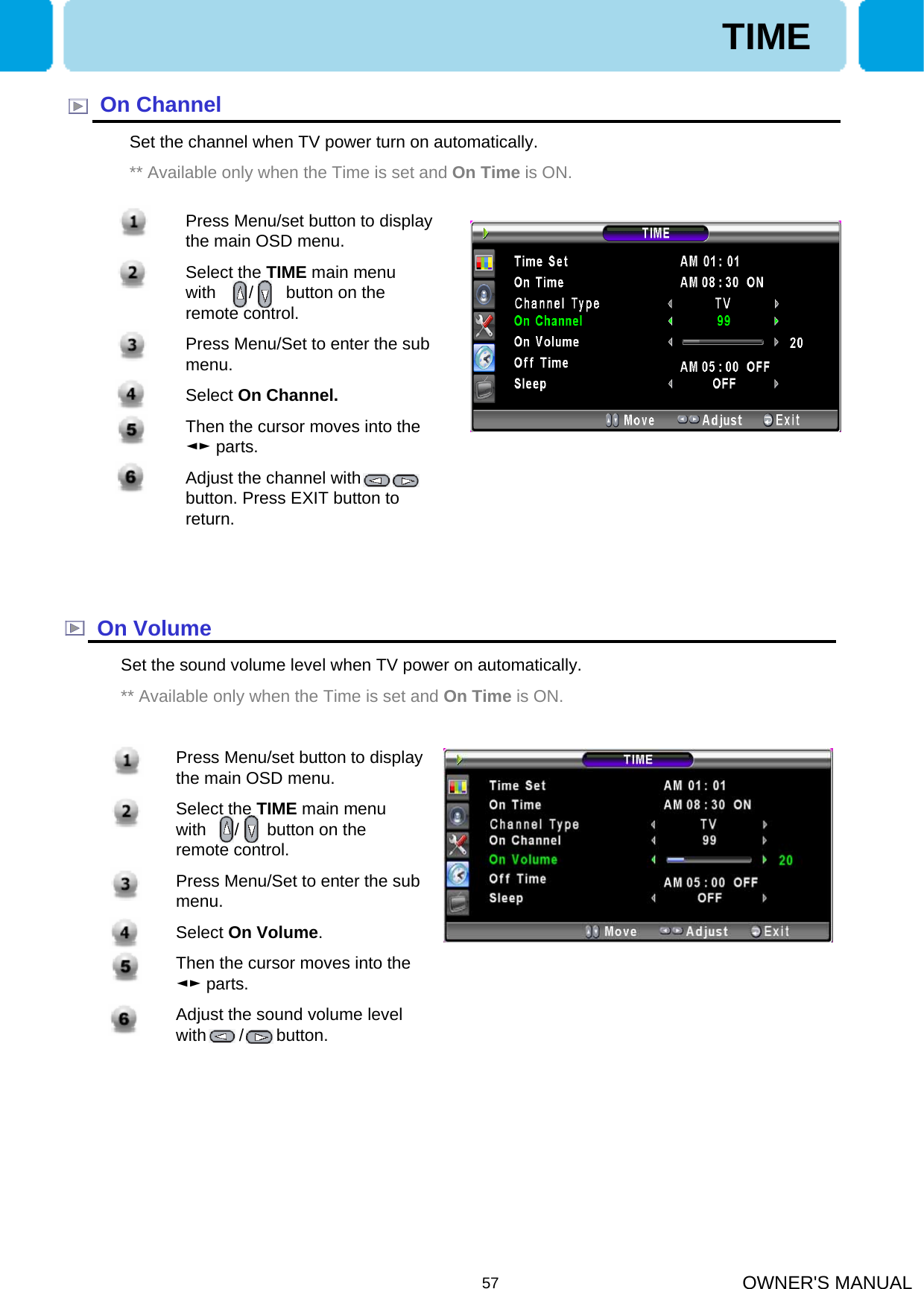

OWNER'S MANUAL571. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with / button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Channel.5. Then the cursor moves into the ◄► parts.6. Adjust the channel with , button. Press EXIT button to return.1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with / button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Volume. 5. Then the cursor moves into the ◄► parts.6. Adjust the sound volume level with / button.On VolumeOn ChannelSet the channel when TV power turn on automatically.** Available only when the Time is set and On Time is ON.Set the sound volume level when TV power on automatically.** Available only when the Time is set and On Time is ON.TIME

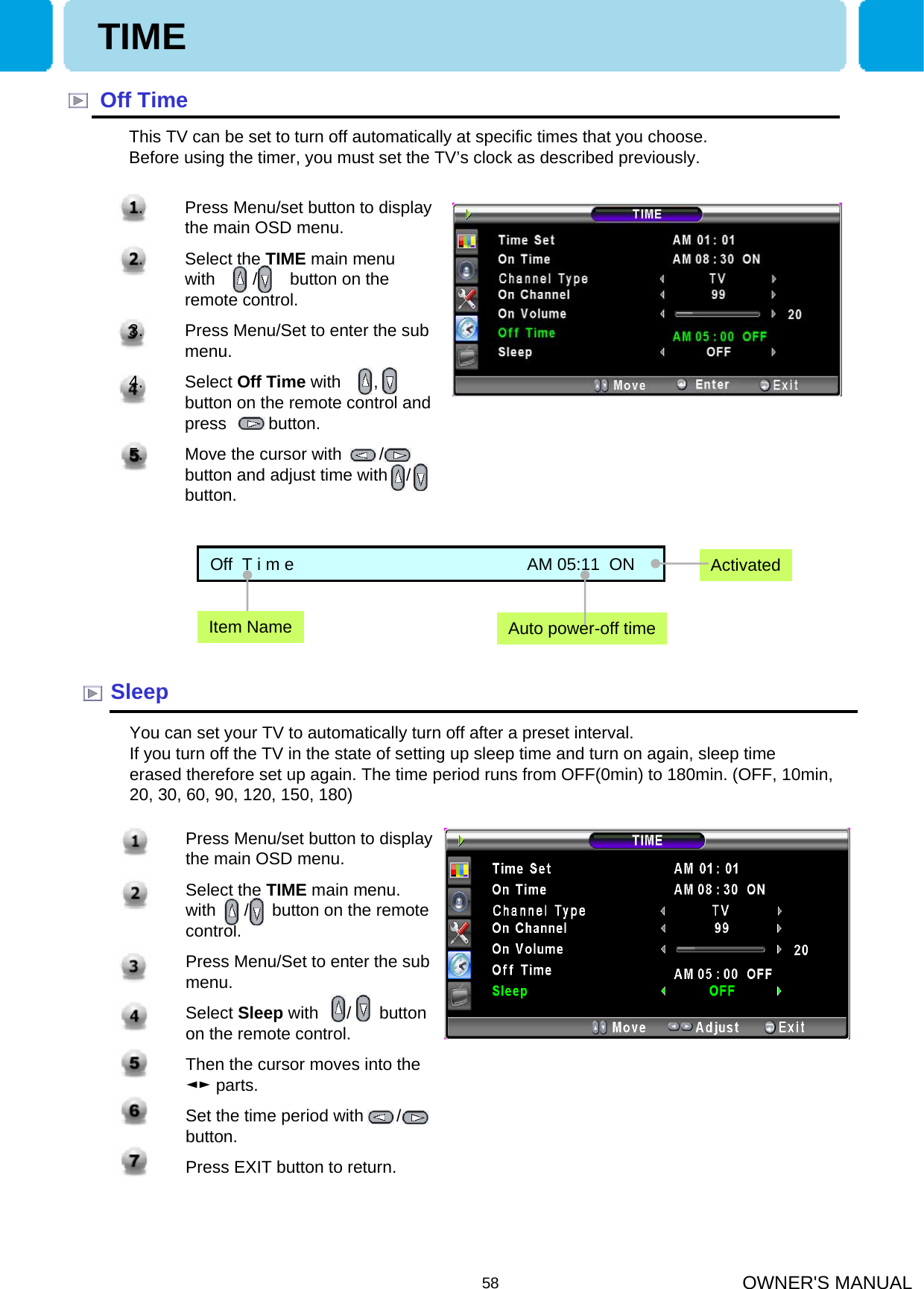

OWNER'S MANUAL58Off TimeThis TV can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the TV’s clock as described previously.SleepYou can set your TV to automatically turn off after a preset interval.If you turn off the TV in the state of setting up sleep time and turn on again, sleep time erased therefore set up again. The time period runs from OFF(0min) to 180min. (OFF, 10min, 20, 30, 60, 90, 120, 150, 180)1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu. with / button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Sleep with / button on the remote control. 5. Then the cursor moves into the ◄► parts.6. Set the time period with / button.7. Press EXIT button to return.Off T i m e AM 05:11 ONAuto power-off timeActivatedItem NameTIME1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with / button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Off Time with , button on the remote control and press button. 5. Move the cursor with / button and adjust time with / button.

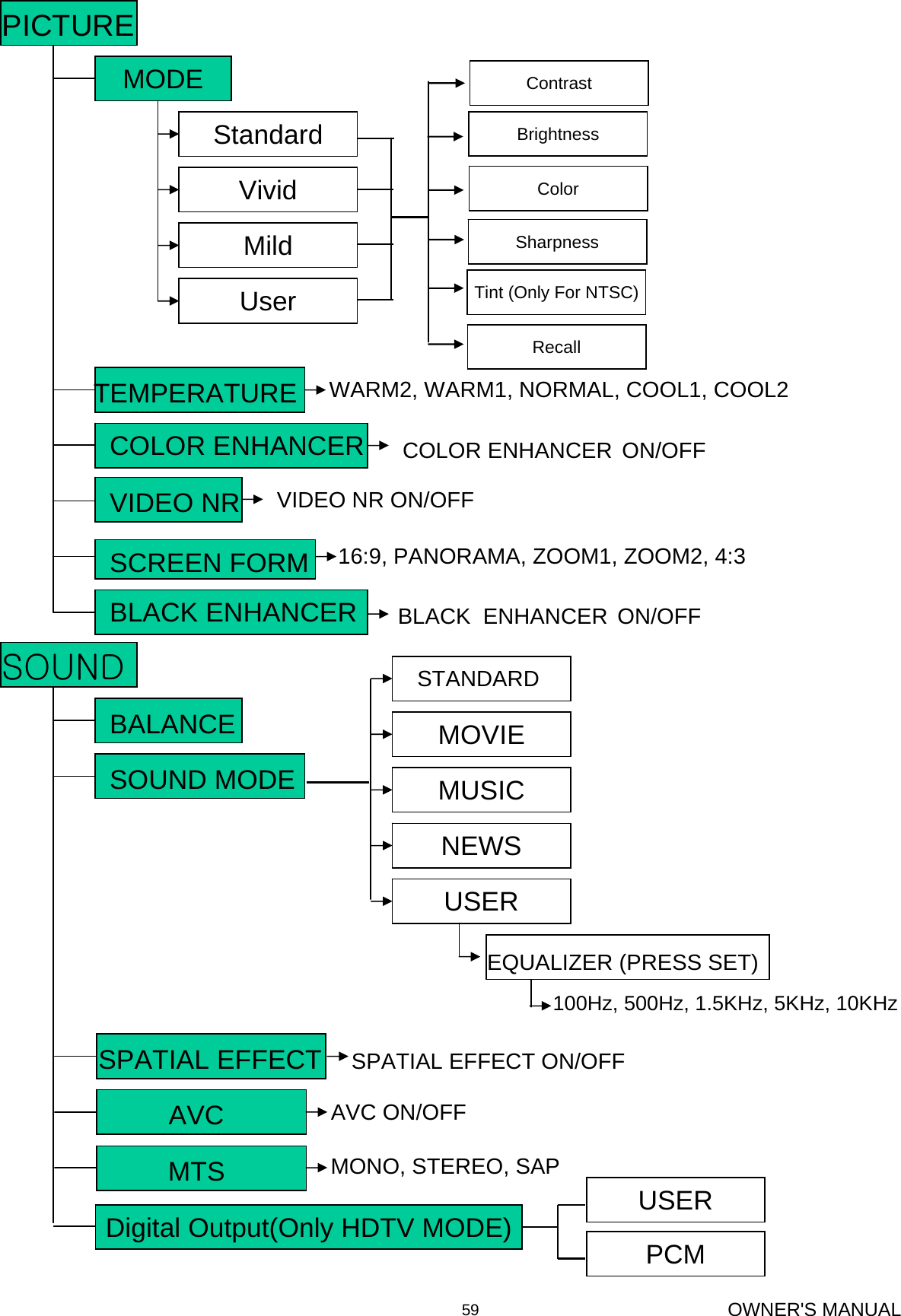

OWNER'S MANUAL59PICTUREMODEStandardVividMildUserTEMPERATURE WARM2, WARM1, NORMAL, COOL1, COOL2 COLOR ENHANCER COLOR ENHANCER ON/OFFVIDEO NR VIDEO NR ON/OFFSCREEN FORM 16:9, PANORAMA, ZOOM1, ZOOM2, 4:3 100Hz, 500Hz, 1.5KHz, 5KHz, 10KHzSOUND BALANCESOUND MODEUSERNEWSMUSICMOVIESTANDARD EQUALIZER (PRESS SET)MTS MONO, STEREO, SAPSPATIAL EFFECTAVC AVC ON/OFFSPATIAL EFFECT ON/OFFBLACK ENHANCER BLACK ENHANCER ON/OFFContrastBrightnessColorSharpnessTint (Only For NTSC)RecallDigital Output(Only HDTV MODE) USERPCM

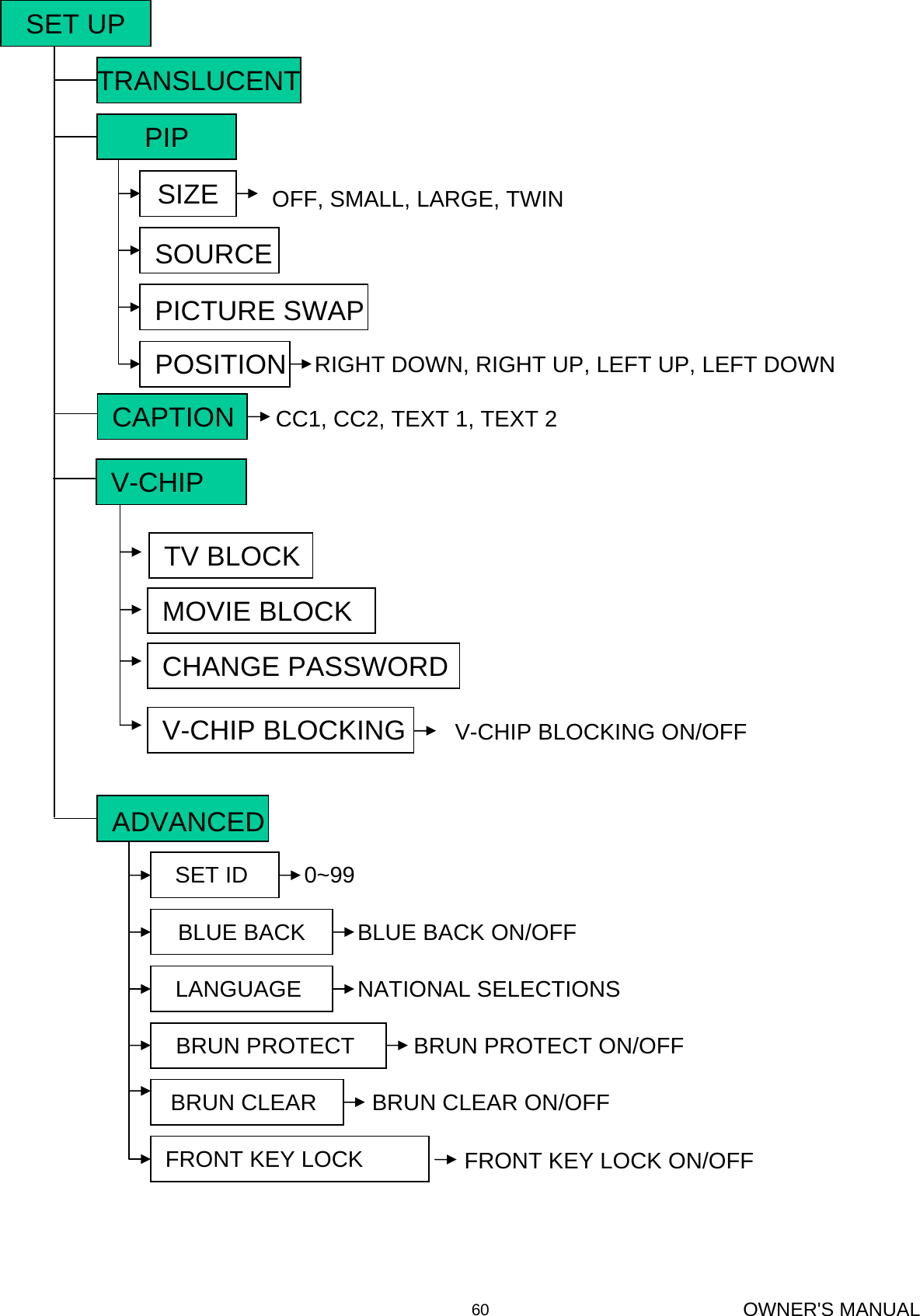

OWNER'S MANUAL60BRUN PROTECT ON/OFF POSITIONCC1, CC2, TEXT 1, TEXT 2RIGHT DOWN, RIGHT UP, LEFT UP, LEFT DOWNTRANSLUCENTSET UPPIPSOURCESIZE OFF, SMALL, LARGE, TWINPICTURE SWAPCAPTIONFRONT KEY LOCK LANGUAGE BLUE BACKSET ID NATIONAL SELECTIONS BLUE BACK ON/OFFBRUN CLEAR BRUN PROTECT BRUN CLEAR ON/OFF 0~99ADVANCEDFRONT KEY LOCK ON/OFFV-CHIPTV BLOCKMOVIE BLOCKCHANGE PASSWORDV-CHIP BLOCKING V-CHIP BLOCKING ON/OFF

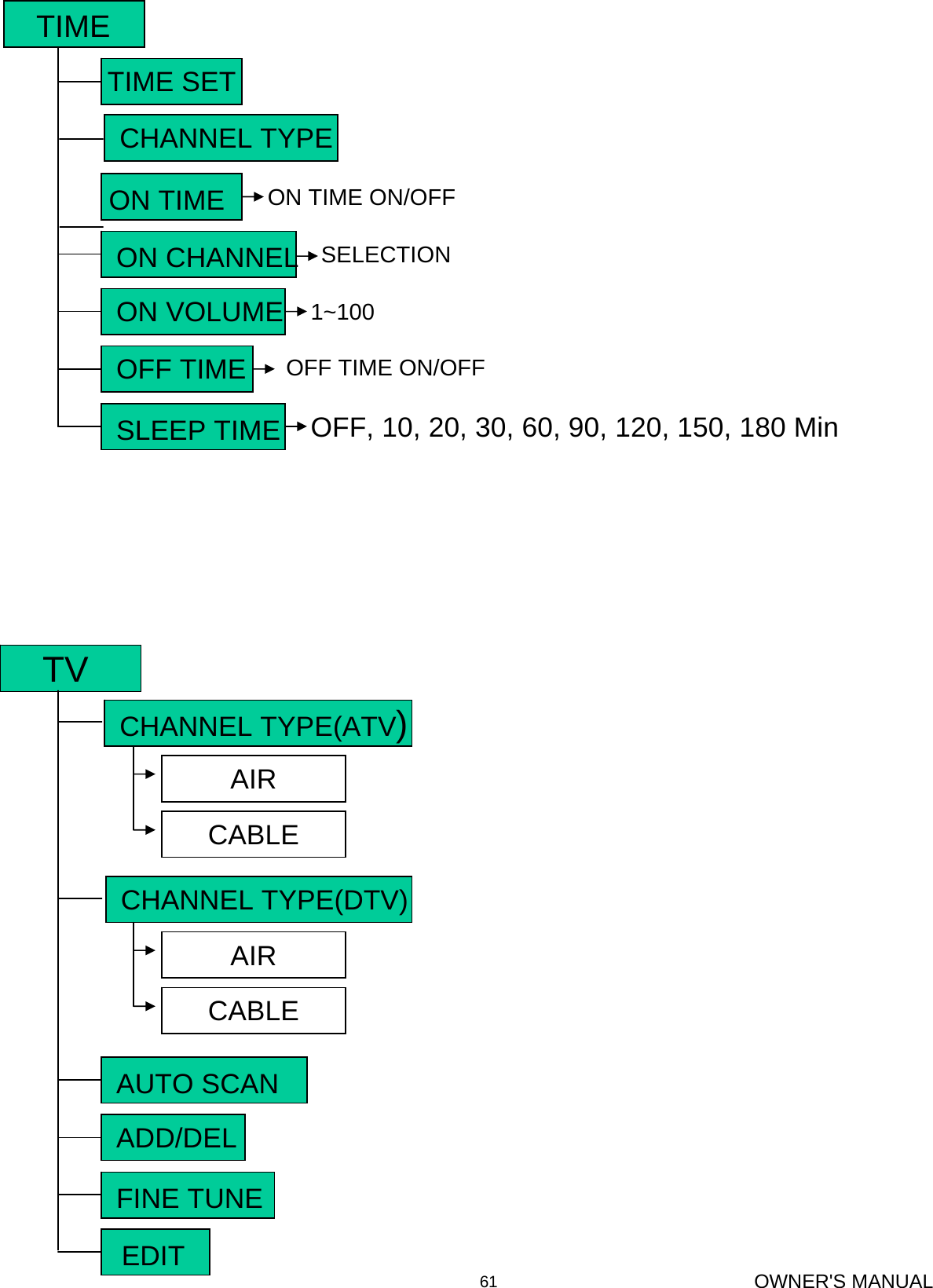

OWNER'S MANUAL61TV EDITAUTO SCANFINE TUNEADD/DELTIMETIME SET1~100ON TIME ON/OFF SELECTIONOFF, 10, 20, 30, 60, 90, 120, 150, 180 Min OFF TIME ON/OFF ON TIMEON CHANNELON VOLUMESLEEP TIMEOFF TIMECHANNEL TYPECHANNEL TYPE(ATV)CHANNEL TYPE(DTV)AIRCABLEAIRCABLE

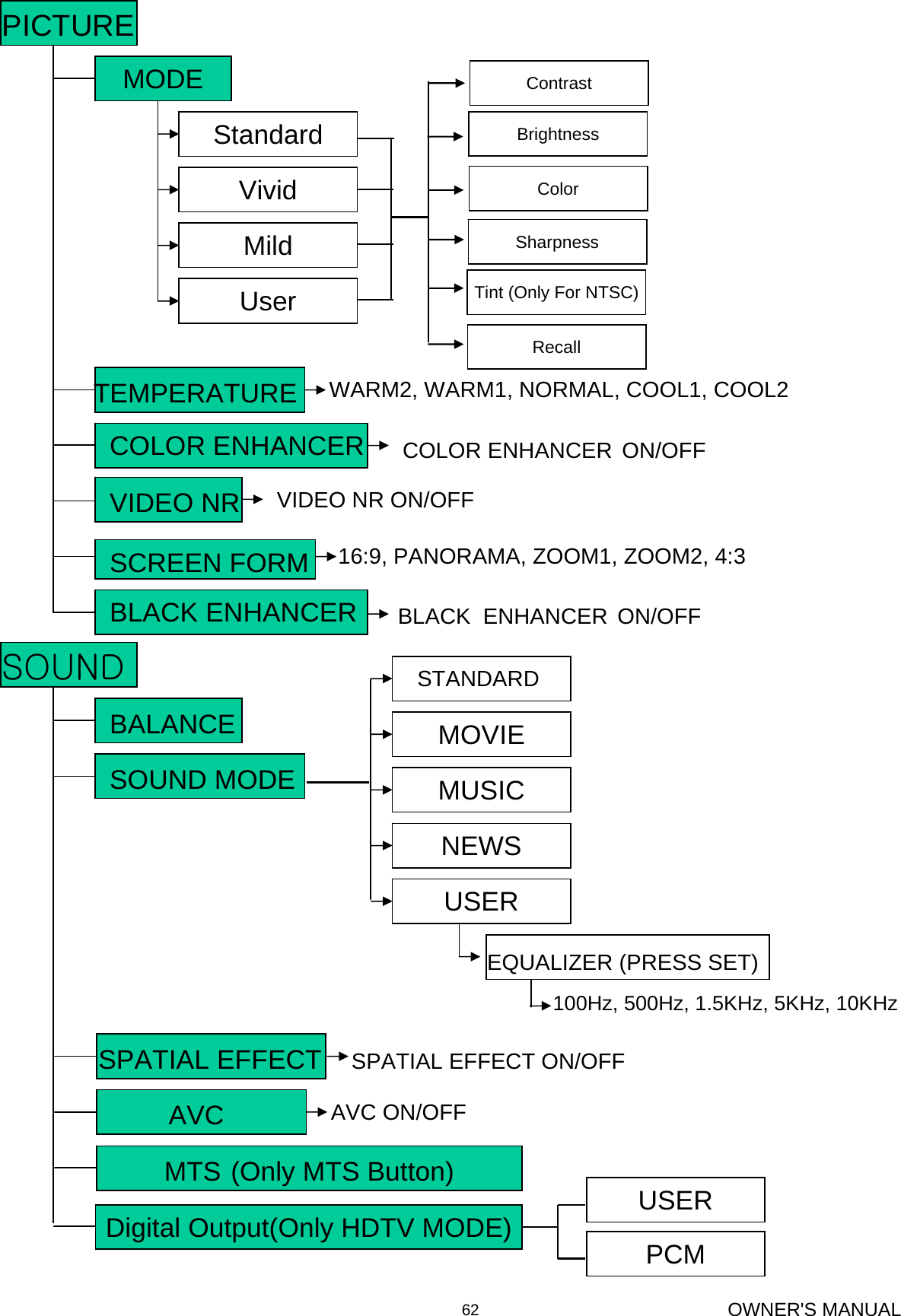

OWNER'S MANUAL62PICTUREMODEStandardVividMildUserTEMPERATURE WARM2, WARM1, NORMAL, COOL1, COOL2 COLOR ENHANCER COLOR ENHANCER ON/OFFVIDEO NR VIDEO NR ON/OFFSCREEN FORM 16:9, PANORAMA, ZOOM1, ZOOM2, 4:3 100Hz, 500Hz, 1.5KHz, 5KHz, 10KHzSOUND BALANCESOUND MODEUSERNEWSMUSICMOVIESTANDARD EQUALIZER (PRESS SET)MTS (Only MTS Button)SPATIAL EFFECTAVC AVC ON/OFFSPATIAL EFFECT ON/OFFBLACK ENHANCER BLACK ENHANCER ON/OFFContrastBrightnessColorSharpnessTint (Only For NTSC)RecallDigital Output(Only HDTV MODE) USERPCM

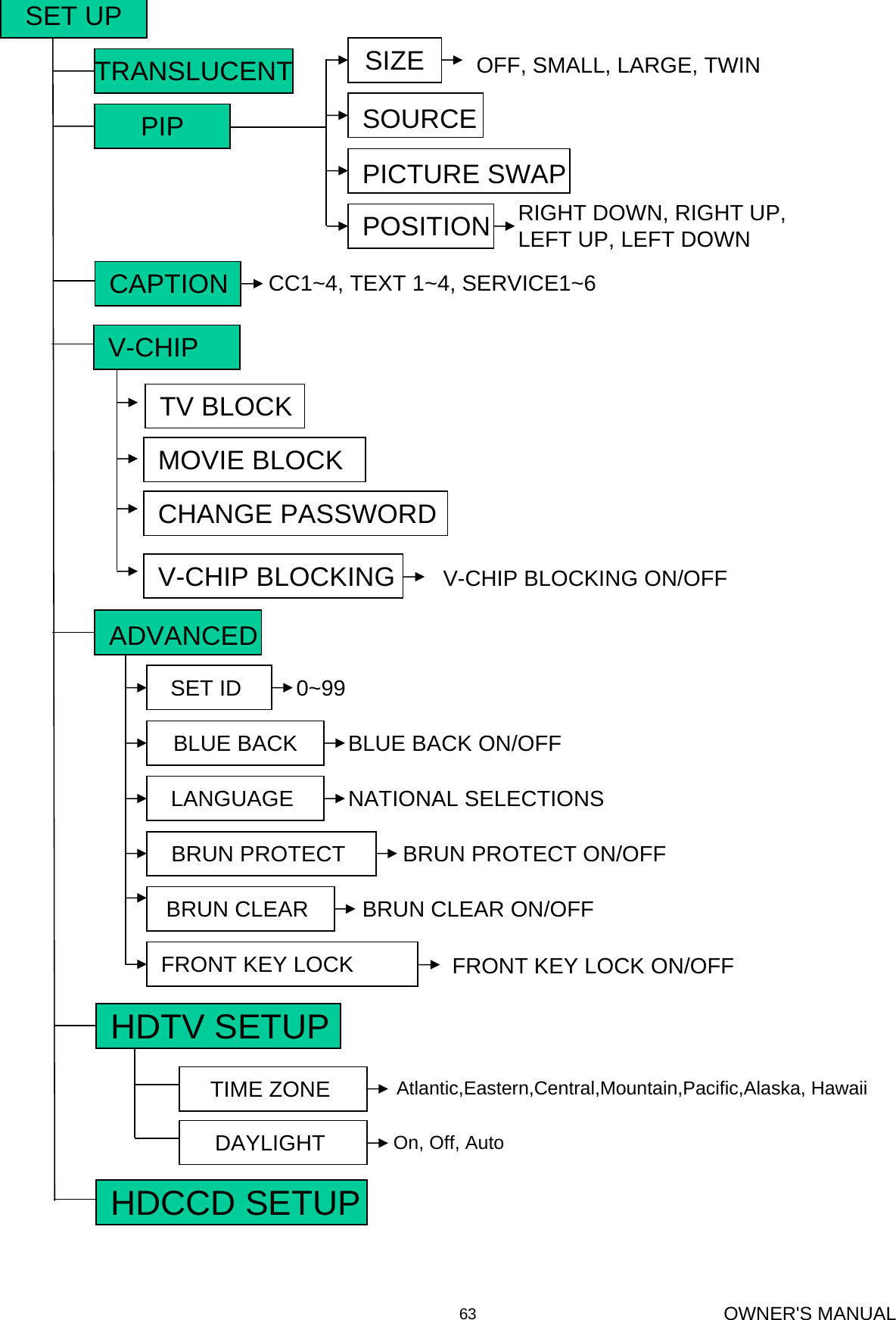

OWNER'S MANUAL63TRANSLUCENTSET UPBRUN PROTECT ON/OFF FRONT KEY LOCK LANGUAGE BLUE BACKSET ID NATIONAL SELECTIONS BLUE BACK ON/OFFBRUN CLEAR BRUN PROTECT BRUN CLEAR ON/OFF 0~99ADVANCEDFRONT KEY LOCK ON/OFFCC1~4, TEXT 1~4, SERVICE1~6CAPTIONPOSITION RIGHT DOWN, RIGHT UP, LEFT UP, LEFT DOWNSOURCESIZE OFF, SMALL, LARGE, TWINPICTURE SWAPPIPTV BLOCKMOVIE BLOCKCHANGE PASSWORDV-CHIP BLOCKING V-CHIP BLOCKING ON/OFFV-CHIPHDTV SETUPHDCCD SETUPTIME ZONE DAYLIGHT Atlantic,Eastern,Central,Mountain,Pacific,Alaska, HawaiiOn, Off, Auto

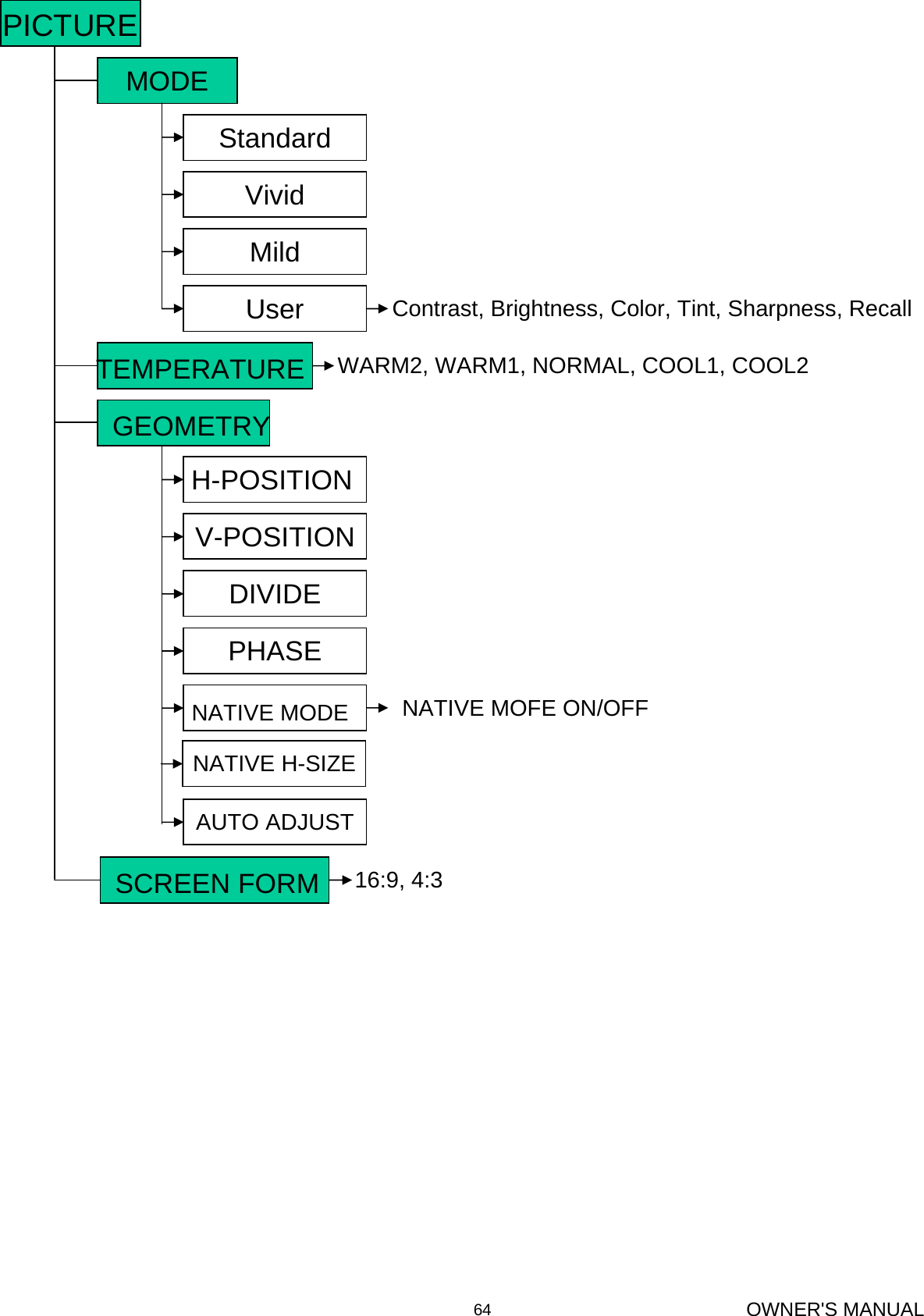

OWNER'S MANUAL64Contrast, Brightness, Color, Tint, Sharpness, Recall PICTUREMODEStandardVividMildUserTEMPERATURE WARM2, WARM1, NORMAL, COOL1, COOL2 GEOMETRY16:9, 4:3 SCREEN FORMNATIVE MOFE ON/OFFNATIVE MODEDIVIDEV-POSITIONH-POSITIONPHASEAUTO ADJUSTNATIVE H-SIZE

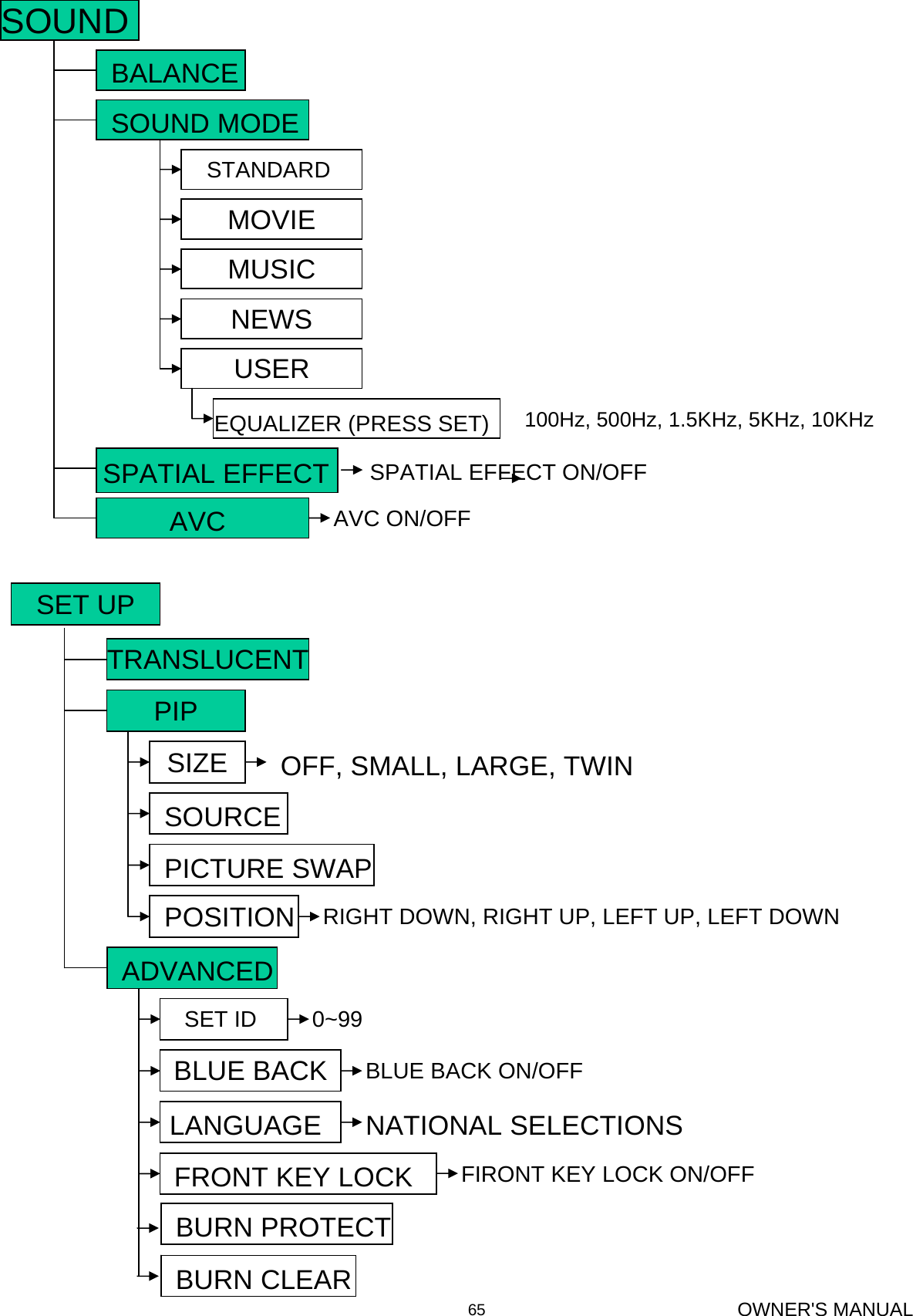

OWNER'S MANUAL65SOUND BALANCESOUND MODEUSERNEWSMUSICMOVIESTANDARD EQUALIZER (PRESS SET) 100Hz, 500Hz, 1.5KHz, 5KHz, 10KHzSPATIAL EFFECTAVC AVC ON/OFFSPATIAL EFFECT ON/OFFSET UPTRANSLUCENTPIPSOURCESIZEPOSITIONOFF, SMALL, LARGE, TWINRIGHT DOWN, RIGHT UP, LEFT UP, LEFT DOWNADVANCEDFIRONT KEY LOCK ON/OFFFRONT KEY LOCKLANGUAGEBLUE BACKSET ID PICTURE SWAPNATIONAL SELECTIONSBLUE BACK ON/OFF0~99BURN PROTECTBURN CLEAR
OWNER'S MANUAL66TIMETIME SET1~100ON TIME ON/OFF SELECTIONOFF, 10, 20, 30, 60, 90, 120, 150, 180 Min OFF TIME ON/OFF ON TIMEON CHANNELON VOLUMESLEEP TIMEOFF TIMECHANNEL TYPE
OWNER'S MANUAL67Check the digital signal strength and input antenna.Digital broadcasting screen problemTypical sound due to normal Monitor operation, Monitor is not faulty.Strange sound form the MonitorAdjust Balance in the Sound Menu.No output from one of the speakersAdjust the Size settings.The image is too large or too smallAdjust the Brightness or Contrast settings.The image is too light or too darkSelect Color in the Picture and press VOLUME( X) key.Keep a certain distance between the Monitor and the VCR.Activate any function to restore the brightness of the picture.Check to see that both the monitor and the source are plugged in and turned on.No or Poor color or Poor pictureCheck to see if there is any object between the PlasmaDisplay and the remote control causing obstruction.Check to see if the batteries are installed with the correctpolarities.The remote control doesn't workPress the VOLUME( X) key.Check the audio input signal.Picture OK & No soundCheck whether the Monitor is turned on.Power cord inserted into wall outlet?Plug another product’s power cord into the wall outlet where the Monitor’s power cord was plugged in.No picture & No soundQuick Action for Possible SolutionProblemBefore you call a service technician, please scan this list of problems and possible solutions. It may save you time and money. Troubleshooting
OWNER'S MANUAL68Selectable 5 Mode (Warm1,2, Normal, Cool1,2)Color temperature 480i/p(60Hz) , 576ip(50Hz), 720p(60Hz) , 1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timerprogrammingTV/CATV (ATSC)Tuner ModuleAdvanced motion digital / Motion-Adaptive De-interlace process, Digital progressive line scaling.VideoMultiple input compatibleInput compatibleAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video modePIP1280 X 1024 / 60Hz Max Input Resolution 600 cd/㎡Brightness1200:1Contrast Ratio852x480 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode32-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification992(W) X 554.6(H) X 270(D) / 24 kgWith Stand and Speaker792(W) X 554.6(H) X 270(D) / 20 kgWith Stand792(W) X 486.6(H) X 101(D) / 18 kgMain OnlyDimension / WeightFront OSD Key Control, Remote control, RS232C ControlExternal ControlBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)AudioMiscellaneousSpecification – 32” LCD[HP-3210V]32” LCD TV150 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionSPDIF (Optical) X 1Port (5.1 Channel)SPDIF PortHDMI X 1PortHDMI PortMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1PortSpeaker OutputRCA X 6PortAudio Input/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))HDCP (Factory Option)DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 4Port(AV Input 1,2,3/ AV Output 1)Composite Input/OutputRF/CATV (ATSC)TV1,2 InputConnectivity

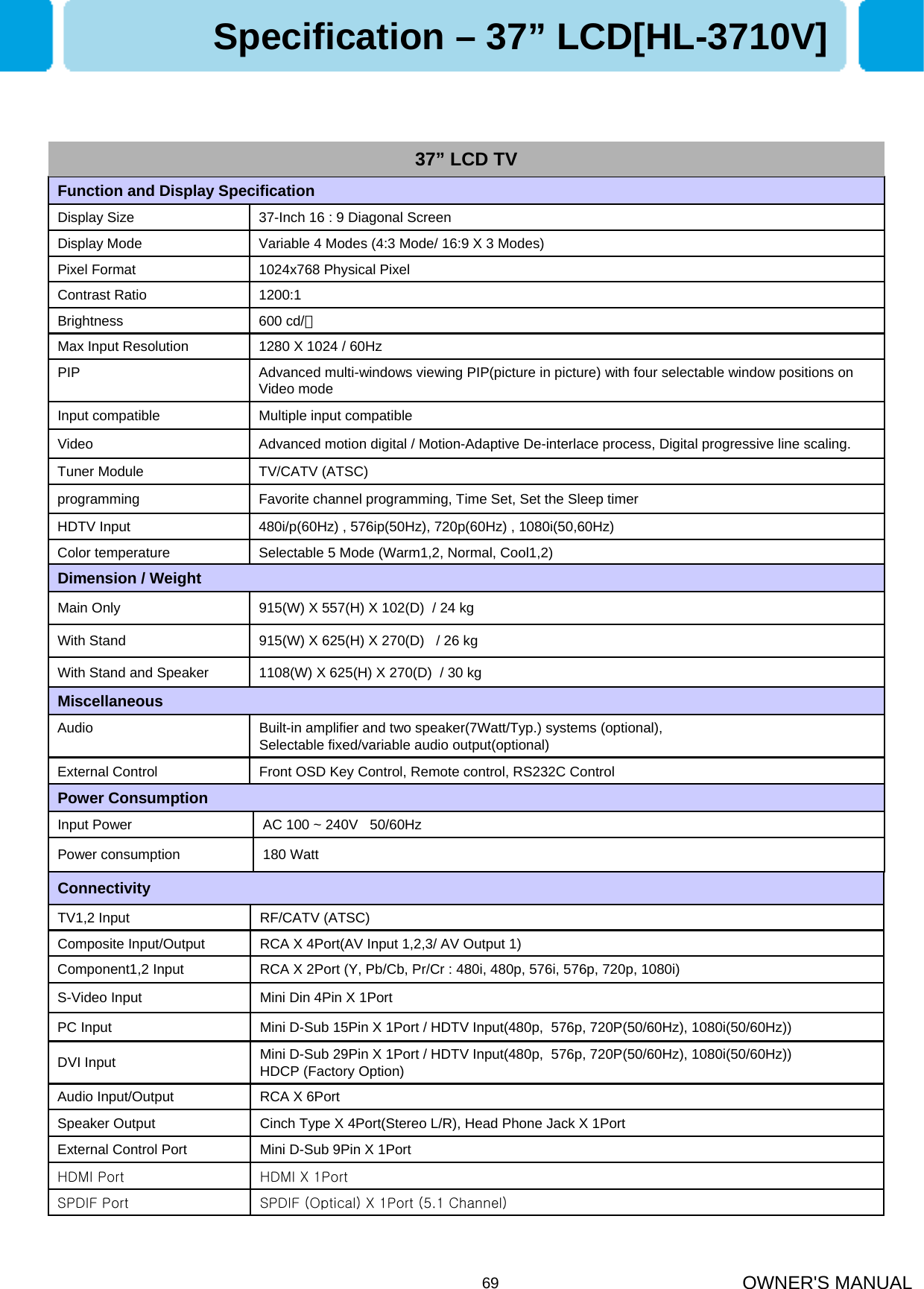

OWNER'S MANUAL69Selectable 5 Mode (Warm1,2, Normal, Cool1,2)Color temperature 480i/p(60Hz) , 576ip(50Hz), 720p(60Hz) , 1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timerprogrammingTV/CATV (ATSC)Tuner ModuleAdvanced motion digital / Motion-Adaptive De-interlace process, Digital progressive line scaling.VideoMultiple input compatibleInput compatibleAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video modePIP1280 X 1024 / 60Hz Max Input Resolution 600 cd/㎡Brightness1200:1Contrast Ratio1024x768 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode37-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification1108(W) X 625(H) X 270(D) / 30 kgWith Stand and Speaker915(W) X 625(H) X 270(D) / 26 kgWith Stand915(W) X 557(H) X 102(D) / 24 kgMain OnlyDimension / WeightFront OSD Key Control, Remote control, RS232C ControlExternal ControlBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)AudioMiscellaneousSpecification – 37” LCD[HL-3710V]37” LCD TV180 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionSPDIF (Optical) X 1Port (5.1 Channel)SPDIF PortHDMI X 1PortHDMI PortMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1PortSpeaker OutputRCA X 6PortAudio Input/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))HDCP (Factory Option)DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 4Port(AV Input 1,2,3/ AV Output 1)Composite Input/OutputRF/CATV (ATSC)TV1,2 InputConnectivity
OWNER'S MANUAL70Selectable 5 Mode (Warm1,2, Normal, Cool1,2)Color temperature 480i/p(60Hz) , 576ip(50Hz), 720p(60Hz) , 1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timerprogrammingTV/CATV (ATSC)Tuner ModuleAdvanced motion digital / Motion-Adaptive De-interlace process, Digital progressive line scaling.VideoMultiple input compatibleInput compatibleAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video modePIP1280 X 1024 / 60Hz Max Input Resolution 500 cd/㎡Brightness1000:1Contrast Ratio1366x768 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode40-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification1185(W) X 666(H) X 270(D) / 43.8 kgWith Stand and Speaker985(W) X 666(H) X 270(D) / 30.8 kgWith Stand985(W) X 598(H) X 101.5(D) / 29 kgMain OnlyDimension / WeightFront OSD Key Control, Remote control, RS232C ControlExternal ControlBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)AudioMiscellaneousSpecification – 40” LCD[HL-4010V]40” LCD TV250 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionSPDIF (Optical) X 1Port (5.1 Channel)SPDIF PortHDMI X 1PortHDMI PortMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1PortSpeaker OutputRCA X 6PortAudio Input/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))HDCP (Factory Option)DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 4Port(AV Input 1,2,3/ AV Output 1)Composite Input/OutputRF/CATV (ATSC)TV1,2 InputConnectivity

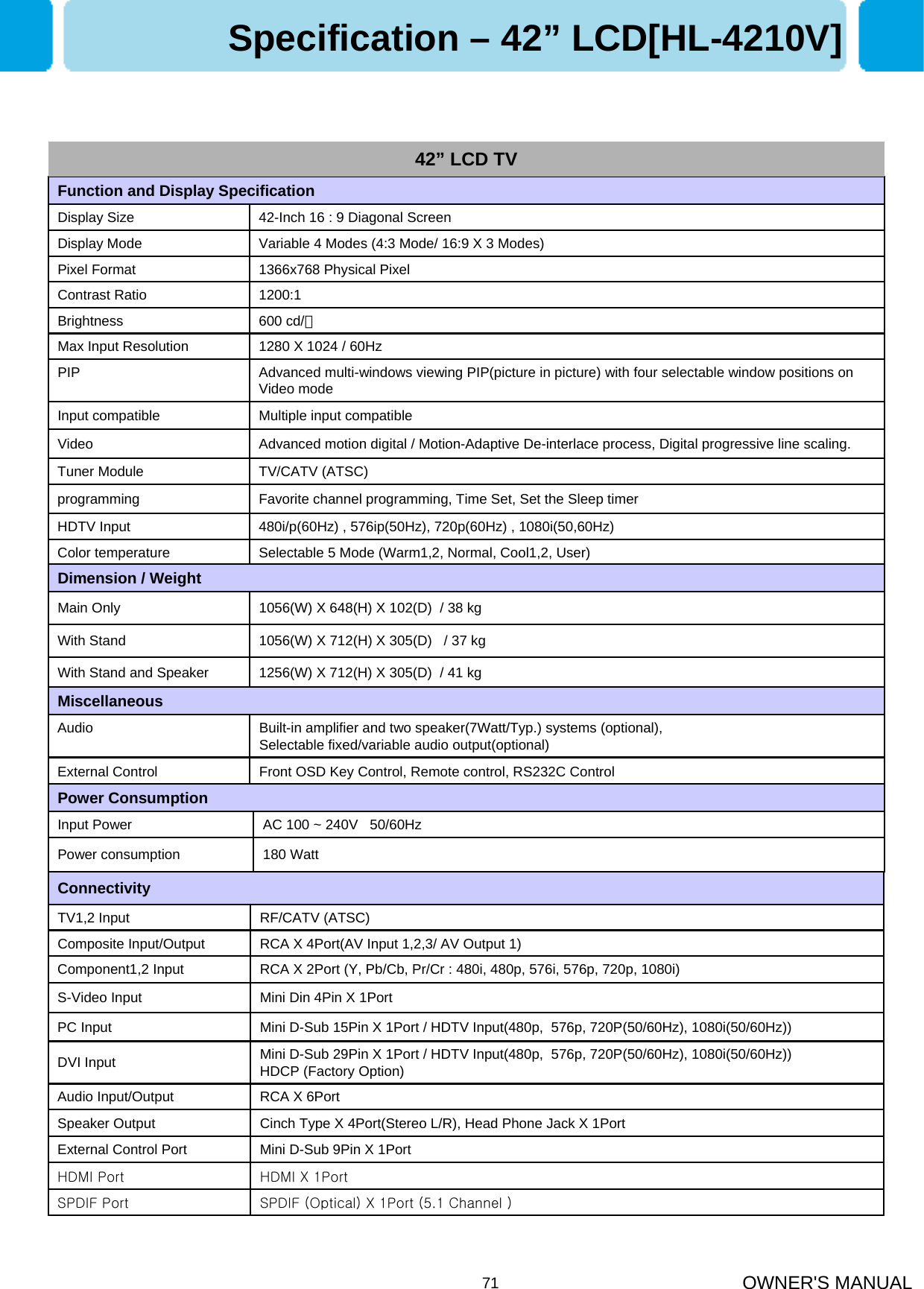

OWNER'S MANUAL71Selectable 5 Mode (Warm1,2, Normal, Cool1,2, User)Color temperature 480i/p(60Hz) , 576ip(50Hz), 720p(60Hz) , 1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timerprogrammingTV/CATV (ATSC)Tuner ModuleAdvanced motion digital / Motion-Adaptive De-interlace process, Digital progressive line scaling.VideoMultiple input compatibleInput compatibleAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video modePIP1280 X 1024 / 60Hz Max Input Resolution 600 cd/㎡Brightness1200:1Contrast Ratio1366x768 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode42-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification1256(W) X 712(H) X 305(D) / 41 kgWith Stand and Speaker1056(W) X 712(H) X 305(D) / 37 kgWith Stand1056(W) X 648(H) X 102(D) / 38 kgMain OnlyDimension / WeightFront OSD Key Control, Remote control, RS232C ControlExternal ControlBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)AudioMiscellaneousSpecification – 42” LCD[HL-4210V]42” LCD TV180 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionSPDIF (Optical) X 1Port (5.1 Channel )SPDIF PortHDMI X 1PortHDMI PortMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1PortSpeaker OutputRCA X 6PortAudio Input/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))HDCP (Factory Option) DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 4Port(AV Input 1,2,3/ AV Output 1)Composite Input/OutputRF/CATV (ATSC)TV1,2 InputConnectivity

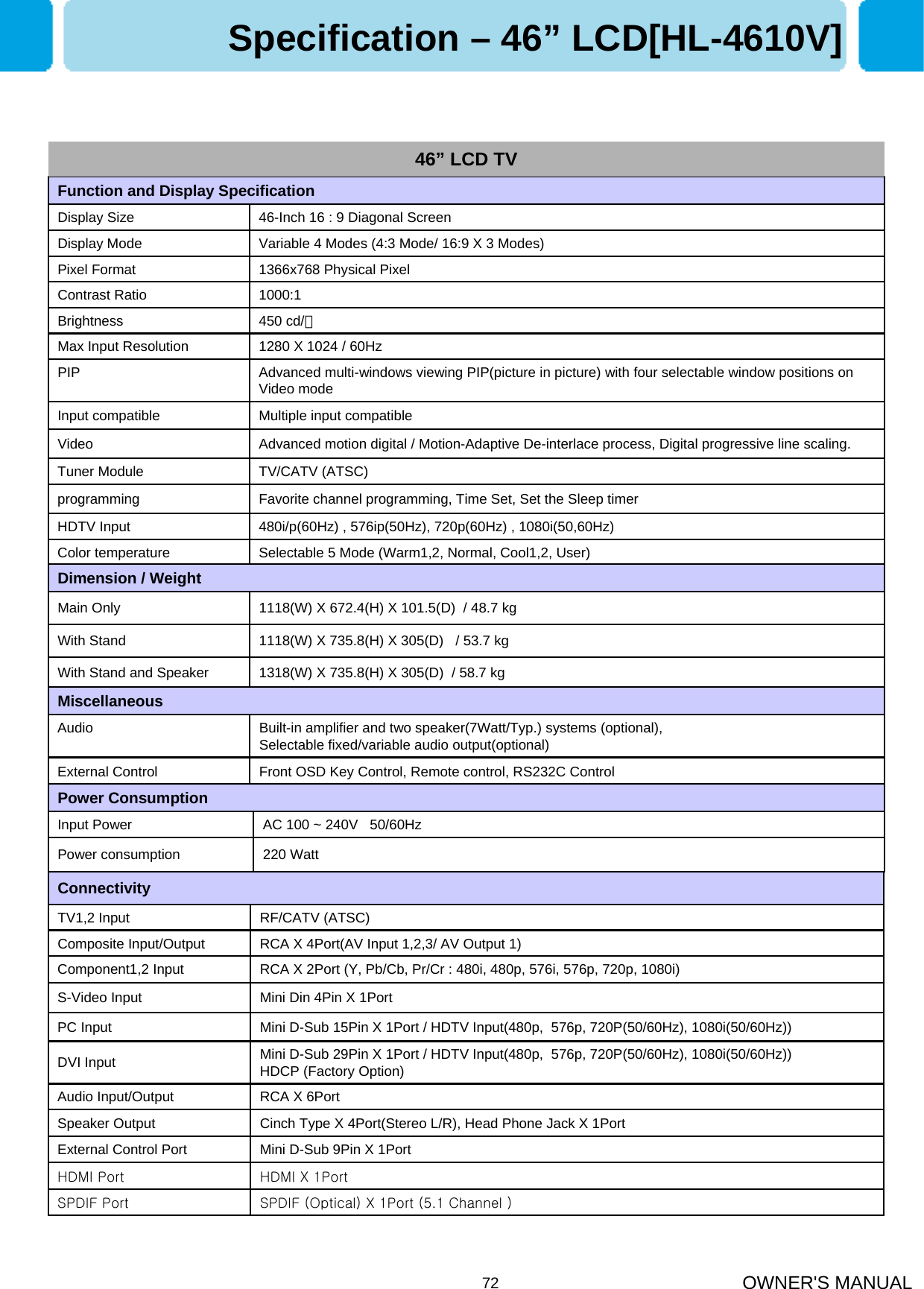

OWNER'S MANUAL72Selectable 5 Mode (Warm1,2, Normal, Cool1,2, User)Color temperature 480i/p(60Hz) , 576ip(50Hz), 720p(60Hz) , 1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timerprogrammingTV/CATV (ATSC)Tuner ModuleAdvanced motion digital / Motion-Adaptive De-interlace process, Digital progressive line scaling.VideoMultiple input compatibleInput compatibleAdvanced multi-windows viewing PIP(picture in picture) with four selectable window positions on Video modePIP1280 X 1024 / 60Hz Max Input Resolution 450 cd/㎡Brightness1000:1Contrast Ratio1366x768 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode46-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification1318(W) X 735.8(H) X 305(D) / 58.7 kgWith Stand and Speaker1118(W) X 735.8(H) X 305(D) / 53.7 kgWith Stand1118(W) X 672.4(H) X 101.5(D) / 48.7 kgMain OnlyDimension / WeightFront OSD Key Control, Remote control, RS232C ControlExternal ControlBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional),Selectable fixed/variable audio output(optional)AudioMiscellaneousSpecification – 46” LCD[HL-4610V]46” LCD TV220 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionSPDIF (Optical) X 1Port (5.1 Channel )SPDIF PortHDMI X 1PortHDMI PortMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1PortSpeaker OutputRCA X 6PortAudio Input/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))HDCP (Factory Option) DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 4Port(AV Input 1,2,3/ AV Output 1)Composite Input/OutputRF/CATV (ATSC)TV1,2 InputConnectivity

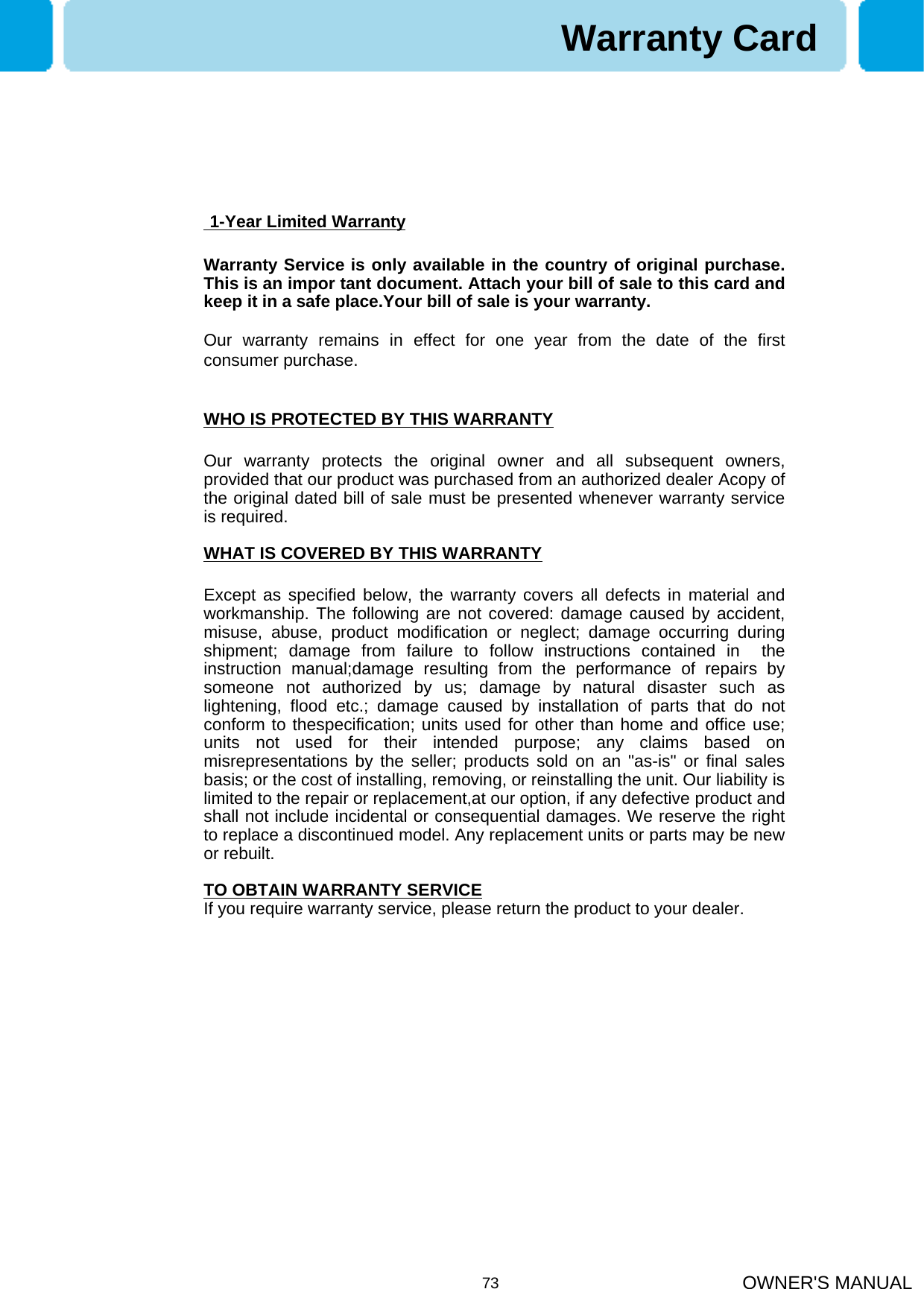

OWNER'S MANUAL731-Year Limited WarrantyWarranty Service is only available in the country of original purchase. This is an impor tant document. Attach your bill of sale to this card and keep it in a safe place.Your bill of sale is your warranty.Our warranty remains in effect for one year from the date of the first consumer purchase.WHO IS PROTECTED BY THIS WARRANTYOur warranty protects the original owner and all subsequent owners, provided that our product was purchased from an authorized dealer Acopy of the original dated bill of sale must be presented whenever warranty service is required.WHAT IS COVERED BY THIS WARRANTYExcept as specified below, the warranty covers all defects in material and workmanship. The following are not covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual;damage resulting from the performance of repairs by someone not authorized by us; damage by natural disaster such aslightening, flood etc.; damage caused by installation of parts that do not conform to thespecification; units used for other than home and office use; units not used for their intended purpose; any claims based on misrepresentations by the seller; products sold on an "as-is" or final sales basis; or the cost of installing, removing, or reinstalling the unit. Our liability is limited to the repair or replacement,at our option, if any defective product and shall not include incidental or consequential damages. We reserve the right to replace a discontinued model. Any replacement units or parts may be new or rebuilt.TO OBTAIN WARRANTY SERVICEIf you require warranty service, please return the product to your dealer.Warranty Card
