Contents

Users manual

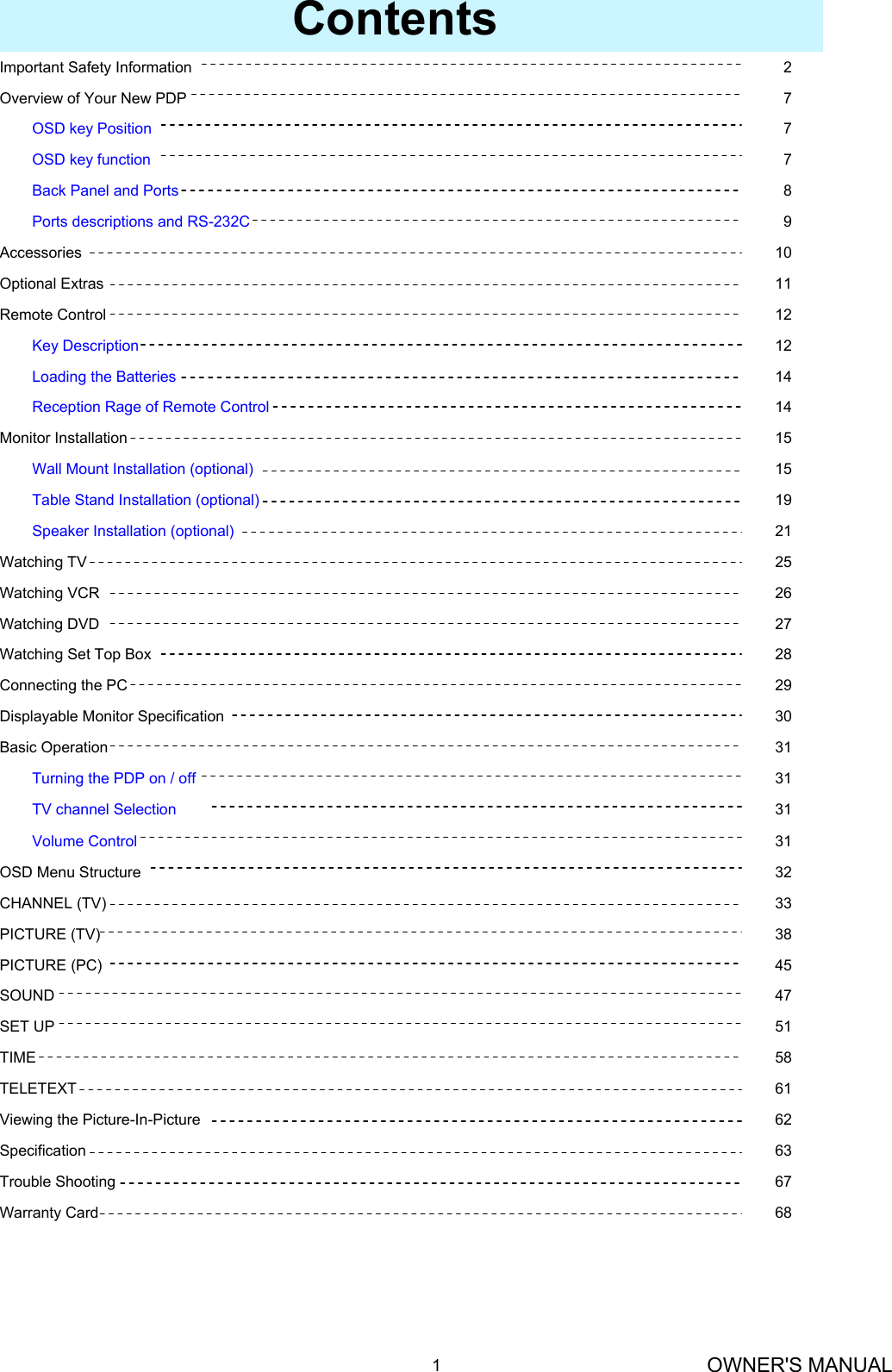

OWNER'S MANUAL1Contents45PICTURE (PC)30Displayable Monitor SpecificationVolume ControlTV channel SelectionTurning the PDP on / off31Basic Operation31313168Warranty Card67Trouble Shooting63Specification62Viewing the Picture-In-Picture61TELETEXT58TIME51SET UP47SOUND38PICTURE (TV)33CHANNEL (TV)32OSD Menu Structure29Connecting the PC28Watching Set Top Box27Watching DVD26Watching VCR25Watching TV21Speaker Installation (optional)19Table Stand Installation (optional)15Wall Mount Installation (optional)15Monitor Installation14Reception Rage of Remote Control14Loading the Batteries12Key Description12Remote Control11Optional Extras10Accessories9Ports descriptions and RS-232C8Back Panel and Ports7OSD key function7OSD key Position7Overview of Your New PDP2Important Safety Information

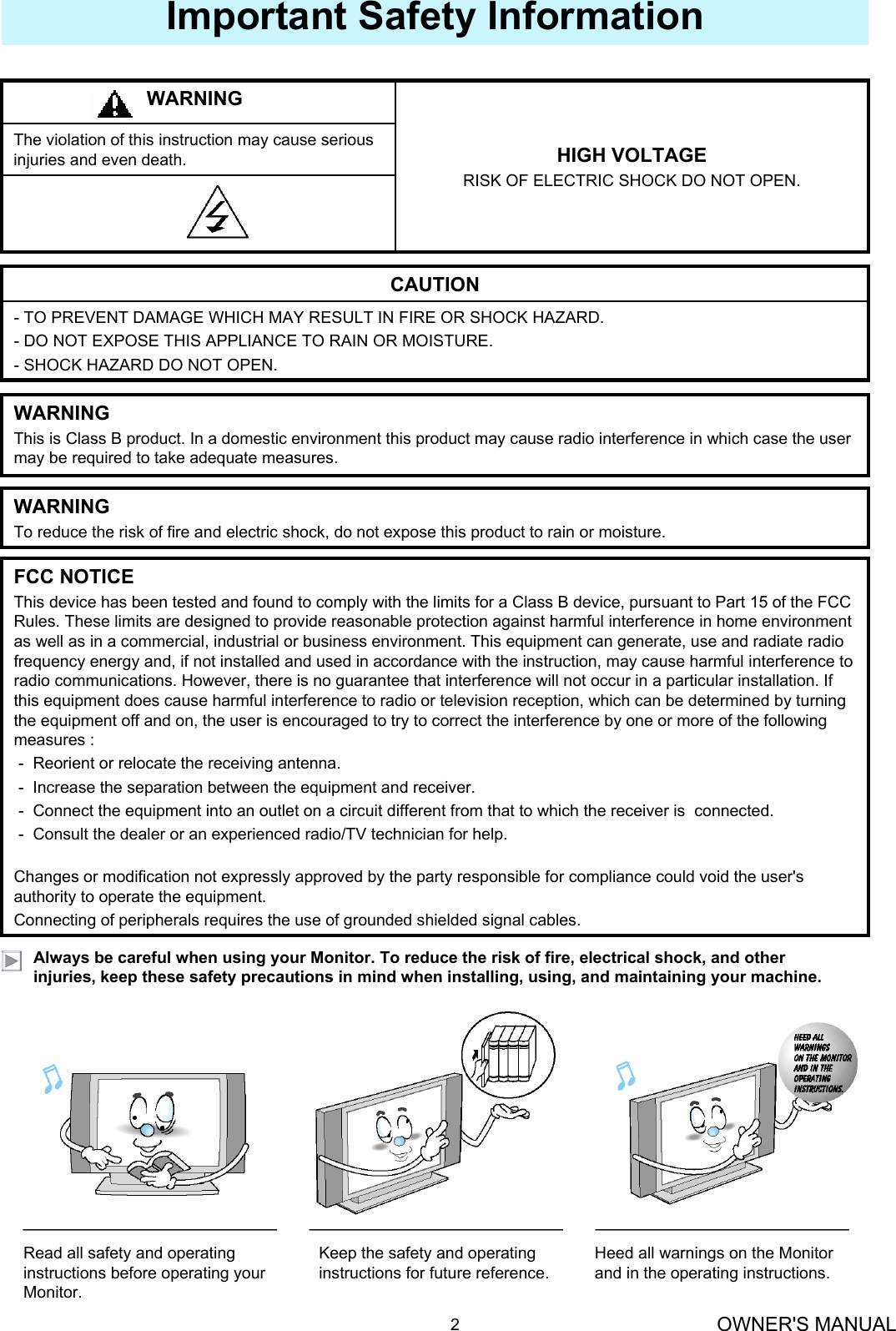

OWNER'S MANUAL2Important Safety InformationAlways be careful when using your Monitor. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.The violation of this instruction may cause serious injuries and even death. HIGH VOLTAGERISK OF ELECTRIC SHOCK DO NOT OPEN.WARNING- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD. - DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONWARNINGThis is Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.WARNINGTo reduce the risk of fire and electric shock, do not expose this product to rain or moisture.FCC NOTICEThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in home environment as well as in a commercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.Read all safety and operating instructions before operating your Monitor.Keep the safety and operating instructions for future reference.Heed all warnings on the Monitor and in the operating instructions.

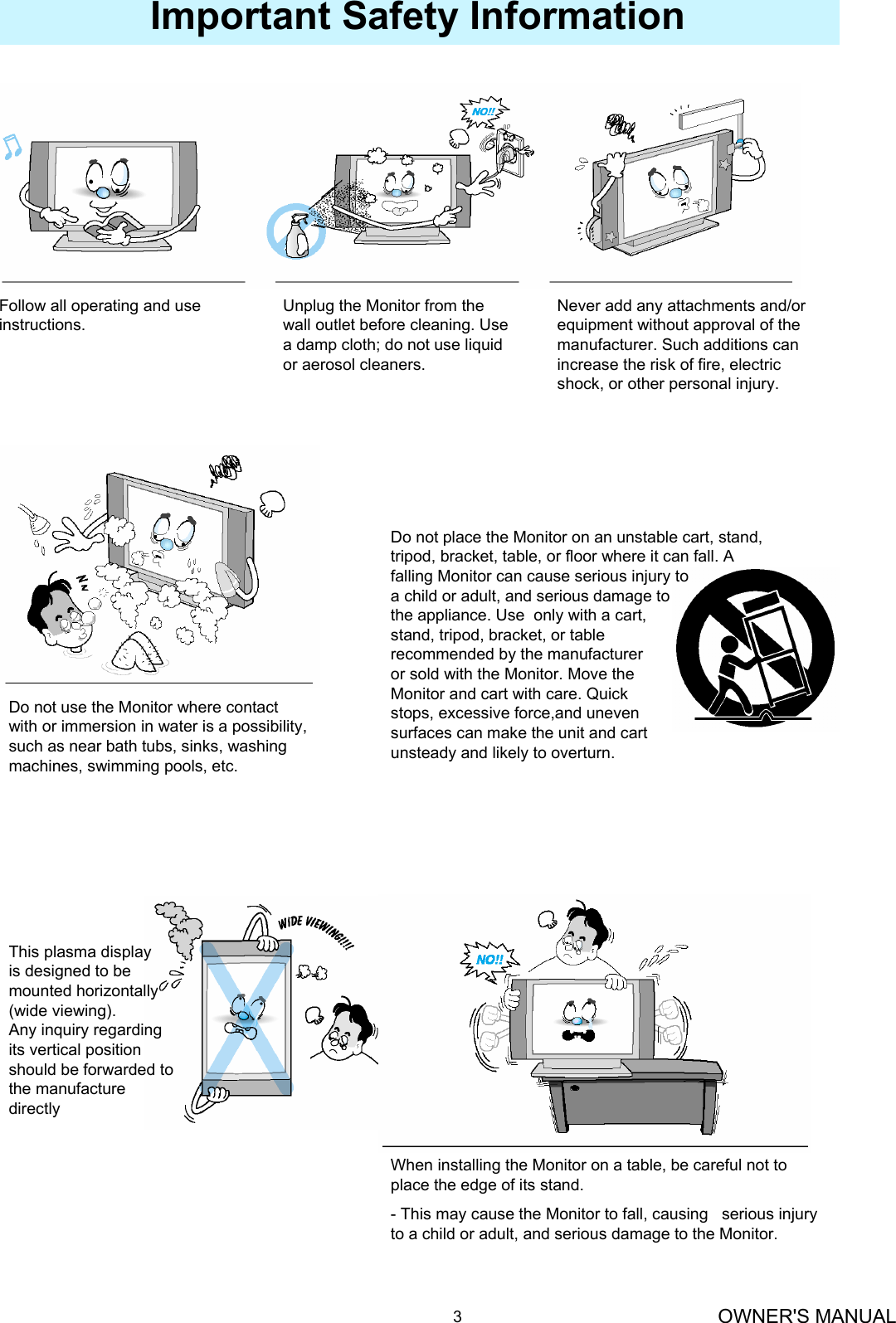

OWNER'S MANUAL3Follow all operating and use instructions.Unplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners.Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury.Do not use the Monitor where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc.Do not place the Monitor on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. A falling Monitor can cause serious injury toa child or adult, and serious damage tothe appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the Monitor. Move theMonitor and cart with care. Quick stops, excessive force,and uneven surfaces can make the unit and cart unsteady and likely to overturn.Important Safety InformationThis plasma displayis designed to bemounted horizontally(wide viewing).Any inquiry regarding its vertical position should be forwarded to the manufacture directlyWhen installing the Monitor on a table, be careful not to place the edge of its stand.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.

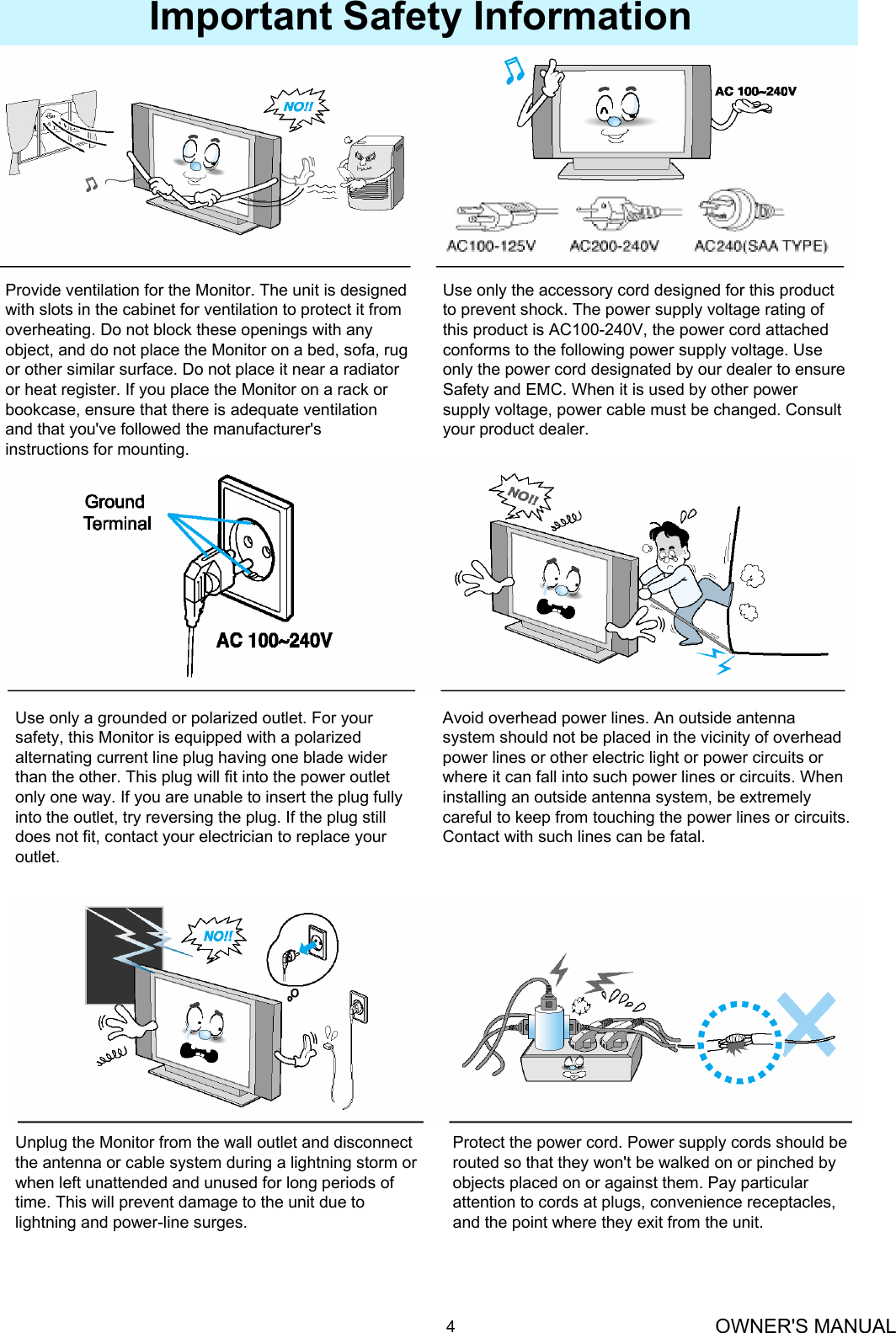

OWNER'S MANUAL4Important Safety InformationProvide ventilation for the Monitor. The unit is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not place the Monitor on a bed, sofa, rug or other similar surface. Do not place it near a radiator or heat register. If you place the Monitor on a rack or bookcase, ensure that there is adequate ventilation and that you've followed the manufacturer's instructions for mounting.Use only the accessory cord designed for this product to prevent shock. The power supply voltage rating of this product is AC100-240V, the power cord attached conforms to the following power supply voltage. Use only the power cord designated by our dealer to ensure Safety and EMC. When it is used by other power supply voltage, power cable must be changed. Consult your product dealer.Use only a grounded or polarized outlet. For your safety, this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits. When installing an outside antenna system, be extremely careful to keep from touching the power lines or circuits. Contact with such lines can be fatal.Unplug the Monitor from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-line surges.Protect the power cord. Power supply cords should be routed so that they won't be walked on or pinched byobjects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

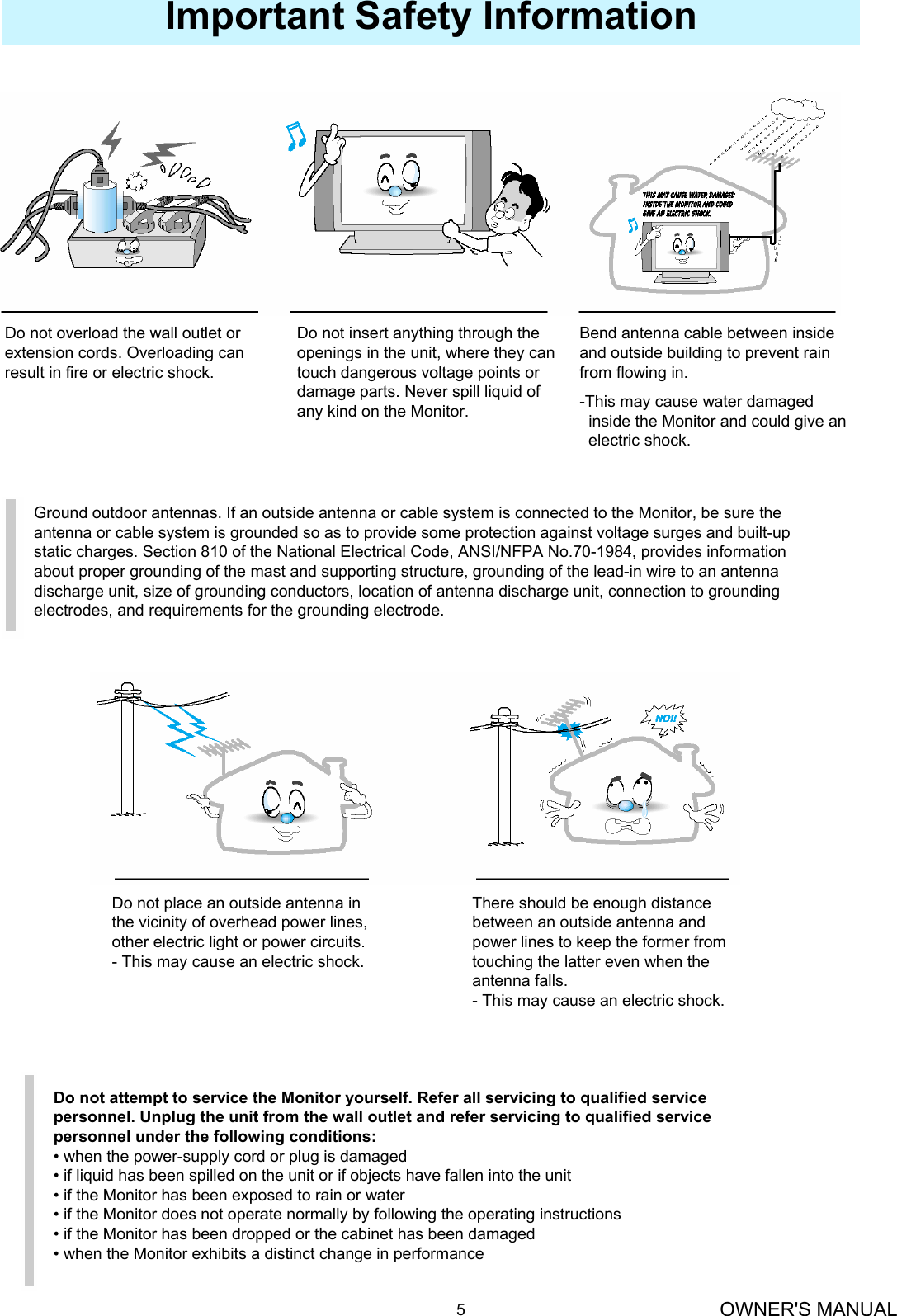

OWNER'S MANUAL5Important Safety InformationDo not overload the wall outlet orextension cords. Overloading canresult in fire or electric shock.Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the Monitor.Bend antenna cable between inside and outside building to prevent rain from flowing in.-This may cause water damagedinside the Monitor and could give an electric shock.Ground outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure theantenna or cable system is grounded so as to provide some protection against voltage surges and built-upstatic charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides informationabout proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antennadischarge unit, size of grounding conductors, location of antenna discharge unit, connection to groundingelectrodes, and requirements for the grounding electrode.Do not place an outside antenna inthe vicinity of overhead power lines,other electric light or power circuits.- This may cause an electric shock.There should be enough distancebetween an outside antenna andpower lines to keep the former fromtouching the latter even when theantenna falls.- This may cause an electric shock.Do not attempt to service the Monitor yourself. Refer all servicing to qualified servicepersonnel. Unplug the unit from the wall outlet and refer servicing to qualified servicepersonnel under the following conditions:• when the power-supply cord or plug is damaged• if liquid has been spilled on the unit or if objects have fallen into the unit• if the Monitor has been exposed to rain or water• if the Monitor does not operate normally by following the operating instructions• if the Monitor has been dropped or the cabinet has been damaged• when the Monitor exhibits a distinct change in performance

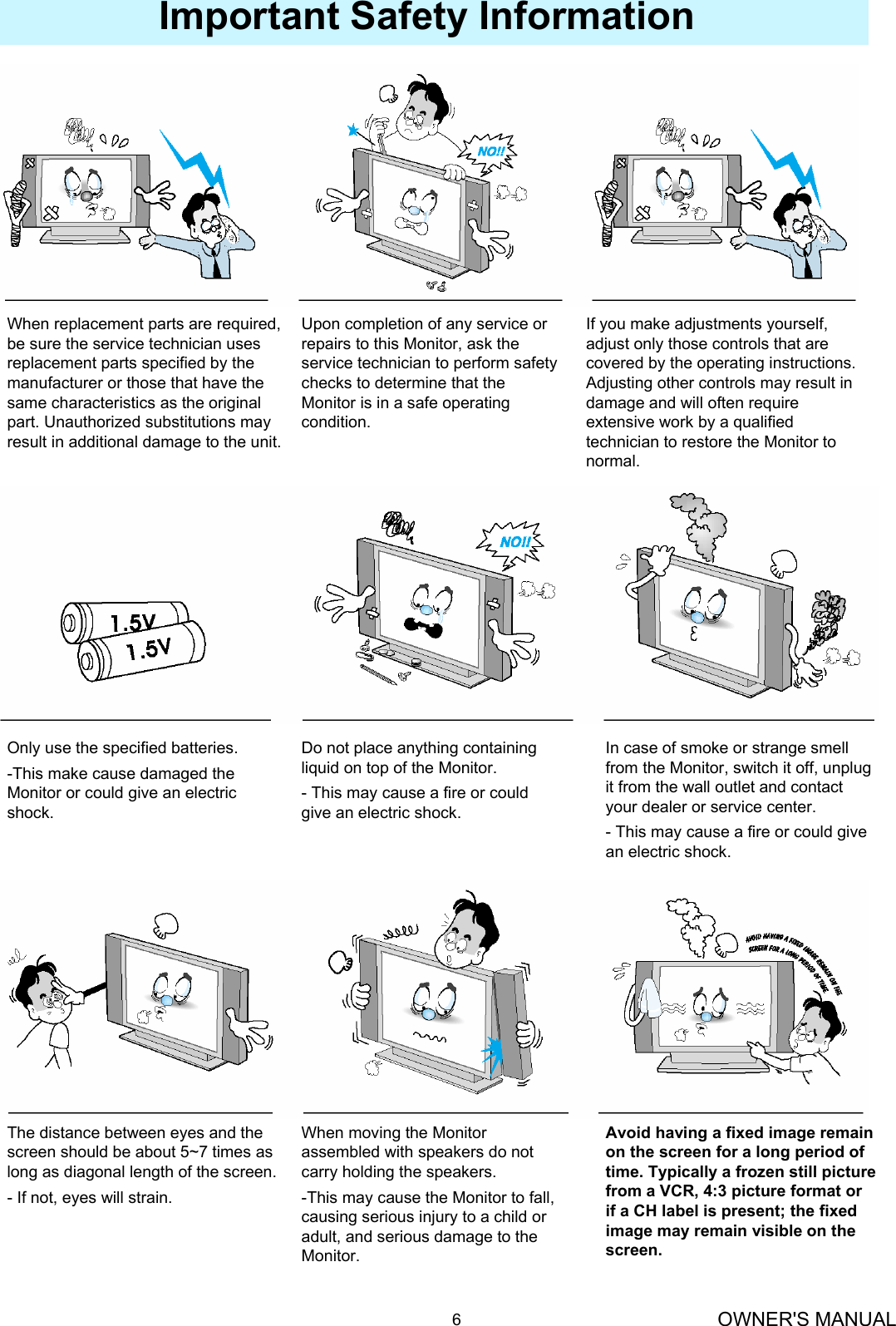

OWNER'S MANUAL6Important Safety InformationWhen replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in additional damage to the unit.Upon completion of any service orrepairs to this Monitor, ask theservice technician to perform safetychecks to determine that the Monitor is in a safe operating condition.If you make adjustments yourself,adjust only those controls that arecovered by the operating instructions.Adjusting other controls may result indamage and will often requireextensive work by a qualifiedtechnician to restore the Monitor tonormal.Only use the specified batteries.-This make cause damaged theMonitor or could give an electricshock.Do not place anything containingliquid on top of the Monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smellfrom the Monitor, switch it off, unplugit from the wall outlet and contactyour dealer or service center.- This may cause a fire or could give an electric shock.The distance between eyes and thescreen should be about 5~7 times aslong as diagonal length of the screen.- If not, eyes will strain.When moving the Monitor assembled with speakers do not carry holding the speakers.-This may cause the Monitor to fall,causing serious injury to a child oradult, and serious damage to theMonitor.Avoid having a fixed image remainon the screen for a long period oftime. Typically a frozen still picturefrom a VCR, 4:3 picture format or if a CH label is present; the fixedimage may remain visible on thescreen.

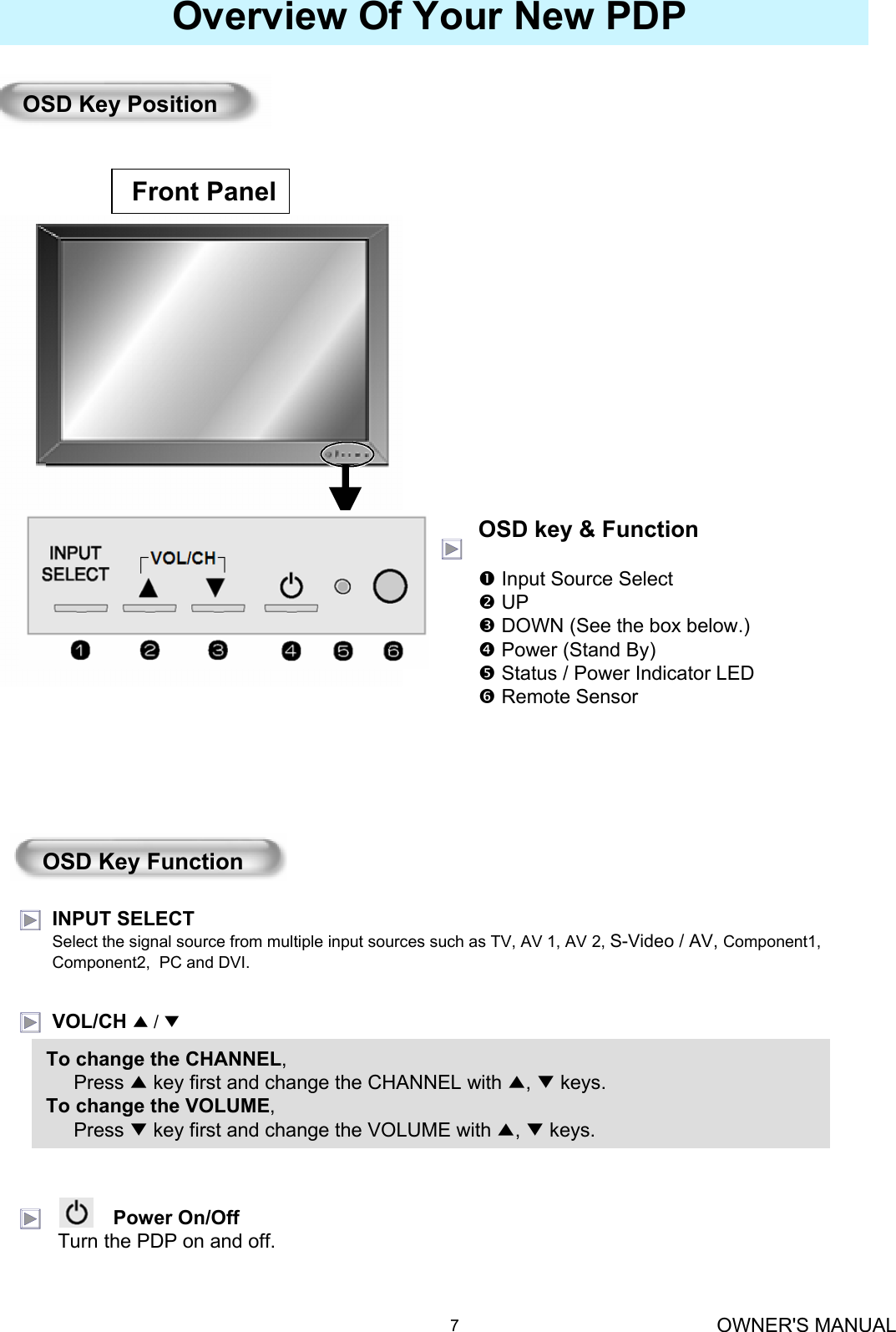

OWNER'S MANUAL7Overview Of Your New PDPOSD Key PositionFront Panel OSD key & FunctionnInput Source SelectoUPpDOWN (See the box below.)qPower (Stand By)rStatus / Power Indicator LED sRemote SensorOSD Key FunctionINPUT SELECTSelect the signal source from multiple input sources such as TV, AV 1, AV 2, S-Video / AV, Component1, Component2, PC and DVI. VOL/CH ▲/ ▼Power On/Off Turn the PDP on and off.To change the CHANNEL,Press ▲key first and change the CHANNEL with ▲, ▼keys.To change the VOLUME,Press ▼key first and change the VOLUME with ▲, ▼keys.

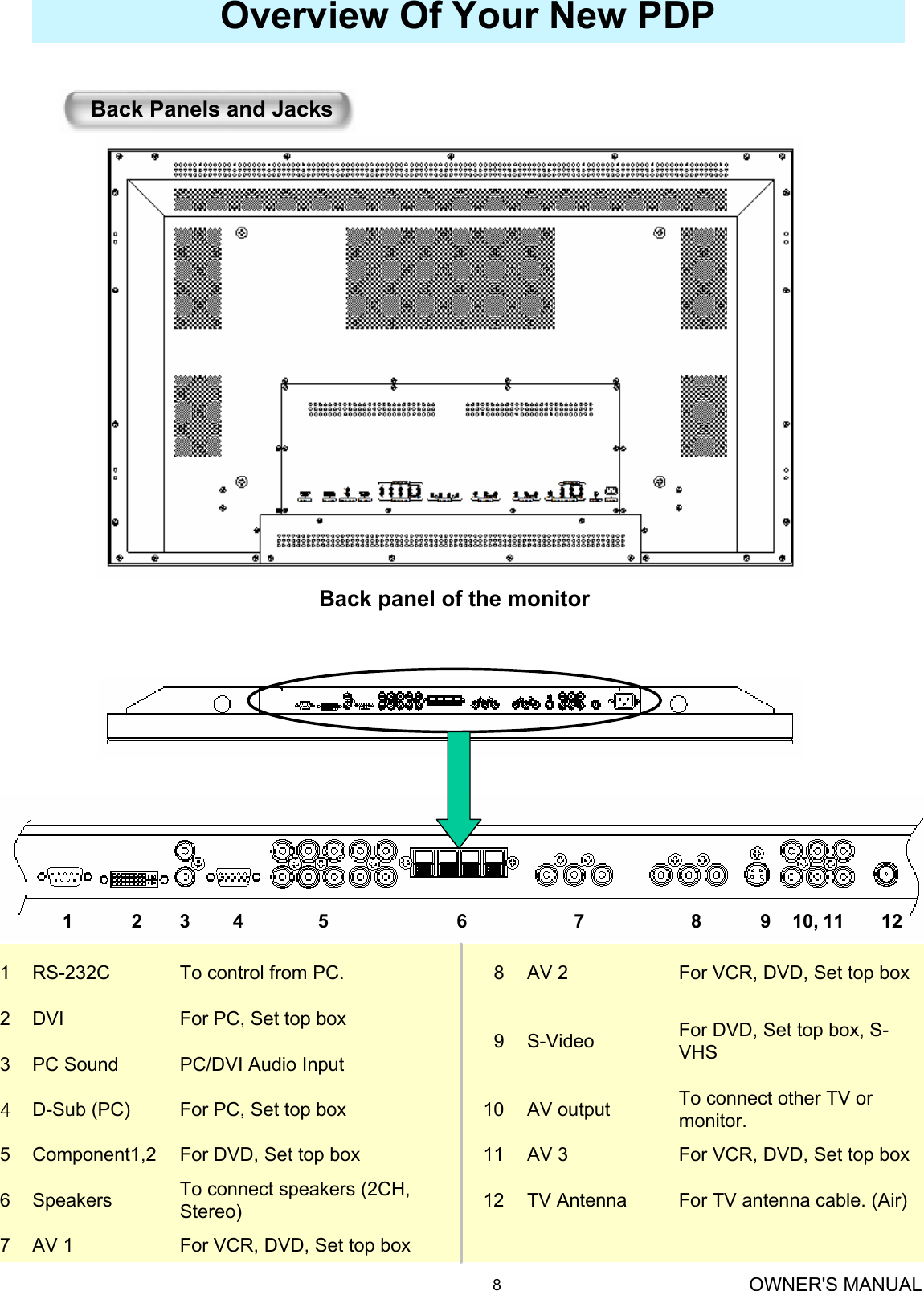

OWNER'S MANUAL8Overview Of Your New PDPBack Panels and JacksBack panel of the monitorINPUT / OUTPUT PORTS1 2 3 4 5 6 7 8 9 10, 11 12For VCR, DVD, Set top boxAV 17For TV antenna cable. (Air)TV Antenna12To connect speakers (2CH, Stereo)Speakers6For VCR, DVD, Set top boxAV 311For DVD, Set top boxComponent1,25To connect other TV or monitor.AV output10For PC, Set top boxD-Sub (PC)4For DVD, Set top box, S-VHSS-Video9For PC, Set top boxPC/DVI Audio InputDVIPC Sound23For VCR, DVD, Set top boxAV 28To control from PC.RS-232C1

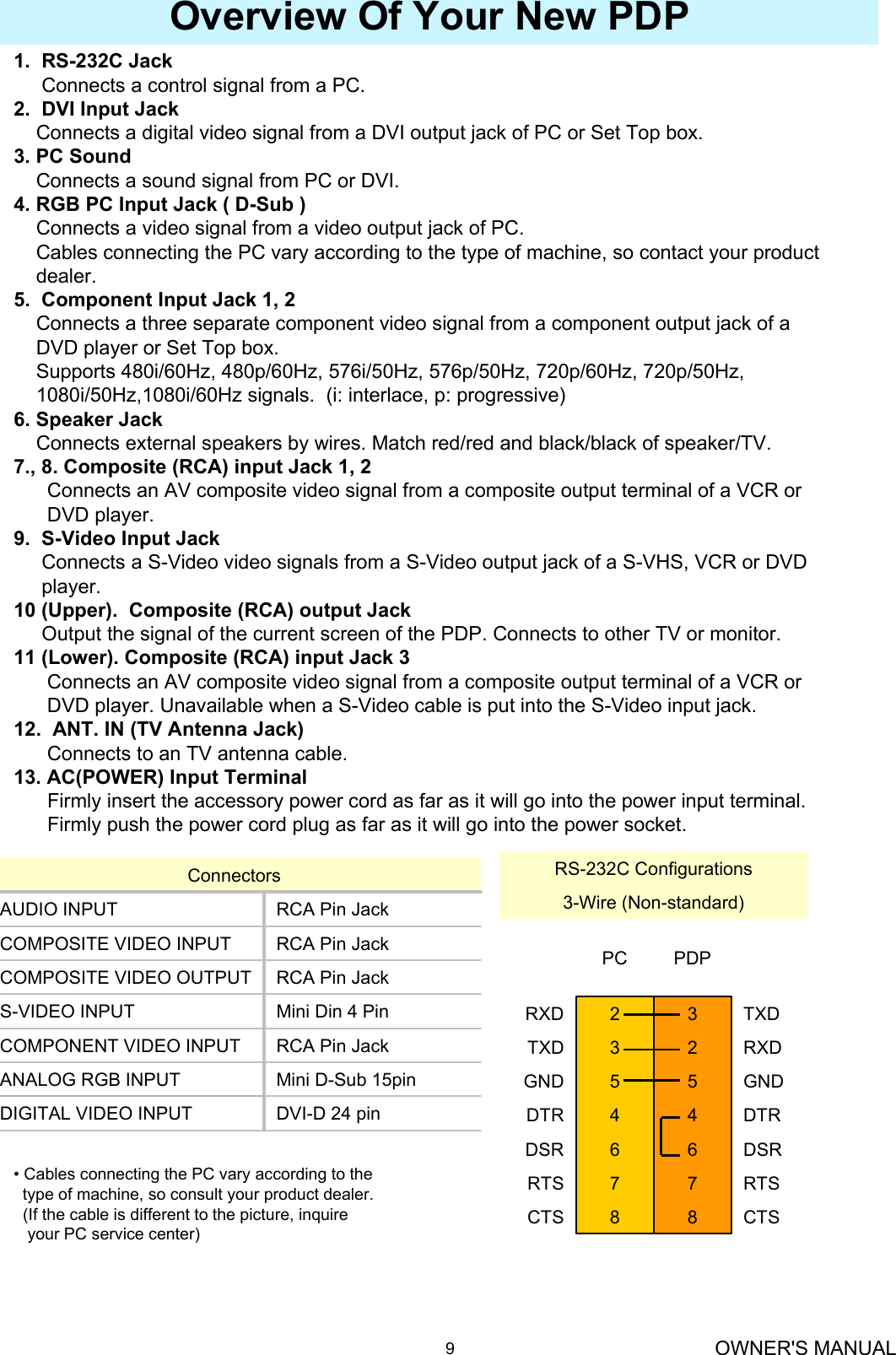

OWNER'S MANUAL91. RS-232C JackConnects a control signal from a PC.2. DVI Input JackConnects a digital video signal from a DVI output jack of PC or Set Top box.3. PC SoundConnects a sound signal from PC or DVI.4. RGB PC Input Jack ( D-Sub )Connects a video signal from a video output jack of PC. Cables connecting the PC vary according to the type of machine, so contact your product dealer.5. Component Input Jack 1, 2Connects a three separate component video signal from a component output jack of a DVD player or Set Top box.Supports 480i/60Hz, 480p/60Hz, 576i/50Hz, 576p/50Hz, 720p/60Hz, 720p/50Hz,1080i/50Hz,1080i/60Hz signals. (i: interlace, p: progressive)6. Speaker JackConnects external speakers by wires. Match red/red and black/black of speaker/TV.7., 8. Composite (RCA) input Jack 1, 2Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. 9. S-Video Input JackConnects a S-Video video signals from a S-Video output jack of a S-VHS, VCR or DVD player.10 (Upper). Composite (RCA) output JackOutput the signal of the current screen of the PDP. Connects to other TV or monitor.11 (Lower). Composite (RCA) input Jack 3Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. Unavailable when a S-Video cable is put into the S-Video input jack.12. ANT. IN (TV Antenna Jack)Connects to an TV antenna cable.13. AC(POWER) Input TerminalFirmly insert the accessory power cord as far as it will go into the power input terminal. Firmly push the power cord plug as far as it will go into the power socket.Overview Of Your New PDP• Cables connecting the PC vary according to the type of machine, so consult your product dealer.(If the cable is different to the picture, inquire your PC service center)DVI-D 24 pinDIGITAL VIDEO INPUTMini D-Sub 15pinANALOG RGB INPUTRCA Pin JackCOMPONENT VIDEO INPUTMini Din 4 Pin S-VIDEO INPUTRCA Pin JackCOMPOSITE VIDEO OUTPUTRCA Pin JackCOMPOSITE VIDEO INPUTRCA Pin JackAUDIO INPUTConnectorsCTS88CTSRTS77RTSDSR66DSRDTR44DTRGND55GNDRXD23TXDTXD32RXDPDPPC3-Wire (Non-standard)RS-232C Configurations

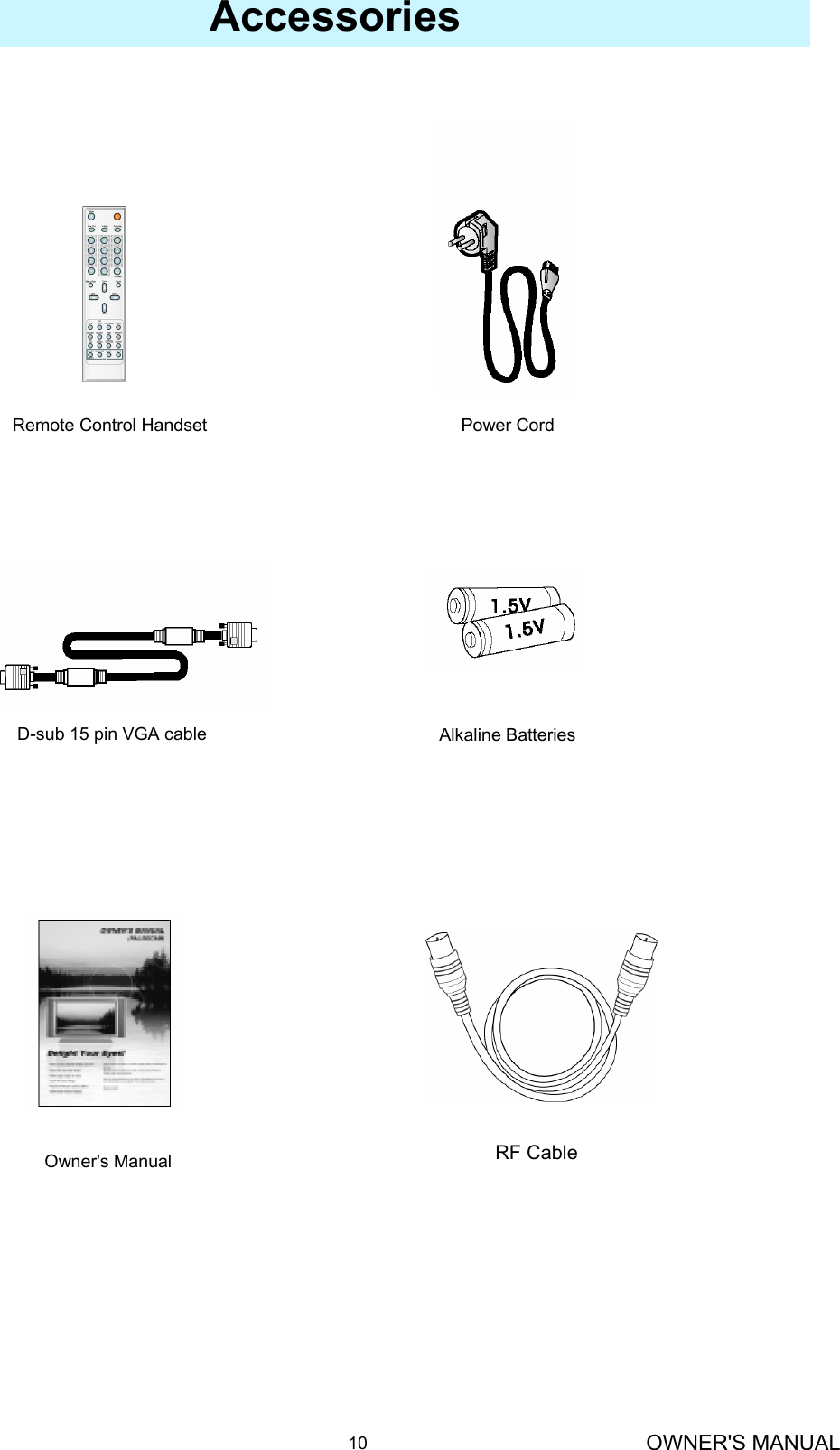

OWNER'S MANUAL10Remote Control Handset Power CordAccessoriesOwner's ManualAlkaline BatteriesD-sub 15 pin VGA cableRF Cable

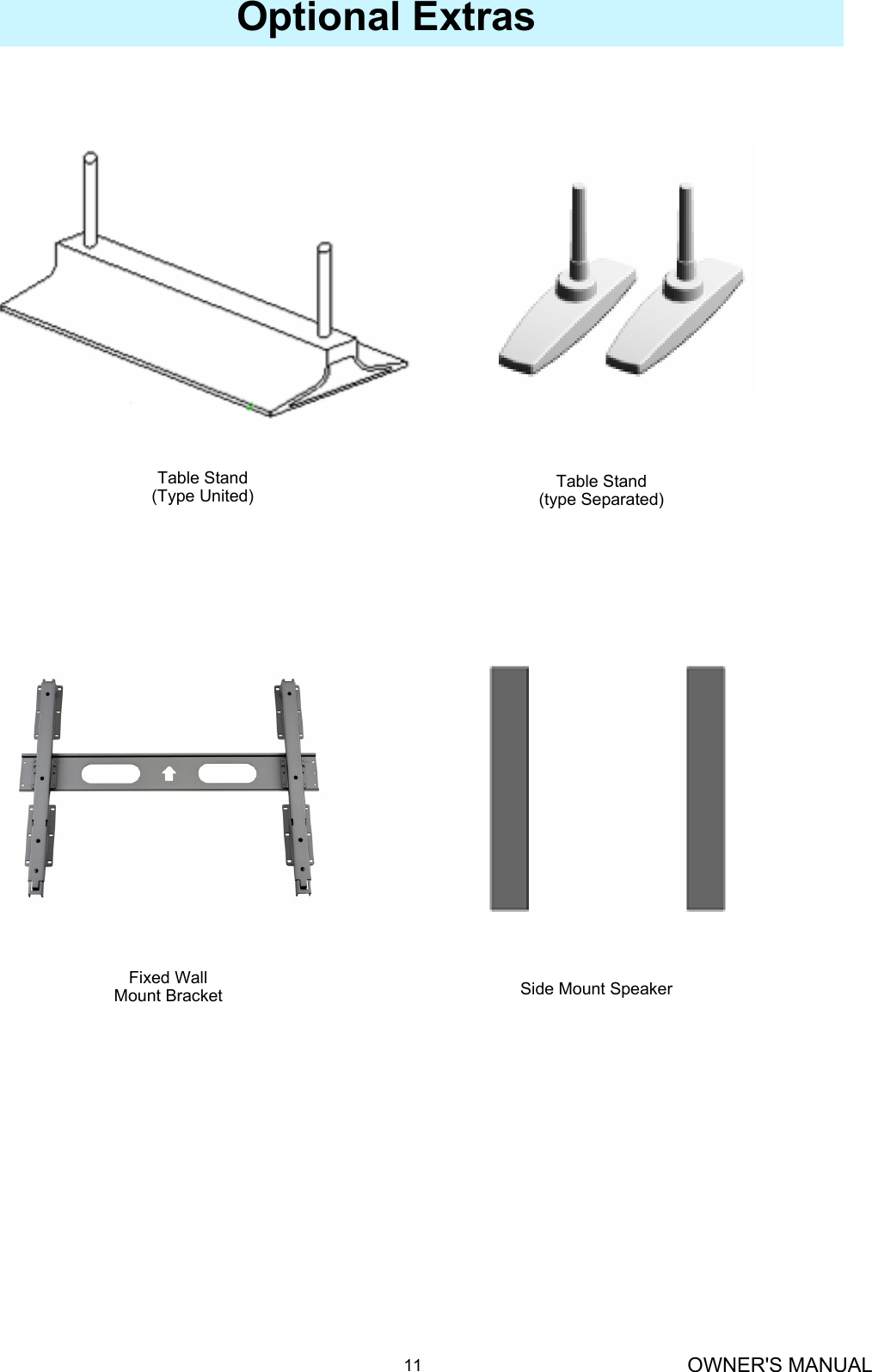

OWNER'S MANUAL11Optional ExtrasTable Stand(Type United)Fixed WallMount Bracket Side Mount SpeakerTable Stand(type Separated)

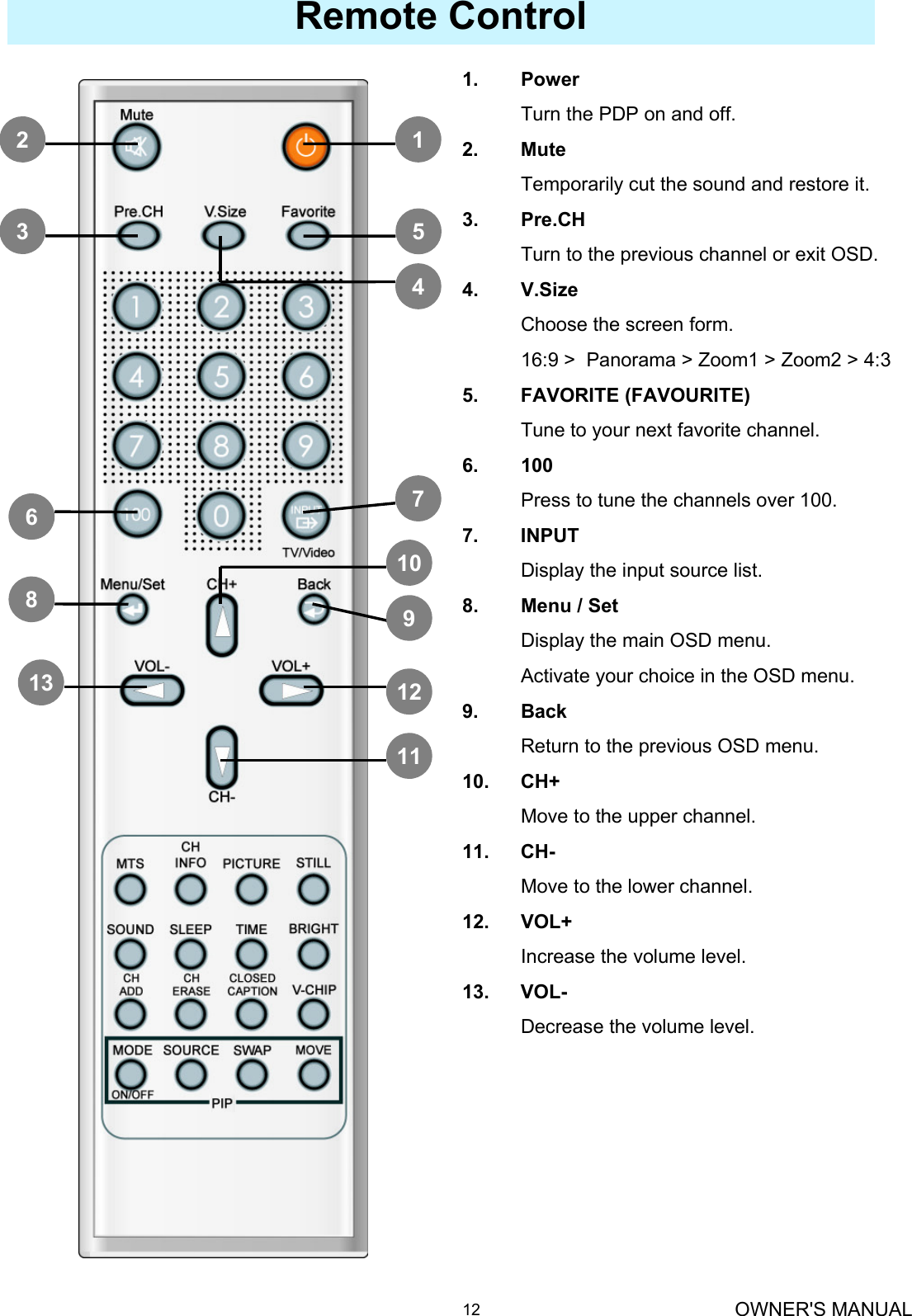

OWNER'S MANUAL12Remote Control123681354710912111. PowerTurn the PDP on and off.2. MuteTemporarily cut the sound and restore it.3. Pre.CHTurn to the previous channel or exit OSD.4. V.SizeChoose the screen form.16:9 > Panorama > Zoom1 > Zoom2 > 4:35. FAVORITE (FAVOURITE)Tune to your next favorite channel.6. 100Press to tune the channels over 100. 7. INPUTDisplay the input source list.8. Menu / SetDisplay the main OSD menu.Activate your choice in the OSD menu.9. BackReturn to the previous OSD menu.10. CH+Move to the upper channel.11. CH-Move to the lower channel.12. VOL+Increase the volume level.13. VOL-Decrease the volume level.

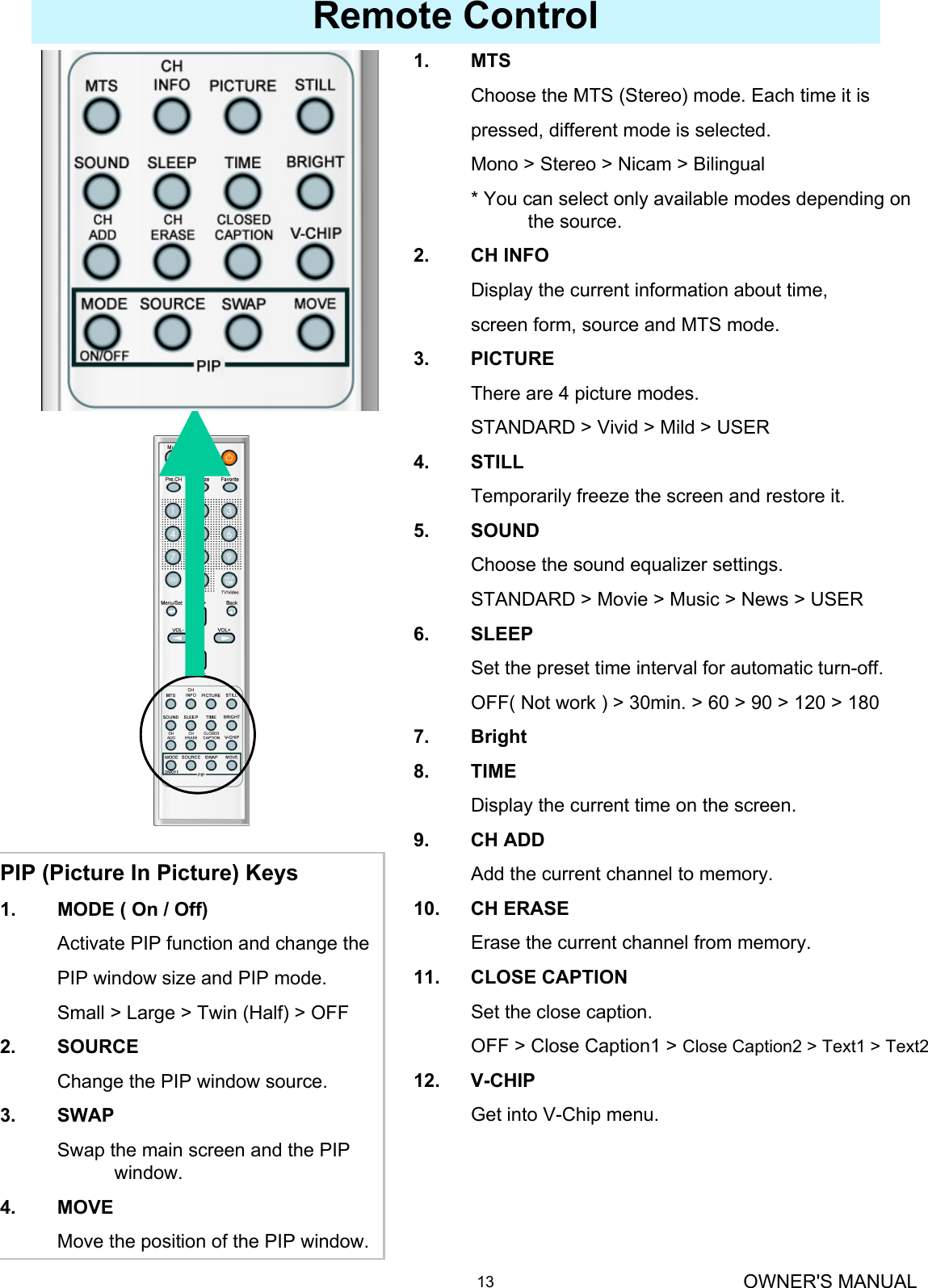

OWNER'S MANUAL13Remote Control1. MTSChoose the MTS (Stereo) mode. Each time it ispressed, different mode is selected.Mono > Stereo > Nicam > Bilingual* You can select only available modes depending on the source.2. CH INFODisplay the current information about time, screen form, source and MTS mode.3. PICTUREThere are 4 picture modes. STANDARD > Vivid > Mild > USER4. STILLTemporarily freeze the screen and restore it.5. SOUNDChoose the sound equalizer settings. STANDARD > Movie > Music > News > USER6. SLEEPSet the preset time interval for automatic turn-off.OFF( Not work ) > 30min. > 60 > 90 > 120 > 1807. Bright8. TIMEDisplay the current time on the screen.9. CH ADDAdd the current channel to memory.10. CH ERASEErase the current channel from memory.11. CLOSE CAPTIONSet the close caption.OFF > Close Caption1 > Close Caption2 > Text1 > Text212. V-CHIPGet into V-Chip menu.PIP (Picture In Picture) Keys1. MODE ( On / Off)Activate PIP function and change the PIP window size and PIP mode.Small > Large > Twin (Half) > OFF2. SOURCEChange the PIP window source.3. SWAPSwap the main screen and the PIP window.4. MOVEMove the position of the PIP window.

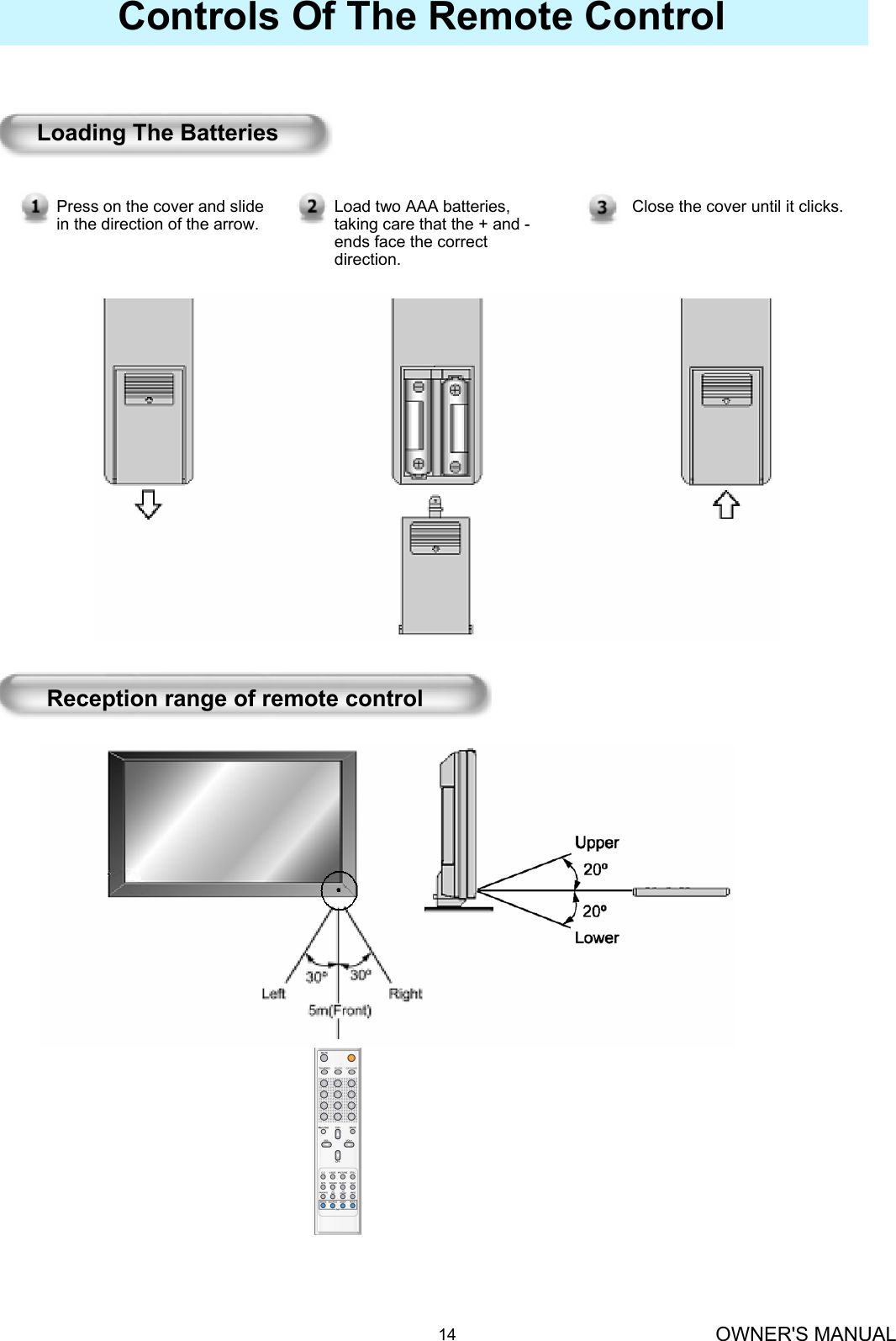

OWNER'S MANUAL14Controls Of The Remote ControlPress on the cover and slidein the direction of the arrow.Loading The BatteriesLoad two AAA batteries, taking care that the + and -ends face the correct direction.Close the cover until it clicks.Reception range of remote control

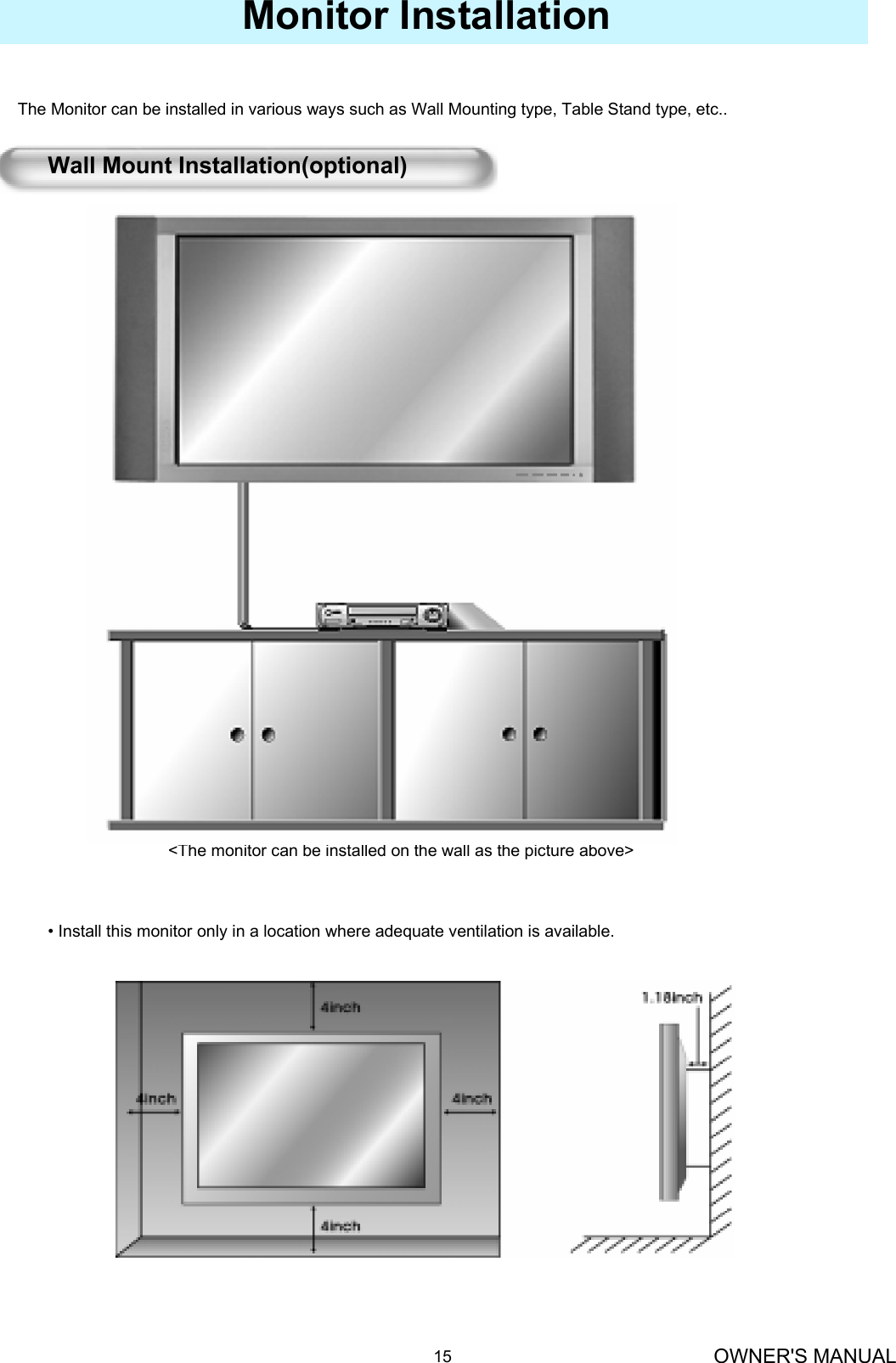

OWNER'S MANUAL15Monitor InstallationThe Monitor can be installed in various ways such as Wall Mounting type, Table Stand type, etc..<The monitor can be installed on the wall as the picture above>Wall Mount Installation(optional)• Install this monitor only in a location where adequate ventilation is available.

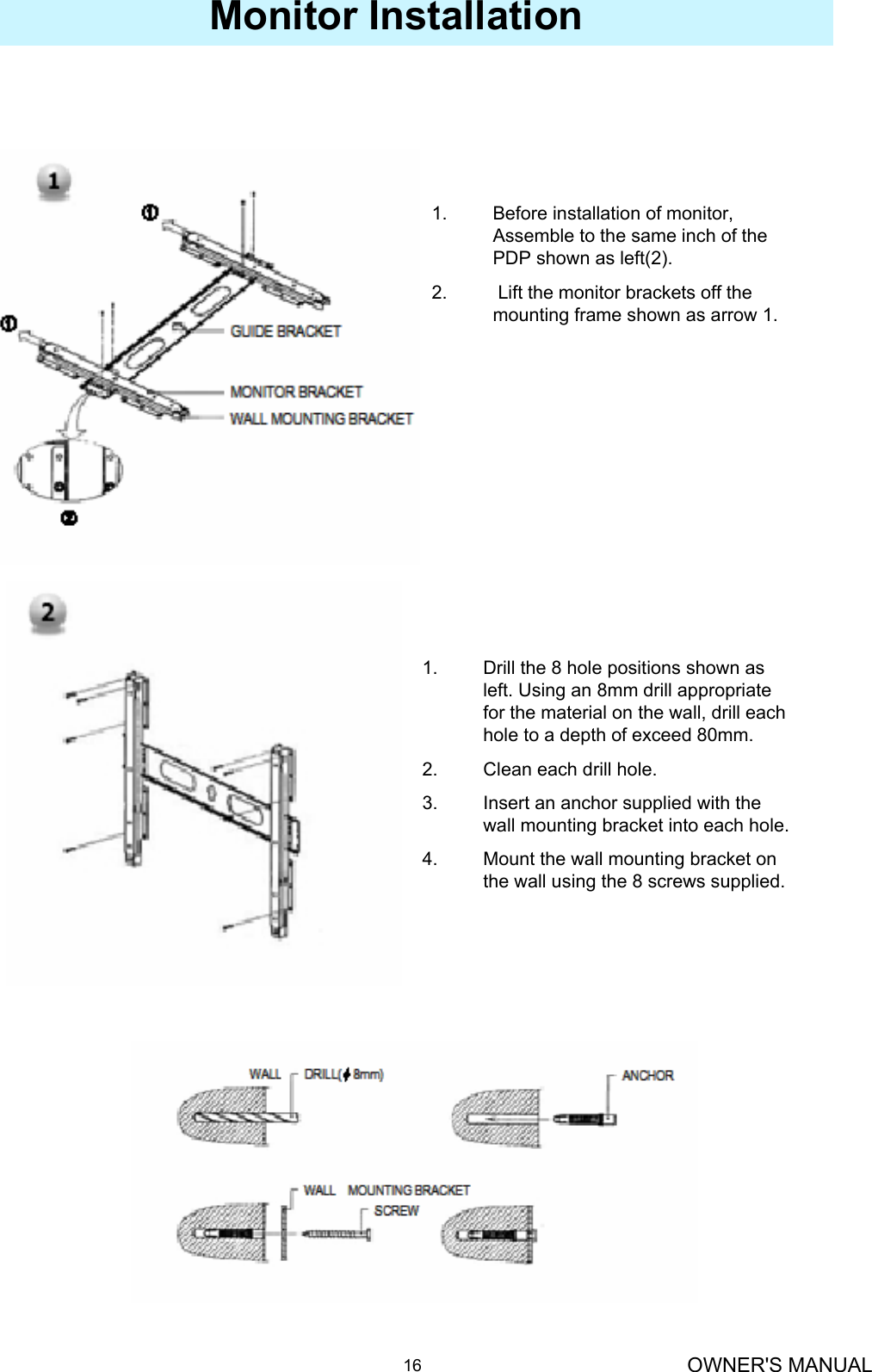

OWNER'S MANUAL16Monitor Installation1. Before installation of monitor, Assemble to the same inch of the PDP shown as left(2).2. Lift the monitor brackets off the mounting frame shown as arrow 1.1. Drill the 8 hole positions shown as left. Using an 8mm drill appropriate for the material on the wall, drill each hole to a depth of exceed 80mm.2. Clean each drill hole.3. Insert an anchor supplied with the wall mounting bracket into each hole.4. Mount the wall mounting bracket on the wall using the 8 screws supplied.

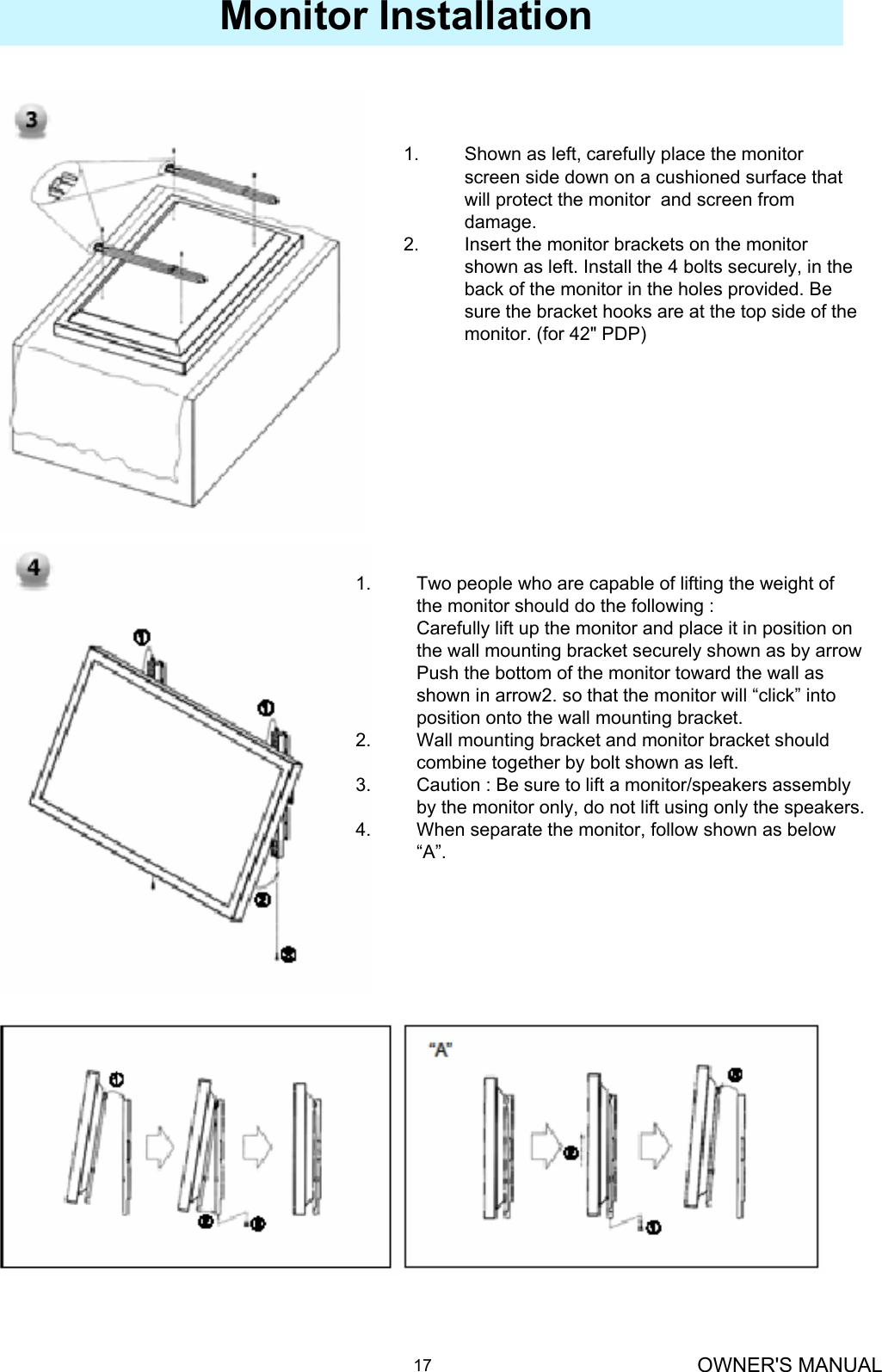

OWNER'S MANUAL17Monitor Installation1. Shown as left, carefully place the monitor screen side down on a cushioned surface that will protect the monitor and screen from damage.2. Insert the monitor brackets on the monitor shown as left. Install the 4 bolts securely, in the back of the monitor in the holes provided. Be sure the bracket hooks are at the top side of the monitor. (for 42" PDP)1. Two people who are capable of lifting the weight of the monitor should do the following :Carefully lift up the monitor and place it in position on the wall mounting bracket securely shown as by arrow Push the bottom of the monitor toward the wall as shown in arrow2. so that the monitor will “click” into position onto the wall mounting bracket. 2. Wall mounting bracket and monitor bracket should combine together by bolt shown as left.3. Caution : Be sure to lift a monitor/speakers assembly by the monitor only, do not lift using only the speakers.4. When separate the monitor, follow shown as below “A”.

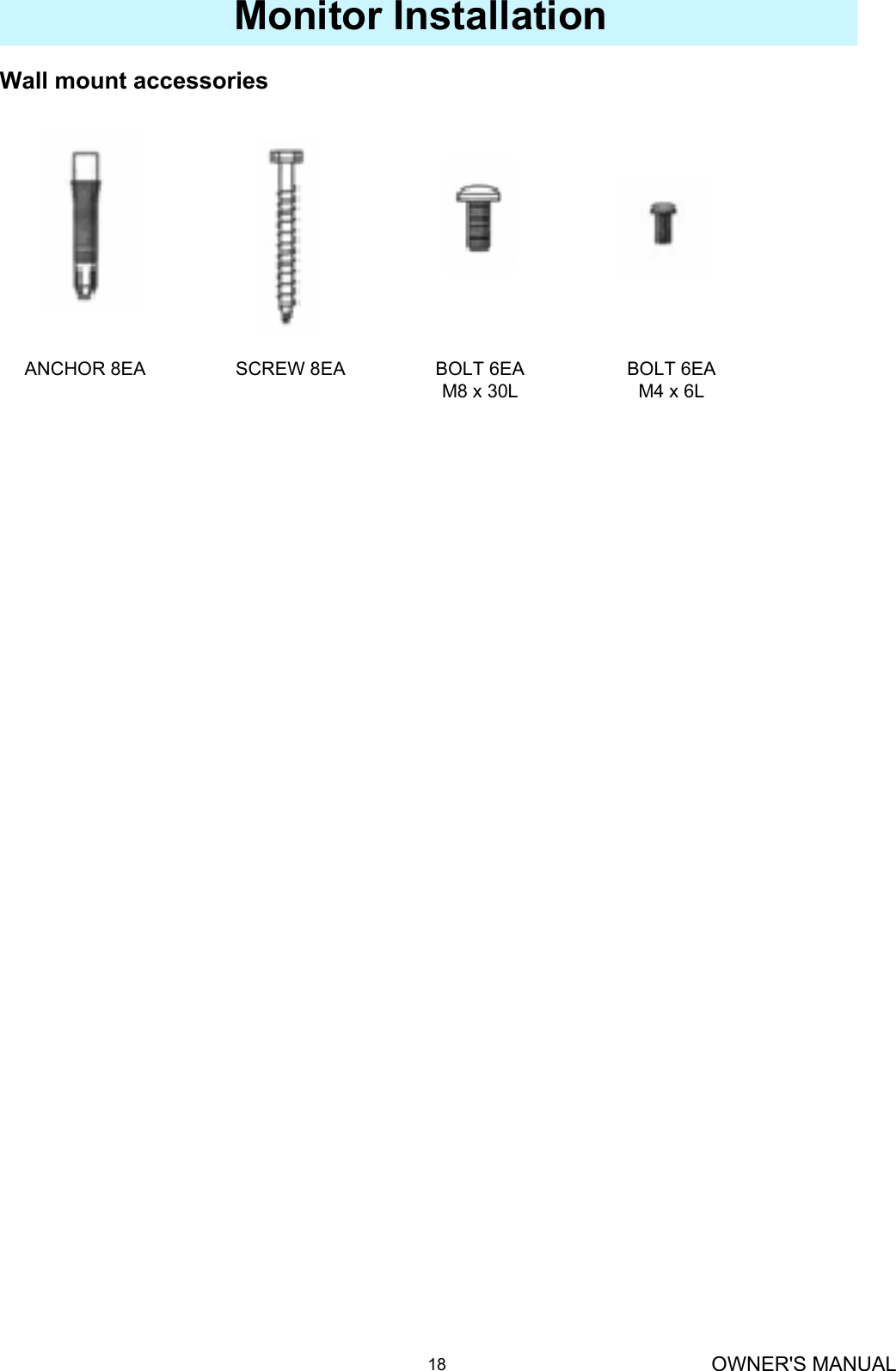

OWNER'S MANUAL18Monitor InstallationWall mount accessoriesANCHOR 8EA SCREW 8EA BOLT 6EAM8 x 30LBOLT 6EAM4 x 6L

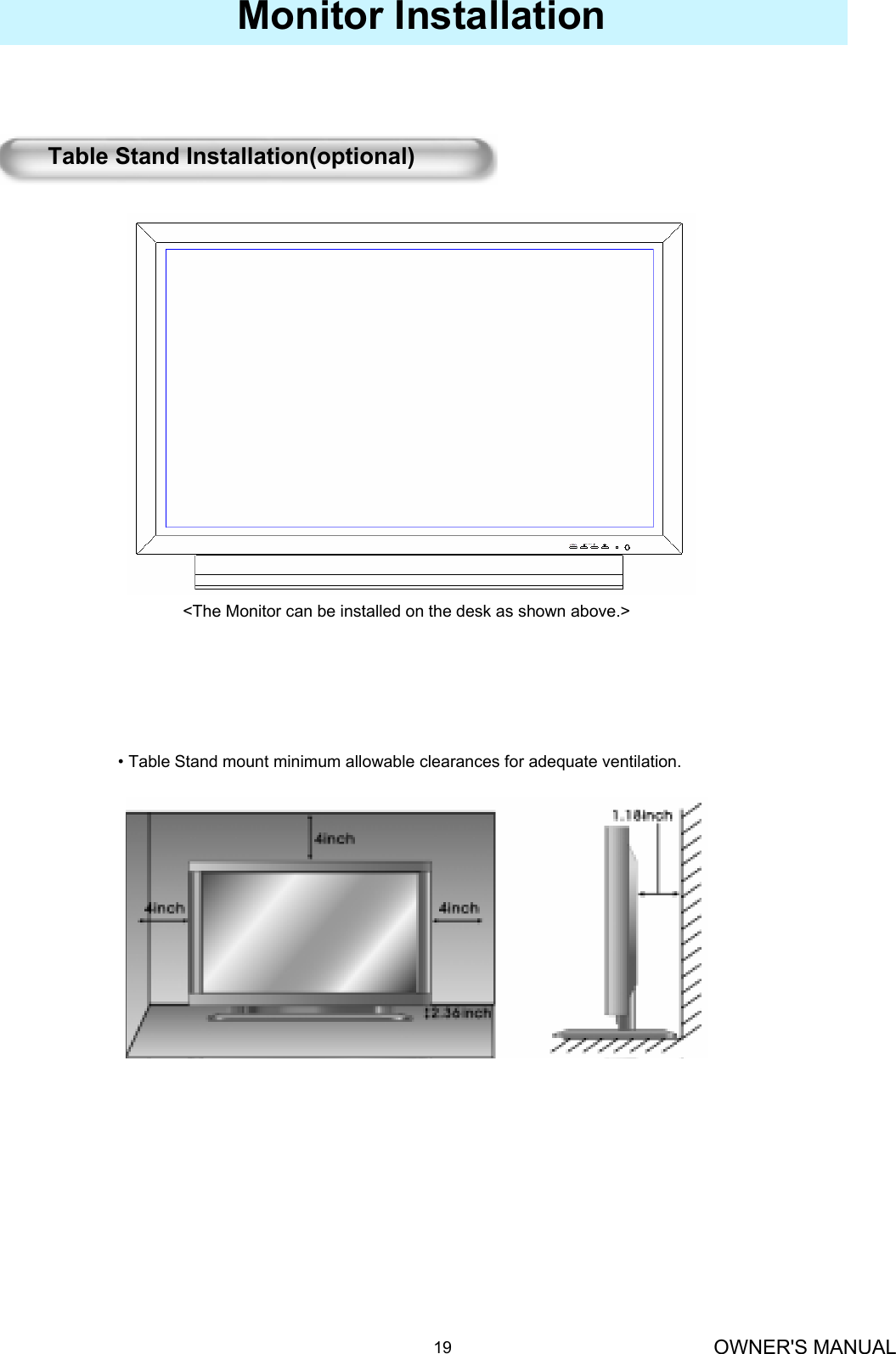

OWNER'S MANUAL19Monitor Installation<The Monitor can be installed on the desk as shown above.>• Table Stand mount minimum allowable clearances for adequate ventilation.Table Stand Installation(optional)

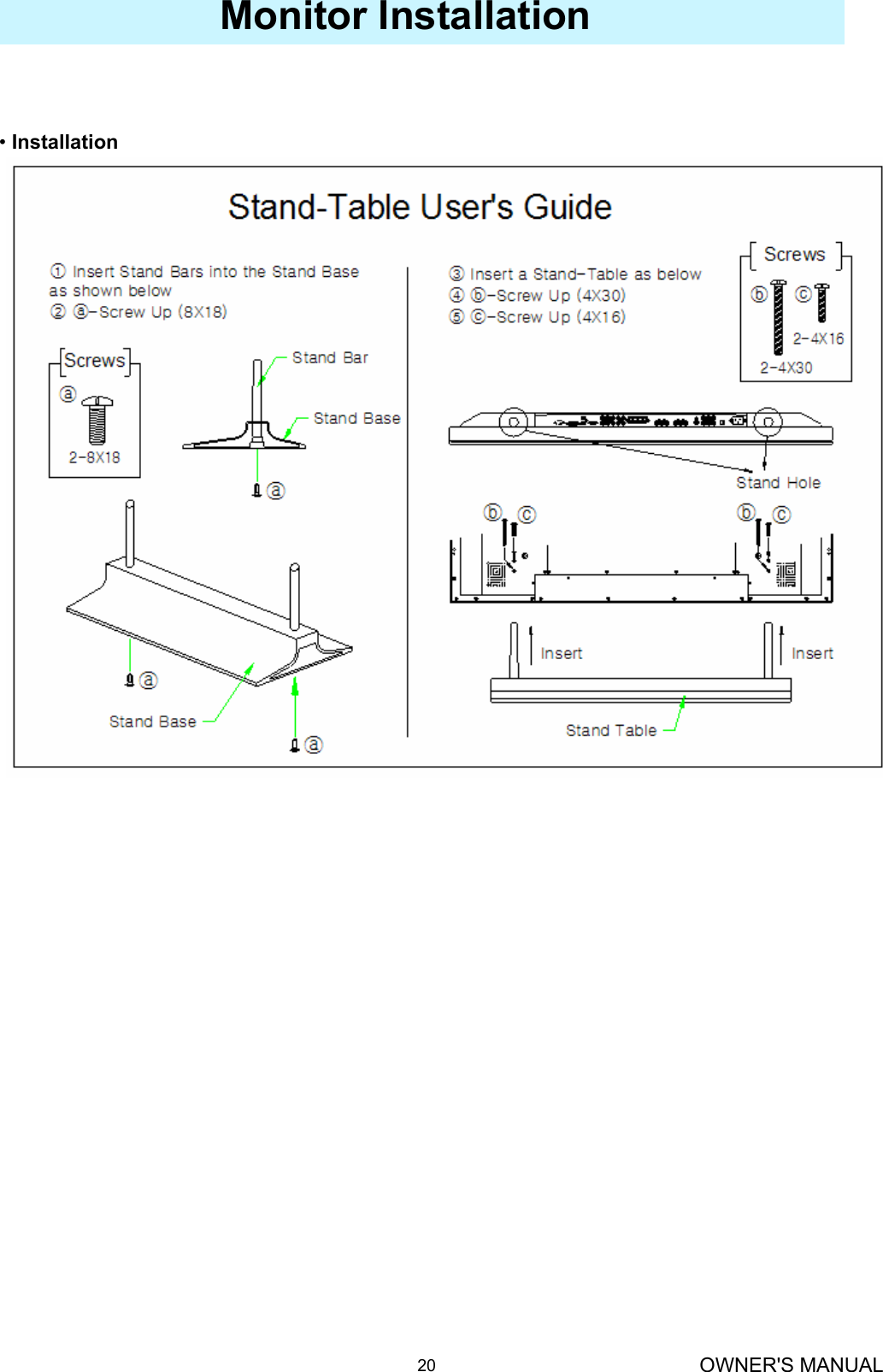

OWNER'S MANUAL20Monitor Installation•Installation

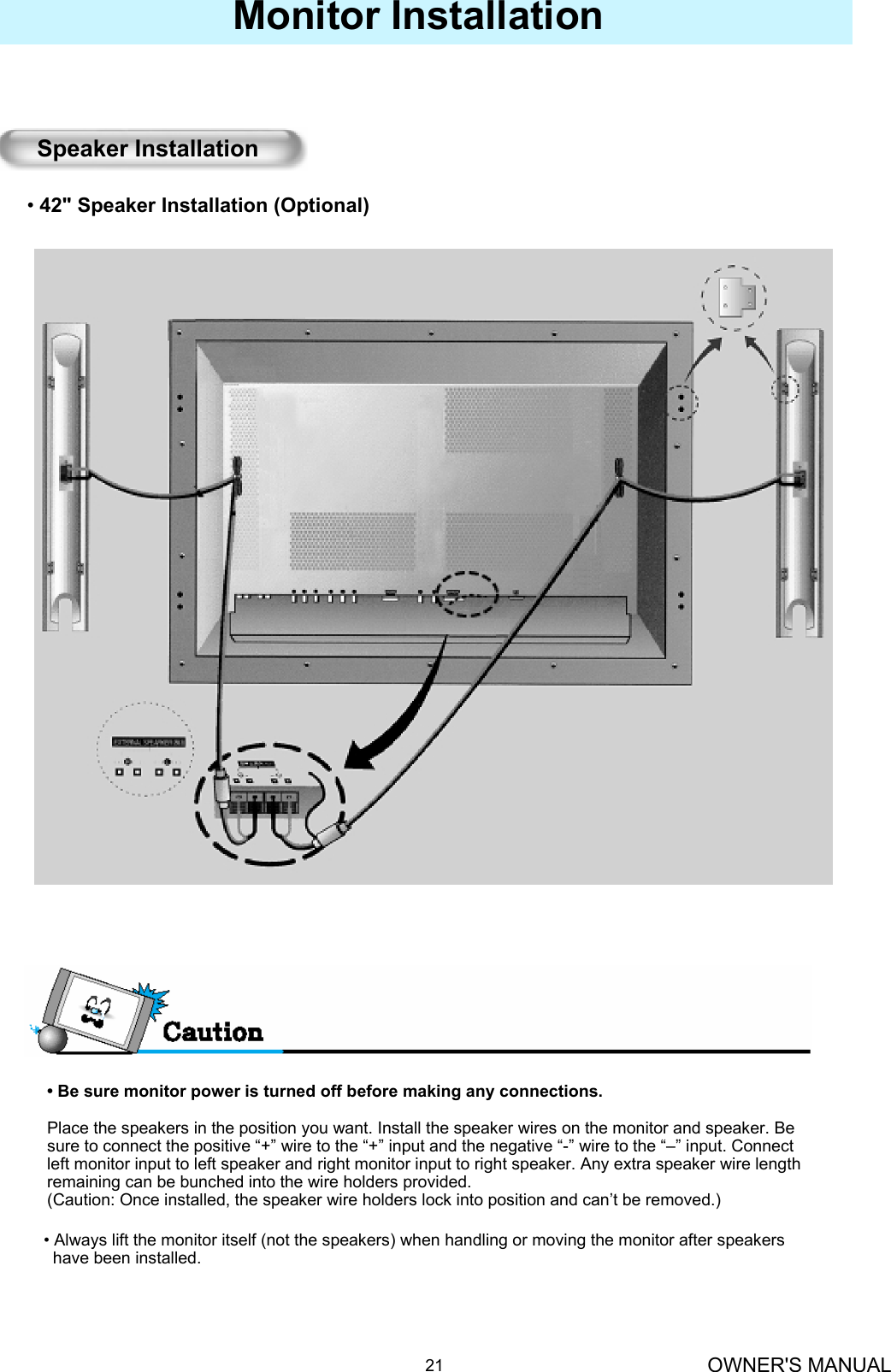

OWNER'S MANUAL21Monitor Installation• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive “+” wire to the “+” input and the negative “-” wire to the “–” input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided.(Caution: Once installed, the speaker wire holders lock into position and can’t be removed.)•42" Speaker Installation (Optional)Speaker Installation• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed.
OWNER'S MANUAL22Monitor Installation•Speaker Accessories4-Iron Plates (Mount speakers to monitor) 8-4 x 16 Long Bolts (Attach iron plates to speakers) 8-4 x 8 Short Bolts (Attach iron plates to monitor) 2-Speaker Wires

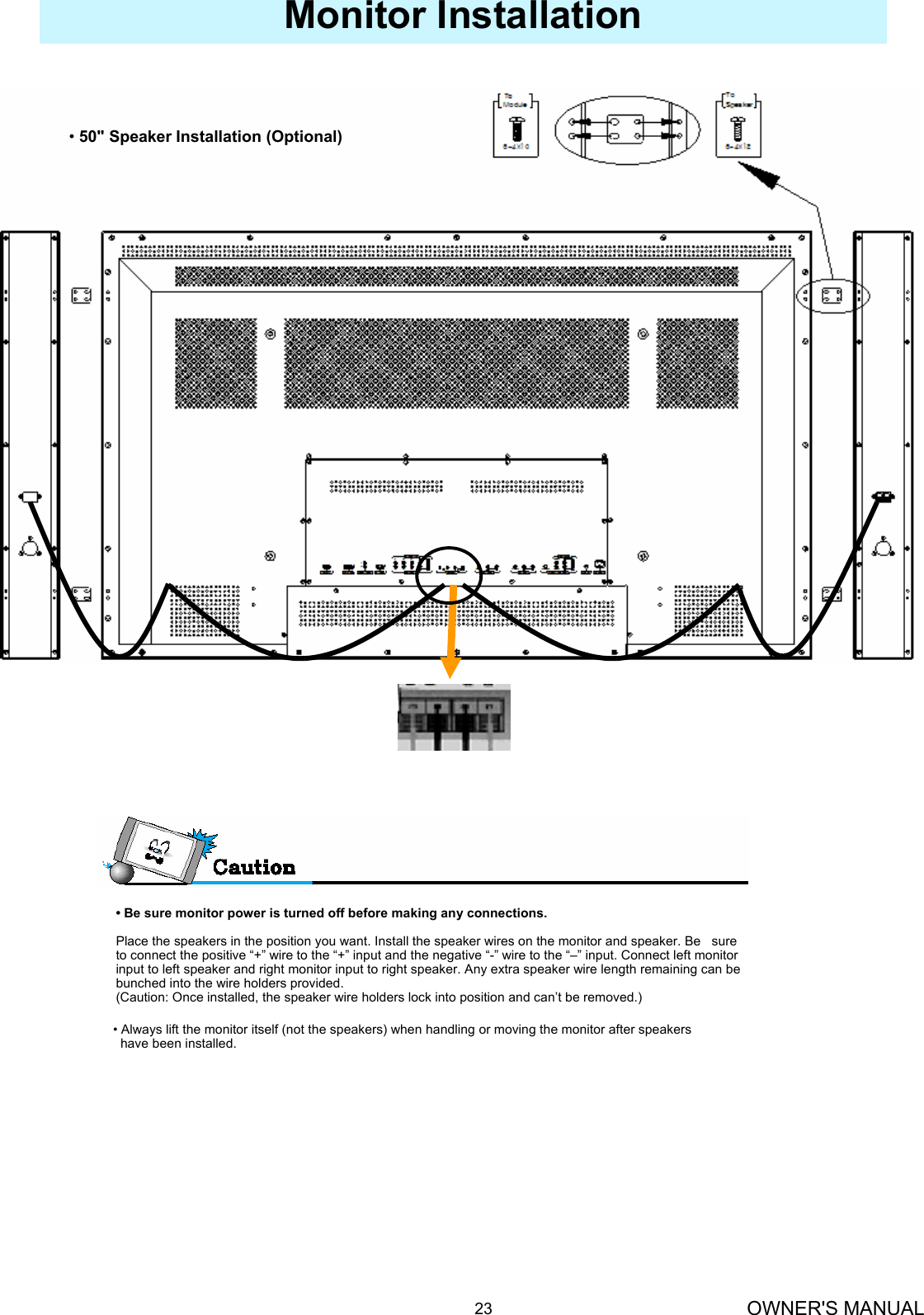

OWNER'S MANUAL23Monitor Installation•50" Speaker Installation (Optional)• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive “+” wire to the “+” input and the negative “-” wire to the “–” input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided.(Caution: Once installed, the speaker wire holders lock into position and can’t be removed.)• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed.

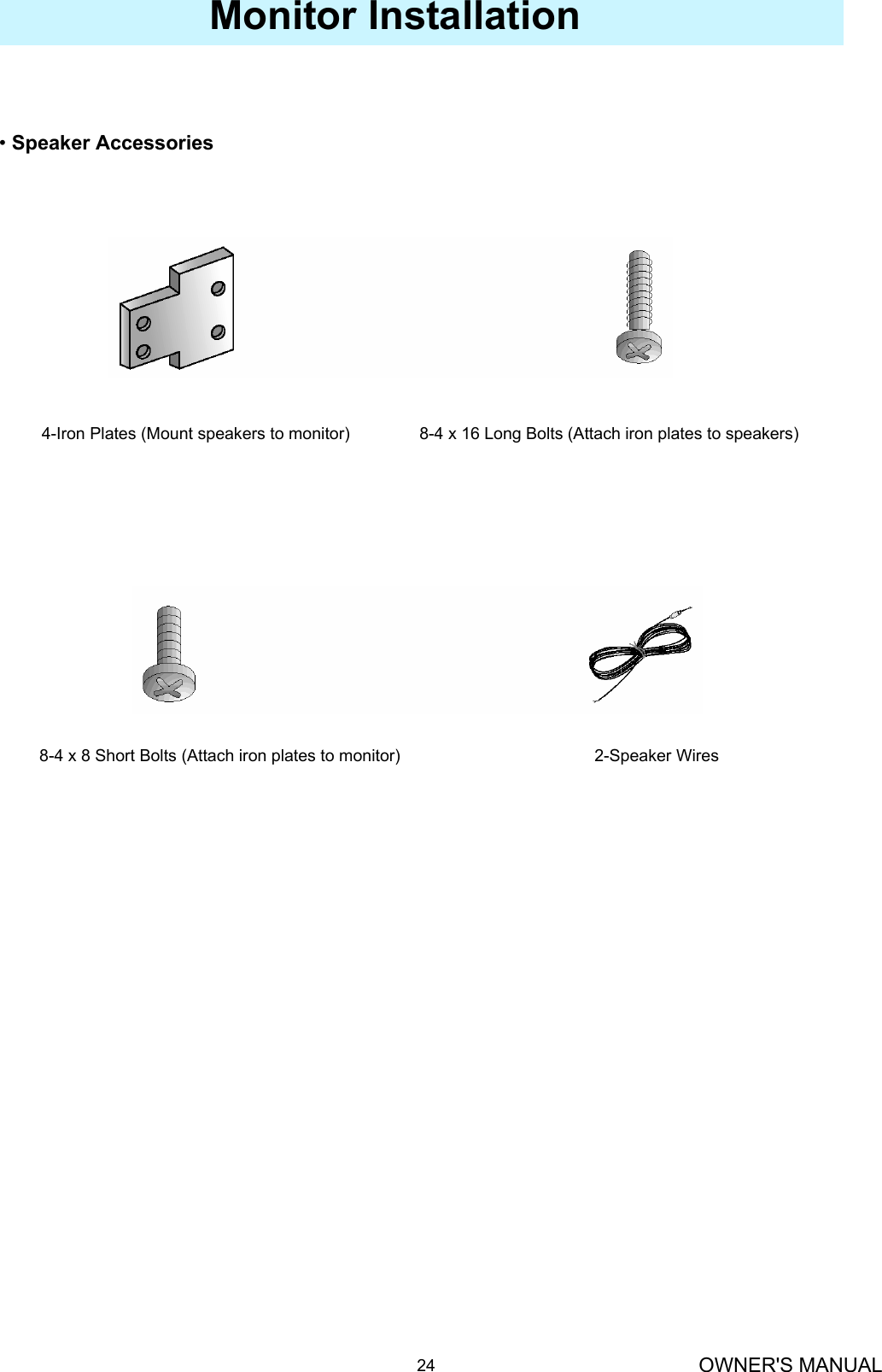

OWNER'S MANUAL24Monitor Installation•Speaker Accessories4-Iron Plates (Mount speakers to monitor) 8-4 x 16 Long Bolts (Attach iron plates to speakers) 8-4 x 8 Short Bolts (Attach iron plates to monitor) 2-Speaker Wires

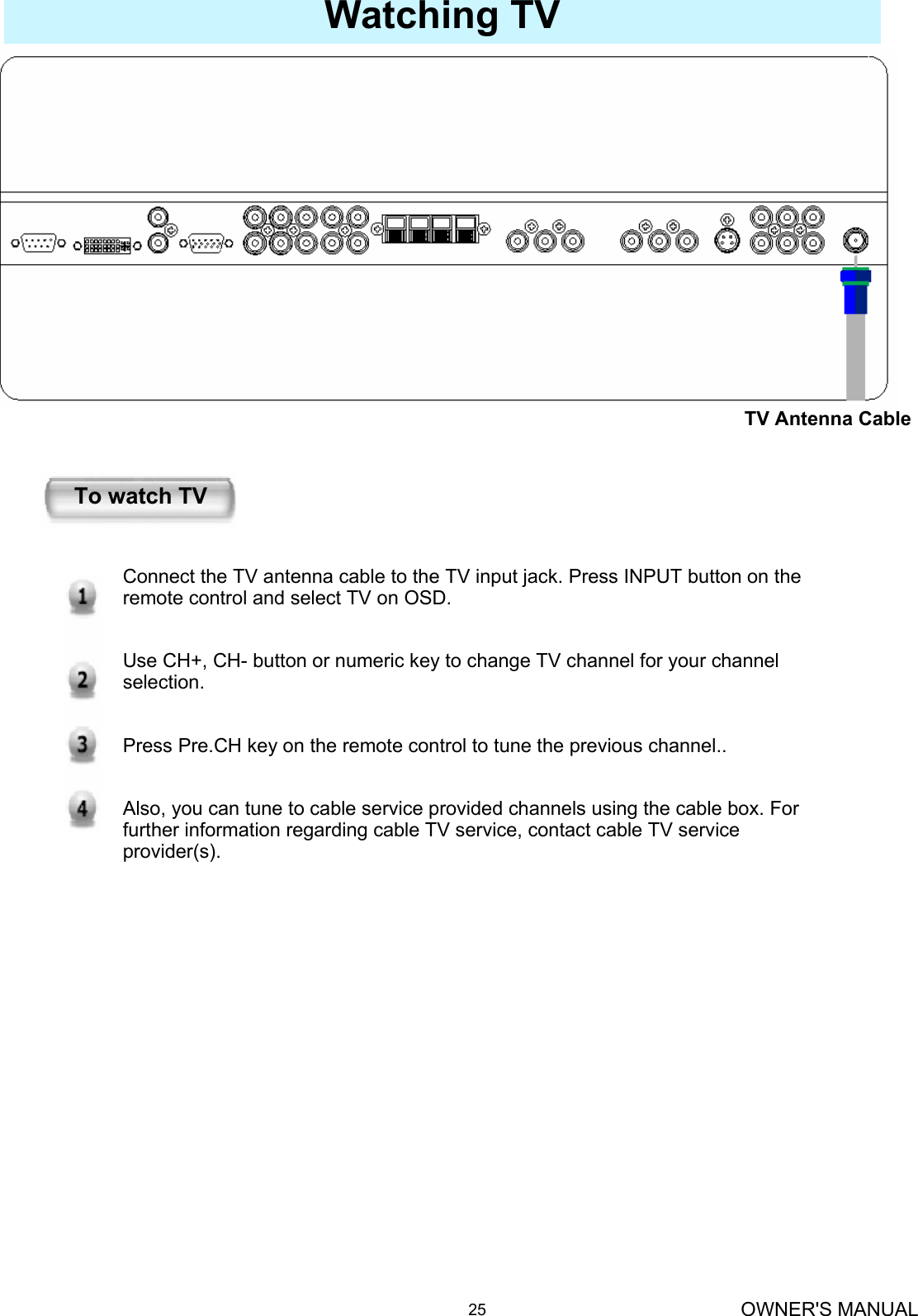

OWNER'S MANUAL25Watching TVTo watch TVConnect the TV antenna cable to the TV input jack. Press INPUT button on the remote control and select TV on OSD.Use CH+, CH- button or numeric key to change TV channel for your channel selection.Press Pre.CH key on the remote control to tune the previous channel..Also, you can tune to cable service provided channels using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).TV Antenna Cable

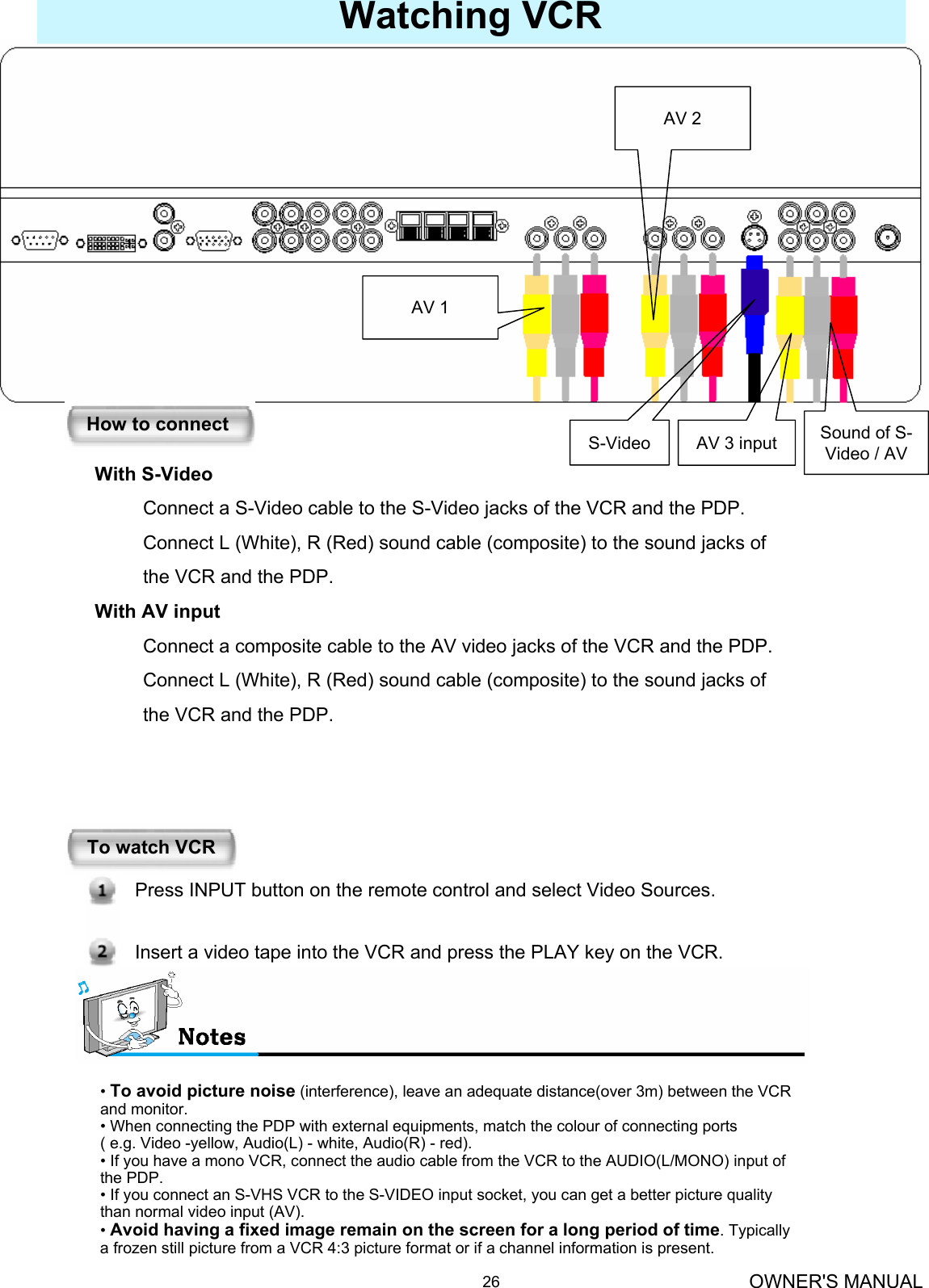

OWNER'S MANUAL26Watching VCR•To avoid picture noise (interference), leave an adequate distance(over 3m) between the VCR and monitor.• When connecting the PDP with external equipments, match the colour of connecting ports ( e.g. Video -yellow, Audio(L) - white, Audio(R) - red).• If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the PDP.• If you connect an S-VHS VCR to the S-VIDEO input socket, you can get a better picture quality than normal video input (AV).•Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR 4:3 picture format or if a channel information is present.To watch VCRPress INPUT button on the remote control and select Video Sources. Insert a video tape into the VCR and press the PLAY key on the VCR. S-Video AV 3 input Sound of S-Video / AVHow to connectWith S-VideoConnect a S-Video cable to the S-Video jacks of the VCR and the PDP.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the PDP.With AV inputConnect a composite cable to the AV video jacks of the VCR and the PDP.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the PDP.AV 2AV 1

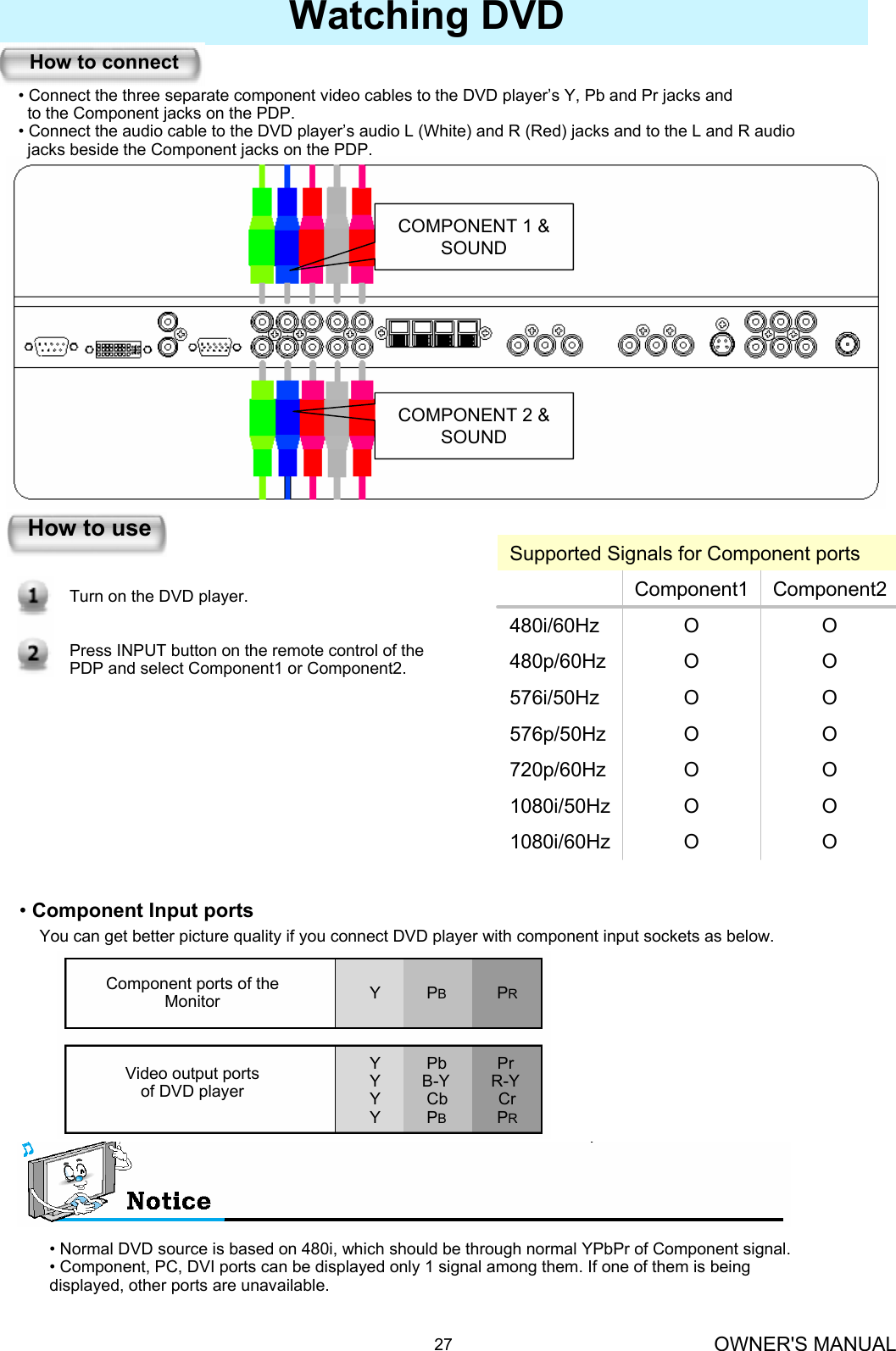

OWNER'S MANUAL27Watching DVD• Connect the three separate component video cables to the DVD player’s Y, Pb and Pr jacks and to the Component jacks on the PDP.• Connect the audio cable to the DVD player’s audio L (White) and R (Red) jacks and to the L and R audio jacks beside the Component jacks on the PDP.How to connectHow to useTurn on the DVD player.Press INPUT button on the remote control of the PDP and select Component1 or Component2.•Component Input portsYou can get better picture quality if you connect DVD player with component input sockets as below.Component ports of theMonitorVideo output portsof DVD playerY PBPRY Pb PrY B-Y R-YY Cb CrY PBPR• Normal DVD source is based on 480i, which should be through normal YPbPr of Component signal.• Component, PC, DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other ports are unavailable.COMPONENT 1 & SOUNDCOMPONENT 2 & SOUNDOO1080i/60HzOO1080i/50HzOO720p/60HzOO576p/50HzOO576i/50HzOO480p/60HzOO480i/60HzComponent2Component1Supported Signals for Component ports

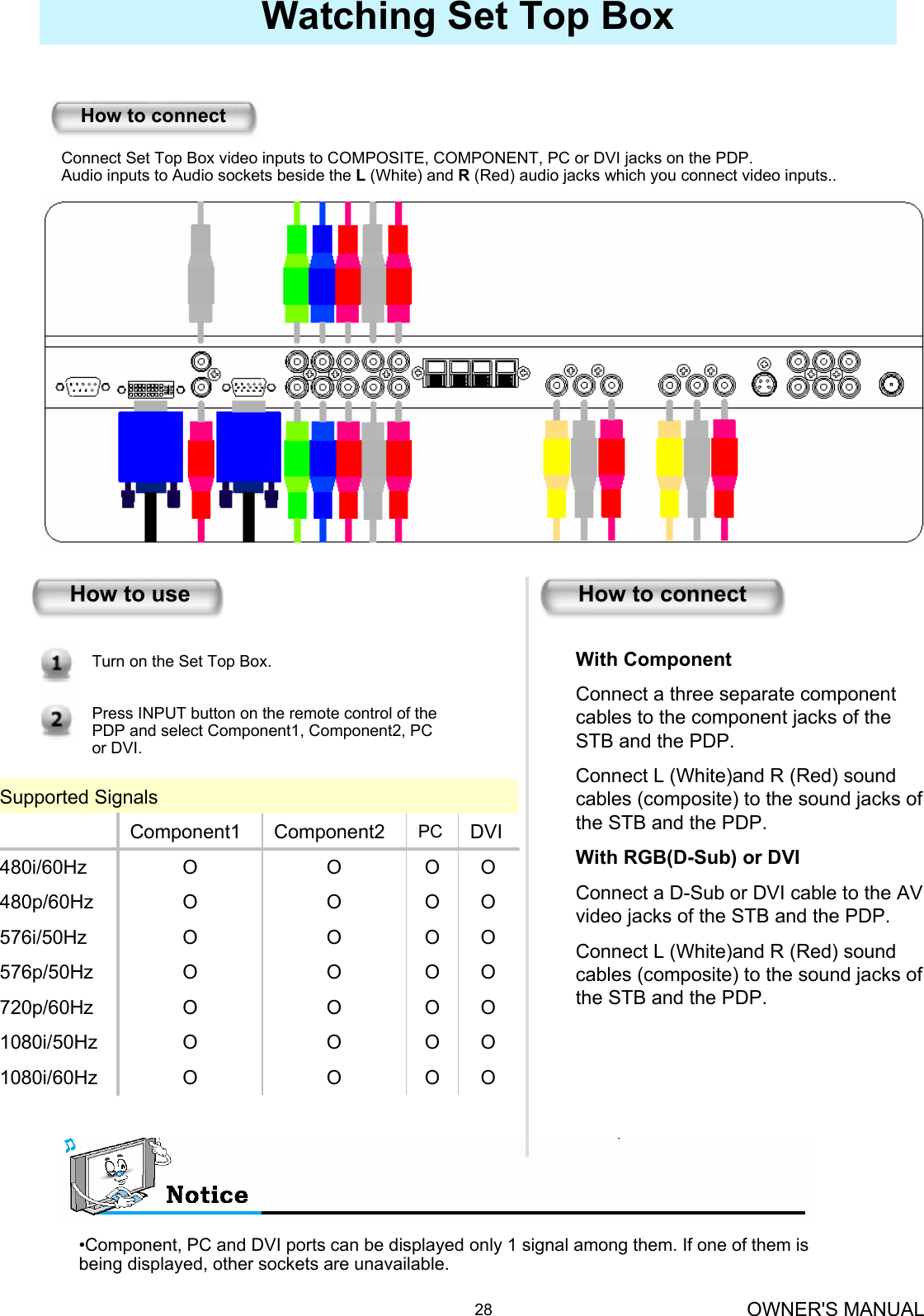

OWNER'S MANUAL28Watching Set Top BoxConnect Set Top Box video inputs to COMPOSITE, COMPONENT, PC or DVI jacks on the PDP. Audio inputs to Audio sockets beside the L(White) and R (Red) audio jacks which you connect video inputs.. How to connectHow to useTurn on the Set Top Box.Press INPUT button on the remote control of the PDP and select Component1, Component2, PC or DVI.•Component, PC and DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other sockets are unavailable.OOOO1080i/60HzOOOO1080i/50HzOOOO720p/60HzOOOO576p/50HzOOOO576i/50HzOOOO480p/60HzOOOO480i/60HzDVIPCComponent2Component1Supported SignalsWith ComponentConnect a three separate component cables to the component jacks of the STB and the PDP.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the PDP.With RGB(D-Sub) or DVIConnect a D-Sub or DVI cable to the AV video jacks of the STB and the PDP.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the PDP.How to connect
OWNER'S MANUAL29Connecting The PC (D-Sub and DVI)XConnecting a PC to the PDP• There are two connectors to connect the PDP and PC: D-Sub and DVI.•D-SubConnect a PC (15pin) video cable between the Video Output port on the PC and the PC port on the PDP. •DVIConnect a DVI-D cable between the DVI Output port on the PC and the DVI port on the PDP. XPin Configuration• 15Pin Signal Cable (based on protruded pin)XTo watch the PC screen1. Turn on the PDP and press INPUTbutton to select the PC MODE.2. Turn on the PC and check for the PC requirements.3. Adjust the PC screen in Geometry menu.( See 45 page. )Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Description (D-Sub)D-Sub 15 pin (VGA) from PCDVI from PC

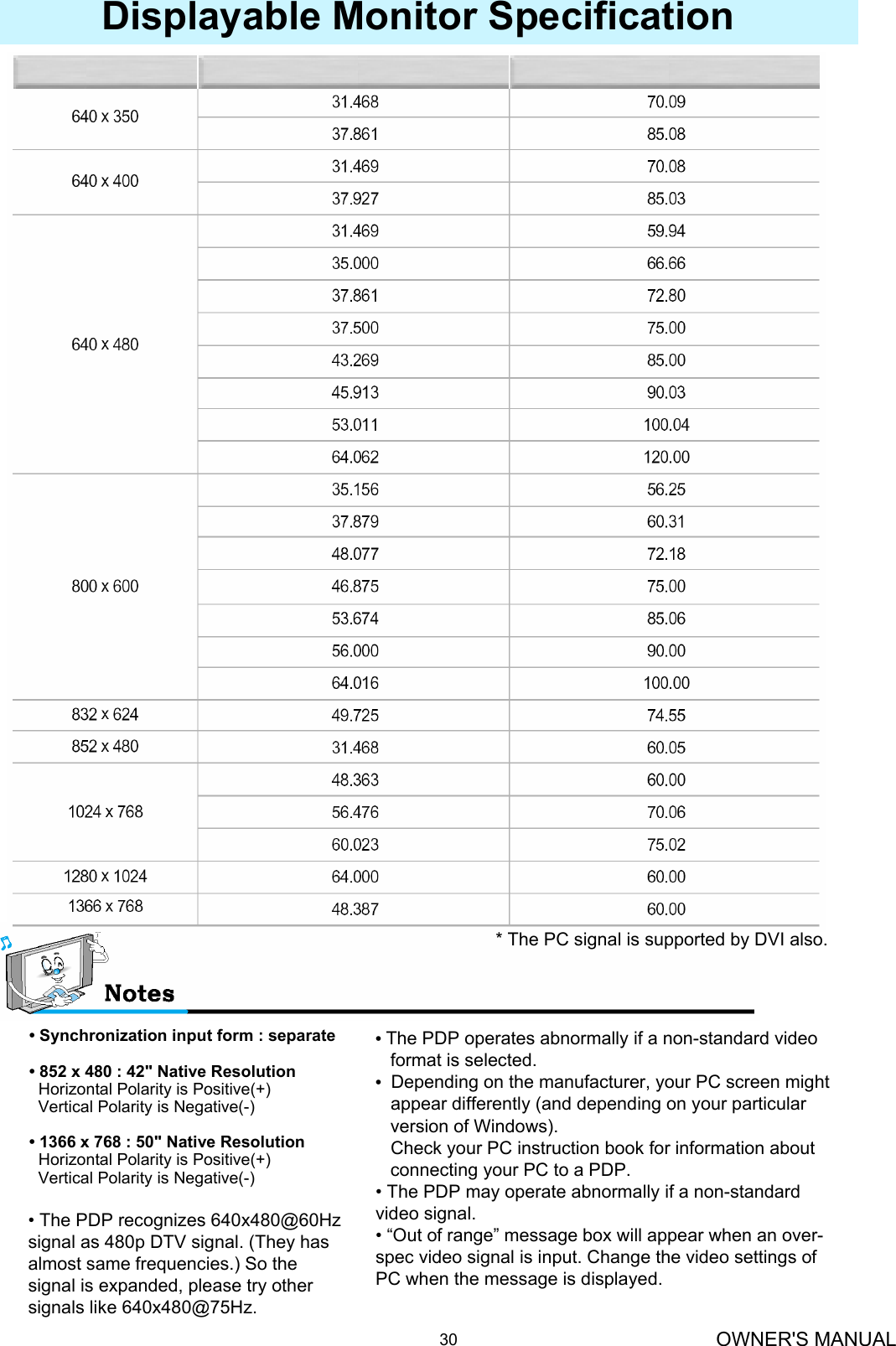

OWNER'S MANUAL30Displayable Monitor SpecificationResolution Horizontal Frequency (KHz) Vertical Frequency (Hz)• Synchronization input form : separate• 852 x 480 : 42" Native ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)• 1366 x 768 : 50" Native ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)•The PDP operates abnormally if a non-standard video format is selected.•Depending on the manufacturer, your PC screen might appear differently (and depending on your particular version of Windows).Check your PC instruction book for information about connecting your PC to a PDP.• The PDP may operate abnormally if a non-standard video signal.• “Out of range” message box will appear when an over-spec video signal is input. Change the video settings of PC when the message is displayed.• The PDP recognizes 640x480@60Hz signal as 480p DTV signal. (They has almost same frequencies.) So the signal is expanded, please try other signals like 640x480@75Hz.* The PC signal is supported by DVI also.

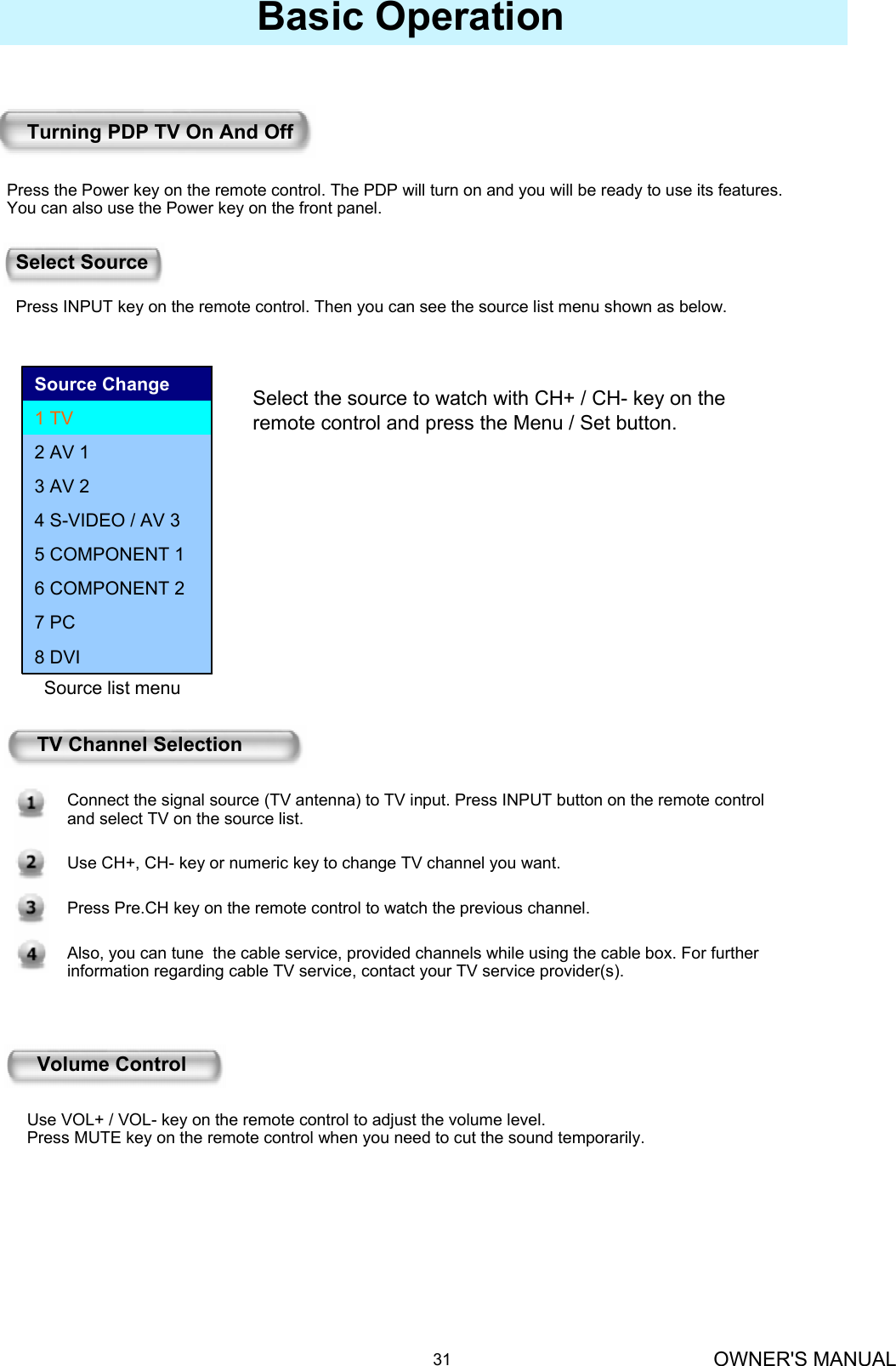

OWNER'S MANUAL31Basic OperationTurning PDP TV On And OffPress the Power key on the remote control. The PDP will turn on and you will be ready to use its features. You can also use the Power key on the front panel.TV Channel SelectionConnect the signal source (TV antenna) to TV input. Press INPUT button on the remote control and select TV on the source list.Use CH+, CH- key or numeric key to change TV channel you want.Press Pre.CH key on the remote control to watch the previous channel.Also, you can tune the cable service, provided channels while using the cable box. For further information regarding cable TV service, contact your TV service provider(s).Volume ControlUse VOL+ / VOL- key on the remote control to adjust the volume level.Press MUTE key on the remote control when you need to cut the sound temporarily.Select Source Press INPUT key on the remote control. Then you can see the source list menu shown as below.8 DVI7 PC6 COMPONENT 25 COMPONENT 14 S-VIDEO / AV 33 AV 22 AV 11 TVSource Change Select the source to watch with CH+ / CH- key on the remote control and press the Menu / Set button.Source list menu

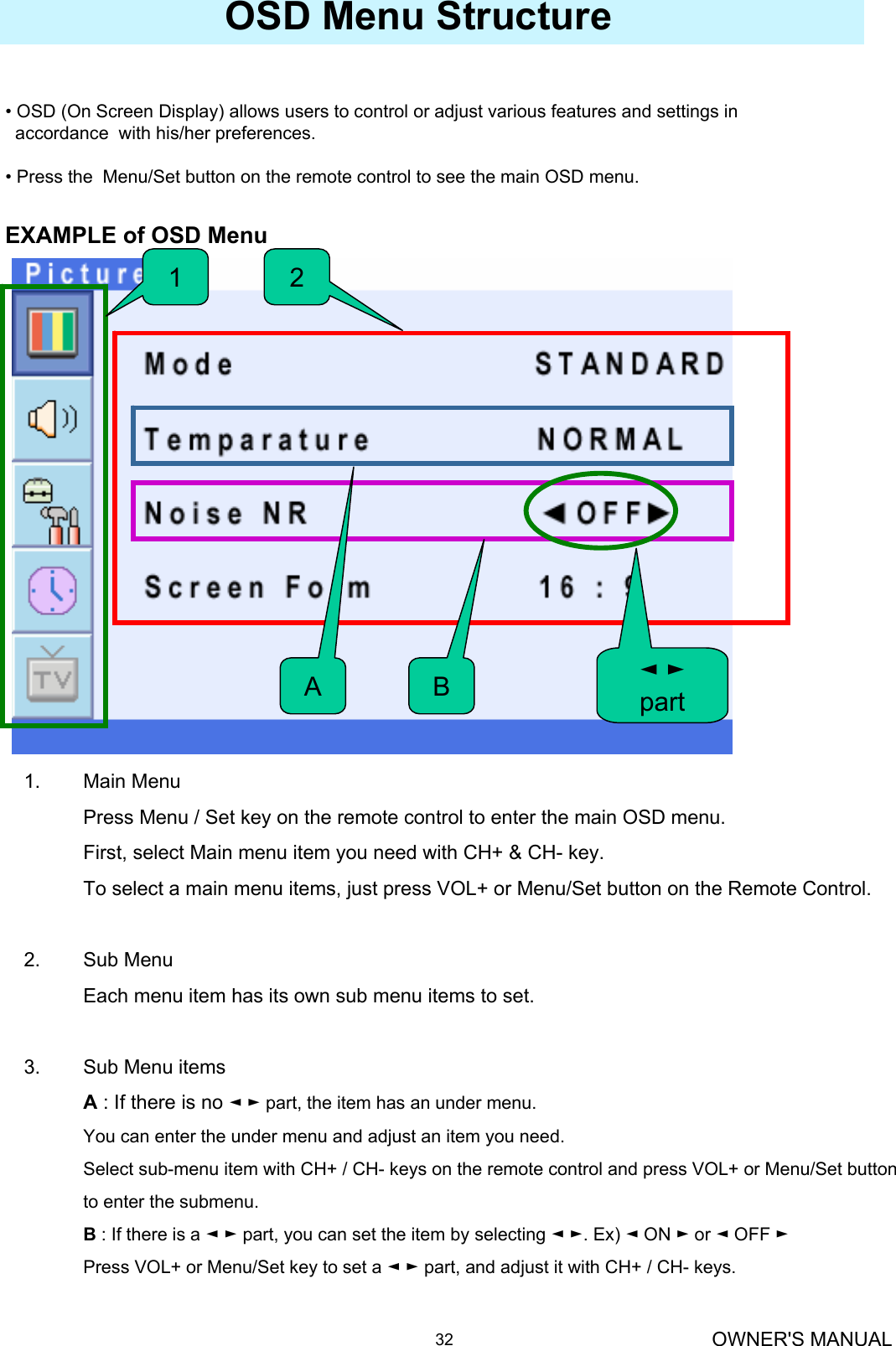

OWNER'S MANUAL32• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences. • Press the Menu/Set button on the remote control to see the main OSD menu.OSD Menu StructureEXAMPLE of OSD Menu1 2B1. Main MenuPress Menu / Set key on the remote control to enter the main OSD menu.First, select Main menu item you need with CH+ & CH- key.To select a main menu items, just press VOL+ or Menu/Set button on the Remote Control.2. Sub MenuEach menu item has its own sub menu items to set.3. Sub Menu itemsA: If there is no ◄►part, the item has an under menu. You can enter the under menu and adjust an item you need.Select sub-menu item with CH+ / CH- keys on the remote control and press VOL+ or Menu/Set button to enter the submenu.B: If there is a ◄►part, you can set the item by selecting ◄►. Ex) ◄ON ►or ◄OFF ►Press VOL+ or Menu/Set key to set a ◄►part, and adjust it with CH+ / CH- keys.A◄►part

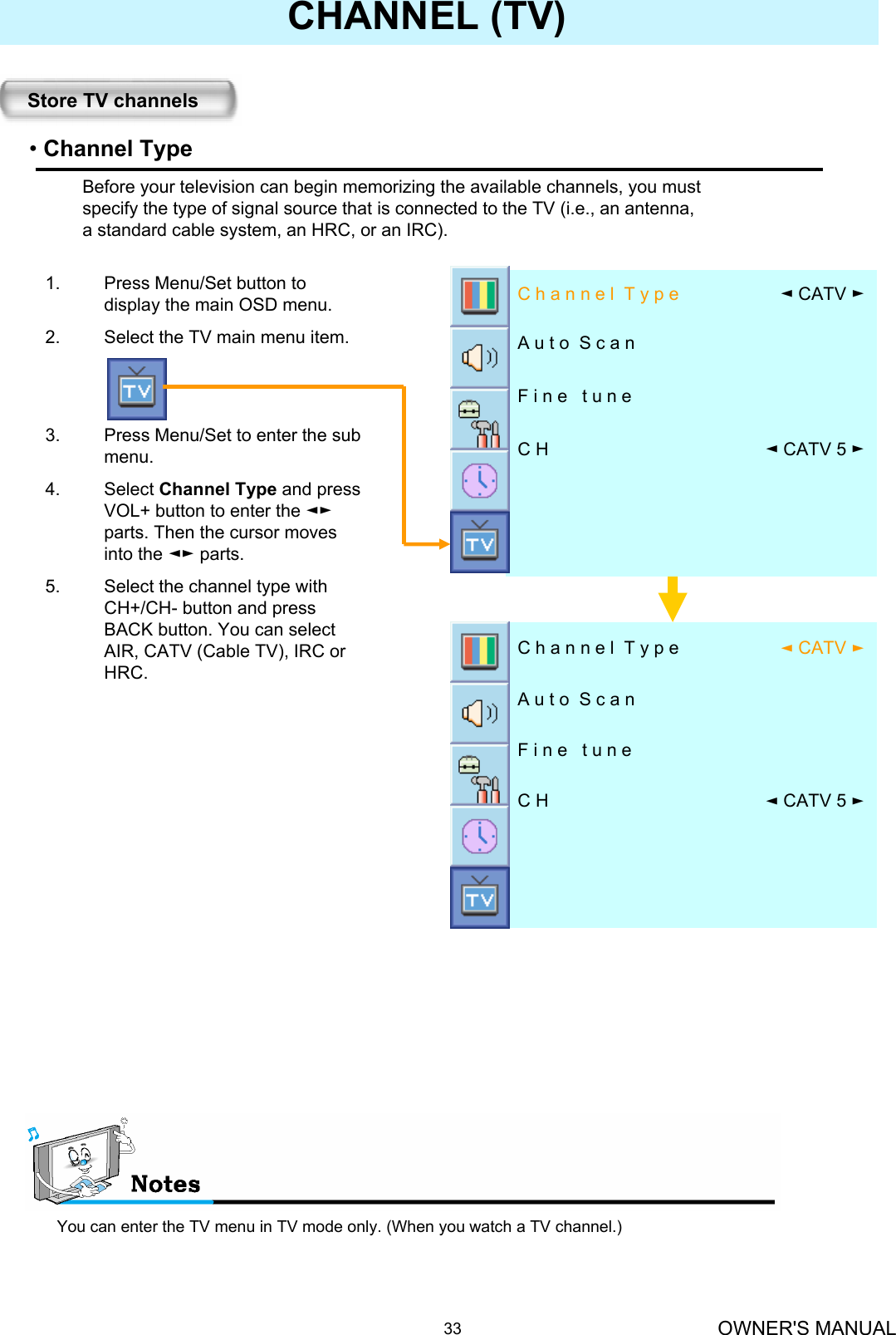

OWNER'S MANUAL33CHANNEL (TV)You can enter the TV menu in TV mode only. (When you watch a TV channel.)Store TV channels•Channel TypeBefore your television can begin memorizing the available channels, you mustspecify the type of signal source that is connected to the TV (i.e., an antenna,a standard cable system, an HRC, or an IRC).◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p e◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p e1. Press Menu/Set button to display the main OSD menu.2. Select the TV main menu item.3. Press Menu/Set to enter the sub menu.4. Select Channel Type and press VOL+ button to enter the ◄►parts. Then the cursor moves into the ◄► parts.5. Select the channel type with CH+/CH- button and press BACK button. You can select AIR, CATV (Cable TV), IRC or HRC.

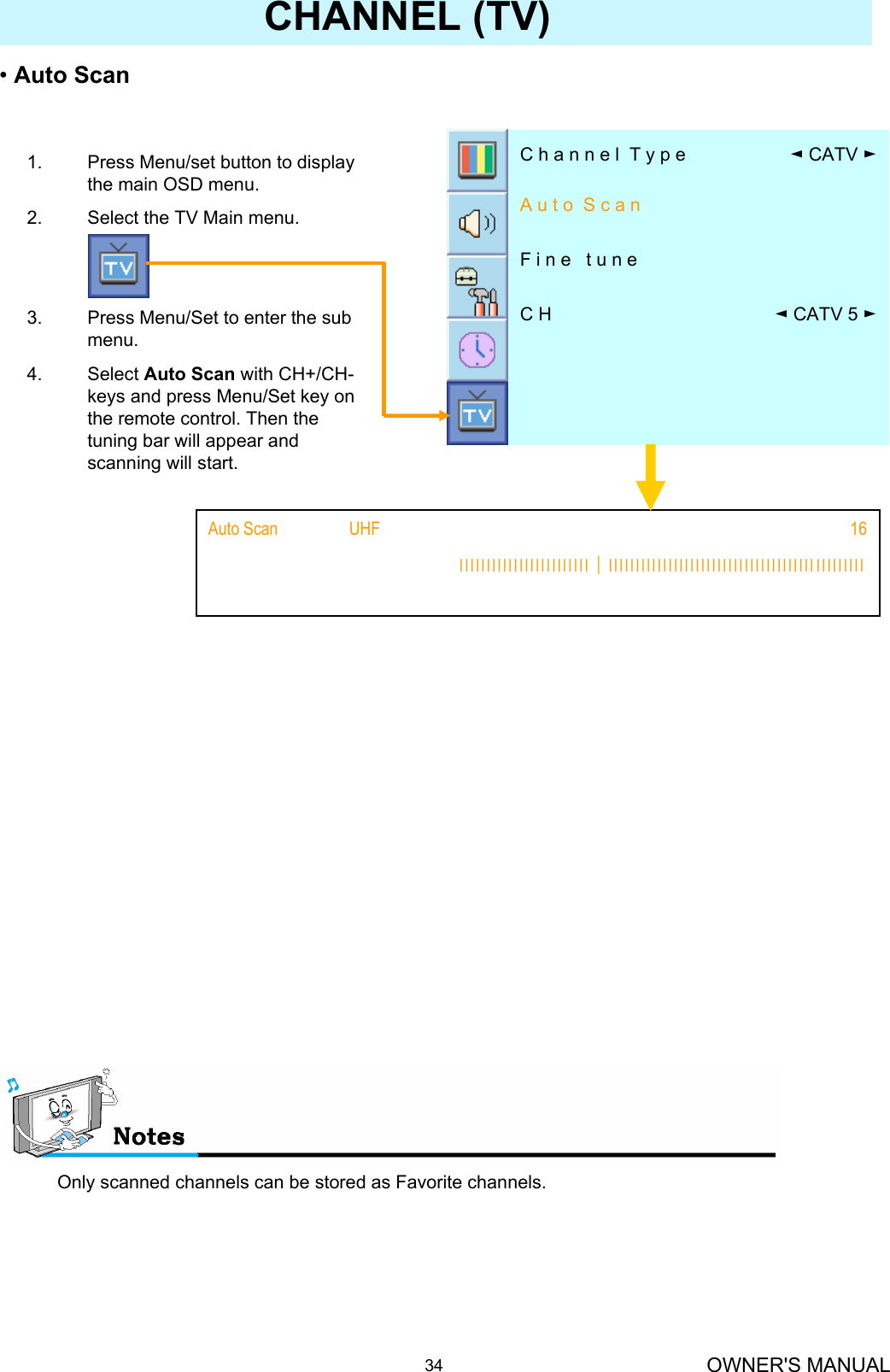

OWNER'S MANUAL34CHANNEL (TV)Only scanned channels can be stored as Favorite channels.•Auto Scan1. Press Menu/set button to display the main OSD menu.2. Select the TV Main menu.3. Press Menu/Set to enter the sub menu.4. Select Auto Scan with CH+/CH-keys and press Menu/Set key on the remote control. Then the tuning bar will appear and scanning will start.ІІІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІ16Auto Scan UHF◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p e

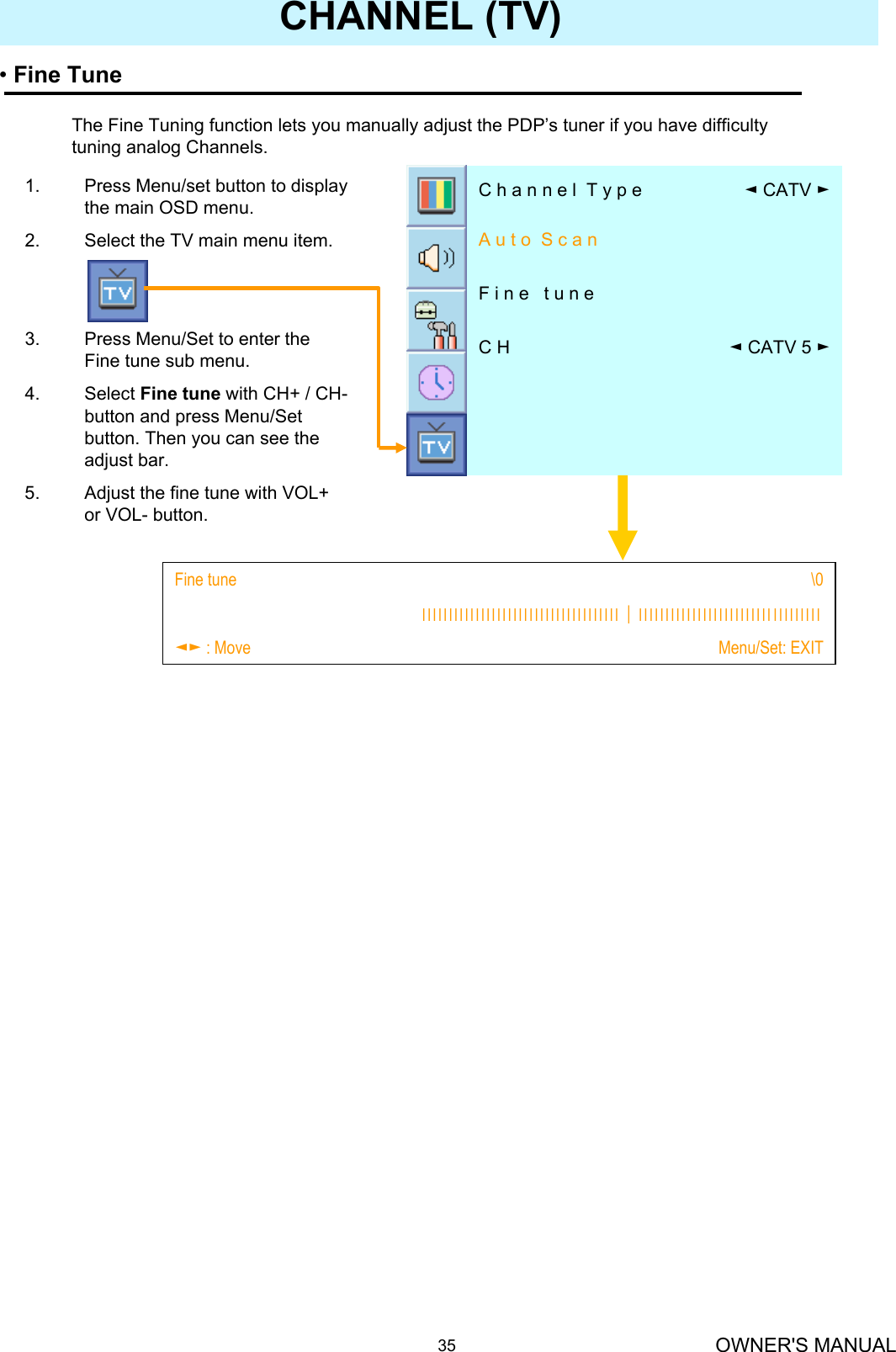

OWNER'S MANUAL35CHANNEL (TV)1. Press Menu/set button to display the main OSD menu.2. Select the TV main menu item.3. Press Menu/Set to enter the Fine tune sub menu.4. Select Fine tune with CH+ / CH-button and press Menu/Set button. Then you can see the adjust bar.5. Adjust the fine tune with VOL+ or VOL- button.•Fine TuneThe Fine Tuning function lets you manually adjust the PDP’s tuner if you have difficulty tuning analog Channels.Menu/Set: EXIT◄► : MoveІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІ\0Fine tune ◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p e

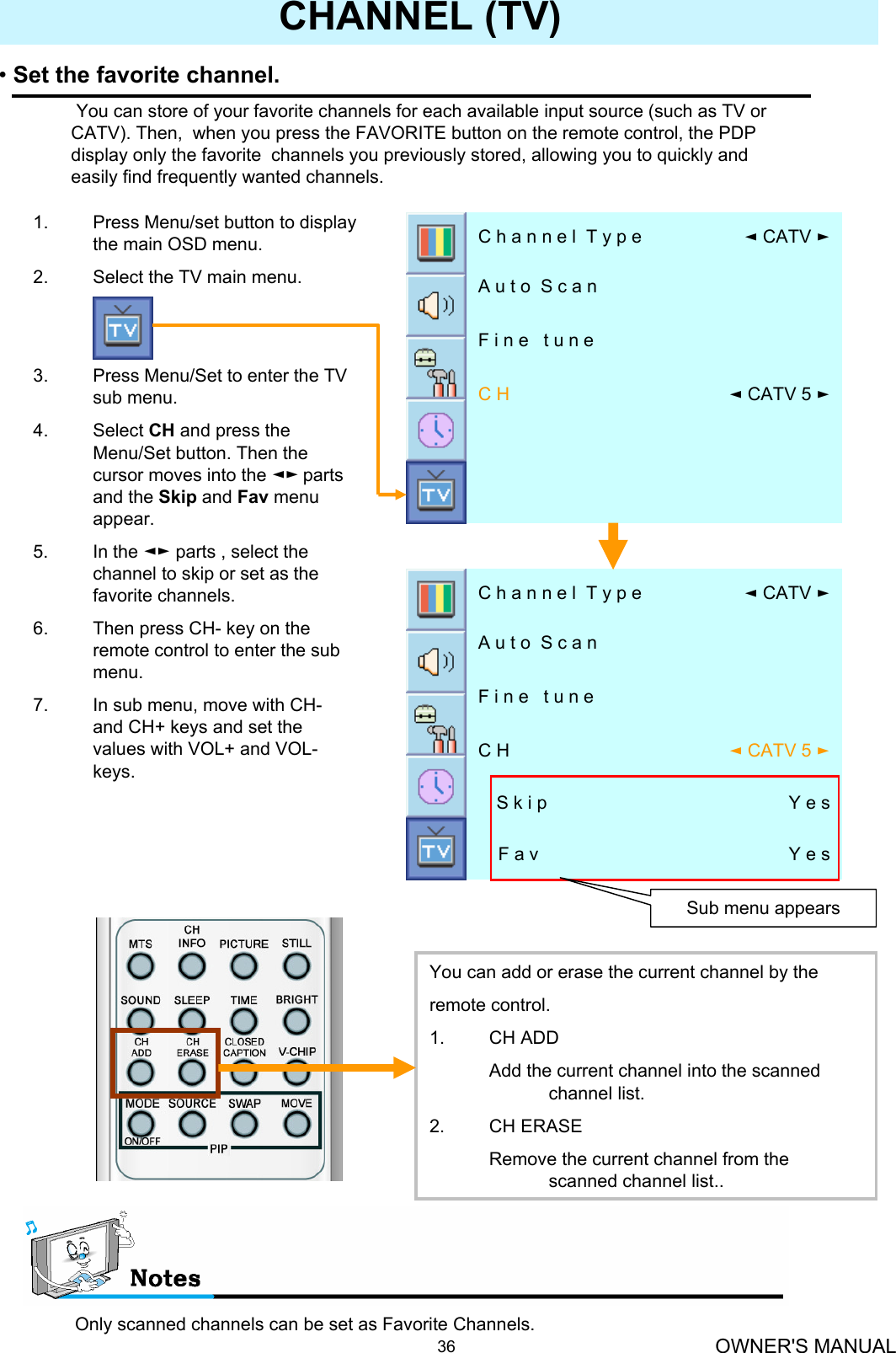

OWNER'S MANUAL36CHANNEL (TV)•Set the favorite channel.You can store of your favorite channels for each available input source (such as TV or CATV). Then, when you press the FAVORITE button on the remote control, the PDP display only the favorite channels you previously stored, allowing you to quickly and easily find frequently wanted channels.1. Press Menu/set button to display the main OSD menu.2. Select the TV main menu.3. Press Menu/Set to enter the TV sub menu.4. Select CH and press the Menu/Set button. Then the cursor moves into the ◄► parts and the Skip and Fav menu appear.5. In the ◄► parts , select the channel to skip or set as the favorite channels.6. Then press CH- key on the remote control to enter the sub menu.7. In sub menu, move with CH-and CH+ keys and set the values with VOL+ and VOL-keys.Only scanned channels can be set as Favorite Channels.You can add or erase the current channel by the remote control.1. CH ADDAdd the current channel into the scanned channel list.2. CH ERASERemove the current channel from the scanned channel list..◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p eY e sF a v Y e sS k i p◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p eSub menu appears

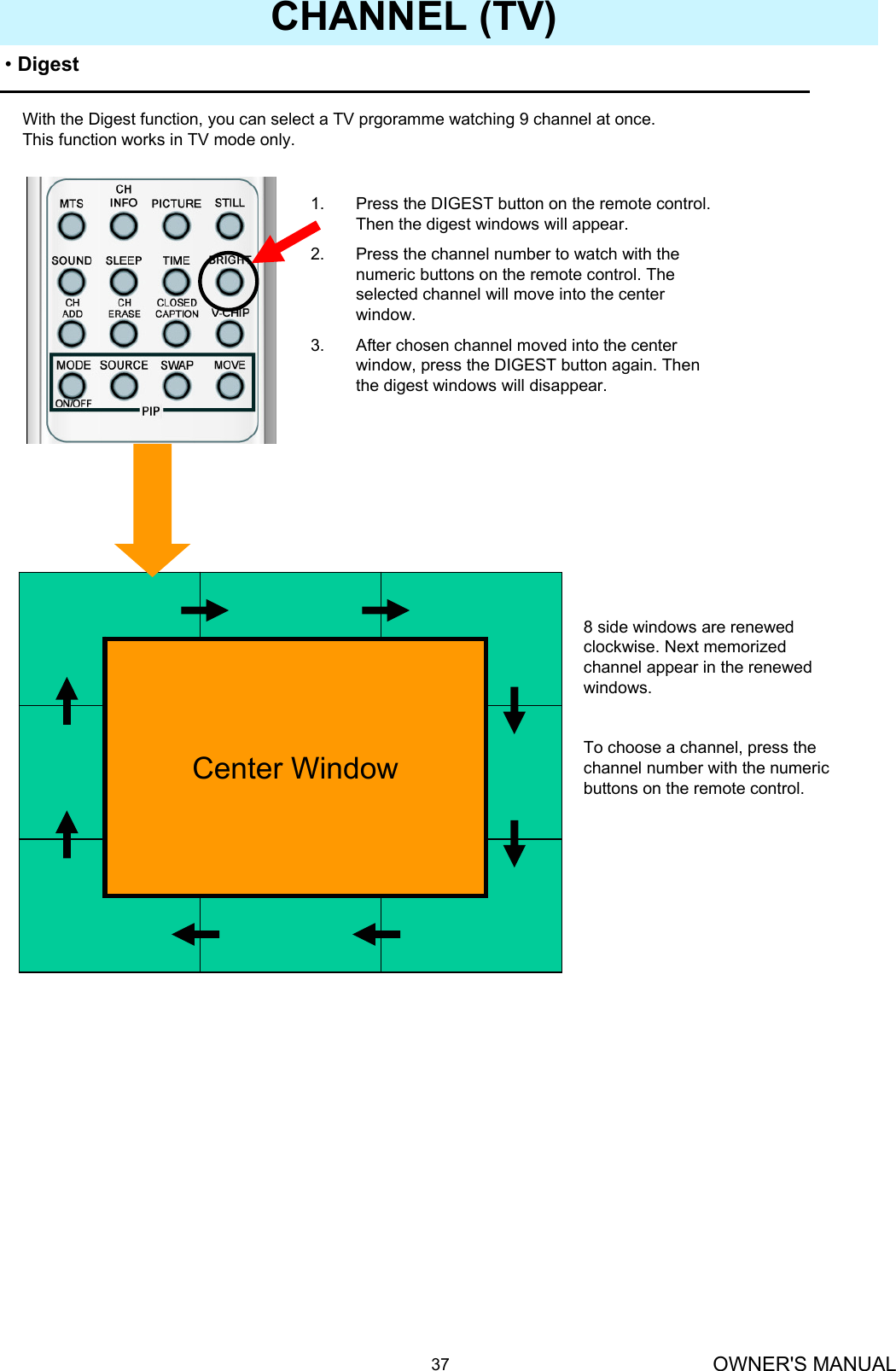

OWNER'S MANUAL37CHANNEL (TV)•DigestWith the Digest function, you can select a TV prgoramme watching 9 channel at once. This function works in TV mode only.1. Press the DIGEST button on the remote control. Then the digest windows will appear.2. Press the channel number to watch with the numeric buttons on the remote control. The selected channel will move into the center window.3. After chosen channel moved into the center window, press the DIGEST button again. Then the digest windows will disappear.8 side windows are renewed clockwise. Next memorized channel appear in the renewed windows.To choose a channel, press the channel number with the numeric buttons on the remote control.Center Window

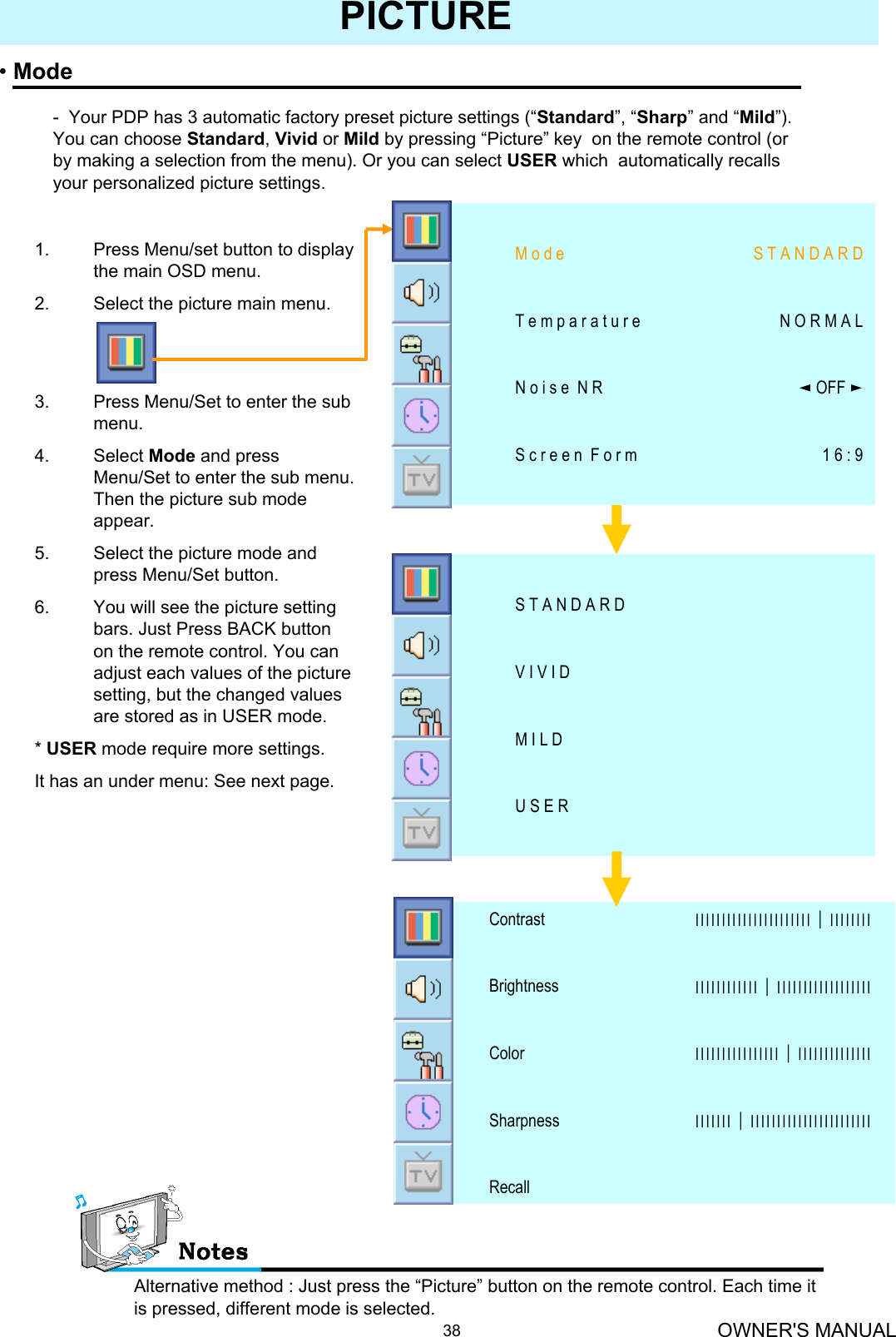

OWNER'S MANUAL38PICTURE•ModeAlternative method : Just press the “Picture” button on the remote control. Each time it is pressed, different mode is selected.- Your PDP has 3 automatic factory preset picture settings (“Standard”, “Sharp” and “Mild”). You can choose Standard, Vivid or Mild by pressing “Picture” key on the remote control (or by making a selection from the menu). Or you can select USER which automatically recalls your personalized picture settings.1. Press Menu/set button to display the main OSD menu.2. Select the picture main menu.3. Press Menu/Set to enter the sub menu.4. Select Mode and press Menu/Set to enter the sub menu. Then the picture sub mode appear.5. Select the picture mode and press Menu/Set button.6. You will see the picture setting bars. Just Press BACK button on the remote control. You can adjust each values of the picture setting, but the changed values are stored as in USER mode.* USER mode require more settings.It has an under menu: See next page.1 6 : 9S c r e e n F o r m◄OFF ►N o i s e N RN O R M A LT e m p a r a t u r eS T A N D A R DM o d eU S E RM I L DV I V I DS T A N D A R DRecallІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІSharpnessІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІColorІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІBrightnessІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІContrast

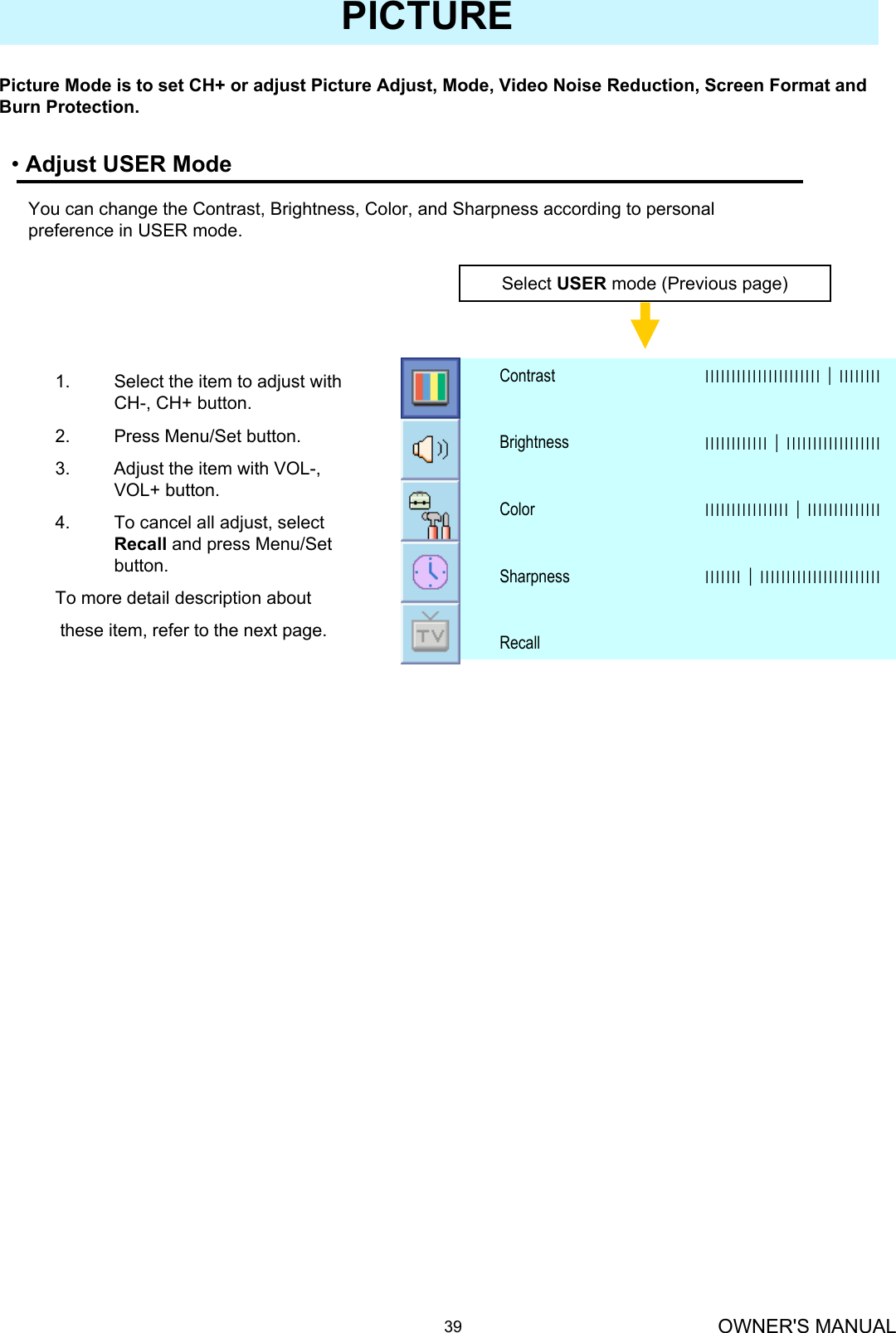

OWNER'S MANUAL39PICTURE•Adjust USER ModePicture Mode is to set CH+ or adjust Picture Adjust, Mode, Video Noise Reduction, Screen Format and Burn Protection.You can change the Contrast, Brightness, Color, and Sharpness according to personal preference in USER mode.Select USER mode (Previous page)RecallІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІSharpnessІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІColorІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІBrightnessІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІContrast1. Select the item to adjust with CH-, CH+ button.2. Press Menu/Set button.3. Adjust the item with VOL-, VOL+ button.4. To cancel all adjust, select Recall and press Menu/Set button.To more detail description aboutthese item, refer to the next page.

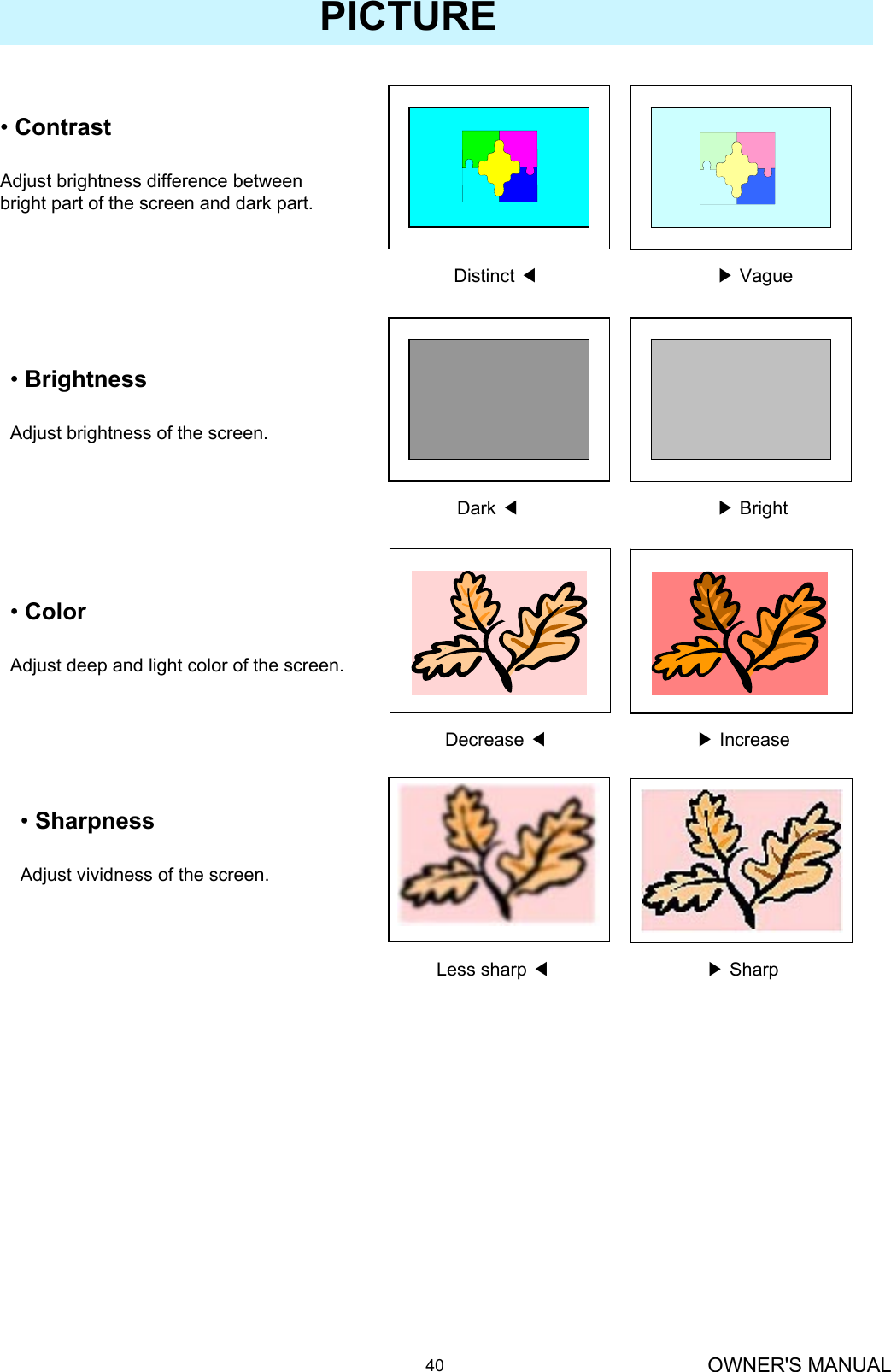

OWNER'S MANUAL40•BrightnessAdjust brightness of the screen.Dark ◀▶BrightDistinct ◀▶Vague•ContrastAdjust brightness difference between bright part of the screen and dark part.PICTUREDecrease ◀▶Increase•ColorAdjust deep and light color of the screen.Less sharp ◀▶Sharp•SharpnessAdjust vividness of the screen.

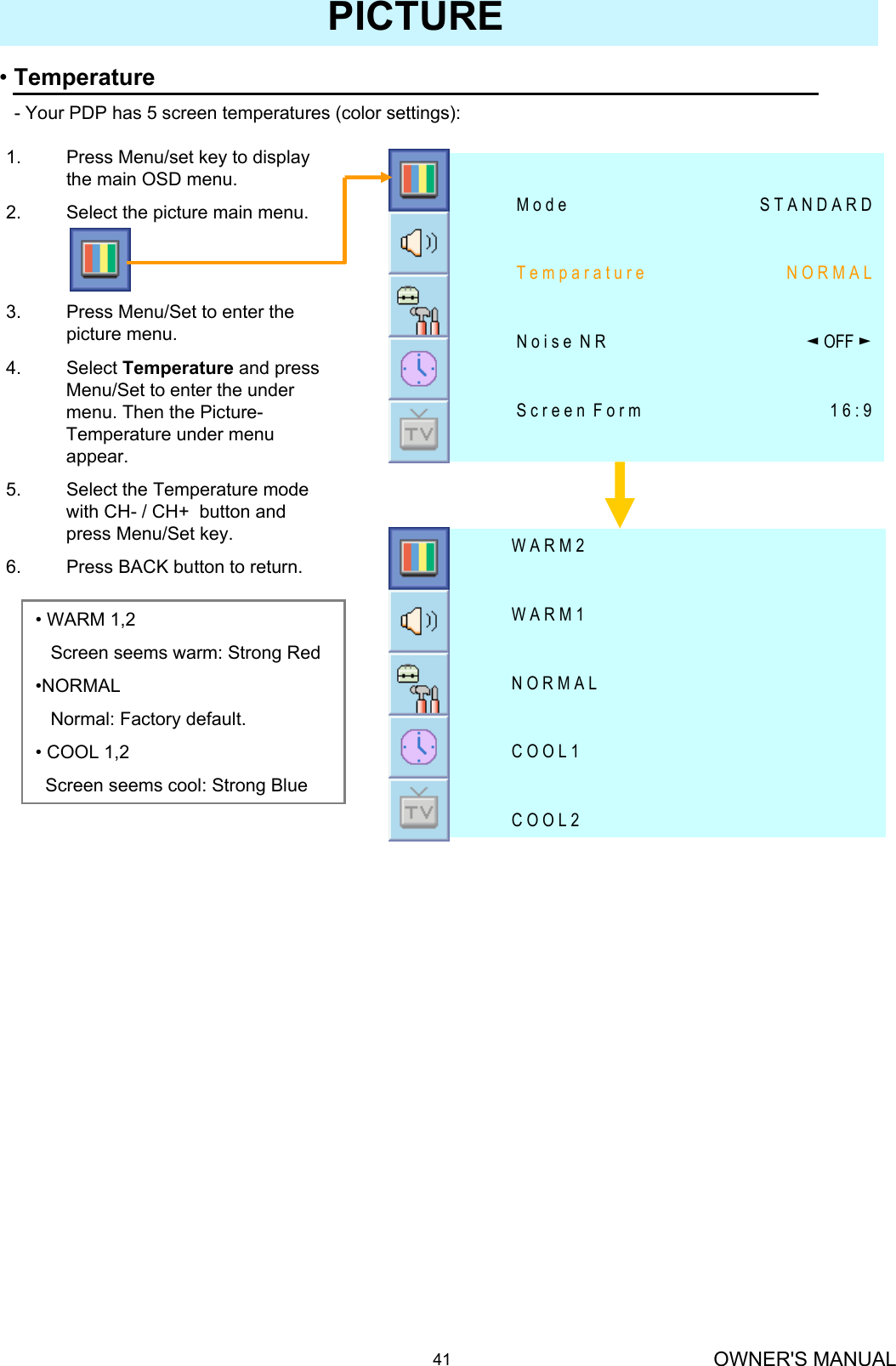

OWNER'S MANUAL41•Temperature- Your PDP has 5 screen temperatures (color settings): PICTURE1. Press Menu/set key to display the main OSD menu.2. Select the picture main menu.3. Press Menu/Set to enter the picture menu.4. Select Temperature and press Menu/Set to enter the under menu. Then the Picture-Temperature under menu appear.5. Select the Temperature mode with CH- / CH+ button and press Menu/Set key.6. Press BACK button to return.1 6 : 9S c r e e n F o r m◄OFF ►N o i s e N RN O R M A LT e m p a r a t u r eS T A N D A R DM o d eC O O L 2C O O L 1N O R M A LW A R M 1W A R M 2•WARM 1,2Screen seems warm: Strong Red•NORMALNormal: Factory default.•COOL 1,2Screen seems cool: Strong Blue

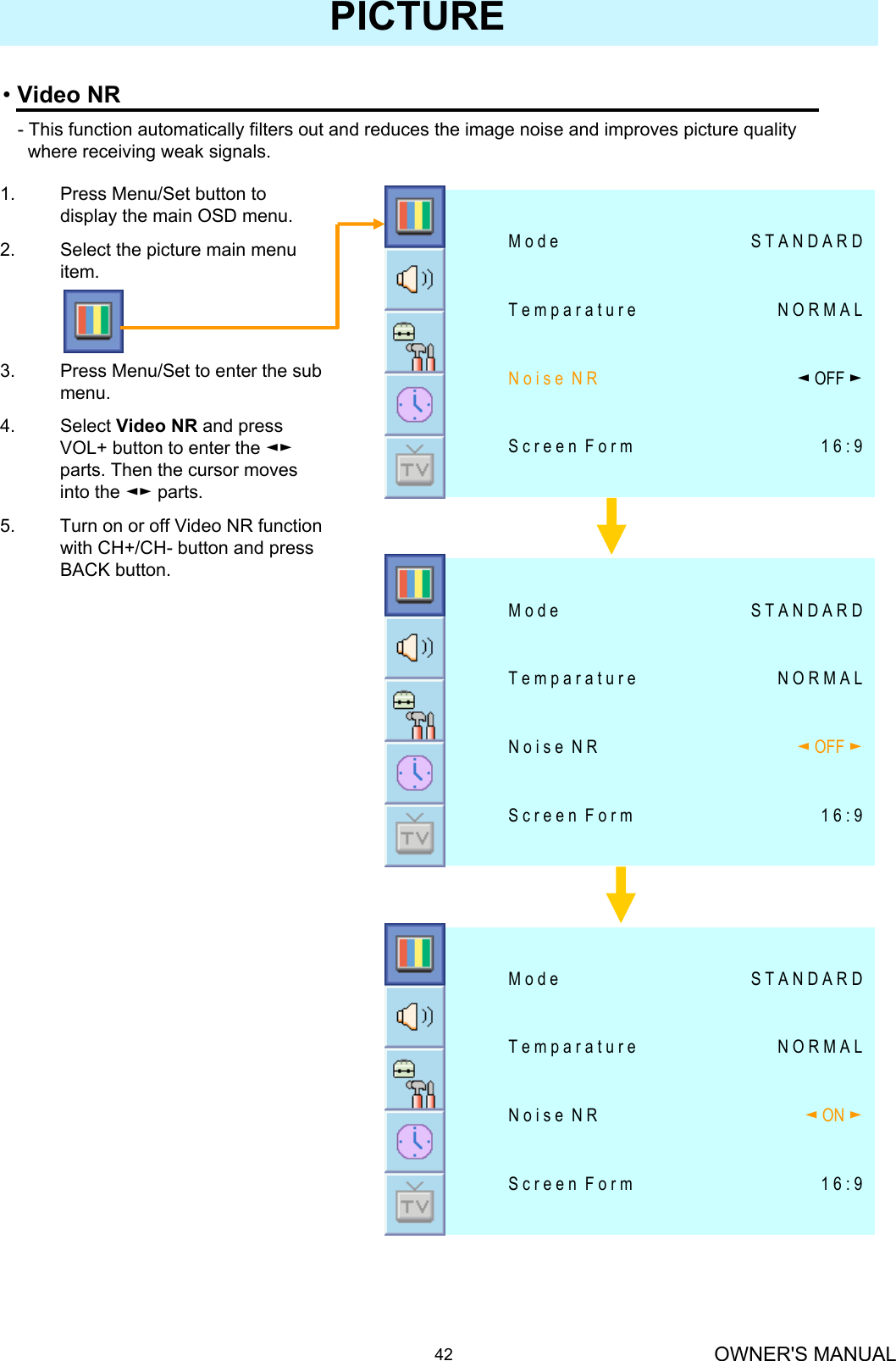

OWNER'S MANUAL42PICTURE•Video NR- This function automatically filters out and reduces the image noise and improves picture qualitywhere receiving weak signals.1. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu item.3. Press Menu/Set to enter the sub menu.4. Select Video NR and press VOL+ button to enter the ◄►parts. Then the cursor moves into the ◄► parts.5. Turn on or off Video NR function with CH+/CH- button and press BACK button.1 6 : 9S c r e e n F o r m◄OFF ►N o i s e N RN O R M A LT e m p a r a t u r eS T A N D A R DM o d e1 6 : 9S c r e e n F o r m◄OFF ►N o i s e N RN O R M A LT e m p a r a t u r eS T A N D A R DM o d e1 6 : 9S c r e e n F o r m◄ON ►N o i s e N RN O R M A LT e m p a r a t u r eS T A N D A R DM o d e

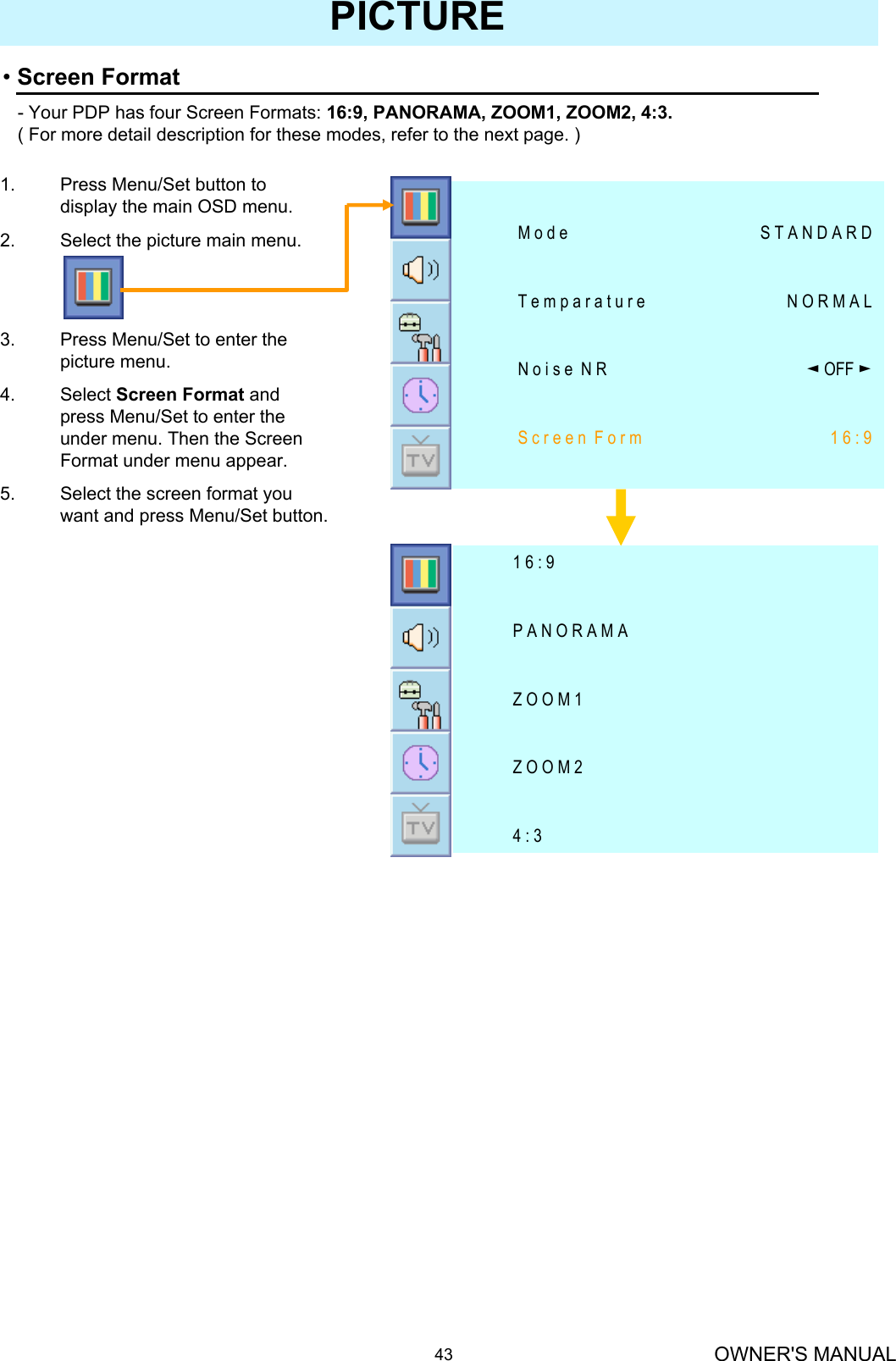

OWNER'S MANUAL43•Screen Format- Your PDP has four Screen Formats: 16:9, PANORAMA, ZOOM1, ZOOM2, 4:3.( For more detail description for these modes, refer to the next page. )PICTURE1. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu.3. Press Menu/Set to enter the picture menu.4. Select Screen Format and press Menu/Set to enter the under menu. Then the Screen Format under menu appear.5. Select the screen format you want and press Menu/Set button.1 6 : 9S c r e e n F o r m◄OFF ►N o i s e N RN O R M A LT e m p a r a t u r eS T A N D A R DM o d e4 : 3Z O O M 2Z O O M 1P A N O R A M A1 6 : 9

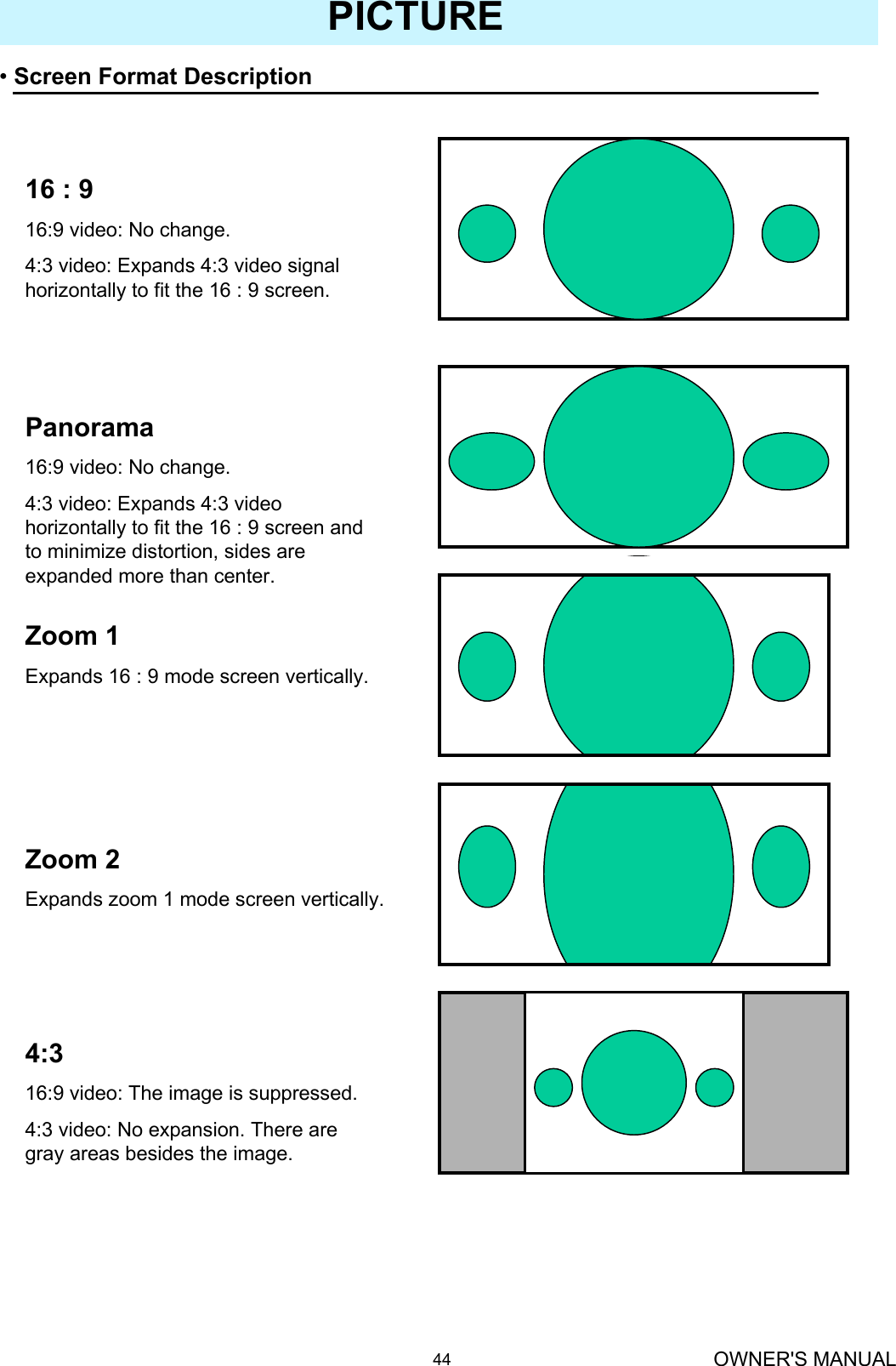

OWNER'S MANUAL44•Screen Format DescriptionPICTURE16 : 916:9 video: No change.4:3 video: Expands 4:3 video signal horizontally to fit the 16 : 9 screen.Panorama16:9 video: No change.4:3 video: Expands 4:3 video horizontally to fit the 16 : 9 screen and to minimize distortion, sides are expanded more than center.Zoom 1Expands 16 : 9 mode screen vertically.Zoom 2Expands zoom 1 mode screen vertically.4:316:9 video: The image is suppressed.4:3 video: No expansion. There are gray areas besides the image.

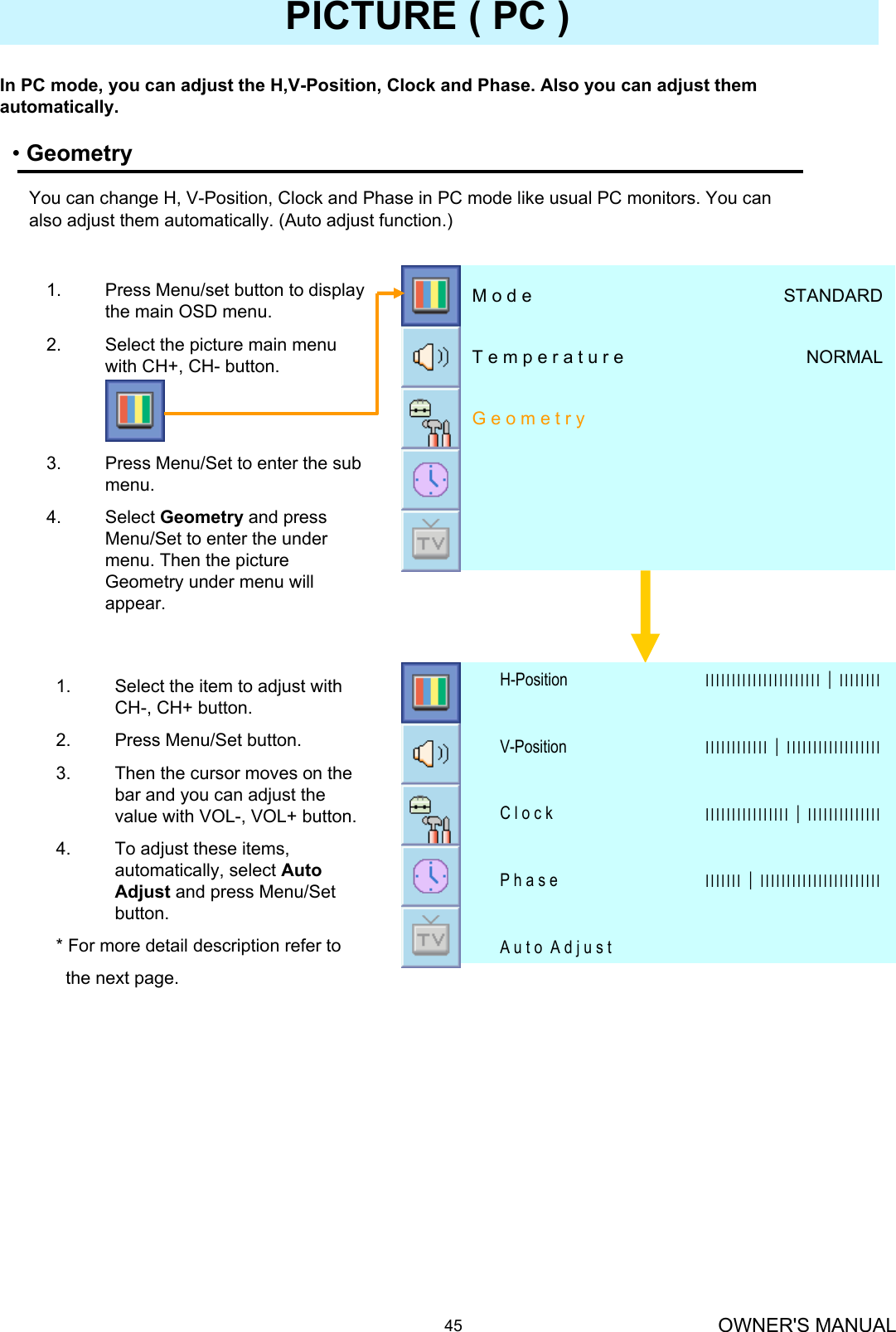

OWNER'S MANUAL45PICTURE ( PC )•GeometryIn PC mode, you can adjust the H,V-Position, Clock and Phase. Also you can adjust them automatically.You can change H, V-Position, Clock and Phase in PC mode like usual PC monitors. You can also adjust them automatically. (Auto adjust function.)A u t o A d j u s tІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІP h a s eІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІC l o c k ІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІV-PositionІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІH-Position1. Select the item to adjust with CH-, CH+ button.2. Press Menu/Set button.3. Then the cursor moves on the bar and you can adjust the value with VOL-, VOL+ button. 4. To adjust these items, automatically, select Auto Adjust and press Menu/Set button.* For more detail description refer tothe next page.G e o m e t r yNORMALT e m p e r a t u r eSTANDARDM o d e1. Press Menu/set button to display the main OSD menu.2. Select the picture main menu with CH+, CH- button.3. Press Menu/Set to enter the sub menu.4. Select Geometry and press Menu/Set to enter the under menu. Then the picture Geometry under menu will appear.

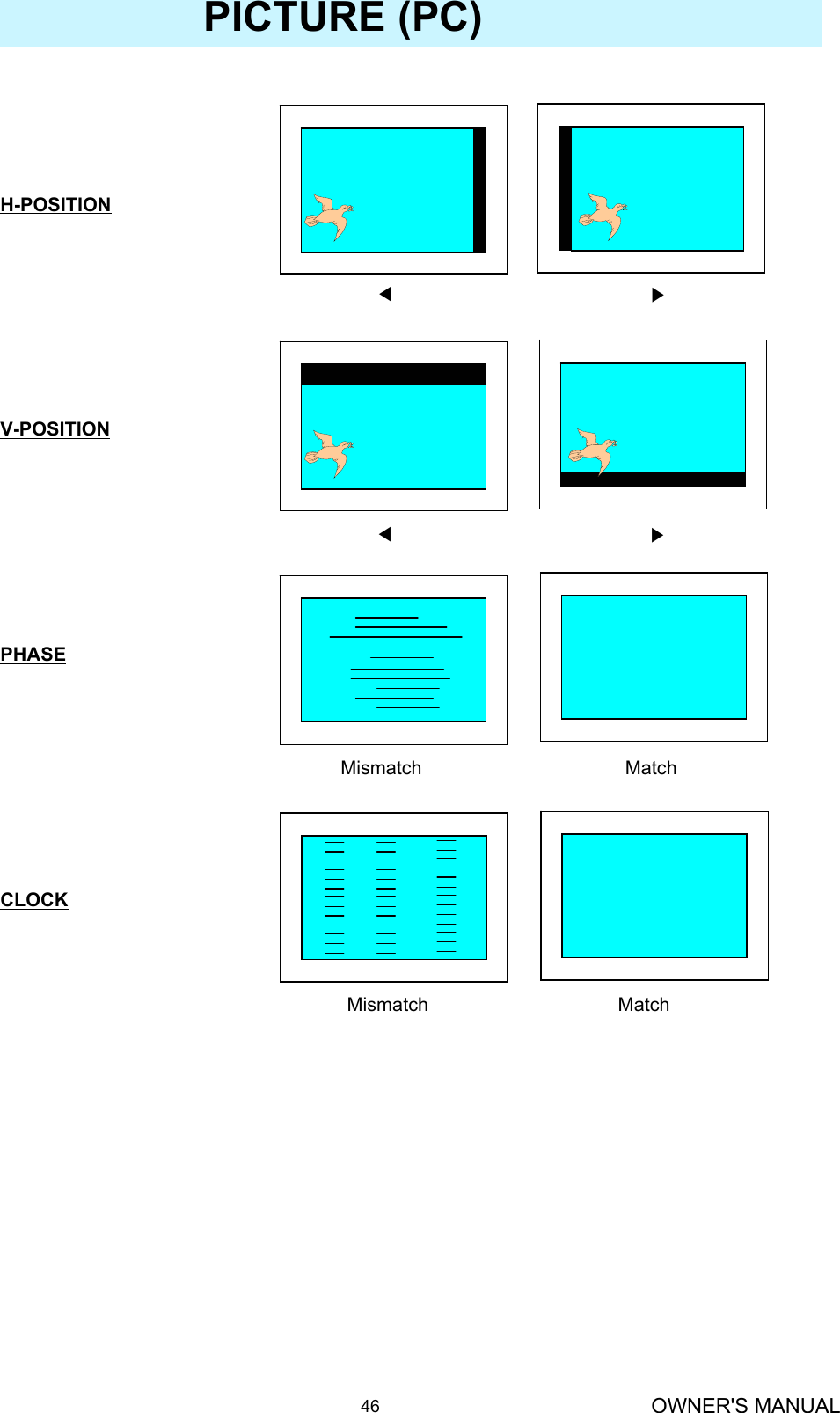

OWNER'S MANUAL46◀▶◀▶Mismatch MatchMismatch MatchH-POSITIONV-POSITIONPHASECLOCKPICTURE (PC)

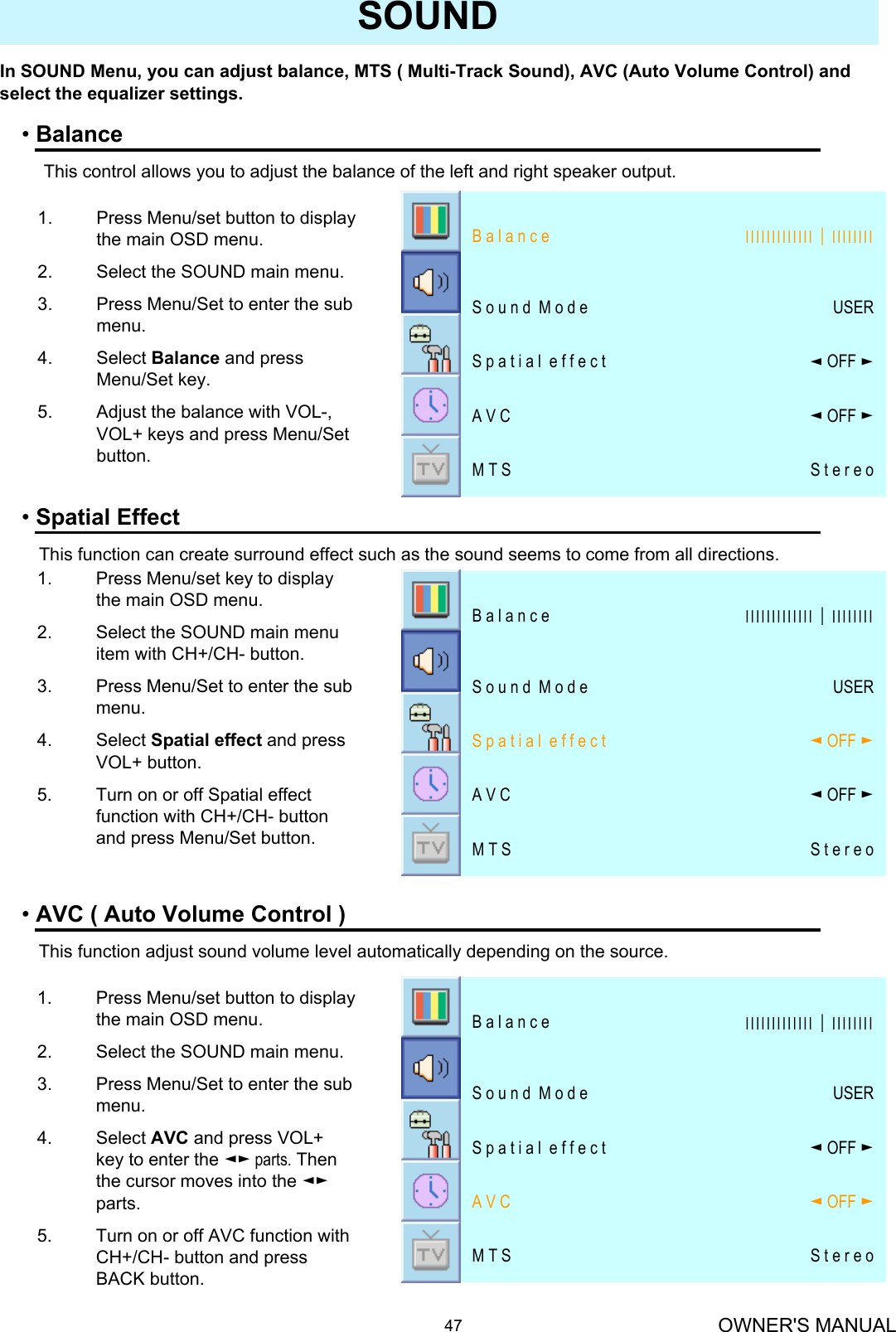

OWNER'S MANUAL47SOUNDIn SOUND Menu, you can adjust balance, MTS ( Multi-Track Sound), AVC (Auto Volume Control) and select the equalizer settings.•BalanceThis control allows you to adjust the balance of the left and right speaker output.•Spatial EffectThis function can create surround effect such as the sound seems to come from all directions.•AVC ( Auto Volume Control )This function adjust sound volume level automatically depending on the source.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select Balance and press Menu/Set key.5. Adjust the balance with VOL-, VOL+ keys and press Menu/Set button.1. Press Menu/set key to display the main OSD menu.2. Select the SOUND main menu item with CH+/CH- button.3. Press Menu/Set to enter the sub menu.4. Select Spatial effect and press VOL+ button.5. Turn on or off Spatial effect function with CH+/CH- button and press Menu/Set button.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select AVC and press VOL+ key to enter the ◄► parts. Then the cursor moves into the ◄►parts.5. Turn on or off AVC function with CH+/CH- button and press BACK button.S t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t USERS o u n d M o d e ІІІІІІІІІІІІІ│ІІІІІІІІB a l a n c eS t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t USERS o u n d M o d e ІІІІІІІІІІІІІ│ІІІІІІІІB a l a n c eS t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t USERS o u n d M o d e ІІІІІІІІІІІІІ│ІІІІІІІІB a l a n c e

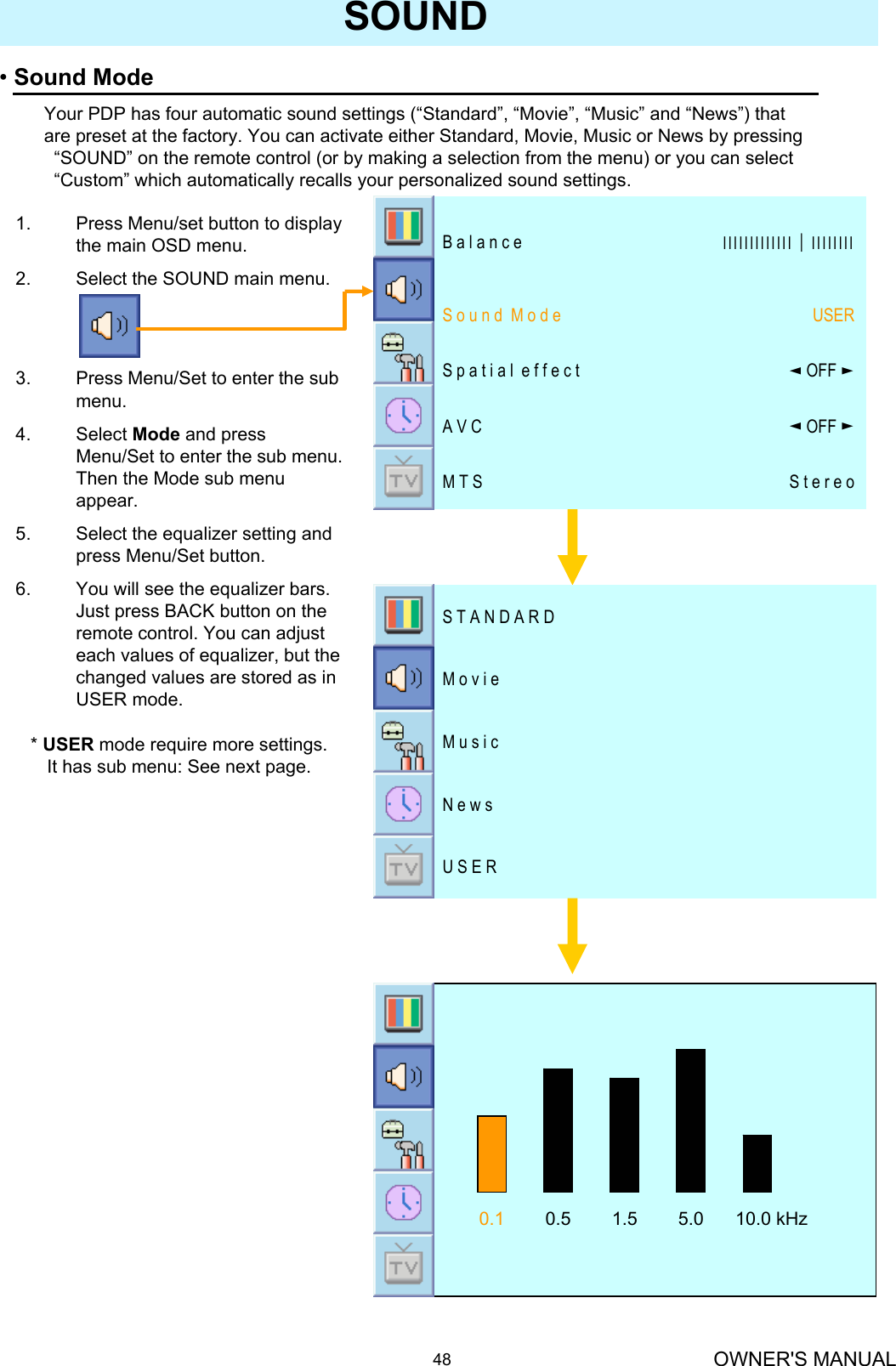

OWNER'S MANUAL48SOUND•Sound ModeYour PDP has four automatic sound settings (“Standard”, “Movie”, “Music” and “News”) that are preset at the factory. You can activate either Standard, Movie, Music or News by pressing “SOUND” on the remote control (or by making a selection from the menu) or you can select “Custom” which automatically recalls your personalized sound settings.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select Mode and press Menu/Set to enter the sub menu. Then the Mode sub menu appear.5. Select the equalizer setting and press Menu/Set button.6. You will see the equalizer bars. Just press BACK button on the remote control. You can adjust each values of equalizer, but the changed values are stored as in USER mode.* USER mode require more settings.It has sub menu: See next page.S t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t USERS o u n d M o d e ІІІІІІІІІІІІІ│ІІІІІІІІB a l a n c eU S E RN e w sM u s i cM o v i eS T A N D A R D0.1 0.5 1.5 5.0 10.0 kHz

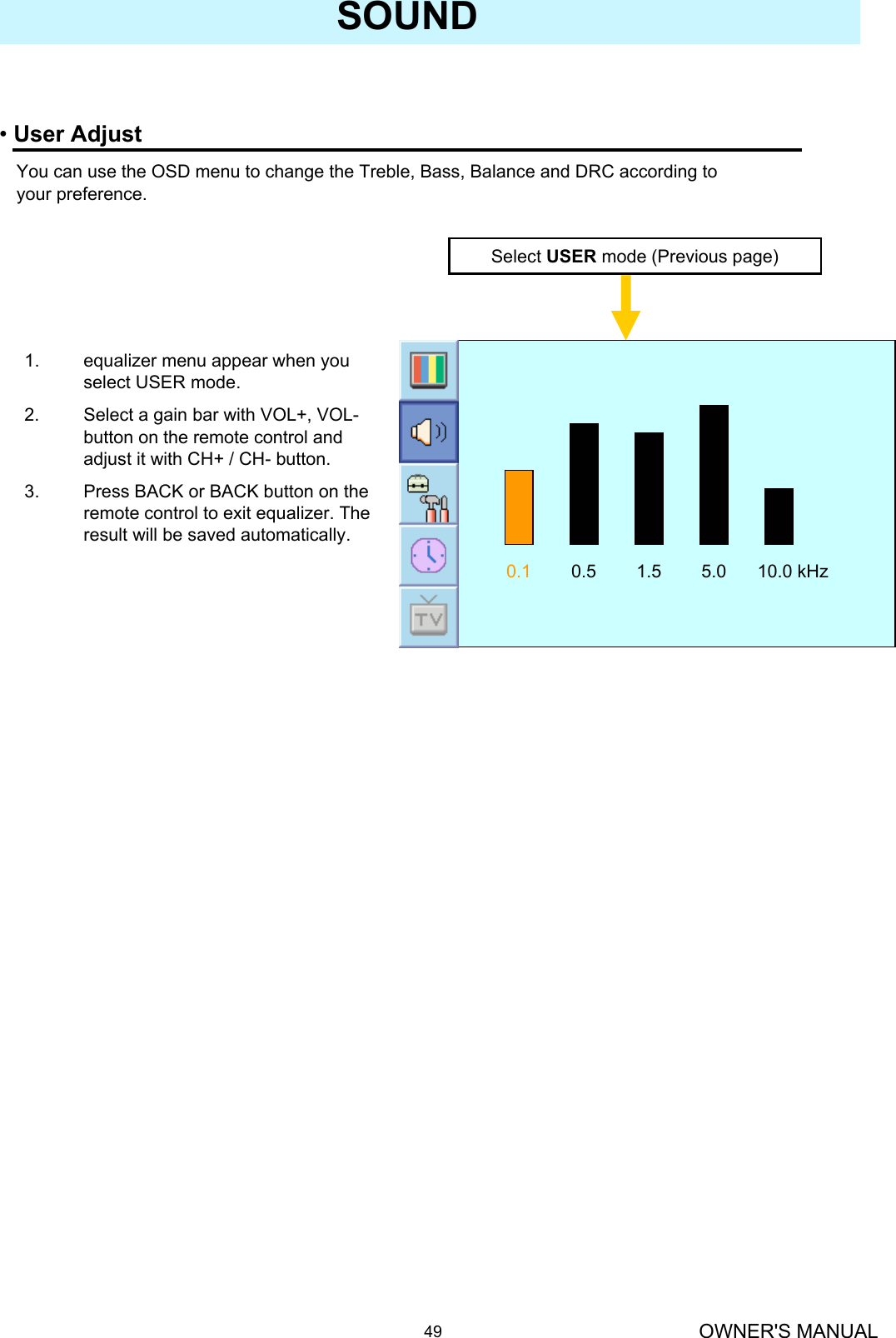

OWNER'S MANUAL49SOUND•User AdjustYou can use the OSD menu to change the Treble, Bass, Balance and DRC according to your preference.Select USER mode (Previous page)0.1 0.5 1.5 5.0 10.0 kHz1. equalizer menu appear when you select USER mode. 2. Select a gain bar with VOL+, VOL-button on the remote control and adjust it with CH+ / CH- button.3. Press BACK or BACK button on the remote control to exit equalizer. The result will be saved automatically.

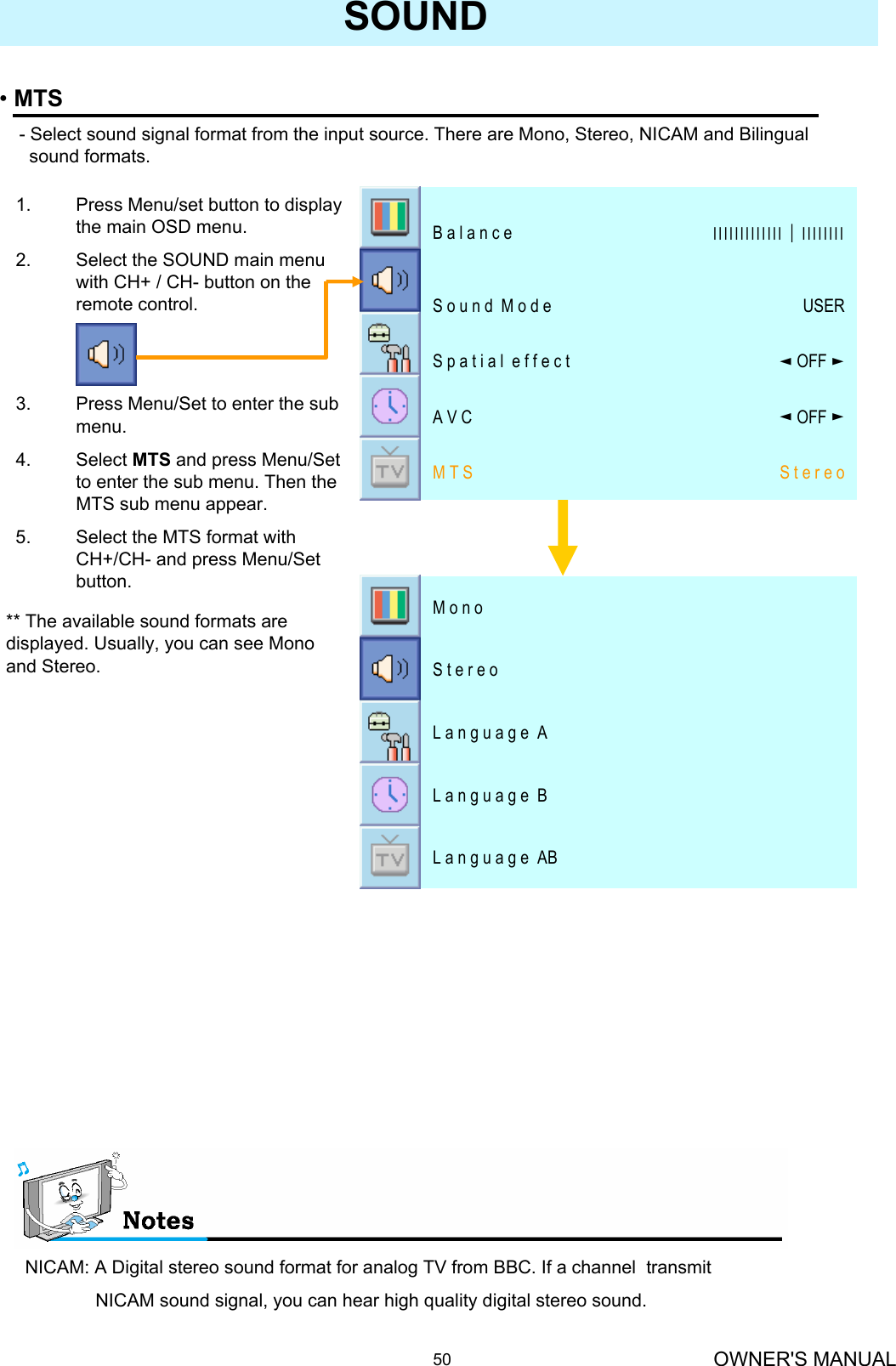

OWNER'S MANUAL50•MTS- Select sound signal format from the input source. There are Mono, Stereo, NICAM and Bilingual sound formats. SOUND1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select MTS and press Menu/Set to enter the sub menu. Then the MTS sub menu appear.5. Select the MTS format with CH+/CH- and press Menu/Set button.S t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t USERS o u n d M o d e ІІІІІІІІІІІІІ│ІІІІІІІІB a l a n c e** The available sound formats are displayed. Usually, you can see Mono and Stereo.NICAM: A Digital stereo sound format for analog TV from BBC. If a channel transmit NICAM sound signal, you can hear high quality digital stereo sound.L a n g u a g e ABL a n g u a g e BL a n g u a g e A S t e r e oM o n o

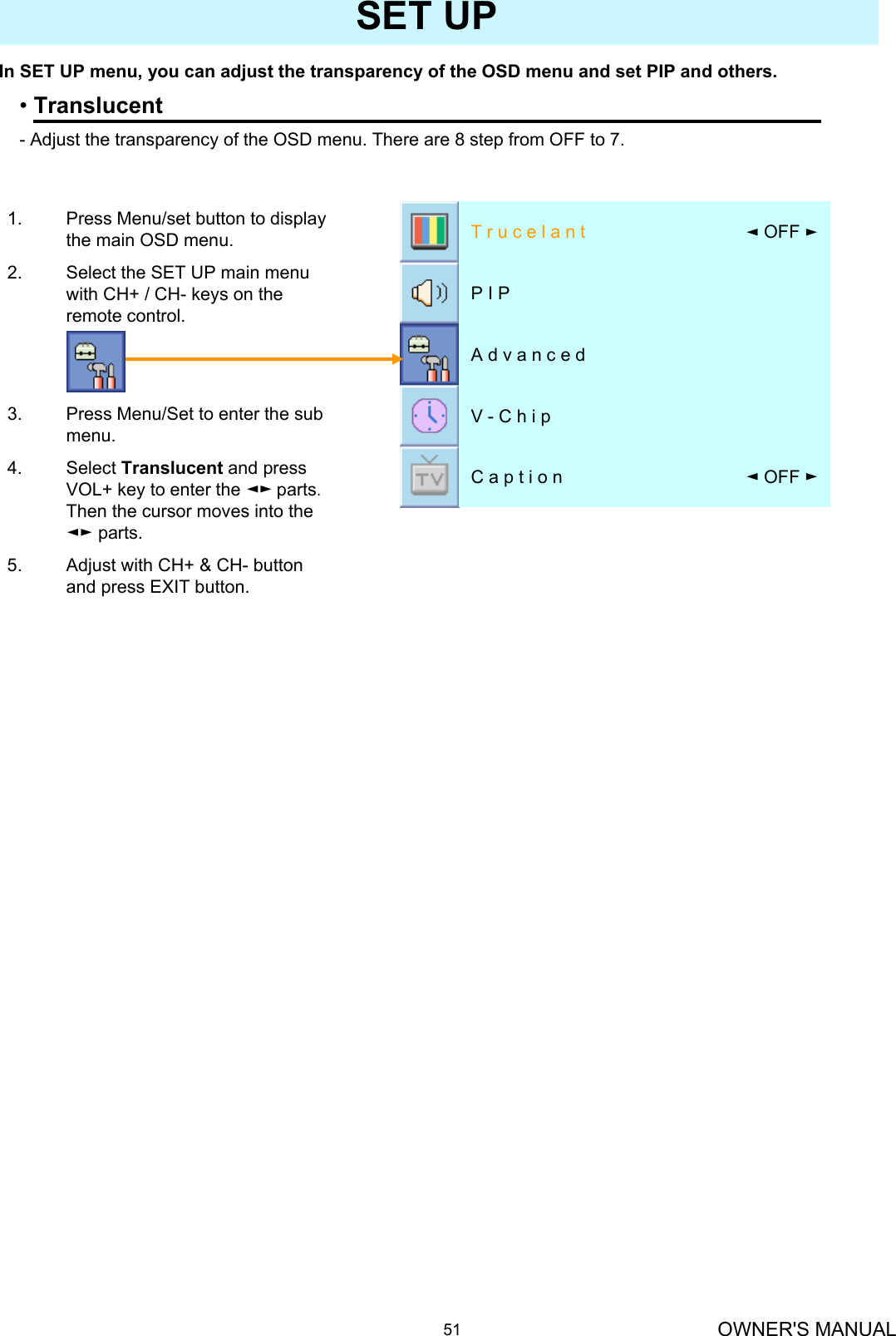

OWNER'S MANUAL51In SET UP menu, you can adjust the transparency of the OSD menu and set PIP and others.SET UP•Translucent- Adjust the transparency of the OSD menu. There are 8 step from OFF to 7.1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- keys on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Translucent and press VOL+ key to enter the ◄► parts.Then the cursor moves into the ◄► parts. 5. Adjust with CH+ & CH- button and press EXIT button.◄OFF ►C a p t i o nV - C h i pA d v a n c e dP I P◄OFF ►T r u c e l a n t

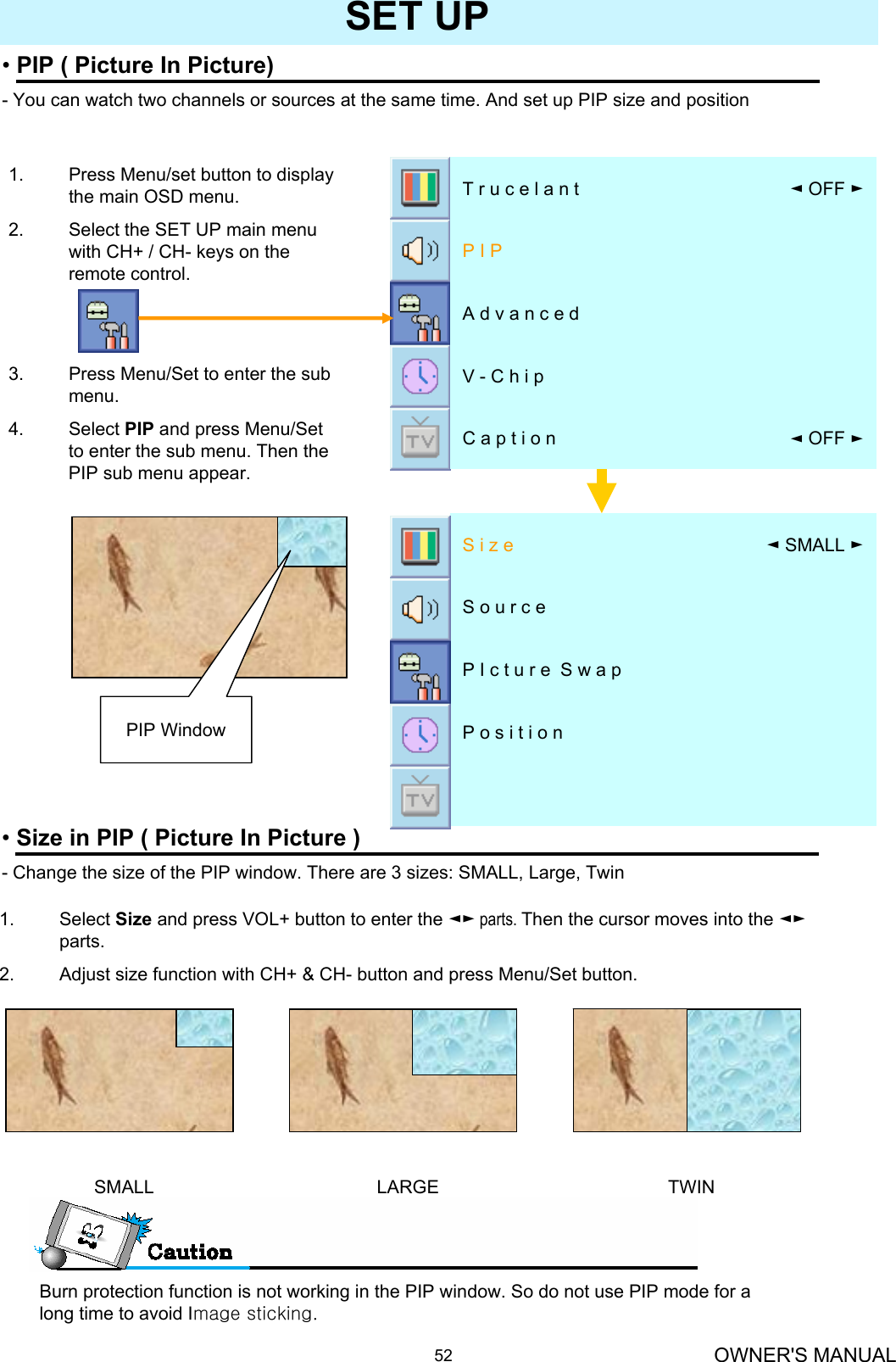

OWNER'S MANUAL52SET UP•PIP ( Picture In Picture)- You can watch two channels or sources at the same time. And set up PIP size and position 1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- keys on the remote control.3. Press Menu/Set to enter the sub menu.4. Select PIP and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.P o s i t i o n P I c t u r e S w a pS o u r c e◄SMALL ►S i z e•Size in PIP ( Picture In Picture )- Change the size of the PIP window. There are 3 sizes: SMALL, Large, Twin1. Select Size and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄►parts.2. Adjust size function with CH+ & CH- button and press Menu/Set button.SMALL LARGE TWINPIP WindowBurn protection function is not working in the PIP window. So do not use PIP mode for a long time to avoid Image sticking.◄OFF ►C a p t i o nV - C h i pA d v a n c e dP I P◄OFF ►T r u c e l a n t

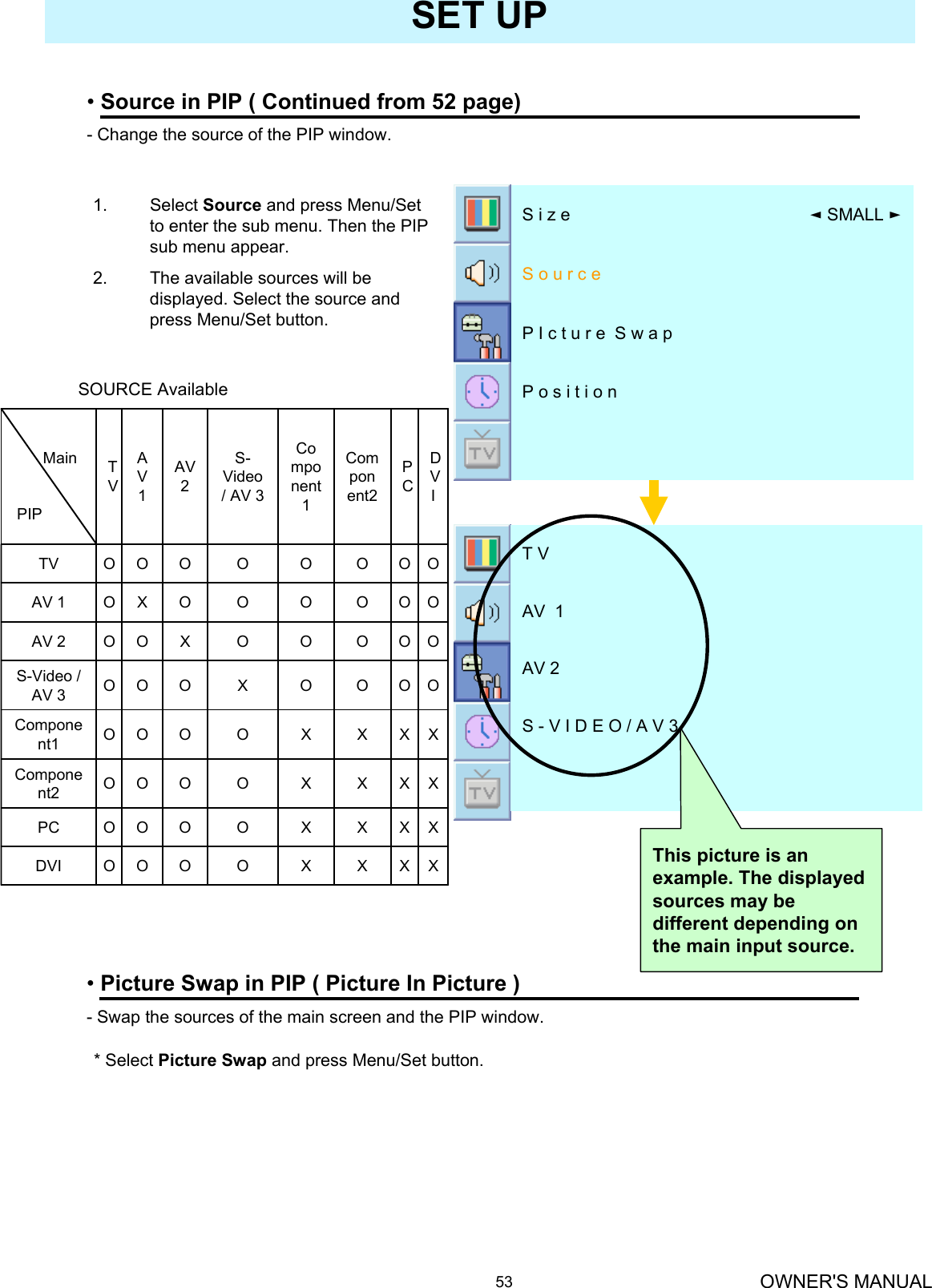

OWNER'S MANUAL53SET UP•Source in PIP ( Continued from 52 page) - Change the source of the PIP window. 1. Select Source and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.2. The available sources will be displayed. Select the source and press Menu/Set button.P o s i t i o n P I c t u r e S w a pS o u r c e◄SMALL ►S i z e •Picture Swap in PIP ( Picture In Picture )- Swap the sources of the main screen and the PIP window.* Select Picture Swap and press Menu/Set button.S - V I D E O / A V 3AV 2AV 1T VThis picture is an example. The displayed sources may be different depending on the main input source.SOURCE AvailableXXXXOOOODVIXXXXOOOOPCXXXXOOOOComponent2XXXXOOOOComponent1OOOOXOOOS-Video / AV 3OOOOOXOOAV 2OOOOOOXOAV 1OOOOOOOOTVDVIPCComponent2Component1S-Video / AV 3AV2AV 1TVMain PIP

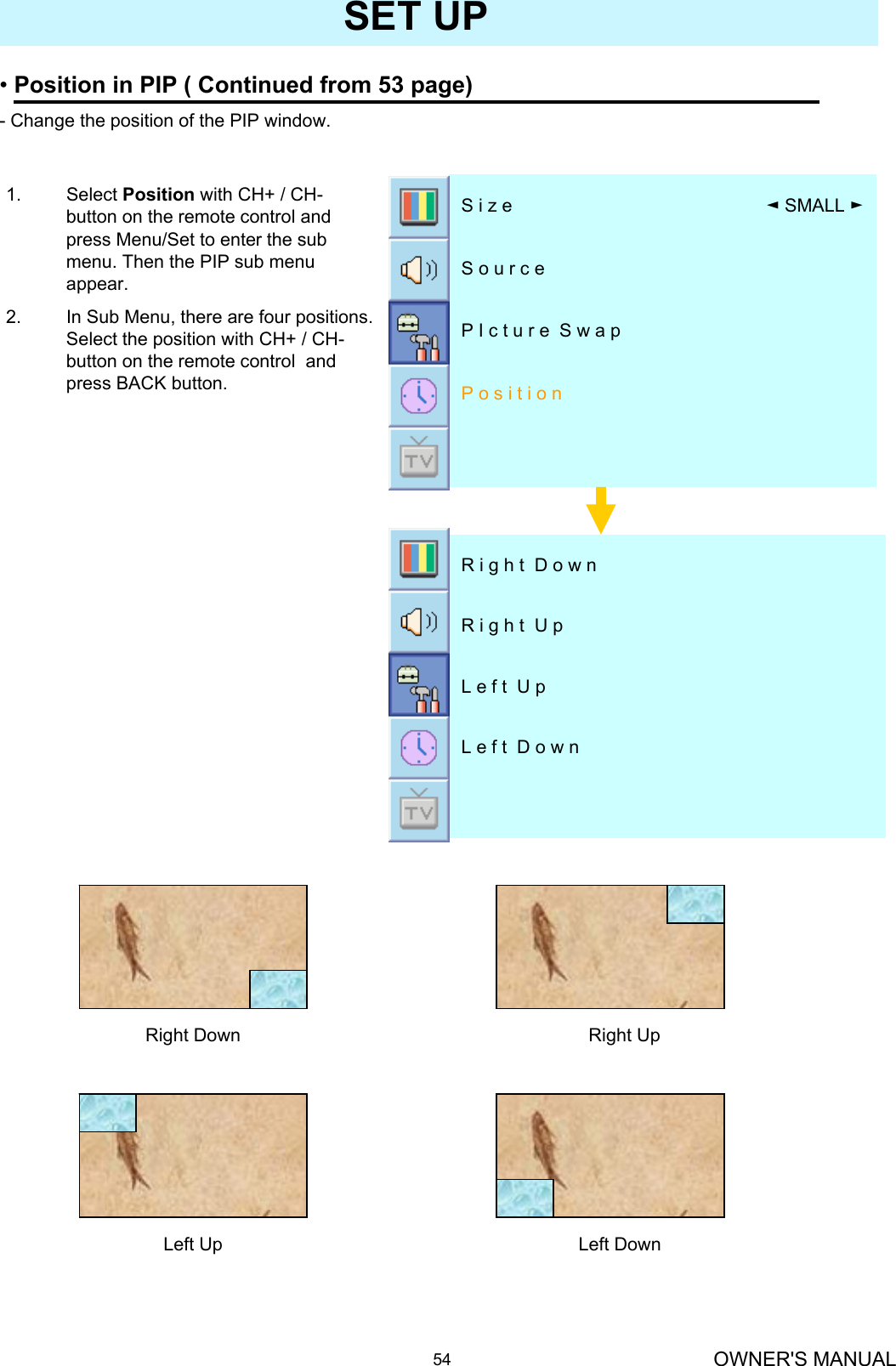

OWNER'S MANUAL54SET UP•Position in PIP ( Continued from 53 page) - Change the position of the PIP window. 1. Select Position with CH+ / CH-button on the remote control and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.2. In Sub Menu, there are four positions. Select the position with CH+ / CH-button on the remote control and press BACK button. P o s i t i o n P I c t u r e S w a pS o u r c e◄SMALL ►S i z e L e f t D o w nL e f t U pR i g h t U pR i g h t D o w nRight Down Right UpLeft Up Left Down

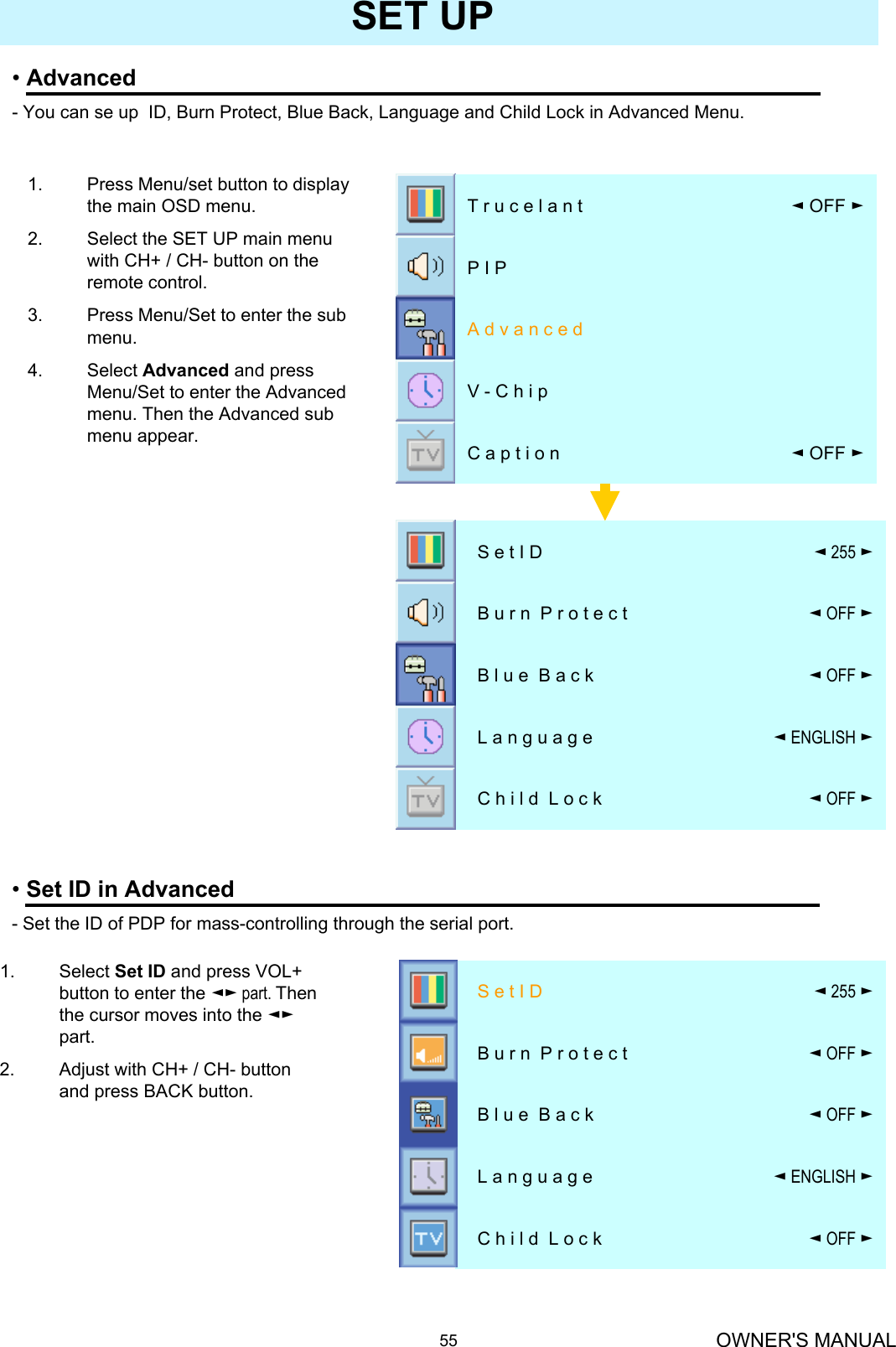

OWNER'S MANUAL55SET UP•Advanced- You can se up ID, Burn Protect, Blue Back, Language and Child Lock in Advanced Menu.1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- button on the remote control. 3. Press Menu/Set to enter the sub menu.4. Select Advanced and press Menu/Set to enter the Advanced menu. Then the Advanced sub menu appear.◄OFF ►C h i l d L o c k◄ENGLISH ►L a n g u a g e◄OFF ►B l u e B a c k◄OFF ►B u r n P r o t e c t ◄255 ►S e t I D1. Select Set ID and press VOL+ button to enter the ◄► part. Then the cursor moves into the ◄►part.2. Adjust with CH+ / CH- button and press BACK button.•Set ID in Advanced- Set the ID of PDP for mass-controlling through the serial port.◄OFF ►C h i l d L o c k◄ENGLISH ►L a n g u a g e◄OFF ►B l u e B a c k◄OFF ►B u r n P r o t e c t ◄255 ►S e t I D◄OFF ►C a p t i o nV - C h i pA d v a n c e dP I P◄OFF ►T r u c e l a n t

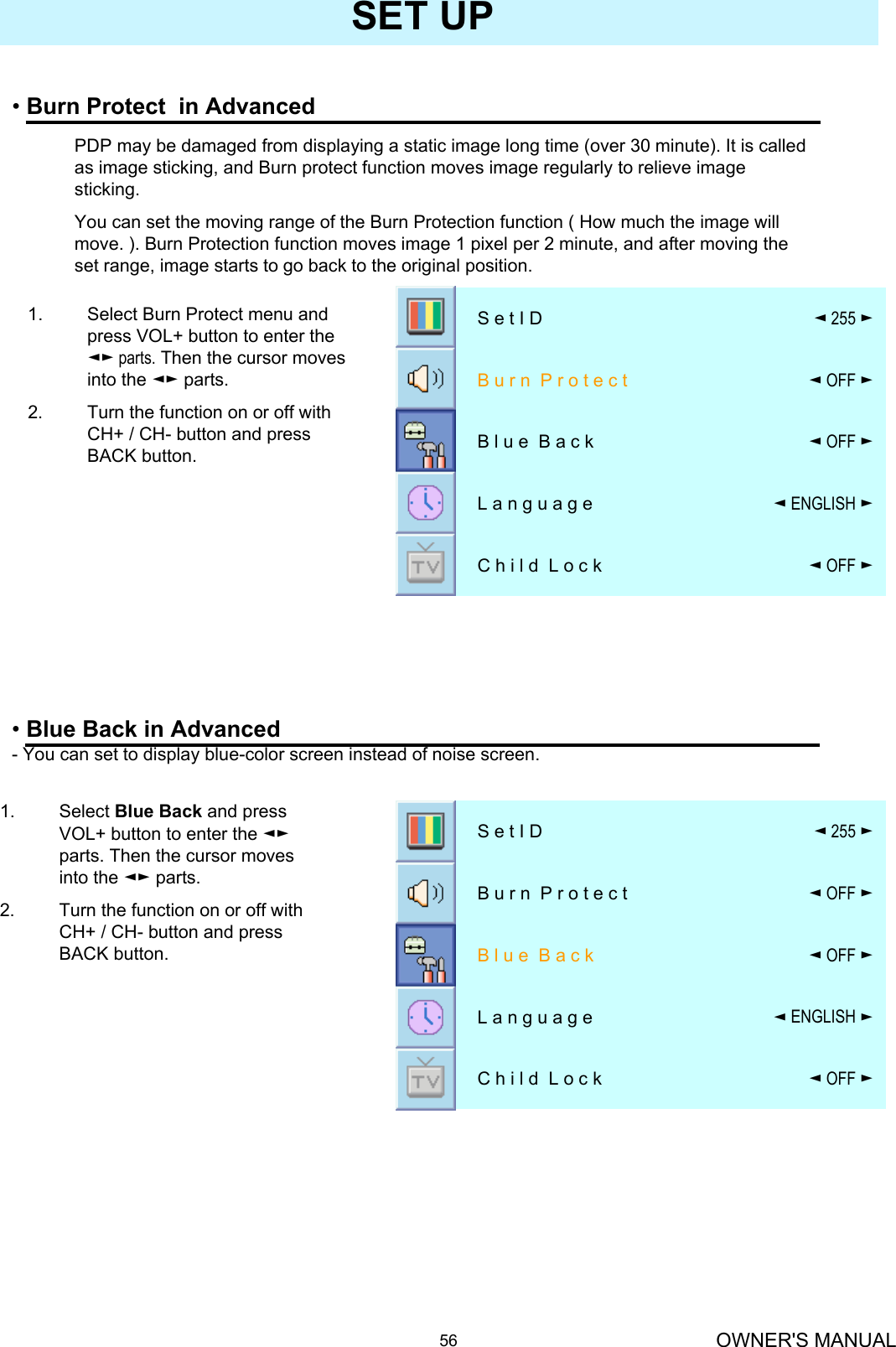

OWNER'S MANUAL56SET UP•Burn Protect in Advanced◄OFF ►C h i l d L o c k◄ENGLISH ►L a n g u a g e◄OFF ►B l u e B a c k◄OFF ►B u r n P r o t e c t ◄255 ►S e t I D1. Select Blue Back and press VOL+ button to enter the ◄►parts. Then the cursor moves into the ◄► parts. 2. Turn the function on or off with CH+ / CH- button and press BACK button.•Blue Back in Advanced- You can set to display blue-color screen instead of noise screen.◄OFF ►C h i l d L o c k◄ENGLISH ►L a n g u a g e◄OFF ►B l u e B a c k◄OFF ►B u r n P r o t e c t ◄255 ►S e t I DPDP may be damaged from displaying a static image long time (over 30 minute). It is called as image sticking, and Burn protect function moves image regularly to relieve image sticking.You can set the moving range of the Burn Protection function ( How much the image will move. ). Burn Protection function moves image 1 pixel per 2 minute, and after moving the set range, image starts to go back to the original position.1. Select Burn Protect menu and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄► parts.2. Turn the function on or off with CH+ / CH- button and press BACK button.

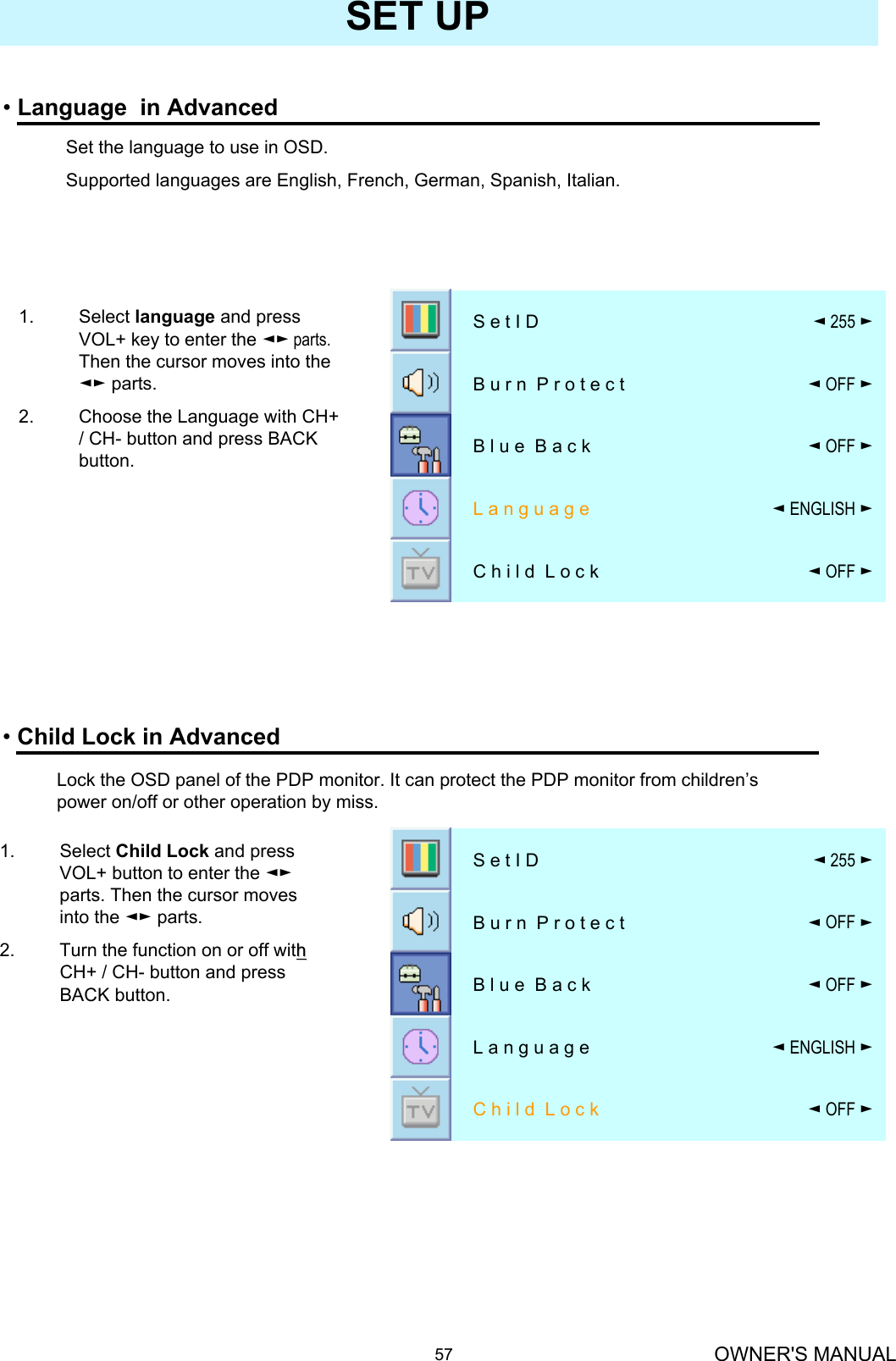

OWNER'S MANUAL57SET UP•Language in Advanced◄OFF ►C h i l d L o c k◄ENGLISH ►L a n g u a g e◄OFF ►B l u e B a c k◄OFF ►B u r n P r o t e c t ◄255 ►S e t I D1. Select Child Lock and press VOL+ button to enter the ◄►parts. Then the cursor moves into the ◄► parts.2. Turn the function on or off with h CH+ / CH- button and press BACK button.•Child Lock in Advanced◄OFF ►C h i l d L o c k◄ENGLISH ►L a n g u a g e◄OFF ►B l u e B a c k◄OFF ►B u r n P r o t e c t ◄255 ►S e t I DSet the language to use in OSD.Supported languages are English, French, German, Spanish, Italian.1. Select language and press VOL+ key to enter the ◄► parts. Then the cursor moves into the ◄► parts.2. Choose the Language with CH+ / CH- button and press BACK button.Lock the OSD panel of the PDP monitor. It can protect the PDP monitor from children’s power on/off or other operation by miss.

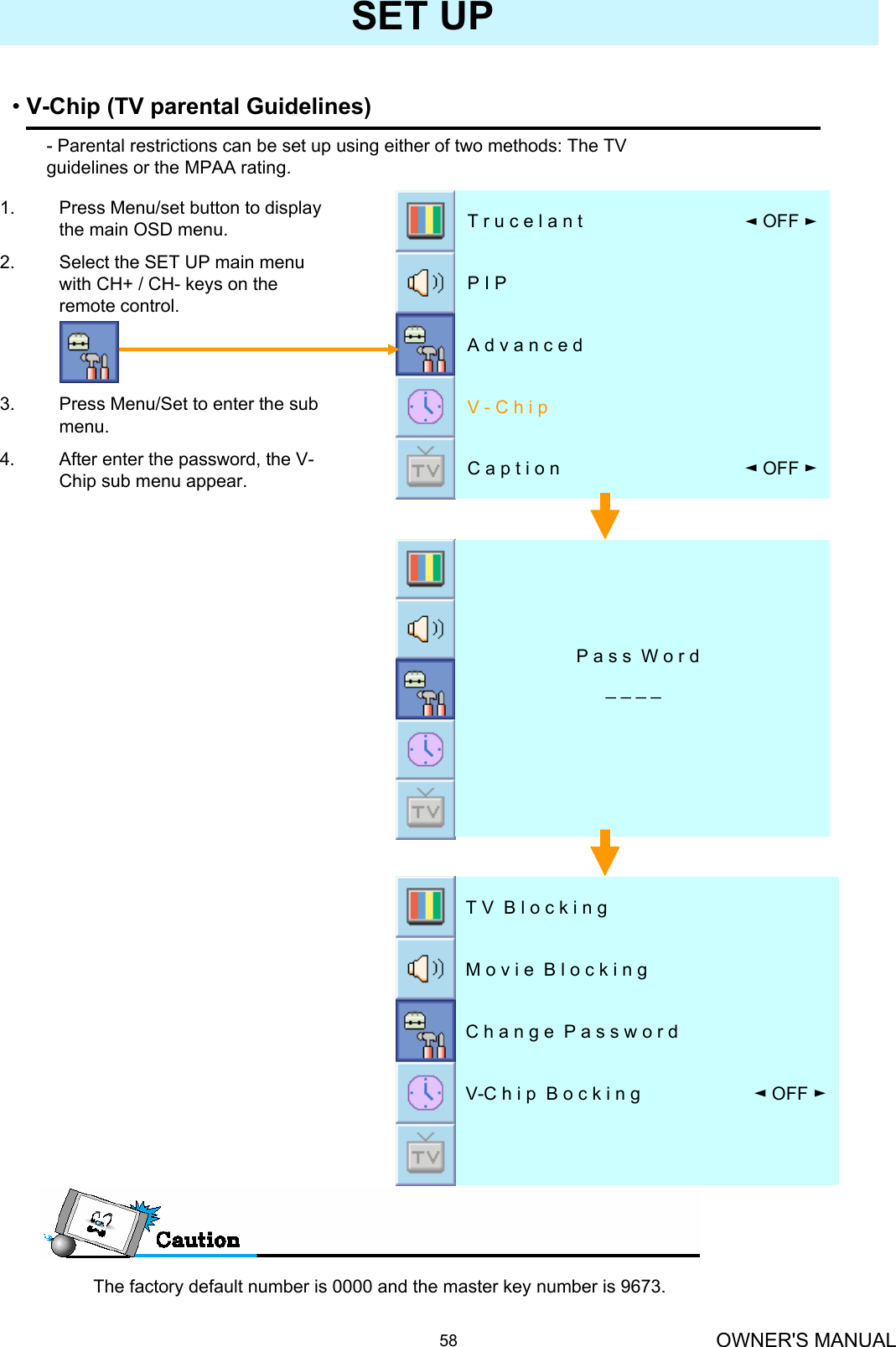

OWNER'S MANUAL58SET UP•V-Chip (TV parental Guidelines)1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- keys on the remote control.3. Press Menu/Set to enter the sub menu.4. After enter the password, the V-Chip sub menu appear. ◄OFF ►C a p t i o nV - C h i pA d v a n c e dP I P◄OFF ►T r u c e l a n t- Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.P a s s W o r d_ _ _ _◄OFF ►V-C h i p B o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n gThe factory default number is 0000 and the master key number is 9673.

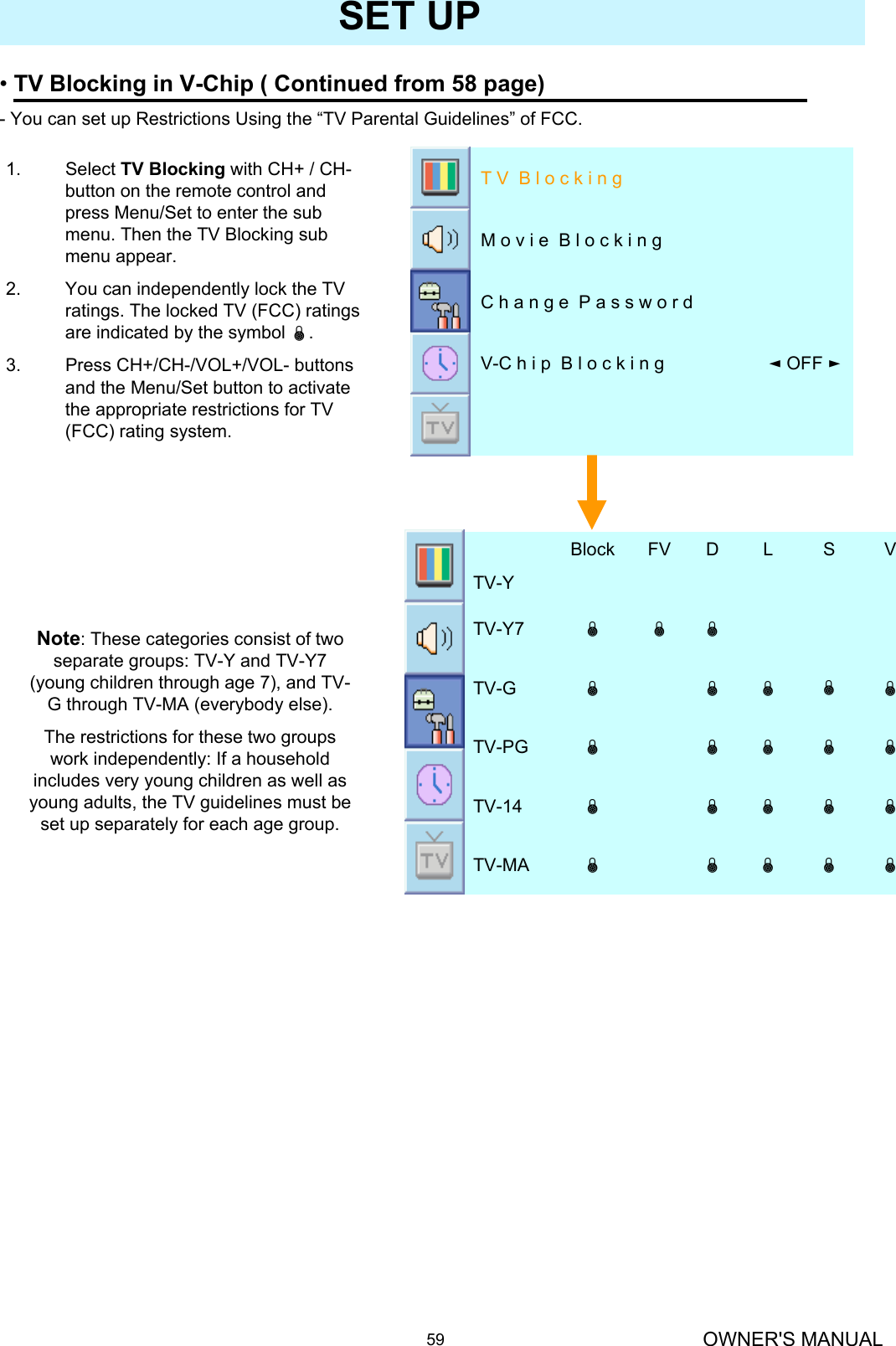

OWNER'S MANUAL59SET UP1. Select TV Blocking with CH+ / CH-button on the remote control and press Menu/Set to enter the sub menu. Then the TV Blocking sub menu appear.2. You can independently lock the TV ratings. The locked TV (FCC) ratings are indicated by the symbol ±.3. Press CH+/CH-/VOL+/VOL- buttons and the Menu/Set button to activate the appropriate restrictions for TV (FCC) rating system.◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n g±±±±±TV-MA±±±±±TV-14±±±±±TV-PG±±±±±TV-G±±±TV-Y7TV-YVSLDFVBlockNote: These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G through TV-MA (everybody else).The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group.•TV Blocking in V-Chip ( Continued from 58 page) - You can set up Restrictions Using the “TV Parental Guidelines” of FCC.

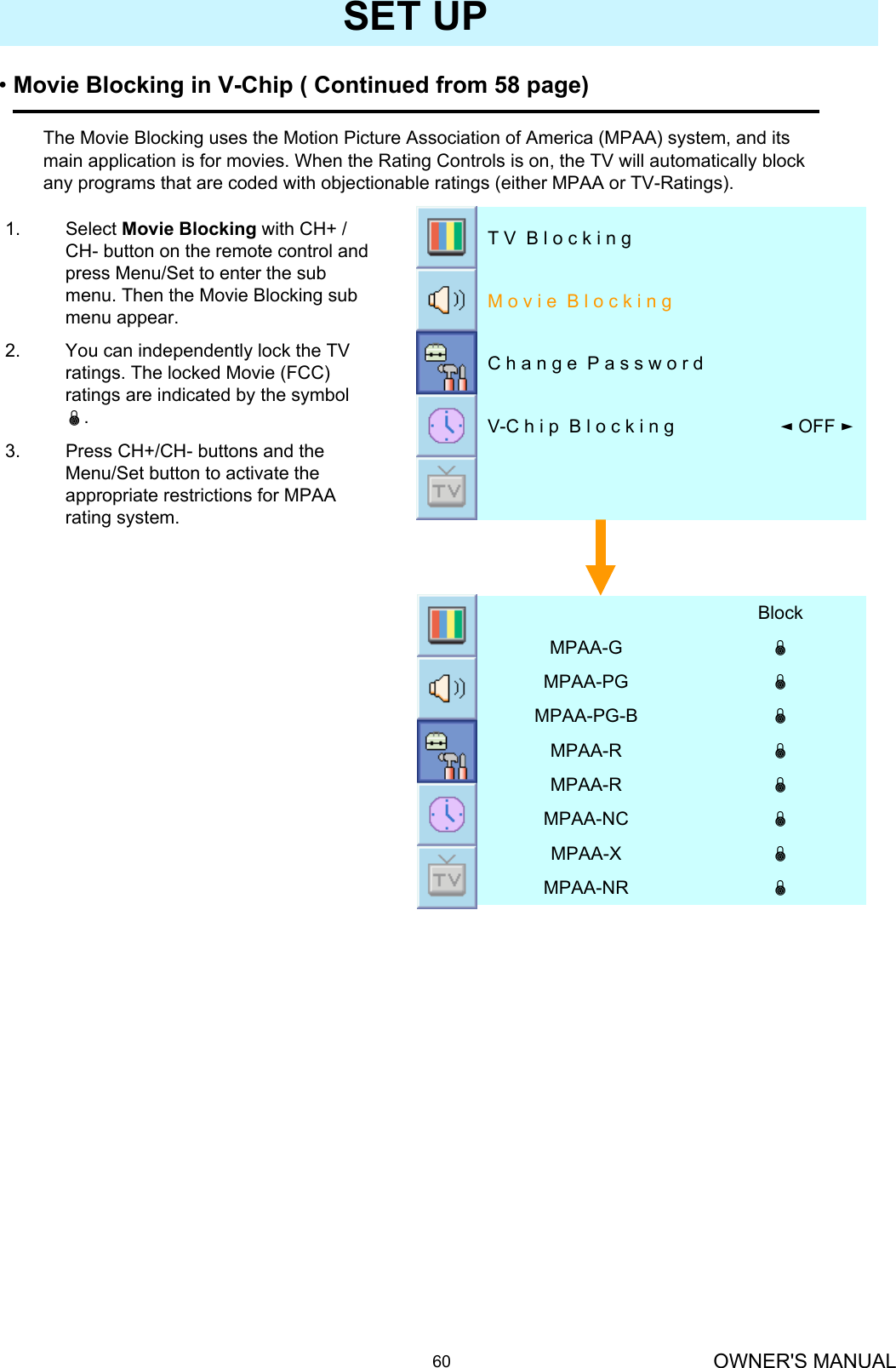

OWNER'S MANUAL60SET UP•Movie Blocking in V-Chip ( Continued from 58 page) 1. Select Movie Blocking with CH+ / CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Movie Blocking sub menu appear.2. You can independently lock the TV ratings. The locked Movie (FCC) ratings are indicated by the symbol ±.3. Press CH+/CH- buttons and the Menu/Set button to activate the appropriate restrictions for MPAA rating system.◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n gThe Movie Blocking uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the Rating Controls is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).±MPAA-NR±MPAA-X±MPAA-NC±MPAA-R±MPAA-R±MPAA-PG-B±MPAA-PG±MPAA-GBlock

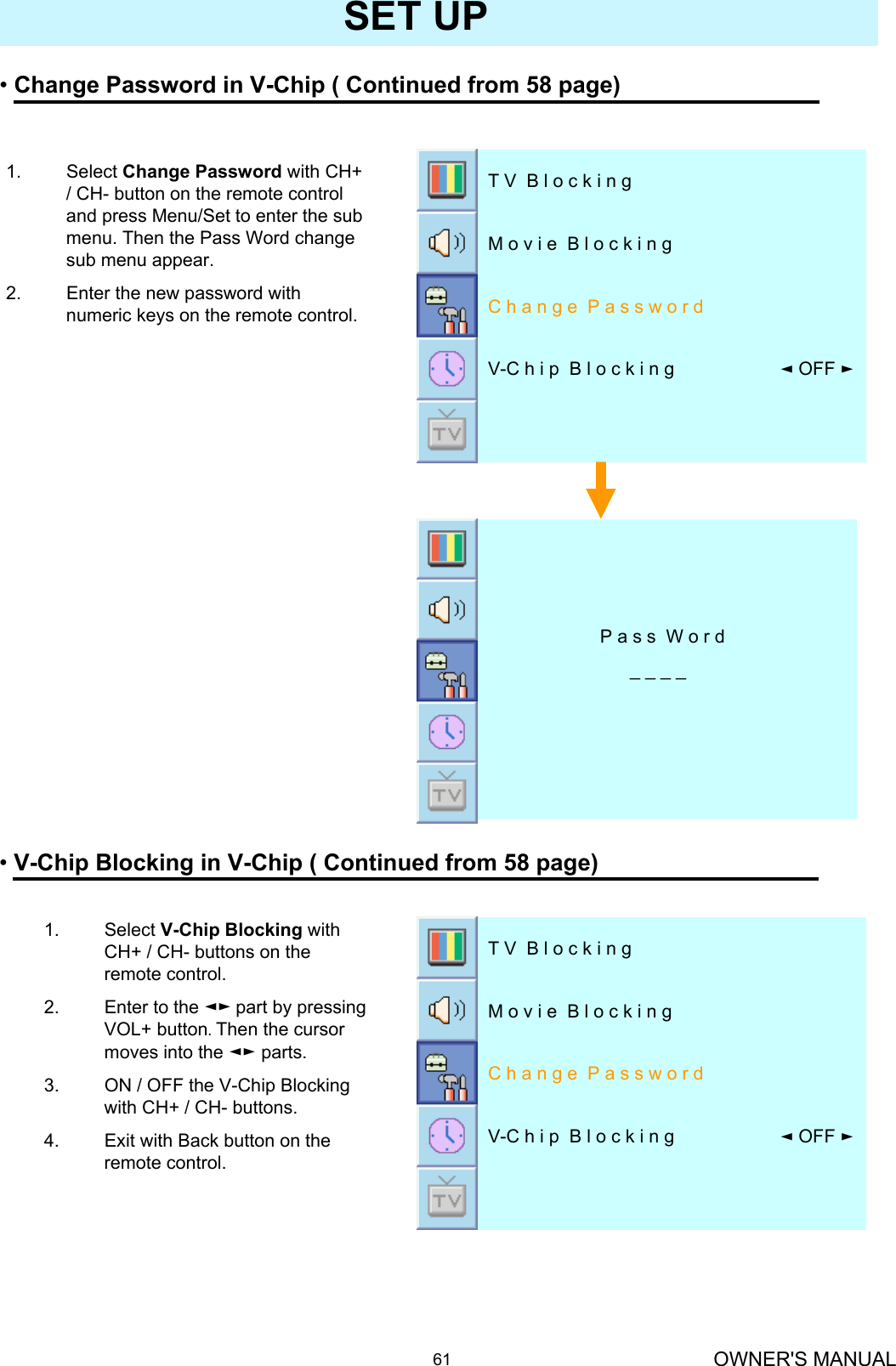

OWNER'S MANUAL61SET UP1. Select Change Password with CH+ / CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Pass Word change sub menu appear.2. Enter the new password with numeric keys on the remote control.◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n g•Change Password in V-Chip ( Continued from 58 page) P a s s W o r d_ _ _ _•V-Chip Blocking in V-Chip ( Continued from 58 page) ◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n g1. Select V-Chip Blocking with CH+ / CH- buttons on the remote control.2. Enter to the ◄► part by pressing VOL+ button. Then the cursor moves into the ◄► parts.3. ON / OFF the V-Chip Blocking with CH+ / CH- buttons.4. Exit with Back button on the remote control.

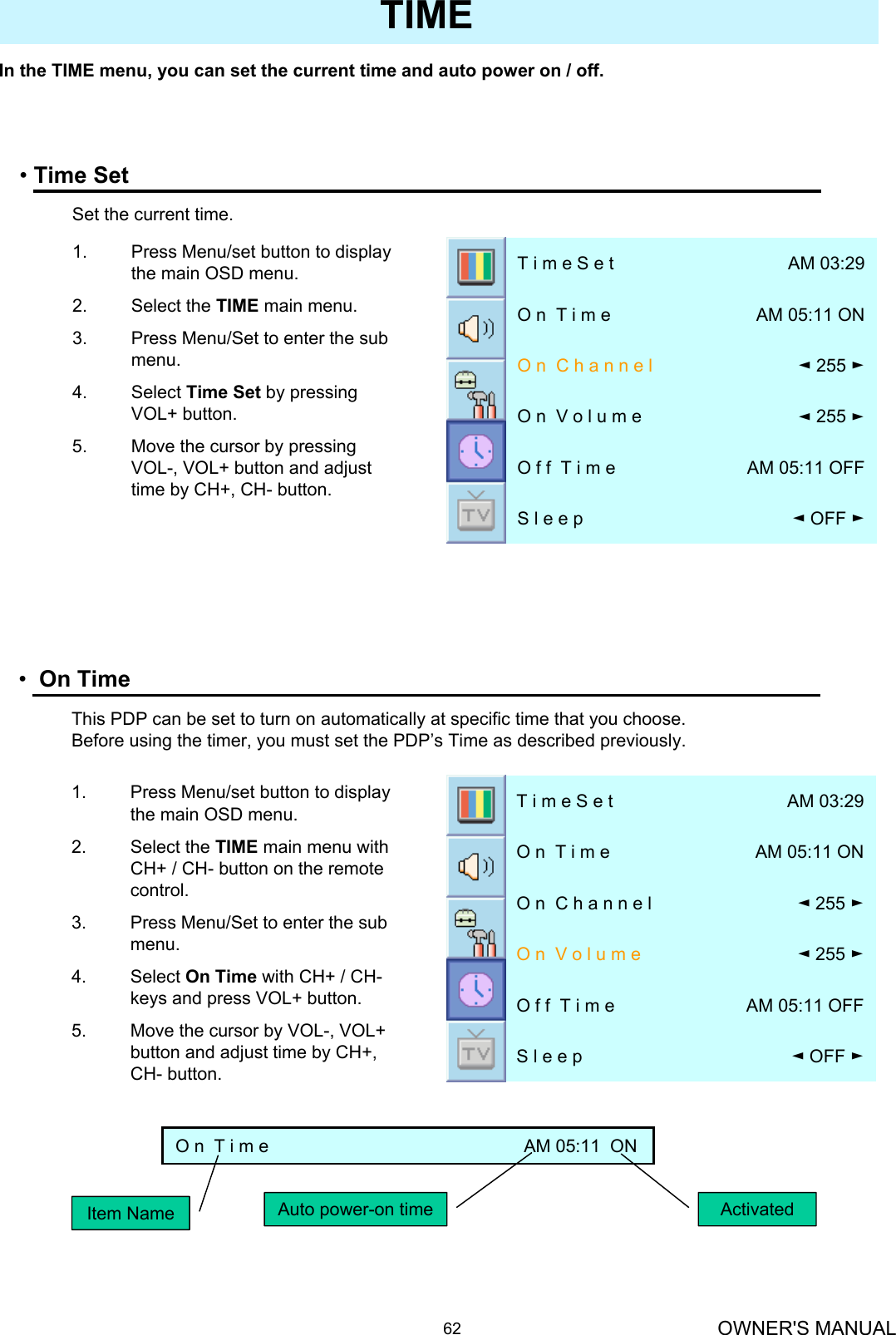

OWNER'S MANUAL62In the TIME menu, you can set the current time and auto power on / off.TIME•Time Set◄OFF ►S l e e p AM 05:11 OFFO f f T i m e◄255 ►O n V o l u m e◄255 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu.3. Press Menu/Set to enter the sub menu.4. Select Time Set by pressing VOL+ button. 5. Move the cursor by pressing VOL-, VOL+ button and adjust time by CH+, CH- button.Set the current time.•On Time◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄255 ►O n V o l u m e◄255 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Time with CH+ / CH-keys and press VOL+ button. 5. Move the cursor by VOL-, VOL+ button and adjust time by CH+, CH- button.This PDP can be set to turn on automatically at specific time that you choose. Before using the timer, you must set the PDP’s Time as described previously.O n T i m e AM 05:11 ONItem Name Auto power-on time Activated

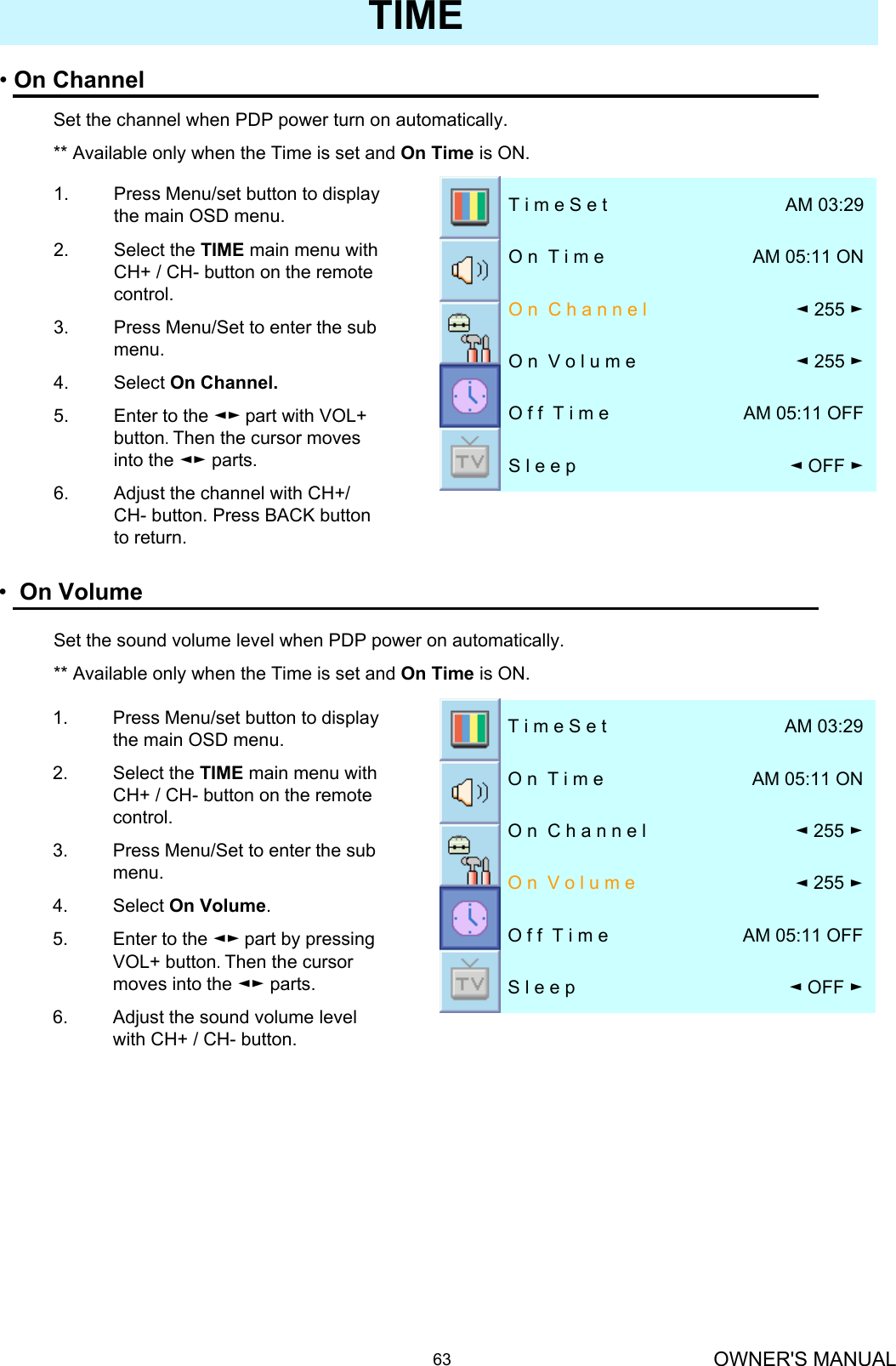

OWNER'S MANUAL63TIME•On Volume◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄255 ►O n V o l u m e◄255 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Volume. 5. Enter to the ◄► part by pressing VOL+ button. Then the cursor moves into the ◄► parts.6. Adjust the sound volume level with CH+ / CH- button.•On Channel◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄255 ►O n V o l u m e◄255 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e tSet the channel when PDP power turn on automatically.** Available only when the Time is set and On Time is ON.1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Channel.5. Enter to the ◄► part with VOL+ button. Then the cursor moves into the ◄► parts.6. Adjust the channel with CH+/ CH- button. Press BACK button to return.Set the sound volume level when PDP power on automatically.** Available only when the Time is set and On Time is ON.

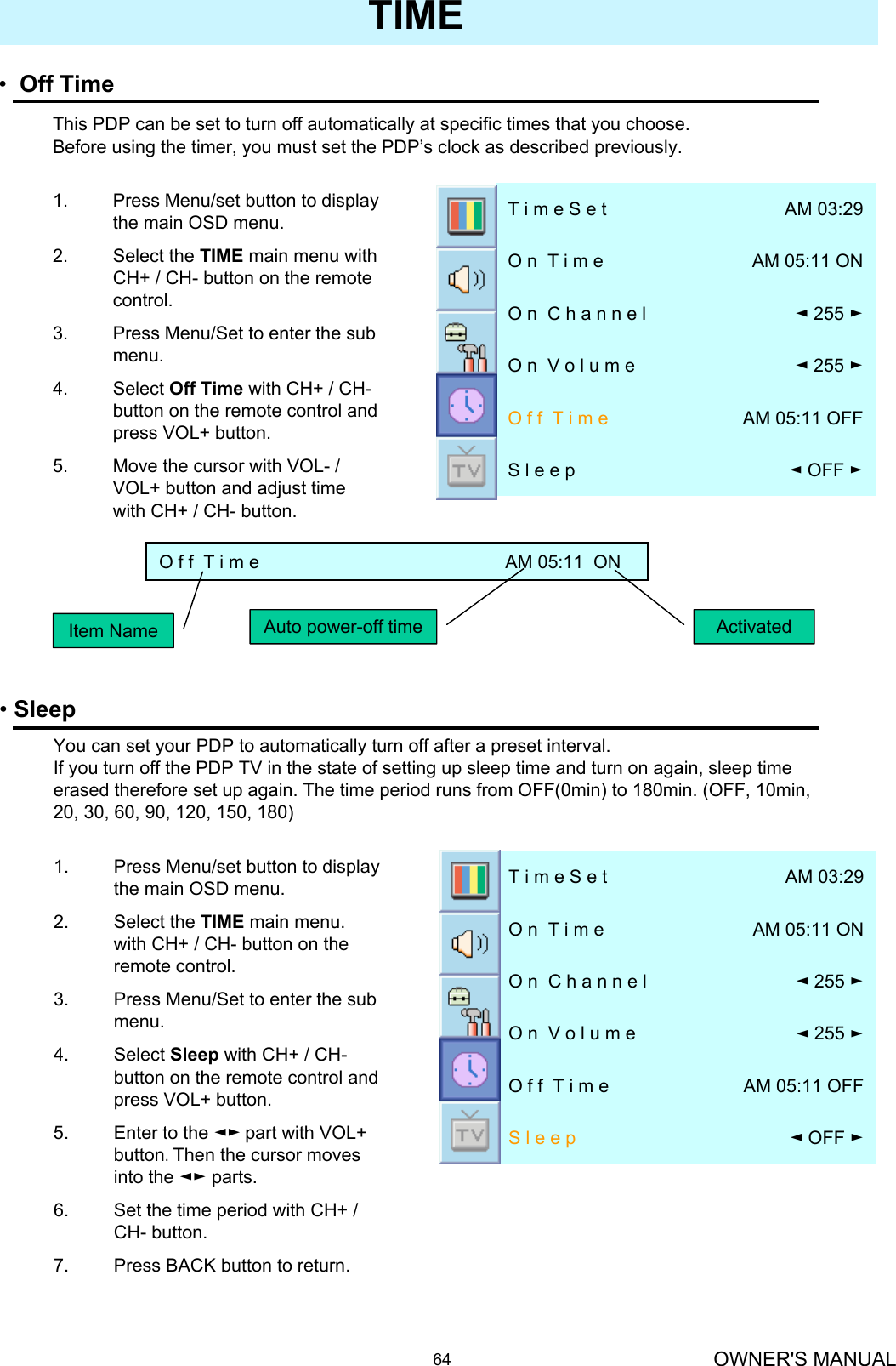

OWNER'S MANUAL64TIME•Off Time◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄255 ►O n V o l u m e◄255 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Off Time with CH+ / CH-button on the remote control and press VOL+ button. 5. Move the cursor with VOL- / VOL+ button and adjust time with CH+ / CH- button.This PDP can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the PDP’s clock as described previously.O f f T i m e AM 05:11 ONItem Name Auto power-off time Activated•Sleep◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄255 ►O n V o l u m e◄255 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e tYou can set your PDP to automatically turn off after a preset interval.If you turn off the PDP TV in the state of setting up sleep time and turn on again, sleep time erased therefore set up again. The time period runs from OFF(0min) to 180min. (OFF, 10min, 20, 30, 60, 90, 120, 150, 180)1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu. with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Sleep with CH+ / CH-button on the remote control and press VOL+ button. 5. Enter to the ◄► part with VOL+ button. Then the cursor moves into the ◄► parts.6. Set the time period with CH+ / CH- button.7. Press BACK button to return.

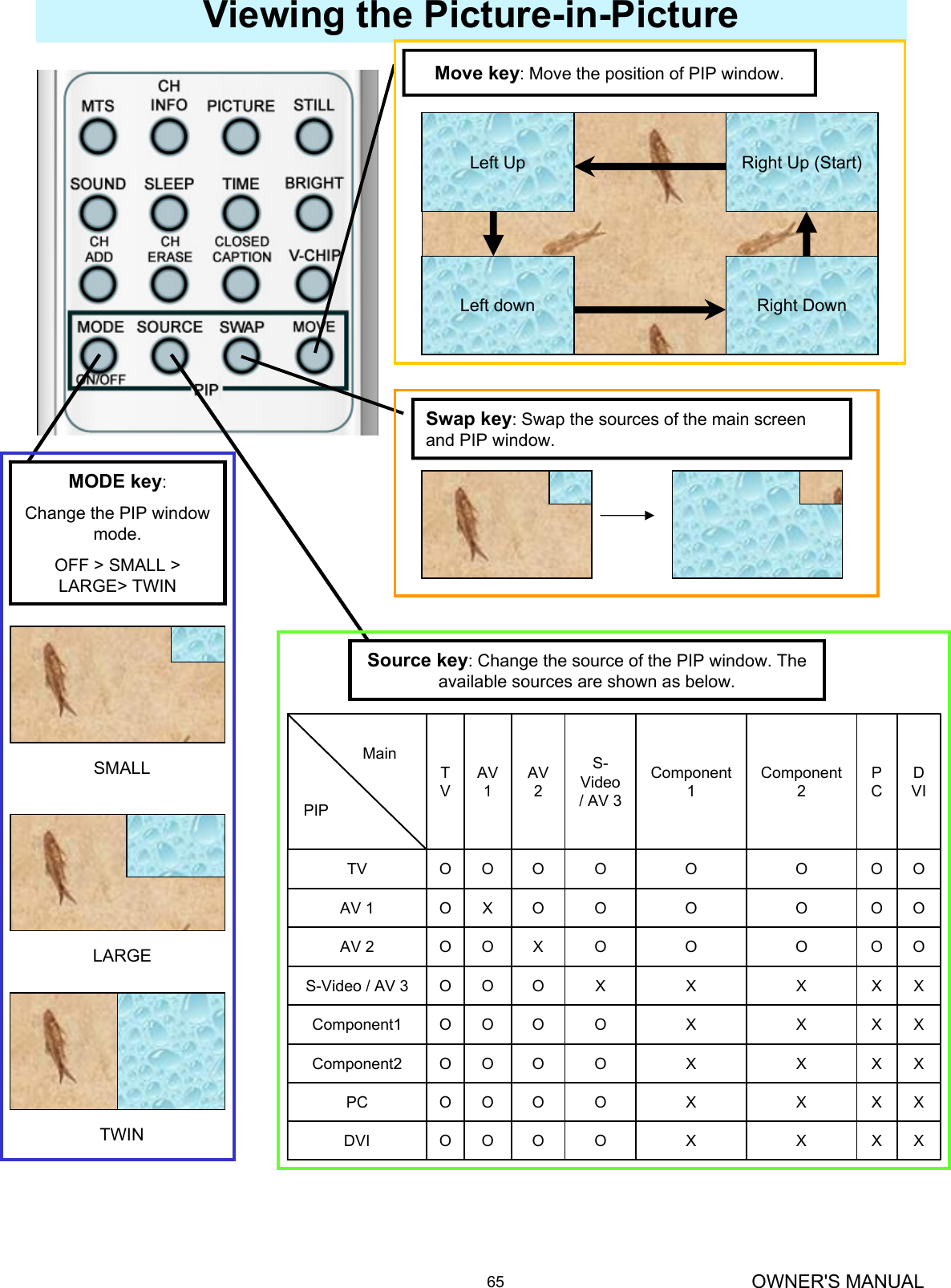

OWNER'S MANUAL65Viewing the Picture-in-PictureMove key: Move the position of PIP window.Right Up (Start)Left downLeft UpRight DownSwap key: Swap the sources of the main screen and PIP window.MODE key: Change the PIP window mode. OFF > SMALL > LARGE> TWINSource key: Change the source of the PIP window. The available sources are shown as below.SMALLLARGETWIN XXXXOOOODVIXXXXOOOOPCXXXXOOOOComponent2XXXXOOOOComponent1XXXXXOOOS-Video / AV 3OOOOOXOOAV 2OOOOOOXOAV 1OOOOOOOOTVDVIPCComponent2Component1S-Video / AV 3AV 2AV 1TVMain PIP

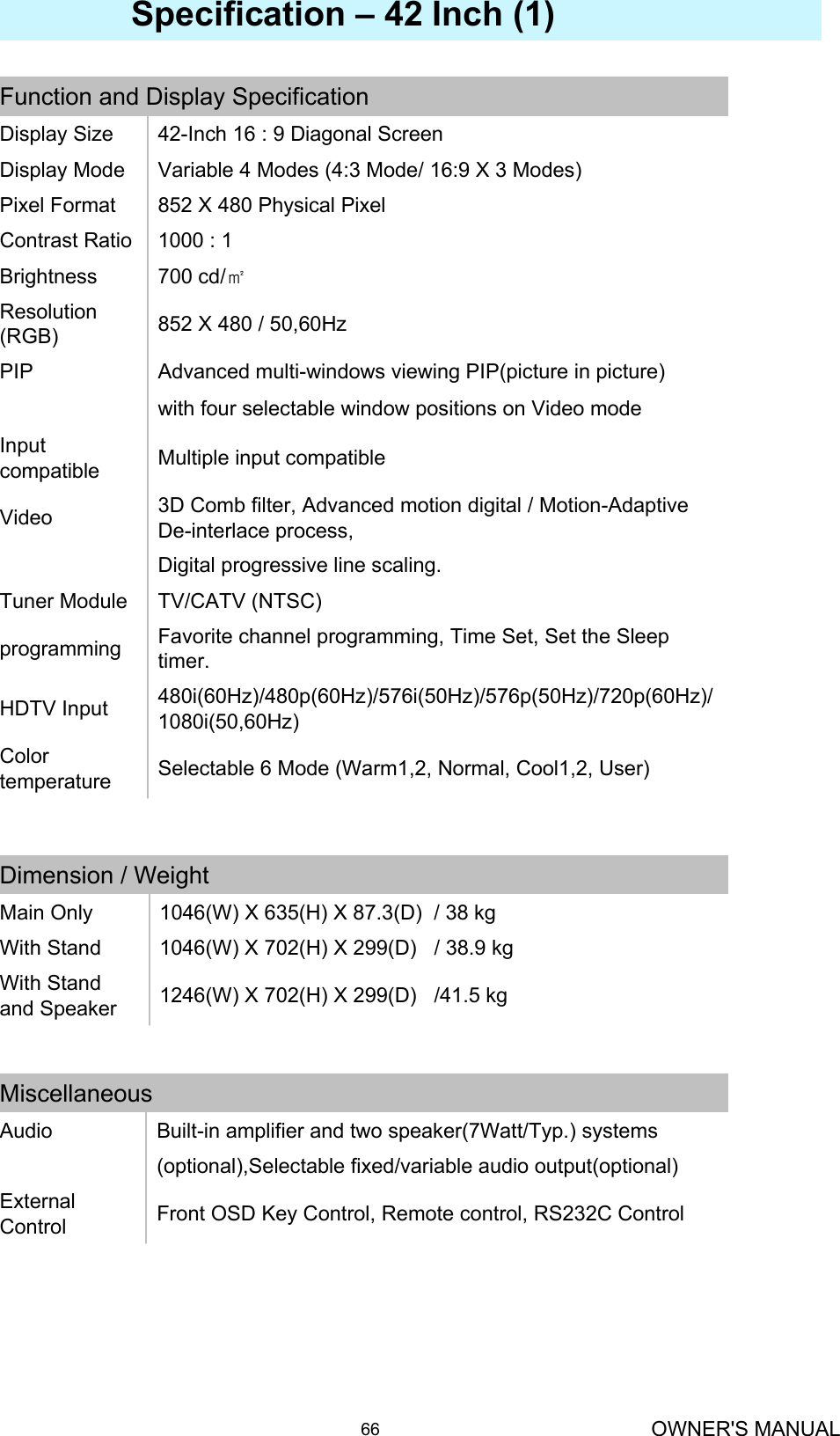

OWNER'S MANUAL66Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)Color temperature 480i(60Hz)/480p(60Hz)/576i(50Hz)/576p(50Hz)/720p(60Hz)/1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timer.programmingTV/CATV (NTSC)Tuner ModuleDigital progressive line scaling.3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlace process,VideoMultiple input compatibleInput compatiblewith four selectable window positions on Video modeAdvanced multi-windows viewing PIP(picture in picture) PIP852 X 480 / 50,60Hz Resolution (RGB)700 cd/㎡Brightness1000 : 1Contrast Ratio852 X 480 Physical PixelPixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode42-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification1246(W) X 702(H) X 299(D) /41.5 kgWith Stand and Speaker1046(W) X 702(H) X 299(D) / 38.9 kgWith Stand1046(W) X 635(H) X 87.3(D) / 38 kgMain OnlyDimension / WeightSpecification – 42 Inch (1)Front OSD Key Control, Remote control, RS232C ControlExternal Control(optional),Selectable fixed/variable audio output(optional)Built-in amplifier and two speaker(7Watt/Typ.) systemsAudioMiscellaneous

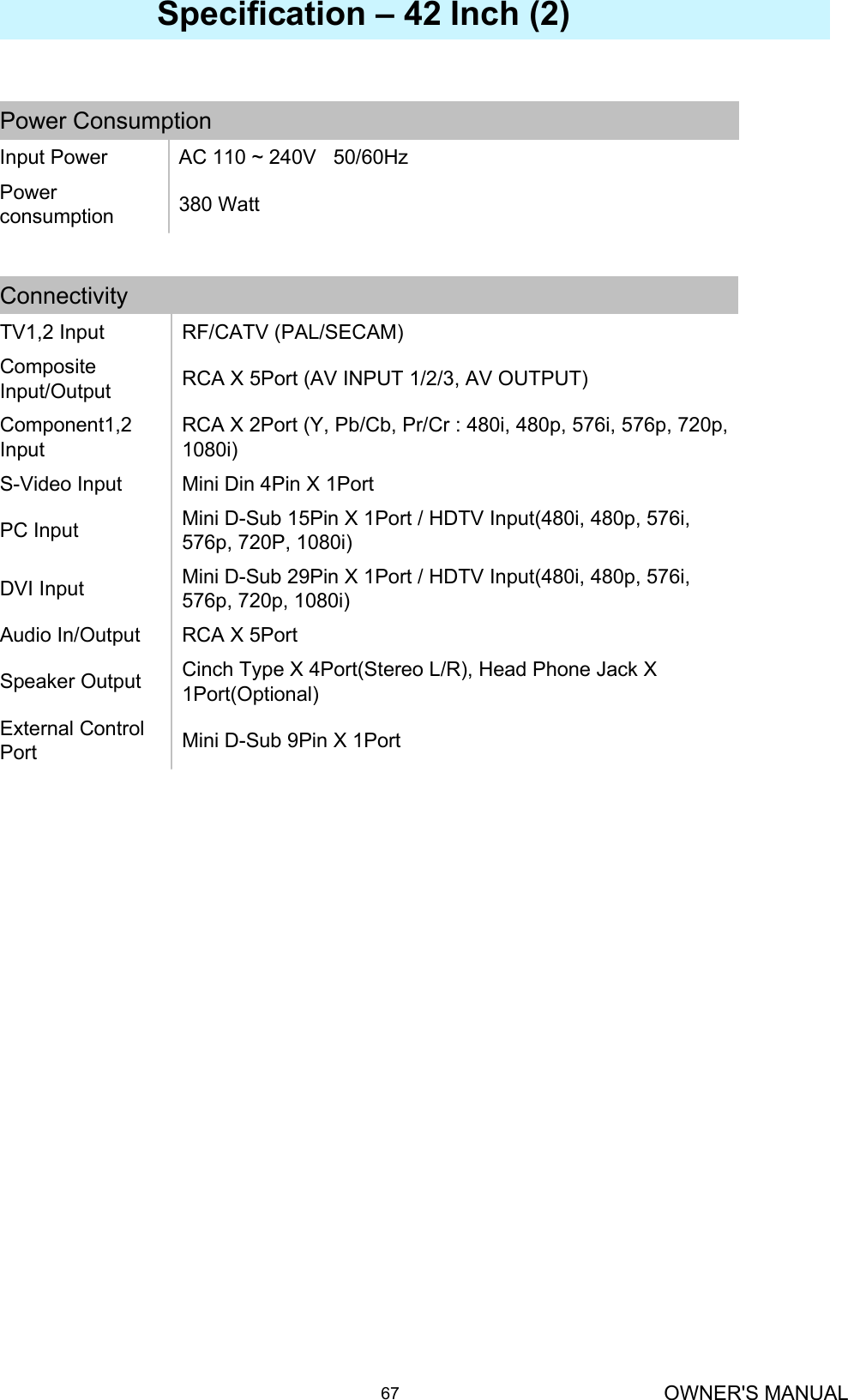

OWNER'S MANUAL67380 WattPower consumptionAC 110 ~ 240V 50/60HzInput PowerPower ConsumptionMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Speaker OutputRCA X 5PortAudio In/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480i, 480p, 576i, 576p, 720p, 1080i)DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480i, 480p, 576i, 576p, 720P, 1080i)PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 5Port (AV INPUT 1/2/3, AV OUTPUT)Composite Input/OutputRF/CATV (PAL/SECAM)TV1,2 InputConnectivitySpecification – 42 Inch (2)

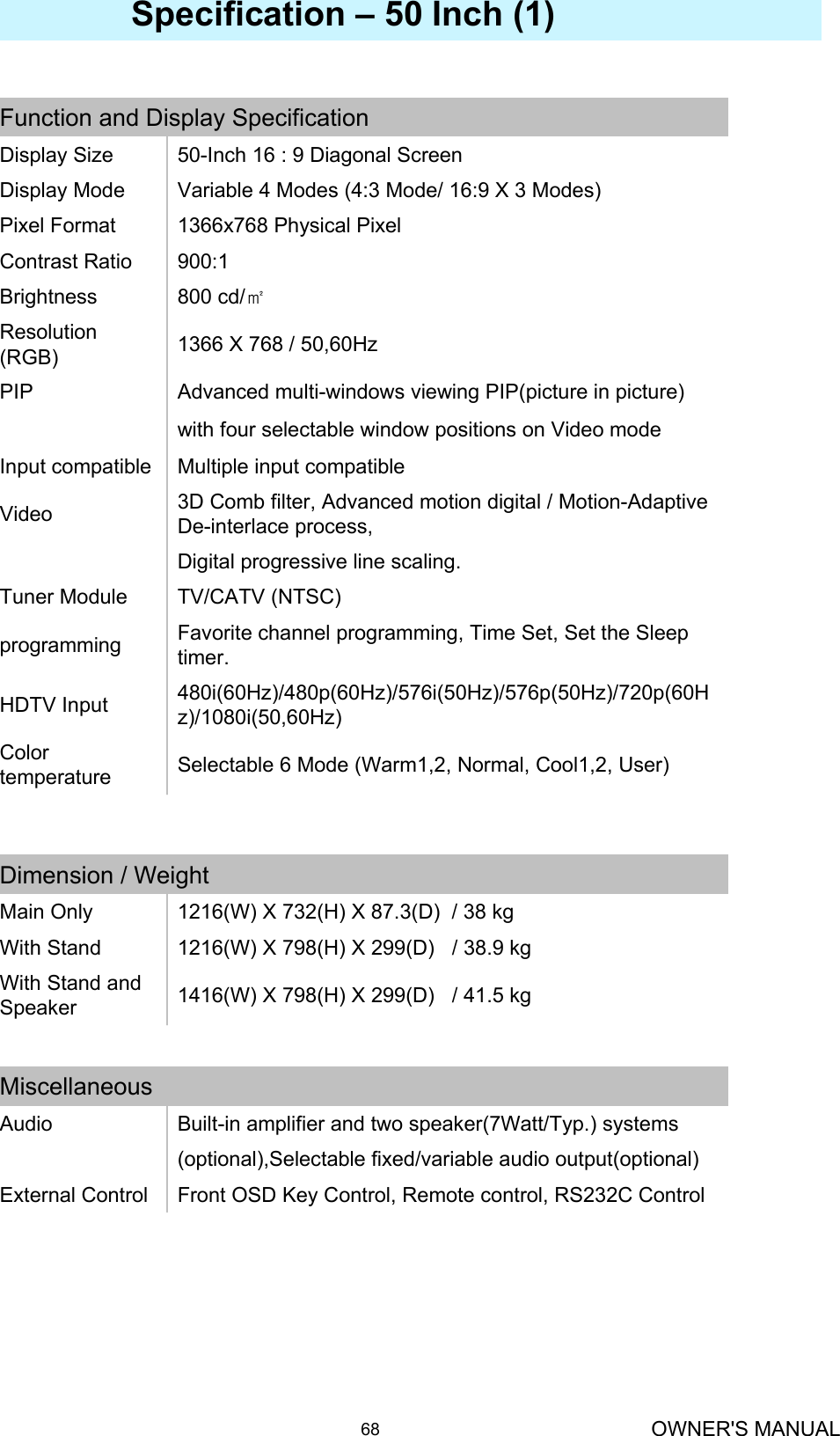

OWNER'S MANUAL68Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)Color temperature 480i(60Hz)/480p(60Hz)/576i(50Hz)/576p(50Hz)/720p(60Hz)/1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timer.programmingTV/CATV (NTSC)Tuner ModuleDigital progressive line scaling.3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlace process,VideoMultiple input compatibleInput compatiblewith four selectable window positions on Video modeAdvanced multi-windows viewing PIP(picture in picture) PIP1366 X 768 / 50,60Hz Resolution (RGB)800 cd/㎡Brightness900:1Contrast Ratio1366x768 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode50-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification1416(W) X 798(H) X 299(D) / 41.5 kgWith Stand and Speaker1216(W) X 798(H) X 299(D) / 38.9 kgWith Stand1216(W) X 732(H) X 87.3(D) / 38 kgMain OnlyDimension / WeightSpecification – 50 Inch (1)Front OSD Key Control, Remote control, RS232C ControlExternal Control(optional),Selectable fixed/variable audio output(optional)Built-in amplifier and two speaker(7Watt/Typ.) systemsAudioMiscellaneous

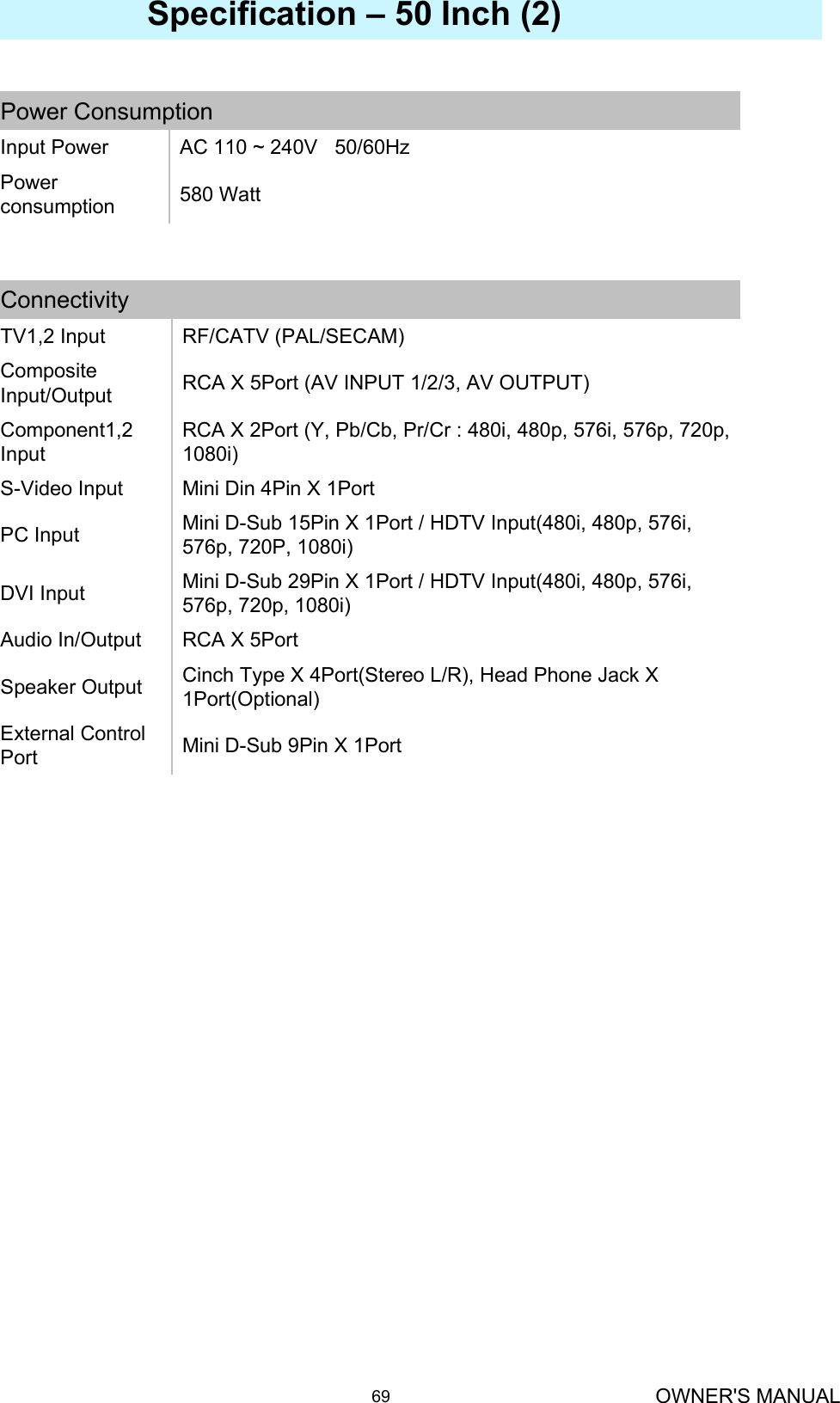

OWNER'S MANUAL69580 WattPower consumptionAC 110 ~ 240V 50/60HzInput PowerPower ConsumptionMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Speaker OutputRCA X 5PortAudio In/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480i, 480p, 576i, 576p, 720p, 1080i)DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480i, 480p, 576i, 576p, 720P, 1080i)PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 5Port (AV INPUT 1/2/3, AV OUTPUT)Composite Input/OutputRF/CATV (PAL/SECAM)TV1,2 InputConnectivitySpecification – 50 Inch (2)

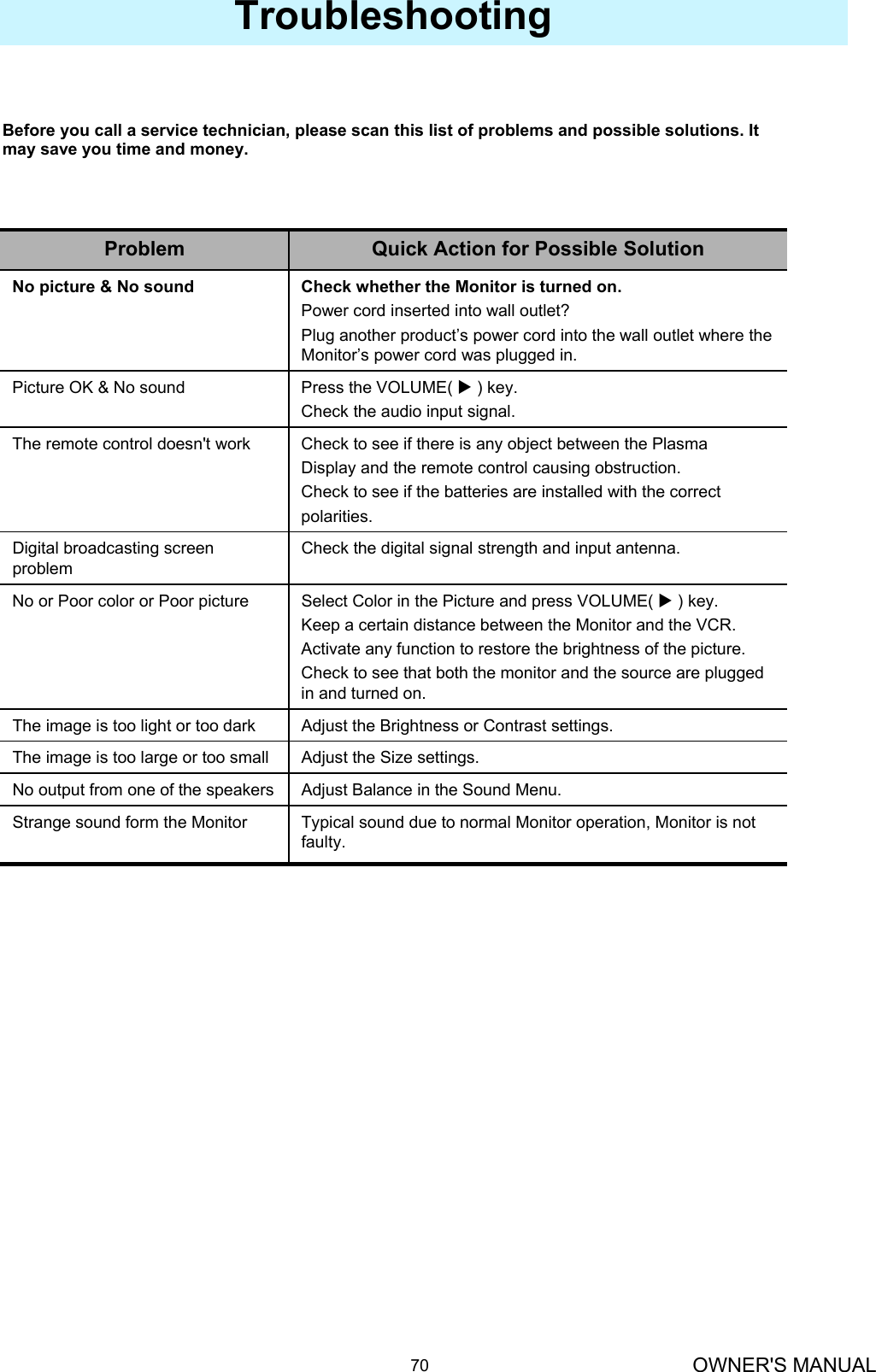

OWNER'S MANUAL70TroubleshootingCheck the digital signal strength and input antenna.Digital broadcasting screen problemTypical sound due to normal Monitor operation, Monitor is not faulty.Strange sound form the MonitorAdjust Balance in the Sound Menu.No output from one of the speakersAdjust the Size settings.The image is too large or too smallAdjust the Brightness or Contrast settings.The image is too light or too darkSelect Color in the Picture and press VOLUME( X) key.Keep a certain distance between the Monitor and the VCR.Activate any function to restore the brightness of the picture.Check to see that both the monitor and the source are plugged in and turned on.No or Poor color or Poor pictureCheck to see if there is any object between the PlasmaDisplay and the remote control causing obstruction.Check to see if the batteries are installed with the correctpolarities.The remote control doesn't workPress the VOLUME( X) key.Check the audio input signal.Picture OK & No soundCheck whether the Monitor is turned on.Power cord inserted into wall outlet?Plug another product’s power cord into the wall outlet where the Monitor’s power cord was plugged in.No picture & No soundQuick Action for Possible SolutionProblemBefore you call a service technician, please scan this list of problems and possible solutions. It may save you time and money.

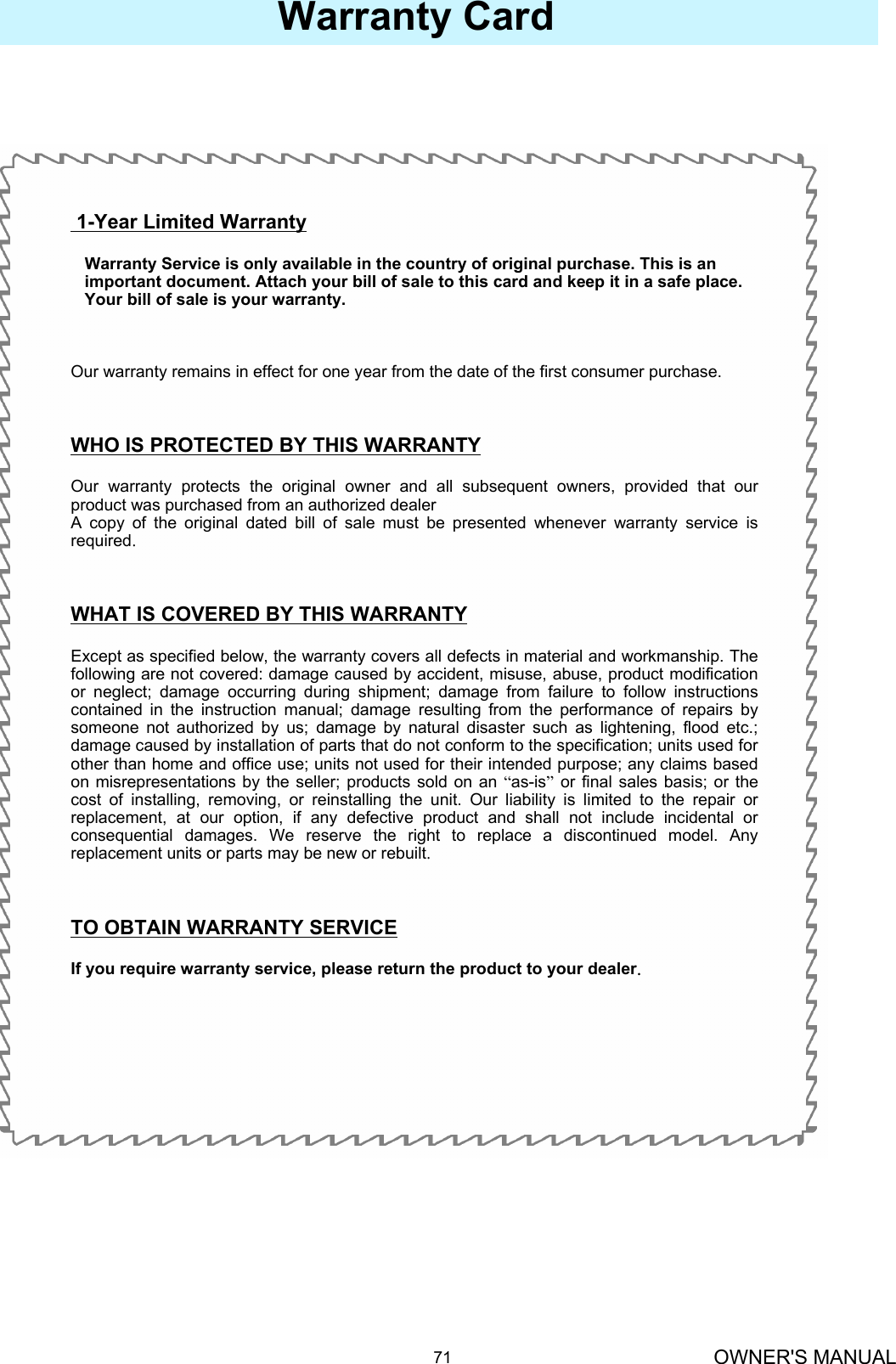

OWNER'S MANUAL71Warranty Card1-Year Limited WarrantyWarranty Service is only available in the country of original purchase. This is an important document. Attach your bill of sale to this card and keep it in a safe place.Your bill of sale is your warranty.Our warranty remains in effect for one year from the date of the first consumer purchase.WHO IS PROTECTED BY THIS WARRANTYOur warranty protects the original owner and all subsequent owners, provided that our product was purchased from an authorized dealerA copy of the original dated bill of sale must be presented whenever warranty service is required.WHAT IS COVERED BY THIS WARRANTYExcept as specified below, the warranty covers all defects in material and workmanship. The following are not covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual; damage resulting from the performance of repairs by someone not authorized by us; damage by natural disaster such as lightening, flood etc.; damage caused by installation of parts that do not conform to the specification; units used for other than home and office use; units not used for their intended purpose; any claims based on misrepresentations by the seller; products sold on an “as-is”or final sales basis; or the cost of installing, removing, or reinstalling the unit. Our liability is limited to the repair or replacement, at our option, if any defective product and shall not include incidental or consequential damages. We reserve the right to replace a discontinued model. Any replacement units or parts may be new or rebuilt.TO OBTAIN WARRANTY SERVICEIf you require warranty service, please return the product to your dealer.
