Harsper HP-420W PDP MONITOR User Manual Users manual

Harsper Co., Ltd. PDP MONITOR Users manual

Users manual

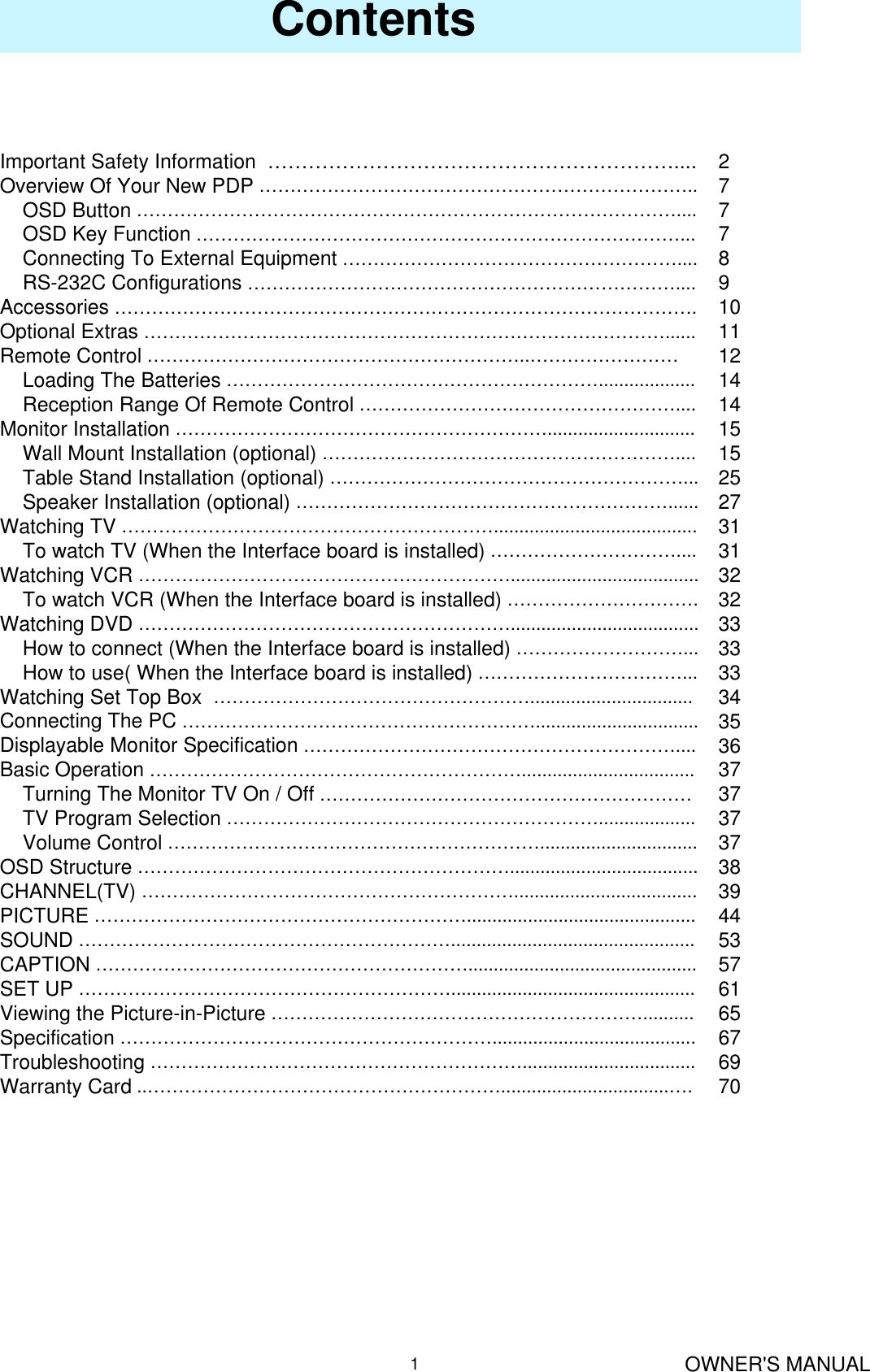

OWNER'S MANUAL1Contents277789101112141415152527313132323333333435363737373738394453576165676970Important Safety Information  ……………………………………………………....Overview Of Your New PDP ……………………………………………………………..OSD Button ……………………………………………………………………………....OSD Key Function ……………………………………………………………………...Connecting To External Equipment ………………………………………………....RS-232C Configurations ……………………………………………………………....Accessories ………………………………………………………………………………….Optional Extras …………………………………………………………………………......Remote Control ……………………………………………………..……………………Loading The Batteries ……………………………………………………...................Reception Range Of Remote Control ……………………………………………....Monitor Installation …………………………………………………….............................Wall Mount Installation (optional) …………………………………………………....Table Stand Installation (optional) …………………………………………………...Speaker Installation (optional) ……………………………………………………......Watching TV ……………………………………………………........................................To watch TV (When the Interface board is installed) …………………………....Watching VCR …………………………………………………….....................................To watch VCR (When the Interface board is installed) ………………………….Watching DVD …………………………………………………….....................................How to connect (When the Interface board is installed) ………………………...How to use( When the Interface board is installed) ……………………………...Watching Set Top Box  ……………………………………………................................Connecting The PC …………………………………………………................................Displayable Monitor Specification ……………………………………………………....Basic Operation ……………………………………………………..................................Turning The Monitor TV On / Off ……………………………………………………TV Program Selection ……………………………………………………...................Volume Control ……………………………………………………...............................OSD Structure …………………………………………………….....................................CHANNEL(TV) ……………………………………………………....................................PICTURE …………………………………………………….............................................SOUND ……………………………………………………................................................CAPTION …………………………………………………….............................................SET UP ……………………………………………………................................................Viewing the Picture-in-Picture ……………………………………………………..........Specification ……………………………………………………........................................Troubleshooting ……………………………………………………..................................Warranty Card ..………………………………………………….................................….

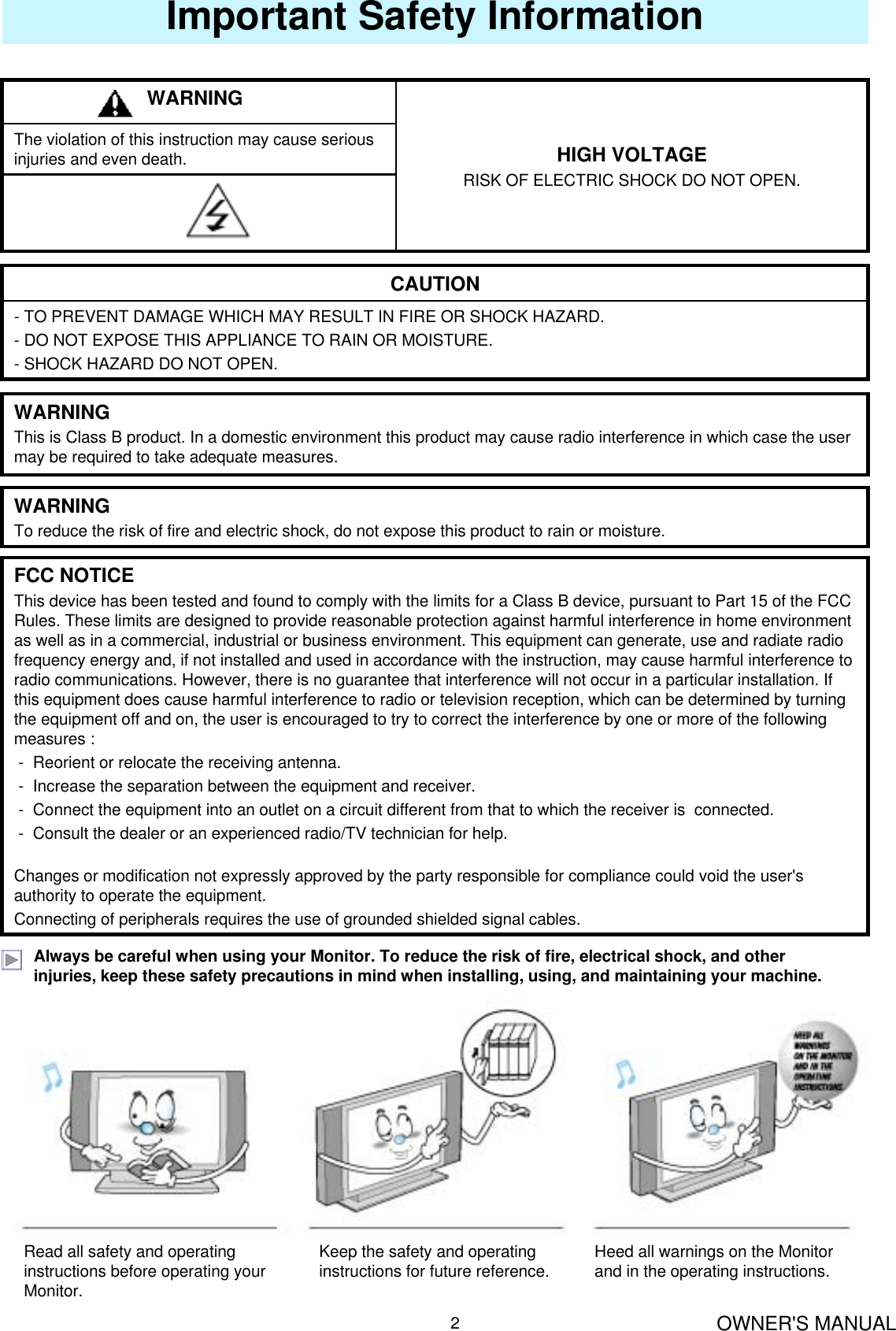

OWNER'S MANUAL2Important Safety InformationThe violation of this instruction may cause serious injuries and even death. HIGH VOLTAGERISK OF ELECTRIC SHOCK DO NOT OPEN.WARNING- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD. - DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONWARNINGThis is Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.WARNINGTo reduce the risk of fire and electric shock, do not expose this product to rain or moisture.FCC NOTICEThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in home environment as well as in a commercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is  connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.Always be careful when using your Monitor. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.Read all safety and operating instructions before operating your Monitor.Keep the safety and operating instructions for future reference. Heed all warnings on the Monitor and in the operating instructions.

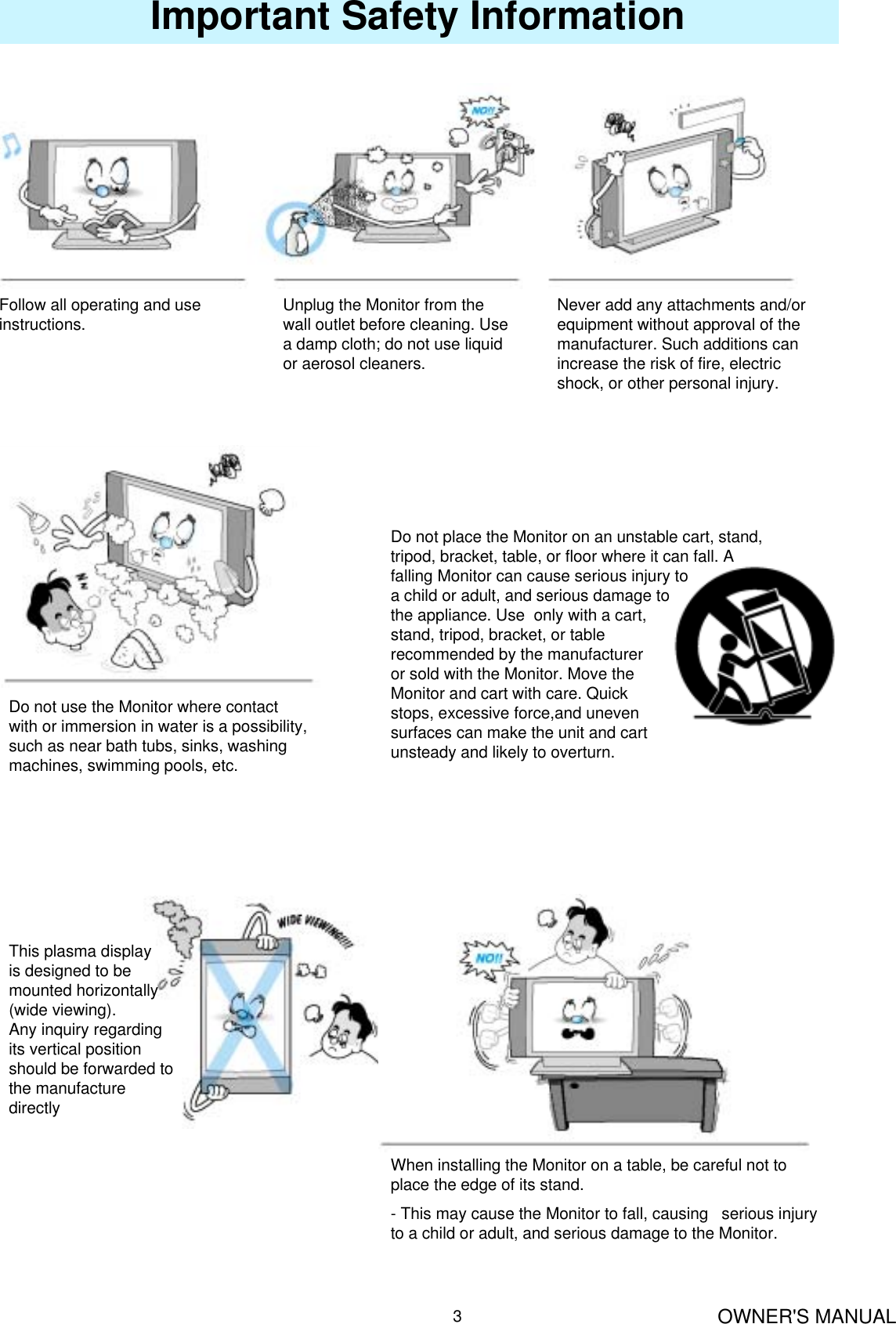

OWNER'S MANUAL3Important Safety InformationFollow all operating and use instructions. Unplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners.Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury.Do not place the Monitor on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. A falling Monitor can cause serious injury toa child or adult, and serious damage tothe appliance. Use  only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the Monitor. Move theMonitor and cart with care. Quick stops, excessive force,and uneven surfaces can make the unit and cart unsteady and likely to overturn.Do not use the Monitor where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc.This plasma displayis designed to bemounted horizontally(wide viewing).Any inquiry regarding its vertical position should be forwarded to the manufacture directlyWhen installing the Monitor on a table, be careful not to place the edge of its stand.- This may cause the Monitor to fall, causing   serious injury to a child or adult, and serious damage to the Monitor.

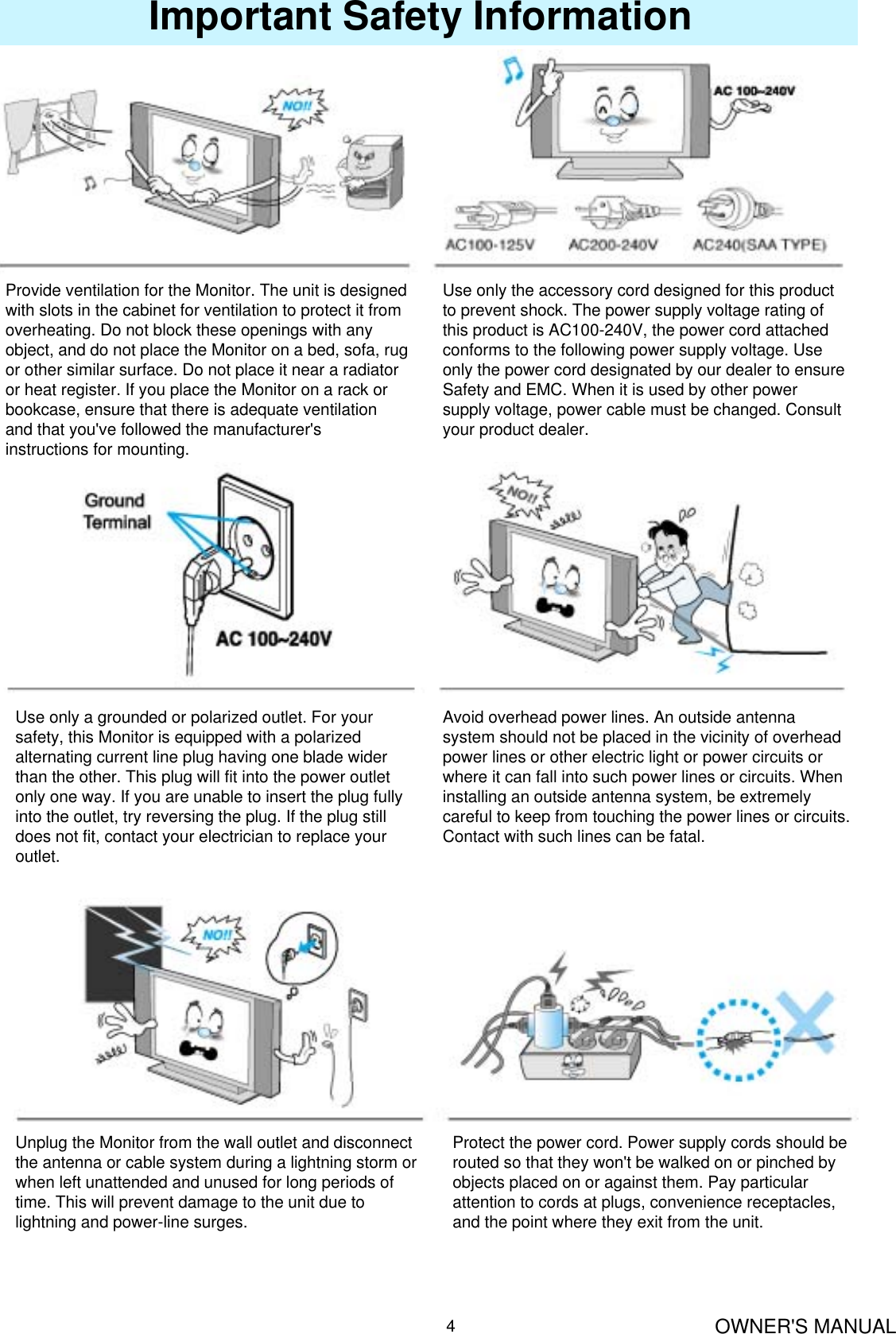

OWNER'S MANUAL4Important Safety InformationProvide ventilation for the Monitor. The unit is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not place the Monitor on a bed, sofa, rug or other similar surface. Do not place it near a radiator or heat register. If you place the Monitor on a rack or bookcase, ensure that there is adequate ventilation and that you've followed the manufacturer's instructions for mounting.Use only the accessory cord designed for this product to prevent shock. The power supply voltage rating of this product is AC100-240V, the power cord attached conforms to the following power supply voltage. Use only the power cord designated by our dealer to ensure Safety and EMC. When it is used by other power supply voltage, power cable must be changed. Consult your product dealer.Use only a grounded or polarized outlet. For your safety, this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits. When installing an outside antenna system, be extremely careful to keep from touching the power lines or circuits. Contact with such lines can be fatal.Unplug the Monitor from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-line surges.Protect the power cord. Power supply cords should be routed so that they won't be walked on or pinched byobjects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

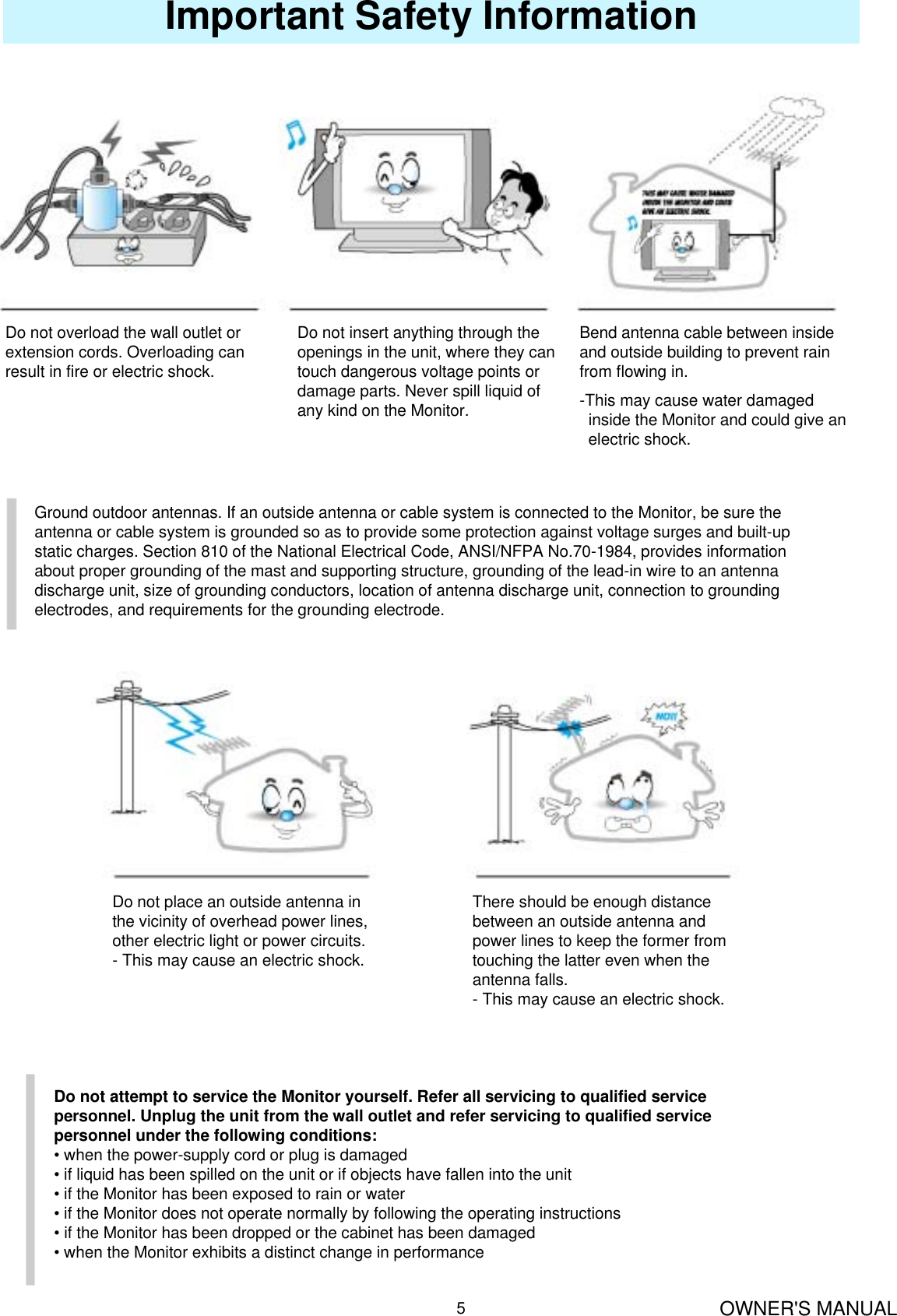

OWNER'S MANUAL5Important Safety InformationDo not overload the wall outlet orextension cords. Overloading canresult in fire or electric shock.Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the Monitor.Bend antenna cable between inside and outside building to prevent rain from flowing in.-This may cause water damagedinside the Monitor and could give an   electric shock.Ground outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure theantenna or cable system is grounded so as to provide some protection against voltage surges and built-upstatic charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides informationabout proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antennadischarge unit, size of grounding conductors, location of antenna discharge unit, connection to groundingelectrodes, and requirements for the grounding electrode.Do not place an outside antenna inthe vicinity of overhead power lines,other electric light or power circuits.- This may cause an electric shock.There should be enough distancebetween an outside antenna andpower lines to keep the former fromtouching the latter even when theantenna falls.- This may cause an electric shock.Do not attempt to service the Monitor yourself. Refer all servicing to qualified servicepersonnel. Unplug the unit from the wall outlet and refer servicing to qualified servicepersonnel under the following conditions:• when the power-supply cord or plug is damaged• if liquid has been spilled on the unit or if objects have fallen into the unit• if the Monitor has been exposed to rain or water• if the Monitor does not operate normally by following the operating instructions• if the Monitor has been dropped or the cabinet has been damaged• when the Monitor exhibits a distinct change in performance

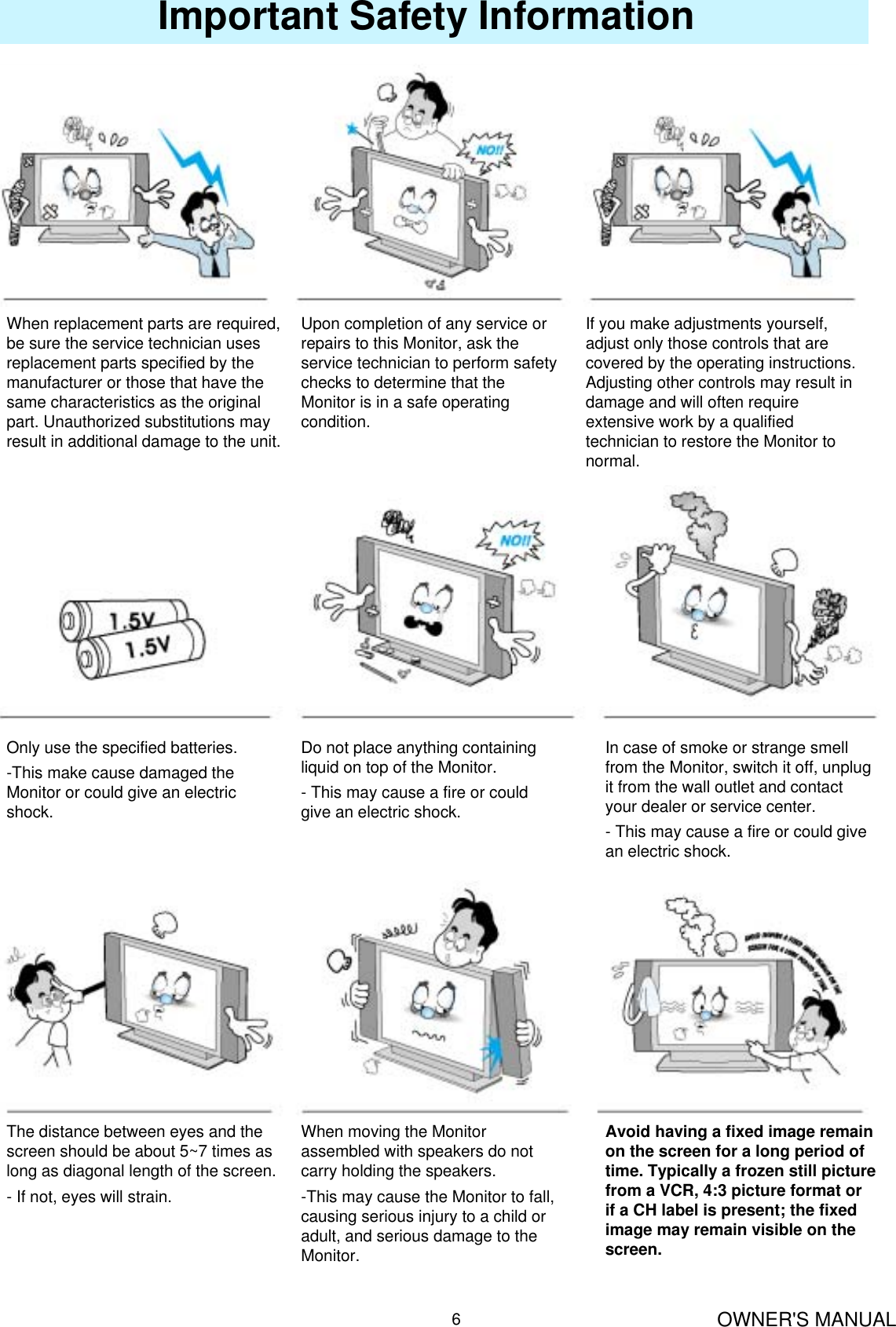

OWNER'S MANUAL6Important Safety InformationWhen replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in additional damage to the unit.Upon completion of any service orrepairs to this Monitor, ask theservice technician to perform safetychecks to determine that the Monitor is in a safe operating condition.If you make adjustments yourself,adjust only those controls that arecovered by the operating instructions.Adjusting other controls may result indamage and will often requireextensive work by a qualifiedtechnician to restore the Monitor tonormal.Only use the specified batteries.-This make cause damaged theMonitor or could give an electricshock.Do not place anything containingliquid on top of the Monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smellfrom the Monitor, switch it off, unplugit from the wall outlet and contactyour dealer or service center.- This may cause a fire or could give an electric shock.Avoid having a fixed image remainon the screen for a long period oftime. Typically a frozen still picturefrom a VCR, 4:3 picture format or if a CH label is present; the fixedimage may remain visible on thescreen.The distance between eyes and thescreen should be about 5~7 times aslong as diagonal length of the screen.- If not, eyes will strain.When moving the Monitor assembled with speakers do not carry holding the speakers.-This may cause the Monitor to fall,causing serious injury to a child oradult, and serious damage to theMonitor.

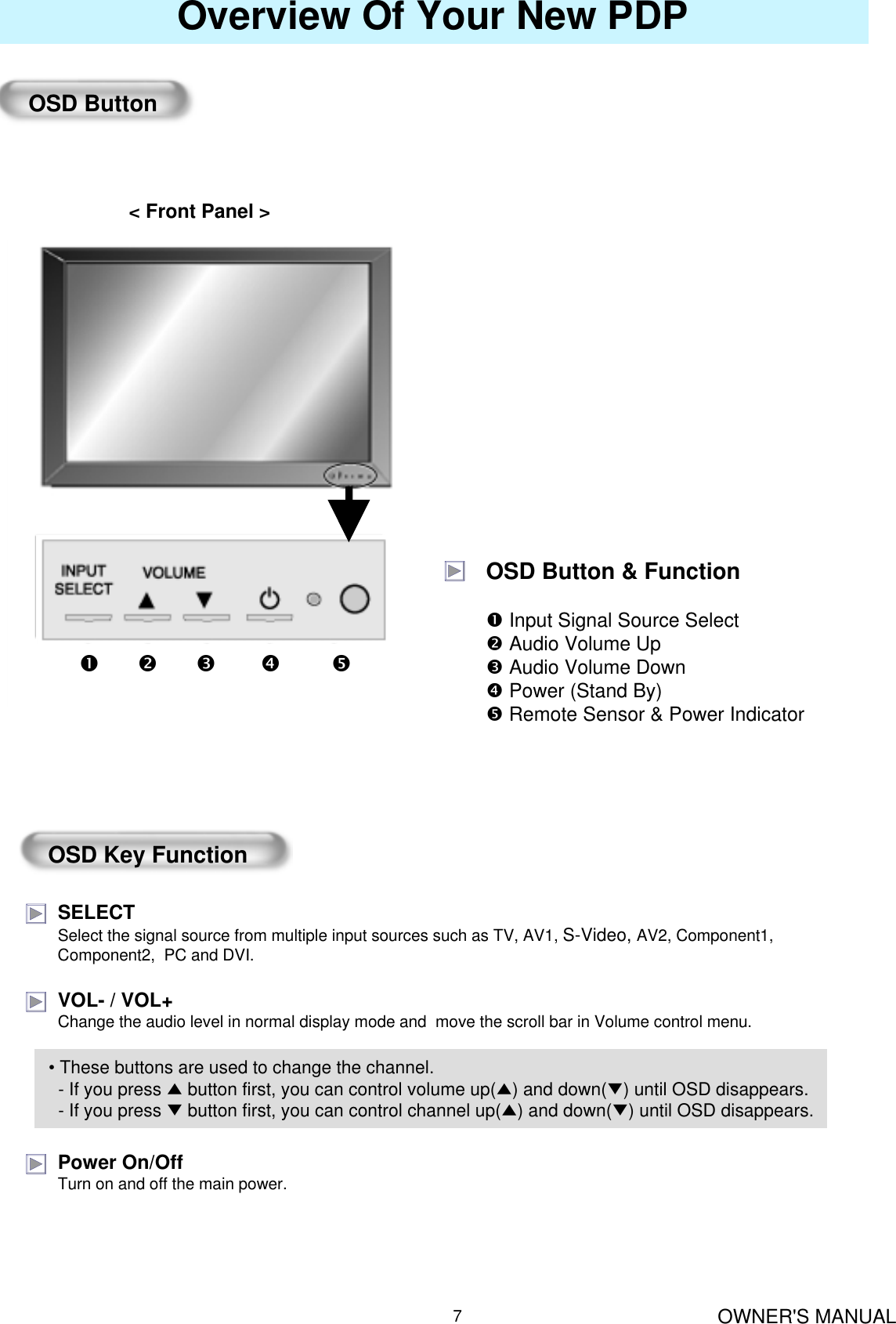

OWNER'S MANUAL7Overview Of Your New PDPOSD Button< Front Panel >nop q rOSD Button & FunctionnInput Signal Source SelectoAudio Volume UppAudio Volume DownqPower (Stand By)rRemote Sensor & Power IndicatorOSD Key FunctionSELECTSelect the signal source from multiple input sources such as TV, AV1, S-Video, AV2, Component1, Component2,  PC and DVI. VOL- / VOL+Change the audio level in normal display mode and  move the scroll bar in Volume control menu.• These buttons are used to change the channel.- If you press ▲button first, you can control volume up(▲) and down(▼) until OSD disappears.- If you press ▼button first, you can control channel up(▲) and down(▼) until OSD disappears.Power On/OffTurn on and off the main power.

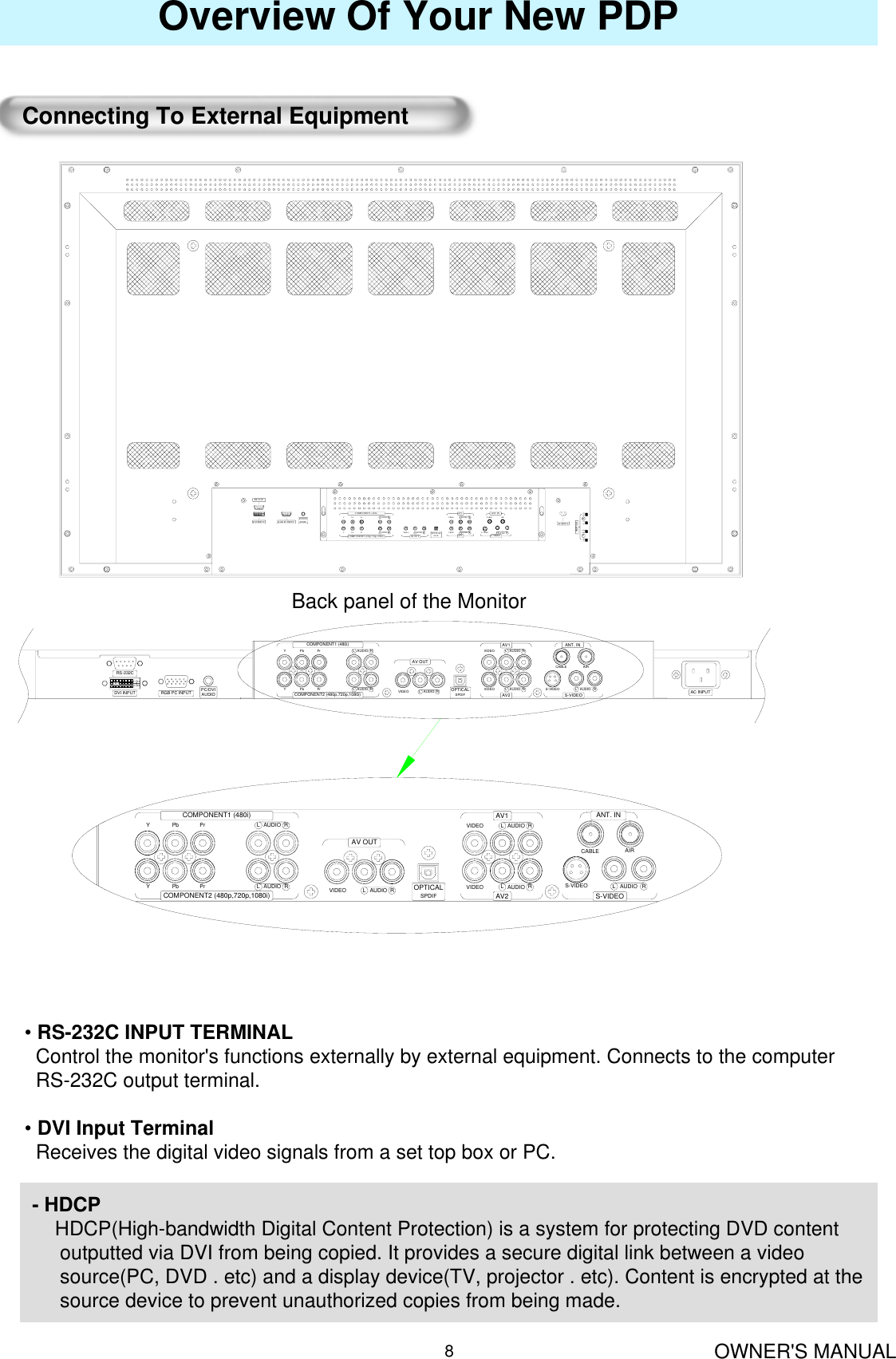

OWNER'S MANUAL8Overview Of Your New PDPConnecting To External EquipmentCABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720p,1080i)COMPONENT1 (480i)AV OUTPC/DVIAUDIO AC INPUTRS-232CRGB PC INPUTDVI INPUTCABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720p,1080i)COMPONENT1 (480i)AV OUTBack panel of the MonitorAUDIOAVOUTCOMPONE NT2 (4 80p,7 20p,1080i)YPbPr RAUDIOLLVIDE OCOMPONENT1(480i)YPbPr RAUDIOLAUDI OS -VIDEOAV2OPTICALSPDIFRVIDEORAUDIOLLS-VIDEO RAV1VIDEO RAU DIOLANT . INCABLE AIRAC INPUTDVIINPUTRS-23 2CRGB PC INPUT PC/DVIAUDIOLRSPEAKER•RS-232C INPUT TERMINALControl the monitor's functions externally by external equipment. Connects to the computer  RS-232C output terminal.•DVI Input TerminalReceives the digital video signals from a set top box or PC. - HDCPHDCP(High-bandwidth Digital Content Protection) is a system for protecting DVD content  outputted via DVI from being copied. It provides a secure digital link between a video  source(PC, DVD . etc) and a display device(TV, projector . etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

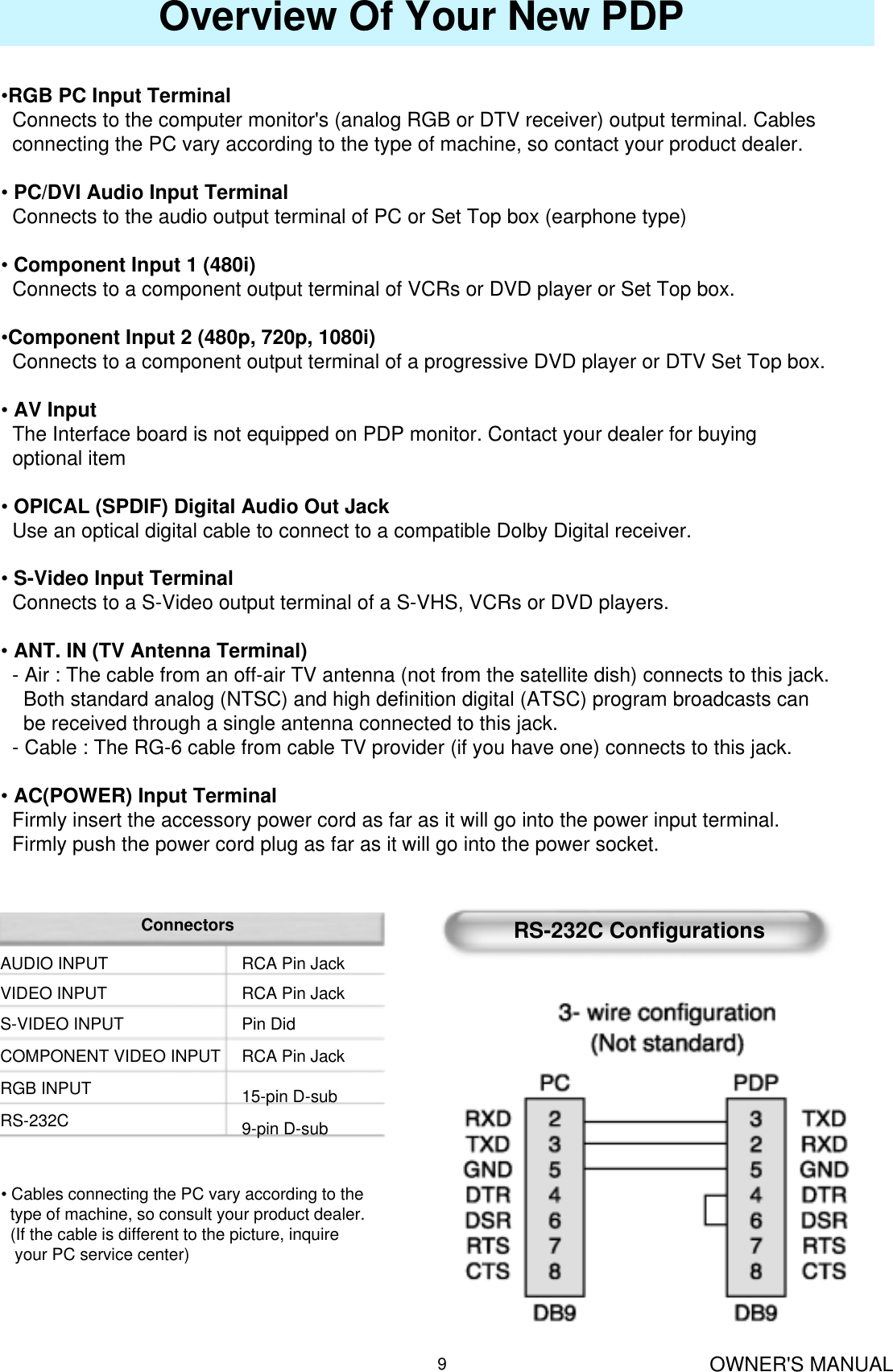

OWNER'S MANUAL9Overview Of Your New PDP•RGB PC Input TerminalConnects to the computer monitor's (analog RGB or DTV receiver) output terminal. Cables   connecting the PC vary according to the type of machine, so contact your product dealer.•PC/DVI Audio Input TerminalConnects to the audio output terminal of PC or Set Top box (earphone type)•Component Input 1 (480i)Connects to a component output terminal of VCRs or DVD player or Set Top box.•Component Input 2 (480p, 720p, 1080i)Connects to a component output terminal of a progressive DVD player or DTV Set Top box.•AV InputThe Interface board is not equipped on PDP monitor. Contact your dealer for buying   optional item•OPICAL (SPDIF) Digital Audio Out JackUse an optical digital cable to connect to a compatible Dolby Digital receiver.•S-Video Input TerminalConnects to a S-Video output terminal of a S-VHS, VCRs or DVD players.•ANT. IN (TV Antenna Terminal)- Air : The cable from an off-air TV antenna (not from the satellite dish) connects to this jack.  Both standard analog (NTSC) and high definition digital (ATSC) program broadcasts can  be received through a single antenna connected to this jack.- Cable : The RG-6 cable from cable TV provider (if you have one) connects to this jack. •AC(POWER) Input TerminalFirmly insert the accessory power cord as far as it will go into the power input terminal.  Firmly push the power cord plug as far as it will go into the power socket.ConnectorsAUDIO INPUTVIDEO INPUTS-VIDEO INPUTCOMPONENT VIDEO INPUTRGB INPUTRS-232CRCA Pin JackRCA Pin JackPin DidRCA Pin Jack15-pin D-sub9-pin D-subRS-232C Configurations• Cables connecting the PC vary according to the type of machine, so consult your product dealer.(If the cable is different to the picture, inquire your PC service center)

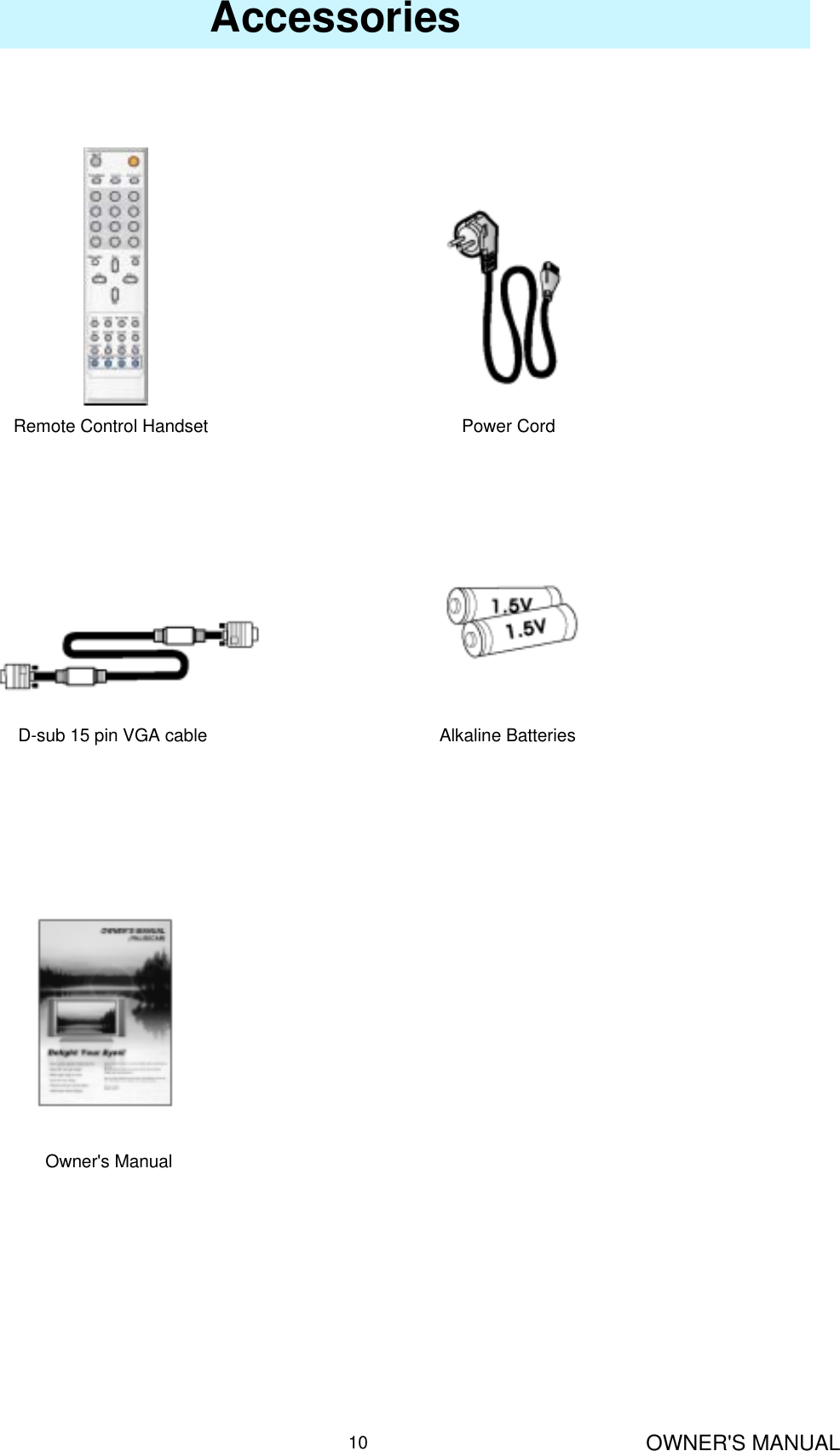

OWNER'S MANUAL10AccessoriesRemote Control Handset                                           Power CordD-sub 15 pin VGA cable Alkaline BatteriesOwner's Manual

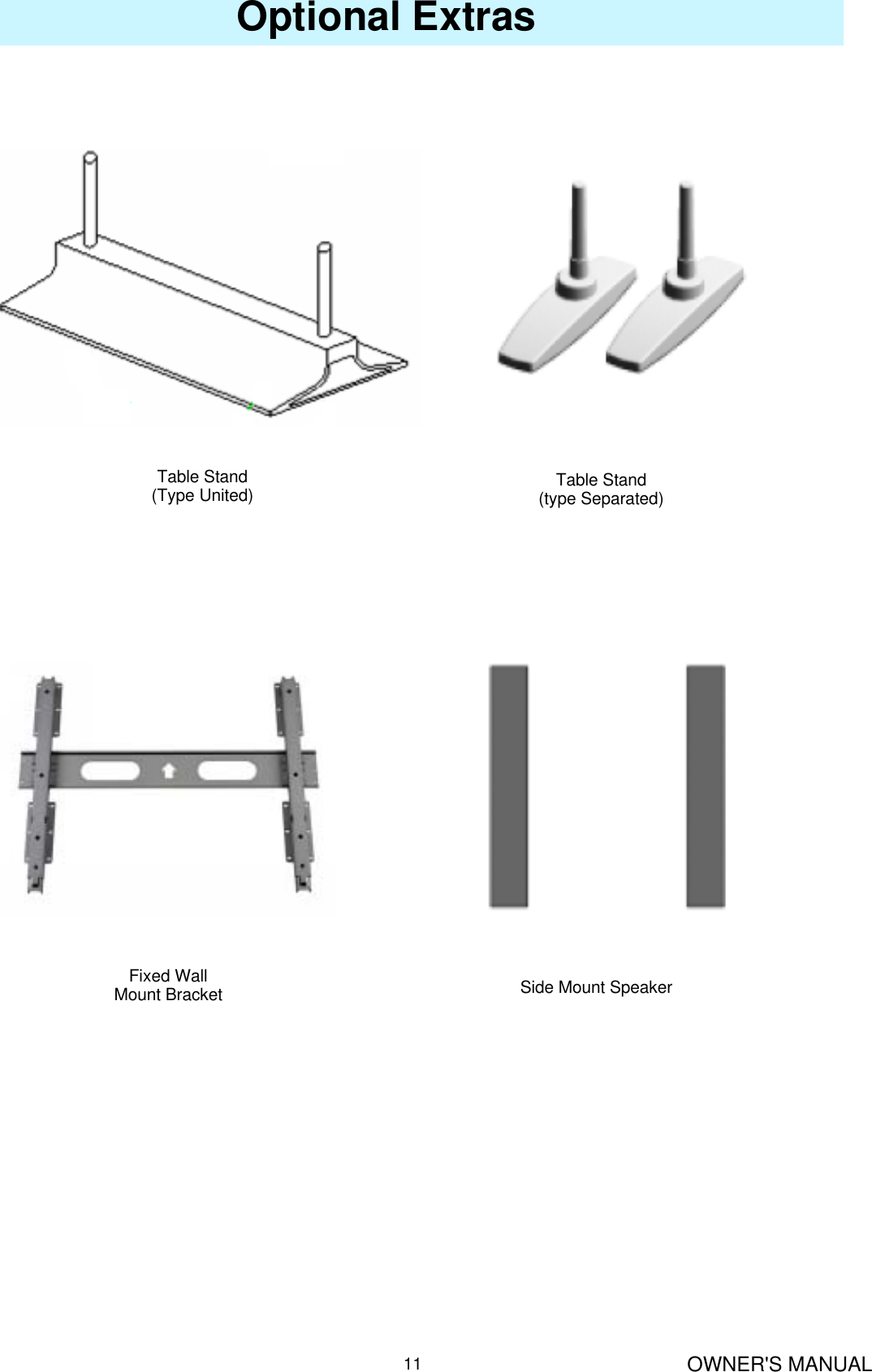

OWNER'S MANUAL11Optional ExtrasTable Stand(Type United) Table Stand(type Separated)Fixed WallMount Bracket Side Mount Speaker

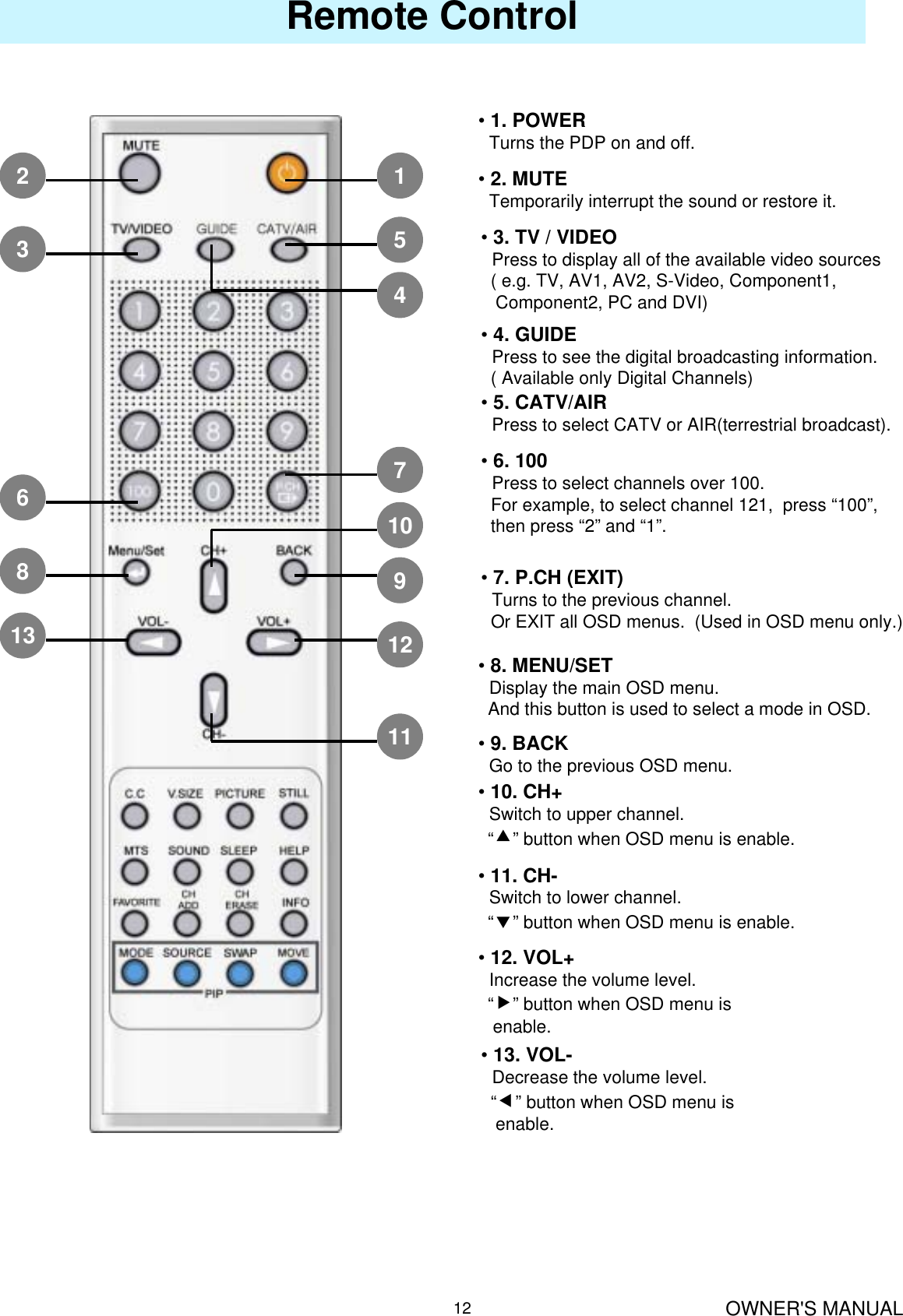

OWNER'S MANUAL12Remote Control•2. MUTETemporarily interrupt the sound or restore it.•3. TV / VIDEOPress to display all of the available video sources( e.g. TV, AV1, AV2, S-Video, Component1, Component2, PC and DVI)•1. POWERTurns the PDP on and off.•6. 100Press to select channels over 100.For example, to select channel 121,  press “100”, then press “2” and “1”.•7. P.CH (EXIT)Turns to the previous channel.Or EXIT all OSD menus.  (Used in OSD menu only.)•8. MENU/SETDisplay the main OSD menu.And this button is used to select a mode in OSD.•9. BACKGo to the previous OSD menu.•10. CH+ Switch to upper channel.“c” button when OSD menu is enable.1547109121123•4. GUIDEPress to see the digital broadcasting information.( Available only Digital Channels)•5. CATV/AIRPress to select CATV or AIR(terrestrial broadcast).6813•11. CH-Switch to lower channel.“d” button when OSD menu is enable.•12. VOL+Increase the volume level.“f” button when OSD menu isenable.•13. VOL-Decrease the volume level.“e” button when OSD menu isenable.

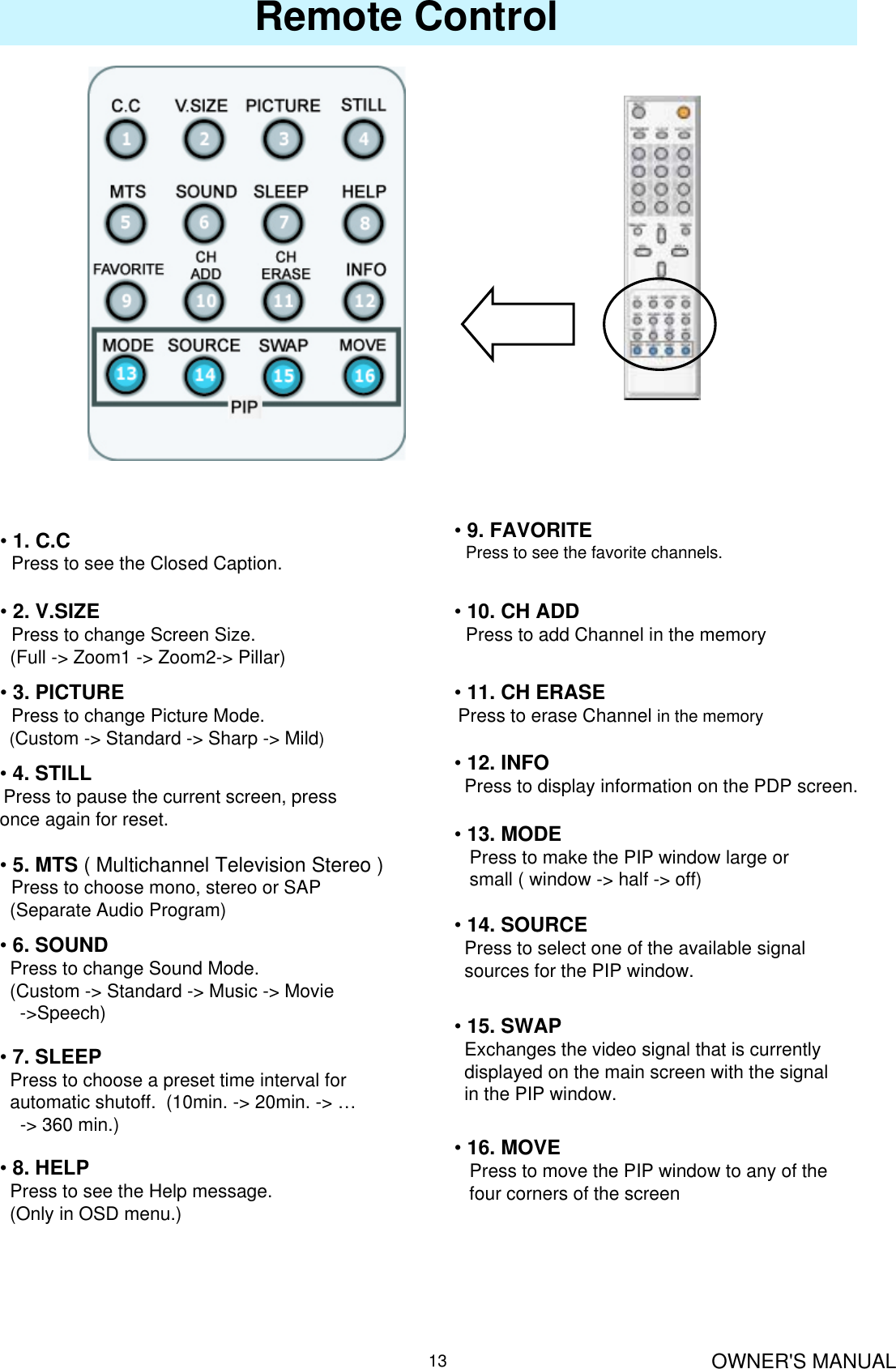

OWNER'S MANUAL13Remote Control•9. FAVORITEPress to see the favorite channels.•1. C.CPress to see the Closed Caption.•10. CH ADDPress to add Channel in the memory•2. V.SIZEPress to change Screen Size.(Full -> Zoom1 -> Zoom2-> Pillar)•11. CH ERASEPress to erase Channel in the memory•3. PICTUREPress to change Picture Mode.(Custom -> Standard -> Sharp -> Mild)•12. INFOPress to display information on the PDP screen.•4. STILLPress to pause the current screen, press once again for reset. •13. MODEPress to make the PIP window large or small ( window -> half -> off)•5. MTS ( Multichannel Television Stereo )Press to choose mono, stereo or SAP  (Separate Audio Program) •14. SOURCEPress to select one of the available signal sources for the PIP window.•6. SOUNDPress to change Sound Mode.(Custom -> Standard -> Music -> Movie ->Speech) •15. SWAPExchanges the video signal that is currently displayed on the main screen with the signalin the PIP window.•7. SLEEPPress to choose a preset time interval forautomatic shutoff.  (10min. -> 20min. -> …-> 360 min.) •16. MOVEPress to move the PIP window to any of thefour corners of the screen•8. HELPPress to see the Help message.(Only in OSD menu.)

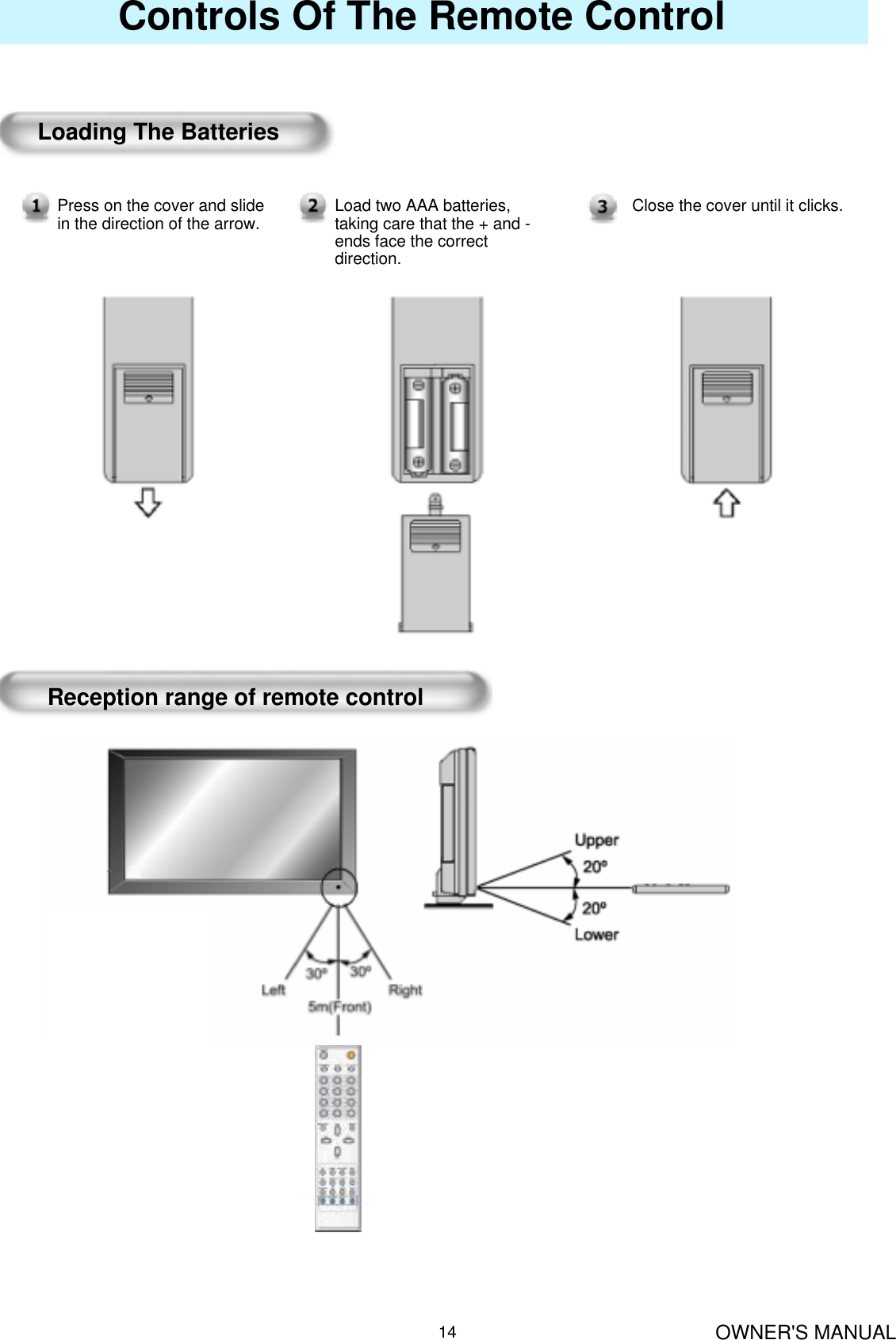

OWNER'S MANUAL14Controls Of The Remote ControlLoading The BatteriesPress on the cover and slidein the direction of the arrow. Load two AAA batteries, taking care that the + and -ends face the correct direction.Close the cover until it clicks.Reception range of remote control

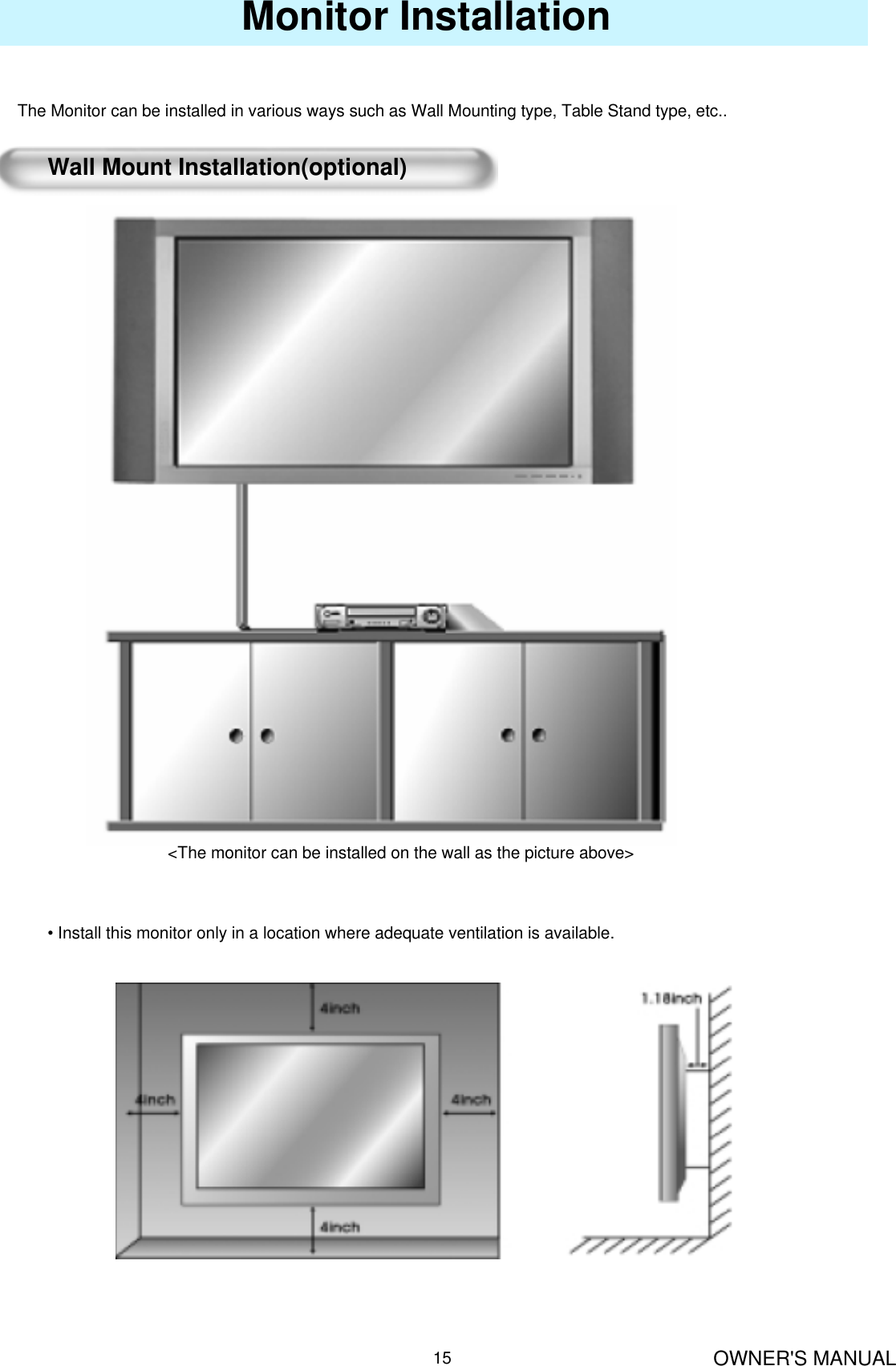

OWNER'S MANUAL15Monitor InstallationThe Monitor can be installed in various ways such as Wall Mounting type, Table Stand type, etc..Wall Mount Installation(optional)<The monitor can be installed on the wall as the picture above>• Install this monitor only in a location where adequate ventilation is available.
OWNER'S MANUAL16Monitor InstallationType-AInstallation►Detach the monitor brackets from the wall mounting bracket:Pull the monitor brackets in the direction shown by arrow 1.Lift the monitor brackets in the direction shown by arrow 2.Lift the monitor brackets off the mounting frame in the direction shown byarrow 3.

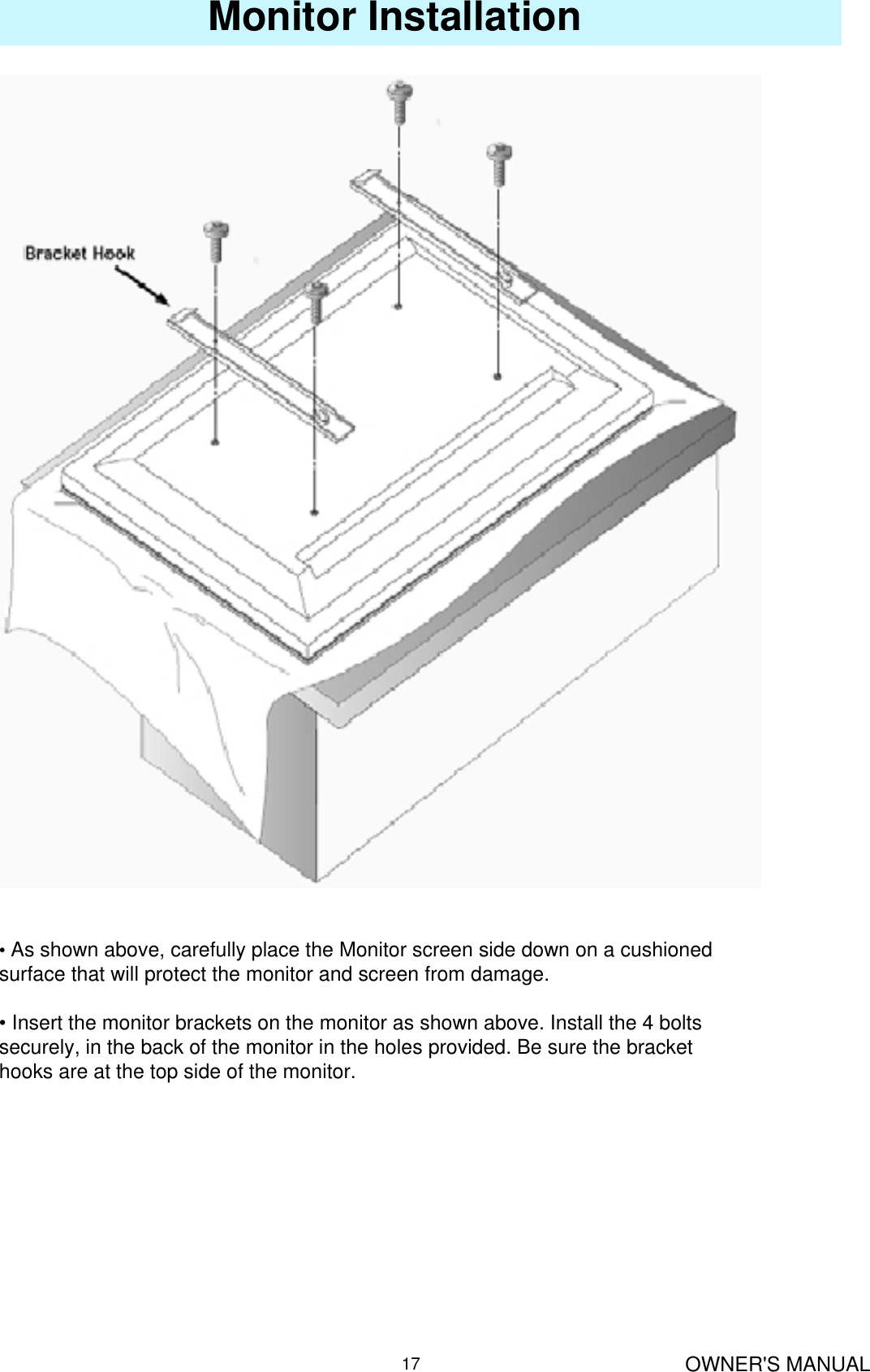

OWNER'S MANUAL17Monitor Installation•As shown above, carefully place the Monitor screen side down on a cushioned surface that will protect the monitor and screen from damage.• Insert the monitor brackets on the monitor as shown above. Install the 4 bolts securely, in the back of the monitor in the holes provided. Be sure the bracket hooks are at the top side of the monitor.

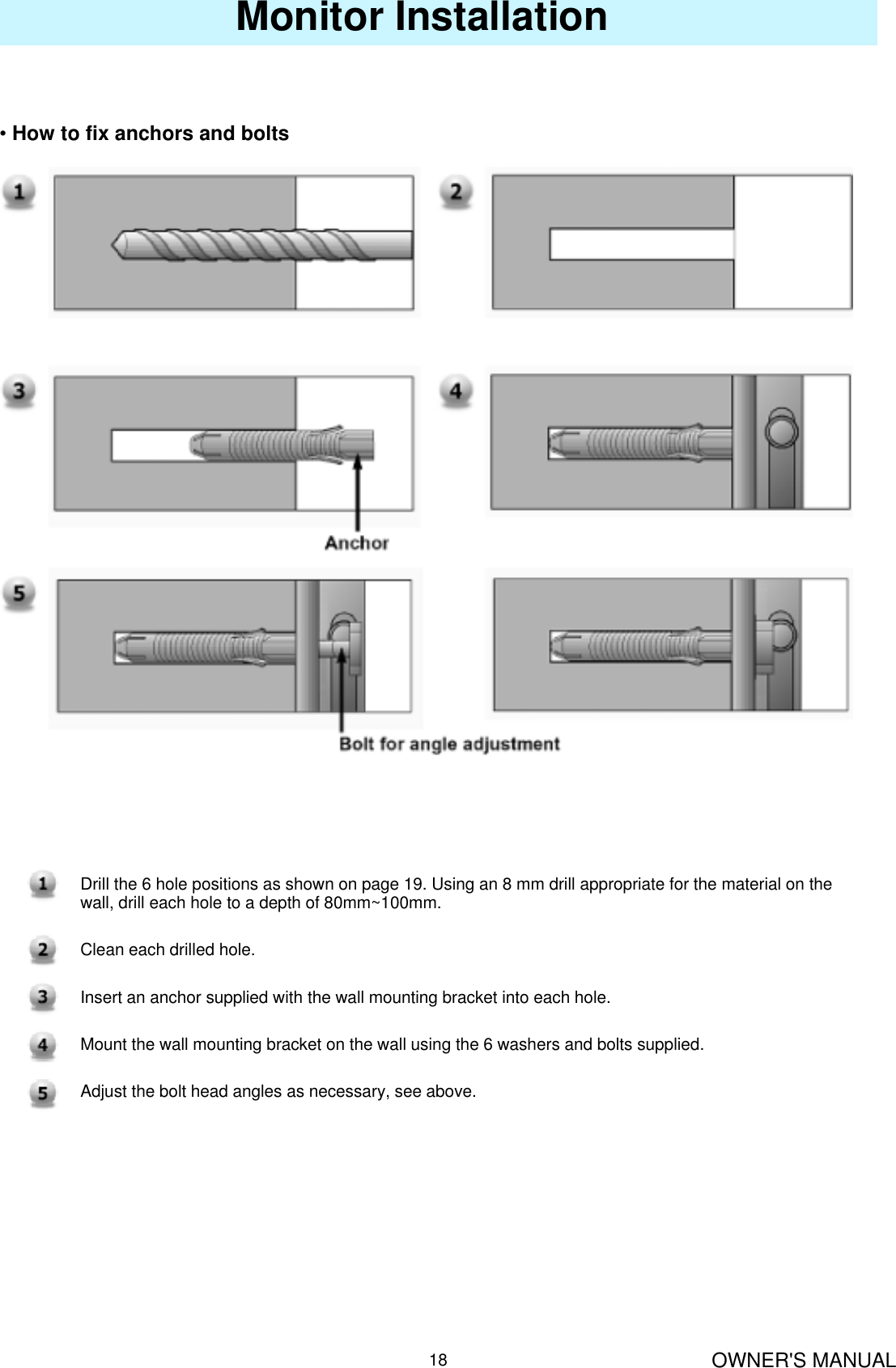

OWNER'S MANUAL18Monitor Installation•How to fix anchors and boltsDrill the 6 hole positions as shown on page 19. Using an 8 mm drill appropriate for the material on thewall, drill each hole to a depth of 80mm~100mm.Clean each drilled hole.Insert an anchor supplied with the wall mounting bracket into each hole.Mount the wall mounting bracket on the wall using the 6 washers and bolts supplied.Adjust the bolt head angles as necessary, see above.

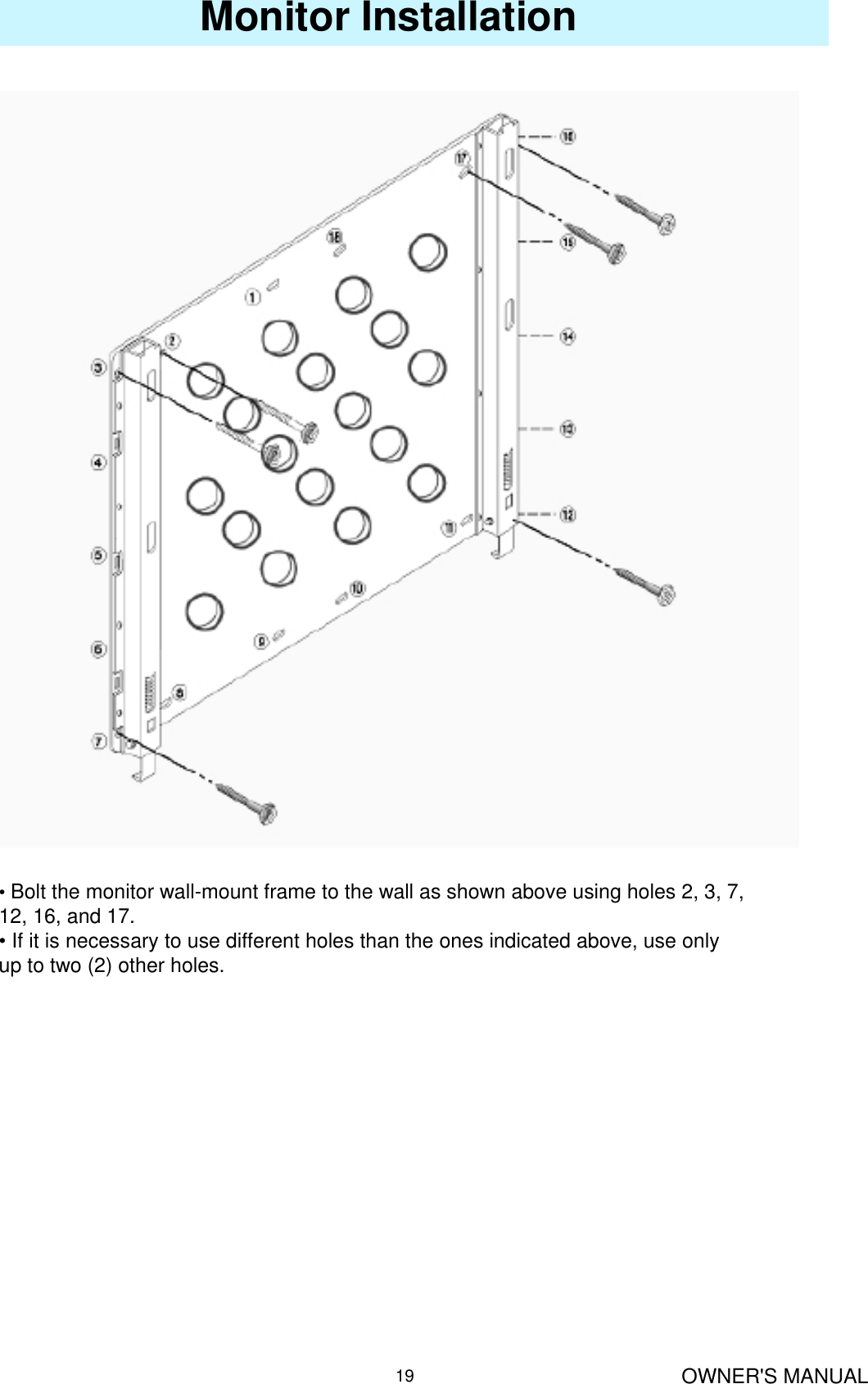

OWNER'S MANUAL19Monitor Installation•Bolt the monitor wall-mount frame to the wall as shown above using holes 2, 3, 7, 12, 16, and 17.• If it is necessary to use different holes than the ones indicated above, use only up to two (2) other holes.

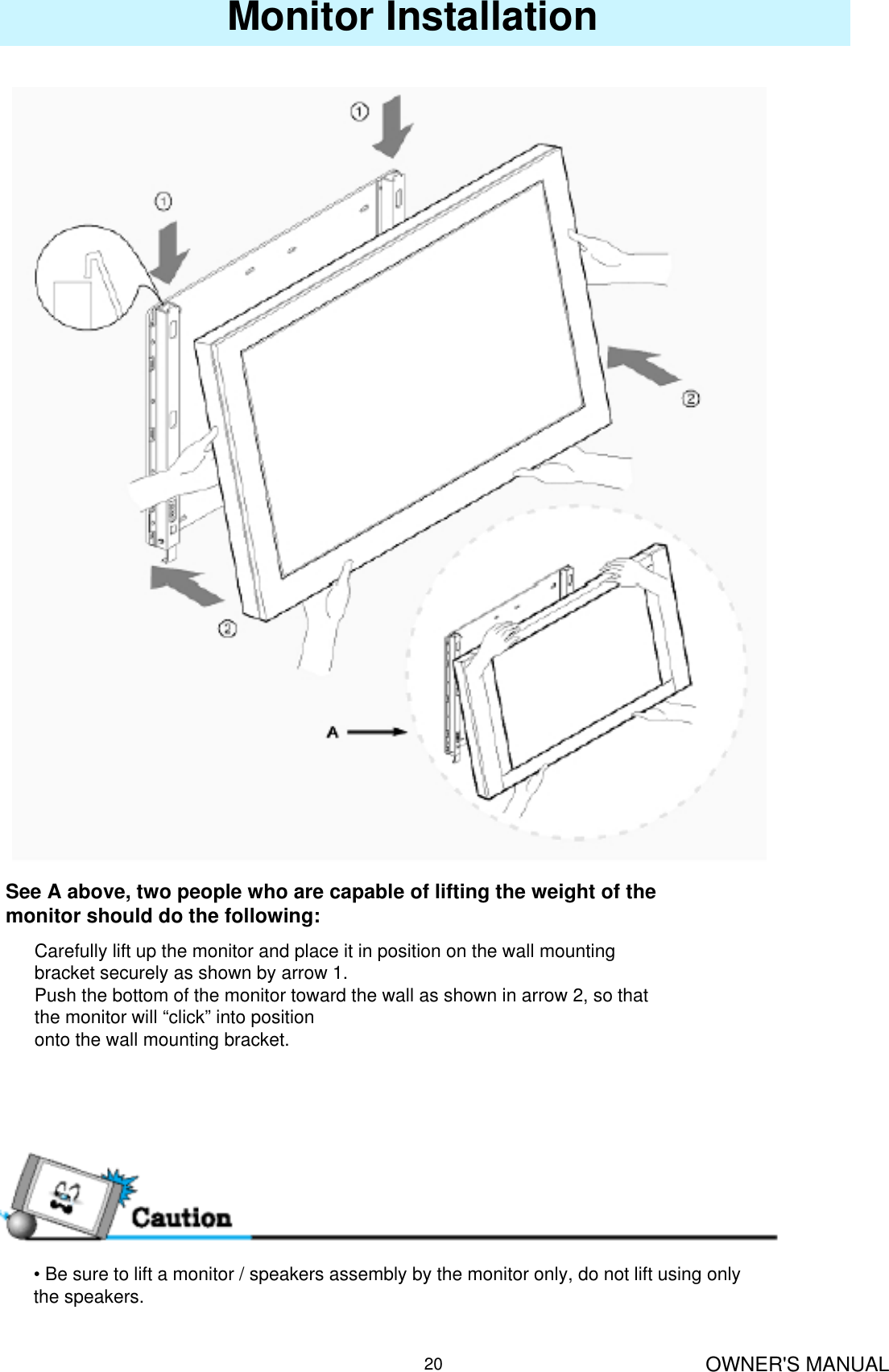

OWNER'S MANUAL20Monitor InstallationSee A above, two people who are capable of lifting the weight of the monitor should do the following:Carefully lift up the monitor and place it in position on the wall mounting bracket securely as shown by arrow 1.Push the bottom of the monitor toward the wall as shown in arrow 2, so that the monitor will “click” into positiononto the wall mounting bracket.• Be sure to lift a monitor / speakers assembly by the monitor only, do not lift using only the speakers.

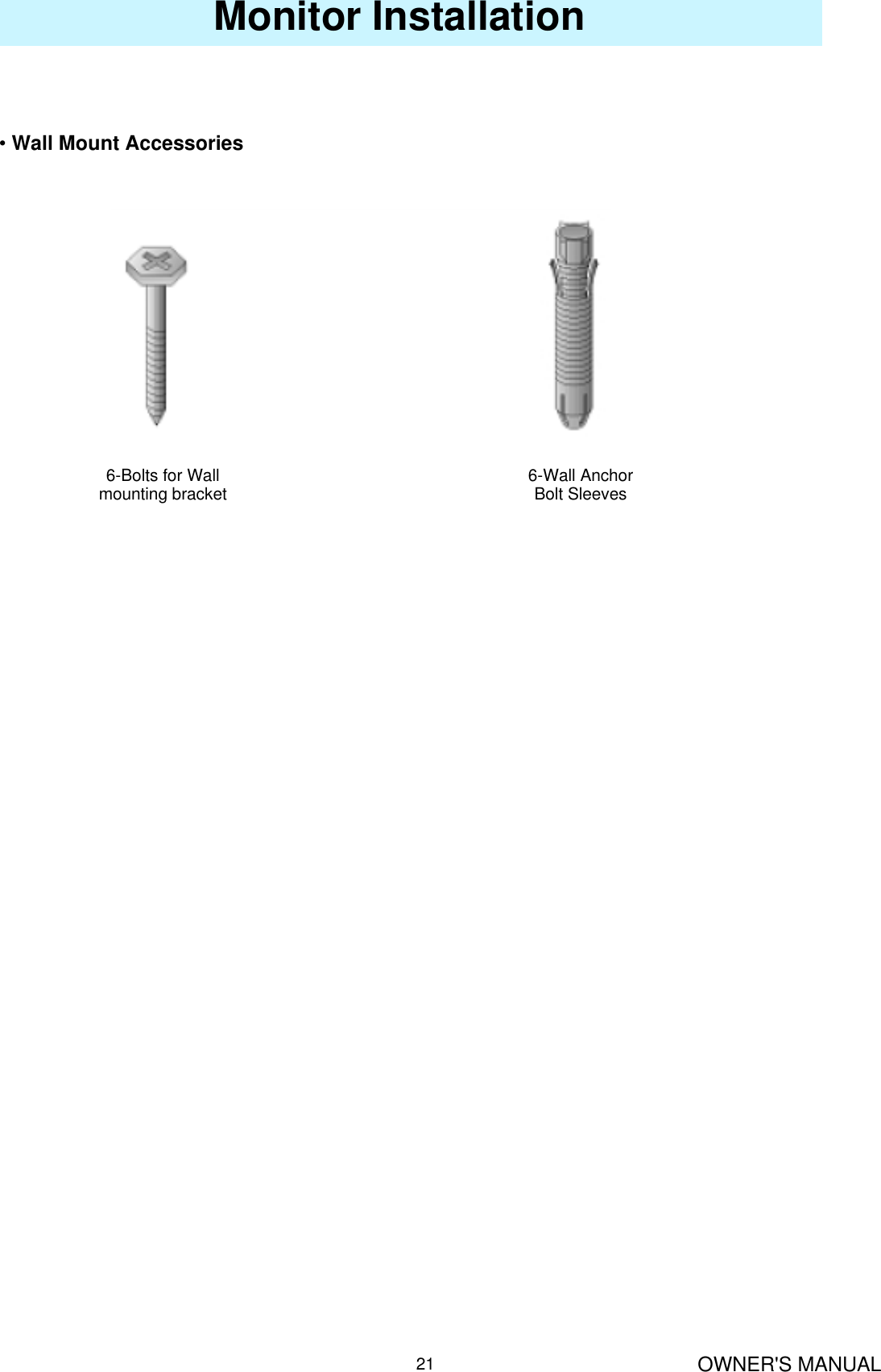

OWNER'S MANUAL21Monitor Installation•Wall Mount Accessories6-Bolts for Wallmounting bracket 6-Wall AnchorBolt Sleeves

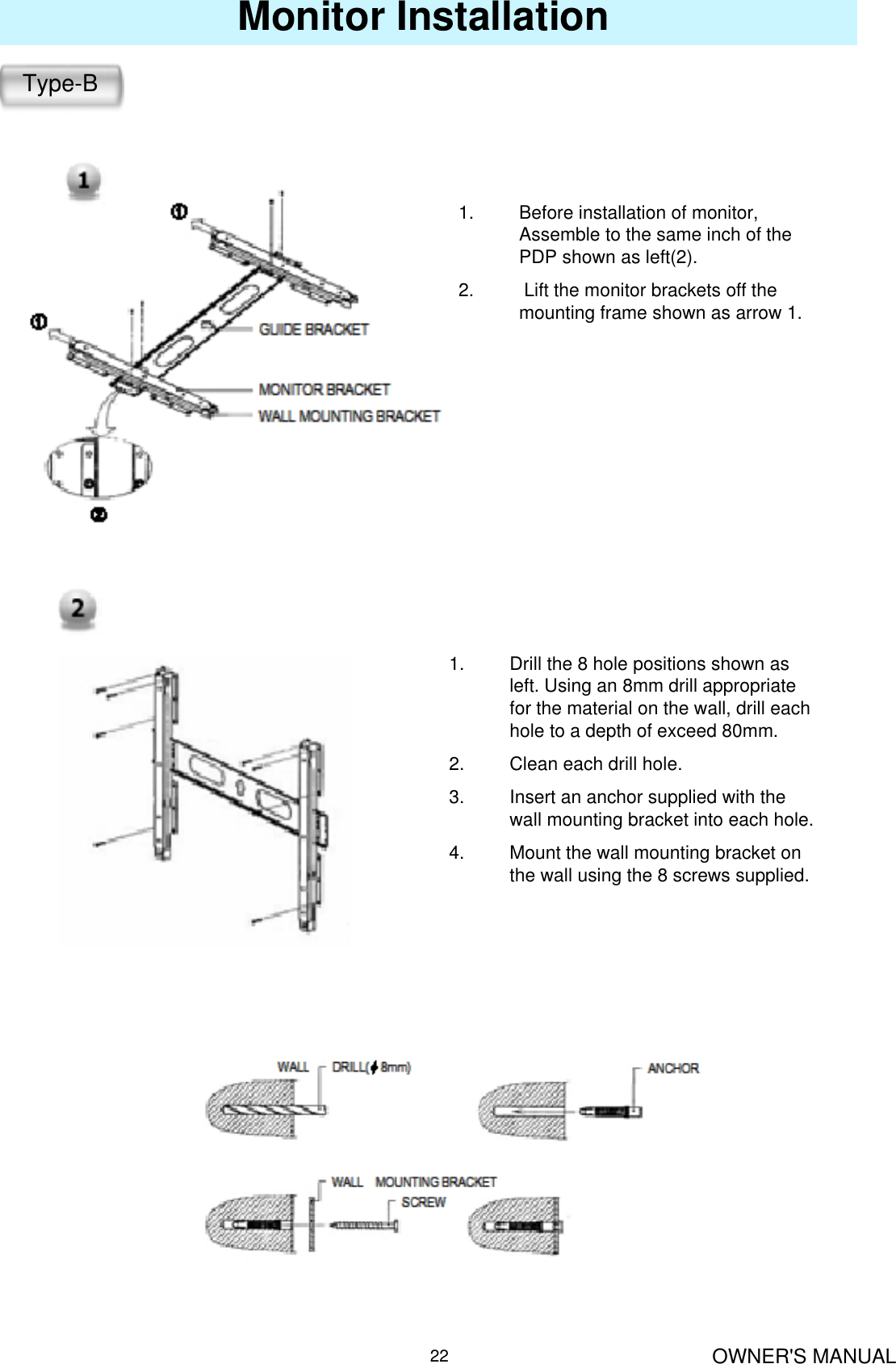

OWNER'S MANUAL22Monitor InstallationType-B1. Before installation of monitor, Assemble to the same inch of the PDP shown as left(2).2. Lift the monitor brackets off the mounting frame shown as arrow 1.1. Drill the 8 hole positions shown as left. Using an 8mm drill appropriate for the material on the wall, drill each hole to a depth of exceed 80mm.2. Clean each drill hole.3. Insert an anchor supplied with the wall mounting bracket into each hole.4. Mount the wall mounting bracket on the wall using the 8 screws supplied.

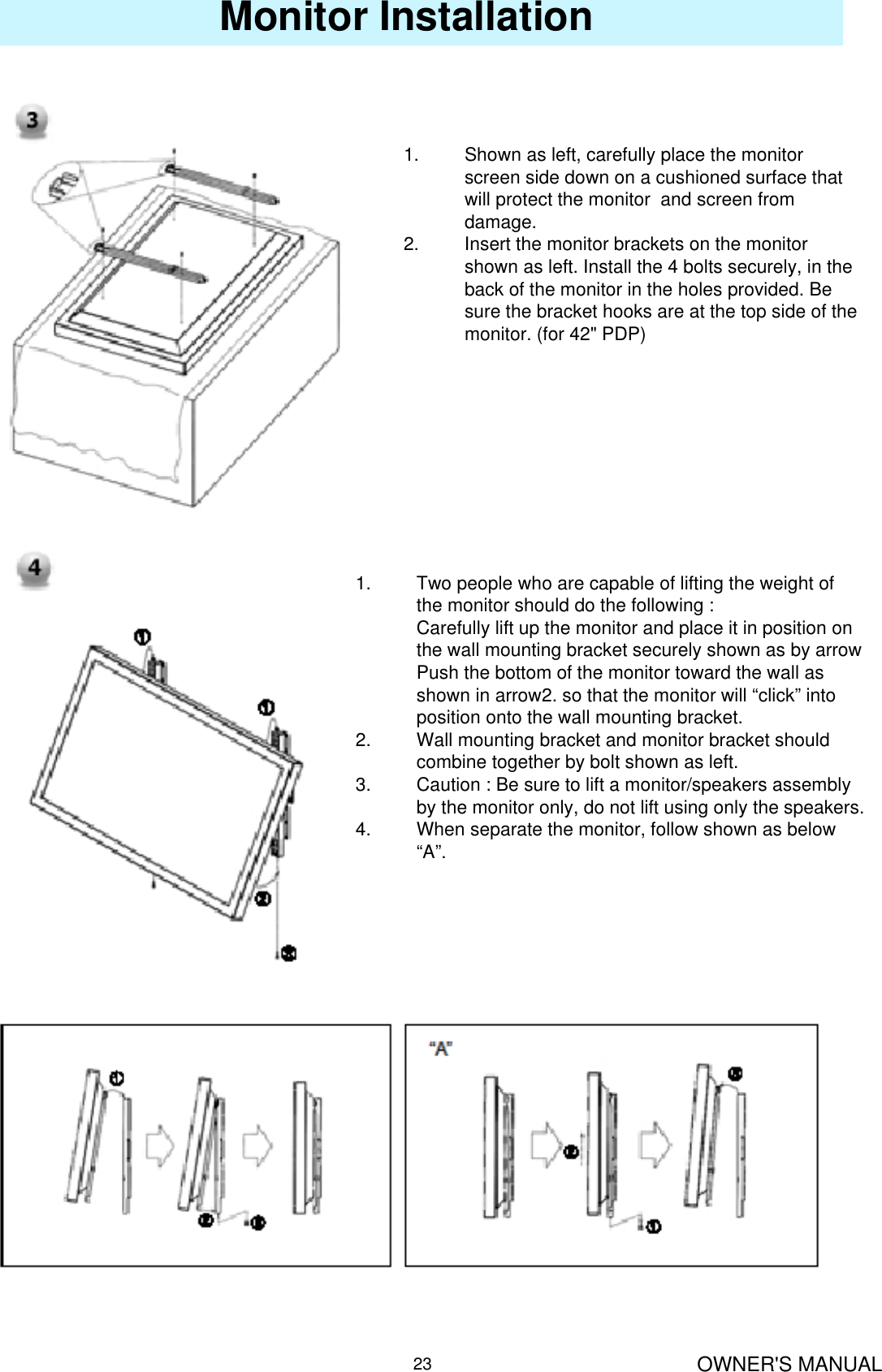

OWNER'S MANUAL23Monitor Installation1. Shown as left, carefully place the monitor screen side down on a cushioned surface that will protect the monitor  and screen from damage.2. Insert the monitor brackets on the monitor shown as left. Install the 4 bolts securely, in the back of the monitor in the holes provided. Be sure the bracket hooks are at the top side of the monitor. (for 42" PDP)1. Two people who are capable of lifting the weight of the monitor should do the following :Carefully lift up the monitor and place it in position on the wall mounting bracket securely shown as by arrow Push the bottom of the monitor toward the wall as shown in arrow2. so that the monitor will “click” into position onto the wall mounting bracket. 2. Wall mounting bracket and monitor bracket should combine together by bolt shown as left.3. Caution : Be sure to lift a monitor/speakers assembly by the monitor only, do not lift using only the speakers.4. When separate the monitor, follow shown as below “A”.

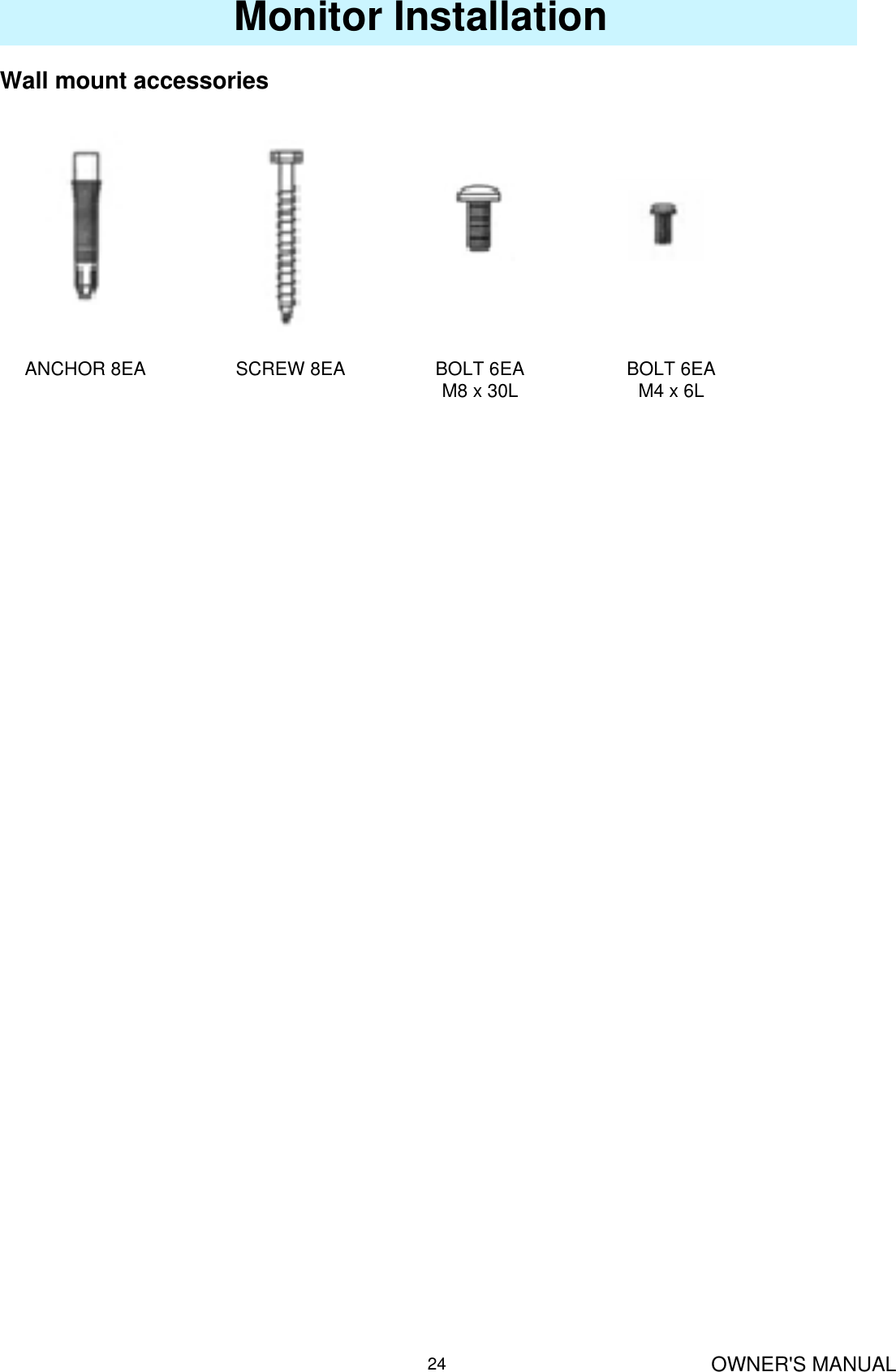

OWNER'S MANUAL24Monitor InstallationWall mount accessoriesANCHOR 8EA SCREW 8EA BOLT 6EAM8 x 30L BOLT 6EAM4 x 6L

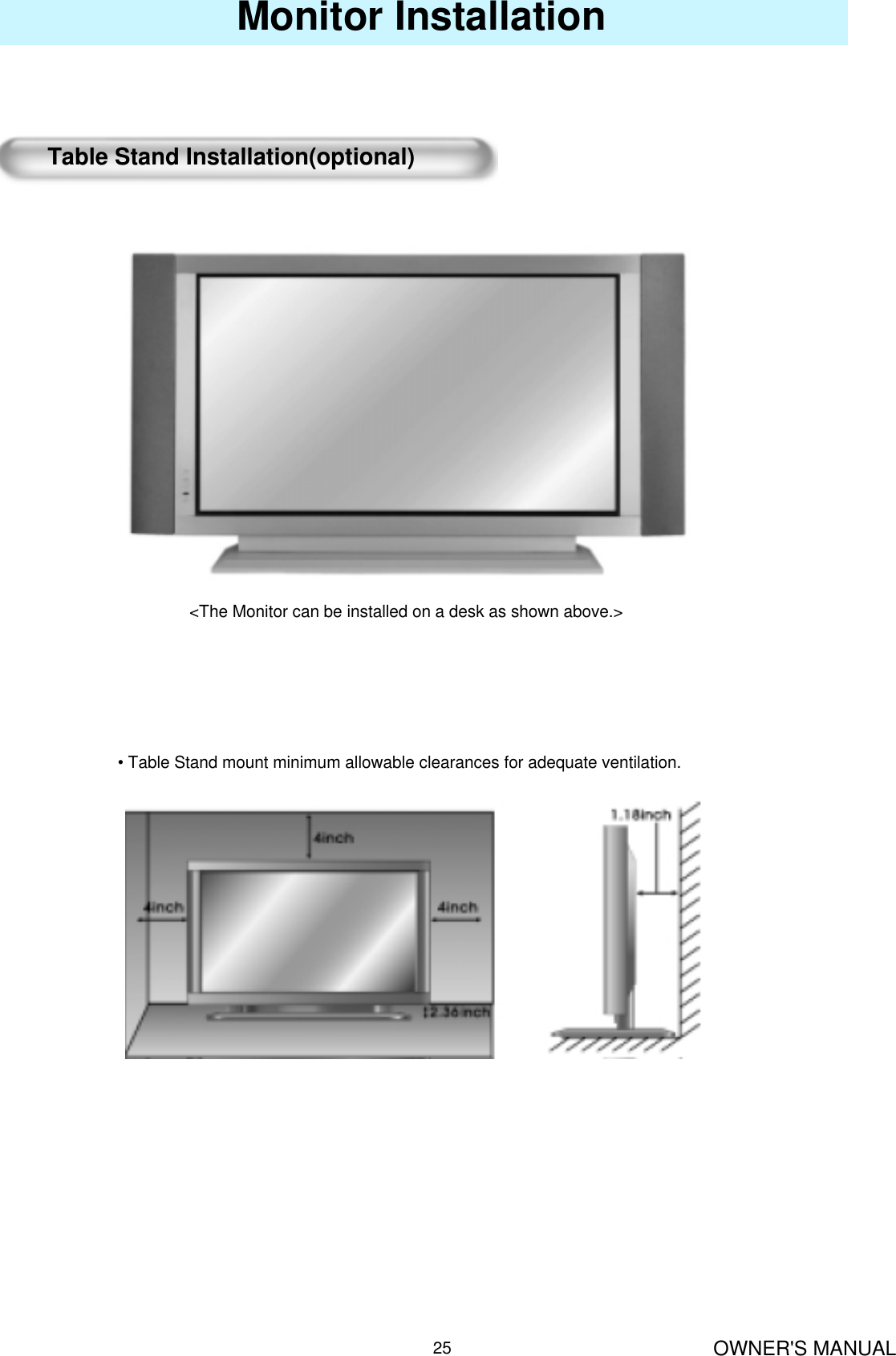

OWNER'S MANUAL25Monitor InstallationTable Stand Installation(optional)<The Monitor can be installed on a desk as shown above.>• Table Stand mount minimum allowable clearances for adequate ventilation.

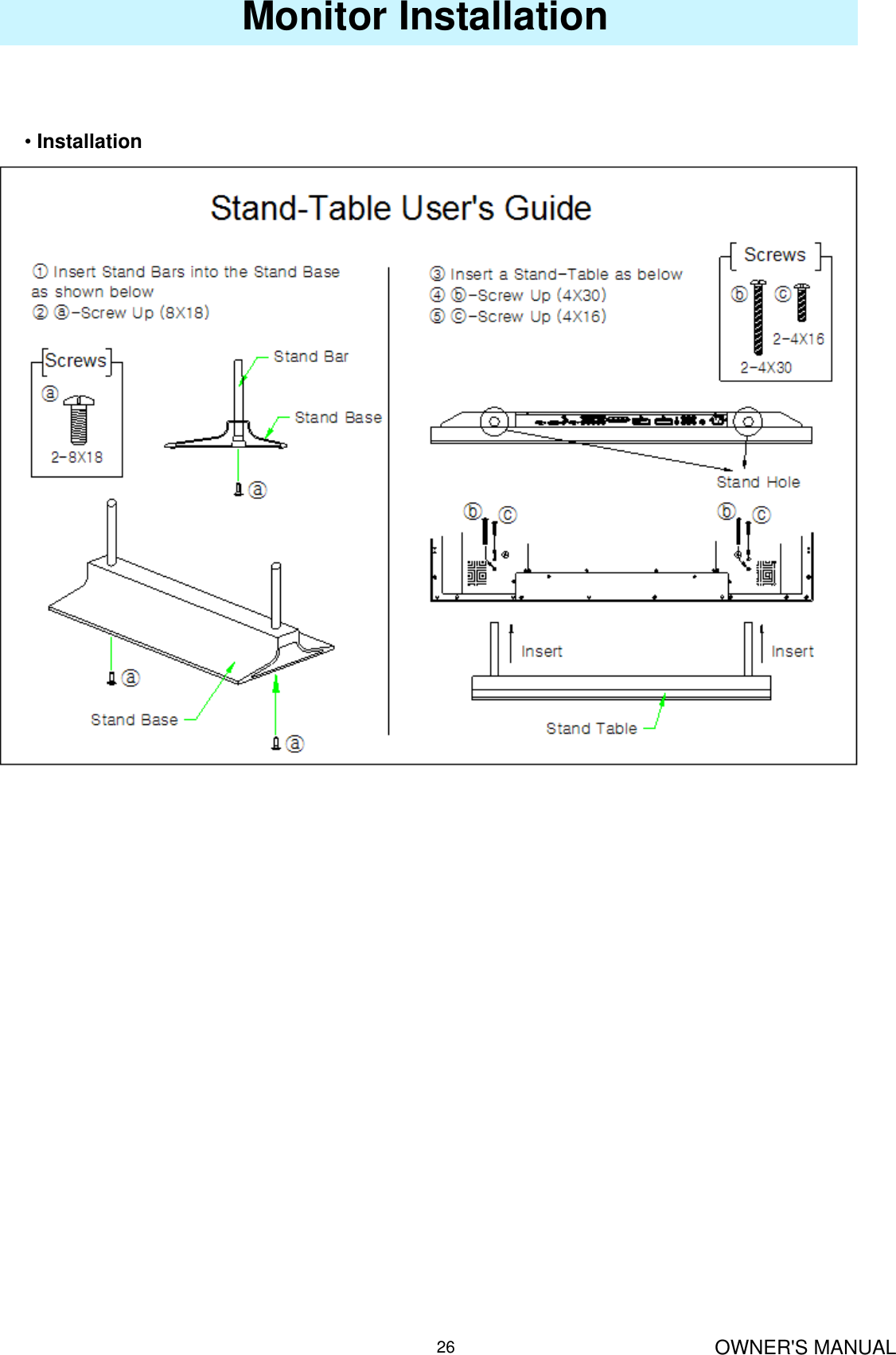

OWNER'S MANUAL26Monitor Installation•Installation

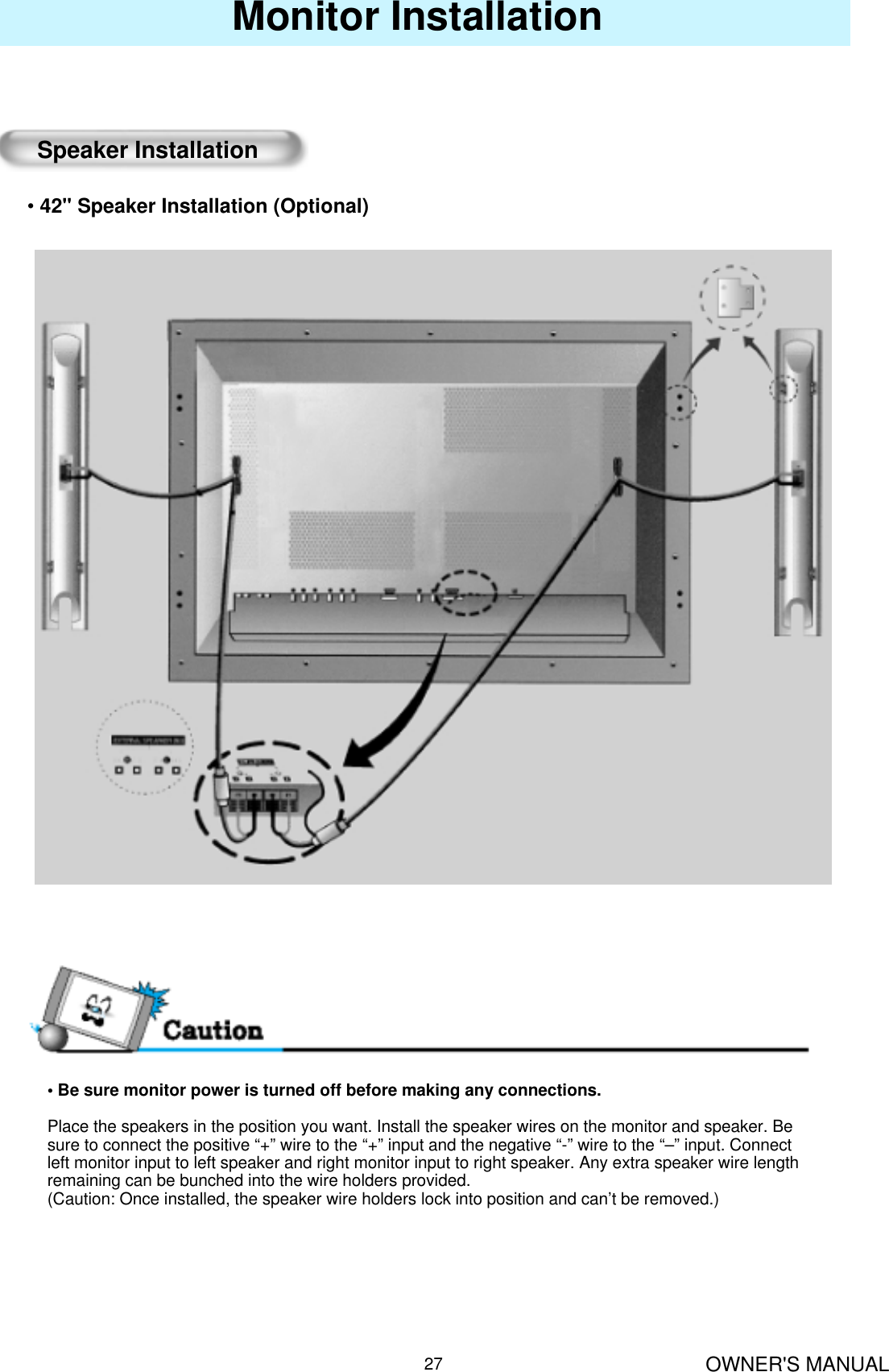

OWNER'S MANUAL27Monitor InstallationSpeaker Installation•42" Speaker Installation (Optional)• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be   sure to connect the positive “+” wire to the “+” input and the negative “-” wire to the “–” input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided.(Caution: Once installed, the speaker wire holders lock into position and can’t be removed.)

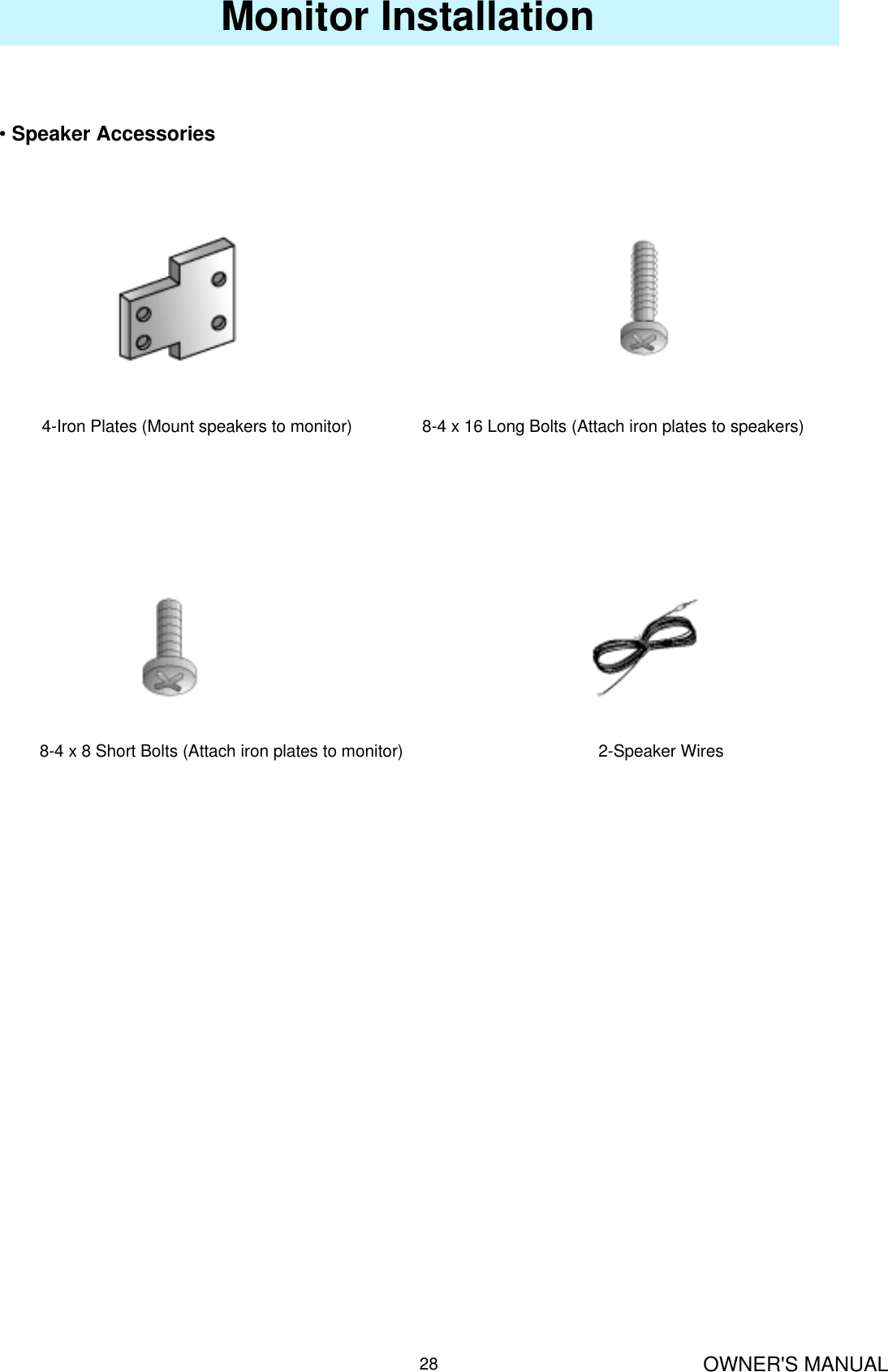

OWNER'S MANUAL28Monitor Installation•Speaker Accessories4-Iron Plates (Mount speakers to monitor)               8-4 x 16 Long Bolts (Attach iron plates to speakers) 8-4 x 8 Short Bolts (Attach iron plates to monitor)                  2-Speaker Wires

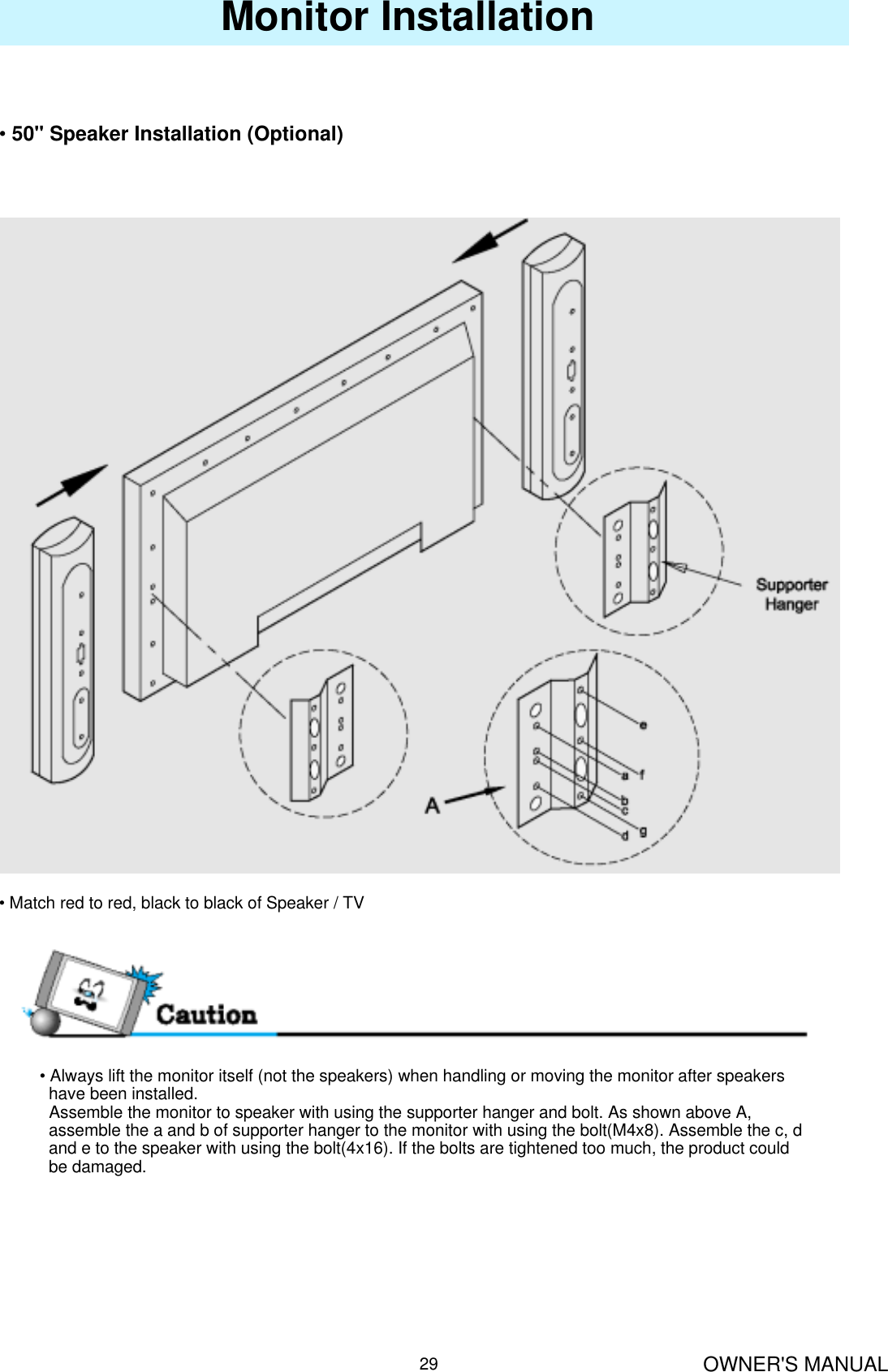

OWNER'S MANUAL29Monitor Installation•50" Speaker Installation (Optional)• Match red to red, black to black of Speaker / TV• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed. Assemble the monitor to speaker with using the supporter hanger and bolt. As shown above A,   assemble the a and b of supporter hanger to the monitor with using the bolt(M4x8). Assemble the c, d  and e to the speaker with using the bolt(4x16). If the bolts are tightened too much, the product could be damaged.

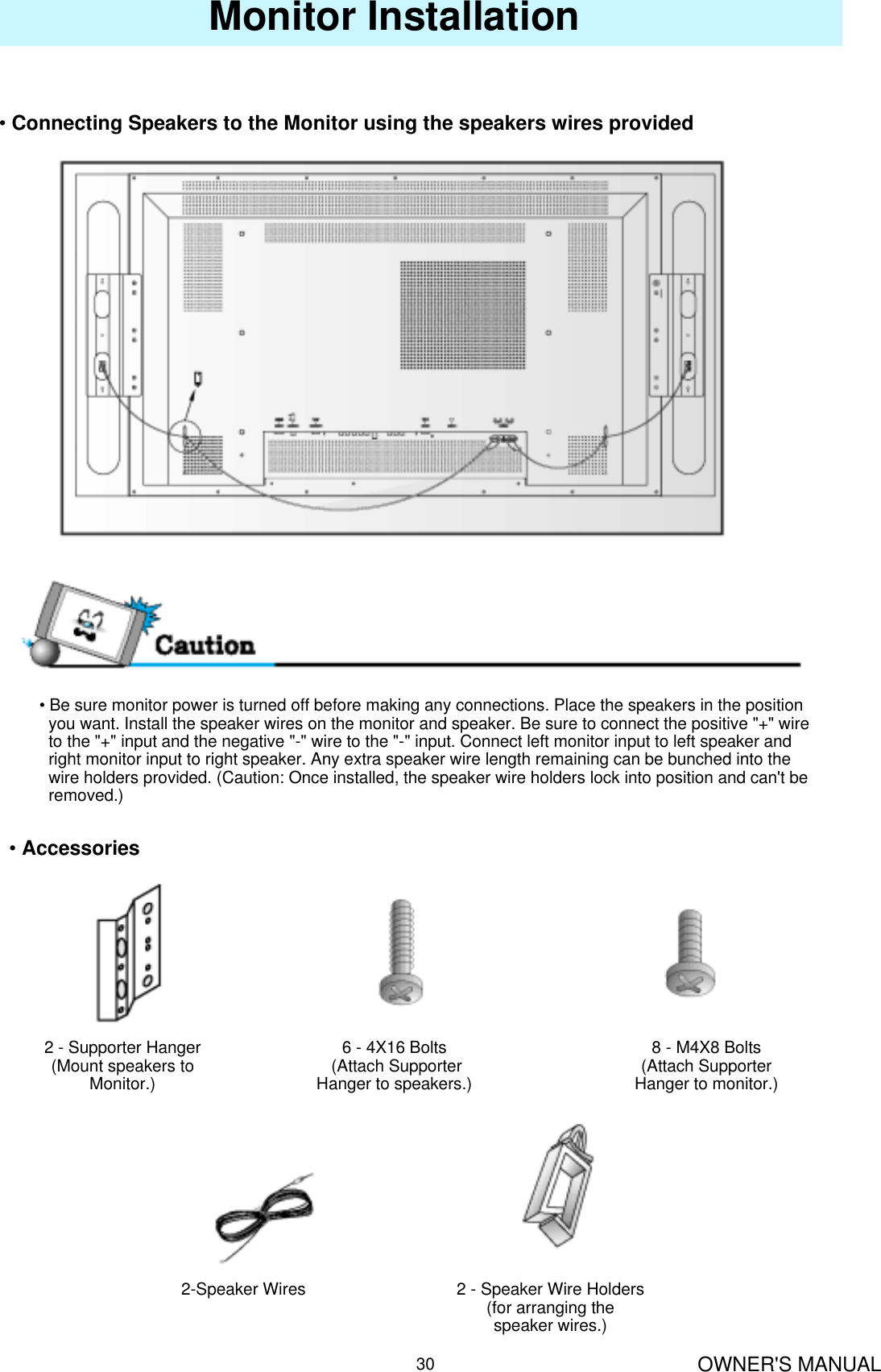

OWNER'S MANUAL30Monitor Installation•Connecting Speakers to the Monitor using the speakers wires provided• Be sure monitor power is turned off before making any connections. Place the speakers in the positionyou want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the  wire holders provided. (Caution: Once installed, the speaker wire holders lock into position and can't be removed.)•Accessories2 - Supporter Hanger(Mount speakers to Monitor.)8 - M4X8 Bolts (Attach Supporter Hanger to monitor.)6 - 4X16 Bolts(Attach Supporter Hanger to speakers.)2-Speaker Wires 2 - Speaker Wire Holders (for arranging the speaker wires.)

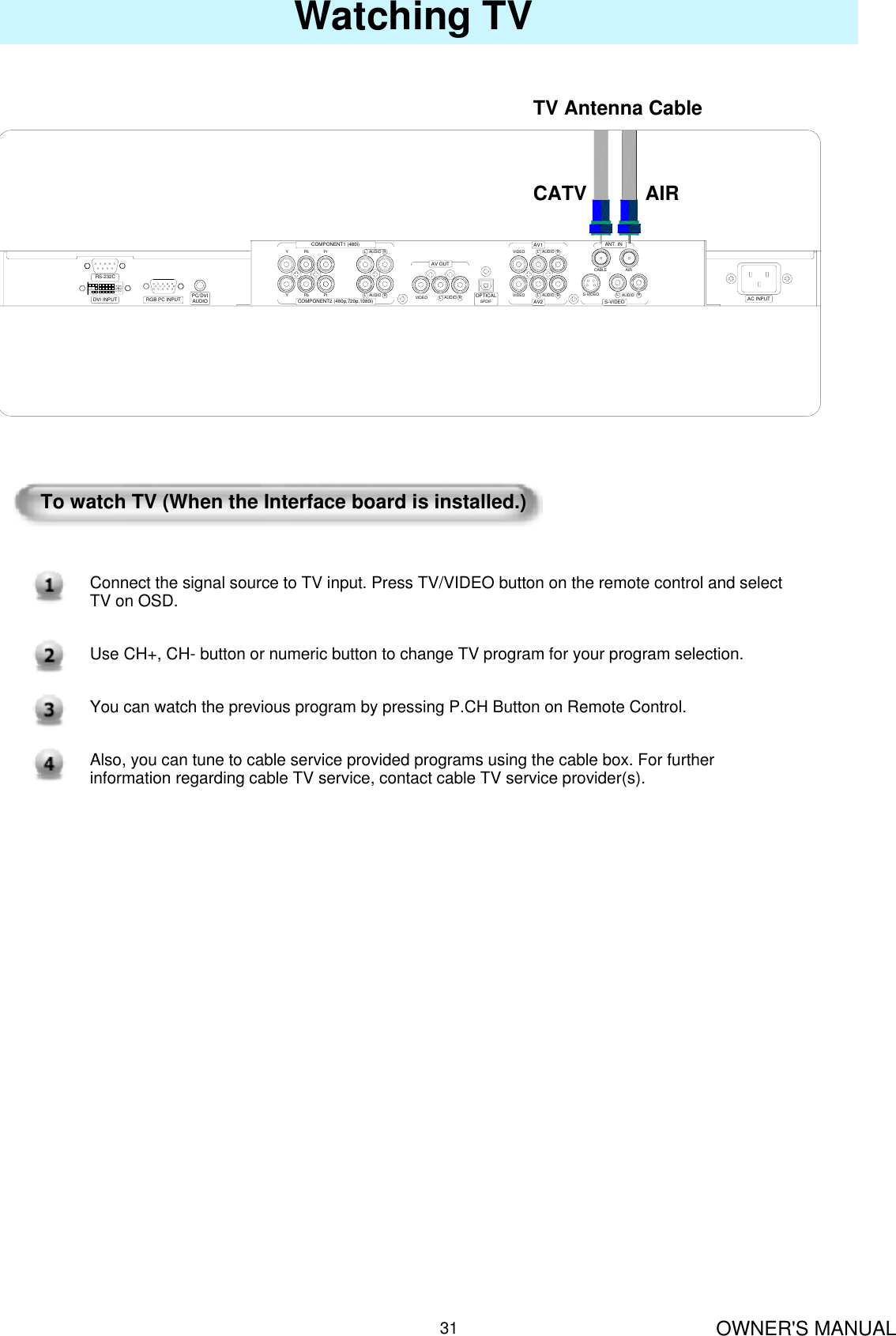

OWNER'S MANUAL31RGB PC INPUTDVI INPUTCABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAC INPUTRS-232CPC/DVIAUDIO AV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720p,1080i)COMPONENT1 (480i)AV OUTTV Antenna CableCATV AIRWatching TVTo watch TV (When the Interface board is installed.)Connect the signal source to TV input. Press TV/VIDEO button on the remote control and select TV on OSD.Use CH+, CH- button or numeric button to change TV program for your program selection.You can watch the previous program by pressing P.CH Button on Remote Control.Also, you can tune to cable service provided programs using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).

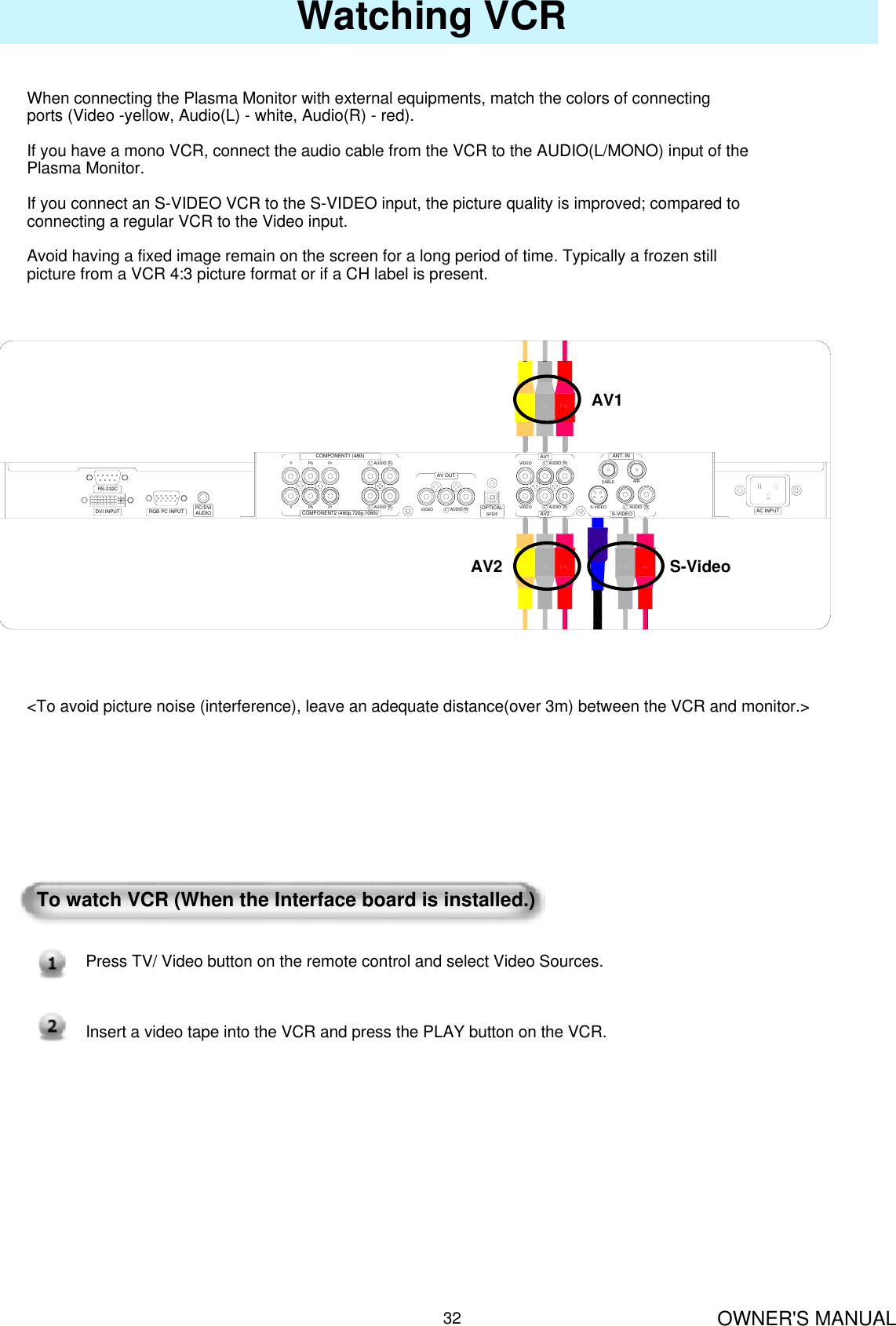

OWNER'S MANUAL32Watching VCRAC INPUTRS-232CRGB PC INPUTDVI INPUTCABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720p,1080i)COMPONENT1 (480i)AV OUTPC/DVIAUDIOAV1AV2 S-VideoWhen connecting the Plasma Monitor with external equipments, match the colors of connecting ports (Video -yellow, Audio(L) - white, Audio(R) - red).If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the Plasma Monitor.If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR to the Video input.Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR 4:3 picture format or if a CH label is present.<To avoid picture noise (interference), leave an adequate distance(over 3m) between the VCR and monitor.>To watch VCR (When the Interface board is installed.)Press TV/ Video button on the remote control and select Video Sources. Insert a video tape into the VCR and press the PLAY button on the VCR.

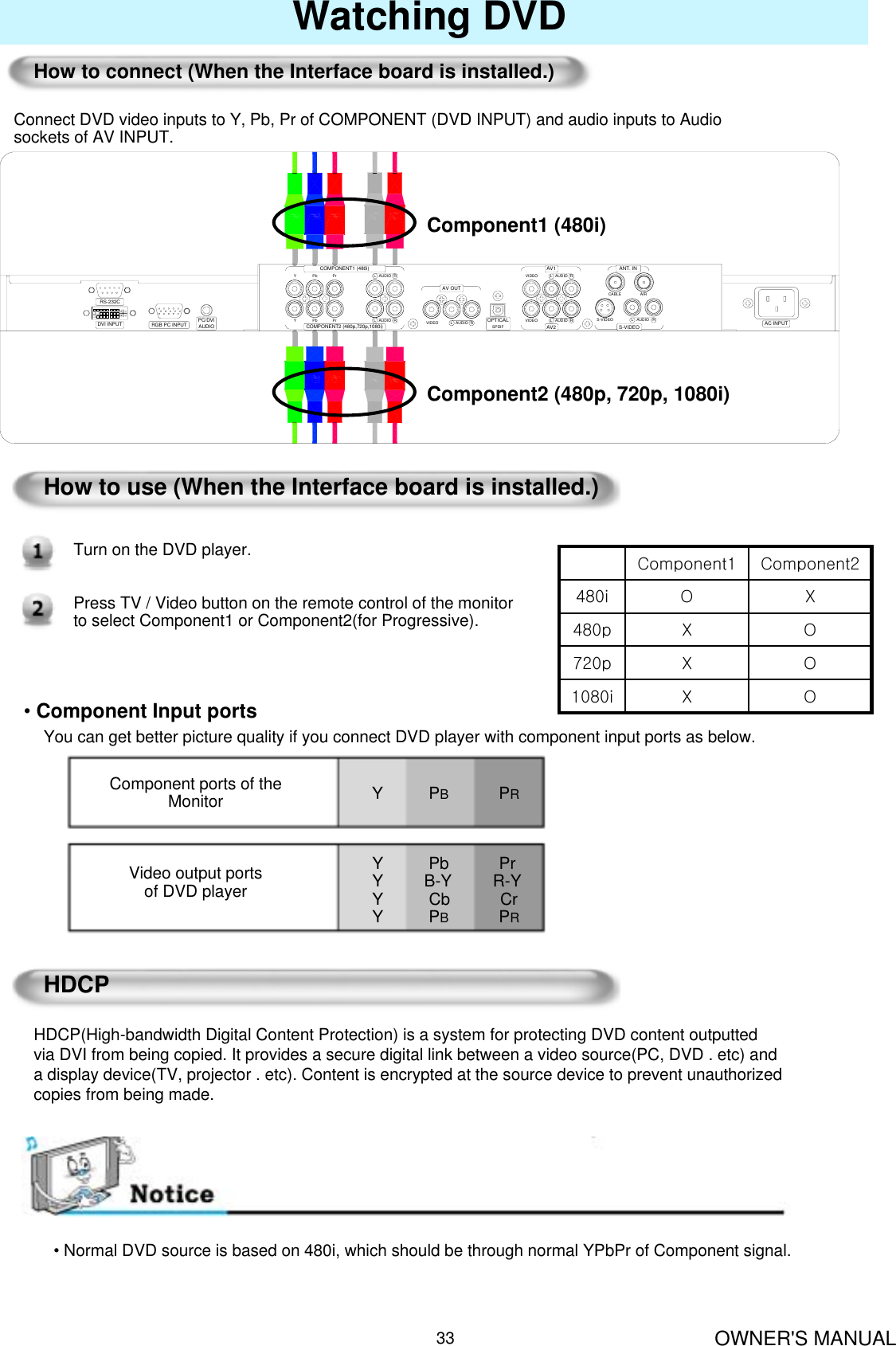

OWNER'S MANUAL33Watching DVDHow to connect (When the Interface board is installed.)AC INPUTRS-232CRGB PC INPUTDVI INPUTCABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720p,1080i)COMPONENT1 (480i)AV OUTPC/DVIAUDIOConnect DVD video inputs to Y, Pb, Pr of COMPONENT (DVD INPUT) and audio inputs to Audio sockets of AV INPUT. Component1 (480i)Component2 (480p, 720p, 1080i)How to use (When the Interface board is installed.)Turn on the DVD player.Press TV / Video button on the remote control of the monitor to select Component1 or Component2(for Progressive).OX1080iOX720pOX480pXO480iComponent2Component1•Component Input portsYou can get better picture quality if you connect DVD player with component input ports as below.Component ports of theMonitorVideo output portsof DVD playerY          PBPRY          Pb           PrY         B-Y         R-YY          Cb           CrY          PBPRHDCPHDCP(High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source(PC, DVD . etc) and a display device(TV, projector . etc). Content is encrypted at the source device to prevent unauthorized copies from being made.• Normal DVD source is based on 480i, which should be through normal YPbPr of Component signal.

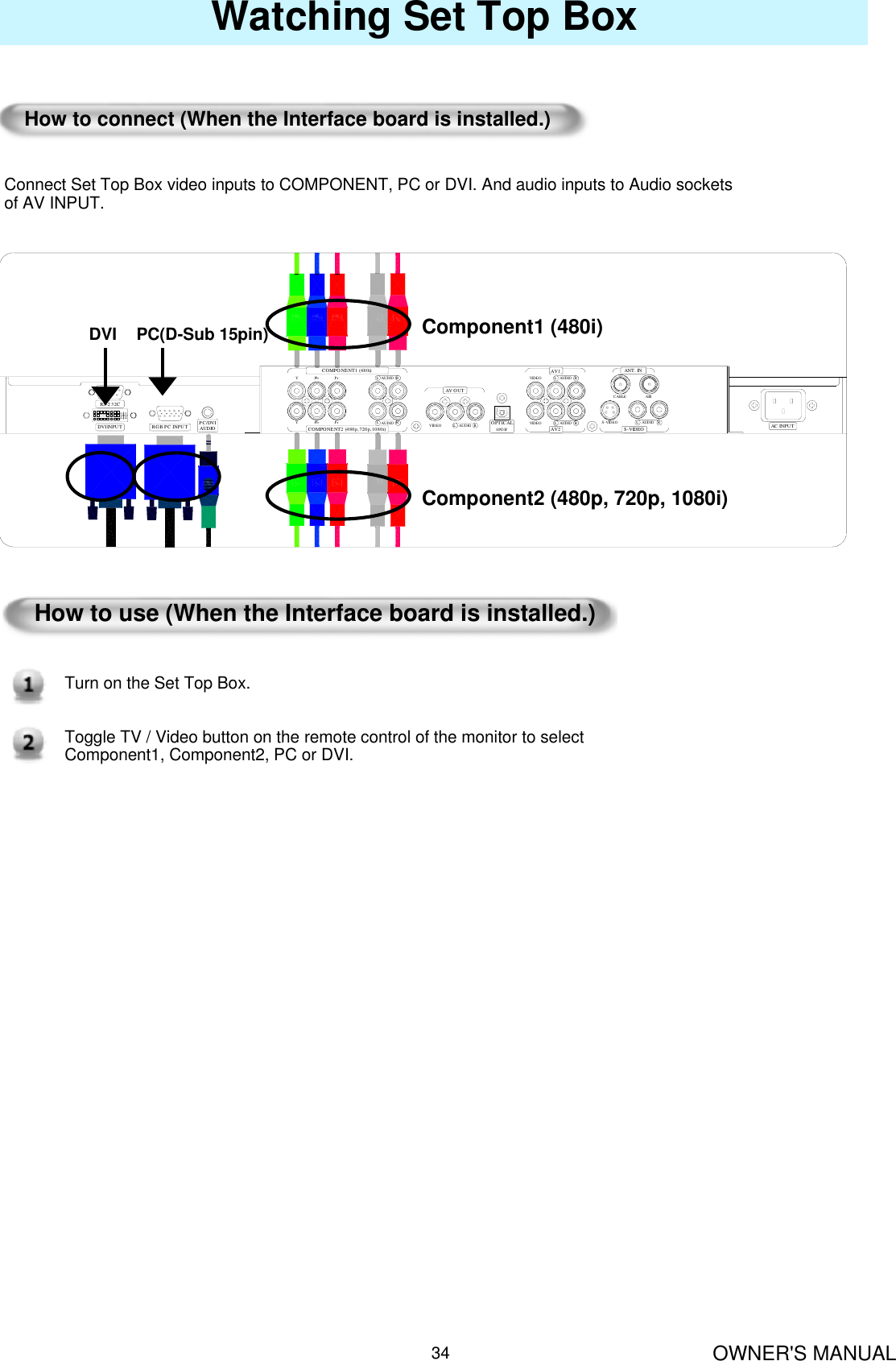

OWNER'S MANUAL34Watching Set Top BoxHow to connect (When the Interface board is installed.)Connect Set Top Box video inputs to COMPONENT, PC or DVI. And audio inputs to Audio sockets of AV INPUT. AC INPU TRS-2 32CRGB PC INPUTDVIINPUTCABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720 p,1080i)COMPO NENT1 (480i)AV OUTPC/DVIAUDIOComponent1 (480i)Component2 (480p, 720p, 1080i)PC(D-Sub 15pin)DVIHow to use (When the Interface board is installed.)Turn on the Set Top Box.Toggle TV / Video button on the remote control of the monitor to select Component1, Component2, PC or DVI.
OWNER'S MANUAL35AC INPUTRS-232CRGB PC INPUTDVI INPUT PC/DVIAUDIOCABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720p,1080i)COMPONENT1 (480i)AV OUTPC (D-Sub 15pin)Connecting The PCYou can enjoy vivid picture and sound with connecting a PC with the Monitor.XConnecting a PC to the PDP• Connect a PC (15pin) cable between the Video Output jack on the PC and the RGB (480i/p, 720p, 1080i) in  (15p D-SUB) on the PDP. XPin Configuration• 15Pin Signal Cable (based on protruded pin)XTo watch the PC screen1. Turn on PDP and press TV/VIDEOButton to select the PC MODE2. Turn on PC and check for PC requirements3. Adjust the PC screen CABLE AIRYPrPb RAUDIOLRAUDIOLRAUDIOLRAUDIOLVIDEO VIDEO S-VIDEOYPrPb RAUDIOLRAUDIOLVIDEOANT. INAV2AV1S-VIDEOOPTICALSPDIFCOMPONENT2 (480p,720p,1080i)COMPONENT1 (480i)AV OUTPC/DVIAUDIO AC INPUTRS-232CRGB PC INPUTDVI INPUTDVIRed (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Description
OWNER'S MANUAL36Displayable Monitor SpecificationResolution Horizontal Frequency (KHz)                      Vertical Frequency (Hz)• Synchronization input form : separate• 852 x 480 : 42" Native ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)• 1366 x 768 : 50" Native ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)•The PDP operates abnormally if a non-standard video  format is selected.•Depending on the manufacturer, your PC screen might appear differently.(and depending on your particular version of Windows).Check your PC instruction book for information about  connecting your PC to a PDP.

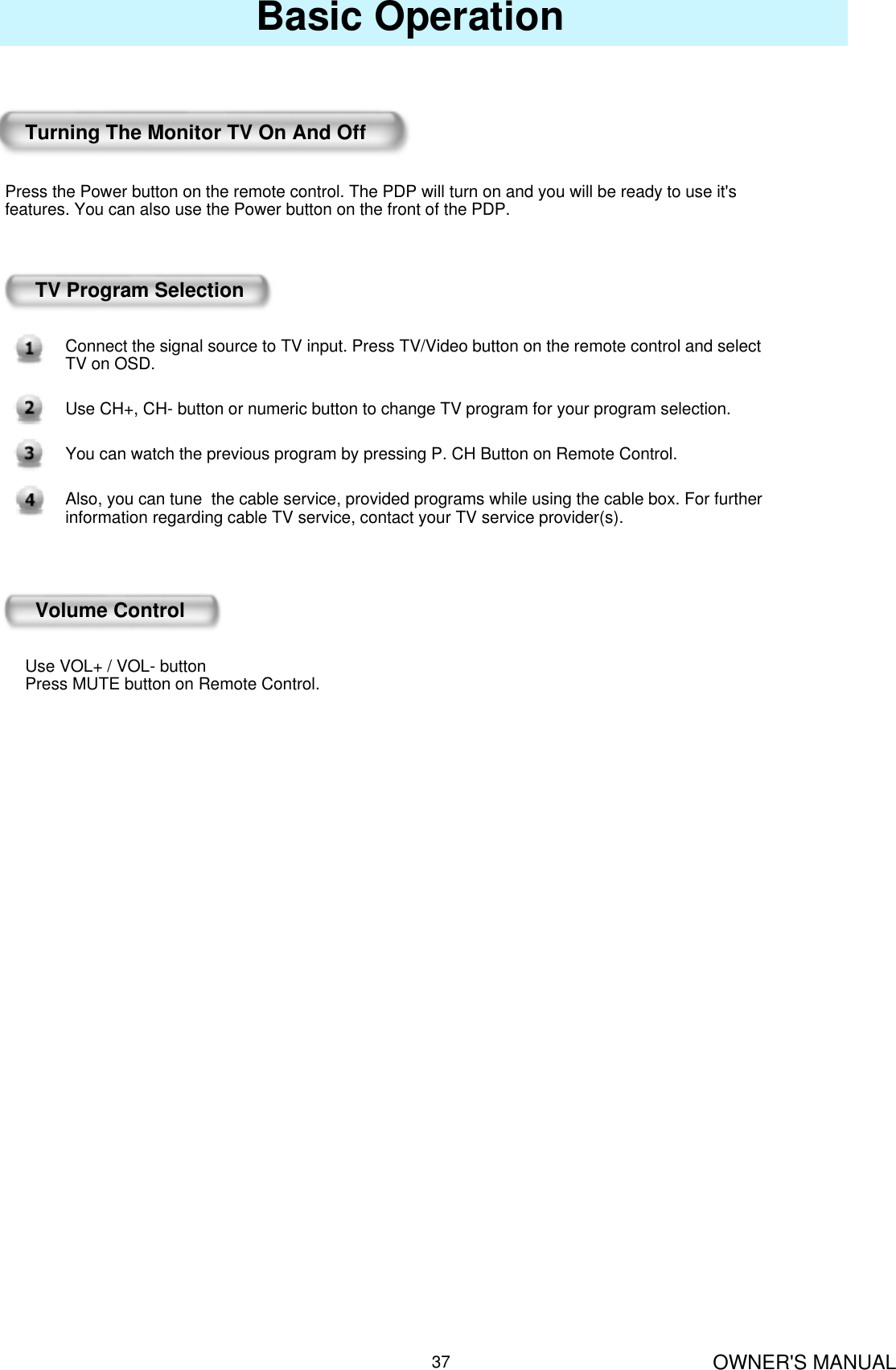

OWNER'S MANUAL37Basic OperationTurning The Monitor TV On And OffPress the Power button on the remote control. The PDP will turn on and you will be ready to use it's features. You can also use the Power button on the front of the PDP.TV Program SelectionConnect the signal source to TV input. Press TV/Video button on the remote control and select TV on OSD.Use CH+, CH- button or numeric button to change TV program for your program selection.You can watch the previous program by pressing P. CH Button on Remote Control.Also, you can tune  the cable service, provided programs while using the cable box. For further information regarding cable TV service, contact your TV service provider(s).Volume ControlUse VOL+ / VOL- buttonPress MUTE button on Remote Control.

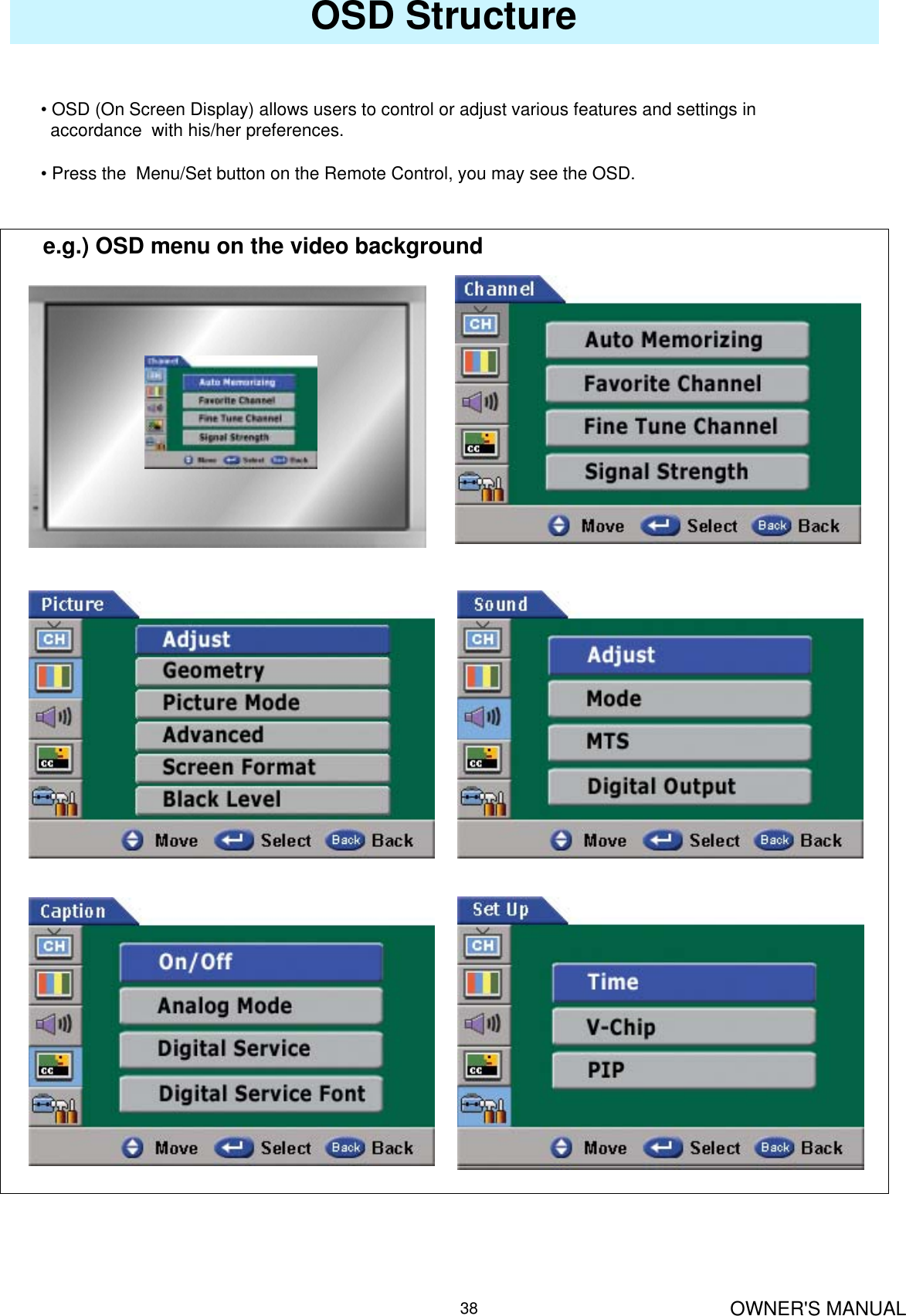

OWNER'S MANUAL38OSD Structure• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance  with his/her preferences. • Press the  Menu/Set button on the Remote Control, you may see the OSD.e.g.) OSD menu on the video background

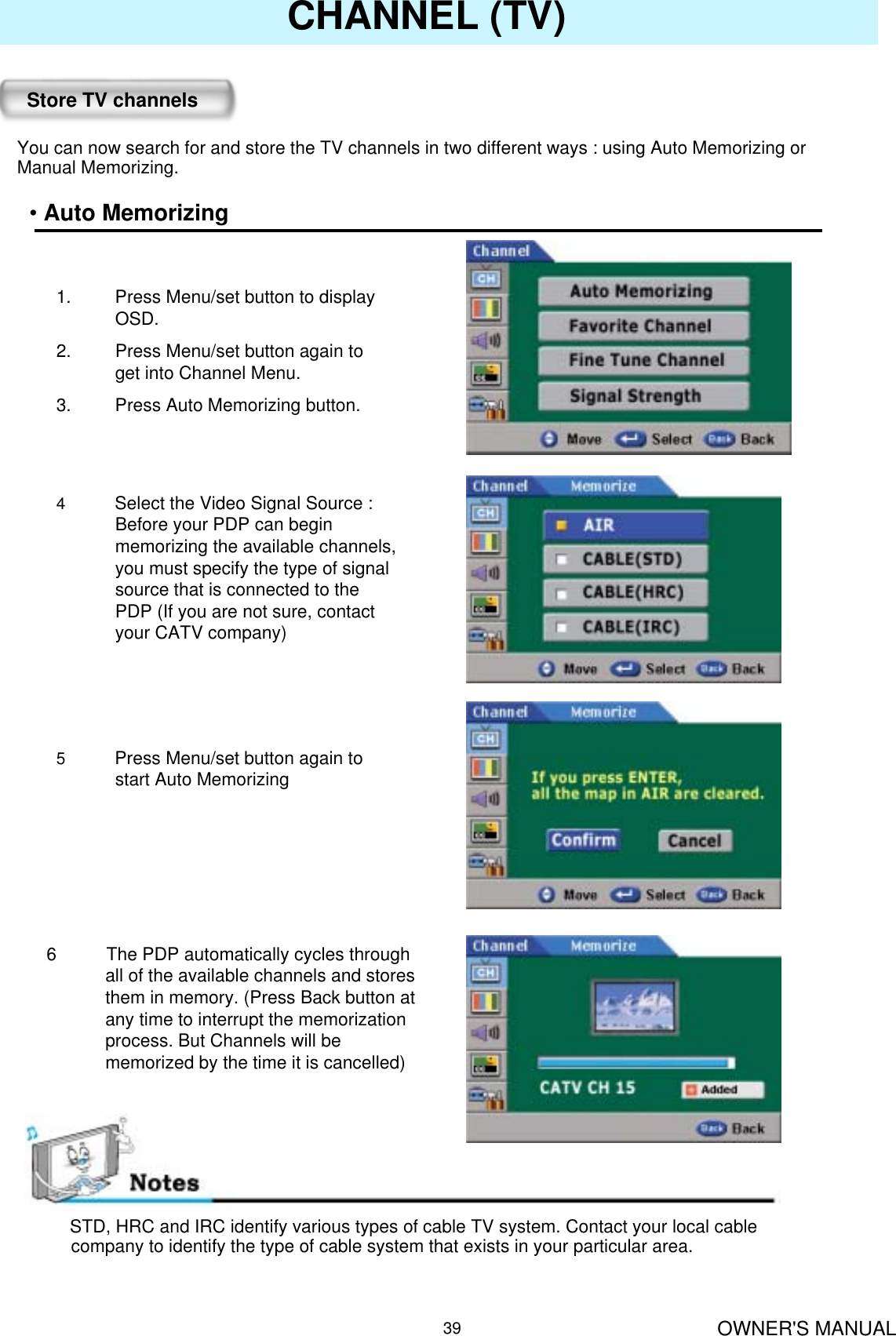

OWNER'S MANUAL39CHANNEL (TV)Store TV channelsYou can now search for and store the TV channels in two different ways : using Auto Memorizing or Manual Memorizing.•Auto Memorizing1. Press Menu/set button to display OSD.2. Press Menu/set button again to get into Channel Menu.3. Press Auto Memorizing button.4           Select the Video Signal Source : Before your PDP can begin memorizing the available channels, you must specify the type of signal source that is connected to the PDP (If you are not sure, contact your CATV company)5           Press Menu/set button again to start Auto Memorizing6  The PDP automatically cycles through all of the available channels and stores them in memory. (Press Back button at any time to interrupt the memorization process. But Channels will be memorized by the time it is cancelled)STD, HRC and IRC identify various types of cable TV system. Contact your local cablecompany to identify the type of cable system that exists in your particular area.

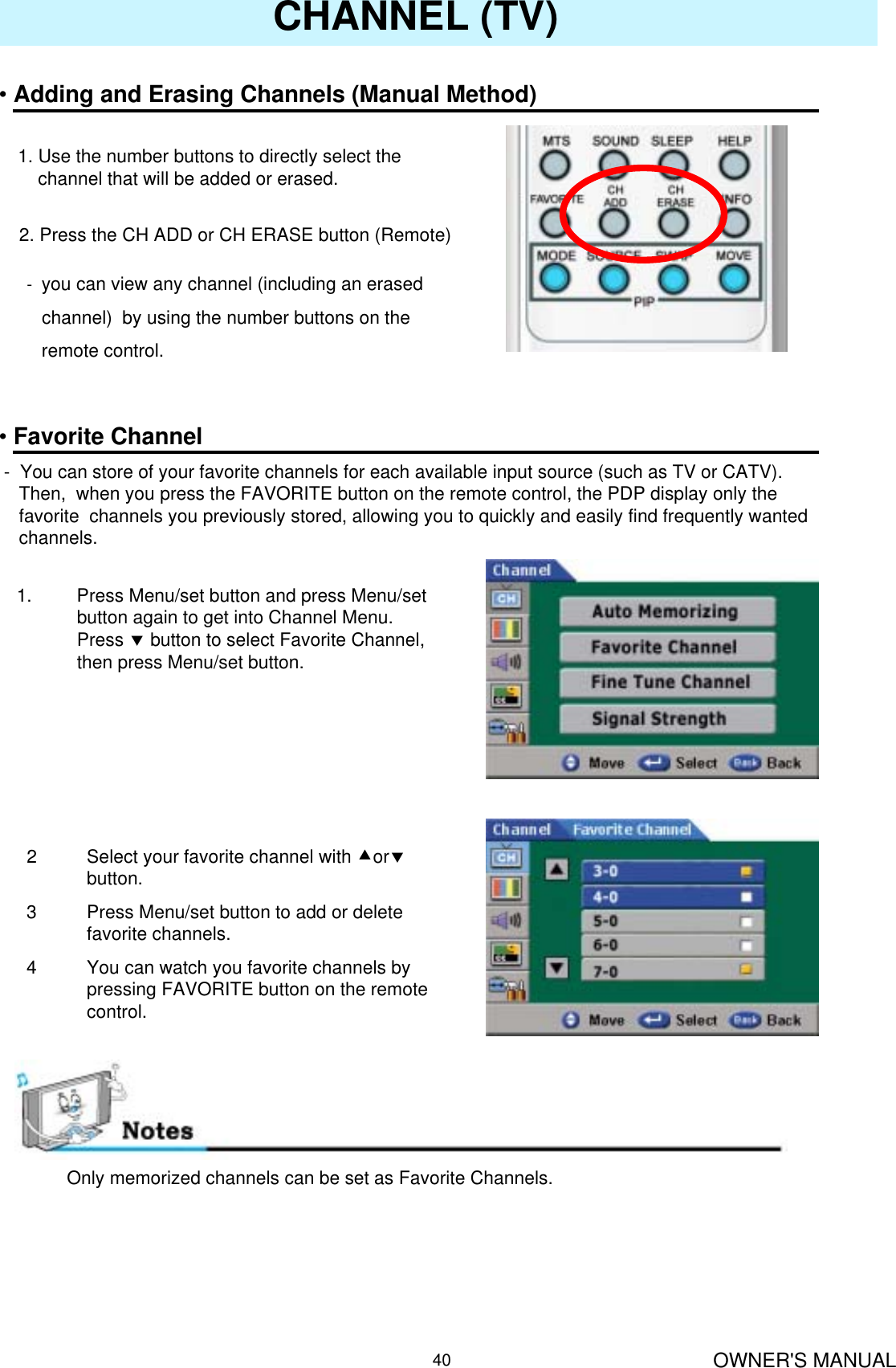

OWNER'S MANUAL40CHANNEL (TV)•Adding and Erasing Channels (Manual Method)1. Use the number buttons to directly select the   channel that will be added or erased.2. Press the CH ADD or CH ERASE button (Remote)•Favorite Channel- You can store of your favorite channels for each available input source (such as TV or CATV).Then,  when you press the FAVORITE button on the remote control, the PDP display only thefavorite  channels you previously stored, allowing you to quickly and easily find frequently wantedchannels.-you can view any channel (including an erased channel)  by using the number buttons on theremote control.1. Press Menu/set button and press Menu/set button again to get into Channel Menu. Press dbutton to select Favorite Channel, then press Menu/set button.2 Select your favorite channel with cordbutton.3 Press Menu/set button to add or delete favorite channels.4 You can watch you favorite channels by pressing FAVORITE button on the remote control.Only memorized channels can be set as Favorite Channels.

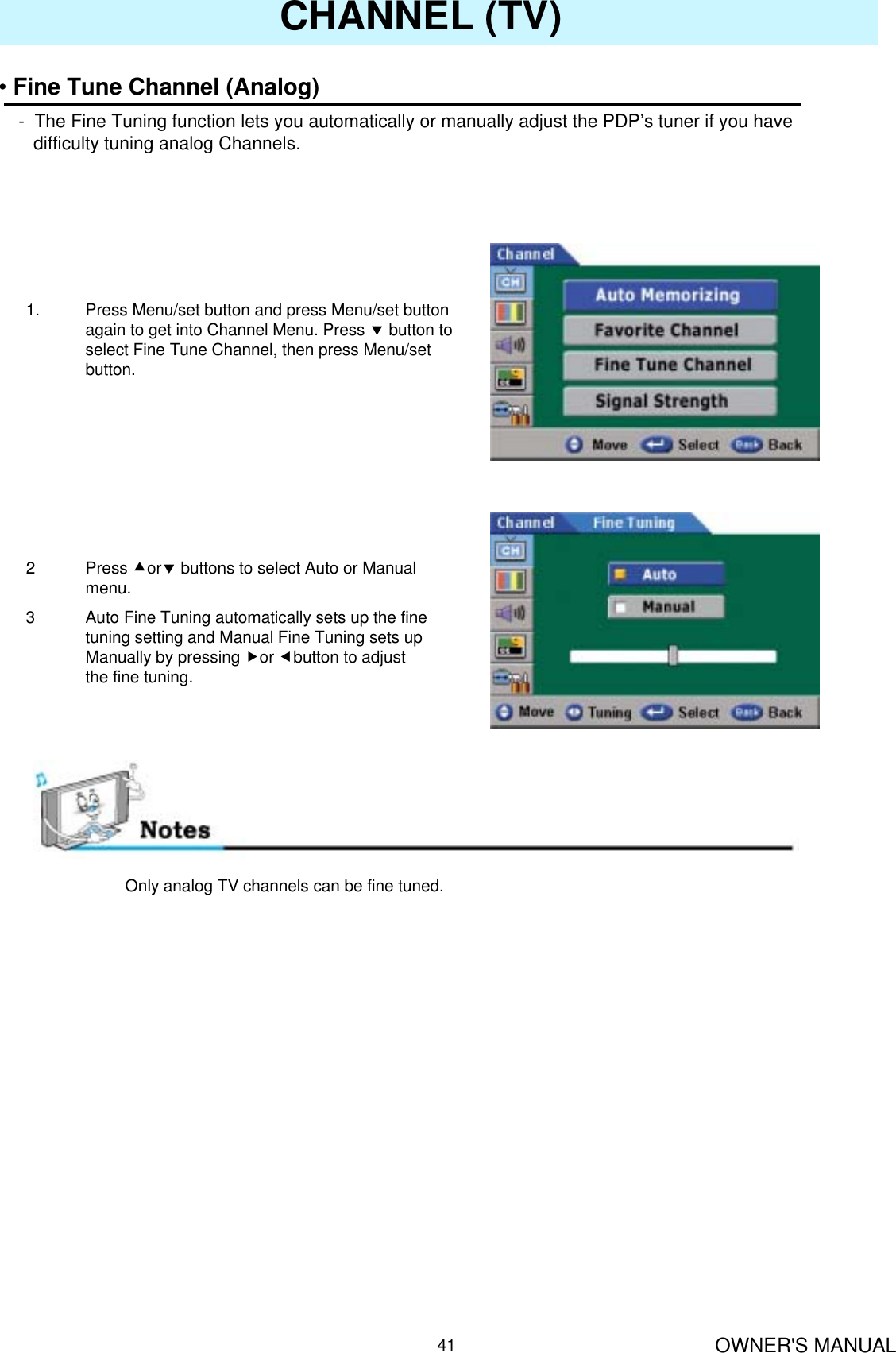

OWNER'S MANUAL41CHANNEL (TV)•Fine Tune Channel (Analog)- The Fine Tuning function lets you automatically or manually adjust the PDP’s tuner if you have difficulty tuning analog Channels.1. Press Menu/set button and press Menu/set button again to get into Channel Menu. Press dbutton to select Fine Tune Channel, then press Menu/set button.2Press cordbuttons to select Auto or Manual menu.3 Auto Fine Tuning automatically sets up the fine tuning setting and Manual Fine Tuning sets up Manually by pressing for ebutton to adjust the fine tuning.Only analog TV channels can be fine tuned.

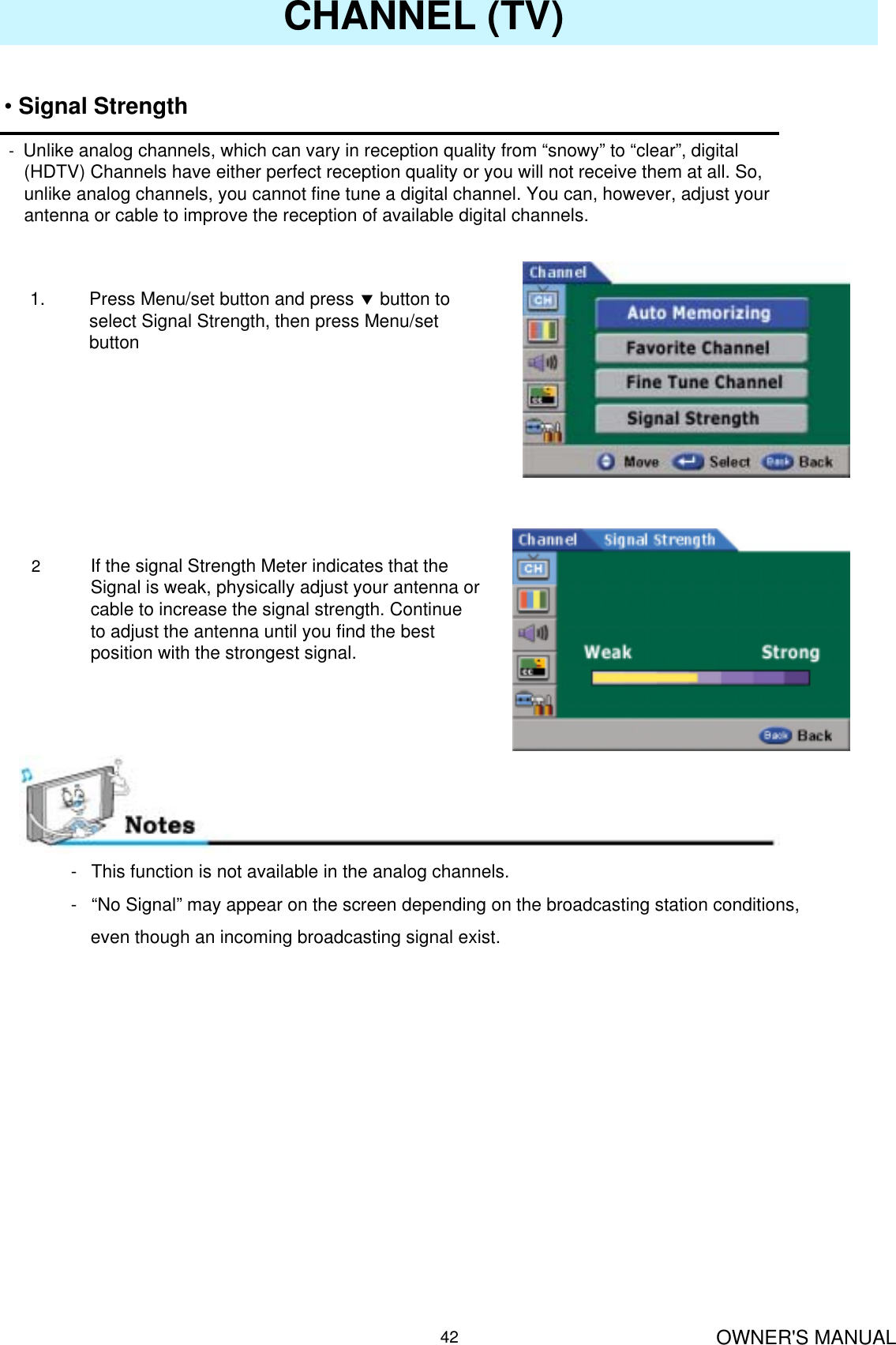

OWNER'S MANUAL42CHANNEL (TV)•Signal Strength-Unlike analog channels, which can vary in reception quality from “snowy” to “clear”, digital(HDTV) Channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna or cable to improve the reception of available digital channels.1. Press Menu/set button and press dbutton to select Signal Strength, then press Menu/set button2If the signal Strength Meter indicates that the Signal is weak, physically adjust your antenna or cable to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal.- This function is not available in the analog channels. - “No Signal” may appear on the screen depending on the broadcasting station conditions, even though an incoming broadcasting signal exist.

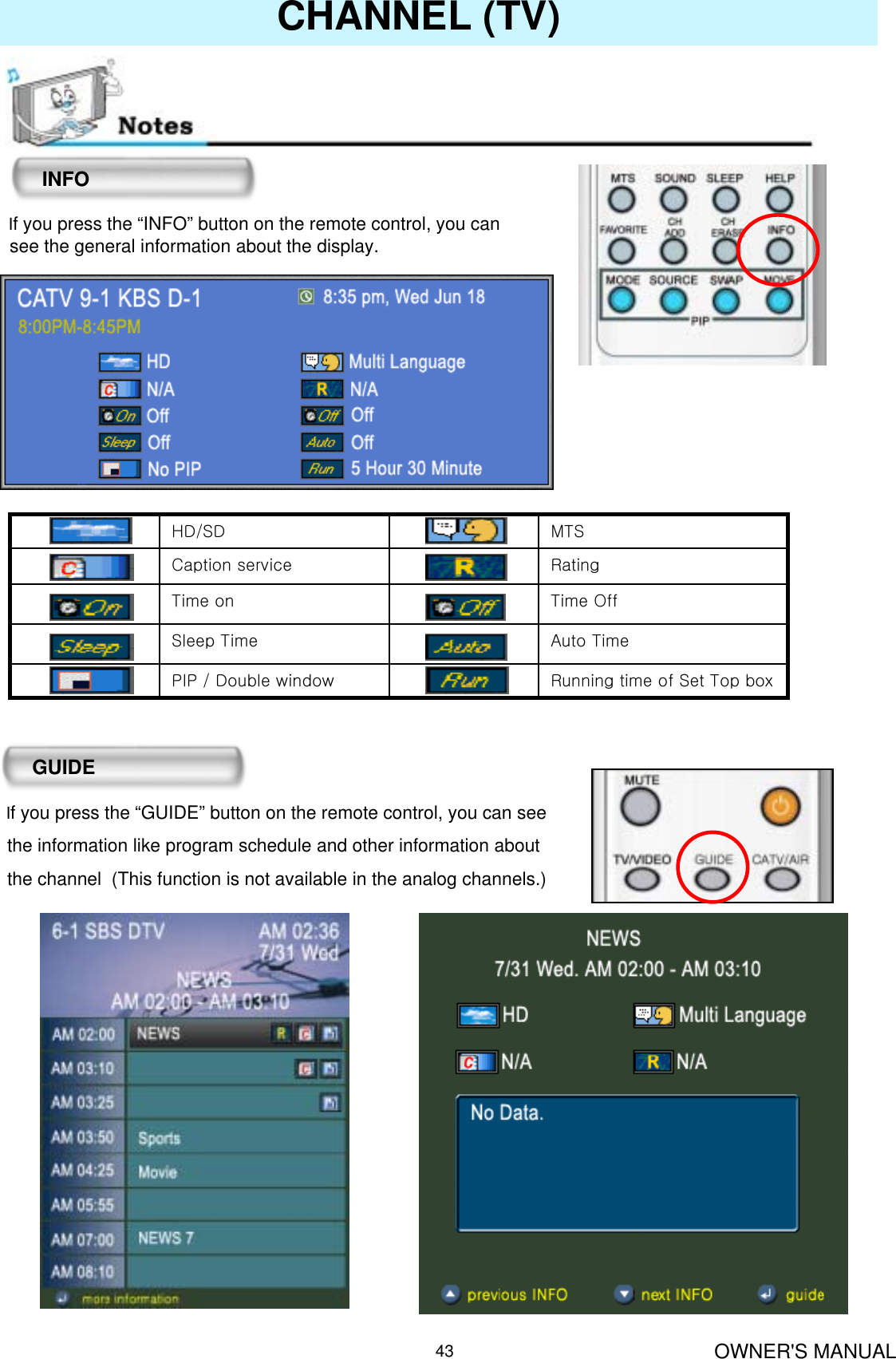

OWNER'S MANUAL43CHANNEL (TV)If you press the “INFO” button on the remote control, you can see the general information about the display.INFOIf you press the “GUIDE” button on the remote control, you can see the information like program schedule and other information about the channel  (This function is not available in the analog channels.)GUIDERunning time of Set Top boxPIP / Double windowAuto TimeSleep TimeTime OffTime onRatingCaption serviceMTSHD/SD
OWNER'S MANUAL44PICTUREPicture Mode is to set up or adjust Picture Adjust, Mode, Video Noise Reduction, Screen Format and Burn Protection.•AdjustYou can use the OSD menu to change the Contrast, Brightness, Color, Tint and Sharpness according to personal preference.1. Press Menu/set button2. Press the dbutton to select Picture then press the Menu/set button.3. Press Menu/set button again to get into Adjust menu.4. Press cordbutton to select a particular item then press for ebutton to increase or decrease the value of a particular item.
OWNER'S MANUAL45PICTURE•ContrastAdjust brightness difference between bright part of the screen and dark part.Distinct ◀▶Vague•BrightnessAdjust brightness of the screen.Dark ◀▶Bright•ColorAdjust deep and light color of the screen.Decrease ◀▶Increase•TintAdjust balance between green and yellowGreen color is deeper◀▶Red color is deeper•SharpnessAdjust vividness of the screen.Less sharp ◀▶Sharp

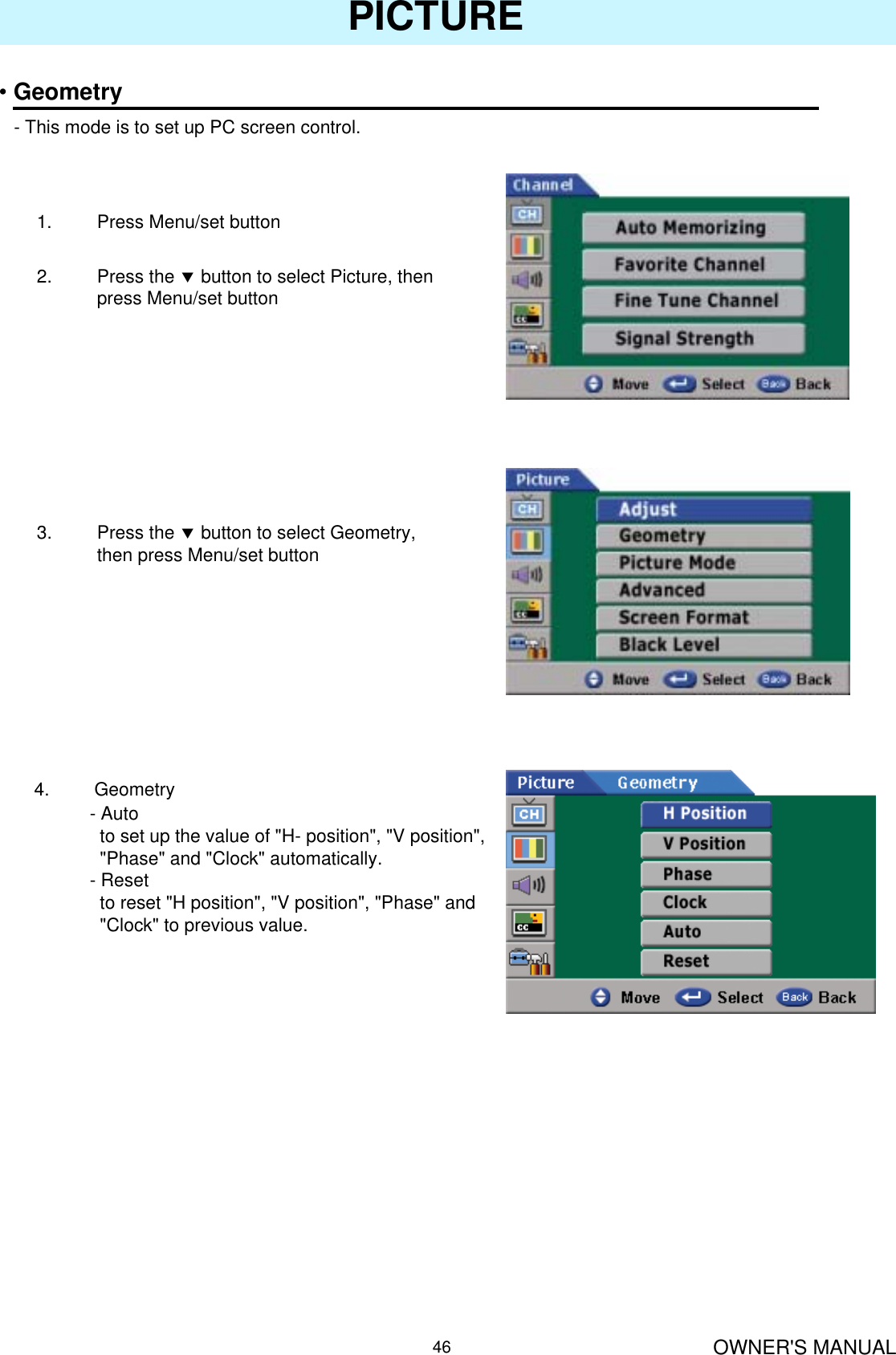

OWNER'S MANUAL46PICTURE•Geometry- This mode is to set up PC screen control.1. Press Menu/set button 2. Press the dbutton to select Picture, then press Menu/set button3. Press the dbutton to select Geometry, then press Menu/set button-Autoto set up the value of "H- position", "V position", "Phase" and "Clock" automatically.- Resetto reset "H position", "V position", "Phase" and "Clock" to previous value.4. Geometry
OWNER'S MANUAL47PICTUREH-POSITIONPress the H-Position button to adjust the horizontal position.◀▶V-POSITIONPress the V-Position button to adjust the vertical position.◀▶PHASEPress the Phase button to adjust the phase.Mismatch MatchCLOCKPress the Clock button to adjust the horizontal clock.Mismatch Match

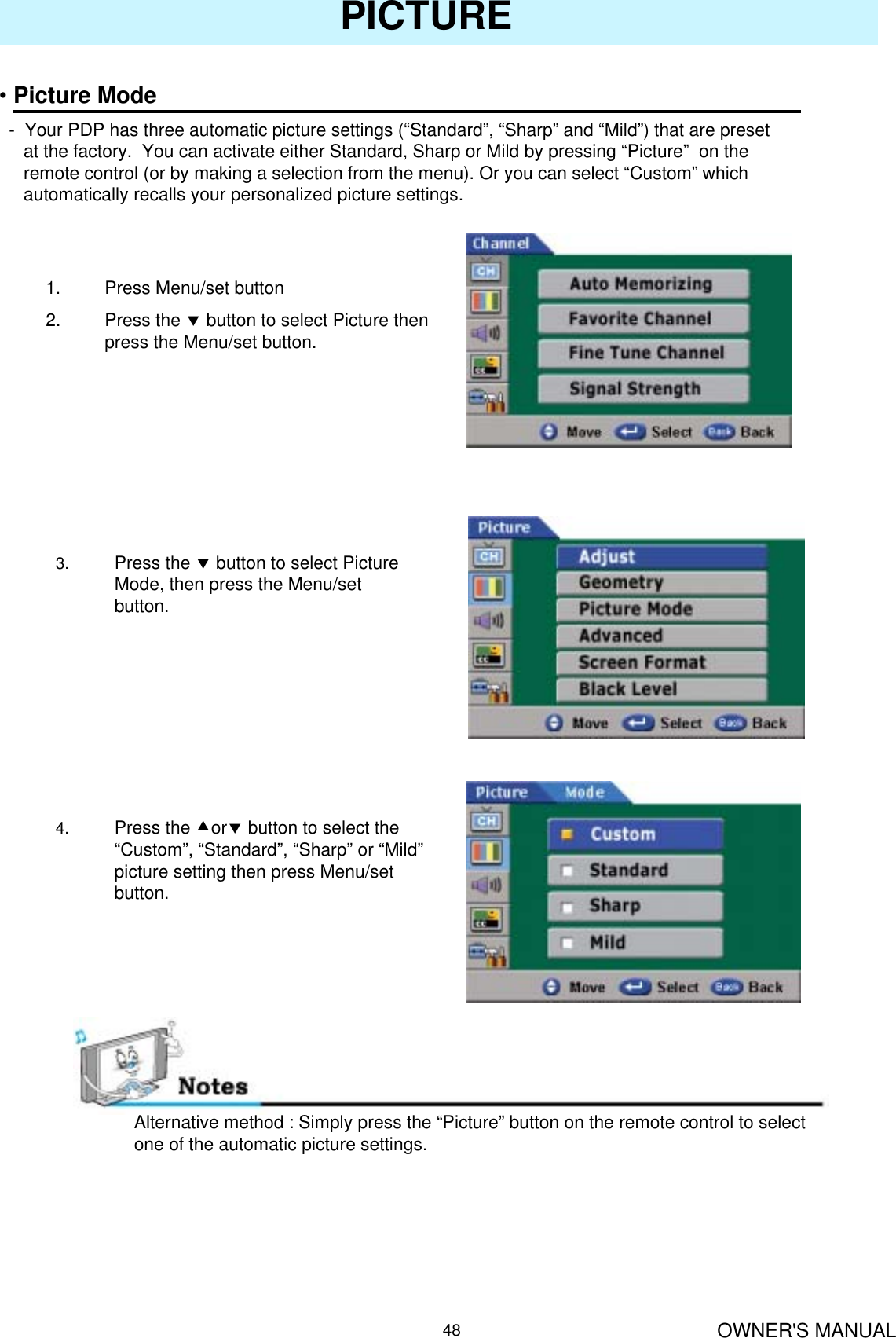

OWNER'S MANUAL48PICTURE•Picture Mode- Your PDP has three automatic picture settings (“Standard”, “Sharp” and “Mild”) that are preset at the factory.  You can activate either Standard, Sharp or Mild by pressing “Picture” on the remote control (or by making a selection from the menu). Or you can select “Custom” which automatically recalls your personalized picture settings.1. Press Menu/set button2. Press the dbutton to select Picture then press the Menu/set button.3. Press the dbutton to select Picture Mode, then press the Menu/set button.4. Press the cordbutton to select the “Custom”, “Standard”, “Sharp” or “Mild”picture setting then press Menu/set button.Alternative method : Simply press the “Picture” button on the remote control to select one of the automatic picture settings.

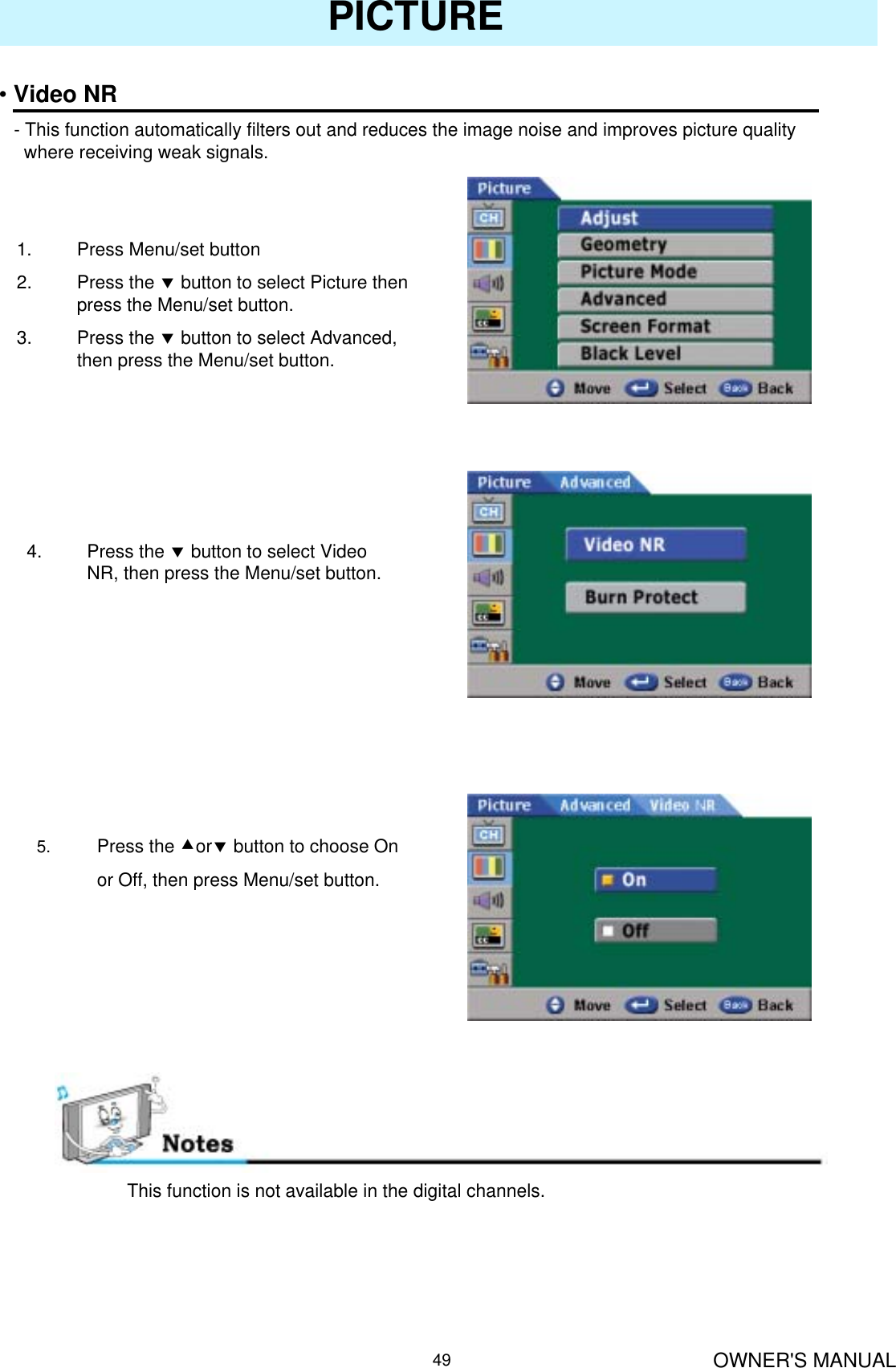

OWNER'S MANUAL49PICTURE•Video NR- This function automatically filters out and reduces the image noise and improves picture qualitywhere receiving weak signals.1. Press Menu/set button2. Press the dbutton to select Picture then press the Menu/set button.3. Press the dbutton to select Advanced, then press the Menu/set button.4. Press the dbutton to select Video NR, then press the Menu/set button.5. Press the cordbutton to choose Onor Off, then press Menu/set button.This function is not available in the digital channels.

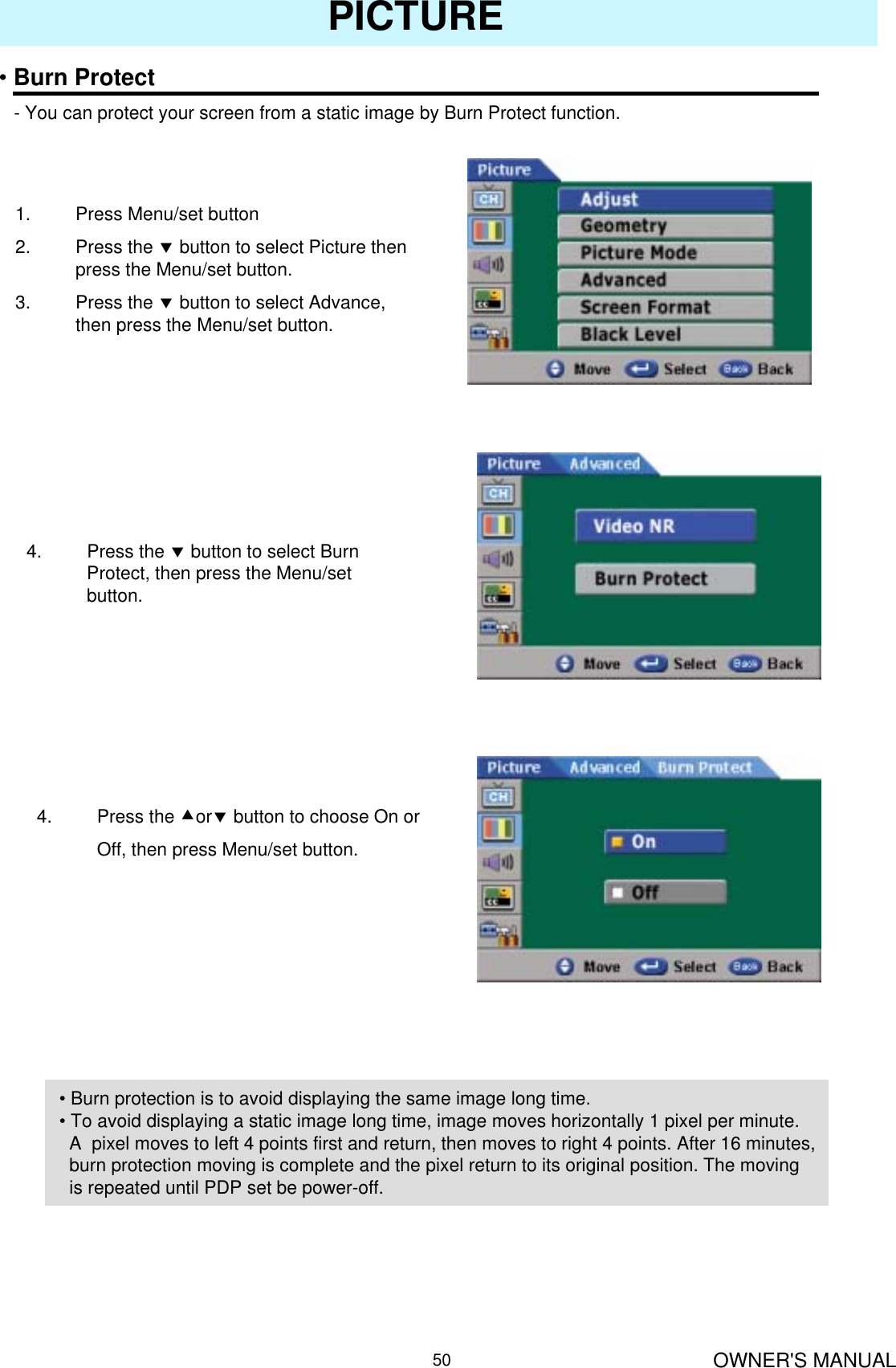

OWNER'S MANUAL50PICTURE•Burn Protect- You can protect your screen from a static image by Burn Protect function.1. Press Menu/set button2. Press the dbutton to select Picture then press the Menu/set button.3. Press the dbutton to select Advance, then press the Menu/set button.4. Press the dbutton to select Burn Protect, then press the Menu/set button.4. Press the cordbutton to choose On or Off, then press Menu/set button.• Burn protection is to avoid displaying the same image long time.• To avoid displaying a static image long time, image moves horizontally 1 pixel per minute. A  pixel moves to left 4 points first and return, then moves to right 4 points. After 16 minutes,  burn protection moving is complete and the pixel return to its original position. The moving is repeated until PDP set be power-off.

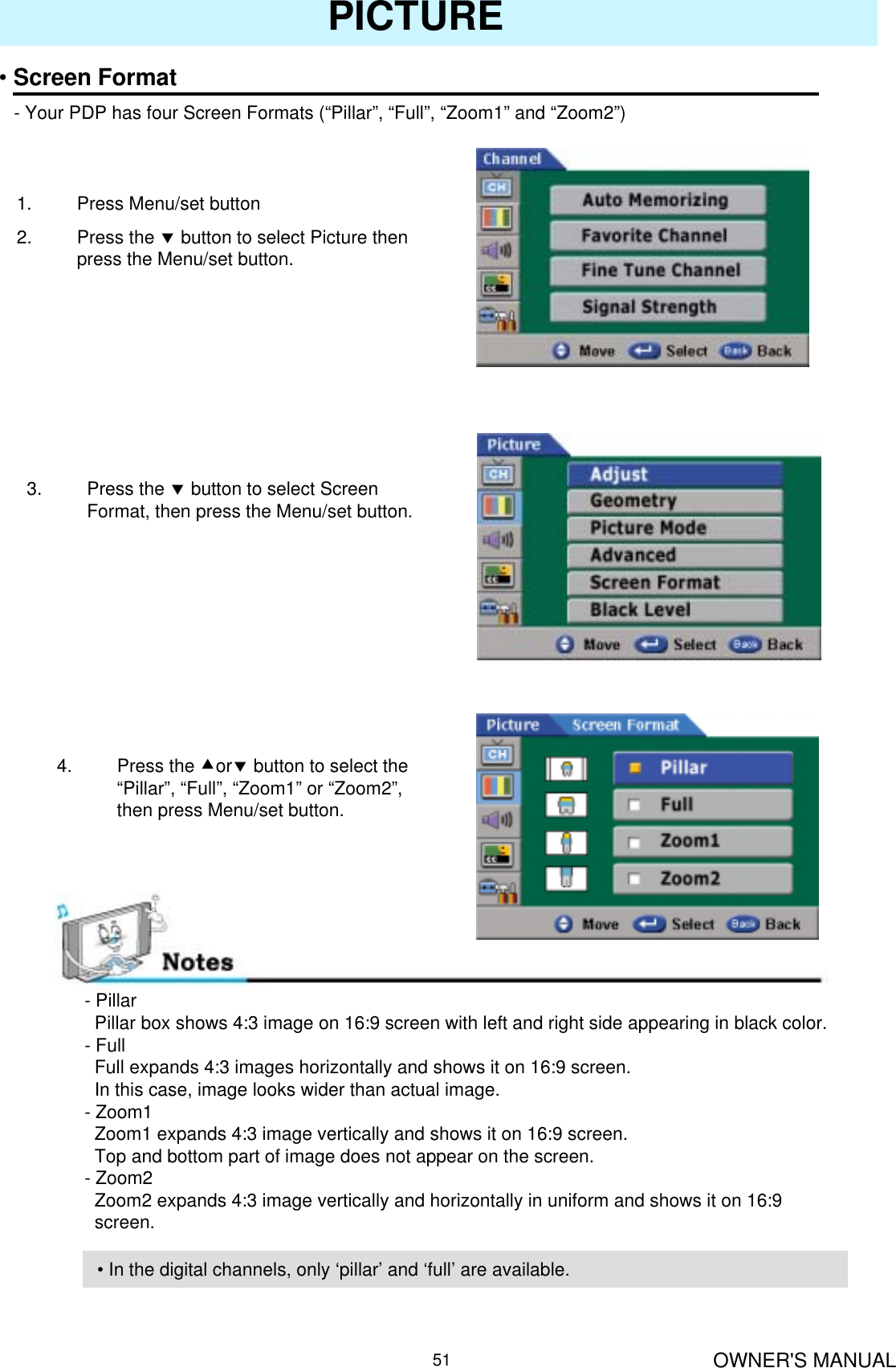

OWNER'S MANUAL51PICTURE•Screen Format- Your PDP has four Screen Formats (“Pillar”, “Full”, “Zoom1” and “Zoom2”)1. Press Menu/set button2. Press the dbutton to select Picture then press the Menu/set button.3. Press the dbutton to select Screen Format, then press the Menu/set button.- PillarPillar box shows 4:3 image on 16:9 screen with left and right side appearing in black color.- FullFull expands 4:3 images horizontally and shows it on 16:9 screen.In this case, image looks wider than actual image.- Zoom1Zoom1 expands 4:3 image vertically and shows it on 16:9 screen.Top and bottom part of image does not appear on the screen.- Zoom2Zoom2 expands 4:3 image vertically and horizontally in uniform and shows it on 16:9 screen.4. Press the cordbutton to select the “Pillar”, “Full”, “Zoom1” or “Zoom2”, then press Menu/set button.• In the digital channels, only ‘pillar’ and ‘full’ are available.

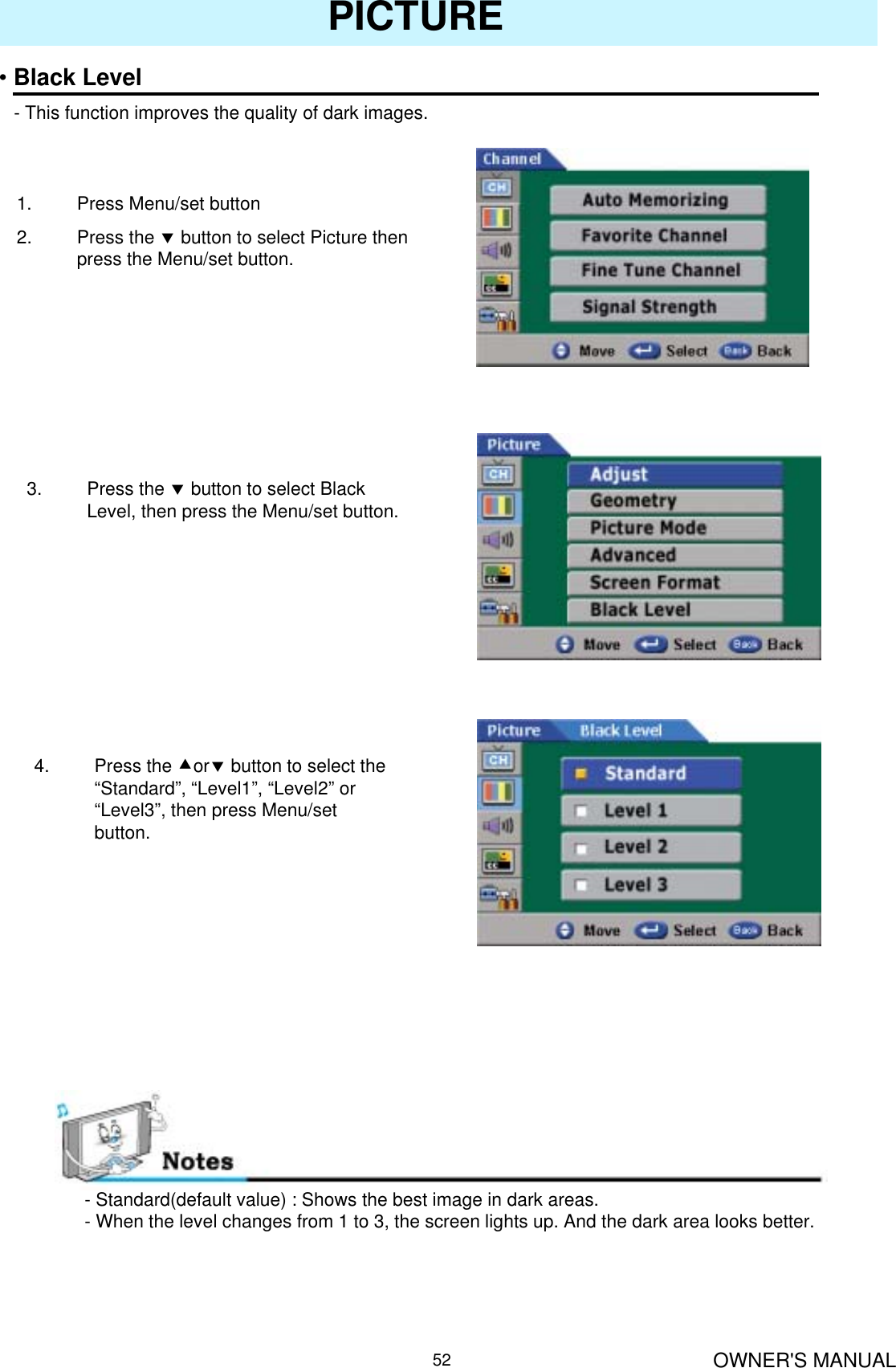

OWNER'S MANUAL52PICTURE•Black Level- This function improves the quality of dark images.1. Press Menu/set button2. Press the dbutton to select Picture then press the Menu/set button.3. Press the dbutton to select Black Level, then press the Menu/set button.4. Press the cordbutton to select the “Standard”, “Level1”, “Level2” or “Level3”, then press Menu/set button.- Standard(default value) : Shows the best image in dark areas.- When the level changes from 1 to 3, the screen lights up. And the dark area looks better.

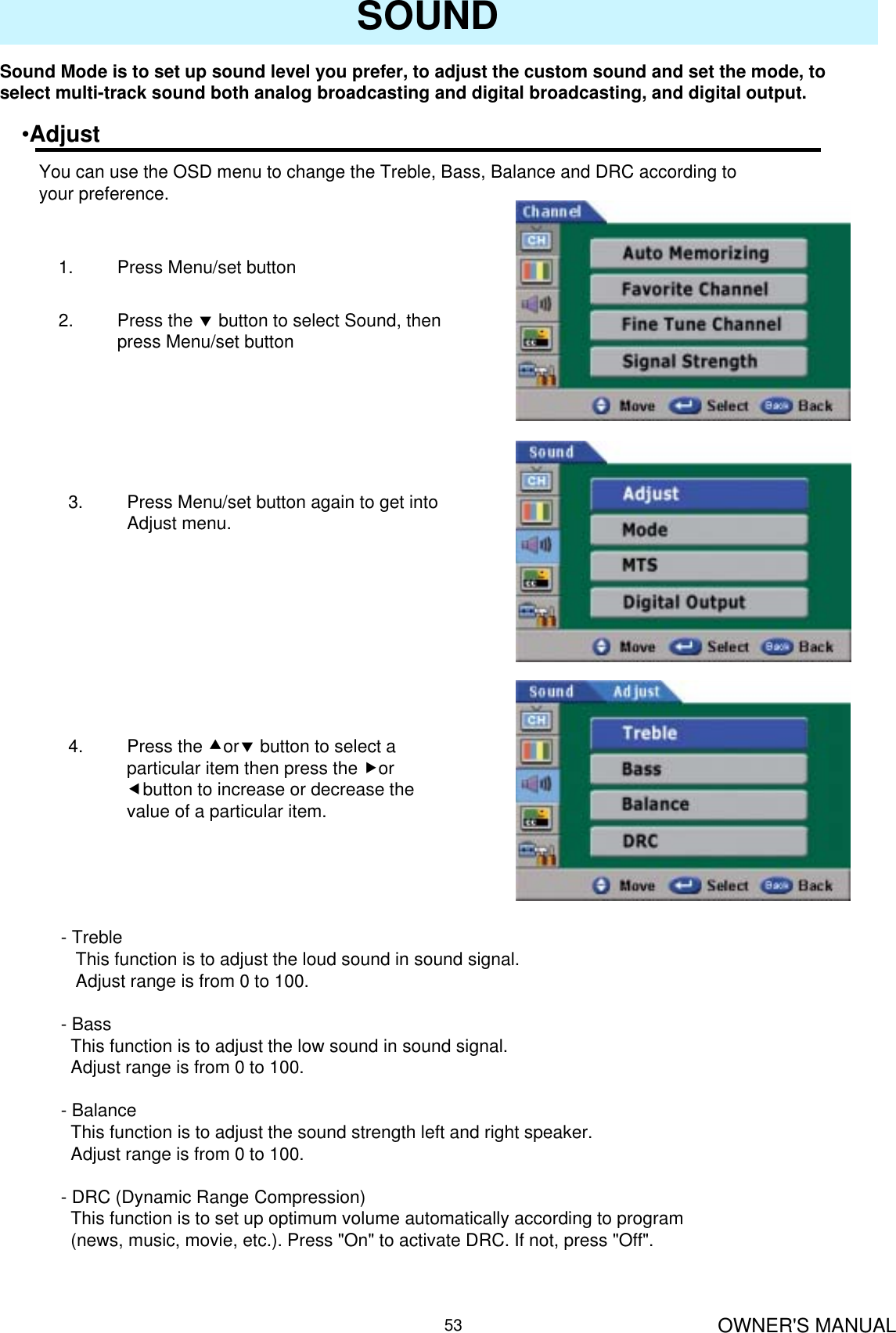

OWNER'S MANUAL53SOUNDSound Mode is to set up sound level you prefer, to adjust the custom sound and set the mode, to select multi-track sound both analog broadcasting and digital broadcasting, and digital output.•AdjustYou can use the OSD menu to change the Treble, Bass, Balance and DRC according to your preference.1. Press Menu/set button 2. Press the dbutton to select Sound, then press Menu/set button3. Press Menu/set button again to get into Adjust menu.4. Press the cordbutton to select a particular item then press the for ebutton to increase or decrease the value of a particular item.- TrebleThis function is to adjust the loud sound in sound signal.Adjust range is from 0 to 100. -BassThis function is to adjust the low sound in sound signal.Adjust range is from 0 to 100. - BalanceThis function is to adjust the sound strength left and right speaker.Adjust range is from 0 to 100.- DRC (Dynamic Range Compression)This function is to set up optimum volume automatically according to program (news, music, movie, etc.). Press "On" to activate DRC. If not, press "Off".

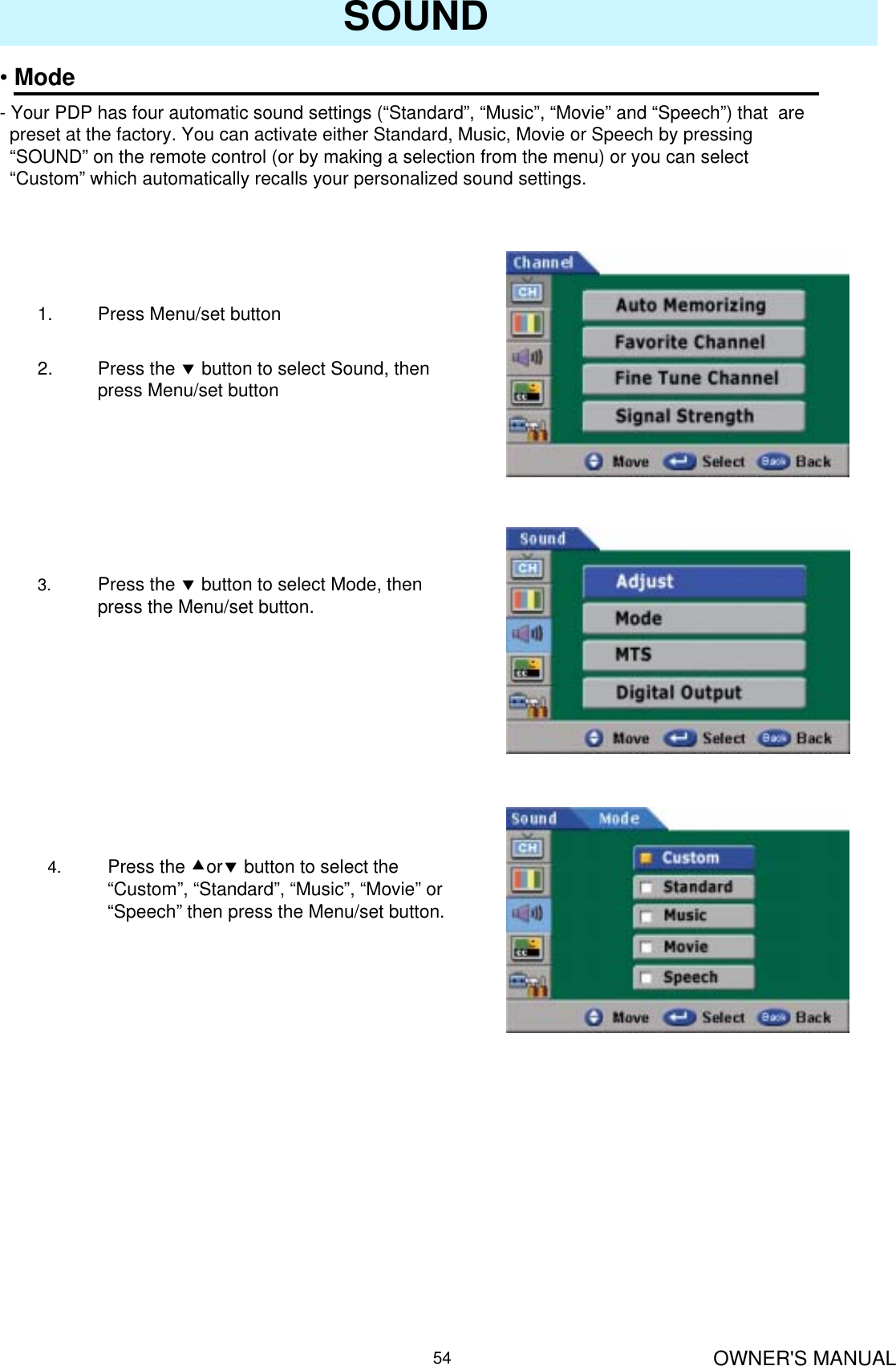

OWNER'S MANUAL54SOUND•Mode- Your PDP has four automatic sound settings (“Standard”, “Music”, “Movie” and “Speech”) that  are preset at the factory. You can activate either Standard, Music, Movie or Speech by pressing “SOUND” on the remote control (or by making a selection from the menu) or you can select “Custom” which automatically recalls your personalized sound settings.1. Press Menu/set button 2. Press the dbutton to select Sound, then press Menu/set button3. Press the dbutton to select Mode, then press the Menu/set button.4. Press the cordbutton to select the “Custom”, “Standard”, “Music”, “Movie” or “Speech” then press the Menu/set button.

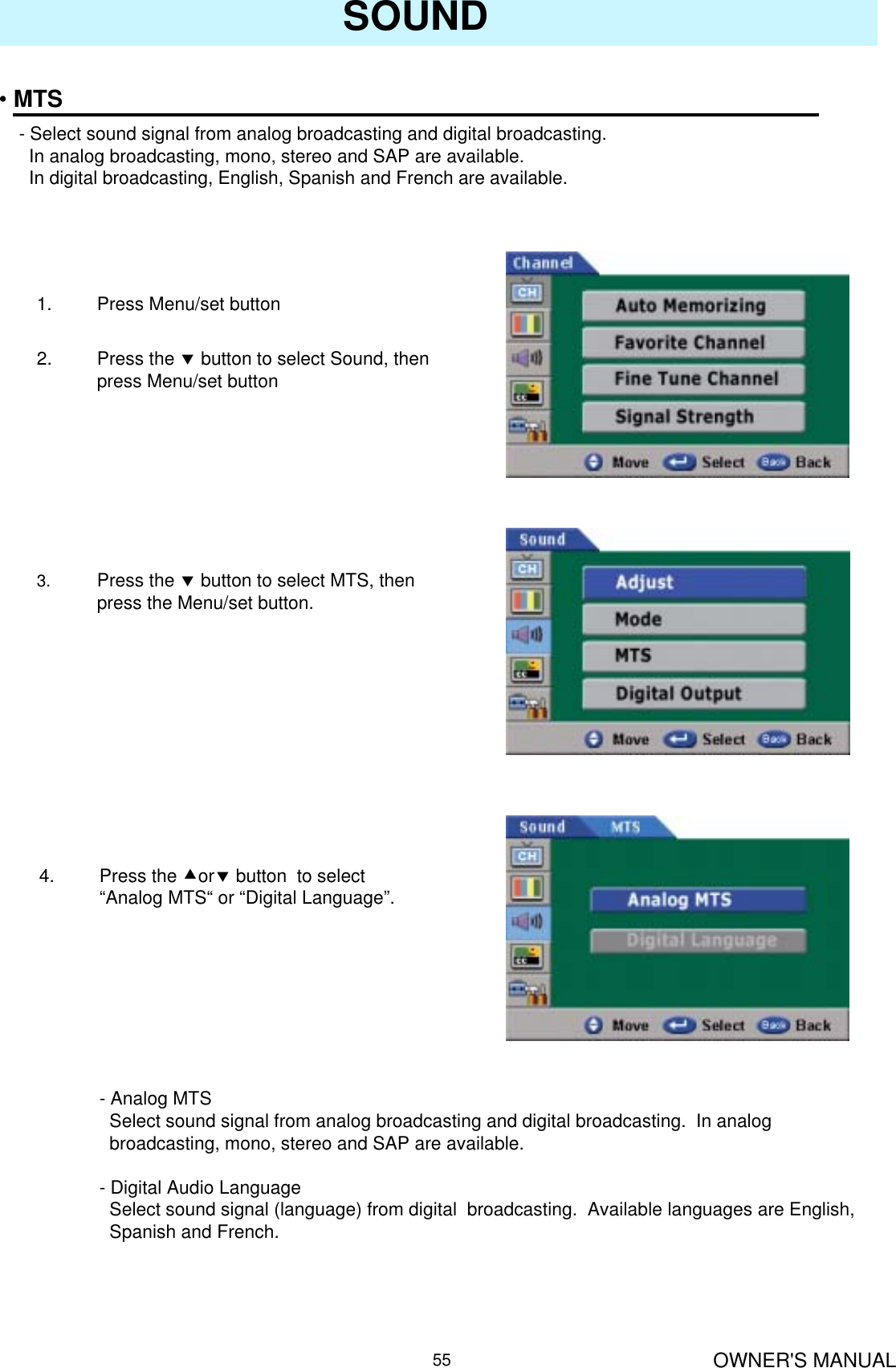

OWNER'S MANUAL55SOUND•MTS- Select sound signal from analog broadcasting and digital broadcasting.In analog broadcasting, mono, stereo and SAP are available.In digital broadcasting, English, Spanish and French are available.1. Press Menu/set button 2. Press the dbutton to select Sound, then press Menu/set button3. Press the dbutton to select MTS, then press the Menu/set button.4. Press the cordbutton  to select “Analog MTS“ or “Digital Language”.- Analog MTS Select sound signal from analog broadcasting and digital broadcasting.  In analog   broadcasting, mono, stereo and SAP are available.- Digital Audio LanguageSelect sound signal (language) from digital  broadcasting.  Available languages are English, Spanish and French.

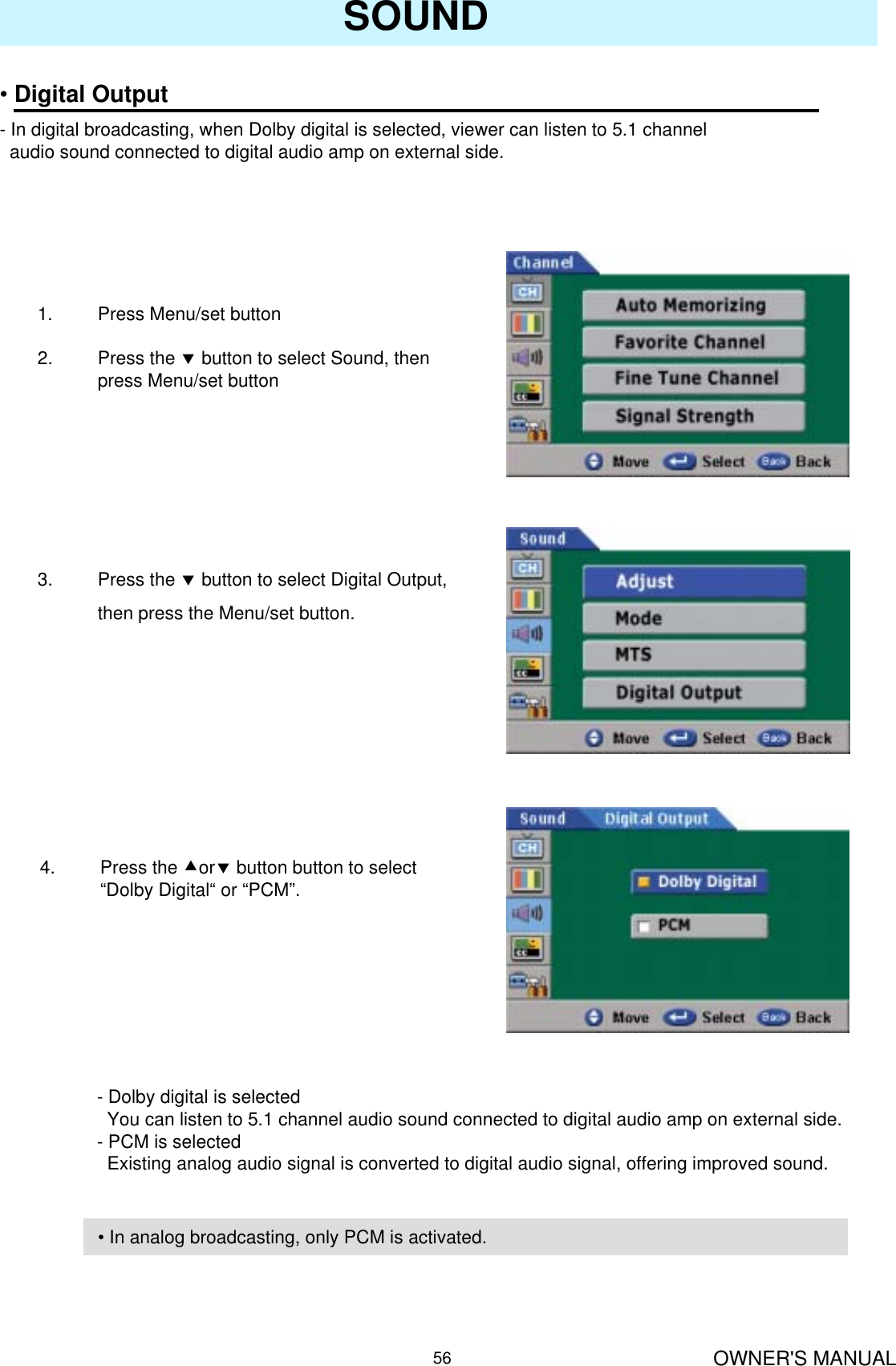

OWNER'S MANUAL56SOUND•Digital Output- In digital broadcasting, when Dolby digital is selected, viewer can listen to 5.1 channel audio sound connected to digital audio amp on external side.1. Press Menu/set button 2. Press the dbutton to select Sound, then press Menu/set button3. Press the dbutton to select Digital Output, then press the Menu/set button.4. Press the cordbutton button to select “Dolby Digital“ or “PCM”.- Dolby digital is selectedYou can listen to 5.1 channel audio sound connected to digital audio amp on external side.- PCM is selectedExisting analog audio signal is converted to digital audio signal, offering improved sound.• In analog broadcasting, only PCM is activated.

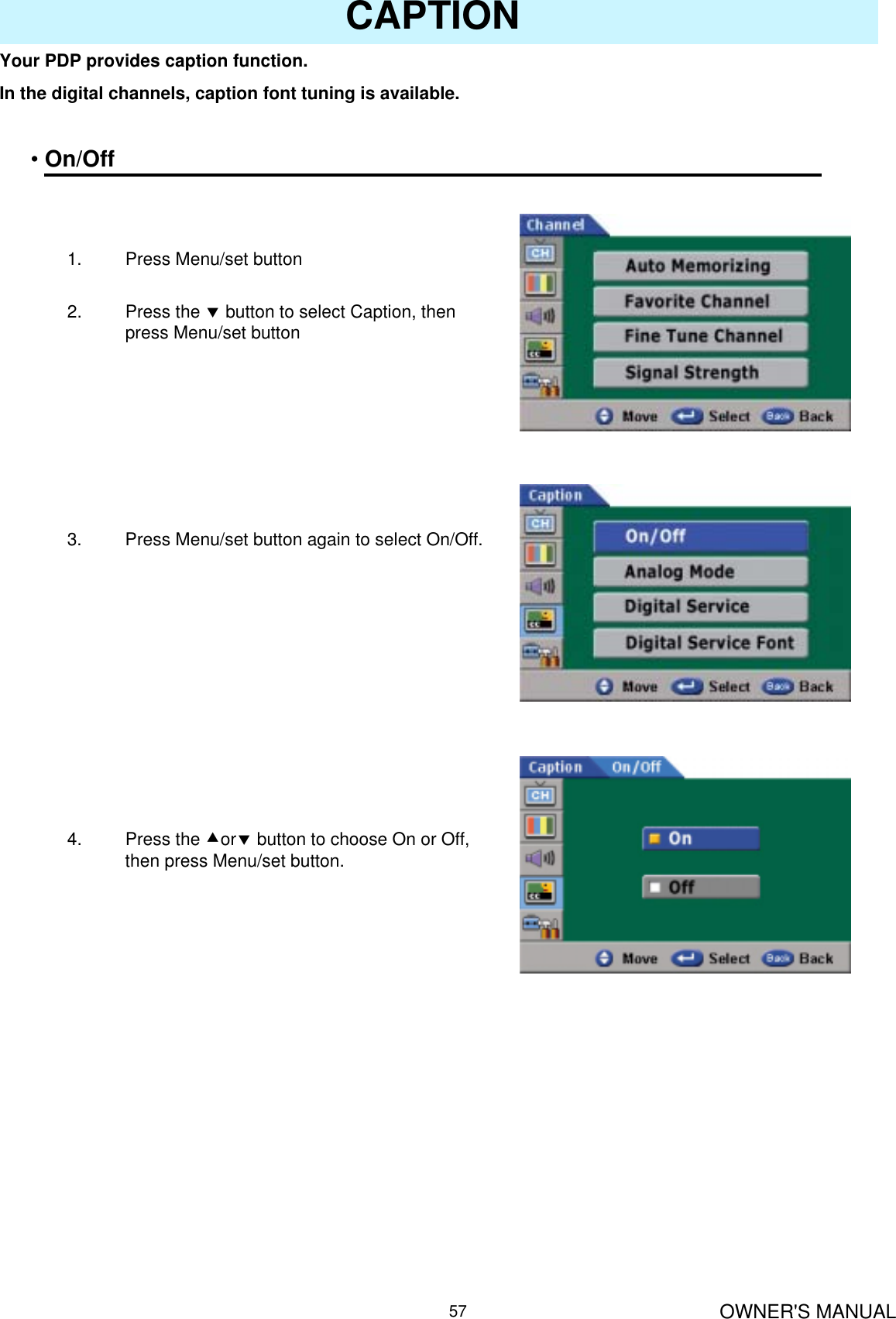

OWNER'S MANUAL57CAPTIONYour PDP provides caption function.In the digital channels, caption font tuning is available.•On/Off1. Press Menu/set button 2. Press the dbutton to select Caption, then press Menu/set button3. Press Menu/set button again to select On/Off.4. Press the cordbutton to choose On or Off, then press Menu/set button.

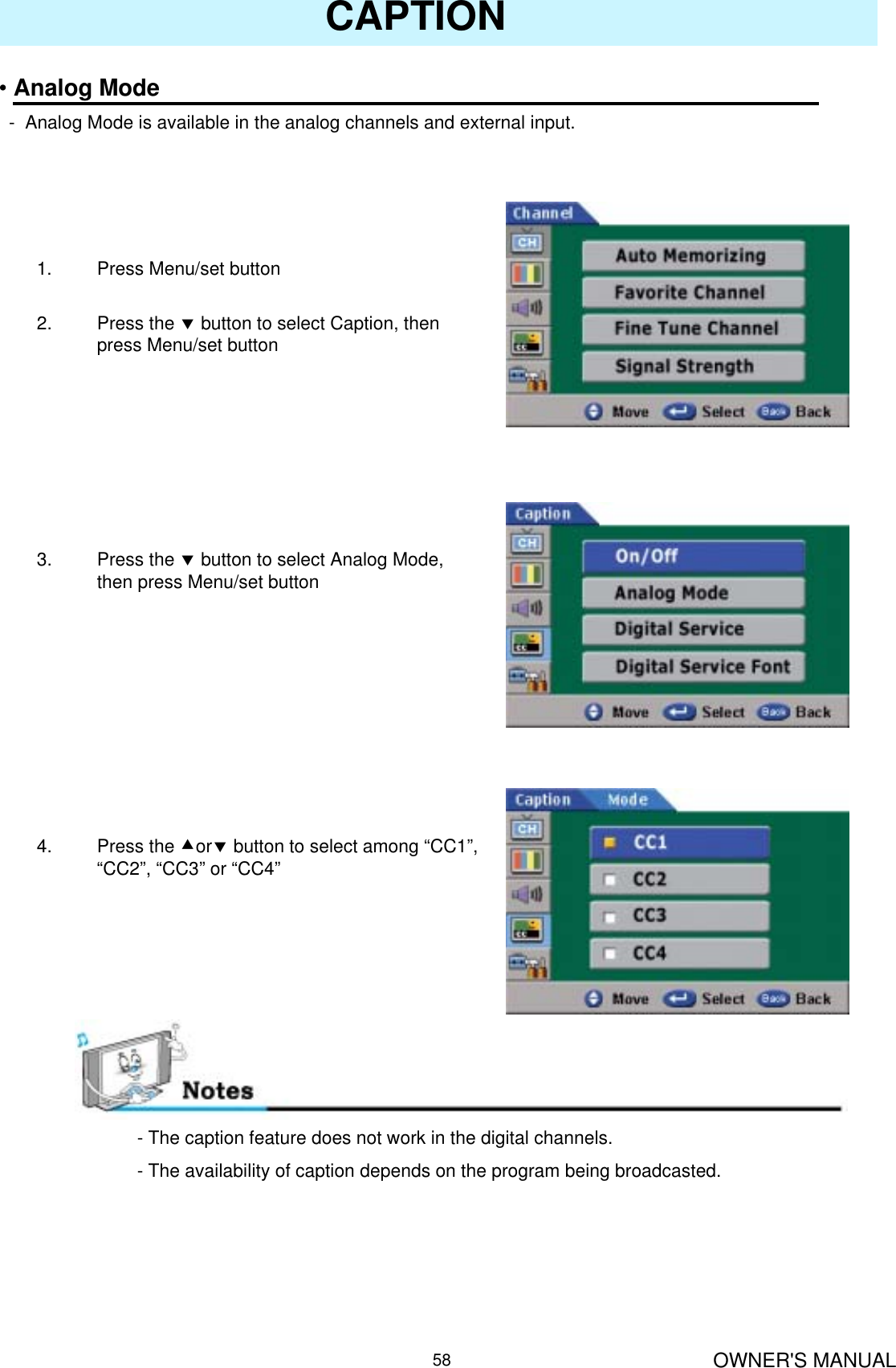

OWNER'S MANUAL58CAPTION•Analog Mode- Analog Mode is available in the analog channels and external input.1. Press Menu/set button 2. Press the dbutton to select Caption, then press Menu/set button3. Press the dbutton to select Analog Mode, then press Menu/set button4. Press the cordbutton to select among “CC1”, “CC2”, “CC3” or “CC4”- The caption feature does not work in the digital channels.- The availability of caption depends on the program being broadcasted.

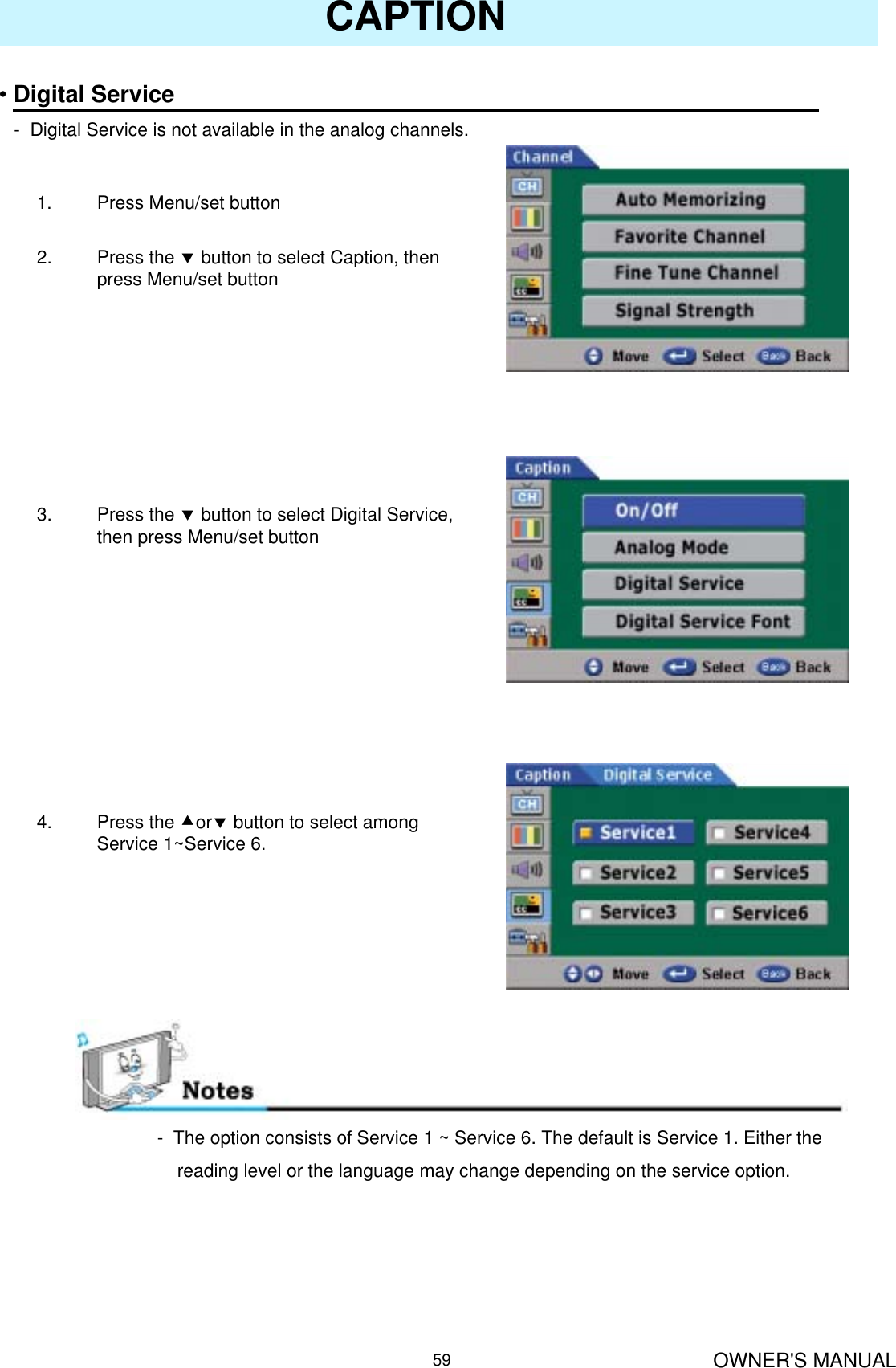

OWNER'S MANUAL59CAPTION•Digital Service- Digital Service is not available in the analog channels.1. Press Menu/set button 2. Press the dbutton to select Caption, then press Menu/set button3. Press the dbutton to select Digital Service, then press Menu/set button4. Press the cordbutton to select among Service 1~Service 6.- The option consists of Service 1 ~ Service 6. The default is Service 1. Either the reading level or the language may change depending on the service option.

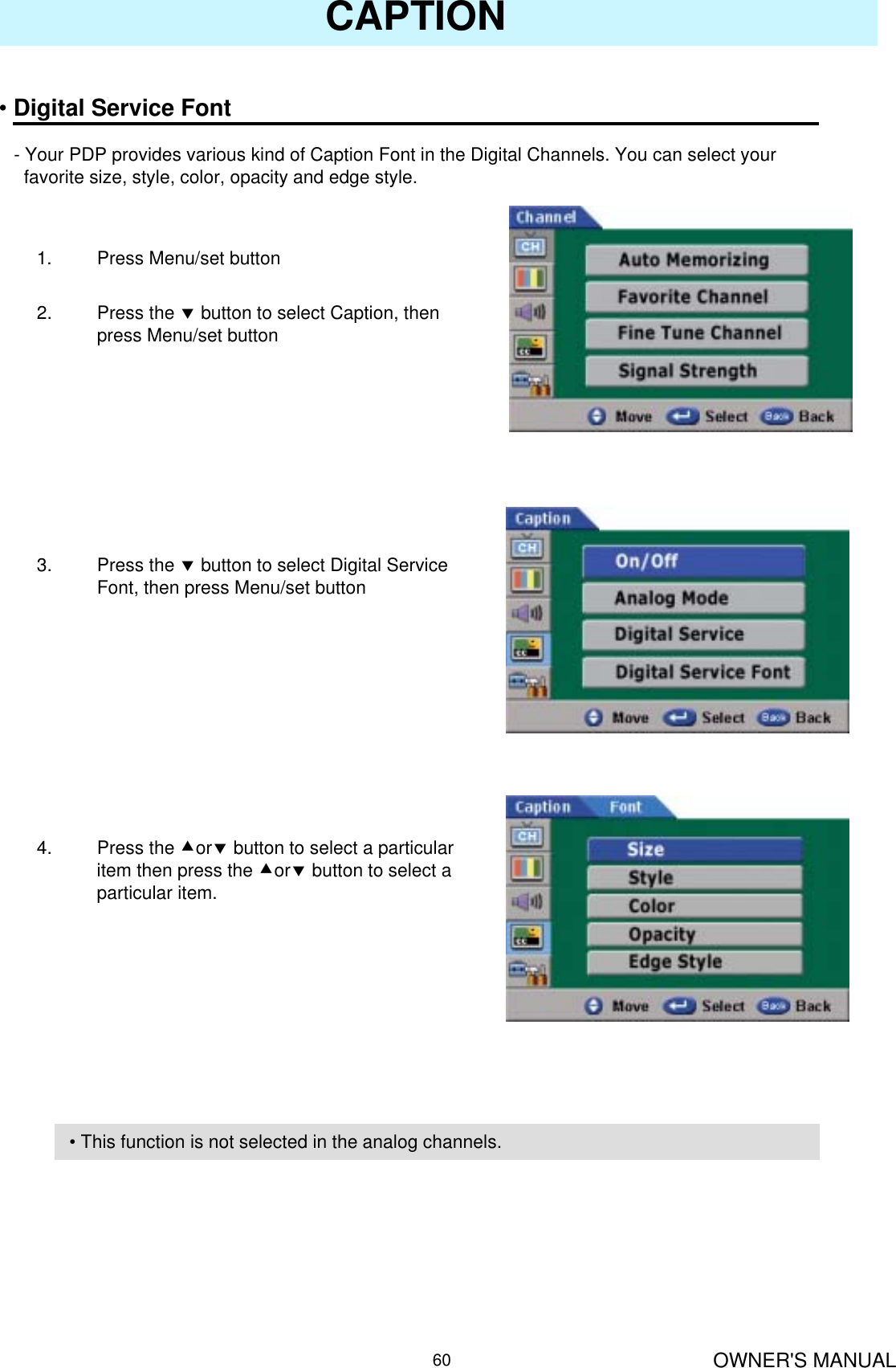

OWNER'S MANUAL60CAPTION•Digital Service Font- Your PDP provides various kind of Caption Font in the Digital Channels. You can select yourfavorite size, style, color, opacity and edge style.1. Press Menu/set button 2. Press the dbutton to select Caption, then press Menu/set button3. Press the dbutton to select Digital Service Font, then press Menu/set button4. Press the cordbutton to select a particular item then press the cordbutton to select a particular item.• This function is not selected in the analog channels.

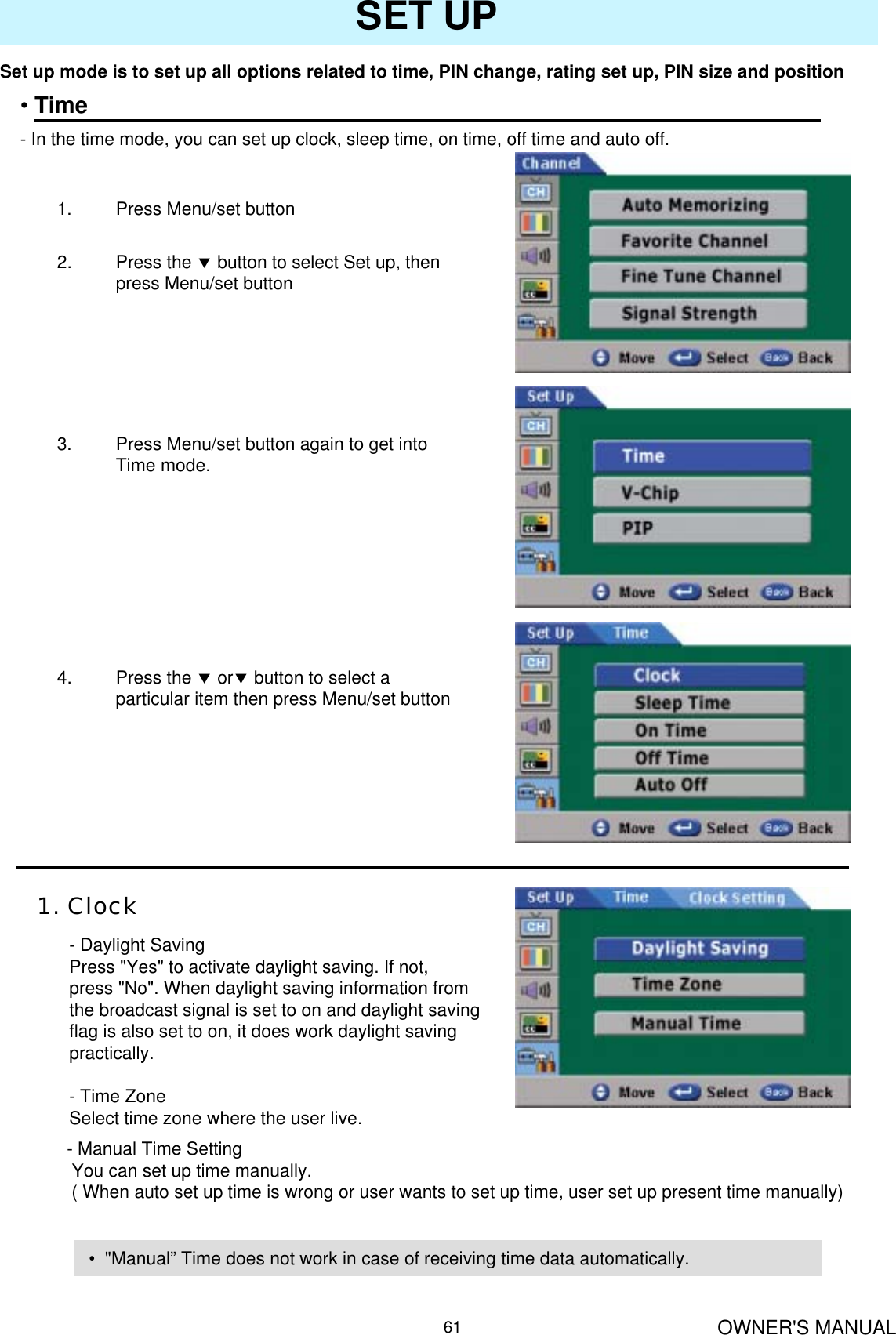

OWNER'S MANUAL61SET UPSet up mode is to set up all options related to time, PIN change, rating set up, PIN size and position•Time- In the time mode, you can set up clock, sleep time, on time, off time and auto off.1. Press Menu/set button 2. Press the dbutton to select Set up, then press Menu/set button3. Press Menu/set button again to get into Time mode.4. Press the dordbutton to select a particular item then press Menu/set button 1. Clock- Daylight SavingPress "Yes" to activate daylight saving. If not, press "No". When daylight saving information from the broadcast signal is set to on and daylight saving flag is also set to on, it does work daylight saving practically.- Time ZoneSelect time zone where the user live.- Manual Time SettingYou can set up time manually.( When auto set up time is wrong or user wants to set up time, user set up present time manually)• "Manual” Time does not work in case of receiving time data automatically.

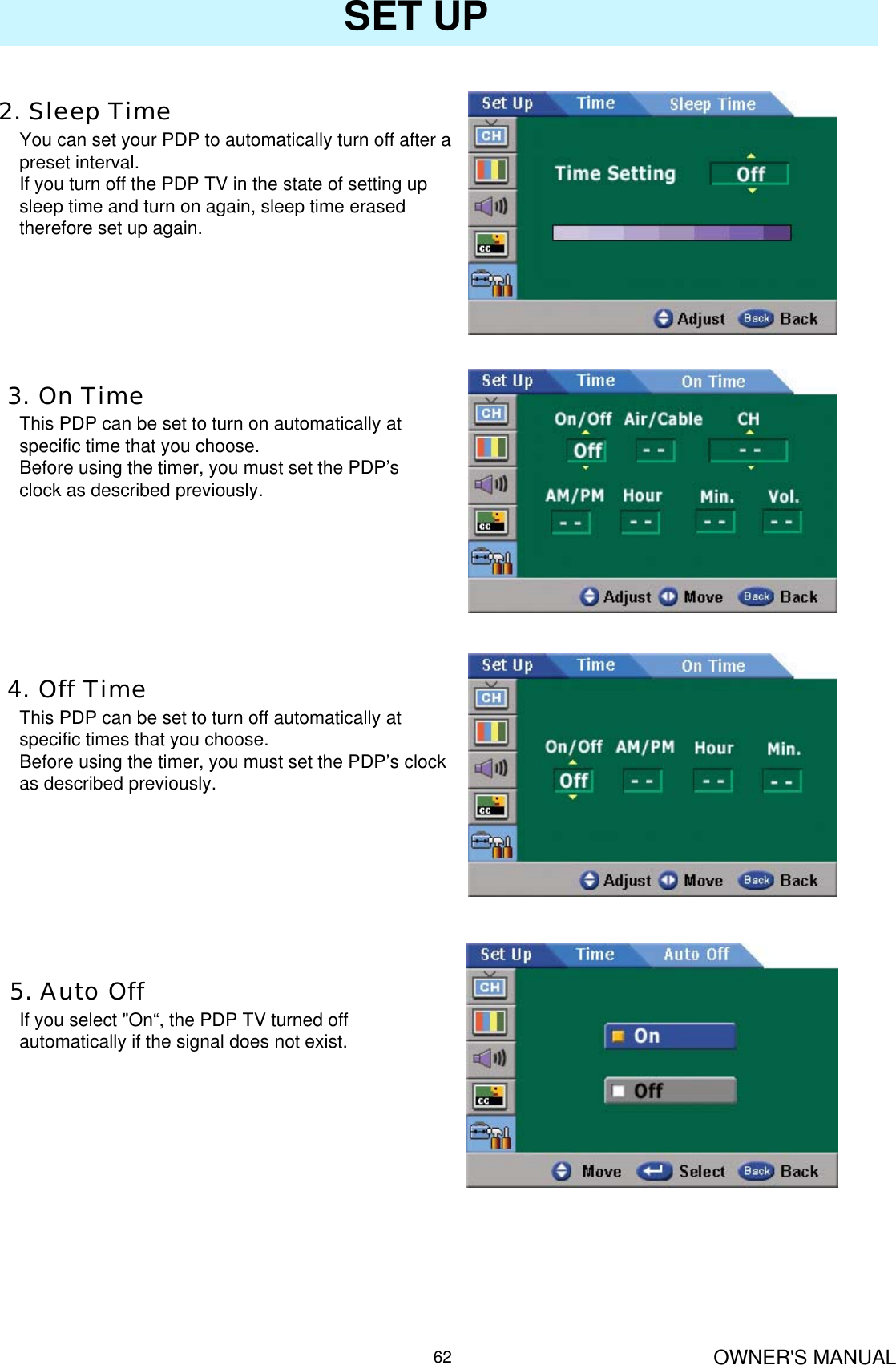

OWNER'S MANUAL62SET UP2. Sleep TimeYou can set your PDP to automatically turn off after a preset interval.If you turn off the PDP TV in the state of setting up sleep time and turn on again, sleep time erased therefore set up again.3. On TimeThis PDP can be set to turn on automatically at specific time that you choose. Before using the timer, you must set the PDP’s clock as described previously.4. Off TimeThis PDP can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the PDP’s clock as described previously.5. Auto OffIf you select "On“, the PDP TV turned off automatically if the signal does not exist.

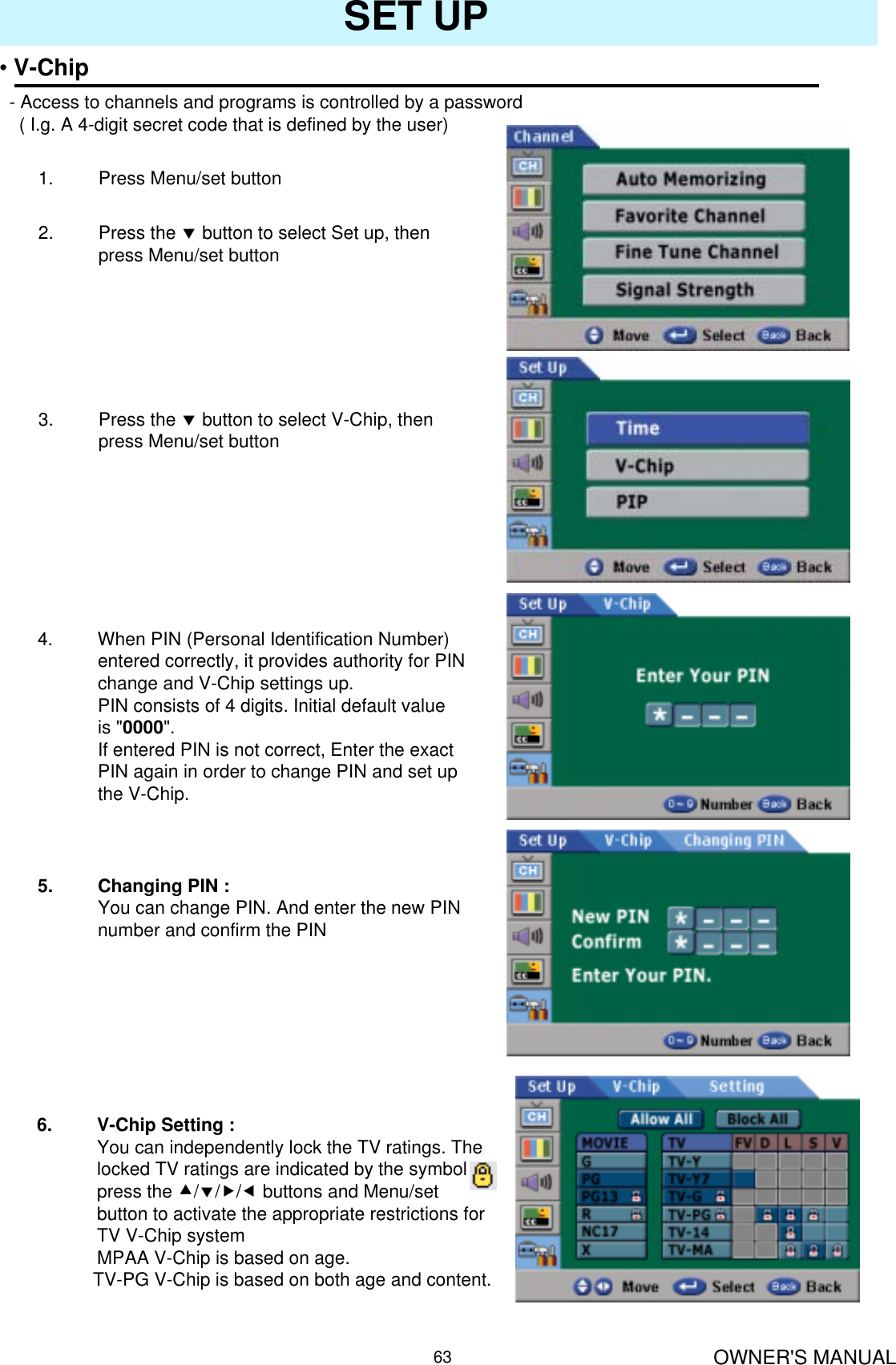

OWNER'S MANUAL63SET UP•V-Chip- Access to channels and programs is controlled by a password ( I.g. A 4-digit secret code that is defined by the user)1. Press Menu/set button 2. Press the dbutton to select Set up, then press Menu/set button3. Press the dbutton to select V-Chip, then press Menu/set button4. When PIN (Personal Identification Number) entered correctly, it provides authority for PIN change and V-Chip settings up.PIN consists of 4 digits. Initial default value is "0000".If entered PIN is not correct, Enter the exact PIN again in order to change PIN and set up the V-Chip.5. Changing PIN :You can change PIN. And enter the new PIN number and confirm the PIN6. V-Chip Setting :You can independently lock the TV ratings. The locked TV ratings are indicated by the symbol press the c/d/f/ebuttons and Menu/set button to activate the appropriate restrictions for TV V-Chip systemMPAA V-Chip is based on age.TV-PG V-Chip is based on both age and content.

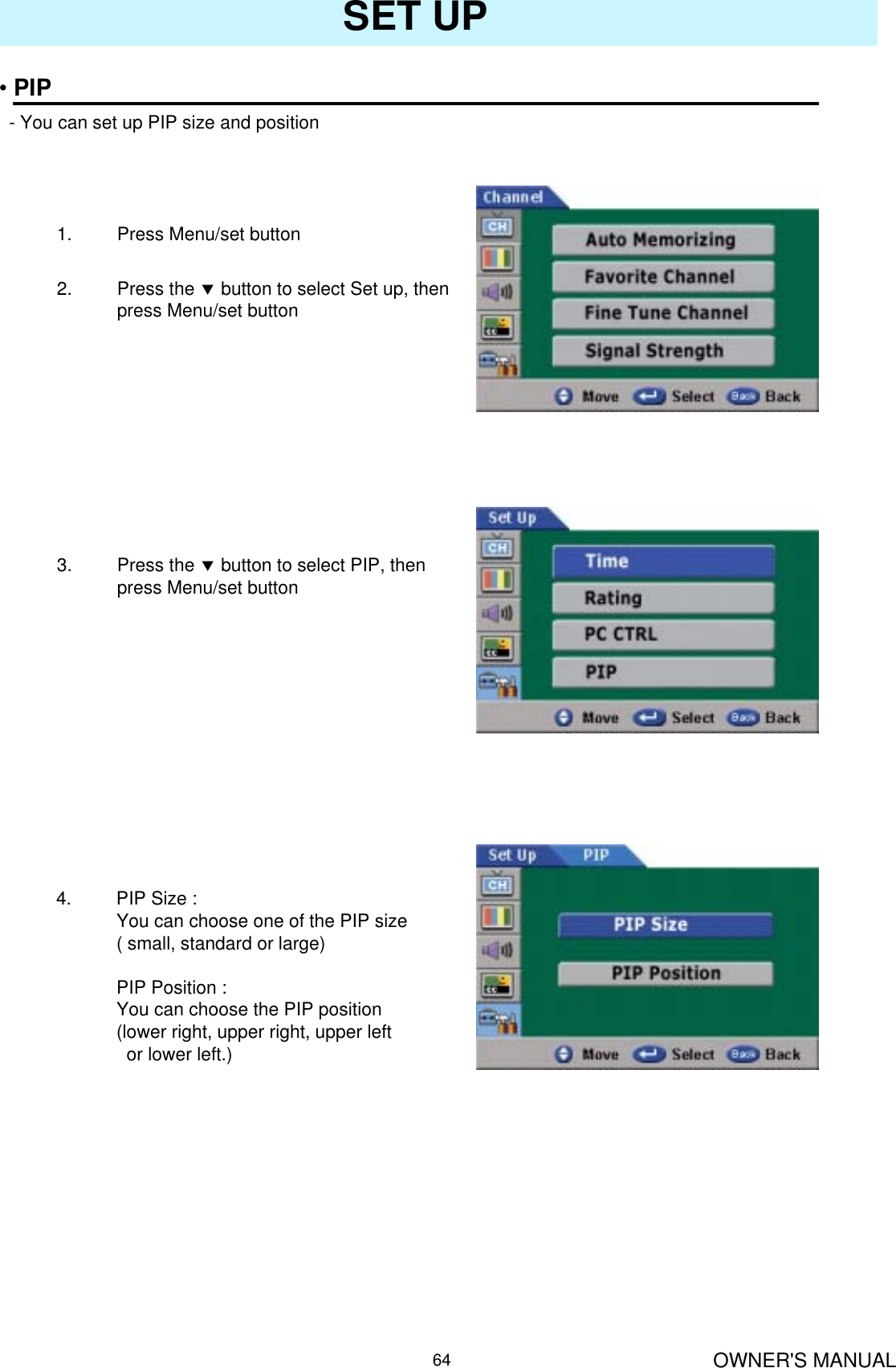

OWNER'S MANUAL64SET UP•PIP- You can set up PIP size and position1. Press Menu/set button 2. Press the dbutton to select Set up, then press Menu/set button3. Press the dbutton to select PIP, then press Menu/set button4. PIP Size :You can choose one of the PIP size( small, standard or large)PIP Position :You can choose the PIP position (lower right, upper right, upper left or lower left.)

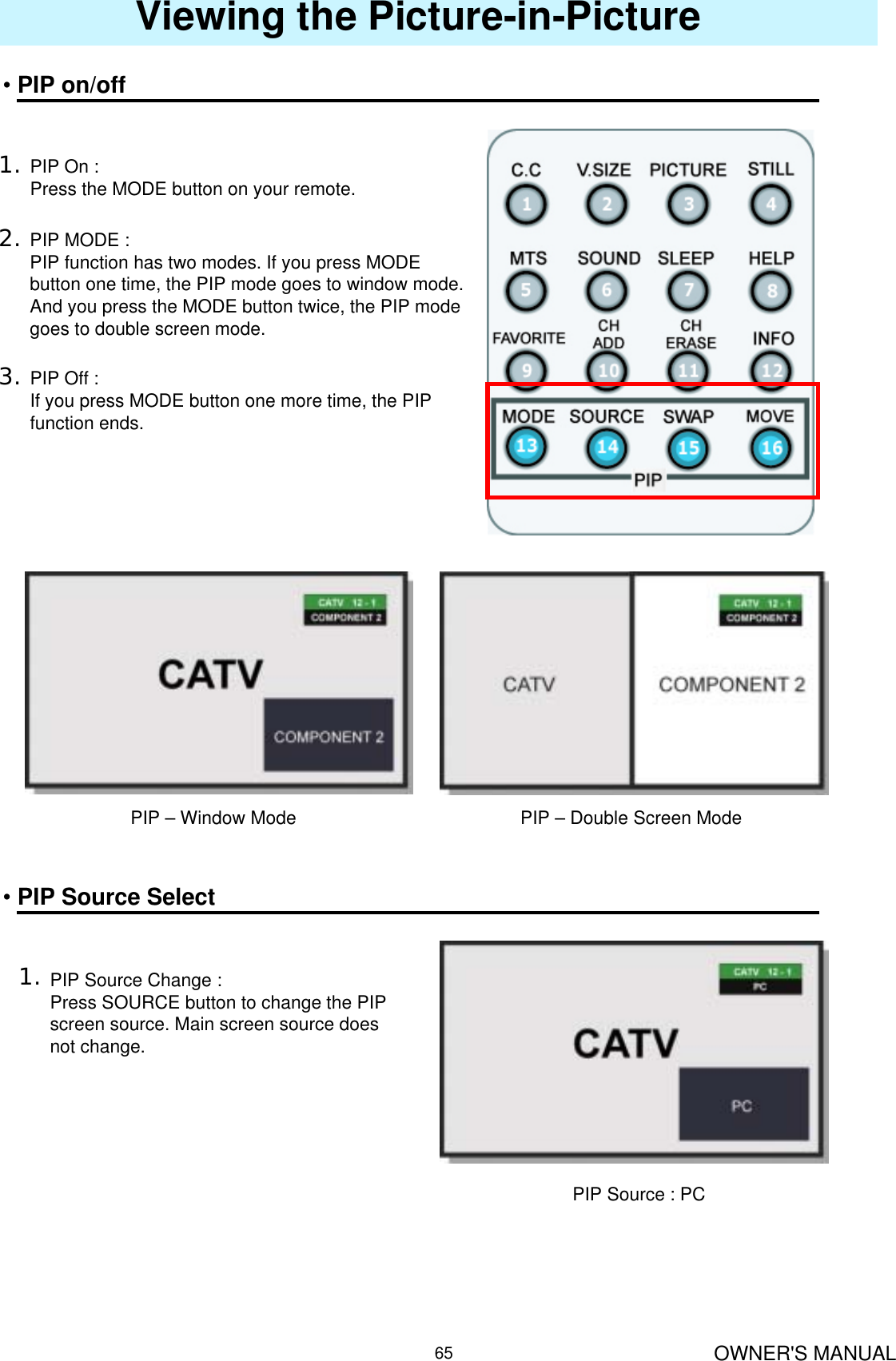

OWNER'S MANUAL65Viewing the Picture-in-Picture•PIP on/off1. PIP On :Press the MODE button on your remote.2. PIP MODE :PIP function has two modes. If you press MODE button one time, the PIP mode goes to window mode.And you press the MODE button twice, the PIP modegoes to double screen mode.3. PIP Off :If you press MODE button one more time, the PIP function ends.PIP – Window Mode PIP – Double Screen Mode•PIP Source Select1. PIP Source Change :Press SOURCE button to change the PIP screen source. Main screen source doesnot change.PIP Source : PC

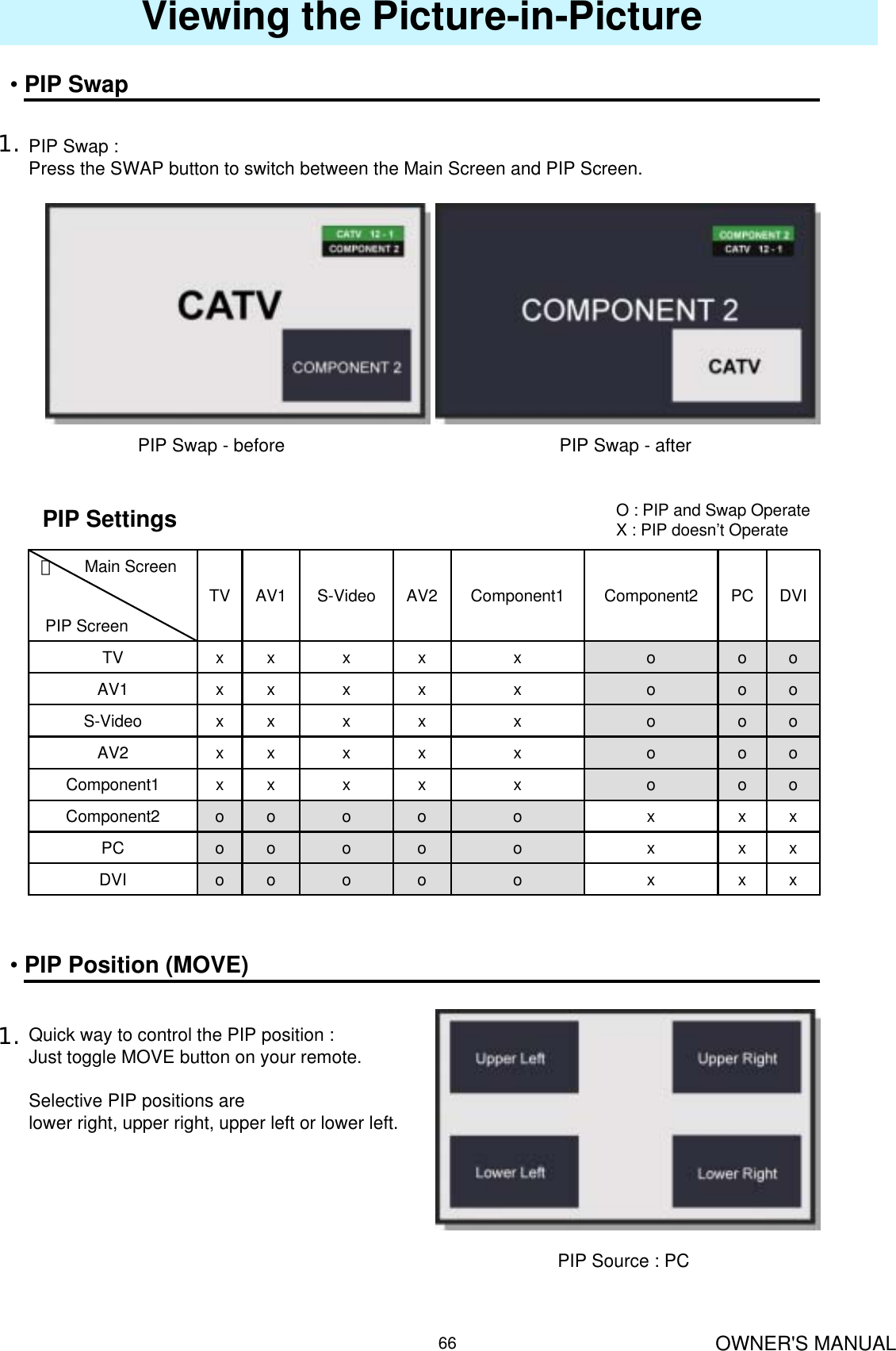

OWNER'S MANUAL66Viewing the Picture-in-Picture•PIP Swap1. PIP Swap :Press the SWAP button to switch between the Main Screen and PIP Screen.PIP Swap - before PIP Swap - afterO : PIP and Swap OperateX : PIP doesn’t OperatePIP SettingsxxxoooooDVIxxxoooooPCxxxoooooComponent2oooxxxxxComponent1oooxxxxxAV2oooxxxxxS-VideooooxxxxxAV1oooxxxxxTVDVIPCComponent2Component1AV2S-VideoAV1TV Main ScreenPIP Screen•PIP Position (MOVE)1. Quick way to control the PIP position :Just toggle MOVE button on your remote.Selective PIP positions are lower right, upper right, upper left or lower left.PIP Source : PC

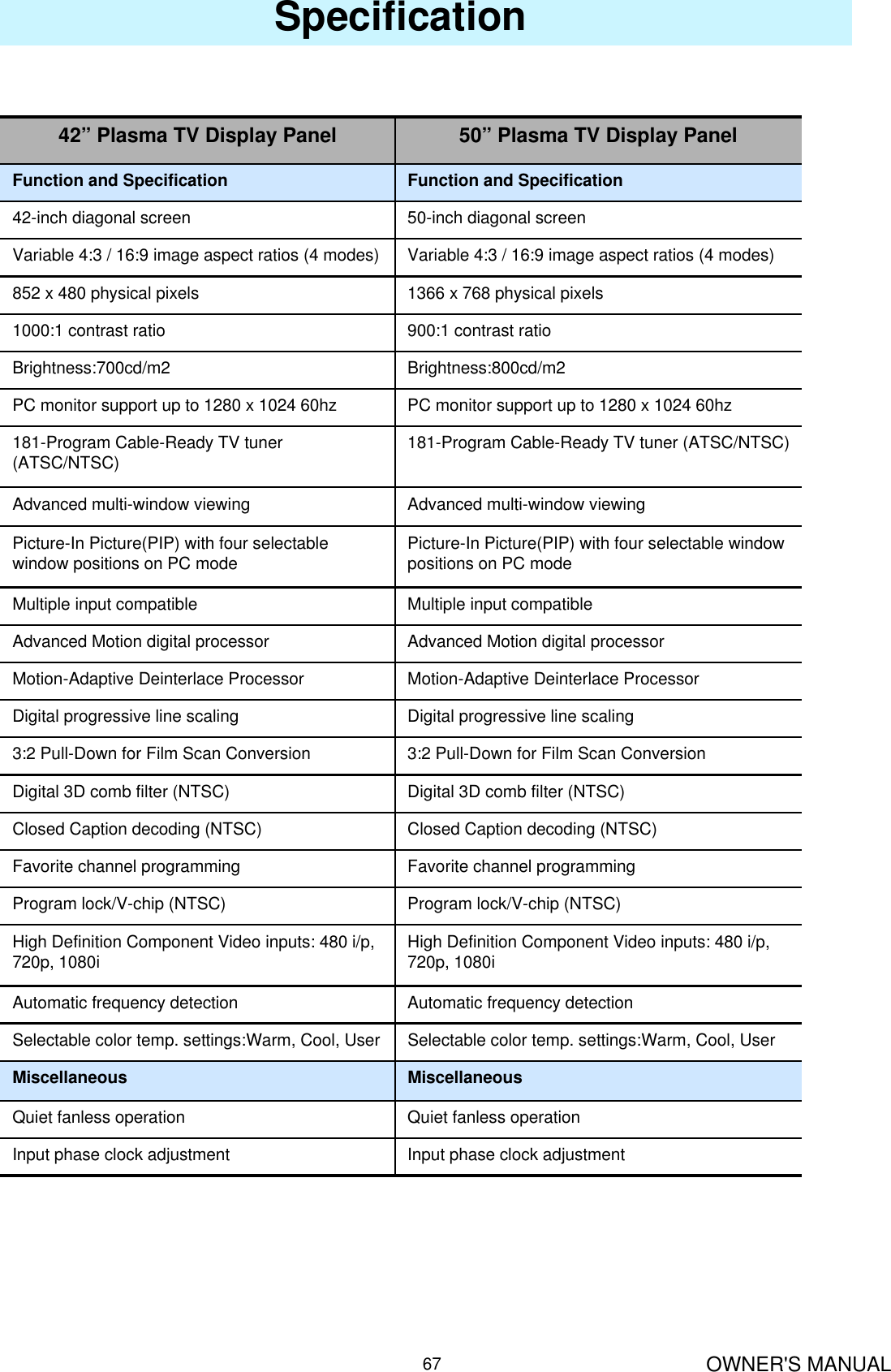

OWNER'S MANUAL67Specification Selectable color temp. settings:Warm, Cool, UserSelectable color temp. settings:Warm, Cool, UserMiscellaneousMiscellaneousQuiet fanless operationQuiet fanless operationInput phase clock adjustmentInput phase clock adjustmentAutomatic frequency detectionAutomatic frequency detectionHigh Definition Component Video inputs: 480 i/p, 720p, 1080iHigh Definition Component Video inputs: 480 i/p, 720p, 1080iProgram lock/V-chip (NTSC)Program lock/V-chip (NTSC)Favorite channel programmingFavorite channel programmingClosed Caption decoding (NTSC)Closed Caption decoding (NTSC)Digital 3D comb filter (NTSC)Digital 3D comb filter (NTSC)3:2 Pull-Down for Film Scan Conversion3:2 Pull-Down for Film Scan ConversionDigital progressive line scalingDigital progressive line scalingMotion-Adaptive Deinterlace ProcessorMotion-Adaptive Deinterlace ProcessorAdvanced Motion digital processorAdvanced Motion digital processorMultiple input compatibleMultiple input compatiblePicture-In Picture(PIP) with four selectable window positions on PC modePicture-In Picture(PIP) with four selectable window positions on PC modeAdvanced multi-window viewingAdvanced multi-window viewing181-Program Cable-Ready TV tuner (ATSC/NTSC)181-Program Cable-Ready TV tuner (ATSC/NTSC)PC monitor support up to 1280 x 1024 60hzPC monitor support up to 1280 x 1024 60hzBrightness:800cd/m2Brightness:700cd/m2900:1 contrast ratio1000:1 contrast ratio1366 x 768 physical pixels852 x 480 physical pixelsVariable 4:3 / 16:9 image aspect ratios (4 modes)Variable 4:3 / 16:9 image aspect ratios (4 modes)50-inch diagonal screen42-inch diagonal screenFunction and SpecificationFunction and Specification50” Plasma TV Display Panel42” Plasma TV Display Panel

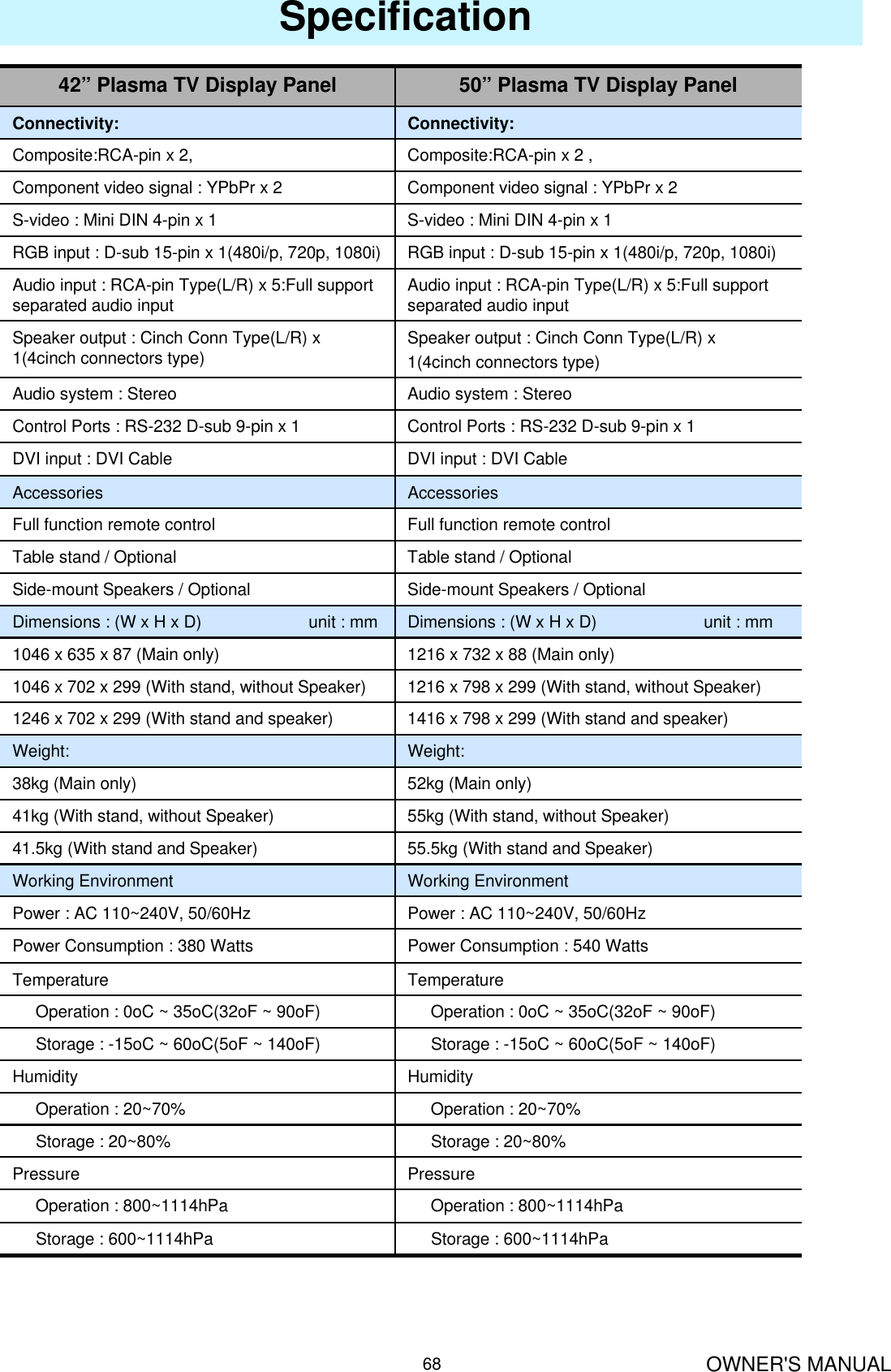

OWNER'S MANUAL68SpecificationOperation : 800~1114hPaOperation : 800~1114hPaTemperatureTemperatureOperation : 0oC ~ 35oC(32oF ~ 90oF)Operation : 0oC ~ 35oC(32oF ~ 90oF)Storage : -15oC ~ 60oC(5oF ~ 140oF)Storage : -15oC ~ 60oC(5oF ~ 140oF)Power : AC 110~240V, 50/60HzPower : AC 110~240V, 50/60HzPower Consumption : 540 WattsPower Consumption : 380 WattsHumidityHumidityOperation : 20~70%Operation : 20~70%Storage : 20~80%Storage : 20~80%PressurePressureStorage : 600~1114hPaStorage : 600~1114hPaWorking EnvironmentWorking Environment55.5kg (With stand and Speaker)41.5kg (With stand and Speaker)55kg (With stand, without Speaker)41kg (With stand, without Speaker)52kg (Main only)38kg (Main only)Weight:Weight:1416 x 798 x 299 (With stand and speaker)1246 x 702 x 299 (With stand and speaker)1216 x 798 x 299 (With stand, without Speaker)1046 x 702 x 299 (With stand, without Speaker)1216 x 732 x 88 (Main only)1046 x 635 x 87 (Main only)Dimensions : (W x H x D)                       unit : mmDimensions : (W x H x D)                       unit : mmSide-mount Speakers / OptionalSide-mount Speakers / OptionalTable stand / OptionalTable stand / OptionalFull function remote controlFull function remote controlAccessoriesAccessoriesDVI input : DVI CableDVI input : DVI CableControl Ports : RS-232 D-sub 9-pin x 1Control Ports : RS-232 D-sub 9-pin x 1Audio system : StereoAudio system : StereoSpeaker output : Cinch Conn Type(L/R) x 1(4cinch connectors type)Speaker output : Cinch Conn Type(L/R) x 1(4cinch connectors type)Audio input : RCA-pin Type(L/R) x 5:Full support separated audio inputAudio input : RCA-pin Type(L/R) x 5:Full support separated audio inputRGB input : D-sub 15-pin x 1(480i/p, 720p, 1080i)RGB input : D-sub 15-pin x 1(480i/p, 720p, 1080i)S-video : Mini DIN 4-pin x 1S-video : Mini DIN 4-pin x 1Component video signal : YPbPr x 2Component video signal : YPbPr x 2Composite:RCA-pin x 2 , Composite:RCA-pin x 2,Connectivity:Connectivity:50” Plasma TV Display Panel42” Plasma TV Display Panel

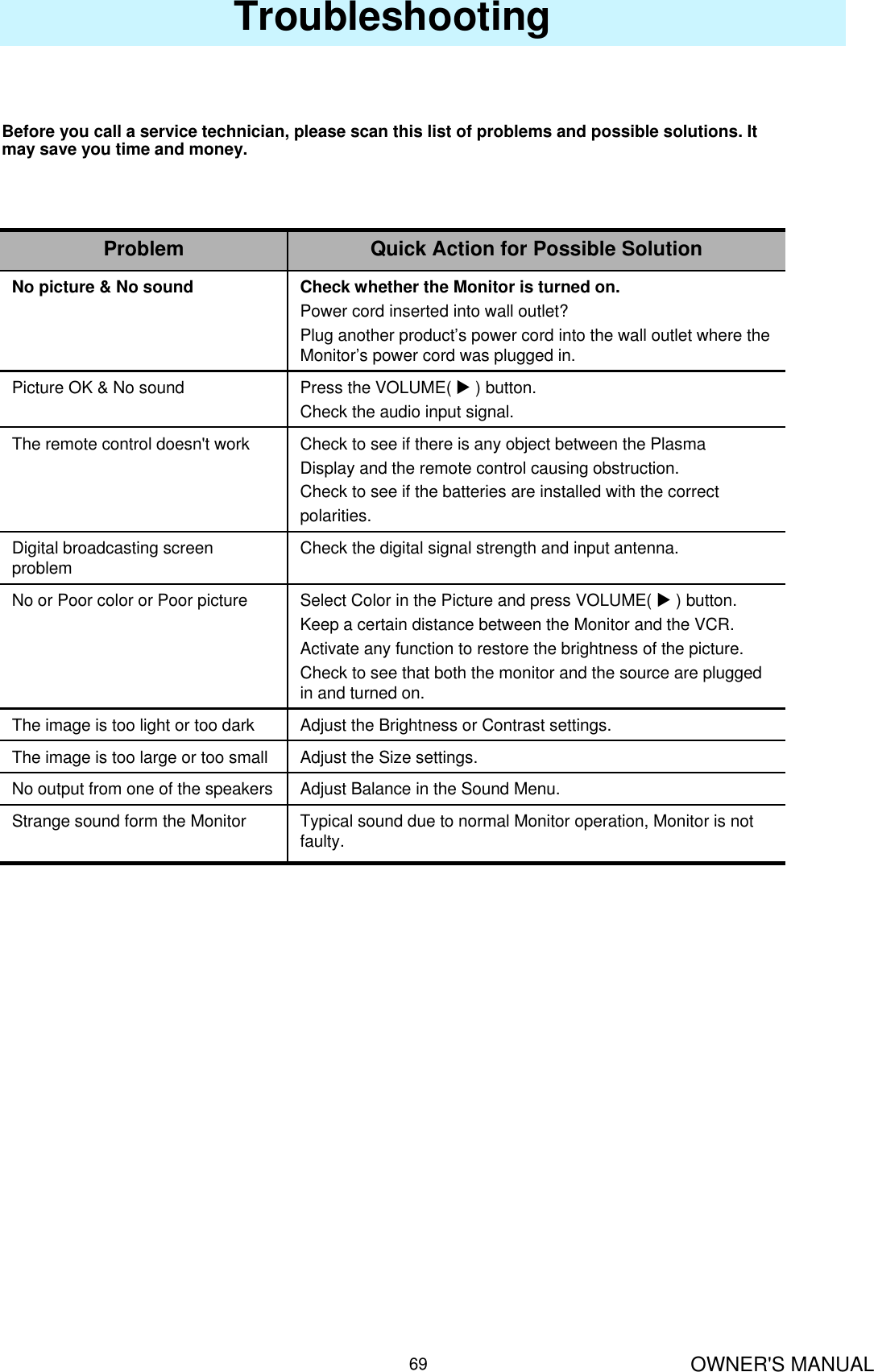

OWNER'S MANUAL69TroubleshootingBefore you call a service technician, please scan this list of problems and possible solutions. It may save you time and money. Check the digital signal strength and input antenna.Digital broadcasting screen problemTypical sound due to normal Monitor operation, Monitor is not faulty.Strange sound form the MonitorAdjust Balance in the Sound Menu.No output from one of the speakersAdjust the Size settings.The image is too large or too smallAdjust the Brightness or Contrast settings.The image is too light or too darkSelect Color in the Picture and press VOLUME( X) button.Keep a certain distance between the Monitor and the VCR.Activate any function to restore the brightness of the picture.Check to see that both the monitor and the source are plugged in and turned on.No or Poor color or Poor pictureCheck to see if there is any object between the PlasmaDisplay and the remote control causing obstruction.Check to see if the batteries are installed with the correctpolarities.The remote control doesn't workPress the VOLUME( X) button.Check the audio input signal.Picture OK & No soundCheck whether the Monitor is turned on.Power cord inserted into wall outlet?Plug another product’s power cord into the wall outlet where the Monitor’s power cord was plugged in.No picture & No soundQuick Action for Possible SolutionProblem

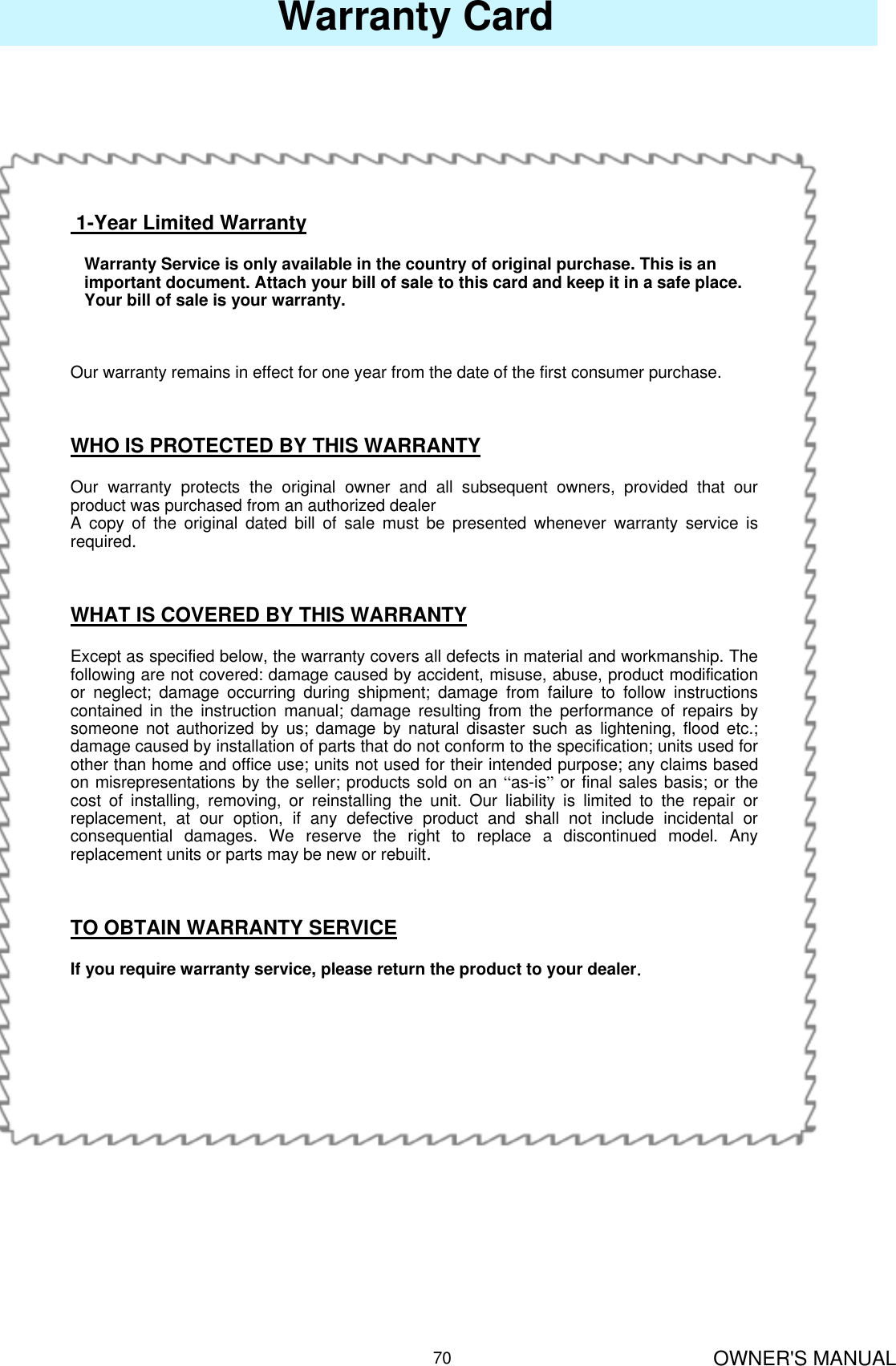

OWNER'S MANUAL70Warranty Card1-Year Limited WarrantyWarranty Service is only available in the country of original purchase. This is an    important document. Attach your bill of sale to this card and keep it in a safe place.Your bill of sale is your warranty.Our warranty remains in effect for one year from the date of the first consumer purchase.WHO IS PROTECTED BY THIS WARRANTYOur warranty protects the original owner and all subsequent owners, provided that our product was purchased from an authorized dealerA copy of the original dated bill of sale must be presented whenever warranty service is required.WHAT IS COVERED BY THIS WARRANTYExcept as specified below, the warranty covers all defects in material and workmanship. The following are not covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual; damage resulting from the performance of repairs by someone not authorized by us; damage by natural disaster such as lightening, flood etc.; damage caused by installation of parts that do not conform to the specification; units used for other than home and office use; units not used for their intended purpose; any claims based on misrepresentations by the seller; products sold on an “as-is”or final sales basis; or the cost of installing, removing, or reinstalling the unit. Our liability is limited to the repair or replacement, at our option, if any defective product and shall not include incidental or consequential damages. We reserve the right to replace a discontinued model. Any replacement units or parts may be new or rebuilt.TO OBTAIN WARRANTY SERVICEIf you require warranty service, please return the product to your dealer.
