Harsper HP-421VTM PDP Monitor User Manual

Harsper Co., Ltd. PDP Monitor

Users Manual

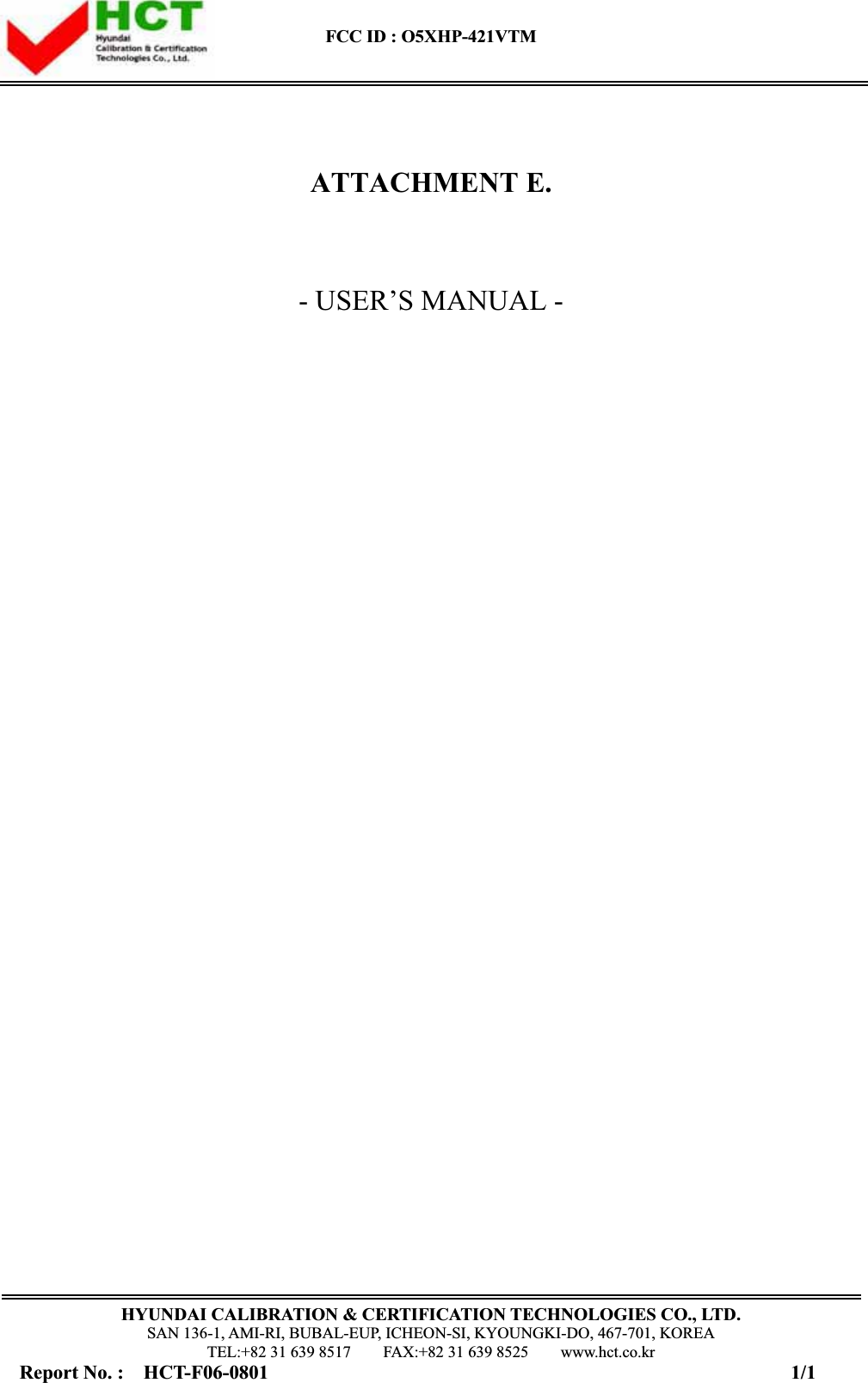

FCC ID : O5XHP-421VTM HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-0801 1/1ٻࣜࣜATTACHMENT E. - USER’S MANUAL -
Ver. HVP 1.01 E Part No. 4U420V1042” Plasma MonitorPD42V76EMOPERATING INSTRUCTIONS

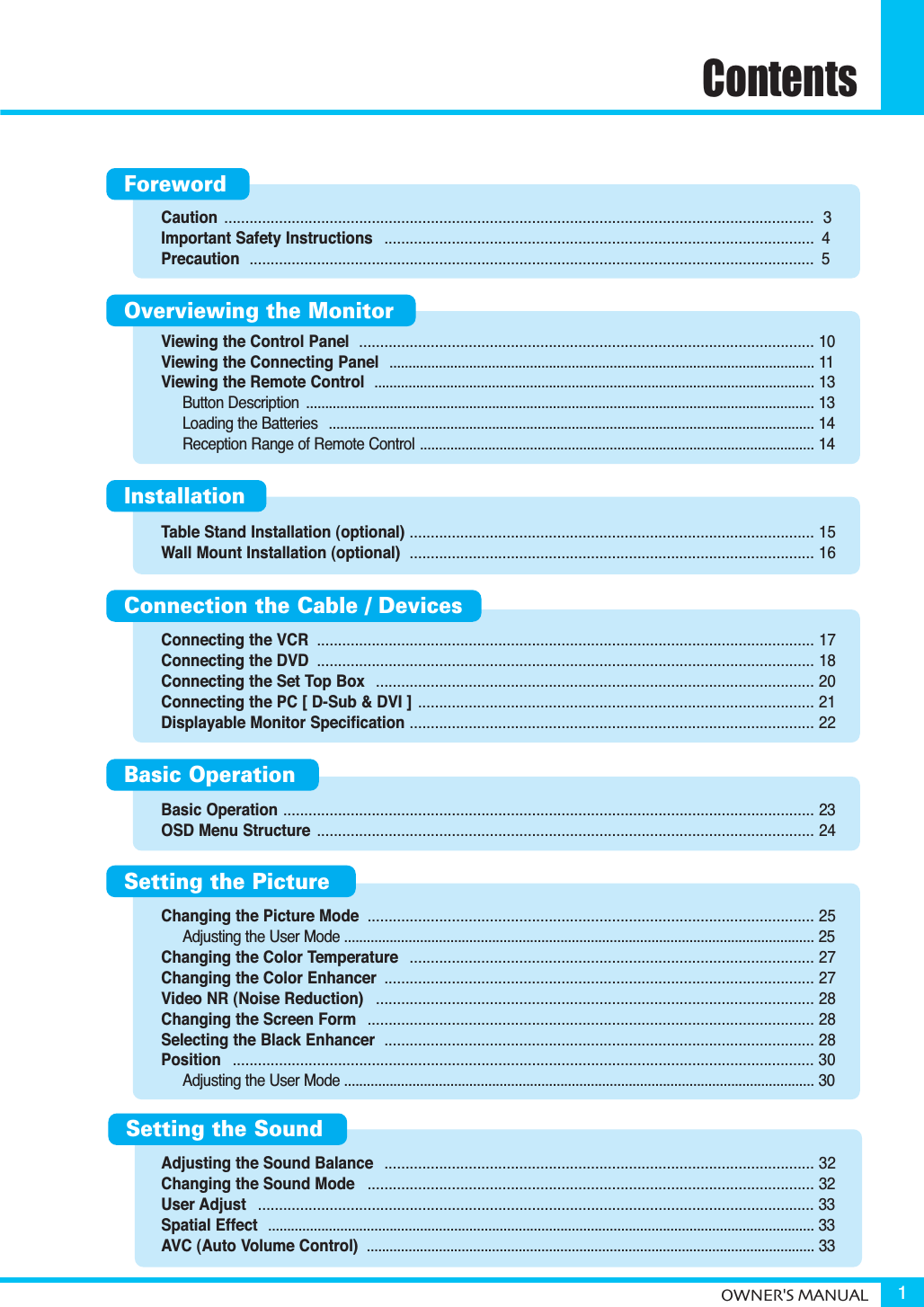

ContentsOWNER'S MANUAL 1ForewordOverviewing the MonitorBasic OperationConnection the Cable / DevicesInstallationSetting the PictureSetting the SoundCaution ............................................................................................................................................ 3Important Safety Instructions ...................................................................................................... 4Precaution ...................................................................................................................................... 5Viewing the Control Panel ............................................................................................................ 10Viewing the Connecting Panel ................................................................................................................ 11Viewing the Remote Control .................................................................................................................... 13Button Description ...................................................................................................................................... 13Loading the Batteries ................................................................................................................................ 14Reception Range of Remote Control ........................................................................................................ 14Table Stand Installation (optional) ................................................................................................ 15Wall Mount Installation (optional) ................................................................................................ 16Connecting the VCR ...................................................................................................................... 17Connecting the DVD ...................................................................................................................... 18Connecting the Set Top Box ........................................................................................................ 20Connecting the PC [ D-Sub & DVI ] .............................................................................................. 21Displayable Monitor Specification ................................................................................................ 22Basic Operation .............................................................................................................................. 23OSD Menu Structure ...................................................................................................................... 24Changing the Picture Mode .......................................................................................................... 25Adjusting the User Mode ............................................................................................................................ 25Changing the Color Temperature ................................................................................................ 27Changing the Color Enhancer ...................................................................................................... 27Video NR (Noise Reduction) ........................................................................................................ 28Changing the Screen Form .......................................................................................................... 28Selecting the Black Enhancer ...................................................................................................... 28Position .......................................................................................................................................... 30Adjusting the User Mode ............................................................................................................................ 30Adjusting the Sound Balance ...................................................................................................... 32Changing the Sound Mode .......................................................................................................... 32User Adjust .................................................................................................................................... 33Spatial Effect ................................................................................................................................................ 33AVC (Auto Volume Control) ...................................................................................................................... 33

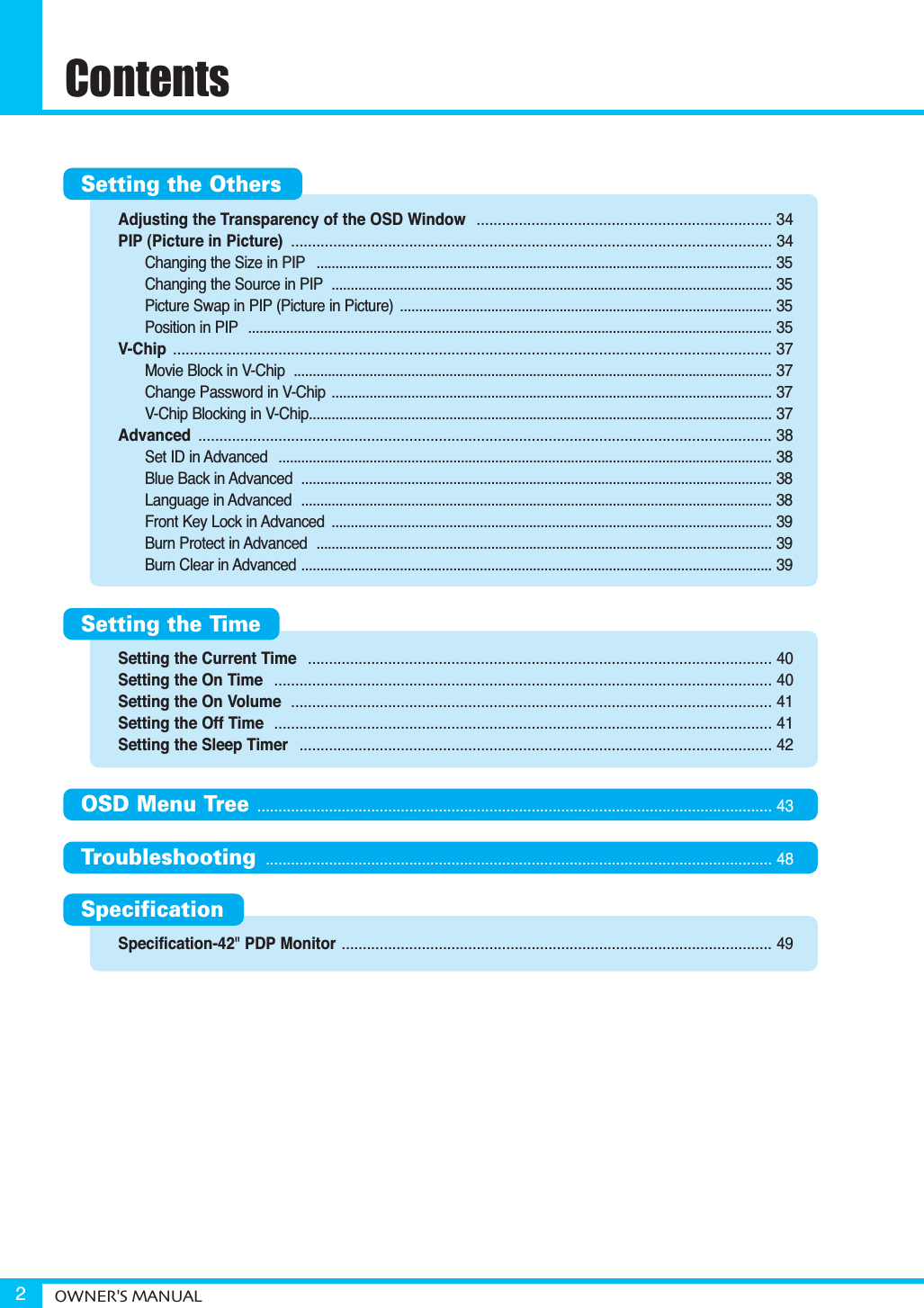

Adjusting the Transparency of the OSD Window ...................................................................... 34PIP (Picture in Picture) .................................................................................................................. 34Changing the Size in PIP ........................................................................................................................ 35Changing the Source in PIP .................................................................................................................... 35Picture Swap in PIP (Picture in Picture) .................................................................................................. 35Position in PIP .......................................................................................................................................... 35V-Chip .............................................................................................................................................. 37Movie Block in V-Chip .............................................................................................................................. 37Change Password in V-Chip .................................................................................................................... 37V-Chip Blocking in V-Chip.......................................................................................................................... 37Advanced ........................................................................................................................................ 38Set ID in Advanced .................................................................................................................................. 38Blue Back in Advanced ............................................................................................................................ 38Language in Advanced ............................................................................................................................ 38Front Key Lock in Advanced .................................................................................................................... 39Burn Protect in Advanced ........................................................................................................................ 39Burn Clear in Advanced ............................................................................................................................ 39Setting the Current Time .............................................................................................................. 40Setting the On Time ...................................................................................................................... 40Setting the On Volume .................................................................................................................. 41Setting the Off Time ...................................................................................................................... 41Setting the Sleep Timer ................................................................................................................ 42Specification-42"PDP Monitor ...................................................................................................... 49ContentsOWNER'S MANUAL2Setting the OthersSetting the TimeOSD Menu Tree .......................................................................................................................... 43Troubleshooting ........................................................................................................................ 48Specification

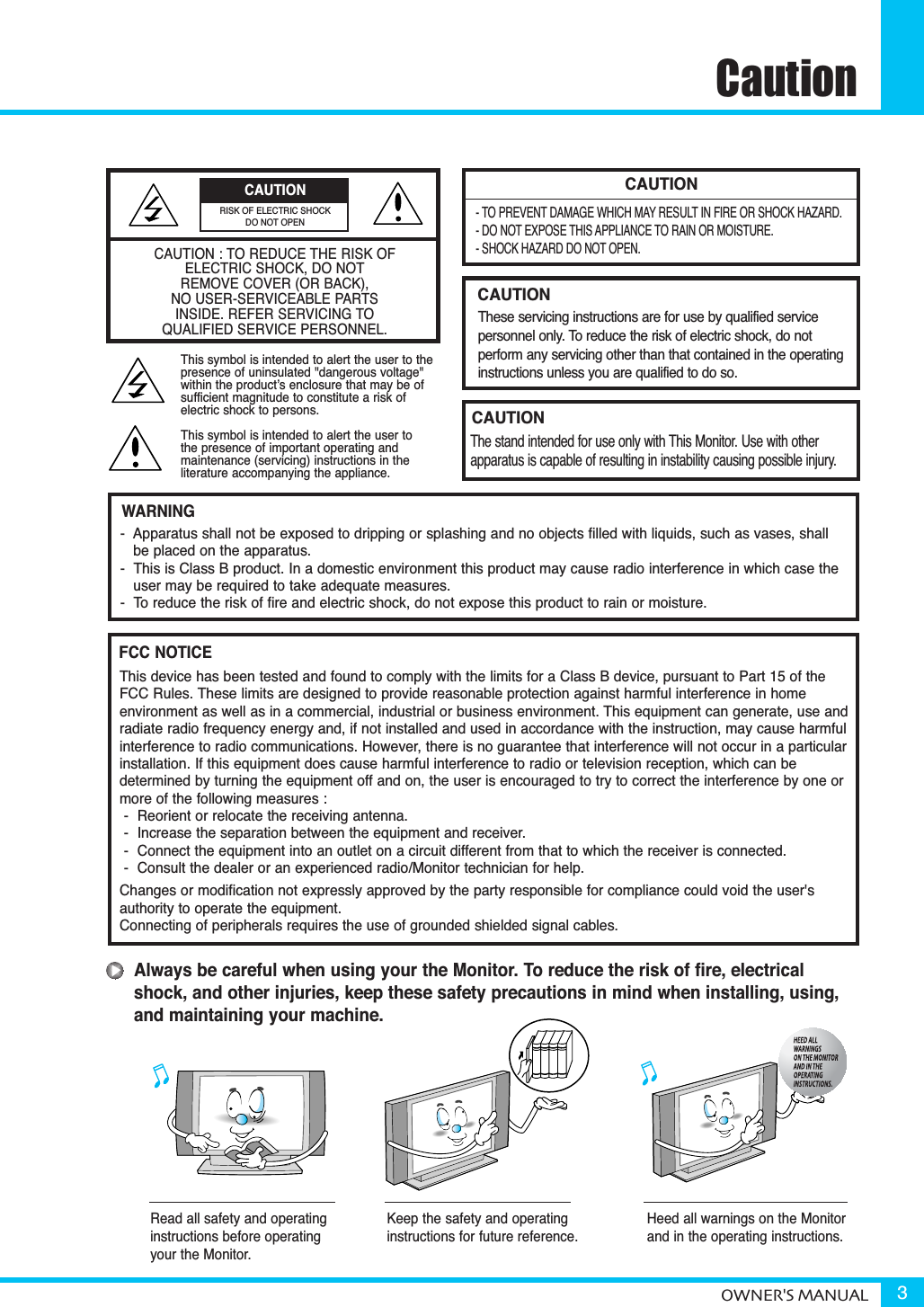

CautionOWNER'S MANUAL 3CAUTION- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD.- DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONThese servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operatinginstructions unless you are qualified to do so.CAUTIONThe stand intended for use only with This Monitor. Use with other apparatus is capable of resulting in instability causing possible injury. Always be careful when using your the Monitor. To reduce the risk of fire, electricalshock, and other injuries, keep these safety precautions in mind when installing, using,and maintaining your machine.- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.- This is Class B product. In a domestic environment this product may cause radio interference in which case theuser may be required to take adequate measures.- To reduce the risk of fire and electric shock, do not expose this product to rain or moisture.WARNINGThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of theFCC Rules. These limits are designed to provide reasonable protection against harmful interference in home environment as well as in a commercial, industrial or business environment. This equipment can generate, use andradiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/Monitor technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.FCC NOTICERead all safety and operatinginstructions before operatingyour the Monitor.Keep the safety and operatinginstructions for future reference.Heed all warnings on the Monitorand in the operating instructions.CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE COVER (OR BACK),NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
Always be careful when using your the Monitor. To reduce the risk of fire, electrical shock, and other injuries, keepthese safety precautions in mind when installing, using, and maintaining your machine.1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a damp cloth.7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includingamplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades withone wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and thepoint where they exit from the apparatus.11. Only use the attachments/accessories specified by the manufacturer.12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damagedin any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen intothe apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has beendropped.15. When installing the PDP Monitor, do not block the appliance coupler with any structure.User can easily have access to the coupler to disconnect it from AC main power.Important Safety InstructionsOWNER'S MANUAL4

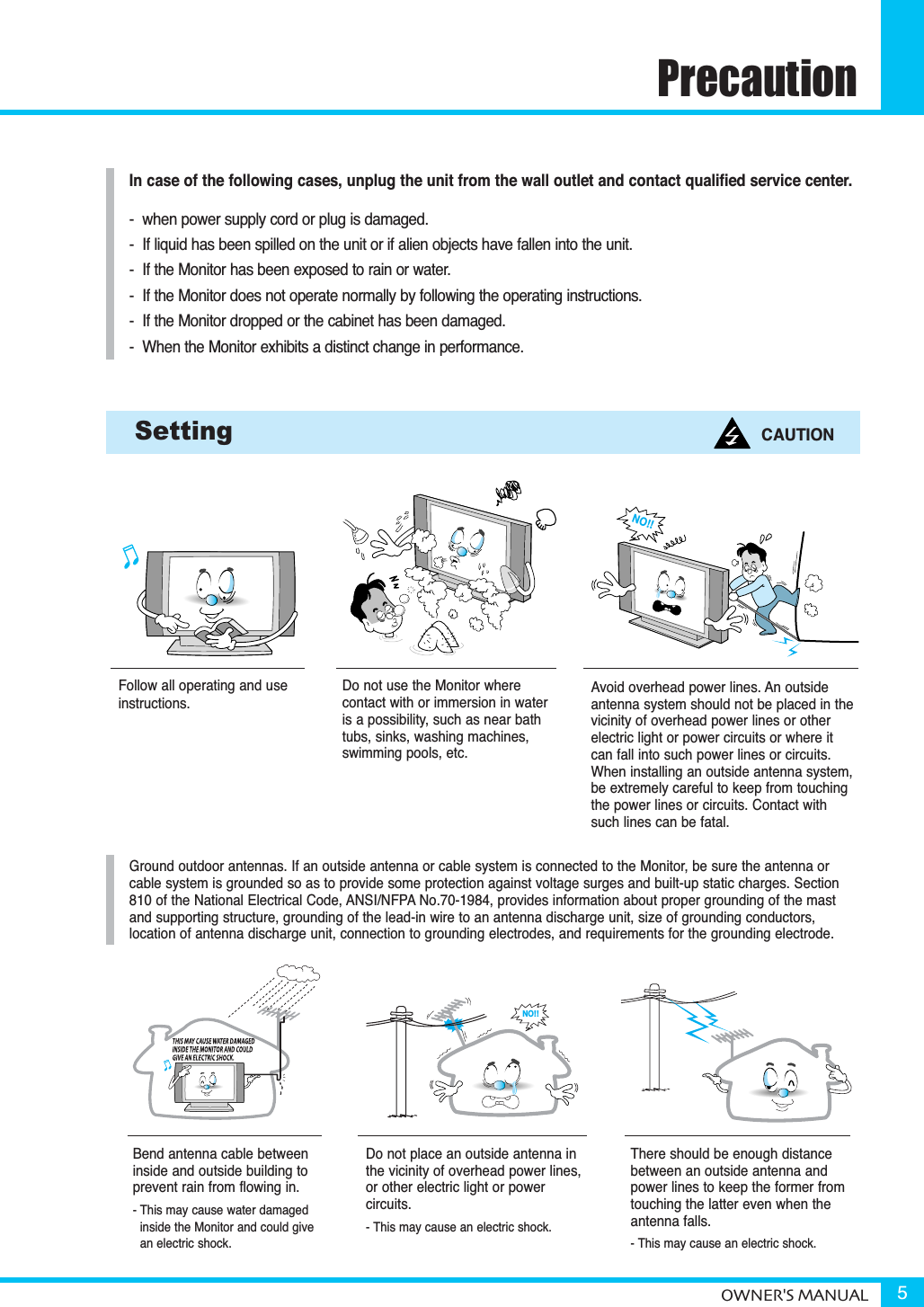

PrecautionOWNER'S MANUAL 5Follow all operating and useinstructions.Do not use the Monitor where contact with or immersion in wateris a possibility, such as near bathtubs, sinks, washing machines, swimming pools, etc.Setting CAUTIONGround outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure the antenna orcable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides information about proper grounding of the mastand supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.Do not place an outside antenna inthe vicinity of overhead power lines, or other electric light or power circuits.- This may cause an electric shock.There should be enough distance between an outside antenna and power lines to keep the former fromtouching the latter even when the antenna falls.- This may cause an electric shock.Bend antenna cable betweeninside and outside building to prevent rain from flowing in. - This may cause water damaged inside the Monitor and could givean electric shock.Avoid overhead power lines. An outside antenna system should not be placed in thevicinity of overhead power lines or otherelectric light or power circuits or where itcan fall into such power lines or circuits.When installing an outside antenna system,be extremely careful to keep from touchingthe power lines or circuits. Contact withsuch lines can be fatal.In case of the following cases, unplug the unit from the wall outlet and contact qualified service center.- when power supply cord or plug is damaged.- If liquid has been spilled on the unit or if alien objects have fallen into the unit.- If the Monitor has been exposed to rain or water.- If the Monitor does not operate normally by following the operating instructions.- If the Monitor dropped or the cabinet has been damaged.- When the Monitor exhibits a distinct change in performance.NO!!NO!!

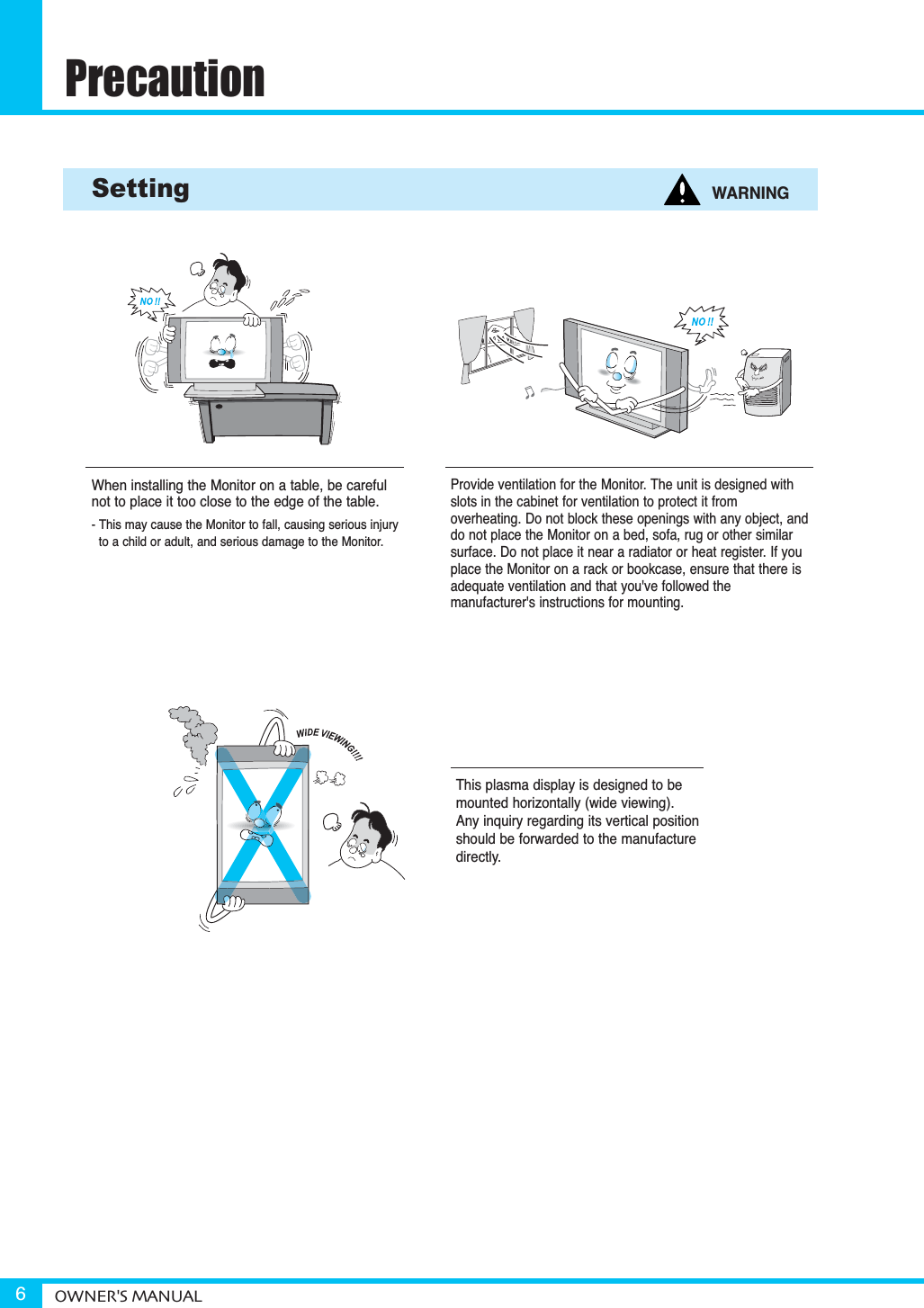

PrecautionOWNER'S MANUAL6Provide ventilation for the Monitor. The unit is designed withslots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, anddo not place the Monitor on a bed, sofa, rug or other similarsurface. Do not place it near a radiator or heat register. If youplace the Monitor on a rack or bookcase, ensure that there isadequate ventilation and that you've followed the manufacturer's instructions for mounting. Setting WARNINGWhen installing the Monitor on a table, be carefulnot to place it too close to the edge of the table.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.This plasma display is designed to bemounted horizontally (wide viewing).Any inquiry regarding its vertical positionshould be forwarded to the manufacturedirectly.

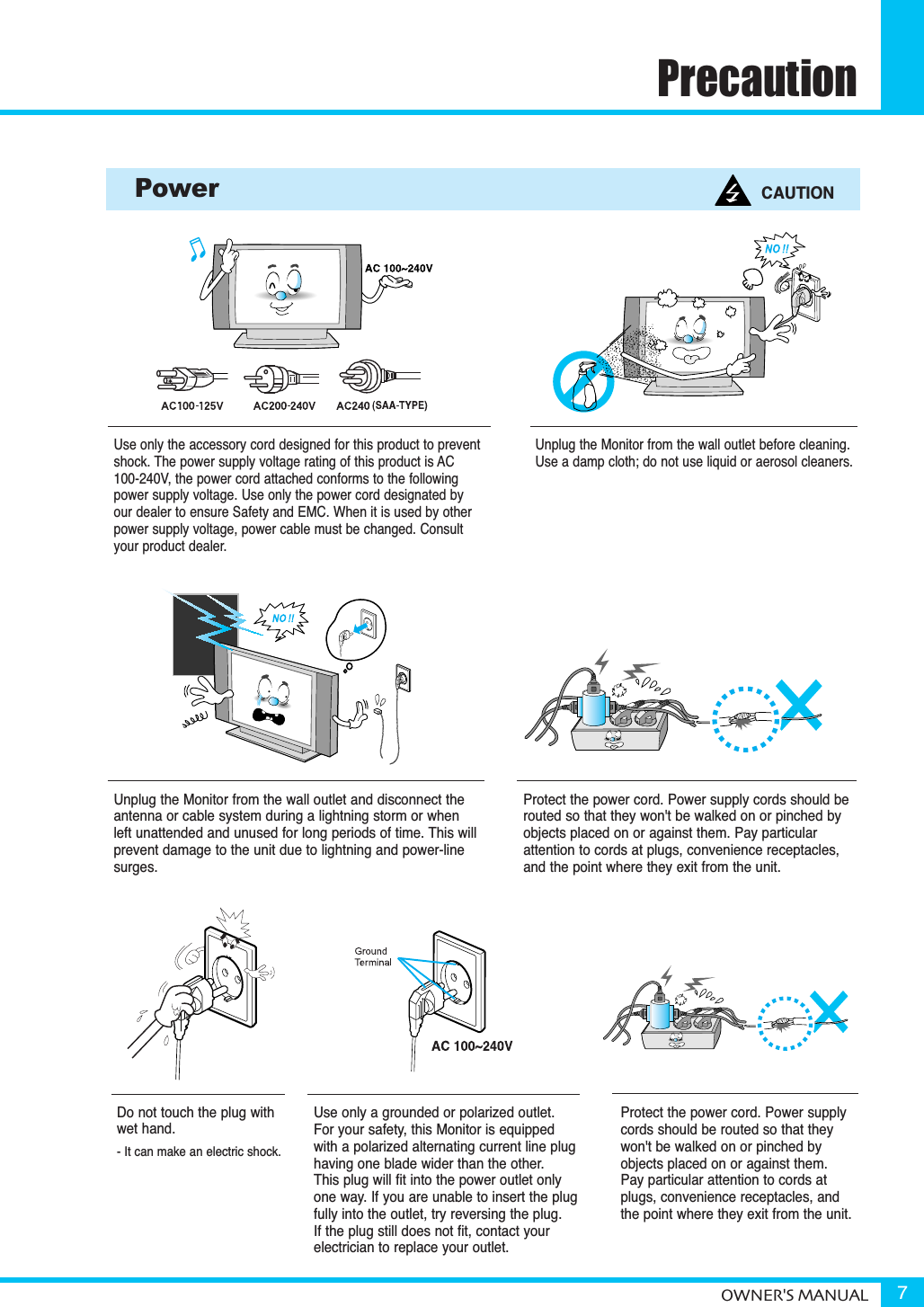

PrecautionOWNER'S MANUAL 7Use only the accessory cord designed for this product to preventshock. The power supply voltage rating of this product is AC100-240V, the power cord attached conforms to the followingpower supply voltage. Use only the power cord designated by our dealer to ensure Safety and EMC. When it is used by otherpower supply voltage, power cable must be changed. Consultyour product dealer.Unplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners.Unplug the Monitor from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-linesurges.Protect the power cord. Power supply cords should berouted so that they won't be walked on or pinched byobjects placed on or against them. Pay particularattention to cords at plugs, convenience receptacles,and the point where they exit from the unit.Protect the power cord. Power supplycords should be routed so that theywon't be walked on or pinched byobjects placed on or against them. Pay particular attention to cords atplugs, convenience receptacles, and the point where they exit from the unit.Power CAUTIONDo not touch the plug with wet hand.- It can make an electric shock.Use only a grounded or polarized outlet. For your safety, this Monitor is equippedwith a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet onlyone way. If you are unable to insert the plugfully into the outlet, try reversing the plug. If the plug still does not fit, contact yourelectrician to replace your outlet.

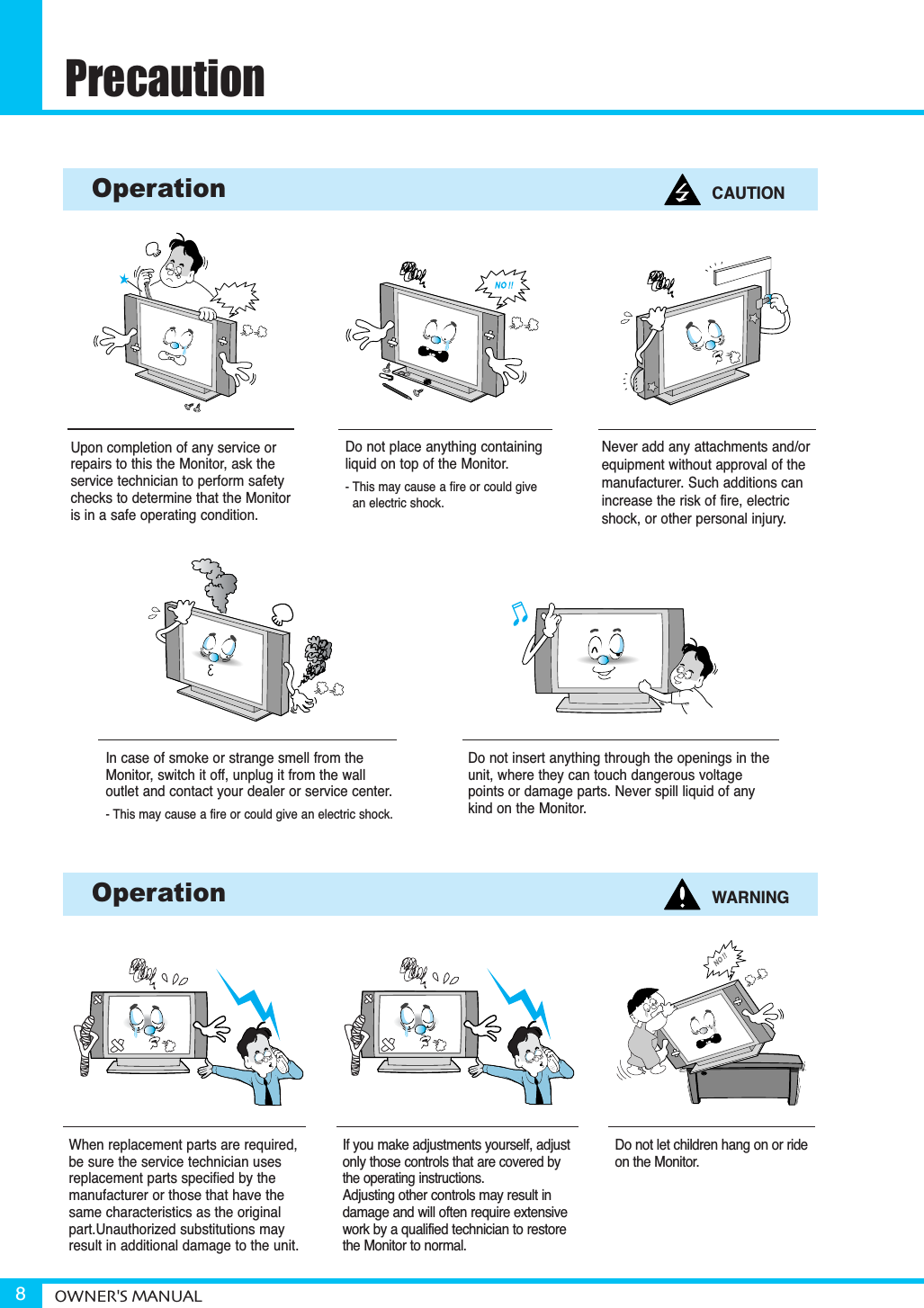

PrecautionOWNER'S MANUAL8When replacement parts are required,be sure the service technician usesreplacement parts specified by themanufacturer or those that have thesame characteristics as the originalpart.Unauthorized substitutions mayresult in additional damage to the unit. Upon completion of any service orrepairs to this the Monitor, ask theservice technician to perform safetychecks to determine that the Monitoris in a safe operating condition. If you make adjustments yourself, adjustonly those controls that are covered bythe operating instructions.Adjusting other controls may result indamage and will often require extensivework by a qualified technician to restorethe Monitor to normal.Do not let children hang on or rideon the Monitor.Do not insert anything through the openings in theunit, where they can touch dangerous voltagepoints or damage parts. Never spill liquid of anykind on the Monitor.Do not place anything containingliquid on top of the Monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smell from the Monitor, switch it off, unplug it from the wall outlet and contact your dealer or service center.- This may cause a fire or could give an electric shock.Operation CAUTIONOperation WARNINGNever add any attachments and/orequipment without approval of themanufacturer. Such additions canincrease the risk of fire, electricshock, or other personal injury.

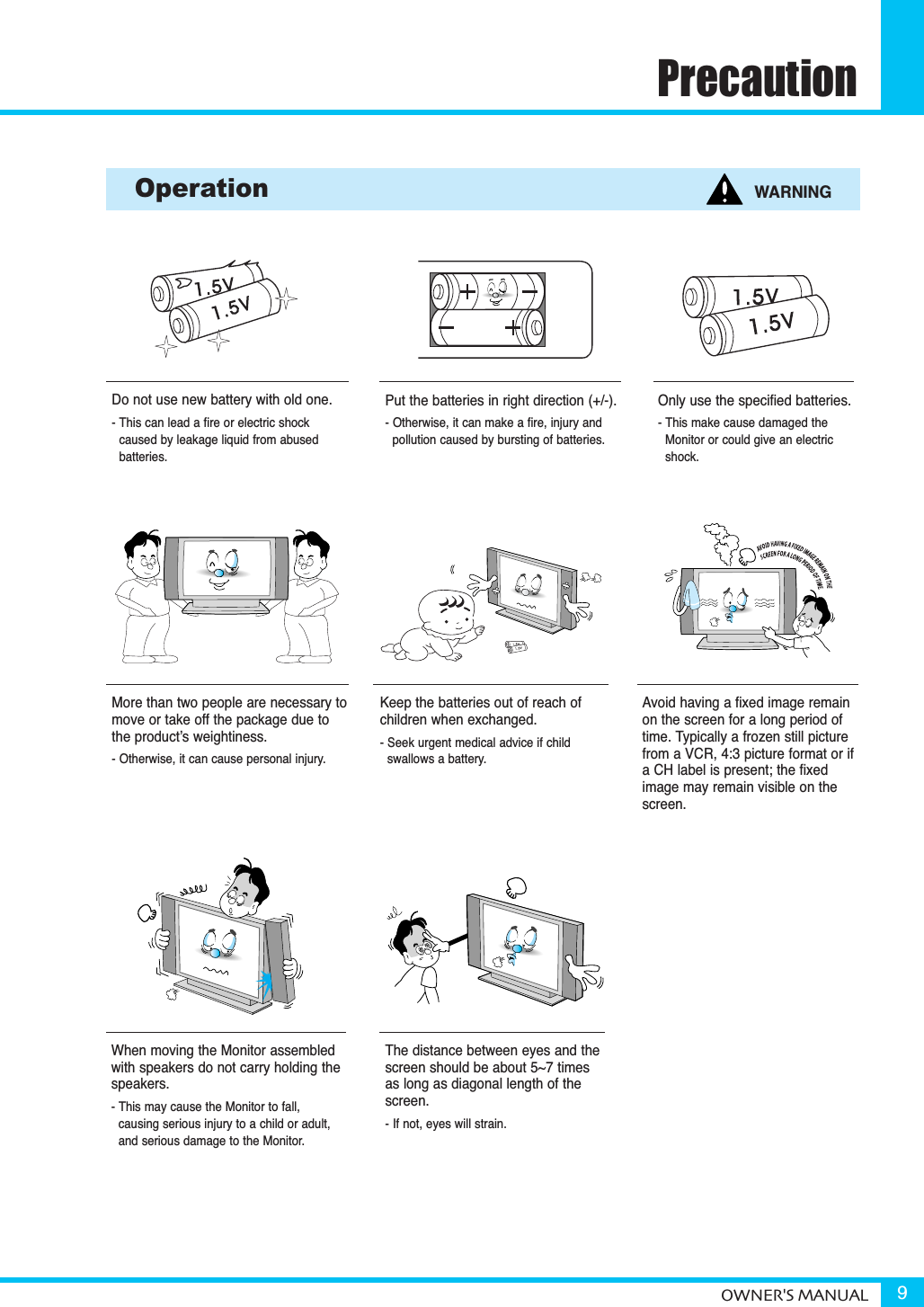

PrecautionOWNER'S MANUAL 9When moving the Monitor assembledwith speakers do not carry holding thespeakers.- This may cause the Monitor to fall, causing serious injury to a child or adult,and serious damage to the Monitor.Do not use new battery with old one.- This can lead a fire or electric shock caused by leakage liquid from abused batteries.Put the batteries in right direction (+/-).- Otherwise, it can make a fire, injury and pollution caused by bursting of batteries.Only use the specified batteries.- This make cause damaged the Monitor or could give an electricshock.More than two people are necessary tomove or take off the package due tothe product’s weightiness.- Otherwise, it can cause personal injury.Keep the batteries out of reach of children when exchanged.- Seek urgent medical advice if child swallows a battery.Operation WARNINGAvoid having a fixed image remainon the screen for a long period oftime. Typically a frozen still picturefrom a VCR, 4:3 picture format or ifa CH label is present; the fixedimage may remain visible on thescreen.The distance between eyes and thescreen should be about 5~7 timesas long as diagonal length of thescreen.- If not, eyes will strain.

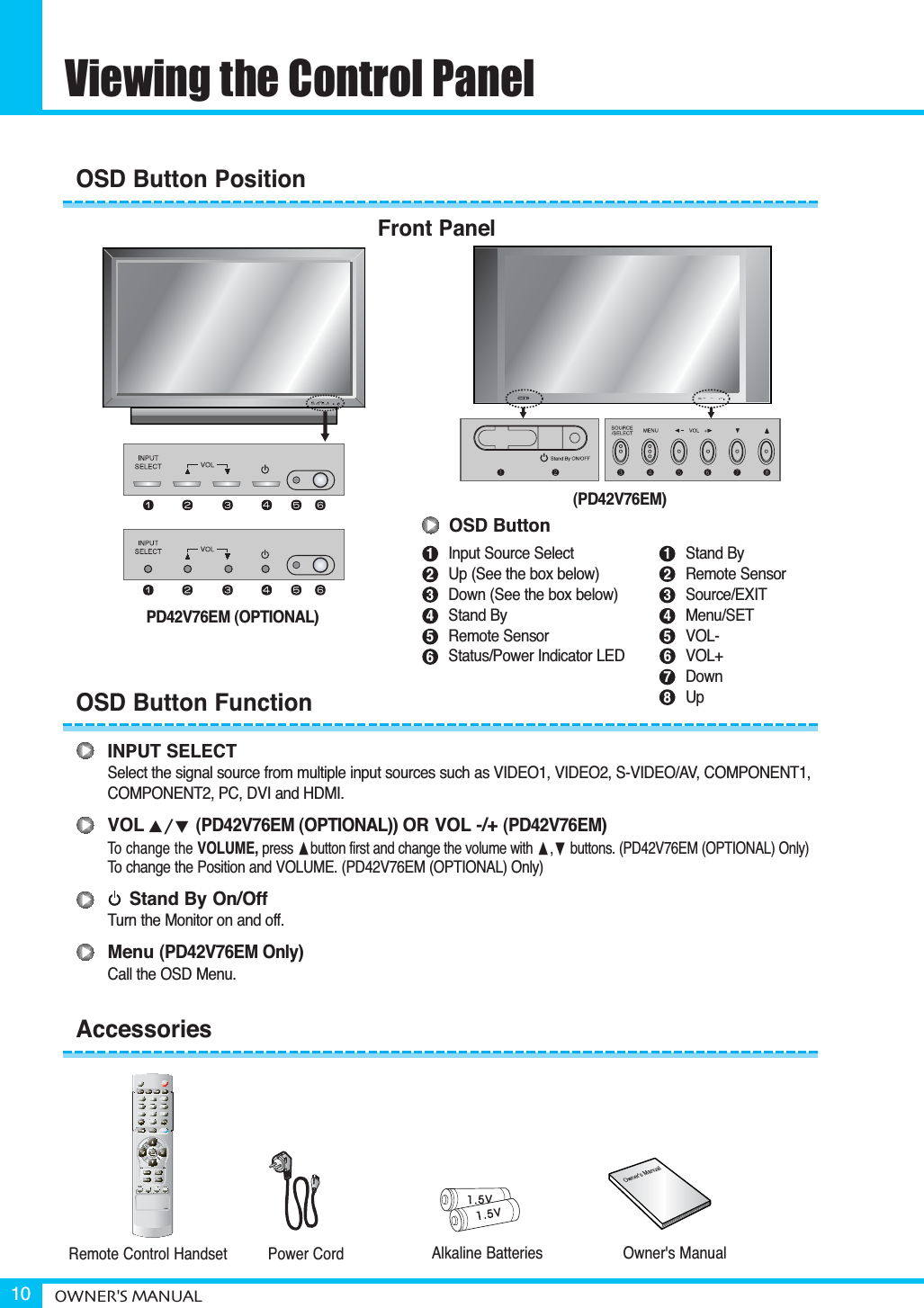

Viewing the Control PanelOWNER'S MANUAL10INPUT SELECTSelect the signal source from multiple input sources such as VIDEO1, VIDEO2, S-VIDEO/AV, COMPONENT1, COMPONENT2, PC, DVI and HDMI.VOL(PD42V76EM (OPTIONAL)) OR VOL -/+ (PD42V76EM)To change the VOLUME, press button first and change the volume with ,buttons. (PD42V76EM (OPTIONAL) Only) To change the Position and VOLUME. (PD42V76EM (OPTIONAL) Only)Stand By On/OffTurn the Monitor on and off.Menu(PD42V76EM Only) Call the OSD Menu.OSD Button PositionOSD Button FunctionAccessoriesRemote Control Handset Power Cord Alkaline Batteries Owner's ManualMOVE+-VOLMENU/SELECTSOURCEStand ByRemote SensorSource/EXITMenu/SETVOL-VOL+DownUp12345678OSD ButtonInput Source SelectUp (See the box below)Down (See the box below)Stand ByRemote SensorStatus/Power Indicator LED123456Front Panel(PD42V76EM)PD42V76EM (OPTIONAL)

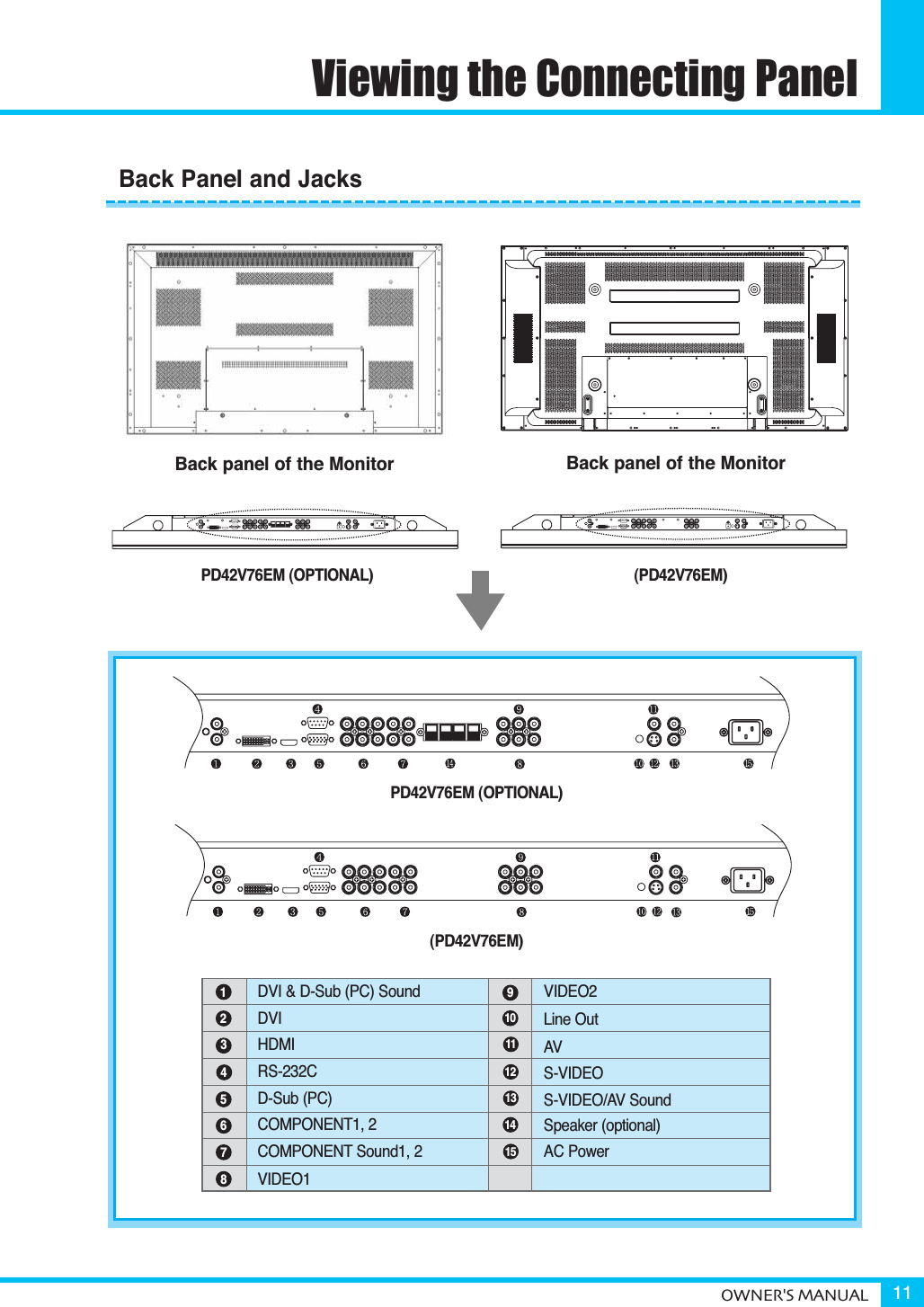

OWNER'S MANUAL 11Viewing the Connecting PanelBack Panel and JacksDVI & D-Sub (PC) SoundDVIHDMIRS-232CD-Sub (PC)COMPONENT1, 2COMPONENT Sound1, 2VIDEO1VIDEO2Line Out AVS-VIDEOS-VIDEO/AV SoundSpeaker (optional)AC Power123456781112131415Back panel of the MonitorBack panel of the MonitorPD42V76EM (OPTIONAL)(PD42V76EM)PD42V76EM (OPTIONAL) (PD42V76EM)910
OWNER'S MANUAL12Viewing the Connecting Panel23546783254678PCMonitorAudio InputComposite Video InputComposite Video OutputS-Video InputComponent Video InputAnalog RGB InputHDMI InputDigital Video InputRCA Pin JackRCA Pin JackRCA Pin JackMini Din 4 PinRCA Pin JackMini D-Sub 15 PinHDMI ConnectDVI-D 24 Pin• Cables connecting the PC vary according to the type of machine, so consult your product dealer. RXDTXDGNDDTRDSRRTSCTSTXDRXDGNDDTRDSRRTSCTS3-Wire (Non-standard)RS-232C ConfigurationsDVI, D-Sub (PC) Sound CableConnect (1) port.DVI CableConnect (2) port.HDMI CableConnect (3) port.RS-232C CableConnect (4) port.D-Sub (PC) CableConnect (5) port.Component CableConnect (6) port.Component & S-Video & AV Sound CableConnect (7) and (13) port.RCA CableConnect (8), (9) port.AV CableConnect (11) port.S-Video CableConnect (12) port.AC Power CableConnect (15) port.Line Out CableConnect (10) port.Connectors

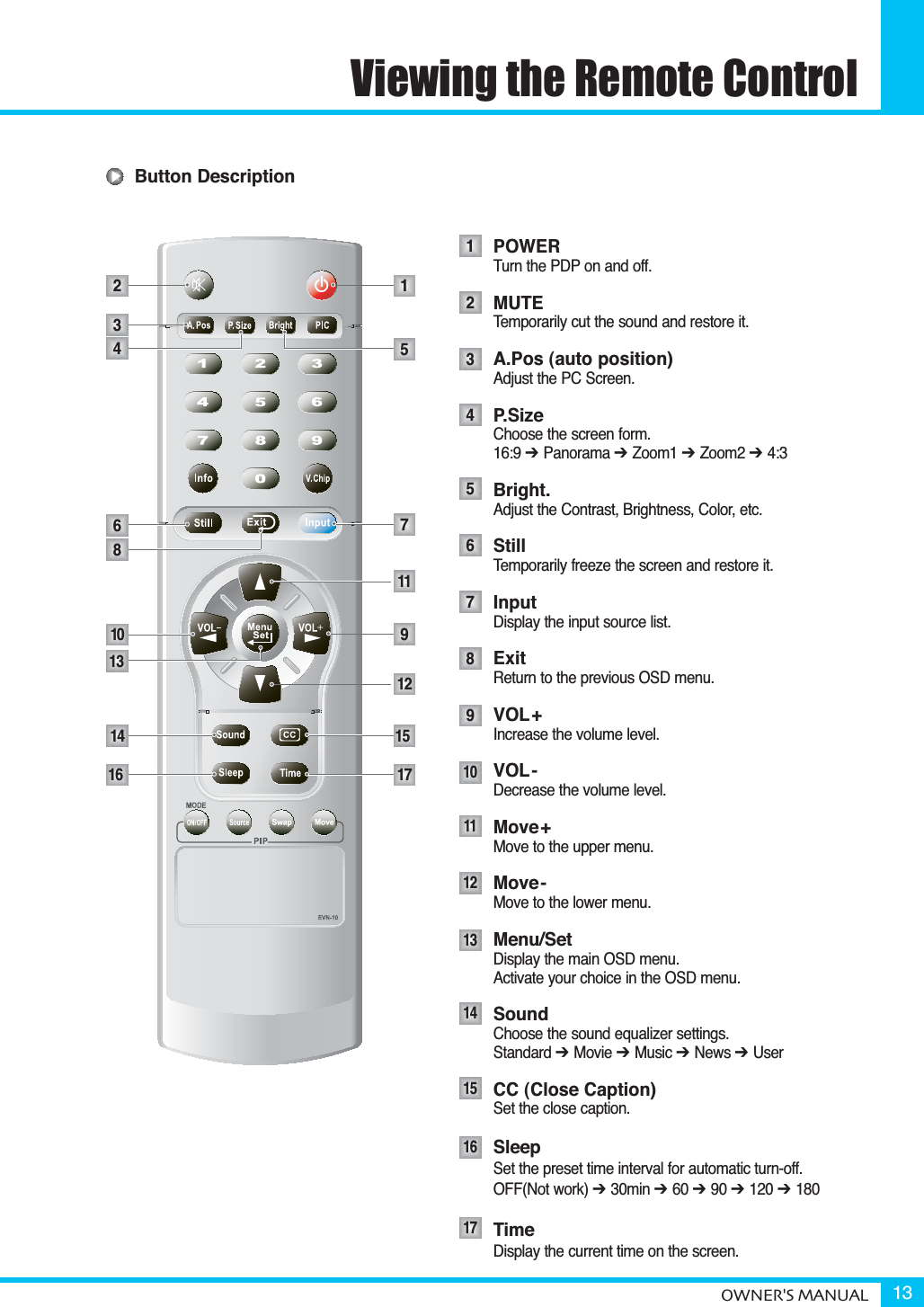

OWNER'S MANUAL 13Viewing the Remote ControlButton DescriptionPOWERTurn the PDP on and off.MUTETemporarily cut the sound and restore it.A.Pos (auto position)Adjust the PC Screen.P.SizeChoose the screen form.16:9 ➔ Panorama ➔ Zoom1 ➔ Zoom2 ➔ 4:3Bright.Adjust the Contrast, Brightness, Color, etc.StillTemporarily freeze the screen and restore it. InputDisplay the input source list.ExitReturn to the previous OSD menu.VOL+Increase the volume level.VOL-Decrease the volume level.Move+Move to the upper menu.Move-Move to the lower menu.Menu/SetDisplay the main OSD menu.Activate your choice in the OSD menu.SoundChoose the sound equalizer settings.Standard ➔ Movie ➔ Music ➔ News ➔ UserCC (Close Caption)Set the close caption. SleepSet the preset time interval for automatic turn-off.OFF(Not work) ➔ 30min ➔ 60 ➔ 90 ➔ 120 ➔ 180TimeDisplay the current time on the screen.12345678910111213141516172 134157111269101417161358
Press on the cover and slide in the direction of the arrow.Load two AAA batteries, taking care that the + and - ends face the correct direction.Close the cover until it clicks. OWNER'S MANUAL14Loading the BatteriesReception Range of Remote ControlControls of the Remote ControlUpperLower123MOVE+-VOLMENU/SELECTSOURCELeft Right5m (Front) Left Right5m (Front)PD42V76EM (OPTIONAL) (PD42V76EM)

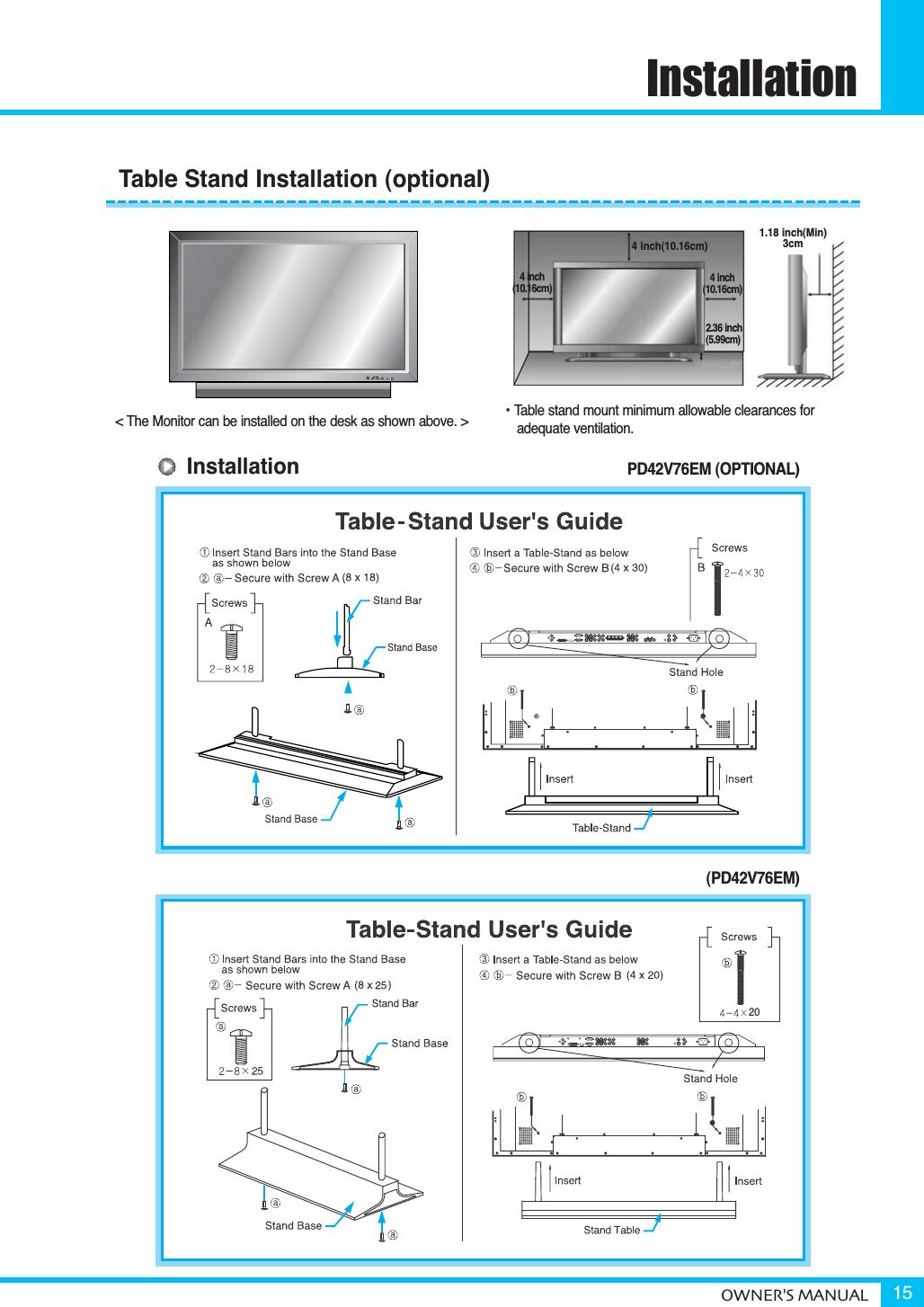

Installation< The Monitor can be installed on the desk as shown above. > • Table stand mount minimum allowable clearances for adequate ventilation.1.18 inch(Min)3cm4 inch(10.16cm)2.36 inch(5.99cm)4 inch(10.16cm) 4 inch(10.16cm)20Table Stand Installation (optional) PD42V76EM (OPTIONAL)(PD42V76EM)OWNER'S MANUAL 15Installation

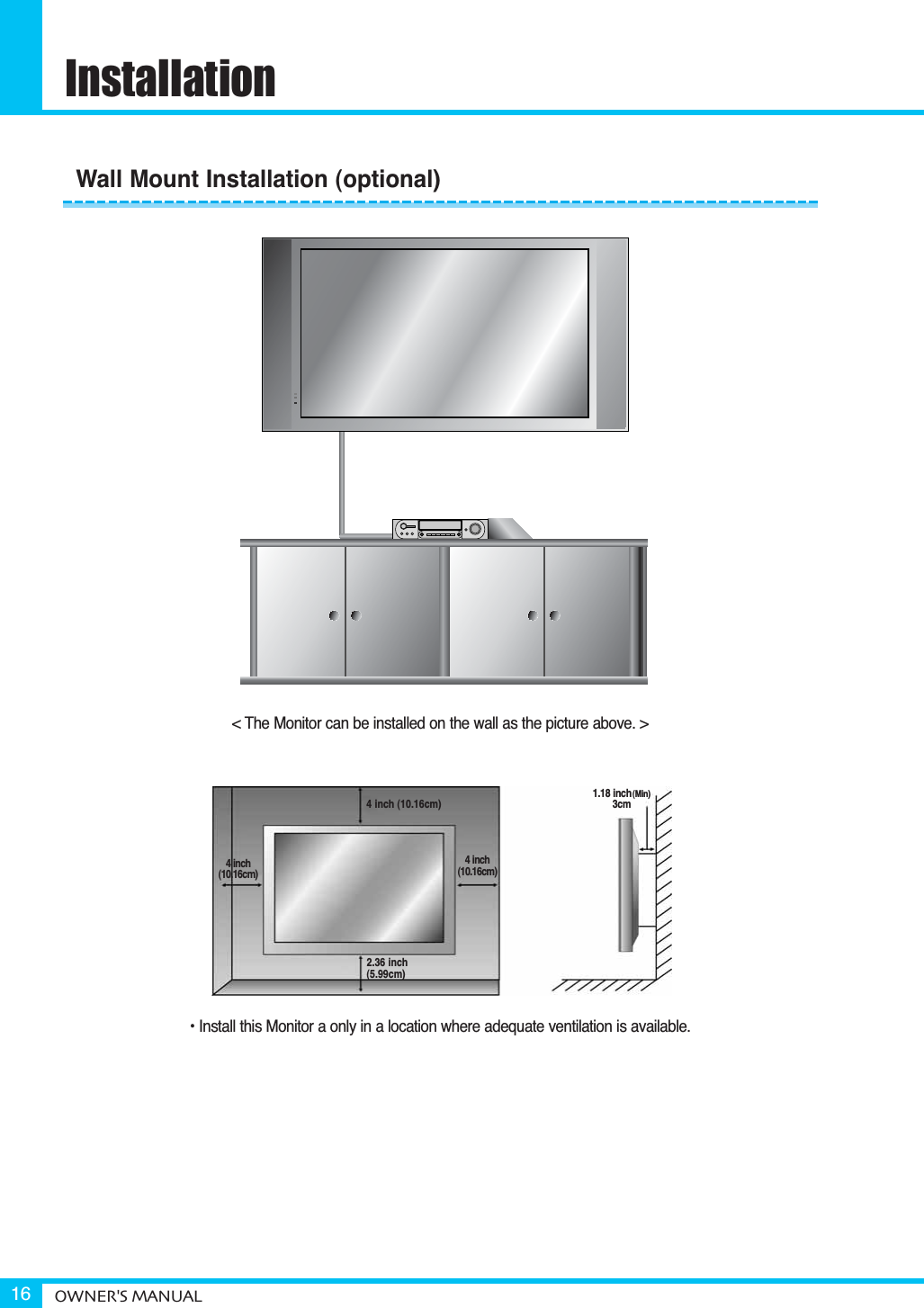

InstallationOWNER'S MANUAL16< The Monitor can be installed on the wall as the picture above. >• Install this Monitor a only in a location where adequate ventilation is available.1.18 inch(Min)3cm4 inch (10.16cm)2.36 inch(5.99cm)4 inch(10.16cm)4 inch(10.16cm)Wall Mount Installation (optional)

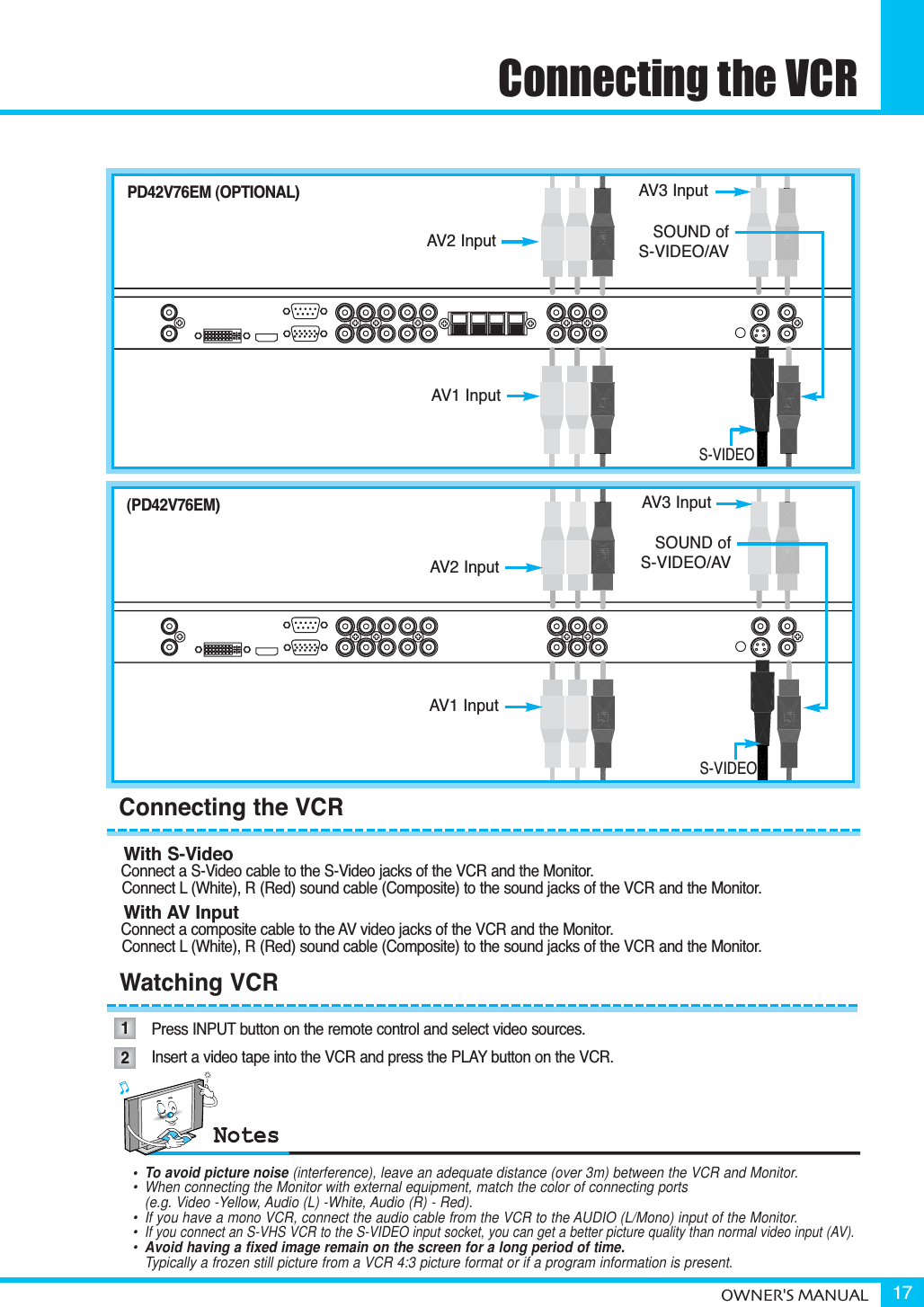

Connecting the VCROWNER'S MANUAL 17With S-VideoConnect a S-Video cable to the S-Video jacks of the VCR and the Monitor.Connect L (White), R (Red) sound cable (Composite) to the sound jacks of the VCR and the Monitor.With AV InputConnect a composite cable to the AV video jacks of the VCR and the Monitor.Connect L (White), R (Red) sound cable (Composite) to the sound jacks of the VCR and the Monitor.Connecting the VCRAV3 InputAV2 InputAV1 InputS-VIDEOSOUND ofS-VIDEO/AVAV3 InputAV2 InputAV1 InputS-VIDEOSOUND ofS-VIDEO/AVPD42V76EM (OPTIONAL)(PD42V76EM)Watching VCRPress INPUT button on the remote control and select video sources. Insert a video tape into the VCR and press the PLAY button on the VCR. 12• To avoid picture noise (interference), leave an adequate distance (over 3m) between the VCR and Monitor.• When connecting the Monitor with external equipment, match the color of connecting ports (e.g. Video -Yellow, Audio (L) -White, Audio (R) - Red).• If you have a mono VCR, connect the audio cable from the VCR to the AUDIO (L/Mono) input of the Monitor.•If you connect an S-VHS VCR to the S-VIDEO input socket, you can get a better picture quality than normal video input (AV).•Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR 4:3 picture format or if a program information is present.

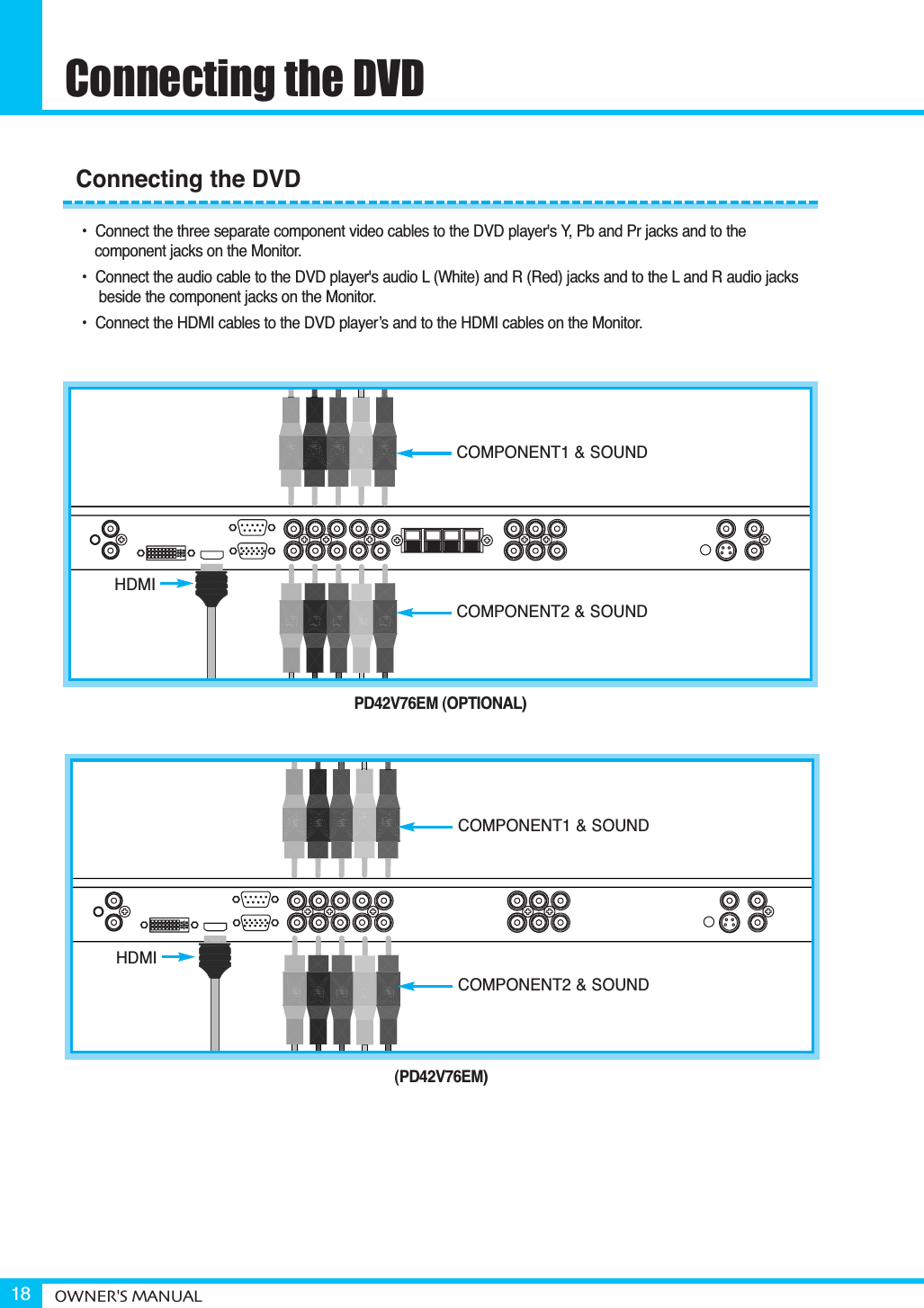

Connecting the DVDOWNER'S MANUAL18COMPONENT1 & SOUNDCOMPONENT2 & SOUNDHDMICOMPONENT1 & SOUNDCOMPONENT2 & SOUNDHDMICOMPONENT1 & SOUNDCOMPONENT2 & SOUNDHDMI• Connect the three separate component video cables to the DVD player's Y, Pb and Pr jacks and to the component jacks on the Monitor.• Connect the audio cable to the DVD player's audio L (White) and R (Red) jacks and to the L and R audio jacks beside the component jacks on the Monitor.• Connect the HDMI cables to the DVD player’s and to the HDMI cables on the Monitor.Connecting the DVDPD42V76EM (OPTIONAL)(PD42V76EM)

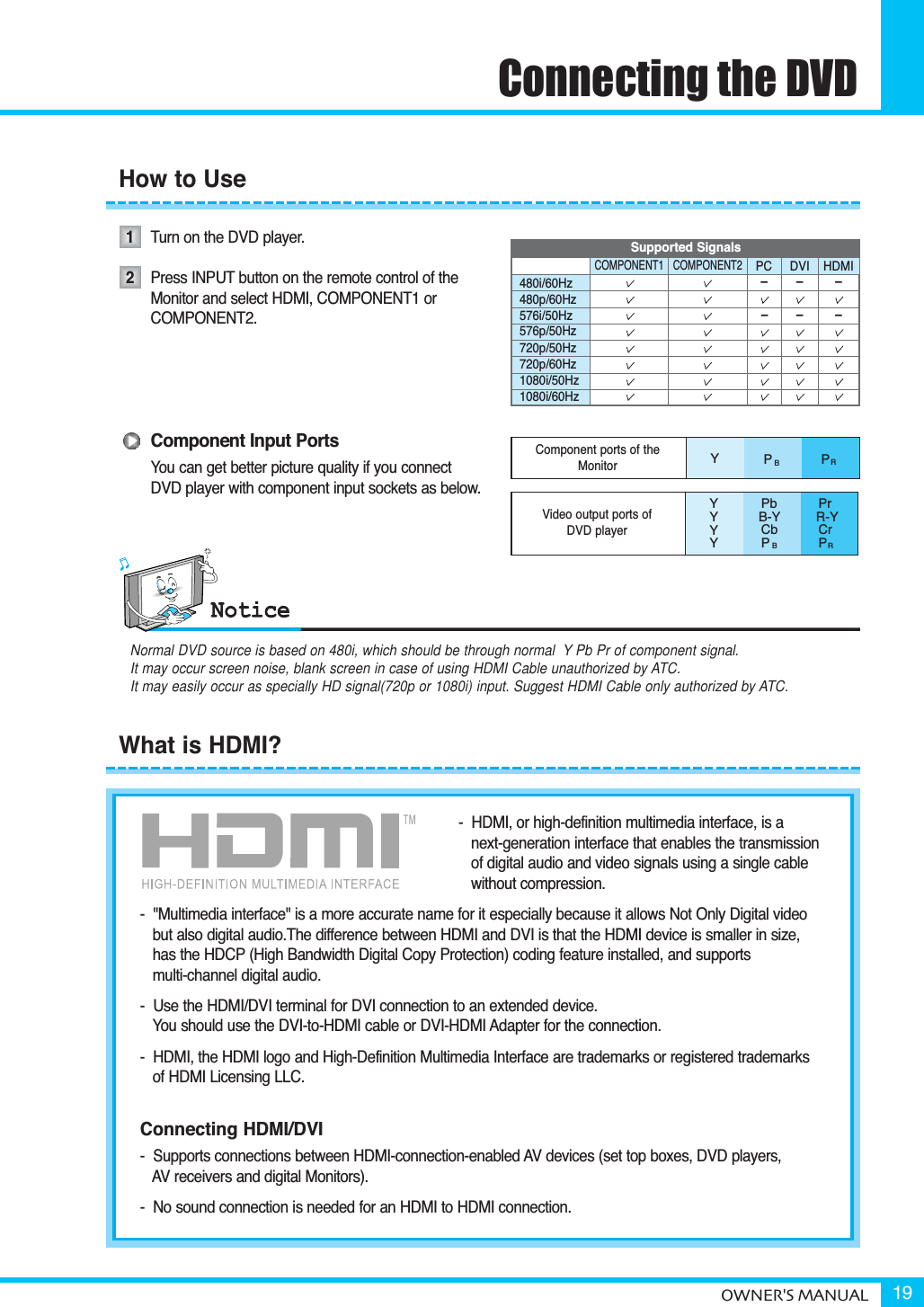

Connecting the DVDOWNER'S MANUAL 19How to Use12480i/60Hz480p/60Hz576i/50Hz576p/50Hz720p/50Hz720p/60Hz1080i/50Hz1080i/60HzCOMPONENT1 COMPONENT2PC DVI HDMIVideo output ports of DVD playerYYYYPbB-YCbPPrR-YCrPYPPComponent ports of the MonitorBRBRSupported Signals––––––Turn on the DVD player. Press INPUT button on the remote control of theMonitor and select HDMI, COMPONENT1 or COMPONENT2.Component Input PortsYou can get better picture quality if you connect DVD player with component input sockets as below.What is HDMI?- HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.- "Multimedia interface" is a more accurate name for it especially because it allows Not Only Digital video but also digital audio.The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.- Use the HDMI/DVI terminal for DVI connection to an extended device.You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection.- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarksof HDMI Licensing LLC.Connecting HDMI/DVI- Supports connections between HDMI-connection-enabled AV devices (set top boxes, DVD players, AV receivers and digital Monitors).- No sound connection is needed for an HDMI to HDMI connection.Normal DVD source is based on 480i, which should be through normal Y Pb Pr of component signal.It may occur screen noise, blank screen in case of using HDMI Cable unauthorized by ATC.It may easily occur as specially HD signal(720p or 1080i) input. Suggest HDMI Cable only authorized by ATC.

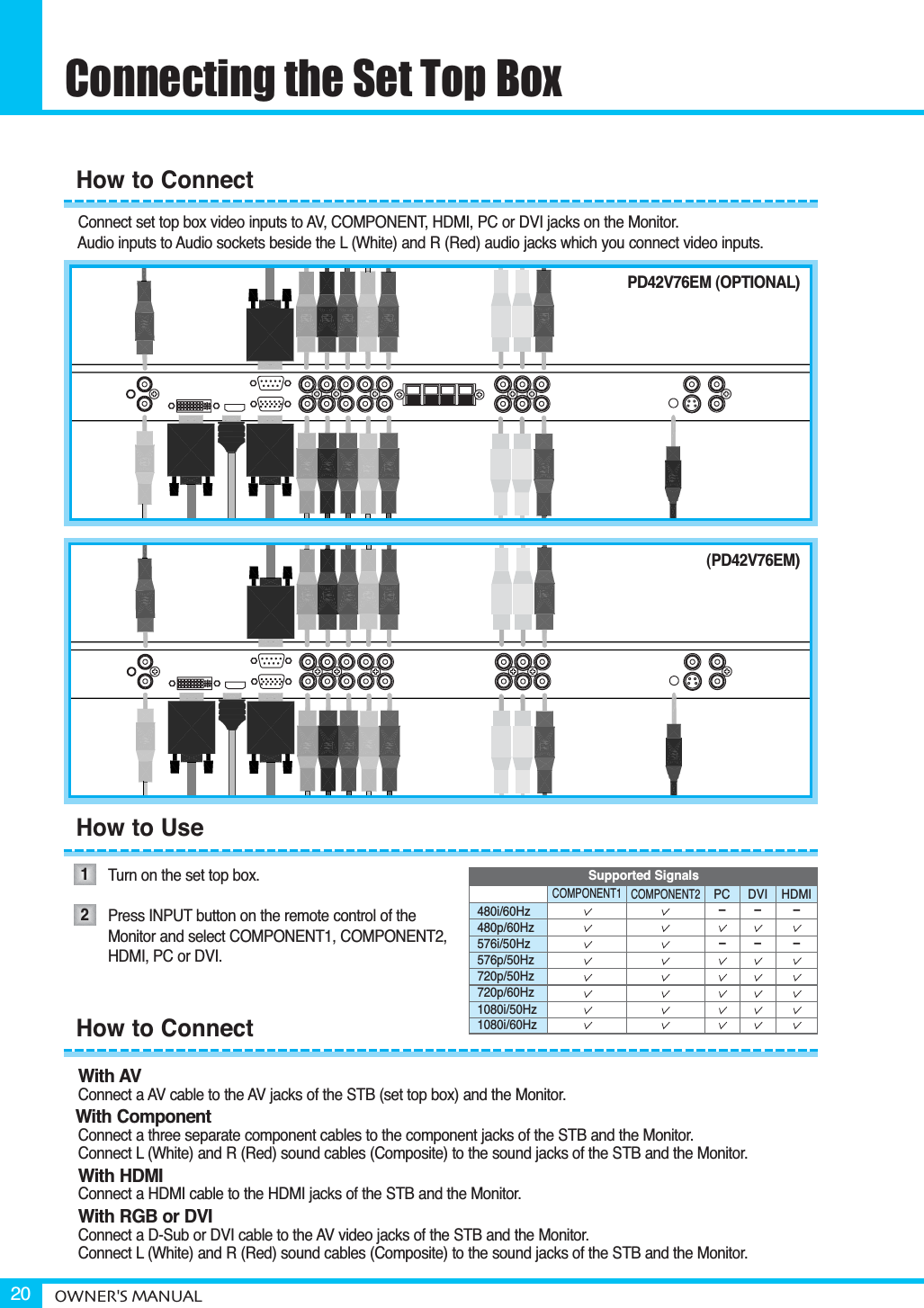

Connecting the Set Top BoxOWNER'S MANUAL20Connect set top box video inputs to AV, COMPONENT, HDMI, PC or DVI jacks on the Monitor. Audio inputs to Audio sockets beside the L (White) and R (Red) audio jacks which you connect video inputs.Turn on the set top box. Press INPUT button on the remote control of the Monitor and select COMPONENT1, COMPONENT2, HDMI, PC or DVI.With AVConnect a AV cable to the AV jacks of the STB (set top box) and the Monitor.With ComponentConnect a three separate component cables to the component jacks of the STB and the Monitor.Connect L (White) and R (Red) sound cables (Composite) to the sound jacks of the STB and the Monitor.With HDMIConnect a HDMI cable to the HDMI jacks of the STB and the Monitor.With RGB or DVIConnect a D-Sub or DVI cable to the AV video jacks of the STB and the Monitor.Connect L (White) and R (Red) sound cables (Composite) to the sound jacks of the STB and the Monitor.How to ConnectHow to UseHow to Connect12480i/60Hz480p/60Hz576i/50Hz576p/50Hz720p/50Hz720p/60Hz1080i/50Hz1080i/60HzCOMPONENT1 COMPONENT2PC DVI HDMISupported Signals––––––(PD42V76EM)PD42V76EM (OPTIONAL)

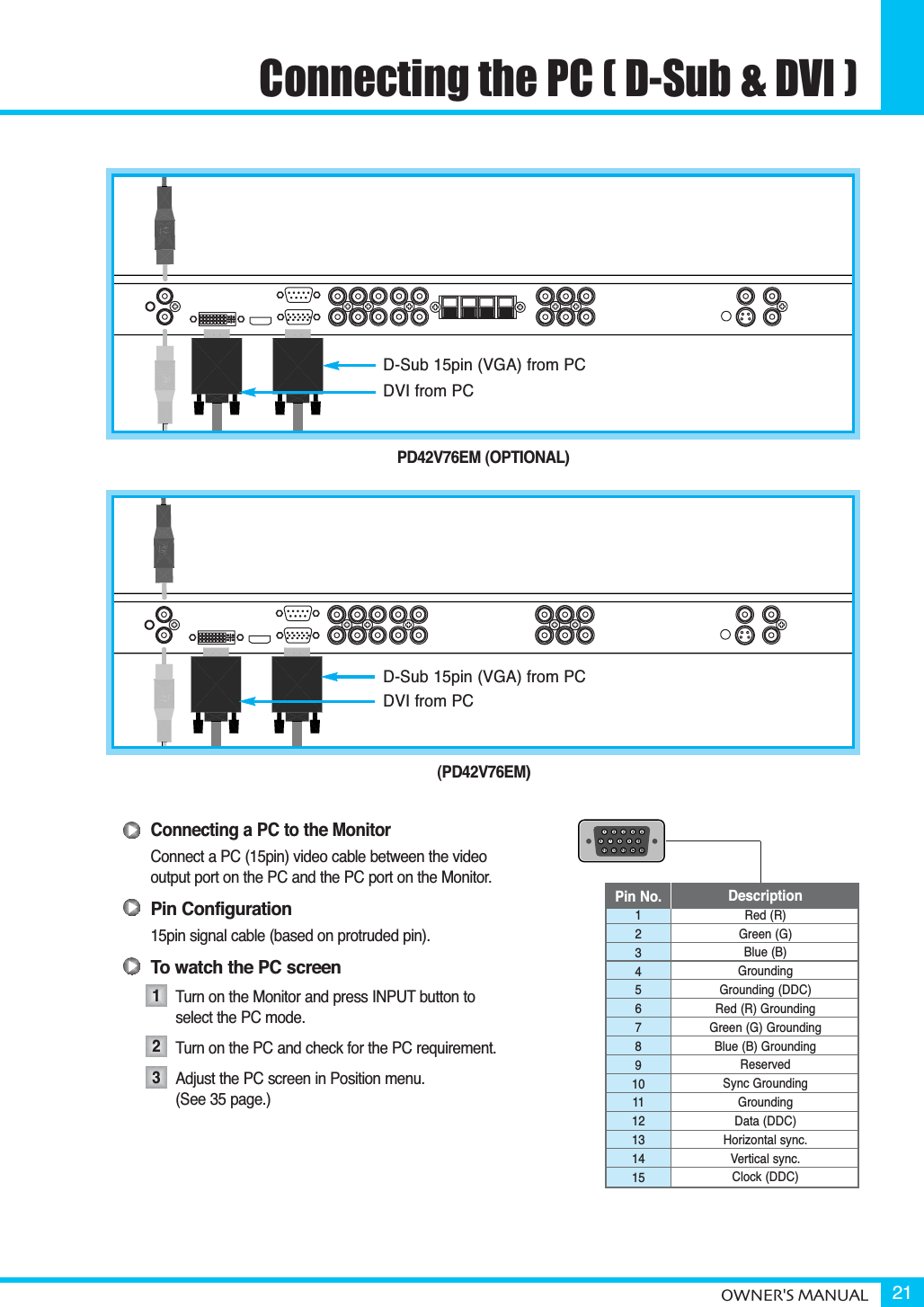

Connecting the PC ( D-Sub & DVI )OWNER'S MANUAL 21Connecting a PC to the MonitorConnect a PC (15pin) video cable between the video output port on the PC and the PC port on the Monitor.Pin Configuration15pin signal cable (based on protruded pin).To watch the PC screenTurn on the Monitor and press INPUT button to select the PC mode.Turn on the PC and check for the PC requirement.Adjust the PC screen in Position menu. (See 35 page.)123456789101112131415Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Pin No. DescriptionD-Sub 15pin (VGA) from PCDVI from PC(PD42V76EM)123D-Sub 15pin (VGA) from PCDVI from PCPD42V76EM (OPTIONAL)

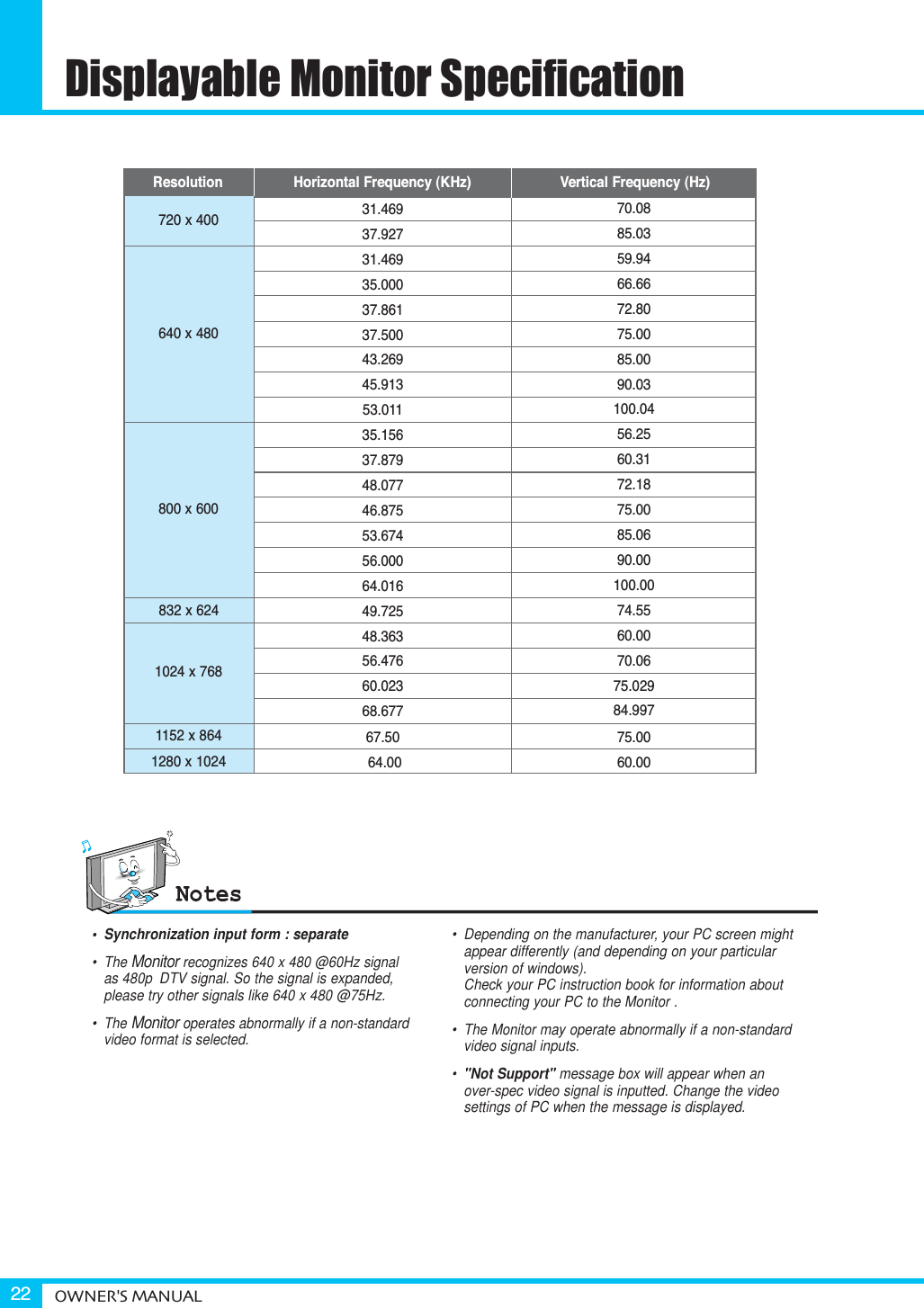

Displayable Monitor SpecificationOWNER'S MANUAL22• Synchronization input form : separate•TheMonitorrecognizes 640 x 480 @60Hz signal as480p DTV signal. So the signal is expanded, please try other signals like 640 x 480 @75Hz.•TheMonitoroperates abnormally if a non-standard video format is selected.• Depending on the manufacturer, your PC screen might appear differently (and depending on your particular version of windows). Check your PC instruction book for information about connecting your PC to the Monitor .• The Monitormay operate abnormally if a non-standard video signal inputs.•"Not Support" message box will appear when an over-spec video signal is inputted. Change the video settings of PC when the message is displayed.31.46937.92731.46935.00037.86137.50043.26945.91353.01135.15637.87948.07746.87553.67456.00064.01649.72548.36356.47660.02368.67767.5064.0070.0885.0359.9466.6672.8075.0085.0090.03100.0456.2560.3172.1875.0085.0690.00100.0074.5560.0070.0675.02984.99775.0060.00Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)720 x 400640 x 480800 x 600832 x 6241024 x 7681152 x 8641280 x 1024

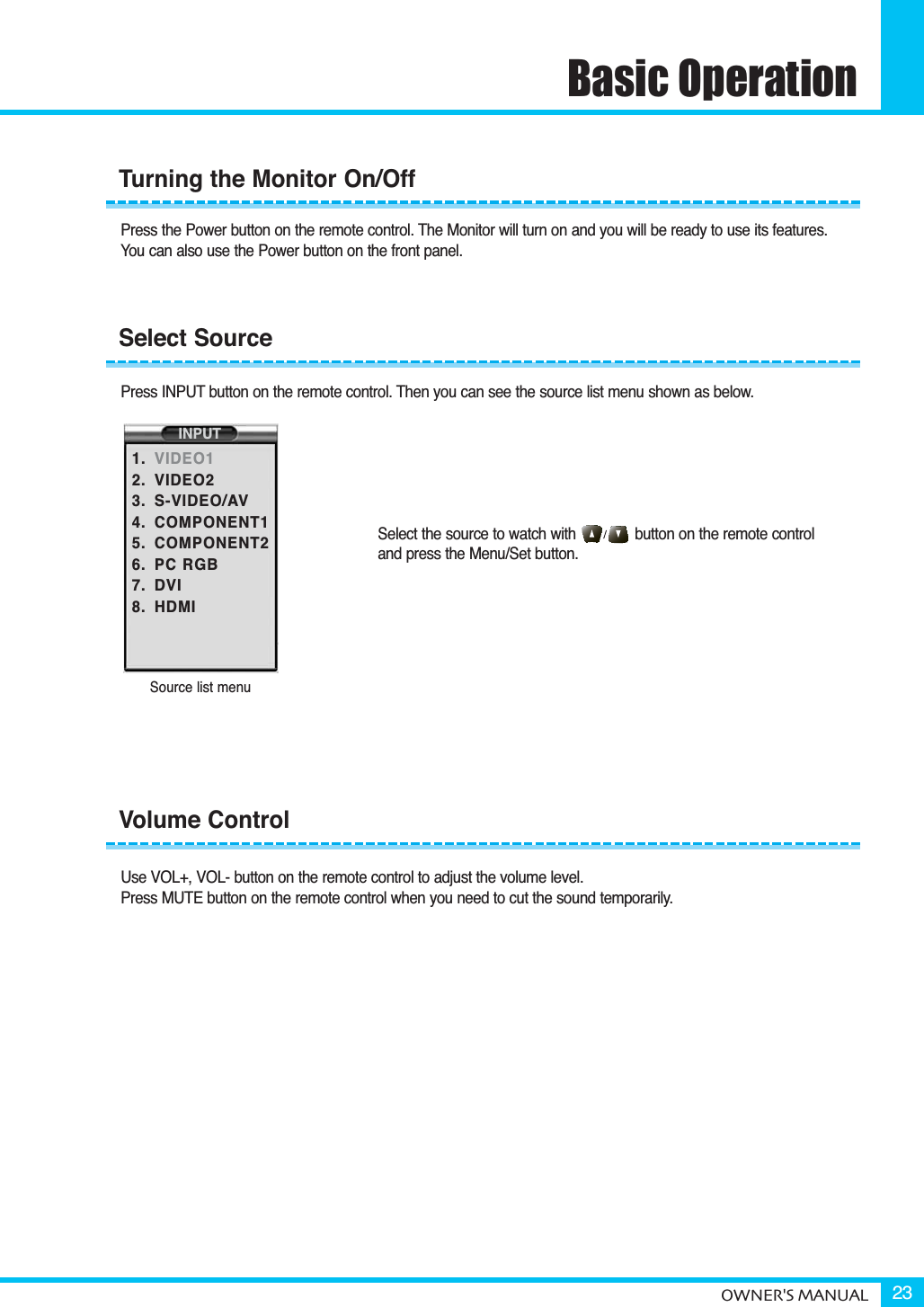

Basic OperationOWNER'S MANUAL 23Press the Power button on the remote control. The Monitor will turn on and you will be ready to use its features. You can also use the Power button on the front panel.Press INPUT button on the remote control. Then you can see the source list menu shown as below.Select the source to watch with button on the remote control and press the Menu/Set button.Use VOL+, VOL- button on the remote control to adjust the volume level.Press MUTE button on the remote control when you need to cut the sound temporarily.Volume ControlTurning the Monitor On/OffSelect SourceSource list menuINPUT1.2.3.4.5.6.7.8.VIDEO1VIDEO2S-VIDEO/AVCOMPONENT1COMPONENT2PC RGBDVIHDMI

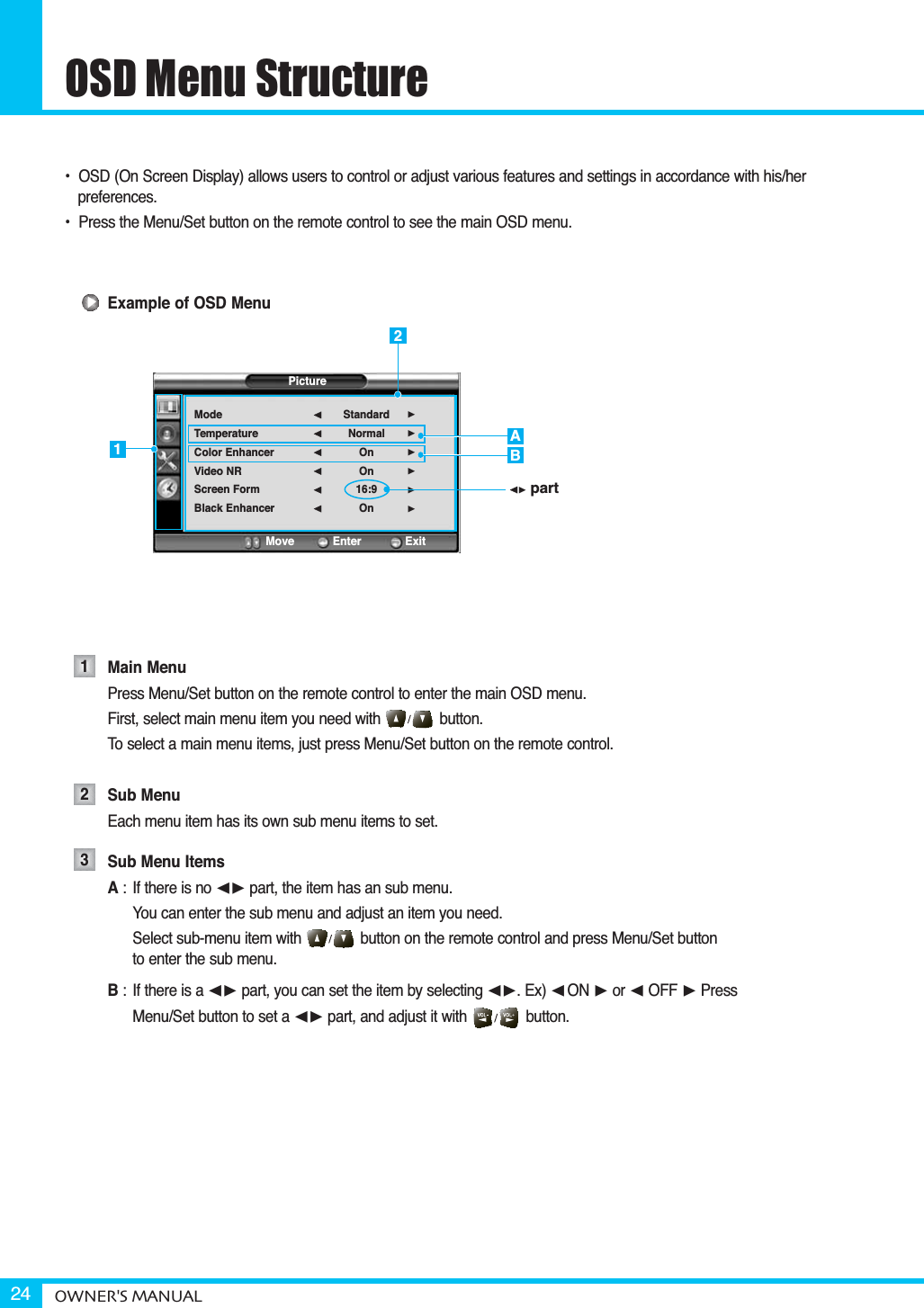

OSD Menu StructureOWNER'S MANUAL24• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/herpreferences.• Press the Menu/Set button on the remote control to see the main OSD menu.Example of OSD MenuMain MenuPress Menu/Set button on the remote control to enter the main OSD menu.First, select main menu item you need with button.To select a main menu items, just press Menu/Set button on the remote control.Sub MenuEach menu item has its own sub menu items to set.Sub Menu ItemsA: If there is no ¥ part, the item has an sub menu.You can enter the sub menu and adjust an item you need.Select sub-menu item with button on the remote control and press Menu/Set button to enter the sub menu.B: If there is a ¥ part, you can set the item by selecting ¥. Ex) ¥ON or ¥OFF PressMenu/Set button to set a ¥ part, and adjust it with button.PictureModeTemperatureColor EnhancerVideo NRScreen FormBlack EnhancerStandardNormalOnOn16:9On¥¥¥¥¥¥Move Enter ExitAB21¥part123
Setting the PictureOWNER'S MANUAL 25Your the Monitor has 3 automatic factory preset picture settings (Standard,Vivid and Mild). You can chooseStandard,Vivid or Mild by pressing Picture button on the remote control (or by making a selection from the menu). Or you can select User which automatically recalls your personalized picture settings.Press Menu/Set button to display the main OSD menu.Select the Picture main menu. Press Menu/Set button to enter the sub menu.Select Mode and press Menu/Set button to enter thesub menu. Then the picture sub mode appear.Select the picture mode and press Menu/Set button.You will see the picture setting bars.Just press Exit button on the remote control. You can adjust each values of the picture setting, but the changed values are stored as in User mode.Adjusting the User ModeYou can change the Contrast,Brightness,Color,Sharpness, and Tint according to personal preference in User mode. (The function for Tint adjustment is activated when NTSC signal is input.)Select the item to adjust with button.Press Menu/Set button.Adjust the item with button. To cancel all adjust, select Recall and press Menu/Set button.Changing the Picture Mode123456User mode require more settings.If has an under menuAlternative method : Just press the PICTURE button on the remote control. Each time it is pressed, different mode is selected.For a more detailed description of these settings,see the next page.1234Select User ModeModeStandardVividMildUserMove Select ExitUserContrastBrightnessColorSharpnessTintRecall505050500¥¥¥¥¥Move Adjust ExitPictureModeTemperatureColor EnhancerVideo NRScreen FormBlack EnhancerStandardNormalOnOn16:9On¥¥¥¥¥¥Move Enter ExitUserContrastBrightnessColorSharpnessTintRecall505050500¥¥¥¥¥Move Enter Exit

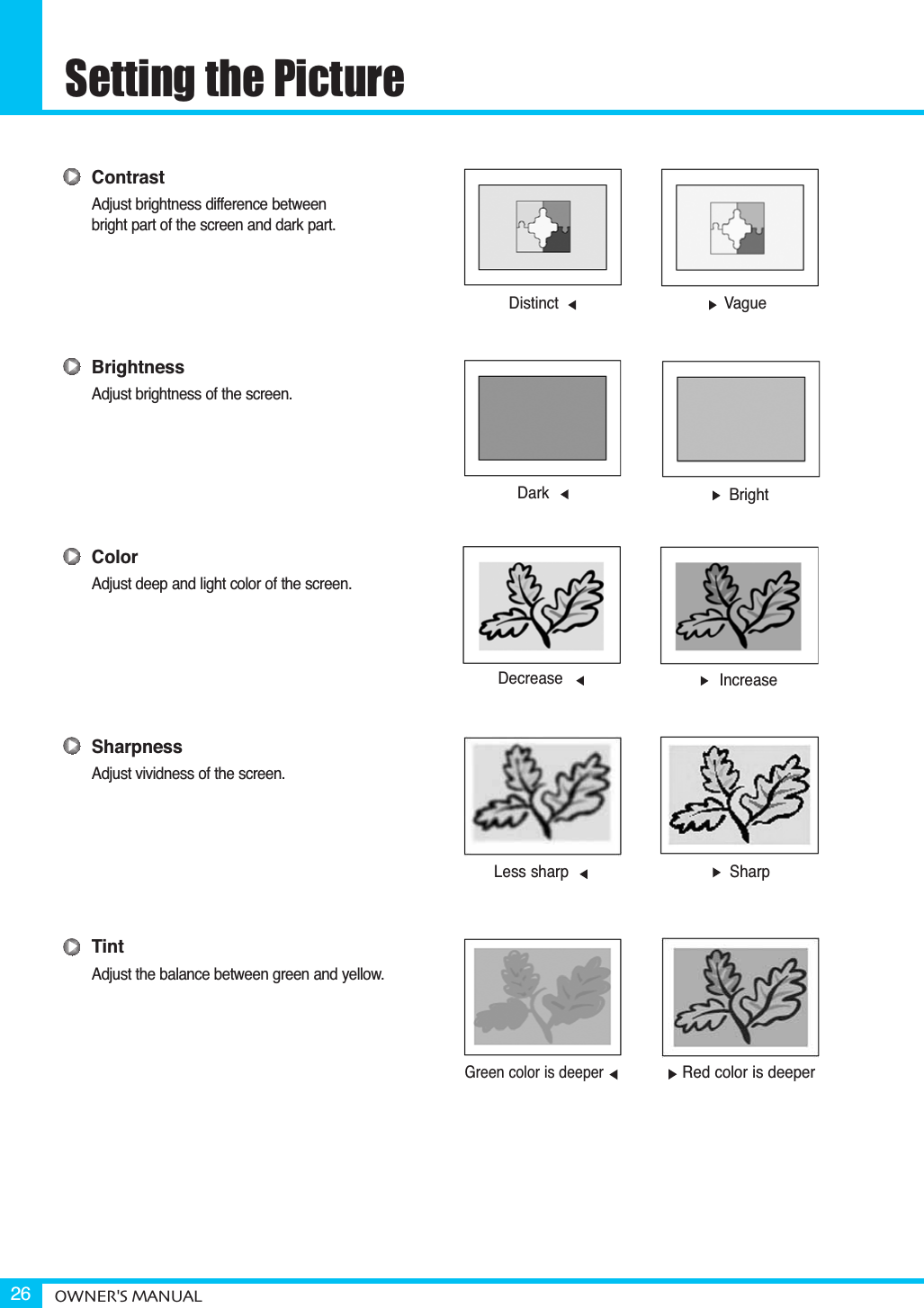

Setting the PictureOWNER'S MANUAL26ContrastAdjust brightness difference betweenbright part of the screen and dark part.BrightnessAdjust brightness of the screen.ColorAdjust deep and light color of the screen.SharpnessAdjust vividness of the screen.TintAdjust the balance between green and yellow.Distinct VagueDark BrightDecrease IncreaseLess sharp SharpGreen color is deeperRed color is deeper

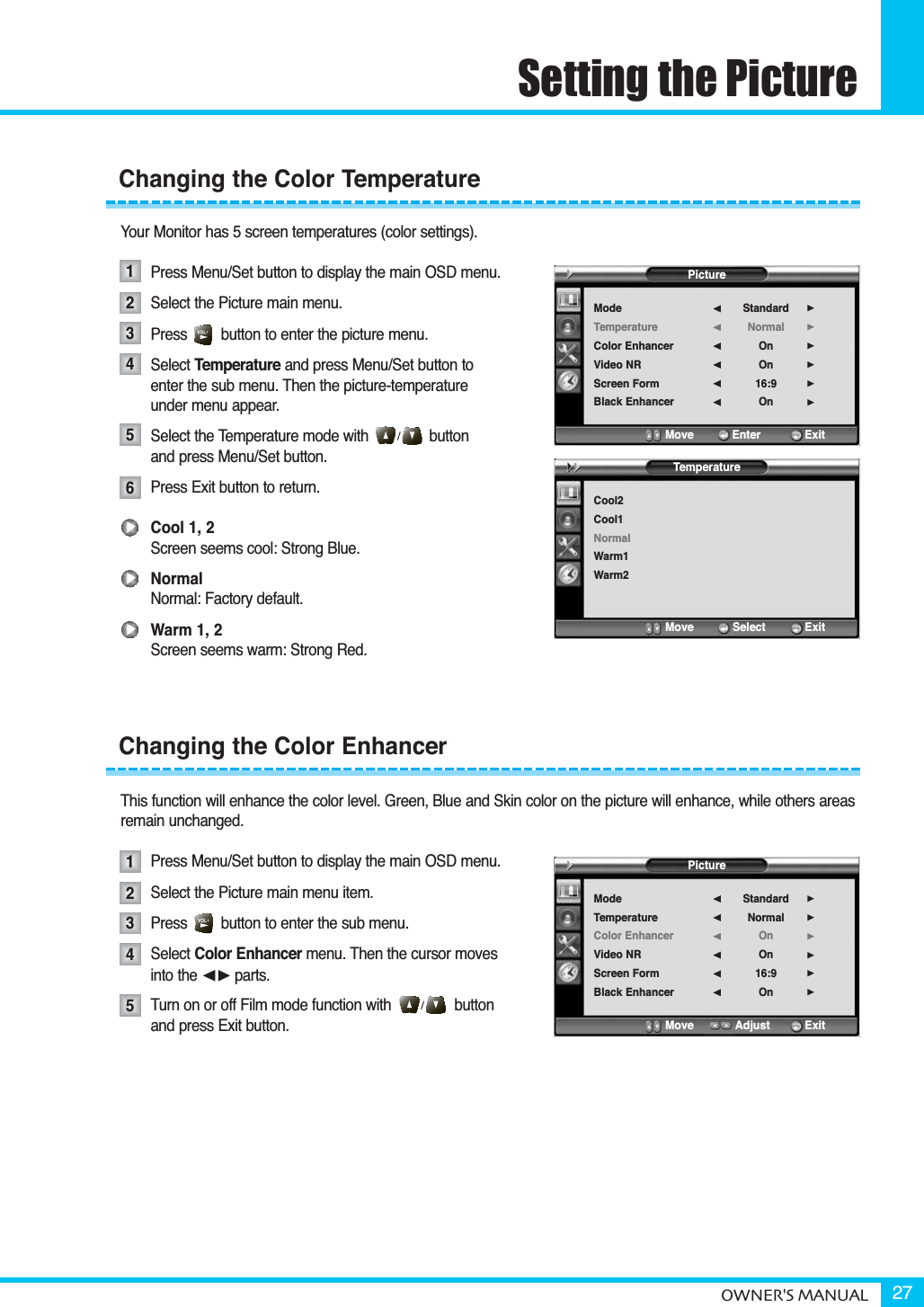

OWNER'S MANUAL 27Setting the PictureYour Monitor has 5 screen temperatures (color settings).Press Menu/Set button to display the main OSD menu.Select the Picture main menu.Press button to enter the picture menu.Select Temperature and press Menu/Set button to enter the sub menu. Then the picture-temperature under menu appear.Select the Temperature mode with button and press Menu/Set button.Press Exit button to return. Cool 1, 2Screen seems cool: Strong Blue.NormalNormal: Factory default.Warm 1, 2Screen seems warm: Strong Red.This function will enhance the color level. Green, Blue and Skin color on the picture will enhance, while others areasremain unchanged.Press Menu/Set button to display the main OSD menu.Select the Picture main menu item. Press button to enter the sub menu. Select Color Enhancer menu. Then the cursor moves into the ¥parts.Turn on or off Film mode function with button and press Exit button.Changing the Color TemperatureChanging the Color Enhancer12345123456PictureModeTemperatureColor EnhancerVideo NRScreen FormBlack EnhancerStandardNormalOnOn16:9On¥¥¥¥¥¥Move Enter ExitPictureModeTemperatureColor EnhancerVideo NRScreen FormBlack EnhancerStandardNormalOnOn16:9On¥¥¥¥¥¥Move Adjust ExitTemperatureCool2Cool1NormalWarm1Warm2Move Select Exit
Setting the PictureOWNER'S MANUAL28This function automatically filters out and reduces the image noise and improves picture quality where receiving weak signals.Press Menu/Set button to display the main OSD menu.Select the Picture main menu item. Press Menu/Set button to enter the sub menu. Select Video NR menu. Then the cursor moves into the ¥parts.Turn on or off Video NR function with button and press Exit button.Your Monitor has four screen forms: 16:9, 4:3, Panorama, Zoom1, Zoom2.(For more detail description for these modes, refer to the next page.)Press Menu/Set button to display the main OSD menu.Select the Picture main menu. Press enter the picture menu. Select Screen Form and press button to enter the sub menu. Then the screen form under menu appear.Select the Screen Form you want and pressbutton and Exit button. Video NR (Noise Reduction)Changing the Screen Form1234512345PictureModeTemperatureColor EnhancerVideo NRScreen FormBlack EnhancerStandardNormalOnOn16:9On¥¥¥¥¥¥Move Adjust ExitPictureModeTemperatureColor EnhancerVideo NRScreen FormBlack EnhancerStandardNormalOnOn16:9On¥¥¥¥¥¥Move Enter ExitScreen Form16:94:3PanoramaZoom1Zoom2Move Select Exit•Panorama Screen Form is not available for COMPONENT1-2 , PC RGB, DVI ,HDMI input source.•PC RGB, DVI, HDMI input source use 4:3 or 16:9 Screen Form

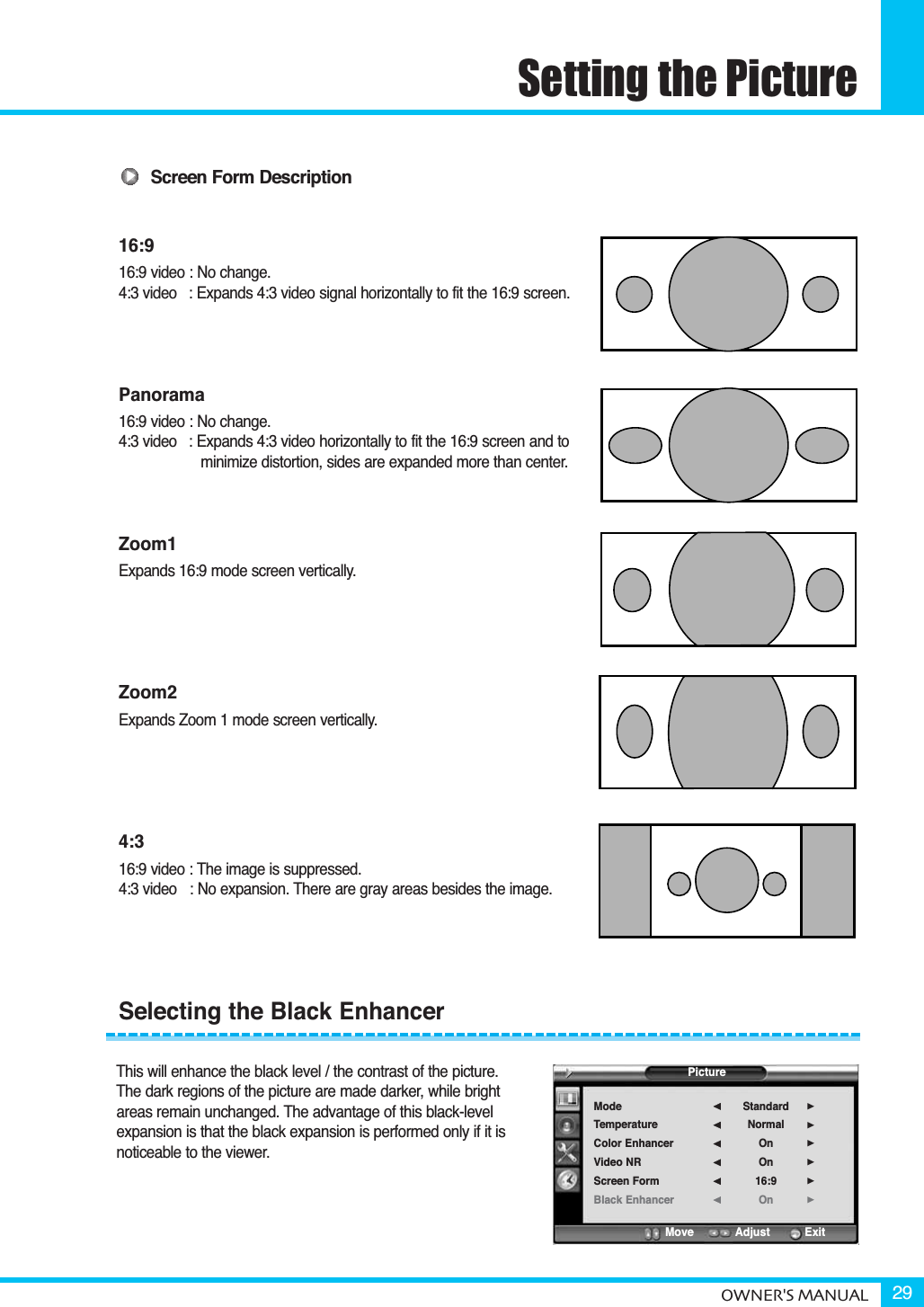

Setting the PictureOWNER'S MANUAL 29Screen Form Description16:916:9 video : No change.4:3 video : Expands 4:3 video signal horizontally to fit the 16:9 screen.Panorama16:9 video : No change.4:3 video : Expands 4:3 video horizontally to fit the 16:9 screen and to minimize distortion, sides are expanded more than center.Zoom1Expands 16:9 mode screen vertically.Zoom2Expands Zoom 1 mode screen vertically.4:316:9 video : The image is suppressed.4:3 video : No expansion. There are gray areas besides the image.This will enhance the black level / the contrast of the picture. The dark regions of the picture are made darker, while bright areas remain unchanged. The advantage of this black-level expansion is that the black expansion is performed only if it is noticeable to the viewer.Selecting the Black EnhancerPictureModeTemperatureColor EnhancerVideo NRScreen FormBlack EnhancerStandardNormalOnOn16:9On¥¥¥¥¥¥Move Adjust Exit

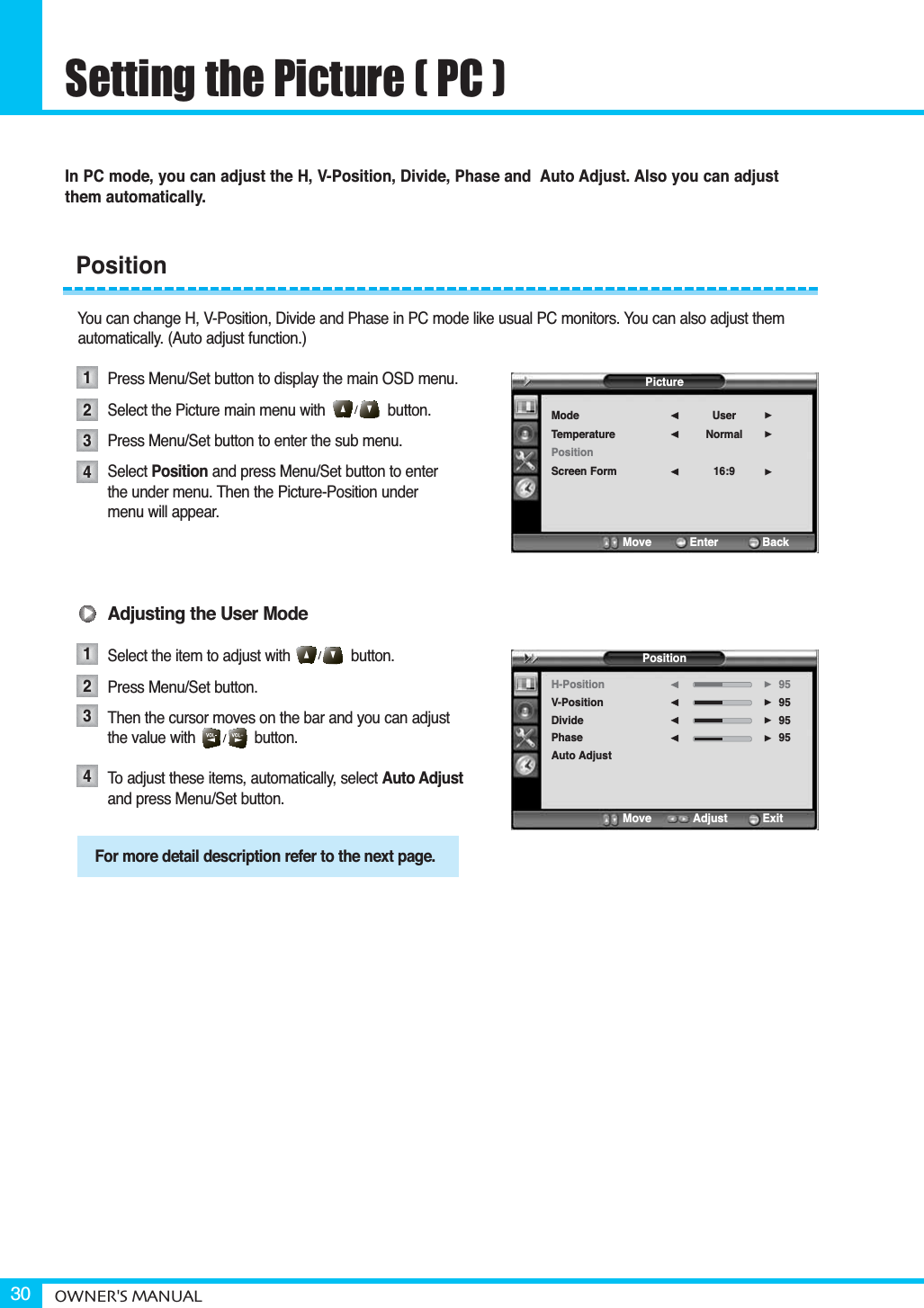

Setting the Picture ( PC )OWNER'S MANUAL30In PC mode, you can adjust the H, V-Position, Divide, Phase and Auto Adjust. Also you can adjust them automatically.You can change H, V-Position, Divide and Phase in PC mode like usual PC monitors. You can also adjust themautomatically. (Auto adjust function.)Press Menu/Set button to display the main OSD menu.Select the Picture main menu with button.Press Menu/Set button to enter the sub menu.Select Position and press Menu/Set button to enterthe under menu. Then the Picture-Position under menu will appear.Adjusting the User ModeSelect the item to adjust with button.Press Menu/Set button. Then the cursor moves on the bar and you can adjust the value with button.To adjust these items, automatically, select Auto Adjustand press Menu/Set button.Position12341234For more detail description refer to the next page.PictureModeTemperaturePositionScreen FormUserNormal16:9¥¥¥Move Enter BackPositionH-PositionV-PositionDividePhaseAuto Adjust95959595¥¥¥¥Move Adjust Exit

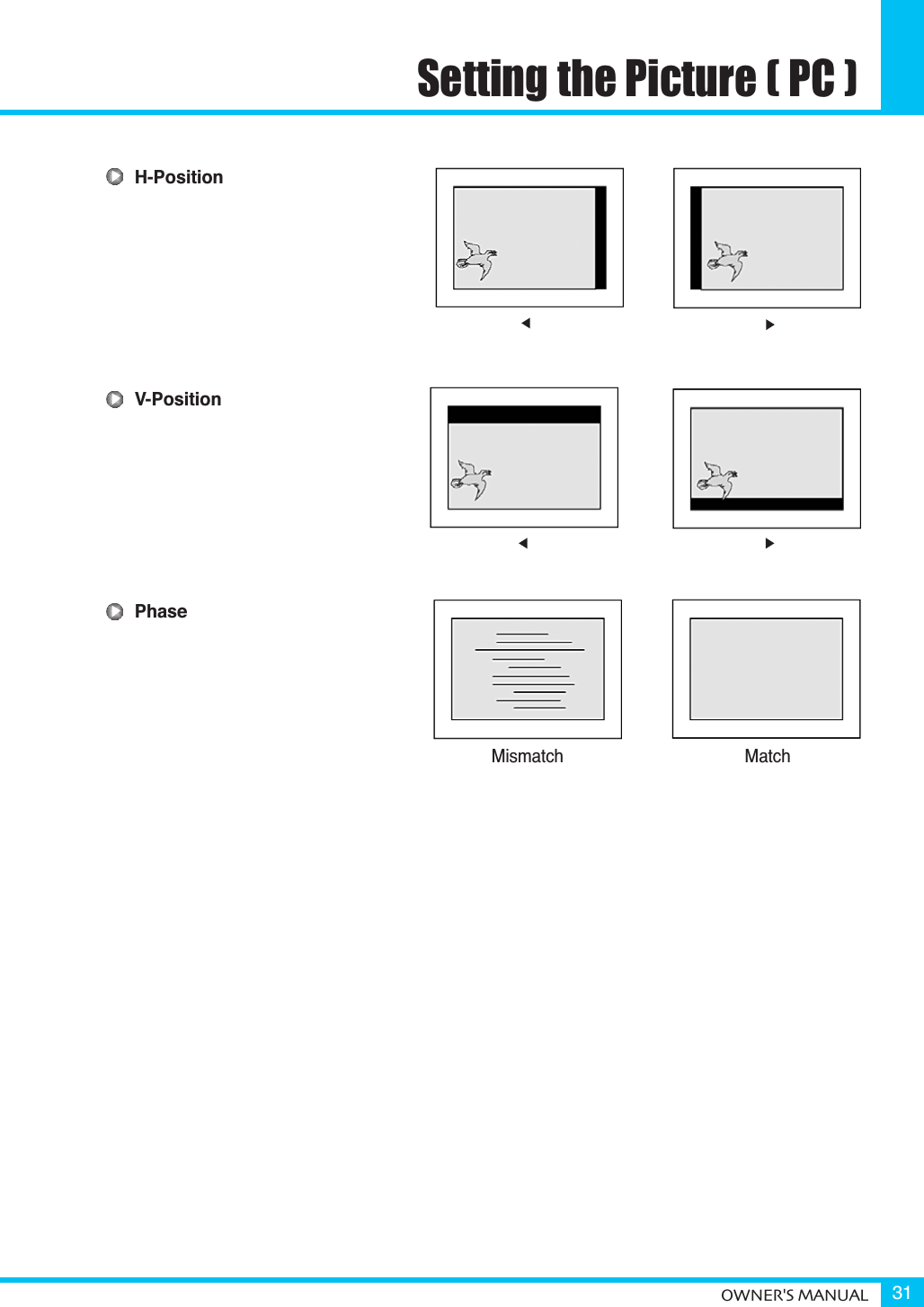

Setting the Picture ( PC )OWNER'S MANUAL 31H-PositionV-PositionPhaseMismatch Match

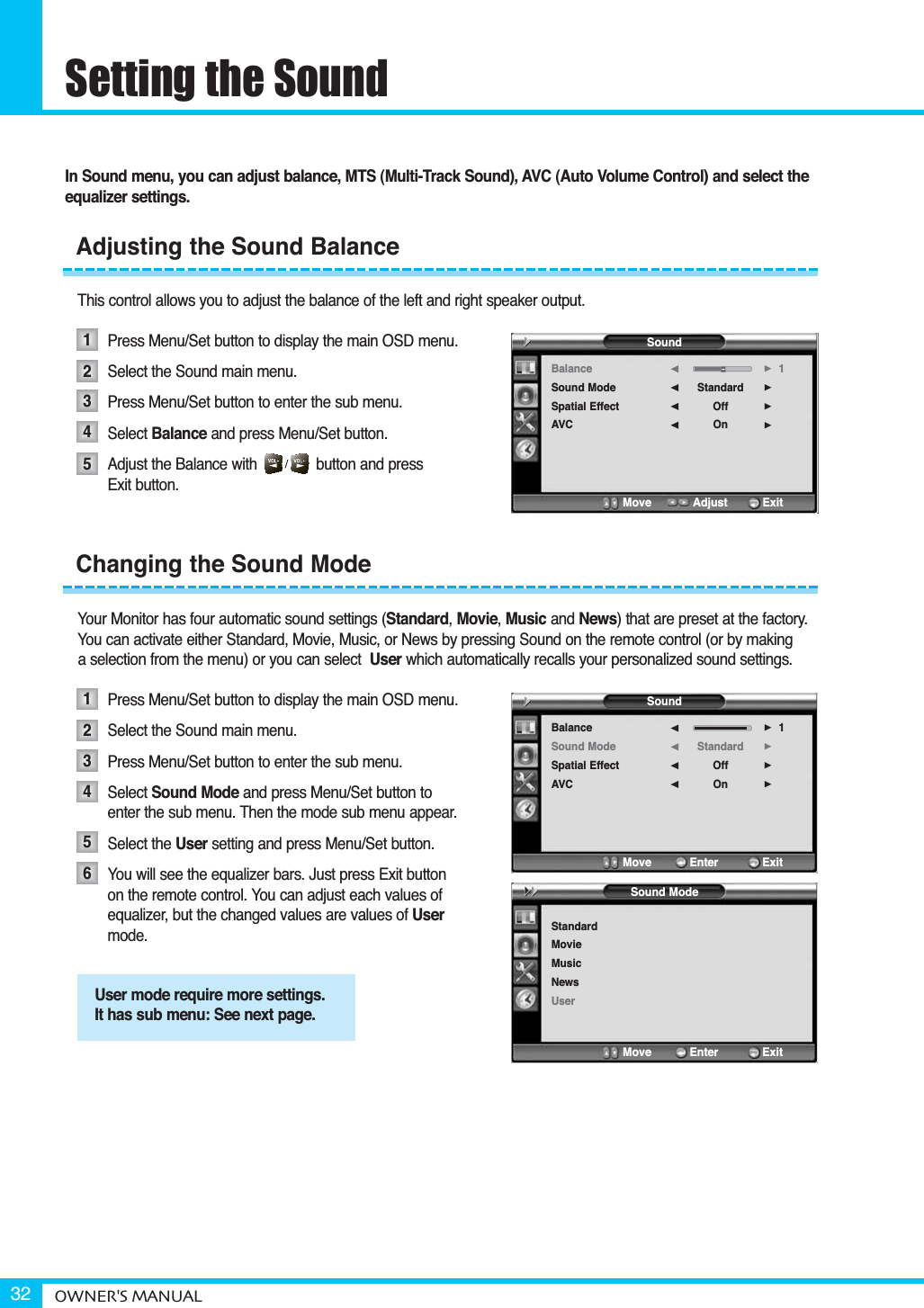

Setting the SoundOWNER'S MANUAL32In Sound menu, you can adjust balance, MTS (Multi-Track Sound), AVC (Auto Volume Control) and select theequalizer settings.This control allows you to adjust the balance of the left and right speaker output.Press Menu/Set button to display the main OSD menu.Select the Sound main menu.Press Menu/Set button to enter the sub menu. Select Balance and press Menu/Set button. Adjust the Balance with button and press Exit button.Your Monitor has four automatic sound settings (Standard,Movie,Music and News) that are preset at the factory. You can activate either Standard, Movie, Music, or News by pressing Sound on the remote control (or by making a selection from the menu) or you can select User which automatically recalls your personalized sound settings.Press Menu/Set button to display the main OSD menu.Select the Sound main menu.Press Menu/Set button to enter the sub menu.Select Sound Mode and press Menu/Set button to enter the sub menu. Then the mode sub menu appear.Select the User setting and press Menu/Set button.You will see the equalizer bars. Just press Exit button on the remote control. You can adjust each values of equalizer, but the changed values are values of Usermode.Adjusting the Sound BalanceChanging the Sound Mode12345123456User mode require more settings.It has sub menu: See next page.Sound ModeStandardMovieMusicNewsUserMove Enter ExitSoundBalanceSound ModeSpatial EffectAVCStandardOffOn1¥¥¥¥Move Adjust ExitSoundBalanceSound ModeSpatial EffectAVCStandardOffOn1¥¥¥¥Move Enter Exit

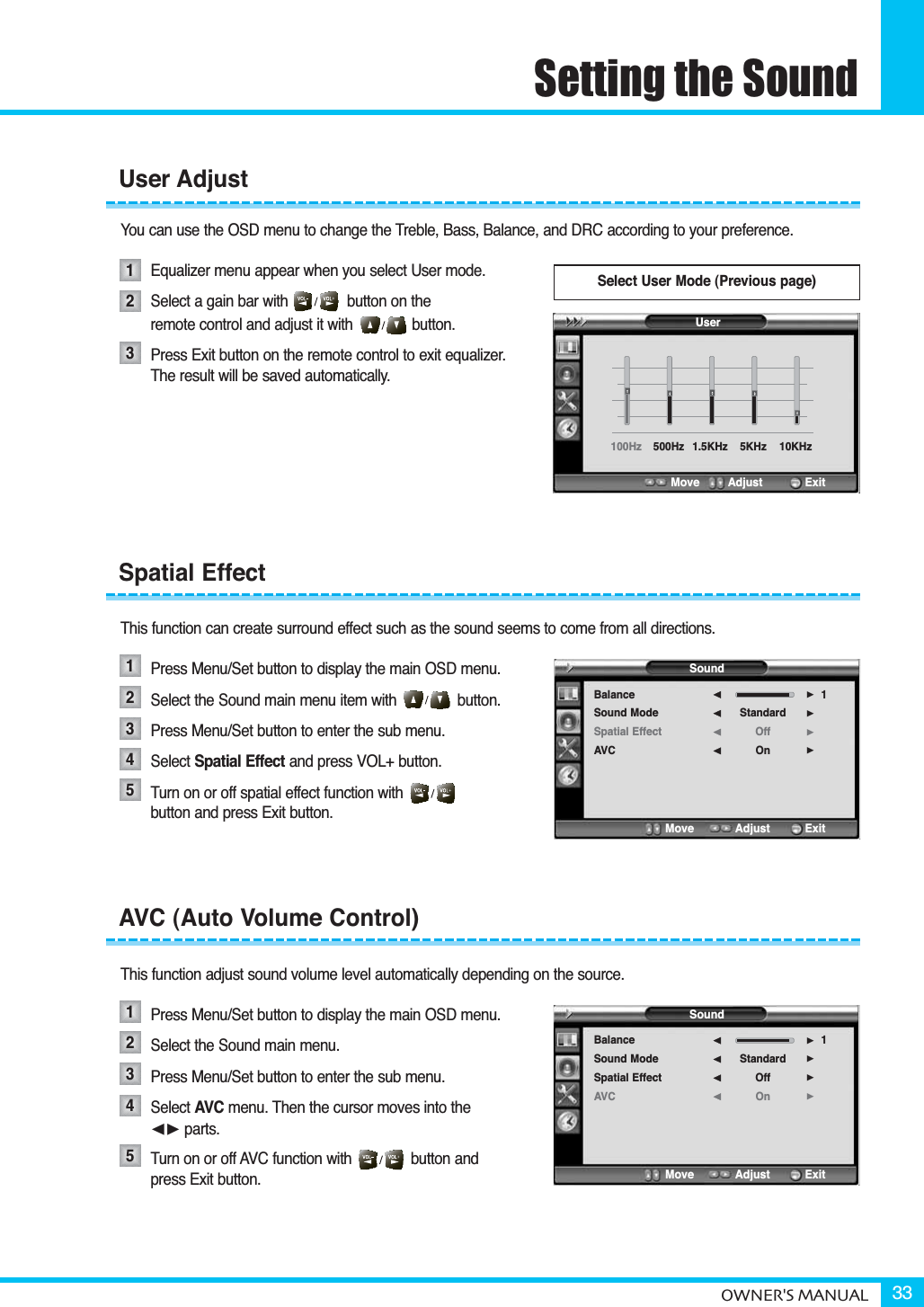

Setting the SoundOWNER'S MANUAL 33You can use the OSD menu to change the Treble, Bass, Balance, and DRC according to your preference.Equalizer menu appear when you select User mode.Select a gain bar with button on the remote control and adjust it with button.Press Exit button on the remote control to exit equalizer. The result will be saved automatically.This function can create surround effect such as the sound seems to come from all directions.Press Menu/Set button to display the main OSD menu.Select the Sound main menu item with button.Press Menu/Set button to enter the sub menu. Select Spatial Effect and press VOL+ button.Turn on or off spatial effect function with button and press Exit button.This function adjust sound volume level automatically depending on the source.Press Menu/Set button to display the main OSD menu.Select the Sound main menu. Press Menu/Set button to enter the sub menu.Select AVC menu. Then the cursor moves into the ¥ parts.Turn on or off AVC function with button and press Exit button.User AdjustSpatial EffectAVC (Auto Volume Control)1231234512345Select User Mode (Previous page)SoundBalanceSound ModeSpatial EffectAVCStandardOffOn1¥¥¥¥Move Adjust ExitSoundBalanceSound ModeSpatial EffectAVCStandardOffOn1¥¥¥¥Move Adjust ExitUser100Hz 500Hz 1.5KHz 5KHz 10KHz Move Adjust Exit

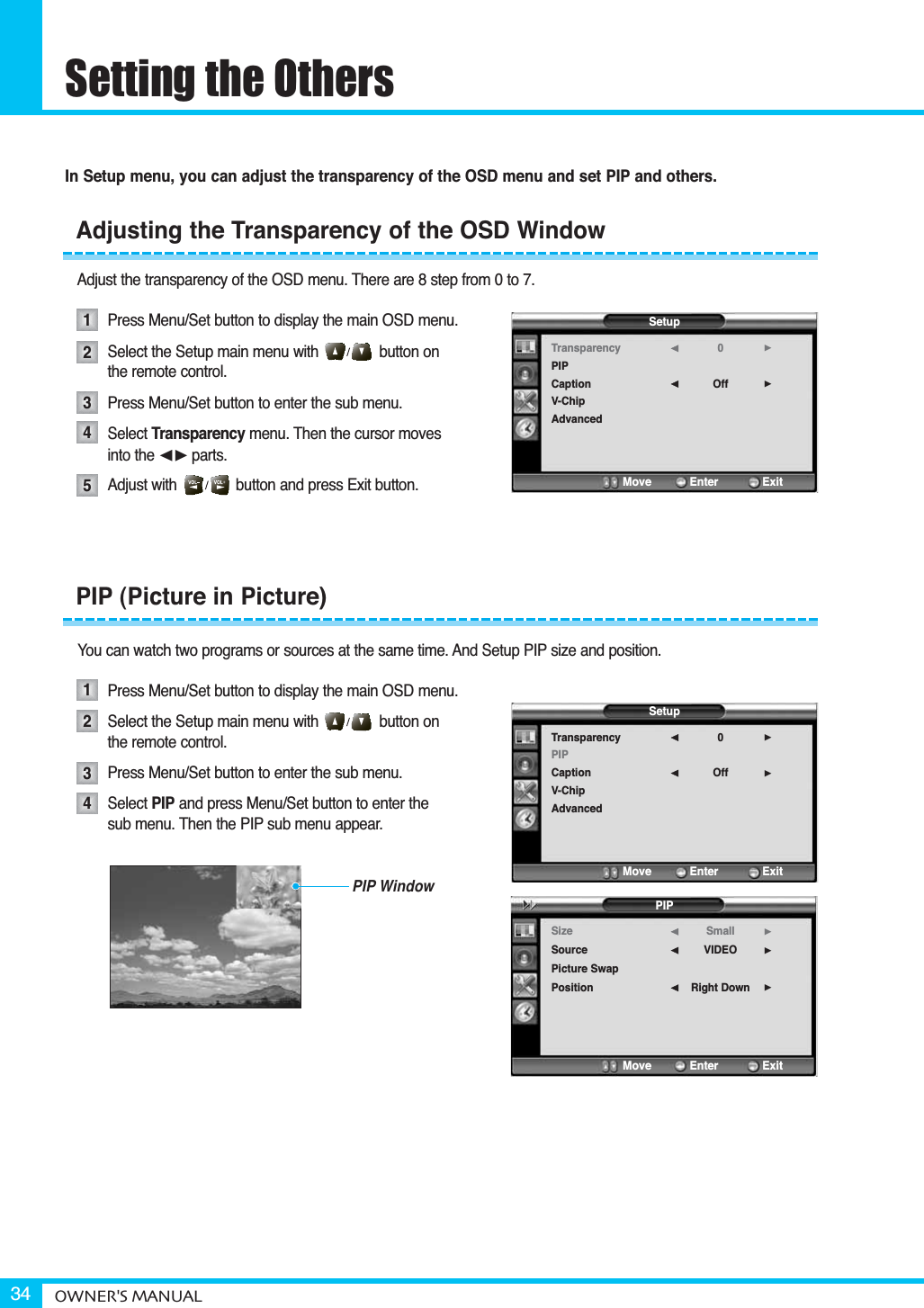

Setting the OthersOWNER'S MANUAL34In Setup menu, you can adjust the transparency of the OSD menu and set PIP and others.Adjust the transparency of the OSD menu. There are 8 step from 0 to 7.Press Menu/Set button to display the main OSD menu.Select the Setup main menu with button on the remote control.Press Menu/Set button to enter the sub menu.Select Transparency menu. Then the cursor moves into the ¥parts.Adjust with button and press Exit button.You can watch two programs or sources at the same time. And Setup PIP size and position.Press Menu/Set button to display the main OSD menu.Select the Setup main menu with button onthe remote control.Press Menu/Set button to enter the sub menu. Select PIP and press Menu/Set button to enter thesub menu. Then the PIP sub menu appear.Adjusting the Transparency of the OSD Window12345PIP (Picture in Picture)1234SetupTransparencyPIPCaptionV-ChipAdvanced0Off¥¥Move Enter ExitSetupTransparencyPIPCaptionV-ChipAdvanced0Off¥¥Move Enter ExitPIPSizeSourcePicture SwapPositionSmallVIDEORight Down¥¥¥Move Enter ExitPIP Window

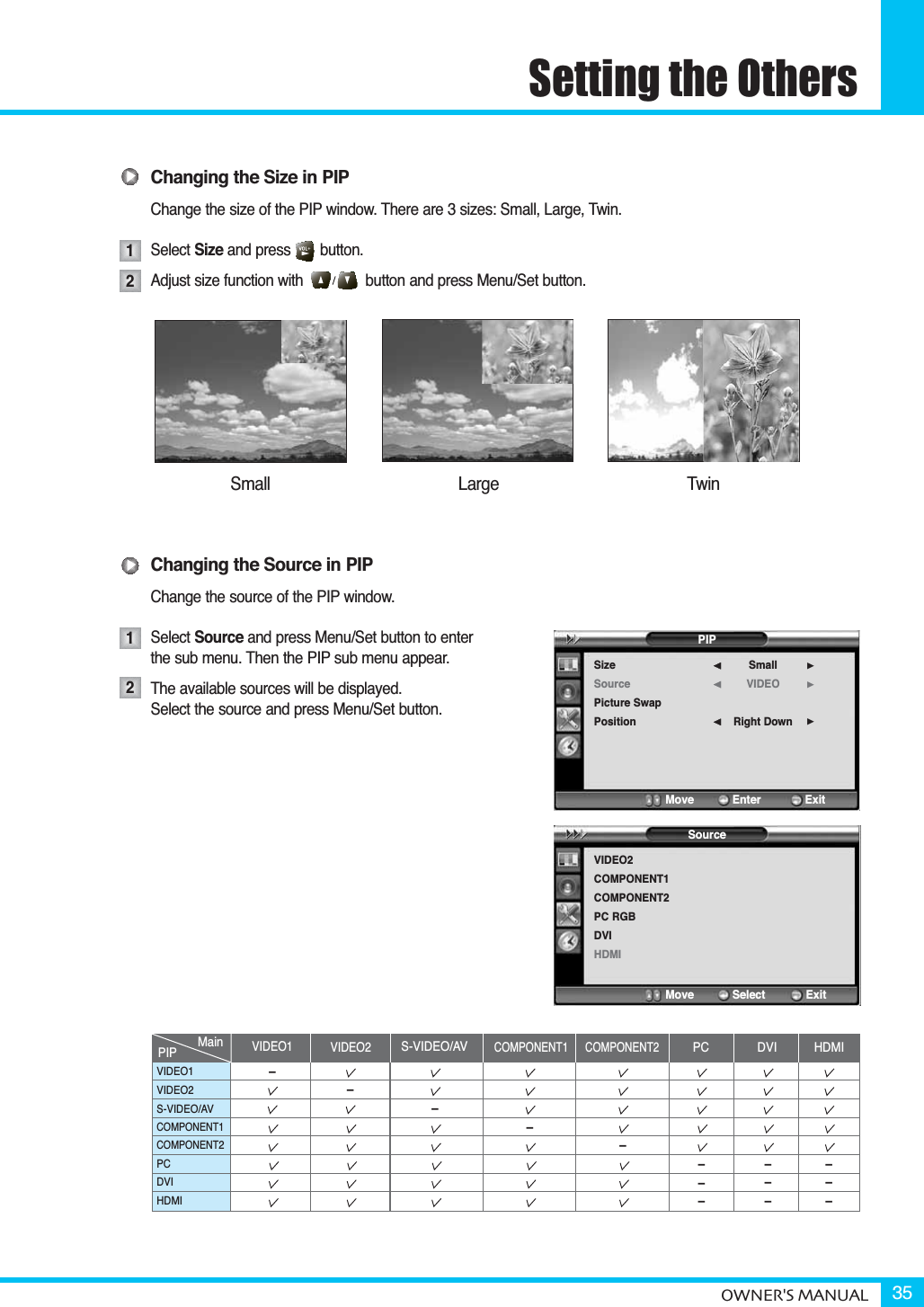

Setting the OthersOWNER'S MANUAL 35Changing the Size in PIPChange the size of the PIP window. There are 3 sizes: Small, Large, Twin.Select Size and press button.Adjust size function with button and press Menu/Set button. Changing the Source in PIPChange the source of the PIP window.Select Source and press Menu/Set button to enterthe sub menu. Then the PIP sub menu appear.The available sources will be displayed.Select the source and press Menu/Set button.Small Large Twin1212PIPSizeSourcePicture SwapPositionSmallVIDEORight Down¥¥¥Move Enter ExitSourceVIDEO2COMPONENT1COMPONENT2PC RGBDVIHDMIMove Select ExitVIDEO1VIDEO2S-VIDEO/AVCOMPONENT1COMPONENT2PCDVIHDMIPIP MainVIDEO1 VIDEO2S-VIDEO/AVCOMPONENT1 COMPONENT2PC DVI HDMI––––––––––––––

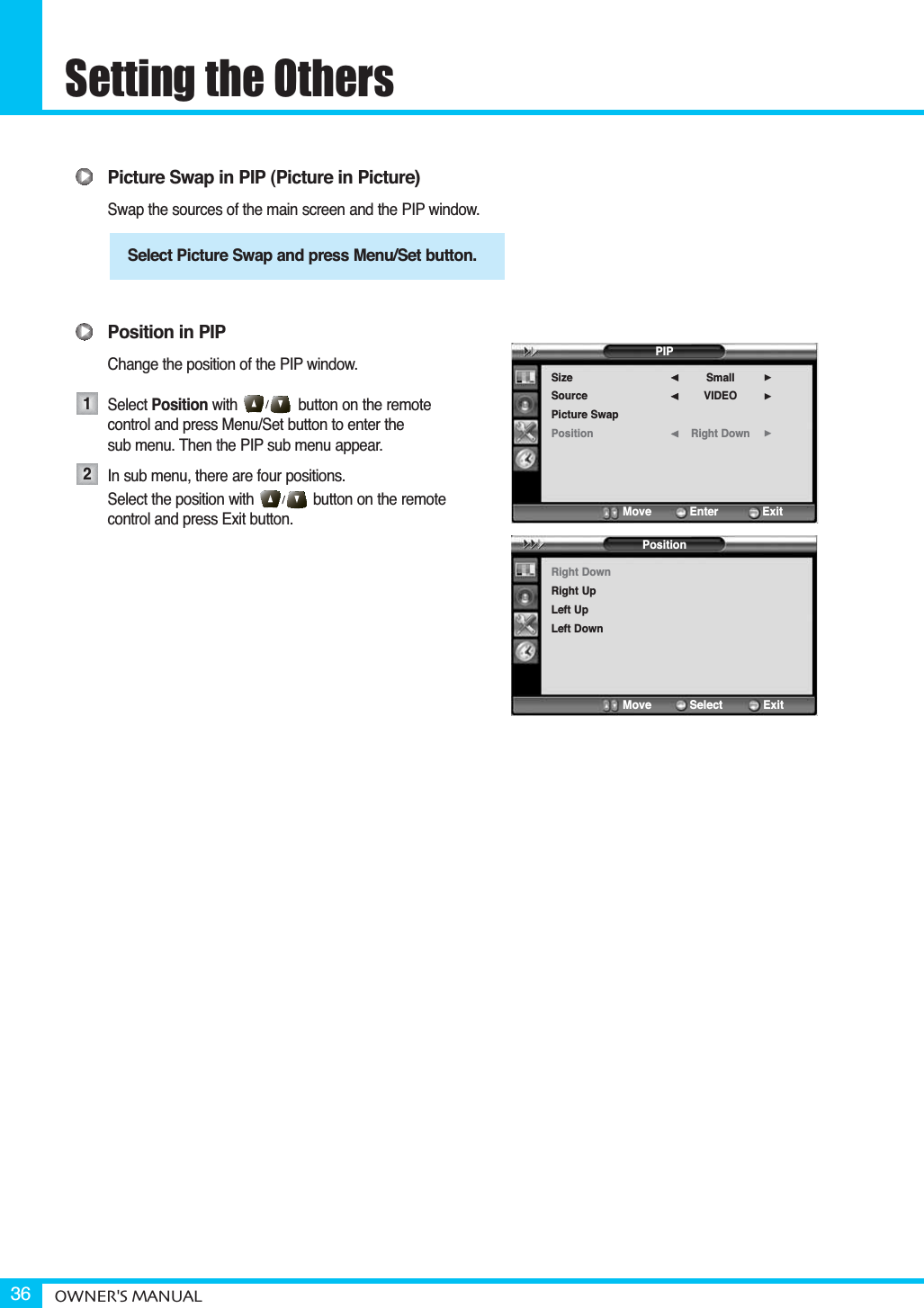

Setting the OthersOWNER'S MANUAL36Picture Swap in PIP (Picture in Picture)Swap the sources of the main screen and the PIP window.Position in PIPChange the position of the PIP window.Select Position with button on the remote control and press Menu/Set button to enter the sub menu. Then the PIP sub menu appear.In sub menu, there are four positions.Select the position with button on the remote control and press Exit button.Select Picture Swap and press Menu/Set button.12PIPSizeSourcePicture SwapPositionSmallVIDEORight Down¥¥¥Move Enter ExitPositionRight DownRight UpLeft UpLeft DownMove Select Exit

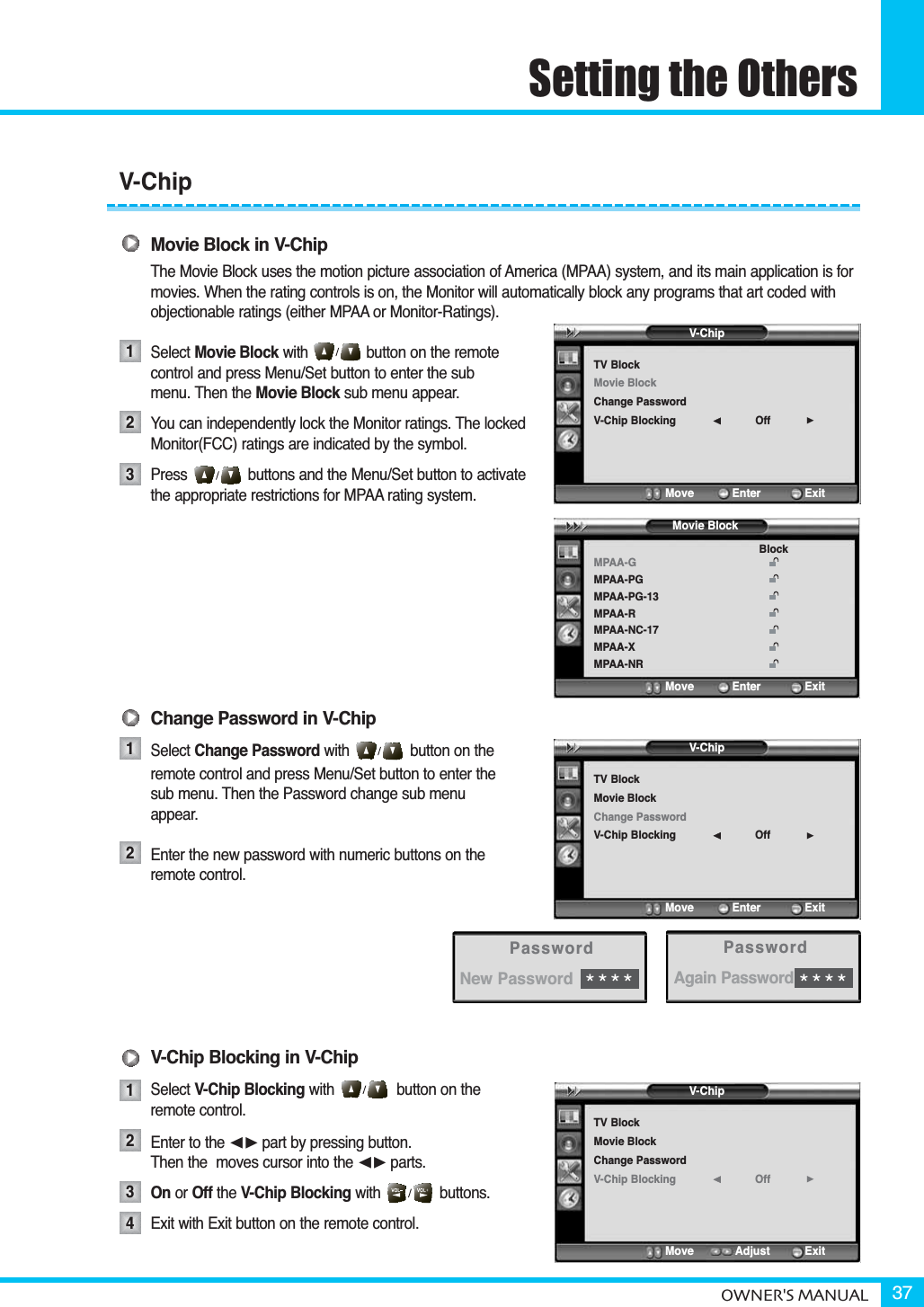

Setting the OthersOWNER'S MANUAL 37Movie Block in V-ChipThe Movie Block uses the motion picture association of America (MPAA) system, and its main application is for movies. When the rating controls is on, the Monitor will automatically block any programs that art coded with objectionable ratings (either MPAA or Monitor-Ratings).Select Movie Block with button on the remote control and press Menu/Set button to enter the submenu. Then the Movie Block sub menu appear.You can independently lock the Monitor ratings. The lockedMonitor(FCC) ratings are indicated by the symbol.Press buttons and the Menu/Set button to activate the appropriate restrictions for MPAA rating system.Change Password in V-ChipSelect Change Password with button on theremote control and press Menu/Set button to enter thesub menu. Then the Password change sub menuappear.Enter the new password with numeric buttons on theremote control.V-Chip Blocking in V-ChipSelect V-Chip Blocking with button on the remote control.Enter to the ¥part by pressing button. Then the moves cursor into the ¥parts.On or Off the V-Chip Blocking with buttons.Exit with Exit button on the remote control.123121234V-ChipTV BlockMovie BlockChange PasswordV-Chip Blocking Off¥Move Enter ExitMPAA-GMPAA-PGMPAA-PG-13MPAA-RMPAA-NC-17MPAA-XMPAA-NRBlockMove Enter ExitMovie BlockV-ChipTV BlockMovie BlockChange PasswordV-Chip Blocking Off¥Move Enter ExitV-ChipTV BlockMovie BlockChange PasswordV-Chip Blocking Off¥Move Adjust ExitPasswordNew Password****PasswordAgain Password****V-Chip

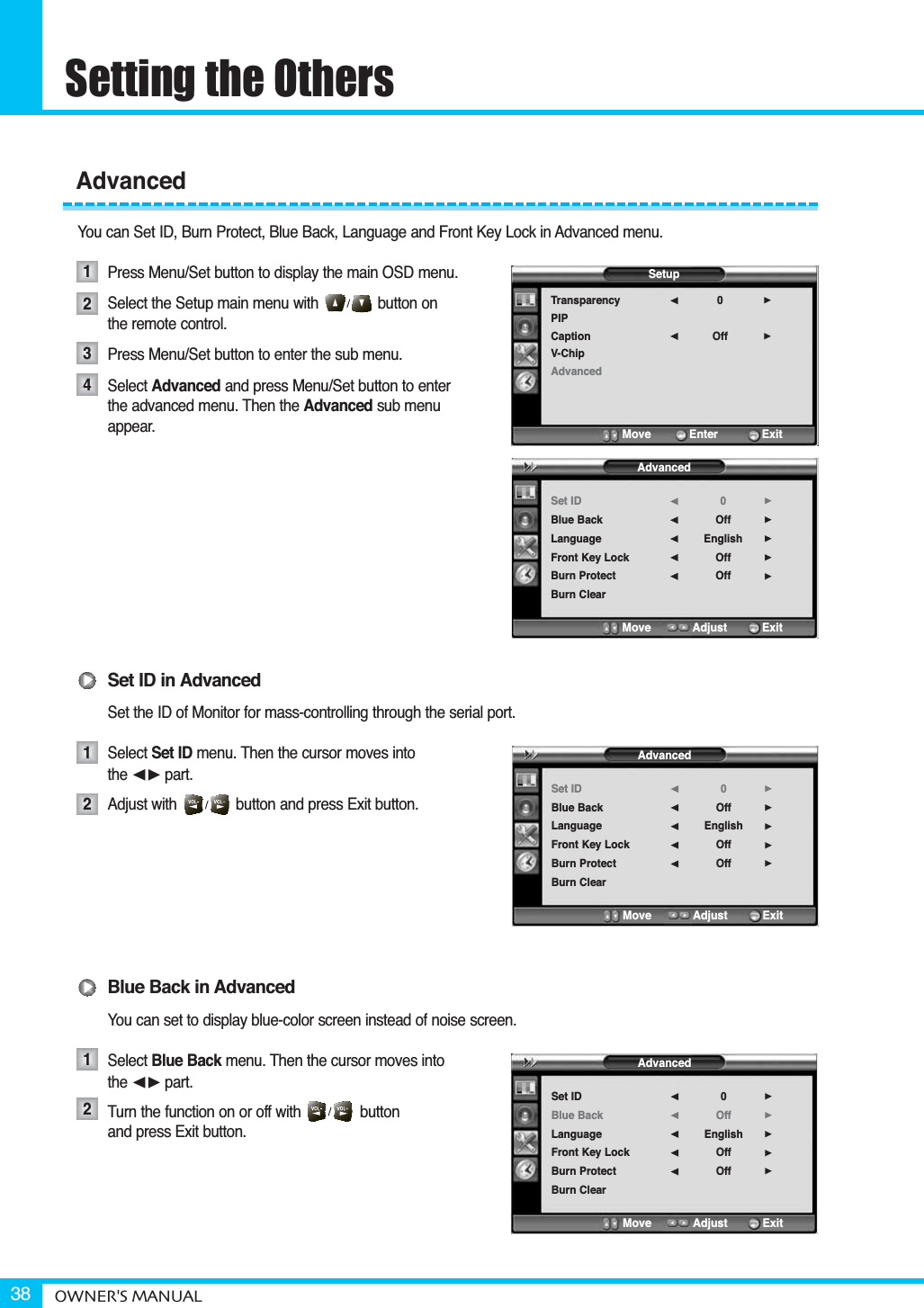

Setting the OthersOWNER'S MANUAL38You can Set ID, Burn Protect, Blue Back, Language and Front Key Lock in Advanced menu.Press Menu/Set button to display the main OSD menu.Select the Setup main menu with button on the remote control.Press Menu/Set button to enter the sub menu. Select Advanced and press Menu/Set button to enterthe advanced menu. Then the Advanced sub menu appear.Set ID in AdvancedSet the ID of Monitor for mass-controlling through the serial port.Select Set ID menu. Then the cursor moves into the ¥part.Adjust with button and press Exit button.Blue Back in AdvancedYou can set to display blue-color screen instead of noise screen.Select Blue Back menu. Then the cursor moves into the ¥part.Turn the function on or off with button and press Exit button.Advanced12341212SetupTransparencyPIPCaptionV-ChipAdvanced0Off¥¥Move Enter ExitAdvancedSet IDBlue BackLanguageFront Key LockBurn ProtectBurn Clear0OffEnglishOffOff¥¥¥¥¥Move Adjust ExitAdvancedSet IDBlue BackLanguageFront Key LockBurn ProtectBurn Clear0OffEnglishOffOff¥¥¥¥¥Move Adjust ExitAdvancedSet IDBlue BackLanguageFront Key LockBurn ProtectBurn Clear0OffEnglishOffOff¥¥¥¥¥Move Adjust Exit
Setting the OthersOWNER'S MANUAL 39Language in AdvancedSet the language to use in OSD.Supported languages are English, French, Spanish.Select Language and press Menu/Set button.Choose the Language with button and press Exit button.Front Key Lock in AdvancedLock the OSD panel of the Monitor. It can protect the Monitor from children's power On/Off or other operationby miss.Select Front Key Lock and press VOL+ button to enter the ¥parts. Then the cursor moves into the ¥parts.Turn the function on or off with button and press Exit button.Burn Protect in AdvancedThe Monitor may be damaged from displaying a static image long time (over 30 minutes). It is called as imagesticking, and burn protect function moves image regularly to relieve image sticking. You can set the movingrange of burn protection function. (How much the image will move.) Burn Protection function moves image 1pixel per 2 minutes, and the set range, image starts to go back to the original position.Select Burn Protect menu. Then the cursor moves into the ¥parts.Turn the function on or off with button and press Exit button.Burn Clear in AdvancedThis function will be used for removing sticking image on the screen.Select Burn Clear.Turn the function on Menu/Set button and press.12121212AdvancedSet IDBlue BackLanguageFront Key LockBurn ProtectBurn Clear0OffEnglishOffOff¥¥¥¥¥Move Enter ExitAdvancedSet IDBlue BackLanguageFront Key LockBurn ProtectBurn Clear0OffEnglishOffOff¥¥¥¥¥Move Adjust ExitAdvancedSet IDBlue BackLanguageFront Key LockBurn ProtectBurn Clear0OffEnglishOffOff¥¥¥¥¥Move Adjust ExitAdvancedSet IDBlue BackLanguageFront Key LockBurn ProtectBurn Clear0OffEnglishOffOff¥¥¥¥¥Move Adjust Exit

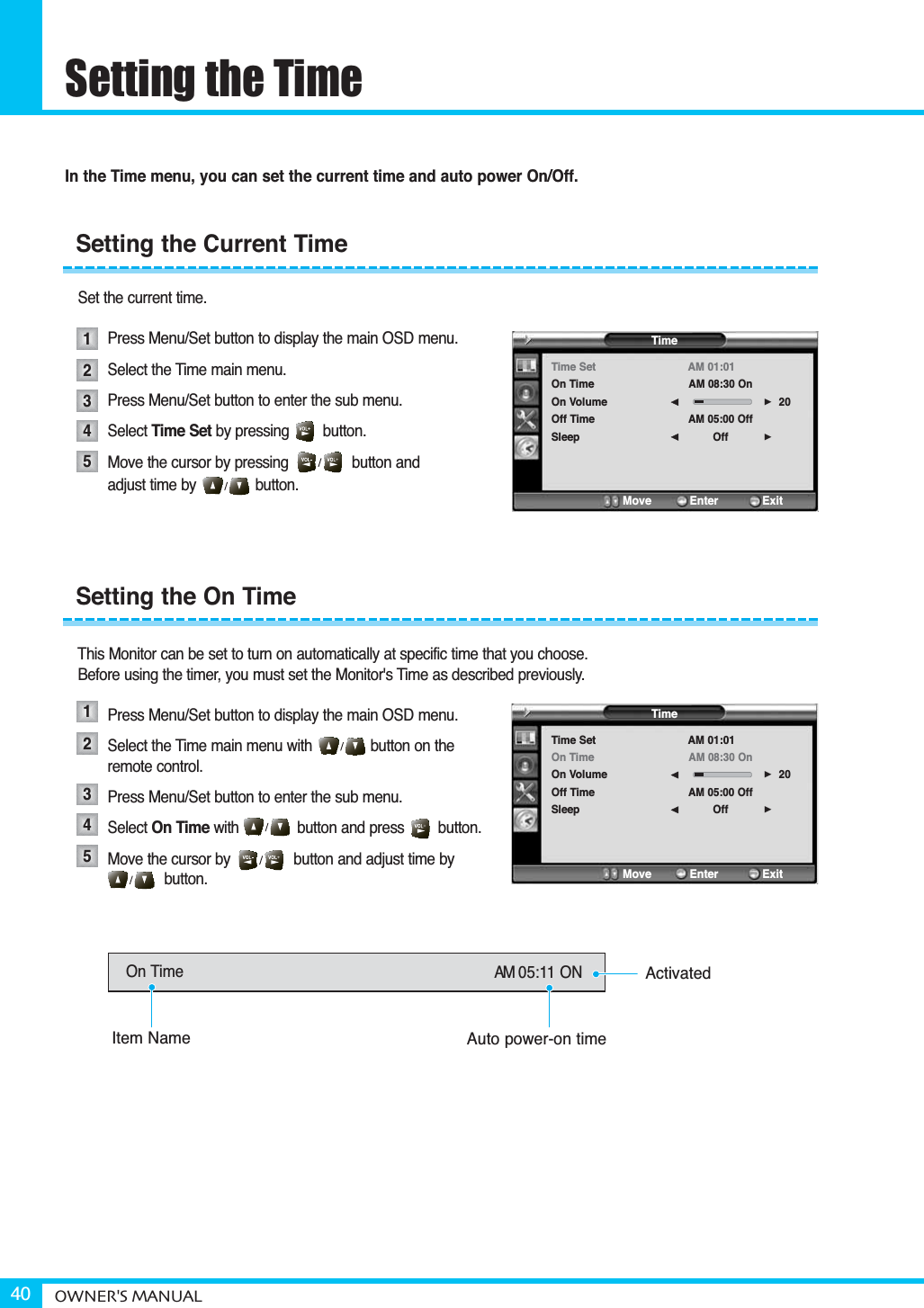

Setting the TimeOWNER'S MANUAL40In the Time menu, you can set the current time and auto power On/Off.Set the current time.Press Menu/Set button to display the main OSD menu.Select the Time main menu. Press Menu/Set button to enter the sub menu. Select Time Set by pressing button. Move the cursor by pressing button and adjust time by button.This Monitor can be set to turn on automatically at specific time that you choose.Before using the timer, you must set the Monitor's Time as described previously.Press Menu/Set button to display the main OSD menu.Select the Time main menu with button on the remote control.Press Menu/Set button to enter the sub menu. Select On Time with button and press button.Move the cursor by button and adjust time bybutton.Setting the Current TimeSetting the On Time1234512345TimeTime SetOn TimeOn VolumeOff TimeSleepAM 01:01AM 08:30 OnAM 05:00 OffOff20¥¥Move Enter ExitTimeTime SetOn TimeOn VolumeOff TimeSleepAM 01:01AM 08:30 OnAM 05:00 OffOff20¥¥Move Enter ExitOn Time AM 05:11 ONItem NameActivatedAuto power-on time

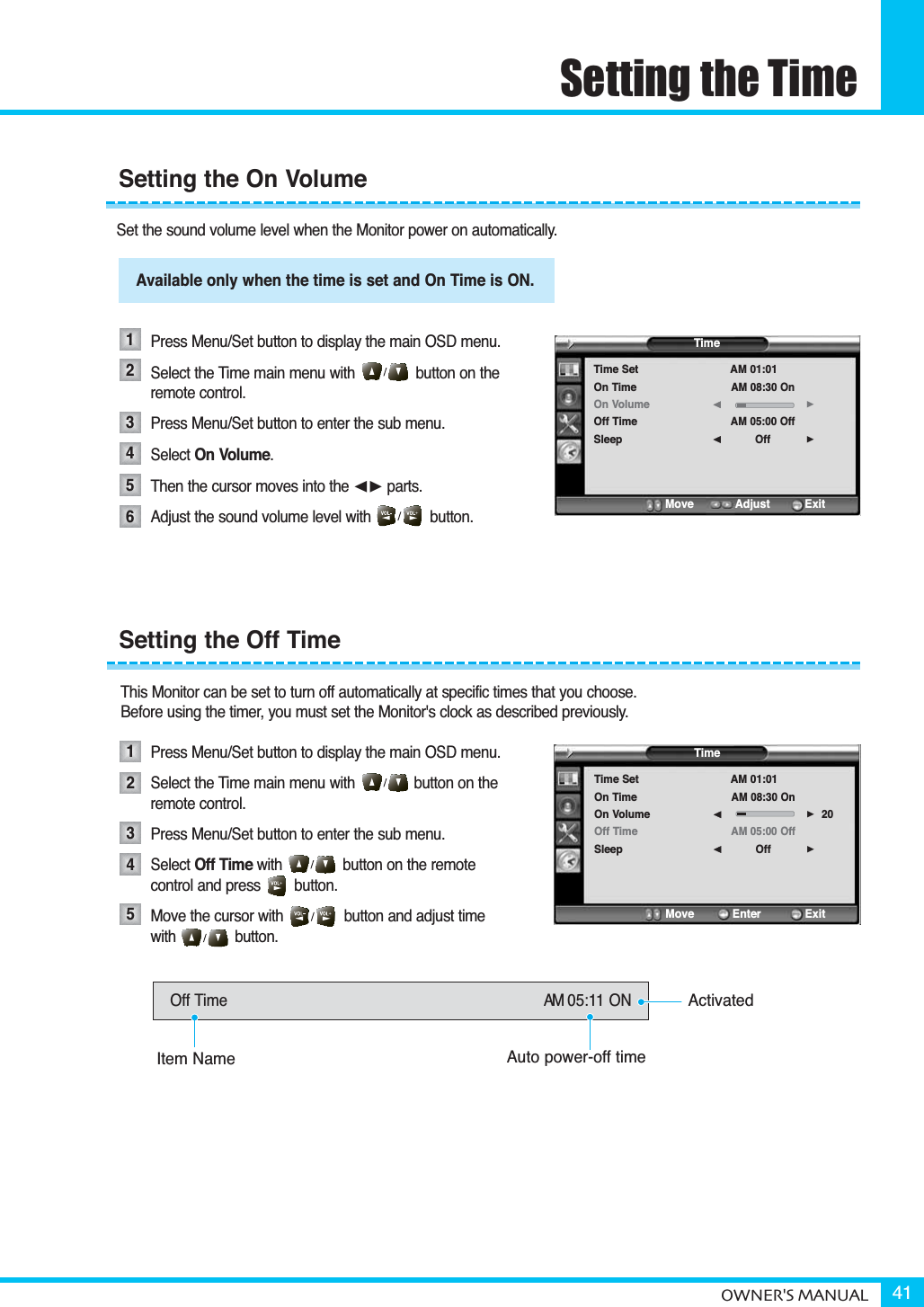

Setting the TimeOWNER'S MANUAL 41Set the sound volume level when the Monitor power on automatically.Available only when the time is set and on time is on.Press Menu/Set button to display the main OSD menu.Select the Time main menu with button on the remote control.Press Menu/Set button to enter the sub menu. Select On Volume.Then the cursor moves into the ¥ parts.Adjust the sound volume level with button. This Monitor can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the Monitor's clock as described previously.Press Menu/Set button to display the main OSD menu.Select the Time main menu with button on the remote control.Press Menu/Set button to enter the sub menu. Select Off Time with button on the remote control and press button.Move the cursor with button and adjust time with button.Setting the On Volume123456Available only when the time is set and On Time is ON.TimeTime SetOn TimeOn VolumeOff TimeSleepAM 01:01AM 08:30 OnAM 05:00 OffOff¥¥Move Adjust ExitSetting the Off Time12345Off Time AM 05:11 ONActivatedAuto power-off timeItem NameTimeTime SetOn TimeOn VolumeOff TimeSleepAM 01:01AM 08:30 OnAM 05:00 OffOff20¥¥Move Enter Exit

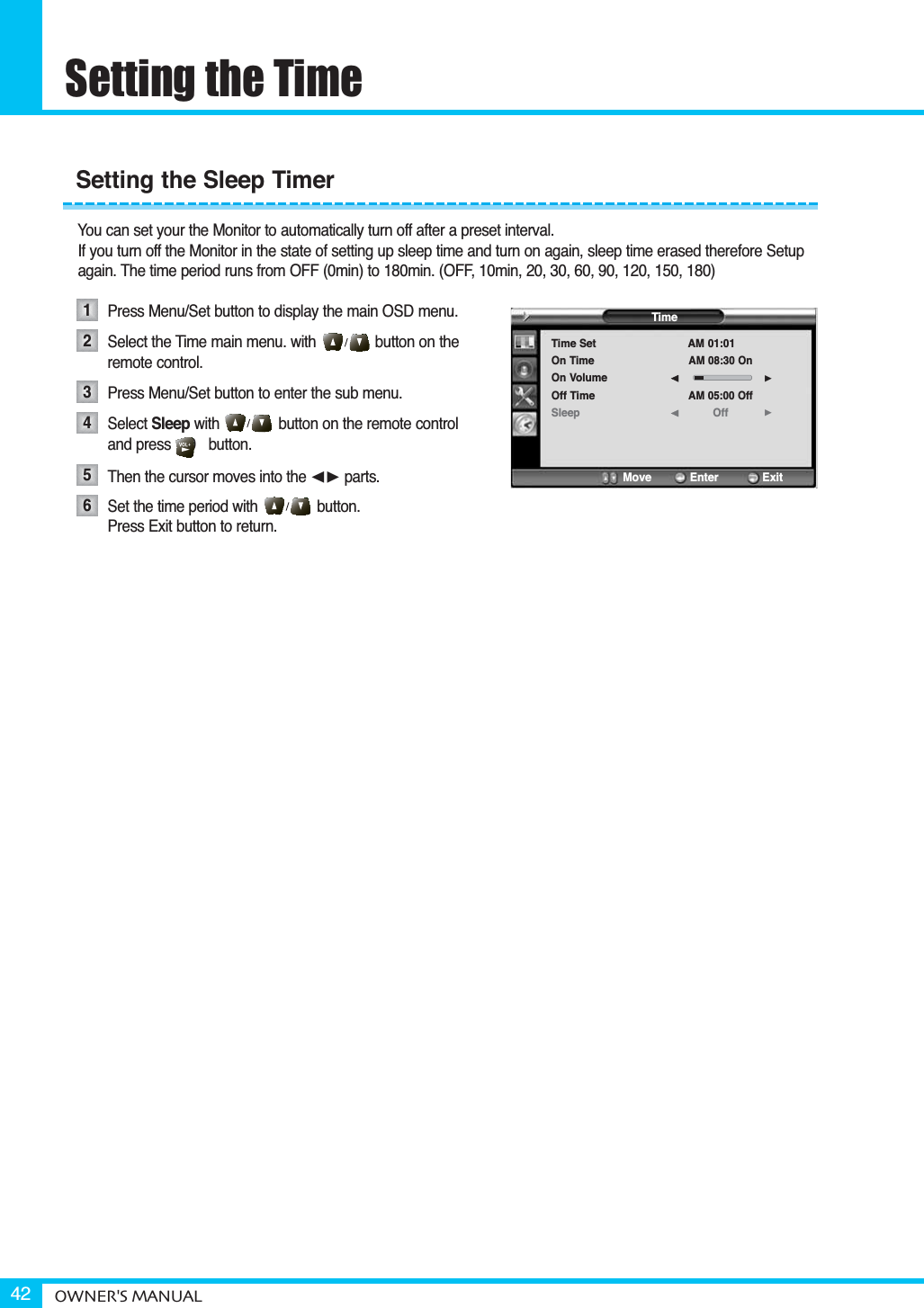

Setting the TimeOWNER'S MANUAL42You can set your the Monitor to automatically turn off after a preset interval.If you turn off the Monitor in the state of setting up sleep time and turn on again, sleep time erased therefore Setup again. The time period runs from OFF (0min) to 180min. (OFF, 10min, 20, 30, 60, 90, 120, 150, 180)Press Menu/Set button to display the main OSD menu.Select the Time main menu. with button on the remote control.Press Menu/Set button to enter the sub menu. Select Sleep with button on the remote control and press 0 button.Then the cursor moves into the ¥ parts.Set the time period with button. Press Exit button to return. Setting the Sleep Timer123456TimeTime SetOn TimeOn VolumeOff TimeSleepAM 01:01AM 08:30 OnAM 05:00 OffOff¥¥Move Enter Exit

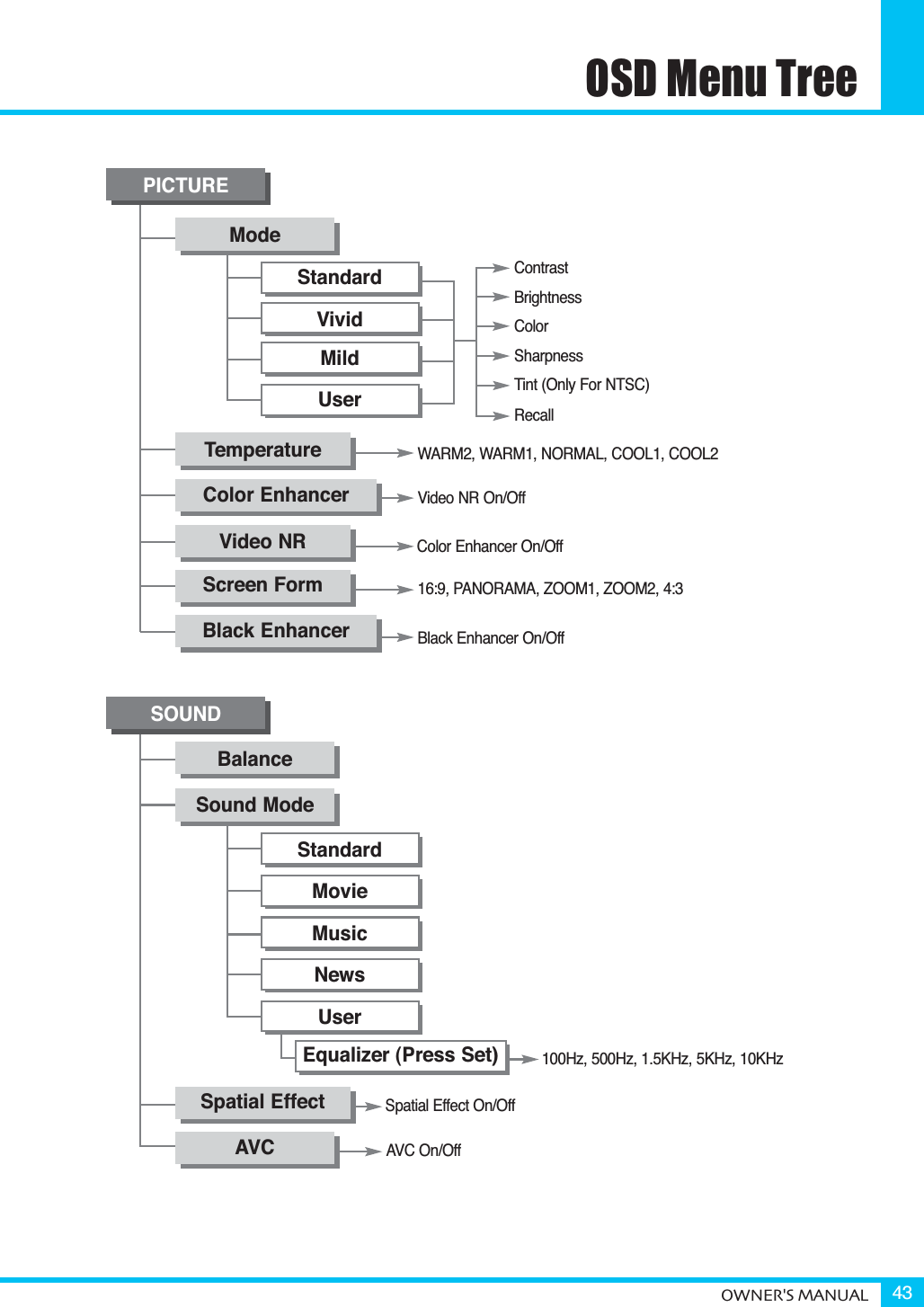

OSD Menu TreeOWNER'S MANUAL 43PICTUREModeTemperatureVideo NRColor EnhancerScreen FormBlack EnhancerStandardVividMildUserSOUNDBalanceSound ModeSpatial EffectAVCStandardMovieMusicNewsUserEqualizer (Press Set)ContrastBrightnessColorSharpnessTint (Only For NTSC)RecallWARM2, WARM1, NORMAL, COOL1, COOL2Video NR On/OffColor Enhancer On/Off16:9, PANORAMA, ZOOM1, ZOOM2, 4:3Black Enhancer On/OffSpatial Effect On/OffAVC On/Off100Hz, 500Hz, 1.5KHz, 5KHz, 10KHz

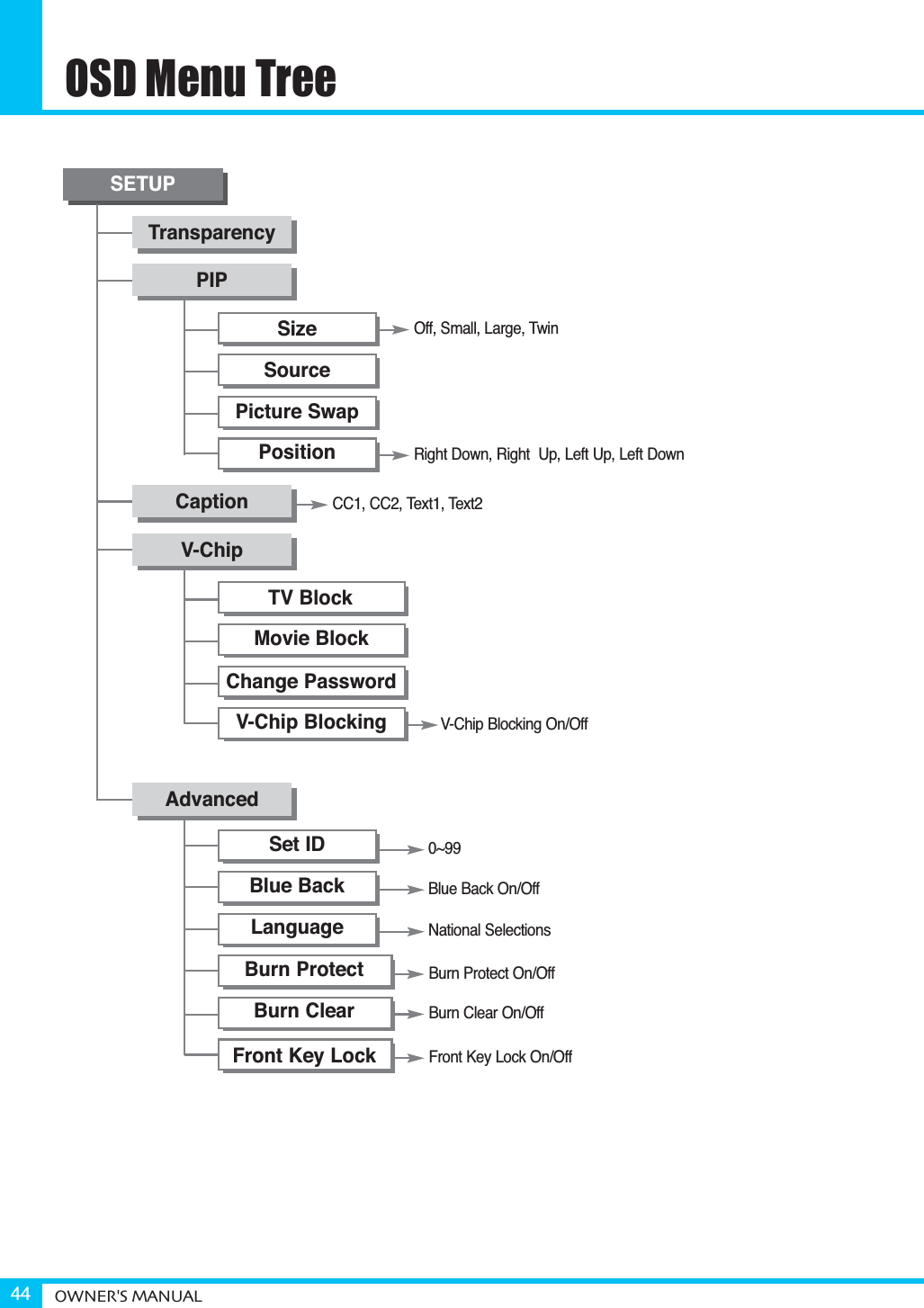

OSD Menu TreeOWNER'S MANUAL44SETUPTransparencyPIPSizeSourcePicture SwapPositionRight Down, Right Up, Left Up, Left DownCC1, CC2, Text1, Text2Off, Small, Large, TwinV-ChipCaptionTV BlockMovie BlockChange PasswordV-Chip BlockingV-Chip Blocking On/Off0~99Blue Back On/OffNational SelectionsAdvancedSet IDBlue BackLanguageBurn ProtectBurn Protect On/OffBurn ClearBurn Clear On/OffFront Key Lock On/OffFront Key Lock

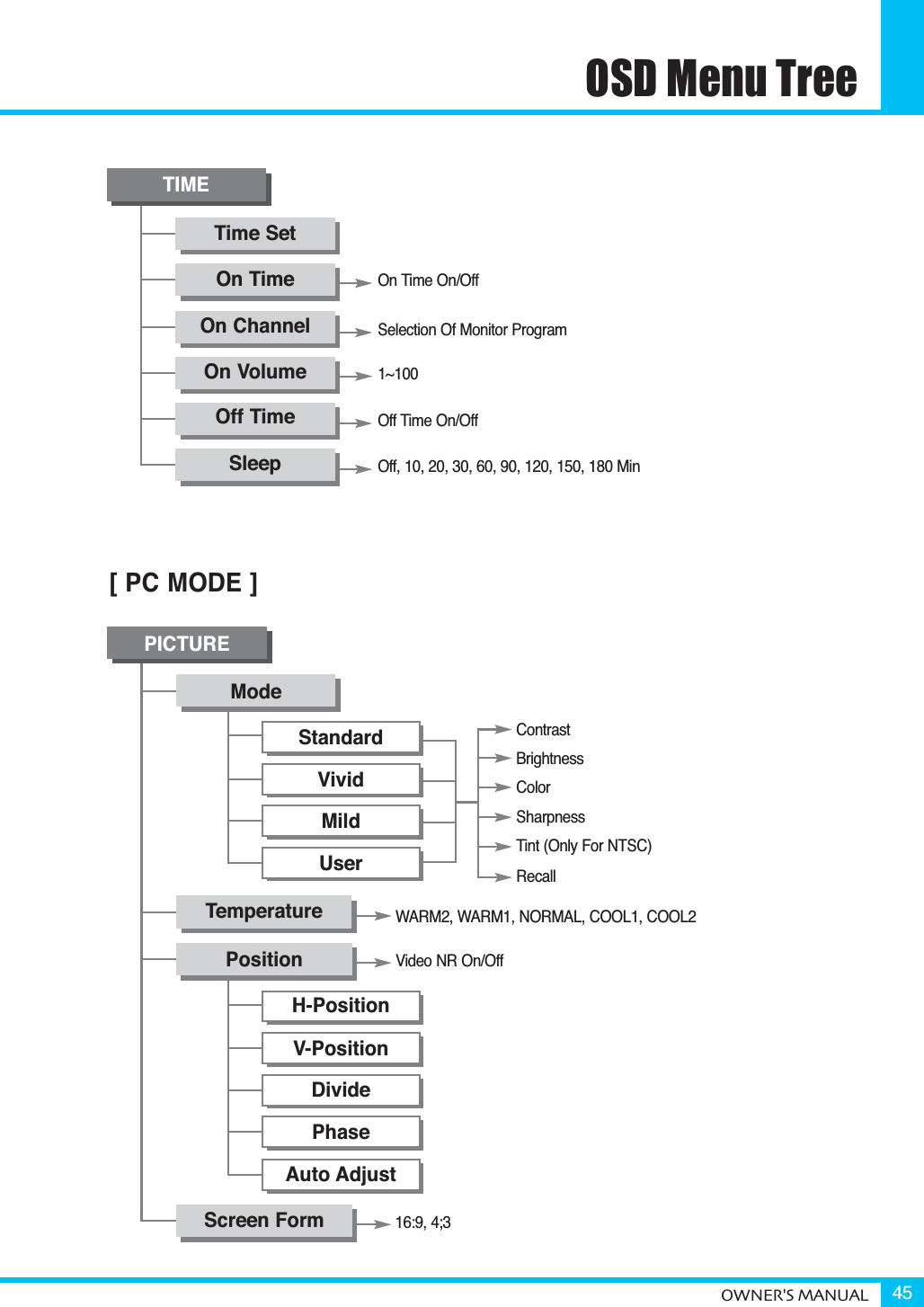

OSD Menu TreeOWNER'S MANUAL 45TIMETime SetOn TimeOn ChannelOn VolumeOff TimeSleepOn Time On/OffSelection Of Monitor Program1~100Off Time On/OffOff, 10, 20, 30, 60, 90, 120, 150, 180 MinPICTUREModeStandardVividMildUserH-PositionV-PositionDividePhaseAuto AdjustTemperaturePositionWARM2, WARM1, NORMAL, COOL1, COOL2Video NR On/OffScreen Form16:9, 4;3ContrastBrightnessColorSharpnessTint (Only For NTSC)Recall[ PC MODE ]

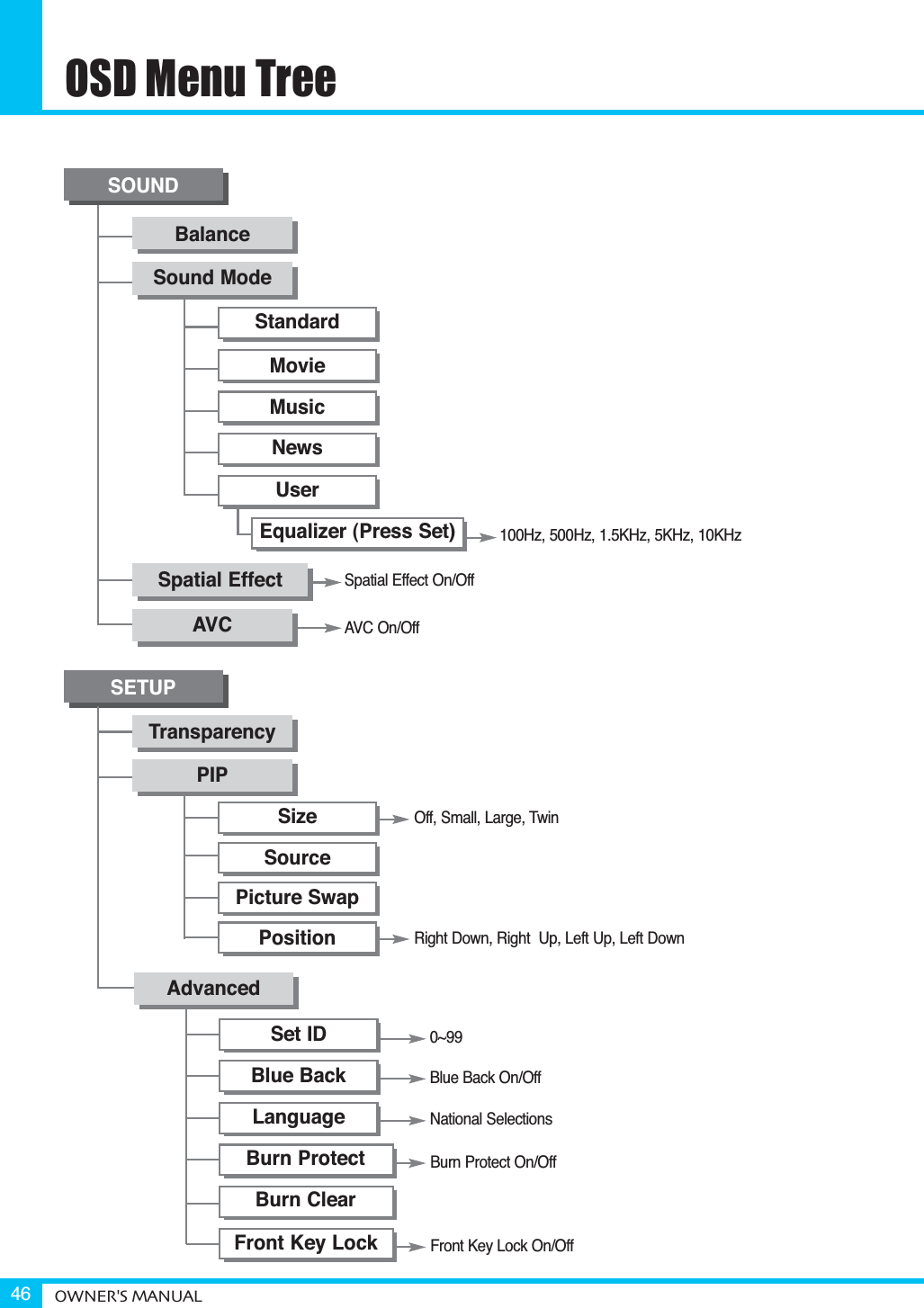

OSD Menu TreeOWNER'S MANUAL46SOUNDBalanceSound ModeSpatial EffectAVCStandardMovieMusicNewsUserEqualizer (Press Set)100Hz, 500Hz, 1.5KHz, 5KHz, 10KHzSpatial Effect On/OffAVC On/OffSETUPTransparencyPIPSizeSourcePicture SwapPositionRight Down, Right Up, Left Up, Left DownOff, Small, Large, Twin0~99Blue Back On/OffNational SelectionsAdvancedSet IDBlue BackLanguageBurn ProtectBurn Protect On/OffBurn ClearFront Key Lock On/OffFront Key Lock

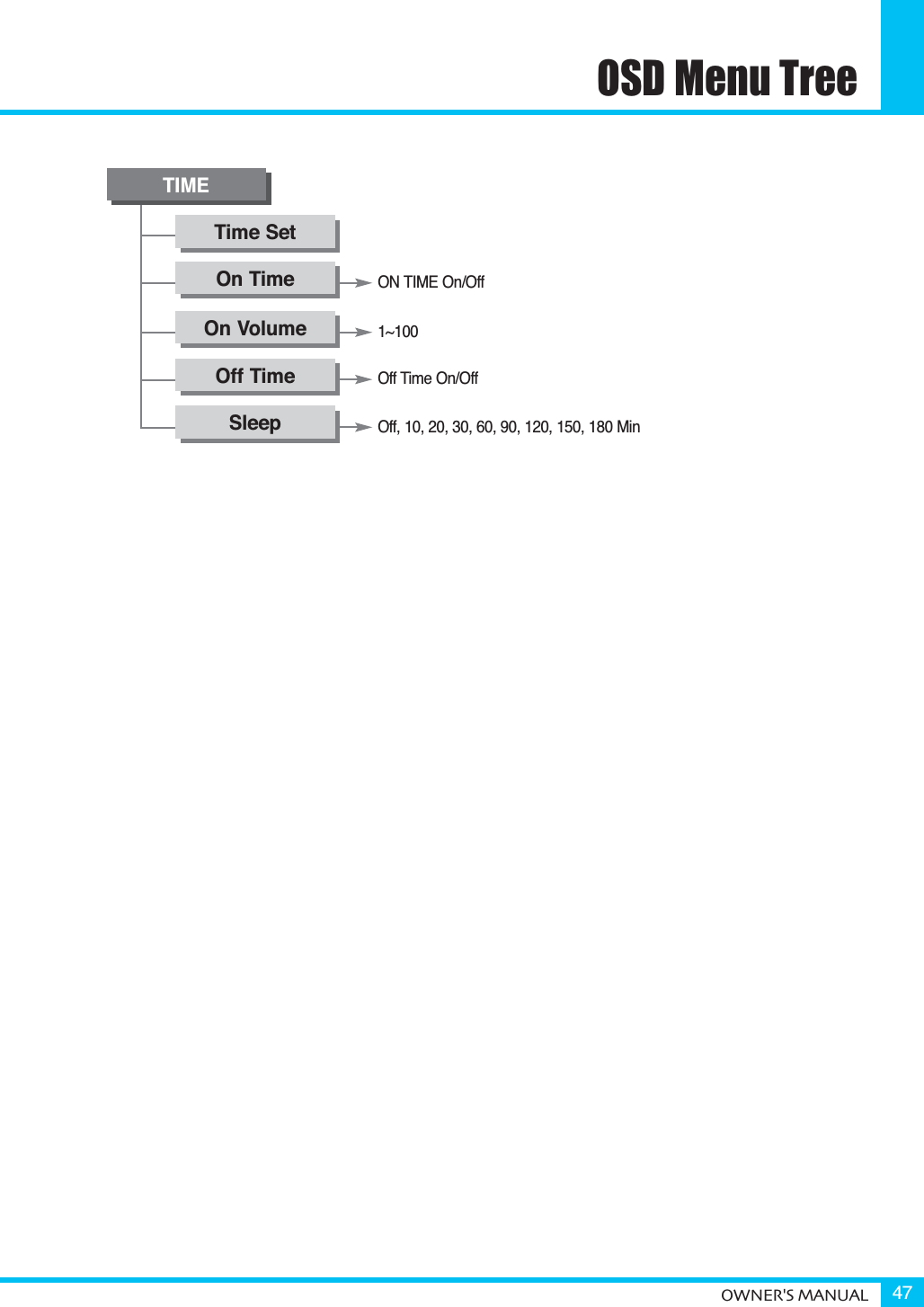

OSD Menu TreeOWNER'S MANUAL 47TIMETime SetOn TimeOn VolumeOff TimeSleepON TIME On/Off1~100Off Time On/OffOff, 10, 20, 30, 60, 90, 120, 150, 180 Min

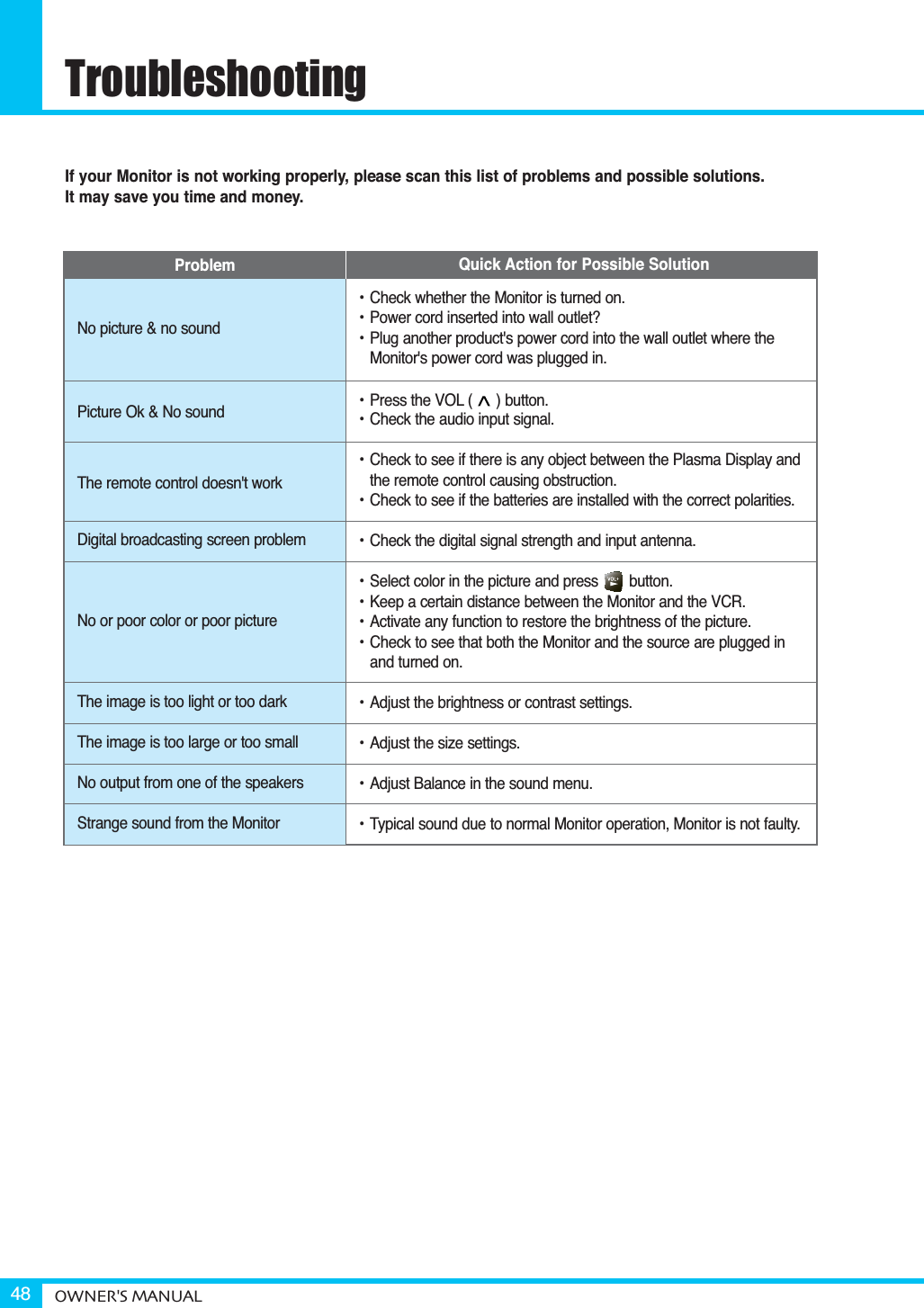

OWNER'S MANUAL48TroubleshootingIf your Monitor is not working properly, please scan this list of problems and possible solutions. It may save you time and money.Quick Action for Possible SolutionProblemNo picture & no soundPicture Ok & No soundThe remote control doesn't work Digital broadcasting screen problemNo or poor color or poor pictureThe image is too light or too darkThe image is too large or too smallNo output from one of the speakersStrange sound from the Monitor• Check whether the Monitor is turned on.• Power cord inserted into wall outlet?• Plug another product's power cord into the wall outlet where the Monitor's power cord was plugged in.• Press the VOL ( ) button.• Check the audio input signal.• Check to see if there is any object between the Plasma Display and the remote control causing obstruction.• Check to see if the batteries are installed with the correct polarities.• Check the digital signal strength and input antenna.• Select color in the picture and press button.• Keep a certain distance between the Monitor and the VCR.• Activate any function to restore the brightness of the picture.• Check to see that both the Monitor and the source are plugged in and turned on.• Adjust the brightness or contrast settings.• Adjust the size settings.• Adjust Balance in the sound menu.• Typical sound due to normal Monitor operation, Monitor is not faulty.
