User Manual
Model:HW086
Thank you for using BOW keyboard, please reading the usage specification carful before you use
it.

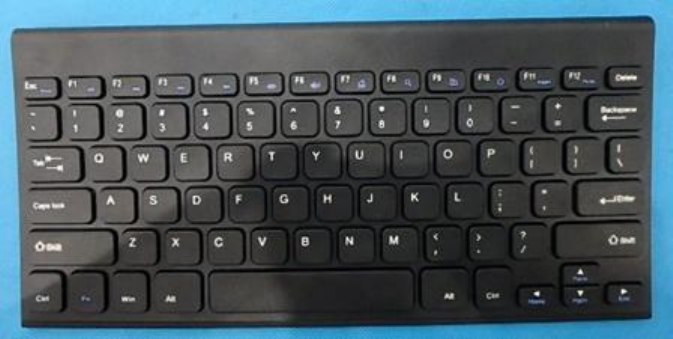

Product
1. power
Turn on when sliding on-off to left, turn off when sliding on-off right.
2. power supply pilot lamp: the pilot lamp will be green at most 5 second when turn on the
power, then extinguish.
Capital and small letter pilot lamp: click CAPS LOCK keycap to cut the capital and small letter.
When the pilot lamp is blue, it is capital form.
3 . MICRO battery charging joint: only for keyboard
4. battery charging pilot lamp : when charging , the lamp is red, when saturation, the lamp is
green. Unpin the line of charging , the lamp extinguish.
The keyboard of shortcut key
Turn on multimedia pause/play last
Next up volume down volume
Mute browser search
Favorite turn off insert
Screen shot page up page down
Delete backwards head page foot page
Code connect
Remarks: all of those keycaps of shortcut key must use with FN keycap together, like Fn+
( except the code connect key) .
The keyboard characteristic
1, exclusive using can adopt to tablet PC, all-in-one computer, table model computer and so on.
2,it has adapter conceal function, so , it I s easy to carry with you when you go out.
3, adopting many ways about code connect , only click the ESC+Q, the keyboard work in code
connect.
4.all in one pothook style and scissor foot style structure, so the vigor of clicking key is light and
the keycaps is high smooth and steady.
5, the keycaps design by ergonomics, changed the felling of your fingers with touching the
keycaps, the R angle of keycaps improve the visual effect.
The parameter of keyboard
1: starting up current
2: waiting current
3: sleeping current
4: sleeping time:
5: working current: Cap for on
6: awaken current:
7: awaken ways
8:battery parameter: lithium battery 3.7V 280mah
9: key life: 3 million strokes
10: working temperature
Safety hint:
Warning : if you do not with the way of safety state, you will get fire breaking out , electric shock,
breakdown the keyboard and so on.
Danger (take care high temperature ) warning: ( take care danger) attention: ( notice about
the little danger things)
1: keep away from edge tool
2: keep away from radiation like microwave
3: no extruding
4: no shocking, no curving
5: keep away from oil, chemicals and organic solvent.
Usage steps :
1: install 2-AAA into mouse, acceptor connect with computer, click middle and right key together
and then 3 seconds later , the Bluetooth will pair.
2: turn on the back power on-off, the lamp will last green 5 seconds and then extinguish.
3: clicking the ESC+Q, the power lamp will glint, the keyboard of Bluetooth are searching, pull
out the adapter and then insertion ( the distance between keyboard and adapter is more close
more good ), when keyboard searched the adapter, the power of lamp will be glint faster. When
pairing succeed , the lamp will extinguish.
Remarks: pairing succeed, when you use it next time , you can only install 2.4G mouse into
computer, the keyboard will connect by itself. Do not need to pair steps.
Battery charging
When the battery electric quantity is not enough, the lamp will be glint with green, charging at
now.
1: connect original USB of the B port to the keyboard charging.
2: connect the USB of A port to power adapter or the computer of USB port.
3: when charging, the side of lamp will be red all time. Extinguish when equilibration.
Wireless technology, infinite life
Ergonomics keyboard and mouse suit
Shenzhen Hastech Industries Co.,Ltd
Hastech Technology Park, G Area, Democracy West Industry park Shajing Baoan District Shenzhen
China
Web: www.bow.cn
Hastech QQ group about exchange of skills: 211705564
Nationwide service volume line: 400-682-8008
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
