Hastech HW156 2.4G Keyboard User Manual HW155 manual

Shenzhen Hastech industries Co., Ltd 2.4G Keyboard HW155 manual

15_HW156_K UserMan.pdf

HW156 2.4G Keyboard and Receiver
Packing Contents:
1. 2.4G keyboard
2. User manual
3. 2.4G receiver
2.4G Keyboard Characteristics:
1)2.4G wireless keyboard
2)Suitable for All-IN-ONE computers,Laptops,Desktops,etc.
3)R shape angle of keycaps,comfortable while typing.
4)Supported power by 2pcs AAA batteries.
Light analysis
Number indicator: Press Fn+F11,LED will be blue.Press them again,LED will be off.
CapsLock indicator :Press CapsLock key,LED will be blue.Press it again,LED will be off.
i.Power indicator:Once keyboard power on,LED will flash red light.
ii.Battery Low indicator :If battery is lower than 2.1V,LED will flash red light.
Power switch
Numeric
indicator
CapsLock
indicator i.Power indicator
ii.Low battery indicator
Connecting Steps:
Stpe1.A receiver connect with USB port,enter pairing status.
Step2.Assembly 2 AAA batteries,switch power button to [ON] side.
Step3.[Power] indicator flashes red,then off.Connected successfully.
Note:
In step 2,if fail to connect,press ESC+K,forcing to enter pairing status.

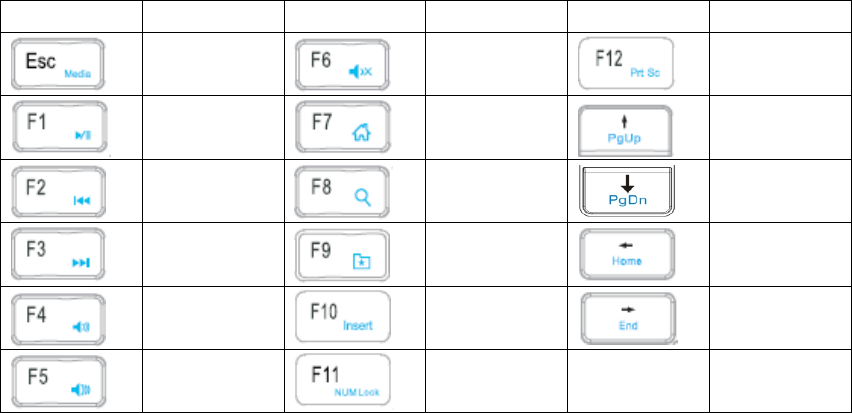

Function Keys Analysis
Fn+ Fn+ Fn+
Player Mute
Screenshot
Play/Pause Home
Page up
Last track Search
Page down
Next track Favorite
Line front
Volume down Insert
Line end
Volume up Number lock
Note: In Windows system,press first row function key directly,can reach
Esc,F1~F12,up,down,left,right.
Energy Saving mode1
1.Keyboard dormant energy-saving mode:If keyboard is not used for 30 munites,it will be
dormant.Press any key,it will be active.
2.If press and hold any key for 2 minutes,keyboard will be dormant.Press any key,it will be active.
Keyboard specification
1.Operating distance is up to 10 meters
2.Modulation system:GFSK
3.Working Voltage1.8-3.0V
4.Working Current<10mA
5.Standby Current0.3~1.5mA
6.Sleeping Current<0.2mA
7.Battery2*AAA
8.Key force60±10g
9.Key life:3 million strokes
10.Operating temperature:-10±55
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
