Hawking Technologies HBB1 BROADBAND BOOSTER User Manual Contents
Hawking Technologies, Inc. BROADBAND BOOSTER Contents
USERS MANUAL
![](/img.php?id=583414&img=bg1.png)
Table of Contents
2 Warranty Information
3 Certifications

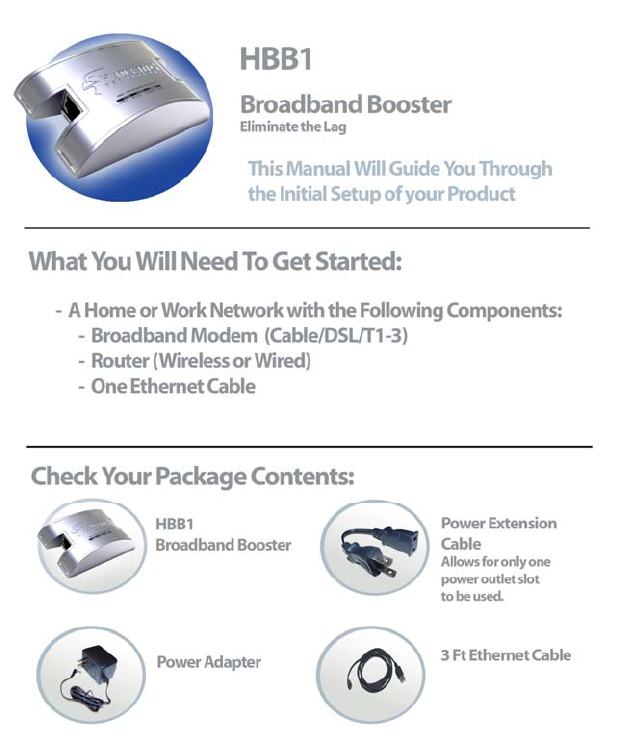

4 What You Need to Get Started
Package Contents
Product Description
Quick Start Installation
11 How the Broadband Booster Works
Broadband Booster Overview
Which Applications will Benefit Most from the Broadband Booster
Introducing StreamEngine Technology
16 Accessing the Advanced Configuration Menu
Information/Status Menu
Advanced Configuration Menu
Administration Menu
Setting the Username and Password
23 Tips and Frequently Asked Questions
26 Service and Support
1
![](/img.php?id=583414&img=bg2.png)
LIMITED WARRANTY
Hawking Technology guarantees that every HBB1 Broadband Booster
is free from physical defects in material and workmanship under
normal use for two (2) years from the date of purchase. If the product
proves defective during this two-year warranty period, call Hawking
Customer Service in order to obtain a Return Authorization number.
The warranty is for repair or replacement only. Hawking Technology
does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF
PURCHASE. RETURN REQUESTS CANNOT BE PROCESSED
WITHOUT PROOF OF PURCHASE. When returning a product,
mark the Return Authorization number clearly on the outside of the
package and include your original proof of purchase.
IN NO EVENT SHALL HAWKING TECHNOLOGY’S LIABILITY
EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT,
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THE PRODUCT,
ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION.
Hawking Technology makes no warranty or representation, expressed,
implied or statutory, with respect to its products or the contents or use
of this documentation and all accompanying software, and specifically
disclaims its quality, performance, merchantability, or fitness for any
particular purpose. Hawking Technology reserves the right to revise or
update its products, software, or documentation without obligation to
notify any individual or entity. Please direct all inquiries to:
techsupport@hawkingtech.com.
2
3
FCC WARNING
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
CE MARK WARNING
This is a Class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
![](/img.php?id=583414&img=bg4.png)
4
![](/img.php?id=583414&img=bg5.png)
5
![](/img.php?id=583414&img=bg6.png)

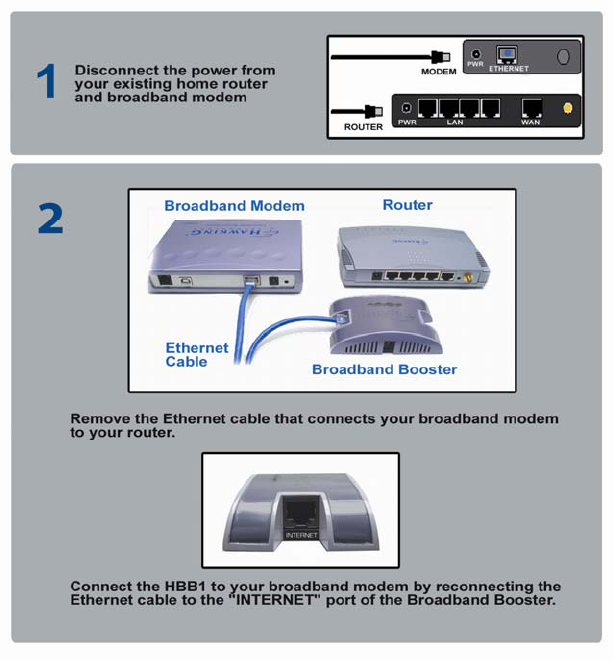

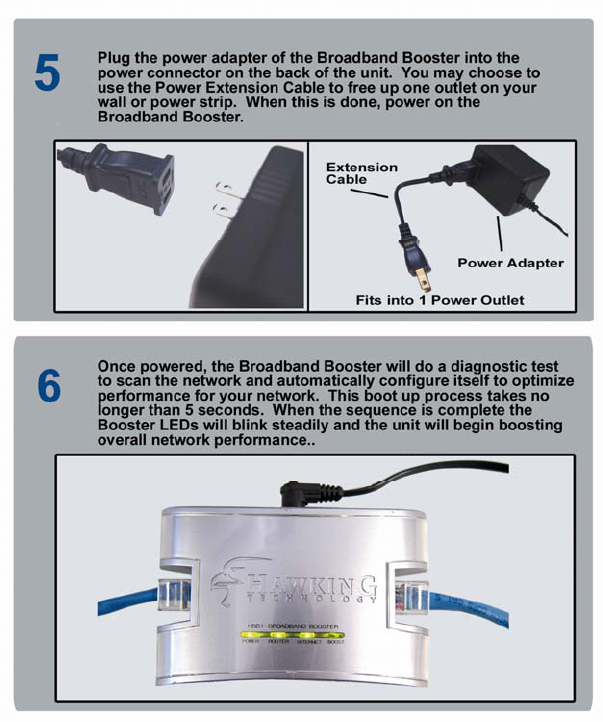

Quick Start

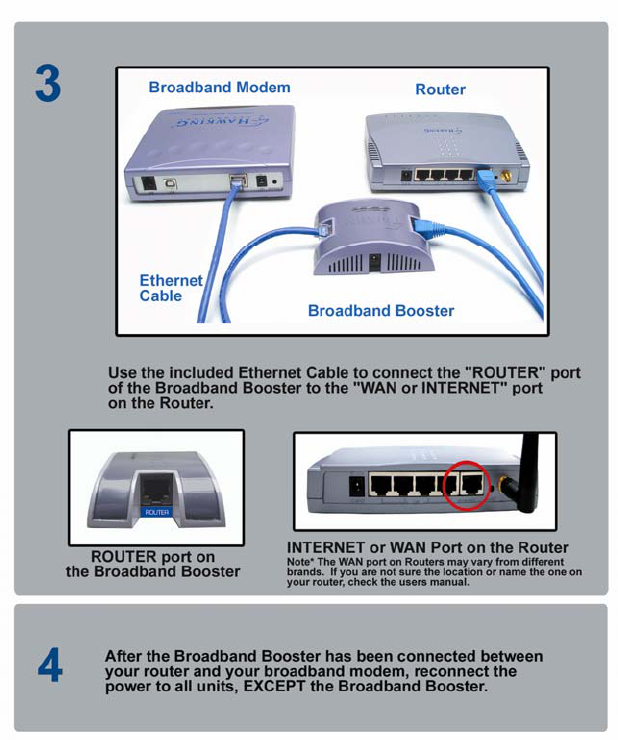

Setting Up the Broadband Booster in Your Network
6
![](/img.php?id=583414&img=bg7.png)

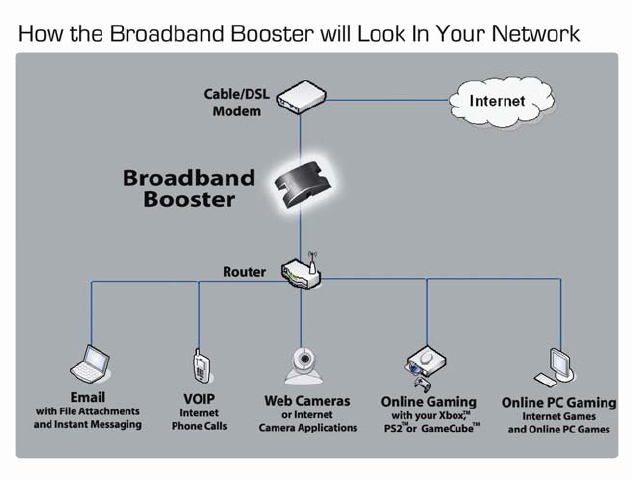

The Broadband Booster is placed in-between your
Cable or DSL Modem and your network Router.
7
![](/img.php?id=583414&img=bg8.png)
8
![](/img.php?id=583414&img=bg9.png)
9
![](/img.php?id=583414&img=bga.png)
10
![](/img.php?id=583414&img=bgb.png)
How The Broadband Booster Works
Introducing Stream Engine Technology

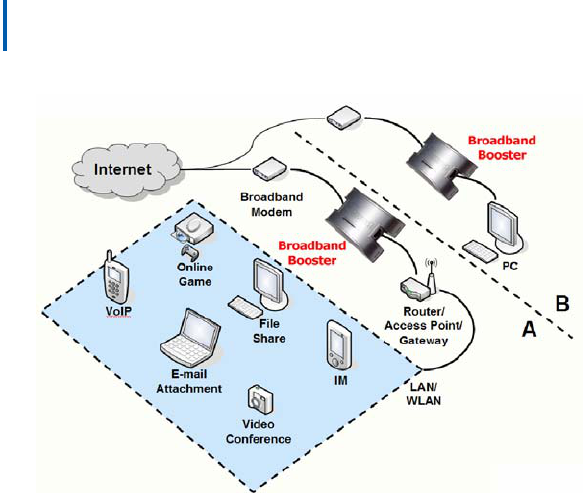

The Broadband Booster sits between the broadband modem and router. It
optimizes networks for interactive applications used by A) multiple users, and B)
individual users.
Overview
The Hawking Broadband Booster is a new class of product: a
network upgrade that solves problems with using time-sensitive
applications on broadband internet connections. It improves the
playability of online games, maintains VoIP call quality, and
11
12
enhances the quality of streaming video without any configuration
required by the user.
Target Applications
High speed internet connections are making interactive
applications such as online games, VoIP, file and application
sharing, and video conferencing more popular. These new
technologies work very well, but people run into problems when
they try to use more than one application at the same time. Here
are some examples of when this can happen:
- A hard-core gamer notices his online first-person shooting game
starts to “lag” or behave erratically when others in the house surf
the web or do e-mail.
- A manager of a small office subscribes to a VoIP service to
reduce long-distance phone bills. She is frustrated when her calls
break up when someone else in the office sends an e-mail
attachment.
- A father uses a web cam to monitor his children at home with
the babysitter. He has to remember to turn off the file sharing
application on his home computer before leaving in the morning.
When it is on, the video from the web cam gets disrupted.
- A manager with a single home computer wants to run a late-
night training session for her worldwide sales force from home.
The internet connection has plenty of bandwidth, but it can’t seem
to handle both sharing the presentation and the VoIP call both
reliably and at the same time.
![](/img.php?id=583414&img=bgd.png)
Simply put, the Broadband Booster is an easily-installed device
that provides broadband users with a superior experience of the
internet.
Simple Installation and Automatic Operation
The Broadband Booster plugs in directly between the broadband
modem and a computer, router, gateway, or access point, with a
single Ethernet port for each device. It requires no configuration
by the user, and has clear status lights to show it is working
correctly. In most cases, the settings of the modem and router do
not need to be changed to work with the Broadband Booster. This
is great for home or small office environments that do not have
dedicated IT staff.
StreamEngine Technology
StreamEngine Technology combines a number of QoS techniques.
These include automatic classification, prioritization, and
“shaping” of the traffic on the uplink, among others.
13
The Broadband Booster monitors streams of traffic on a packet-
by-packet basis and continually refines their priority to ensure the
accuracy of the classification. The system decides if there are
streams, such as VoIP, that are sensitive to jitter or latency. The
Broadband Booster automatically adjusts the streams of data to let
through the high-priority packets. This means that a high-priority
![](/img.php?id=583414&img=bge.png)
VoIP packet does not have to wait for large FTP packets to be sent
before leaving the modem.
Assuming that all of the data streams are correctly prioritized, the
user can still run into problems. Many people believe that the
delays they see while using online applications is caused by the
internet itself. However, most latency and jitter is actually caused
by the behavior of the modem on the user’s home network. The
maximum throughput of the router’s WAN port is usually much
larger than the throughput of the modem’s uplink. Modems are
designed to handle this by using a very large buffer that stores the
packets sent by the fast WAN port of the router before they can be
transmitted by the modem to the ISP. Once a packet is stored in
the modem’s packet buffer, the priority of the packet cannot be
changed. This is shown in Figure 2. If the router sends more
packets to the modem than the buffer can hold, these packets may
be lost.
14

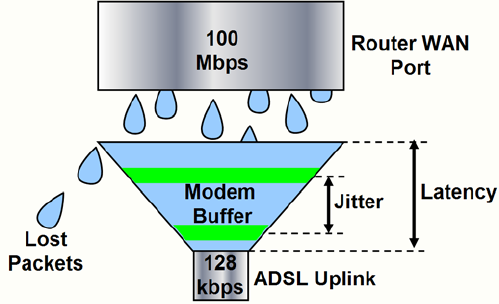

Figure 2: Broadband modem rate adaptation buffer and its
effect on QoS
15
How to Measure the Performance Benefits?
People can benefit most from a Broadband Booster under the
following conditions:
Their internet connection has a narrow uplink, such as with an ADSL or
cable modem.
They are using interactive applications like online games, VoIP, video
conferencing, or application sharing.
There are other network applications that run while they are using
interactive applications. These might include sending e-mail attachments,
file sharing, or even other VoIP calls or online games.
Some people are familiar with measuring the quality of their
internet connection by pinging a remote server. There are several
problems with doing this. First of all, ping times measure round-
trip latency from the client to the server, and back again. Online
games are most affected by one-way delay from the client to the
server. Second, QoS features may handle ping packets differently
than packets from time-sensitive applications. For these reasons,
ping times may not match the delays actually seen by an online
game, for example.
To see realtime performance benefits, Hawking recommends the
user to run two internet applications (i.e. uploading a file to an
FTP server while playing Quake 3 – Online game) with and
without the Broadband Booster. You will notice that with the
Broadband Booster both applications will run seemlessly.
![](/img.php?id=583414&img=bg10.png)
Advanced Configuration Menu
Configuring Advanced Features in Your Broadband Booster
The GUI (Graphical User Interface) allows you to do manually adjust
the control features within the Broadband Booster. You can view
information regarding the status of the device, change the login
password as well as upgrade the firmware.
To access the GUI you will need to open a web-browser from a
computer that is connected to the “boosted” network. In the address
bar type in the following address:
http://192.168.229.61/
Hit Enter to access the page

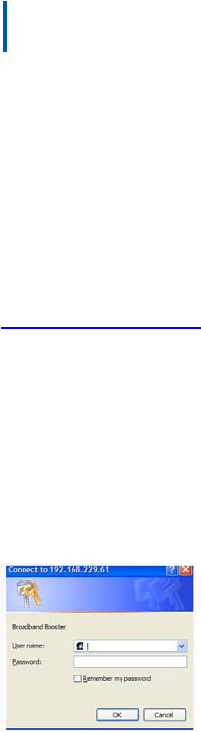

There will be a box that loads prompting you for your user name and
password. If this is the first time accessing the Configuration Menu
click ENTER to get passed the prompt. You will be able to enter a
new user name and password within the Configuration Menu.
16
![](/img.php?id=583414&img=bg11.png)
17

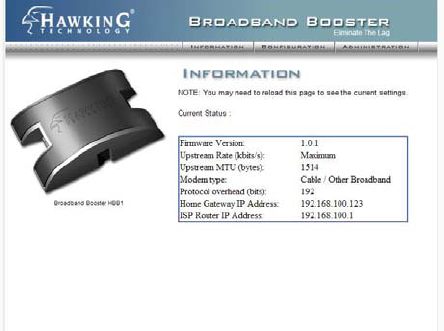

The Information Page will gives you information regarding the
current settings of your Broadband Booster.
Firmware Version: Current firmware version on the HBB1
Upstream Rate: Speed setting for upstream rate
Upstream MTU:
Modem Type: Shows which type of broadband connection your
network using.
Protocol Overhead:
Home Gateway IP Address: Displays the IP address of your
broadband modem.
ISP Router IP Address: Displays the IP address of your network
router.
![](/img.php?id=583414&img=bg12.png)

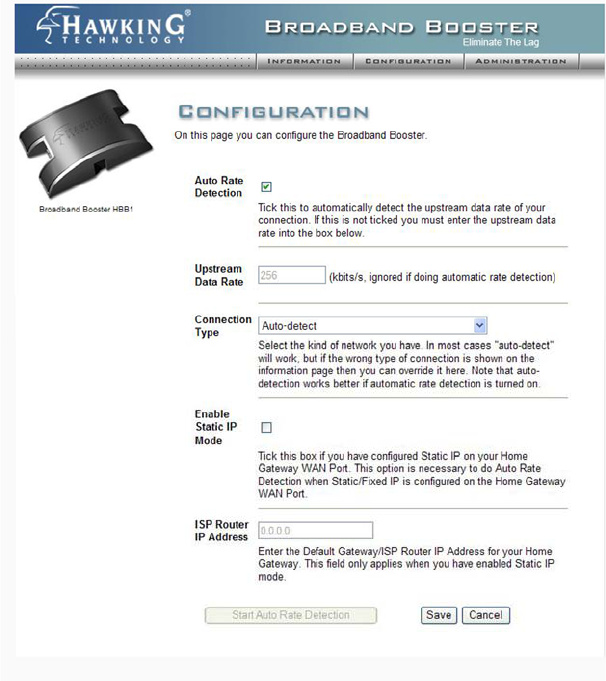

Configuration Menu
To access the Configuration Menu click on the “Configuration”
tab on the navigation bar at the top of the browser.
18
19
Auto Rate Detection: This allows the Broadband Booster to
automatically detect your networks upstream data rate and speed.
It is recommended that you use the Auto Rate Detection feature
unless you are an advanced user or if you feel that your detected
data rate is incorrect.
Upstream Data Rate: If the Auto Rate Detection feature is not
used, then the Upstream Data Rate must be manually entered.
The units used are kbits/s. Please check with your local ISP for
the correct number to be used here.
Connection Type: Allows for manual or automatic selection of
your broadband connection type. It is recommended that this
feature be left on “Auto-detect” unless you are an advanced user
or the detected connection type is incorrect. If you have a
connection other than Cable modem or DSL please select Cable
Modem as your connection type.
Enable IP Static Mode: For broadband connections that use
fixed IP assignments for home/work networks you may have to
manually enter the IP address for you router’s WAN port. If you
are uncertain whether your network uses IP Static settings please
check with your internet service provider or your network
administrator.
ISP Router IP Address: If you have enabled IP Static Mode,
you may enter in the IP address of your ISP Router here.
![](/img.php?id=583414&img=bg14.png)
Administration Menu
To access the Administration Menu select “Administration” from
the navigation bar.
20
21
Device Control: Any changes that have been made in the
configuration menu will need a system reboot first before they
become active. To manually reboot the device select the
“Reboot” button.
Resetting Configurations: To reset the settings to the factory
default settings select the “Reset Configurations” button. This
tool is used in case configurations have been manually made that
hinder the device from working properly.
Upgrading the Firmware: In the case that a new firmware is
available, you may upgrade the device’s firmware using this tool.
Simply download the “bin” file in a local directory, select browse
and find the firmware file you wish to upgrade the Broadband
Booster with.
Changing the User Name and Password: To change the default
login information you must enter in your desired user name and
password.
Note- Resetting the Password: If you forget your selected user
name or password you may manually reset the username and
password to factory settings by following the steps below:
1) Disconnect the power to the Broadband Booster
2) Wait 5 seconds and plug the power back in.
![](/img.php?id=583414&img=bg16.png)
22
3) Once the power is on you will have 3 minutes to access the
login page through your web browser by entering the IP
address into the URL bar: http://192.168.229.61/
4) There will be no password or username required to login
during the 3 minute time window. Hit enter to login.
5) Click on the Administration Menu tab to re-enter a new
username and password.
Note: If no login information is entered during the 3 minute
window, the Broadband Booster will revert back to the original
username and password settings prior to rebooting.
The manual password reset feature does not reset any other
previously configured settings. It only adjusts the login
username and password settings.
You may attempt this reset sequence as often as you like to
access the Configuration menu.
![](/img.php?id=583414&img=bg17.png)
Tips and Frequently Asked Questions
Broadband Booster FAQ and Miscellaneous Information
Frequently Asked Questions
When can I see the greatest benefit from using a Broadband
Booster?
The Broadband Booster will improve your experience the most if
you have a broadband connection with a typical uplink data rate,
and you use multiple applications, with at least one of them being
time sensitive.
Can I set my own prioritization requirements and adjust the QoS
settings?
The StreamEngine automatic prioritization algorithms will
optimally prioritize and shape the traffic in nearly any user
environment without configuration by the user. The Broadband
Booster is designed to work with minimal user setup, and so
includes only a basic user interface.
Is the Broadband Booster compatible with Xbox Live and other
online console gaming networks?
Yes, the Broadband Booster has been designed to optimize online
gaming whether it be from Xbox™, PSP™, Playstation™ or other
gaming consoles.
23
24
Does the Broadband Booster support specific settings for
specific online computer games?
Yes, the Broadband Booster has support for a very long list of the
most popular online games. Many games can be prioritized using
the same settings as other computer games so you will never have
to worry about your online game being compatible with the
Broadband Booster
Does the Broadband Booster work with Peer to Peer
applications such as Kazaa and Bitorrent?
Yes, peer to peer network applications will benefit from the
Broadband Booster. The HBB1 will optimize your P2P
experience so there is no lag in your entire network that may be
caused by P2P uploading.
How does the Broadband Booster help with video(web cams)
and audio streaming (VoIP)?
The Broadband Booster eliminates video frames from dropping
due to your network traffic. This results in smoother video
transmissions for a better overall picture. For VoIP and voice
streaming, the Broadband Booster ensures the best quality voice
transmission for a clear reception similar to standard phone lines.
What do I do If I have forgotten my login information for the
web configuration menu?
If you forget your selected user name or password you may
manually reset the device to factory settings by following the
steps below:
![](/img.php?id=583414&img=bg19.png)
25
1) Disconnect the power to the Broadband Booster
2) Wait 5 seconds and plug the power back in.
3) Once the power is on you will have 3 minutes to access the
login page through your web browser by entering the IP
address into the URL bar: http://192.168.229.61/
4) There will be no password or username required to login
during the 3 minute time window. Hit enter to login.
5) Click on the Administration Menu tab to re-enter a new
username and password.
Note: If no login information is entered during the 3 minute
window, the Broadband Booster will revert back to the original
settings prior to rebooting.
The manual password reset feature does not reset any other
previously configured settings. It only adjusts the login
username and password settings.
![](/img.php?id=583414&img=bg1a.png)
Hawking Product Service and Support
Customer Service and Technical Assitance Information
If you are having trouble installing or configuring the Broadband
Booster please contact Hawking Technologies Technical Support
department using one of the following methods:
Hawking Technical Support
Email: Techsupport@hawkingtech.com
Toll Free: 800-756-7832
Web: http://www.hawkingtech.com/servicesupport.php
RMA Information (For Warranty Issues)
Web: http://www.hawkingtech.com/rma.php
Thank You for Choosing Hawking Technologies.
26
