Page Count: 36

(English Version)

FROM SERIAL NO: HANDBOOK: 432028 (REV .0.)

432C001001, 433C001001, 434C001001, 435C001001

ISSUE 26.11.04

OWNER'S HANDBOOK

Motif

CODES

432C 433C 434C 435C

(Auto Drive) (Push) (Auto Drive) (Push)

432028 (0) 13/1/05 11:22 am Page 1.1

Engine Honda GCV 135 (Codes 432C/433C/434C) GCV 160 (435C)

Engine type GCV135EA2G7 (432C/433C/434C) GCV160EA2G7 (435C)

Engine/Cutterbar speed 2900 rpm (432C/435C) 2700rpm (433C/434C)

Fuel type Unleaded petrol

Fuel capacity 0.9 litres (432C/433C/434C), 1.1 litres (435C)

Oil type SAE 10w-30 engine oil

Oil sump capacity 0.55 litres

Cutting width 410mm (432C) 480mm (433C/434C) 530mm (435C)

Cutting height 25 - 55mm

Overall dimensions 1,010 x 490 x 1,395mm (432C) 985 x 530 x 1,415mm (433C/434C)

975 x 570 x 1,500mm (435C)

Dry Weight 31Kg (432C) 31.8Kg (433C) 34Kg (434C) 36Kg (435C)

1

2

3

4

5

6

7

8

9

10 11

14

12

13

Main Features

Specifications

MAIN FEATURES / SPECIFICATIONS

1.2

1. Spark Plug Lead

2. Fuel Filler Cap.

3. Oil Filler Cap and Dipstick.

4. Handlebar Securing Knob.

5. Rope Guide.

6. Engine Start-Grip.

7. Engine Stop lever.

8. Handlebar.

9. Ground Drive Clutch Lever

(Auto drive only).

10. Rear Deflector.

11. Grassbag Assembly.

12. Serial Number Decal.

13. Height of Cut Adjuster.

14. Throttle Control.

432028 (0) 13/1/05 11:22 am Page 1.2

1ST Year (12 months)

We certify that this service has been

carried out by an Authorised Hayter

Service Dealer

Date:

1ST Year (12 months)

Owner’s Name:

Serial Number:

Date:

2nd Year (24 months)

We certify that this service has been

carried out by an Authorised Hayter

Service Dealer

Date:

Owner’s Name:

Serial Number:

Date:

Note for dealer: Please retain this voucher for your records.

Note for dealer: Please retain this voucher for your records.

2nd Year (24 months)

432028 (0) 13/1/05 11:22 am Page 1.3

432028 (0) 13/1/05 11:22 am Page 1.4

1.20 Maintenance Schedule

1.20 - Daily

1.20 - 25 Hrs or Every Season

1.20 - 50 Hrs or Every Season

1.20 - 100 Hrs or Every Season

1.21 - 1.27 Mower Maintenance

1.21 - Engine

1.21 - Carburettor Adjustments

1.22 - Oil Service

1.22 - Air Cleaner Service

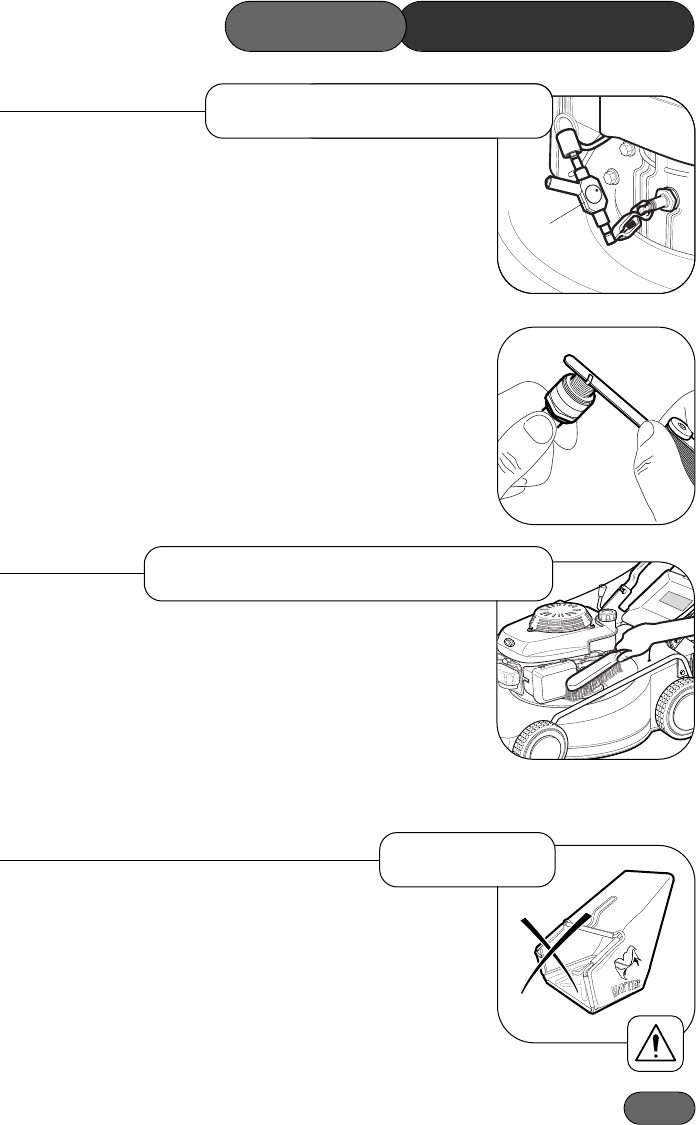

1.23 - Spark Plug Service

1.23 - Keeping Engine Clean

1.23 - Grassbag

1.24 - Deck Housing

1.24 - Securing Nuts and Bolts

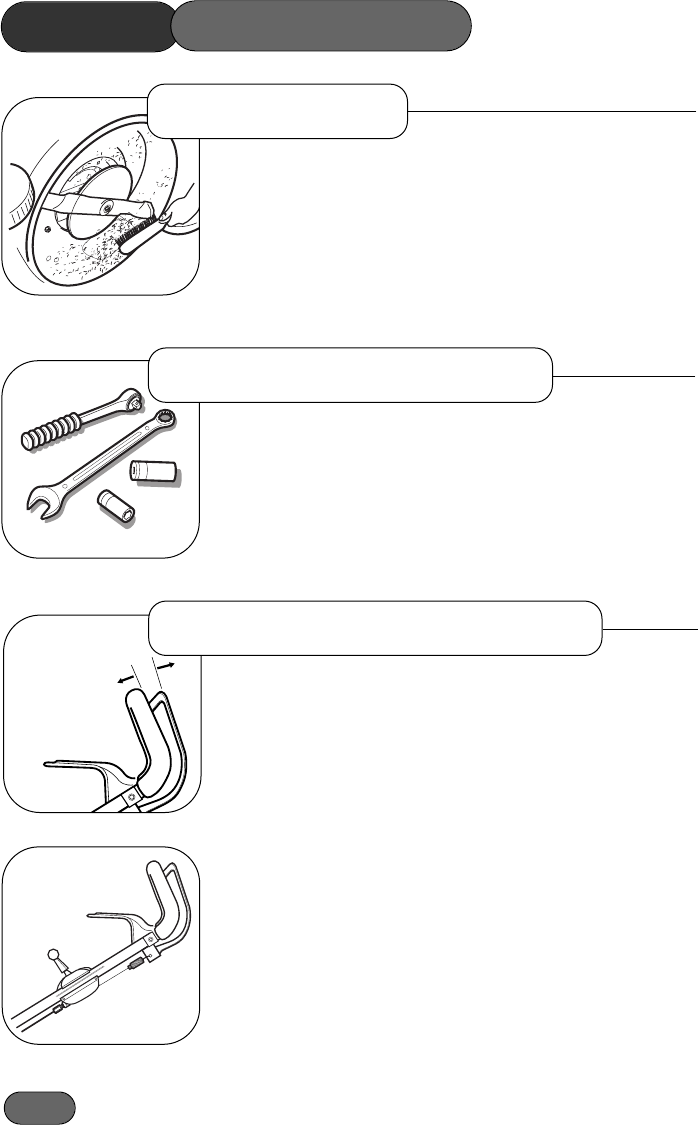

1.24 - Clutch Cable Adjustment

1.25 - Lubrication

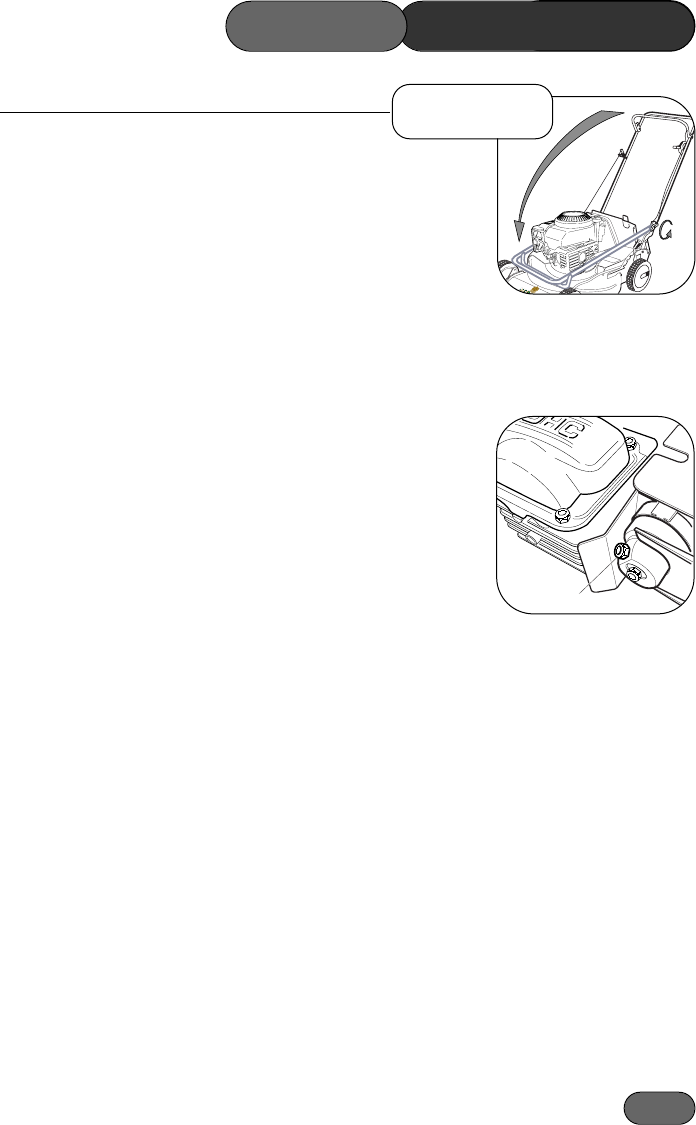

1.25 - Cutterblade Removal

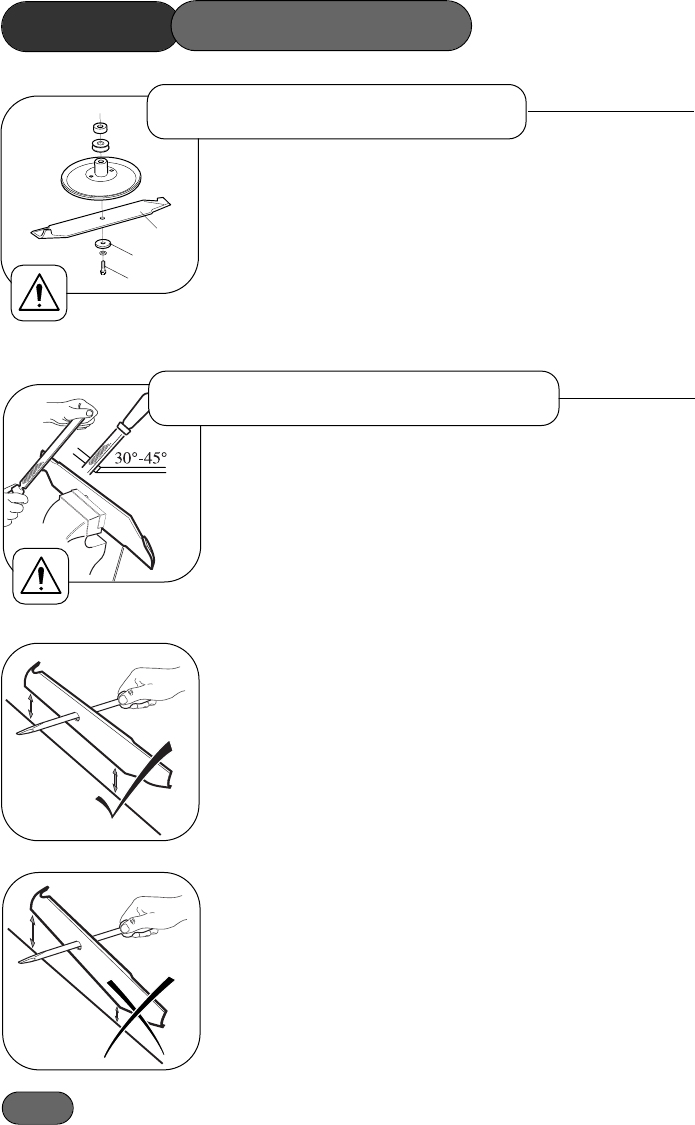

1.26 - Cutterblade Assembly

1.26 - Cutterblade Sharpening

1.27 - Storage

1.28 - 1.29 Trouble Shooting

1.30 - 1.32 Parts List

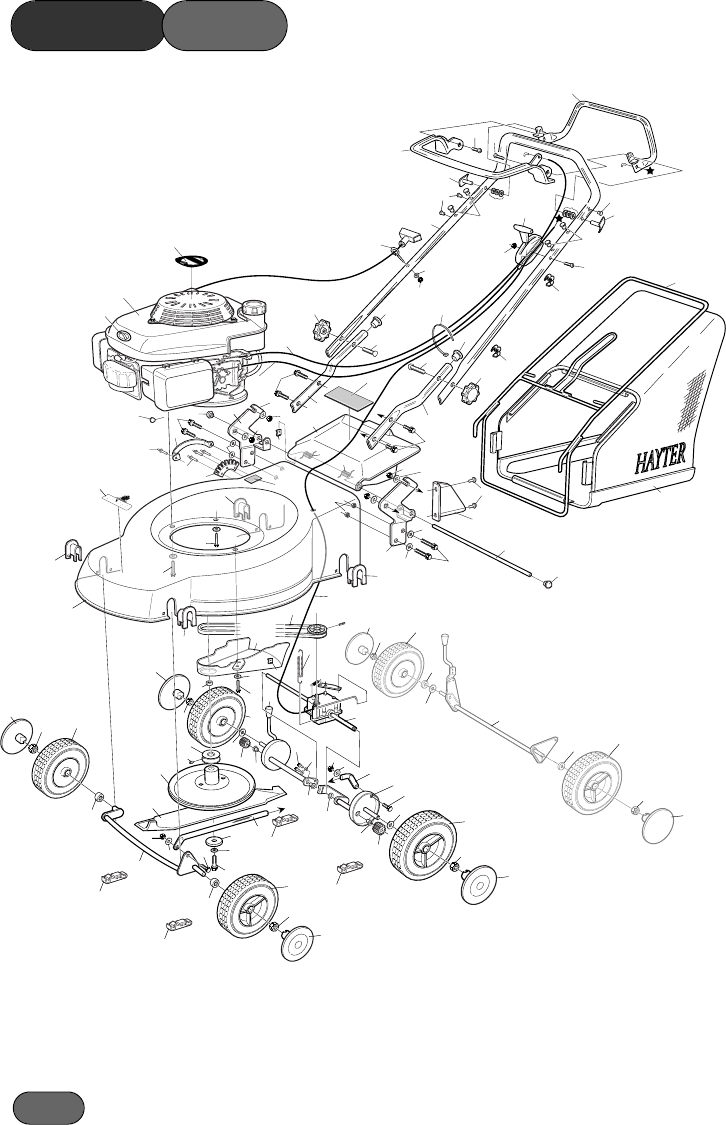

1.33 Parts list Diagrams

1.34 Customer Information/Notes

1.2 Main Features/Specifications

1.5 Contents

1.6 Introduction

1.7 Warranty

1.8 - 1.10 Safety Precautions

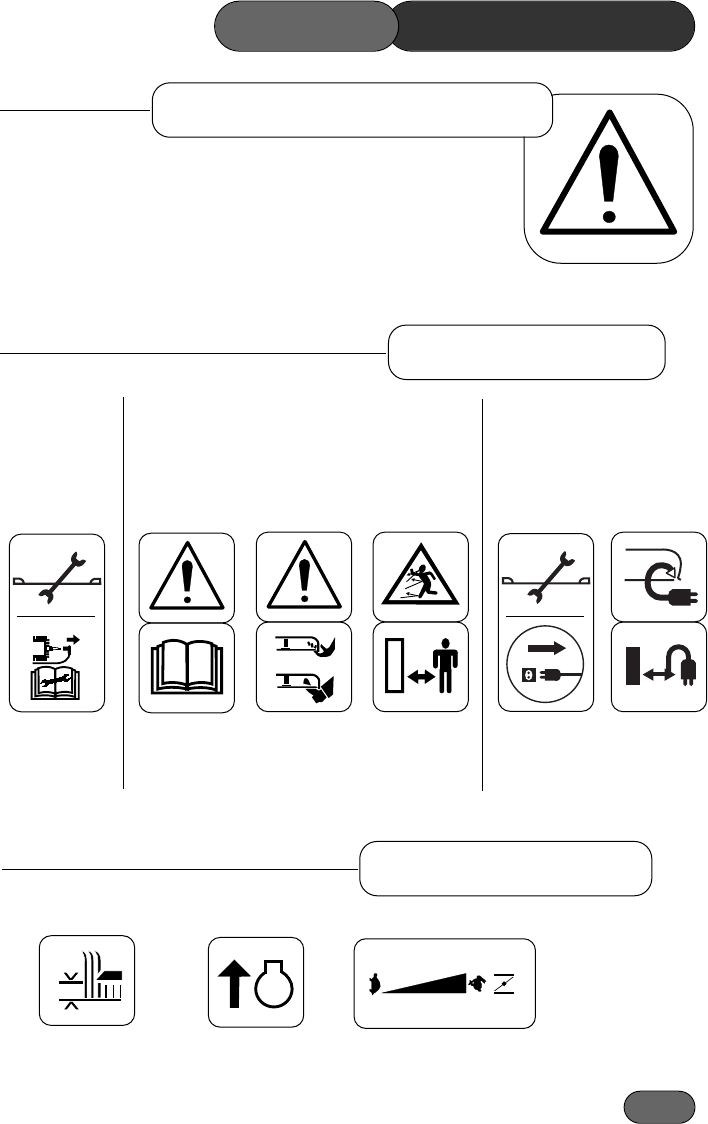

1.11 Safety Symbols

1.11 Control Symbols

1.12 Assembling the Mower

1.12 - Delivery Checklist

1.12 - Handlebar

1.12 - Grassbag Attachment

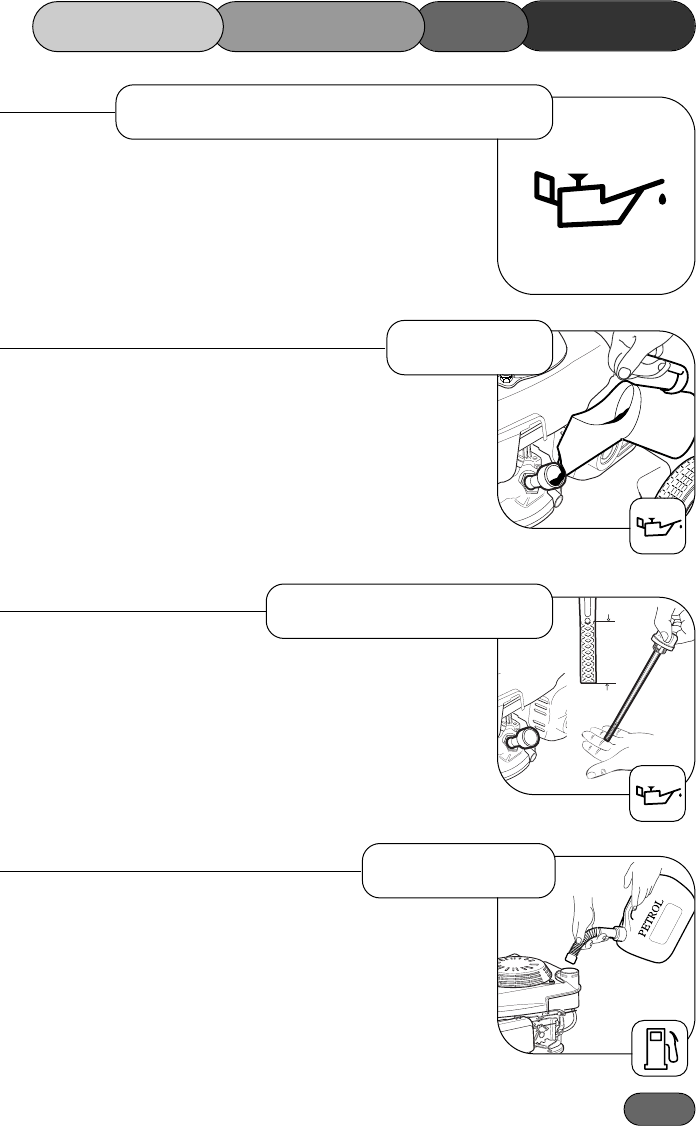

1.13 Before Starting the Mower

1.13 - Prevent Engine Damage

1.13 - Oil Type

1.13 - Check Oil Level

1.13 - Fuel Type

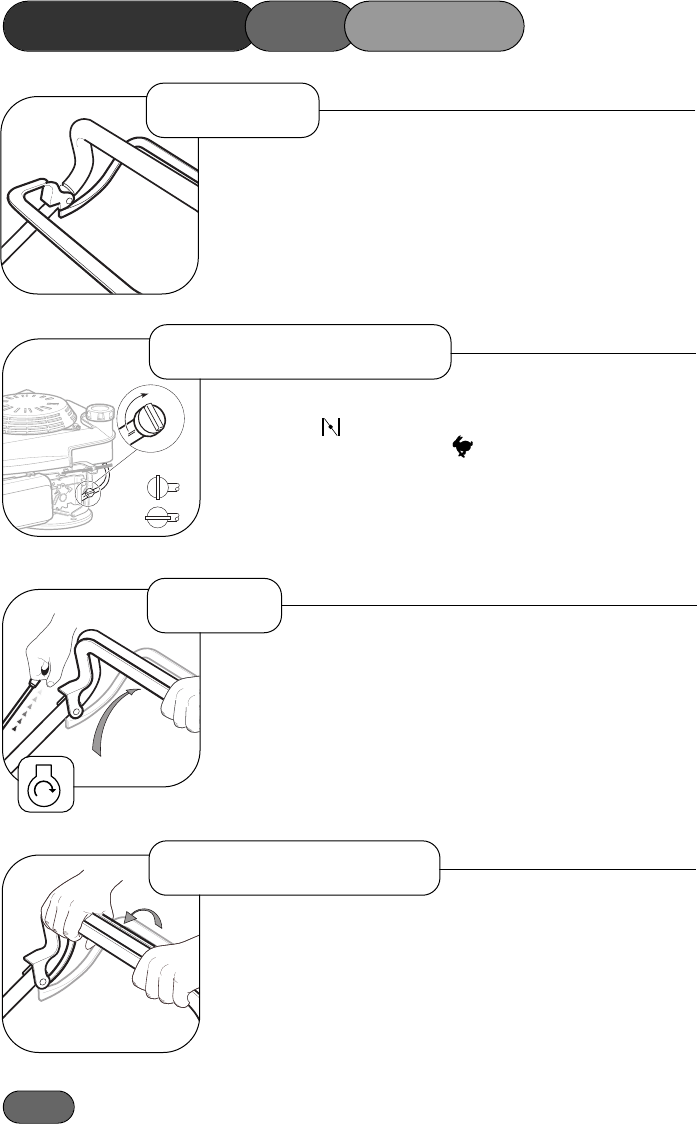

1.14 - 1.17 Operating The Mower

1.14 - Controls

1.14 - Starting Step 1

1.14 - Step 2

1.14 - Forward Travel

1.15 - Turning

1.15 - Stopping

1.15 - Slopes

1.15 - Height of Cut

1.16 - Before Mowing

1.16 - Grassbag

1.16 - Without Grass Collection

1.16 - Heavy Growth

1.17 - Non-Grassed Areas

1.18 - 1.19 Lawn Care Calendar - Guide Only

CONTENTS

1.5

432028 (0) 13/1/05 11:22 am Page 1.5

Thank you for purchasing a Hayter mower. The following pages are designed to help you gain

safe and efficient service from your mower.

IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it gives

essential information regarding mower safety, operation, maintenance and specifications. Read

and understand this handbook prior to operating your mower for the first time. Make sure you

are familiar with all the controls and points of regular maintenance. If you have any doubts,

consult your local Hayter authorised dealer who will be pleased to give you assistance.

IMPORTANT: This mower is designed solely for use in a domestic grass cutting

environment. Use in any other way is considered as contrary to the intended use. Compliance

with and strict adherence to the conditions of operation, service and repair as specified in this

handbook also constitute essential elements of the intended use.

This mower should be operated, serviced and repaired only by persons who are familiar with

its particular characteristics and who are acquainted with the relevant safety procedures.

The safety precautions listed in this handbook and all other generally recognised regulations on

safety must be observed at all times.

Any arbitrary modifications carried out to this machine may relieve Hayter Limited of

liability for any resulting damage or injury.

Hayter mowers are robustly constructed and designed for efficient economical

performance under normal mowing conditions. Correct operation and maintenance will ensure

a long and satisfactory service life. Prior to despatch from our factory every effort is made to

ensure that your mower is delivered in perfect condition.

Throughout this handbook all references to left and right are as viewed from behind the han-

dlebar, in the direction of forward travel.

This handbook is based on information available at the time of publication.

HAYTER LIMITED reserve the right to amend product specifications without prior notification.

INTRODUCTION

1.6

432028 (0) 13/1/05 11:22 am Page 1.6

WARRANTY

1.7

LIMITED WARRANTY

Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects

in material and workmanship under normal use and service for a period of three years from the

date of purchase. The manufacturer of major proprietry components ie. engines, gearbox /

transaxle (where applicable) furnish their own warranty and services are provided through their

authorised network. To qualify for the full benefit of the warranty, the warranty registration card

must be returned within 14 days of purchase. Subject to the conditions and exclusions noted in

this limited warranty, we shall at our option, repair or replace any warranted part during the

applicable period. If you are in doubt or experience any difficulty, please consult a Hayter

Authorised Service Dealer for clarification.

To qualify for the extended warranty (second and third year) of the three year limited warranty

the machine must have annual services carried out by an Authorised Hayter Service Dealer.

These chargeable services should be carried out within 12 and 24 months of the date of purchase.

Excluded from the extended warranty period are those items which are subject to normal wear

and tear e.g. tyres, wheels, cutterblades, belts, cables, grassbags, sweeper/brushes, batteries and

other consumable wearing parts.

All consumer machines which are fitted with a genuine Hayter friction disc as original

equipment before use, are covered by a Lifetime Warranty against the engine crankshaft

bending. Note: friction washers, blade brake clutch (B.B.C) units and other such devices are not

applicable. Only machines fitted with a genuine Hayter friction disc, which are used in

accordance with the recommended operating and maintenance procedures, are covered.

This warranty does not apply to any unit that has been tampered with, altered, misused, abused or

used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does

not cover minor mechanical adjustments unless they are due to defective material or

workmanship. Consult the Owner's Handbook or a Hayter Authorised Service Dealer for

assistance when making these adjustments.

A warranty period of 90 days applies to machines used for commercial purposes.

To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of

purchase stating the machine serial number and date of purchase. The service receipt(s) or this

Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as

proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in

this limited warranty, the authorised dealer will, at our option, repair or replace any warranted

part within the duration of the warranty period.

This limited warranty gives you specific legal rights and is in addition to any statutory rights to

which you may be entitled and your statutory rights are not affected by this warranty. If you need

additional information concerning this written warranty, or assistance in obtaining services,

please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop's Stortford,

Hertfordshire CM23 4BU

UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages and

the Hayter website www.hayter.co.uk or contact contact:- Freephone 0800 616298.

Issue: 05.09.03

432028 (0) 13/1/05 11:22 am Page 1.7

SAFETY PRECAUTIONS

This safety alert symbol indicates important safety messages. When

you see this symbol be alert to the possibility of injury. Carefully read

the following and inform others.

Your mower is perfectly safe if used correctly. Failure to observe the

following precautions may result in serious injury.

Before using the mower read the owners handbook carefully. Pay par-

ticular attention to the safety precautions. Ensure that you are familiar

with the controls and the proper use of the equipment. Learn how to

stop the mower quickly in an emergency.

Never allow children or people unfamiliar with these instructions to

use the mower.

Never mow while people, especially children, or pets are nearby.

Keep in mind that the user is responsible for accidents or hazards

occurring to other people or their property.

While mowing, always wear substantial footwear and long trousers.

Do not operate the equipment when barefoot or wearing sandals.

Thoroughly inspect the area where the mower is to be used and remove

all objects which may be thrown by the machine.

WARNING: Petrol is highly flammable.

- Store fuel in containers specifically designed for this purpose.

- Refuel outdoors only and do not smoke while refuelling.

- Add fuel before starting the engine. Never remove the cap from the fuel

tank or add petrol while the engine is running or when the engine is hot.

Allow the engine to cool for at least two minutes before refuelling.

- Do not attempt to start the engine if petrol is spilled or a smell of petrol

is present. Move the mower away from the area of spillage and avoid

creating any source of ignition until petrol vapours have dissipated.

1.8

Safety Alert Symbol

Preparation

Training

432028 (0) 13/1/05 11:22 am Page 1.8

PRECAUTIONS

- Always use fresh fuel. Stale fuel can block the carburettor and cause

leakage.

- Replace fuel tank and oil tank caps securely.

A damaged cutterblade or loose fixing bolt are major hazards. Before

use, always visually inspect the cutting mechanism to ensure that it is

in good condition. A damaged cutterblade must be replaced immedi-

ately with a genuine Hayter replacement part.

Do not operate the engine in a confined space where exhaust fumes

(carbon monoxide) can collect.

Always pull the starter cord slowly until resistance is felt. Then pull

the cord rapidly to avoid kickback and prevent hand or arm injury.

Mow only in daylight or good artificial light.

Avoid using the mower on wet grass, where feasible.

Always be sure of your footing on slopes.

Walk, never run.

Mow across the face of slopes, never up and down.

Exercise extreme caution when changing direction on slopes.

Do not mow excessively steep slopes of more than 20 degrees.

Use extreme caution when reversing or pulling the mower towards you.

Stop the engine before moving the mower across areas other than grass.

Never operate the mower unless all guards are securely in position and

in good condition.

Do not change the engine governor settings or overspeed the engine.

Disengage the ground drive clutch lever before starting the engine.

(Autodrive only)

Start the engine carefully, with feet well away from the cutterblade.

1.9

Operation

Preparation

SAFETY

432028 (0) 13/1/05 11:22 am Page 1.9

SAFETY PRECAUTIONS

Do not tilt the mower when starting the engine.

Do not put hands or feet near or under rotating parts.

Never pick up or carry the mower while the engine is running.

Never lift the rear deflector while the engine is running.

Never touch the exhaust/exhaust guard or cooling fins when the engine is hot.

Stop the engine and disconnect the spark plug lead:

- Before clearing blockages or unclogging the discharge chute.

- Before cleaning/checking or working on the mower.

- After striking a foreign object. Inspect the mower for damage and

ensure necessary repairs are made before re-starting.

- If the mower starts to vibrate abnormally (check immediately).

Stop the engine:

- Whenever you leave the mower.

- Before refuelling.

- Reduce throttle control setting during engine shutdown and turn fuel

valve off at the conclusion of mowing.

Keep all nuts, bolts and screws tight to ensure that the equipment is in safe

operating condition.

Frequently check fuel lines and fittings for cracks or leaks and replace if

necessary.

Never check for a spark when the spark plug is removed. (Use approved tester)

Inspect the exhaust periodically and replace if worn or leaking.

Never crank the engine with the spark plug removed.

Never start the engine with the air-cleaner or air-cleaner cover removed.

Never store the mower with petrol in the tank within an enclosed area

where fumes may reach an open flame or spark.

Allow the engine to cool before storing in any enclosure. To reduce the fire

hazard, keep the engine and the surrounding deck area free of grass, leaves, or

excessive grease.

1.10

Operation

Maintenance & Storage

432028 (0) 13/1/05 11:22 am Page 1.10

WS059

Check the rear deflector and grassbag frequently for wear or deterioration.

Replace worn or damaged parts for safety.

If the fuel tank has to be drained, this should be done outdoors and when the

engine is cool.

Wear strong work gloves when removing and reassembling the cutterblade.

Always replace worn or faulty parts with genuine Hayter parts.

Maintenance & Storage

PRECAUTIONS

1.11

Safety Symbols

Safety Alert -

Be aware to the

possibility of

injury.

Height of Cut Adjustment

Control Symbols

305113

STOP

Engine Stop

SAFETY

Carefully read the

Owners Handbook

before using

themachine.

Stop engine and

remove power

cable and sparkplug

before working on

the mower.

Petrol Engine

Safety Symbols

CS198

Throttle Control

General Safety Symbols

Safety Alert -

Be aware to the

possibility of

injury.

Danger of severing

toes or fingers in

cutting mechanism.

Danger of being

hit by thrown

objects.

Keep bystanders

at a safe distance

from the mower.

Danger of sev-

ering electrical

cables in cutting

mechanism..

Keep bystanders

at a safe distance

from the mower.

WS059

Stop engine and

remove power

cable before

working on the

mower.

Electrical Safety Symbols

FastSlow

Choke

432028 (0) 13/1/05 11:22 am Page 1.11

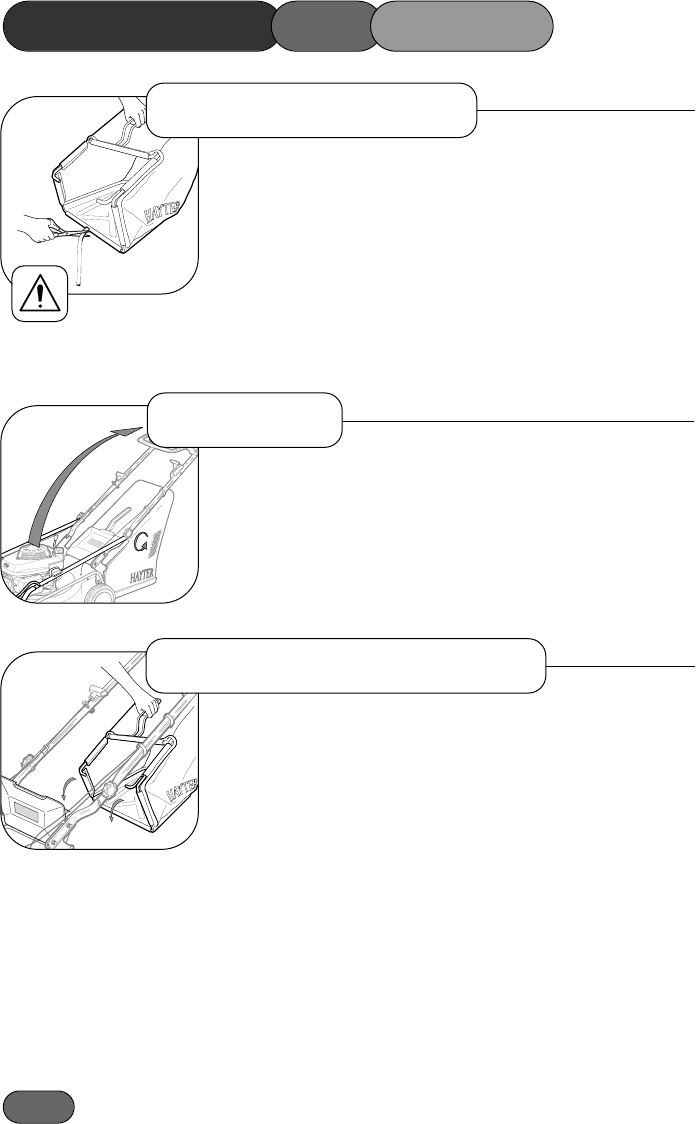

Remove the mower from the packaging and check that the following

items have been supplied correctly. If any items are missing contact,

your local Hayter dealer.

1. Engine Handbook.

2. Grassbag

To prevent accidents cut off the long ribbon attached to the grass-

bag and discard.

Unscrew the handlebar securing knobs sufficiently to allow the handle-

bar to pivot. Unfold the handlebar to the operating position. Tighten both

handlebar knobs to secure the handlebar in position.

Take care to ensure that the control cables do not become snagged at

the pivot point.

Raise the rear deflector, lower the grassbag through the handlebar and

hook in position. Lower the deflector to rest on the grassbag.

ASSEMBLING THE MOWER

1C432A01

Handlebar

Delivery Checklist

Grassbag Attachment

1.12

432028 (0) 13/1/05 11:22 am Page 1.12

To prevent engine damage the engine is shipped without oil or

petrol. The engine must be filled with the correct grade of oil and

petrol before starting the engine.

Always use high quality detergent oil classified SAE 10W 30 Oil.

Never use additives with this oil.

To prolong the life of your engine it is important that the oil is changed

after the first 5 hours of use - refer to ‘Maintenance Schedule’.

Clean around the oil filler cap before removing. With the mower on a

level surface, unscrew and remove the oil filler - dipstick. Wipe oil

from it with a clean cloth. Insert the dipstick back in the oil filler neck

but do not screw it in. Remove the dipstick and check the oil level.

The oil level is correct when it is at the full mark on the dipstick.

DO NOT OVERFILL.

Always use clean, fresh unleaded petrol. Purchase fuel in quantities

that can be used within 30 days. Never mix oil with petrol. For added

engine protection Honda recommend the use of their fuel additive

which is available from an authorised Honda service dealer.

Fill to base of neck to allow for fuel expansion. Do not overfill the

fuel tank.

Prevent Engine Damage

MOWER

1.13

O

I

L

ADD FULL

0.15

Litres

Oil Type

Check Oil Level

Fuel Type

THESTARTINGBEFORE

432028 (0) 13/1/05 11:22 am Page 1.13

Operate all control levers several times and ensure that the cables

move freely. Check that the engine stop and (ground drive clutch

levers - Autodrive models) return freely to their rest position when

released.

Turn the fuel valve to the on position. Move the throttle control lever

to the ‘choke’ position before starting a cold engine. Move the

throttle control lever to the ‘fast’ position before starting a warm

engine.

Stand behind the mower and hold the handlebar with your left hand

together with the engine stop lever. With your right hand hold the

engine start - grip and pull slowly until resistance is felt, then pull rap-

idly to crank the engine. Carefully return the start grip to the storage

position when the engine starts.

When the engine warms up move the control lever to the fast position.

If the engine does not start after 5 attempts - refer to “Trouble

Shooting”.

Push Models - Hold and push against the handlebar with both hands

to move the mower forward.

Autodrive models - Hold the handlebar and operate the ground drive

clutch lever to power the mower in a forward direction.

When the ground drive clutch lever is disengaged the mower may be

pushed. This feature is useful when mowing in confined areas.

If the engine stop lever is released the engine will stop.

Off

On

Controls

1.14

OPERATING THE MOWER

Starting - Step 1

Step 2

Forward Travel

432028 (0) 13/1/05 11:22 am Page 1.14

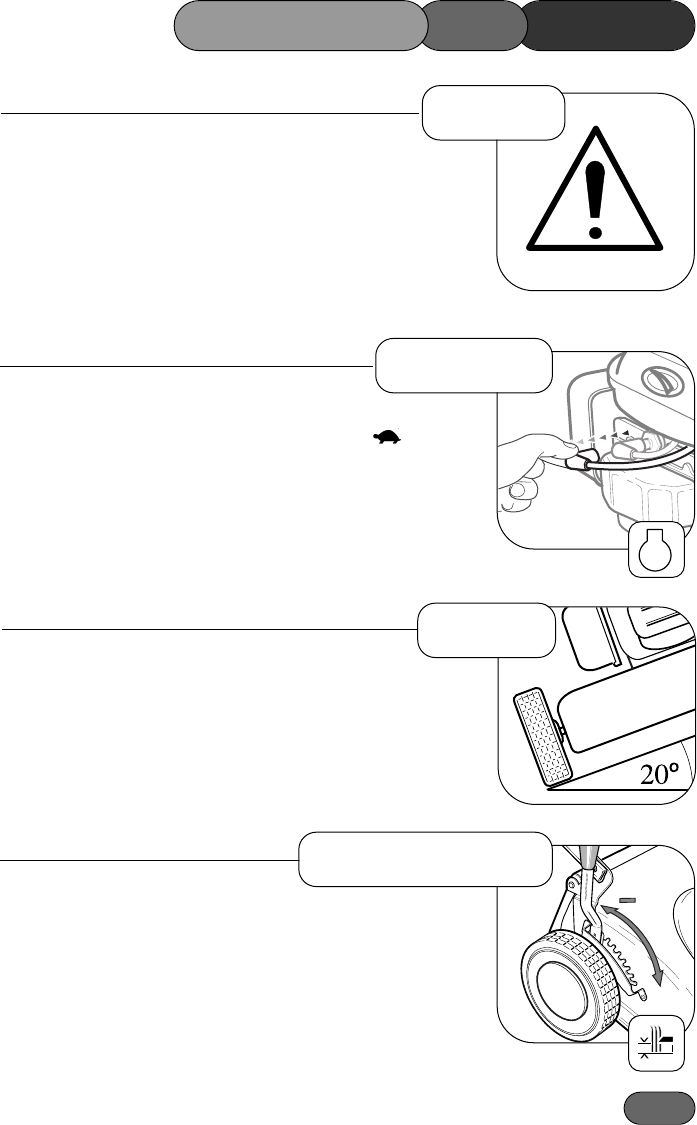

To make a wide turn steer the mower with the handlebar in the direc-

tion required.

To make a tight turn (release the ground drive clutch lever, Autodrive

model), apply downward pressure on the handlebar to raise the front

wheels just above ground level and steer in the required direction.

To prevent accidents do not raise the front of the mower exces-

sively when making a turn. Never raise the rear of the mower

when the engine is running.

Release the engine stop lever and ground drive clutch lever on auto drive

models and push the throttle control lever to the ‘slow’ position.

Emergency stop - If the engine fails to stop, disconnect the spark

plug lead.

To prevent engine damage do not use the mower on slopes greater

than 20 degrees.

Move the height of cut lever sideways to disengage it from the locking

notch, then push forwards to raise or pull backwards to lower the height

of cut. Release the lever in the required position and ensure that it locks

firmly into one of the eight notch settings.

Always select a height of cut to suit operating conditions. Prevent

engine overloading and blockages by avoiding low cuts in long grass

conditions. Be prepared to make two cuts when the grass is long.

1.15

MOWER

Stopping

STOP

CS146

Turning

Slopes

+

Height of Cut

305113

CS284

THEOPERATING

432028 (0) 13/1/05 11:22 am Page 1.15

OPERATING THE MOWER

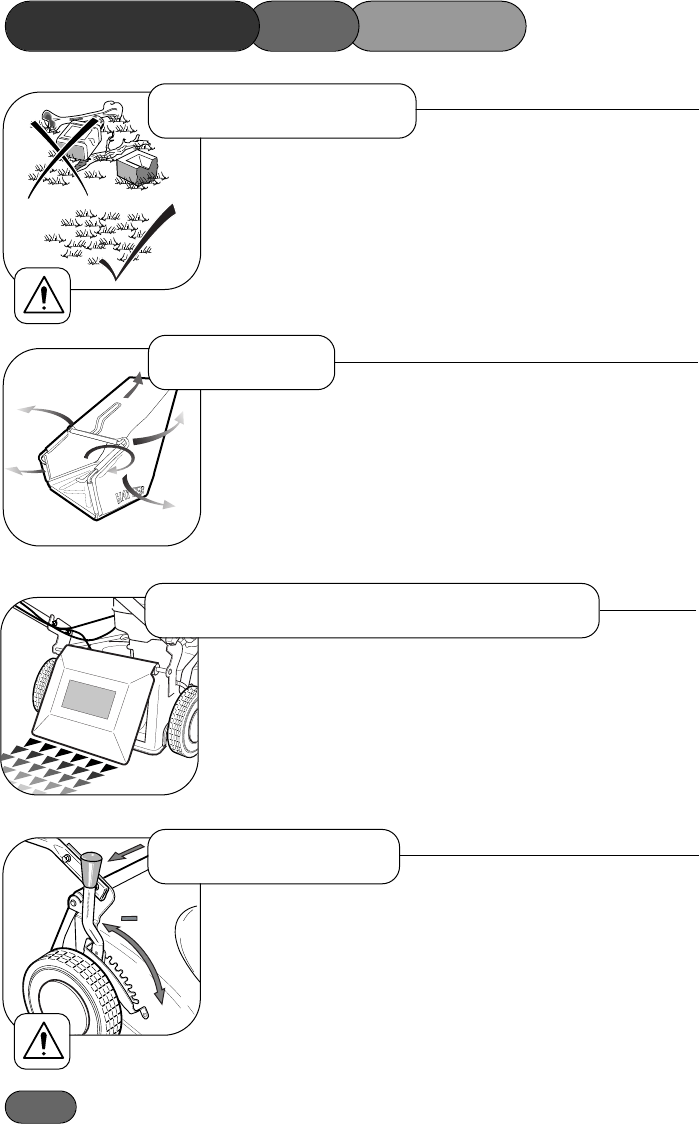

To prevent accidents thoroughly inspect the area and remove all

objects which when contacted by the cutterblade could become

dangerous projectiles. Inspect the area for hidden obstructions

which when contacted by the cutterblade could risk health and

safety. Remember the location of these obstructions and ensure

that you mow around them.

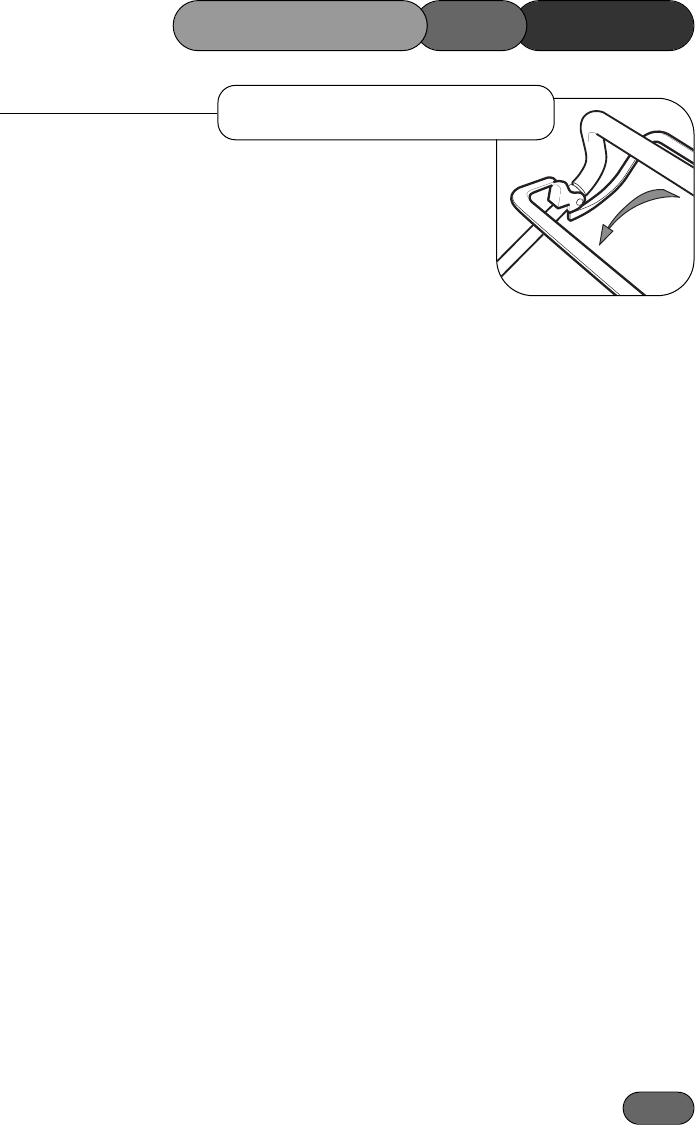

Lift the grassbag through the handlebar and close the rear deflector to

rest against the rear of the mower.

To empty the grassbag, pour out the grass clippings and shake the

grassbag vigorously to clean the airways. Good grass collection

depends on good air flow through the grassbag. When collecting grass

clippings it is important that the grassbag is emptied regularly to pre-

vent blockages and engine overloading.

Remove the grassbag and operate the mower with the rear deflector in

the closed position.

To prevent engine overloading and blockages be prepared to make two

cuts in areas of heavy growth. If collection is required, first mow the

area at the maximum height of cut setting with the grassbag fitted.

Reduce the height of cut and mow the area again as necessary until the

required finish is obtained.

To prevent grass damage do not remove more than one third of grass

height in one cut.

1.16

Grassbag

Before Mowing

Without Grass Collection

+

Heavy Growth

432028 (0) 13/1/05 11:22 am Page 1.16

OPERATING

When moving the mower across non-grassed areas, stop the engine by

releasing the engine stop lever and set the mower to the maximum

height of cut to protect the cutting mechanism.

1.17

THE MOWER

Non-Grassed Areas

432028 (0) 13/1/05 11:22 am Page 1.17

There is very little work to do this month apart from brushing away

leaves. Keep off the grass if frozen or waterlogged.

Rake the grass thoroughly. Spike the lawn to aerate and stimulate soil

organisms and root growth and apply lawn sand if necessary.

The yearly lawn work programme really starts this month. As soon as

the ground conditions are suitable, the first cut can be made. The first

cut should merely “top” the grass as close cutting at this stage could

result in severe yellowing or browning. Two cuts are generally suffi-

cient this month.

Mow often enough to stop grass growing away. Dig out patches of

coarse grass or resistant weed. Re-seed bare patches.

Keep mowing increasing the frequency as required. Treat with selec-

tive weed killers or combined weed/feed preparations if you did not

feed the lawn in April.

Summer mowing should now be under way. It should be necessary to

mow the lawn twice a week. Raking before mowing is important this

month as the combined action keeps runners of clover under control.

Water the grass if necessary, and remember to soak thoroughly.

Treat the grass with the second application of fertiliser or weed

killer/fertiliser. Water when necessary and rake occasionally. As a gen-

eral rule the grass clippings should be removed each time you mow. If

weather conditions are dry and hot and the grass is weed free, leave the

clippings on the lawn to help maintain ground moisture.

1.18

January

LAWN CARE CALENDAR

February

March

April

May

June

July

To be used as a guide only.

432028 (0) 13/1/05 11:22 am Page 1.18

Keep mowing regularly and watering as necessary. Fill any cracks

caused by drought with a mixture of sharp sand and soil. In dry weath-

er conditions leave the grass longer to help retain ground moisture.

Raise the height of cut to allow the grass to thicken and protect the

roots from the winter frost and snow.

Rake out the thatch from the turf and spike the lawn to assist in

drainage. Brush in peat and sharp sand.

Use a stiff broom to disperse worm casts before mowing. Keep turf

free from leaves.

Apart from brushing away leaves, December is a slack end of a busy

year. Keep off the lawn if it is very wet or frozen.

To prevent grass damage do not remove more than one third of the

grass height in one cut.

CALENDAR

1.19

August

CARE

September

October

November

December

LAWN

432028 (0) 13/1/05 11:22 am Page 1.19

Follow the hourly or calendar intervals, whichever occurs first. More

frequent service will be required if working for prolonged periods

under dusty, dry conditions, or when airborne debris is present or after

extensive operation cutting tall, dry grass.

After the very first five hours change the engine oil

Check the oil level

Remove grass debris from around the engine, exhaust/exhaust guard and

air ways in the top cowl and underside of the deck housing.

Remove grass debris from the grassbag and check for signs of damage.

Check the condition of guards and safety devices.

Check condition of cutterblade.

Change the engine oil if continuously operating under heavy load or

high ambient temperature.

Service the air cleaner.

Lubricate wheels, pivot points and linkages and grease the inner con-

trol cables at point of entry and exit from their outer casing.

Check the clutch cable adjustment. (Autodrive Model)

Sharpen the cutterblade.

Change the engine oil.

Clean the engine cooling system. Clean more often under dusty condi-

tions or when airborne debris is present or after prolonged operation

whilst cutting tall, dry grass.

Replace the spark plug.

MAINTENANCE SCHEDULE

1.20

25Hrs or Every Season

Daily

50Hrs or Every Season

100Hrs or Every Season

432028 (0) 13/1/05 11:22 am Page 1.20

To prevent accidents stop the engine disconnect the spark plug

lead before attempting to carry out maintenance procedures

on the mower.

1. Finger Guard

2. Carburettor

3. Spark Plug / Lead

4. Exhaust Guard

5. Exhaust

6. Oil filler Cap/ Dipstick

7. Start Grip

8. Fuel Cap

9. Air cleaner.

Should only be made by an authorised Honda dealer. Under no

circumstances should the engine be adjusted to run at a speed in

excess of that shown on the Declaration of Conformity.

1.21

18

7

6

4

5

9

2

3

Engine

Carburettor Adjustments

MAINTENANCEMOWER

432028 (0) 13/1/05 11:22 am Page 1.21

Check the oil level daily before starting the engine and ensure that

the correct oil level is maintained. Refer to-‘Before Starting the

Mower’ for oil checking and filling instructions.

Change the engine oil after the first 5 hours of operation and thereafter

according to the ‘Maintenance Schedule’:-

1. Drain fuel by running the engine until the fuel tank is empty.

2. Remove the spark plug lead.

3. Allow the engine to cool.

4. Drain the oil while the engine is warm.(Not hot)

5. Tip the mower over on to its right hand side thus ensuring that

the air cleaner is kept uppermost to prevent engine damage.

6. Remove the oil filler dipstick and drain the oil into a suitable

container.

7. Refill with new oil of the recommended SAE viscosity grade.

(Refer to-‘Before Starting the Mower’)

To service the air cleaner remove the air cleaner cover (1) by release-

ing two top catches (2) and tilting away from body until lower tabs

release. Remove cartridge (3) and clean by tapping gently on a flat sur-

face. If very dirty or damaged replace.

- Do not brush

- Do not use petroleum solvents.

- Do not oil the cartridge.

After servicing, install the cartridge in the cover. Insert the tabs on the

bottom of the cover into the slots in the bottom of the base. Tilt the

cover upwards until the two catches (2) hold it in place.

1.22

MOWER

1

23

Oil Service

Air Cleaner Service

MAINTENANCE

432028 (0) 13/1/05 11:22 am Page 1.22

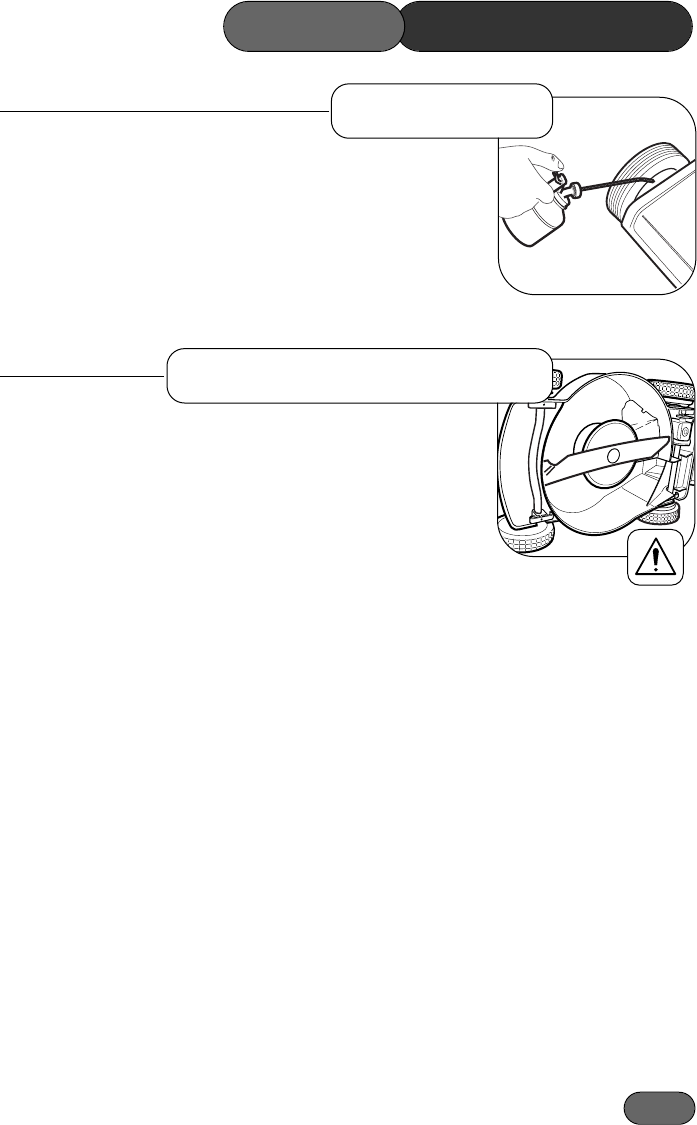

Use only an approved spark tester (1) to check for a spark as shown in

the diagram.

Replace the spark plug every 100 hours or every season, whichever

occurs first. A spark plug wrench is available from any authorised

Honda service dealer.

Check the spark plug gap with a feeler gauge and set at 0.7 - 0.8mm.

Remove all grass and debris from the engine including the

exhaust/exhaust guard, the air ways in the top cowl and the surround-

ing deck areas on a daily basis after use. Never spray the engine with

water during cleaning. Water can contaminate the fuel. Always clean

with a brush or compressed air.

Grass and debris may clog the engine’s air cooling system especially

after prolonged operation while cutting tall, dry grass. The internal cool-

ing fins and surfaces may require cleaning to prevent overheating and

engine damage. We recommend that this service be carried out by an

authorised Honda dealer.

Remove grass debris from the grassbag immediately after use and

check its condition for signs of damage.

To prevent accidents replace a damaged grassbag immediately.

1.23

1

Spark Plug Service

Keeping Engine Clean

Grassbag

MAINTENANCEMOWER

432028 (0) 13/1/05 11:22 am Page 1.23

Remove grass debris from the top and underside of the deck housing

immediately after use.

Fertilisers and top dressings are particularly corrosive.

Thoroughly clean the mower deck immediately after use on treat-

ed grass and store well away from corrosive materials.

Regularly check that all securing nuts and bolts are tight. Replace

missing or damaged items immediately.

Autodrive Models - Check the clutch cable operation every 25 oper-

ating hours and adjust if necessary. The clutch cable is adjusted cor-

rectly when the belt drive just engages with the clutch lever positioned

32-38mm from the handlebar.

Unscrew the locknuts and screw the adjuster in or out as necessary.

Tighten the locknuts when correctly.

32-38mm

1CG480V36B

Securing Nuts & Bolts

Deck Housing

Clutch Cable Adjustment

1.24

MOWER MAINTENANCE

432028 (0) 13/1/05 11:22 am Page 1.24

Lubricate the wheels, pivot points and linkages with engine oil every 25

operating hours.

Apply a good quality medium grease to the inner control cables at the

point of entry and exit from their outer casing.

Drain the fuel by running the engine until the fuel tank is empty and the

engine stops. Remove the spark plug lead and allow the engine to

cool. Turn the mower on its right hand side and ensure that the air

cleaner side of the engine is uppermost.

Firmly grip the end of the cutterblade with the gloved hand and remove

the bolt securing the cutterblade.

To prevent accidents never work on the cutterblade unless the

spark plug lead has been removed. The cutterblade has sharp

edges. ALWAYS wear strong gloves to protect your hands when

working on the cutterblade. DO NOT rotate tools towards the cut-

ting edges to avoid the risk of injury should the tool slip. ALWAYS

use genuine Hayter replacement parts.

The condition of the cutterblade and its mounting arrangement should

be checked regularly for signs of wear or damage. Ensure that the cut-

terblade is not bent or cracked.

A damaged cutterblade that is out of balance will vibrate excessively

and may break. DO NOT use an unbalanced cutterblade.

Regularly check that the bolt securing the cutterblade is tightened to the

specified torque of 54Nm.

Replace the cutterblade every 2 years of sooner if excessively worn or

damaged.

To prevent injury it is wise to seek assistance when turning the mower

on its side.

Lubrication

1.25

Cutterblade Removal

MAINTENANCEMOWER

432028 (0) 13/1/05 11:22 am Page 1.25

Assemble the cutterblade (1) with the turned up edges facing towards

the engine. Secure the cutterblade using the friction washer (2) and new

fixing bolt (3) and tighten to a torque of 54Nm.

To prevent accidents never reuse the original fixing bolt.

A slightly worn cutterblade may be re-sharpened. Both blade edges

must be sharpened equally to ensure balance. Sharpen the cutterblade

every 25 mowing hours or more frequently if conditions require.

Remove the cutterblade from the mower and clean using a brush and

water. Inspect the cutterblade for signs of damage.

Sharpen both cutting edges with a flat file to restore performance.

Ensure that the cutterblade is balanced. Use a screw driver with a

round shaft to support the cutterblade through its centre hole. Hold the

cutterblade horizontal and then release. A balanced cutterblade will

remain horizontal.

If the cutterblade is not balanced the heavy end will rotate downwards.

Sharpen the heavy end until the cutterblade is correctly balanced.

1.26

MOWER MAINTENANCE

Cutterblade Sharpening

1

2

3

Cutterblade Assembly

1CG480V25B

432028 (0) 13/1/05 11:22 am Page 1.26

Storage

To store the handlebar unscrew the 2 small securing knobs sufficient-

ly to allow it to pivot forwards to rest against the mower. Take care to

ensure that the control cables do not become snagged at the pivot point

and depress the engine stop lever to prevent it being damaged through

contact with the engine.

Engines stored in excess of 30 days need to be protected with Honda fuel

additive or drained of fuel to prevent gum from forming in the fuel sys-

tem or on essential carburettor parts. To ensure your mower is main-

tained in good working order it is important that the following procedure

is adopted. Refer to the Maintenance section as necessary.

Drain fuel from the engine by operating the engine until it stops and

drain fuel from carburettor using drain plug (1) located on carburettor

bowl.

Disconnect the spark plug lead.

Change the engine oil.

Pull the starter rope gently until resistance is felt. This will close the

valves and prevent corrosion and ingress of dirt.

Clean grass and debris from the engine cylinder, cylinder head cooling

fins, under top cowl, and around and behind exhaust/exhaust guard.

Clean all other areas of the mower and ensure that the grassbag is clean.

Lubricate the mower.

Treat metal parts with a water repellent anti-corrosion product.

Cover the mower with a protective sheet and store it in a dry, ventilat-

ed area.

1.27

MAINTENANCEMOWER

1

432028 (0) 13/1/05 11:22 am Page 1.27

TROUBLE SHOOTING

PROBLEM POSSIBLE FAULT REMEDY

Engine will not turn over Incorrect oil level. Check oil level.

Obstruction under deck. Remove obstruction.

Engine smokes Excess oil level. Check oil level.

Air cleaner cartridge oil Service air cleaner.

soaked or blocked.

Engine runs then stops Fuel starvation. Fill fuel tank.

Fuel valve off. Turn to on Position.

Fuel cap vent blocked. Clean fuel cap vent.

Engine will not start Engine brake on Release engine brake.

Engine under load. Raise height of cut.

Fuel starvation. Fill fuel tank.

Fuel valve off. Turn to on Position.

Engine cold. Put throttle to choke position.

Incorrect/contaminated fuel. Drain fuel tank and fill with

correct fuel.

Spark plug lead disconnected. Connect spark plug lead.

Faulty spark plug. Clean and adjust gap or replace.

Wiring fault. Check wiring.

Engine runs rough Spark plug lead becoming Connect spark plug lead.

disconnected in use.

Faulty spark plug. Clean and adjust gap or replace.

Air cleaner blocked. Service air cleaner.

Incorrect/contaminated fuel. Drain tank and fill with correct fuel.

1.28

432028 (0) 13/1/05 11:22 am Page 1.28

PROBLEM POSSIBLE FAULT REMEDY

Engine vibrates excessively Mounting bolts loose. Tighten bolts

Cutterblade bolt loose. Tighten bolt

Cutterblade out of balance. Balance cutterblade

Bent crankshaft. Consult your dealer

Uneven cut Undulating ground conditions Change direction of travel

Cutterblade worn Sharpen the cutterblade

Cutterblade out of balance Balance the cutterblade

Wheels Inspect and replace as necessary

Discharge chute blocks Grass is wet Mow dry grass

Cut height too low Increase cut height

Grassbag full Empty grassbag

Airflow through the Clean the grassbag

grassbag is restricted

Mower is hard to push Cut height too low Increase cut height

Wheels damaged Inspect and replace as necessary

Mower will not self propel Clutch out of adjustment Adjust clutch cable

(Autodrive Model)

Drive belt damaged Replace drive belt

Poor grass collection Airflow through the Clean the grassbag

grassbag is restricted

Discharge chute blocked Remove blockage

Wet grass Mow dry grass

Grassbag full Empty grassbag

SHOOTING

1.29

TROUBLE

432028 (0) 13/1/05 11:22 am Page 1.29

1.30

PARTS LIST

VIBRATION INFORMATION

Lawnmower vibration information. RMS acceleration measured in 3 - axes at operators contact position on the handlebars.

CODE 432C = 4.3ms-2.. CODE 433C = 3.5ms-2.. CODE 434C = 4.4ms-2. CODE 435C = 7.7ms-2.

EC DECLARATION OF CONFORMITY

HAYTER LIMITED,

Spellbrook, Bishop’s Stortford, Herts CM23 4BU ENGLAND

declare that the lawnmowers:

Models: Motif 41 Motif 48 Motif 48 Motif 53

Machine Type No. CODE 432C CODE 433C CODE 434C CODE 435C

Category: Push Push Auto Drive Auto Drive

Type: Pedestrian Rotary Pedestrian Rotary Pedestrian Rotary Pedestrian Rotary

Engine - Manufacturer: Honda Honda Honda Honda

- Speed of rotation: 2900 rpm 2700 rpm 2700 rpm 2900 rpm

Width of cutting device: 410mm 480mm 480mm 530mm

Speed of rotation of the

cutting device: 2900 rpm 2700 rpm 2700 rpm 2900 rpm

Complies with the provisions of Directive: 98/37/EC Essential Health & Safety Requirements Relating to the

Design & Construction of Machinery and Safety Components, as amended and the regulations transposed into national law.

Also Directive 89/336/EEC Electromagnetic Compatibility, as amended and the regulations transposed into national law.

Also Directive 2000/14/EC Noise emission in the environment by equipment for use outdoors, and the regulations transposed

into national law procedure applied for the conformity assessment: ANNEX VI, procedure 1.

Notified Body: Sound Research Laboratories Ltd. Holbrook House, Little Waldingfield,

Sudbury, Suffolk, CO10 02H. ENGLAND

Notified body identification No: 1088

Measured sound power level: 95 dB(A) 95 dB(A) 95 dB(A) 97dB(A)

Guaranteed sound power level: 96 dB(A) 96 B(A) 96 B(A) 100dB(A)

Standards Used: EN292, EN836 and ENISO14982.

Authorised Signatory:

Signed Date: 26.11.04

Declaration done and Technical Documentation kept at:

HAYTER LIMITED,

S.A. Maryniak Spellbrook, Bishop’s Stortford,

(Technical Director) Herts CM23 4BU ENGLAND

432028 (0) 13/1/05 11:22 am Page 1.30

NO. DESCRIPTION PART NO. QTY ITEM NOTE

432C 433C 434C 435C

1 Decal - Grass Blade 410064 1 1 1 1

2 Engine - 432004 1 1 1 0

Engine 435004 0 0 0 1

3 Decal - Engine 432009 1 0 0 0

Decal - Engine 433009 0 1 1 0

Decal - Engine 435009 0 0 0 1

4 Cable Engine Brake 412007 1 1 1 1

5 Control Throttle 432006 1 1 1 1

6 Knob - Handlebar 480088 2 2 2 2

7 Plug - Handlebar 300160 2 2 2 2

8 Bolt - Saddle 226024 2 2 2 2

9 Nut - Nyloc M6 ‘P’ Type 09544 1 1 1 1

10 Washer - Plain M6. 09472 1 1 1 1

11 Guide - Rope. 305093 1 1 1 1

12 Handlebar - Upper 305145W 1 1 1 1

13 Plug - Drive Large 341033 3 3 3 3

14 Pin - Pivot. 340182 2 2 2 2

15 Lever - Engine Stop. 340179 1 1 1 1

16 Screw - 6 x 20 09687 2 2 2 2

17 Lever - Clutch 306094W 0 0 1 1

18 Fastener - Drive. 300144 4 4 4 4

19 Washer - Nylon. 09688 6 6 2 2

20 Nut - M6 Nyloc ‘T’ Type 09438 3 3 3 3

21 Screw - M6 x 55 09780 1 1 1 1

22 Guide - Cable 410037 2 2 2 2

23 Cable Tie. 3966 1 1 1 1

24 Decal - Rear Deflector 100.031.601 1 1 1 1

25 Handlebar - Lower 432001W 2 2 2 2

26 Screw - M8 x 20 09368 8 8 8 8

27 Nut - M8 Nyloc ‘T’ Type 09441 4 4 4 4

28 Washer - M8 09475 4 4 4 4

29 Decal - Height of Cut. 320006 1 1 1 1

30 Spring - Rear Deflector RH 100.000.826 1 1 1 1

31 Spring - Rear Deflector LH 100.000.825 1 1 1 1

32 Deflector - Rear. 100.000.075 1 0 0 0

Deflector - Rear. 100.000.077 0 1 1 1

33 Frame - Grassbag 432010W 1 0 0 0

Frame - Grassbag 433010W 0 1 1 1

34 Fabric - Grassbag 432003 1 0 0 0

Fabric - Grassbag 433003 0 1 1 1

35 Screw - M5 x 12 Taptite 10-11-029 2 2 2 2

36 Plate - Discharge 110.004.404W 1 1 1 1

37 End Cap - M8 Starlux 100.000.967 2 2 2 2

38 Pin - Deflector 432007 1 0 0 0

Pin - Deflector 433007 0 1 1 1

39 Washer - 5/16 09270 4 4 4 4

LIST

1.31

PARTS

432028 (0) 13/1/05 11:22 am Page 1.31

PARTS LIST

1.32

NO. DESCRIPTION PART NO. QTY ITEM NOTE

432C 433C 434C 435C

40 Bracket - Handlebar LH 110.004.408W 1 0 0 0

Bracket - Handlebar LH 110.004.406W 0 1 1 0

Bracket - Handlebar LH 110.011.753W 0 0 0 1

41 Bracket - Handlebar RH 110.004.409W 1 0 0 0

Bracket - Handlebar RH 110.004.407W 0 1 1 0

Bracket - Handlebar RH 110.011.754W 0 0 0 1

42 Nut - Rivet 100.004.493 4 4 4 4

43 Key 1662 1 1 1 1

44 Clip - Belt Cover 100.000.801 0 2 2 2

45 Cover - Belt 100.000.800 0 1 1 0

Cover - Belt 100.024.883 0 0 0 1

46 Knob - HOC 100.000.828 1 1 1 1

47 Connecting Rod 41 432005W 1 0 0 0

Connecting Rod 48 110.004.415W 0 1 0 0

Connecting Rod 48 434003W 0 0 1 0

Connecting Rod 53 110.032.686W 0 0 0 1

48 Axle - Rear 41 110.033.954W 1 0 0 0

Axle - Rear 48 110.033.881W 0 1 0 0

Axle - Rear 48 110.004.410W 0 0 1 0

Axle - Rear 53 110.033.953W 0 0 0 1

49 Wheel - Rear 200mm 100.000.401 2 2 0 0

Wheel - Rear 200mm 100.000.403 0 0 2 2

50 Nut - M12 Nyloc 100.000.604 4 4 4 4

51 Trim - Front Wheel 180mm 100.033.691 2 2 2 2

52 Wheel - Front 180mm 100.022.836 2 2 2 2

53 Spacer - Axle 100.000.792 4 4 2 2

54 Retainer - Axle 100.000.897 4 4 4 4

55 Screw - Shoulder M6 x 6 100.000.576 2 2 2 2

56 Bolt - UNF 3/8 x 2.25 09122 1 1 1 1

57 Washer - Spring 3/8 09273 1 1 1 1

58 Distance Piece Cutterbar 4014 1 1 1 1

59 Washer - M6 100.000.630 2 2 2 2

60 Ratchet Plate - HOC 110.004.405W 1 1 1 1

61 Axle - Front 110.032.673W 1 0 0 0

Axle - Front 110.004.412W 0 1 1 0

Axle - Front 110.032.682W 0 0 0 1

62 Cutterbar 16” 201026 1 0 0 0

Cutterbar 19” 480149 0 1 1 0

Cutterbar 21” 435005 0 0 0 1

63 Friction Disc 480070W 1 1 0 0

Friction Disc 397042W 0 0 1 1

64 Spacer 321034 1 0 0 0

Spacer ø12 x ø20 x 17 434005 0 1 1 1

65 Deck - Mainframe 41 110.033.852V 1 0 0 0

Deck - Mainframe 48 110.004.382V 0 1 1 0

Deck - Mainframe 53 110.033.553V 0 0 0 1

66 Screw - Taptite 3/8 x 1/4 UNC 09349 3 3 3 3

432028 (0) 13/1/05 11:22 am Page 1.32

NO. DESCRIPTION PART NO. QTY ITEM NOTE

432C 433C 434C 435C

67 Axle Support 100.000.895 4 3 4 4

67A Axle Support - LH Rear 100.000.896 0 1 0 0

68 Decal - Hayter 410065 1 1 1 1

69 Bracket 432014 1 0 0 0

Bracket 433002W 0 1 1 1

70 Cable - Clutch A/D 434002 0 0 1 1

71 Belt Drive 100.004.594 0 0 1 0

Belt Drive 100.014.919 0 0 0 1

72 Spring - Tension Gearbox 100.000.819 0 0 1 1

73 Gearbox 48 100.004.615 0 0 1 0

Gearbox 53 100.004.816 0 0 0 1

74 Bush - Flanged 100.000.886 0 0 3 3

75 Washer 100.000.634 0 0 2 2

76 Gear Drive Assembly LH 110.002.454 0 0 1 1

77 Gear Drive Assembly RH 110.002.455 0 0 1 1

78 Washer 13mm Dia. 100.000.621 0 0 1 1

79 Setscrew - M6 x 12 09361 0 0 2 2

80 Washer - M6 100.000.965 0 0 2 2

81 Pulley Drive 434001 0 0 1 1

82 Grubscrew - M6 x 10 09769 0 0 1 1

83 Washer 10.5mm Dis 100.000.632 0 1 1 1

84 Rivet - Pop 0.187 Dia MU710259 4 4 4 4

85 Trim - Rear Wheel 200mm 100.033.711 2 2 2 2

86 Washer - 12mm Thin ZPW1L000U 1 1 0 0

1.33

LISTPARTS

432028 (0) 13/1/05 11:22 am Page 1.33

1.34

PARTS LIST

BRIGGS & STRATTON

MOTIF

1

2

3

4

5

6

6

7

7

8

8

9

10

11

12

13

14

15

16 16

17

18

14

19 19

20

22

22

23

24

25

25

26

26

27

27

27 28

28

29

30

31

42

32

33

34

35

36

37

37

38

39

39

39

40

41

67A

43

45

46

47

47

48

49

52

52 49

50

50

50

50

51

51

53

53

54

54

56

57

58

59

20

60

61

62

63

64

65

66

66

66

67

67

67

68

69

26

70

71

72

73

74

74

74

75

75

76

77

78

79

80

50

49

49

50

48

82

81

83

84

84

53

53

13

18

21

54

54

44

85

85

85

85 44

5

26

59

20

86

55

55

432028 (0) 13/1/05 11:22 am Page 1.34

1.35

Notes:-

NOTES

432028 (0) 13/1/05 11:22 am Page 1.35

1.36

CUSTOMER INFORMATION

Serial No:

Engine Type:- GVC135EA2G7 (432C/433C/434C) GVC160EA2G7 (435C)

Engine:- Honda GVC 135 (432C/433C/434C) 160 (435C)

Date of Sale:-

Your Local Dealer:-

432028 (0) 13/1/05 11:22 am Page 1.36
