USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.

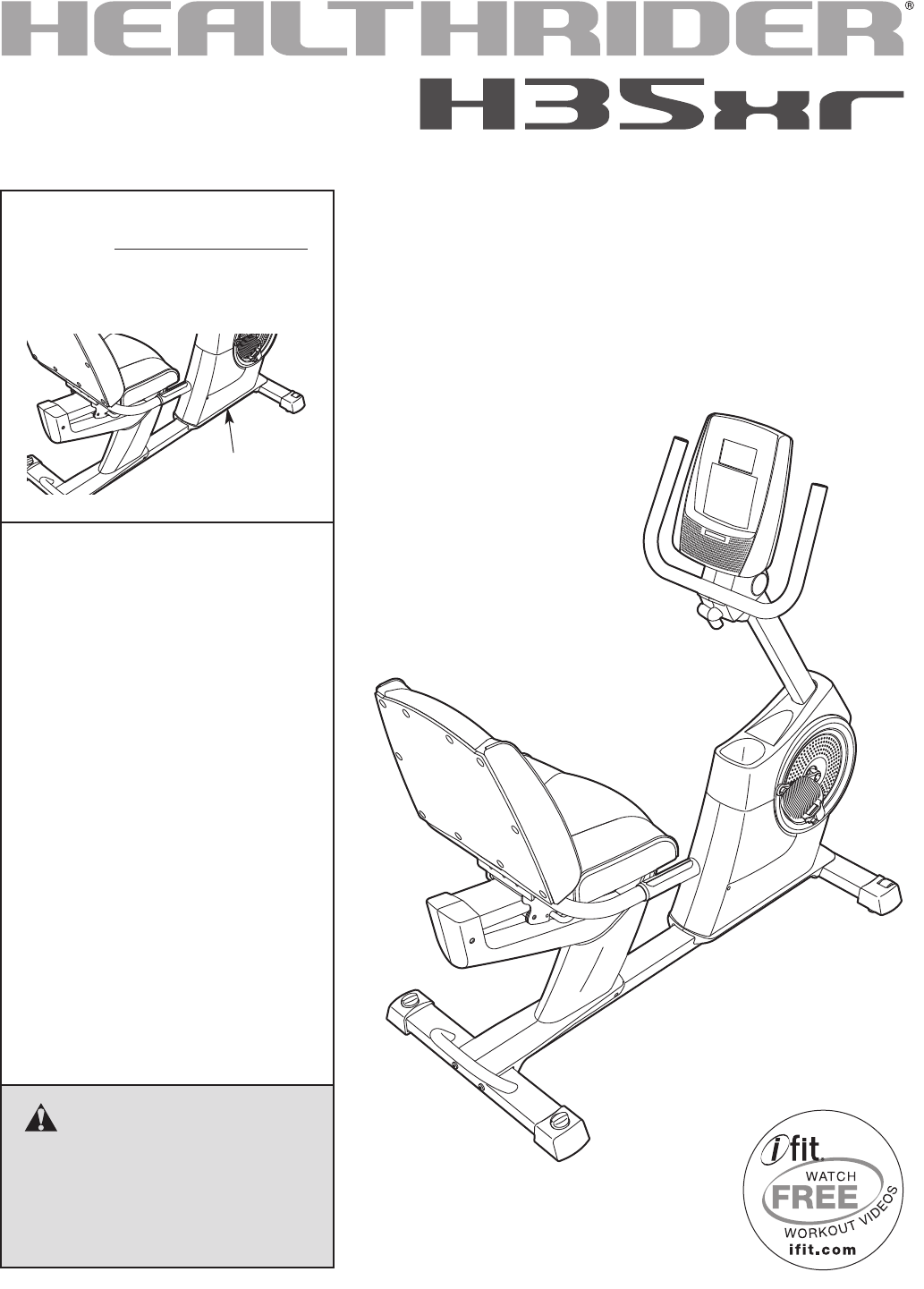

Serial Number
Decal
Model No. HREX53409.2
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-922-4222
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.healthriderservice.com
www.healthrider.com
2
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEEXERCISEBIKE .........................................................13
MAINTENANCEANDTROUBLESHOOTING ...................................................21
EXERCISEGUIDELINES ...................................................................22
PARTLIST ..............................................................................24
EXPLODEDDRAWING ....................................................................26
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover

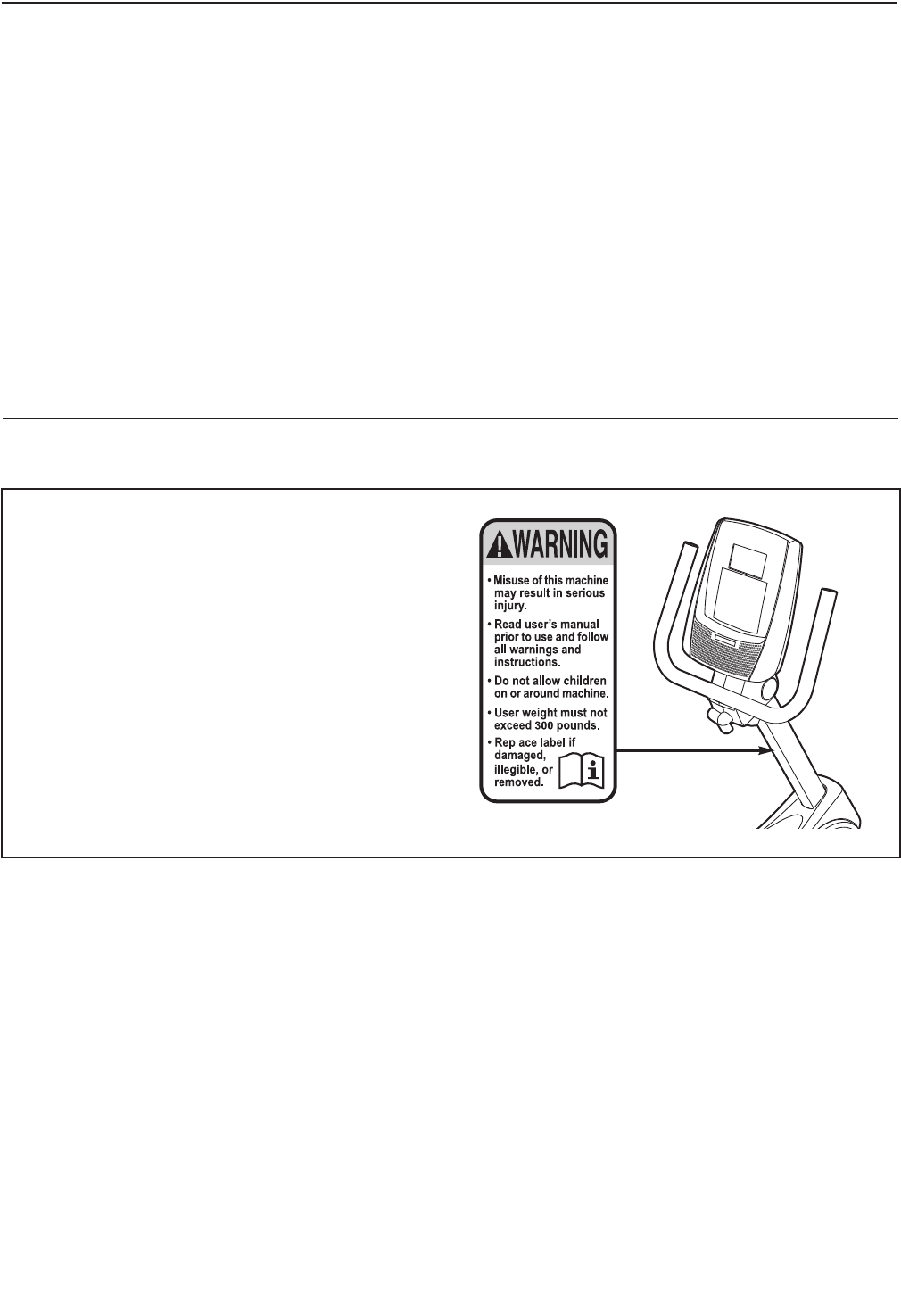

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
HEALTHRIDER is a registered trademark of ICON IP, Inc.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 300 lbs.
(136 kg).
11. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. Always keep your back straight while using
the exercise bike; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS
4
Console
Seat
Pulse Sensor
Seat Handle
Pedal/Strap
Wheel
Leveling Knob
Handlebar Knob
Handlebar
Backrest
Handle
Accessory Tray
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
HEALTHRIDER®H35XR exercise bike. Cycling is an
effective exercise for increasing cardiovascular fitness,
building endurance, and toning the body. The H35XR
exercise bike provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.

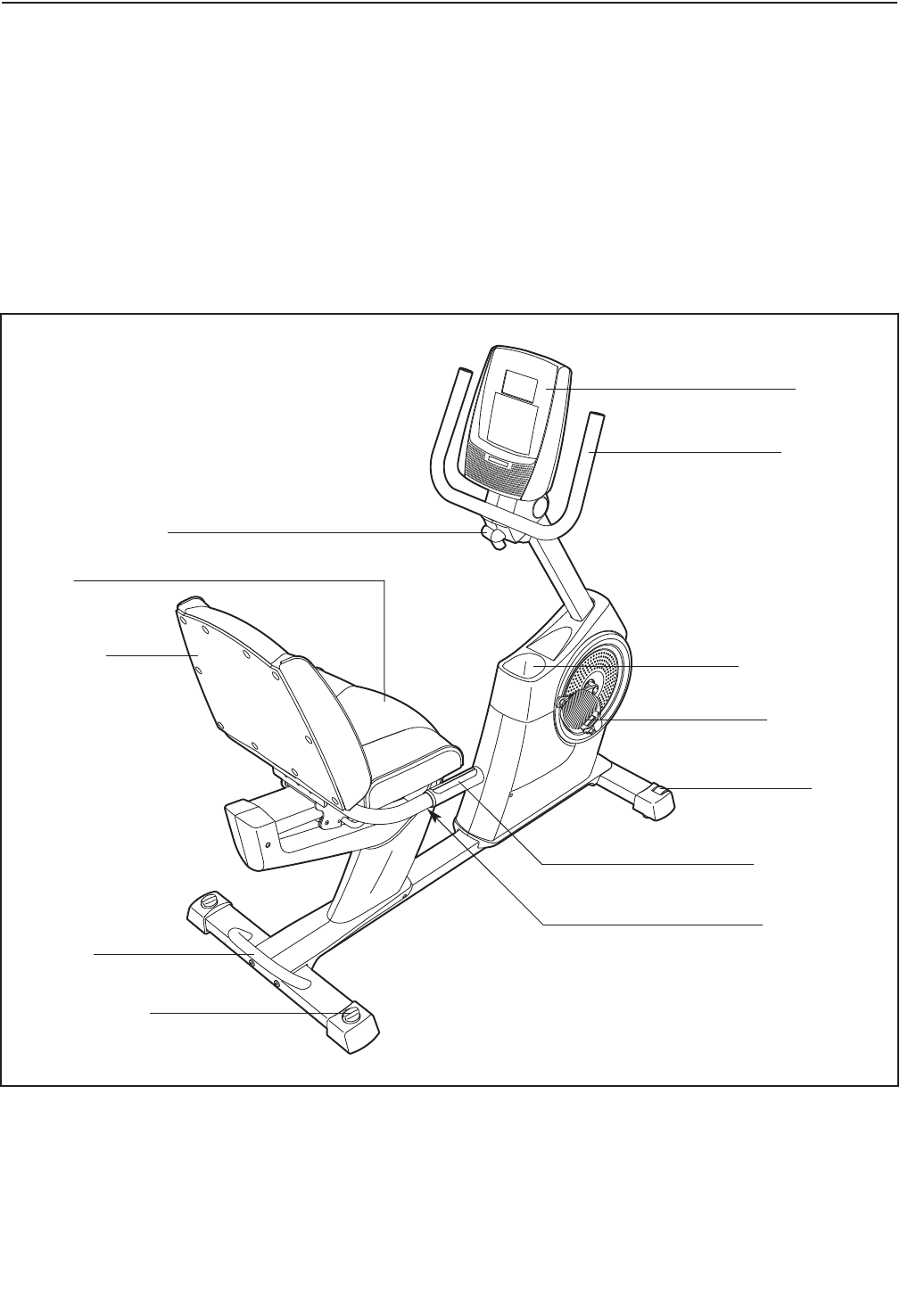

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
5

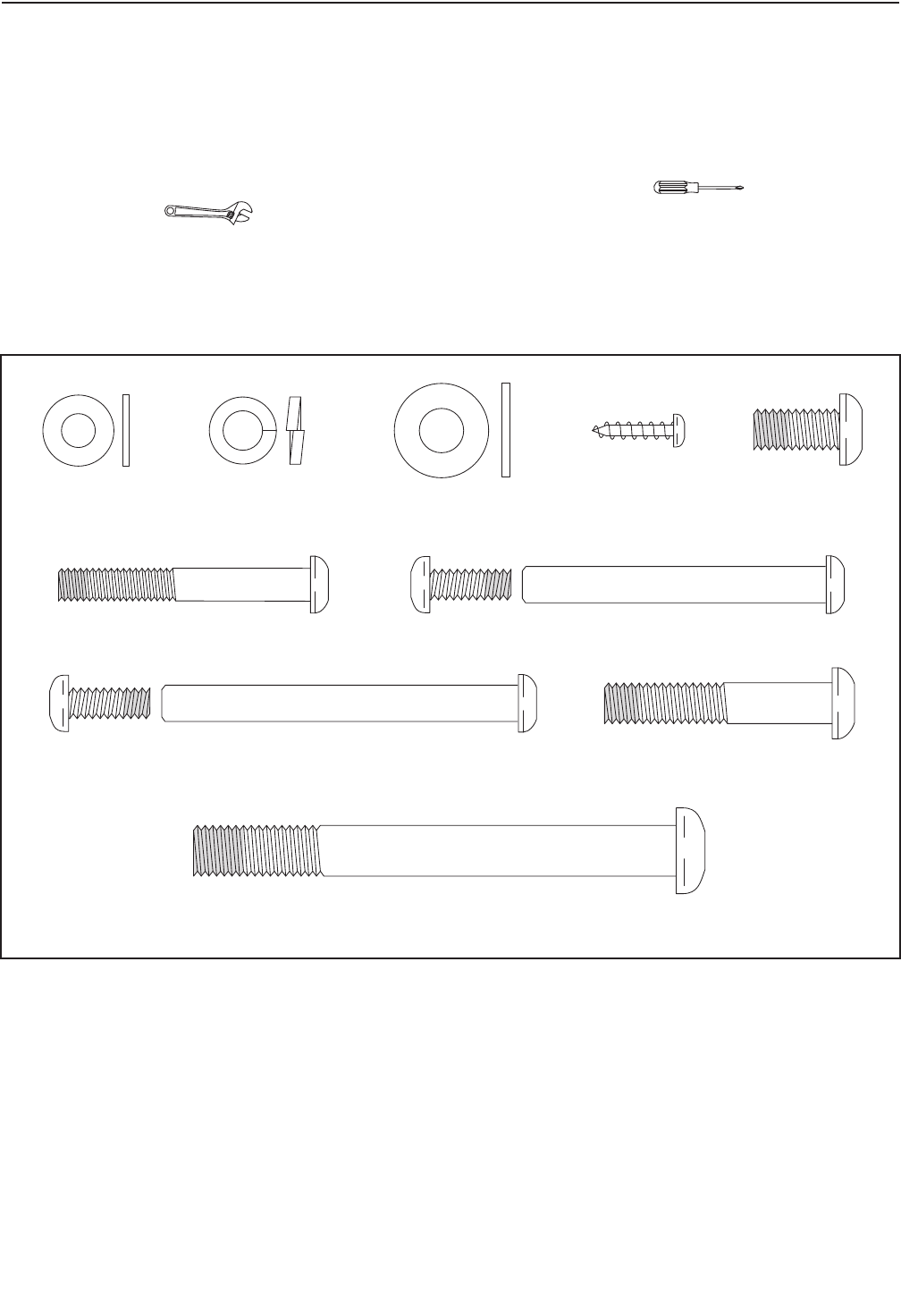

M8 x 16mm
Patch Screw
(60)–10
M8 Split
Washer (61)–12
M6 Washer
(66)–4
M4 x 16mm
Screw (98)–8
M10 x 95mm Patch
Screw (62)–4
M6 x 60mm Bolt Set (68)–1
M6 x 70mm Bolt Set (67)–1
M6 x 50mm Patch Screw (65)–4
M8 x 45mm Patch
Screw (63)–2
M8 x 20mm
Washer (70)–2
ASSEMBLY
To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and an
adjustable wrench .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
6

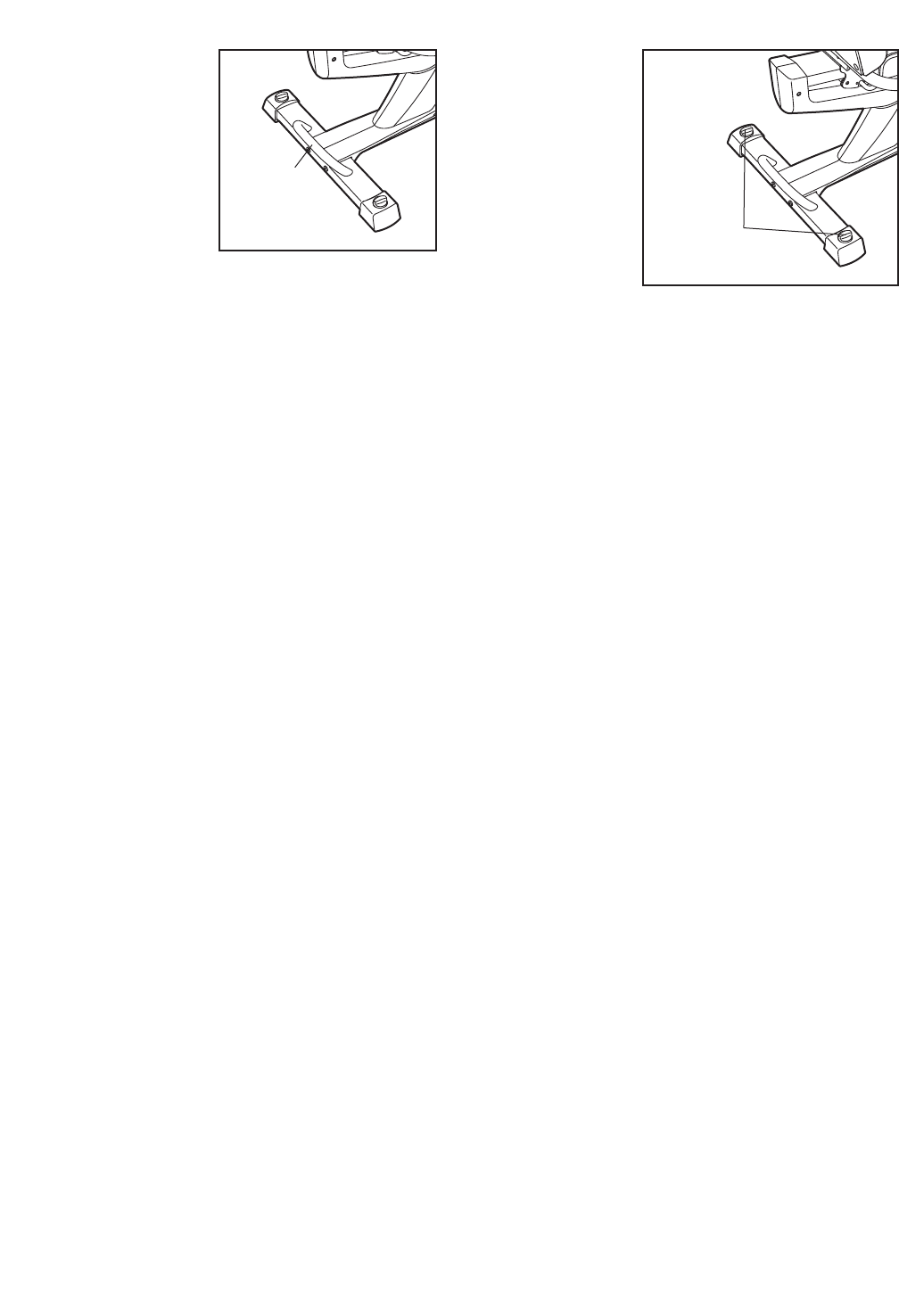

1.

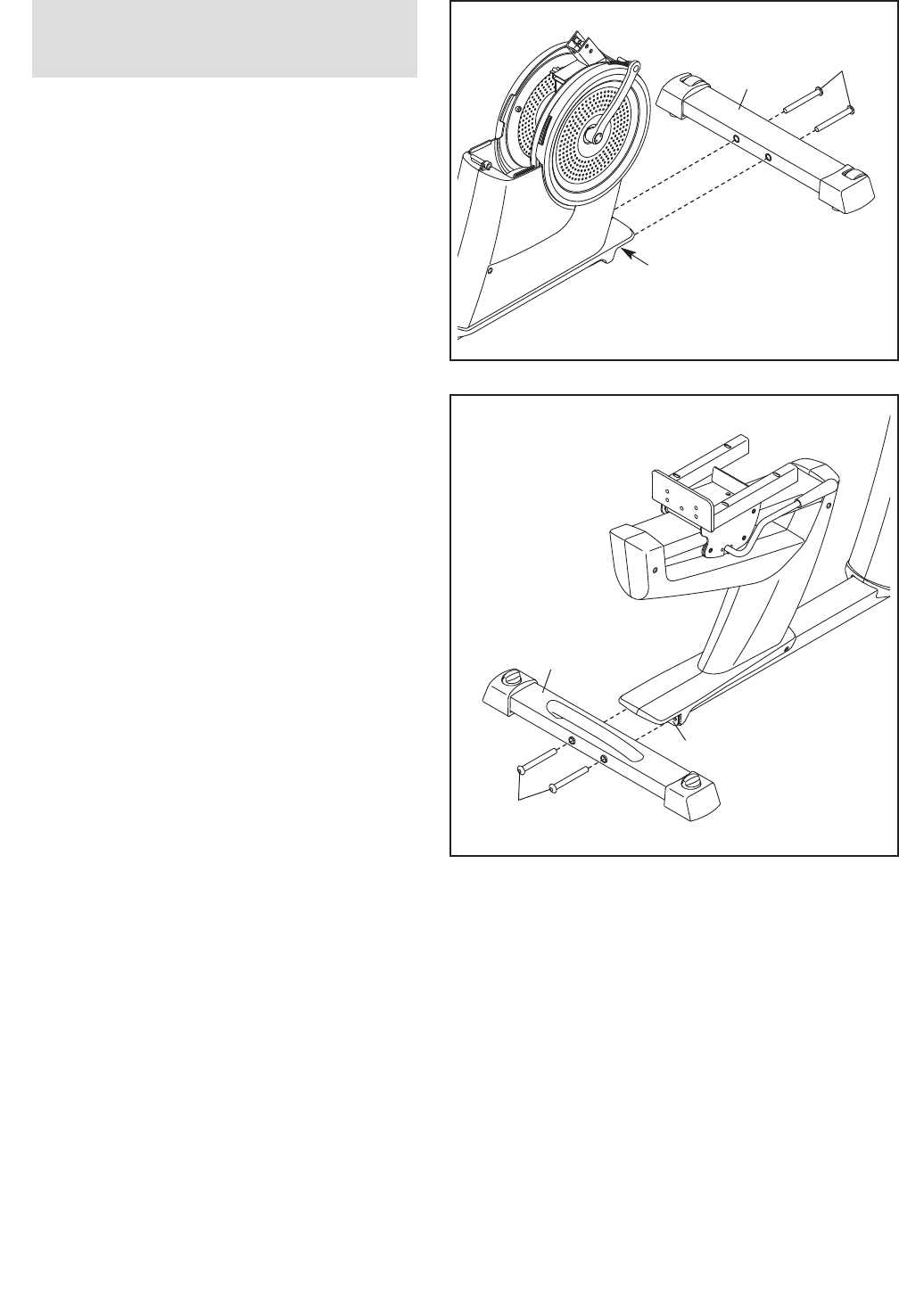

While another person lifts the front of the Frame
(1), attach the Front Stabilizer (2) to the Frame
with two M10 x 95mm Patch Screws (62).
62
2
1
1
2. While another person lifts the rear of the Frame
(1), attach the Rear Stabilizer (3) to the Frame
with two M10 x 95mm Patch Screws (62).
2
To make assembly easier, read the
information on page 5 before you begin.
3
62
1
7
3

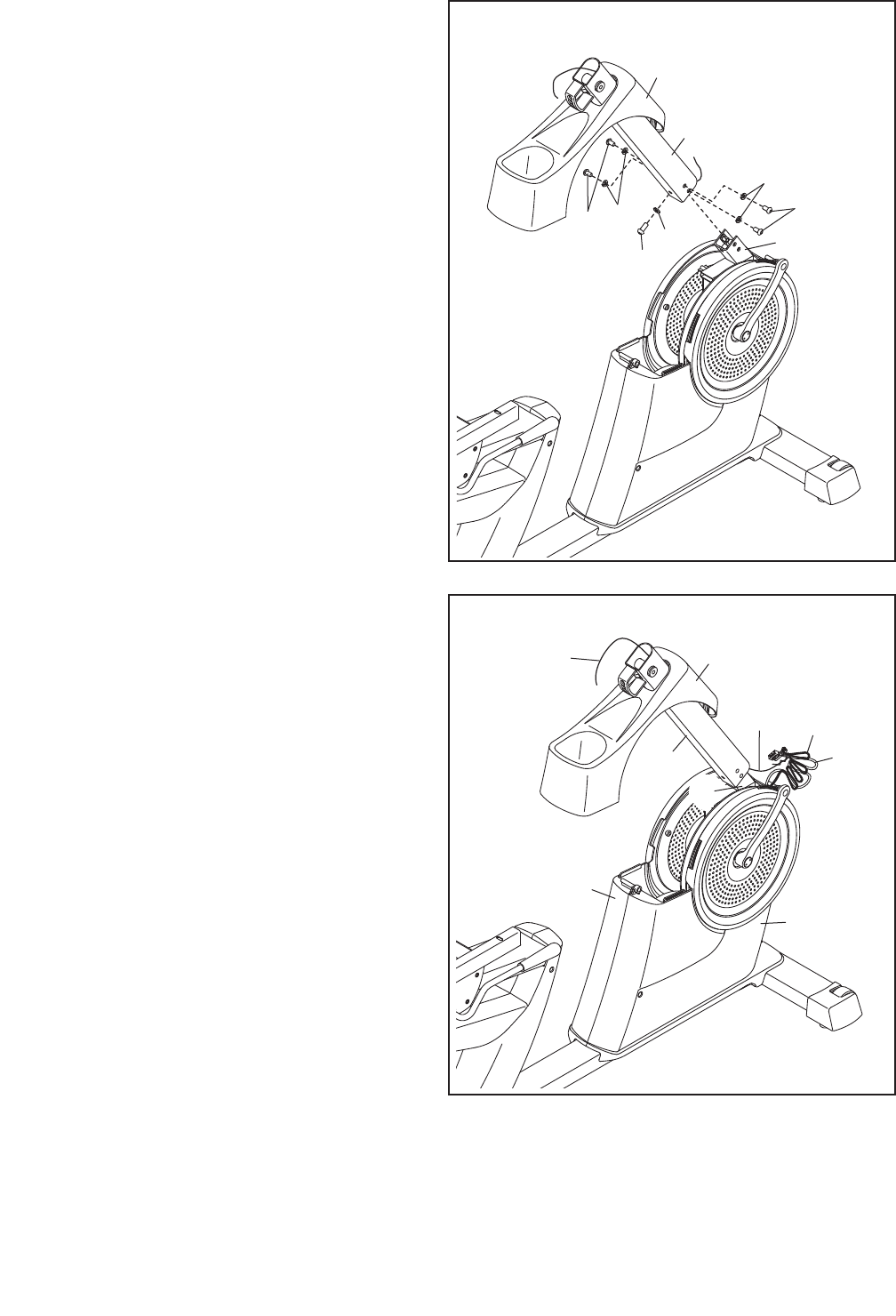

3. Slide the Shield Cover (5) upward onto the
Upright (4).
Have a second person hold the Shield Cover
(5) around the Upright (4) until you complete
step 4.
Tip: Avoid pinching the wires inside the
Frame (1). Slide the Upright (4) onto the
Frame.
Attach the Upright (4) with five M8 x 16mm
Patch Screws (60) and five M8 Split Washers
(61).
4. Locate the wire tie inside the Upright (4). Then,
locate the Wire Harness (89) and the Frame
Pulse Wire (91) inside the Frame (1).
Tie the lower end of the wire tie to the ends of
the Wire Harness (89) and the Frame Pulse
Wire (91).
Then, pull the other end of the wire tie upward
until the Wire Harness (89) and the Frame
Pulse Wire (91) are routed completely through
the Upright (4).
Then, slide the Shield Cover (5) downward and
press it onto the Right and Left Front Shields
(21, 22).
4
60
60
89
91
21
60
61
61
61
4
4
5
5
1
Wire Tie
Wire
Tie
1
Avoid pinching
the wires
22
8

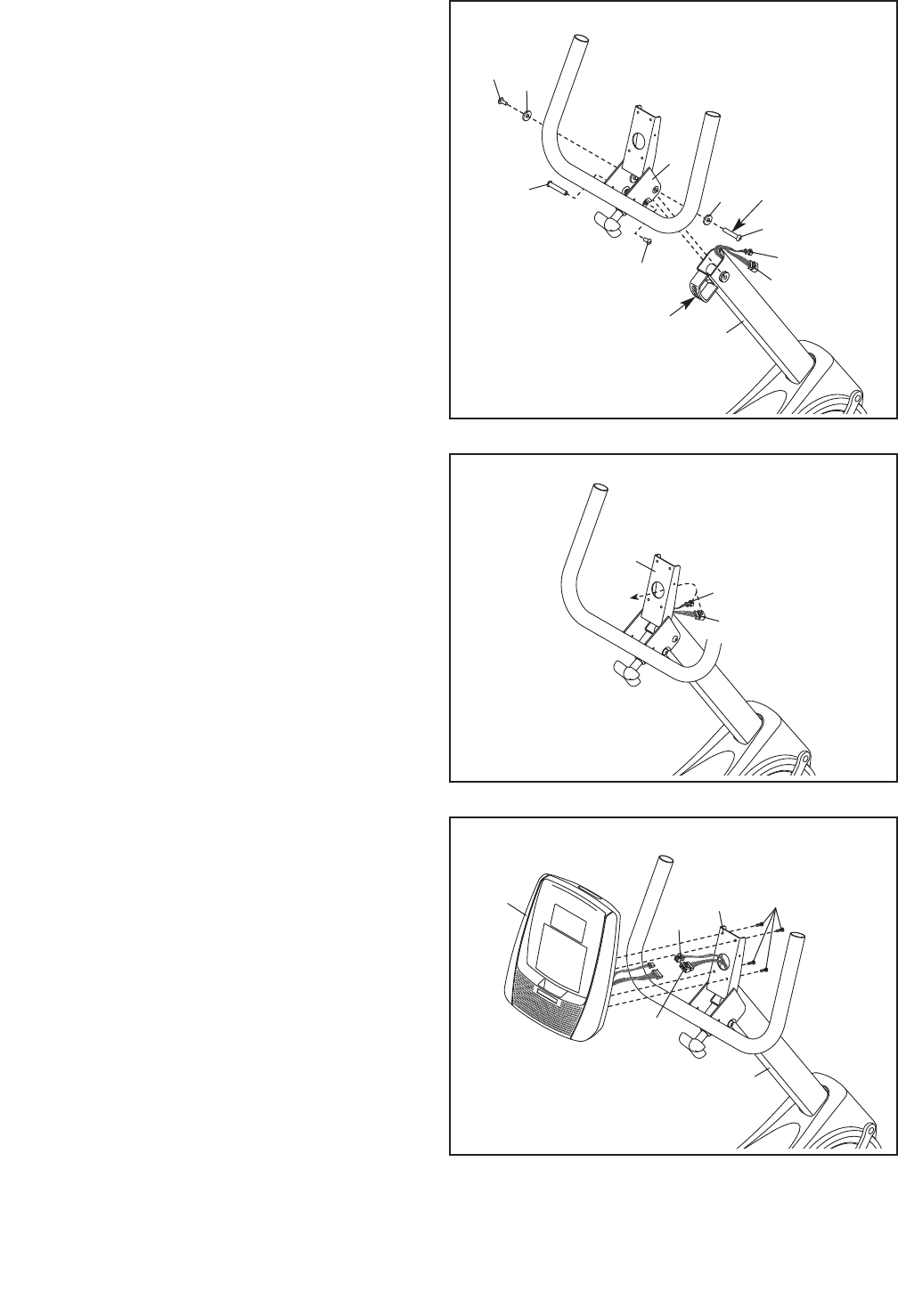

7. While another person holds the Console (7)
near the Handlebar (6), connect the wires on
the Console to the Wire Harness (89) and the
Frame Pulse Wire (91).
Insert the excess wire downward into the
Upright (4) or upward into the Console (7).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Handlebar (6) with four M4 x
16mm Screws (98).
5
6
6. Insert the Wire Harness (89) and the Frame
Pulse Wire (91) upward through the indicated
hole in the Handlebar (6).
6
6
4
70
70
67
91
89
67
5. Make sure that the Wire Harness (89) and
the Frame Pulse Wire (91) are in the location
shown.
Using a small plastic bag to keep your fingers
clean, apply a coat of the included grease to an
M6 x 70mm Bolt Set (67).
Tip: Avoid pinching the wires. Attach the
Handlebar (6) to the Upright (4) with the M6 x
70mm Bolt Set (67) and two M8 x 20mm
Washers (70).
Then, attach an M6 x 60mm Bolt Set (68)
through the bracket on the Handlebar (6). Make
sure that the Bolt Set is inside the bracket.
Avoid pinching
the wires
Grease
Bracket
68
68
89
91
7
76
4
91
89
98
Avoid pinching
the wires
9
8
6
4
98
8
9
98

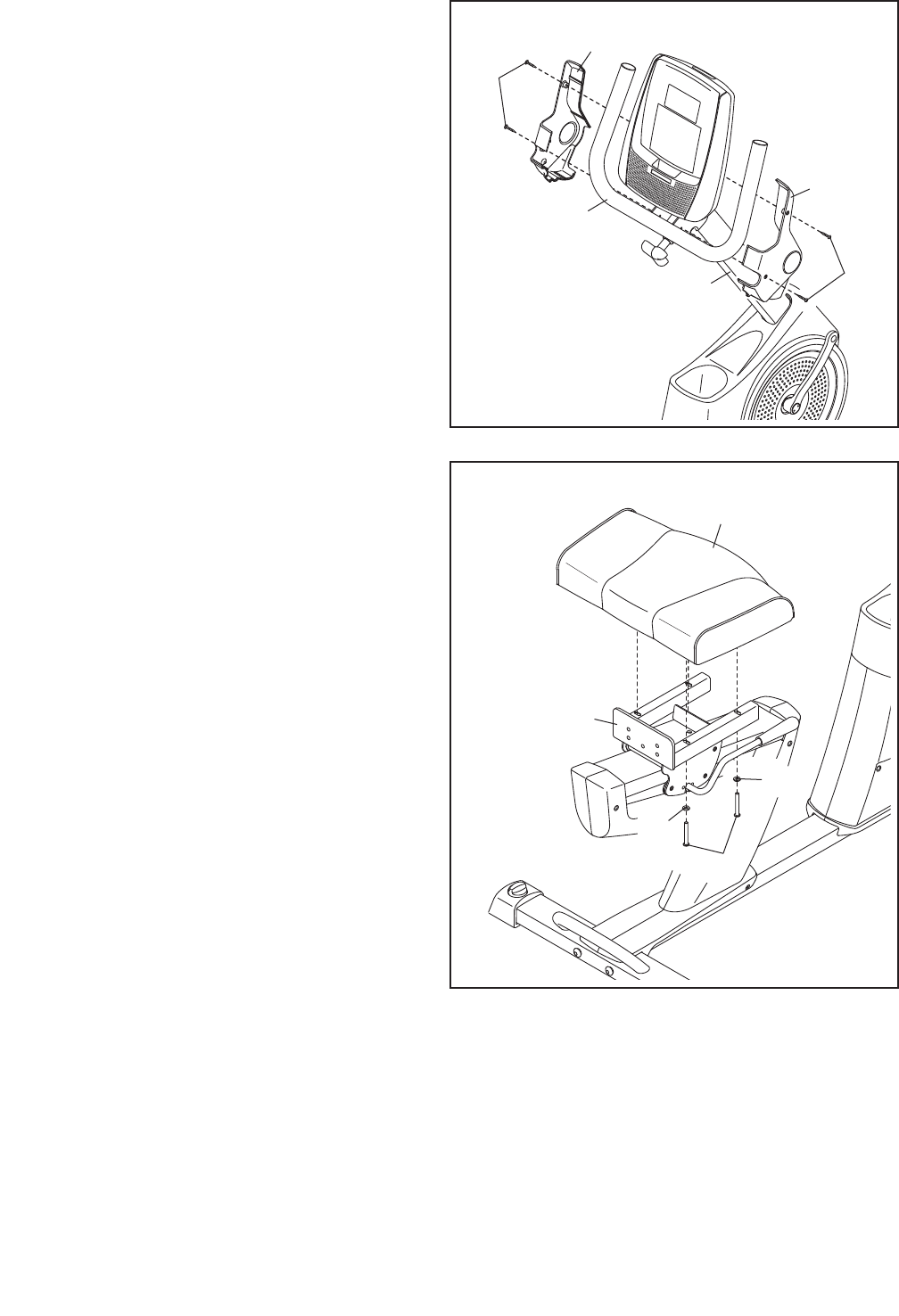

8. Identify the Right and Left Handlebar Covers
(8, 9), which are marked with “Right” and “Left”
stickers.
Attach the Right and Left Handlebar Covers (8,
9) around the Handlebar (6) and the Upright (4)
with four M4 x 16mm Screws (98).
9

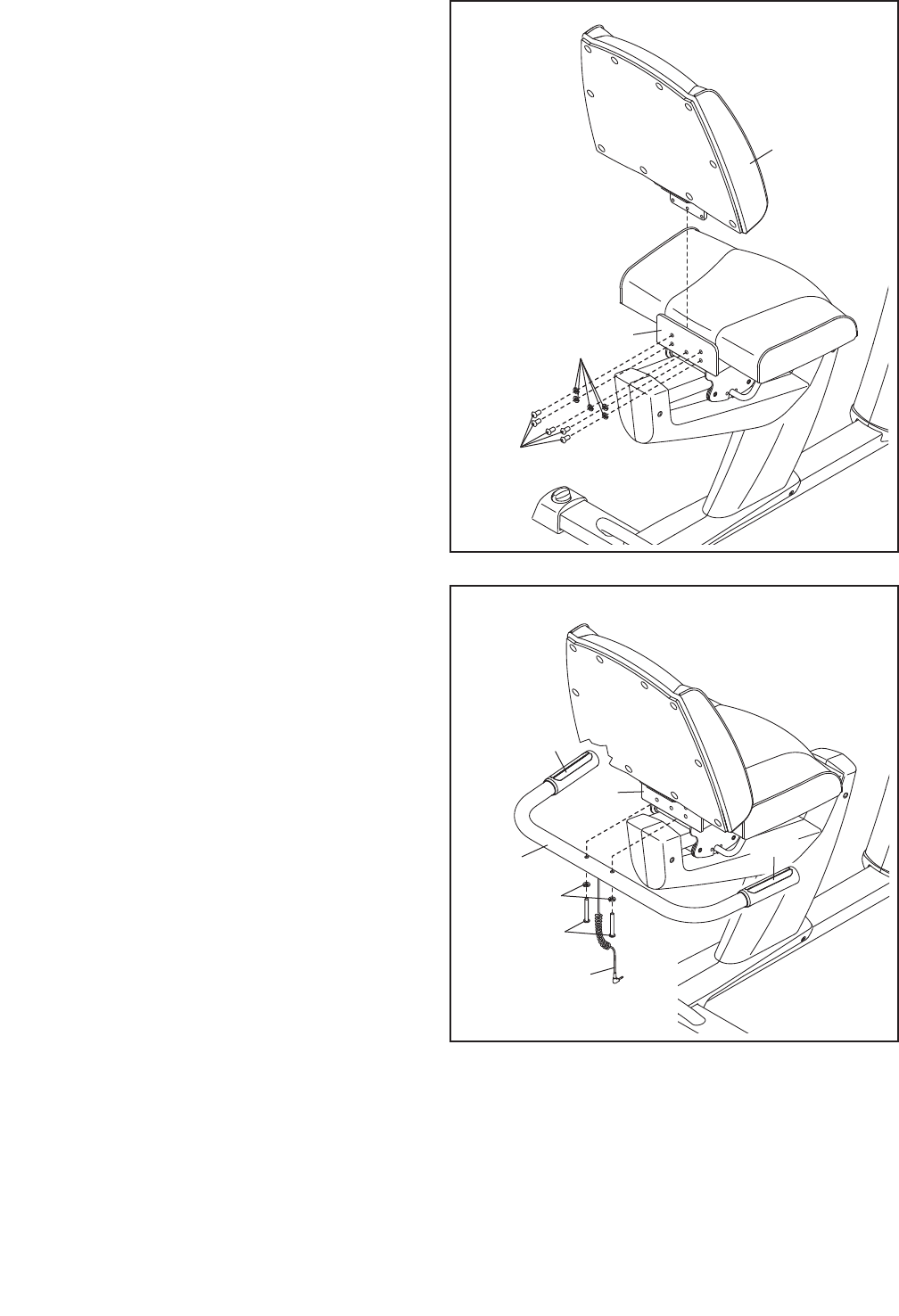

9. Attach the Seat (15) to the Seat Carriage (11)
with four M6 x 50mm Patch Screws (65) and
four M6 Washers (66) (only two of each are
shown). Note: The Patch Screws and
Washers may be preattached to the under-
side of the Seat.
15
11
65
66
66
10
10
10. Attach the Backrest (13) to the Seat Carriage
(11) with five M8 x 16mm Patch Screws (60)
and five M8 Split Washers (61).
Tip: It may be helpful to adjust the seat dur-
ing this step. See HOW TO ADJUST THE
SEAT on page 13.
11. Identify and orient the Pulse Bar (12) so that the
Pulse Grips (41) face upward.
Tip: Avoid pinching the Pulse Bar Pulse Wire
(92). While a second person holds the Pulse
Bar (12), attach the Pulse Bar to the Seat
Carriage (11) with two M8 x 45mm Patch
Screws (63) and two M8 Split Washers (61).
Tip: It may be helpful to adjust the seat dur-
ing this step. See HOW TO ADJUST THE
SEAT on page 13.
13
11
61
60
11
92
41
12
11
61
63
41
Avoid pinching the
Pulse Bar Pulse
Wire (92)
11
12
12. Plug the Pulse Bar Pulse Wire (92) into the
Frame Pulse Receptacle (91) located in the Left
Seat Shield (24).
92
91
24
16
17
5
Strap
Tab
13

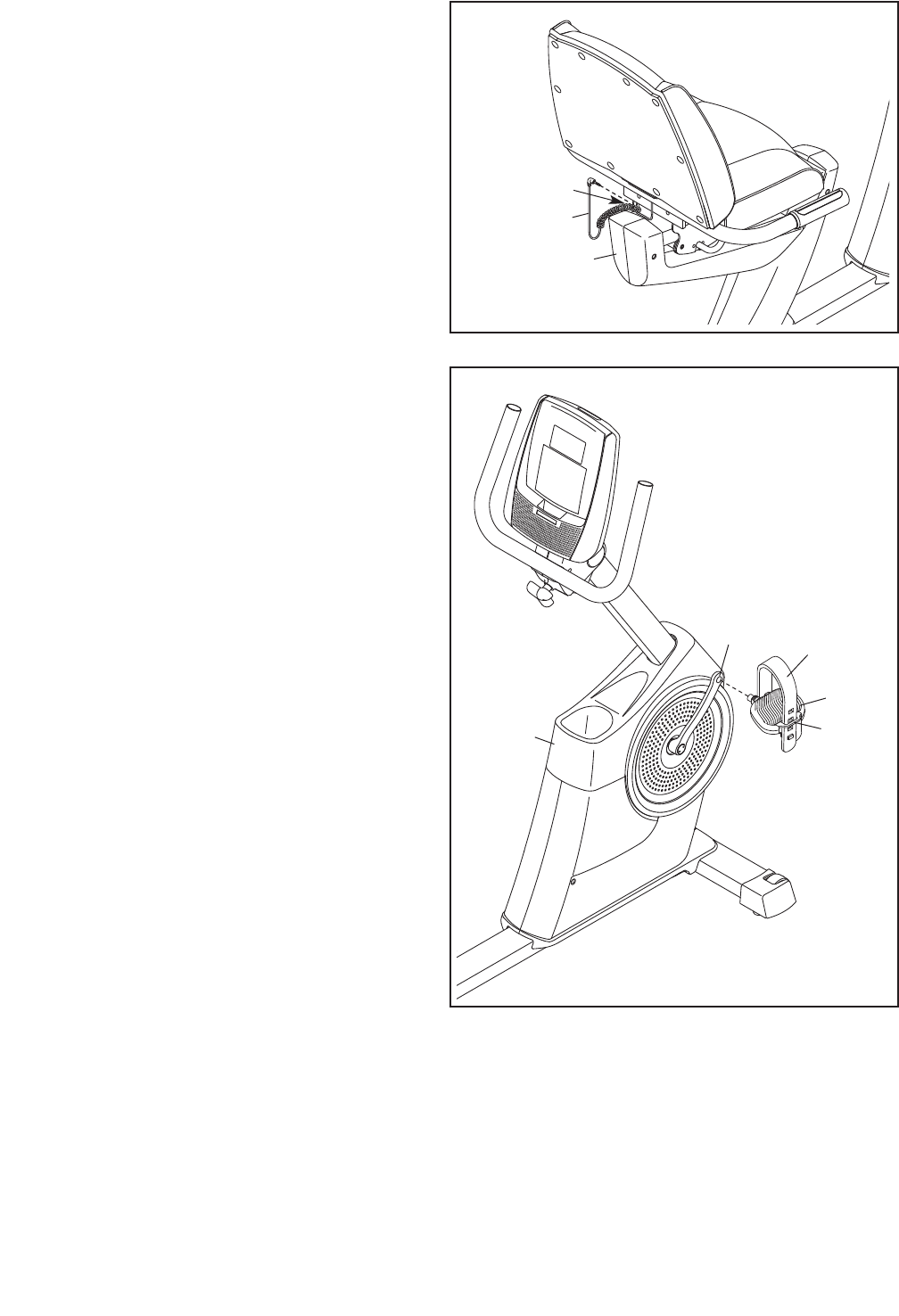

13. Identify the Right Pedal (16), which is marked
with an “R.”
Using an adjustable wrench, firmly tighten the
Right Pedal (16) clockwise into the Right
Crank Arm (17).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm (not
shown).
Adjust the right strap to the desired position,
and press the ends of the strap onto the tabs on
the Right Pedal (16). Adjust the strap on the
Left Pedal (not shown) in the same way.
12

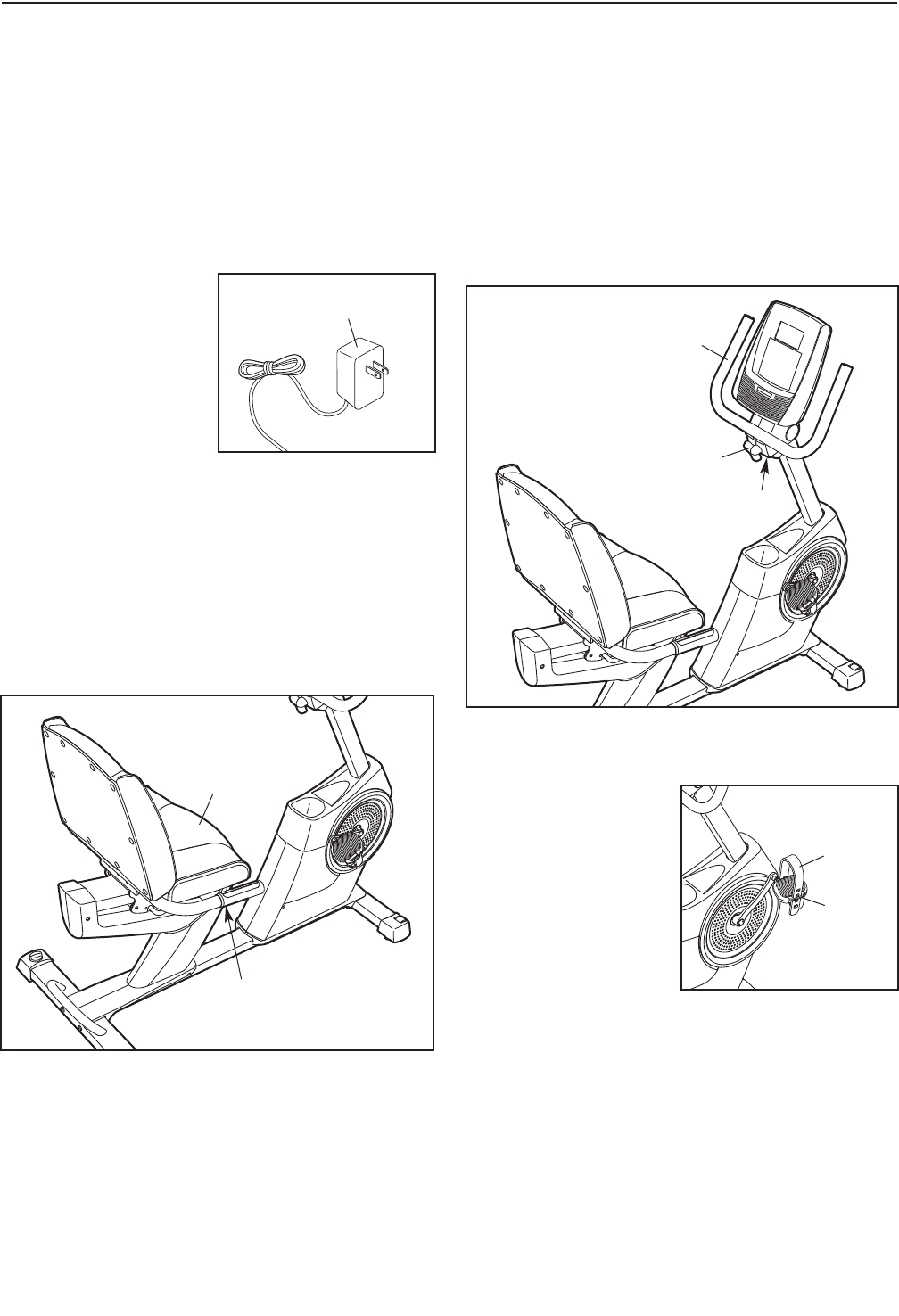

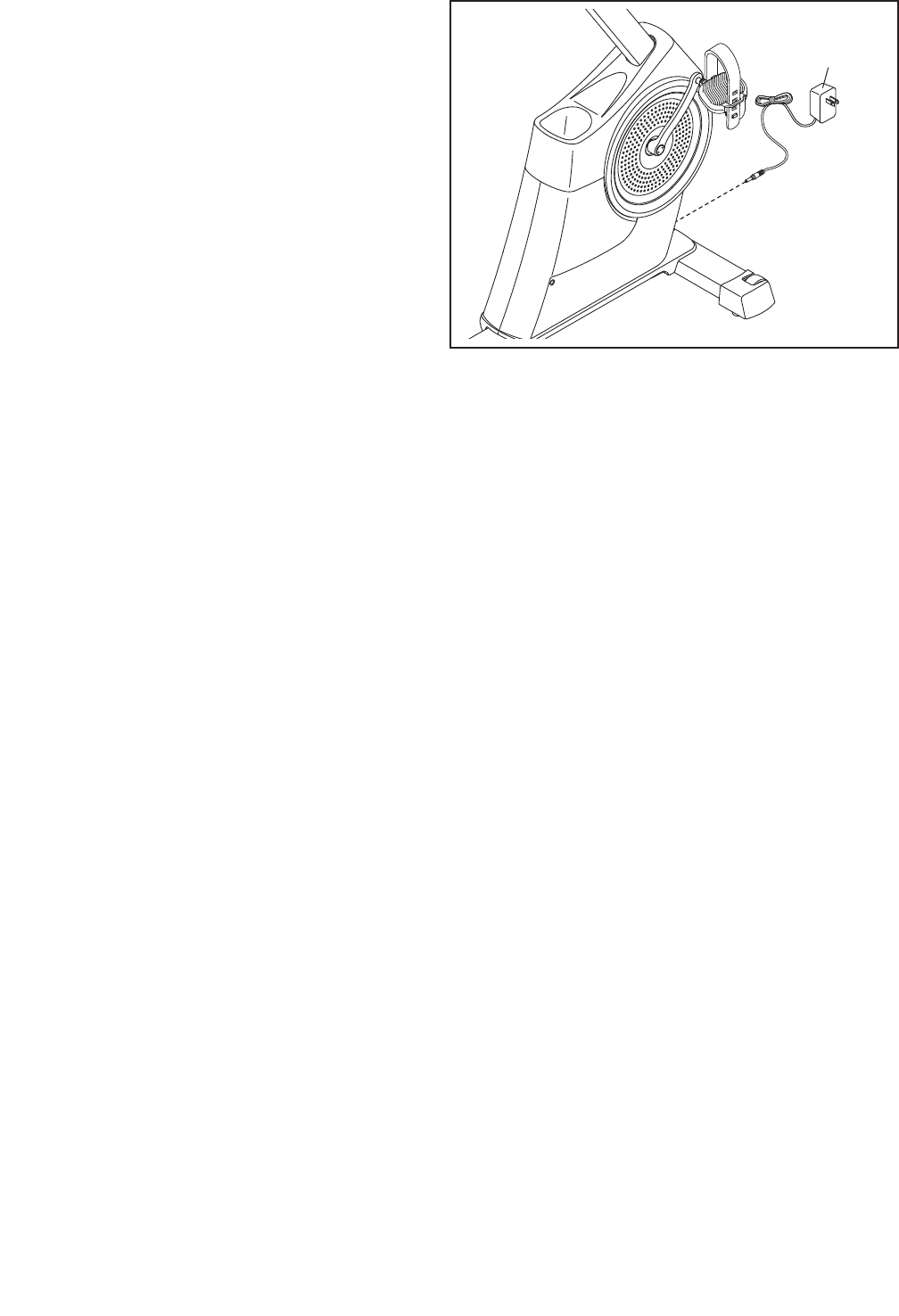

14. Plug the Power Adapter (104) into the recepta-
cle on the frame of the exercise bike. To plug
the Power Adapter into an outlet, see HOW TO
PLUG IN THE POWER ADAPTER on page 13. 104
15. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.
14
13
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the exercise bike has been
exposed to cold temperatures, allow it to warm to
room temperature before plugging in the power
adapter. If you do not do this, you may damage
the console displays or other electronic compo-
nents.
Plug the power
adapter into the recep-
tacle on the frame of
the exercise bike.
Then, plug the power
adapter into an appro-
priate outlet that is
properly installed in
accordance with all
local codes and ordi-
nances.
HOW TO ADJUST THE SEAT
The seat can be adjusted forward or backward to the
position that is the most comfortable. To adjust the
seat, push downward on the seat handle, slide the
seat to the desired position, and then pull upward on
the seat handle to lock the seat in place.
HOW TO ADJUST THE ANGLE OF THE
HANDLEBAR
To adjust the angle of the handlebar, first loosen the
knob a few turns. Next, pull the knob outward, pivot
the handlebar to the desired angle, and then release
the knob into an adjustment hole. Make sure that the
knob is engaged in one of the adjustment holes.
Then, tighten the knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps off
the tabs on the pedals.
Adjust the straps to the
desired position, and
then press the ends of
the straps onto the
tabs.
HOW TO USE THE EXERCISE BIKE
Power Adapter
Knob
Handlebar
Holes
Seat
Handle
Pedal
Strap
Tab
14
HOW TO MOVE THE EXERCISE BIKE
To move the exercise
bike, hold the handle
on the rear stabilizer
and carefully lift it until
the exercise bike can
be moved on the front
wheels. Carefully
move the exercise bike
to the desired location
and then lower it.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise
bike rocks slightly
on your floor dur-
ing use, turn one
or both of the lev-
eling knobs on the
rear stabilizer and
adjust the leveling
feet until the rock-
ing motion is
eliminated.
Handle
Leveling
Knobs
15
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will display
continuous exercise feedback. You can also measure
your heart rate using the handgrip pulse sensor.
The console also offers twenty preset workouts—ten
hill climbing workouts and ten interval workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to vary your pedaling speed
as it guides you through an effective workout.
The console also features an iFit training mode that
allows your console to communicate with your wire-
less network through an optional iFit Live module.
With the iFit Live mode, you can download personal-
ized workouts, create your own workouts, track your
workout results, and access many other features. See
www.iFit.com for complete information.
To purchase an iFit Live module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To activate the console, see page 16. To turn off
the console, see page 16. To use the manual mode,
see page 16. To use a preset workout, see page 17.
To use the iFit training mode, see page 19. To use
the sound system, see page 19. To use the
information mode, see page 19.
Note: If there is a sheet of plastic on the display,
remove the plastic.

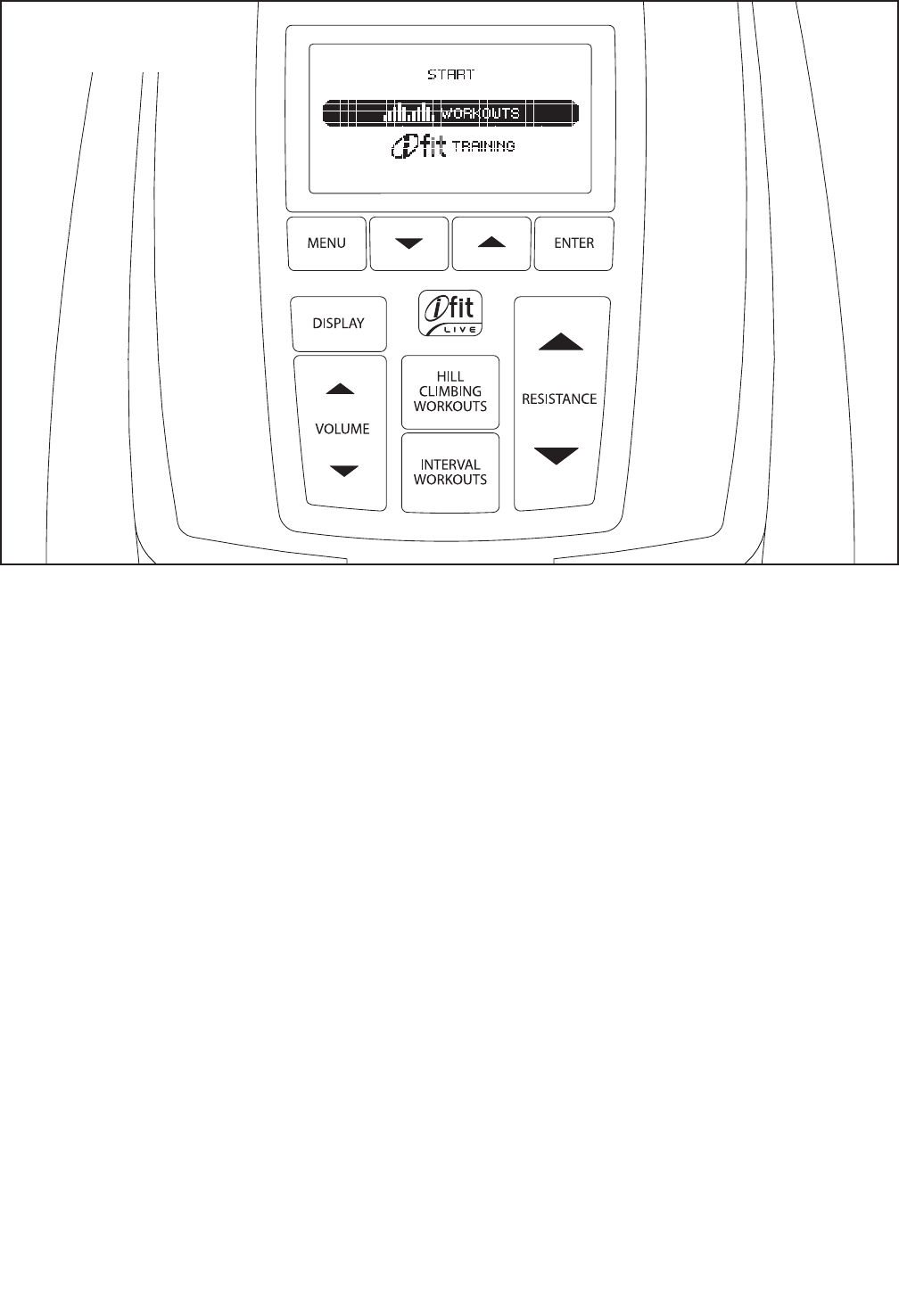

CONSOLE DIAGRAM
16
HOW TO ACTIVATE THE CONSOLE
The included power adapter can be used to operate
the exercise bike. See HOW TO PLUG IN THE
POWER ADAPTER on page 13. When the power
adapter is plugged in, the displays will turn on and the
console will be ready for use.
HOW TO TURN OFF THE CONSOLE
If the pedals do not move for several seconds, a tone
will sound and the console will pause.
If the pedals do not move for several minutes and the
buttons are not pressed, the console will turn off and
the display will be reset.
When you are finished exercising, unplug the power
adapter. IMPORTANT: If you do not do this, the
electrical components on the exercise bike may
wear prematurely.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO ACTIVATE THE CONSOLE above.
2. Select the manual mode.

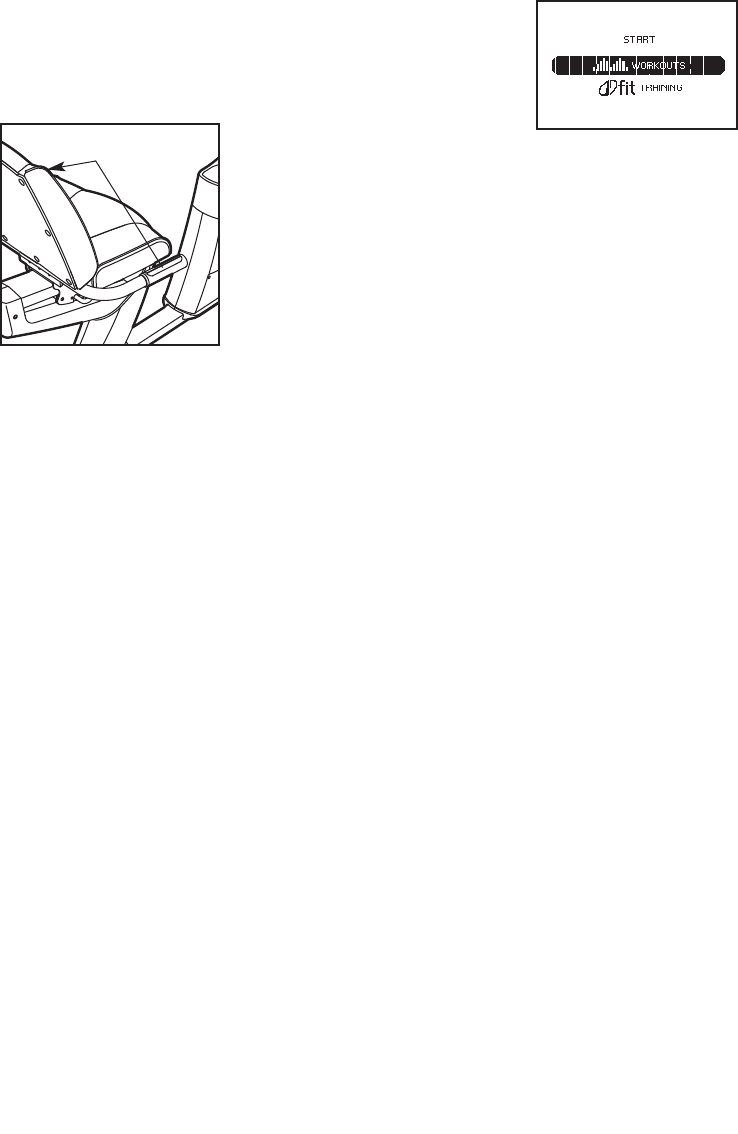

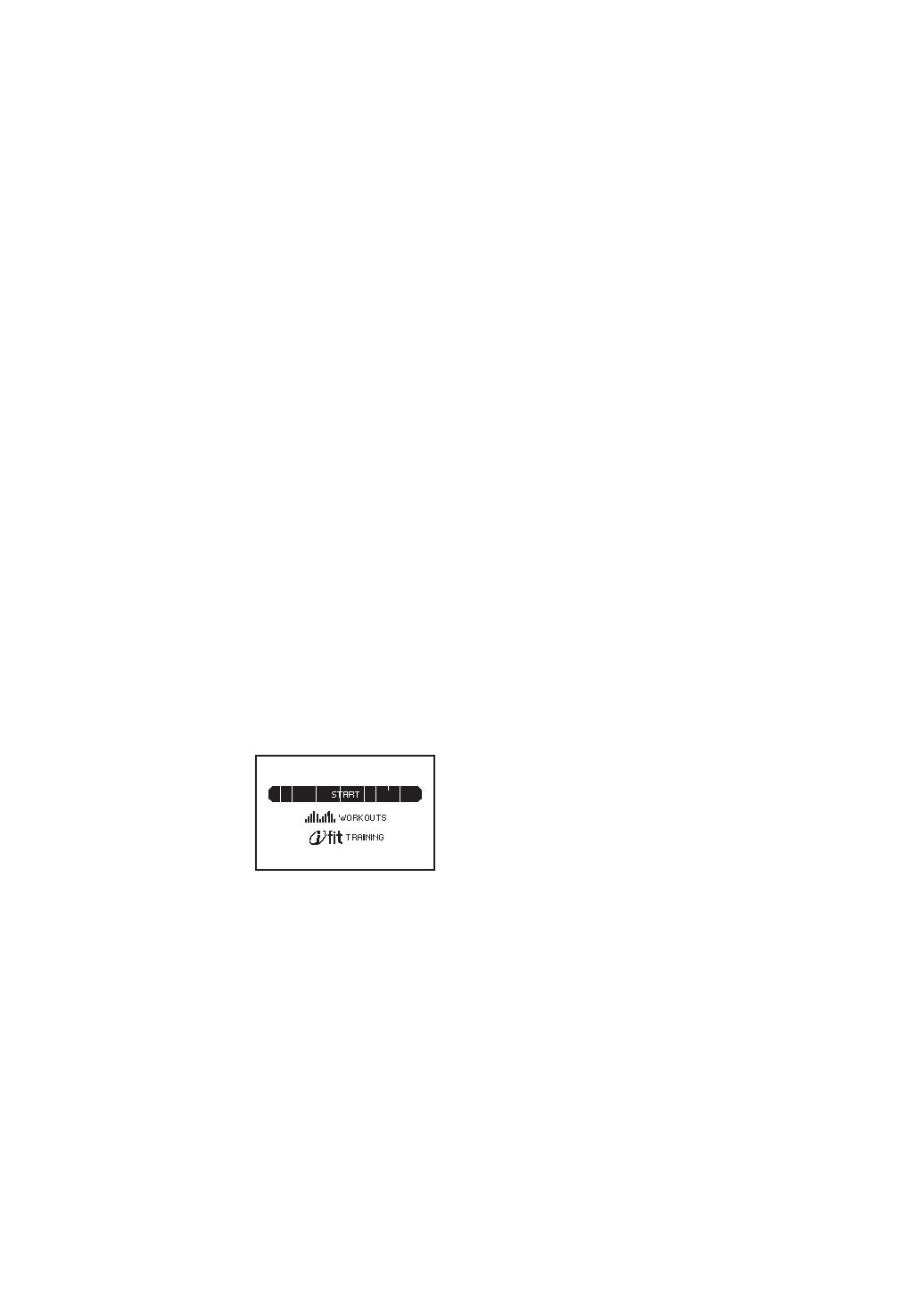

Each time you turn on the console, the main menu
will appear.
To select the manual
mode, press the
Increase and Decrease
buttons next to the
Enter button and high-
light START. Then,
press the Enter button.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
3. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance Increase and
Decrease buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the display.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. Press the Display
button repeatedly to select the desired display
mode.
The display can show the following workout
information:
Calories—This display mode will show the
approximate number of calories you have burned.
Distance—This display mode will show the dis-
tance you have traveled in miles or kilometers.
Profile—When a workout is selected, this display
mode will show a profile of the resistance levels
for the workout.
Pulse—This display mode will show your heart
rate when you use the handgrip pulse sensor (see
step 5 on page 17).
Resistance—This display mode will show the
resistance level of the pedals for a few seconds
each time the resistance level changes.
Speed—This display mode will show your pedal-
ing speed in miles per hour or kilometers per hour.
Target Speed Meter—When a workout is
selected, this display mode will compare your ped-
aling speed to the target pedaling speed and
prompt you to increase or decrease your pedaling
speed.
17
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show
the time remaining in the workout instead of the
elapsed time.
Watts—This display will show your power output
in watts.
Change the volume level of the console by press-
ing the Volume Increase and Decrease buttons.
Note: The console can show pedaling speed and

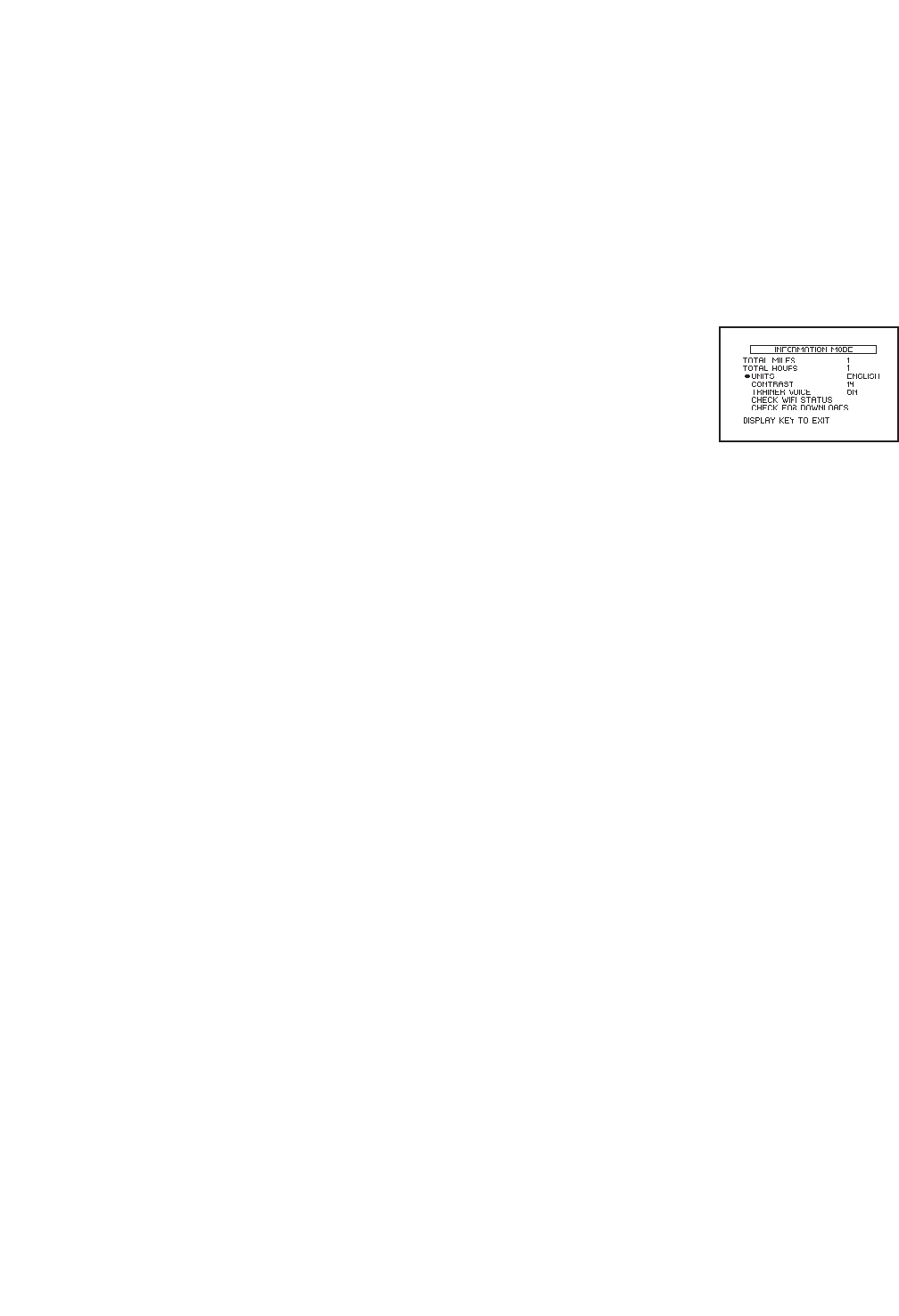

distance in either miles or kilometers. To change
the unit of measurement, see HOW TO USE THE
INFORMATION MODE on page 19.
5. Measure your heart rate if desired.
If there are sheets of
plastic on the metal
contacts on the
handgrip pulse sen-
sor, remove the
plastic. To measure
your heart rate, hold
the handgrip pulse
sensor for approxi-
mately 15 seconds
with your palms rest-
ing against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. When you are finished using the exercise bike,
the console will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 16.
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO ACTIVATE THE CONSOLE on page
16.
2. Select a preset workout.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
To select a preset work-
out, first press the
Increase and Decrease
buttons next to the
Enter button and high-
light WORKOUTS.
Then, press the Enter
button.
Next, press the Increase and Decrease buttons to
highlight the desired workout category. Then,
press the Enter button.
You can also press the Hill Climbing Workouts but-
ton or the Interval Workouts button.
Press the Increase and Decrease buttons to high-
light the desired workout category. Then, press the
Enter button.
Press the Increase and Decrease buttons to high-
light the name of the desired workout. The
duration, the maximum speed, the maximum resis-
tance level, and a profile of the resistance levels of
the workout will appear in the right side of the dis-
play. Then, press the Enter button.
Contacts
18
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level and one target speed
are programmed for each segment. Note: The
same resistance level and/or target speed may be
programmed for consecutive segments.

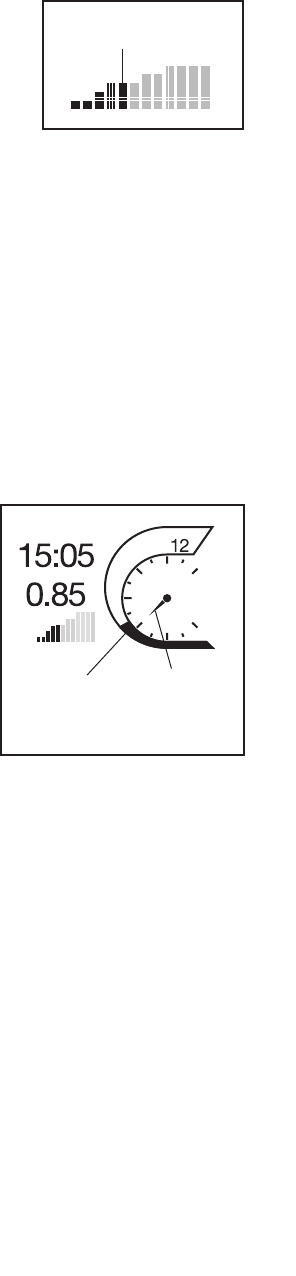

The workout profile will
show your progress.
The flashing segment
of the profile represents
the current segment of
the workout. The height
of the flashing segment
indicates the resistance level for the current
segment.
When the first segment of the workout ends, the
target speed and the resistance level for the sec-
ond segment will appear in the display for a few
seconds to alert you. The next segment of the pro-
file will begin to flash, and the pedals will
automatically adjust to the resistance level for the
next segment.
As you exercise, keep your pedaling speed near
the target speed for the current segment.
The target speed
meter will show
your pedaling
speed and the tar-
get speed for the
current segment.
When the words
SPEED UP appear
in the target speed
meter, increase
your pedaling
speed. When the
words SLOW DOWN appear, decrease your ped-
aling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level for the next
segment.
The workout will continue in this way until the last
segment ends.
To stop the workout at any time, stop pedaling. A
tone will then sound. If the time display mode is
selected, the time will begin to flash in the display.
To restart the workout, simply resume pedaling.
4. Follow your progress with the display.
See in step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. When you are finished using the exercise bike,
the console will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 16.
Current Segment
TIME
DISTANCE
TARGET
40
0
30
20
10
SPEED
UP
Target
Speed
Your
Pedaling
Speed
19
HOW TO USE THE IFIT TRAINING MODE
The optional iFit Live module allows your console to
communicate with your wireless network and unlocks
exciting new features. For example, you can download
personalized workouts, create your own workouts,
track your workout results, and access many other
features on the iFit Live website. To purchase an iFit
Live module at any time, go to www.iFit.com or
call the telephone number on the front cover of
this manual.
To select the iFit training mode, insert the iFit Live
module into the console. Press the Menu button and
then press the Increase and Decrease buttons next to
the Enter button and highlight IFIT TRAINING. Then,
press the Enter button.
For more information about the iFit training mode, go
to www.iFit.com. Note: To use the iFit Live module,
you must have access to a computer with an internet
connection and a USB port. You must also have your
own wireless network including an 802.11b router with
SSID broadcast enabled (hidden networks are not
supported). You will also need an iFit.com member-
ship.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player or press the
Volume Increase and Decrease buttons on the
console.
HOW TO USE THE INFORMATION MODE
The console features an information mode that allows
you to view usage information for the exercise bike,
select a unit of measurement for the console, and
adjust the contrast level of the display.
When an iFit Live module is connected to the console,
you can also use the information mode to choose an
audio setting for the voice of the personal trainer,
check the status of the iFit Live module, and check for
downloads.
1. Select the information mode.
To select the informa-
tion mode, press and
hold down the Display
button for a few sec-
onds until the
information mode
appears in the display.
2. View usage information for the exercise bike.
The display will show the total distance that has
been pedaled on the exercise bike. The display
will also show the total number of hours that the
exercise bike has been used.
3. Select a unit of measurement if desired.
The word ENGLISH for English miles or the word
METRIC for metric kilometers will appear in the
display to indicate the currently selected unit of
measurement.
To change the unit of measurement, press the
Increase and Decrease buttons until the bullet
appears next to the word UNITS. Then, press the
Enter button repeatedly to select the desired unit
of measurement.
20
4. Adjust the contrast level of the display if
desired.
The currently selected contrast level will also
appear in the display. To change the contrast level,
press the Increase and Decrease buttons until the
bullet appears next to the word CONTRAST.
Press the Enter button and then press the
Increase and Decrease buttons repeatedly to
select the desired contrast level. Press the Enter
button again to save your selection.
5. Determine if an iFit Live module is connected
to the console.
If an iFit Live module is connected to the console,
the display will show the words WIFI STATUS or
USB STATUS.
If no accessory is connected, the display will show
the words NO MODULE DETECTED. If no acces-
sory is connected, go to step 9.
6. Select an audio setting for the voice of the
personal trainer if desired.
The currently selected audio setting for the voice
of the personal trainer will also appear in the
display.
To change the audio setting, press the Increase
and Decrease buttons until the bullet appears next
to the words TRAINER VOICE. Then, press the
Enter button repeatedly to turn the voice of the
personal trainer ON or OFF.
7. Check the status of the iFit Live module if
desired.
To check the status of the iFit Live module, press
the Increase and Decrease buttons until the bullet
appears next to the words CHECK WIFI STATUS
or CHECK USB STATUS.
Then, press the Enter button. After a few seconds,
the status of the iFit Live module will appear in the
display. To exit this display, press and hold down
the Display button for a few seconds.
8. Check for downloads if desired.
To check for iFit Live workouts and firmware down-
loads, press the Increase and Decrease buttons
until the bullet appears next to the words CHECK
FOR DOWNLOADS.
Then, press the Enter button. The console will
then check for iFit Live workouts and firmware
downloads.
9. Exit the information mode.
Press the Display button to exit the information
mode.
21
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the handgrip pulse sensor does not function prop-
erly, see step 5 on page 17.
If lines appear in the console display, see step 4 on
page 20 and adjust the contrast level of the display.

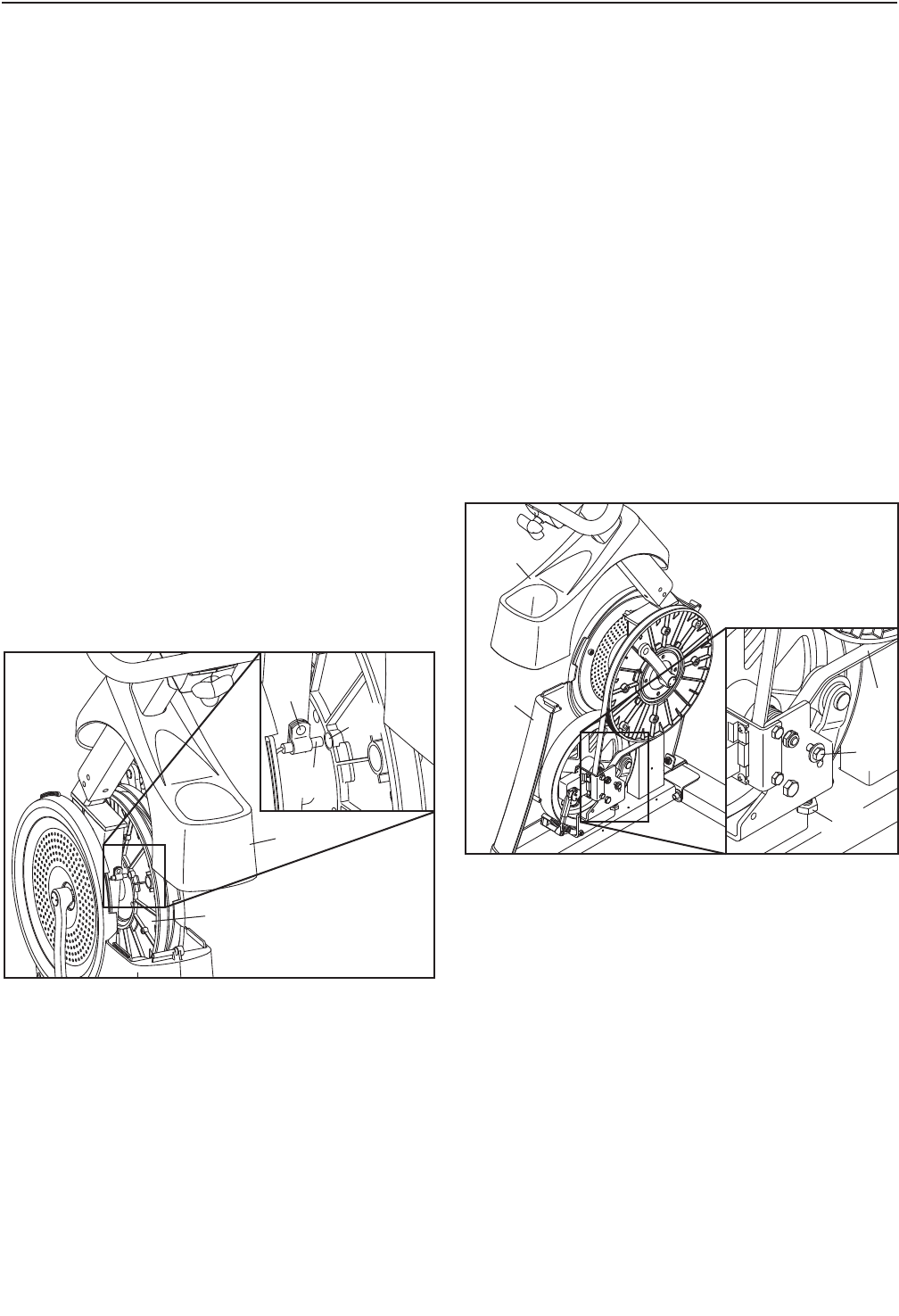

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, first unplug the power
adapter. Using a flat screwdriver, release the tabs on
the Shield Cover (5) and pull the Shield Cover
upward.
Locate the Reed Switch (46). Turn the Pulley (58) until
a Magnet (107) is aligned with the Reed Switch. Next,
loosen, but do not remove, the indicated M4 x 13mm
Flange Screw (94). Slide the Reed Switch slightly
closer to or away from the Magnet, and then retighten
the Screw. Turn the Pulley for a moment.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the shield cover.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest setting, the
drive belt may need to be adjusted.
To adjust the drive belt, first unplug the power adapter.
Then, you must first remove the right pedal, the shield
cover, and the right front shield.
Using an adjustable wrench, turn the right pedal coun-
terclockwise and remove it.
Next, using a flat screwdriver, release the tabs on the
shield Cover (5) and pull the Shield Cover upward.
Then, remove all the screws from the Left and Right
front shields (22, not shown); there are three sizes of
screws in the Front Shields—note which size of
screw you remove from each hole. Then, gently pull
the Right Front Shield away from the frame.
Loosen the M6 x 20mm Hex Screw (78). Tighten the
M10 x 50mm Hex Screw (84) until the Drive Belt (34)
is tight. When the Drive Belt is tight, tighten the M6 x
20mm Hex Screw.
Then, reattach the front shields, the shield cover, and
the right pedal.
MAINTENANCE AND TROUBLESHOOTING
94
58
5
46
107
5
22
78
34
84
22
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
23
NOTES
24

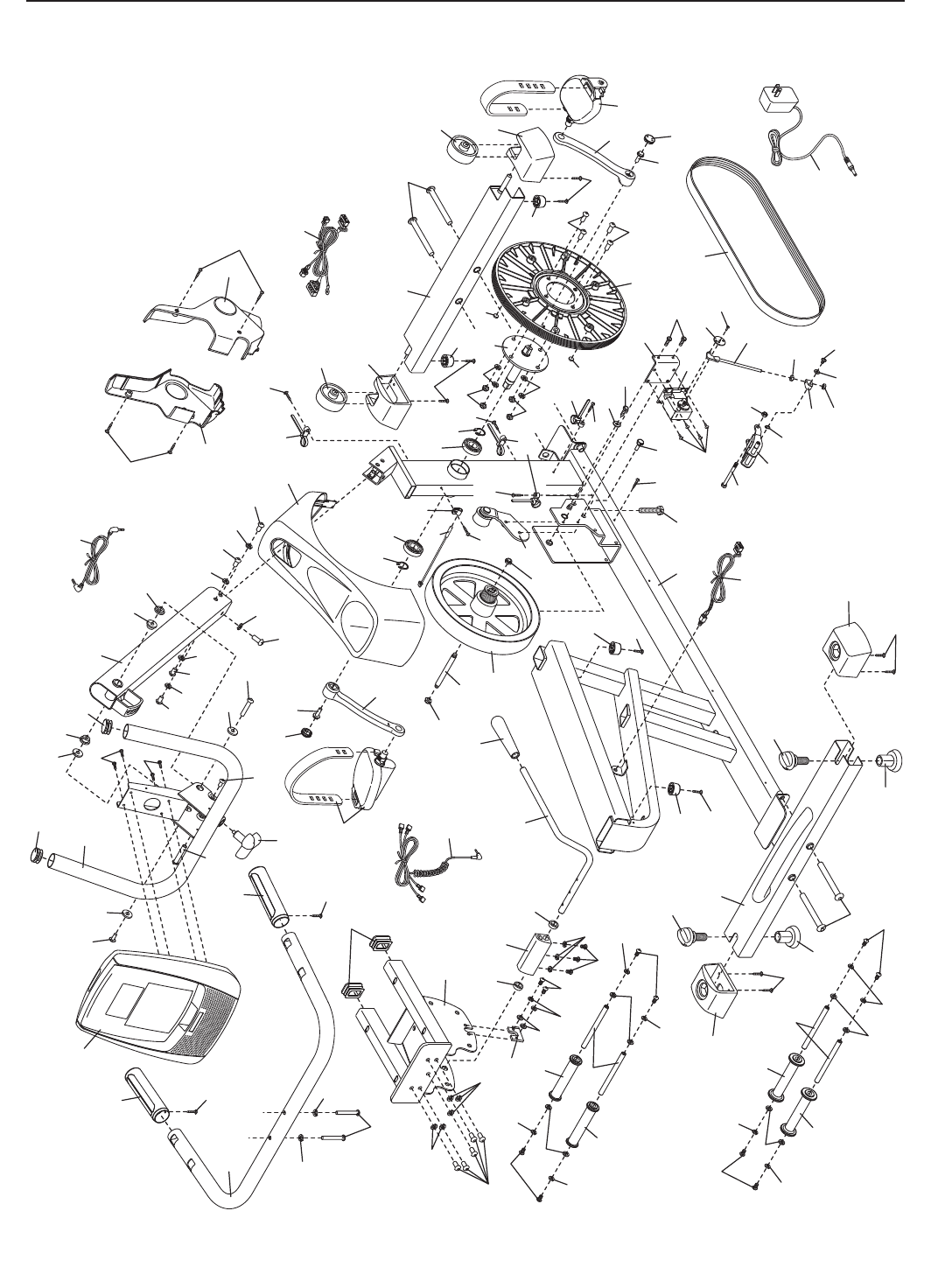

11Frame
21Front Stabilizer
31Rear Stabilizer
41Upright
51Shield Cover
61Handlebar
71Console
81Right Handlebar Cover
91Left Handlebar Cover
10 1 Seat Bracket
11 1 Seat Carriage
12 1 Pulse Bar
13 1 Backrest
14 1 Backrest Cover
15 1 Seat
16 1 Right Pedal/Strap
17 1 Right Crank Arm
18 1 Left Pedal/Strap
19 1 Left Crank Arm
20 1 Crank
21 1 Right Front Shield
22 1 Left Front Shield
23 1 Right Seat Shield
24 1 Left Seat Shield
25 2 Wheel
26 1 Right Front Stabilizer Cap
27 1 Left Front Stabilizer Cap
28 2 Rear Stabilizer Cap
29 2 Leveling Knob
30 2 Leveling Foot
31 4 Foot/Bumper
32 1 Knob
33 1 Brake
34 1 Drive Belt
35 1 Seat Lever
36 1 Seat Handle
37 1 Seat Lever Bracket
38 4 Axle
39 2 Upper Roller
40 2 Lower Roller
41 2 Pulse Grip
42 2 Handlebar Cap
43 2 Bearing
44 2 Snap Ring
45 1 Clamp
46 1 Reed Switch/Wire
47 1 Idler
48 1 Flywheel
49 1 Flywheel Axle
50 1 Motor Bracket
51 1 Resistance Motor
52 1 Motor Disc
53 1 Resistance Arm
54 2 Adjustment Nut
55 1 Resistance Bracket
56 1 Snap Ring
57 1 C-magnet Magnet
58 1 Pulley
59 2 Crank Arm Cap
60 10 M8 x 16mm Patch Screw
61 16 M8 Split Washer
62 4 M10 x 95mm Patch Screw
63 2 M8 x 45mm Patch Screw
64 2 5/16" Flange Screw
65 4 M6 x 50mm Patch Screw
66 17 M6 Washer
67 1 M6 x 70mm Bolt Set
68 1 M6 x 60mm Bolt Set
69 8 1/4" x 16mm Patch Screw
70 2 M8 x 20mm Washer
71 2 Handlebar Bushing
72 2 Upright Bushing
73 4 M8 x 20mm Button Bolt
74 4 M8 Locknut
75 2 M6 x 8mm Hex Screw
76 1 M3.5mm x 12mm Screw
77 1 M6 x 14.67mm Shoulder Screw
78 1 M6 x 20mm Hex Screw
79 1 M6 x 65mm Hex Bolt
80 1 M6 Locknut
81 4 M4 x 12mm Flange Screw
82 1 M5 x 7mm Screw
83 1 M5 Washer
84 1 M10 x 50mm Hex Screw
85 2 Brake Spacer
86 2 M8 Jam Nut
87 10 Fastener
88 28 M4 x 19mm Screw
89 1 Wire Harness
90 1 Audio Cable
Key No. Qty. Description Key No. Qty. Description
PART LIST Model No. HREX53409.2 R1110A
25
91 1 Frame Pulse Wire/Receptacle
92 1 Pulse Bar Pulse Wire
93 4 M6 x 20mm Flat Head Screw
94 1 M4 x 13mm Flange Screw
95 1 M4 x 13mm Bright Screw
96 2 1/4" x 14mm Patch Screw
97 3 M6 x 16mm Screw
98 8 M4 x 16mm Screw
99 2 M4 x 12mm Screw
100 3 M4 x 25mm Screw
101 1 Snap Fastener
102 1 M6 x 18mm Washer
103 10 M6 Split Washer
104 1 Power Adapter
105 2 Seat Carriage Cap
106 4 Wire Clamp
107 2 Magnet
108 1 M4 x 16mm Phillips Screw
*–Userʼs Manual
*–Assembly Tool
*–Grease Packet
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
26
EXPLODED DRAWING A Model No. HREX53409.2 R1110A
27

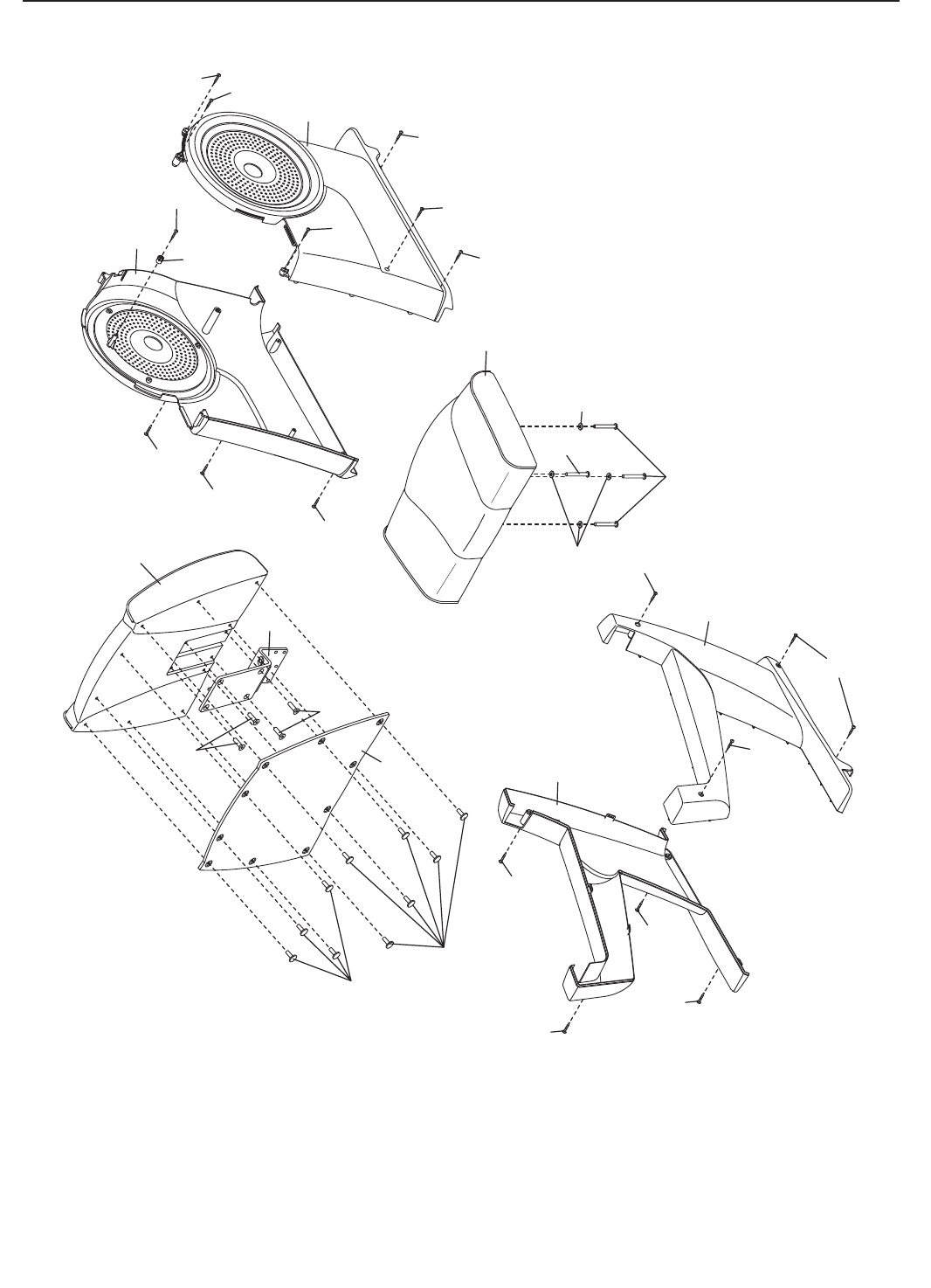

10
13
14
15
22
21
24
23
65
65
66 66
87
87
88
88
88
88
88
88
88
100
88
88
100
88
88
88
100
93
93
88
101
108
EXPLODED DRAWING B Model No. HREX53409.2 R1110A
Part No. 307608 R1110A Printed in China © 2010 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for five (5) years from the date
of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a min-
imal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.healthriderservice.com/registration.

Navigation menu
