Refrigeration Equipment Price List
Prices and specications subject to change without notice
Table of Contents
BN-PL0208
Prices eective February 1, 2008
Replaces BN-PL0208-000 • 02/08
© 2008 Heatcraft Refrigeration Products LLC
REACH-IN EVAPORATORS
TA(K) thin prole ..............................................................................................2
LTA extended thin prole ............................................................................2
TL thin prole ....................................................................................................3
LTL extended thin prole ..............................................................................3
VA(K) V-prole ...................................................................................................4
C(K) high prole ...............................................................................................4
KMK/RAMK Kompact mullion (down-ow/reverse-ow) .................5
BBM/BBL back bar ...........................................................................................5
U(K) dual-air.......................................................................................................6
BTO(K) twin ow ..............................................................................................6
WALK-IN EVAPORATORS
ADT low prole .................................................................................................7
LET/LLE low prole .........................................................................................8
HGT low prole ................................................................................................9
LO/LOD/LOG low velocity .......................................................................... 10
WK/WKE/WKG low velocity .......................................................................11
SM/SME dual ow center mount ............................................................12
HR half-round radial aire ............................................................................12
BMA medium prole ...................................................................................13
BME medium prole ....................................................................................14
BML medium prole ....................................................................................15
BMG/BMF medium prole ........................................................................16
GLYCOL UNIT COOLERS
ADT/HGT low prole ...................................................................................17
WKA/WKG low velocity center mount ..................................................17
BMA medium prole ..................................................................................18
Glycol options ................................................................................................18
WAREHOUSE EVAPORATORS
BHA high prole ............................................................................................19
BHE high prole ............................................................................................20
BHL high prole .............................................................................................21
BHG high prole ........................................................................................... 22
BHF high prole ............................................................................................23
RIPENING ROOM EVAPORATORS
RU ripening room equipment ................................................................. 24
EVAPORATOR OPTIONS
Factory-installed .....................................................................................25-26
Shipped-loose .........................................................................................27-28
Hot gas defrost ........................................................................................29-31
REFRIGERATION SYSTEMS
Beacon II™ refrigeration system ........................................................32-33
PRO3 packaged refrigeration systems .................................................34-35
AIR-COOLED CONDENSING UNITS • 1/2-80 HP
BH 1/2 - 5 HP hermetic .........................................................................36-37
BS 1/2 - 5 HP semi-hermetic ...............................................................38-39
BZ 2 - 6 HP Scroll® ..........................................................................................39
1/2 - 6 HP factory-installed options .................................................40-41
BD 3 - 22 HP Discus® ...............................................................................42-43
BZ 3 - 22 HP Scroll® .......................................................................................44
3 - 22 HP factory-installed options ...................................................45-46
BLV/BDVS 12 - 40 HP .............................................................................47-48
BLV/BDVS 12 - 40 HP options ...................................................................49
JLD/JDDS 24 - 80 HP .................................................................................... 50
JLD parallel-piped dual compressor ...................................................... 51
JLD/JDDS 24 - 80 HP options ...................................................................52
WATER-COOLED & REMOTE COMPRESSOR
CONDENSING UNITS
HWN/ZWN 1/2 - 6 HP hermetic & Scroll® and options .....................53
SWN semi-hermetic .....................................................................................54
SRN semi-hermetic remote compressor ..............................................55
SWN/SRN options .........................................................................................56
AIR-COOLED CONDENSERS
DVT 1 - 26 ton and options .......................................................................57
BNE Monarch™ Series .................................................................................58
BNL Monarch™ Series ..................................................................................59
BNX Ambassador™ Series ..........................................................................60
BNQ Ambassador™ Series .........................................................................61
BNH 1140 Series ............................................................................................62
Monarch™ Series options ..........................................................................63
Ambassador™ & 1140 Series options ..............................................64-65
Condenser coil options ..............................................................................66
FLUID COOLERS
DFT 5 - 26 ton and options........................................................................67
BFH direct-drive ......................................................................................68-69
BFH direct-drive options ............................................................................70
OTHER PRODUCTS
SW booster coil .............................................................................................71
Terms of sale ............................................................................ 72
Compressor warranty list pricing ........................................... 72
Catalog products warranty ................................................73-74
2 February 1, 2008 Bohn Refrigeration Products List Prices FOR OPTIONS GO TO PAGE 3
Medium Temperature Thin Prole Reach-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
TA10AG* 574 115/1/60 4.5 13.5 16.50 12
TA10BG 616 208-230/1/60 4.5 13.5 16.50 12
TA13AG* 742 115/1/60 4.5 13.5 20.50 16
TA13BG 795 208-230/1/60 4.5 13.5 20.50 16
TA17AG* 867 115/1/60 4.5 14.5 24.00 18
TA17BG 927 208-230/1/60 4.5 14.5 24.00 18
TA23AG* 1,104 115/1/60 4.5 14.5 31.75 24
TA23BG 1,184 208-230/1/60 4.5 14.5 31.75 24
TA30AG* 1,370 115/1/60 4.5 14.5 40.00 28
TA30BG 1,465 208-230/1/60 4.5 14.5 40.00 28
TA43AG* 1,852 115/1/60 4.5 14.5 53.50 32
TA43BG 1,981 208-230/1/60 4.5 14.5 53.50 32
TA55AG* 2,346 115/1/60 6.5 14.5 53.50 43
TA55BG 2,511 208-230/1/60 6.5 14.5 53.50 43
Medium Temperature Thin Prole Reach-in Unit Coolers
with Air Defrost, (K) for Coated Coil
TAK10AG* 670 115/1/60 4.5 13.5 16.50 12
TAK10BG 718 208-230/1/60 4.5 13.5 16.50 12
TAK13AG* 852 115/1/60 4.5 13.5 20.50 16
TAK13BG 915 208-230/1/60 4.5 13.5 20.50 16
TAK17AG* 971 115/1/60 4.5 14.5 24.00 18
TAK17BG 1,040 208-230/1/60 4.5 14.5 24.00 18
TAK23AG* 1,229 115/1/60 4.5 14.5 31.75 24
TAK23BG 1,315 208-230/1/60 4.5 14.5 31.75 24
TAK30AG* 1,500 115/1/60 4.5 14.5 40.00 28
TAK30BG 1,605 208-230/1/60 4.5 14.5 40.00 28
TAK43AG* 2,036 115/1/60 4.5 14.5 53.50 32
TAK43BG 2,180 208-230/1/60 4.5 14.5 53.50 32
TAK55AG* 2,612 115/1/60 6.5 14.5 53.50 43
TAK55BG 2,797 208-230/1/60 6.5 14.5 53.50 43
FAMILY
LTA
• One of the most compact cabinet designs in the
market, providing exibility to t the evaporator
where space is limited and allows more room
for shelving
• Low-height design hides the unit away, giving a
cleaner look to the display
• Compact depth accommodates narrow displays
• End compartments with front access panels allow
easy access to the refrigerant and
electrical compartments
• Modular front-access panels make it easy to
access motors
• All access panels can be removed independently
of drain pan
* Model numbers are normally in stock.
• Plastic vibration isolators for fan panels and drain pan to reduce
noise and vibration
• Liquid-line solenoid wire harness comes standard for quick installation
• UL-listed, UL-listed for Canada and meets
NSF standards
FAMILY
TA(K)
• Ceiling-mount
• Rust-proof fasteners
• Textured aluminum cabinet
• Molded Lexan® fan guards
• Air is drawn in through fan and discharges
away from coil.
• Sweat inlet connection to reduce leaks
(Flare connection available as a shipped-
loose option)
• UL-listed, UL-listed for Canada and meets
NSF standards
* Model numbers are normally in stock.
Reach-in Evaporators (Refrigerated Cabinets)
Medium Temperature Extended Thin Prole Reach-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
LTA053AA 2,757 115/1/60 9 18.25 49.50 48
LTA053BA 2,757 208-230/1/60 9 18.25 49.50 48
LTA079AA* 3,079 115/1/60 9 18.25 69.25 69
LTA079BA 3,079 208-230/1/60 9 18.25 69.25 69
LTA102AA* 3,768 115/1/60 9 18.25 89.00 85
LTA102BA 3,768 208-230/1/60 9 18.25 89.00 85
LTA134AA* 4,374 115/1/60 9 18.25 108.75 108
LTA134BA 4,374 208-230/1/60 9 18.25 108.75 108
LTA172AA 4,941 115/1/60 9 18.25 128.50 124
LTA172BA 4,941 208-230/1/60 9 18.25 128.50 124
February 1, 2008 Bohn Refrigeration Products List Prices 3
Nomenclature Example:
• One of the most compact cabinet designs in the
market, providing exibility to t the evaporator
where space is limited and allows more room
for shelving
• Low-height design hides the unit away, giving a
cleaner look to the display
• Compact depth accommodates narrow displays
• End compartments with front access panels
allow easy access to the refrigerant and electrical
compartments
• Modular front-access panels make it easy to
access motors
• All access panels can be removed independently
of drain pan
• Plastic vibration isolators for fan panels and drain
pan to reduce noise and vibration
• Liquid-line solenoid wire harness comes standard for
quick installation
• UL-listed, UL-listed for Canada and meets
NSF standards

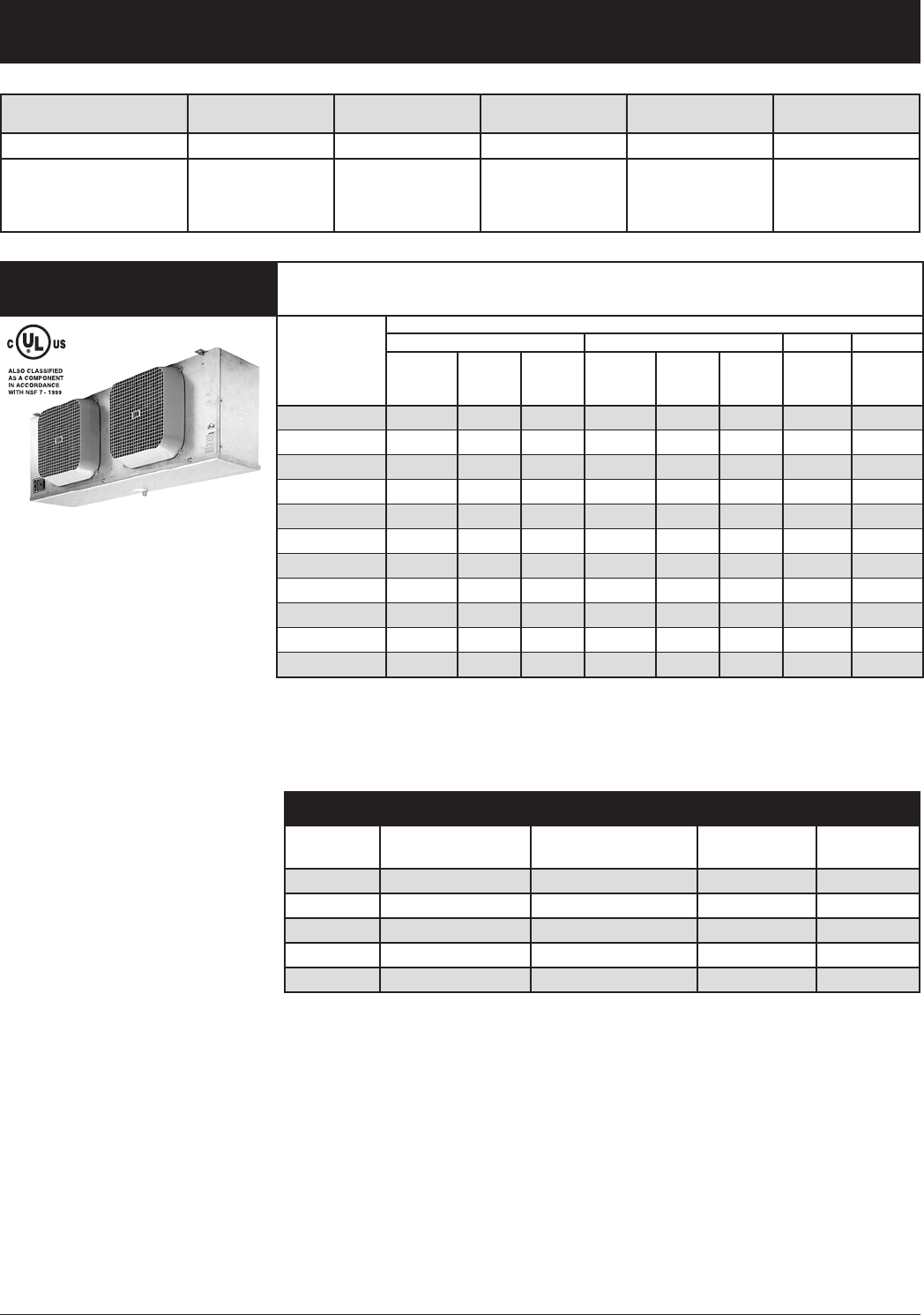

FAMILY
LTL
* Model numbers are normally in stock.
FAMILY
TL
• Ceiling-mount
• Textured aluminum cabinet
• Molded Lexan® fan guards
• Rust-proof fasteners
• Electric defrost heaters terminate on
coil temperature
• Built-in fan delay allows the coil to chill
before turning on
• Air is drawn in through fan and discharges
away from coil
• Sweat inlet connection to reduce leaks
(Flare connection available as a shipped-
loose option)
• UL-listed, UL-listed for Canada and meets
NSF standards
* Model numbers are normally in stock.
Medium & Low Temperature Thin Prole Reach-in Unit Coolers
with Electric Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
TL09AG* 958 115/1/60 4.50 13.5 16.50 13
TL09BG 958 208-230/1/60 4.50 13.5 16.50 13
TL12AG* 1,151 115/1/60 4.50 13.5 20.50 17
TL12BG 1,151 208-230/1/60 4.50 13.5 20.50 17
TL16AG* 1,423 115/1/60 4.50 14.5 24.00 20
TL16BG 1,423 208-230/1/60 4.50 14.5 24.00 20
TL21AG* 1,617 115/1/60 6.75 16.5 24.00 24
TL21BG* 1,617 208-230/1/60 6.75 16.5 24.00 24
TL28AG* 2,036 208-230/1/60 6.75 14.5 31.75 28
TL28BG* 2,036 208-230/1/60 6.75 14.5 31.75 28
TL35BG* 2,296 208-230/1/60 6.75 16.5 38.50 31
TL53BG* 3,161 208-230/1/60 6.75 16.5 49.25 47
Medium & Low Temperature Extended Thin Prole Reach-in Unit Coolers
with Electric Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
LTL046BA 2,949 208-230/1/60 9 18.25 49.50 48
LTL068BA 3,312 208-230/1/60 9 18.25 69.25 69
LTL093BA* 4,082 208-230/1/60 9 18.25 89.00 85
LTL115BA* 4,717 208-230/1/60 9 18.25 108.75 108
LTL133BA 5,346 208-230/1/60 9 18.25 128.50 124
TL 10 A G
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
LTA & LTL Options
Product List Price ($US)
Beacon II™ Assembly 2,315
Copper Fin Coils Call Factory
BohnGuard™ Fin Protection‡935
Mounted Components Coil 900
White Cabinet 175
‡ Not available on LTL.

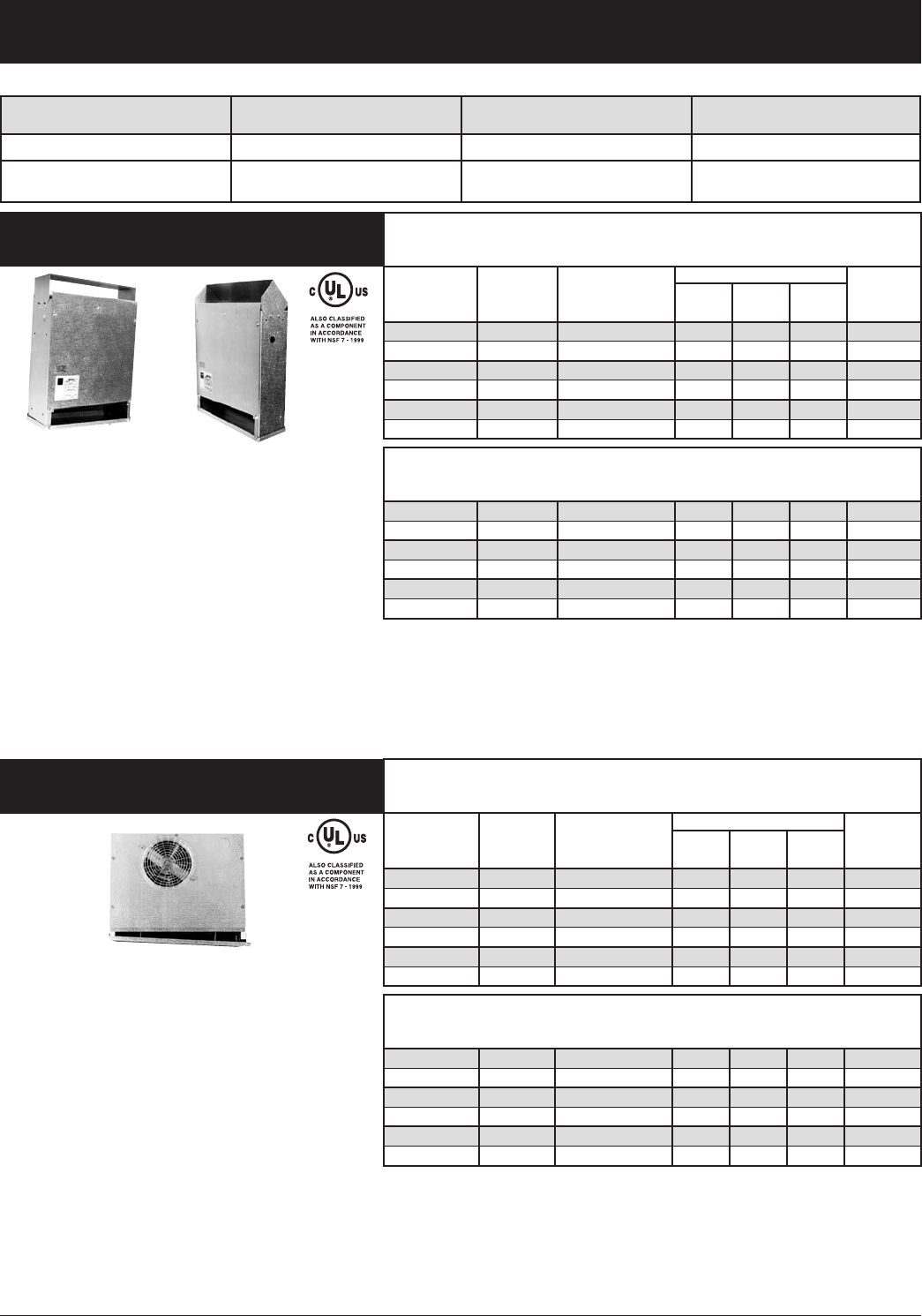

Reach-in Evaporators (Refrigerated Cabinets)
4 February 1, 2008 Bohn Refrigeration Products List Prices FOR OPTIONS GO TO PAGE 27

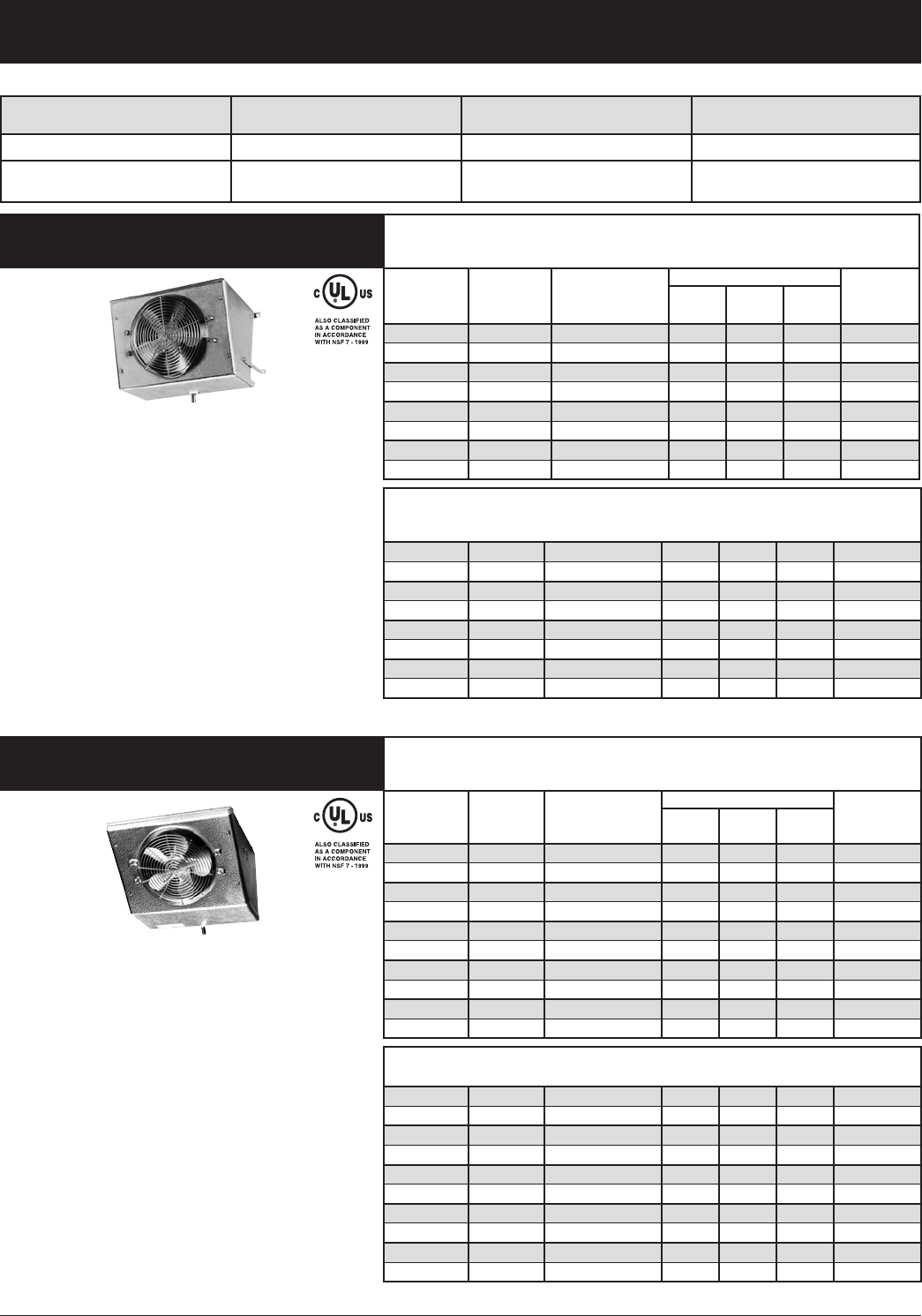

VA 06 A G
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
Reach-in Evaporators (Refrigerated Cabinets)
High & Medium Temperature V-Prole Reach-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
VA06AG* 484 115/1/60 7.00 8.25 12.25 7
VA06BG 517 208-230/1/60 7.00 8.25 12.25 7
VA08AG* 517 115/1/60 7.00 8.25 12.25 7
VA08BG 557 208-230/1/60 7.00 8.25 12.25 7
VA12AG* 704 115/1/60 8.00 8.25 18.00 11
VA12BG 756 208-230/1/60 8.00 8.25 18.00 11
VA17AG* 795 115/1/60 9.75 10.50 14.00 13
VA17BG 849 208-230/1/60 9.75 10.50 14.00 13
High & Medium Temperature V-Prole Reach-in Unit Coolers
with Air Defrost, (K) for Coated Coil
VAK06AG* 558 115/1/60 7.00 8.25 12.25 7
VAK06BG 593 208-230/1/60 7.00 8.25 12.25 7
VAK08AG* 589 115/1/60 7.00 8.25 12.25 7
VAK08BG 631 208-230/1/60 7.00 8.25 12.25 7
VAK12AG* 762 115/1/60 8.00 8.25 18.00 11
VAK12BG 814 208-230/1/60 8.00 8.25 18.00 11
VAK17AG* 852 115/1/60 9.75 10.50 14.00 13
VAK17BG 915 208-230/1/60 9.75 10.50 14.00 13
High & Medium Temperature High-Prole Reach-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
C13AG* 736 115/1/60 9 15.75 14.25 15
C13BG 789 208-230/1/60 9 15.75 14.25 15
C17AG* 776 115/1/60 9 15.75 17.25 17
C17BG 834 208-230/1/60 9 15.75 17.25 17
C23AG* 903 115/1/60 9 15.75 22.75 20
C23BG 970 208-230/1/60 9 15.75 22.75 20
C30AG* 1,163 115/1/60 9 15.75 27.75 26
C30BG 1,293 208-230/1/60 9 15.75 27.75 26
C43AG* 1,454 115/1/60 9 15.75 38.00 33
C43BG 1,558 208-230/1/60 9 15.75 38.00 33
High & Medium Temperature High-Prole Reach-in Unit Coolers
with Air Defrost, (K) for Coated Coil
CK13AG* 789 115/1/60 9 15.75 14.25 15
CK13BG 843 208-230/1/60 9 15.75 14.25 15
CK17AG* 841 115/1/60 9 15.75 17.25 17
CK17BG 899 208-230/1/60 9 15.75 17.25 17
CK23AG* 971 115/1/60 9 15.75 22.75 20
CK23BG 1,040 208-230/1/60 9 15.75 22.75 20
CK30AG* 1,342 115/1/60 9 15.75 27.75 26
CK30BG 1,431 208-230/1/60 9 15.75 27.75 26
CK43AG* 1,732 115/1/60 9 15.75 38.00 33
CK43BG 1,856 208-230/1/60 9 15.75 38.00 33
FAMILY
VA(K)
FAMILY
C(K)
Nomenclature Example:
• Ceiling- or wall-mount
• Textured aluminum cabinet
• Molded Lexan® fan guards
• Air is drawn in through fan and discharges
away from coil
• Sweat inlet connection to reduce leaks
(Flare connection available as a shipped-
loose option)
• UL-listed, UL-listed for Canada and meets
NSF standards
• Ceiling- or wall-mount
• Textured aluminum cabinet
• Aluminum hangers space the unit away
from the wall
• Molded Lexan® fan guards
• Air is drawn in through fan and discharges
away from coil
• Sweat inlet connection to reduce leaks
(Flare connection available as a shipped-
loose option)
• UL-listed, UL-listed for Canada and meets
NSF standards
* Model numbers are normally in stock.
* Model numbers are normally in stock.
February 1, 2008 Bohn Refrigeration Products List Prices 5
Reach-in Evaporators (Refrigerated Cabinets)
FOR OPTIONS GO TO PAGE 27
High & Medium Temperature Kompact Mullion Reach-in Unit
Coolers with Air Defrost, (K) for Coated Coil (standard)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
KMK13AG* 1,055 115/1/60 17.75 5.75 15.75 16
KMK13BG 1,128 208-230/1/60 17.75 5.75 15.75 16
KMK17AG* 1,275 115/1/60 19.75 5.75 15.75 18
KMK17BG 1,363 208-230/1/60 19.75 5.75 15.75 18
KMK23AG* 1,526 115/1/60 19.75 5.75 22.00 23
KMK23BG 1,634 208-230/1/60 19.75 5.75 22.00 23
High & Medium Temperature Reverse Air Mullion Reach-in Unit Coolers with
Air Defrost, (K) for Coated Coil (standard)
RAMK13AG* 1,055 115/1/60 17.75 5.75 15.75 16
RAMK13BG 1,128 208-230/1/60 17.75 5.75 15.75 16
RAMK17AG* 1,275 115/1/60 19.75 5.75 15.75 18
RAMK17BG 1,363 208-230/1/60 19.75 5.75 15.75 18
RAMK23AG* 1,526 115/1/60 19.75 5.75 22.00 23
RAMK23BG 1,634 208-230/1/60 19.75 5.75 22.00 23
(BBM) Medium Temperature Basic Back Bar Reach-in Unit Coolers with Air Defrost
(BBMM) Medium Temperature Master Back Bar Reach-in Unit Coolers with Air Defrost
(BBMS) Medium Temperature Slave Back Bar Reach-in Unit Coolers with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BBM11AG* 1,002 115/1/60 14 4.5 19.75 13
BBM16AG* 1,210 115/1/60 14 4.5 26.25 19
BBMM11AG 2,207 115/1/60 14 4.5 19.75 14
BBMM16AG 2,417 115/1/60 14 4.5 26.25 20
BBMS11AG 1,915 115/1/60 14 4.5 19.75 16
BBMS16AG 2,128 115/1/60 14 4.5 26.25 22
(BBL) Low Temperature Basic Back Bar Reach-in Unit Coolers with Electric Defrost
(BBLM) Low Temperature Master Back Bar Reach-in Unit Coolers with Electric Defrost
(BBLS) Low Temperature Slave Back Bar Reach-in Unit Coolers with Electric Defrost
BBL10AG* 1,350 115/1/60 14 4.5 19.75 16
BBL15AG* 1,604 115/1/60 14 4.5 26.25 20
BBLM10AG 2,915 115/1/60 14 4.5 19.75 17
BBLM15AG 3,253 115/1/60 14 4.5 26.25 21
BBLS10AG 2,624 115/1/60 14 4.5 19.75 14
BBLS15AG 2963 115/1/60 14 4.5 26.25 23
KMK 13 A G
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
Model KMK
Standard Mullion
Model RAMK
Reverse Air
Mullion
FAMILY
KMK/RAMK
• KMK Series features Mullion Wall mount;
Air enters top & discharges at the bottom
• RAMK Series features Reverse Air Mullion Wall
mount; Air enters bottom & discharges at the top
• Adjustable air deector provides dierent
air patterns
• Textured aluminum cabinet
• Coated coil for corrosive environments standard
in KMK/RAMK Series
• Sweat inlet connection to reduce leaks
(Flare connection available as a shipped-
loose option)
• UL-listed, UL-listed for Canada and meets
NSF standards
FAMILY
BB
Nomenclature Example:
* Model numbers are normally in stock.
* Model numbers are normally in stock
• Air enters bottom & discharges at the top front
• Adjustable air deector provides dierent
air patterns
• Molded Lexan® fan guards and fan blades
• Textured aluminum cabinet
• Rust-proof fasteners
• Master units include base unit plus factory
mounted R-22 expansion valve, solenoid valve &
room thermostat
• Slave units include base unit plus factory
mounted R-22 expansion valve
• Standard 115V. Optional 230V.
• Sweat inlet connection to reduce leaks
(Flare connection available as a shipped-
loose option)
• UL-listed, UL-listed for Canada and meets
NSF standards
6 February 1, 2008 Bohn Refrigeration Products List Prices FOR OPTIONS GO TO PAGE 27
Reach-in Evaporators (Refrigerated Cabinets)

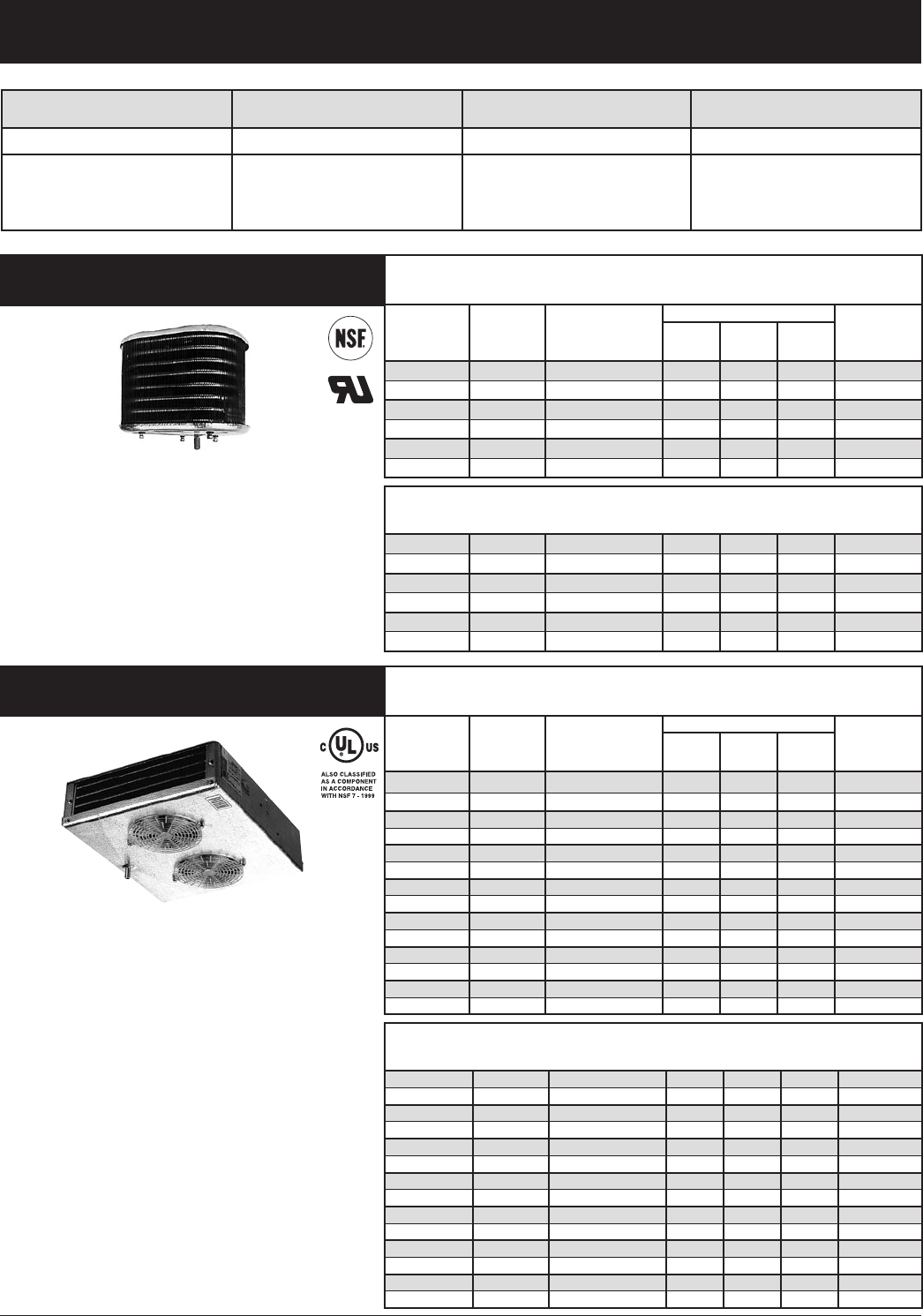

Dual-Air High & Medium Temperature Reach-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
U0090* 596 115/1/60 8.5 9 11.5 8
U0091 786 208-230/1/60 8.5 9 11.5 8
U0120* 678 115/1/60 8.5 9 17.5 10
U0121 849 208-230/1/60 8.5 9 17.5 10
U0150* 760 115/1/60 9.5 11 17.5 12
U0151 940 208-230/1/60 9.5 11 17.5 12
Dual-Air High & Medium Temperature Reach-in Unit Coolers
with Air Defrost, (K) for Coated Coil
UK0090* 683 115/1/60 8.5 9 11.5 8
UK0091 892 208-230/1/60 8.5 9 11.5 8
UK0120* 771 115/1/60 8.5 9 17.5 10
UK0121 984 208-230/1/60 8.5 9 17.5 10
UK0150* 867 115/1/60 9.5 11 17.5 12
UK0151 1064 208-230/1/60 9.5 11 17.5 12
Twin Flow High & Medium Temperature Reach-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BTO09AG* 604 115/1/60 5.00 16.25 19.25 12
BTO09BG 646 208-230/1/60 5.00 16.25 19.25 12
BTO13AG* 796 115/1/60 5.75 16.25 19.25 15
BTO13BG 851 208-230/1/60 5.75 16.25 19.25 15
BTO18AG* 925 115/1/60 5.75 16.25 19.25 16
BTO18BG 988 208-230/1/60 5.75 16.25 19.25 16
BTO25AG* 1,137 115/1/60 6.75 18.25 26.25 23
BTO25BG 1,211 208-230/1/60 6.75 18.25 26.25 23
BTO35AG* 1,473 115/1/60 6.75 18.25 26.25 25
BTO35BG 1,574 208-230/1/60 6.75 18.25 26.25 25
BTO45AG* 1,866 115/1/60 9.25 21.25 29.25 35
BTO45BG 1,997 208-230/1/60 9.25 21.25 29.25 35
BTO55AG* 2,370 115/1/60 8.50 21.25 29.25 35
BTO55BG 2,537 208-230/1/60 8.50 21.25 29.25 35
Twin Flow High & Medium Temperature Reach-in Unit Coolers
with Air Defrost, (K) for Coated Coil
BTOK09AG 714 115/1/60 5.00 16.25 19.25 12
BTOK09BG 768 208-230/1/60 5.00 16.25 19.25 12
BTOK13AG* 858 115/1/60 5.75 16.25 19.25 15
BTOK13BG 917 208-230/1/60 5.75 16.25 19.25 15
BTOK18AG* 1,086 115/1/60 5.75 16.25 19.25 16
BTOK18BG 1,163 208-230/1/60 5.75 16.25 19.25 16
BTOK25AG* 1,338 115/1/60 6.75 18.25 26.25 23
BTOK25BG 1,429 208-230/1/60 6.75 18.25 26.25 23
BTOK35AG* 1,737 115/1/60 6.75 18.25 26.25 25
BTOK35BG 1,858 208-230/1/60 6.75 18.25 26.25 25
BTOK45AG* 2,174 115/1/60 9.25 21.25 29.25 35
BTOK45BG 2,325 208-230/1/60 9.25 21.25 29.25 35
BTOK55AG 2,700 115/1/60 8.50 21.25 29.25 35
BTOK55BG 2,890 208-230/1/60 8.50 21.25 29.25 35
BTO 09 A G
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
0 = 115/1/60
1 = 208-230/1/60
U(K) = No Vintage
For U(K) {
FAMILY
BTO(K)
• Flush mount to ceiling
• Air is drawn in through the fan and
discharged out both sides of unit
• Textured aluminum cabinet
• Molded Lexan® fan guards
• Sweat inlet connection to reduce leaks
(Flare connection available as a shipped-
loose option)
• UL-listed, UL-listed for Canada and meets
NSF standards
Nomenclature Example:
FAMILY
U(K)
• Draws air in through the front and discharges it
out both sides to ensure proper distribution
• Textured aluminum cabinet
• Flare connection
• UL recognized, UL recognized for Canada and
NSF listed
* Model numbers are normally in stock.
* Model numbers are normally in stock.
February 1, 2008 Bohn Refrigeration Products List Prices 7

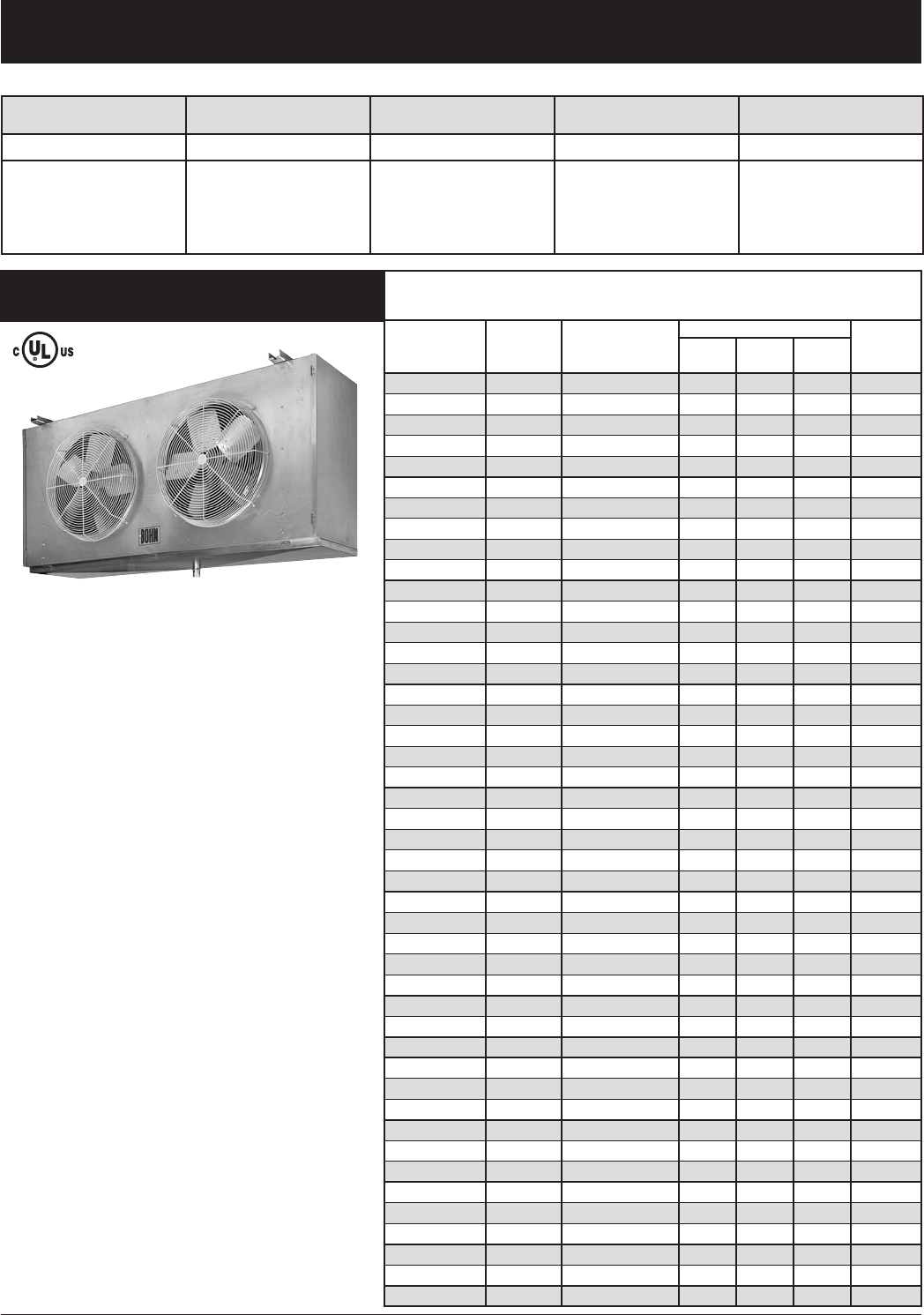

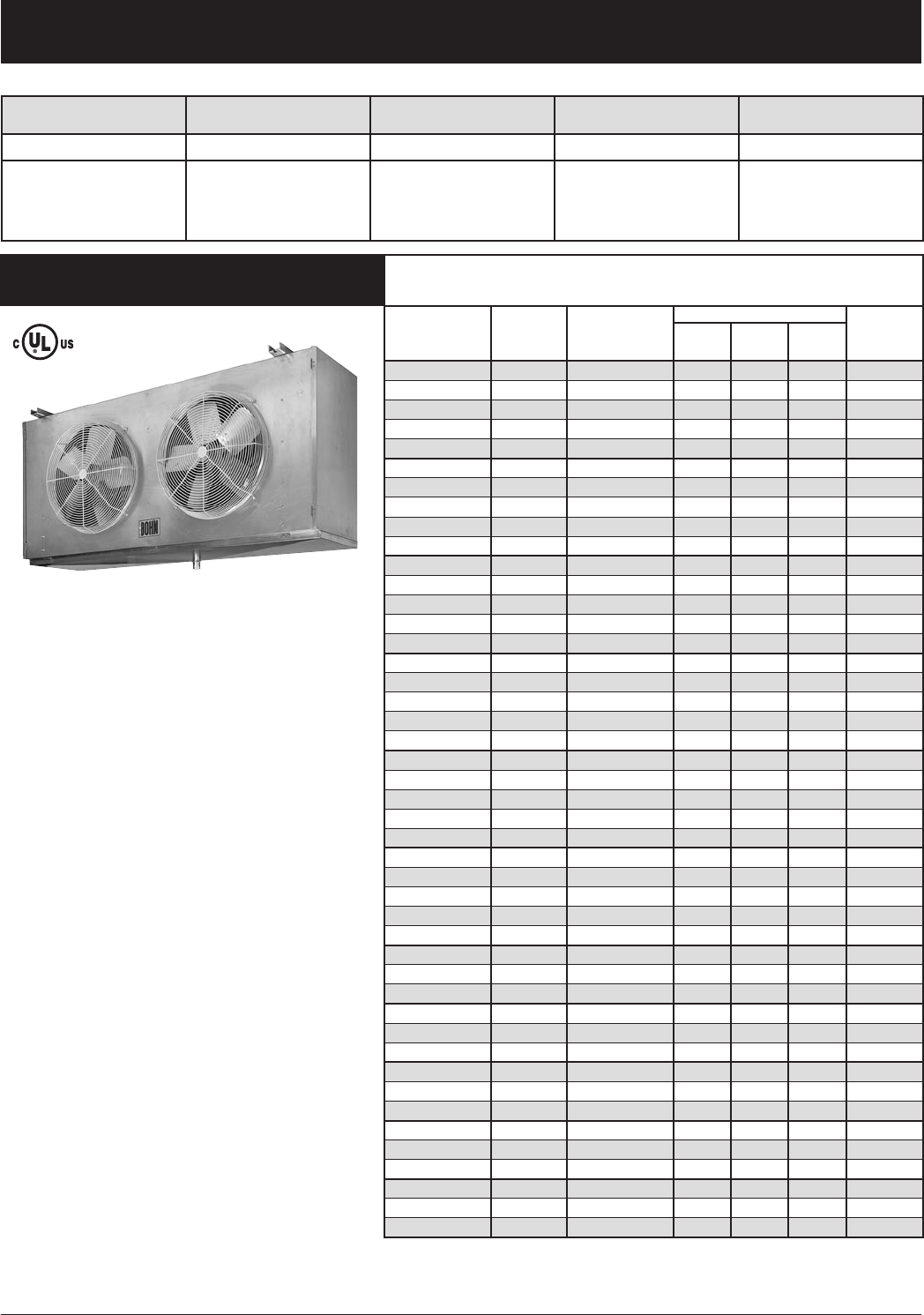

Walk-in Evaporators – Low Proles (Coolers and Freezers)
FOR OPTIONS GO TO PAGE 25-31
FAMILY
ADT
Nomenclature Example:
ADT 040 A K
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
M = 460/1/60
High and/or Medium Temperature Low Prole Walk-in Unit Coolers
with Air Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
ADT040AK* 1,148 115/1/60 15 15 29.5 36
ADT040BK 1,240 208-230/1/60 15 15 29.5 36
ADT040MK 1,390 460/1/60 15 15 29.5 36
ADT052AK* 1,234 115/1/60 15 15 29.5 36
ADT052BK 1,253 208-230/1/60 15 15 29.5 36
ADT052MK 1,403 460/1/60 15 15 29.5 36
ADT065AK* 1,444 115/1/60 15 15 29.5 40
ADT065BK 1,555 208-230/1/60 15 15 29.5 40
ADT065MK 1,705 460/1/60 15 15 29.5 40
ADT070AK* 1,616 115/1/60 15 15 45.5 52
ADT070BK 1,744 208-230/1/60 15 15 45.5 52
ADT070MK 2,045 460/1/60 15 15 45.5 52
ADT090AK* 1,908 115/1/60 15 15 45.5 56
ADT090BK 1,938 208-230/1/60 15 15 45.5 56
ADT090MK 2,240 460/1/60 15 15 45.5 56
ADT104AK* 2,058 115/1/60 15 15 45.5 58
ADT104BK 2,090 208-230/1/60 15 15 45.5 58
ADT104MK 2,390 460/1/60 15 15 45.5 58
ADT120AK* 2,224 115/1/60 15 15 45.5 60
ADT120BK 2,255 208-230/1/60 15 15 45.5 60
ADT120MK 2,554 460/1/60 15 15 45.5 60
ADT130AK* 2,401 115/1/60 15 15 45.5 62
ADT130BK 2,435 208-230/1/60 15 15 45.5 62
ADT130MK 2,737 460/1/60 15 15 45.5 62
ADT140AK* 2,630 115/1/60 15 15 61.5 72
ADT140BK 2,667 208-230/1/60 15 15 61.5 72
ADT140MK 3,117 460/1/60 15 15 61.5 72
ADT156AK* 2,926 115/1/60 15 15 61.5 76
ADT156BK 2,973 208-230/1/60 15 15 61.5 76
ADT156MK 3,424 460/1/60 15 15 61.5 76
ADT180AK* 3,382 115/1/60 15 15 61.5 82
ADT180BK 3,428 208-230/1/60 15 15 61.5 82
ADT180MK 3,878 460/1/60 15 15 61.5 82
ADT208AK* 3,777 115/1/60 15 15 77.5 94
ADT208BK 4,077 208-230/1/60 15 15 77.5 94
ADT208MK 4,679 460/1/60 15 15 77.5 94
ADT260AK* 4,694 115/1/60 15 15 93.5 204
ADT260BK 5,069 208-230/1/60 15 15 93.5 204
ADT260MK 5,818 460/1/60 15 15 93.5 204
ADT312AK* 5,331 115/1/60 15 15 109.5 234
ADT312BK 5,756 208-230/1/60 15 15 109.5 234
ADT312MK 6,658 460/1/60 15 15 109.5 234
ADT370AK* 6,237 115/1/60 15 15 109.5 234
ADT370BK 6,628 208-230/1/60 15 15 109.5 234
ADT370MK 7,531 460/1/60 15 15 109.5 234
• Design features easy front access to both
electrical and refrigeration components
• Textured aluminum cabinets
• Design optimizes space for easier installation
and servicing
• Beacon II™ compatible
• Liquid-line solenoid wiring harness comes
standard on unit
• Drain pan features large drain line tting
(3/4" MPT) for better drainage, located on
back of the unit
• Schrader valve on suction header
• UL-listed, UL-listed for Canada, and meets
NSF standards
* Model numbers are normally in stock.
For ordering information see page 25.
8 February 1, 2008 Bohn Refrigeration Products List Prices
Nomenclature Example:
FAMILY LET/LLE
LET 040 B K
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
B = 208-230/1/60
C = 208-230/3/60
M = 460/1/60

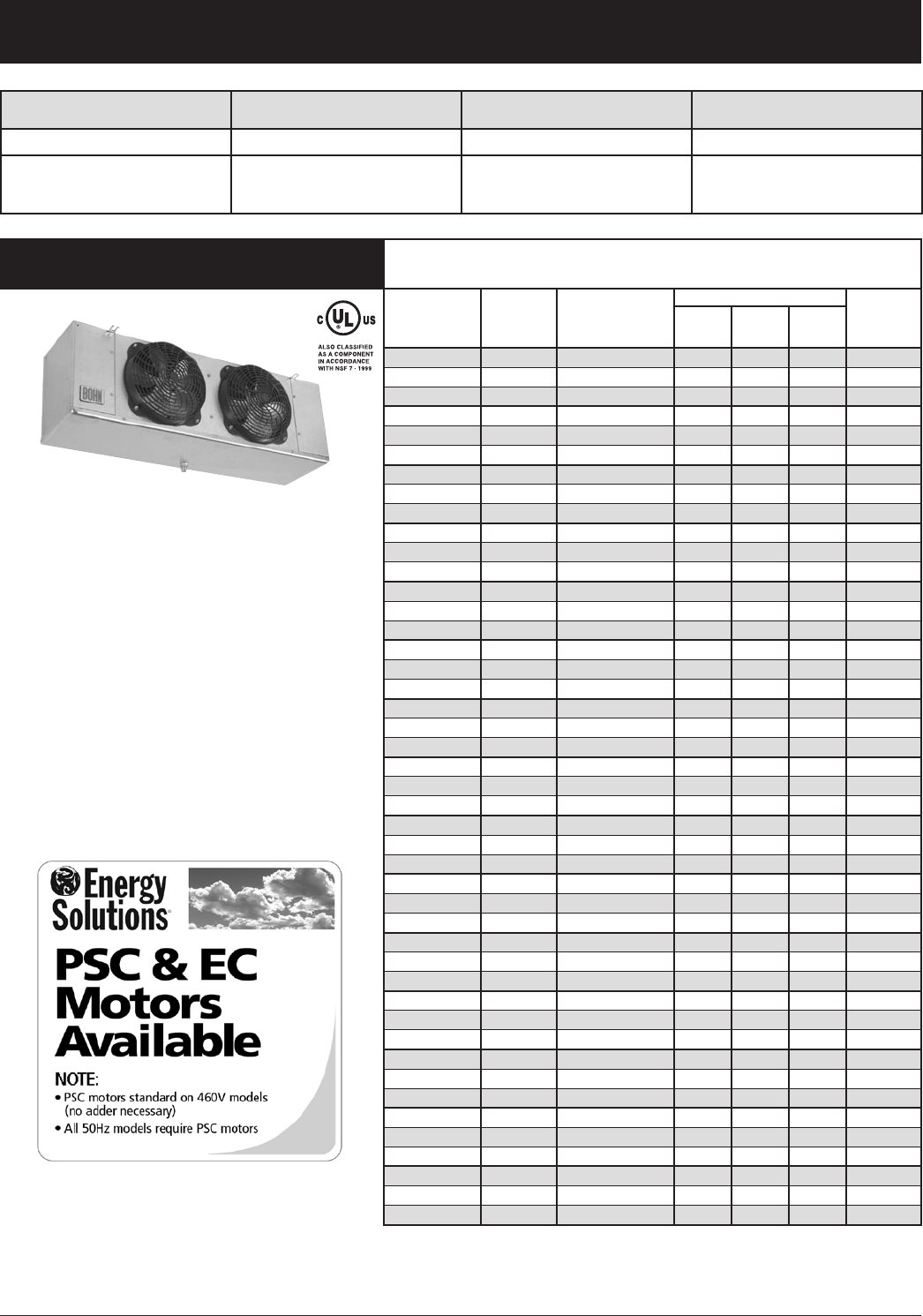

Walk-in Evaporators – Low Proles (Coolers and Freezers)
Low or Medium Temperature Low Prole Walk-in Evaporator
with Electric Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
LET035BK 1,788 208-230/1/60 15 15 29.5 40
LET035CK 1,887 208-230/3/60 15 15 29.5 40
LET035MK 2,036 460/1/60 15 15 29.5 40
LET040BK*1,891 208-230/1/60 15 15 29.5 40
LET040CK 1,955 208-230/3/60 15 15 29.5 40
LET040MK 2,105 460/1/60 15 15 29.5 40
LET047BK*2,129 208-230/1/60 15 15 29.5 42
LET047CK 2,268 208-230/3/60 15 15 29.5 42
LET047MK 2,418 460/1/60 15 15 29.5 42
LET065BK*2,540 208-230/1/60 15 15 45.5 58
LET065CK 2,777 208-230/3/60 15 15 45.5 58
LET065MK 3,076 460/1/60 15 15 45.5 58
LET075BK*2,667 208-230/1/60 15 15 45.5 64
LET075CK 2,856 208-230/3/60 15 15 45.5 64
LET075MK 3,157 460/1/60 15 15 45.5 64
LET090BK*2,867 208-230/1/60 15 15 45.5 64
LET090CK 3,104 208-230/3/60 15 15 45.5 64
LET090MK 3,406 460/1/60 15 15 45.5 64
LET120BK*3,585 208-230/1/60 15 15 61.5 80
LET120CK 3,821 208-230/3/60 15 15 61.5 80
LET120MK 4,271 460/1/60 15 15 61.5 80
LET140BK*4,189 208-230/1/60 15 15 61.5 84
LET140CK 4,443 208-230/3/60 15 15 61.5 84
LET140MK 4,895 460/1/60 15 15 61.5 84
LET160BK*4,777 208-230/1/60 15 15 77.5 104
LET160CK 5,012 208-230/3/60 15 15 77.5 104
LET160MK 5,614 460/1/60 15 15 77.5 104
LET180BK*5,407 208-230/1/60 15 15 77.5 108
LET180CK 5,714 208-230/3/60 15 15 77.5 108
LET180MK 6,314 460/1/60 15 15 77.5 108
LET200BK*6,087 208-230/1/60 15 15 93.5 204
LET200CK*6,324 208-230/3/60 15 15 93.5 204
LET200MK 7,075 460/1/60 15 15 93.5 204
LET240BK*6,865 208-230/1/60 15 15 109.5 234
LET240CK*7,103 208-230/3/60 15 15 109.5 234
LET240MK 8,005 460/1/60 15 15 109.5 234
LET280BK*7,921 208-230/1/60 15 15 109.5 234
LET280CK 8,283 208-230/3/60 15 15 109.5 234
LET280MK 9,183 460/1/60 15 15 109.5 234
Low or Medium Temperature Low Prole Walk-in Evaporator
with Electric Defrost (4 FPI)
LLE041BK 1,717 208-230/1/60 15 15 29.5 42
LLE041CK 1,821 208-230/3/60 15 15 29.5 42
LLE041MK 1,970 460/1/60 15 15 29.5 42
LLE068BK 2,798 208-230/1/60 15 15 45.5 64
LLE068CK 2,936 208-230/3/60 15 15 45.5 64
LLE068MK 3,086 460/1/60 15 15 45.5 64
LLE080BK 3,046 208-230/1/60 15 15 45.5 64
LLE080CK 3,148 208-230/3/60 15 15 45.5 64
LLE080MK 3,298 460/1/60 15 15 45.5 64
LLE102BK*3,546 208-230/1/60 15 15 61.5 80
LLE102CK 3,782 208-230/3/60 15 15 61.5 80
LLE102MK 4,235 460/1/60 15 15 61.5 80
LLE136BK*4,681 208-230/1/60 15 15 77.5 104
LLE136CK 4,922 208-230/3/60 15 15 77.5 104
LLE136MK 5,521 460/1/60 15 15 77.5 104
LLE170BK 5,931 208-230/1/60 15 15 93.5 204
LLE170CK 6,167 208-230/3/60 15 15 93.5 204
LLE170MK 6,920 460/1/60 15 15 93.5 204
LLE204BK 6,694 208-230/1/60 15 15 109.5 234
LLE204CK 6,944 208-230/3/60 15 15 109.5 234
LLE204MK 7,847 460/1/60 15 15 109.5 234
LLE235BK 7,756 208-230/1/60 15 15 109.5 234
LLE235CK 8,055 208-230/3/60 15 15 109.5 234
LLE235MK 8,958 460/1/60 15 15 109.5 234
For ordering information see page 25.
FOR OPTIONS GO TO PAGE 25-31
• Design features easy front access to both
electrical and refrigeration components
• Textured aluminum cabinets
• Design optimizes space for easier installation
and servicing
• Beacon II™ compatible
• Liquid-line solenoid wire harness comes
standard on unit
• Drain pan design features large drain line
tting (3/4" MPT) for better drainage, located
on back of the unit
• Schrader valve on suction header
•
Fixed defrost termination/fan delay switch
and heater limit switch
• UL-listed, UL-listed for Canada, and meets
NSF standards
* Model numbers are normally in stock.
February 1, 2008 Bohn Refrigeration Products List Prices 9
Walk-in Evaporators – Low Proles (Coolers and Freezers)
Nomenclature Example:
FAMILY HGT
• Design features easy front access to both
electrical and refrigeration components
• Textured aluminum cabinets
• Design optimizes space for easier installation
and servicing
• Liquid-line solenoid wire harness comes
standard on unit
• Drain pan design features large drain line
tting (3/4" MPT) for better drainage, located
on back of the unit
• Schrader valve on suction header
• Adjustable defrost termination/fan delay
• For mounted and shipped-loose hot gas kits,
see hot gas options
• Insulated drain pan is required for hot
gas pans operating at zero degree (0°F)
and below
• UL-listed, UL-listed for Canada, and meets
NSF standards
HGT 065 A K
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
M = 460/1/60
Low or Medium Temperature Low Prole Walk-in Evaporator
with Hot Gas Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
HGT035AK 1,722 115/1/60 15 15 29.5 40
HGT035BK 1,768 208-230/1/60 15 15 29.5 40
HGT035MK 1,921 460/1/60 15 15 29.5 40
HGT040AK 1,865 115/1/60 15 15 29.5 40
HGT040BK 1,918 208-230/1/60 15 15 29.5 40
HGT040MK 2,069 460/1/60 15 15 29.5 40
HGT047AK 2,162 115/1/60 15 15 29.5 42
HGT047BK 2,222 208-230/1/60 15 15 29.5 42
HGT047MK 2,376 460/1/60 15 15 29.5 42
HGT065AK 2,432 115/1/60 15 15 45.5 58
HGT065BK 2,626 208-230/1/60 15 15 45.5 58
HGT065MK 2,933 460/1/60 15 15 45.5 58
HGT075AK 2,720 115/1/60 15 15 45.5 64
HGT075BK 2,914 208-230/1/60 15 15 45.5 64
HGT075MK 3,220 460/1/60 15 15 45.5 64
HGT090AK 3,031 115/1/60 15 15 45.5 64
HGT090BK 3,272 208-230/1/60 15 15 45.5 64
HGT090MK 3,580 460/1/60 15 15 45.5 64
HGT120AK 3,509 115/1/60 15 15 61.5 80
HGT120BK 3,788 208-230/1/60 15 15 61.5 80
HGT120MK 4,246 460/1/60 15 15 61.5 80
HGT140AK 4,232 115/1/60 15 15 61.5 84
HGT140BK 4,415 115/1/60 15 15 61.5 84
HGT140MK 4,874 460/1/60 15 15 61.5 84
HGT160AK 4,507 115/1/60 15 15 77.5 104
HGT160BK 4,868 208-230/1/60 15 15 77.5 104
HGT160MK 5,484 460/1/60 15 15 77.5 104
HGT180AK 5,203 115/1/60 15 15 77.5 108
HGT180BK 5,678 208-230/1/60 15 15 77.5 108
HGT180MK 6,290 460/1/60 15 15 77.5 108
HGT200AK 5,375 115/1/60 15 15 93.5 204
HGT200BK 5,804 208-230/1/60 15 15 93.5 204
HGT200MK 6,570 460/1/60 15 15 93.5 204
HGT240AK 6,348 115/1/60 15 15 109.5 234
HGT240BK 6,952 208-230/1/60 15 15 109.5 234
HGT240MK 7,875 460/1/60 15 15 109.5 234
HGT280AK 7,396 115/1/60 15 15 109.5 234
HGT280BK 8,120 208-230/1/60 15 15 109.5 234
HGT280MK 9,043 460/1/60 15 15 109.5 234
Low or Medium Temperature Low Prole Walk-in Evaporator
with Hot Gas Defrost (4 FPI)
HGT041AK 1,806 115/1/60 15 15 29.5 42
HGT041BK 1,858 208-230/1/60 15 15 29.5 42
HGT041MK 1,976 460/1/60 15 15 29.5 42
HGT068AK 2,905 115/1/60 15 15 45.5 64
HGT068BK 2,994 208-230/1/60 15 15 45.5 64
HGT068MK 3,224 460/1/60 15 15 45.5 64
HGT080AK 3,108 115/1/60 15 15 45.5 64
HGT080BK 3,213 208-230/1/60 15 15 45.5 64
HGT080MK 3,441 460/1/60 15 15 45.5 64
HGT102AK 3,430 115/1/60 15 15 61.5 80
HGT102BK 3,706 208-230/1/60 15 15 61.5 80
HGT102MK 4,052 460/1/60 15 15 61.5 80
HGT136AK 4,454 115/1/60 15 15 77.5 104
HGT136BK 4,807 208-230/1/60 15 15 77.5 104
HGT136MK 5,263 460/1/60 15 15 77.5 104
HGT170AK 5,488 115/1/60 15 15 93.5 204
HGT170BK 5,922 208-230/1/60 15 15 93.5 204
HGT170MK 6,495 460/1/60 15 15 93.5 204
HGT204AK 6,382 115/1/60 15 15 109.5 234
HGT204BK 6,889 115/1/60 15 15 109.5 234
HGT204MK 7,575 460/1/60 15 15 109.5 234
HGT235AK 7,413 115/1/60 15 15 109.5 234
HGT235BK 8,030 208-230/1/60 15 15 109.5 234
HGT235MK 8,716 460/1/60 15 15 109.5 234
FOR OPTIONS GO TO PAGE 25-31
For ordering information see page 25
10 February 1, 2008 Bohn Refrigeration Products List Prices

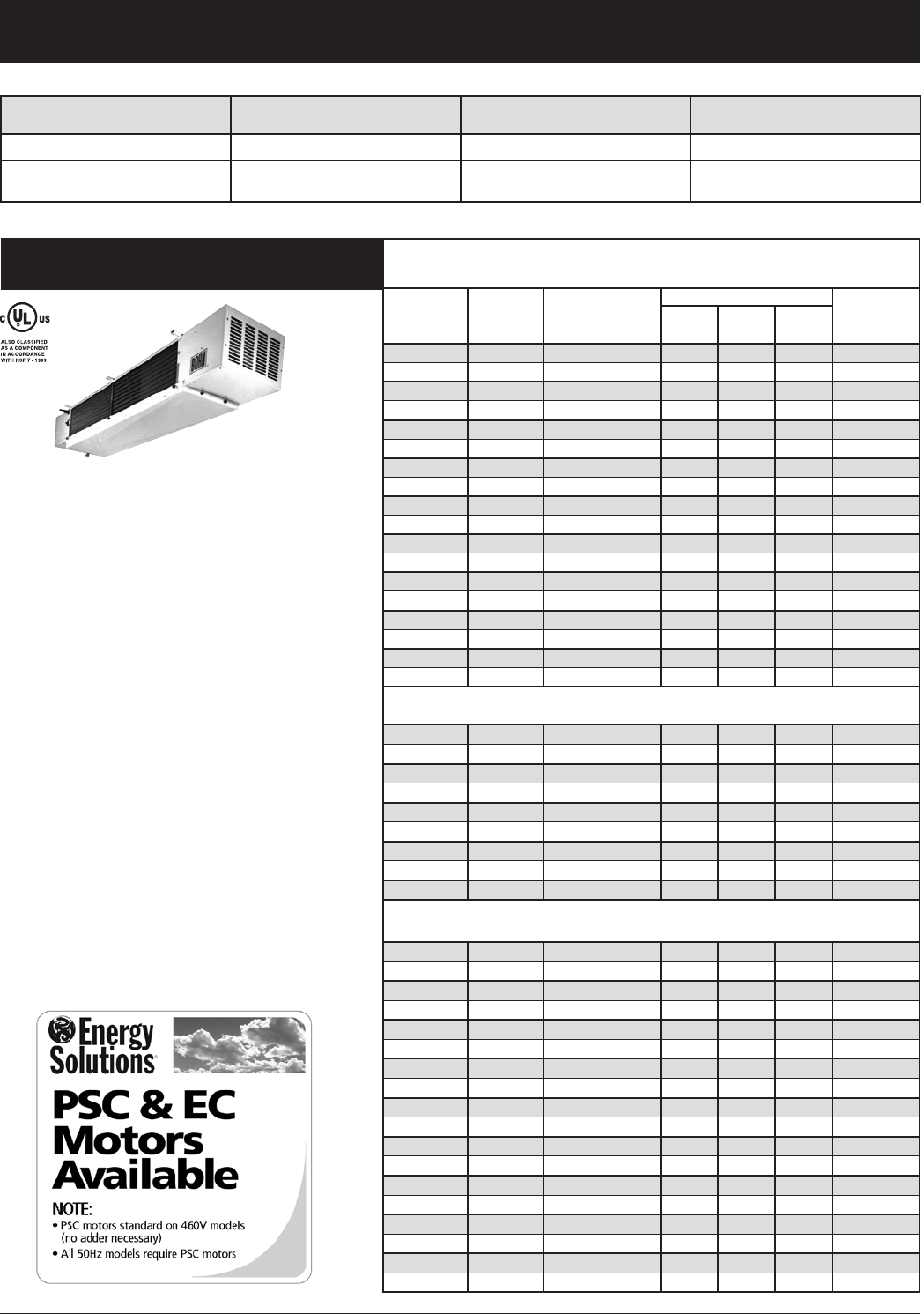

Walk-in Evaporators – Low Velocity (Coolers)
FAMILY
LO/LOD/LOG
• Smooth prepainted white aluminum cabinet
• Ceiling-mount with low air velocity fans on
each end
• Air ows from coil on each side for comfort
• Thermal overload protected motors are
resiliently mounted inside the unit to assure
minimum noise level
• TXV drip pan supplied for NSF requirements
• Optional PSC motors for high eciency
on models 070 through 170. PSC motors
standard on models above 170
• UL-listed, UL-listed for Canada and meets
NSF standards
LOD Units:
• Easy access coil defrost heaters mount on
bottom of coil
• LOD and LOG models come with xed and
mounted defrost termination control
LOG Units:
• See hot gas options for shipped-loose hot
gas kits
• Electric drain pan only
Nomenclature Example:
High or Medium Temperature Low Velocity Walk-in Unit Coolers
with Air Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
LO070AE 3,895 115/1/60 14.0 23.25 83 230
LO070BE 4,053 208-230/1/60 14.0 23.25 83 230
LO087AE 4,127 115/1/60 14.0 23.25 83 230
LO087BE 4,280 208-230/1/60 14.0 23.25 83 230
LO118AE 5,044 115/1/60 14.5 23.25 111 310
LO118BE 5,198 208-230/1/60 14.5 23.25 111 310
LO125AE 5,416 115/1/60 14.5 23.25 111 310
LO125BE 5,572 208-230/1/60 14.5 23.25 111 310
LO150AE 5,783 115/1/60 16.0 23.25 114 315
LO150BE 5,944 208-230/1/60 16.0 23.25 114 315
LO165AE 6,486 115/1/60 16.0 23.25 114 315
LO165BE 6,642 208-230/1/60 16.0 23.25 114 315
LO189AE 7,192 115/1/60 16.5 23.25 134 380
LO189BE 7,342 208-230/1/60 16.5 23.25 134 380
LO225AE 7,864 115/1/60 16.5 23.25 153 430
LO225BE 8,019 208-230/1/60 16.5 23.25 153 430
LO266AE 8,543 115/1/60 20.0 28.25 158 490
LO266BE 8,696 208-230/1/60 20.0 28.25 158 490
28°-34° F Medium Temperature Low Velocity Walk-in Unit Coolers
with Electric Defrost
LOD070BE 4,343 208-230/1/60 14.0 23.25 83 250
LOD087BE 4,933 208-230/1/60 14.0 23.25 83 260
LOD118BE 6,318 208-230/1/60 14.5 23.25 111 290
LOD125BE 6,514 208-230/1/60 14.5 23.25 111 310
LOD150BE 6,685 208-230/1/60 16.0 23.25 114 320
LOD165BE 7,879 208-230/1/60 16.0 23.25 114 330
LOD189BE 8,289 208-230/1/60 16.5 23.25 134 400
LOD225BE 9,322 208-230/1/60 16.5 23.25 153 450
LOD266BE 9,859 208-230/1/60 20.0 28.25 158 480
28°-34° F Medium Temperature Low Velocity Walk-in Unit Coolers
with Hot Gas Defrost
LOG070AE 4,254 115/1/60 14.0 23.25 83 250
LOG070BE 4,409 208-230/1/60 14.0 23.25 83 250
LOG087AE 4,840 115/1/60 14.0 23.25 83 260
LOG087BE 4,994 208-230/1/60 14.0 23.25 83 260
LOG118AE 6,224 115/1/60 14.5 23.25 111 290
LOG118BE 6,377 208-230/1/60 14.5 23.25 111 290
LOG125AE 6,419 115/1/60 14.5 23.25 111 318
LOG125BE 6,573 208-230/1/60 14.5 23.25 111 318
LOG150AE 6,596 115/1/60 16.0 23.25 114 320
LOG150BE 6,749 208-230/1/60 16.0 23.25 114 320
LOG165AE 7,781 115/1/60 16.0 23.25 114 330
LOG165BE 7,942 208-230/1/60 16.0 23.25 114 330
LOG189AE 8,195 115/1/60 16.5 23.25 134 400
LOG189BE 8,350 208-230/1/60 16.5 23.25 134 400
LOG225AE 9,228 115/1/60 16.5 23.25 153 450
LOG225BE 9,385 208-230/1/60 16.5 23.25 153 450
LOG266AE 9,764 115/1/60 20.0 28.25 158 480
LOG266BE 9,922 208-230/1/60 20.0 28.25 158 480
LO 070 A E
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
For ordering information see page 25.
FOR OPTIONS GO TO PAGE 25-31
February 1, 2008 Bohn Refrigeration Products List Prices 11

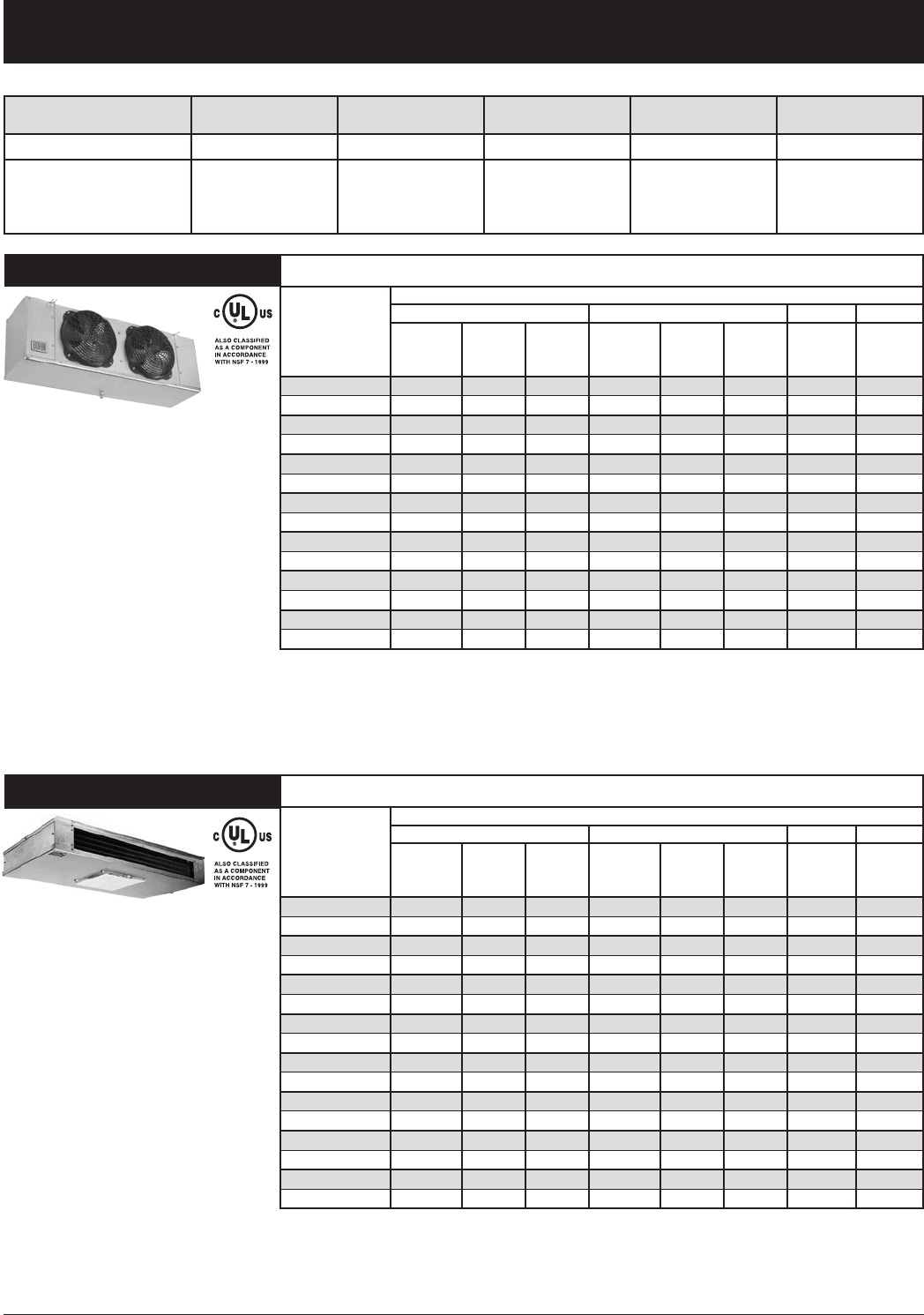

Walk-in Evaporators – Low Velocity Center Mounts (Coolers)
FAMILY
WK/WKE/WKG
Nomenclature Example:
High or Medium Temperature Low Velocity Walk-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
WK050AC* 2,894 115/1/60 9 29 54 144
WK050BC 3,064 208-230/1/60 9 29 54 144
WK075AC* 3,403 115/1/60 9 29 75 182
WK075BC 3,605 208-230/1/60 9 29 75 182
WK100AC* 3,921 115/1/60 11 29 75 208
WK100BC 4,155 208-230/1/60 11 29 75 208
WK130AC* 4,678 115/1/60 15 29 75 234
WK130BC 4,961 208-230/1/60 15 29 75 234
WK155AC* 5,302 115/1/60 15 29 75 246
WK155BC 5,619 208-230/1/60 15 29 75 246
WK180AC* 6,319 115/1/60 15 29 75 246
WK180BC 6,697 208-230/1/60 15 29 76 246
WK210AC* 6,966 115/1/60 15 29 98 306
WK210BC 7,387 208-230/1/60 15 29 98 306
WK270AC* 7,752 115/1/60 15 29 98 321
WK270BC 8,216 208-230/1/60 15 29 98 321
WK340AC* 9,984 115/1/60 15 29 120 377
WK340BC 10,581 208-230/1/60 15 29 120 377
24°-34° F Medium Temperature Low Velocity Walk-in Unit Coolers
with Electric Defrost
WKE050BC 3,438 208-230/1/60 9 29 54 148
WKE075BC 4,042 208-230/1/60 9 29 76 182
WKE100BC 4,666 208-230/1/60 11 29 76 216
WKE130BC 5,565 208-230/1/60 15 29 76 247
WKE155BC 6,310 208-230/1/60 15 29 76 243
WKE180BC 7,516 208-230/1/60 15 29 76 255
WKE210BC 8,290 208-230/1/60 15 29 98 310
WKE270BC 9,222 208-230/1/60 15 29 98 316
WKE340BC 11,881 208-230/1/60 15 29 120 394
24°-34° F Medium Temperature Low Velocity Walk-in Unit Coolers
with Hot Gas Defrost
WKG100AC 4,174 115/1/60 11 29 76 214
WKG100BC 4,425 208-230/1/60 11 29 76 214
WKG130AC 5,426 115/1/60 15 29 76 240
WKG130BC 5,751 208-230/1/60 15 29 76 240
WKG155AC 6,150 115/1/60 15 29 76 255
WKG155BC 6,520 208-230/1/60 15 29 76 255
WKG180AC 7,328 115/1/60 15 29 76 258
WKG180BC 7,768 208-230/1/60 15 29 76 258
WKG210AC 8,085 115/1/60 15 29 98 315
WKG210BC 8,564 208-230/1/60 15 29 98 315
WKG270AC 8,991 115/1/60 15 29 98 335
WKG270BC 9,531 208-230/1/60 15 29 98 335
WKG340AC 11,582 115/1/60 15 29 120 390
WKG340BC 12,275 208-230/1/60 15 29 120 390
WK 050 A C
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
For ordering information see page 25.
FOR OPTIONS GO TO PAGE 25-31
• Unit designed to be mounted ush to the
ceiling or suspended by rods
• Air is pulled through the bottom and blows
out through the coil sides
• Textured aluminum cabinet
• Beacon II™ compatible on WK and WKE
• UL-listed, UL-listed for Canada and meets
NSF standards
WK & WKG Units:
• Double drain pan eliminates drain
pan sweating
WKE Units:
• Fixed defrost termination switch standard
WKG Units:
• Hot gas defrost coils come with a shipped-
loose adjustable fan delay and defrost
termination control
• Electric drain pan only
• Hot gas kits available
* Model numbers are normally in stock.
12 February 1, 2008 Bohn Refrigeration Products List Prices
FAMILY
SM/SME
FAMILY
HR
Nomenclature Example:
High or Medium Temperature Dual Flow Walk-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
SM052AE* 1,843 115/1/60 8.75 29 31.5 120
SM052BE 1,990 208-230/1/60 8.75 29 31.5 120
SM076AE* 2,247 115/1/60 8.75 29 53.5 142
SM076BE 2,424 208-230/1/60 8.75 29 53.5 142
SM090AE* 2,536 115/1/60 8.75 29 53.5 144
SM090BE 2,712 208-230/1/60 8.75 29 53.5 144
SM102AE* 2,809 115/1/60 8.75 29 53.5 146
SM102BE 2,987 208-230/1/60 8.75 29 53.5 146
SM108AE* 2,923 115/1/60 8.75 29 75.5 155
SM108BE 3,139 208-230/1/60 8.75 29 75.5 155
SM134AE* 3,379 115/1/60 8.75 29 75.5 168
SM134BE 3,586 208-230/1/60 8.75 29 75.5 168
SM156AE* 3,803 115/1/60 8.75 29 75.5 171
SM156BE 4,011 208-230/1/60 8.75 29 75.5 171
SM179AE* 4,197 115/1/60 8.75 29 97.5 230
SM179BE 4,438 208-230/1/60 8.75 29 97.5 230
SM208AE* 4,712 115/1/60 8.75 29 97.5 223
SM208BE 4,960 208-230/1/60 8.75 29 97.5 223
SM249AE* 5,734 115/1/60 8.75 29 119.5 290
SM249BE 6,006 208-230/1/60 8.75 29 119.5 290
Medium or Low Temperature Dual Flow Walk-in Unit Coolers
with Electric Defrost
SME040BE* 2,522 208-230/1/60 8.75 29 31.5 116
SME054BE* 3,189 208-230/1/60 8.75 29 53.5 144
SME065BE* 3,323 208-230/1/60 8.75 29 53.5 156
SME090BE* 4,022 208-230/1/60 8.75 29 75.5 190
SME130BE* 4,494 208-230/1/60 8.75 29 75.5 198
SME174BE* 5,790 208-230/1/60 8.75 29 97.5 249
SM 052 A E
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
0 = 115/1/60
1 = 208-230/1/60
HR = No Vintage
For HR {

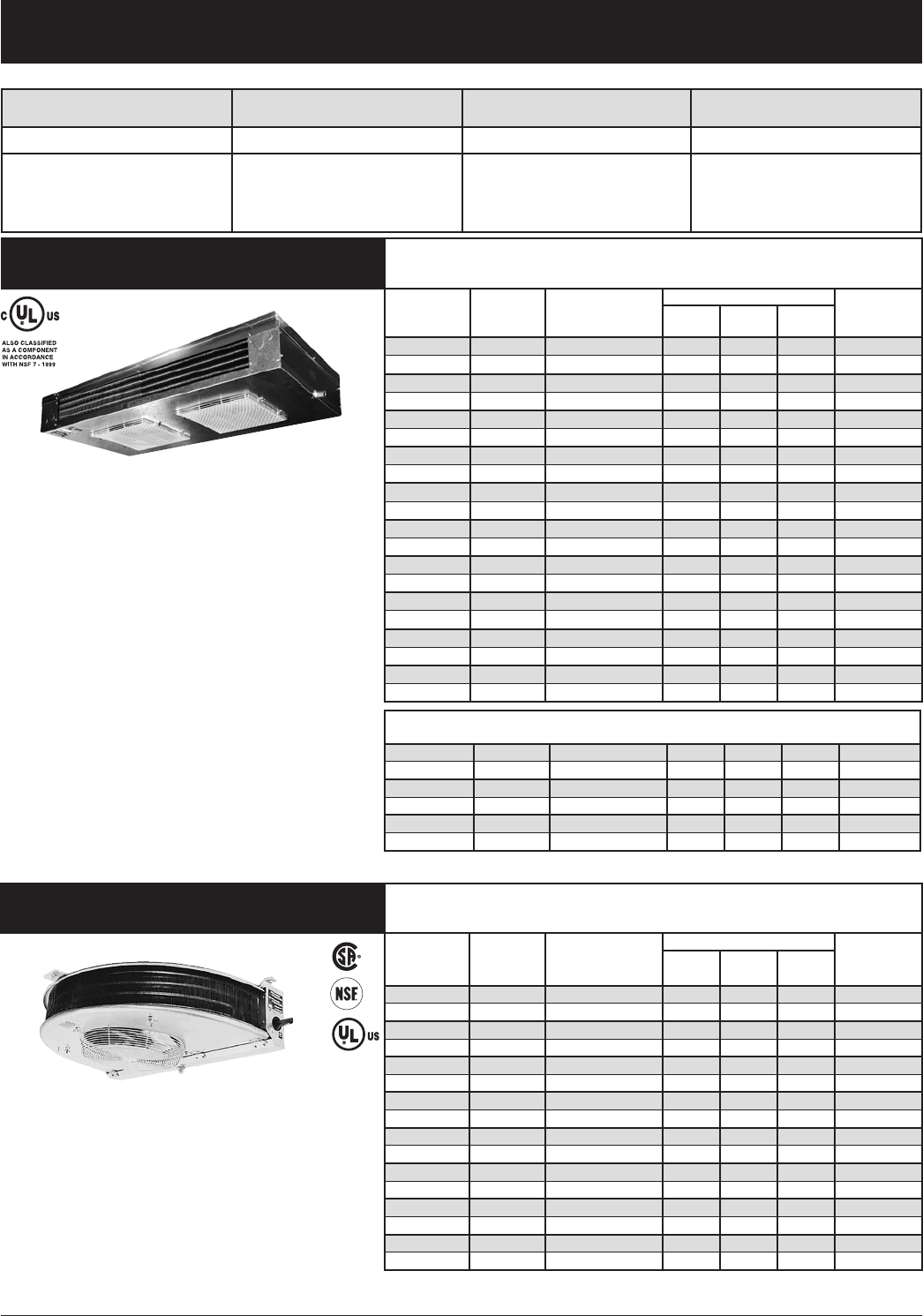

Walk-in Evaporators – Dual Flow Center Mounts (Coolers and Freezers)
Half-Round Radial Aire Walk-in Unit Coolers
with Air Defrost
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
HR0350* 2,313 115/1/60 6.75 23.25 35 58
HR0351 2,499 208-230/1/60 6.75 23.25 35 58
HR0430* 2,736 115/1/60 6.75 25.25 39 66
HR0431 2,954 208-230/1/60 6.75 25.25 39 66
HR0540* 2,886 115/1/60 8.25 25.25 39 72
HR0541 3,113 208-230/1/60 8.25 25.25 39 72
HR0690* 3,143 115/1/60 8.25 29.25 47 84
HR0691 3,388 208-230/1/60 8.25 29.25 47 84
HR0870* 3,943 115/1/60 9.75 29.25 47 90
HR0871 4,257 208-230/1/60 9.75 29.25 47 90
HR1080* 4,321 115/1/60 12.75 29.25 47 104
HR1081 4,665 208-230/1/60 12.75 29.25 47 104
HR1490* 5,495 115/1/60 12.75 30.75 50 122
HR1491 5,869 208-230/1/60 12.75 30.75 50 122
HR1800* 6,593 115/1/60 15.75 33.75 50 148
HR1801 6,974 208-230/1/60 15.75 33.75 50 148
* Model numbers are normally in stock.
FOR OPTIONS GO TO PAGE 25-31
• Flush mount design
• Air is pulled through the bottom and blows
out through the coil sides
• Textured aluminum cabinet
• PVC coated steel wire fan guards
• Hinged outer drain pan eliminates drain
pan sweating
• Access panels at each end
• Beacon II™ compatible
• PSC motors available
• All 50 Hz must use PSC motors
• UL-listed, UL-listed for Canada and meets
NSF standards
SME Units:
• Adjustable defrost termination with fan
delay control and heater limit switch
• Unit design allows ush mounting
• Air enters through the bottom and blows out
radially in a full 180 degree arc
• Textured aluminum cabinet
• PVC coated steel wire fan guards
• Fan panel is hinged to stationary drain pan
• TXV (not included) mounts inside cabinet
and requires are nut connection
• UL-listed, CSA certied and NSF approved * Model numbers are normally in stock.
February 1, 2008 Bohn Refrigeration Products List Prices 13

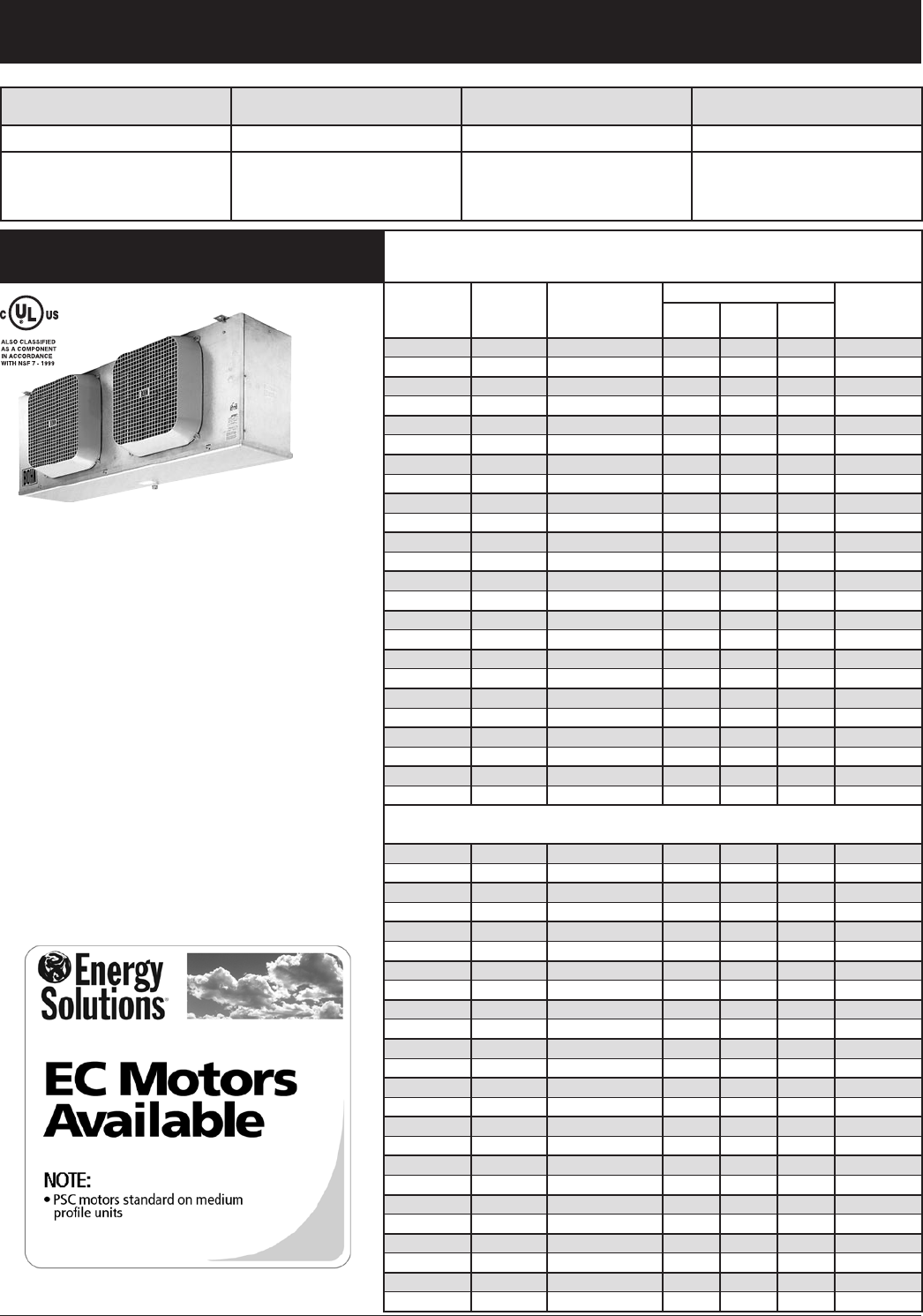

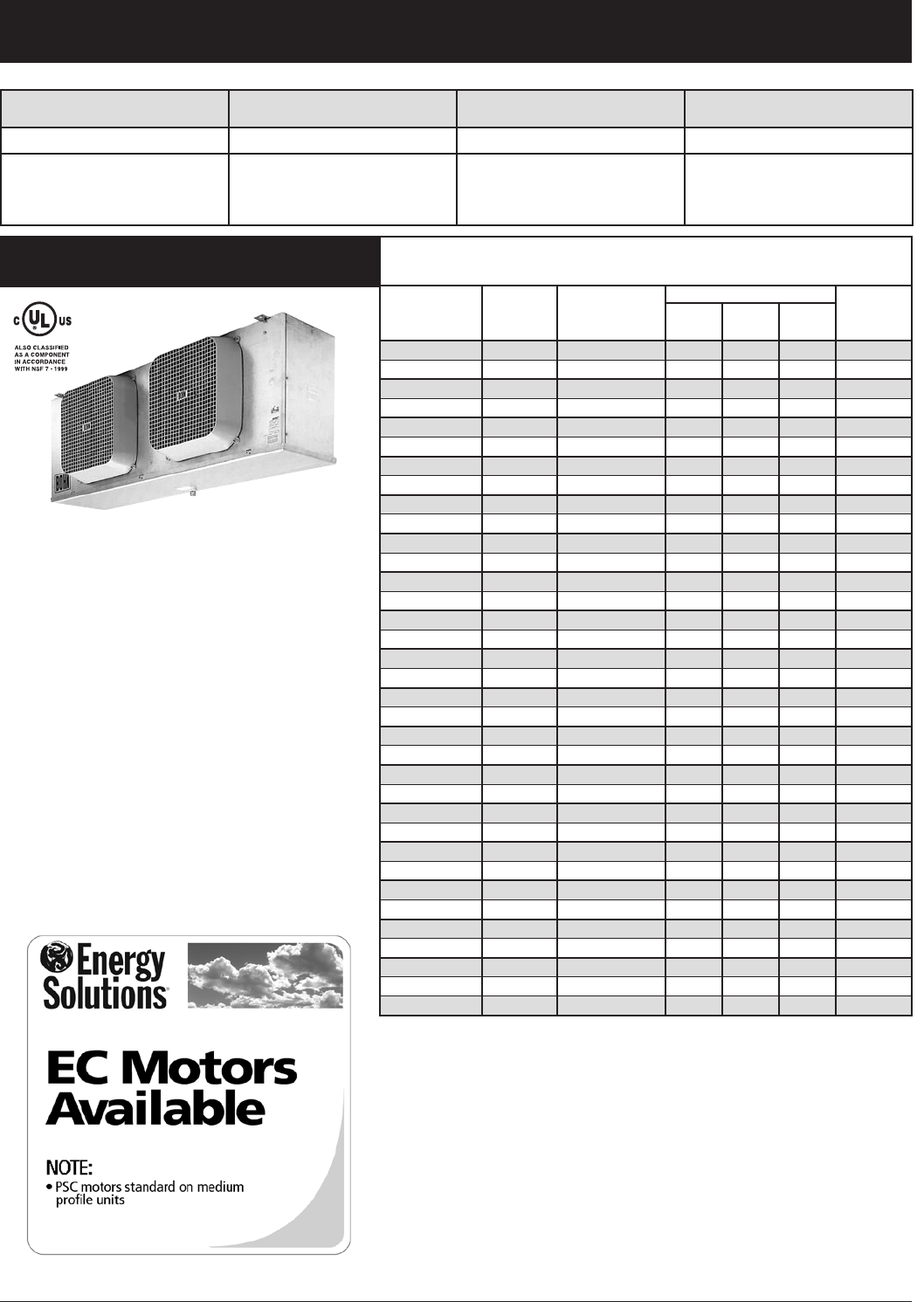

Walk-in Evaporators – Medium Proles (Coolers and Freezers)
FAMILY
BMA
• Textured aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty (See warranty page
for details)
• Heavy plastic molded fan guards for
extended air throw
• Liquid-line solenoid wiring harness for
faster installation
• Schrader valve provided for suction
pressure measurement
• Beacon II™ compatible
• UL-listed, UL-listed for Canada and meets
NSF standards
Nomenclature Example:
575 V Available
BMA 130 A A
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
M = 460/1/60
L = 575/1/60
High or Medium Temperature Medium Prole Walk-in Unit Coolers
with Air Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BMA130AA 3,276 115/1/60 25 23 39.5 137
BMA130BA 3,336 208-230/1/60 25 23 39.5 137
BMA130MA 3,505 460/1/60 25 23 39.5 137
BMA130LA 3,574 575/1/60 25 23 39.5 137
BMA155AA 3,879 115/1/60 25 23 39.5 147
BMA155BA 3,933 208-230/1/60 25 23 39.5 147
BMA155MA 4,105 460/1/60 25 23 39.5 147
BMA155LA 4,187 575/1/60 25 23 39.5 147
BMA245AA* 5,479 115/1/60 25 23 67.5 236
BMA245BAF* 5,591 208-230/1/60 25 23 67.5 236
BMA245MA 5,933 460/1/60 25 23 67.5 236
BMA245LA 6,051 575/1/60 25 23 67.5 236
BMA300AA 7,004 115/1/60 25 23 67.5 256
BMA300BA* 7,117 208-230/1/60 25 23 67.5 256
BMA300MA 7,458 460/1/60 25 23 67.5 256
BMA300LA 7,609 575/1/60 25 23 67.5 256
BMA365AA 8,611 115/1/60 25 23 95.5 321
BMA365BA* 8,785 208-230/1/60 25 23 95.5 321
BMA365MA 9,290 460/1/60 25 23 95.5 321
BMA365LA 9,474 575/1/60 25 23 95.5 321
BMA450AA 10,330 115/1/60 25 23 95.5 330
BMA450BA* 10,506 208-230/1/60 25 23 95.5 330
BMA450MA 11,013 460/1/60 25 23 95.5 330
BMA450LA 11,234 575/1/60 25 23 95.5 330
BMA510AA 12,002 115/1/60 25 23 123.5 400
BMA510BA* 12,231 208-230/1/60 25 23 123.5 400
BMA510MA 12,907 460/1/60 25 23 123.5 400
BMA510LA 13,166 575/1/60 25 23 123.5 400
BMA600AA 12,751 115/1/60 25 23 123.5 418
BMA600BA 12,983 208-230/1/60 25 23 123.5 418
BMA600MA 13,659 460/1/60 25 23 123.5 418
BMA600LA 13,931 575/1/60 25 23 123.5 418
BMA710BA* 14,722 208-230/1/60 25 20 139.0 478
BMA710MA 15,568 460/1/60 25 20 139.0 478
BMA710LA 15,879 575/1/60 25 20 139.0 478
FOR OPTIONS GO TO PAGE 26-31
For ordering information see page 26.
* Model numbers are normally in stock.
NOTE: BMA710AA is not available (115/1/60).
14 February 1, 2008 Bohn Refrigeration Products List Prices
FAMILY
BME
BME Units:
• Textured aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty (see warranty page for details)
• Heavy plastic molded fan guards for extended
air ow
• Liquid-line solenoid wiring harness for
faster installation
• Schrader valve provided for suction
pressure measurement
• Fixed defrost termination and fan delay control
with heater limit switch
• Beacon II™ compatible
• UL-listed, UL-listed for Canada and meets
NSF standards
Nomenclature Example:
575 V Available
Walk-in Evaporators – Medium Proles (Coolers and Freezers)
Medium & Low Temperature Medium Prole Walk-in Unit Coolers
with Electric Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BME101BA 3,983 208-230/1/60 25 23 39.5 153
BME101CA 3,983 208-230/3/60 25 23 39.5 153
BME101MA 4,223 460/1/60 25 23 39.5 153
BME101DA 4,223 460/3/60 25 23 39.5 153
BME101EA 4,310 575/3/60 25 23 39.5 153
BME140BA* 4,717 208-230/1/60 25 23 39.5 163
BME140CA 4,717 208-230/3/60 25 23 39.5 163
BME140MA 4,956 460/1/60 25 23 39.5 163
BME140DA 4,956 460/3/60 25 23 39.5 163
BME140EA 5,053 575/3/60 25 23 39.5 163
BME190BA* 6,347 208-230/1/60 25 23 67.5 232
BME190CA 6,347 208-230/3/60 25 23 67.5 232
BME190MA 6,818 460/1/60 25 23 67.5 232
BME190DA 6,818 460/3/60 25 23 67.5 232
BME190EA 6,954 575/3/60 25 23 67.5 232
BME260BA* 8,708 208-230/1/60 25 23 67.5 284
BME260CA* 8,708 208-230/3/60 25 23 67.5 284
BME260MA 9,182 460/1/60 25 23 67.5 284
BME260DA 9,182 460/3/60 25 23 67.5 284
BME260EA 9,367 575/3/60 25 23 67.5 284
BME310BA 9,410 208-230/1/60 25 23 95.5 332
BME310CA* 9,410 208-230/3/60 25 23 95.5 332
BME310MA 10,117 460/1/60 25 23 95.5 332
BME310DA 10,117 460/3/60 25 23 93.5 332
BME310EA 10,320 575/3/60 25 23 93.5 332
BME390BA* 11,543 208-230/1/60 25 23 95.5 346
BME390CA* 11,543 208-230/3/60 25 23 95.5 346
BME390MA 12,252 460/1/60 25 23 95.5 346
BME390DA 12,252 460/3/60 25 23 95.5 346
BME390EA 12,497 575/3/60 25 23 95.5 346
BME430CA 12,557 208-230/3/60 25 23 123.5 424
BME430MA 13,502 460/1/60 25 23 123.5 424
BME430DA 13,502 460/3/60 25 23 123.5 424
BME430EA 13,775 575/3/60 25 23 123.5 424
BME520CA* 14,243 208-230/3/60 25 23 123.5 439
BME520MA 15,188 460/1/60 25 23 123.5 439
BME520DA 15,188 460/3/60 25 23 123.5 439
BME520EA 15,491 575/3/60 25 23 123.5 439
BME620CA* 15,307 208-230/3/60 25 23 1390 518
BME620MA 16,489 460/1/60 25 23 139.0 518
BME620DA 16,489 460/3/60 25 23 139.0 518
BME620EA 16,820 575/3/60 25 23 139.0 518
BME 101 B A
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
M = 460/1/60
E = 575/3/60
FOR OPTIONS GO TO PAGE 26-31
For ordering information see page 26.
* Model numbers are normally in stock.
February 1, 2008 Bohn Refrigeration Products List Prices 15
FAMILY
BML
BML Units:
• Textured aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty. See warranty page for details
• Heavy plastic molded fan guards for extended
air throw
• Liquid-line solenoid wiring harness for
faster installation
• Schrader valve provided for suction
pressure measurement
• Fixed defrost termination and fan delay control
with heater limit switch
• Beacon II™ compatible
• UL-listed, UL-listed for Canada and meets
NSF standards
Walk-in Evaporators – Medium Proles (Coolers and Freezers)
Nomenclature Example:
575 V Available
BML 100 B A
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
M = 460/1/60
E = 575/3/60
Medium & Low Temperature Medium Prole Walk-in Unit Coolers
with Electric Defrost (4 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BML100BA 4,136 208-230/1/60 25 23 39.5 171
BML100CA 4,136 208-230/3/60 25 23 39.5 171
BML100MA 4,371 460/1/60 25 23 39.5 171
BML100DA 4,371 460/3/60 25 23 39.5 171
BML100EA 4,460 575/3/60 25 23 39.5 171
BML165BA 5,715 208-230/1/60 25 23 67.5 240
BML165CA 5,715 208-230/3/60 25 23 67.5 240
BML165MA 6,188 460/1/60 25 23 67.5 240
BML165DA 6,188 460/3/60 25 23 67.5 240
BML165EA 6,310 575/3/60 25 23 67.5 240
BML220BA 7,837 208-230/1/60 25 23 67.5 264
BML220CA 7,837 208-230/3/60 25 23 67.5 264
BML220MA 8,312 460/1/60 25 23 67.5 264
BML220DA 8,312 460/3/60 25 23 67.5 264
BML220EA 8,478 575/3/60 25 23 67.5 264
BML250BA 8,364 208-230/1/60 25 23 95.5 340
BML250CA 8,364 208-230/3/60 25 23 95.5 340
BML250MA 8,835 460/1/60 25 23 95.5 340
BML250DA 8,835 460/3/60 25 23 95.5 340
BML250EA 9,011 575/3/60 25 23 95.5 340
BML330BA 11,081 208-230/1/60 25 23 95.5 371
BML330CA 11,081 208-230/3/60 25 23 95.5 371
BML330MA 11,792 460/1/60 25 23 95.5 371
BML330DA 11,792 460/3/60 25 23 95.5 371
BML330EA 12,028 575/3/60 25 23 95.5 371
BML370CA 12,055 208-230/3/60 25 23 123.5 428
BML370MA 12,999 460/1/60 25 23 123.5 428
BML370DA 12,999 460/3/60 25 23 123.5 428
BML370EA 13,260 575/3/60 25 23 123.5 428
BML440CA 13,641 208-230/3/60 25 23 123.5 475
BML440MA 14,585 460/1/60 25 23 123.5 475
BML440DA 14,585 460/3/60 25 23 123.5 475
BML440EA 14,876 575/3/60 25 23 123.5 475
BML530CA 14,695 208-230/3/60 25 23 139.0 527
BML530MA 15,877 460/1/60 25 23 139.0 527
BML530DA 15,877 460/3/60 25 23 139.0 527
BML530EA 16,192 575/3/60 25 23 139.0 527
FOR OPTIONS GO TO PAGE 26-31
For ordering information see page 26.
16 February 1, 2008 Bohn Refrigeration Products List Prices
Medium & Low Temperature Medium Prole Walk-in Unit Coolers
with Hot Gas Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BMG190AA 5,871 115/1/60 25 23 67.5 288
BMG190BA 5,989 208-230/1/60 25 23 67.5 288
BMG190MA 6,472 460/1/60 25 23 67.5 288
BMG190LA 6,601 575/1/60 25 23 67.5 288
BMG260AA 8,040 115/1/60 25 23 67.5 303
BMG260BA 8,217 208-230/1/60 25 23 67.5 303
BMG260MA 8,699 460/1/60 25 23 67.5 303
BMG260LA 8,872 575/1/60 25 23 67.5 303
BMG310AA 8,700 115/1/60 25 23 95.5 347
BMG310BA 8,876 208-230/1/60 25 23 95.5 347
BMG310MA 9,600 460/1/60 25 23 95.5 347
BMG310LA 9,792 575/1/60 25 23 95.5 347
BMG390AA 10,716 115/1/60 25 23 95.5 374
BMG390BA 10,892 208-230/1/60 25 23 95.5 374
BMG390MA 11,630 460/1/60 25 23 95.5 374
BMG390LA 11,863 575/1/60 25 23 95.5 374
BMG430AA 11,612 115/1/60 25 23 123.5 450
BMG430BA 11,850 208-230/1/60 25 23 123.5 450
BMG430MA 12,811 460/1/60 25 23 123.5 450
BMG430LA 13,068 575/1/60 25 23 123.5 450
BMG520AA 13,200 115/1/60 25 23 123.5 485
BMG520BA 13,437 208-230/1/60 25 23 123.5 485
BMG520MA 14,401 460/1/60 25 23 123.5 485
BMG520LA 14,689 575/1/60 25 23 123.5 485
Medium & Low Temperature Medium Prole Walk-in Unit Coolers
with Hot Gas Defrost (4 FPI)
BMF165AA 5,690 115/1/60 25 23 67.5 288
BMF165BA 5,808 208-230/1/60 25 23 67.5 288
BMF165MA 6,287 460/1/60 25 23 67.5 288
BMF165LA 6,414 575/1/60 25 23 67.5 288
BMF220AA 7,851 115/1/60 25 23 67.5 303
BMF220BA 7,970 208-230/1/60 25 23 67.5 303
BMF220MA 8,453 460/1/60 25 23 67.5 303
BMF220LA 8,623 575/1/60 25 23 67.5 303
BMF250AA 8,436 115/1/60 25 23 95.5 344
BMF250BA 8,609 208-230/1/60 25 23 95.5 344
BMF250MA 9,335 460/1/60 25 23 95.5 344
BMF250LA 9,521 575/1/60 25 23 95.5 344
BMF330AA 10,331 115/1/60 25 23 95.5 371
BMF330BA 10,510 208-230/1/60 25 23 95.5 371
BMF330MA 11,250 460/1/60 25 23 95.5 371
BMF330LA 11,474 575/1/60 25 23 95.5 371
BMF370AA 11,196 115/1/60 25 23 123.5 445
BMF370BA 11,434 208-230/1/60 25 23 123.5 445
BMF370MA 12,395 460/1/60 25 23 123.5 445
BMF370LA 12,644 575/1/60 25 23 123.5 445
BMF440AA 12,731 115/1/60 25 23 123.5 480
BMF440BA 12,969 208-230/1/60 25 23 123.5 480
BMF440MA 13,931 460/1/60 25 23 123.5 480
BMF440LA 14,211 575/1/60 25 23 123.5 480
FAMILY
BMG/BMF
• Textured aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty (see warranty page
for details)
• Heavy plastic molded fan guards
• Liquid-line solenoid wiring harness for faster
installation
• Schrader valve provided for suction pressure
measurement
• Adjustable defrost termination and fan
delay control
• Hot gas defrost options for mounted
and/or shipped-loose piping kits
• Standard electric drain pan heaters
• Hot gas drain pan loop is optional
• UL-listed, UL-listed for Canada and meets
NSF standards
Walk-in Evaporators – Medium Proles (Coolers and Freezers)
Nomenclature Example:
575 V Available
BMG 190 A A
Model Family Capacity Electric Code Vintage Revision
x 100 = BTUH
(10°F TD)
A = 115/1/60
B = 208-230/1/60
M = 460/1/60
L = 575/1/60
For ordering information see page 26.
FOR OPTIONS GO TO PAGE 26-31
February 1, 2008 Bohn Refrigeration Products List Prices 17
Low Prole Glycol Unit Coolers
Model
List Price ($US)
115/1/60 208-230/1/60 460/1/60 575/3/60
Shaded
Pole
*=A
PSC
*=AH
EC
*=AE
Shaded
Pole
*=B
PSC
*=BH
EC
*=BE
PSC
*=M
PSC
*=E
ADTG0400*K 1,853 2,157 2,823 1,985 2,421 3,087 2,287 -
ADTG0475*K 2,004 2,308 2,974 2,036 2,372 3,038 2,337 -
ADTG0525*K 2,161 2,465 3,131 2,190 2,523 3,189 2,493 -
ADTG0725*K 2,968 3,424 4,423 3,016 3,520 4,519 3,466 -
ADTG0900*K 3,811 4,419 5,751 4,120 5,037 6,369 4,722 -
ADTG1000*K 4,915 5,675 7,340 5,290 6,425 8,090 6,039 -
ADTG1300*K 5,160 5,920 7,585 5,535 6,670 8,335 6,284 -
ADTG1475*K 5,597 6,509 8,507 6,022 7,359 9,357 6,924 -
HGTG0475*K 2,856 3,160 3,826 3,053 3,554 4,220 3,360 -
HGTG0525*K 3,182 3,486 4,152 3,425 3,972 4,638 3,731 -
HGTG0725*K 4,443 4,899 5,898 4,626 5,265 6,264 5,096 -
HGTG0900*K 4,733 5,341 6,673 5,094 6,063 7,395 5,710 -
HGTG1300*K 5,643 6,403 8,068 6,074 7,265 8,930 6,838 -
HGTG1475*K 6,665 7,577 9,575 7,269 8,785 13,783 8,192 -
Nomenclature Example:
FAMILY ADT/HGT
Low Velocity Center Mount Glycol Unit Coolers
Model
List Price ($US)
115/1/60 208-230/1/60 460/1/60 575/3/60
Shaded
Pole
*=A
PSC
*=AH
EC
*=AE
Shaded
Pole
*=B
PSC
*=BH
EC
*=BE
PSC
*=M
PSC
*=E
WKAG0330*C 2,935 3,094 3,450 3,105 3,434 3,790 - -
WKAG0425*C 3,573 3,732 4,088 3,775 4,136 4,492 - -
WKAG0700*C 4,117 4,435 5,147 4,351 4,903 5,615 - -
WKAG0875*C 5,328 5,646 6,358 5,611 6,212 6,924 - -
WKAG0975*C 5,594 5,912 6,624 5,912 6,548 7,260 - -
WKAG1025*C 6,843 7,320 8,388 7,221 8,076 9,144 - -
WKAG1225*C 7,185 7,662 8,730 7,563 8,418 9,486 - -
WKAG1450*C 7,938 8,574 9,998 8,402 9,502 10,926 - -
WKAG1650*C 10,483 11,278 13,058 11,080 12,472 14,252 - -
WKGG0700*C 4,383 4,701 5,413 4,635 5,205 5,917 - -
WKGG0875*C 5,695 6,013 6,725 5,978 6,579 7,291 - -
WKGG0975*C 5,980 6,298 7,010 6,263 6,864 7,576 - -
WKGG1025*C 7,486 7,963 9,031 7,926 8,843 9,911 - -
WKGG1225*C 7,860 8,337 9,405 8,300 9,217 10,285 - -
WKGG1450*C 8,802 9,438 10,862 9,281 10,396 11,825 - -
WKGG1650*C 11,746 12,541 14,321 12,439 13,927 15,707 - -
FAMILY WKA
NOTES:
• Base price includes vent and drain valves.
• All Warm Defrost Evaporators (WKGG, HGTG) have Fan Defrost Control included.
• Plastic fan guards are standard, except all Low Velocity Center Mount Evaporators.
• (WKAG), have wire fan guards standard.
ADT G 400 A H K
Model Family Glycol Capacity Electric Code Motor Type Vintage Revision
x 100 = BTUH
(10°F TD) A = 115/1/60
B = 208-230/1/60
M = 460/1/60
E = 575/3/60
No H or E = Shaded
Pole
H = PSC Motor
E = EC Motor
• Ideal for applications where a
reduced refrigerant charge
is desired
• Specially designed for use
with environmentally friendly
propylene glycol mixtures
• Available for medium
temperature applications
• Available in air or warm uid
defrost
• Energy-ecient PSC Motors
available as an option
• UL-listed, UL-listed for Canada
and meets NSF standards
• Ideal for applications where a
reduced refrigerant charge
is desired
• Specially designed for use with
environmentally friendly propylene
glycol mixtures
• Available for medium temperature
applications
• Available in air or warm
uid defrost
• Energy-ecient PSC Motors
available as an option
• UL-listed, UL-listed for Canada and
meets NSF standards
FOR OPTIONS GO TO PAGE 18
Glycol Unit Coolers
18 February 1, 2008 Bohn Refrigeration Products List Prices
Glycol Unit Coolers
Medium Prole Glycol Unit Coolers
Model
List Price ($US)
115/1/60 208-230/1/60 460/1/60 575/3/60
Shaded
Pole
*=A
PSC
*=AH
EC
*=AE
Shaded
Pole
*=B
PSC
*=BH
EC
*=BE
PSC
*=M
PSC
*=E
BMAG0900*A - 4,178 4,728 - 4,238 4,848 4,407 4,475
BMAG1100*A - 5,544 6,644 - 5,657 6,870 5,998 6,117
BMAG1275*A - 7,108 8,208 - 7,221 8,434 7,561 7,629
BMAG1600*A - 7,464 8,564 - 7,577 8,790 7,917 7,985
BMAG1700*A - 8,819 10,469 - 8,993 10,817 9,498 9,691
BMAG1900*A - 9,260 10,910 - 9,437 11,264 9,943 10,164
BMAG2175*A - 10,927 12,577 - 11,104 12,931 11,610 11,831
BMAG2400*A - 12,635 14,835 - 12,865 15,295 13,541 13,801
BMAG2425*A - 13,008 15,208 - 13,240 15,672 13,916 14,188
BMAG2850*A - 13,658 15,858 - 13,890 16,322 14,566 14,838
BMAG3100*A - - - - 15,251 - 16,097 16,407
FAMILY
BMA
Glycol Options
GPM Balance Valve Balance Valve (TA
Hydronics) (p/n)
Shut-o Valve
(p/n)
List Price
($US)
0 -3.0 1/2 (5/8" OD) 29320305 29320405* 364
3.1 - 8.7 3/4 (7/8" OD) 29320304 29320404 421
8.8 - 14.0 1 (1-1/8" OD) 29320301 29320401 520
14.1 - 20.0 1-1/4 (1-3/8" OD) 29320302 29320402 718
20.1 - 25 1-1/2 (1-5/8" OD) 29320303 29320403 743
NOTES:
• Balance Valve and Shut-o Valve are sold together.
• Balance Valve and Shut-o Valve are shipped-loose.
NOTES:
• Base price includes vent and drain valves.
• Plastic fan guards are standard, except all Low Velocity Center
Mount Evaporators.
BMA G 900 A H A
Model Family Glycol Capacity Electric Code Motor Type Vintage Revision
x 100 = BTUH
(10°F TD) A = 115/1/60
B = 208-230/1/60
M = 460/1/60
E = 575/3/60
No H or E = Shaded
Pole
H = PSC Motor
E = EC Motor
• Ideal for applications where a
reduced refrigerant charge
is desired
• Specially designed for use
with environmentally friendly
propylene glycol mixtures
• Available for medium
temperature applications
• Available in air or warm
uid defrost
• Energy-ecient PSC Motors
available as an option
• UL-listed, UL-listed for Canada
and meets NSF standards
Nomenclature Example:
February 1, 2008 Bohn Refrigeration Products List Prices 19
Warehouse Evaporators – High Proles (Refrigerated Warehouses)
FAMILY
BHA
• Mill nished aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty (see warranty page
for details)
• Liquid-line solenoid wiring harness for
faster installation
• PVC coated steel wire fan guards standard with
long air throw collars optional (metal)
• Schrader valve provided for suction pressure
measurement
• Beacon II™ compatible
• Model 1610 requires two expansion valves
• UL-listed and UL-listed for Canada
All models are 6 ns per inch except 2160, 2500
and 2780 are 8 ns per inch.
575 V Available
BHA 520 C P A
Model Family Capacity Electric Code Motors Vintage Revision
x 100 = BTUH
(10°F TD)
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
M = 460/1/60
E = 575/3/60
“P” = 3-Phase
No “P” = 1-Phase
High & Medium Temperature High Prole Warehouse Unit Coolers
with Air Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BHA520BA 10,395 208-230/1/60 37.25 26.25 83.25 437
BHA520CPA 11,042 208-230/3/60 37.25 26.25 83.25 437
BHA520MA 10,395 460/1/60 37.25 26.25 83.25 437
BHA520DPA 11,042 460/3/60 37.25 26.25 83.25 437
BHA520EPA 11,264 575/3/60 37.25 26.25 83.25 437
BHA630BA 11,546 208-230/1/60 37.25 26.25 83.25 473
BHA630CPA 12,344 208-230/3/60 37.25 26.25 83.25 473
BHA630MA 11,546 460/1/60 37.25 26.25 83.25 473
BHA630DPA 12,344 460/3/60 37.25 26.25 83.25 473
BHA630EPA 12,590 575/3/60 37.25 26.25 83.25 473
BHA750BA 14,002 208-230/1/60 37.25 26.25 105.25 570
BHA750CA 14,002 208-230/3/60 37.25 26.25 105.25 570
BHA750CPA 14,999 208-230/3/60 37.25 26.25 105.25 570
BHA750DA 14,002 460/3/60 37.25 26.25 105.25 570
BHA750DPA 14,999 460/3/60 37.25 26.25 105.25 570
BHA750EPA 15,299 575/3/60 37.25 26.25 105.25 570
BHA850BA 15,158 208-230/1/60 37.25 26.25 105.25 604
BHA850CA 15,158 208-230/3/60 37.25 26.25 105.25 604
BHA850CPA 16,112 208-230/3/60 37.25 26.25 105.25 604
BHA850DA 15,158 460/3/60 37.25 26.25 105.25 604
BHA850DPA 16,112 460/3/60 37.25 26.25 105.25 604
BHA850EPA 16,433 575/3/60 37.25 26.25 105.25 604
BHA930BA 16,313 208-230/1/60 37.25 26.25 135.25 746
BHA930CA 16,313 208-230/3/60 37.25 26.25 135.25 746
BHA930CPA 17,611 208-230/3/60 37.25 26.25 135.25 746
BHA930DA 16,313 460/3/60 37.25 26.25 135.25 746
BHA930DPA 17,611 460/3/60 37.25 26.25 135.25 746
BHA930EPA 17,962 575/3/60 37.25 26.25 135.25 746
BHA1100BA 17,900 208-230/1/60 37.25 26.25 135.25 795
BHA1100CA 17,900 208-230/3/60 37.25 26.25 135.25 795
BHA1100CPA 19,200 208-230/3/60 37.25 26.25 135.25 795
BHA1100DA 17,900 460/3/60 37.25 26.25 135.25 795
BHA1100DPA 19,200 460/3/60 37.25 26.25 135.25 795
BHA1100EPA 19,584 575/3/60 37.25 26.25 135.25 795
BHA1170CPA 23,244 208-230/3/60 44.50 35.75 135.50 846
BHA1170DPA 23,244 460/3/60 44.50 35.75 135.50 846
BHA1170EPA 23,708 575/3/60 44.50 35.75 135.50 846
BHA1400CPA 26,129 208-230/3/60 44.50 35.75 135.50 916
BHA1400DPA 26,129 460/3/60 44.50 35.75 135.50 916
BHA1400EPA 26,651 575/3/60 44.50 35.75 135.50 916
BHA1610CPA 27,572 208-230/3/60 50.25 35.75 135.50 1,070
BHA1610DPA 27,572 460/3/60 50.25 35.75 135.50 1,070
BHA1610EPA 28,123 575/3/60 50.25 35.75 135.50 1,070
BHA1900CPA 32,482 208-230/3/60 50.25 35.75 142.50 1,450
BHA1900DPA 32,482 460/3/60 50.25 35.75 142.50 1,450
BHA1900EPA 33,130 575/3/60 50.25 35.75 142.50 1,450
BHA2160CPA 35,943 208-230/3/60 44.50 35.75 142.50 1,450
BHA2160DPA 35,943 460/3/60 44.50 35.75 142.50 1,450
BHA2160EPA 36,662 575/3/60 44.50 35.75 185.50 1,450
BHA2200CPA 35,222 208-230/3/60 50.25 35.75 185.50 1,835
BHA2200DPA 35,222 460/3/60 50.25 35.75 185.50 1,835
BHA2200EPA 35,927 575/3/60 50.25 35.75 185.50 1,835
BHA2440CPA 40,853 208-230/3/60 50.25 35.75 142.50 1,970
BHA2440DPA 40,853 460/3/60 50.25 35.75 142.50 1,970
BHA2440EPA 41,672 575/3/60 50.25 35.75 142.50 1,970
BHA2500CPA 39,696 208-230/3/60 44.50 35.75 185.50 1,835
BHA2500DPA 39,696 460/3/60 44.50 35.75 185.50 1,835
BHA2500EPA 40,492 575/3/60 44.50 35.75 185.50 1,835
BHA2780CPA 42,727 208-230/3/60 50.25 35.75 185.50 1,970
BHA2780DPA 42,727 460/3/60 50.25 35.75 185.50 1,970
BHA2780EPA 43,528 575/3/60 50.25 35.75 185.50 1,970
FOR OPTIONS GO TO PAGE 26-31
Nomenclature Example:
20 February 1, 2008 Bohn Refrigeration Products List Prices
FAMILY
BHE
• Mill nished aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty (see warranty page
for details)
• Liquid-line solenoid wiring harness for
faster installation
• PVC coated steel wire fan guards standard with
long air throw collars optional (metal)
• Schrader valve provided for suction pressure
measurement
• Adjustable defrost termination/fan delay control
with heater limit switch
• Model 1390 requires two expansion valves
• Beacon II™ compatible
• High CFM motors (maximum suction
temperature +15°F)
• UL-listed and UL-listed for Canada
Nomenclature Example:
575 V Available
BHE 450 C P A / B
Model Family Capacity Electric Code Motors Vintage Revision
x 100 = BTUH
(10°F TD)
C = 208-230/3/60
D = 460/3/60
E = 575/3/60
“P” = 3-Phase
No “P” = 1-Phase
Warehouse Evaporators – High Proles (Refrigerated Warehouses)
Medium & Low Temperature High Prole Warehouse Unit Coolers
with Electric Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BHE450CA 12,271 208-230/3/60 37.25 26.25 83.25 439
BHE450CPA 12,920 208-230/3/60 37.25 26.25 83.25 439
BHE450DA 12,271 460/3/60 37.25 26.25 83.25 439
BHE450DPA 12,920 460/3/60 37.25 26.25 83.25 439
BHE450EPA 13,178 575/3/60 37.25 26.25 83.25 439
BHE550CA 14,147 208-230/3/60 37.25 26.25 83.25 476
BHE550CPA 14,784 208-230/3/60 37.25 26.25 83.25 476
BHE550DA 14,147 460/3/60 37.25 26.25 83.25 476
BHE550DPA 14,784 460/3/60 37.25 26.25 83.25 476
BHE550EPA 15,079 575/3/60 37.25 26.25 83.25 476
BHE640CA 15,446 208-230/3/60 37.25 26.25 105.25 607
BHE640CPA 16,400 208-230/3/60 37.25 26.25 105.25 607
BHE640DA 15,446 460/3/60 37.25 26.25 105.25 607
BHE640DPA 16,400 460/3/60 37.25 26.25 105.25 607
BHE640EPA 16,727 575/3/60 37.25 26.25 105.25 607
BHE740CA 18,332 208-230/3/60 37.25 26.25 105.25 634
BHE740CPA 19,343 208-230/3/60 37.25 26.25 105.25 634
BHE740DA 18,332 460/3/60 37.25 26.25 105.25 634
BHE740DPA 19,343 460/3/60 37.25 26.25 105.25 634
BHE740EPA 19,729 575/3/60 37.25 26.25 105.25 634
BHE810CA 22,229 208-230/3/60 37.25 26.25 135.25 769
BHE810CPA 23,501 208-230/3/60 37.25 26.25 135.25 769
BHE810DA 22,229 460/3/60 37.25 26.25 135.25 769
BHE810DPA 23,501 460/3/60 37.25 26.25 135.25 769
BHE810EPA 23,970 575/3/60 37.25 26.25 135.25 769
BHE950CA 24,255 208-230/3/60 37.25 26.25 135.25 780
BHE950CPA 25,552 208-230/3/60 37.25 26.25 135.25 780
BHE950DA 24,255 460/3/60 37.25 26.25 135.25 780
BHE950DPA 25,552 460/3/60 37.25 26.25 135.25 780
BHE950EPA 26,061 575/3/60 37.25 26.25 135.25 780
BHE1020CPA 26,129 208-230/3/60 44.50 35.75 135.50 1,126
BHE1020DPA 26,129 460/3/60 44.50 35.75 135.50 1,126
BHE1020EPA 26,651 575/3/60 44.50 35.75 135.50 1,126
BHE1200CPA 29,881 208-230/3/60 44.50 35.75 135.50 1,186
BHE1200DPA 29,881 460/3/60 44.50 35.75 135.50 1,186
BHE1200EPA 30,478 575/3/60 44.50 35.75 135.50 1,186
BHE1390CPA 32,768 208-230/3/60 50.25 35.75 135.50 1,350
BHE1390DPA 32,768 460/3/60 50.25 35.75 135.50 1,350
BHE1390EPA 33,426 575/3/60 50.25 35.75 135.50 1,350
BHE1650CPB 42,440 208-230/3/60 50.25 35.75 142.50 1,499
BHE1650DPB 42,440 460/3/60 50.25 35.75 142.50 1,499
BHE165EPB 43,289 575/3/60 50.25 35.75 142.50 1,499
BHE2120CBA 51,824 208-230/3/60 50.25 35.75 185.50 2,030
BHE2120DBA 51,824 460/3/60 50.25 35.75 185.50 2,030
BHE2120EPB 52,860 575/3/60 50.25 35.75 185.50 2,030
FOR OPTIONS GO TO PAGE 26-31
February 1, 2008 Bohn Refrigeration Products List Prices 21
Warehouse Evaporators – High Proles (Refrigerated Warehouses)
FAMILY
BHL
• Mill nished aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty (see warranty page
for details)
• Liquid-line solenoid wiring harness for
faster installation
• PVC coated steel wire fan guards standard
with long air throw collars optional (metal)
• Schrader valve provided for suction pressure
measurement
• Adjustable defrost termination/fan delay
control with heater limit switch
• Beacon II™ compatible
• Model 1220 requires two expansion valves
• High CFM motors (maximum suction
temperature +15°F)
• UL-listed and UL-listed for Canada
Nomenclature Example:
575 V Available
Medium & Low Temperature High Prole Warehouse Unit Coolers
with Electric Defrost (4 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BHL400CA 11,403 208-230/3/60 37.25 26.25 83.25 447
BHL400CPA 12,038 208-230/3/60 37.25 26.25 83.25 447
BHL400DA 11,403 460/3/60 37.25 26.25 83.25 447
BHL400DPA 12,038 460/3/60 37.25 26.25 83.25 447
BHL400EPA 12,281 575/3/60 37.25 26.25 83.25 447
BHL480CA 14,002 208-230/3/60 37.25 26.25 83.25 482
BHL480CPA 14,652 208-230/3/60 37.25 26.25 83.25 482
BHL480DA 14,002 460/3/60 37.25 26.25 83.25 482
BHL480DPA 14,652 460/3/60 37.25 26.25 83.25 482
BHL480EPA 14,944 575/3/60 37.25 26.25 83.25 482
BHL560CA 15,158 208-230/3/60 37.25 26.25 105.25 584
BHL560CPA 16,112 208-230/3/60 37.25 26.25 105.25 584
BHL560DA 15,158 460/3/60 37.25 26.25 105.25 584
BHL560DPA 16,112 460/3/60 37.25 26.25 105.25 584
BHL560EPA 16,433 575/3/60 37.25 26.25 135.25 778
BHL650CA 16,746 208-230/3/60 37.25 26.25 105.25 615
BHL650CPA 17,697 208-230/3/60 37.25 26.25 105.25 615
BHL650DA 16,746 460/3/60 37.25 26.25 105.25 615
BHL650DPA 17,697 460/3/60 37.25 26.25 105.25 615
BHL650EPA 18,052 575/3/60 37.25 26.25 105.25 615
BHL710CA 18,046 208-230/3/60 37.25 26.25 135.25 778
BHL710CPA 19,343 208-230/3/60 37.25 26.25 135.25 778
BHL710DA 18,046 460/3/60 37.25 26.25 135.25 778
BHL710DPA 19,343 460/3/60 37.25 26.25 135.25 778
BHL710EPA 19,729 575/3/60 37.25 26.25 135.25 778
BHL840CA 23,820 208-230/3/60 37.25 26.25 135.25 791
BHL840CPA 25,116 208-230/3/60 37.25 26.25 135.25 791
BHL840DA 23,820 460/3/60 37.25 26.25 135.25 791
BHL840DPA 25,116 460/3/60 37.25 26.25 135.25 791
BHL840EPA 25,618 575/3/60 37.25 26.25 135.25 791
BHL890CPA 25,838 208-230/3/60 44.50 35.75 135.50 1,106
BHL890DPA 25,838 460/3/60 44.50 35.75 135.50 1,106
BHL890EPA 26,355 575/3/60 44.50 35.75 135.50 1,106
BHL1050CPA 29,306 208-230/3/60 44.50 35.75 135.50 1,175
BHL1050DPA 29,306 460/3/60 44.50 35.75 135.50 1,175
BHL1050EPA 29,892 575/3/60 44.50 35.75 135.50 1,175
BHL1220CPA 32,482 208-230/3/60 50.25 35.75 135.50 1,340
BHL1220DPA 32,482 460/3/60 50.25 35.75 135.50 1,340
BHL1220EPA 33,130 575/3/60 50.25 35.75 135.50 1,340
BHL1440CPB 40,996 208-230/3/60 50.25 35.75 142.50 1,450
BHL1440DPB 40,996 460/3/60 50.25 35.75 142.50 1,450
BHL1440EPB 41,816 575/3/60 50.25 35.75 142.50 1,450
BHL1860CPB 49,513 208-230/3/60 50.25 35.75 185.50 1,970
BHL1860DPB 49,513 460/3/60 50.25 35.75 185.50 1,970
BHL1860EPB 50,503 575/3/60 50.25 35.75 185.50 1,970
BHL 450 C P A / B
Model Family Capacity Electric Code Motors Vintage Revision
x 100 = BTUH
(10°F TD)
C = 208-230/3/60
D = 460/3/60
E = 575/3/60
“P” = 3-Phase
No “P” = 1-Phase
FOR OPTIONS GO TO PAGE 26-31
22 February 1, 2008 Bohn Refrigeration Products List Prices
FAMILY
BHG
• Mill nished aluminum cabinet
• Thermo-FlexTM coil design with extended 5-year
warranty (see warranty page for details)
• Liquid-line solenoid wiring harness for
faster installation
• PVC coated steel wire fan guards standard with
long air throw collars optional (metal)
• Schrader valve provided for suction pressure
measurement
• Adjustable defrost termination/fan
delay control
• Models 1390, 1650 and 2120 require two
expansion valves
• Hot gas drain pan is optional
• High CFM motors (maximum suction
temperature +15°F)
• UL-listed and UL-listed for Canada
Nomenclature Example:
575 V Available
Warehouse Evaporators – High Proles (Refrigerated Warehouses)
BHG 450 C P A / B
Model Family Capacity Electric Code Motors Vintage Revision
x 100 = BTUH
(10°F TD)
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
M = 460/1/60
E = 575/3/60
“P” = 3-Phase
No “P” = 1-Phase
Medium & Low Temperature High Prole Warehouse Unit Coolers
with Hot Gas Defrost (6 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BHG450BA 11,836 208-230/1/60 37.25 26.25 83.25 447
BHG450CPA 12,487 208-230/3/60 37.25 26.25 83.25 447
BHG450MA 11,836 460/1/60 37.25 26.25 83.25 447
BHG450DPA 12,487 460/3/60 37.25 26.25 83.25 447
BHG450EPA 12,737 575/3/60 37.25 26.25 83.25 447
BHG550BA 13,859 208-230/1/60 37.25 26.25 83.25 492
BHG550CPA 14,507 208-230/3/60 37.25 26.25 83.25 492
BHG550MA 13,859 460/1/60 37.25 26.25 83.25 492
BHG550DPA 14,507 460/3/60 37.25 26.25 83.25 492
BHG550EPA 14,798 575/3/60 37.25 26.25 83.25 492
BHG640CA 15,012 208-230/3/60 37.25 26.25 105.25 624
BHG640CPA 16,024 208-230/3/60 37.25 26.25 105.25 624
BHG640DA 15,012 460/3/60 37.25 26.25 105.25 624
BHG640DPA 16,024 460/3/60 37.25 26.25 105.25 624
BHG640EPA 16,345 575/3/60 37.25 26.25 105.25 624
BHG740CA 17,900 208-230/3/60 37.25 26.25 105.25 639
BHG740CPA 18,911 208-230/3/60 37.25 26.25 105.25 639
BHG740DA 17,900 460/3/60 37.25 26.25 105.25 639
BHG740DPA 18,911 460/3/60 37.25 26.25 105.25 639
BHG740EPA 19,290 575/3/60 37.25 26.25 105.25 639
BHG810CA 21,366 208-230/3/60 37.25 26.25 135.25 796
BHG810CPA 22,665 208-230/3/60 37.25 26.25 135.25 796
BHG810DA 21,366 460/3/60 37.25 26.25 135.25 796
BHG810DPA 22,665 460/3/60 37.25 26.25 135.25 796
BHG810EPA 23,118 575/3/60 37.25 26.25 135.25 796
BHG950CA 23,820 208-230/3/60 37.25 26.25 135.25 816
BHG950CPA 25,116 208-230/3/60 37.25 26.25 135.25 816
BHG950DA 23,820 460/3/60 37.25 26.25 135.25 816
BHG950DPA 25,116 460/3/60 37.25 26.25 135.25 816
BHG950EPA 25,628 575/3/60 37.25 26.25 135.25 816
BHG1020CPA 25,552 208-230/3/60 44.50 35.75 135.50 896
BHG1020DPA 25,552 460/3/60 44.50 35.75 135.50 896
BHG1020EPA 26,030 575/3/60 44.50 35.75 135.50 896
BHG1200CPA 29,447 208-230/3/60 44.50 35.75 135.50 986
BHG1200DPA 29,447 460/3/60 44.50 35.75 135.50 986
BHG1200EPA 30,036 575/3/60 44.50 35.75 135.50 986
BHG1390CPA 32,334 208-230/3/60 50.25 35.75 135.50 1,140
BHG1390DPA 32,334 460/3/60 50.25 35.75 135.50 1,140
BHG1390EPA 32,982 575/3/60 50.25 35.75 135.50 1,140
BHG1650CPA 39,696 208-230/3/60 50.25 35.75 142.50 1,470
BHG1650DPA 39,696 460/3/60 50.25 35.75 142.50 1,470
BHG1650EPA 40,492 575/3/60 50.25 35.75 142.50 1,470
BHG2120CPA 49,944 208-230/3/60 50.25 35.75 185.50 1,990
BHG2120DPA 49,944 460/3/60 50.25 35.75 185.50 1,990
BHG2120EPA 50,943 575/3/60 50.25 35.75 185.50 1,990
FOR OPTIONS GO TO PAGE 26-31
February 1, 2008 Bohn Refrigeration Products List Prices 23
Warehouse Evaporators – High Proles (Refrigerated Warehouses)
FAMILY
BHF
• Mill nished aluminum cabinet
• Thermo-FlexTM coil design with extended
5-year warranty (see warranty page
for details)
• Liquid-line solenoid wiring harness for
faster installation
• PVC coated steel wire fan guards standard
with long air throw collars optional (metal)
• Schrader valve provided for suction pressure
measurement
• Adjustable defrost termination/fan
delay control
• Models 1220, 1440 and 1860 require two
expansion valves
• Hot gas drain pan is optional
• High CFM motors (maximum suction
temperature +15°F)
• UL-listed and UL-listed for Canada
Nomenclature Example:
575 V Available
BHF 400 C P A
Model Family Capacity Electric Code Motors Vintage Revision
x 100 = BTUH
(10°F TD)
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
M = 460/1/60
E = 575/3/60
“P” = 3-Phase
No “P” = 1-Phase
Medium & Low Temperature High Prole Warehouse Unit Coolers
with Hot Gas Defrost (4 FPI)
Model List Price
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
BHF400BA 11,116 208-230/1/60 37.25 26.25 83.25 437
BHF400CPA 11,764 208-230/3/60 37.25 26.25 83.25 437
BHF400MA 11,116 460/1/60 37.25 26.25 83.25 437
BHF400DPA 11,764 460/3/60 37.25 26.25 83.25 437
BHF400EPA 12,000 575/3/60 37.25 26.25 83.25 437
BHF480BA 13,569 208-230/1/60 37.25 26.25 83.25 467
BHF480CPA 14,221 208-230/3/60 37.25 26.25 83.25 467
BHF480MA 13,569 460/1/60 37.25 26.25 83.25 467
BHF480DPA 14,221 460/3/60 37.25 26.25 83.25 467
BHF480EPA 14,505 575/3/60 37.25 26.25 83.25 467
BHF560CA 14,869 208-230/3/60 37.25 26.25 105.25 561
BHF560CPA 15,879 208-230/3/60 37.25 26.25 105.25 561
BHF560DA 14,869 460/3/60 37.25 26.25 105.25 561
BHF560DPA 15,879 460/3/60 37.25 26.25 105.25 561
BHF560EPA 16,197 575/3/60 37.25 26.25 105.25 561
BHF650CA 16,599 208-230/3/60 37.25 26.25 105.25 599
BHF650CPA 17,611 208-230/3/60 37.25 26.25 105.25 599
BHF650DA 16,599 460/3/60 37.25 26.25 105.25 599
BHF650DPA 17,611 460/3/60 37.25 26.25 105.25 599
BHF650EPA 17,962 575/3/60 37.25 26.25 105.25 599
BHF710CA 17,900 208-230/3/60 37.25 26.25 135.25 756
BHF710CPA 19,200 208-230/3/60 37.25 26.25 135.25 756
BHF710DA 17,900 460/3/60 37.25 26.25 135.25 756
BHF710DPA 19,200 460/3/60 37.25 26.25 135.25 756
BHF710EPA 19,584 575/3/60 37.25 26.25 135.25 756
BHF840CA 23,530 208-230/3/60 37.25 26.25 135.25 776
BHF840CPA 24,826 208-230/3/60 37.25 26.25 135.25 776
BHF840DA 23,530 460/3/60 37.25 26.25 135.25 776
BHF840DPA 24,826 460/3/60 37.25 26.25 135.25 776
BHF840EPA 25,324 575/3/60 37.25 26.25 135.25 776
BHF890CPA 25,552 208-230/3/60 44.50 35.75 135.50 1,086
BHF890DPA 25,552 460/3/60 44.50 35.75 135.50 1,086
BHF890EPA 26,061 575/3/60 44.50 35.75 135.50 1,086
BHF1050CPA 28,870 208-230/3/60 44.50 35.75 135.50 1,151
BHF1050DPA 28,870 460/3/60 44.50 35.75 135.50 1,151
BHF1050EPA 29,447 575/3/60 44.50 35.75 135.50 1,151
BHF1220CPA 32,334 208-230/3/60 50.25 35.75 135.50 1,320
BHF1220DPA 32,334 460/3/60 50.25 35.75 135.50 1,320
BHF1220EPA 32,982 575/3/60 50.25 35.75 135.50 1,320
BHF1440CPA 40,563 208-230/3/60 50.25 35.75 142.50 1,450
BHF1440DPA 40,563 460/3/60 50.25 35.75 142.50 1,450
BHF1440EPA 41,375 575/3/60 50.25 35.75 142.50 1,450
BHF1860CPA 49,081 208-230/3/60 50.25 35.75 185.50 1,970
BHF1860DPA 49,081 460/3/60 50.25 35.75 185.50 1,970
BHF1860EPA 50,061 575/3/60 50.25 35.75 185.50 1,970
FOR OPTIONS GO TO PAGE 26-31
24 February 1, 2008 Bohn Refrigeration Products List Prices

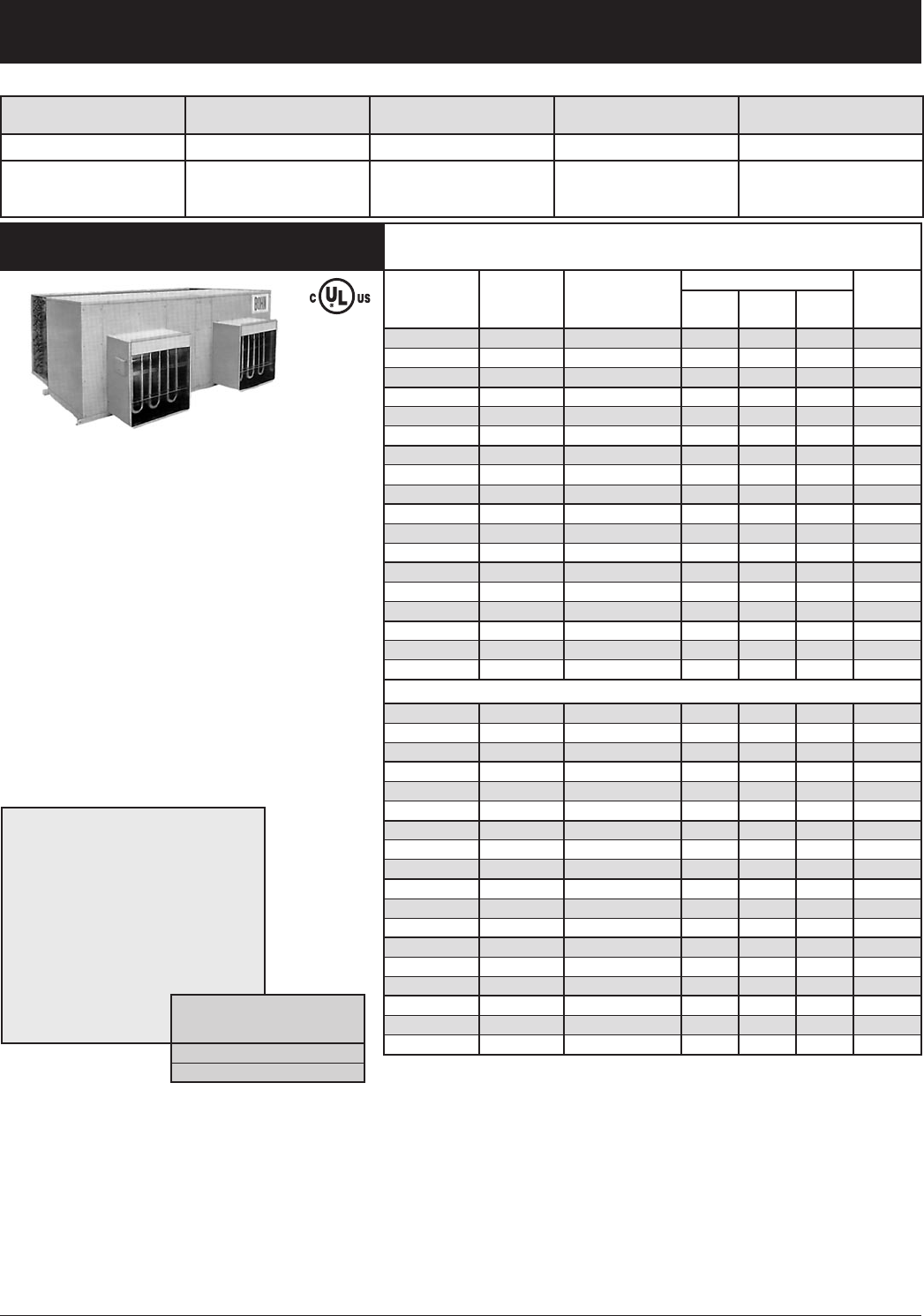

FAMILY
RU
ACCURATE OPERATING VOLTAGE
MUST BE SPECIFIED. ORDER MUST
SPECIFY:
1 - Complete model number
2 - CFM
3 - External Static Pressure
4 - Room temperature
5 - Room relative humidity
6 - Suction temperature
7 - Electric heat KW
8 - Options required
9 - Operating voltage
Standard Features:
• Heavy gauge galvanized steel cabinet
and base rails
• Heavy gauge frames.
• Fan bearings are rugged, self-aligning
ball bearings
• Coils have plate-type aluminum ns with
full collars on expanded copper tubes.
• Two safety thermostats, one manual and
one automatic reset, are provided with
the optional heater section to prevent
overheating.
• Single speed, open drip-proof, ball
bearing motors
• Standard unit includes heaters (use the
price below to deduct heaters)
Nomenclature Example:
RU 05 4 6 5
Model Unit Size Coil Row Deep FPI Electrical Code
05 = 1/2 Carload Room
10 = 1 Carload Room
4 = 4 Row
5 = 5 Row
6 = 6 Row
6 = 6 FPI
4 = 4 FPI
5 = 208/3/60
9 = 230/3/60
3 = 460/3/60
Ripening Room Equipment
Ripening Room Units (6 FPI)
Model List Price*
($US) Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
RU05465 15,487 208/3/60 38.75 64.25 55 485
RU05469 15,487 230/3/60 38.75 64.25 55 485
RU05463 15,487 460/3/60 38.75 64.25 55 485
RU05565 15,999 208/3/60 38.75 64.25 55 515
RU05569 15,999 230/3/60 38.75 64.25 55 515
RU05563 15,999 460/3/60 38.75 64.25 55 515
RU05665 16,514 208/3/60 38.75 64.25 55 545
RU05669 16,514 230/3/60 38.75 64.25 55 545
RU05663 16,514 460/3/60 38.75 64.25 55 545
RU10465 29,641 208/3/60 38.75 64.25 102 970
RU10469 29,641 230/3/60 38.75 64.25 102 970
RU10463 29,641 460/3/60 38.75 64.25 102 970
RU10565 30,626 208/3/60 38.75 64.25 102 1,030
RU10569 30,626 230/3/60 38.75 64.25 102 1,030
RU10563 30,626 460/3/60 38.75 64.25 102 1,030
RU10665 31,617 208/3/60 38.75 64.25 102 1,090
RU10669 31,617 230/3/60 38.75 64.25 102 1,090
RU10663 31,617 460/3/60 38.75 64.25 102 1,090
Ripening Room Units (4 FPI)
RU05445 15,425 208/3/60 38.75 64.25 55 475
RU05449 15,425 230/3/60 38.75 64.25 55 475
RU05443 15,425 460/3/60 38.75 64.25 55 475
RU05545 15,938 208/3/60 38.75 64.25 55 505
RU05549 15,938 230/3/60 38.75 64.25 55 505
RU05543 15,938 460/3/60 38.75 64.25 55 505
RU05645 16,437 208/3/60 38.75 64.25 55 535
RU05649 16,437 230/3/60 38.75 64.25 55 535
RU05643 16,437 460/3/60 38.75 64.25 55 535
RU10445 29,528 208/3/60 38.75 64.25 102 950
RU10449 29,528 230/3/60 38.75 64.25 102 950
RU10443 29,528 460/3/60 38.75 64.25 102 950
RU10545 30,514 208/3/60 38.75 64.25 102 1,010
RU10549 30,514 230/3/60 38.75 64.25 102 1,010
RU10543 30,514 460/3/60 38.75 64.25 102 1,010
RU10645 31,474 208/3/60 38.75 64.25 102 1,070
RU10649 31,474 230/3/60 38.75 64.25 102 1,070
RU10643 31,474 460/3/60 38.75 64.25 102 1,070
OPTION – NO HEATERS
LIST DEDUCT
RU054-056 1,887
RU104-106 3,768 * Price includes standard heater section, 6 KW for size 05
and 12 KW for size 10, and 2 H.P. ODP motor(s).
February 1, 2008 Bohn Refrigeration Products List Prices 25
Factory-installed Options For Evaporators
Factory-installed Electrical Option Pricing ($US)
Factory-installed Mechanical Option Pricing ($US)
Model
No.
of
Fans
PSC
Motors++
EC
Motors
Adjustable
Defrost
Term./
Fan Delay
Drain Pan
(Choose One)
Pre-
assembled
TXV
Pre-
assembled
TXV &
LLSV
Pre-assembled
TXV, Liquid-line
Solenoid &
Room
Thermostat
Quick Connect
Fittings
& Pre-assembled TXV,
Liquid-line Solenoid
& Room Thermostat
Johnson
Electronic
Room
Thermostat
(Shipped-loose
)
Coil Options
Electric Hot Gas Bohn-
Kote™
ElectroFin
®
Coi
l
BohnGuard™
Coated Fin
Copper
Fin Coils
ADT
040-065 1 152 485 - - - 372 634 900 1,436 306 401
Call Factory
915
Call Factory
070-130 2 304 970 - - - 372 634 900 1,436 306 595
Call Factory
935
Call Factory
140-180 3 456 1,455 - - - 372 634 900 1,436 306 869
Call Factory
953
Call Factory
208 4 608 1,940 - - - 372 634 900 1,436 306 -
Call Factory
973
Call Factory
260 5 760 2,425 - - - 372 634 900 1,436 306 -
Call Factory
995
Call Factory
312-370 6 912 2,910 - - - 703 1,003 1,283 1,821 306 -
Call Factory
1,016
Call Factory
LET
035-047 1 152 485 444 Standard - 372 634 900 1,436 306 - - -
Call Factory
065-090 2 304 970 444 Standard - 372 634 900 1,436 306 - - -
Call Factory
120-140 3 456 1,455 444 Standard - 372 634 900 1,436 306 - - -
Call Factory
160-180 4 608 1,940 444 Standard - 372 634 900 1,436 306 - - -
Call Factory
200 5 760 2,425 444 Standard - 372 634 900 1,436 306 - - -
Call Factory
240-280 6 912 2,910 444 Standard - 703 1,003 1,283 1,821 306 - - -
Call Factory
LLE
41 1 152 485 444 Standard - 372 634 900 1,436 306 - - - -
068-080 2 304 970 444 Standard - 372 634 900 1,436 306 - - - -
102 3 456 1,455 444 Standard - 372 634 900 1,436 306 - - - -
136 4 608 1,940 444 Standard - 372 634 900 1,436 306 - - - -
170 5 760 2,425 444 Standard - 372 634 900 1,436 306 - - - -
204-235 6 912 2,910 444 Standard - 703 1,003 1,283 1,821 306 - - - -
HGT 6 FPI
035-047 1 152 485 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
-
Call Factory
065-090 2 304 970 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
-
Call Factory
120-140 3 456 1,455 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
-
Call Factory
160-180 4 608 1,940 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
-
Call Factory
200 5 760 2,425 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
-
Call Factory
240-280 6 912 2,910 Standard
No Charge
Standard 703 - - - 306 -
Call Factory
-
Call Factory
HGT 4 FPI
41 1 152 485 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
--
068-080 2 304 970 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
--
102 3 456 1,455 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
--
136 4 608 1,940 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
--
170 5 760 2,425 Standard
No Charge
Standard 372 - - - 306 -
Call Factory
--
204-235 6 912 2,910 Standard
No Charge
Standard 703 - - - 306 -
Call Factory
-
LO
070-165 2 321 1,030 - - - - - - - 306 -
Call Factory
1,892
Call Factory
189-266 2 Standard 1,030 - - - - - - - 306 -
Call Factory
2,289
Call Factory
LOD/LOG
070-165 2 321 1,030 444 Standard - - - - - 306 - - -
Call Factory
189-266 2 Standard 1,030 444 Standard - - - - - 306 - - -
Call Factory
WK
050-075 1 159 515 - - - 479 740 1,011 1,548 306 -
Call Factory
915
Call Factory
100-155 2 318 1,030 - - - 479 740 1,011 1,548 306 -
Call Factory
1,349
Call Factory
180 3 477 1,545 - - - 479 740 1,011 1,548 306 -
Call Factory
1,839
Call Factory
210-270 4 636 2,060 - - - 479 740 1,011 - 306 -
Call Factory
2,142
Call Factory
340 5 795 2,575 - - - 786 1,136 1,423 - 306 -
Call Factory
2,908
Call Factory
WKE
050-075 1 159 515 444 Standard - 479 740 1,011 1,548 306 - --
Call Factory
100-155 2 318 1,030 444 Standard - 479 740 1,011 1,548 306 - --
Call Factory
180 3 477 1,545 444 Standard - 479 740 1,011 1,548 306 - --
Call Factory
210-270 4 636 2,060 444 Standard - 479 740 1,011 - 306 - --
Call Factory
340 5 795 2,575 444 Standard - 786 1,136 1,423 - 306 - --
Call Factory
WKG
100-155 2 318 1,030 Standard Standard - 479 740 - - 306 -
Call Factory
-
Call Factory
180 3 477 1,545 Standard Standard - 479 740 - - 306 -
Call Factory
-
Call Factory
210-270 4 636 2,060 Standard Standard - 479 740 - - 306 -
Call Factory
-
Call Factory
340 5 795 2,575 Standard Standard - 786 1,136 - - 306 -
Call Factory
-
Call Factory
SM
52 1 159 515 - - - 479 740 1,011 1,548 306 574
Call Factory
536
Call Factory
076-102 2 318 1,030 - - - 479 740 1,011 1,548 306 788
Call Factory
735
Call Factory
108-156 3 477 1,545 - - - 479 740 1,011 1,548 306 -
Call Factory
1,041
Call Factory
179-208 4 636 2,060 - - - 479 740 1,011 1,548 306 -
Call Factory
1,296
Call Factory
249 5 795 2,575 - - - 479 740 1,011 1,548 306 -
Call Factory
1,669
Call Factory
SME
40 1 159 515 Standard Standard - 479 740 1,011 1,548 306 - - -
Call Factory
054-065 2 318 1,030 Standard Standard - 479 740 1,011 1,548 306 - - -
Call Factory
090-130 3 477 1,545 Standard Standard - 479 740 1,011 1,548 306 - - -
Call Factory
174 4 636 2,060 Standard Standard - 479 740 1,011 1,548 306 - - -
Call Factory
++ 460V low prole units have PSC motor as standard. ADDITIONAL OPTIONS NEXT PAGE
26 February 1, 2008 Bohn Refrigeration Products List Prices
Factory-installed Electrical Option Pricing ($US) Factory-installed Mechanical Option Pricing ($US)
Model
No.
of
Fans
PSC
Motors
EC
Motors
Totally*
Enclosed
Motors
Adjustable
Defrost
Term./
Fan Delay
Drain Pan
(Choose One)
Pre-
assembled
TXV
Pre-
assembled
TXV &
LLSV
Pre-assembled
TXV, Liquid-line
Solenoid & Room
Thermostat
Johnson
Electronic
Room T’stat
(Shipped-loose)
Coil Options
Electric Hot Gas Bohn-
Kote™
ElectroFin
®
Coil
ProKote
®
Fin
Protection
Copper
Fins
BMA
130-155 1 Standard 585 223 -- - 505 769 1,040 306 1,117
Call Factory
1,011
Call Factory
245-300 2 Standard 1,170 446 -- - 505 769 1,040 306 -
Call Factory
1,065
Call Factory
365-450 3 Standard 1,755 669 -- - 678 1,088 1,373 306 -
Call Factory
1,123
Call Factory
510-600 4 Standard 2,340 884 -- - 678 1,088 1,373 306 -
Call Factory
1,174
Call Factory
710 5 Standard 2,925 1,108 -- - 984 1,510 1,811 306 -
Call Factory
1,204
Call Factory
BME
101-140 1 Standard 585 223 Standard Standard - 505 769 1,040 306 - - -
Call Factory
190-260 2 Standard 1,170 446 Standard Standard - 505 769 1,040 306 - - -
Call Factory
310-390 3 Standard 1,755 669 Standard Standard - 678 1,088 1,373 306 - - -
Call Factory
430-520 4 Standard 2,340 884 Standard Standard - 678 1,088 1,373 306 - - -
Call Factory
620 5 Standard 2,925 1,108 Standard Standard - 984 1,510 1,811 306 - - -
Call Factory
BML
100 1 Standard 585 223 Standard Standard - 505 769 1,040 306 - - - -
165-220 2 Standard 1,170 446 Standard Standard - 505 769 1,040 306 - - - -
250-330 3 Standard 1,755 669 Standard Standard - 678 1,088 1,373 306 - - - -
370-440 4 Standard 2,340 884 Standard Standard - 678 1,088 1,373 306 - - - -
530 5 Standard 2,925 1,108 Standard Standard - 984 1,510 1,811 306 - - - -
BMG
190-260 2 Standard 1,170 452 Standard Standard 604 505 - - 306 - - -
Call Factory
310-390 3 Standard 1,755 678 Standard Standard 725 678 - - 306 - - -
Call Factory
430-520 4 Standard 2,340 904 Standard Standard 844 984 - - 306 - - - -
BMF
165-220 2 Standard 1,170 452 Standard Standard 604 505 - - 306 -
Call Factory
- -
250-330 3 Standard 1,755 678 Standard Standard 725 678 - - 306 -
Call Factory
- -
370-440 4 Standard 2,340 904 Standard Standard 844 984 - - 306 -
Call Factory
- -
Factory-installed Options For Evaporators
Factory-installed Electrical Option Pricing ($US) Factory-installed Mechanical Option Pricing ($US)
Model
No.
of
Fans
PSC
Motors
Totally*
Enclosed
Motors
High CFM*§
Motor/
Blade
Combo
Adjustable
Defrost
Term./
Fan Delay
Drain Pan
(Choose One) Pre-
assembled
TXV
Pre-
assembled
TXV & LLSV
Pre-assembled
TXV, Liquid-line
Solenoid & Room
Thermostat
Johnson
Electronic
Room T’stat
(Shipped-loose)
Coil Options
Electric Hot Gas ElectroFin
®
Coil
BohnGuard
™
Coated Fin
Copper
Fins
BHA
520-630 2Standard 838 - - - - 903 1,404 1,700 306 Call Factory 1,198 Call Factory
750-850 3 Standard 1,257 - - - - 903 1,404 1,700 306 Call Factory 1,272 Call Factory
930-1100 4 Standard 1,676 - - - - 1,071 1,696 2,004 306 Call Factory 1,368 Call Factory
1170-1400 3 3 Phase 725 - - - - 1,071 1,696 2,004 306 Call Factory 1,464 Call Factory
1610 3 3 Phase 725 - - - - 1,320 Call Factory 2,004 306 Call Factory 1,464 Call Factory
1900 3 3 Phase 725 - - - - 1,171 1,869 2,185 306 Call Factory 2,355 Call Factory
2200-2440 4 3 Phase 966 - - - - 1,171 1,869 2,185 306 Call Factory 2,355 Call Factory
2160 3 3 Phase 725 - - - - 1,171 1,869 2,185 306 Call Factory 1,731 Call Factory
2500-2780 4 3 Phase 966 - - - - 1,171 1,869 2,185 306 Call Factory 1,920 Call Factory
BHE
450-550 2 Standard 838 2,527 Standard Standard - 903 1,404 1,700 306 - - Call Factory
640-740 3 Standard 1,257 3,789 Standard Standard - 903 1,404 1,700 306 - - Call Factory
810-950 4 Standard 1,676 5,053 Standard Standard - 1,071 1,696 2,004 306 - - Call Factory
1020-1200 3 3 Phase 725 3,539 Standard Standard - 1,071 1,696 2,004 306 - - Call Factory
1390 3 3 Phase 725 3,539 Standard Standard - 1,320 Call Factory 2,004 306 - - Call Factory
1650 3 3 Phase 725 3,539 Standard Standard - 1,171 1,869 2,185 306 - - Call Factory
2120 4 3 Phase 966 4,874 Standard Standard - 1,171 1,869 2,185 306 - - Call Factory
BHL
400-480 2 Standard 838 2,528 Standard Standard - 903 1,404 1,700 306 - - -
560-650 3 Standard 1,257 3,792 Standard Standard - 903 1,404 1,700 306 - - -
710-840 4 Standard 1,676 5,056 Standard Standard - 1,071 1,696 2,004 306 - - -
890-1050 3 3 Phase 725 3,539 Standard Standard - 1,071 1,696 2,004 306 - - -
1220 3 3 Phase 725 3,539 Standard Standard - 1,320 Call Factory 2,004 306 - - -
1440 3 3 Phase 725 3,539 Standard Standard - 1,171 1,869 2,185 306 - - -
1860 4 3 Phase 966 4,874 Standard Standard - 1,171 1,869 2,185 306 - - -
BHG
450-550 2 Standard 838 2,528 Standard Standard 505 903 - - 306 Call Factory -Call Factory
640-740 3 Standard 1,257 3,792 Standard Standard 505 903 - - 306 Call Factory -Call Factory
810-950 4 Standard 1,676 5,056 Standard Standard 505 1,071 - - 306 Call Factory -Call Factory
1020-1200 3 3 Phase 725 3,539 Standard Standard 902 1,071 - - 306 Call Factory -Call Factory
1390-1650 3 3 Phase 725 3,539 Standard Standard 902 1,320 - - 306 Call Factory -Call Factory
2120 4 3 Phase 966 4,874 Standard Standard 1,298 1,320 - - 306 Call Factory -Call Factory
BHF
400-480 2 Standard 838 2,528 Standard Standard 505 903 - - 306 Call Factory - -
560-650 3 Standard 1,257 3,792 Standard Standard 505 903 - - 306 Call Factory - -
710-840 4 Standard 1,676 5,056 Standard Standard 505 1,071 - - 306 Call Factory - -
890-1050 3 3 Phase 725 3,539 Standard Standard 902 1,071 - - 306 Call Factory - -
1220-1440 3 3 Phase 725 3,539 Standard Standard 902 1,320 - - 306 Call Factory - -
1860 4 3 Phase 966 4,874 Standard Standard 1,298 1,320 - - 306 Call Factory - -
* No 575V totally enclosed & high CFM 575.
§ Maximum suction temperature for this option is +15°F.
* Not available in 115V or 575V
ADDITIONAL OPTIONS NEXT PAGE
February 1, 2008 Bohn Refrigeration Products List Prices 27
Shipped-loose Options For Evaporators
Reach-in Evaporators Options
Flare connection adaptor for expansion valve
Option Models Part # List Price ($US)
Adapter for 3/8" OD Sweat to 1/2" Flare All Reach-in* 37501301 25
Adapter for 1/2" OD Sweat to 1/2" Flare All Reach-in* 37501401 25
Expansion Valves (TXV)
Valve Size / BTU’s List Price Each ($US)
2 tons / 24,000 and smaller 281
3 tons – 5 tons / 36,000 – 60,000 456
5 tons and up / 60,000 – 120,000 578
Room Thermostat (all models)
Part # List Price Each ($US)
4131Y 241
Adjustable Defrost Control /
Fan Delay Switch (all models)
Part # List Price Each ($US)
4267W 226
Suction & Discharge Check Valves
Size Part # List Price Each ($US)
5/8" 4146T 80
7/8" 5890C 297
1 1/8" 5889C 589
1 3/8" 5871E 596
1 5/8" 5731F 670
2 1/8" 2933034 1,412
Collar for Air Sock
(must be used with wire fan guards)
Part # List Price
($US)/Fan
89865801
(18", medium prole units only) 198
89910701
(24", large prole units only) 418
89904401
(30", large prole units only) 558
Liquid-line Solenoid Valves
Size Part # List Price
Each ($US)
3/8" 29318011 289
1/2"29318012 289
5/8"5768Y 385
7/8"5804E 475
1 1/8"5803E 594
1 3/8"4272P 858
Drain Line Heaters (208/230 volt)
Length Watts Part # List Price
Each ($US)
6 ft. 42 5508Q 122
12 ft. 84 5594P 135
18 ft. 126 5595P 159
36 ft. 252 5596P 241
60 ft. 420 5597P 448
CPR Valves
Size Part # List Price
Each ($US)
5/8" 2930142 257
7/8" 29346101 353
1 1/8" 29399012 517
1 3/8" 4227W 1,415
1 5/8" 4262Q 2,214
2 1/8" 4316K 2,538
2 5/8" 4469E 5,745
Air Filters
Models
LO/LOD/LOG Part # List Price
Each ($US)
070-125 89900801 264
150-225 89900802 264
266 89900803 264
Model HR Part # List Price
Each ($US)
035-054 4391W 30
069-108 4392W 41
149 4393W 56
180 4394W 58
Defrost Controls Kits and Components*
Kit # Kit C1 Kit C2 Kit C3 Kit C4 Kit C5 Kit C6
Kit Components
21340101 Timer **
21340101 Timer **
5505-R 30-amp Contactor
21340101 Timer **
5738-N 50-amp Contactor
21340101 Timer **
(2) 5505-R 30-amp Contactor
21340101 Timer **
5505-R 30-amp Fan Contactor
5738-N 50-amp Contactor
21340101 Timer **
5505-R 30-amp Fan Contactor
(2) 5738-N 50-amp Contactor
Kit Price ($US)
283 586 626 889 929 1,272
LET/LLE/WKE
208-230/1/60 208-230/3/60 &
460/1/60 - - - -
WKE340B - 208-230/3/60 - - - -
BML
100 - 220 208-230/3/60 208-230/1/60 208-230/3/60
460/3/60
460/1/60 -
250 - 330 - 208-230/3/60 208-230/1/60 - -
370 - 530 - - 208-230/3/60 - -
BME
101 - 260 - 208-230/1/60 &
208-230/3/60 -460/1/60 &
460/3/60
- -
310 - 390 - 208-230/3/60 208-230/1/60 - -
430 - 620 - - 208-230/3/60 - -
520 - 460/1/60 - - - -
BHE
450 - 550 - - - 208-230/3/60 &
460/3/60 - -
640 - 950 - - - 460/3/60 208-230/3/60 -
1020 - 1650 - - - - 460/3/60 208-230/3/60
2120 - 208-230/1/60 - - - 460/3/60
BHL
400 - 480 - - - 208-230/3/60 &
460/3/60 - -
560 - 840 - - - 460/3/60 208-230/3/60 -
890 - 1440 - - - - 460/3/60 208-230/3/60
1860 - - - - - 460/3/60
* All reach-in families except dual air “U”.
* Kit selection is based on single evaporator. For multiple evaporators, other kits are available. For
assistance on kit selection, please contact a factory representative.
** When ordered separately, list price 21340101 timer $283, 5505-R Contactor $303, 5738-N Contactor
$343, 21340301 50 Hertz timer $323. ADDITIONAL OPTIONS NEXT PAGE
28 February 1, 2008 Bohn Refrigeration Products List Prices
Heat Exchangers
Model Part # Capacity (HP) Approx. Ship Wt.
(lbs.)
Liquid
Connection OD
Suction
Connection OD Length (in.) List Price
Each ($US)
H 0100 24200004 3/4, 1 2 3/8 5/8 14 201
H 0150 24200005 1.5 2 3/8 7/8 14 213
H 0200 24200006 2 2 1/2 7/8 11 237
H 0300 24200007 3 2 1/2 1 1/8 14 258
H 0500 24200008 5 3 5/8 1 3/8 14 431
H 0750 24200009 8 4 7/8 1 5/8 16 473
H 1000 24200010 10 6 7/8 2 1/8 17 727
SLHE 15 24200011 15 8 7/8 2 1/8 25 996
H 2000 24200012 20 9 1 1/8 2 1/8 27 1,170
H 2500 24200013 25 10 1 1/8 2 5/8 28 1,258
H 3500 24200015 30, 35 12 1 3/8 3 1/8 32 1,697
Low Prole Unit Coolers
Model Heat Exchanger
Part #
List Price
Each ($US)
LET/LLE
035 - 047 24200004 201
065 - 090 24200005 213
120 - 140 24200006 237
160 - 180 24200007 258
200 - 280 24200008 431
HGT
041 - 068 24200004 201
080 - 102 24200005 213
136 24200006 237
170 24200007 258
204 - 235 24200008 431
LOD/LOG
070 - 118 24200005 213
125 - 165 24200006 237
189 - 225 24200007 258
266 24200008 431
WKE/WKG
050 24200004 201
075 - 100 24200005 213
130 - 155 24200006 237
180 - 270 24200007 258
340 24200008 431
SME
040 24200004 201
054 - 090 24200005 213
130 24200007 258
174 24200007 258
Medium Prole Unit Coolers
Model Heat Exchanger
Part #
List Price
Each ($US)
BMA
130 24200005 213
155 - 300 24200007 258
365 - 450 24200008 431
510 - 710 24200009 473
BML
100 24200005 213
165 24200007 258
220 - 330 24200008 431
370 - 530 24200009 473
BME
101 - 140 24200005 213
190 24200007 258
260 - 390 24200008 431
430 - 620 24200009 473
BMG
190 24200007 258
260 - 390 24200008 431
430 - 520 24200009 473
BMF
165 24200007 258
220 - 370 24200008 431
440 24200009 473
High Prole Unit Coolers
Model Heat Exchanger
Part #
List Price
Each ($US)
BHA
520 - 630 24200009 473
750 - 850 24200010 727
930 - 1400 24200011 996
1610 - 2440 24200013 1,258
2500 - 2780 24200015 1,697
BHE/BHG
450 - 550 24200009 473
640 24200011 996
740 - 1390 24200012 1,170
1650 - 2120 24200015 1,697
BHL/BHF
400 - 480 24200009 473
560 - 650 24200011 996
710 - 1220 24200012 1,170
1440 - 1860 24200015 1,697
Shipped-loose Options For Evaporators
Heat Exchangers for:
Long Air Flow Collars – Warehouse Evaporators (High Prole)
Model Size (Capacity x 100)
# of Fans Part # List Price Each
($US)
List Price Total
($US)
Air Defrost Electric & Hot Gas Defrost
6 FPI 8 FPI 4 FPI 6 FPI
520 - 400 450 2 89910701 418 836
630 - 480 550 2 89910701 418 836
750 - 560 640 3 89910701 418 1,254
850 - 650 740 3 89910701 418 1,254
930 - 710 810 4 89910701 418 1,672
1100 - 840 950 4 89910701 418 1,672
1170 - 890 1020 3 89904401 558 1,675
1400 - 1050 1200 3 89904401 558 1,675
1610 - 1220 1390 3 89904401 558 1,675
1900 2160 1440 1650 3 89904401 558 1,675
2200 2500 - - 4 89904401 558 2,234
2440 2780 1860 2120 4 89904401 558 2,234
ADDITIONAL OPTIONS NEXT PAGE
February 1, 2008 Bohn Refrigeration Products List Prices 29
Hot Gas Options For Evaporators
TXV Bypass Assembly Kits
(Hot Gas Loop (Standard) & Electric Drain Pan)
Hot Gas Reverse Cycle Kits (Factory-installed)
1 LOW PROFILES
For Hot Gas models with the Hot Gas Loop Drain Pan ONLY
For Hot Gas models with the Hot Gas Loop Drain Pan ONLY
TXV Bypass Assembly Kits with TXV
(Hot Gas Loop (Standard) & Electric Drain Pan)
Hot Gas Reverse Cycle Kits (Shipped-loose)
1. Decide if kits are to be shipped-loose or factory-installed. If kits are to be shipped-loose, use the rst two tables. If kits are to
be factory mounted, use the two tables at the bottom of the page.
2. Select the correct TXV bypass kit based on unit model number and TXV style. Selections for units with the electric drain pan
option are nished. For units with the standard hot gas drain pan, please proceed with steps 3 and 4.
3. Proceed to the table directly below the TXV bypass kit table and select the appropriate drain pan and suction-line check
valve kits based on unit model number. Drain pan and suction-line check valves and piping can be supplied by others but
are necessary to complete the piping.
4. If room temperature is 0°F or below, please select an insulated drain pan from table at the bottom of page 30 using the
appropriate unit model number. Selection for hot gas pan unit is nished.
REVERSE CYCLE HOT GAS DEFROST KIT SELECTION INSTRUCTIONS
When placing order, please specify:
• Unit model number
• Drain pan type (hot gas or electric)
(If ordering hot gas pan, indicate whether unit is to have insulated pan)
• Reverse cycle kit part numbers
(If ordering factory mounted kits, please specify TXV style, refrigerant,
saturated suction temperature (SST) and liquid temperature)
* The drain pan check valve kit can be ordered as an
independent item, but the suction-line check valve
kit must be ordered with the drain pan check valve
kit in order to complete the piping.
NOTE: TXV price and valve are NOT included in the
shipped-loose kits.
* The drain pan check valve kit can be ordered as an
independent item, but the suction-line check valve kit
must be ordered with the drain pan check valve kit in
order to complete the piping.
NOTE: TXV price is included in the bypass kit price
(factory-installed), BUT customer must specify valve
model, refrigerant and SST on order.
HGT 6 FPI HGT 4 FPI
TXV Bypass Assembly Kits List Price
Each ($US)
SQE/SBF EG HFESC
035 - 075 041 - 080 50169210 50169213 50169216 118
090 - 160 102 - 204 50169211 50169214 50169217 138
180 - 280 235 50169212 50169215 50169218 142
HGT 6 FPI HGT 4 FPI Drain Pan Loop
Check Valve Kit
List Price
Each ($US)
Suction-line
Check Valve Kit
List Price
Each ($US)
035 - 065 041 50169304 122 50169604 140
075 - 140 068 - 102 50169305 128 50169605 205
160 - 280 136 - 235 50169306 141 50169606 248
HGT 6 FPI HGT 4 FPI Drain Pan Loop
Check Valve Kit
List Price
Each ($US)
Suction-line
Check Valve Kit
List Price
Each ($US)
035 - 065 041 52733601 704 52733801 722
075 - 140 068 - 102 52733602 711 52733802 785
160 - 280 136 - 235 52733603 725 52733803 827
HGT 6 FPI HGT 4 FPI
TXV Bypass Assembly Kits List Price
Each ($US)
SQE/SBF EG HFESC
035 - 075 041 - 080 52733701 52733704 52733707 1,024
090 - 160 102 - 204 52733702 52733705 52733708 1,044
180 - 280 235 52733703 52733706 52733709 1,049
ADDITIONAL OPTIONS NEXT PAGE
30 February 1, 2008 Bohn Refrigeration Products List Prices
3-Pipe Kits Hot Gas Loop (Standard) & Electric Drain Pan
Hot Gas 3-Pipe Kits (Shipped-loose)
Hot Gas 3-Pipe Kits (Factory-installed)
3-Pipe Kits Hot Gas Loop (Standard) & Electric Drain Pan
Insulated Drain Pan Price Adders
When using the hot gas units on 0°F degree
applications and below, an insulated drain pan
is REQUIRED.
NOTE: This does not apply to electric drain pan,
ONLY on hot gas pan units.
For Hot Gas models with the Hot Gas Loop Drain Pan ONLY
For Hot Gas models with the Hot Gas Loop Drain Pan ONLY
1 LOW PROFILES CONTINUED
NOTE: TXV price and valve are NOT included in the shipped-loose kits.
Hot Gas Options For Evaporators
HGT 6 FPI HGT 4 FPI
TXV Assembly Kits List Price
Each ($US)
SQE/SBF EG HFESC
035 - 075 041 - 080 50169410 50169413 50169416 80
090 - 160 102 - 204 50169411 50169414 50169417 101
180 - 280 235 50169412 50169415 50169418 106
HGT 6 FPI HGT 4 FPI Drain Pan Loop
Check Valve Kit
List Price
Each ($US)
035 - 065 041 50169504 115
075 - 140 068 - 102 50169505 124
160 - 280 136 - 235 50169506 132
HGT 6 FPI HGT 4 FPI Drain Pan Loop
Check Valve Kit
List Price
Each ($US)
035 - 065 041 52739601 704
075 - 140 068 - 102 52739602 711
160 - 280 136 - 235 52739603 725
HGT 6 FPI HGT 4 FPI
TXV Assembly Kits List Price
Each ($US)
SQE/SBF EG HFESC
035 - 075 041 - 080 52733901 52733904 52733907 982
090 - 160 102 - 204 52733902 52733905 52733908 1,000
180 - 280 235 52733903 52733906 52733909 1,006
6 FPI 4 FPI Insulated
Drain Pan
List Price
Each ($US)
035 - 047 041 40481102 115
065 - 090 068 - 080 40481202 159
120 - 140 102 40481302 196
160 - 180 136 40481402 240
200 170 40481502 264
240 - 280 204 - 235 40481602 301
NOTE: TXV price is included in the TXV assembly kit price (factory-
installed), BUT customer must specify valve model, refrigerant and
SST on order.
ADDITIONAL OPTIONS NEXT PAGE
February 1, 2008 Bohn Refrigeration Products List Prices 31
Model Part #
(Shipped-loose)
List Price Each
($US)
070 - 225 89900901 261
266 89901001 439
WKG TXV Bypass Kits* (Shipped-loose)
Model SQE, SBF, or HFESC S List Price Each ($US)
100 89897801 89898001 337
130 - 270 89897802 89898002 348
340 89897803 89898003 360
BMG BMF
Part #
(Shipped-
loose)
Reverse Cycle
Kit for Standard
Electric Pan
•
List Price Each
($US)
Factory-
installed
^
Electric Pan
List Price Each
($US)
190 - 260 165 - 220 89867601 321 2,256
310 - 520 250 - 440 89867602 474 2,496
BMG BMF
Part #
(Shipped-
loose)
Reverse Cycle Kit
for Standard Hot
Gas Pan
•þ
List Price Each
($US)
Factory-
installed
^þ
Hot Gas Pan
List Price Each
($US)
190 165 89869403 +
89867601 924 2,946
260 220 89869402 +
89867601 1,446 3,468
310 - 390 250 - 330 89869402 +
89867602 1,686 3,709
430 - 520 370 - 440 89869401 +
89867602 1,824 3,846
BHG 6 FPI BHF 4 FPI
Part #
(Shipped-loose)
Reverse Cycle
Kit for Standard
Electric Pan
•
List Price Each
($US)
Factory-
installed
^
Electric Pan List
Price Each ($US)
Part #
(Shipped-loose)
Reverse Cycle Kit
for Hot Gas Pan
Option
•þ
List
Price Each ($US)
Factory-
installed
^þ
Hot
Gas Pan
List
Price Each ($US)
450 - 550 400 - 480 89910901 758 2,696 89910905 1,877 4,124
640 560 89910902 867 2,696 89910906 2,384 4,630
740 650 89910902 867 2,696 89910906 2,384 4,630
810 710 89910902 867 2,696 89910906 2,384 4,630
950 840 89910902 867 2,696 89910906 2,384 4,630
1020 890 89910903 1,082 2,696 89910907 2,599 4,845
1200 1050 89910904 1,201 3,932 89910908 2,922 5,393
1390 1220 89911101 1,337 3,932 89911102 4,585 7,281
1650 1440 89911301 1,337 3,932 89911302 5,045 7,741
2120 1860 89911301 1,337 3,932 89911303 5,061 7,756
LOG - TXV Bypass Kit
Hot Gas Options For Evaporators
5 WAREHOUSE UNIT COOLERS
Reverse Cycle Kits
• Bypass kits include one check valve and piping for liquid bypass around expansion valve.
þ Kits do not include hot gas pan price. Includes suction and drain pan check valve piping assemblies.
^ Factory-installed kits include expansion valves and liquid bypass check valve assembly. Consult factory for
factory-installed kit part numbers. Specify valve model, refrigerant and SST on order.
• Bypass kits include one check valve and piping for liquid bypass around
expansion valve.
þ Kits do not include hot gas pan price. Includes suction and drain pan check
valve piping assemblies.
^ Factory-installed kits include expansion valves and liquid bypass check
valve assembly. Consult factory for factory-installed kit part
numbers. Specify valve model, refrigerant and SST on order.
2 LOW VELOCITY
Reverse Cycle Kits
3 LOW VELOCITY CENTER MOUNTS
Reverse Cycle Kits
4 MEDIUM PROFILES
Reverse Cycle Kits
* Electric pan is standard in all hot gas models, hot gas loop not available.
* Kits includes one check valve and piping for liquid bypass around expansion valve and
instructions for eld installation.
* Electric pan is standard in all hot gas models.
* Kits includes one check valve and piping for liquid bypass around expansion valve and
instructions for eld installation.
32 February 1, 2008 Bohn Refrigeration Products List Prices
Low Prole & Low Velocity* Medium Prole High Prole**
All Models Beacon II™
Adder All Models Beacon II™
Adder All Models Beacon II™
Adder
ADT 1,280 BMA 2,032 BHA 3,830
LET 1,280 BME 2,032 BHE 3,830
LLE 1,280 BML 2,032 BHL 3,830
HGT - BMG - BHG -
LO - BMF - BHF -
LOD -
LOG -
WK 1,280
WKE 1,280
WKG -
SM 1,280
SME 1,280
HR -
Maximum 4 Evaporators per condensing unit List Price ($US)
Beacon II™ Smart Controller – Part # 89704301 2,060
Beacon II™ “Smart II” Software – Part # 89704101 589
Communication Hub – Part # 89708001 6,163
Beacon II™ Refrigeration System
Part # Smart
Controllers
Communication
Hub Timer Modem Alarm Light List Price ($US)
89759001 4 1 1 1 1 27,127
89759002 3 1 1 1 1 25,141
89759003 4 1 0 0 0 23,660
89759004 3 1 0 0 0 21,819
* Beacon II™ not available 460V and 230/3V
** The following models require special split circuiting for use with Beacon II system.
Please contact factory for pricing:
- Air defrost (BHA): 1610, 2440, 2500, 2780
- Electric defrost (BHE/BHL with 404A): 1220, 1390, 1860, 2120
- Air defrost (BHA with 404A): 1900, 2160, 2200
NOTE: Beacon II™ must be ordered as a system
When ordering a Beacon II™ system, please advise the box
temperature, liquid temperature and refrigerant so that
the proper evaporator nozzle can be installed.
When applying an electric defrost coil in a medium
temperature application the nozzle size is critical and
must be evaluated. For assistance, please call a factory
representative.
Beacon II™ Pricing ($US)
NOTE: One Smart Controller™ can control
up to 4 condensing units with a maximum
of 4 evaporators each.
Beacon II™ Communication Center
™
Beacon II™ is the rst pre-assembled refrigeration system with factory tested and
mounted components, featuring an integrated microprocessor electronic control
board, preset for standard applications.
System Features and Benets:
Beacon II™ Smart Controller:
• Remote Access Capabilities
• Smart Defrost
• System monitoring, programming and data
logging (with Smart II software)
• Large, easy to read display
Communication Hub
• Allows single point communication and control to
up to 4 Smart Controllers™ and includes:
4 - 6ft. null modem cables
4 - Serial ribbon cables
1 - Communication hub
1 - 24 VAC power supply
1 - Instruction sheet
• Up to 16 Smart Controllers™ can be networked
to a computer or modem using multiple hubs
Factory Mounted Components
• Beacon II™ microprocessor
• Solid state temperature sensors
• Electric expansion valve
• 24-volt transformer, fan cycling relay
• 24-volt compressor contactor
• Pressure transducer
Benets
• Simplies installation
• Increased system eciency
• Increased system reliability
• Reduced installation time/cost
• Used with single or multiple
evaporator applications
Components Eliminated
• Liquid-line solenoid
• Room thermostat
• Thermal expansion valve
• Defrost time clock
• Defrost termination/fan delay switch
• Defrost and fan contactors, if necessary
February 1, 2008 Bohn Refrigeration Products List Prices 33
Beacon II™ Refrigeration System
™
Example #1: 5 HP High Temperature Hermetic with ADT370AK
Condensing Unit: BHS050H2C $10,363
Liquid-line assembly (customer option) 538
Suction-line lter (customer option) 352
Evaporator: ADT370AK 5,898
Beacon II™ Evaporator Adder: 1,280
Beacon II™ Smart Controller™ 2,060
Beacon II™ “Smart II” Software 589
Total $21,080
Example #2: 7.5 HP Low Temperature Scroll with (2) SME174BE
Condensing Unit: BZS0750L6C $21,030
Liquid-line assembly (standard) NC
Suction accumulator (customer option) 644
Evaporator: (2) SME174BE (2 x 5,790) 11,580
Beacon Evaporator Adder: (2) Beacon II™ (2 x 1,280) 2,560
Total $35,814
Example #3: 10 HP High Temperature Discus with (2) BHE450CA
Condensing Unit: BDS1000H2C $30,779
Liquid-line assembly (standard) NC
Suction accumulator (customer option) 1,000
Evaporator: (2) BHE450CA (2 x 12,271) 24,542
Beacon Evaporator Adder: (2) Beacon II™ (2 x 3,830) 7,660
Total $63,981
Example #4: 30 HP Low Temperature with BHE1200CPA *
Condensing Unit: BDVS3000L6C $56,611
Liquid-line assembly (standard) NC
Replaceable core suction lter
(customer option) 1551
Evaporator: BHE1200CPA 29,881
Beacon Evaporator Adder: Beacon II™ 3,830
Beacon II™ Smart Controller™ 2,060
Total $93,933
Steps for Pricing a Beacon II™ System:
1. Determine condensing unit and evaporator(s) needed for the heat load
2. Price the Beacon II™ condensing unit model with options
3. Defrost kits are not required as Beacon II™ components include
accessories necessary for defrost
4. Price the standard evaporator with correct voltage
5. Add the corresponding Beacon II™ options for the selected evaporators
6. Add Beacon II™ Smart Controller™
* Beacon II™ Smart Controller™ is recommended for warehouse applications. Beacon II™ oers
Smart Controller™ as an optional system monitoring and programming control device which
allows for adjustments to be made at the push of a button from a conveniently mounted location.
IMPORTANT NOTE: The distributor nozzle size must be reviewed by an Application Engineer when
using an electric defrost coil with suction temperature above 0ºF.
34 February 1, 2008 Bohn Refrigeration Products List Prices
PRO3 Top Mount Packaged Refrigeration System
High Temperature Indoor Top Mount Packaged Refrigeration System
Model
List Price ($US)
Voltage
Net Dimensions (in.) Approx.
Ship Wt.
(lbs.)
Height Depth Length
Shaded
Pole
PSC
^=H
EC
^=E
PTN024H2A^4,358 4,575 4,858 115/1/60 19.5 20.5 28.25 168
PTN029H2A^4,688 4,904 5,021 115/1/60 19.5 20.5 28.25 170
PTN040H2A^* 5,283 5,500 5,623 115/1/60 19.5 20.5 28.25 172
PTN047H2A^* 6,572 6,787 7,111 115/1/60 21.5 28.5 52.00 281
PTN047H2B^* 6,572 6,787 7,132 208-230/1/60 21.5 28.5 52.00 281
PTN063H2B^* 7,072 7,393 8,130 208-230/1/60 21.5 28.5 52.00 296
PTN072H2B^* 7,582 7,903 8,668 208-230/1/60 21.5 28.5 52.00 300
PTN099H2B^* 8,520 9,051 10,128 208-230/1/60 23.0 42.0 52.00 420
PTN099H2C^* 8,652 9,183 10,224 208-230/3/60 23.0 42.0 52.00 415
PTN128H2B^* 9,510 10,041 11,218 208-230/1/60 23.0 42.0 52.00 440
PTN128H2C^9,642 10,173 11,282 208-230/3/60 23.0 42.0 52.00 435
Low Temperature Indoor Top Mount Packaged Refrigeration System
PTN019L6A^6,538 6,754 6,899 115/1/60 19.5 24.5 28.25 181
PTN021L6A^8,084 8,299 8,659 115/1/60 21.5 28.5 52.00 302
PTN021L6B^8,084 8,299 8,682 208-230/1/60 21.5 28.5 52.00 302
PTN031L6B^* 8,757 9,078 9,883 208-230/1/60 21.5 28.5 52.00 310
PTN044L6B^* 10,038 10,359 11,262 208-230/1/60 21.5 28.5 52.00 314
PTN052L6B^* 11,094 11,625 12,876 208-230/1/60 23.0 42.0 52.00 425
PTN052L6C^11,094 11,625 12,871 208-230/3/60 23.0 42.0 52.00 420
PTN069L6B^* 11,900 12,431 13,749 208-230/1/60 23.0 42.0 52.00 430
PTN069L6C^* 11,900 12,431 13,738 208-230/3/60 23.0 42.0 52.00 425
High Temperature Outdoor Top Mount Packaged Refrigeration System
PTT047H2B^7,463 7,678 8,037 208-230/1/60 21.5 28.5 52 287
PTT063H2B^* 8,056 8,377 9,130 208-230/1/60 21.5 28.5 52 302
PTT072H2B^* 8,586 8,907 9,686 208-230/1/60 21.5 28.5 52 306
PTT099H2B^* 9,707 10,240 11,321 208-230/1/60 21.5 28.5 52 534
PTT099H2C^9,839 10,371 11,413 208-230/1/60 21.5 28.5 52 534
PTT128H2B^10,831 11,362 12,540 208-230/1/60 23.0 42.0 52 544
PTT128H2C^10,831 11,362 12,466 208-230/3/60 23.0 42.0 52 544
Low Temperature Outdoor Top Mount Packaged Refrigeration System
PTT021L6B^9,179 9,395 9,797 208-230/1/60 21.5 24.5 52 308
PTT031L6B^9,972 10,293 11,128 208-230/1/60 21.5 28.5 52 316
PTT044L6B^11,424 11,746 12,686 208-230/1/60 21.5 28.5 52 320
PTT052L6B^* 12,613 13,145 14,439 208-230/1/60 23.0 42.0 52 534
PTT052L6C^12,613 13,145 14,428 208-230/3/60 23.0 42.0 52 534
PTT069L6B^* 13,538 14,069 15,429 208-230/1/60 23.0 42.0 52 544
PTT069L6C^13,538 14,069 15,419 208-230/3/60 23.0 42.0 52 544
P T N 072 H 2 B H
Package
System
Top Mount N = Indoor
T = Outdoor
Model Size H = Cooler Air Defrost
L = Freezer Electric Defrost
Refrigerant
2 = R-22
6 = R-404A
Voltage
A = 115/1/60
B = 208-230/1/60
C = 208-230/3/60
No H or E =
Shaded Pole
H = PSC Motor
E = EC Motor
* Model numbers are normally in stock.
Model does not come with a power cord.
Nomenclature Example:
PRO3 Top
Mount Packaged
Refrigeration System
FAMILY
PTN/PTT
Reliability/Durability
• System is fully assembled at the
factory and backed up by Bohn’s
superior quality control
• Electronic controls provide accurate
temperature control
• Liquid-line drier
• Two-year parts warranty
• Outdoor units feature a drain-
line heater, crankcase heater and
weatherhood
Ease of Installation
• Installation takes a fraction of the time
required for a split system
• Simple, quick installation with no
piping or loose components to install
gives you savings on labor
• Evaporator grill mounts ush on a
standard 4" thick ceiling or recessed in
thicker ceiling panels to allow for more
storage in the cooler of freezer
• Indoor model comes with a
condensate evaporation pan
eliminating the need for a drain line
Ease of Use
• Most indoor models come with a pre-
wired 26" power cord
• System is factory assembled,
evacuated, charged, run tested and
wired. No additional refrigeration
components required
• Controls preset for typical applications
+35°F for coolers, -10°F for freezers
and are easy to adjust (*019L6* is set
for 0°F)
February 1, 2008 Bohn Refrigeration Products List Prices 35
PRO3 Side Mount Packaged Refrigeration System
Nomenclature Example:
FAMILY
PST
P S T 070 H 2 B H
Package
System
Side Mount T = Outdoor
(unit is also
appropriate
for indoor)
Model Size H = High/Medium Temp
L = Low Temp
M = Medium Temp w/
electric defrost
Refrigerant
6 = R-404A Voltage
B = 208-230/1/60
H = PSC Motor
E= EC Motor
(evaporator section only)
High Temperature Side Mount Packaged Refrigeration System
Model
List Price ($US)
Voltage Cabinet
Size
Approx. Ship
Wt. (lbs.)
PSC
^=H
EC
^=E
PST070H6B^ 8,500 8,833 208-260/1/60 Small 431
PST090H6B^ 9,000 9,333 208-260/1/60 Small 436
PST131H6B^ 10,000 10,666 208-260/1/60 Large 519
PST147H6B^ 11,000 11,666 208-260/1/60 Large 524
Medium Temperature Side Mount Packaged Refrigeration System
PST066M6B^ 8,900 9,233 208-260/1/60 Small 431
PST086M6B^ 9,400 9,733 208-260/1/60 Small 436
PST124M6B^ 10,400 11,066 208-260/1/60 Large 519
PST141M6B^ 11,400 12,066 208-260/1/60 Large 524
Low Temperature Side Mount Packaged Refrigeration System
PST034L6B^ 10,500 10,833 208-260/1/60 Small 431
PST051L6B^ 11,500 11,833 208-260/1/60 Small 436
PST057L6B^ 12,500 13,166 208-260/1/60 Large 519
PST077L6B^ 13,500 14,166 208-260/1/60 Large 524
Ease of Installation and Operation
• Shortened installation time (2
hours installation time vs. 8 hours
for a typical split system)
• System is factory assembled,
evacuated, charged and run tested
• Electronic controls provide
accurate and easy to adjust
temperature control
• Optimized for outdoor
applications. The unit comes
standard with fan cycling and a
crankcase heater and does not
require penetration of the
roof membrane
Environmentally Friendly
• Reduced Refrigerant Charge
(36-40 oz. vs. 150-250 oz. for a
typical split system)
• PSC motors are standard on
both the condensing unit and
evaporator sections
• Available with EC motors on the
evaporator section
(CEC compliant)
Performance
• Improved capacity, air ow and
pull-down capability
PRO3 Side
Mount Packaged
Refrigeration System
36 February 1, 2008 Bohn Refrigeration Products List Prices
Outdoor Semi-hermetic Con-
densing Unit
Outdoor Hermetic Condensing
Unit with hood removed
Nomenclature Example:
Standard Features:
• Oversized aluminum fin, copper tube condenser for high ambient operation
• Motors rated for 50 and 60 cycle application in 120°F ambient
• Fans specifically matched with motor and coil to attain maximum air movement and cooling
• Prepainted G90 galvanized cabinets for superior strength and corrosion protection
• Heavy duty steel raised base with 1.5" legs
• Optional liquid and suction-line valves for hermetic and Scroll® compressors located outside cabinet for quick
installations. Semi-hermetic compressors have a suction valve on the compressor and only need an access
fitting on suction line exiting the unit
• Discharge service valves on all compressors
• Wide variety of compressors including Copeland hermetic, semi-hermetic and refrigeration Glacier Scroll compressors
• R-22 and R-404A/ 507 available for both medium and low temperature applications
• Spring mounted compressors with vibration eliminators on all semi-hermetic compressors (1.5 to 6 HP).
1/2-1 HP semi-hermetic compressors are rigid mounted with a discharge loop and a suction vibration eliminator
• Large electrical panel for ease of access
• Prefabricated wiring harnesses for tight connections and to simplify service
• Encapsulated, auto-reset, high and low pressure controls to eliminate leaks, standard on all medium temperature
models (adjustable low pressure control standard on low and extended temperature models)
• All units completely leak tested in a helium environment and run tested
• Large availability of outdoor stocked units
1/2 - 6 HP Air-cooled Condensing Units
B H T 015 H 2 B F
Model Compressor Application Equivalent HP Suction Temperature Refrigerant Voltage Identier
B = Bohn
H = Hermetic
S = Semi-hermetic
Z = Scroll
T = Outdoor
N = Indoor
S = Beacon II™
005 = 1/2 HP
008 = 3/4 HP
010 = 1 HP
01* = 1-1/2 HP
02* = 2 HP
03* = 3 HP
04* = 4 HP
05* = 5 HP
060 = 6 HP
H = High
X = Medium/Low
M = Medium
L = Low
E = Extra Low
2 = R-22
6 = R-404A/R-507 B = 208/230/1/60
C = 208-230/3/60
D = 460/3/60
G = 230/1/60
F = Stock
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
• Fixed low pressure control for H2,
M2, M6 models
INDOOR (N)
• No cabinet hood
• Fan guards
• Wiring conduit
• Fixed low pressure control for H2, M2,
M6 models
Beacon II™ OUTDOOR (S)
• Outdoor unit with hood
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units only
• Head pressure control valve
ALL MODELS
1/2 - 5 HP (BH*) Hermetic High & Medium Temperature R-22 Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BHT005H2B 4,561 BHN005H2B 3,576 BHS005H2B 4,948 208-230/1/60 ART82C1 228
BHT005H2BF 5,025 208-230/1/60 ART82C1 143
BHT008H2B 4,581 BHN008H2B 3,594 BHS008H2B 4,970 208-230/1/60 RS64C2 168
BHT008H2BF* 5,045 208-230/1/60 RS64C2 152
BHT010H2B 5,214 BHN010H2B 3,975 BHS010H2B 5,600 208-230/1/60 RS70C1 166
BHT010H2BF* 5,678 208-230/1/60 RS70C1 157
BHT010H2C 5,119 BHN010H2C 4,126 BHS010H2C 5,508 208-230/3/60 RS70C1 163
BHT010H2CF* 5,583 208-230/3/60 RS70C1 163
BHT015H2B 5,829 BHN015H2B 4,635 BHS015H2B 6,555 208-230/1/60 CR18KQ 226
BHT015H2BF* 6,293 208-230/1/60 CR18KQ 226
BHT015H2C 5,978 BHN015H2C 4,784 BHS015H2C 6,706 208-230/3/60 CR18KQ 226
BHT015H2CF* 6,442 208-230/3/60 CR18KQ 226
BHT015H2D 7,008 BHN015H2D 5,594 BHS015H2D 7,734 460/3/60 CR18KQ 226
BHT020H2B 6,143 BHN020H2B 4,904 BHS020H2B 6,870 208-230/1/60 CR24KQ 230
BHT020H2BF* 6,607 208-230/1/60 CR24KQ 230
BHT020H2C 6,391 BHN020H2C 5,151 BHS020H2C 7,118 208-230/3/60 CR24KQ 230
BHT020H2CF* 6,855 208-230/3/60 CR24KQ 230
BHT020H2D 7,493 BHN020H2D 6,252 BHS020H2D 8,219 460/3/60 CR24KQ 230
BHT029M2B 6,751 BHN029M2B 5,903 BHS029M2B 7,480 208-230/1/60 CR37KQ 251
BHT029M2C 6,697 BHN029M2C 5,853 BHS029M2C 7,426 208-230/3/60 CR37KQ 251
BHT029M2D 7,610 BHN029M2D 6,651 BHS029M2D 8,337 460/3/60 CR37KQ 251
BHT030H2B 7,139 BHN030H2B 6,238 BHS030H2B 7,529 208-230/1/60 CR37KQ 326
BHT030H2BF 7,677 208-230/1/60 CR37KQ 326
BHT030H2C 7,075 BHN030H2C 6,187 BHS030H2C 7,465 208-230/3/60 CR37KQ 324
BHT030H2CF* 7,613 208-230/3/60 CR37KQ 324
BHT030H2D 7,933 BHN030H2D 6,933 BHS030H2D 8,321 460/3/60 CR37KQ 324
BHT040H2B 9,452 BHN040H2B 8,587 BHS040H2B 9,839 208-230/1/60 CR53KQ 340
BHT040H2BF 9,990 208-230/1/60 CR53KQ 340
BHT040H2C 9,081 BHN040H2C 8,233 BHS040H2C 9,469 208-230/3/60 CR53KQ 340
BHT040H2CF 9,619 208-230/3/60 CR53KQ 340
BHT040H2D 9,991 BHN040H2D 9,129 BHS040H2D 10,379 460/3/60 CR53KQ 336
BHT050H2B 10,272 BHN050H2B 9,409 BHS050H2B 10,660 208-230/1/60 CRN-0500 353
BHT050H2BF 10,810 208-230/1/60 CRN-0500 353
BHT050H2C 9,975 BHN050H2C 9,115 BHS050H2C 10,363 208-230/3/60 CRN-0500 348
BHT050H2CF 10,513 208-230/3/60 CRN-0500 348
BHT050H2D 10,982 BHN050H2D 10,220 BHS050H2D 11,370 460/3/60 CRN-0500 348
* Model numbers are normally in stock. NOTE: Stock models come with liquid-line drier assembly.
FOR OPTIONS GO TO PAGE 40-41
February 1, 2008 Bohn Refrigeration Products List Prices 37

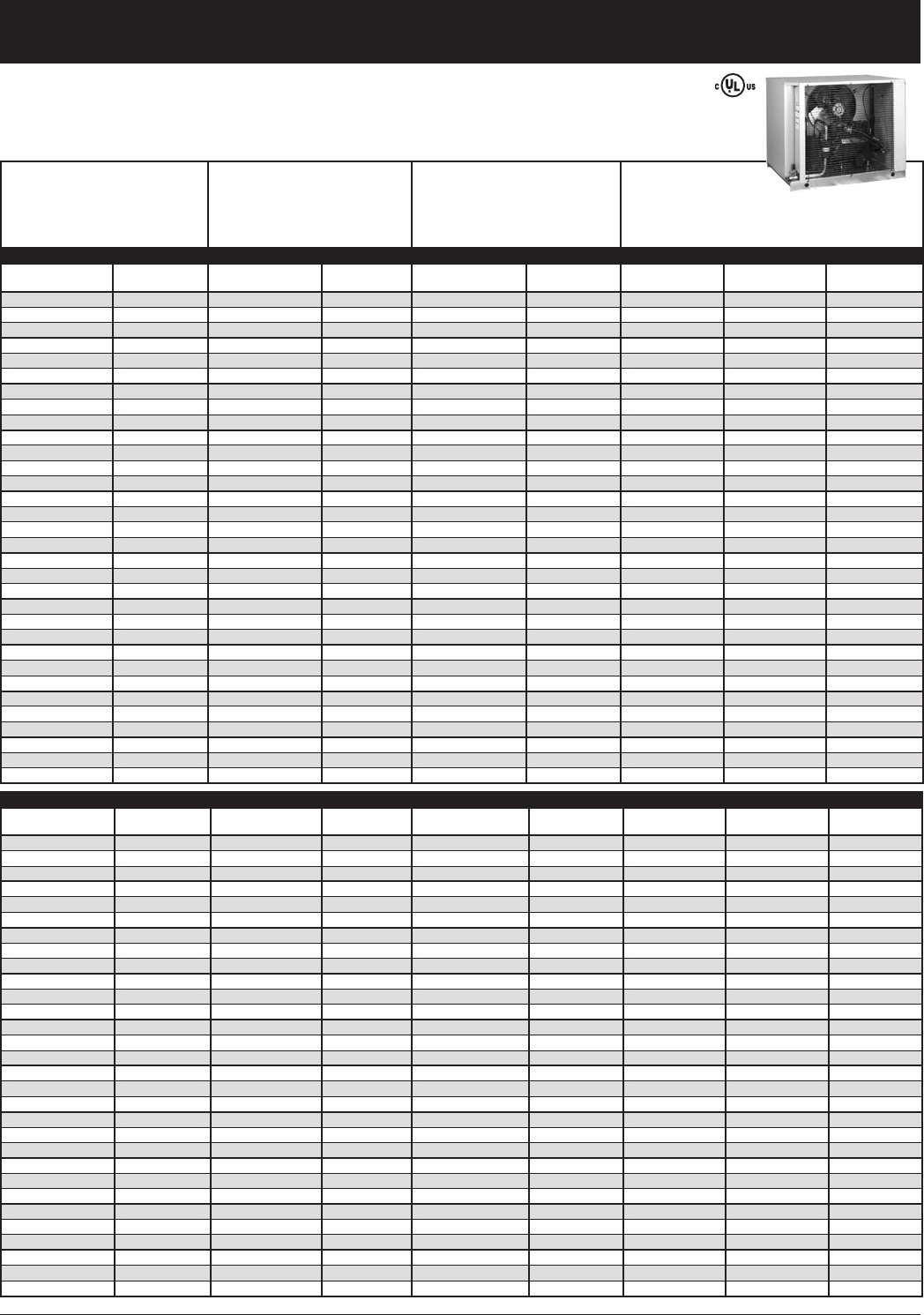

1/2 - 6 HP Air-cooled Condensing Units
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
• Fixed low pressure control for H2, M2,
M6 models
INDOOR (N)
• No cabinet hood
• Fan guards
• Wiring conduit
• Fixed low pressure control for H2, M2,
M6 models
Beacon II™ OUTDOOR (S)
• Outdoor unit with hood
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units only
• Head pressure control valve
ALL MODELS
1/2 - 5 HP (BH*) Hermetic Medium & Low Temperature Condensing Units
Model+ List Price
($US) Model+ List Price
($US) Model+ List Price
($US) Voltage Compressor
Approx. Ship
Wt. (lbs.)
BHT005X6B++ 5,234 BHN005X6B++ 4,259 BHS005X6B++ 5,624 208-230/1/60 RS43C2E 162
BHT008X6B++ 5,282 BHN008X6B++ 4,292 BHS008X6B++ 5,670 208-230/1/60 RS55C2E 162
BHT009X6B++ 5,649 BHN009X6B++ 4,466 BHS009X6B++ 6,038 208-230/1/60 RS70C2E 171
BHT010X6B++ 5,944 BHN010X6B++ 4,757 BHS010X6B++ 6,333 208-230/1/60 RS70C1E 165
BHT010X6C++ 5,871 BHN010X6C++ 4,683 BHS010X6C++ 6,260 208-230/3/60 RS70C1E 165
BHT015X6B 6,445 BHN015X6B 5,250 BHS015X6B 7,172 208-230/1/60 CS10K6E 236
BHT015X6C 6,422 BHN015X6C 5,231 BHS015X6C 7,149 208-230/3/60 CS10K6E 235
BHT020X6B 6,795 BHN020X6B 5,600 BHS020X6B 7,523 208-230/1/60 CS12K6E 240
BHT020X6C 6,932 BHN020X6C 5,738 BHS020X6C 7,658 208-230/3/60 CS12K6E 245
BHT025X6B 7,352 BHN025X6B 6,121 BHS025X6B 8,078 208-230/1/60 CS14K6E 244
BHT025X6C 7,221 BHN025X6C 5,992 BHS025X6C 7,949 208-230/3/60 CS14K6E 245
BHT025X6D 8,043 BHN025X6D 6,813 BHS025X6D 8,771 460/3/60 CS14K6E 245
BHT030X6B 7,555 BHN030X6B 6,693 BHS030X6B 7,944 208-230/1/60 CS18K6E 303
BHT030X6C 7,390 BHN030X6C 6,531 BHS030X6C 7,778 208-230/3/60 CS18K6E 303
BHT030X6D 8,227 BHN030X6D 7,367 BHS030X6D 8,616 460/3/60 CS18K6E 303
BHT032x6B 7,974 BHN032x6B 7,114 BHS032x6B 8,363 208-230/1/60 CS20K6E 318
BHT032x6C 7,810 BHN032x6C 6,947 BHS032x6C 8,200 208-230/3/60 CS20K6E 318
BHT032x6D 8,667 BHN032x6D 7,806 BHS032x6D 9,056 460/3/60 CS20K6E 318
BHT040X6B 9,597 BHN040X6B 8,764 BHS040X6B 9,984 208-230/1/60 CS27K6E 324
BHT040X6C 9,401 BHN040X6C 8,569 BHS040X6C 9,788 208-230/3/60 CS27K6E 324
BHT040X6D 10,377 BHN040X6D 9,546 BHS040X6D 10,767 460/3/60 CS27K6E 356
BHT050X6B 10,384 BHN050X6B 9,551 BHS050X6B 10,772 208-230/1/60 CS33K6E 340
BHT050X6C 10,171 BHN050X6C 9,340 BHS050X6C 10,561 208-230/3/60 CS33K6E 324
BHT050X6D 11,231 BHN050X6D 10,400 BHS050X6D 11,619 460/3/60 CS33K6E 356
1 - 3 HP (BH*) Hermetic Low Temperature Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor
Approx. Ship
Wt. (lbs.)
BHT011L6B 5,414 BHN011L6B 4,420 BHS011L6B 5,803 208-230/1/60 CF04K6E 180
BHT011L6BF 6,372 208-230/1/60 CF04K6E 180
BHT011L6C 5,520 BHN011L6C 4,508 BHS011L6C 5,909 208-230/3/60 CF04K6E 180
BHT011L6CF 6,478 208-230/3/60 CF04K6E 166
BHT014L6B 5,439 BHN014L6B 4,448 BHS014L6B 5,829 208-230/1/60 CF06K6E 180
BHT014L6BF* 6,397 208-230/1/60 CF06K6E 180
BHT014L6C 5,561 BHN014L6C 4,554 BHS014L6C 5,951 208-230/3/60 CF06K6E 180
BHT014L6CF* 6,519 208-230/3/60 CF06K6E 180
BHT019L6B 5,737 BHN019L6B 4,643 BHS019L6B 6,295 208-230/1/60 CF06K6E 200
BHT019L6BF 6,695 208-230/1/60 CF06K6E 200
BHT019L6C 5,944 BHN019L6C 4,841 BHS019L6C 6,490 208-230/3/60 CF06K6E 200
BHT019L6CF 6,902 208-230/3/60 CF06K6E 200
BHT025L6B 6,032 BHN025L6B 4,836 BHS025L6B 6,758 208-230/1/60 CF09K6E 210
BHT025L6BF* 6,990 208-230/1/60 CF09K6E 210
BHT025L6C 6,326 BHN025L6C 5,128 BHS025L6C 7,053 208-230/3/60 CF09K6E 210
BHT025L6CF* 7,284 208-230/3/60 CF09K6E 210
BHT031L6B 8,173 BHN031L6B 7,360 BHS031L6B 8,902 208-230/1/60 CF12K6E 230
BHT031L6BF 9,205 208-230/1/60 CF12K6E 230
BHT031L6C 8,298 BHN031L6C 7,483 BHS031L6C 9,026 208-230/3/60 CF12K6E 230
BHT031L6CF 9,330 208-230/3/60 CF12K6E 230
BHT031L6D 8,748 BHN031L6D 7,933 BHS031L6D 9,474 460/3/60 CF12K6E 230
FOR OPTIONS GO TO PAGE 40-41
* Model numbers are normally in stock.
+ All X6 models have a suction accumulator.
++ RS compressors are not suitable for R-507.
NOTE: Stock models come standard with liquid-line (LL) drier assembly and electric defrost timer on 011-035 L6.
38 February 1, 2008 Bohn Refrigeration Products List Prices
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
• Fixed low pressure control for H2, M2,
M6 models
INDOOR (N)
• No cabinet hood
• Fan guards
• Wiring conduit
• Fixed low pressure control for H2, M2,
M6 models
Beacon II™ OUTDOOR (S)
• Outdoor unit with hood
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units only
• Head pressure control valve
ALL MODELS
1/2 - 5 HP (BS*) Semi-hermetic High & Medium R-22 Temperature Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BST005H2B 5,717 BSN005H2B 4,946 BSS005H2B 6,105 208-230/1/60 HAG-0050 188
BST005H2C 5,773 BSN005H2C 5,004 BSS005H2C 6,162 208-230/3/60 HAG-0050 188
BST008H2B 6,308 BSN008H2B 5,392 BSS008H2B 6,697 208-230/1/60 KAN-0075 207
BST008H2C 6,334 BSN008H2C 5,418 BSS008H2C 6,722 208-230/3/60 KAN-0075 207
BST008M2B 6,308 BSN008M2B 5,392 BSS008M2B 6,697 208-230/1/60 KAE-0075 207
BST008M2C 6,334 BSN008M2C 5,418 BSS008M2C 6,722 208-230/3/60 KAE-0075 207
BST010H2B 6,809 BSN010H2B 5,866 BSS010H2B 7,195 208-230/1/60 KAR-0100 202
BST010H2C 6,815 BSN010H2C 5,906 BSS010H2C 7,205 208-230/3/60 KAR-0100 202
BST010M2B 6,809 BSN010M2B 5,866 BSS010M2B 7,195 208-230/1/60 KAM-0100 205
BST010M2C 6,815 BSN010M2C 5,906 BSS010M2C 7,205 208-230/3/60 KAM-0100 200
BST015H2B 8,198 BSN015H2B 7,247 BSS015H2B 8,926 208-230/1/60 KAG-0150 258
BST015H2C 8,161 BSN015H2C 7,210 BSS015H2C 8,888 208-230/3/60 KAG-0150 258
BST015H2D 9,687 BSN015H2D 8,734 BSS015H2D 10,415 460/3/60 KAG-0150 258
BST020H2C 9,319 BSN020H2C 8,365 BSS020H2C 10,047 208-230/3/60 ERA-0200 330
BST020H2D 10,883 BSN020H2D 9,929 BSS020H2D 11,610 460/3/60 ERA-0200 330
BST020H2G 9,474 BSN020H2G 8,527 BSS020H2G 10,203 230/1/60 ERA-0200 330
BST020M2B 8,899 BSN020M2B 7,949 BSS020M2B 9,627 208-230/1/60 KAK-0200 226
BST020M2C 8,738 BSN020M2C 7,786 BSS020M2C 9,466 208-230/3/60 KAK-0200 226
BST021M2C 9,319 BSN021M2C 8,365 BSS021M2C 10,047 208-230/3/60 ERC-0200 338
BST021M2D 10,883 BSN021M2D 9,929 BSS021M2D 11,610 460/3/60 ERC-0200 338
BST021M2G 9,474 BSN021M2G 8,527 BSS021M2G 10,203 230/1/60 ERC-0200 338
BST029M2C 11,173 BSN029M2C 10,320 BSS029M2C 11,900 208-230/3/60 ERF-0310 428
BST029M2CF 11,711 208-230/3/60 ERF-0310 428
BST029M2D 12,335 BSN029M2D 11,501 BSS029M2D 13,062 460/3/60 ERF-0310 428
BST029M2G 11,720 BSN029M2G 10,559 BSS029M2G 12,446 230/1/60 ERF-0310 428
BST030H2C 11,551 BSN030H2C 10,697 BSS030H2C 11,939 208-230/3/60 ERF-0310 428
BST030H2D 12,714 BSN030H2D 11,878 BSS030H2D 13,102 460/3/60 ERF-0310 428
BST030H2G 12,098 BSN030H2G 10,939 BSS030H2G 12,486 230/1/60 ERF-0310 428
BST030M2C 12,757 BSN030M2C 11,916 BSS030M2C 13,144 208-230/3/60 3RA-0310 440
BST030M2CF 13,295 208-230/3/60 3RA-0310 440
BST030M2D 13,688 BSN030M2D 12,852 BSS030M2D 14,077 460/3/60 3RA-0310 440
BST030M2G 13,281 BSN030M2G 12,088 BSS030M2G 13,670 230/1/60 3RA-0310 440
BST040H2C 13,812 BSN040H2C 12,984 BSS040H2C 14,200 208-230/3/60 NRB-0400 503
BST040H2D 14,675 BSN040H2D 13,846 BSS040H2D 15,063 460/3/60 NRB-0400 503
BST050H2C 14,940 BSN050H2C 14,101 BSS050H2C 15,329 208-230/3/60 NRA-0500 505
BST050H2D 15,801 BSN050H2D 14,966 BSS050H2D 16,189 460/3/60 NRA-0500 505
BST050M2C 16,229 BSN050M2C 15,391 BSS050M2C 16,617 208-230/3/60 NRM-0500 505
BST050M2CF 16,767 208-230/3/60 NRM-0500 505
BST050M2D 17,075 BSN050M2D 16,236 BSS050M2D 17,463 460/3/60 NRM-0500 505
1/2 - 4 HP (BS*) Semi-hermetic Medium R-404A/R-507 Temperature Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BST005M6B 5,819 BSN005M6B 5,051 BSS005M6B 6,209 208-230/1/60 HAJ-005E 188
BST010M6B 6,921 BSN010M6B 6,012 BSS010M6B 7,310 208-230/1/60 KAR-010E 208
BST010M6C 6,939 BSN010M6C 6,033 BSS010M6C 7,328 208-230/3/60 KAR-010E 208
BST020M6B 9,019 BSN020M6B 8,082 BSS020M6B 9,747 208-230/1/60 KAK-020E 226
BST020M6C 8,882 BSN020M6C 7,930 BSS020M6C 9,609 208-230/3/60 KAK-020E 226
BST021M6C 9,879 BSN021M6C 8,927 BSS021M6C 10,605 208-230/3/60 ERC-021E 338
BST021M6D 10,431 BSN021M6D 9,478 BSS021M6D 11,159 460/3/60 ERC-021E 338
BST030M6C 11,782 BSN030M6C 10,947 BSS030M6C 12,172 208-230/3/60 ERF-031E 440
BST030M6D 12,330 BSN030M6D 11,497 BSS030M6D 12,720 460/3/60 ERF-031E 440
BST030M6G 12,016 BSN030M6G 11,178 BSS030M6G 12,406 230/1/60 ERF-031E 440
BST040M6C 14,124 BSN040M6C 13,517 BSS040M6C 14,513 208-230/3/60 NRB-040E 503
BST040M6D 14,985 BSN040M6D 14,376 BSS040M6D 15,374 460/3/60 NRB-040E 503
1/2 - 3 HP (BS*) Semi-hermetic Low Temperature R-22 Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BST005L2B 5,893 BSN005L2B 5,120 BSS005L2B 6,281 208-230/1/60 KAN-0050 199
BST008L2B 6,386 BSN008L2B 5,467 BSS008L2B 6,774 208-230/1/60 KAM-0075 199
BST008L2C 6,408 BSN008L2C 5,497 BSS008L2C 6,797 208-230/3/60 KAM-0075 199
BST010L2B 6,821 BSN010L2B 5,887 BSS010L2B 7,210 208-230/1/60 KAJ-0100 202
BST010L2C 6,828 BSN010L2C 5,926 BSS010L2C 7,217 208-230/3/60 KAJ-0100 202
BST020L2C 9,513 BSN020L2C 8,561 BSS020L2C 10,239 208-230/3/60 EAD-0200 335
BST020L2G 9,670 BSN020L2G 8,687 BSS020L2G 10,399 230/1/60 EAD-0200 335
BST021L2B 9,930 BSN021L2B 8,984 BSS021L2B 10,659 208-230/1/60 EAV-0210 338
BST021L2C 9,776 BSN021L2C 9,019 BSS021L2C 10,503 208-230/3/60 EAV-0210 338
BST021L2D 11,338 BSN021L2D 10,390 BSS021L2D 12,065 460/3/60 EAV-0210 338
BST030L2C 11,813 BSN030L2C 10,975 BSS030L2C 12,540 208-230/3/60 LAH-0310 394
BST030L2D 12,801 BSN030L2D 11,962 BSS030L2D 13,529 460/3/60 LAH-0310 394
BST030L2G 12,454 BSN030L2G 11,561 BSS030L2G 13,182 230/1/60 LAH-0310 394
1/2 - 6 HP Air-cooled Condensing Units
NOTE: Stock models come with liquid-line drier assembly.
FOR OPTIONS GO TO PAGE 40-41 FOR OPTIONS GO TO PAGE 40-41
February 1, 2008 Bohn Refrigeration Products List Prices 39
1/2 - 6 HP Air-cooled Condensing Units
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
• Fixed low pressure control for H2, M2,
M6 models
INDOOR (N)
• No cabinet hood
• Fan guards
• Wiring conduit
• Fixed low pressure control for H2, M2,
M6 models
Beacon II™ OUTDOOR (S)
• Outdoor unit with hood
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units only
• Head pressure control valve
ALL MODELS
1/2 - 4 HP (BS*) Semi-hermetic Low Temperature R-404A/R-507 Condensing Units
Model List Price ($US) Model List Price ($US) Model List Price ($US) Voltage Compressor Ship Wt. (lbs.)
BST005L6B 6,115 BSN005L6B 5,374 BSS005L6B 6,503 208-230/1/60 KAN-005E 199
BST005L6C 6,190 BSN005L6C 5,450 BSS005L6C 6,577 208-230/3/60 KAN-005E 199
BST008L6B 6,611 BSN008L6B 5,701 BSS008L6B 7,000 208-230/1/60 KAM-007E 199
BST008L6C 6,627 BSN008L6C 5,718 BSS008L6C 7,015 208-230/3/60 KAM-007E 199
BST010L6B 7,060 BSN010L6B 6,154 BSS010L6B 7,446 208-230/1/60 KAJ-010E 205
BST010L6C 7,067 BSN010L6C 6,166 BSS010L6C 7,456 208-230/3/60 KAJ-010E 205
BST015L6B 8,356 BSN015L6B 7,426 BSS015L6B 9,083 208-230/1/60 KAL-015E 262
BST015L6BF 9,314 208-230/1/60 KAL-015E 262
BST015L6C 8,323 BSN015L6C 7,394 BSS015L6C 9,052 208-230/3/60 KAL-015E 262
BST015L6CF 9,281 208-230/3/60 KAL-015E 215
BST015L6D 9,830 BSN015L6D 8,889 BSS015L6D 10,556 460/3/60 KAL-015E 262
BST020L6C 9,915 BSN020L6C 8,970 BSS020L6C 10,642 208-230/3/60 EAD-020E 328
BST020L6CF 10,873 208-230/3/60 EAD-020E 328
BST020L6G 10,071 BSN020L6G 9,124 BSS020L6G 10,798 230/1/60 EAD-020E 328
BST020L6GF 11,029 230/1/60 EAD-020E 334
BST021L6B 10,316 BSN021L6B 9,370 BSS021L6B 11,045 208-230/1/60 EAV-021E 338
BST021L6BF 11,274 208-230/1/60 EAV-021E 338
BST021L6C 10,180 BSN021L6C 9,233 BSS021L6C 10,906 208-230/3/60 EAV-021E 338
BST021L6CF 11,138 208-230/3/60 EAV-021E 310
BST021L6D 11,748 BSN021L6D 10,796 BSS021L6D 12,477 460/3/60 EAV-021E 338
BST027L6C 11,633 BSN027L6C 10,770 BSS027L6C 12,360 208-230/3/60 3AB-031E 428
BST027L6D 12,603 BSN027L6D 11,775 BSS027L6D 13,329 460/3/60 3AB-031E 428
BST027L6G 12,230 BSN027L6G 11,400 BSS027L6G 12,957 230/1/60 3AB-031E 428
BST030E6C 11,798 BSN030E6C 10,970 BSS030E6C 12,526 208-230/3/60 LAC-032E 428
BST030E6D 12,795 BSN030E6D 11,865 BSS030E6D 13,522 460/3/60 LAC-032E 428
BST030E6G 12,446 BSN030E6G 11,693 BSS030E6G 13,175 230/1/60 LAC-032E 428
BST030L6C 11,798 BSN030L6C 10,970 BSS030L6C 12,526 208-230/3/60 LAH-032E 394
BST030L6CF 12,830 208-230/3/60 LAH-032E 394
BST030L6D 12,795 BSN030L6D 11,865 BSS030L6D 13,522 460/3/60 LAH-032E 394
BST030L6G 12,446 BSN030L6G 11,693 BSS030L6G 13,175 230/1/60 LAH-032E 394
BST040L6C 13,990 BSN040L6C 13,164 BSS040L6C 14,378 208-230/3/60 NRD-032E 500
BST040L6D 14,980 BSN040L6D 14,144 BSS040L6D 15,369 460/3/60 NRD-032E 500
BST040L6G 14,577 BSN040L6G 13,748 BSS040L6G 14,966 230/1/60 NRD-040E 500
2 - 6 HP (BZ*) Scroll® Medium Temperature R-404A/R-507 Condensing Units
Model List Price ($US) Model List Price ($US) Model List Price ($US) Voltage Compressor Ship Wt. (lbs.)
BZT020M6B 7,221 BZN020M6B 6,650 BZS020M6B 7,949 208-230/1/60 ZS15K4E 246
BZT020M6C 7,278 BZN020M6C 6,706 BZS020M6C 8,006 208-230/3/60 ZS15K4E 246
BZT020M6D 7,698 BZN020M6D 7,122 BZS020M6D 8,424 460/3/60 ZS15K4E 246
BZT025M6B 7,376 BZN025M6B 6,802 BZS025M6B 8,102 208-230/1/60 ZS19K4E 255
BZT025M6C 7,486 BZN025M6C 6,916 BZS025M6C 8,214 208-230/3/60 ZS19K4E 255
BZT025M6D 7,909 BZN025M6D 7,335 BZS025M6D 8,637 460/3/60 ZS19K4E 255
BZT030M6B 7,964 BZN030M6B 7,388 BZS030M6B 8,351 208-230/1/60 ZS21K4E 330
BZT030M6C 8,119 BZN030M6C 7,547 BZS030M6C 8,508 208-230/3/60 ZS21K4E 300
BZT030M6D 8,474 BZN030M6D 7,899 BZS030M6D 8,861 460/3/60 ZS21K4E 330
BZT035M6B 8,844 BZN035M6B 8,269 BZS035M6B 9,232 208-230/1/60 ZS26K4E 333
BZT035M6C 8,999 BZN035M6C 8,427 BZS035M6C 9,388 208-230/3/60 ZS26K4E 333
BZT035M6D 9,352 BZN035M6D 8,778 BZS035M6D 9,742 460/3/60 ZS26K4E 333
BZT045M6B 9,604 BZN045M6B 9,029 BZS045M6B 9,991 208-230/1/60 ZS30K4E 360
BZT045M6C 9,762 BZN045M6C 9,188 BZS045M6C 10,152 208-230/3/60 ZS30K4E 360
BZT045M6D 10,114 BZN045M6D 9,582 BZS045M6D 10,504 460/3/60 ZS30K4E 360
BZT055M6B 10,229 BZN055M6B 9,656 BZS055M6B 10,618 208-230/1/60 ZS38K4E 360
BZT055M6C 10,388 BZN055M6C 9,814 BZS055M6C 10,776 208-230/3/60 ZS38K4E 320
BZT055M6D 10,741 BZN055M6D 10,164 BZS055M6D 11,130 460/3/60 ZS38K4E 360
BZT060M6C 11,636 BZN060M6C 11,049 BZS060M6C 12,024 208-230/3/60 ZS45K4E 360
BZT060M6CF 12,174 208-230/3/60 ZS45K4E 348
BZT060M6D 11,989 BZN060M6D 11,400 BZS060M6D 12,377 460/3/60 ZS45K4E 360
2 - 6 HP (BZ*) Scroll® Low Temperature R-404A/R-507 Condensing Units
Model List Price ($US) Model List Price ($US) Model List Price ($US) Voltage Compressor++ Ship Wt. (lbs.)
BZT020L6B 8,772 BZN020L6B 8,198 BZS020L6B 9,500 208-230/1/60 ZF06K4E 246
BZT020L6C 8,939 BZN020L6C 8,365 BZS020L6C 9,668 208-230/3/60 ZF06K4E 246
BZT020L6D 9,381 BZN020L6D 8,808 BZS020L6D 10,109 460/3/60 ZF06K4E 246
BZT025L6B 8,935 BZN025L6B 8,362 BZS025L6B 9,663 208-230/1/60 ZF08K4E 255
BZT025L6C 9,094 BZN025L6C 8,519 BZS025L6C 9,822 208-230/3/60 ZF08K4E 255
BZT025L6D 9,538 BZN025L6D 8,962 BZS025L6D 10,264 460/3/60 ZF08K4E 255
BZT030L6B 9,252 BZN030L6B 8,677 BZS030L6B 9,980 208-230/1/60 ZF09K4E 255
BZT030L6C 9,423 BZN030L6C 8,847 BZS030L6C 10,151 208-230/3/60 ZF09K4E 255
BZT030L6CF*9,917 208-230/3/60 ZF09K4E 255
BZT030L6D 9,870 BZN030L6D 9,296 BZS030L6D 10,598 460/3/60 ZF09K4E 255
BZT035L6B 10,156 BZN035L6B 9,582 BZS035L6B 10,884 208-230/1/60 ZF11K4E 256
BZT035L6C 10,314 BZN035L6C 9,741 BZS035L6C 11,041 208-230/3/60 ZF11K4E 254
BZT035L6CF*10,808 208-230/3/60 ZF11K4E 254
BZT035L6D 10,764 BZN035L6D 10,189 BZS035L6D 11,489 460/3/60 ZF11K4E 254
BZT045L6B 11,379 BZN045L6B 10,807 BZS045L6B 11,767 208-230/1/60 ZF13K4E 350
BZT045L6C 11,536 BZN045L6C 10,961 BZS045L6C 11,924 208-230/3/60 ZF13K4E 350
BZT045L6CF*12,240 208-230/3/60 ZF13K4E 350
BZT045L6D 11,888 BZN045L6D 11,312 BZS045L6D 12,274 460/3/60 ZF13K4E 350
BZT055L6B 11,732 BZN055L6B 11,157 BZS055L6B 12,120 208-230/1/60 ZF15K4E 356
BZT055L6C 11,888 BZN055L6C 11,312 BZS055L6C 12,274 208-230/3/60 ZF15K4E 356
BZT055L6D 12,240 BZN055L6D 11,668 BZS055L6D 12,628 460/3/60 ZF15K4E 356
BZT060L6C 12,641 BZN060L6C 12,068 BZS060L6C 13,029 208-230/3/60 ZF18K4E 360
BZT060L6CF*13,345 208-230/3/60 ZF18K4E 360
BZT060L6D 12,993 BZN060L6D 12,420 BZS060L6D 13,382 460/3/60 ZF18K4E 360
FOR OPTIONS GO TO PAGE 40-41 FOR OPTIONS GO TO PAGE 40-41
++ ZF Compression units include standard liquid line required for liquid injection. The Scroll® compressors can also be used for R-22 medium and low temperature applications. See sales bulletin for capacities.
* Model numbers are normally in stock (Stock models come standard with LL drier assembly, timer on 011-035 L6, defrost kit on 040-060 L6).
40 February 1, 2008 Bohn Refrigeration Products List Prices
1/2 - 6 HP Factory-installed Options
Electrical Options Model List Price ($US)
Outdoor (T) Indoor (N) Beacon II™
Defrost
Air Defrost timer, medium temperature All 494 494 -
Electric defrost timer 005 - 035 494 494 -
Electric Defrost Kit: timer, heater and fan contactors,lockout relay 030M6 - 060M6 704 704 -
040L6 - 060L6 704 704 -
Adjustable low pressure control for H2, M2, and M6 models All 137 137 137
Dual pressure control with superhose All 308 308 -
Mounted fused disconnect 005 - 035 488 - 488
040 - 060 899 - 899
Phase loss/ low voltage monitor All 971 971 -
Fixed fan cycling (2 fan units)
015 - 029
Medium 339 339 -
Up to 035L6 Low 339 339 -
Variable speed fan motor using the Homan controller (in place of head
pressure control valve on outdoor unit)
030 - 060
Medium
Temperature
Only
448 706 -
Mechanical Options Model List Price ($US)
Outdoor (T) Indoor (N) Beacon II™
Liquid
Liquid-line drier, sight glass and shut-o valve sight glass, shut-o
valve (Standard on ZF Scroll compressor)
005 - 025 464 464 464
027 - 060 538 538 538
Replaceable core liquid-line lter drier, sight glass, shut-o valve
030 - 060
Medium 989 989 989
040 - 060 Low 989 989 989
Liquid-line solenoid valve and pump-down switch with liquid-line
drier, sight glass and shut-o valve
005 - 025* 989 989 -
027 - 060* 1,064 1,064 -
Suction
Suction-line lter 005 - 025 296 296 296
027 - 060 352 352 352
Replaceable core suction-line lter
030 - 060
Medium 1,030 1,030 1,030
040 - 060 Low 1,030 1,030 1,030
Suction accumulator (Standard on X6 models) 005 - 025 371 371 371
027 - 060 618 618 618
Head pressure control ooding valve 005 - 060 Standard 438 Standard
Oil separator with discharge line check valve
030 - 060
Medium 1,113 1,113 1,113
040 - 060 Low 1,113 1,113 1,113
44 # receiver with relief valve
(Cannot be ordered with liquid replaceable core option)
(Oil separator may not be selected with 44# receiver)
030 - 060
Medium 1,104 1,104 1,104
040 - 060 Low 1,104 1,104 1,104
Low ambient kit with heated and insulated receiver, Time Delay (TD) relay
(Low ambient kit cannot be used with dual pressure control) All 617 - 617
BohnGuard condenser n protection 005 - 035 841 841 841
040 - 060 1,044 1,044 1,044
Copper ns 005 - 035 Call Factory Call Factory Call Factory
040 - 060 Call Factory Call Factory Call Factory
* Liquid-line solenoid valve mounted at condensing unit is not recommended on
applications with line runs to the evaporator of over 25 feet.
Air-cooled Condensing Units
ADDITIONAL OPTIONS NEXT PAGE
February 1, 2008 Bohn Refrigeration Products List Prices 41
1/2 - 6 HP Factory-installed Options
Mechanical Options Model List Price ($US)
Outdoor (T) Indoor (N)
R-22 : Quick connect ttings and refrigerant
(must be ordered with liquid-line assemblies)
005 - 013 534 534
015 - 029
BS*030L & E 630 630
030 - 060 775 775
R-404A : Quick connect ttings and refrigerant
(must be ordered with liquid-line assemblies)
005 - 013
015-035L6
030X6-060
635
759
927
635
759
927
Shipped-loose Accessories
Description Part # List Price
($US)
1/2" Solenoid valve,
115/230 volt coil 29318012 289
Thermostat 4131Y 241
12" Extended legs (shipped-loose):
1 fan small
2 fan units
1 fan large
50014701
50014702
50014703
266
266
266
8" Extended legs (shipped-loose):
1 fan small
2 fan units
1 fan large
50014710
50014711
50014712
266
266
266
Hail Guards (Shipped-loose)
Description Part # List Price
($US)
1 fan small 50021705 323
2 fan 50021706 329
1 fan alternate 50021707 349
1 fan large 50021708 360
Precharged Line Set with Refrigerant and Quick Connect Fittings at Both Ends
Wire Harness – For air or electric defrost (any units) – Not available for 115V evaporator motors.
Horsepower
Line 7 Feet 10 Feet 15 Feet 20 Feet 30 Feet 50 Feet
Sizes Kit #
List
Price
($US)
Kit #
List
Price
($US)
Kit #
List
Price
($US)
Kit #
List
Price
($US)
Kit #
List
Price
($US)
Kit #
List
Price
($US)
.5 - 1.4 HP 3/8"x5/8" 8049918 552 8049933 552 8049921 595 8049930 589 8049924 755 8049927 1,016
1.5 - 2.4 HP 3/8"x7/8" 8049919 576 8049934 602 8049922 644 8049931 718 8049925 1,017 8049928 1,537
2.5 - 6 HP 1/2"x1 1/8" 8049920 661 8049935 769 8049923 890 8049932 1,023 8049926 1,262 8049929 1,891
10 Feet 15 Feet 20 Feet 25 Feet 35 Feet 55 Feet
Kit # List Price
($US) Kit # List Price
($US) Kit # List Price
($US) Kit # List Price
($US) Kit # List Price
($US) Kit # List Price
($US)
8077893 272 5009969 324 8077894 352 5009970 410 8077895 475 8077896 558
Option List Price
($US)
Factory-installed 1,050
Shipped-loose 765
Smart Defrost Kit™
42 February 1, 2008 Bohn Refrigeration Products List Prices

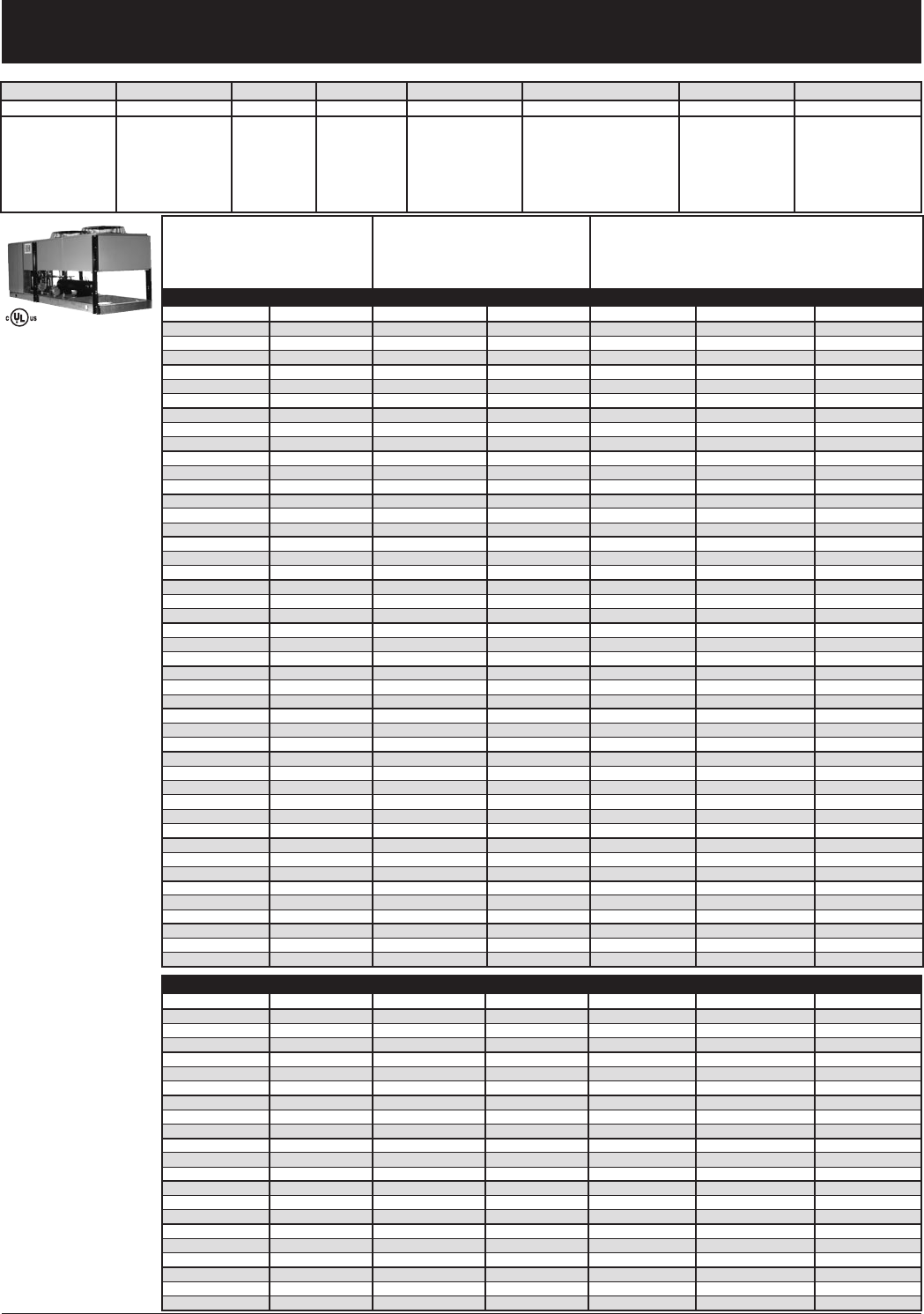

Standard Features:
• Floating Tube™ coil design
• Manual pump-down switch
• Sentronic™ oil failure switch with
Discus® compressors
• Spring mounted Discus® compressors with suction
and discharge vibration eliminators
• Sight glass & permanent liquid-line lter
Nomenclature Example:
• Fixed high and adjustable low
pressure switches
• Refrigeration duty, Type K, ried,
copper tube condenser
• ServiceMate™ Diagnostic Module, standard
on non-Beacon II™ condensing units
• UL-listed, UL-listed for Canada 575 V Available
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
• Adjustable low pressure control
INDOOR (N)
• No cabinet hood
• Fan guards
• Wiring conduit
• Adjustable low pressure control
Beacon II™ OUTDOOR (S)
• Outdoor unit with hood
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units only
• Head pressure control valve
ALL MODELS
5 - 15 HP (BD*) Discus® High Temperature R-22 Condensing Units
Model List Price ($US) Model List Price ($US) Model List Price ($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BDT0500H2C 18,988 BDN0500H2C 18,584 BDS0500H2C 19,707 208-230/3/60 2DC3R53KE 904
BDT0500H2D 20,245 BDN0500H2D 19,839 BDS0500H2D 20,965 460/3/60 2DC3R53KE 904
BDT0500H2E 20,650 BDN0500H2E 20,236 BDS0500H2E 21,384 575/3/60 2DC3R53KE 904
BDT0501H2C 19,460 BDN0501H2C 19,053 BDS0501H2C 20,179 208-230/3/60 2DD3R63KE 904
BDT0501H2D 20,717 BDN0501H2D 20,310 BDS0501H2D 21,435 460/3/60 2DD3R63KE 904
BDT0501H2E 21,131 BDN0501H2E 20,717 BDS0501H2E 21,864 575/3/60 2DD3R63KE 904
BDT0750H2C 23,942 BDN0750H2C 23,535 BDS0750H2C 25,163 208-230/3/60 2DL3R78KE 914
BDT0750H2CF* 23,942 208-230/3/60 2DL3R78KE 914
BDT0750H2D 25,197 BDN0750H2D 24,793 BDS0750H2D 26,417 460/3/60 2DL3R78KE 914
BDT0750H2E 25,702 BDN0750H2E 25,287 BDS0750H2E 26,944 575/3/60 2DL3R78KE 914
BDT0751H2C 24,091 BDN0751H2C 23,549 BDS0751H2C 25,663 208-230/3/60 2DA3R89KE 914
BDT0751H2CF 24,091 208-230/3/60 2DA3R89KE 914
BDT0751H2D 25,345 BDN0751H2D 24,804 BDS0751H2D 26,917 460/3/60 2DA3R89KE 914
BDT0751H2E 25,852 BDN0751H2E 25,300 BDS0751H2E 27,456 575/3/60 2DA3R89KE 914
BDT0800H2C 27,922 BDN0800H2C 27,381 BDS0800H2C 29,495 208-230/3/60 3DA3R10ME 1,183
BDT0800H2D 29,254 BDN0800H2D 28,710 BDS0800H2D 30,827 460/3/60 3DA3R10ME 1,183
BDT0800H2E 29,838 BDN0800H2E 29,285 BDS0800H2E 31,443 575/3/60 3DA3R10ME 1,183
BDT1000H2C 29,250 BDN1000H2C 28,726 BDS1000H2C 30,779 208-230/3/60 3DB3R12ME 1.208
BDT1000H2CF*29,250 208-230/3/60 3DB3R12ME 1,208
BDT1000H2D 31,333 BDN1000H2D 30,791 BDS1000H2D 32,906 460/3/60 3DB3R12ME 1.208
BDT1000H2E 31,959 BDN1000H2E 31,406 BDS1000H2E 33,562 575/3/60 3DB3R12ME 1.208
BDT1200H2C 31,665 BDN1200H2C 31,140 BDS1200H2C 33,194 208-230/3/60 3DF3R15ME 1,228
BDT1200H2D 33,019 BDN1200H2D 32,449 BDS1200H2D 34,547 460/3/60 3DF3R15ME 1,228
BDT1500H2C 32,436 BDN1500H2C 31,911 BDS1500H2C 33,964 208-230/3/60 3DS3R17ME 1,360
BDT1500H2D 33,960 BDN1500H2D 33,390 BDS1500H2D 35,488 460/3/60 3DS3R17ME 1,442
BDT1500H2E 34,639 BDN1500H2E 34,058 BDS1500H2E 36,198 575/3/60 3DS3R17ME 1,442
5 - 15 HP (BD*) Discus® Medium Temperature R-404A / 507 Condensing Units
Model List Price ($US) Model List Price ($US) Model List Price ($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BDT0500M6C 18,988 BDN0500M6C 18,584 BDS0500M6C 19,707 208-230/3/60 2DC3R53KE 904
BDT0500M6D 20,245 BDN0500M6D 19,839 BDS0500M6D 20,965 460/3/60 2DC3R53KE 904
BDT0500M6E 20,650 BDN0500M6E 20,236 BDS0500M6E 21,384 575/3/60 2DC3R53KE 904
BDT0501M6C 19,460 BDN0501M6C 19,053 BDS0501M6C 20,179 208-230/3/60 2DD3R63KE 904
BDT0501M6D 20,717 BDN0501M6D 20,310 BDS0501M6D 21,435 460/3/60 2DD3R63KE 904
BDT0501M6E 21,131 BDN0501M6E 20,717 BDS0501M6E 21,864 575/3/60 2DD3R63KE 904
BDT0750M6C 23,942 BDN0750M6C 23,535 BDS0750M6C 25,163 208-230/3/60 2DL3R78KE 914
BDT0750M6D 25,197 BDN0750M6D 24,793 BDS0750M6D 26,417 460/3/60 2DL3R78KE 914
BDT0750M6E 25,702 BDN0750M6E 25,287 BDS0750M6E 26,944 575/3/60 2DL3R78KE 914
BDT0751M6C 24,091 BDN0751M6C 23,549 BDS0751M6C 25,663 208-230/3/60 2DA3R89KE 1,148
BDT0751M6D 25,345 BDN0751M6D 24,804 BDS0751M6D 26,917 460/3/60 2DA3R89KE 1,148
BDT0751M6E 25,852 BDN0751M6E 25,300 BDS0751M6E 27,456 575/3/60 2DA3R89KE 1,148
BDT0800M6C 27,922 BDN0800M6C 27,381 BDS0800M6C 29,495 208-230/3/60 3DA3R10ME 1,183
BDT0800M6D 29,254 BDN0800M6D 28,710 BDS0800M6D 30,827 460/3/60 3DA3R10ME 1,183
BDT0800M6E 29,838 BDN0800M6E 29,285 BDS0800M6E 31,443 575/3/60 3DA3R10ME 1,183
BDT1000M6C 29,250 BDN1000M6C 28,726 BDS1000M6C 30,779 208-230/3/60 3DB3R12ME 1,208
BDT1000M6D 31,333 BDN1000M6D 30,791 BDS1000M6D 32,906 460/3/60 3DB3R12ME 1,208
BDT1000M6E 31,959 BDN1000M6E 31,406 BDS1000M6E 33,562 575/3/60 3DB3R12ME 1,208
BDT1200M6C 31,665 BDN1200M6C 31,140 BDS1200M6C 33,194 208-230/3/60 3DF3R15ME 1,228
BDT1200M6D 33,019 BDN1200M6D 32,449 BDS1200M6D 34,547 460/3/60 3DF3R15ME 1,228
BDT1500M6C 32,436 BDN1500M6C 31,911 BDS1500M6C 33,964 208-230/3/60 3DS3R17ME 1,442
BDT1500M6D 33,960 BDN1500M6D 33,390 BDS1500M6D 35,488 460/3/60 3DS3R17ME 1,442
BDT1500M6E 34,639 BDN1500M6E 34,058 BDS1500M6E 36,198 575/3/60 3DS3R17ME 1,442
B D T 0500 H 2 C
Model Compressor Application Equivalent HP Suction Temperature Refrigerant Voltage
B = Bohn D = Discus®
Z = Scroll® T = Outdoor
N = Indoor
S = Beacon II™
0300 = 3HP
0400 = 4HP
050* = 5HP
060* = 6HP
075* = 7.5HP
0800 = 8HP
0860 = 8.5HP
0900 = 9HP
1000 = 10HP
1200 = 12HP
1300 = 13HP
1400 = 14HP
1500 = 15HP
2200 = 22HP
H = High Temperature
M = Medium Temperature
L = Low Temperature
2 = R-22
6 = R-404A, 507 C = 208-230/3/60
(200-220/3/50)
D = 460/3/60
(380-42 0/3/50)
E=575/3/60
3 - 22 HP Horizontal Air Flow Condensing Units
* Model numbers are normally in stock.
FOR OPTIONS GO TO PAGE 45-46
February 1, 2008 Bohn Refrigeration Products List Prices 43
3 - 22 HP Horizontal Air Flow Condensing Units
• Floating Tube™ coil design
• Manual pump-down switch
• Sentronic® oil failure switch with Discus® compressors
• Spring mounted Discus® compressors with suction and
discharge vibration eliminators
• Fixed high and adjustable low pressure switches
• Refrigeration duty, Type K, ried, copper tube
condenser
• Sight glass & permanent liquid-line lter
• ServiceMate™ Diagnostic Module, standard on
non-Beacon II™ condensing units
• UL-listed, UL-listed for Canada
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
• Adjustable low pressure control
INDOOR (N)
• No cabinet hood
• Fan guards
• Wiring conduit
• Adjustable low pressure control
Beacon II™ OUTDOOR (S)
• Outdoor unit with hood
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units only
• Head pressure control valve
ALL MODELS
3 - 22 HP (BD*) Discus® Low Temperature R-404A Condensing Units
Model List Price ($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship Wt.
(lbs.)
BDT0300L6C 18,454 BDN0300L6C 18,050 BDS0300L6C 19,174 208-230/3/60 2DF3F16KE 890
BDT0300L6D 19,708 BDN0300L6D 19,303 BDS0300L6D 20,430 460/3/60 2DF3F16KE 890
BDT0300L6E 20,103 BDN0300L6E 19,689 BDS0300L6E 20,835 575/3/60 2DF3F16KE 890
BDT0400L6C 20,060 BDN0400L6C 19,654 BDS0400L6C 20,777 208-230/3/60 2DL3F20KE 894
BDT0400L6D 21,314 BDN0400L6D 20,907 BDS0400L6D 22,031 460/3/60 2DL3F20KE 894
BDT0400L6E 21,738 BDN0400L6E 21,325 BDS0400L6E 22,474 575/3/60 2DL3F20KE 894
BDT0600L6C 21,078 BDN0600L6C 20,671 BDS0600L6C 21,796 208-230/3/60 2DB3F25KE 904
BDT0600L6D 22,332 BDN0600L6D 21,927 BDS0600L6D 23,050 460/3/60 2DB3F25KE 904
BDT0600L6E 22,778 BDN0600L6E 22,365 BDS0600L6E 23,509 575/3/60 2DB3F25KE 904
BDT0601L6C 22,322 BDN0601L6C 21,916 BDS0601L6C 23,040 208-230/3/60 3DA3F28KE 934
BDT0601L6CF 23,459 208-230/3/60 3DA3F28KE 934
BDT0601L6D 23,575 BDN0601L6D 23,170 BDS0601L6D 24,293 460/3/60 3DA3F28KE 934
BDT0601L6E 24,047 BDN0601L6E 23,633 BDS0601L6E 24,780 575/3/60 3DA3F28KE 934
BDT0750L6C 26,078 BDN0750L6C 25,671 BDS0750L6C 27,298 208-230/3/60 3DB3A-075E 958
BDT0750L6CF* 26,168 208-230/3/60 3DB3A-075E 958
BDT0750L6D 27,333 BDN0750L6D 26,927 BDS0750L6D 28,552 460/3/60 3DB3A-075E 958
BDT0750L6E 27,881 BDN0750L6E 27,464 BDS0750L6E 29,122 575/3/60 3DB3F33KE 958
BDT0900L6C 28,679 BDN0900L6C 28,138 BDS0900L6C 30,250 208-230/3/60 3DF3F40KE 1,193
BDT0900L6D 29,932 BDN0900L6D 29,390 BDS0900L6D 31,507 460/3/60 3DF3F40KE 1,193
BDT0900L6E 30,533 BDN0900L6E 29,980 BDS0900L6E 32,136 575/3/60 3DF3F40KE 1,193
BDT1000L6C 30,855 BDN1000L6C 30,312 BDS1000L6C 32,424 208-230/3/60 3DS3F46KE 1,198
BDT1000L6D 31,503 BDN1000L6D 30,959 BDS1000L6D 33,074 460/3/60 3DS3F46KE 1,198
BDT1000L6E 32,132 BDN1000L6E 31,578 BDS1000L6E 33,734 575/3/60 3DS3F46KE 1,198
BDT1200L6C 31,497 BDN1200L6C 30,929 BDS1200L6C 33,025 208-230/3/60 4DA3F47KE 1,459
BDT1200L6D 32,577 BDN1200L6D 32,007 BDS1200L6D 34,105 460/3/60 4DA3F47KE 1,459
BDT1200L6E 33,229 BDN1200L6E 32,647 BDS1200L6E 34,787 575/3/60 4DA3F47KE 1,459
BDT1500L6C 32,907 BDN1500L6C 32,337 BDS1500L6C 34,435 208-230/3/60 4DL3F63KE 1,484
BDT1500L6D 35,480 BDN1500L6D 34,910 BDS1500L6D 37,008 460/3/60 4DL3F63KE 1,484
BDT1500L6E 36,190 BDN1500L6E 35,609 BDS1500L6E 37,750 575/3/60 4DL3F63KE 1,484
BDT2200L6C 38,535 BDN2200L6C 37,965 BDS2200L6C 40,064 208-230/3/60 4DT3F76KE 1,494
BDT2200L6D 39,020 BDN2200L6D 38,800 BDS2200L6D 40,546 460/3/60 4DT3F76KE 1,494
BDT2200L6E 39,800 BDN2200L6E 39,218 BDS2200L6E 41,358 575/3/60 4DT3F76KE 1,494
3 - 22 HP (BD*) Discus® Low Temperature R-22 Condensing Units
Model List Price ($US) Model List Price ($US) Model List Price ($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BDT0300L2C 20,496 BDN0300L2C 20,090 BDS0300L2C 21,214 208-230/3/60 2DF3F16KE 890
BDT0300L2D 21,751 BDN0300L2D 21,344 BDS0300L2D 22,467 460/3/60 2DF3F16KE 890
BDT0300L2E 22,185 BDN0300L2E 21,772 BDS0300L2E 22,917 575/3/60 2DF3F16KE 890
BDT0400L2C 22,099 BDN0400L2C 21,692 BDS0400L2C 22,817 208-230/3/60 2DL3F20KE 894
BDT0400L2D 23,354 BDN0400L2D 22,947 BDS0400L2D 24,074 460/3/60 2DL3F20KE 894
BDT0400L2E 23,822 BDN0400L2E 23,405 BDS0400L2E 24,555 575/3/60 2DL3F20KE 894
BDT0600L2C 23,116 BDN0600L2C 22,713 BDS0600L2C 23,836 208-230/3/60 2DB3F25KE 904
BDT0600L2D 24,372 BDN0600L2D 23,967 BDS0600L2D 25,091 460/3/60 2DB3F25KE 904
BDT0600L2E 24,857 BDN0600L2E 24,446 BDS0600L2E 25,592 575/3/60 2DB3F25KE 904
BDT0601L2C 24,362 BDN0601L2C 23,955 BDS0601L2C 25,081 208-230/3/60 3DA3F28KE 934
BDT0601L2D 25,615 BDN0601L2D 25,210 BDS0601L2D 26,336 460/3/60 3DA3F28KE 934
BDT0601L2E 26,128 BDN0601L2E 25,715 BDS0601L2E 26,862 575/3/60 3DA3F28KE 934
BDT0750L2C 28,117 BDN0750L2C 27,712 BDS0750L2C 29,338 208-230/3/60 3DB3A-075E 958
BDT0750L2D 29,373 BDN0750L2D 28,967 BDS0750L2D 30,593 460/3/60 3DB3A-075E 958
BDT0750L2E 29,959 BDN0750L2E 29,548 BDS0750L2E 31,202 575/3/60 3DB3A-075E 958
BDT0900L2C 30,717 BDN0900L2C 30,176 BDS0900L2C 32,291 208-230/3/60 3DF3F40KE 1,193
BDT0900L2D 31,973 BDN0900L2D 31,431 BDS0900L2D 33,547 460/3/60 3DF3F40KE 1,193
BDT0900L2E 32,612 BDN0900L2E 32,061 BDS0900L2E 34,218 575/3/60 3DF3F40KE 1,193
BDT1000L2C 32,892 BDN1000L2C 32,351 BDS1000L2C 34,465 208-230/3/60 3DS3F46KE 1,198
BDT1000L2D 33,541 BDN1000L2D 32,999 BDS1000L2D 35,112 460/3/60 3DS3F46KE 1,198
BDT1000L2E 34,211 BDN1000L2E 33,660 BDS1000L2E 35,816 575/3/60 3DS3F46KE 1,198
BDT1200L2C 33,478 BDN1200L2C 32,909 BDS1200L2C 35,006 208-230/3/60 4DA3F47KE 1,459
BDT1200L2D 34,558 BDN1200L2D 33,989 BDS1200L2D 36,086 460/3/60 4DA3F47KE 1,459
BDT1200L2E 35,250 BDN1200L2E 34,667 BDS1200L2E 36,809 575/3/60 4DA3F47KE 1,459
BDT1500L2C 34,889 BDN1500L2C 34,318 BDS1500L2C 36,417 208-230/3/60 4DL3F63KE 1,484
BDT1500L2D 37,462 BDN1500L2D 36,892 BDS1500L2D 38,989 460/3/60 4DL3F63KE 1,484
BDT1500L2E 38,212 BDN1500L2E 37,629 BDS1500L2E 39,768 575/3/60 4DL3F63KE 1,484
BDT2200L2C 40,516 BDN2200L2C 39,945 BDS2200L2C 42,044 208-230/3/60 4DT3F76KE 1,494
BDT2200L2D 40,999 BDN2200L2D 40,430 BDS2200L2D 42,529 460/3/60 4DT3F76KE 1,494
BDT2200L2E 41,820 BDN2200L2E 41,238 BDS2200L2E 43,378 575/3/60 4DT3F76KE 1,494
575 V
Available
FOR OPTIONS GO TO PAGE 45-46
* Model numbers are normally in stock.
44 February 1, 2008 Bohn Refrigeration Products List Prices

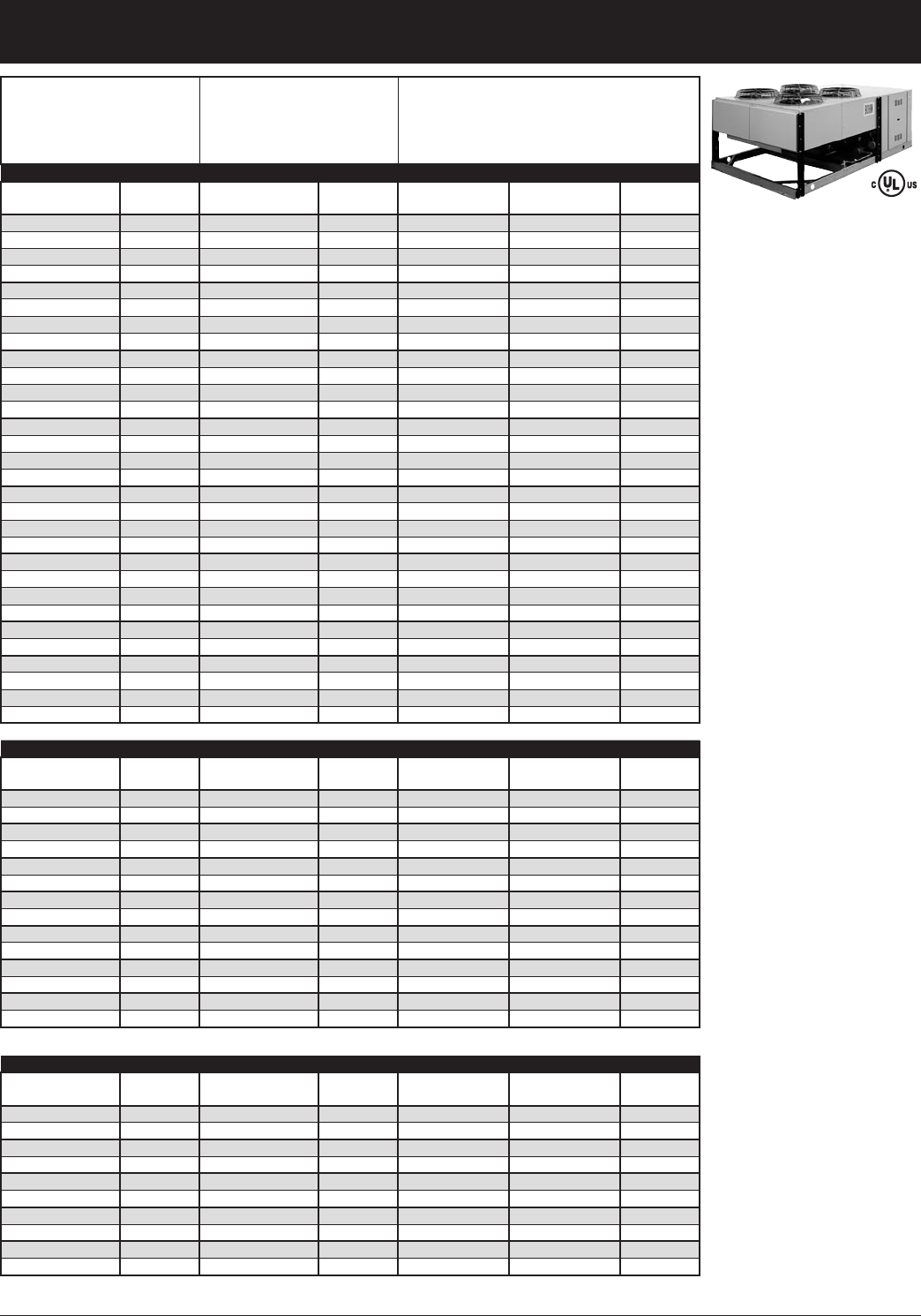

Standard Features:
• Floating Tube™ coil design
• Manual pump-down switch
• Refrigeration duty, Type K, ried, copper tube condenser
• Fixed high and adjustable low pressure switches
• ServiceMate™ Diagnostic Module, standard on non-Beacon II™ condensing unit
• UL-listed, UL-listed for Canada 575 V Available
3 - 22 HP Horizontal Air Flow Condensing Units
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
• Adjustable low pressure control
INDOOR (N)
• No cabinet hood
• Fan guards
• Wiring conduit
• Adjustable low pressure control
Beacon II™ OUTDOOR (S)
• Outdoor unit with hood
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units only
• Head pressure control valve
ALL MODELS
6 1/2 - 14 HP (BZ*) Scroll® Medium Temperature R-404A Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BZT0650M6C 20,951 BZN0650M6C 20,545 BZS0650M6C 22,171 208-230/3/60 ZB50KCE 727
BZT0650M6D 22,313 BZN0650M6D 21,907 BZS0650M6D 23,532 460/3/60 ZB50KCE 727
BZT0650M6E 22,758 BZN0650M6E 22,346 BZS0650M6E 24,004 575/3/60 ZB50KCE 727
BZT0700M6C 21,001 BZN0700M6C 20,594 BZS0700M6C 22,574 208-230/3/60 ZB58KCE 963
BZT0700M6D 22,365 BZN0700M6D 21,959 BZS0700M6D 23,816 460/3/60 ZB58KCE 963
BZT0700M6E 22,840 BZN0700M6E 22,434 BZS0700M6E 24,291 575/3/60 ZB58KCE 963
BZT0750M6C 21,981 BZN0750M6C 21,439 BZS0750M6C 23,554 208-230/3/60 ZB66KCE 976
BZT0750M6D 23,344 BZN0750M6D 22,802 BZS0750M6D 24,915 460/3/60 ZB66KCE 976
BZT0750M6E 23,809 BZN0750M6E 23,255 BZS0750M6E 25,412 575/3/60 ZB66KCE 976
BZT0860M6C 26,053 BZN0860M6C 25,512 BZS0860M6C 27,627 208-230/3/60 ZB76KCE 981
BZT0860M6D 26,674 BZN0860M6D 26,134 BZS0860M6D 28,247 460/3/60 ZB76KCE 981
BZT0860M6E 27,208 BZN0860M6E 26,657 BZS0860M6E 28,812 575/3/60 ZB76KCE 981
BZT1000M6C 28,647 BZN1000M6C 27,070 BZS1000M6C 30,220 208-230/3/60 ZS92K4E 1,071
BZT1000M6D 28,880 BZN1000M6D 27,303 BZS1000M6D 30,452 460/3/60 ZS92K4E 1,071
BZT1000M6E 29,458 BZN1000M6E 27,849 BZS1000M6E 31,061 575/3/60 ZS92K4E 1,071
BZT1401M6C 31,987 BZN1401M6C 30,319 BZS1401M6C 33,649 208-230/3/60 ZS11M4E 1,340
BZT1401M6D 33,229 BZN1401M6D 30,561 BZS1401M6D 33,894 460/3/60 ZS11M4E 1,340
BZT1401M6E 32,872 BZN1401M6E 31,172 BZS1401M6E 34,572 575/3/60 ZS11M4E 1,340
7 1/2 - 15 HP (BZ*) Scroll® Low Temperature R-22 Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BZT0750L2C 19,811 BZN0750L2C 19,403 BZS0750L2C 21,030 208-230/3/60 ZF24K4E 824
BZT0750L2D 21,030 BZN0750L2D 20,625 BZS0750L2D 22,250 460/3/60 ZF24K4E 824
BZT0750L2E 21,449 BZN0750L2E 21,036 BZS0750L2E 22,694 575/3/60 ZF24K4E 824
BZT1000L2C 24,589 BZN1000L2C 24,185 BZS1000L2C 25,811 208-230/3/60 ZF33K4E 824
BZT1000L2D 25,866 BZN1000L2D 25,459 BZS1000L2D 27,084 460/3/60 ZF33K4E 824
BZT1000L2E 26,383 BZN1000L2E 25,969 BZS1000L2E 27,627 575/3/60 ZF33K4E 824
BZT1300L2C 27,611 BZN1300L2C 27,070 BZS1300L2C 29,184 208-230/3/60 ZF40K4E 1,054
BZT1300L2D 28,268 BZN1300L2D 27,726 BZS1300L2D 29,844 460/3/60 ZF40K4E 1,054
BZT1300L2E 28,834 BZN1300L2E 28,282 BZS1300L2E 30,439 575/3/60 ZF40K4E 1,054
BZT1500L2C 28,514 BZN1500L2C 27,973 BZS1500L2C 30,089 208-230/3/60 ZF48K4E 1,073
BZT1500L2D 29,173 BZN1500L2D 28,630 BZS1500L2D 30,748 460/3/60 ZF48K4E 1,073
BZT1500L2E 29,755 BZN1500L2E 29,204 BZS1500L2E 31,363 575/3/60 ZF48K4E 1,073
7 1/2 - 15 HP (BZ*) Scroll® Low Temperature R-404A / 507 Condensing Units
Model List Price
($US) Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BZT0750L6C 19,811 BZN0750L6C 19,403 BZS0750L6C 21,030 208-230/3/60 ZF24K4E 824
BZT0750L6D 21,030 BZN0750L6D 20,625 BZS0750L6D 22,250 460/3/60 ZF24K4E 824
BZT0750L6E 21,449 BZN0750L6E 21,036 BZS0750L6E 22,694 575/3/60 ZF24K4E 824
BZT1000L6C 24,589 BZN1000L6C 24,185 BZS1000L6C 25,811 208-230/3/60 ZF33K4E 824
BZT1000L6D 25,866 BZN1000L6D 25,459 BZS1000L6D 27,084 460/3/60 ZF33K4E 824
BZT1000L6E 26,383 BZN1000L6E 25,969 BZS1000L6E ` 27,627 575/3/60 ZF33K4E 824
BZT1300L6C 27,611 BZN1300L6C 27,070 BZS1300L6C 29,184 208-230/3/60 ZF40K4E 1,054
BZT1300L6D 28,268 BZN1300L6D 27,726 BZS1300L6D 29,844 460/3/60 ZF40K4E 1,054
BZT1300L6E 28,834 BZN1300L6E 28,282 BZS1300L6E 30,439 575/3/60 ZF40K4E 1,054
BZT1500L6C 28,514 BZN1500L6C 27,973 BZS1500L6C 30,089 208-230/3/60 ZF48K4E 1,073
BZT1500L6D 29,173 BZN1500L6D 28,630 BZS1500L6D 30,748 460/3/60 ZF48K4E 1,073
BZT1500L6E 29,755 BZN1500L6E 29,204 BZS1500L6E 31,363 575/3/60 ZF48K4E 1,073
FOR OPTIONS GO TO PAGE 45-46
February 1, 2008 Bohn Refrigeration Products List Prices 45
3 - 22 HP Factory-installed Options
Models 1 Fan Models 2 Fan Models 2 Fan Large Models
BD-Discus® H2 & M6 0500 - 0750 0751 - 1200 1500
BD-Discus® L2 & L6 0300 - 0750 0900 - 1000 1200 - 2200
BZ-Scroll® M6 0650 0700 - 1000 1401
BZ-Scroll® L2 & L6 0750 - 1000 1300 - 1500 -
Electrical Option Cabinet Size
List Price ($US)
B*T
(Outdoor)
B*N
(Indoor)
B*S
(Beacon II ™)
Air defrost timer All models 494 494 -
Defrost
Electric defrost kit
(timer, heater contactor, terminal strip,
single fan contactor)
1 Fan 1,137 1,137 -
2 Fan 1,269 1,269 -
2 Fan Large‡
(Low Amps) 1,721 1,721 -
2 Fan Large‡
(High Amps) 2,476 2,476 -
Fuses for electric defrost kits All models 404 404 -
Evaporator hold out relay 2 Fan Large 201 201 -
Adjustable high pressure switch w/ manual reset
& adjustable low pressure switch 2 Fan Models 349 349 349
Dual pressure control with adjustable
high & low pressure settings
(standard heated and insulated receiver kit option
can’t be used with this option — contact factory)
All models 137 137 -
Fused disconnect
1 Fan (230V) 937 937 937
1 Fan (460V) 1,079 1,079 1,079
2 Fan (230V) 1,645 1,645 1,645
2 Fan (460V) 1,894 1,894 1,894
2 Fan Large (230V) 2,262 2,262 2,262
2 Fan Large (460V) 3,098 3,098 3,098
Phase loss monitor All models 1,015 1,015 1,015
Fan cycling
(Excluding Beacon II pressure on 1 fan, temperature & pressure on
2 fan & 2 fan large)
1 Fan 353 - -
2 Fan 488 - Press. Std.
2 Fan Large 488 - Press. Std.
Circuit Breakers (Compressor, Control & Fan) 2 Fan Large - 230V 2,112 2,112 -
2 Fan Large - 460V 3,206 3,206 -
Compressor fusing 2 Fan Large 363 363 363
NEMA Contactors 2 Fan Large - 230V 1,931 1,931 -
2 Fan Large - 460V 1,119 1,119 -
Crankcase heater All models Standard Standard Standard
Air-cooled Condensing Units
‡ Consult Technical Bulletin for amperage limits.
ADDITIONAL OPTIONS NEXT PAGE
Option List Price
($US)
Factory-installed 1,050
Shipped-loose 765
Smart Defrost Kit™
46 February 1, 2008 Bohn Refrigeration Products List Prices
3 - 22 HP Factory-installed Options
Air-cooled Condensing Units
Mechanical Options Cabinet Size
List Price ($US)
B*T
(Outdoor)
B*N
(Indoor)
B*S
(Beacon II ™)
Liquid
Liquid-line lter (permanent) & sight glass All models Standard Standard Standard
Liquid-line lter (replaceable core) & sight glass All models 418 418 418
Liquid-line solenoid installed‡
1 Fan 548 548 –
2 Fan 614 614 –
2 Fan Large 841 841 –
Suction
Suction-line lter (permanent)
1 Fan 418 418 418
2 Fan 711 711 711
2 Fan Large 1,135 1,135 1,135
Suction-line lter (replaceable core)
1 Fan 804 804 804
2 Fan 1,097 1,097 1,097
2 Fan Large 1,486 1,486 1,486
Suction accumulator
1 Fan 644 644 644
2 Fan 1,000 1,000 1,000
2 Fan Large 2,425 2,425 2,425
Head pressure control valve - 180psi xed 1 & 2 Fan Standard 313 Standard
Head pressure control valve - adjustable 2 Fan Large Standard 1,065 Standard
Oil separator
(with discharge line check valve)
1 Fan 1,164 1,164 1,164
2 Fan 1,229 1,229 1,229
2 Fan Large 1,455 1,455 1,455
Compressor Unloading (One Step) 2 Fan Large 2,007 2,007 –
Oversized receiver
1 Fan: R-22 = 60 lbs
R-404A/507 = 52 lbs. 1,096 1,096 1,096
2 Fan: R-22 = 90 lbs.
R-404A/507 = 78 lbs. 546 546 546
2 Fan Large:
See Technical Bulletin for
Volumes
337 337 337
Heated & insulated receiver
(includes low pressure cut-out time delay)
1 Fan 704 – 704
2 Fan 704 – 704
2 Fan Large 940 – 940
BohnGuard™ condenser n protection
1 Fan 1,092 1,092 1,092
2 Fan 1,511 1,511 1,511
2 Fan Large 2,121 2,121 2,121
Copper condenser ns
1 Fan Call Factory Call Factory Call Factory
2 Fan Call Factory Call Factory Call Factory
2 Fan Large Call Factory Call Factory Call Factory
ElectroFin® coil coating
1 Fan 2,409 2,409 2,409
2 Fan 3,248 3,248 3,248
2 Fan Large 4,221 4,221 4,221
Louvered guard for snowbelt regions
1 Fan 1,065 – 1,065
2 Fan 1,213 – 1,213
2 Fan Large – – –
12" extended legs (shipped-loose)
1 Fan (Part # 50053301) 339 339 339
2 Fan (Part # 50053301) 339 339 339
2 Fan Large
(Part # 59894901) 427 427 427
Hail Guards (shipped-loose)
1 Fan (Part # 59898801) 389 389 389
2 Fan (Part # 59898901) 440 440 440
2 Fan Large
(Part # 59896801) 493 493 493
Models 1 Fan Models 2 Fan Models 2 Fan Large Models
BD-Discus® H2 & M6 0500 - 0750 0751 - 1200 1500
BD-Discus® L2 & L6 0300 - 0750 0900 - 1000 1200 - 2200
BZ-Scroll® M6 0650 0700 - 1000 1401
BZ-Scroll® L2 & L6 0750 - 1000 1300 - 1500 -
‡ Liquid-line solenoid valve mounted at condensing unit is not recommended on applications with line runs to the evaporator of over 25 feet.
February 1, 2008 Bohn Refrigeration Products List Prices 47
12 - 40 HP BLV/BDVS Vertical Air Discharge, Discus® Condensing Units
B D V S 1500 H 2 C
Model Compressor Style Beacon II™ Equivalent HP Application Refrigerant Voltage
B = Bohn D = Discus® V = Vertical S = Beacon II™ 120* = 12 HP
150* = 15 HP
200* = 20 HP
250* = 25 HP
260* = 26 HP
270* = 27 HP
300* = 30 HP
350* = 40HP
H = High Temperature
M = Medium Temperature
L = Low Temperature
C = Commercial Temperature
2 = R-22
6 = R-404A, 507 C = 208-230/3/60
(200-220/3/50)
D = 460/3/60
(380-420/3/50)
K = 230/3/60
(220/3/50)
E = 575/3/60
Nomenclature Example:
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Liquid-line lter drier & sight glass
• Suction & discharge vibration eliminator
Beacon II™ OUTDOOR (S)
• Wired for Beacon II™ control
• Head pressure control valve
ALL MODELS
15 - 40 HP High & Medium Temperature R-22, 404A, 507 Condensing Units
Model List Price ($US) Model List Price ($US) Voltage Compressor Ship Wt. (lbs.)
BLV1500H2C 33,696 BDVS1500H2C 36,176 208-230/3/60 3DS3R17ME 1,800
BLV1500H2D 34,362 BDVS1500H2D 36,841 460/3/60 3DS3R17ME 1,800
BLV1500H2E 35,048 BDVS1500H2E 37,576 575/3/60 3DS3R17ME 1,800
BLV1500M6C 33,696 BDVS1500M6C 36,176 208-230/3/60 3DS3R17ME 1,800
BLV1500M6D 34,362 BDVS1500M6D 36,841 460/3/60 3DS3R17ME 1,800
BLV1500M6E 35,048 BDVS1500M6E 37,576 575/3/60 3DS3R17ME 1,800
BLV2000H2C 37,496 BDVS2000H2C 39,974 208-230/3/60 4DA3R18ME 1,800
BLV2000H2D 38,162 BDVS2000H2D 40,641 460/3/60 4DA3R18ME 1,800
BLV2000H2E 38,925 BDVS2000H2E 41,452 575/3/60 4DA3R18ME 1,800
BLV2000M6C 37,496 BDVS2000M6C 39,974 208-230/3/60 4DA3R18ME 1,800
BLV2000M6D 38,162 BDVS2000M6D 40,641 460/3/60 4DA3R18ME 1,800
BLV2000M6E 38,925 BDVS2000M6E 41,452 575/3/60 4DA3R18ME 1,800
BLV2500H2C 44,737 BDVS2500H2C 47,216 208-230/3/60 4DH3R22ME 1,965
BLV2500H2D 45,402 BDVS2500H2D 47,882 460/3/60 4DH3R22ME 1,965
BLV2500H2E 46,310 BDVS2500H2E 48,839 575/3/60 4DH3R22ME 1,965
BLV2500M6C 44,737 BDVS2500M6C 47,216 208-230/3/60 4DH3R22ME 1,965
BLV2500M6D 45,402 BDVS2500M6D 47,882 460/3/60 4DH3R22ME 1,965
BLV2500M6E 46,310 BDVS2500M6E 48,839 575/3/60 4DH3R22ME 1,965
BLV2600H2C 50,247 BDVS2600H2C 52,724 208-230/3/60 4DH3R22ME 2,070
BLV2600H2D 50,911 BDVS2600H2D 53,393 460/3/60 4DH3R22ME 2,070
BLV2600H2E 51,930 BDVS2600H2E 54,461 575/3/60 4DH3R22ME 2,070
BLV2600M6C 50,247 BDVS2600M6C 52,724 208-230/3/60 4DH3R22ME 2,070
BLV2600M6D 50,911 BDVS2600M6D 53,393 460/3/60 4DH3R22ME 2,070
BLV2600M6E 51,930 BDVS2600M6E 54,461 575/3/60 4DH3R22ME 2,070
BLV3000H2C 52,469 BDVS3000H2C 54,949 208-230/3/60 4DJ3R28ME 2,170
BLV3000H2D 53,137 BDVS3000H2D 55,613 460/3/60 4DJ3R28ME 2,170
BLV3000H2E 54,198 BDVS3000H2E 56,725 575/3/60 4DJ3R28ME 2,170
BLV3000M6C 52,469 BDVS3000M6C 54,949 208-230/3/60 4DJ3R28ME 2,170
BLV3000M6D 53,137 BDVS3000M6D 55,613 460/3/60 4DJ3R28ME 2,170
BLV3000M6E 54,198 BDVS3000M6E 56,725 575/3/60 4DJ3R28ME 2,170
BLV3500H2C 59,391 BDVS3500H2C 62,168 208-230/3/60 6DH3R35ME 2,650
BLV3500H2D 59,938 BDVS3500H2D 62,717 460/3/60 6DH3R35ME 2,650
BLV3500H2E 61,138 BDVS3500H2E 63,971 575/3/60 6DH3R35ME 2,650
BLV3500M6C 59,391 BDVS3500M6C 62,168 208-230/3/60 6DH3R35ME 2,650
BLV3500M6D 59,938 BDVS3500M6D 62,717 460/3/60 6DH3R35ME 2,650
BLV3500M6E 61,138 BDVS3500M6E 63,971 575/3/60 6DH3R35ME 2,650
BLV3505H2D 63,189 BDVS3505H2D 65,966 460/3/60 6DG3R37ME 2,650
BLV3505H2K 62,449 BDVS3505H2K 65,224 230/3/60 6DG3R37ME 2,650
BLV3505H2E 64,453 BDVS3505H2E 67,285 575/3/60 6DG3R37ME 2,650
BLV4000H2D 66,418 BDVS4000H2D 69,193 460/3/60 6DJ3R40ME 2,760
BLV4000H2K 65,526 BDVS4000H2K 68,302 230/3/60 6DJ3R40ME 2,760
BLV4000H2E 67,746 BDVS4000H2E 70,577 575/3/60 6DJ3R40ME 2,760
BLV4000M6D 66,418 BDVS4000M6D 69,193 460/3/60 6DJ3R40ME 2,760
BLV4000M6K 65,526 BDVS4000M6K 68,302 230/3/60 6DJ3R40ME 2,760
BLV4000M6E 67,746 BDVS4000M6E 70,577 575/3/60 6DJ3R40ME 2,760
15 - 40 HP Commercial Temperature R-404A, 507 Condensing Units with Head Cooling Fan
Model List Price ($US) Model List Price ($US) Voltage Compressor Ship Wt. (lbs.)
BLV1500C6C 34,830 BDVS1500C6C 37,308 208-230/3/60 3DS3R17ME 1,800
BLV1500C6D 35,493 BDVS1500C6D 37,974 460/3/60 3DS3R17ME 1,800
BLV1500C6E 36,203 BDVS1500C6E 38,733 575/3/60 3DS3R17ME 1,800
BLV2000C6C 38,627 BDVS2000C6C 41,105 208-230/3/60 4DA3R18ME 1,800
BLV2000C6D 39,290 BDVS2000C6D 41,771 460/3/60 4DA3R18ME 1,880
BLV2000C6E 40,076 BDVS2000C6E 42,607 575/3/60 4DA3R18ME 1,880
BLV2500C6C 45,869 BDVS2500C6C 48,350 208-230/3/60 4DH3R22ME 1,965
BLV2500C6D 46,533 BDVS2500C6D 49,010 460/3/60 4DH3R22ME 1,965
BLV2500C6E 47,465 BDVS2500C6E 49,991 575/3/60 4DH3R22ME 1,965
BLV2600C6C 51,380 BDVS2600C6C 53,857 208-230/3/60 4DH3R22ME 2,070
BLV2600C6D 52,047 BDVS2600C6D 54,523 460/3/60 4DH3R22ME 2,070
BLV2600C6E 53,088 BDVS2600C6E 55,613 575/3/60 4DH3R22ME 2,070
BLV3000C6C 53,602 BDVS3000C6C 56,078 208-230/3/60 4DJ3R28ME 2,170
BLV3000C6D 54,267 BDVS3000C6D 56,748 460/3/60 4DJ3R28ME 2,170
BLV3000C6E 55,354 BDVS3000C6E 57,883 575/3/60 4DJ3R28ME 2,170
BLV3500C6C 60,523 BDVS3500C6C 63,299 208-230/3/60 6DH3R35ME 2,650
BLV3500C6D 61,072 BDVS3500C6D 63,846 460/3/60 6DH3R35ME 2,650
BLV3500C6E 62,292 BDVS3500C6E 65,124 575/3/60 6DH3R35ME 2,650
BLV4000C6D 66,660 BDVS4000C6D 69,436 460/3/60 6DJ3R40ME 2,760
BLV4000C6K 65,992 BDVS4000C6K 68,770 230/3/60 6DJ3R40ME 2,760
BLV4000C6E 67,993 BDVS4000C6E 70,823 575/3/60 6DJ3R40ME 2,760
575 V
Available
FOR OPTIONS GO TO PAGE 49
48 February 1, 2008 Bohn Refrigeration Products List Prices
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Liquid-line lter drier & sight glass
• Suction & discharge vibration eliminator
• Fixed high pressure control & separate
adjustable low pressure control
Beacon II™ OUTDOOR (S)
• Wired for Beacon II™ control
• Head pressure control valve
ALL MODELS
12 - 30 HP Low Temperature R-22, 404A, 507 Condensing Units
Model List Price
($US) Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
BLV1200L6C* 34,552 BDVS1200L6C 37,029 208-230/3/60 4DA3F47KE 1,760
BLV1200L6D* 35,221 BDVS1200L6D 37,699 460/3/60 4DA3F47KE 1,760
BLV1200L6E* 35,924 BDVS1200L6E 38,454 575/3/60 4DA3F47KE 1,760
BLV1500L6C* 36,169 BDVS1500L6C 38,646 208-230/3/60 4DL3F63KE 1,800
BLV1500L6D* 36,836 BDVS1500L6D 39,313 460/3/60 4DL3F63KE 1,800
BLV1500L6E* 37,572 BDVS1500L6E 40,100 575/3/60 4DL3F63KE 1,800
BLV2200L6C* 42,448 BDVS2200L6C 44,928 208-230/3/60 4DT3F76KE 1,830
BLV2200L6D* 43,115 BDVS2200L6D 45,593 460/3/60 4DT3F76KE 1,830
BLV2200L6E* 43,976 BDVS2200L6E 46,505 575/3/60 4DT3F76KE 1,830
BLV2700L6C* 48,788 BDVS2700L6C 51,265 208-230/3/60 6DL3F93KE 1,965
BLV2700L6D* 49,453 BDVS2700L6D 51,932 460/3/60 6DL3F93KE 1,965
BLV2700L6E* 50,443 BDVS2700L6E 52,970 575/3/60 6DL3F93KE 1,965
BLV3000L6C* 54,135 BDVS3000L6C 56,611 208-230/3/60 6DT3F11ME 2,170
BLV3000L6D* 54,799 BDVS3000L6D 57,278 460/3/60 6DT3F11ME 2,170
BLV3000L6E* 55,896 BDVS3000L6E 58,424 575/3/60 6DT3F11ME 2,170
15 - 40 HP High Temperature High Eciency R-22, 404A, 507 Condensing Units
BLV1501H6C 37,266 BDVS1501H6C 39,746 208-230/3/60 3DS3R17ME 1,980
BLV1501H6D 37,934 BDVS1501H6D 40,412 460/3/60 3DS3R17ME 1,980
BLV1501H6E 38,693 BDVS1501H6E 41,222 575/3/60 3DS3R17ME 1,980
BLV2001H6C 39,288 BDVS2001H6C 41,768 208-230/3/60 4DA3R18ME 2,160
BLV2001H6D 39,956 BDVS2001H6D 42,432 460/3/60 4DA3R18ME 2,160
BLV2001H6E 40,756 BDVS2001H6E 43,281 575/3/60 4DA3R18ME 2,160
BLV2501H6C 55,362 BDVS2501H6C 58,140 208-230/3/60 4DH3R22ME 2,280
BLV2501H6D 56,091 BDVS2501H6D 58,867 460/3/60 4DH3R22ME 2,280
BLV2501H6E 57,212 BDVS2501H6E 60,044 575/3/60 4DH3R22ME 2,280
BLV3001H6C 57,777 BDVS3001H6C 60,556 208-230/3/60 4DJ3R28ME 2,460
BLV3001H6D 58,445 BDVS3001H6D 61,220 460/3/60 4DJ3R28ME 2,460
BLV3001H6E 59,613 BDVS3001H6E 62,445 575/3/60 4DJ3R28ME 2,460
BLV3501H6C 72,245 BDVS3501H6C 75,282 208-230/3/60 6DH3R35ME 3,160
BLV3501H6D 72,910 BDVS3501H6D 75,950 460/3/60 6DH3R35ME 3,160
BLV3501H6E 74,369 BDVS3501H6E 77,470 575/3/60 6DH3R35ME 3,160
BLV4001H6C 73,054 BDVS4001H6C 76,094 208-230/3/60 6DH3R40ME 3,260
BLV4001H6D 73,720 BDVS4001H6D 76,758 460/3/60 6DH3R40ME 3,260
BLV4001H6E 75,194 BDVS4001H6E 78,295 575/3/60 6DH3R40ME 3,260
15 - 40 HP Commercial Temperature High Eciency R-404A, 507 Condensing Units with Head Cooling Fan
BLV1501C6C 38,398 BDVS1501C6C 40,875 208-230/3/60 3DS3R17ME 1,980
BLV1501C6D 39,070 BDVS1501C6D 41,549 460/3/60 3DS3R17ME 1,980
BLV1501C6E 39,852 BDVS1501C6E 42,378 575/3/60 3DS3R17ME 1,980
BLV2001C6C 40,421 BDVS2001C6C 42,901 208-230/3/60 4DA3R18ME 2,160
BLV2001C6D 41,087 BDVS2001C6D 43,567 460/3/60 4DA3R18ME 2,160
BLV2001C6E 41,908 BDVS2001C6E 44,438 575/3/60 4DA3R18ME 2,160
BLV2501C6C 50,967 BDVS2501C6C 53,745 208-230/3/60 4DH3R22ME 2,280
BLV2501C6D 51,634 BDVS2501C6D 54,409 460/3/60 4DH3R22ME 2,280
BLV2501C6E 52,665 BDVS2501C6E 55,498 575/3/60 4DH3R22ME 2,280
BLV3001C6C 58,908 BDVS3001C6C 61,687 208-230/3/60 4DJ3R28ME 2,460
BLV3001C6D 59,576 BDVS3001C6D 62,353 460/3/60 4DJ3R28ME 2,460
BLV3001C6E 60,767 BDVS3001C6E 63,601 575/3/60 4DJ3R28ME 2,460
BLV3501C6C 73,372 BDVS3501C6C 76,412 208-230/3/60 6DJ3R35ME 3,160
BLV3501C6D 74,041 BDVS3501C6D 77,079 460/3/60 6DJ3R35ME 3,160
BLV3501C6E 75,522 BDVS3501C6E 78,622 575/3/60 6DJ3R35ME 3,160
BLV4001C6C 74,184 BDVS4001C6C 77,223 208-230/3/60 6DJ3R40ME 3,260
BLV4001C6D 74,852 BDVS4001C6D 77,892 460/3/60 6DJ3R40ME 3,260
BLV4001C6E 76,350 BDVS4001C6E 79,450 575/3/60 6DJ3R40ME 3,260
12 - 30 HP Low Temperature High Eciency R-22, 404A, 507 Condensing Units
BLV1201L6C* 36,063 BDVS1201L6C 38,541 208-230/3/60 4DA3F47KE 1,980
BLV1201L6D* 36,732 BDVS1201L6D 39,211 460/3/60 4DA3F47KE 1,980
BLV1201L6E* 37,467 BDVS1201L6E 39,995 575/3/60 4DA3F47KE 1,980
BLV1501L6C* 38,750 BDVS1501L6C 41,230 208-230/3/60 4DL3F63KE 1,980
BLV1501L6D* 39,416 BDVS1501L6D 41,893 460/3/60 4DL3F63KE 1,980
BLV1501L6E* 40,204 BDVS1501L6E 42,729 575/3/60 4DL3F63KE 1,980
BLV2201L6C* 45,112 BDVS2201L6C 47,589 208-230/3/60 4DT3F76KE 2,280
BLV2201L6D* 45,780 BDVS2201L6D 48,259 460/3/60 4DT3F76KE 2,280
BLV2201L6E* 46,695 BDVS2201L6E 49,225 575/3/60 4DT3F76KE 2,280
BLV2701L6C* 54,232 BDVS2701L6C 57,008 208-230/3/60 6DL3F93KE 2,370
BLV2701L6D* 54,896 BDVS2701L6D 57,672 460/3/60 6DL3F93KE 2,370
BLV2701L6E* 55,994 BDVS2701L6E 58,824 575/3/60 6DL3F93KE 2,370
BLV3001L6C* 57,243 BDVS3001L6C 60,019 208-230/3/60 6DT3F11ME 2,460
BLV3001L6D* 57,910 BDVS3001L6D 60,684 460/3/60 6DT3F11ME 2,460
BLV3001L6E* 59,069 BDVS3001L6E 61,899 575/3/60 6DT3F11ME 2,460
12 - 40 HP BLV/BDVS Vertical Air Discharge, Discus® Condensing Units
Standard Features:
• Liquid line with drier, sight glass
and shut-o valve
• Floating Tube™ coil design
• Condenser built with ried
tubing and a separate subcooler
coil for
extra performance
• Copeland Discus® with POE oil
— Low temperature R-22 Discus®
compressors utilize Demand
Cooling
• Attractive prepainted galvanized
cabinet with easily removable
service panels
• Adjustable ooded head
pressure valves on all models
• Large electrical panel, including
compressor contactor and
pump-down switch
• Fixed high pressure control and
separate adjustable low pressure
control with braided steel hose
• Sentronic® electronic oil
safety control
• Beacon II™ models come
standard with fan cycling and
liquid-line lter drier assembly
• ServiceMate™ Diagnostic
Module, standard on non-
Beacon II™ condensing unit
575 V
Available
* For R-22 low temperature operation, add Demand Cooling kit.
FOR OPTIONS GO TO PAGE 49
February 1, 2008 Bohn Refrigeration Products List Prices 49
12 - 40 HP Factory-installed Options
Option Model List Price
($US)
Air defrost timer All models 494
Electric defrost (non-Beacon II™)
timer, fan contactor, terminal strip
and (1L/1H) single heater contactor
(please see technical bulletin for
proper ampacity ratings)
1200 - 2201L6 (230V) 1,611
1500 - 2001 med. (460V) 1,611
1200 - 3001L6 (460V) 1,611
1500 - 2001 med. (230V) 2,319
(2L/2H) dual heater contactors
(please see technical bulletin for
proper ampacity ratings)
1200 - 3001L6 (230V) 2,319
1200 - 4000 (460V) 2,319
(4L/4H) four heater contactors (please
see technical bulletin for proper
ampacity ratings)
1500 - 4000, all voltages 3,024
Fuses for defrost kits
(1L/1H) 404
(2L/2H) 806
(4L/4H) 1,617
Evap. heater hold out relay(s)
to allow defrost termination on
coils that have already defrosted
to prevent unnecessary steaming
2 Evap. / 2 contactor 312
2 Evap. / 4 contactor 312
4 Evap. / 4 contactor 622
Fan cycling (Std. on Beacon II™)
Temperature is standard (Pressure
is available at the same price &
standard on Beacon II™) Fan
closest to the header is not cycled
1200 - 3000 1,570
3500 - 4000 1,870
2501 - 3001 1,870
3501 - 4001 2,133
Fused disconnect
1500 - 2700 (230V) 1,494
1500 - 2700 (460V) 2,178
3000 only (230V) 2,178
3000 - 4000 (460V) 3,170
Non-fused disconnect
1500 - 2600 (230V) 1,402
1500 - 2600 (460V) 2,019
3000 only (230V) 2,019
3000 - 4000 (460V) 2,954
Compressor circuit breaker 230V 2,319
460V 1,078
Phase loss protection All 1,015
Anti-short cycling timer All 586
Manual reset high pressure switch All 280
Option Model List Price
($US)
Liquid-line lter and
sight glass All Standard
Replaceable core liquid-
line lter
1200 - 2200 418
2500 - 4000 614
Suction-line lter 1200 - 2000 1,135
2200 - 4000 1,454
Replaceable core
suction lter
1200 - 2000 1,485
2200 - 4000 1,551
Liquid-line solenoid installed‡1200 - 2200 841
2500 - 4000 903
Suction accumulator 1200 - 2000 2,425
2200 - 4000 2,781
Oil separator
with discharge line check valve
1200 - 3001 1,454
3500 - 4000 2,458
Discharge muer 1200 - 4000 412
Three way heat reclaim valve
with check valve installed
1200 - 2000 1,501
2200 - 4000 2,199
BohnGuard™ condenser
n protection
1200 - 3000 1,766
2501 - 3001 2,218
3500 - 4000 2,262
3501 - 4001 3,170
Copper condenser ns
1200 - 3000 Call Factory
2501 - 3001 Call Factory
3500 - 4000 Call Factory
3501 - 4001 Call Factory
Compressor unloading
with pressure control for
(1) cyl. bank
All 1,492
Demand Cooling for low
temperature R-22 1200 - 3001L6 2,103
Low ambient kit with heated and
insulated receiver and time delay
relay
1200 - 3000 2,296
3500 - 4000 3,016
BLV/BDVS Vertical Air Discharge, Discus® Condensing Units
‡ Liquid-line solenoid valve mounted at condensing unit is
not recommended on applications with line runs to the
evaporator of over 25 feet.
NOTE: Consult factory for ElectroFin® coated coil pricing.
Option List Price
($US)
Factory-installed 1,050
Shipped-loose 765
Smart Defrost Kit™
50 February 1, 2008 Bohn Refrigeration Products List Prices
OUTDOOR (T)
• Prepainted galvanized cabinet
• Head pressure control valve
• Crankcase heater
Beacon II™ OUTDOOR (S)
• Outdoor unit
• Wired for Beacon II™ control
• Beacon II™ fan cycling for two fan
units
• Head pressure control valve
ALL MODELS
30 - 80 HP High & Medium Temperature R-22, 404A, 507 Condensing Units
Model List Price
($US) Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
JLD3000H2C 67,393 JDDS3000H2C 70,431 208-230/3/60 3DS3R17ME 3,600
JLD3000H2D 68,726 JDDS3000H2D 71,762 460/3/60 3DS3R17ME 3,600
JLD3000M6C 67,393 JDDS3000M6C 70,431 208-230/3/60 3DS3R17ME 3,600
JLD3000M6D 68,726 JDDS3000M6D 71,762 460/3/60 3DS3R17ME 3,600
JLD4000H2C 74,992 JDDS4000H2C 78,031 208-230/3/60 4DA3R18ME 3,760
JLD4000H2D 76,320 JDDS4000H2D 79,358 460/3/60 4DA3R18ME 3,760
JLD4000M6C 74,992 JDDS4000M6C 78,031 208-230/3/60 4DA3R18ME 3,760
JLD4000M6D 76,320 JDDS4000M6D 79,358 460/3/60 4DA3R18ME 3,760
JLD5000H2C 89,472 JDDS5000H2C 92,511 208-230/3/60 4DH3R22ME 3,860
JLD5000H2D 90,807 JDDS5000H2D 93,845 460/3/60 4DH3R22ME 3,860
JLD5000M6C 89,472 JDDS5000M6C 92,511 208-230/3/60 4DH3R22ME 3,860
JLD5000M6D 90,807 JDDS5000M6D 93,845 460/3/60 4DH3R22ME 3,860
JLD5200H2C 100,493 JDDS5200H2C 103,530 208-230/3/60 4DH3R22ME 4,140
JLD5200H2D 101,824 JDDS5200H2D 104,865 460/3/60 4DH3R22ME 4,140
JLD5200M6C 100,493 JDDS5200M6C 103,530 208-230/3/60 4DH3R22ME 4,140
JLD5200M6D 101,824 JDDS5200M6D 104,865 460/3/60 4DH3R22ME 4,140
JLD6000H2C 104,937 JDDS6000H2C 107,977 208-230/3/60 4DJ3R28ME 4,320
JLD6000H2D 106,271 JDDS6000H2D 109,311 460/3/60 4DJ3R28ME 4,320
JLD6000M6C 104,937 JDDS6000M6C 107,977 208-230/3/60 4DJ3R28ME 4,320
JLD6000M6D 106,271 JDDS6000M6D 109,311 460/3/60 4DJ3R28ME 4,320
JLD7000H2C 118,785 JDDS7000H2C 122,078 208-230/3/60 6DH3R35ME 5,320
JLD7000H2D 119,877 JDDS7000H2D 123,170 460/3/60 6DH3R35ME 5,320
JLD7000M6C 118,785 JDDS7000M6C 122,078 208-230/3/60 6DH3R35ME 5,320
JLD7000M6D 119,877 JDDS7000M6D 123,170 460/3/60 6DH3R35ME 5,320
JLD7010H2K 124,895 JDDS7010H2K 128,186 230/3/60 6DG3R37ME 5,320
JLD7010H2D 126,374 JDDS7010H2D 129,667 460/3/60 6DG3R37ME 5,320
JLD8000H2K 131,056 JDDS8000H2K 134,348 230/3/60 6DJ3R40ME 5,520
JLD8000H2D 132,834 JDDS8000H2D 136,126 460/3/60 6DJ3R40ME 5,520
JLD8000M6K 131,056 JDDS8000M6K 134,348 230/3/60 6DJ3R40ME 5,520
JLD8000M6D 132,834 JDDS8000M6D 136,126 460/3/60 6DJ3R40ME 5,520
30 - 80 HP Commercial Temperature R-404A, 507 Condensing Units with Head Cooling Fan
Model List Price
($US) Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
JLD3000C6C 69,658 JDDS3000C6C 72,697 208-230/3/60 3DS3R17ME 3,600
JLD3000C6D 70,987 JDDS3000C6D 74,025 460/3/60 3DS3R17ME 3,600
JLD4000C6C 77,253 JDDS4000C6C 80,293 208-230/3/60 4DA3R18ME 3,760
JLD4000C6D 78,588 JDDS4000C6D 81,624 460/3/60 4DA3R18ME 3,760
JLD5000C6C 91,734 JDDS5000C6C 94,774 208-230/3/60 4DH3R22ME 3,860
JLD5000C6D 93,065 JDDS5000C6D 96,105 460/3/60 4DH3R22ME 3,860
JLD5200C6C 102,757 JDDS5200C6C 105,796 208-230/3/60 4DH3R22ME 4,140
JLD5200C6D 104,090 JDDS5200C6D 107,130 460/3/60 4DH3R22ME 4,140
JLD6000C6C 107,203 JDDS6000C6C 110,242 208-230/3/60 4DJ3R28ME 4,320
JLD6000C6D 108,532 JDDS6000C6D 111,573 460/3/60 4DJ3R28ME 4,320
JLD7000C6C 121,049 JDDS7000C6C 124,341 208-230/3/60 6DH3R35ME 5,320
JLD7000C6D 122,138 JDDS7000C6D 125,430 460/3/60 6DH3R35ME 5,320
JLD8000C6K 133,319 JDDS8000C6K 136,610 230/3/60 6DJ3R40ME 5,520
JLD8000C6D 135,098 JDDS8000C6D 138,392 460/3/60 6DJ3R40ME 5,520
24 - 60 HP Low Temperature R-22, 404A, 507 Condensing Units
Model++ List Price
($US) Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
JLD2400L6C 69,100 JDDS2400L6C 72,139 208-230/3/60 4DA3F47KE 3,600
JLD2400L6D 70,442 JDDS2400L6D 73,480 460/3/60 4DA3F47KE 3,600
JLD3000L6C 72,336 JDDS3000L6C 75,375 208-230/3/60 4DL3F63KE 3,600
JLD3000L6D 73,666 JDDS3000L6D 76,705 460/3/60 4DL3F63KE 3,600
JLD4400L6C 84,897 JDDS4400L6C 87,934 208-230/3/60 4DT3F76KE 3,760
JLD4400L6D 86,230 JDDS4400L6D 89,268 460/3/60 4DT3F76KE 3,760
JLD5400L6C 97,576 JDDS5400L6C 100,615 208-230/3/60 6DL3F93KE 3,940
JLD5400L6D 98,911 JDDS5400L6D 101,950 460/3/60 6DL3F93KE 3,940
JLD6000L6C 108,264 JDDS6000L6C 111,304 208-230/3/60 6DT3F11ME 4,340
JLD6000L6D 109,598 JDDS6000L6D 112,639 460/3/60 6DT3F11ME 4,340
24 - 80 HP JLD/JDDS Dual Compressor Condensing Units
FOR OPTIONS GO TO PAGE 52
++ For R-22 low temperature operation, add Demand Cooling kit.
NOTE: L6 models include a head cooling fan.
NOTE: C6 models include a head cooling fan.
February 1, 2008 Bohn Refrigeration Products List Prices 51
Parallel-piped Dual Compressor Vertical Condensing Units
Parallel-piped Dual Compressor Vertical Condensing Units
High & Medium Temperature R-22, R-404A, R-507
Model List Price
($US) Voltage Compressor
(2 Per Unit)
Approx.
Ship Wt.
(lbs.)
JLD3000H2CPP 84,630 208-230/3/60 3DS3R17ME 3,600
JLD3000H2DPP 85,878 460/3/60 3DS3R17ME 3,600
JLD3000M6CPP 84,630 208-230/3/60 3DS3R17ME 3,600
JLD3000M6DPP 85,878 460/3/60 3DS3R17ME 3,600
JLD4000H2CPP 91,744 208-230/3/60 4DA3R18ME 3,600
JLD4000H2DPP 92,987 460/3/60 4DA3R18ME 3,760
JLD4000M6CPP 91,744 208-230/3/60 4DA3R18ME 3,760
JLD4000M6DPP 92,987 460/3/60 4DA3R18ME 3,760
JLD5000H2CPP 106,447 208-230/3/60 4DH3R22ME 3,860
JLD5000H2DPP 107,696 460/3/60 4DH3R22ME 3,860
JLD5000M6CPP 106,447 208-230/3/60 4DH3R22ME 3,860
JLD5000M6DPP 107,696 460/3/60 4DH3R22ME 3,860
JLD5200H2CPP 116,761 208-230/3/60 4DH3R22ME 4,140
JLD5200H2DPP 118,011 460/3/60 4DH3R22ME 4,140
JLD5200M6CPP 116,761 208-230/3/60 4DH3R22ME 4,140
JLD5200M6DPP 118,011 460/3/60 4DH3R22ME 4,140
JLD6000H2CPP 120,925 208-230/3/60 4DJ3R28ME 4,320
JLD6000H2DPP 122,173 460/3/60 4DJ3R28ME 4,320
JLD6000M6CPP 120,925 208-230/3/60 4DJ3R28ME 4,320
JLD6000M6DPP 122,173 460/3/60 4DJ3R28ME 4,320
JLD7000H2CPP 135,233 208-230/3/60 6DH3R35ME 5,320
JLD7000H2DPP 136,257 460/3/60 6DH3R35ME 5,320
JLD7000M6CPP 135,233 208-230/3/60 6DH3R35ME 5,320
JLD7000M6DPP 136,257 460/3/60 6DH3R35ME 5,320
JLD8000H2DPP 148,383 460/3/60 6DJ3R40ME 5,520
JLD8000H2KPP 146,718 230/3/60 6DJ3R40ME 5,520
JLD8000M6DPP 148,383 460/3/60 6DJ3R40ME 5,520
JLD8000M6KPP 146,718 230/3/60 6DJ3R40ME 5,520
Commercial Temp. R-404A, R-507 with Head Cooling Fan
Model List Price
($US) Voltage Compressor
(2 Per Unit)
Approx.
Ship Wt.
(lbs.)
JLD3000C6CPP 86,751 208-230/3/60 3DS3R17ME 3,600
JLD3000C6DPP 87,993 460/3/60 3DS3R17ME 3,600
JLD4000C6CPP 93,860 208-230/3/60 4DA3R18ME 3,760
JLD4000C6DPP 95,107 460/3/60 4DA3R18ME 3,760
JLD5000C6CPP 108,568 208-230/3/60 4DH3R22ME 3,860
JLD5000C6DPP 109,813 460/3/60 4DH3R22ME 3,860
JLD5200C6CPP 117,635 208-230/3/60 4DH3R22ME 4,140
JLD5200C6DPP 118,882 460/3/60 4DH3R22ME 4,140
JLD6000C6CPP 120,131 208-230/3/60 4DJ3R28ME 4,320
JLD6000C6DPP 124,291 460/3/60 4DJ3R28ME 4,320
JLD7000C6CPP 137,352 208-230/3/60 6DH3R35ME 5,320
JLD7000C6DPP 138,373 460/3/60 6DH3R35ME 5,320
JLD8000C6DPP 150,503 460/3/60 6DJ3R40ME 5,520
JLD8000C6KPP 148,838 230/3/60 6DJ3R40ME 5,520
Low Temperature R-22, R-404A, R-507
Model++ List Price
($US) Voltage Compressor
(2 Per Unit)
Approx.
Ship Wt.
(lbs.)
JLD2400L6CPP 86,227 208-230/3/60 4DA3F47KE 3,600
JLD2400L6DPP 87,484 460/3/60 4DA3F47KE 3,600
JLD3000L6CPP 89,257 208-230/3/60 4DL3F63KE 3,600
JLD3000L6DPP 90,502 460/3/60 4DL3F63KE 3,600
JLD4400L6CPP 101,804 208-230/3/60 4DT3F76KE 3,760
JLD4400L6DPP 103,052 460/3/60 4DT3F76KE 3,760
JLD5400L6CPP 114,034 208-230/3/60 6DL3F93KE 3,940
JLD5400L6DPP 115,284 460/3/60 6DL3F93KE 3,940
JLD6000L6CPP 124,038 208-230/3/60 6DT3F11ME 4,340
JLD6000L6DPP 125,285 460/3/60 6DT3F11ME 4,340
++ For R-22 low temperature operation — must specify
Demand Cooling.
NOTE: C6 and L6 models include head cooling fan.
In Addition to the Dual Compressor Unit
Standard Features:
• Replaceable Core Suction Filter
• Replaceable Liquid-line Filter
• Suction Accumulator
• Oil Management System
Standard Features:
• Dual compressor unit in one easy to install package
• Liquid line with lter drier, sight glass and shut-o valve
• Floating Tube™ coil design
• Condenser built with ried tubing and a separate subcooler coil
for extra performance
• Copeland Discus® with POE oil — Low temperature R-22 Discus®
compressors utilize Demand Cooling
• Attractive prepainted galvanized cabinet with easily removable
service panels
• Flooded head pressure valves on all models
• Large electrical panel, including compressor contactor and
pump-down switch
• Fixed high pressure control and separate adjustable low pressure
control with braided steel hose
• Sentronic® electronic oil safety control
FOR OPTIONS GO TO PAGE 52
52 February 1, 2008 Bohn Refrigeration Products List Prices
Option prices are per unit and include the accessories for Two compressors
(Call factory for parallel-piped options pricing)
JLD/JDDS Factory-installed Options
24 - 80 HP JLD/JDDS Dual Compressor Condensing Units Options
Option Model Price List ($US)
Air defrost timers All 988
Smart Defrost Kit™ — Factory-installed All 2,100
Smart Defrost Kit™ — Shipped-loose All 1,530
Electric defrost (non-Beacon II™) timer, fan contactor, terminal strip
and single heater contactor (please see technical bulletin for proper
ampacity ratings)
3000 - 4000 Med. (230V) 3,221
All L6’s (230V) 3,221
All Models (460V) 3,221
Dual heater contactors (please see technical bulletin for proper
ampacity ratings)
3000 - 5200 Med. (230V) 4,639
All L6’s (230V) 4,639
All Models (460V) 4,639
Fuses for defrost kits (1L/1H) 806
(2L/2H) 1,612
Fan cycling (Std. on Beacon II™)
Temperature is standard (Pressure is available at the same price & standard
on Beacon II™) Fan closest to the header is not cycled
2400 - 6000 3,141
7000 - 8000 3,740
Compressor circuit breakers 230V 4,639
460V 2,157
Low ambient kits w/ heated receivers and time delay relays 2400 - 6000 4,591
7000 - 8000 6,033
Phase loss protection All 2,031
Anti-short cycling timers All 1,170
Manual reset high pressure switches All 558
Option Model Price List ($US)
Liquid-line lters and sight glasses All Standard
Replaceable core liquid-line lters 2400 - 4400 837
5000 - 8000 1,226
Suction-line lters 2400 - 4000 2,269
4400 - 8000 2,907
Replaceable core suction lters 2400 - 4000 2,970
4400 - 8000 3,009
Liquid-line solenoids installed‡2400 - 4400 1,683
5000 - 8000 1,806
Suction accumulators 2400 - 4000 4,850
4400 - 8000 5,562
Oil separators with discharge line check valves 2400 - 6000 2,907
7000 - 8000 4,915
Discharge muers All 825
Three way heat reclaim valves with mounted check valves
2400 - 4400 4,397
5000 - 6000 5,730
7000 - 8000 8,297
BohnGuard™ condenser n protection
2400 - 5000 2,952
5200 - 6000 4,915
7000 - 8000 5,508
Compressor unloading with pressure control for (1) cyl. bank All 2,986
Demand Cooling for low temperature R-22 2400 - 6000L6 4,206
‡ Liquid-line solenoid valve mounted at condensing unit is not recommended on
applications with line runs to the evaporator of over 25 feet.
NOTE: Consult factory for ElectroFin® and copper n coil options.
February 1, 2008 Bohn Refrigeration Products List Prices 53
1/2 - 6 HP Hermetic and Scroll® Water-cooled Units
Standard Features:
• Compressor mounting (rubber grommets)
• Compressor discharge service valve (in line brass base valve)
• Compressor suction service valve — rotolock
• Large capacity refrigerant receiver (up to 100 ft. runs)
• Receiver service valve (located on outlet)
• Coaxial condenser (counterow tube in tube)
• Extra large electric box (encloses all options and start
components)
• Electric conduit (UL recognized, high impact, ame
retardant copolymer)
• Low pressure control switch (adjustable)
• High pressure encapsulated safety switch (xed)
• Superhose on low pressure control (higher leak resistance)
• Liquid injection (Scroll® — low temperature
models only)
• Pump-down control switch (pre-wired)
• Water valve (mounted on condenser inlet)
• Agency approvals UL, ULC, N.Y., MEA 106-98-E
575 V Available
Hermetic High Temperature R-22
Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
HWN005H2B 3,013 208-230/1/60 ART82C1 95
HWN008H2B 3,358 208-230/1/60 RS64C2 110
HWN010H2B 3,479 208-230/1/60 RS70C1 109
HWN010H2C 3,437 208-230/3/60 RS70C1 109
HWN015H2B 3,639 208-230/1/60 CR18KQ 156
HWN015H2C 3,828 208-230/3/60 CR18KQ 156
HWN015H2D 4,394 460/3/60 CR18KQ 156
HWN020H2B 3,761 208-230/1/60 CR24KQ 160
HWN020H2C 3,937 208-230/3/60 CR24KQ 160
HWN020H2D 4,507 460/3/60 CR24KQ 160
HWN030H2B 5,184 208-230/1/60 CR37KQ 199
HWN030H2C 5,270 208-230/3/60 CR37KQ 199
HWN030H2D 5,648 460/3/60 CR37KQ 199
HWN040H2B 7,095 208-230/1/60 CR53KQ 220
HWN040H2C 6,906 208-230/3/60 CR53KQ 220
HWN040H2D 7,405 460/3/60 CR53KQ 220
HWN050H2B 7,816 208-230/1/60 CRN-0500 246
HWN050H2C 7,530 208-230/3/60 CRN-0500 246
HWN050H2D 8,160 460/3/60 CRN-0500 246
Hermetic Extended Range R-404A
Model (1) List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
HWN005X6B (2) 3,376 208-230/1/60 RS43C1E 116
HWN008X6B (2) 3,452 208-230/1/60 RS55C1E 116
HWN009X6B (2) 3,565 208-230/1/60 RS64C1E 120
HWN010X6B (2) 3,878 208-230/1/60 RS70C1E 125
HWN010X6C (2) 4,019 208-230/3/60 RS70C1E 125
HWN015X6B 4,055 208-230/1/60 CS10K6E 168
HWN015X6C 4,268 208-230/3/60 CS10K6E 168
HWN020X6B 4,510 208-230/1/60 CS12K6E 168
HWN020X6C 4,928 208-230/3/60 CS12K6E 168
HWN025X6B 4,864 208-230/1/60 CS14K6E 171
HWN025X6C 5,240 208-230/3/60 CS14K6E 171
HWN025X6D 5,587 460/3/60 CS14K6E 171
HWN030X6B 5,773 208-230/1/60 CS18K6E 199
HWN030X6C 5,992 208-230/3/60 CS18K6E 199
HWN030X6D 6,244 460/3/60 CS18K6E 199
HWN032x6B 6,068 208-230/1/60 CS20K6E 201
HWN032x6C 6,309 208-230/3/60 CS20K6E 201
HWN032x6D 6,528 460/3/60 CS20K6E 201
HWN040X6B 7,972 208-230/1/60 CS27K6E 207
HWN040X6C 8,160 208-230/3/60 CS27K6E 207
HWN040X6D 8,409 460/3/60 CS27K6E 207
HWN050X6B 8,819 208-230/1/60 CS33K6E 231
HWN050X6C 8,944 208-230/3/60 CS33K6E 231
HWN050X6D 9,154 460/3/60 CS33K6E 231
Hermetic Low Temperature R-404A
Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
HWN011L6B 4,029 208-230/1/60 CF04K6E 134
HWN011L6C 4,108 208-230/3/60 CF04K6E 134
HWN014L6B 4,078 208-230/1/60 CF06K6E 134
HWN014L6C 4,195 208-230/3/60 CF06K6E 134
HWN025L6B 4,248 208-230/1/60 CF09K6E 140
HWN025L6C 4,364 208-230/3/60 CF09K6E 140
HWN031L6B 6,122 208-230/1/60 CF12K6E 156
HWN031L6C 6,278 208-230/3/60 CF12K6E 156
HWN031L6D 6,387 460/3/60 CF12K6E 156
Scroll® Extended Range R-404A
Model List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
ZWN030X6B 7,879 208-230/1/60 ZS21K4E 195
ZWN030X6C 7,985 208-230/3/60 ZS21K4E 195
ZWN030X6D 8,350 460/3/60 ZS21K4E 195
ZWN030X6E 8,113 575/3/60 ZS21K4E 195
ZWN035X6B 8,394 208-230/1/60 ZS26K4E 211
ZWN035X6C 8,506 208-230/3/60 ZS26K4E 211
ZWN035X6D 8,767 460/3/60 ZS26K4E 211
ZWN035X6E 8,520 575/3/60 ZS26K4E 211
ZWN045X6B 8,721 208-230/1/60 ZS30K4E 231
ZWN045X6C 8,846 208-230/3/60 ZS30K4E 231
ZWN045X6D 9,098 460/3/60 ZS30K4E 231
ZWN045X6E 8,837 575/3/60 ZS30K4E 231
ZWN055X6B 8,974 208-230/1/60 ZS38K4E 251
ZWN055X6C 9,103 208-230/3/60 ZS38K4E 251
ZWN055X6D 9,508 460/3/60 ZS38K4E 251
ZWN055X6E 9,235 575/3/60 ZS38K4E 251
ZWN060X6C 10,601 208-230/3/60 ZS45K4E 266
ZWN060X6D 10,776 460/3/60 ZS45K4E 266
ZWN060X6E 10,992 575/3/60 ZS45K4E 266
Scroll® Low Temperature R-404A
Model (3) List Price
($US) Voltage Compressor Approx. Ship
Wt. (lbs.)
ZWN030L6B 8,294 208-230/1/60 ZF09K4E 178
ZWN030L6C 8,422 208-230/3/60 ZF09K4E 178
ZWN030L6D 9,475 460/3/60 ZF09K4E 178
ZWN030L6E 9,668 575/3/60 ZF09K4E 178
ZWN035L6B 8,734 208-230/1/60 ZF11K4E 184
ZWN035L6C 8,864 208-230/3/60 ZF11K4E 184
ZWN035L6D 9,079 460/3/60 ZF11K4E 184
ZWN035L6E 9,261 575/3/60 ZF11K4E 184
ZWN045L6B 9,125 208-230/1/60 ZF13K4E 205
ZWN045L6C 9,247 208-230/3/60 ZF13K4E 205
ZWN045L6D 9,463 460/3/60 ZF13K4E 205
ZWN045L6E 9,650 575/3/60 ZF13K4E 205
ZWN055L6B 9,489 208-230/1/60 ZF15K4E 220
ZWN055L6C 9,606 208-230/3/60 ZF15K4E 220
ZWN055L6D 9,832 460/3/60 ZF15K4E 220
ZWN055L6E 10,029 575/3/60 ZF15K4E 220
ZWN060L6C 10,840 208-230/3/60 ZF18K4E 231
ZWN060L6D 11,434 460/3/60 ZF18K4E 231
ZWN060L6E 11,663 575/3/60 ZF18K4E 231
Hermetic and Scroll® Water-cooled Condensing Units Options
Option Model List Price ($US)
Air Defrost Timer 005 - 060 494
Electric Defrost Timer 005 - 035 494
Electric Defrost Timer w/ Fan &
Heater Contactors 015 - 060 704
Liquid-line Drier & Sight Glass 005 - 025 464
030 - 060 538
Liquid-line Drier, Sight Glass &
Solenoid Valve
005 - 025 989
030 - 060 1,064
Suction-line Filter 005 - 025 296
030 - 060 352
Suction-line Accumulator 005 - 025 371
030 - 060 618
Suction-line Filter & Accumulator 005 - 025 669
030 - 060 970
(1) - All HWN “X6” models require a suction accumulator, factory option or
eld provided.
(2) - RS compressors are not suitable for R-507.
(3) - ZWN “L6” models must have a liquid line option specied.
54 February 1, 2008 Bohn Refrigeration Products List Prices
Semi-hermetic Water-cooled Condensing Units
Semi-hermetic High Temperature R-22
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SWN0075H2B 7,410 208-230/1/60 KAN2-0075 190
SWN0075H2C 7,351 208-230/3/60 KAN1-0075 190
SWN0090H2B 7,727 208-230/1/60 KARB-010E 205
SWN0090H2C 7,634 208-230/3/60 KARA-010E 205
SWN0100H2B 7,727 208-230/1/60 KAM2-0100 205
SWN0100H2C 7,634 208-230/3/60 KAM1-0100 205
SWN0100H2D 8,991 460/3/60 KAM1-0100 205
SWN0150H2B 8,238 208-230/1/60 KAGB-0150 220
SWN0150H2C 8,282 208-230/3/60 KAGA-0150 220
SWN0150H2D 9,640 460/3/60 KAGA-0150 220
SWN0200H2C 9,910 208-230/3/60 ERA1-0200 285
SWN0200H2D 11,311 460/3/60 ERA1-0200 285
SWN0200H2G 9,930 230/1/60 ERA2-0200 285
SWN0200H2E 11,768 575/3/60 ERA1-0200 285
SWN0300H2C 11,736 208-230/3/60 ERF1-0311 360
SWN0300H2D 13,141 460/3/60 ERF1-0311 360
SWN0300H2G 12,137 230/1/60 ERF2-0310 360
SWN0300H2E 13,405 575/3/60 ERF1-0311 360
SWN0400H2C 14,932 208-230/3/60 NRB2-0400 420
SWN0400H2D 16,321 460/3/60 NRB2-0400 420
SWN0400H2E 16,648 575/3/60 NRB2-0400 420
SWN0499H2C 15,558 208-230/3/60 2DC3R53KE 445
SWN0499H2D 16,963 460/3/60 2DC3R53KE 445
SWN0499H2E 17,300 575/3/60 2DC3R53KE 445
SWN0500H2C 16,207 208-230/3/60 2DD3R63KE 445
SWN0500H2D 17,608 460/3/60 2DD3R63KE 445
SWN0500H2E 17,960 575/3/60 2DD3R63KE 445
SWN0750H2C 18,706 208-230/3/60 2DL3R78KE 520
SWN0750H2D 20,430 460/3/60 2DL3R78KE 520
SWN0750H2E 20,835 575/3/60 2DL3R78KE 520
SWN0760H2C 18,706 208-230/3/60 2DA3R89KE 520
SWN0760H2D 20,430 460/3/60 2DA3R89KE 520
SWN0760H2E 20,835 575/3/60 2DA3R89KE 520
SWN0761H2C 20,183 208-230/3/60 3DA3R10ME 520
SWN0761H2D 21,904 460/3/60 3DA3R10ME 520
SWN0761H2E 22,342 575/3/60 3DA3R10ME 520
SWN1000H2C 23,554 208-230/3/60 3DB3R12ME 770
SWN1000H2D 24,311 460/3/60 3DB3R12ME 770
SWN1000H2E 24,798 575/3/60 3DB3R12ME 770
SWN1500H2C 26,426 208-230/3/60 3DS3R17ME 790
SWN1500H2D 27,179 460/3/60 3DS3R17ME 790
SWN1500H2E 27,721 575/3/60 3DS3R17ME 790
SWN2000H2C 30,320 208-230/3/60 4DA3R18ME 850
SWN2000H2D 31,079 460/3/60 4DA3R18ME 850
SWN2000H2E 31,701 575/3/60 4DA3R18ME 850
Semi-hermetic Medium Temperature R-22
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SWN0075M2B 7,410 208-230/1/60 KAE2-0075 190
SWN0075M2C 7,351 208-230/3/60 KAE1-0075 190
SWN0200M2C 9,910 208-230/3/60 ERC1-0200 285
SWN0200M2D 11,311 460/3/60 ERC1-200 285
SWN0200M2G 9,902 230/1/60 ERC2-0200 285
Semi-hermetic Low Temperature R-404A
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SWN0150L6B 9,032 208-230/1/60 KALB-015E 220
SWN0150L6C 9,075 208-230/3/60 KALA-016E 220
SWN0150L6D 10,432 460/3/60 KALA-016E 220
SWN0200L6C 10,965 208-230/3/60 EADA-020E 350
SWN0200L6G 11,133 230/1/60 EADB-021E 350
SWN0210L6B 11,133 208-230/1/60 EAVB-021E 350
SWN0210L6C 10,965 208-230/3/60 EAVA-021E 350
SWN0210L6D 12,367 460/3/60 EAVA-021E 350
SWN0210L6E 12,614 575/3/60 EAVA-021E 350
SWN0310E6C 12,429 208-230/3/60 LACA-032E 360
SWN0310E6D 13,829 460/3/60 LACA-032E 360
SWN0310E6G 13,052 230/1/60 LACB-032E 360
SWN0310L6C 12,429 208-230/3/60 LAHA-032E 360
SWN0310L6D 13,829 460/3/60 LAHA-032E 360
SWN0310L6G 13,052 230/1/60 LAHB-032E 360
SWN0310L6E 14,104 575/3/60 LAHA-032E 360
SWN0311L6C 14,932 208-230/3/60 2DF3F16KE 375
SWN0311L6D 16,330 460/3/60 2DF3F16KE 375
SWN0311L6G 15,378 230/1/60 2DF3F16KE 375
SWN0311L6E 16,657 575/3/60 2DF3F16KE 375
SWN0400L6C 16,011 208-230/3/60 2DL3F20KE 420
SWN0400L6D 17,440 460/3/60 2DL3F20KE 420
SWN0400L6E 17,788 575/3/60 2DL3F20KE 420
SWN0599L6C 16,486 208-230/3/60 2DA3F23KE 460
SWN0599L6D 17,886 460/3/60 2DA3F23KE 460
SWN0599L6E 18,246 575/3/60 2DA3F23KE 460
SWN0600L6C 17,579 208-230/3/60 2DB3F25KE 460
SWN0600L6D 18,978 460/3/60 2DB3F25KE 460
SWN0600L6E 19,358 575/3/60 2DB3F25KE 460
SWN0601L6C 18,672 208-230/3/60 3DA3F28KE 475
SWN0601L6D 20,073 460/3/60 3DA3F28KE 475
SWN0601L6E 20,476 575/3/60 3DA3F28KE 475
SWN0750L6C 20,177 208-230/3/60 3DB3A-075E 520
SWN0750L6D 21,898 460/3/60 3DB3A-075E 520
SWN0750L6E 22,336 575/3/60 3DB3F33KE 520
SWN0900L6C 22,428 208-230/3/60 3DF3F40KE 615
SWN0900L6D 24,151 460/3/60 3DF3F40KE 615
SWN0900L6E 24,634 575/3/60 3DF3F40KE 615
SWN1000L6C 24,626 208-230/3/60 3DS3F46KE 770
SWN1000L6D 25,413 460/3/60 3DS3F46KE 770
SWN1000L6E 25,922 575/3/60 3DS3F46KE 770
SWN1500L6C 29,811 208-230/3/60 4DL3F63KE 835
SWN1500L6D 30,570 460/3/60 4DL3F63KE 835
SWN1500L6E 31,182 575/3/60 4DL3F63KE 835
SWN2200L6C 34,901 208-230/3/60 4DT3F76KE 920
SWN2200L6D 35,657 460/3/60 4DT3F76KE 920
SWN2200L6E 36,369 575/3/60 4DT3F76KE 920
Semi-hermetic Medium Temperature R-404A
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SWN0090M6B 8,300 208-230/1/60 KARB-010E 205
SWN0090M6C 8,412 208-230/3/60 KARA-010E 205
SWN0199M6B 9,734 208-230/1/60 KAKB-021E 220
SWN0199M6C 9,794 208-230/3/60 KAKA-020E 220
SWN0200M6C 10,861 208-230/3/60 ERCA-021E 285
SWN0310M6C 12,731 208-230/3/60 ERFA-031E 360
SWN0310M6D 13,979 460/3/60 ERFA-031E 360
SWN0310M6G 13,113 230/1/60 ERFB-031E 360
SWN0310M6E 14,256 575/3/60 ERFA-031E 360
SWN0500M6C 14,962 208-230/3/60 2DC3R53KE 445
SWN0500M6D 16,316 460/3/60 2DC3R53KE 445
FOR OPTIONS GO TO PAGE 56
Standard Features:
• Solid mounted semi-hermetic reed and Discus® compressors up to and including 0400
• Spring mounted compressor 0499 and above
• Oil pressure switch (where required)
• High-low pressure controls
• Compressor contactor
• Shell and tube water-cooled condenser with pressure relief
• Liquid-line lter drier and sight glass
• Pump-down switch Semi-hermetic Water-cooled Condensing Units
575 V
Available
Nomenclature
Indoor
S W N 0500 H 2 C
Semi-hermetic
W = Water-cooled
Model Size
Application
H = High Temp
M = Med Temp
L = Low Temp
E = Extra Low Temp
2 = R-22
6 = R-507/R-404A
Voltage
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
G = 230/1/60
E = 575/3/60
February 1, 2008 Bohn Refrigeration Products List Prices 55
Semi-hermetic Remote Compressor Units
Semi-hermetic Low Temperature R-404A
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SRN0150L6B 7,532 208-230/1/60 KALB-015E 200
SRN0150L6C 7,523 208-230/3/60 KALA-016E 200
SRN0150L6D 8,923 460/3/60 KALA-016E 200
SRN0200L6C 9,300 208-230/3/60 EADA-020E 330
SRN0200L6G 9,327 230/1/60 EADB-021E 330
SRN0210L6B 9,300 208-230/1/60 EAVB-021E 330
SRN0210L6C 9,467 208-230/3/60 EAVA-021E 330
SRN0210L6D 10,702 460/3/60 EAVA-021E 330
SRN0210L6E 10,918 575/3/60 EAVA-021E 330
SRN0310E6C 10,254 208-230/3/60 LACA-032E 340
SRN0310E6D 11,653 460/3/60 LACA-032E 340
SRN0310E6G 10,715 230/1/60 LACB-032E 340
SRN0310L6C 10,254 208-230/3/60 LAHA-032E 340
SRN0310L6D 11,653 460/3/60 LAHA-032E 340
SRN0310L6G 10,715 230/1/60 LAHB-032E 340
SRN0310L6E 11,888 575/3/60 LAHA-032E 340
SRN0311L6C 12,257 208-230/3/60 2DF3F16KE 355
SRN0311L6D 13,657 460/3/60 2DF3F16KE 355
SRN0311L6G 12,624 230/1/60 2DF3F16KE 355
SRN0311L6E 13,929 575/3/60 2DF3F16KE 355
SRN0400L6C 13,433 208-230/3/60 2DL3F20KE 395
SRN0400L6D 14,832 460/3/60 2DL3F20KE 395
SRN0400L6E 15,130 575/3/60 2DL3F20KE 395
SRN0599L6C 13,970 208-230/3/60 2DA3F23KE 435
SRN0599L6D 15,371 460/3/60 2DA3F23KE 435
SRN0599L6E 15,679 575/3/60 2DA3F23KE 435
SRN0600L6C 14,069 208-230/3/60 2DB3F25KE 435
SRN0600L6D 15,468 460/3/60 2DB3F25KE 435
SRN0600L6E 15,777 575/3/60 2DB3F25KE 435
SRN0601L6C 14,747 208-230/3/60 3DA3F28KE 450
SRN0601L6D 16,147 460/3/60 3DA3F28KE 450
SRN0601L6E 16,470 575/3/60 3DA3F28KE 450
SRN0750L6C 17,233 208-230/3/60 3DB3A-075E 440
SRN0750L6D 18,957 460/3/60 3DB3A-075E 440
SRN0750L6E 19,335 575/3/60 3DB3F33KE 440
SRN0900L6C 18,206 208-230/3/60 3DF3F40KE 520
SRN0900L6D 19,926 460/3/60 3DF3F40KE 520
SRN0900L6E 20,327 575/3/60 3DF3F40KE 520
SRN1000L6C 20,134 208-230/3/60 3DS3F46KE 650
SRN1000L6D 20,317 460/3/60 3DS3F46KE 650
SRN1000L6E 20,724 575/3/60 3DS3F46KE 650
SRN1500L6C 24,026 208-230/3/60 4DL3F63KE 710
SRN1500L6D 24,786 460/3/60 4DL3F63KE 710
SRN1500L6E 25,283 575/3/60 4DL3F63KE 710
SRN2200L6C 27,592 208-230/3/60 4DT3F76KE 780
SRN2200L6D 28,351 460/3/60 4DT3F76KE 780
SRN2200L6E 28,918 575/3/60 4DT3F76KE 780
Semi-hermetic Medium Temperature R-404A
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SRN0090M6B 7,058 208-230/1/60 KARB-010E 185
SRN0090M6C 7,183 208-230/3/60 KARA-010E 185
SRN0199M6B 8,310 208-230/1/60 KAKB-021E 225
SRN0199M6C 8,266 208-230/3/60 KAKA-020E 225
SRN0200M6C 9,196 208-230/3/60 ERCA-021E 270
SRN0310M6C 10,176 208-230/3/60 ERFA-031E 340
SRN0310M6D 11,423 460/3/60 ERFA-031E 340
SRN0310M6G 10,482 230/1/60 ERFB-031E 340
SRN0310M6E 11,651 575/3/60 ERFA-031E 340
SRN0500M6C 11,883 208-230/3/60 2DC3R53KE 420
SRN0500M6D 13,505 460/3/60 2DC3R53KE 420
SRN0500M6E 13,776 575/3/60 2DC3R53KE 420
Semi-hermetic High Temperature R-22
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SRN0075H2B 6,321 208-230/1/60 KAN2-0075 180
SRN0075H2C 6,252 208-230/3/60 KAN1-0075 180
SRN0090H2B 6,493 208-230/1/60 KARB-010E 185
SRN0090H2C 6,394 208-230/3/60 KARA-010E 185
SRN0100H2B 6,629 208-230/1/60 KAM2-0100 185
SRN0100H2C 6,529 208-230/3/60 KAM1-0100 185
SRN0100H2D 7,832 460/3/60 KAM1-0100 185
SRN0150H2B 6,755 208-230/1/60 KAGB-0150 200
SRN0150H2C 6,798 208-230/3/60 KAGA-0150 200
SRN0150H2D 8,159 460/3/60 KAGA-0150 200
SRN0200H2C 8,243 208-230/3/60 ERA1-0200 270
SRN0200H2D 9,648 460/3/60 ERA1-0200 270
SRN0200H2G 8,290 230/1/60 ERA2-0200 270
SRN0200H2E 9,842 575/3/60 ERA1-0200 270
SRN0300H2C 8,874 208-230/3/60 ERF1-0311 340
SRN0300H2D 10,276 460/3/60 ERF1-0311 340
SRN0300H2G 9,181 230/1/60 ERF2-0310 340
SRN0300H2E 10,482 575/3/60 ERF1-0311 340
SRN0400H2C 11,060 208-230/3/60 NRB2-0400 395
SRN0400H2D 12,461 460/3/60 NRB2-0400 530
SRN0400H2E 12,709 575/3/60 NRB2-0400 395
SRN0499H2C 11,833 208-230/3/60 2DC3R53KE 420
SRN0499H2D 13,505 460/3/60 2DC3R53KE 420
SRN0499H2E 13,776 575/3/60 2DC3R53KE 420
SRN0500H2C 12,932 208-230/3/60 2DD3R63KE 420
SRN0500H2D 14,333 460/3/60 2DD3R63KE 420
SRN0500H2E 14,620 575/3/60 2DD3R63KE 420
SRN0750H2C 13,835 208-230/3/60 2DL3R78KE 440
SRN0750H2D 15,430 460/3/60 2DL3R78KE 440
SRN0750H2E 15,740 575/3/60 2DL3R78KE 440
SRN0760H2C 14,415 208-230/3/60 2DA3R89KE 440
SRN0760H2D 16,138 460/3/60 2DA3R89KE 440
SRN0760H2E 16,461 575/3/60 2DA3R89KE 440
SRN0761H2C 15,709 208-230/3/60 3DA3R10ME 440
SRN0761H2D 17,434 460/3/60 3DA3R10ME 440
SRN0761H2E 17,781 575/3/60 3DA3R10ME 440
SRN1000H2C 17,096 208-230/3/60 3DB3R12ME 650
SRN1000H2D 17,839 460/3/60 3DB3R12ME 650
SRN1000H2E 18,196 575/3/60 3DB3R12ME 650
SRN1500H2C 19,666 208-230/3/60 3DS3R17ME 670
SRN1500H2D 20,422 460/3/60 3DS3R17ME 670
SRN1500H2E 20,830 575/3/60 3DS3R17ME 670
SRN2000H2C 21,736 208-230/3/60 4DA3R18ME 720
SRN2000H2D 22,491 460/3/60 4DA3R18ME 720
SRN2000H2E 22,942 575/3/60 4DA3R18ME 720
Semi-hermetic Medium Temperature R-22
Model List Price
($US) Voltage Compressor Apx. Ship
Wt. (lbs.)
SRN0075M2B 6,252 208-230/1/60 KAE2-0075 180
SRN0075M2C 6,321 208-230/3/60 KAE1-0075 180
SRN0200M2C 8,243 208-230/3/60 ERC1-0200 270
SRN0200M2D 9,648 460/3/60 ERC1-200 270
SRN0200M2G 8,290 230/1/60 ERC2-0200 270
FOR OPTIONS GO TO PAGE 56
575 V
Available
Standard Features:
• Solid mounted semi-hermetic reed and Discus® compressors up to and including 0400
• Spring mounted compressor 0499 and above
• Oil pressure switch (where required)
• High-low pressure controls
• Compressor contactor
• Liquid receiver with pressure relief
• Liquid-line lter drier and sight glass
• Pump-down switch
Nomenclature
Indoor
S R N 0500 H 2 C
Semi-hermetic
R = Remote Comp
Model Size
Application
H = High Temp
M = Med Temp
L = Low Temp
E = Extra Low Temp
2 = R-22
6 = R-507/R-404A
Voltage
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
G = 230/1/60
E = 575/3/60
Semi-hermetic Remote Compressor Units
56 February 1, 2008 Bohn Refrigeration Products List Prices
Option Model List Price ($US)
Dual Pressure Control All 137
Liquid Replaceable Core Filter 0300 - 2200 758
Liquid-line Solenoid Valve*
0075 - 0400 550
0499 - 0900 614
1000 - 2200 841
Compressor Spring Mount
Includes Discharge and Suction Vibration Eliminators
Standard on 0499 and Above 0075 - 0400 373
Suction-line Permanent Filter
0075 - 0210 311
0300 - 0400 711
0499 - 2200 1,097
Suction-line Replaceable Core Filter 0300 - 2200 1,117
Suction Accumulator
0075 - 0210 462
0300 - 0400 719
0499 - 1000 1,150
1500H2 & 2000H2
1500L6 &2200L6 2,101
Oil Separator, Check Valve and Hand Valve
0300 - 0500 1,164
0599 - 1000 1,229
1500 - 2200 1,454
Head Pressure Control Valve, Fixed
(SRN Only)
0075 - 1000 449
1500 - 2200 761
Air Defrost Timer All 494
Electric Defrost, Low Amp Option**
Timer, Contactor(s) & Terminal Block
0075 - 1000
1500 - 2200 (460V) 868
1500 - 2200 (230V) 1,275
Electric Defrost, High Amp Option**
Timer, Contactor(s) & Terminal Block
0150H2B, 0199M6B
0200H2G, 0200M2G
0300 - 0601
0750 - 1000 (460V)
868
0750 - 1000 (230V)
1500 - 2200 1,275
Remote Load Fusing Kits
with Low Amp Option**
0075 - 1000 360
1500 - 2200 509
Remote Load Fusing Kits
with High Amp Option**
0150H2B, 0199M6B
0200H2G, 0200M2G
0300 - 0601
360
0750 - 2200 509
Circuit Breakers
(Compressor and Control Circuit)
0075 - 0311 (230V 1ph) 431
0075 - 2000 (230V 3ph) 509
0100 - 2200 (460V) 1,219
2200L6C 1,924
Two Tier Rack All 2,864
Crankcase Heater All 280
Option Part # Model List Price ($US)
Water Regulating Valve
(Shipped-loose)
2935028 0075 - 0311 312
2935031 0400 - 0601 312
2935041 0750 - 0900 1,005
2935042 1000, 1500L6 & 2200L6 1,005
87409001 1500H2 & 2200H2 2,726
Remote and Water-cooled Condensing Units Options
* Liquid-line solenoid valve mounted at condensing unit is not recommended on
applications with line runs to the evaporator of over 25 feet.
** Consult Technical Guide for amperage limits.
Options for Semi-hermetic Remote & Water-cooled Condensing Units
February 1, 2008 Bohn Refrigeration Products List Prices 57
NOTE: Copper n coil available. Please consult factory
for prices.
1 - 26 Ton DVT Air-cooled Condensers and Options
DVT Options
List Price ($US)
1x1
(001-003)
1x1
(005-008)
1x2
(010-016)
1x3
(021-026)
1 Phase Ambient Fan Cycle N/A N/A 461 643
3 Phase Ambient Fan Cycle N/A N/A 1,161 1,431
1 Phase Pressure Fan Cycle N/A N/A 840 1,061
3 Phase Pressure Fan Cycle N/A N/A 1,541 1,855
Individual Motor Fuses N/A 677 886 1,097
Sealtite Wiring 656 656 1,168 1,205
Variable Speed Fan Motor N/A 393 393 393
Variable Speed Motor Controller N/A 2,008 2,008 2,008
Discharge Air Gravity Dampers 8980700
(Shipped-loose) 1,098 1,098 2,195 3,294
Transformer (Shipped-loose) 484 484 484 484
575V** N/A 350 700 1,050
* Specify motor voltage at time of order.
** Not available in units smaller than DVT0008.
NOTES:
• 208-230/1/60 motors may be eld converted to 230/3/60 power.
• Control circuit voltage is 230V unless otherwise specied.
• 24V & 115V control circuit available at no additional cost.
• Specify control circuit voltage when ordering.
• Fan cycling pricing does not include control circuit transformer for 460V units.
Coil Coatings
Model
BohnGuard™
Fin Protection
List Price ($US)
ElectroFin®
Coil Coating List
Price ($US)
DVT001 179 2,384
DVT002 201 2,384
DVT003 246 2,384
DVT005 300 2,384
DVT008 478 2,384
DVT010 538 3,567
DVT012 593 3,567
DVT014 717 4,757
DVT016 879 5,452
DVT021 973 7,136
DVT023 1,110 7,136
DVT026 1,258 7,136
Standard Features:
• Heavy gauge smooth aluminum cabinet for long life and attractive appearance
• Internally protected, permanently lubricated ball bearing motors with automatic reset
• Direct-drive fans, PVC coated steel fan guards, low fan tip speed design, fan cells
completely baed
• Shipped with legs for vertical or horizontal air ow installation
• No extra charge for multiple circuiting
Model List Price
($US) Voltage*
Net Dimensions (in.) Fan
Conguration
Approx. Ship Wt.
(lbs.)
Height Depth Length
DVT001 1,901 208-230/1/60 24.5 22 37.50 1x1 80
DVT002 2,499 208-230/1/60 24.5 22 37.50 1x1 86
DVT003 2,788 208-230/1/60 24.5 22 37.50 1x1 92
DVT005 5,085 208-230/1/60 40.5 43 39.75 1x1 320
DVT005 5,399 208-230/3/60 40.5 43 39.75 1x1 320
DVT005 5,399 460/3/60 40.5 43 39.75 1x1 320
DVT008 6,422 208-230/1/60 40.5 43 49.75 1x1 390
DVT008 6,666 208-230/3/60 40.5 43 49.75 1x1 390
DVT008 6,666 460/3/60 40.5 43 49.75 1x1 390
DVT010 7,849 208-230/1/60 40.5 43 69.75 1x2 520
DVT010 8,445 208-230/3/60 40.5 43 69.75 1x2 520
DVT010 8,445 460/3/60 40.5 43 69.75 1x2 520
DVT012 8,814 208-230/1/60 40.5 43 69.75 1x2 520
DVT012 9,306 208-230/3/60 40.5 43 69.75 1x2 520
DVT012 9,306 460/3/60 40.5 43 69.75 1x2 520
DVT014 10,081 208-230/1/60 40.5 43 89.75 1x2 650
DVT014 10,572 208-230/3/60 40.5 43 89.75 1x2 650
DVT014 10,572 460/3/60 40.5 43 89.75 1x2 650
DVT016 11,049 208-230/1/60 40.5 43 89.75 1x2 680
DVT016 11,541 208-230/3/60 40.5 43 89.75 1x2 680
DVT016 11,541 460/3/60 40.5 43 89.75 1x2 680
DVT021 12,740 208-230/1/60 40.5 43 129.75 1x3 685
DVT021 13,482 208-230/3/60 40.5 43 129.75 1x3 685
DVT021 13,482 460/3/60 40.5 43 129.75 1x3 685
DVT023 13,100 208-230/1/60 40.5 43 129.75 1x3 740
DVT023 13,839 208-230/3/60 40.5 43 129.75 1x3 740
DVT023 13,839 460/3/60 40.5 43 129.75 1x3 740
DVT026 14,303 208-230/1/60 40.5 43 129.75 1x3 840
DVT026 15,042 208-230/3/60 40.5 43 129.75 1x3 840
DVT026 15,042 460/3/60 40.5 43 129.75 1x3 840
58 February 1, 2008 Bohn Refrigeration Products List Prices
Monarch™ Series of Air-cooled Condensers
FOR OPTIONS GO TO PAGE 63 AND 66
Nomenclature Example:
B N E D 04 A 036
Brand Vintage Motor Type Width Number of Fans Model Identier Standard Capacity
B = Bohn N = Vintage E = Variable Speed EC Motor
Q = 540 RPM (0.5 HP)
X = 830 RPM (1.0 HP)
L = 830 RPM (1.5 HP)
H = 1140 RPM (1.5 HP)
S = Single Wide
D = Double Wide
# of Fans (01-14) MBH/ºTD, R-22 at 10 FPI
Model List Price
($US) Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNES01A008 15,363 208-230/3/60 56 45.5 73 1x1 480
BNES01A008 15,363 460/3/60 56 45.5 73 1x1 480
BNES01A009 17,012 208-230/3/60 56 45.5 73 1x1 500
BNES01A009 17,012 460/3/60 56 45.5 73 1x1 500
BNES02A011 26,302 208-230/3/60 56 45.5 127 1x2 800
BNES02A011 26,302 460/3/60 56 45.5 127 1x2 800
BNES02A015 30,154 208-230/3/60 56 45.5 127 1x2 850
BNES02A015 30,154 460/3/60 56 45.5 127 1x2 850
BNES02A018 32,976 208-230/3/60 56 45.5 127 1x2 900
BNES02A018 32,976 460/3/60 56 45.5 127 1x2 900
BNES03A023 45,271 208-230/3/60 56 45.5 180 1x3 1,230
BNES03A023 45,271 460/3/60 56 45.5 180 1x3 1,230
BNES03A027 49,515 208-230/3/60 56 45.5 180 1x3 1,310
BNES03A027 49,515 460/3/60 56 45.5 180 1x3 1,310
BNES04A031 61,138 208-230/3/60 56 45.5 233 1x4 1,610
BNES04A031 61,138 460/3/60 56 45.5 233 1x4 1,610
BNES04A036 66,016 208-230/3/60 56 45.5 233 1x4 1,710
BNES04A036 66,016 460/3/60 56 45.5 233 1x4 1,710
BNES05A039 76,262 208-230/3/60 56 45.5 286 1x5 1,990
BNES05A039 76,262 460/3/60 56 45.5 286 1x5 1,990
BNES05A047 83,899 208-230/3/60 56 45.5 286 1x5 2,110
BNES05A047 83,899 460/3/60 56 45.5 286 1x5 2,110
BNES06A056 100,679 208-230/3/60 56 45.5 339 1x6 2,510
BNES06A056 100,679 460/3/60 56 45.5 339 1x6 2,510
BNES07A065 117,256 208-230/3/60 56 45.5 392 1x7 2,920
BNES07A065 117,256 460/3/60 56 45.5 392 1x7 2,920
Model List Price
($US) Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNED04A023 51,835 208-230/3/60 56 88.5 127 2x2 1,510
BNED04A023 51,835 460/3/60 56 88.5 127 2x2 1,510
BNED04A031 60,368 208-230/3/60 56 88.5 127 2x2 1,610
BNED04A031 60,368 460/3/60 56 88.5 127 2x2 1,610
BNED04A036 66,016 208-230/3/60 56 88.5 127 2x2 1,710
BNED04A036 66,016 460/3/60 56 88.5 127 2x2 1,710
BNED06A046 90,533 208-230/3/60 56 88.5 180 2x3 2,360
BNED06A046 90,533 460/3/60 56 88.5 180 2x3 2,360
BNED06A054 99,018 208-230/3/60 56 88.5 180 2x3 2,510
BNED06A054 99,018 460/3/60 56 88.5 180 2x3 2,510
BNED08A062 121,052 208-230/3/60 56 88.5 233 2x4 3,120
BNED08A062 121,052 460/3/60 56 88.5 233 2x4 3,120
BNED08A073 132,373 208-230/3/60 56 88.5 233 2x4 3,320
BNED08A073 132,373 460/3/60 56 88.5 233 2x4 3,320
BNED10A079 152,805 208-230/3/60 56 88.5 286 2x5 3,870
BNED10A079 152,805 460/3/60 56 88.5 286 2x5 3,870
BNED10A093 168,112 208-230/3/60 56 88.5 286 2x5 4,120
BNED10A093 168,112 460/3/60 56 88.5 286 2x5 4,120
BNED12A112 201,684 208-230/3/60 56 88.5 339 2x6 4,930
BNED12A112 201,684 460/3/60 56 88.5 339 2x6 4,930
BNED14A129 234,841 208-230/3/60 56 88.5 392 2x7 5,730
BNED14A129 234,841 460/3/60 56 88.5 392 2x7 5,730
Standard Features:
• EC motor, swept fan blade, and venturi incorporating integrated variable
speed technology
• Broad capacity range from 16 to 264 tons
• Aluminum housing for an attractive appearance and corrosion protection,
with painted galvanized steel, or galvanized steel available as an option
• Side access panels to allow for ease of cleaning the coils
• Floating Tube™ coil design
* Specify motor voltage at time of order.
NOTE: All condensers 2x4 and above include oversized electrical box.
February 1, 2008 Bohn Refrigeration Products List Prices 59
FOR OPTIONS GO TO PAGE 64-66
Ambassador™ Series of Air-cooled Condensers
Standard Features:
• Direct-drive 1.5 HP fan motors in 830 RPM
• Patented QuietEdge™ fan blade for low sound levels
• Patent-pending ServiceEase™ motor mount for serviceability
• Advanced coil technology to provide maximum capacity
• Broader product range to address all applications ranging from
11 to 225 nominal tons
• Galvanized steel cabinet with options for aluminum or painted
galvanized steel
• High eciency three phase fan motors with ball bearings and
internal overload protection
• Floating Tube™ coil design
575 V Available
* Specify motor voltage at time of order.
NOTE: All condensers 2x4 and above include oversized electrical box.
Model
List
Price
($US)
Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNLS01A007 7,914 208-230/3/60 49.5 45.5 73 1x1 460
BNLS01A007 7,914 460/3/60 49.5 45.5 73 1x1 460
BNLS01A008 9,359 208-230/3/60 49.5 45.5 73 1x1 480
BNLS01A008 9,359 460/3/60 49.5 45.5 73 1x1 480
BNLS02A010 11,868 208-230/3/60 49.5 45.5 127 1x2 760
BNLS02A010 11,868 460/3/60 49.5 45.5 127 1x2 760
BNLS02A014 16,317 208-230/3/60 49.5 45.5 127 1x2 810
BNLS02A014 16,317 460/3/60 49.5 45.5 127 1x2 810
BNLS02A016 18,918 208-230/3/60 49.5 45.5 127 1x2 860
BNLS02A016 18,918 460/3/60 49.5 45.5 127 1x2 860
BNLS03A021 24,481 208-230/3/60 49.5 45.5 180 1x3 1,170
BNLS03A021 24,481 460/3/60 49.5 45.5 180 1x3 1,170
BNLS03A024 28,402 208-230/3/60 49.5 45.5 180 1x3 1,240
BNLS03A024 28,402 460/3/60 49.5 45.5 180 1x3 1,240
BNLS04A028 32,592 208-230/3/60 49.5 45.5 233 1x4 1,520
BNLS04A028 32,592 460/3/60 49.5 45.5 233 1x4 1,520
BNLS04A032 37,847 208-230/3/60 49.5 45.5 233 1x4 1,620
BNLS04A032 37,847 460/3/60 49.5 45.5 233 1x4 1,620
BNLS05A035 41,525 208-230/3/60 49.5 45.5 286 1x5 1,880
BNLS05A035 41,525 460/3/60 49.5 45.5 286 1x5 1,880
BNLS05A042 48,702 208-230/3/60 49.5 45.5 286 1x5 2,000
BNLS05A042 48,702 460/3/60 49.5 45.5 286 1x5 2,000
BNLS06A050 58,389 208-230/3/60 49.5 45.5 339 1x6 2,380
BNLS06A050 58,389 460/3/60 49.5 45.5 339 1x6 2,380
BNLS07A055 64,396 208-230/3/60 49.5 45.5 392 1x7 2,760
BNLS07A055 64,396 460/3/60 49.5 45.5 392 1x7 2,760
Model List Price
($US) Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNLD04A020 23,711 208-230/3/60 49.5 88.5 127 2x2 1,420
BNLD04A020 23,711 460/3/60 49.5 88.5 127 2x2 1,420
BNLD04A028 32,593 208-230/3/60 49.5 88.5 127 2x2 1,520
BNLD04A028 32,593 460/3/60 49.5 88.5 127 2x2 1,520
BNLD04A032 37,847 208-230/3/60 49.5 88.5 127 2x2 1,620
BNLD04A032 37,847 460/3/60 49.5 88.5 127 2x2 1,620
BNLD06A042 48,906 208-230/3/60 49.5 88.5 180 2x3 2,230
BNLD06A042 48,906 460/3/60 49.5 88.5 180 2x3 2,230
BNLD06A048 56,723 208-230/3/60 49.5 88.5 180 2x3 2,380
BNLD06A048 56,723 460/3/60 49.5 88.5 180 2x3 2,380
BNLD08A056 65,484 208-230/3/60 49.5 88.5 233 2x4 2,940
BNLD08A056 65,484 460/3/60 49.5 88.5 233 2x4 2,940
BNLD08A065 75,956 208-230/3/60 49.5 88.5 233 2x4 3,140
BNLD08A065 75,956 460/3/60 49.5 88.5 233 2x4 3,140
BNLD10A071 83,298 208-230/3/60 49.5 88.5 286 2x5 3,650
BNLD10A071 83,298 460/3/60 49.5 88.5 286 2x5 3,650
BNLD10A083 97,614 208-230/3/60 49.5 88.5 286 2x5 3,900
BNLD10A083 97,614 460/3/60 49.5 88.5 286 2x5 3,900
BNLD12A100 117,055 208-230/3/60 49.5 88.5 339 2x6 4,660
BNLD12A100 117,055 460/3/60 49.5 88.5 339 2x6 4,660
BNLD14A110 129,054 208-230/3/60 49.5 88.5 392 2x7 5,420
BNLD14A110 129,054 460/3/60 49.5 88.5 392 2x7 5,420
60 February 1, 2008 Bohn Refrigeration Products List Prices FOR OPTIONS GO TO PAGE 64-66
Ambassador™ Series of Air-cooled Condensers
Model
List
Price
($US)
Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNXS01A006 7,090 208-230/3/60 49.5 45.5 73 1x1 460
BNXS01A006 7,090 460/3/60 49.5 45.5 73 1x1 460
BNXS01A008 8,580 208-230/3/60 49.5 45.5 73 1x1 480
BNXS01A008 8,580 460/3/60 49.5 45.5 73 1x1 480
BNXS02A010 11,494 208-230/3/60 49.5 45.5 127 1x2 760
BNXS02A010 11,494 460/3/60 49.5 45.5 127 1x2 760
BNXS02A013 15,736 208-230/3/60 49.5 45.5 127 1x2 810
BNXS02A013 15,736 460/3/60 49.5 45.5 127 1x2 810
BNXS02A015 18,307 208-230/3/60 49.5 45.5 127 1x2 860
BNXS02A015 18,307 460/3/60 49.5 45.5 127 1x2 860
BNXS03A020 24,163 208-230/3/60 49.5 45.5 180 1x3 1,170
BNXS03A020 24,163 460/3/60 49.5 45.5 180 1x3 1,170
BNXS03A023 28,040 208-230/3/60 49.5 45.5 180 1x3 1,240
BNXS03A023 28,040 460/3/60 49.5 45.5 180 1x3 1,240
BNXS04A026 32,592 208-230/3/60 49.5 45.5 233 1x4 1,520
BNXS04A026 32,592 460/3/60 49.5 45.5 233 1x4 1,520
BNXS04A030 37,733 208-230/3/60 49.5 45.5 233 1x4 1,620
BNXS04A030 37,733 460/3/60 49.5 45.5 233 1x4 1,620
BNXS05A033 40,993 208-230/3/60 49.5 45.5 286 1x5 1,880
BNXS05A033 40,993 460/3/60 49.5 45.5 286 1x5 1,880
BNXS05A038 47,425 208-230/3/60 49.5 45.5 286 1x5 2,000
BNXS05A038 47,425 460/3/60 49.5 45.5 286 1x5 2,000
BNXS06A045 57,173 208-230/3/60 49.5 45.5 339 1x6 2,380
BNXS06A045 57,173 460/3/60 49.5 45.5 339 1x6 2,380
BNXS07A052 65,640 208-230/3/60 49.5 45.5 392 1x7 2,760
BNXS07A052 65,640 460/3/60 49.5 45.5 392 1x7 2,760
Standard Features:
• Direct-drive 1 HP fan motors in 830 RPM
• Patented QuietEdge™ fan blade for low sound levels
• Patent-pending ServiceEase™ motor mount for serviceability
• Advanced coil technology to provide maximum capacity
• Broader product range to address all applications ranging from
11 to 225 nominal tons
• Galvanized steel cabinet with options for aluminum or painted
galvanized steel
• High eciency three phase fan motors with ball bearings and
internal overload protection
• Floating Tube™ coil design
Model
List
Price
($US)
Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNXD04A020 24,051 208-230/3/60 49.5 88.5 127 2x2 1,420
BNXD04A020 24,051 460/3/60 49.5 88.5 127 2x2 1,420
BNXD04A026 32,578 208-230/3/60 49.5 88.5 127 2x2 1,520
BNXD04A026 32,578 460/3/60 49.5 88.5 127 2x2 1,520
BNXD04A030 37,748 208-230/3/60 49.5 88.5 127 2x2 1,620
BNXD04A030 37,748 460/3/60 49.5 88.5 127 2x2 1,620
BNXD06A039 49,406 208-230/3/60 49.5 88.5 180 2x3 2,230
BNXD06A039 49,406 460/3/60 49.5 88.5 180 2x3 2,230
BNXD06A045 57,158 208-230/3/60 49.5 88.5 180 2x3 2,380
BNXD06A045 57,158 460/3/60 49.5 88.5 180 2x3 2,380
BNXD08A052 66,536 208-230/3/60 49.5 88.5 233 2x4 2,940
BNXD08A052 66,536 460/3/60 49.5 88.5 233 2x4 2,940
BNXD08A061 76,876 208-230/3/60 49.5 88.5 233 2x4 3,140
BNXD08A061 76,876 460/3/60 49.5 88.5 233 2x4 3,140
BNXD10A066 83,365 208-230/3/60 49.5 88.5 286 2x5 3,650
BNXD10A066 83,365 460/3/60 49.5 88.5 286 2x5 3,650
BNXD10A076 96,288 208-230/3/60 49.5 88.5 286 2x5 3,900
BNXD10A076 96,288 460/3/60 49.5 88.5 286 2x5 3,900
BNXD12A091 115,699 208-230/3/60 49.5 88.5 339 2x6 4,660
BNXD12A091 115,699 460/3/60 49.5 88.5 339 2x6 4,660
BNXD14A104 132,661 208-230/3/60 49.5 88.5 392 2x7 5,420
BNXD14A104 132,661 460/3/60 49.5 88.5 392 2x7 5,420
* Specify motor voltage at time of order.
NOTE: All condensers 2x4 and above include oversized electrical box.
February 1, 2008 Bohn Refrigeration Products List Prices 61
FOR OPTIONS GO TO PAGE 64-66
Ambassador™ Series of Air-cooled Condensers
Model
List
Price
($US)
Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNQS01A005 7,054 208-230/3/60 49.5 45.5 73 1x1 460
BNQS01A005 7,054 460/3/60 49.5 45.5 73 1x1 460
BNQS01A006 8,449 208-230/3/60 49.5 45.5 73 1x1 480
BNQS01A006 8,449 460/3/60 49.5 45.5 73 1x1 480
BNQS02A008 11,672 208-230/3/60 49.5 45.5 127 1x2 760
BNQS02A008 11,672 460/3/60 49.5 45.5 127 1x2 760
BNQS02A010 15,649 208-230/3/60 49.5 45.5 127 1x2 810
BNQS02A010 15,649 460/3/60 49.5 45.5 127 1x2 810
BNQS02A011 17,562 208-230/3/60 49.5 45.5 127 1x2 860
BNQS02A011 17,562 460/3/60 49.5 45.5 127 1x2 860
BNQS03A016 24,431 208-230/3/60 49.5 45.5 180 1x3 1,170
BNQS03A016 24,431 460/3/60 49.5 45.5 180 1x3 1,170
BNQS03A017 27,191 208-230/3/60 49.5 45.5 180 1x3 1,240
BNQS03A017 27,191 460/3/60 49.5 45.5 180 1x3 1,240
BNQS04A021 33,082 208-230/3/60 49.5 45.5 233 1x4 1,520
BNQS04A021 33,082 460/3/60 49.5 45.5 233 1x4 1,520
BNQS04A023 36,765 208-230/3/60 49.5 45.5 233 1x4 1,620
BNQS04A023 36,765 460/3/60 49.5 45.5 233 1x4 1,620
BNQS05A026 41,789 208-230/3/60 49.5 45.5 286 1x5 1,880
BNQS05A026 41,789 460/3/60 49.5 45.5 286 1x5 1,880
BNQS05A029 46,392 208-230/3/60 49.5 45.5 286 1x5 2,000
BNQS05A029 46,392 460/3/60 49.5 45.5 286 1x5 2,000
BNQS06A034 56,038 208-230/3/60 49.5 45.5 339 1x6 2,380
BNQS06A034 56,038 460/3/60 49.5 45.5 339 1x6 2,380
BNQS07A042 68,139 208-230/3/60 49.5 45.5 392 1x7 2,760
BNQS07A042 68,139 460/3/60 49.5 45.5 392 1x7 2,760
Model
List
Price
($US)
Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNQD04A016 25,110 208-230/3/60 49.5 88.5 127 2x2 1,420
BNQD04A016 25,110 460/3/60 49.5 88.5 127 2x2 1,420
BNQD04A021 33,082 208-230/3/60 49.5 88.5 127 2x2 1,520
BNQD04A021 33,082 460/3/60 49.5 88.5 127 2x2 1,520
BNQD04A023 36,765 208-230/3/60 49.5 88.5 127 2x2 1,620
BNQD04A023 36,765 460/3/60 49.5 88.5 127 2x2 1,620
BNQD06A031 50,442 208-230/3/60 49.5 88.5 180 2x3 2,230
BNQD06A031 50,442 460/3/60 49.5 88.5 180 2x3 2,230
BNQD06A034 56,038 208-230/3/60 49.5 88.5 180 2x3 2,380
BNQD06A034 56,038 460/3/60 49.5 88.5 180 2x3 2,380
BNQD08A041 68,180 208-230/3/60 49.5 88.5 233 2x4 2,940
BNQD08A041 68,180 460/3/60 49.5 88.5 233 2x4 2,940
BNQD08A046 75,600 208-230/3/60 49.5 88.5 233 2x4 3,140
BNQD08A046 75,600 460/3/60 49.5 88.5 233 2x4 3,140
BNQD10A052 85,614 208-230/3/60 49.5 88.5 286 2x5 3,650
BNQD10A052 85,614 460/3/60 49.5 88.5 286 2x5 3,650
BNQD10A057 94,874 208-230/3/60 49.5 88.5 286 2x5 3,900
BNQD10A057 94,874 460/3/60 49.5 88.5 286 2x5 3,900
BNQD12A069 114,076 208-230/3/60 49.5 88.5 339 2x6 4,660
BNQD12A069 114,076 460/3/60 49.5 88.5 339 2x6 4,660
BNQD14A083 138,294 208-230/3/60 49.5 88.5 392 2x7 5,420
BNQD14A083 138,294 460/3/60 49.5 88.5 392 2x7 5,420
Standard Features:
• Direct-drive .5 HP fan motors in 540 RPM
• Patented QuietEdge™ fan blade for low sound levels
• Patent-pending ServiceEase™ motor mount for serviceability
• Advanced coil technology to provide maximum capacity
• Broader product range to address all applications ranging from
11 to 225 nominal tons
• Galvanized steel cabinet with options for aluminum or painted
galvanized steel
• High eciency three phase fan motors with ball bearings and
internal overload protection
• Floating Tube™ coil design
* Specify motor voltage at time of order.
NOTE: All condensers 2x4 and above include oversized electrical box.
62 February 1, 2008 Bohn Refrigeration Products List Prices FOR OPTIONS GO TO PAGE 64-66
1140 RPM Series of Air-cooled Condensers
Standard Features:
• Direct-drive fan motors in 1140 RPM
• Bohn’s patent-pending ServiceEase™ motor mount
• New, high eciency condenser coil designed for optimum
performance
• Expanded product range from 15 to 249 nominal tons
• Galvanized steel as a standard housing, with an option for
aluminum or painted galvanized steel
• Floating Tube™ coil design
575 V Available
* Specify motor voltage at time of order.
NOTE: All condensers 2x4 and above include oversized electrical box.
Model
List
Price
($US)
Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNHS01A007 8,072 208-230/3/60 49.5 45.5 73 1x1 460
BNHS01A007 8,072 460/3/60 49.5 45.5 73 1x1 460
BNHS01A009 9,673 208-230/3/60 49.5 45.5 73 1x1 480
BNHS01A009 9,673 460/3/60 49.5 45.5 73 1x1 480
BNHS02A011 11,851 208-230/3/60 49.5 45.5 127 1x2 760
BNHS02A011 11,851 460/3/60 49.5 45.5 127 1x2 760
BNHS02A015 15,590 208-230/3/60 49.5 45.5 127 1x2 810
BNHS02A015 15,590 460/3/60 49.5 45.5 127 1x2 810
BNHS02A017 18,332 208-230/3/60 49.5 45.5 127 1x2 860
BNHS02A017 18,332 460/3/60 49.5 45.5 127 1x2 860
BNHS03A022 23,425 208-230/3/60 49.5 45.5 180 1x3 1,170
BNHS03A022 23,425 460/3/60 49.5 45.5 180 1x3 1,170
BNHS03A026 27,544 208-230/3/60 49.5 45.5 180 1x3 1,240
BNHS03A026 27,544 460/3/60 49.5 45.5 180 1x3 1,240
BNHS04A029 31,986 208-230/3/60 49.5 45.5 233 1x4 1,520
BNHS04A029 31,986 460/3/60 49.5 45.5 233 1x4 1,520
BNHS04A034 36,722 208-230/3/60 49.5 45.5 233 1x4 1,620
BNHS04A034 36,722 460/3/60 49.5 45.5 233 1x4 1,620
BNHS05A037 39,829 208-230/3/60 49.5 45.5 286 1x5 1,880
BNHS05A037 39,829 460/3/60 49.5 45.5 286 1x5 1,880
BNHS05A044 47,242 208-230/3/60 49.5 45.5 286 1x5 2,000
BNHS05A044 47,242 460/3/60 49.5 45.5 286 1x5 2,000
BNHS06A053 56,690 208-230/3/60 49.5 45.5 339 1x6 2,380
BNHS06A053 56,690 460/3/60 49.5 45.5 339 1x6 2,380
BNHS07A061 65,943 208-230/3/60 49.5 45.5 392 1x7 2,760
BNHS07A061 65,943 460/3/60 49.5 45.5 392 1x7 2,760
Model
List
Price
($US)
Voltage*
Net Dimensions (in.) Fan
Cong.
Approx.
Ship Wt.
(lbs.)
H D L
BNHD04A021 22,956 208-230/3/60 49.5 88.5 127 2x2 1,420
BNHD04A021 22,956 460/3/60 49.5 88.5 127 2x2 1,420
BNHD04A029 31,240 208-230/3/60 49.5 88.5 127 2x2 1,520
BNHD04A029 31,240 460/3/60 49.5 88.5 127 2x2 1,520
BNHD04A034 36,722 208-230/3/60 49.5 88.5 127 2x2 1,620
BNHD04A034 36,722 460/3/60 49.5 88.5 127 2x2 1,620
BNHD06A044 46,841 208-230/3/60 49.5 88.5 180 2x3 2,230
BNHD06A044 46,841 460/3/60 49.5 88.5 180 2x3 2,230
BNHD06A051 55,079 208-230/3/60 49.5 88.5 180 2x3 2,380
BNHD06A051 55,079 460/3/60 49.5 88.5 180 2x3 2,380
BNHD08A058 62,797 208-230/3/60 49.5 88.5 233 2x4 2,940
BNHD08A058 62,797 460/3/60 49.5 88.5 233 2x4 2,940
BNHD08A068 73,786 208-230/3/60 49.5 88.5 233 2x4 3,140
BNHD08A068 73,786 460/3/60 49.5 88.5 233 2x4 3,140
BNHD10A074 79,940 208-230/3/60 49.5 88.5 286 2x5 3,650
BNHD10A074 79,940 460/3/60 49.5 88.5 286 2x5 3,650
BNHD10A088 94,802 208-230/3/60 49.5 88.5 286 2x5 3,900
BNHD10A088 94,802 460/3/60 49.5 88.5 286 2x5 3,900
BNHD12A106 113,710 208-230/3/60 49.5 88.5 339 2x6 4,660
BNHD12A106 113,710 460/3/60 49.5 88.5 339 2x6 4,660
BNHD14A122 132,214 208-230/3/60 49.5 88.5 392 2x7 5,420
BNHD14A122 132,214 460/3/60 49.5 88.5 392 2x7 5,420
February 1, 2008 Bohn Refrigeration Products List Prices 63
Air-cooled Condensers Options
ADDITIONAL OPTIONS NEXT PAGE
Options Pricing Guide – Monarch™ Series
Air-cooled Condenser Option Pricing Matrix ($US)
Option Description 1x1 1x2 1x3 1x4 1x5 1x6 1x7 2x2 2x3 2x4 2x5 2x6 2x7
Fan Cycling Options (Must Select Fan Cycling and Contactor Option)
Proportional Pressure Control 1,914 1,914 1,914 1,914 1,914 1,914 1,914 3,827 3,827 3,827 3,827 3,827 3,827
Electrical Options
Fused Disconnect 210 417 630 838 1,048 1,255 1,467 833 1,262 1,679 2,097 2,512 2,933
Individual Motor Fuses 210 420 630 840 1,050 1,260 1,471 838 1,258 1,678 2,097 2,516 2,935
Paired Motor Fuses - - - - - - - 419 524 838 1,048 1,258 1,467
Individual Circuit Breakers 582 835 1,241 1,663 2,072 2,495 2,881 1,663 2,495 3,312 4,144 4,976 5,566
Paired Circuit Breakers - - - - - - - 832 1,241 1,663 2,072 2,495 2,881
Individual Motor Terminal
Boards 146 291 437 582 728 874 1,019 582 874 1,398 1,689 1,980 2,271
Paired Motor Terminal Boards - - - - - - - 291 437 582 728 874 1,019
Power Outlet (115V) 291 291 291 291 291 291 291 291 291 291 291 291 291
Mechanical Options
Connection Manifold
(shipped-loose) - - - - - - - 1,077 1,398 1,427 1,572 1,631 1,805
Extended Legs: 30", 36", 42" 105 210 314 419 524 629 734 210 314 419 524 629 734
Unit Frame, Std. Legs, 20" 1,482 2,138 2,796 4,005 4,845 5,556 6,453 2,138 2,796 4,005 4,845 5,778 6,711
Unit Frame, Ext. Legs, 42" 1,586 2,348 3,110 4,424 5,370 6,161 7,159 2,348 3,110 4,424 5,370 6,407 7,445
Paratemp, 20" - 699 - 699 - - - 699 - 699 - - -
Paratemp, Extended Legs: 30",
36", 42" - 560 - 1,118 - - - 560 - 1,118 - - -
NOTES:
• Motors are 208-230/3/60 or 460/3/60.
• Standard Fins Per Inch is 10.
• For 8 FPI deduct $350 per cell. For 12 FPI add $350 per cell. For 14 FPI add $700
per cell. Also, applicable to ProKote® n protection pricing.
• Power outlet is supplied unwired.
• Clearance height must be specied for extended legs when ordering.
64 February 1, 2008 Bohn Refrigeration Products List Prices
Air-cooled Condensers Options
ADDITIONAL OPTIONS NEXT PAGE
Options Pricing Guide – Ambassador™ Series & 1140 Series
Air-cooled Condenser Option Pricing Matrix ($US)
Option Description 1x1 1x2 1x3 1x4 1x5 1x6 1x7 2x2 2x3 2x4 2x5 2x6 2x7
Fan Cycling Options (Must Select Fan Cycling and Contactor Option)
Individual Motor Contactors;
230V, 115V, 24V 210 420 630 840 1,050 1,260 1,471 838 1,258 1,678 2,097 2,516 2,935
Paired Motor Contactors; 230V,
115V, 24V - - - - - - - 419 629 838 1,048 1,258 1,467
Ambient Fan Cycling* - 804 1,084 1,445 1,805 2,166 2,527 804 1,084 1,445 1,805 2,166 2,527
Pressure Fan Cycling Mech. w/o
Header* - 1,213 1,328 1,770 2,213 2,656 3,098 1,213 1,328 1,770 2,213 2,656 3,098
Pressure Fan Cycling Mech. w/
Header* 1,423 1,537 1,980 2,423 2,865 3,308 3,750 1,537 1,980 2,423 2,865 3,308 3,750
Pressure Fan Cycling Elec. w/o
Header* - 1,260 1,579 2,616 3,666 4,709 5,532 1,260 1,579 2,622 3,666 4,709 5,532
Pressure Fan Cycling Elec. w/
Header* 1,470 1,788 2,832 3,875 4,919 5,733 6,737 1,788 2,832 3,875 4,919 5,733 6,737
Variable Speed with Ambient* 2,038 2,312 2,598 2,959 3,320 3,681 4,041 2,312 2,598 2,959 3,320 3,681 4,041
Variable Speed with Pressure
(Mech.)* 2,392 2,569 2,842 3,284 3,727 4,170 4,612 2,569 2,842 3,284 3,727 4,170 4,612
Variable Speed with Pressure
(Elec.)* 2,533 2,807 3,093 4,136 5,180 5,984 6,988 2,807 3,093 4,136 5,180 5,984 6,988
Microprocessor Relay Board 2,505 2,505 2,505 2,505 2,505 2,505 2,505 2,505 2,505 2,505 2,505 2,505 2,505
Microprocessor Relay Board
w/ Split 2,707 2,707 2,707 2,707 2,707 2,707 2,707 2,707 2,707 2,707 2,707 2,707 2,707
Electrical Options
575V adder (BNH/BNL only) 204 408 612 815 1,019 1,223 1,427 815 1,223 1,631 2,038 2,446 2,854
Control Circuit Transformer;
230V,115V, 24V 495 495 495 495 495 495 495 495 495 495 495 495 495
Individual Motor Fuses 210 420 630 840 1,050 1,260 1,471 838 1,258 1,678 2,097 2,516 2,935
Paired Motor Fuses - - - - - - - 419 524 838 1,048 1,258 1,467
Individual Circuit Breakers 582 832 1,241 1,663 2,072 2,495 2,881 1,663 2,495 3,253 4,144 4,976 5,566
Paired Circuit Breakers - - - - - - - 832 1,241 1,663 2,072 2,495 2,881
Individual Motor Terminal
Boards 144 291 437 582 728 874 1,019 582 874 1,398 1,689 1,980 2,271
Paired Motor Terminal Boards - - - - - - - 291 437 582 728 874 1,019
Fan Toggle Switches 87 175 262 349 437 524 612 349 524 699 874 1,048 1,223
Paired Fan Toggle Switches - - - - - - - 175 262 349 437 524 612
Fused Disconnect 210 417 630 838 1,048 1,255 1,467 833 1,262 1,679 2,097 2,512 2,933
Sealtite Wiring to Motor Rail 182 226 342 460 569 685 800 460 686 913 1,145 1,372 1,592
Sealtite Wiring to
Electrical Box 605 1,212 1,817 2,423 3,028 3,634 4,240 2,423 3,634 4,845 5,824 6,989 8,154
Power Outlet (115V) 291 291 291 291 291 291 291 291 291 291 291 291 291
* Fans are cycled in pairs on double wide units.
NOTES:
• Variable speed motor is on fan closest to header only.
• Variable speed motors have a full speed RPM of 1140.
• Pressure fan cycling is not available on units with multiple circuits.
• Motors are 208-230/3/60 or 460/3/60.
• Motor circuit breakers are not available on 575V units.
• Motor terminal boards are not available on units with fan cycling.
• Fused disconnect is available up to 60 amps.
• Variable speed motor is on fan closest to header only.
• Standard control circuit is 230V. 24V and 115V are available.
February 1, 2008 Bohn Refrigeration Products List Prices 65
Air-cooled Condensers Options
ADDITIONAL OPTIONS NEXT PAGE
Options Pricing Guide – Ambassador™ Series & 1140 Series (continued)
Air-cooled Condenser Option Pricing Matrix ($US)
Option Description 1x1 1x2 1x3 1x4 1x5 1x6 1x7 2x2 2x3 2x4 2x5 2x6 2x7
Mechanical options
Aluminum or Pre-Painted
Steel Cabinet 233 466 699 932 1,165 1,398 1,631 932 1,398 1,864 2,330 2,796 3,261
Coil Access Panels, Galv 233 466 699 932 1,165 1,398 1,631 932 1,398 1,864 2,330 2,796 3,261
Coil Access Panels, AL or
Painted Steel 466 932 1,398 1,864 2,330 2,796 3,261 1,864 2,796 3,727 4,659 5,376 6,272
Hinged Venturi 495 990 1,485 1,980 2,475 2,970 3,465 1,945 2,970 3,960 4,950 5,712 6,664
Connection Manifold (shipped-
loose) - - - - - - - 1,077 1,398 1,427 1,572 1,631 1,805
Extended Legs: 30", 36", 42" 105 210 315 420 525 630 735 210 315 420 525 630 735
Paratemp, 20" - 349 - 699 - - - 349 - 699 - - -
Paratemp, Extended Legs: 30",
36", 42" - 560 - 1,118 - - - 560 - 1,118 - - -
Unit Frame, Std. Legs, 20" 1,482 2,138 2,796 4,005 4,845 5,556 6,453 2,138 2,796 4,005 4,845 5,778 6,711
Unit Frame, Ext. Legs, 42" 1,586 2,348 3,037 4,424 5,163 6,161 7,159 2,348 3,110 4,424 5,370 6,407 7,445
NOTES:
• Clearance height must be specied for extended legs when ordering
• Standard Fins Per Inch is 10. For 8 FPI deduct $350 per cell. For 12 FPI add $350 per cell. For 14
FPI add $700 per cell. Also applicable to ProKote® n protection pricing.
66 February 1, 2008 Bohn Refrigeration Products List Prices
Air-cooled Condensers Options
Condenser Fin and Coil Protection Options
Bohn Air-cooled Condensor Coil Options
BNH BNL BNX BNQ BNE
BohnGuard™ Fin
Protection Option
List Pricing ($US)
BNH-S01-A007 BNL-S01-A007 BNX-S01-A006 BNQ-S01-A005 BNE-S01-A008 813
BNH-S01-A009 BNL-S01-A008 BNX-S01-A008 BNQ-S01-A006 BNE-S01-A009 1,076
BNH-S02-A011 BNL-S02-A010 BNX-S02-A010 BNQ-S02-A008 BNE-S02-A011 1,093
BNH-S02-A015 BNL-S02-A014 BNX-S02-A013 BNQ-S02-A010 BNE-S02-A015 1,312
BNH-S02-A017 BNL-S02-A016 BNX-S02-A015 BNQ-S02-A011 BNE-S02-A018 2,130
BNH-S03-A022 BNL-S03-A021 BNX-S03-A020 BNQ-S03-A016 BNE-S03-A023 2,418
BNH-S03-A026 BNL-S03-A024 BNX-S03-A023 BNQ-S03-A017 BNE-S03-A027 3,452
BNH-S04-A029 BNL-S04-A028 BNX-S04-A026 BNQ-S04-A021 BNE-S04-A031 3,648
BNH-S04-A034 BNL-S04-A032 BNX-S04-A030 BNQ-S04-A023 BNE-S04-A036 4,864
BNH-S05-A037 BNL-S05-A035 BNX-S05-A033 BNQ-S05-A026 BNE-S05-A039 4,553
BNH-S05-A044 BNL-S05-A042 BNX-S05-A038 BNQ-S05-A029 BNE-S05-A047 6,070
BNH-S06-A053 BNL-S06-A050 BNX-S06-A045 BNQ-S06-A034 BNE-S06-A056 7,287
BNH-S07-A061 BNL-S07-A055 BNX-S07-A052 BNQ-S07-A042 BNE-S07-A065 8,503
BNH-D04-A021 BNL-D04-A020 BNX-D04-A020 BNQ-D04-A016 BNE-D04-A023 2,185
BNH-D04-A029 BNL-D04-A028 BNX-D04-A026 BNQ-D04-A021 BNE-D04-A031 3,224
BNH-D04-A034 BNL-D04-A032 BNX-D04-A030 BNQ-D04-A023 BNE-D04-A036 4,261
BNH-D06-A044 BNL-D06-A042 BNX-D06-A039 BNQ-D06-A031 BNE-D06-A046 4,836
BNH-D06-A051 BNL-D06-A048 BNX-D06-A045 BNQ-D06-A034 BNE-D06-A054 6,902
BNH-D08-A058 BNL-D08-A056 BNX-D08-A052 BNQ-D08-A041 BNE-D08-A062 7,297
BNH-D08-A068 BNL-D08-A065 BNX-D08-A061 BNQ-D08-A046 BNE-D08-A073 9,728
BNH-D10-A074 BNL-D10-A071 BNX-D10-A066 BNQ-D10-A052 BNE-D10-A079 9,106
BNH-D10-A088 BNL-D10-A083 BNX-D10-A076 BNQ-D10-A057 BNE-D10-A093 12,142
BNH-D12-A106 BNL-D12-A100 BNX-D12-A091 BNQ-D12-A069 BNE-D12-A112 14,574
BNH-D14-A122 BNL-D14-A110 BNX-D14-A104 BNQ-D14-A083 BNE-D14-A129 17,006
NOTES:
• Please consult the factory for ElectroFin® coated coil price adders.
• Please consult the factory for copper n coil option pricing.
• Standard Fins Per Inch is 10. For 8 FPI deduct $350 per cell. For 12 FPI add
$350 per cell. For 14 FPI add $700 per cell. Also applicable to BohnGuard™ n
protection pricing.
February 1, 2008 Bohn Refrigeration Products List Prices 67
5-26 Ton DFT Fluid Coolers and Options
Standard Features:
• Specically engineered for outdoor installations. Cabinet is
constructed of heavy gauge aluminum to resist corrosion in all
climates
• Fully baed fan sections to prevent windmilling
• Single point wiring to junction box
• Balanced fans, featuring heavy gauge aluminum blades riveted
to plated steel spiders
• Coils are the patented cross-n coil with staggered seamless
copper tubes expanded into full collar aluminum ns for high
heat transfer eciency
• Wide n spacing minimizes fouling from foreign materials
• Corrosion resistant fan blades and guards
• UL-listed, CSA certied
** DFT expansion tank and mounting kit (shipped-loose).
* Not available on units smaller than DFT008.
NOTES:
• 208-230/1/60 motors may be eld connected to 230/3/60 power.
• 12 x 24 horizontal tank, 12 gallon, 30 PSIG, non-ASME.
Kit Part #: 8990065
• Control circuit is 230V unless otherwise specied.
• 24V & 115V are available at no additional cost.
• Specify control circuit voltage when ordering.
• Fan cycling pricing does not include control circuit transformer for
460V and 575V units.
5-26 Ton DFT Fluid Coolers
Model List Price
($US) Voltage Net Dimensions (in.) Fan
Conguration
Approx.
Ship Wt. (lbs.)
Height Depth Length
DFT005 5,085 208-230/1/60 40.5 43 30 1x1 325
DFT005 5,399 208-230/3/60 40.5 43 30 1x1 325
DFT005 5,399 460/3/60 40.5 43 30 1x1 325
DFT008 6,422 208-230/1/60 40.5 43 40 1x1 380
DFT008 6,666 208-230/3/60 40.5 43 40 1x1 380
DFT008 6,666 460/3/60 40.5 43 40 1x1 380
DFT010 7,849 208-230/1/60 40.5 43 60 1x2 450
DFT010 8,445 208-230/3/60 40.5 43 60 1x2 450
DFT010 8,445 460/3/60 40.5 43 60 1x2 450
DFT012 8,814 208-230/1/60 40.5 43 60 1x2 468
DFT012 9,306 208-230/3/60 40.5 43 60 1x2 468
DFT012 9,306 460/3/60 40.5 43 60 1x2 468
DFT014 10,081 208-230/1/60 40.5 43 80 1x2 540
DFT014 10,572 208-230/3/60 40.5 43 80 1x2 540
DFT014 10,572 460/3/60 40.5 43 80 1x2 540
DFT016 11,049 208-230/1/60 40.5 43 80 1x2 556
DFT016 11,541 208-230/3/60 40.5 43 80 1x2 556
DFT016 11,541 460/3/60 40.5 43 80 1x2 556
DFT021 12,740 208-230/1/60 40.5 43 120 1x3 725
DFT021 13,482 208-230/3/60 40.5 43 120 1x3 725
DFT021 13,482 460/3/60 40.5 43 120 1x3 725
DFT023 13,100 208-230/1/60 40.5 43 120 1x3 740
DFT023 13,839 208-230/3/60 40.5 43 120 1x3 740
DFT023 13,839 460/3/60 40.5 43 120 1x3 740
DFT026 14,303 208-230/1/60 40.5 43 120 1x3 770
DFT026 15,042 208-230/3/60 40.5 43 120 1x3 770
DFT026 15,042 460/3/60 40.5 43 120 1x3 770
DFT Options
List Price ($US)
1x1
(005-008)
1x2
(010-016)
1x3
(021-026)
1 Phase Ambient Fan Cycle N/A 461 643
3 Phase Ambient Fan Cycle N/A 1,161 1,431
DFT Expansion tank and
mounting kit (shipped-loose)** 542 542 542
Transformer (shipped-loose) 484 484 484
575V* 350 700 1,050
Coil Coatings
Models
BohnGuard™
Fin Protection
List Price ($US)
ElectroFin®
Coil Coating
List Price ($US)
DFT005 300 2,384
DFT008 478 2,384
DFT010 538 3,567
DFT012 593 3,567
DFT014 717 4,757
DFT016 879 5,452
DFT021 973 7,136
DFT023 1,110 7,136
DFT026 1,349 7,136
NOTE: Copper n coil available. Please consult factory for
pricing.
575 V Available
68 February 1, 2008 Bohn Refrigeration Products List Prices FOR OPTIONS GO TO PAGE 70
Standard Features:
• Modular design with models in single and double rows of fans
• Fan motors are direct-drive in 1140 RPM
• Housing constructed with heavy gauge aluminum
• Internal baes provided between all fan cells
• Floating Tube™ coil design
• Energy ecient, three-phase fan motors with ball bearings and
internal overload protectors
• PVC coated fan guards
• Weatherproof control panel with disconnect switch
BFH Direct-drive Fluid
Model List Price
($US) Voltage* Net Dimensions (in.) Fan
Conguration
Approx. Ship Wt.
(lbs.)
Height Depth Length
Units with a Single Row of Fans
BFH023 13,108 208-230/3/60 40.5 45.5 120.5 1x2 800
BFH023 13,108 460/3/60 40.5 45.5 120.5 1x2 800
BFH023 13,108 575/3/60 40.5 45.5 120.5 1x2 800
BFH027 14,072 208-230/3/60 40.5 45.5 120.5 1x2 1,120
BFH027 14,072 460/3/60 40.5 45.5 120.5 1x2 1,120
BFH027 14,072 575/3/60 40.5 45.5 120.5 1x2 1,120
BFH031 15,935 208-230/3/60 40.5 45.5 120.5 1x2 860
BFH031 15,935 460/3/60 40.5 45.5 120.5 1x2 860
BFH031 15,935 575/3/60 40.5 45.5 120.5 1x2 860
BFH035 18,922 208-230/3/60 40.5 45.5 120.5 1x2 1,190
BFH035 18,922 460/3/60 40.5 45.5 120.5 1x2 1,190
BFH035 18,922 575/3/60 40.5 45.5 120.5 1x2 1,190
BFH041 21,921 208-230/3/60 40.5 45.5 175.5 1x3 1,620
BFH041 21,921 460/3/60 40.5 45.5 175.5 1x3 1,620
BFH041 21,921 575/3/60 40.5 45.5 175.5 1x3 1,620
BFH045 23,455 208-230/3/60 40.5 45.5 175.5 1x3 1,300
BFH045 23,455 460/3/60 40.5 45.5 175.5 1x3 1,300
BFH045 23,455 575/3/60 40.5 45.5 175.5 1x3 1,300
BFH049 25,825 208-230/3/60 40.5 45.5 175.5 1x3 1,330
BFH049 25,825 460/3/60 40.5 45.5 175.5 1x3 1,330
BFH049 25,825 575/3/60 40.5 45.5 175.5 1x3 1,330
BFH053 28,412 208-230/3/60 40.5 45.5 230.5 1x4 1,690
BFH053 28,412 460/3/60 40.5 45.5 230.5 1x4 1,690
BFH053 28,412 575/3/60 40.5 45.5 230.5 1x4 1,690
BFH061 31,046 208-230/3/60 40.5 45.5 230.5 1x4 1,730
BFH061 31,046 460/3/60 40.5 45.5 230.5 1x4 1,730
BFH061 31,046 575/3/60 40.5 45.5 230.5 1x4 1,730
BFH065 33,793 208-230/3/60 40.5 45.5 230.5 1x4 1,760
BFH065 33,793 460/3/60 40.5 45.5 230.5 1x4 1,760
BFH065 33,793 575/3/60 40.5 45.5 230.5 1x4 1,760
BFH071 36,924 208-230/3/60 40.5 45.5 230.5 1x4 1,870
BFH071 36,924 460/3/60 40.5 45.5 230.5 1x4 1,870
BFH071 36,924 575/3/60 40.5 45.5 230.5 1x4 1,870
BFH075 40,764 208-230/3/60 40.5 45.5 285.5 1x5 2,150
BFH075 40,764 460/3/60 40.5 45.5 285.5 1x5 2,150
BFH075 40,764 575/3/60 40.5 45.5 285.5 1x5 2,150
BFH079 42,864 208-230/3/60 40.5 45.5 285.5 1x5 2,225
BFH079 42,864 460/3/60 40.5 45.5 285.5 1x5 2,225
BFH079 42,864 575/3/60 40.5 45.5 285.5 1x5 2,225
BFH089 46,276 208-230/3/60 40.5 45.5 285.5 1x5 2,390
BFH089 46,276 460/3/60 40.5 45.5 285.5 1x5 2,390
BFH089 46,276 575/3/60 40.5 45.5 285.5 1x5 2,390
BFH097 51,006 208-230/3/60 40.5 45.5 340.5 1x6 2,610
BFH097 51,006 460/3/60 40.5 45.5 340.5 1x6 2,610
BFH097 51,006 575/3/60 40.5 45.5 340.5 1x6 2,610
BFH107 57,168 208-230/3/60 40.5 45.5 340.5 1x6 2,850
BFH107 57,168 460/3/60 40.5 45.5 340.5 1x6 2,850
BFH107 57,168 575/3/60 40.5 45.5 340.5 1x6 2,850
* Specify motor voltage at time of order.
BFH Direct-drive Fluid Coolers
575 V Available
February 1, 2008 Bohn Refrigeration Products List Prices 69
BFH Direct-drive Fluid Coolers (cont.)
FOR OPTIONS GO TO PAGE 70
Standard Features:
• Modular design with models in single and double rows of fans
• Fan motors are direct-drive in 1140 RPM
• Housing constructed with heavy gauge aluminum
• Internal baes provided between all fan cells
• Floating Tube™ coil design
• Energy ecient, three-phase fan motors with ball bearings and
internal overload protectors
• PVC coated fan guards
• Weatherproof control panel with disconnect switch
BFH Direct-drive Fluid Coolers
Model List Price
($US) Voltage* Net Dimensions (in.) Fan
Conguration
Approx. Ship Wt.
(lbs.)
Height Depth Length
Units with Double Rows of Fans
BFH046 26,333 208-230/3/60 40.5 88.0 120.5 2x2 1,730
BFH046 26,333 460/3/60 40.5 88.0 120.5 2x2 1,730
BFH046 26,333 575/3/60 40.5 88.0 120.5 2x2 1,730
BFH054 28,539 208-230/3/60 40.5 88.0 120.5 2x2 1,770
BFH054 28,539 460/3/60 40.5 88.0 120.5 2x2 1,770
BFH054 28,539 575/3/60 40.5 88.0 120.5 2x2 1,770
BFH060 31,241 208-230/3/60 40.5 88.0 120.5 2x2 1,820
BFH060 31,241 460/3/60 40.5 88.0 120.5 2x2 1,820
BFH060 31,241 575/3/60 40.5 88.0 120.5 2x2 1,820
BFH066 34,440 208-230/3/60 40.5 45.5 120.5 2x2 1,840
BFH066 34,440 460/3/60 40.5 45.5 120.5 2x2 1,840
BFH066 34,440 575/3/60 40.5 45.5 120.5 2x2 1,840
BFH070 37,287 208-230/3/60 40.5 45.5 120.5 2x2 1,950
BFH070 37,287 460/3/60 40.5 45.5 120.5 2x2 1,950
BFH070 37,287 575/3/60 40.5 45.5 120.5 2x2 1,950
BFH080 43,122 208-230/3/60 40.5 88.0 175.5 2x3 2,570
BFH080 43,122 460/3/60 40.5 88.0 175.5 2x3 2,570
BFH080 43,122 575/3/60 40.5 88.0 175.5 2x3 2,570
BFH086 46,778 208-230/3/60 40.5 88.0 175.5 2x3 2,620
BFH086 46,778 460/3/60 40.5 88.0 175.5 2x3 2,620
BFH086 46,778 575/3/60 40.5 88.0 175.5 2x3 2,620
BFH090 48,873 208-230/3/60 40.5 88.0 175.5 2x3 2,630
BFH090 48,873 460/3/60 40.5 88.0 175.5 2x3 2,630
BFH090 48,873 575/3/60 40.5 88.0 175.5 2x3 2,630
BFH098 53,274 208-230/3/60 40.5 88.0 175.5 2x3 2,690
BFH098 53,274 460/3/60 40.5 88.0 175.5 2x3 2,690
BFH098 53,274 575/3/60 40.5 88.0 175.5 2x3 2,690
BFH106 58,973 208-230/3/60 40.5 88.0 230.5 2x4 3,360
BFH106 58,973 460/3/60 40.5 88.0 230.5 2x4 3,360
BFH106 58,973 575/3/60 40.5 88.0 230.5 2x4 3,360
BFH120 65,076 208-230/3/60 40.5 88.0 230.5 2x4 3,420
BFH120 65,076 460/3/60 40.5 88.0 230.5 2x4 3,420
BFH120 65,076 575/3/60 40.5 88.0 230.5 2x4 3,420
BFH132 71,745 208-230/3/60 40.5 88.0 230.5 2x4 3,470
BFH132 71,745 460/3/60 40.5 88.0 230.5 2x4 3,470
BFH132 71,745 575/3/60 40.5 88.0 230.5 2x4 3,470
BFH140 74,998 208-230/3/60 40.5 88.0 230.5 2x4 3,730
BFH140 74,998 460/3/60 40.5 88.0 230.5 2x4 3,730
BFH140 74,998 575/3/60 40.5 88.0 230.5 2x4 3,730
BFH152 80,825 208-230/3/60 40.5 88.0 285.5 2x5 4,290
BFH152 80,825 460/3/60 40.5 88.0 285.5 2x5 4,290
BFH152 80,825 575/3/60 40.5 88.0 285.5 2x5 4,290
BFH162 85,277 208-230/3/60 40.5 88.0 285.5 2x5 4,300
BFH162 85,277 460/3/60 40.5 88.0 285.5 2x5 4,300
BFH162 85,277 575/3/60 40.5 88.0 285.5 2x5 4,300
BFH168 90,963 208-230/3/60 40.5 88.0 285.5 2x5 4,450
BFH168 90,963 460/3/60 40.5 88.0 285.5 2x5 4,450
BFH168 90,963 575/3/60 40.5 88.0 285.5 2x5 4,450
BFH178 93,949 208-230/3/60 40.5 88.0 285.5 2x5 4,680
BFH178 93,949 460/3/60 40.5 88.0 285.5 2x5 4,680
BFH178 93,949 575/3/60 40.5 88.0 285.5 2x5 4,680
BFH194 105,034 208-230/3/60 40.5 88.0 340.5 2x6 5,150
BFH194 105,034 460/3/60 40.5 88.0 340.5 2x6 5,150
BFH194 105,034 575/3/60 40.5 88.0 340.5 2x6 5,150
BFH202 107,782 208-230/3/60 40.5 88.0 340.5 2x6 5,330
BFH202 107,782 460/3/60 40.5 88.0 340.5 2x6 5,330
BFH202 107,782 575/3/60 40.5 88.0 340.5 2x6 5,330
BFH212 113,972 208-230/3/60 40.5 88.0 340.5 2x6 5,670
BFH212 113,972 460/3/60 40.5 88.0 340.5 2x6 5,670
BFH212 113,972 575/3/60 40.5 88.0 340.5 2x6 5,670
* Specify motor voltage at time of order.
575 V Available
70 February 1, 2008 Bohn Refrigeration Products List Prices
BFH Direct-drive Fluid Coolers Options
BFH Options
Connection Manifold Kits (Shipped-loose)
NOTES:
• 575V and 460V fan cycle pricing does not include control circuit transformer (add $456).
• Fan control panels are 230V unless otherwise stated. 24V and 115V are available at no additional charge.
• Specify control circuit voltage when ordering.
Fluid cooler manifolds are for converting
standard two circuit uid coolers to single
circuit. Price includes all tube and ttings
for eld brazing to inlet and outlet.
Coil Coating Options
Single Fan Conguration Dual Fan Conguration
Numbers
of Feeds Inlet Outlet List Price
($US)
18, 28, 36 2 @ 2 1/8 1 @ 4 1/8 1,413
42, 56 2 @ 2 5/8 1 @ 4 1/8 1,506
84 2 @ 3 1/8 1 @ 4 1/8 2,430
112 2 @ 3 5/8 1 @ 4 1/8 3,205
* On leaving liquid temperature
1x2 1x3 1x4 1x5 1x6 2x2 2x3 2x4 2x5 2x6
Fan Cycling* 1,216 1,526 2,217 2,709 3,430 1,216 1,526 2,217 2,709 3,430
Model
List Price ($US)
BohnGuard™
Fin Protection
ElectroFin® Coil
Coating
BFH046 1,518 12,745
BFH054 1,597 13,903
BFH060 2,423 13,903
BFH066 3,530 15,932
BFH070 3,530 15,932
BFH080 3,937 20,854
BFH086 3,937 20,854
BFH090 3,937 20,854
BFH098 4,905 23,895
BFH106 5,872 27,809
BFH120 5,872 27,809
BFH132 7,413 31,861
BFH140 7,413 31,861
BFH152 8,189 34,759
BFH162 10,173 39,828
BFH168 10,173 39,828
BFH178 10,173 39,828
BFH194 11,248 Not Available
BFH202 12,714 Not Available
BFH212 13,525 Not Available
Model
List Price ($US)
BohnGuard™
Fin Protection
ElectroFin® Coil
Coating
BFH023 759 6,372
BFH027 799 6,951
BFH031 1,212 6,951
BFH035 1,765 7,965
BFH041 1,969 10,427
BFH045 1,969 10,427
BFH049 2,452 11,948
BFH053 2,936 13,901
BFH061 2,936 13,901
BFH065 3,707 15,932
BFH071 3,707 15,932
BFH075 4,094 17,377
BFH079 5,087 19,914
BFH089 5,087 19,914
BFH097 5,849 Not Available
BFH107 6,611 Not Available
NOTE: Copper n coil available. Please consult factory
for pricing.
February 1, 2008 Bohn Refrigeration Products List Prices 71
SW Booster Coils
Nomenclature Example:
SW 1 06 06 8 01 06
Surface Water Rows Deep Fin Height
(F.H.)
Finned Length
(F.L.) Fins Per Inch Internal Fluid
Circuits
Connection
Size in 1/8th
One Row Coil
Model
List
Price
($US)
“A”
Dim.
“B”
Dim.
“C”
Dim.
Approx.
Shipping
Wt. (lbs.)
Two Row Coil
Model
List
Price
($US)
“A”
Dim.
“B”
Dim.
“C”
Dim.
Approx.
Shipping
Wt. (lbs.)
SW106068 * 2.25 2.00 1.50 4 SW206068 * 1.88 1.35 1.50 4
SW106098 * 2.25 2.00 1.50 6 SW206098 * 1.88 1.35 1.50 6
SW106128 * 2.25 2.00 1.50 8 SW206128 * 1.88 1.35 1.50 8
SW106158 * 2.25 2.00 1.50 8 SW206158 * 1.88 1.35 1.50 8
SW106188 * 2.25 2.00 1.50 8 SW206188 * 1.88 1.35 1.50 10
SW109098 * 2.25 2.00 1.50 8 SW209098 * 1.88 1.35 1.50 8
SW109128 * 2.25 2.00 1.50 8 SW209128 * 1.88 1.35 1.50 10
SW109158 * 2.25 2.00 1.50 8 SW209158 * 1.88 1.35 1.50 12
SW109188 * 2.25 2.00 1.50 10 SW209188 * 1.88 1.35 1.50 12
SW112128 * 2.25 2.00 1.50 10 SW212128 * 1.88 1.35 1.50 12
SW112158 * 2.25 2.00 1.50 11 SW212158 * 1.88 1.35 1.50 14
SW112188 * 2.25 2.00 1.50 12 SW212188 * 1.88 1.35 1.50 16
SW112248 * 2.25 2.00 1.50 15 SW212248 * 2.00 1.11 3.06 20
SW112308 * 2.25 2.00 1.50 16 SW212308 * 2.00 1.11 3.06 24
SW112368 * 2.38 1.31 3.06 20 SW212368 * 2.00 1.11 3.06 26
SW115188 * 2.25 2.00 1.50 14 SW215188 * 2.00 1.11 3.06 20
SW115248 * 2.25 2.00 1.50 18 SW215248 * 2.00 1.11 3.06 24
SW115308 * 2.38 1.31 3.08 20 SW215308 * 2.00 1.11 3.08 30
SW115368 * 2.38 1.31 3.06 24 SW215368 * 2.00 1.11 3.06 32
SW118188 * 2.25 2.00 1.50 16 SW218188 * 2.00 1.11 3.06 22
SW118248 * 2.38 1.31 3.06 20 SW218248 * 2.00 1.11 3.06 28
SW118308 * 2.38 1.31 3.06 34 SW218308 * 2.00 1.11 3.08 32
SW118368 * 2.38 1.31 3.06 28 SW218368 * 2.12 1.06 3.42 38
SW118488 * 2.38 1.31 3.06 34 SW218488 * 2.25 1.06 3.42 50
SW121308 * 2.38 1.31 3.06 26 SW221308 * 2.00 1.11 3.06 36
SW121368 * 2.38 1.31 3.06 34 SW221368 * 2.12 1.06 3.42 46
SW121428 * 2.38 1.31 3.06 34 SW221428 * 2.25 1.06 3.42 50
SW121488 * 2.38 1.31 3.06 38 SW221488 * 2.25 1.06 3.42 58
SW124248 * 2.38 1.31 3.06 24 SW224248 * 2.00 1.11 3.06 34
SW124308 * 2.38 1.31 3.06 30 SW224308 * 2.12 1.06 3.42 42
SW124368 * 2.38 1.31 3.06 34 SW224368 * 2.25 1.06 3.42 56
SW124488 * 2.50 1.19 3.42 44 SW224488 * 2.25 1.06 3.42 62
SW124608 * 2.55 1.19 3.42 54 SW224608 * 2.25 1.06 3.42 76
SW127548 * 2.62 1.19 3.42 148 SW227548 * 2.25 1.06 3.42 176
SW130488 * 2.55 1.19 3.42 130 SW230488 * 2.30 1.06 3.42 158
SW130608 * 2.30 1.06 3.42 163 SW230608 * 2.55 0.81 4.02 198
* Consult factory for pricing.
72 February 1, 2008 Bohn Refrigeration Products List Prices
1. Semi-hermetic Compressors
(Discus or Reed) 2. Hermetic Compressors
4. PRO3 Compressors
(3 Year Extended Warranty)
3. Scroll Compressors
4 Year Compressor Protection Plan Pricing Warranty List Prices
Warranty
Item ID Model Warranty
List Price ($US)
WARCH0-3 PT*019L6A 298
WARCH0-3 PT*021L6A 298
WARCH0-3 PT*021L6B 298
WARCH0-3 PT*031L6B 298
WARCH0-3 PT*024H2A 298
WARCH0-3 PT*029H2A 298
WARCH0-3 PT*040H2A 298
WARCH0-3 PT*047H2A 298
WARCH0-3 PT*047H2B 298
WARCH0-3 PT*063H2B 298
WARCH0-3 PT*072H2B 298
WARCH1-3 PT*099H2B 304
WARCH1-3 PT*099H2C 304
WARCH1-3 PT*044L6B 304
WARCH1-3 PT*052L6B 304
WARCH1-3 PT*052L6C 304
WARCH2-3 PT*069L6B 357
WARCH2-3 PT*069L6C 357
WARCH2-3 PT*128H2B 357
WARCH2-3 PT*128H2C 357
Warranty
Item ID
Compressor
Horsepower
Warranty
List Price ($US)
ACH0 0.5 - 1.0 413
ACH1 1.1 - 1.9 419
ACH2 2.0 - 2.9 519
ACH3 3.0 - 5.0 523
Warranty
Item ID
Compressor
Horsepower
Warranty
List Price ($US)
AZL2 2.0 - 2.9 782
AZL3 3.0 - 3.9 904
AZL5 4.0 - 5.9 980
AZL6 6.0 - 6.9 1,055
AZL7 7.0 - 8.9 1,713
AZL11 9.0 - 11.9 1,860
AZL13 12.0 -14.9 2,121
AZL15 15.0 2,326
Warranty
Item ID
Compressor
Horsepower
Warranty
List Price ($US)
ACA0 0.5 - 1.0 659
ACA1 1.1 - 1.9 676
ACA2 2.0 - 2.8 1,031
ACA3 2.9 - 3.9 1,224
ACA4 4.0 - 5.9 1,690
ACD5 6.0 - 6.9 2,138
ACD7 7.0 - 8.9 2,225
ACD11 9.0 - 11.9 2,844
ACD13 12.0 - 14.9 3,241
ACD15 15.0 - 15.9 4,314
ACD21 20.0 - 22.0 5,240
ACD25 25.0 - 27.0 5,851
ACD30 30.0 - 30.9 6,689
ACD35 35.0 - 35.9 6,739
ACD40 40.0 - 40.9 7,489
Terms of Sale
ORDER ACCEPTANCE: All orders must be in writing and are subject to acceptance by SELLER at its principal oce.
PAYMENT: Payment is due net thirty (30) days from date of invoice.
PRICES: Prices are based on products made to SELLER’S standard manufacturing tolerances. Prices of products are subject to change prior to shipment.
SELLER reserves the right to change prices on Buyer’s orders to those prices in eect at time of shipment.
FREIGHT ALLOWANCE: Prices are F.O.B. shipping point, freight allowed on any single purchase order of $5,000 or more, via lowest common carrier to
nearest freight station within continental U.S.A. In addition, Prices are F.O.B. shipping point, freight allowed for multiple orders of less than $5,000 for which
the Buyer schedules consolidation into one shipment equal to or greater than $5,000 on the same day to one freight station within continental U.S.A. If special
routing is requested for a purchase order of $5,000 or greater (contract haul, requested atbed delivery, appointment to meet a crane, etc.), Buyer will be
assessed a charge for the dierence between such routing and normal minimum freight charge to such point. A purchase order less than $5,000 or a purchase
order that meets the $5,000 criteria but with shipments to multiple ship-to locations will be shipped F.O.B. shipping point, no freight allowed. Buyer will pay
ALL costs associated with the shipment of parts and any orders that are shipped via air freight or expedited delivery. Shipments to destinations outside of the
continental U.S.A. will incur charges for the additional cost of transport beyond the U.S.A. border.
DELIVERY: Any delivery dates which may be indicated herein are estimates only and are not guaranteed.
Unless otherwise agreed, delivery shall be F.O.B. shipping point. As to those products for which SELLER maintains manufacturing facilities in dierent locations,
the point of manufacture will be at SELLER’s discretion.
SELLER shall be excused for any delay in deliveries due to acts beyond its control and not due to its fault or negligence, including, but not restricted to, Acts
of God or of the public enemy, acts of the Government of the United States, including any preference priority or allocation order, or of any state, territory
or possession thereof of any political subdivision or authority or representative of any of them, strikes, lockouts or labor troubles, embargoes, res, oods,
epidemics, quarantine restrictions, explosions, sabotage or other catastrophes or serious accidents, freight embargoes, unusually severe weather, and delays
of a subcontractor or supplier due to any such causes.
CREDIT APPROVAL: If, during the performance hereof, the nancial responsibility of Buyer is determined at the sole discretion of SELLER’s Credit Department
to be unacceptable or if Buyer fails to make any payments in accordance with the terms hereof, then in any such event, SELLER may defer or decline to make any
shipments hereunder except upon receipt of satisfactory security or cash payments in advance or SELLER may terminate this order without further obligations
of SELLER to Buyer.
TAXES: Any direct or excise tax which may now or hereafter be imposed by Federal or State Government or any subdivision thereof upon the manufacture,
sale, or delivery of the goods covered by this order may be added by SELLER to the purchase price of such goods, and if so added, shall be paid by the Buyer.
PATENTS: If any product shall be manufactured and/or sold by SELLER to meet Buyer’s particular specications or requirements, and is not part of SELLER’s
standard line oered by SELLER to the trade generally, Buyer agrees to indemnify SELLER and hold it harmless from liability, as well as from all costs and expenses,
in the event of any claim of patent infringement, whether direct or contributory, arising out of the manufacture of sale of such product.
CANCELLATION OF ORDER: Partial or total cancellations of this order by Buyer may be made only upon SELLER’s written consent and on condition that
SELLER shall be reimbursed for all losses and damages resulting from such cancellation.
RETURN GOODS: No products shall be returned without SELLER’s written permission. Products returned shall be subject to a handling charge and
transportation costs.
PRODUCT CHANGES: SELLER reserves the right to change specications, design and material in the interest of product improvement, without incurring
obligation to the Buyer.
The terms and conditions of an order shall constitute the sole and exclusive agreement between SELLER and Buyer. No waiver of any provision hereof shall
constitute a waiver of any other breach or of such provision.
CLAIMS: Risk of loss shall in every case pass to Buyer upon delivery of the goods to the possession of the carrier. SELLER shall have no responsibility for
any claimed shortages. Buyer must (I) notify SELLER of shortages within ten (10) days after receipt of the product; (II) notify agent or carrier within such time of
shortage; and (III) le claim with the carrier for the damage or shortage claimed.
February 1, 2008 Bohn Refrigeration Products List Prices 73
Catalog Products Warranty
Seller warrants to its direct purchasers that products, including Service Parts, manufactured by SELLER shall be of a merchantable quality, free of
defects in material or workmanship, under normal use and service for a period of one (1) year from date of original installation, or eighteen (18)
months from date of shipment by SELLER, whichever rst occurs. Any product covered by this order found to Seller’s satisfaction to be defective
upon examination at Seller’s factory will at SELLER’s option, be repaired or replaced and returned to Buyer via lowest common carrier, or SELLER
may at its option grant Buyer a credit for the purchase price of the defective article. Upon return of a defective product to SELLER’s plant, freight
prepaid, by Buyer, correction of such defect by repair or replacement, and return freight via lowest common carrier, shall constitute full performance
by SELLER of its obligations hereunder.
SELLER shall have no liability for expenses incurred for repairs made by Buyer except by prior, written authorization. Every claim on account of
breach of warranty shall be made to SELLER in writing within the warranty period specied above – otherwise such claim shall be deemed waived.
Seller shall have no warranty obligation whatsoever if its products have been subjected to alteration, misuse, negligence, free chemicals in system,
corrosive atmosphere, accident, or if operation is contrary to SELLER’s or manufacturer’s recommendations, or if the serial number has been altered,
defaced, or removed.
Additional product warranties: The standard warranty is extended for certain products, listed below.
PRODUCTS CONTAINING THE THERMO-FLEX TM OR FLOATING TUBETM COIL DESIGN:
Heatcraft Refrigeration Products LLC will warrant the evaporator and condenser coil for a period of ve (5) years from the date of shipment. In ad-
dition to the standard product warranty, Heatcraft will, at its option, pay for repairs or replacement of the coil section of the “BM” or “BH” series of
Unit Coolers; coil section of the “BLV,” “JLD,” “BDT” or “BDN” condensing units; and coil section of the “BN” models of Air-cooled Condensers for a
period of ve (5) years from shipping date, in the event of any documented and veried (by Heatcraft representative) leaks in the coil tubes contain-
ing refrigerant at the point of and caused by tube contact with the end or center coil support sheets.
Heatcraft Refrigeration Products LLC will also reimburse the replacement cost of lost refrigerant for a period of ve years from the date of shipment
from leaks specically caused by the reasons stated above. The replacement cost will be limited to one full system charge. The warranty specically
excludes leaks at header and weld joints, split tubes or leaks caused by failure to operate the product in accordance with published guidelines for
operation and installation of equipment. The cost of replacement refrigerant will be limited to an indexed nationwide average refrigerant cost per
pound. The warranty excludes any nes/fees related to refrigerant leaks.
Air-cooled CONDENSERS “BN Models”:
SELLER warrants to its direct purchasers that products, except Service Parts, manufactured by SELLER shall be of merchandise quality, free of defects
in material or workmanship, under normal use and service for a period of two (2) years from date of original installation, or 30 months from the date
of shipment by SELLER, whichever rst occurs. Service Parts, for product out of original warranty, shall be so warranted for one (1) year from date of
shipment. Any product covered by this order found to SELLER’s satisfaction to be defective upon examination at SELLER’s factory will, at SELLER’s
option, be repaired or replaced and returned to Buyer via lowest common Carrier, or SELLER may at its option grant Buyer a credit for the purchase
price of the defective article. Upon return of a replacement, and return freight via lowest common Carrier, shall constitute full performance by SELLER
or its obligations hereunder.
Beacon II™ CONTROL SYSTEMS:
SELLER warrants to its direct purchasers that the Beacon II™ Control manufactured by SELLER shall be of merchandise quality, free of defects in mate-
rial or workmanship, under normal use and recommended service for a period of three (3) years from the date of original installation, or forty-two
(42) months from the date of shipment by SELLER, whichever rst occurs. Service Parts, for product out of original warranty, shall be so warranted for
a period of one (1) year from the date of shipment. SELLER’s warranty obligations hereunder are subject to SELLER’s determination (after inspection
by SELLER at SELLER’s factory) that the unit failed due to a manufacturing defect. SELLER shall fully and completely fulll its warranty obligations
through repair, replacement, or credit, at SELLER’s sole option. Any repaired or replaced unit shall be returned to Buyer via lowest common carrier.
Shipping costs associated with the return of the warranted item to or from SELLER shall be the responsibility of Buyer.
PRO3 PACKAGED REFRIGERATION SYSTEM:
SELLER warrants to its direct purchasers that the PRO3 product, except Service Parts, manufactured by SELLER shall be of a merchantable quality,
free of defects in material or workmanship, under normal use and service for a period of two (2) years from date of original installation, or thirty (30)
months from date of shipment by Heatcraft Refrigeration Products LLC, whichever rst occurs. Service Parts, for product out of original warranty,
should be so warranted for a period of twelve (12) months from date of shipment. Any product covered by this order found to SELLER’s satisfaction
to be defective upon examination at SELLER’s factory will, at SELLER’s option, be repaired or replaced and returned to Buyer via lowest common
carrier, or SELLER may at its option grant Buyer a credit for the purchase price of the defective article. Upon return of a defective product to SELLER’s
plant, freight prepaid, by Buyer, correction of such defect by repair or replacement, and return freight via lowest common carrier, shall constitute full
performance by SELLER of its obligations hereunder.
Hermetic compressors furnished by SELLER are subject to the standard warranty terms set forth above, except that motor compressor replacements
or exchanges shall be made through the nearest authorized wholesaler of the motor compressor manufacturer (not at SELLER’s factory) and no freight
shall be allowed for transportation of the motor compressor to and from the wholesaler. The replacement motor compressor shall be identical to
the model of the motor compressor being replaced. Additional charges which may be incurred throughout the substitution of other than identical
replacements are not covered by this warranty.
This equipment is designed to operate properly and produce the rated capacity when installed in accordance with good refrigeration industry
practices. The following conditions should be adhered to when installing this unit to maintain the manufacturers warranty:
(a) The power supply to the unit must meet the following conditions:
A. Three phase voltages must be +/- 10% of nameplate ratings. Single phase must be within +10% or -5% of nameplate ratings
B. Phase imbalance cannot exceed 2%
(b) All control and safety switch circuits must be properly connected according to the wiring diagram
(c) The factory-installed wiring must not be changed without written factory approval
74 February 1, 2008 Bohn Refrigeration Products List Prices
Catalog Products Warranty Continued
MOTOR COMPRESSORS:
Motor compressors furnished by SELLER are subject to the standard warranty terms set forth above, except that motor compressor replacements or
exchanges shall be made through the nearest authorized wholesaler of the motor compressor manufacturer (not at SELLER’s factory) and no freight
shall be allowed for transportation of the motor compressor to and from the wholesaler. The replacement motor compressor shall be identical to
the model of the motor compressor being replaced. Additional charges which may be incurred throughout the substitution of other than identical
replacements are not covered by this warranty. An optional, non-assignable, four (4) year extended compressor warranty may be purchased within
the boundaries of the United Sates of America, its territories and possessions, and Canada. With this extended compressor warranty, replacements
are administered by an authorized compressor distributor only. Replacements within the rst year of the warranty area available through the
distributor; the second through fth years, the purchaser must submit a proof-of-purchase of a compressor and supply it to Heatcraft Warranty
Claims for reimbursement.
SELLER MAKES NO EXPRESS WARRANTIES EXCEPT AS NOTED ABOVE. ALL IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE EXPRESS
WARRANTY. LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES IS EXCLUDED.
THE FORGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, NOTWITHSTANDING THE PROVISIONS OF THE UNIFORM COMMERCIAL
CODE, THE MAGNUSON-MOSS WARRANTY — FEDERAL TRADE COMMISSION IMPROVEMENT ACT, OR ANY OTHER STATUTORY OR COMMON LAW,
FEDERAL OR STATE.
SELLER MAKES NO WARRANTY, EXPRESS OR IMPLIED, OF FITNESS FOR ANY PARTICULAR PURPOSE, OR OF ANY OTHER NATURE WHATSOEVER, WITH
RESPECT TO PRODUCTS MANUFACTURES OR SOLD BY SELLER HEREUNDER, EXCEPT AS SPECIFICALLY SET FORTH ABOVE AND ON THE FACE HEREOF.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT SELLER SHALL NOT BE LIABLE TO BUYER, OR ANY CUSTOMER OF BUYER, FOR DIRECT OR INDIRECT,
SPECIAL, INCIDENTAL, CONSEQUENTIAL OR PENAL DAMAGES, OR FOR ANY EXPENSES INCURRED BY REASON OF THE USE OR MISUSE BY BUYER OR
THIRD PARTIES OF SAID PRODUCTS. TO THE EXTENT SAID PRODUCTS MAY BE CONSIDERED “CONSUMER PRODUCTS,” AS DEFINED IN SEC. 101 OF
THE MAGNUSON-MOSS WARRANTY — FEDERAL TRADE COMMISSION IMPROVEMENT ACT, SELLER MAKES NO WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, TO “CONSUMERS,” EXCEPT AS SPECIFICALLY SET FORTH ABOVE AND ON THE FACE HEREOF.
Visit our website at www.thecoldstandard.com for technical literature online.
Since product improvement is a continuing eort, we reserve the right
to make changes in specications without notice.
A Brand of Heatcraft Refrigeration Products
2175 West Park Place Blvd.
Stone Mountain, GA 30087
800.537.7775 • FAX 770.465.5990
www.thecoldstandard.com
BN-PL0208 | Version 001
