HeathCo 61RWRC32TX 6131 and 6132 Transmitters User Manual 598 1004 rev03
HeathCo LLC 6131 and 6132 Transmitters 598 1004 rev03
HeathCo >
User manual
BATTERY
© 2001 DESA International 598-1004-03
Features
•Add switched outlets with the convenience of operation from a
single hand-held transmitter.
• Includes one indoor/outdoor module & one indoor module.
Wireless Indoor
and Outdoor
Remote Control
Models SL/TT-6132
Transmitter Operational Instructions
Note: You will need to buy a 9-volt alkaline battery for the remote
control. In typical use, this battery will last about one year.
Remove the battery during extended periods of non-use.

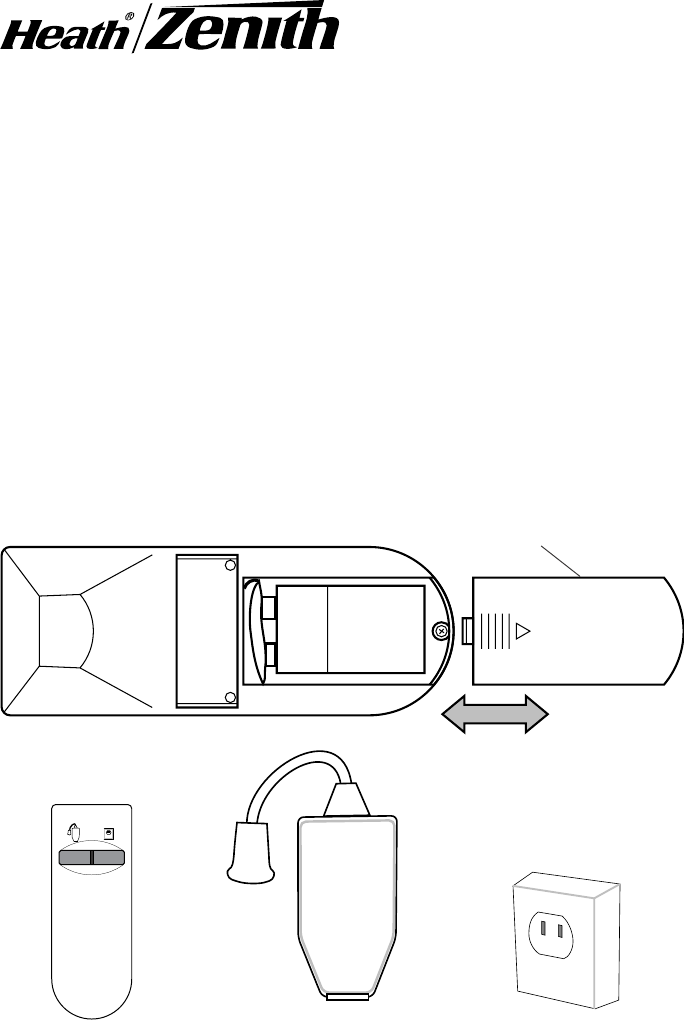

1. Install the 9-volt battery. Remove the cover from the back of
the transmitter by pressing on it with your thumb and sliding it
off as shown. Plug in the battery and slide the cover back onto
the transmitter.
Cover
Transmitter SL-6139
Indoor/Outdoor
Module
SL-6136
Indoor Module
Page 2
598-1004-03
Indoor/Outdoor Module Operation
1. Plug in Indoor/Outdoor Module. Remember, the Indoor/
Outdoor Module requires a grounded outlet. If you do not have
a grounded outlet, you may want to contact an electrician to
upgrade your electrical system. If you are using the Indoor/
Outdoor Module outdoors, see extra precautions below.

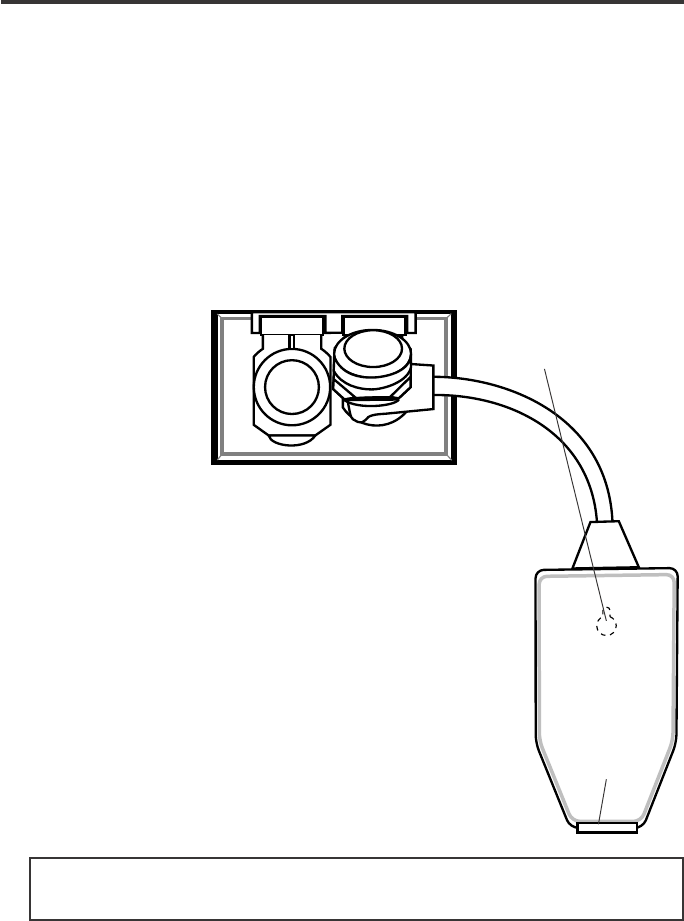

Precautions When Using the Indoor/Outdoor Module
•The Module must be oriented with the power outlet down to
prevent rain from entering the unit. See the illustration below.
•Hang the module on a nail or screw as shown.
There is a hole in the back for this purpose. DO
NOT allow it to hang by the cord.
•Note in the illustration that the module is lo-
cated below the wall outlet. This is to prevent
rain from running down the cord into the wall
outlet.
•Note: The National Electrical Code and Cana-
dian Electrical Code (and most local codes)
require that outside outlets be protected by a
Ground Fault Interrupter (GFI).
Hole to
hang unit
Power
Outlet
2. Plug in the devices you wish to control.
Caution: Do not exceed the maximum load specifications (see
page 3).
3. To check operation, press button on the left side of transmitter
(see icon). The light/appliance should turn on immediately.
Important: Wait at least 3 seconds after you press the button
before pressing it again to allow the transmission to be com-
pleted.
Page 3
598-1004-03
Indoor Module Operation

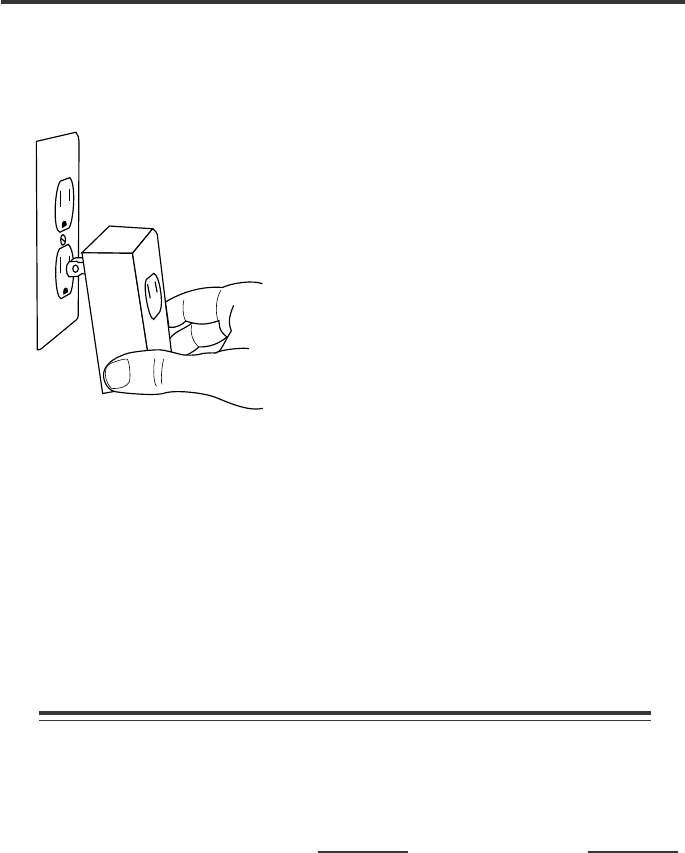

1. Install the Indoor Module as shown.
Indoor Module
2. Plug in the device(s) you wish to
control. Caution: do not exceed
the specifications listed on the next
page. Turn the device on.
3. To check the operation, press the right side button on the
transmitter. The light/appliance should turn on immediately.
Important: Wait at least 3 seconds after you press the transmit-
ter button before you press it again to allow the transmission to
be completed.
Note: The SL-6132 system works with other Heath®/Zenith wireless
switch products with the same channel designation ('F', 'G', 'H').
SPECIFICATIONS
Range . . . . . . . . . . . . . . . Up to 50 feet (15.2 M)
Rated Voltage . . . . . . . . . 120 VAC, 60 Hz
Battery . . . . . . . . . . . . . . . 9-volt alkaline
SL-6139 SL-6136
Max. Load, resistive ................ 13 A................................. 5 A
tungsten ................................. 960 W ............................ 500 W
fluorescent.............................. 960 W ............................ 300 W
motor .....................................1/3 H.P........................... 1/3 H.P.
Page 4
598-1004-03
TROUBLESHOOTING GUIDE
Regulatory Information
This device complies with Part 15 of the FCC Rules and RSS-210
of Industry Canada. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The user is cautioned that changes or modifications not expressly
approved by the party responsible for regulatory compliance could
void the user’s authority to operate the equipment.
Do not send products, please call the number listed below:
Technical Service: USA call 1-800-858-8501/Canada call 905-
826-8010
DESA International, Inc.
P.O. Box 90004, Bowling Green, KY 42102-9004
SYMPTOM
Light does not
come on.
POSSIBLE CAUSE
1. Circuit breaker or fuse is turned off.
2. Switch on lamp is turned off.
3. Bulb is defective.
4. Signals from transmitter are being blocked,
or transmitter is out of range. Check for
metal objects that could block the signal, or
reposition the transmitter.
5. Weak battery in the transmitter.
1. Switching too fast. Wait 3 seconds between
pushing the transmitter button.
2. Same as 4 & 5 above.
1. Short term power line failure.
2. Another transmitter on the same channel.
Light does not
turn off.
Light comes on
randomly.
If you experience a problem, follow this guide. You may also want to visit our
Web site at: www.desatech.com. If the problem persists, call for assistance at
1-800-858-8501 7:30 AM to 4:30 PM Central Time weekdays.
Page 5
598-1004-03
YOUR HEATH®/ZENITH FIVE YEAR LIMITED WARRANTY
This is a "Limited Warranty" which gives you specific legal rights. You
may also have other rights which vary from state to state or province
to province.
For a period of five years from the date of purchase, any malfunction
caused by factory defective parts or workmanship will be corrected at
no charge to you. Batteries are not covered. To obtain a refund or a
replacement, return the product to the place of purchase.
Not Covered - Repair service, adjustment and calibration due to
misuse, abuse or negligence, light bulbs and other expendable items
are not covered by this warranty. Unauthorized service or modification
of the product or of any furnished component will void this warranty in
its entirety. This warranty does not include reimbursement for incon-
venience, installation, setup time, loss of use, or unauthorized service.
This warranty covers only Heath®/Zenith assembled products and is
not extended to other equipment and components that a customer
uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WAR-
RANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY,
REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR
THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PUR-
POSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL,
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF
THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE
PART OF DESA FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO
ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORE-
SEEABLE. Some states or provinces do not allow the exclusion or
limitation of incidental or consequential damages, so the above limita-
tion or exclusion may not apply to you. Retain receipt for warranty claims.
Heath®/Zenith reserves the right to discontinue products and to
change specifications at any time without incurring any obligation
to incorporate new features in products previously sold.
