Hena Digital Technology MD93 Tablet PC with DVD player User Manual MD93 MTK MANUAL

Hena Digital Technology (Shenzhen) Co., Ltd. Tablet PC with DVD player MD93 MTK MANUAL

User Manual

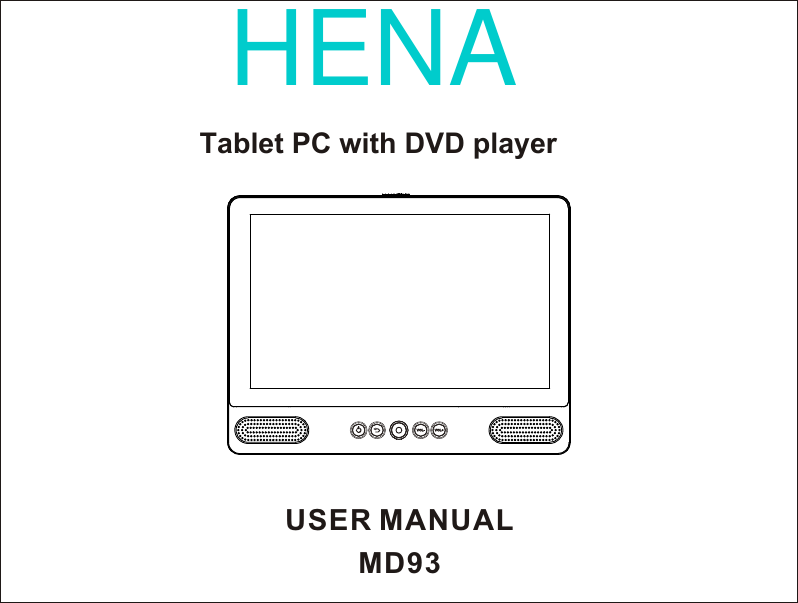

MD93Tablet PC with DVD playerUSER MANUALHENA

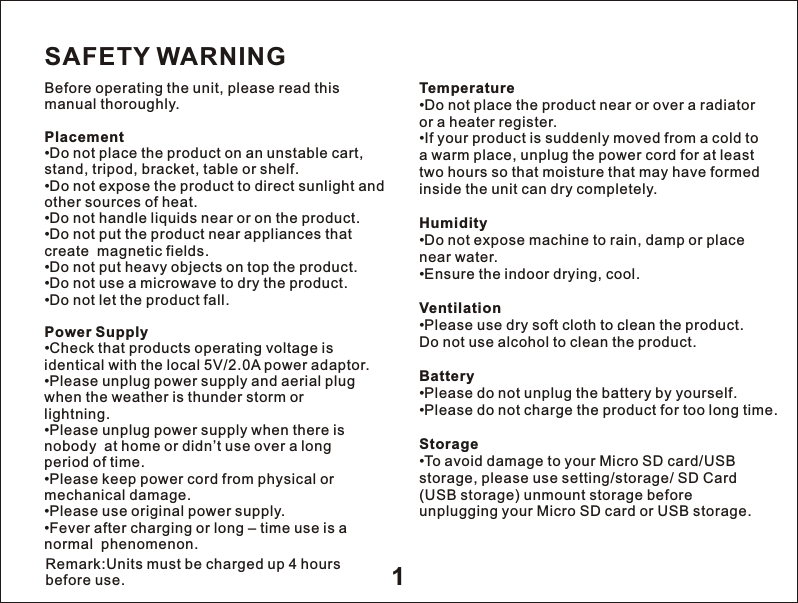

1SAFETY WARNINGBefore operating the unit, please read this manual thoroughly.Placement•Do not place the product on an unstable cart, stand, tripod, bracket, table or shelf.•Do not expose the product to direct sunlight and other sources of heat.•Do not handle liquids near or on the product.•Do not put the product near appliances that create magnetic fields.•Do not put heavy objects on top the product.•Do not use a microwave to dry the product.•Do not let the product fall.Power Supply•Check that products operating voltage is identical with the local 5V/2.0A power adaptor.•Please unplug power supply and aerial plug when the weather is thunder storm orlightning.•Please unplug power supply when there is nobody at home or didn’t use over a longperiod of time.•Please keep power cord from physical or mechanical damage.•Please use original power supply.•Fever after charging or long – time use is a normal phenomenon.Temperature•Do not place the product near or over a radiator or a heater register.•If your product is suddenly moved from a cold to a warm place, unplug the power cord for at least two hours so that moisture that may have formedinside the unit can dry completely.Humidity•Do not expose machine to rain, damp or place near water.•Ensure the indoor drying, cool.Ventilation•Please use dry soft cloth to clean the product. Do not use alcohol to clean the product.Battery•Please do not unplug the battery by yourself.•Please do not charge the product for too long time.Storage•To avoid damage to your Micro SD card/USB storage, please use setting/storage/ SD Card (USB storage) unmount storage before unplugging your Micro SD card or USB storage.Remark:Units must be charged up 4 hours before use.

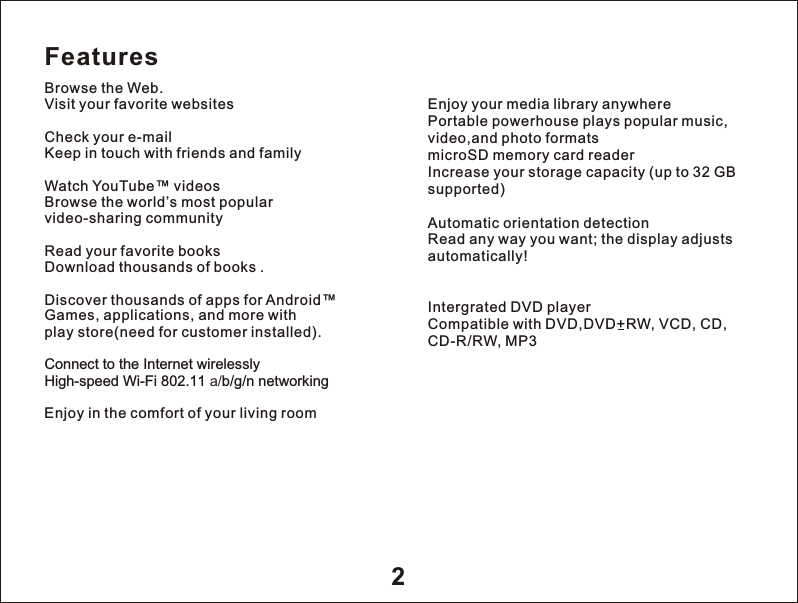

Enjoy your media library anywherePortable powerhouse plays popular music, video,and photo formats microSD memory card readerIncrease your storage capacity (up to 32 GB supported)Automatic orientation detectionRead any way you want; the display adjusts automatically!Intergrated DVD playerCompatible with DVD,DVD+RW, VCD, CD, CD-R/RW, MP3FeaturesBrowse the Web.Visit your favorite websitesCheck your e-mailKeep in touch with friends and familyWatch YouTube™ videosBrowse the world’s most popular video-sharing communityRead your favorite booksDownload thousands of books .Discover thousands of apps for Android™ Games, applications, and more with play store(need for customer installed).Connect to the Internet wirelesslyHigh-speed Wi-Fi 802.11 a/b/g/n networkingEnjoy in the comfort of your living room2

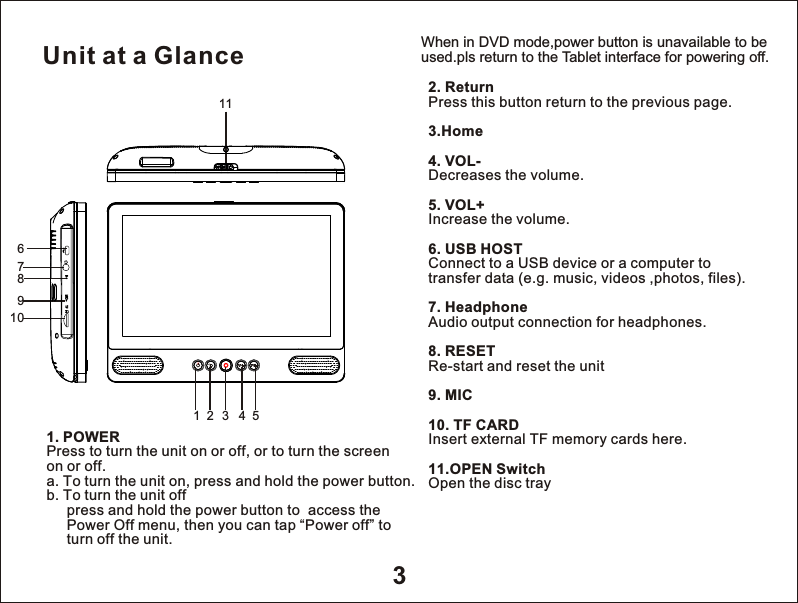

3Unit at a Glance. Return 6. HeadphoneAudio output connection for headphones.10.2Press this button return to the previous page.3.Home4. VOL- Decreases the volume.5. VOL+ Increase the volume.USB HOSTConnect to a USB device or a computer totransfer data (e.g. music, videos ,photos, files).7. 8. RESETRe-start and reset the unit9. MIC TF CARDInsert external TF memory cards here.11.OPEN SwitchOpen the disc tray1 POWER. Press to turn the unit on or off, or to turn the screen on or off.a. To turn the unit on, press and hold the power button.b. To turn the unit off press and hold the power button to access the Power Off menu, then you can tap “Power off” to turn off the unit.When in DVD mode,power button is unavailable to be used.pls return to the Tablet interface for powering off.678910111 2 345

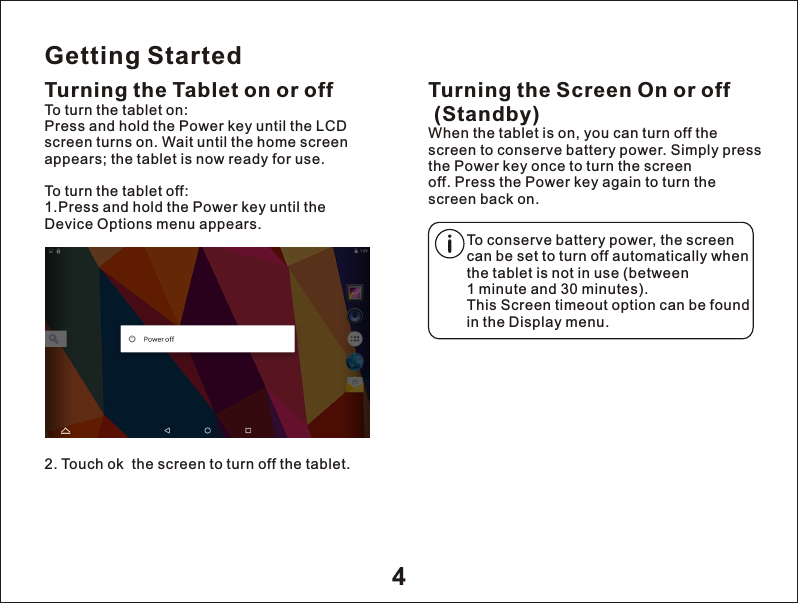

Getting StartedTurning the Tablet on or off2. Touch ok the screen to turn off the tablet.Turning the Screen On or off (Standby)When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on.To turn the tablet on:Press and hold the Power key until the LCD screen turns on. Wait until the home screen appears; the tablet is now ready for use.To turn the tablet off:1.Press and hold the Power key until the Device Options menu appears.To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 1 minute and 30 minutes).This Screen timeout option can be found in the Display menu.4

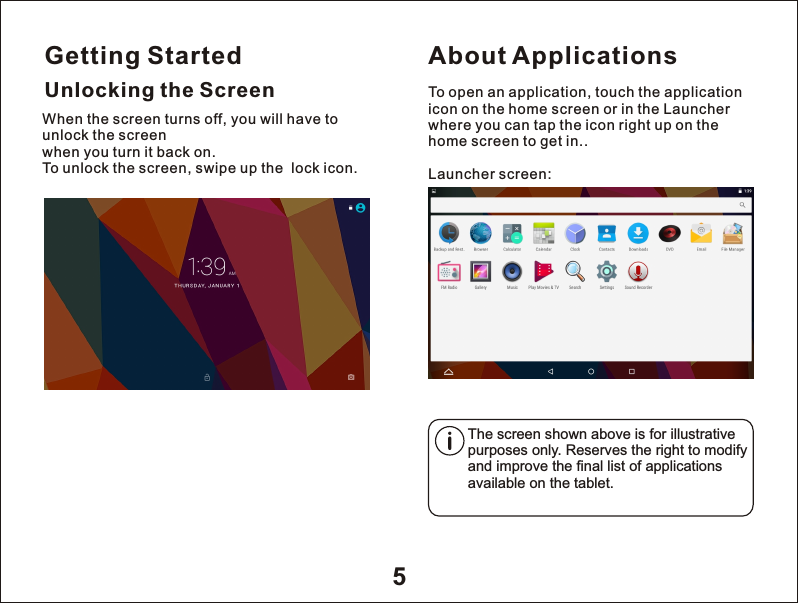

Getting Started5Unlocking the ScreenAbout ApplicationsTo open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in..Launcher screen:The screen shown above is for illustrative purposes only. Reserves the right to modify and improve the final list of applications available on the tablet.When the screen turns off, you will have to unlock the screen when you turn it back on.To unlock the screen, swipe up the lock icon.

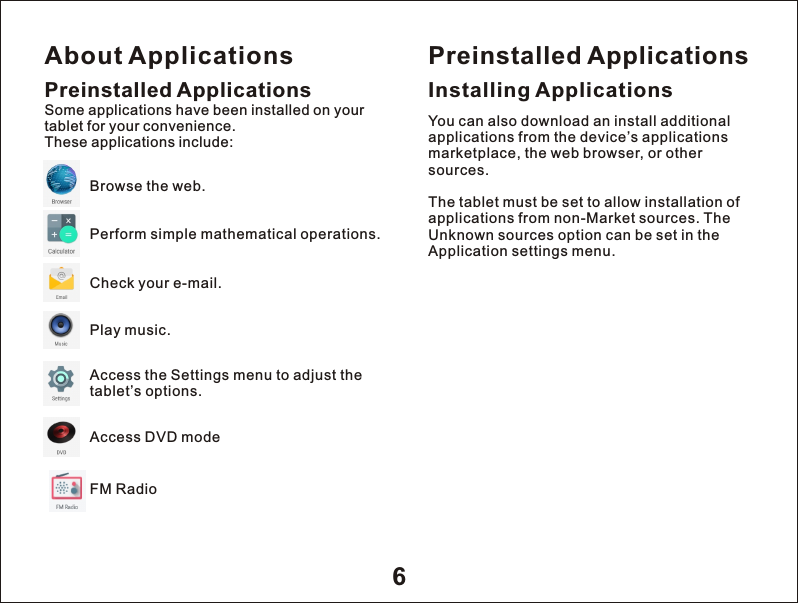

About Applications6Preinstalled ApplicationsSome applications have been installed on your tablet for your convenience. These applications include:Browse the web.Perform simple mathematical operations.Check your e-mail.Play music.Access the Settings menu to adjust the tablet’s options.Preinstalled ApplicationsInstalling ApplicationsYou can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources.The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu.Access DVD modeFM Radio

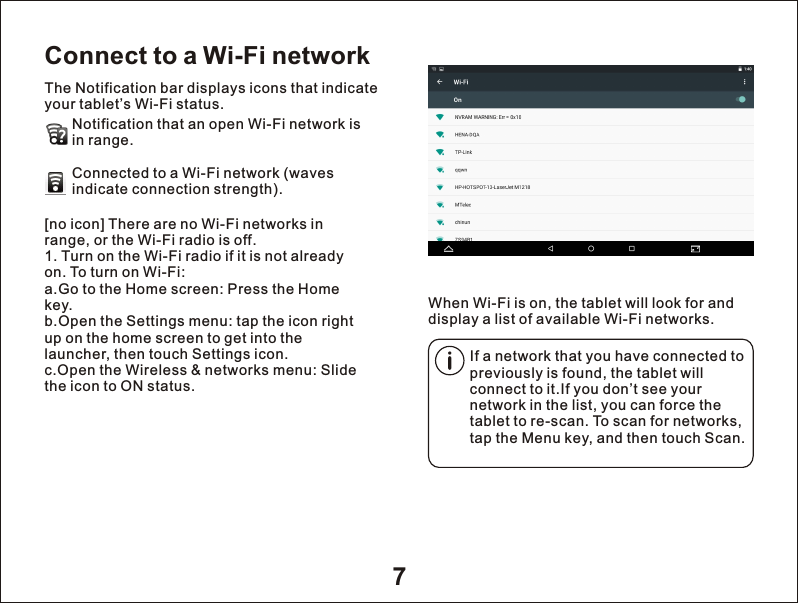

7Connect to a Wi-Fi networkThe Notification bar displays icons that indicate your tablet’s Wi-Fi status.Notification that an open Wi-Fi network isin range.Connected to a Wi-Fi network (waves indicate connection strength). When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks.[no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off.1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi:a.Go to the Home screen: Press the Home key.b.Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then touch Settings icon.c.Open the Wireless & networks menu: Slide the icon to ON status.If a network that you have connected to previously is found, the tablet will connect to it.If you don’t see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the Menu key, and then touch Scan.

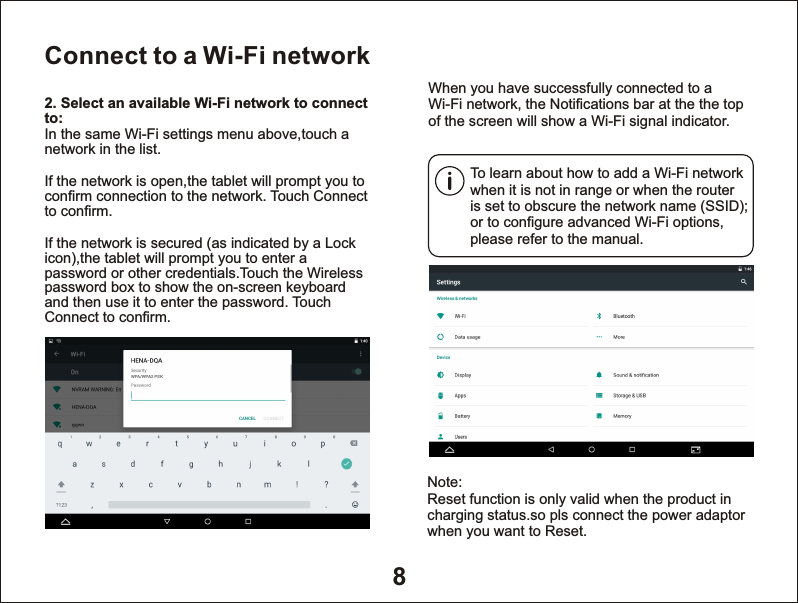

8Connect to a Wi-Fi networkTo learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the manual.When you have successfully connected to a Wi-Fi network, the Notifications bar at the the top of the screen will show a Wi-Fi signal indicator.2. Select an available Wi-Fi network to connect to: In the same Wi-Fi settings menu above,touch a network in the list.If the network is open,the tablet will prompt you to confirm connection to the network. Touch Connect to confirm.If the network is secured (as indicated by a Lock icon),the tablet will prompt you to enter a password or other credentials.Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm.Note:Reset function is only valid when the product in charging status.so pls connect the power adaptorwhen you want to Reset.

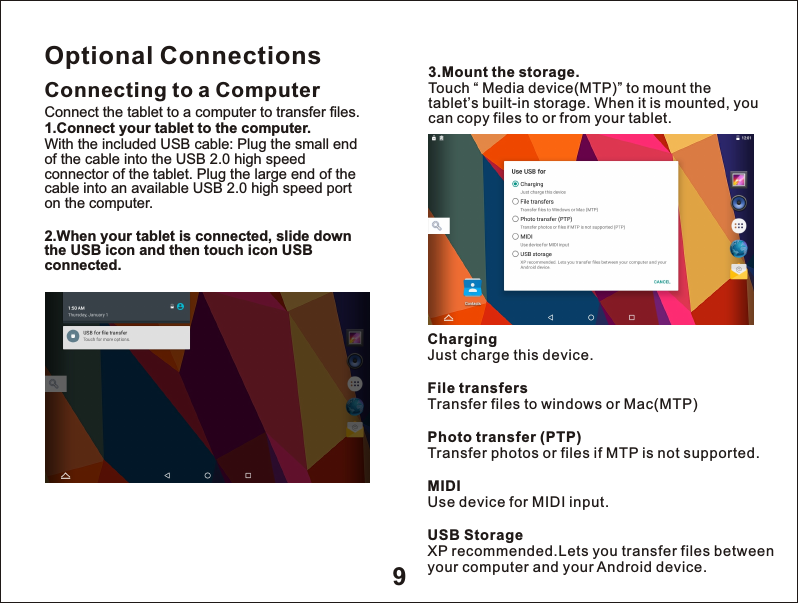

9Optional ConnectionsConnecting to a Computer3.Mount the storage.Touch “ Media device(MTP)” to mount the tablet’s built-in storage. When it is mounted, you can copy files to or from your tablet.Connect the tablet to a computer to transfer files.1.Connect your tablet to the computer.With the included USB cable: Plug the small end of the cable into the USB 2.0 high speed connector of the tablet. Plug the large end of the cable into an available USB 2.0 high speed port on the computer.2.When your tablet is connected, slide down the USB icon and then touch icon USB connected.ChargingJust charge this device.File transfersTransfer files to windows or Mac(MTP)Photo transfer (PTP)Transfer photos or files if MTP is not supported.MIDIUse device for MIDI input.USB StorageXP recommended.Lets you transfer files between your computer and your Android device.

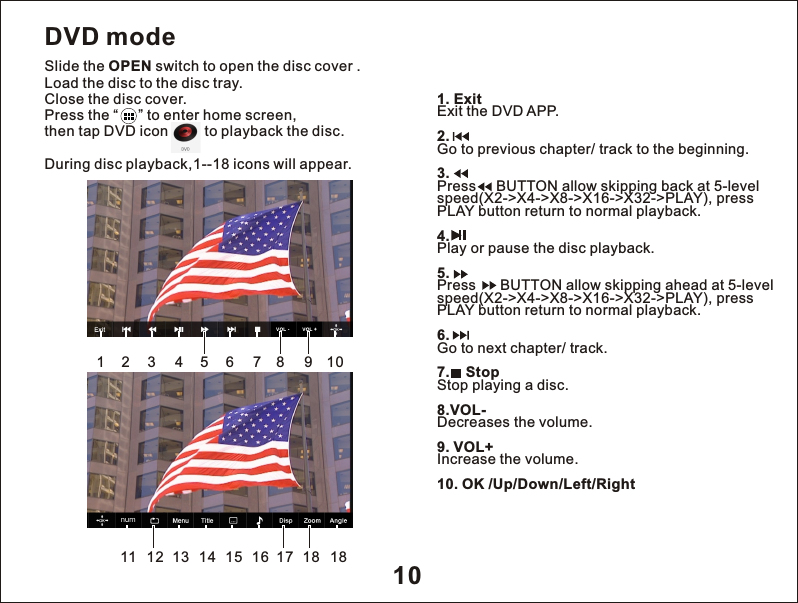

10DVD modeSlide the OPEN switch to open the disc cover .Load the disc to the disc tray.Close the disc cover.Press the “ ” to enter home screen,then tap DVD icon to playback the disc. During disc playback,1--18 icons will appear. 1 2 3 4 5 6 7 8 9 101. ExitExit the DVD APP.2. Go to previous chapter/ track to the beginning.3. Press BUTTON allow skipping back at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback.4. Play or pause the disc playback.5.Press BUTTON allow skipping ahead at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback.6.Go to next chapter/ track.7. StopStop playing a disc.8.VOL-Decreases the volume.9. VOL+ Increase the volume.10. OK /Up/Down/Left/Right11 12 13 14 15 16 17 18 18

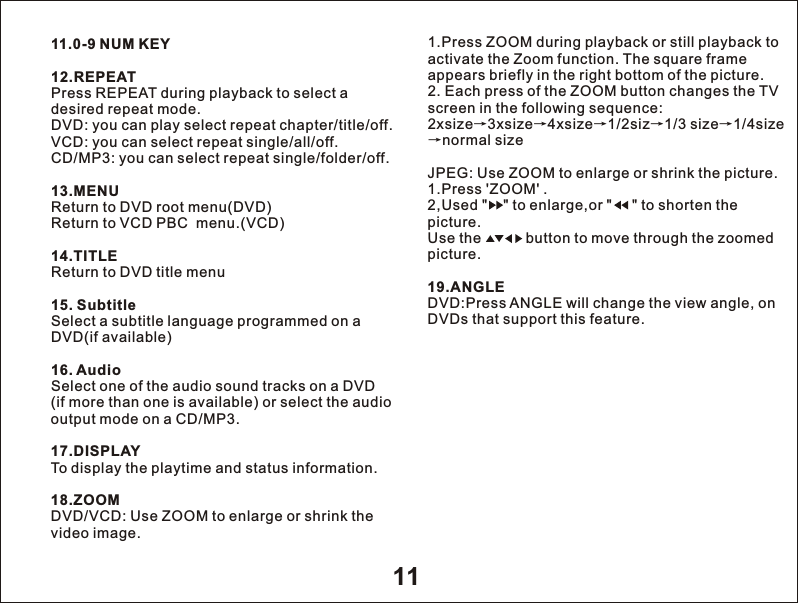

11.0-9 NUM KEY 12.REPEATPress REPEAT during playback to select a desired repeat mode.DVD: you can play select repeat chapter/title/off.VCD: you can select repeat single/all/off.CD/MP3: you can select repeat single/folder/off.13.MENUReturn to DVD root menu(DVD)Return to VCD PBC menu.(VCD)14.TITLEReturn to DVD title menu15. SubtitleSelect a subtitle language programmed on a DVD(if available)16. AudioSelect one of the audio sound tracks on a DVD(if more than one is available) or select the audiooutput mode on a CD/MP3.17.DISPLAYTo display the playtime and status information.18.ZOOMDVD/VCD: Use ZOOM to enlarge or shrink the video image.1.Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.2. Each press of the ZOOM button changes the TV screen in the following sequence:2xsize→3xsize→4xsize→1/2siz→1/3 size→1/4size→normal sizeJPEG: Use ZOOM to enlarge or shrink the picture.1.Press 'ZOOM' .2,Used " " to enlarge,or " " to shorten the picture.Use the button to move through the zoomed picture.19.ANGLEDVD:Press ANGLE will change the view angle, on DVDs that support this feature.11

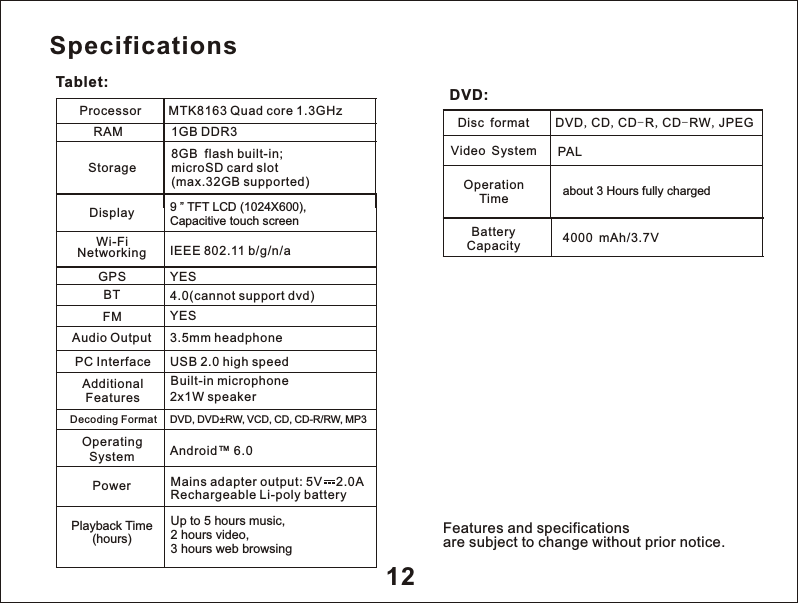

12SpecificationsTablet:BatteryCapacity Disc format DVD,CD,CD-R,CD-RW,JPEGPALDVD:Video System OperationTime about 3 Hours fully charged4000 mAh/3.7VFeatures and specificationsare subject to change without prior notice.Display 9 ” TFT Capacitive touch screen LCD (1024X600), Wi-Fi Networking IEEE 802.11 b/g/n/aAudio Output 3.5mm headphonePC Interface USB 2.0 high speedBuilt-in microphone 2x1W speakerAndroid™ 6.0Rechargeable Li-poly battery Processor MTK8163 Quad core 1.3GHzRAM 1GB DDR3Storage 8GB flash built-in;microSD card slot(max.32GB supported)Operating System Power Additional Features Playback Time(hours)Up to 5 hours music, 2 hours video,3 hours web browsingMains adapter output: 5V 2.0ADecoding Format DVD, DVD+RW, VCD, CD, CD-R/RW, MP3GPS YESBT 4.0(cannot support dvd)FM YES

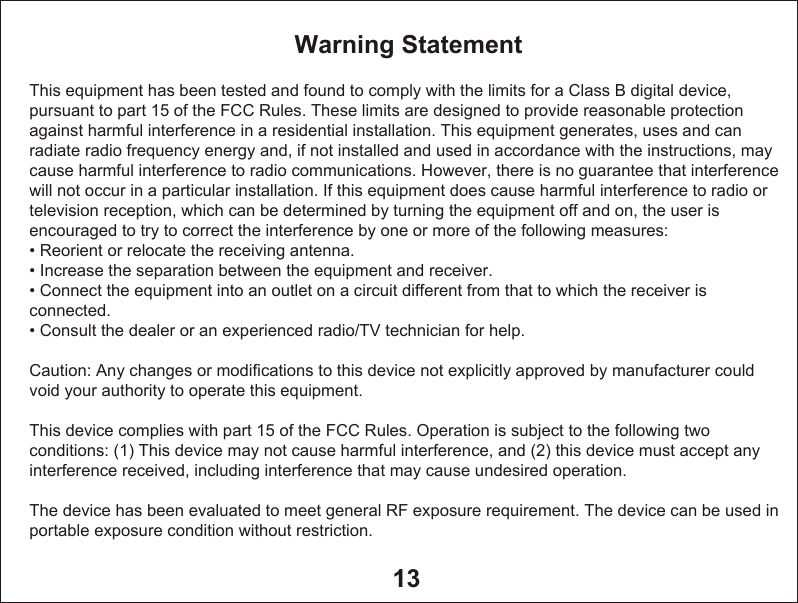

13Warning StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
