Hena Digital Technology MID008 MID User Manual MID 1107CM Boxchip A10 ENGLISH MANUAL

Hena Digital Technology (Shenzhen) Co., Ltd. MID MID 1107CM Boxchip A10 ENGLISH MANUAL

USERS MANUAL

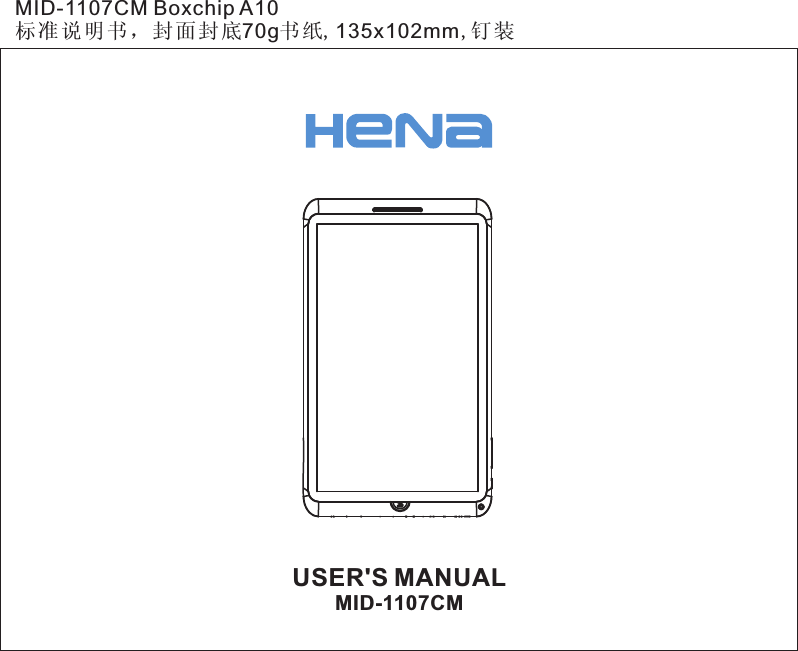

USER'S MANUALMID-1107CM MID-1107CM Boxchip A10 标准说明书，封面封底70g书纸,135x102mm,钉装

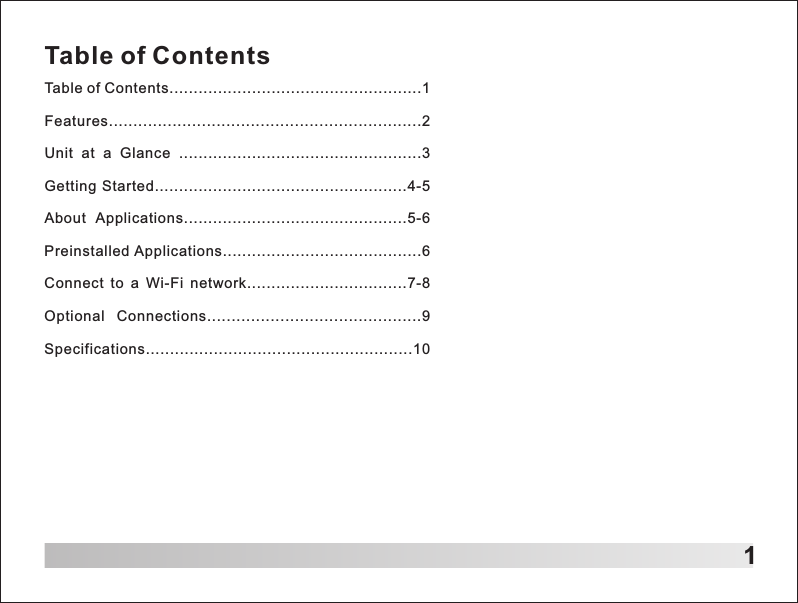

Table of ContentsTable of Contents....................................................1Features................................................................2Unit at a Glance ..................................................3Getting Started....................................................4-5About Applications..............................................5-6Preinstalled Applications.........................................6Connect to a Wi-Fi network.................................7-8Optional Connections............................................9Specifications.......................................................101

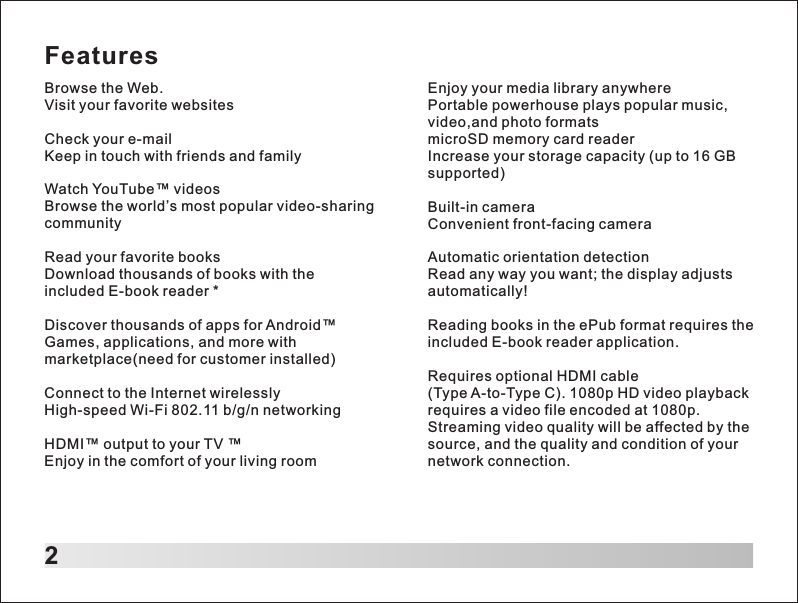

FeaturesBrowse the Web.Visit your favorite websitesCheck your e-mailKeep in touch with friends and familyWatch YouTube™ videosBrowse the world’s most popular video-sharing communityRead your favorite booksDownload thousands of books with the included E-book reader *Discover thousands of apps for Android™Games, applications, and more with marketplace(need for customer installed)Connect to the Internet wirelesslyHigh-speed Wi-Fi 802.11 b/g/n networkingHDMI™ output to your TV ™Enjoy in the comfort of your living room2Enjoy your media library anywherePortable powerhouse plays popular music, video,and photo formats microSD memory card readerIncrease your storage capacity (up to 16 GB supported)Built-in cameraConvenient front-facing cameraAutomatic orientation detectionRead any way you want; the display adjusts automatically!Reading books in the ePub format requires the included E-book reader application.Requires optional HDMI cable (Type A-to-Type C). 1080p HD video playback requires a video file encoded at 1080p.Streaming video quality will be affected by the source, and the quality and condition of your network connection.

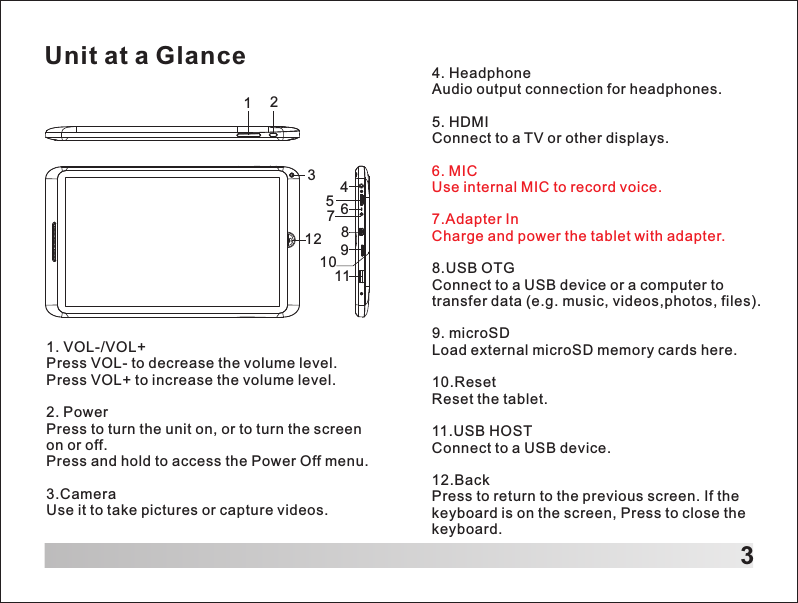

Unit at a Glance34. HeadphoneAudio output connection for headphones.5. HDMIConnect to a TV or other displays.8.USB OTGConnect to a USB device or a computer to transfer data (e.g. music, videos,photos, files).9. microSDLoad external microSD memory cards here.10.ResetReset the tablet.11.USB HOSTConnect to a USB device.12.BackPress to return to the previous screen. If the keyboard is on the screen, Press to close the keyboard.6. MICUse internal MIC to record voice.7.Adapter InCharge and power the tablet with adapter.1. VOL-/VOL+Press VOL- to decrease the volume level.Press VOL+ to increase the volume level.2. PowerPress to turn the unit on, or to turn the screen on or off.Press and hold to access the Power Off menu.3.CameraUse it to take pictures or capture videos.123456789101112

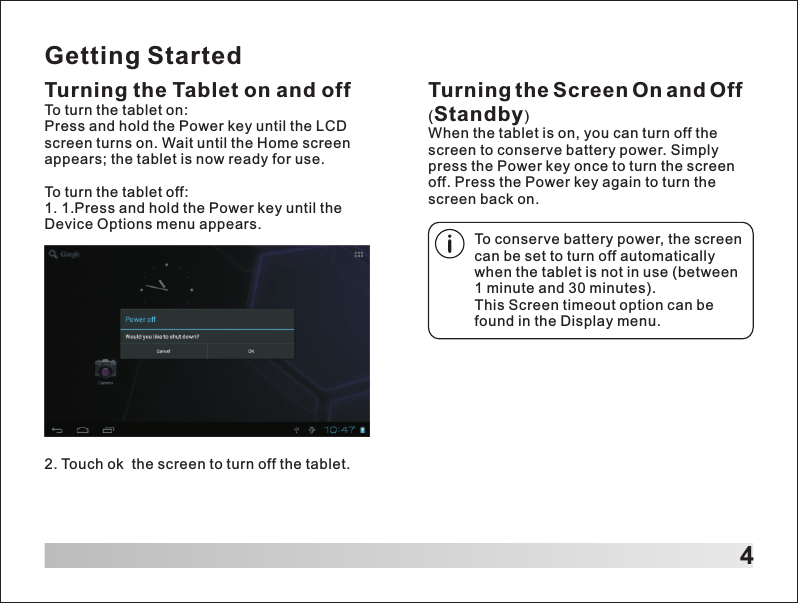

Getting StartedTurning the Tablet on and offTo turn the tablet on:Press and hold the Power key until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use.To turn the tablet off:1. 1.Press and hold the Power key until the Device Options menu appears.42. Touch ok the screen to turn off the tablet.Turning the Screen On and Off (Standby)When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on.To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 1 minute and 30 minutes).This Screen timeout option can be found in the Display menu.

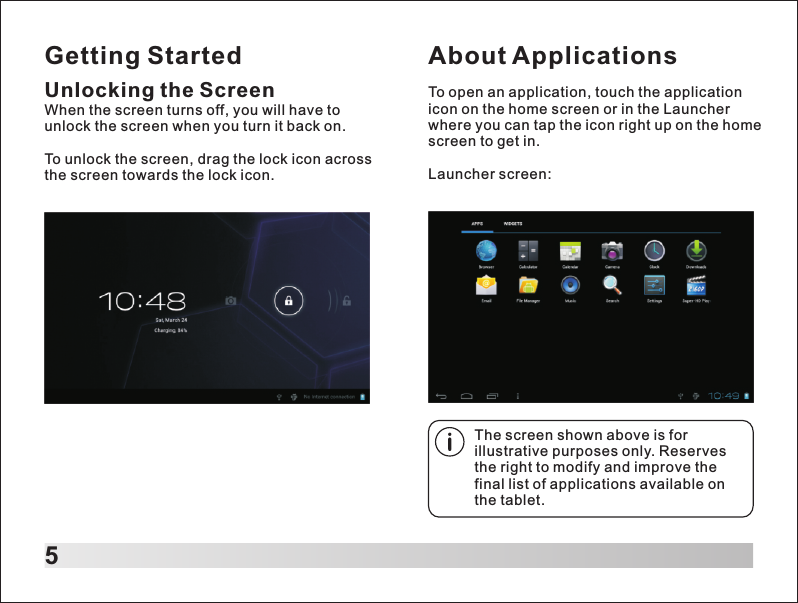

Getting Started5Unlocking the ScreenWhen the screen turns off, you will have to unlock the screen when you turn it back on.To unlock the screen, drag the lock icon across the screen towards the lock icon. About ApplicationsTo open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in.Launcher screen:The screen shown above is for illustrative purposes only. Reserves the right to modify and improve the final list of applications available on the tablet.

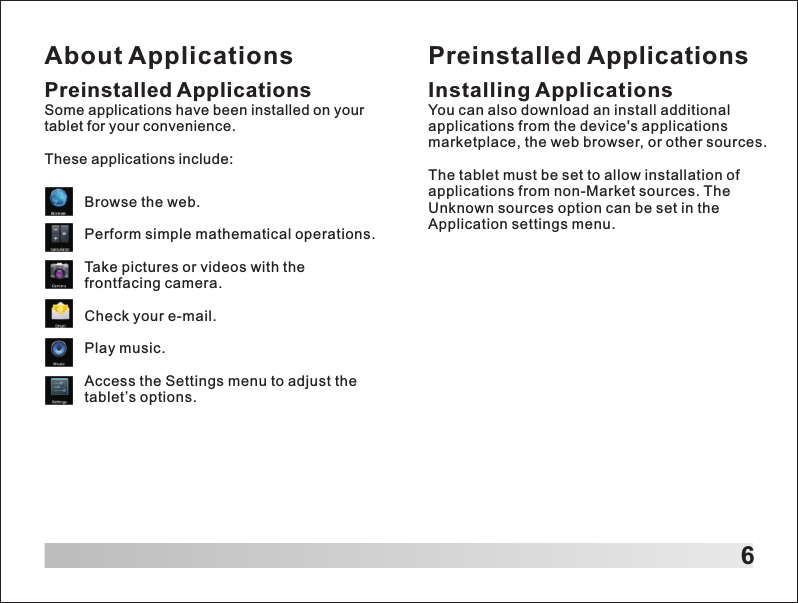

About Applications6Preinstalled ApplicationsSome applications have been installed on your tablet for your convenience.These applications include:Browse the web.Perform simple mathematical operations.Take pictures or videos with the frontfacing camera.Check your e-mail.Play music.Access the Settings menu to adjust the tablet’s options.Preinstalled ApplicationsInstalling ApplicationsYou can also download an install additional applications from the device's applications marketplace, the web browser, or other sources.The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu.

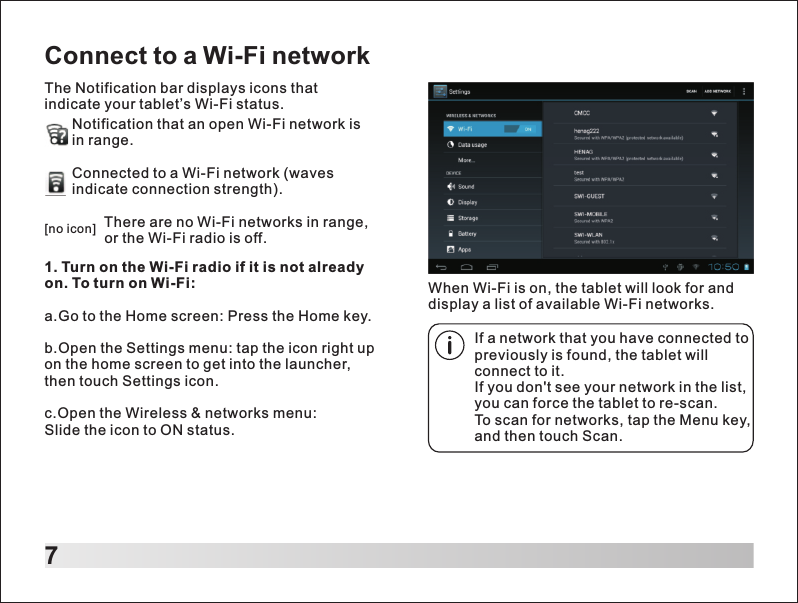

7Connect to a Wi-Fi networkThe Notification bar displays icons that indicate your tablet’s Wi-Fi status.Notification that an open Wi-Fi network is in range.Connected to a Wi-Fi network (wavesindicate connection strength). There are no Wi-Fi networks in range, or the Wi-Fi radio is off.[no icon]1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi:a.Go to the Home screen: Press the Home key.b.Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then touch Settings icon.c.Open the Wireless & networks menu: Slide the icon to ON status.If a network that you have connected to previously is found, the tablet will connect to it.If you don't see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the Menu key, and then touch Scan.When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks.

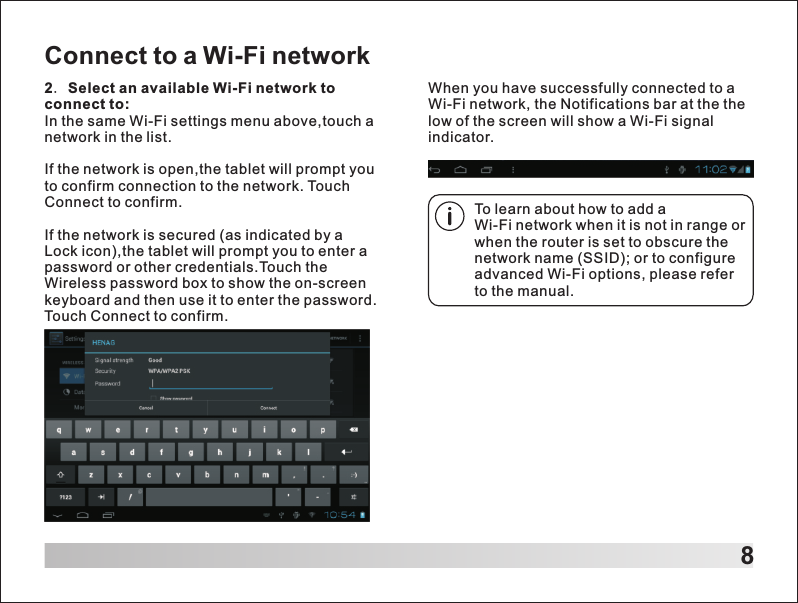

8Connect to a Wi-Fi network2. Select an available Wi-Fi network to connect to: In the same Wi-Fi settings menu above,touch a network in the list.If the network is open,the tablet will prompt you to confirm connection to the network. Touch Connect to confirm.If the network is secured (as indicated by a Lock icon),the tablet will prompt you to enter a password or other credentials.Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm.To learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the manual.When you have successfully connected to a Wi-Fi network, the Notifications bar at the the low of the screen will show a Wi-Fi signal indicator.

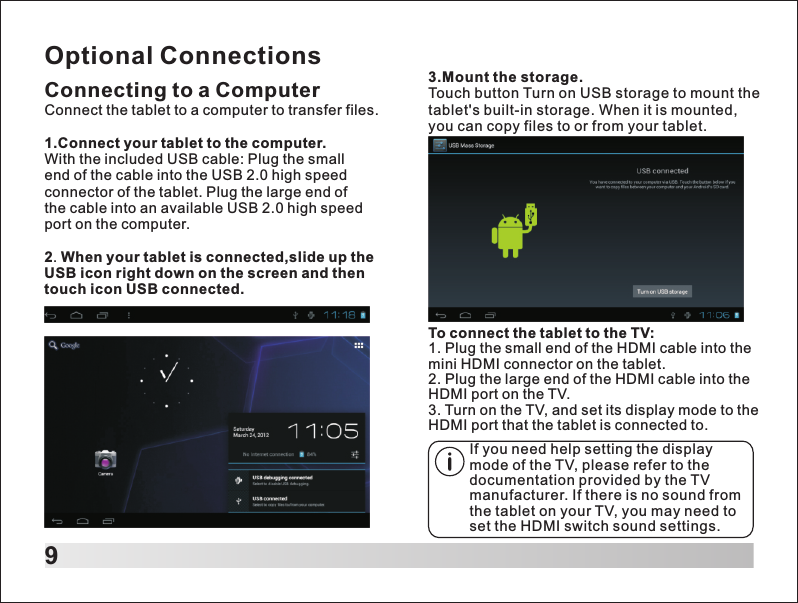

9Optional ConnectionsConnecting to a ComputerConnect the tablet to a computer to transfer files.1.Connect your tablet to the computer.With the included USB cable: Plug the small end of the cable into the USB 2.0 high speed connector of the tablet. Plug the large end of the cable into an available USB 2.0 high speed port on the computer.2. When your tablet is connected,slide up the USB icon right down on the screen and then touch icon USB connected.To connect the tablet to the TV:1. Plug the small end of the HDMI cable into the mini HDMI connector on the tablet.2. Plug the large end of the HDMI cable into the HDMI port on the TV.3. Turn on the TV, and set its display mode to the HDMI port that the tablet is connected to.If you need help setting the display mode of the TV, please refer to the documentation provided by the TV manufacturer. If there is no sound from the tablet on your TV, you may need to set the HDMI switch sound settings.3.Mount the storage.Touch button Turn on USB storage to mount the tablet's built-in storage. When it is mounted, you can copy files to or from your tablet.

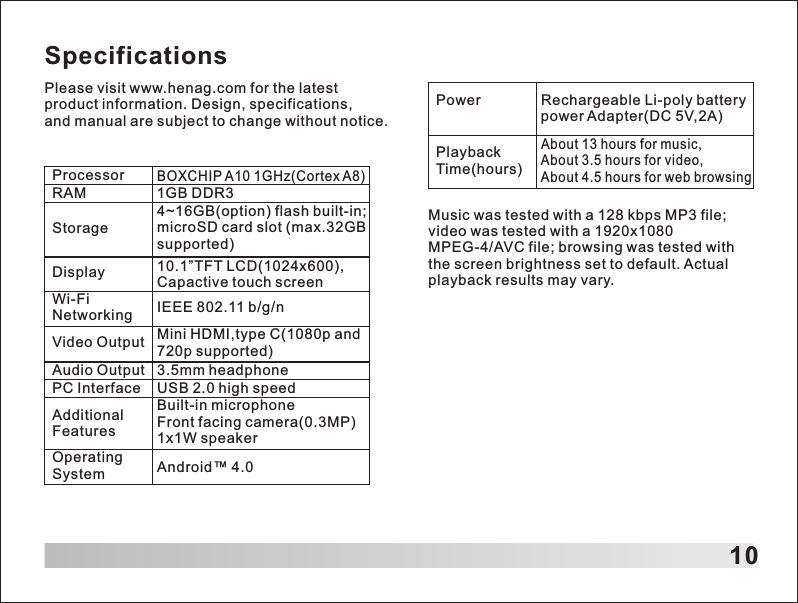

10SpecificationsPlease visit www.henag.com for the latest product information. Design, specifications, and manual are subject to change without notice.ProcessorRAM 1GB DDR3Storage4~16GB(option) flash built-in; microSD card slot (max.32GB supported)Display 10.1”TFT LCD(1024x600), Capactive touch screenWi-Fi Networking IEEE 802.11 b/g/nVideo Output Mini HDMI,type C(1080p and 720p supported)Audio Output 3.5mm headphonePC Interface USB 2.0 high speedAdditional FeaturesBuilt-in microphone Front facing camera(0.3MP) 1x1W speakerOperating System Android™ 4.0Power Rechargeable Li-poly battery power Adapter(DC 5V,2A)Playback Time(hours)About 13 hours for music, About 3.5 hours for video,About 4.5 hours for web browsingMusic was tested with a 128 kbps MP3 file; video was tested with a 1920x1080 MPEG-4/AVC file; browsing was tested with the screen brightness set to default. Actual playback results may vary.BOXCHIP A10 1GHz(Cortex A8)

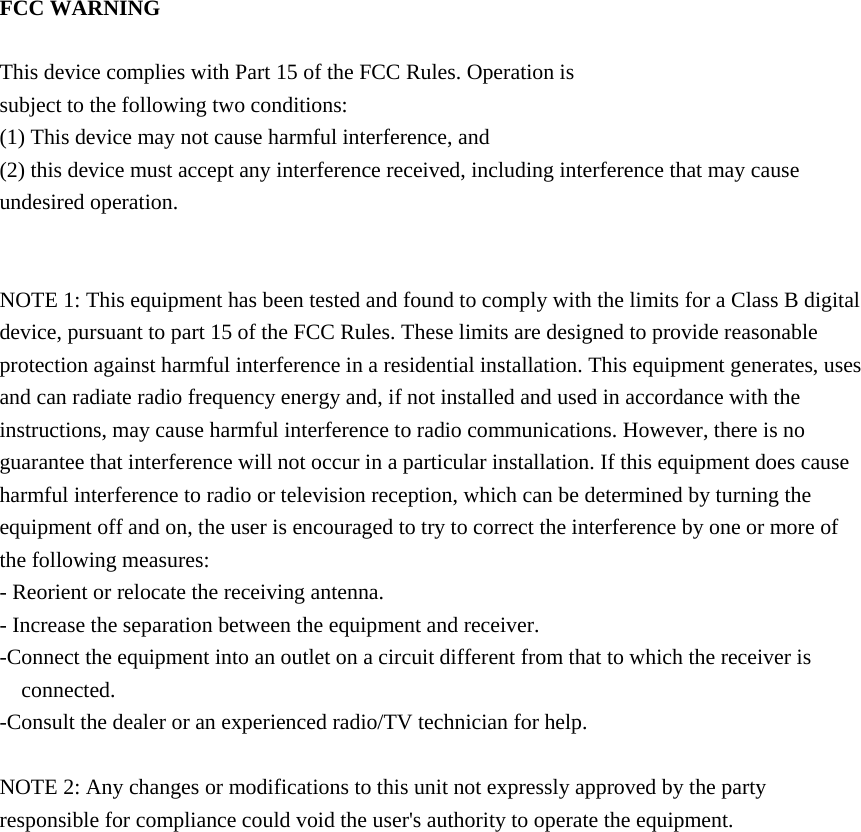

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
