Hena Digital Technology MID011 Multimedia Internet Device User Manual MID 8506CM ROCKCHIPS RK2926

Hena Digital Technology (Shenzhen) Co., Ltd. Multimedia Internet Device MID 8506CM ROCKCHIPS RK2926

Contents

Manual

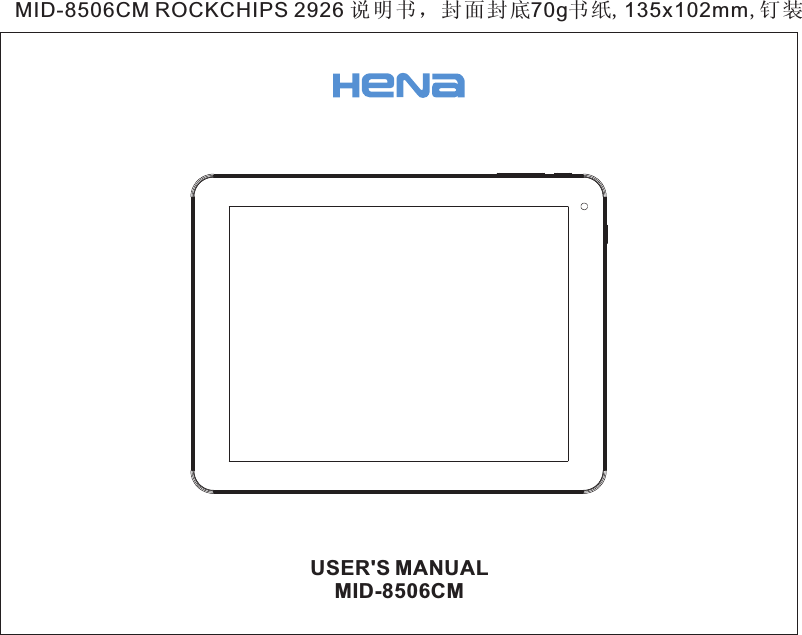

USER'S MANUAL MID-8506CMMID-8506CM ROCKCHIPS 2926 说明书，封面封底70g书纸,135x102mm,钉装

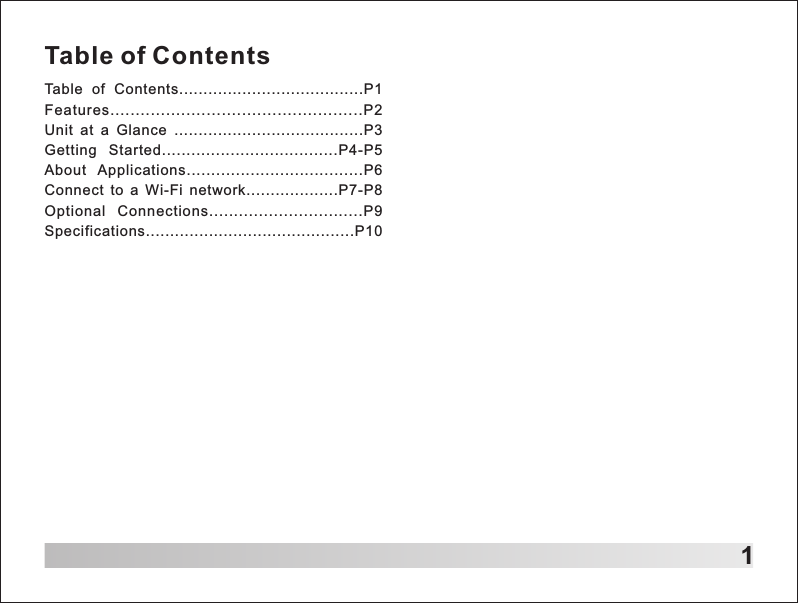

1Table of ContentsTable of Contents......................................P1Features..................................................P2Unit at a Glance .......................................P3Getting Started....................................P4-P5About Applications....................................P6Connect to a Wi-Fi network...................P7-P8Optional Connections...............................P9Specifications...........................................P10

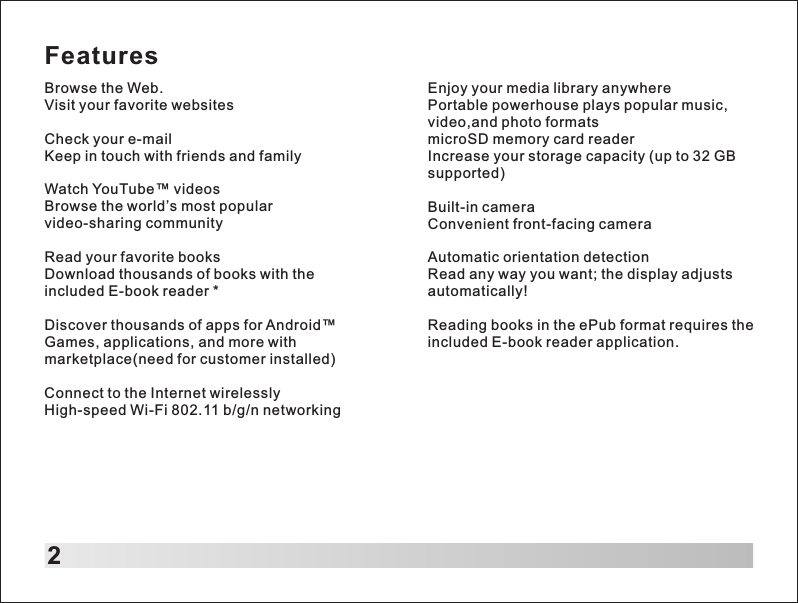

FeaturesBrowse the Web.Visit your favorite websitesCheck your e-mailKeep in touch with friends and familyWatch YouTube™ videosBrowse the world’s most popular video-sharing communityRead your favorite booksDownload thousands of books with the included E-book reader *Discover thousands of apps for Android™Games, applications, and more with marketplace(need for customer installed)Connect to the Internet wirelesslyHigh-speed Wi-Fi 802.11 b/g/n networking2Enjoy your media library anywherePortable powerhouse plays popular music, video,and photo formats microSD memory card readerIncrease your storage capacity (up to 32 GB supported)Built-in cameraConvenient front-facing cameraAutomatic orientation detectionRead any way you want; the display adjusts automatically!Reading books in the ePub format requires the included E-book reader application.

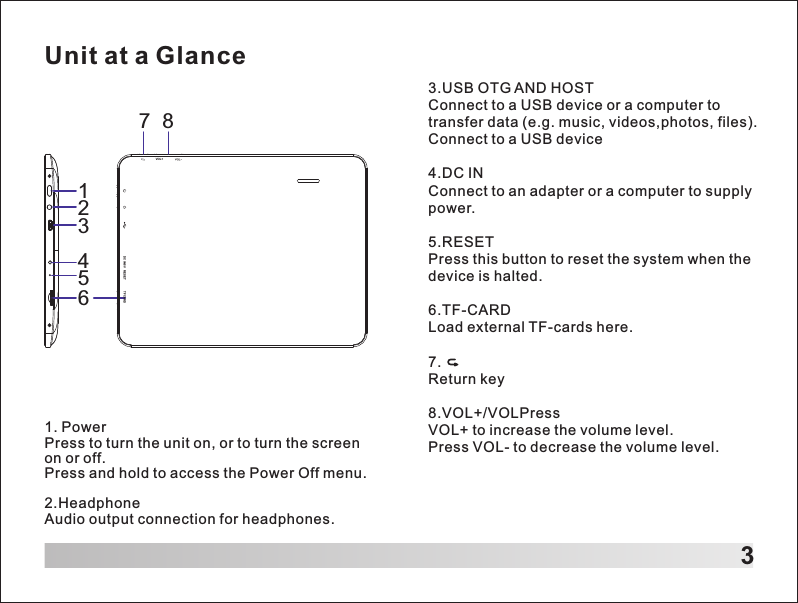

Unit at a Glance31. PowerPress to turn the unit on, or to turn the screen on or off.Press and hold to access the Power Off menu.2.HeadphoneAudio output connection for headphones.3.USB OTG AND HOSTConnect to a USB device or a computer to transfer data (e.g. music, videos,photos, files).Connect to a USB device4.DC INConnect to an adapter or a computer to supply power.5.RESETPress this button to reset the system when thedevice is halted.6.TF-CARDLoad external TF-cards here.7.Return key8.VOL+/VOLPressVOL+ to increase the volume level.Press VOL- to decrease the volume level.DC IN 5V TF CAR D RESE TVOL+1234567 8

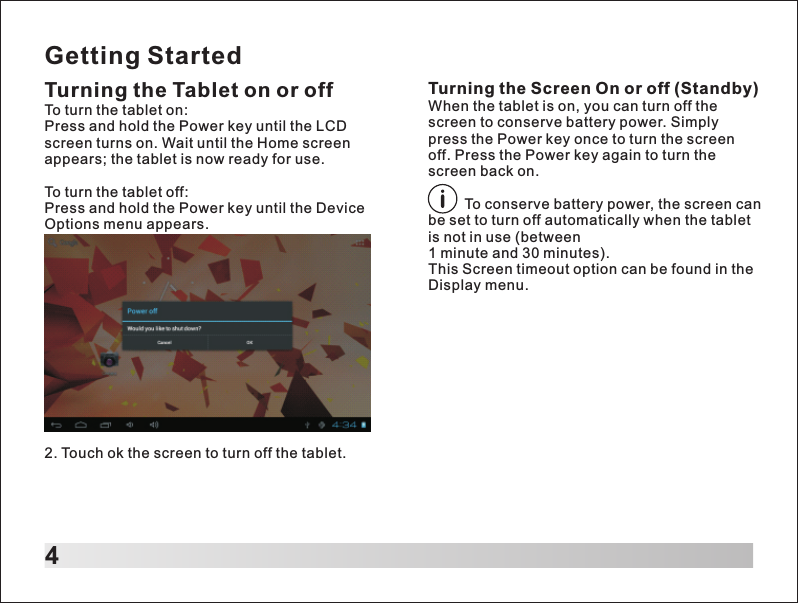

Getting Started4Turning the Tablet on or offTo turn the tablet on:Press and hold the Power key until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use.To turn the tablet off:Press and hold the Power key until the Device Options menu appears.Turning the Screen On or off (Standby)When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 1 minute and 30 minutes).This Screen timeout option can be found in the Display menu.2. Touch ok the screen to turn off the tablet.

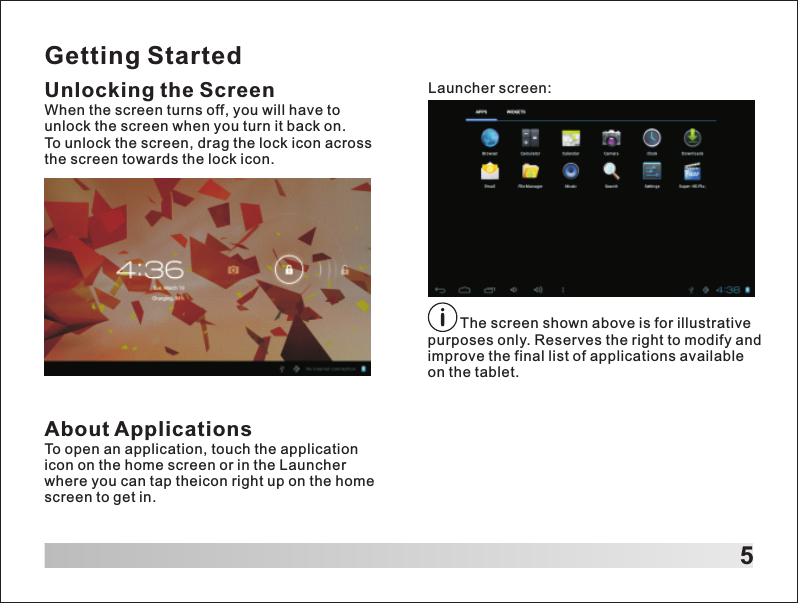

Getting StartedUnlocking the ScreenWhen the screen turns off, you will have to unlock the screen when you turn it back on.To unlock the screen, drag the lock icon across the screen towards the lock icon. 5Launcher screen:About ApplicationsTo open an application, touch the application icon on the home screen or in the Launcher where you can tap theicon right up on the home screen to get in. The screen shown above is for illustrative purposes only. Reserves the right to modify and improve the final list of applications available on the tablet.

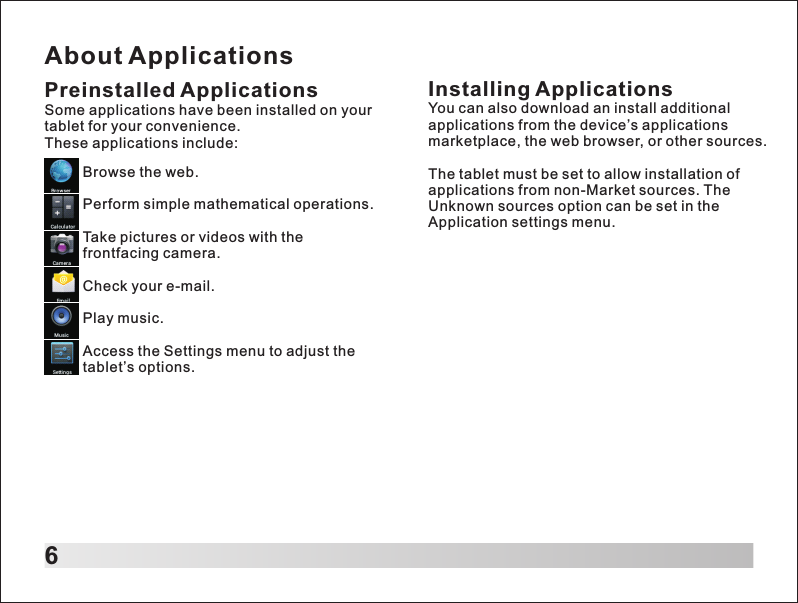

About Applications6Preinstalled ApplicationsSome applications have been installed on your tablet for your convenience. These applications include:Browse the web.Perform simple mathematical operations.Take pictures or videos with the frontfacing camera.Check your e-mail.Play music.Access the Settings menu to adjust the tablet’s options.Installing ApplicationsYou can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources.The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu.

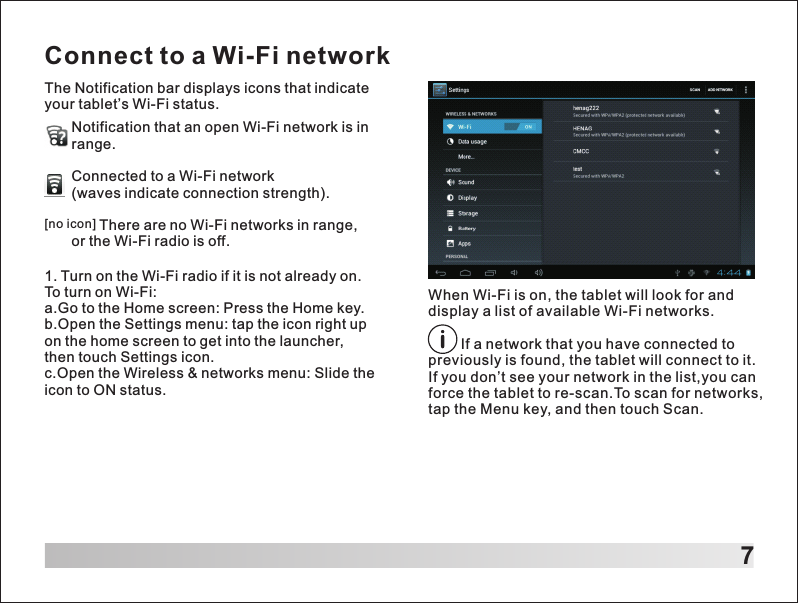

Connect to a Wi-Fi network7The Notification bar displays icons that indicate your tablet’s Wi-Fi status.When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks. If a network that you have connected to previously is found, the tablet will connect to it.If you don’t see your network in the list,you can force the tablet to re-scan.To scan for networks, tap the Menu key, and then touch Scan.Notification that an open Wi-Fi network is in range.Connected to a Wi-Fi network (waves indicate connection strength). There are no Wi-Fi networks in range, or the Wi-Fi radio is off.[no icon]1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi:a.Go to the Home screen: Press the Home key.b.Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then touch Settings icon.c.Open the Wireless & networks menu: Slide the icon to ON status.

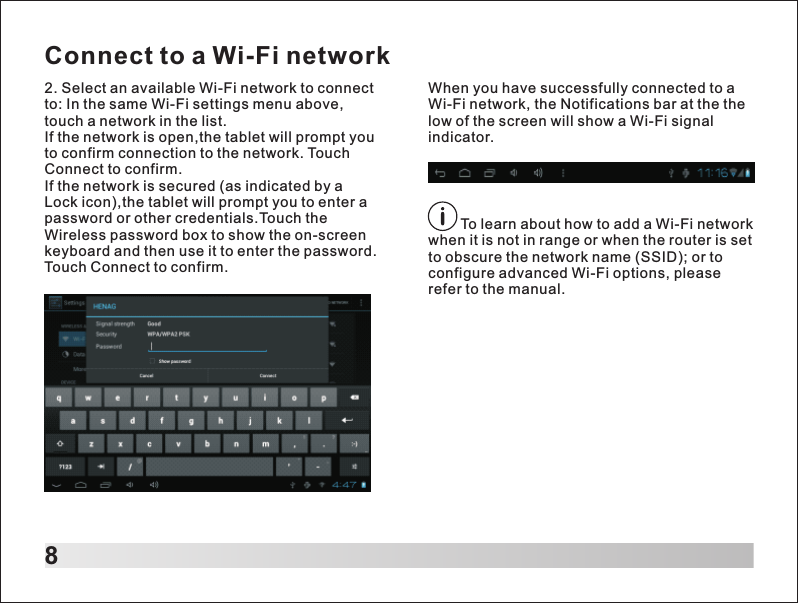

82. Select an available Wi-Fi network to connect to: In the same Wi-Fi settings menu above,touch a network in the list.If the network is open,the tablet will prompt you to confirm connection to the network. Touch Connect to confirm.If the network is secured (as indicated by a Lock icon),the tablet will prompt you to enter a password or other credentials.Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm. To learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the manual.When you have successfully connected to a Wi-Fi network, the Notifications bar at the the low of the screen will show a Wi-Fi signal indicator.Connect to a Wi-Fi network

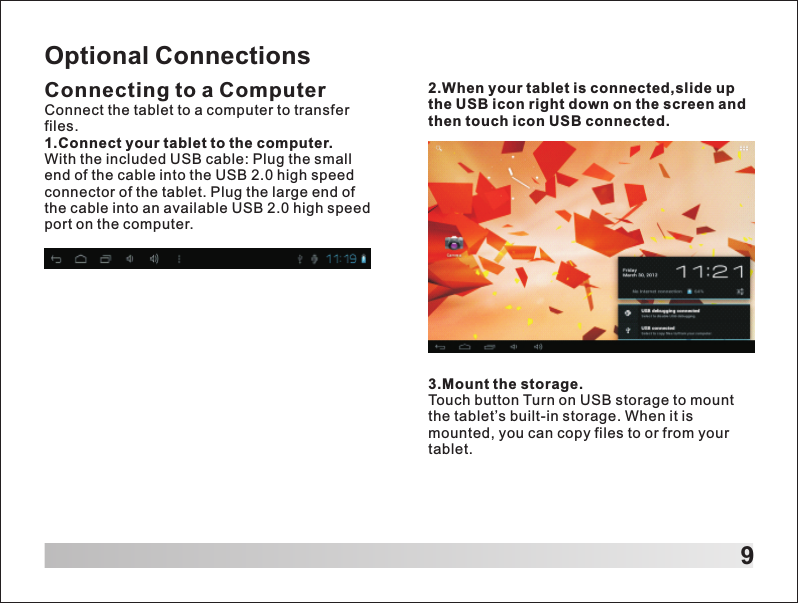

9Optional ConnectionsConnecting to a ComputerConnect the tablet to a computer to transfer files.1.Connect your tablet to the computer.With the included USB cable: Plug the small end of the cable into the USB 2.0 high speed connector of the tablet. Plug the large end of the cable into an available USB 2.0 high speed port on the computer.2.When your tablet is connected,slide up the USB icon right down on the screen and then touch icon USB connected.3.Mount the storage.Touch button Turn on USB storage to mount the tablet’s built-in storage. When it is mounted, you can copy files to or from your tablet.

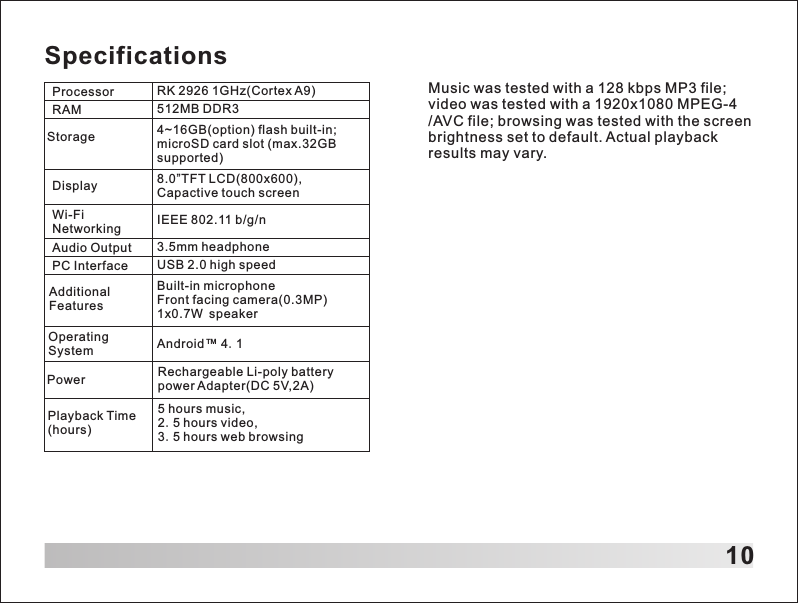

10SpecificationsProcessor RK 2926 1GHz(Cortex A9)RAM 512MB DDR3Storage 4~16GB flash built-in; microSD card slot (max.32GB supported)(option) Display 8.0”TFT LCD(800x600), Capactive touch screenWi-Fi Networking IEEE 802.11 b/g/nMusic was tested with a 128 kbps MP3 file; video was tested with a 1920x1080 MPEG-4/AVC file; browsing was tested with the screen brightness set to default. Actual playback results may vary.Audio Output 3.5mm headphonePC Interface USB 2.0 high speedAdditional FeaturesBuilt-in microphone Front facing camera(0.3MP) 1x0.7W speakerOperating System Android™ 4.1Power Rechargeable Li-poly battery power Adapter(DC 5V,2A)Playback Time(hours)5 hours music, 2.5 hours video,3.5 hours web browsing

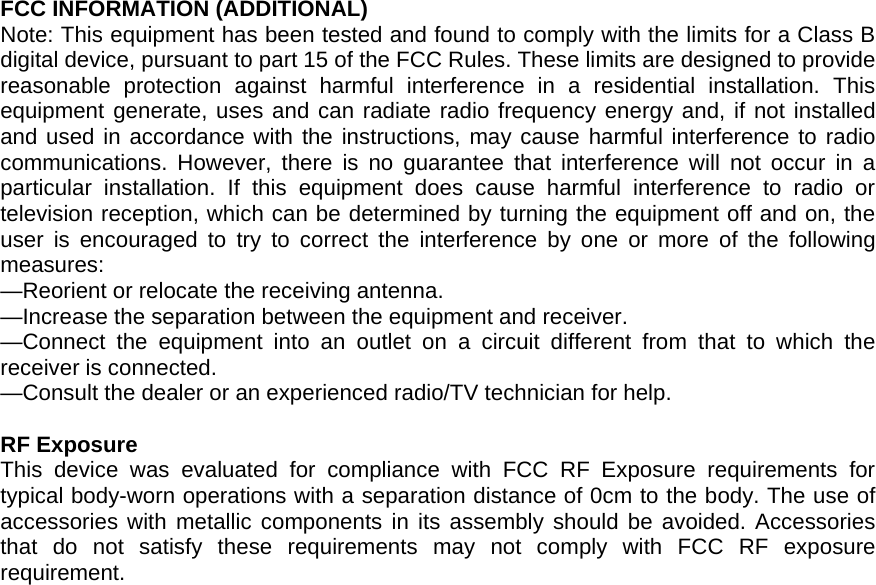

FCC INFORMATION (ADDITIONAL) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Exposure This device was evaluated for compliance with FCC RF Exposure requirements for typical body-worn operations with a separation distance of 0cm to the body. The use of accessories with metallic components in its assembly should be avoided. Accessories that do not satisfy these requirements may not comply with FCC RF exposure requirement.
