Hena Digital Technology MID117 MID User Manual

Hena Digital Technology (Shenzhen) Co., Ltd. MID

User Manual

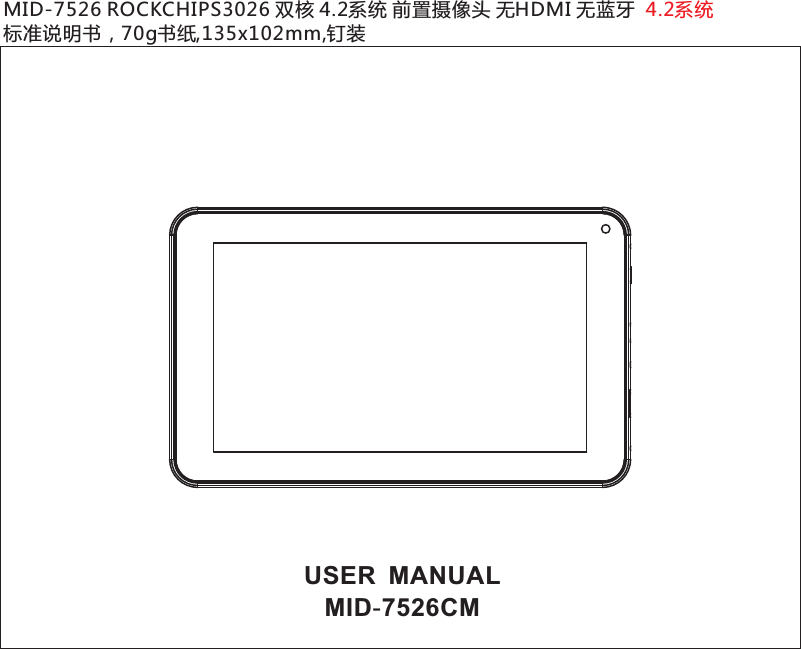

USER MANUALMID-7526CMMID-7526 ROCKCHIPS3026 双核 4.2系统 前置摄像头 无HDMI 无蓝牙 标准说明书，70g书纸,135x102mm,钉装4.2系统

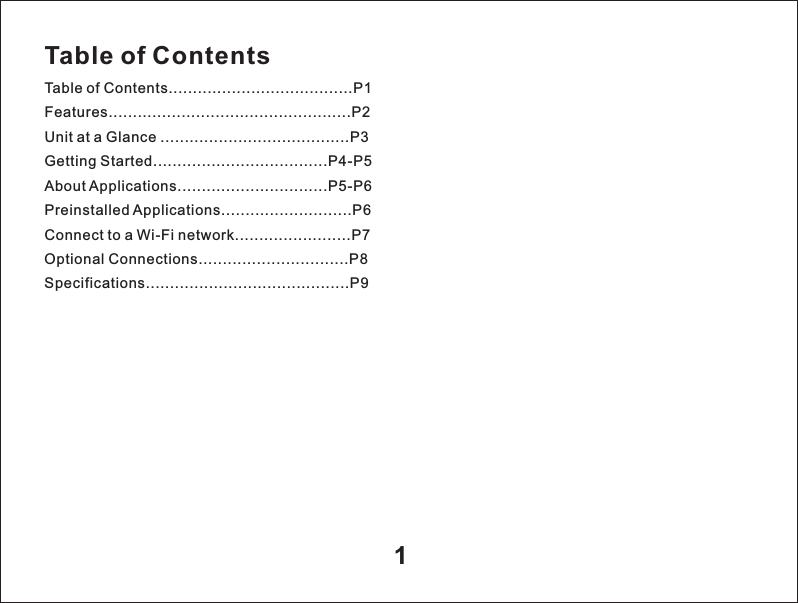

Table of ContentsTable of Contents......................................P1Features..................................................P2Unit at a Glance .......................................P3Getting Started....................................P4-P5About Applications...............................P5-P6Preinstalled Applications...........................P6Connect to a Wi-Fi network.................... P7Optional Connections...............................P8Specifications......................................... P9.....1

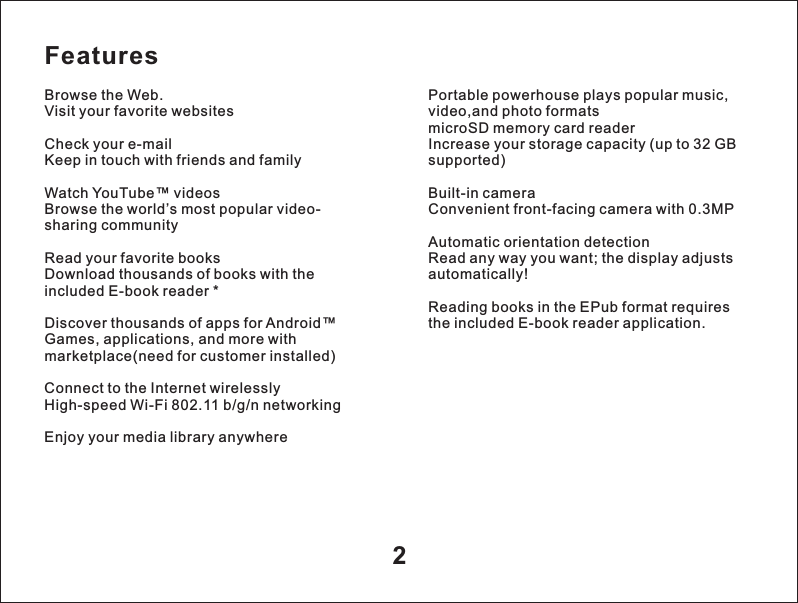

Features2Browse the Web.Visit your favorite websitesCheck your e-mailKeep in touch with friends and familyWatch YouTube™ videosBrowse the world’s most popular video-sharing communityRead your favorite booksDownload thousands of books with the included E-book reader *Discover thousands of apps for Android™Games, applications, and more with marketplace(need for customer installed)Connect to the Internet wirelesslyHigh-speed Wi-Fi 802.11 b/g/n networkingEnjoy your media library anywherePortable powerhouse plays popular music, video,and photo formats microSD memory card readerIncrease your storage capacity (up to 32 GB supported)Built-in cameraConvenient front-facing camera with 0.3MPAutomatic orientation detectionRead any way you want; the display adjusts automatically!Reading books in the EPub format requires the included E-book reader application.

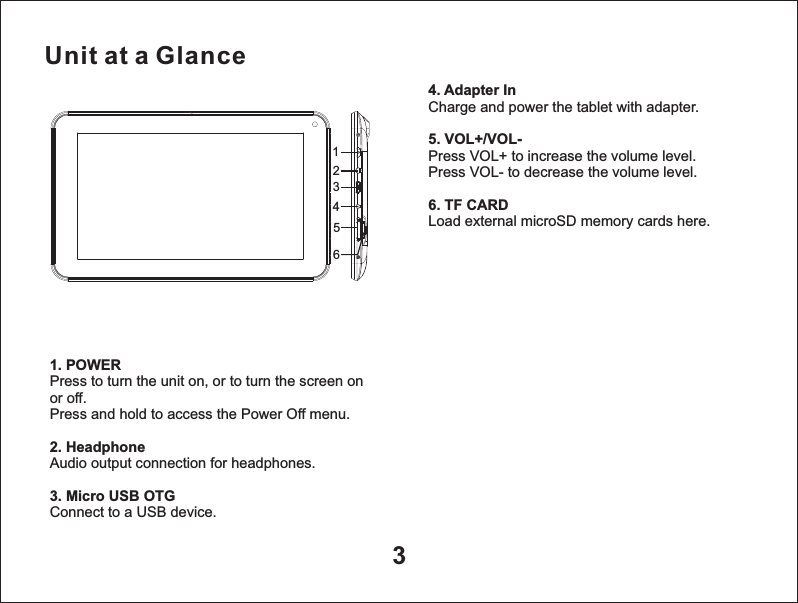

Unit at a Glance35. 6. TF CARDLoad external microSD memory cards here.4. Adapter InCharge and power the tablet with adapter.VOL+/VOL-Press VOL+ to increase the volume level.Press VOL- to decrease the volume level.1. 2. 3. POWERPress to turn the unit on, or to turn the screen on or off.Press and hold to access the Power Off menu.HeadphoneAudio output connection for headphones.Micro USB OTGConnect to a USB device.123456

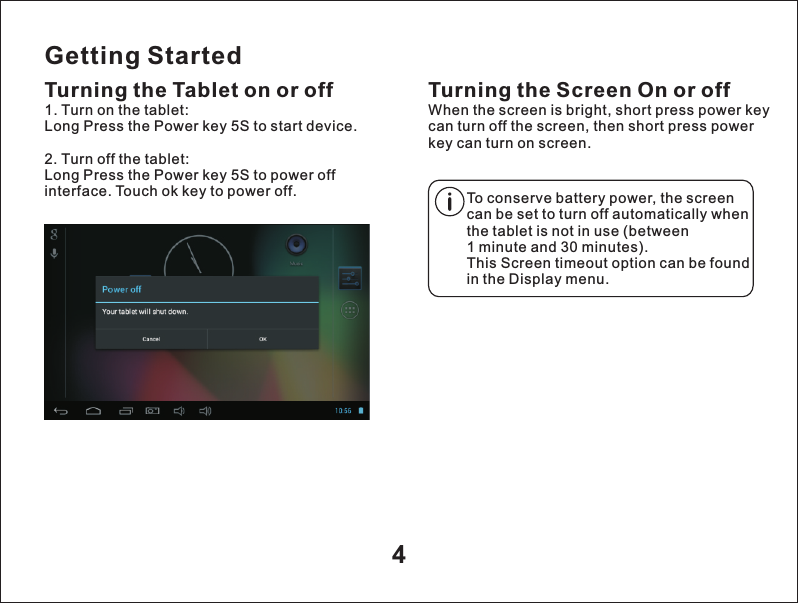

Getting StartedTurning the Tablet on or off Turning the Screen On or offWhen the screen is bright, short press power key can turn off the screen, then short press power key can turn on screen.1. Turn on the tablet:Long Press the Power key 5S to start device.2. Turn off the tablet:Long Press the Power key 5S to power off interface. Touch ok key to power off. To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between1 minute and 30 minutes).This Screen timeout option can be found in the Display menu.4

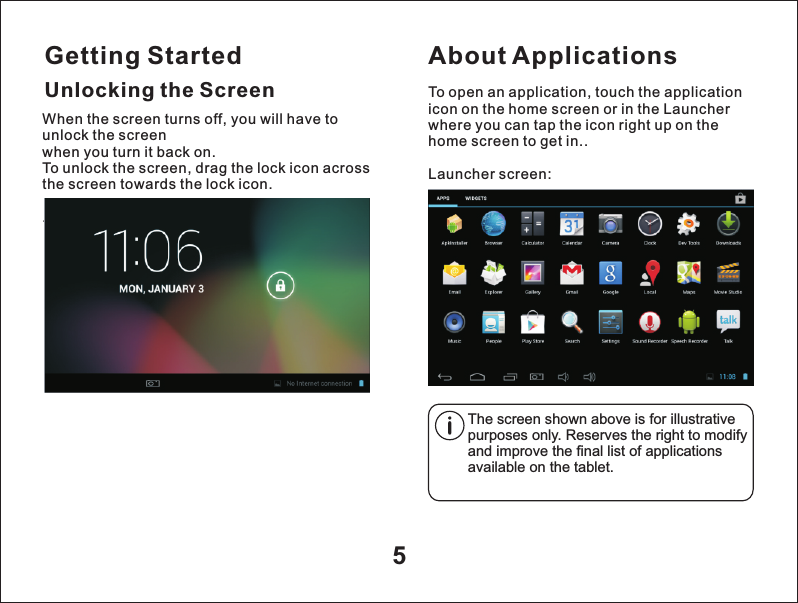

Getting Started5Unlocking the ScreenAbout ApplicationsTo open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in..Launcher screen:The screen shown above is for illustrative purposes only. Reserves the right to modify and improve the final list of applications available on the tablet.When the screen turns off, you will have to unlock the screen when you turn it back on.To unlock the screen, drag the lock icon across the screen towards the lock icon. .

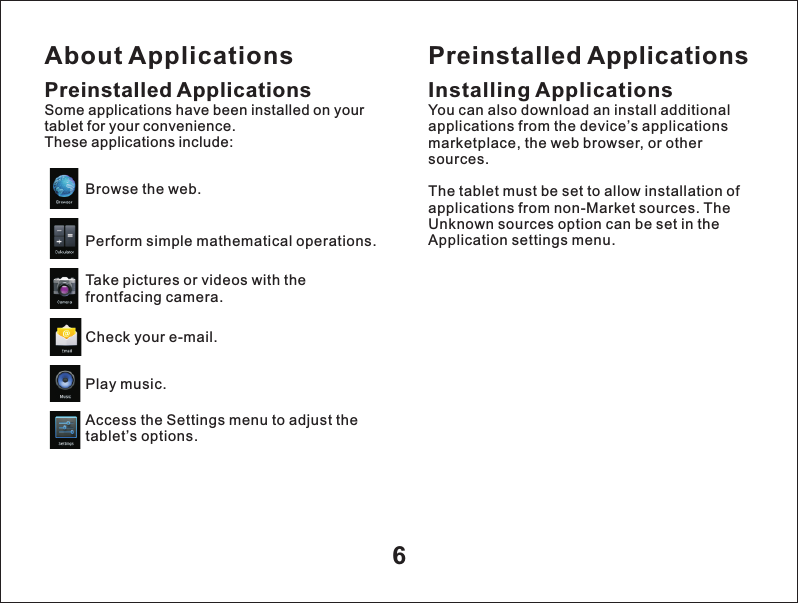

About Applications6Preinstalled ApplicationsSome applications have been installed on your tablet for your convenience. These applications include:Browse the web.Perform simple mathematical operations.Take pictures or videos with the frontfacing camera.Check your e-mail.Play music.Access the Settings menu to adjust the tablet’s options.Preinstalled ApplicationsInstalling ApplicationsYou can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources.The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu.

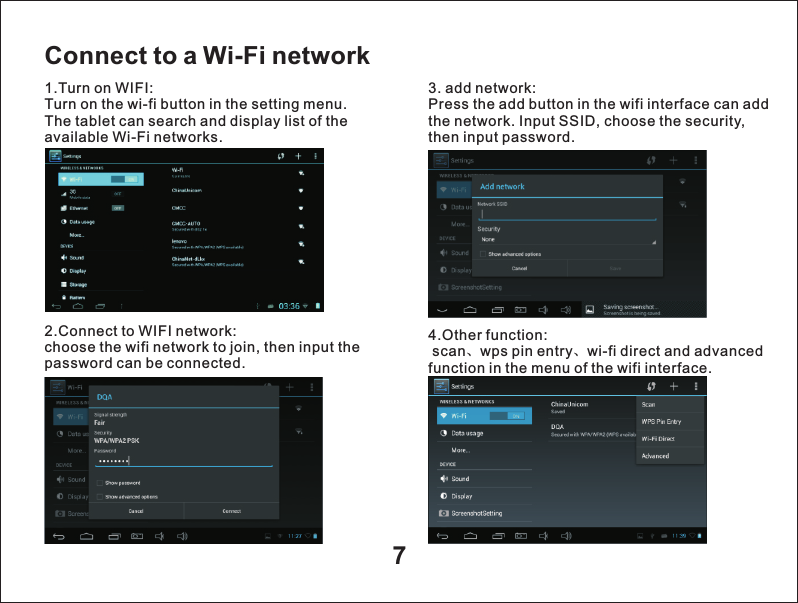

7Connect to a Wi-Fi network1.Turn on WIFI:Turn on the wi-fi button in the setting menu. The tablet can search and display list of the available Wi-Fi networks.2.Connect to WIFI network:choose the wifi network to join, then input the password can be connected. 3. add network:Press the add button in the wifi interface can add the network. Input SSID, choose the security, then input password.4.Other function: scan、wps pin entry、wi-fi direct and advanced function in the menu of the wifi interface.

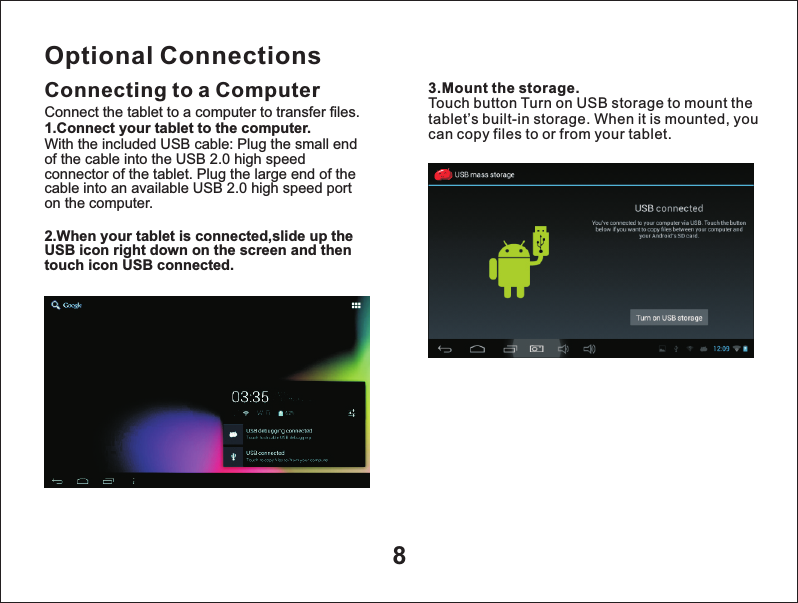

8Optional ConnectionsConnecting to a Computer 3.Mount the storage.Touch button Turn on USB storage to mount the tablet’s built-in storage. When it is mounted, you can copy files to or from your tablet.Connect the tablet to a computer to transfer files.1.Connect your tablet to the computer.With the included USB cable: Plug the small end of the cable into the USB 2.0 high speed connector of the tablet. Plug the large end of the cable into an available USB 2.0 high speed port on the computer.2.When your tablet is connected,slide up the USB icon right down on the screen and then touch icon USB connected.

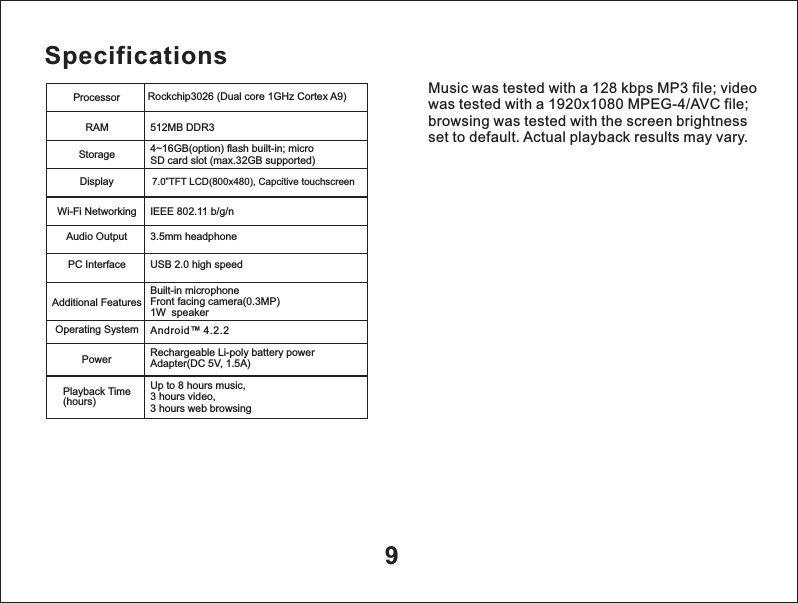

9SpecificationsMusic was tested with a 128 kbps MP3 file; video was tested with a 1920x1080 MPEG-4/AVC file; browsing was tested with the screen brightness set to default. Actual playback results may vary.ProcessorRAMStorageDisplayWi-Fi NetworkingAudio OutputPC InterfaceAdditional FeaturesOperating SystemPowerPlayback Time(hours)Rockchip3026 (Dual core 1GHz Cortex A9)4~16GB(option) flash built-in; micro SD card slot (max.32GB supported)7.0”TFT LCD(800x480), Capcitive touchscreenIEEE 802.11 b/g/n3.5mm headphoneUSB 2.0 high speedUp to 8 hours music, 3 hours video,3 hours web browsingBuilt-in microphoneFront facing camera(0.3MP)1W speakerAndroid™ 4.2.2Rechargeable Li-poly battery power Adapter(DC 5V, 1.5A)512MB DDR3

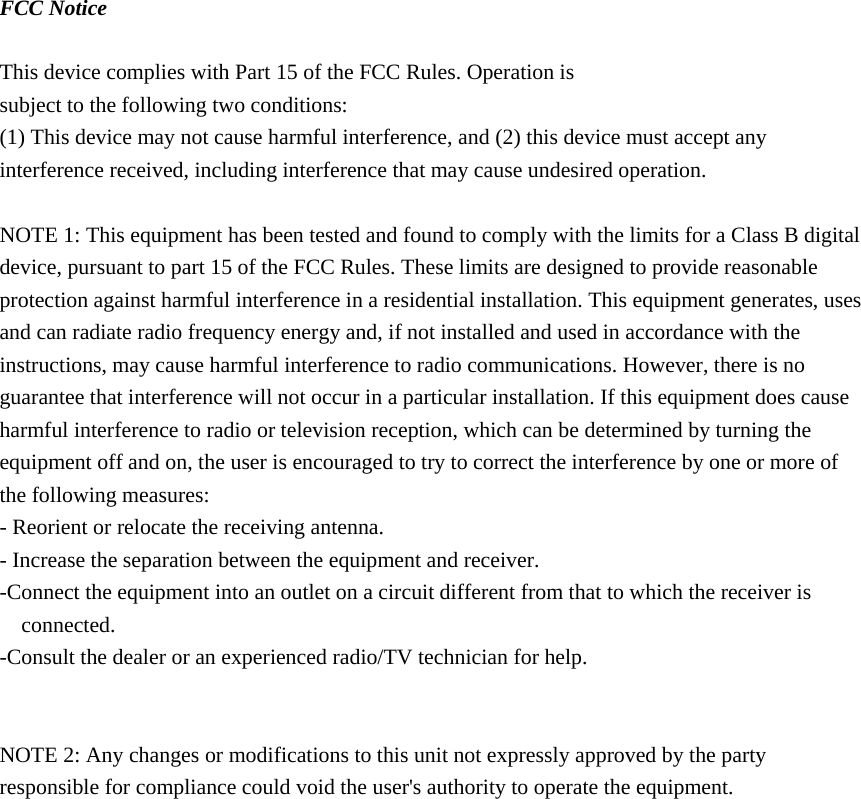

FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
