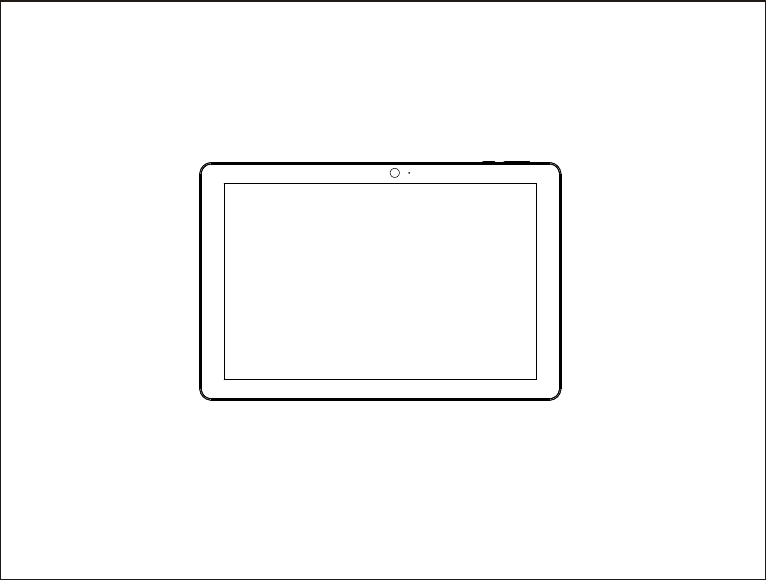

Hena Digital Technology MW10Q15 Tablet PC User Manual MW 10Q15 intel manual
Hena Digital Technology (Shenzhen) Co., Ltd. Tablet PC MW 10Q15 intel manual
User Manual
USER MANUAL
MW10Q15
1
Enjoy your media library anywhere
Portable powerhouse plays popular music,
video,and photo formats
TF card increases your storage capacity
(up to 32 GB supported)
Built-in camera
Convenient front-facing and rear camera
Automatic orientation detection
Read any way you want; the display adjusts
automatically!
Features
Browse the Web.
Visit your favorite websites
Check your e-mail
Keep in touch with friends and family
Watch YouTube™ videos
Browse the world’s most popular
video-sharing community
Read your favorite books
Download thousands of books .
Discover many Windows app
Connect to the Internet wirelessly
High-speed Wi-Fi 802.11 b/g/n networking
Unit at a Glance
2
1. POWER
2. Volume+/Volume-
3. FRONT CAMERA
Press to turn the unit on, or to turn the screen
on or off.
Press and hold to access the Power Off menu.
Keep pressing power button for 3 seconds and
device will reset automatically.
4. SPEAKER
5.DC IN
6.
8. Headphone
Audio output connection for headphones.
9. REAR CAMERA
10. TF CARD
USB
Connect to a USB device.
7. HDMI
1 2
3
5
6
7
8
9
10
4
Safety Information
witch off in restricted areas
Switch the device off when mobile PC use
is not allowed or when it may cause
interference or danger, for example, in
aircraft, in hospitals or near medical
equipment, fuel, chemicals, or blasting
areas. Obey all instructions in restricted
areas.
road safety comes first
Obey all local laws. Always keep your
hands free to operate the vehicle while
driving. Your first consideration while
driving should be road safety.
interference
All wireless devices may be susceptible to
interference, which could affect
performance
qualified service
Only qualified personnel may install or
repair this product.
batteries, chargers, and other
accessories
Use only batteries, chargers, and other
accessories approved by S805Gfor use
with this
device. Third-party chargers that comply
with the IEC/EN 62684 standard, and that
can connect to your device micro USB
connector, may be compatible. Do not
connect incompatible products.
keep your device dry
Your device is not water-resistant. Keep it
dry.
glass parts
The device screen is made of glass. This
glass can break if the device is dropped on
a hard surface or receives a substantial
impact. If the glass breaks, do not touch
the glass parts of the device or attempt to
remove the broken glass from the device.
Stop using the device until the glass is
replaced by qualified service personnel.
3
Read the safety information before using
the tablet.
4
Charging the Battery
The tablet has a built-in battery and the battery
comes partially charged. You must fully charge
the battery before using your device for the first
time. After the first charge, you can use the
device while charging. Always charge the
battery using the 5V/2A power adapter
provided.
Charging via power adapter
Connect the standard USB end of the USB cable
to the power adapter. Connect the Micro-USB
end of the USB cable to your tablet. Then plug
the power adapter into the mains socket.
OR
Charging via the USB cable
Connect the standard USB end of the USB cable
to your PC. Then connect the Micro-USB end of
the USB cable to the port of the tablet.
An indicator light above the power button will
illuminate, indicating charging is in progress.
If the battery is completely discharged, you
cannot turn on the device, even with the USB
power adapter connected. Allow a depleted
battery to charge for a few minutes before you
try to turn on the device.
Note: You cannot sufficiently charge the battery
using the USB cable and your PC due to
incorrect current.
To check the battery status, tap the battery icon
on the bottom of the screen.
Charging the Battery
Indicator light
Power button
5
The following screen drawings are only for
reference and please refer to actual screen
drawings.
To turn on your tablet
1. Press and hold for about 2 seconds to turn
on your tablet.
2. If the lock screen image displays, swipe your
finger from the bottom of the display
to switch to the login screen, and then enter
password to log in to Windows.
·Please first create a Microsoft account.
The tablet is ready for use after the Windows
Start screen displays.
To turn off the screen
·When the tablet is turned on, press to turn
off the screen to save battery
power.
·Or you can swipe from the right edge of the
display to access the menu. Tap All
Settings to display the settings. Tap System→
Power &Sleep to set the screen to
be turned off after a set time period.
NOTE: If your tablet is in a sleep state, press
or tap home button to turn on the screen.
To turn off the tablet
·Press and hold until you see “Slide to shut
down your PC” on the screen.
Slide to shut down your tablet.
Turning the Tablet On or Off
·
tablet modes:
You can also turn off the tablet in desktop and
6
In desktop mode, tap on the bottom of the
screen to access the menu.
Tap Power→Shut down to turn off the tablet.
To turn off the tablet in tablet mode, first enable the
tablet mode by swiping
the screen from the right to access the menu. In
addition to the action center, it
also allows access to general settings like airplane
mode, rotation lock, and Wi-Fi.
Tap Table mode to enable the tablet mode. Tap
Power→Shut down to turn off
the tablet.
Built-in Applications
Windows 10 comes with built-in apps like Map,
Photos, Mail & Calendar, Music and
Video. And these apps use OneDrive to back up
your information and sync
seamlessly across your Windows 10 devices, so
you’re never far from what you need.
7
Swipe right
Swiping-in from the right edge of the
display reveals the menu.
This menu provides access to the action
center and general setting
options.
Swipe left
Swiping slowly from the left edge to the
right edge of the display
reveals thumbnails of the applications.
Swipe down
Swiping-in from the top to the bottom of
an application docks or closes the
application.
Touch-Screen Navigation
Your tablet has a multi-touch display. You can
touch the screen to operate the tablet.
Connecting Your Tablet to
a Wi-Fi Network
1. Tap the Wi-Fi symbol on the bottom of the
screen. Tap Wi-Fi to enable the Wi-Fi
function.
·A list of available wireless networks will
appear.
2. Tap a network to connect to it.
3. If you want your tablet to automatically
connect to the network when it’s
available, tap Connect automatically.
4. Tap Connect.
5. If prompted, type your network security key
(network password), and then tap
Next.
6. Choose whether or not you want to share with
other computers and devices on
the network.
·Choose No if you’re connecting to a network
in a public place like a Café.
To disconnect from a wireless network
1. Tap the Wi-Fi symbol and then tap the
network with a connected status.
2. Tap Disconnect.
9
Troubleshooting
1.1 Device can not connect to Wi-Fi
-- Ensure the wireless network is working by testing
it using another wireless device.
-- Ensure the device and the wireless router is within
the range of the wireless network to be connected
too. Walls or other obstructions will reduce the
possible distances between wireless devices.
-- Ensure the security password being used is
correct. 1.2 Device doesn’t turn on
-- You can not turn on the device when the battery
charge is below the critical level, please charge the
battery.
-- Press the Power button for 10s times on the
device and check if it is restarting is normally or not.
-- Check if the charger is connected correctly.
1.3 Heat Issues
-- When running multiple applications, using the
screen on its brightest setting, or when being
charged, this device can get quite hot. This is normal
and should not cause any inconvenience when in
use.
1.4 System has anomalies and doesn’t work
correctly
-- Installing some third-party applications may cause
the system not to operate correctly. Press the Power
button for 10s times device will Re-boot.
1.5 Cannot set E-mail or registration application
–
network and can connect to the Internet.
-- Ensure you E-mail settings have been entered
correctly for the account being accessed.
-- Make sure your system time and local time are
correct.
1.6 Can not record
-- Press the Power button for 10s times, then
check if the record function works correctly.
1.7 The stand-by time of the device is too short
-- The duration of the lithium battery varies with
environmental temperature changes and the
service conditions. If the environment
temperature is too low or too high, the duration
of the battery will be affected. It is
recommended to use this device at normal
temperature.
-- Battery life is dependent on usage. High
volume, WIFI, and the frequent use may cause
the battery to be drained at a higher rate.
1.8 No sound via earphone
– Please check if the volume setting is 0
-- Please check if audio file is broken, and try to
play another audio file to confirm. If the audio
file is broken, it may cause severe noise or
static.
1.9 The color distortion of video or picture display
Ensure that the MID is connected to a Wi-Fi
– Press the Power button for 10s times on the
device to resolve this issue.
1.10 Can not copy files
-- Please check if the device is connected to the
computer correctly.
– Please check if the memory space is full
-- Please check if the USB cable is broken.
1.11 Other troubles
Please follow up the next step to fix the other
troubles before you return the MID/Tablet PC to us:
-- Step 1: Press the Power button for 10s times,
then check if the function works correctly;
-- Step 2: Upgrade the firmware from the CD and
restart the MID/Tablet PC, then check if the
function works correctly.
10
Specifications
Display
10.1” IPS
Capacitive touch screen
LCD (800X1280),
Wi-Fi Networking IEEE 802.11 b/g/n
Audio Output 3.5mm headphone
PC Interface USB 2.0 high speed
Front
WINDOWS 10
Rechargeable Li-poly battery
P Adapter(DC IN 5V,3A)ower
Processor INTEL Z8350 WINDOWS
Storage
Operating
System
Power
Camera
Troubleshooting
RAM
ROM
2G
32 GB
Rear
2 M
5 M
Speakers 1x1W speaker
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user's authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
