Hena Digital Technology PAD941IW MID User Manual

Hena Digital Technology (Shenzhen) Co., Ltd. MID Users Manual

Users Manual

USER MANUAL MID-90Q5

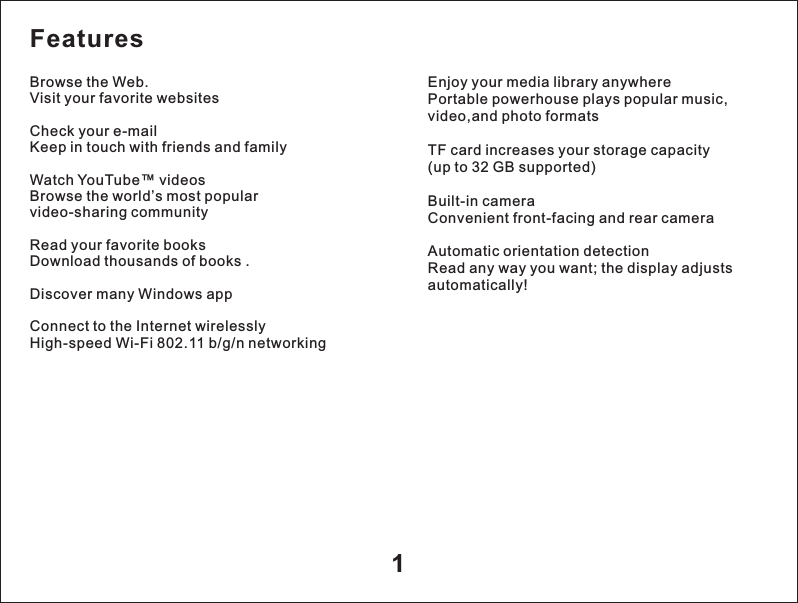

1Enjoy your media library anywherePortable powerhouse plays popular music, video,and photo formats TF card increases your storage capacity(up to 32 GB supported)Built-in cameraConvenient front-facing and rear cameraAutomatic orientation detectionRead any way you want; the display adjusts automatically!FeaturesBrowse the Web.Visit your favorite websitesCheck your e-mailKeep in touch with friends and familyWatch YouTube™ videosBrowse the world’s most popular video-sharing communityRead your favorite booksDownload thousands of books .Discover many Windows appConnect to the Internet wirelesslyHigh-speed Wi-Fi 802.11 b/g/n networking

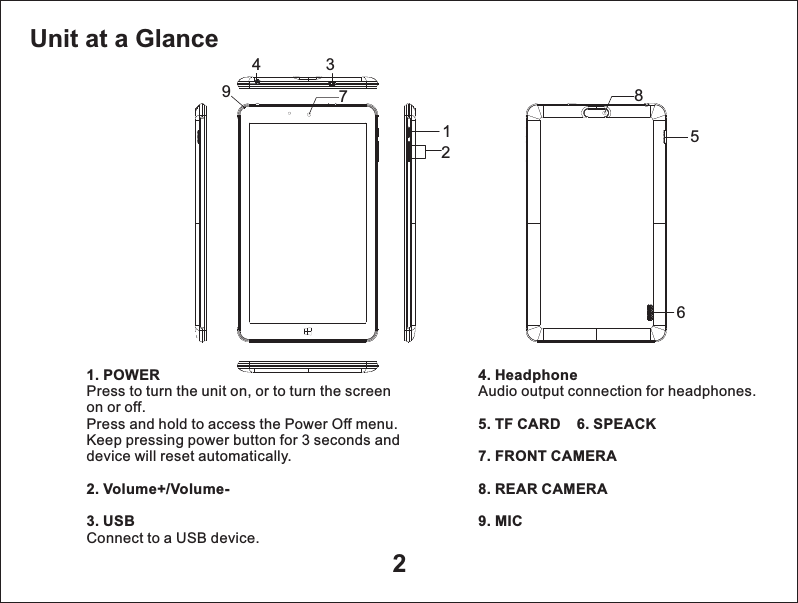

Unit at a Glance21. POWER2. Volume+/Volume-3. Press to turn the unit on, or to turn the screen on or off.Press and hold to access the Power Off menu.Keep pressing power button for 3 seconds and device will reset automatically.USB Connect to a USB device.4. HeadphoneAudio output connection for headphones.5. TF CARD 6. SPEACK7. FRONT CAMERA8. REAR CAMERA9. MIC 123456798

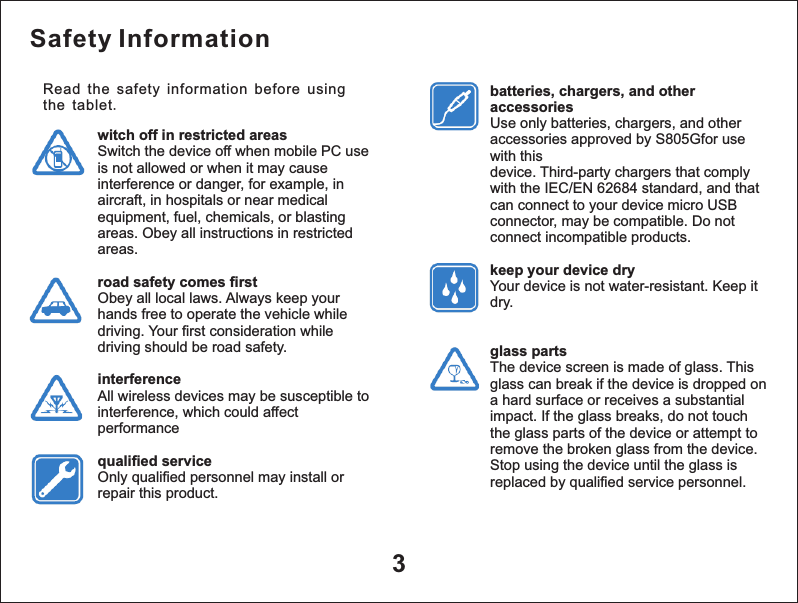

Safety Informationwitch off in restricted areasSwitch the device off when mobile PC use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas.road safety comes firstObey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.interferenceAll wireless devices may be susceptible to interference, which could affect performancequalified serviceOnly qualified personnel may install or repair this product.batteries, chargers, and other accessoriesUse only batteries, chargers, and other accessories approved by S805Gfor use with thisdevice. Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to your device micro USB connector, may be compatible. Do not connect incompatible products.keep your device dryYour device is not water-resistant. Keep it dry.glass partsThe device screen is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel.3Read the safety information before using the tablet.

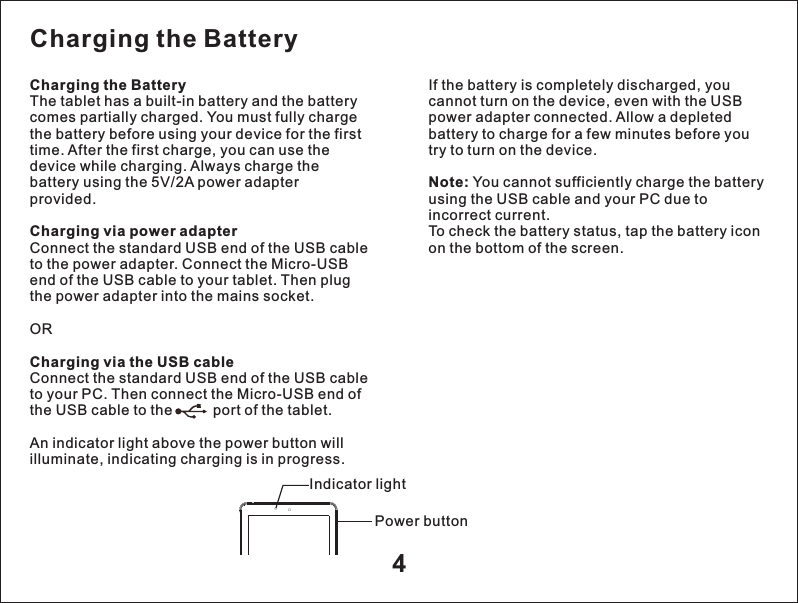

4Charging the Battery The tablet has a built-in battery and the battery comes partially charged. You must fully charge the battery before using your device for the first time. After the first charge, you can use the device while charging. Always charge the battery using the 5V/2A power adapter provided.Charging via power adapter Connect the standard USB end of the USB cable to the power adapter. Connect the Micro-USB end of the USB cable to your tablet. Then plug the power adapter into the mains socket. ORCharging via the USB cable Connect the standard USB end of the USB cable to your PC. Then connect the Micro-USB end of the USB cable to the port of the tablet. An indicator light above the power button will illuminate, indicating charging is in progress. If the battery is completely discharged, you cannot turn on the device, even with the USB power adapter connected. Allow a depleted battery to charge for a few minutes before you try to turn on the device.Note: You cannot sufficiently charge the battery using the USB cable and your PC due to incorrect current.To check the battery status, tap the battery icon on the bottom of the screen. Charging the Battery Indicator lightPower button

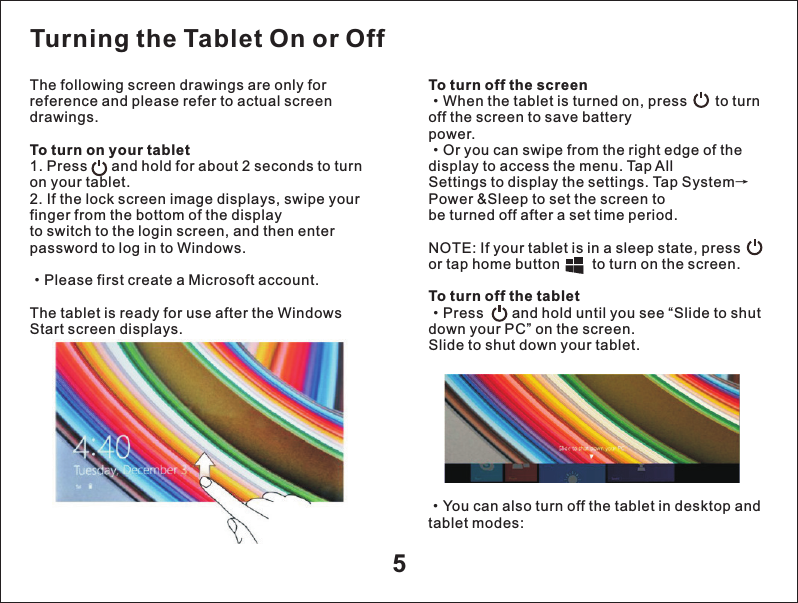

5The following screen drawings are only for reference and please refer to actual screen drawings.To turn on your tablet 1. Press and hold for about 2 seconds to turn on your tablet.2. If the lock screen image displays, swipe your finger from the bottom of the displayto switch to the login screen, and then enter password to log in to Windows.·Please first create a Microsoft account.The tablet is ready for use after the Windows Start screen displays.To turn off the screen·When the tablet is turned on, press to turn off the screen to save batterypower.·Or you can swipe from the right edge of the display to access the menu. Tap AllSettings to display the settings. Tap System→Power &Sleep to set the screen tobe turned off after a set time period.NOTE: If your tablet is in a sleep state, press or tap home button to turn on the screen.To turn off the tablet·Press and hold until you see “Slide to shut down your PC” on the screen.Slide to shut down your tablet.Turning the Tablet On or Off·tablet modes:You can also turn off the tablet in desktop and

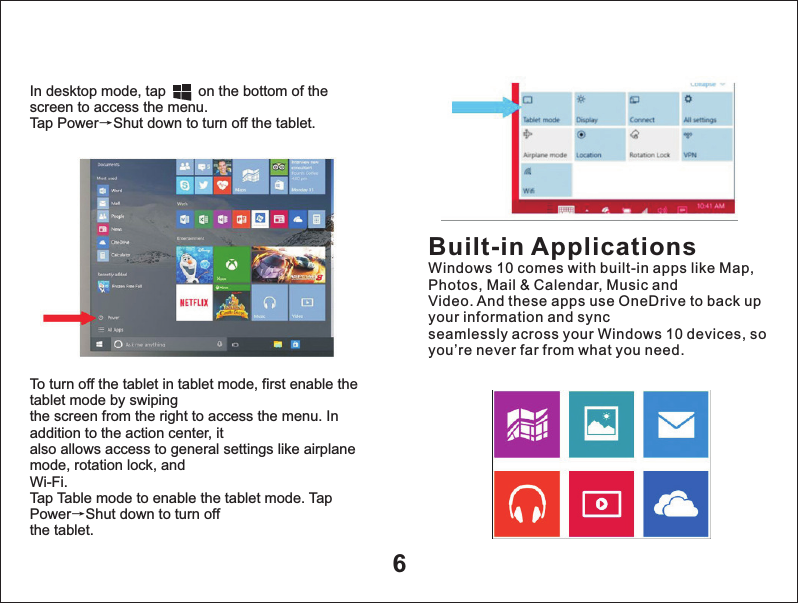

6In desktop mode, tap on the bottom of the screen to access the menu.Tap Power→Shut down to turn off the tablet.To turn off the tablet in tablet mode, first enable the tablet mode by swipingthe screen from the right to access the menu. In addition to the action center, italso allows access to general settings like airplane mode, rotation lock, andWi-Fi.Tap Table mode to enable the tablet mode. Tap Power→Shut down to turn offthe tablet.Built-in ApplicationsWindows 10 comes with built-in apps like Map, Photos, Mail & Calendar, Music andVideo. And these apps use OneDrive to back up your information and syncseamlessly across your Windows 10 devices, so you’re never far from what you need.

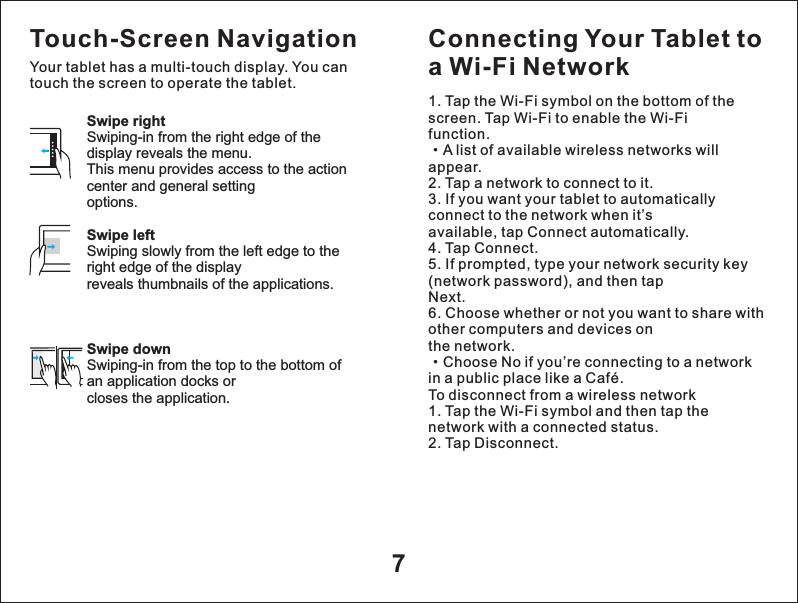

7Swipe rightSwiping-in from the right edge of the display reveals the menu.This menu provides access to the action center and general settingoptions.Swipe leftSwiping slowly from the left edge to the right edge of the displayreveals thumbnails of the applications.Swipe downSwiping-in from the top to the bottom of an application docks orcloses the application.Touch-Screen NavigationYour tablet has a multi-touch display. You can touch the screen to operate the tablet.Connecting Your Tablet to a Wi-Fi Network1. Tap the Wi-Fi symbol on the bottom of the screen. Tap Wi-Fi to enable the Wi-Fifunction.·A list of available wireless networks will appear.2. Tap a network to connect to it.3. If you want your tablet to automatically connect to the network when it’savailable, tap Connect automatically.4. Tap Connect.5. If prompted, type your network security key (network password), and then tapNext.6. Choose whether or not you want to share with other computers and devices onthe network.·Choose No if you’re connecting to a network in a public place like a Café.To disconnect from a wireless network1. Tap the Wi-Fi symbol and then tap the network with a connected status.2. Tap Disconnect.

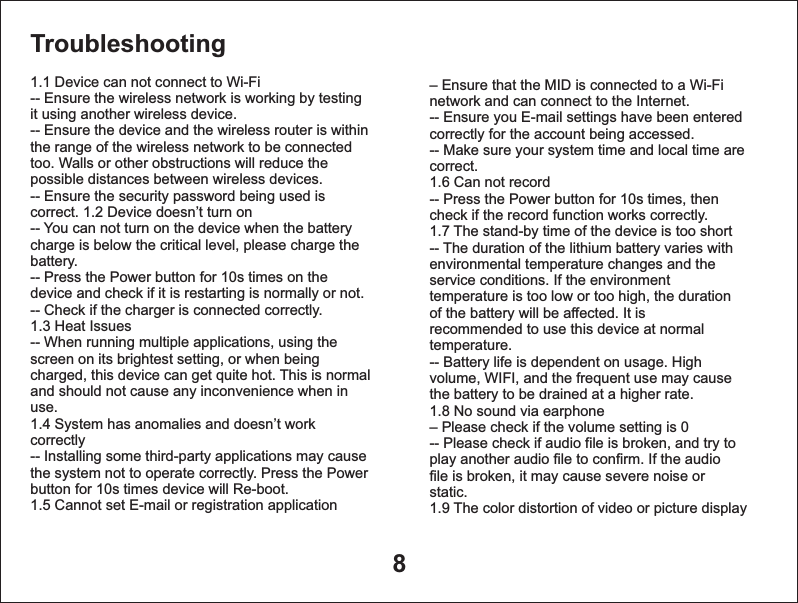

8Troubleshooting 1.1 Device can not connect to Wi-Fi-- Ensure the wireless network is working by testing it using another wireless device.-- Ensure the device and the wireless router is withinthe range of the wireless network to be connectedtoo. Walls or other obstructions will reduce thepossible distances between wireless devices.-- Ensure the security password being used iscorrect. 1.2 Device doesn’t turn on-- You can not turn on the device when the batterycharge is below the critical level, please charge thebattery.-- Press the Power button for 10s times on thedevice and check if it is restarting is normally or not.-- Check if the charger is connected correctly.1.3 Heat Issues-- When running multiple applications, using thescreen on its brightest setting, or when beingcharged, this device can get quite hot. This is normaland should not cause any inconvenience when inuse.1.4 System has anomalies and doesn’t workcorrectly-- Installing some third-party applications may causethe system not to operate correctly. Press the Powerbutton for 10s times device will Re-boot.1.5 Cannot set E-mail or registration application– network and can connect to the Internet.-- Ensure you E-mail settings have been enteredcorrectly for the account being accessed.-- Make sure your system time and local time arecorrect. 1.6 Can not record-- Press the Power button for 10s times, thencheck if the record function works correctly.1.7 The stand-by time of the device is too short-- The duration of the lithium battery varies withenvironmental temperature changes and theservice conditions. If the environmenttemperature is too low or too high, the durationof the battery will be affected. It isrecommended to use this device at normaltemperature.-- Battery life is dependent on usage. Highvolume, WIFI, and the frequent use may causethe battery to be drained at a higher rate. 1.8 No sound via earphone– Please check if the volume setting is 0-- Please check if audio file is broken, and try toplay another audio file to confirm. If the audiofile is broken, it may cause severe noise orstatic.1.9 The color distortion of video or picture displayEnsure that the MID is connected to a Wi-Fi

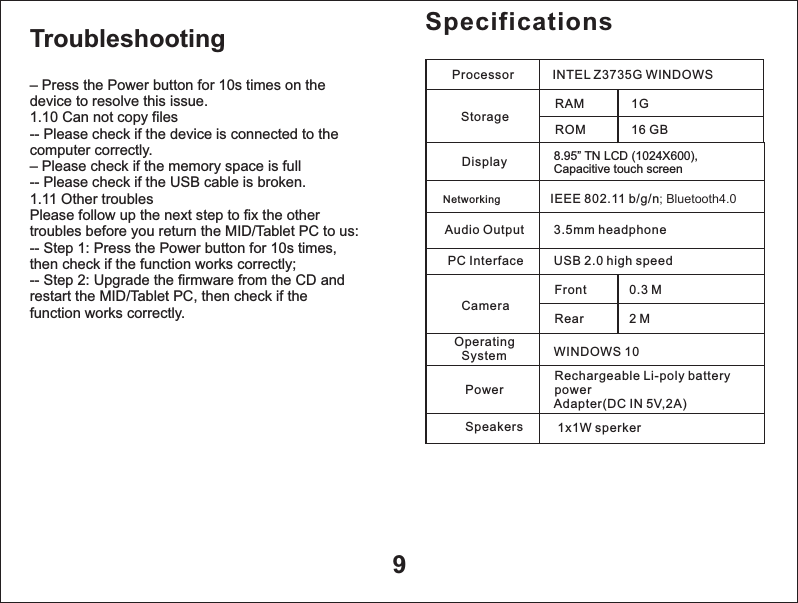

– Press the Power button for 10s times on thedevice to resolve this issue.1.10 Can not copy files-- Please check if the device is connected to thecomputer correctly.– Please check if the memory space is full-- Please check if the USB cable is broken.1.11 Other troublesPlease follow up the next step to fix the othertroubles before you return the MID/Tablet PC to us:-- Step 1: Press the Power button for 10s times,then check if the function works correctly;-- Step 2: Upgrade the firmware from the CD andrestart the MID/Tablet PC, then check if thefunction works correctly.9SpecificationsDisplay 8.95” TN Capacitive touch screen LCD (1024X600), Networking IEEE 802.11 b/g/n; Bluetooth4.0Audio Output 3.5mm headphonePC Interface USB 2.0 high speedFrontWINDOWS 10Rechargeable Li-poly battery power Adapter(DC IN 5V,2A)Processor INTEL Z3735G WINDOWSStorage Operating System Power Camera Troubleshooting RAMROM1G16 GBRear0.3 M2 MSpeakers 1x1W sperker
