Herutu Electronics HRF-2401 Equipment built-in 2.4GHz band transceiver module User Manual HRF 2401 Specifications 20150803x
Herutu Electronics Corporation Equipment built-in 2.4GHz band transceiver module HRF 2401 Specifications 20150803x
User manual
62-1 Toyooka-cho, Kita-ku, Hamamatsu-shi
Shizuoka-ken, Japan 433-8103
TEL +81-53-438-3511
FAX +81-53-438-3411
：
Product name
Product type HRF-2401
ENG.DEPT
Drawing Number Approved Checked
2015.08.03
：
2015.08.03
Drawn
DC15002-02
Date
Product Specification
Issued sign
Person
2015.08.03
FUJITA UEDA
2.4GHz band wireless module
HERUTU ELECTRONICS CORPORATION
2015.08.03
ENG.DEPT SALES
NAKAI
ISSUED
'15.08.03
HERUTU
HERUTU ELECTRONICS CORPORATION
1.Summary
・HRF-2401 is 2.4GHz band wireless module.
・CPU is mounted in HRF-2401.It can be used by arranging only
an input/output circuit to motherboard.
・HRF-2401 can work by coin battery or dry battery.
・It can be selected from 4 kinds of antennas by customer situation.
・HRF-2401 can not work by itself.It is necessary to be mounted to motherboard.
IMPORTANT NOTE:
ⅰ.That module is limited to OEM installation only.
ⅱ.That OEM integrators is responsible for ensuring that the end-user has no manual
instructions to remove or install module.
ⅲ.That module is limited to installation in mobile or fixed applications, according
to Part 2.1091(b)
ⅳ.That separate approval is required for all other operating configurations,
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module. The end user manual shall include required regulatory
information/warning as below.
ⅰ.End-users must be provided with transmitter/antenna installation requirements and
operating conditions for satisfying RF exposure compliance.
ⅱ.A separate section should clearly state “FCC RF Exposure requirements:”
ⅲ.Required operating conditions for end users
ⅳ.Antenna/or transmitter installation requirements.
Labelling Requirements for the Host device
The host device shall be properly labelled to identify the modules within the host device.
The Industry Canada certification label of a module shall be clearly visible at all times
when installed in the host device,
otherwise the host device must be labelled to display the Industry Canada certification
number of the module, preceded by the words “Contains transmitter module”, or the
word “Contains”, or similar wording expressing the same meaning, as follows:
Contains transmitter module IC:
10608A-HRF2401 where 10608A-HRF2401 is the module’s certification number.
The applicant for equipment certification of the module shall provide with each unit of the
module either a label such as described above, or an explanation and instructions to the
user as to the host device labelling requirements.
HRF-2401(2.4GHz band wireless module)
Page
1/8
Subject
Product Specification
Document Name
HERUTU ELECTRONICS CORPORATION
2.Specification
■General specification
■Wireless Specification
*1 Antenna is used only 1 type from 4kinds
Internal antenna
①1/4λ Dipole chip antenna
External antenna
②1/4λ Dipole antenna(Flying Lead and U-FL connector)
③1/2λ Dipole antenna(SMB Male connector)
④1/2λ Dipole antenna(SMB Male connector)
Magnet Base / Cable:RG174-1.5m
Frequency 2403MHz～2478MHz
2/8
1MHz
Half duplex
Data rate 250kbps
Frequency deviation
Number of channel
Channel spacing
Mode of operation
Product Specification HRF-2401(2.4GHz band wireless module)
Soecification
Transmit power 2.1mW
Frequency error ±30ppm
2.05V～6.0V(Inside 2.0V） Power source
0℃～50℃/RH Under 85%
Transmition approx 17.0mA/Receiving approx 18.5mA
Standby Max 5.5μA
Usage environment
Current Consumption
Quority of Material Shield case：C7521P t=0.15/basis material
20mm×32mm×3mm
Specification
nRF24LE1-F16Q48
Flash memory 16kByte/RAM 1kByte
Product type
F1D
GFSK
±160kHz
page
76ch
16MHz
Emission desingnation
Type of Modulation
HRF-2401
Antenna type *1
Crystal oscillation
frequency
Document Name Subject
Item
External dimensions
Item
Device
HERUTU ELECTRONICS CORPORATION

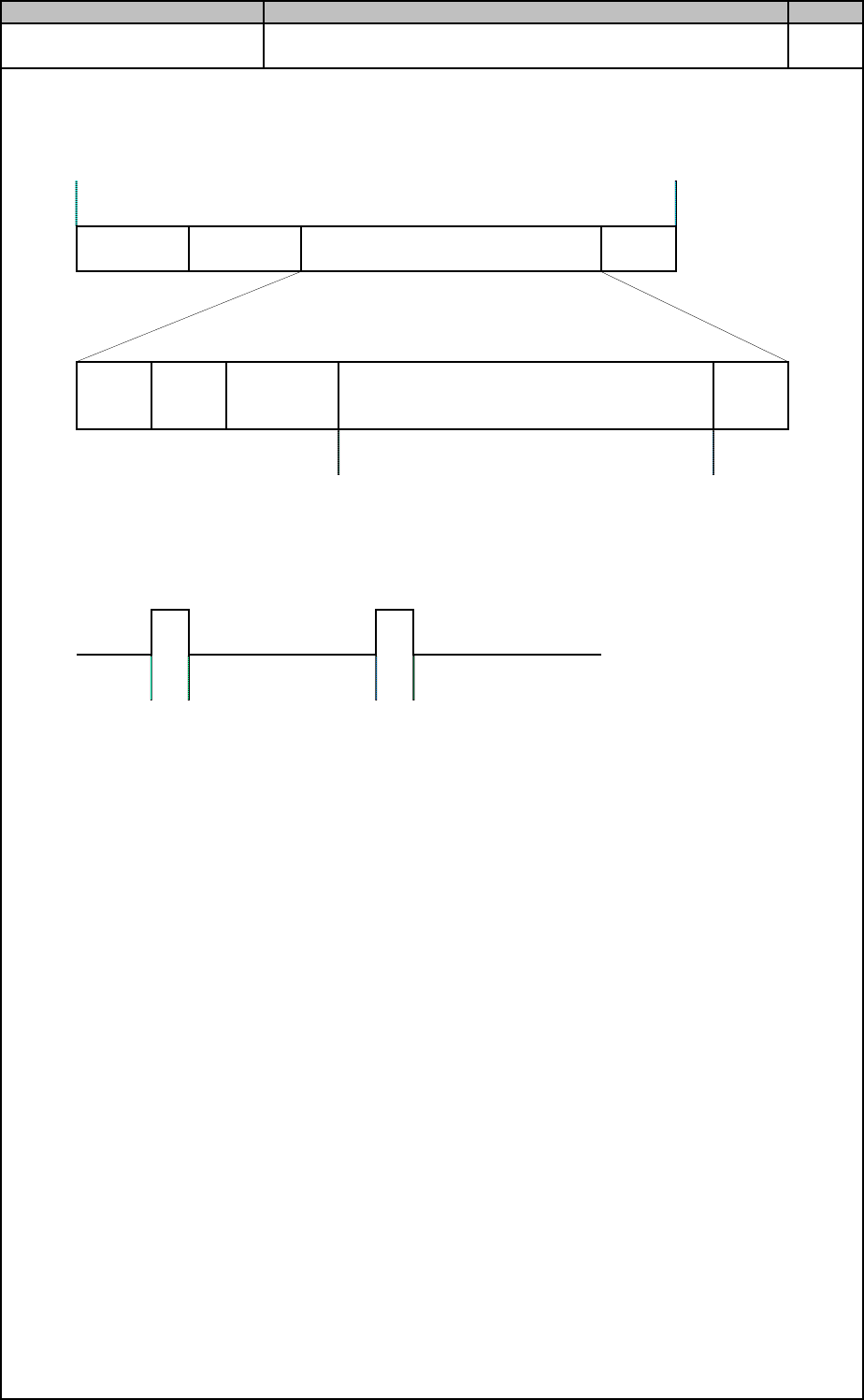

■Communication format
①Trnasmitting and receiving data format
※Customer can use this data area.
②Transmission interval
→
1mS
←→
1mS
←
Data transmission time 1mS＋Stop time approx 5mS ->1cycle(Approx 6ｍS)
Customer data
13byte
Check
Sum
1byte
Payload
21byte
Address
5byte
CRC
2byte
Preamble
1byte
Trnasmission time approx 1.0mS →
←
Document Name
Product Specification
Command
1byte
Sequence
Number
1byte
page
3/8
Subject
HRF-2401(2.4GHz band wireless module)
Approx5mS
ID
Number
5byte
HERUTU ELECTRONICS CORPORATION
■Interface specification
*2
*3
*4
*5
SpecificationItem
Serial
Communication
Document Name Subject
*In case of the chip antenna specification, the coaxial connector for
external antennas is made non-mounting.
Product Specification 4/8
Terminal shape
GP-IO
*3
Coaxial connector
*2
･Input/Output port number Maximum 30lines
･PWM 2CH(Frequency range：4khz～254kHz)
･ADC Resolusion performance Maximum 12bit
For external antenna：20279-001E-01
･UART Synchronous system：Asynchromous communication
Communication speed：Under 38400bps
Start bit ：1bit
Data length ：8bit
Stop bit ：1bit
Parity bit ：none
Flow sequence ：none
･I2C Standard mode(100kbps)
High speed mode(400kbps)
･SPI Slave(8Mbps)
*4
page
Side throw hole(1.5mm pitch)
*5
Terminal number：35pin
A serial communication shares a part port with an input/output port
and PWM/ADC. It isn't possible to overlap and use.
Communication speed for SPI port is limited depending on a resistance
to be connected.
Also there are 3 pin of side throw hole to fix the shield case.
When it is mounted,a module has to fix to motherboard by solder for
fixed reinforcement.
HRF-2401(2.4GHz band wireless module)
HERUTU ELECTRONICS CORPORATION
3.Operating explanation

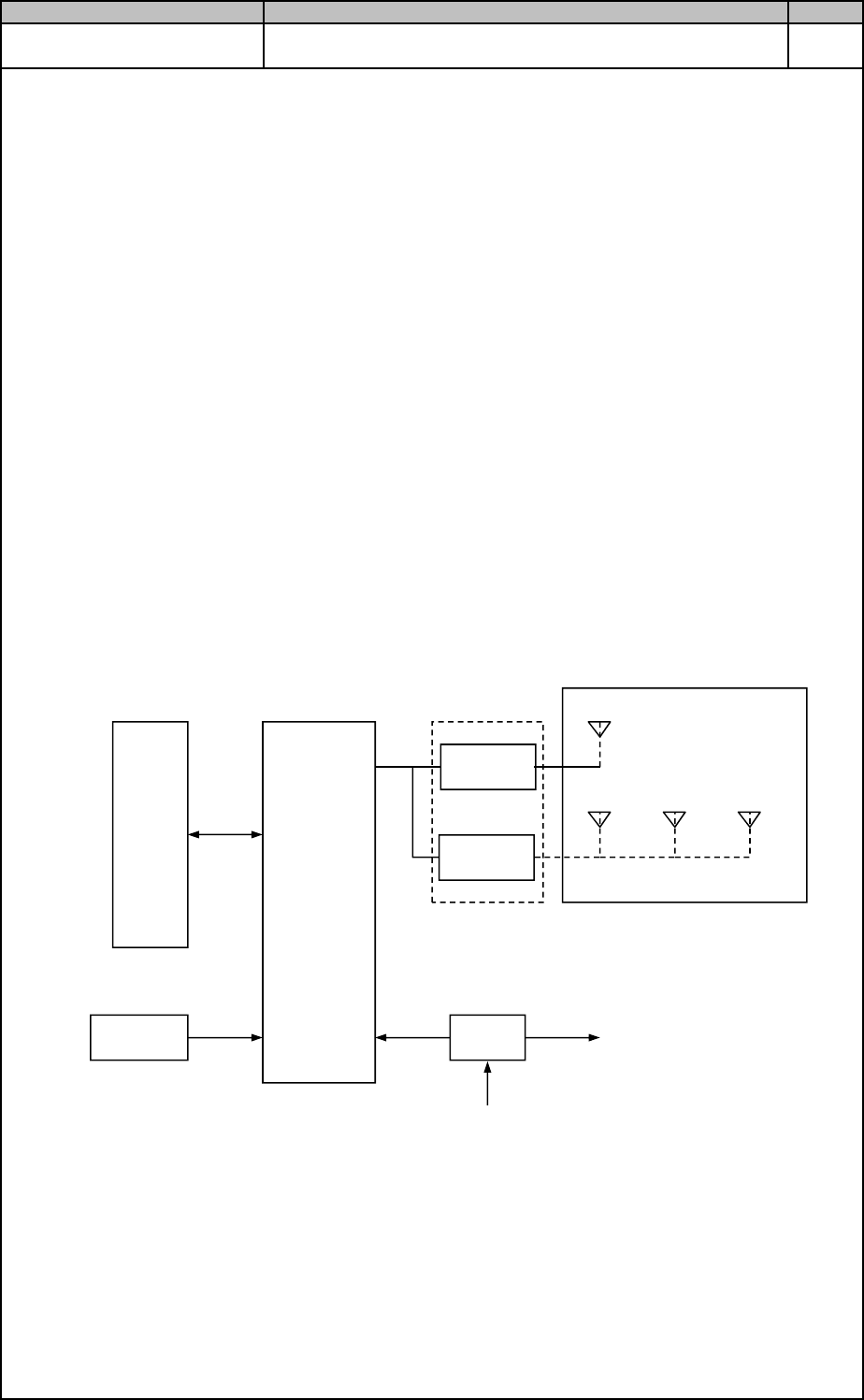

4.Block diagram
Selected only 1 antenna
16MHz
HRF-2401 do a pairing with an equipment to communicate before wireless
communicating.
Piring way is different by a specification of included the interface
electric substract.
One is to match each ID by dipswitch,one is transmitter send ID data by
registration switch,receiver register the ID data received from
transmitter.
There are several ways for registration by customer specification.
Each equipment done a paring communicates by using 1ch among 4ch selected
from 76ch.
Each equipment can receive an answer back by setting.
Input and output terminal can be connected a keyboard,a LED and a LCD etc.
It is programed by costomer request.
Output to outside
Product Specification HRF-2401(2.4GHz band wireless module) 5/8
Document Name Subject page
2.05～6.0V
Chip ANT
EXT.ANT③EXT.ANT②Ext.ANT①
nRF24LE1
REG
2.0V
GP-IO
UART
ADC
etc.
Crystal
oscillator
coaxial
coaxial
HERUTU ELECTRONICS CORPORATION
5.Precaution for use
①Antenna
The certification of HRF-2401 is included antenna to be used.
It can be registered 4 kinds of antenna for HRF-2401.
Other antenna not to be certified can not be used.
Please use only allowed antenna (in below list).
Use other antenna may subject to additional testing and filing to FCC.
②Chip antenna
When you use a HRF-2401 of chip antenna specification,communication distance
may be short noticeably.
Then please get a clearance around the antenna as far as possible.
③All kinds protection circuit
This module recommends to include a protection circuit according to the use
because a protection circuit from static electricity isn't included
in a port variously.
④Power source
A minimum of a operation voltage is set to 2.05V,because a regulator of 2V
is mounted on this module.
Please take the measure which stops a malfunction of a circuit using voltage
detection IC by used battery and power unit.
⑤Request to the final product 1
1) Please include the following sentence on the final product.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
2) In the instruction manual of the final product, please describe the
following sentence.
Caution: The user is cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority to operate the
equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users mustfollow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
page
HRF-2401(2.4GHz band wireless module) 6/8Product Specification
Document Name Subject
Internal antenna
①1/4λ Dipole chip antenna
External antenna
②1/4λ Dipole antenna(Flying Lead and U-FL connector)
③1/2λ Dipole antenna(SMB Male connector)
④1/2λ Dipole antenna(SMB Male connector)
Magnet Base / Cable:RG174-1.5m
HERUTU ELECTRONICS CORPORATION
3) For a Class B digital device or peripheral, the instructions
furnished the user shall include the following or similar statement,
placed in a prominent location in the text of the manual
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no
g
uarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
4) The final end product must be labeled in a visible area with the following.
Contains TX FCC ID:T82HRF-2401
Document Name Subject page
Product Specification HRF-2401(2.4GHz band wireless module) 7/8
HERUTU ELECTRONICS CORPORATION
⑥Request to the final product 2
1) In the instruction manual of the final product, please describe the
following sentence.
This device complies with part of FCC Rules and Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner
avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des
autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
IMPORTANT NOTE: Radiation Exposure Statement
The available scientific evidence does not show that any health problems are associated with using
low power wireless devices.
There is no proof, however, that these low power wireless devices are absolutely safe. Low power
Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being
used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of
low-level RF that does not produce heating effects causes no known adverse health effects. Many
studies of low-level RF exposures have not found any biological effects. Some studies have
suggested that some biological effects might occur, but such findings have not been confirmed by
additional research. This device (モデル名) has been tested and found to comply with IC radiation
exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio
frequency (RF) Exposure rules.
Les connaissances scientifiques dont nous disposons n’ont mis en évidence aucun problème de
santé associé à l’usage des appareils sans fil à faible puissance. Nous ne sommes cependant pas
en mesure de prouver que ces appareils sans fil à faible puissance sont entièrement sans danger.
Les appareils sans fil à faible puissance émettent une énergie radioélectrique (RF)
très faible dans le spectre des micro-ondes lorsqu’ils sont utilisés. Alors qu’une dose élevée de RF
peut avoir des effets sur la santé (en chauffant les tissus), l’exposition à de faibles RF qui ne
produisent pas de chaleur n’a pas de mauvais effets connus sur la santé. De nombreuses études ont
été menées sur les expositions aux RF faibles et n’ont découvert aucun effet biologique. Certaines
études ont suggéré qu’il pouvait y avoir certains effets biologiques, mais ces résultats n’ont pas été
confirmés par des recherches supplémentaires. モデル名 a été testé et jugé conforme aux limites
d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les
règles d’exposition aux fréquences radioélectriques (FR) RSS-102 de l’IC.
(モデル名), please fill in the model number of the device
Document Name Subject page
Product Specification HRF-2401(2.4GHz band wireless module) 8/8
HERUTU ELECTRONICS CORPORATION
