Aruba 360 Series Outdoor Access Points
Installation Guide
0511953-01 | October 2016 1
The Aruba 360 Series outdoor wireless access points support IEEE 802.11ac standards for high-
performance WLAN, and are equipped with two radios, which provide network access and monitor
the network simultaneously. Multiple-in, Multiple-out (MIMO) technology allows these access points
to deliver high-performance 802.11n 2.4 GHz and 802.11ac 5 GHz functionality, while also supporting
802.11a/b/g wireless services.
The AP-365 and AP-367 access points work in conjunction with an Aruba controller, while the IAP-365
and IAP-367 access points can be configured using a built-in virtual controller.
The 360 Series outdoor wireless access points provide the following capabilities:
IEEE 802.11a/b/g/n/ac operation as a wireless access point
IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
IEEE 802.11a/b/g/n/ac spectrum monitor
Compatible with IEEE 802.3af PoE
Centralized management configuration and upgrade
Integrated Bluetooth Low Energy (BLE) Radio
Package Contents
360 Series access point
Cable Gland x 1
USB Console Cable x 1
Copper Lug x 1
M4x6 Screw x1
Aruba Regulatory Compliance and Safety Information Guide
Aruba Instant Quick Start Guide (for IAP-365 and IAP-367 only)
Aruba 360 Series Outdoor Access Point Installation Guide (this document)
!
CAUTION
This device must be professionally installed and serviced by a trained ACMP or similar Aruba-certified
technician. Aruba access points are classified as radio transmission devices, and are subject to government
regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration
and operation of this equipment is in compliance with their country’s regulations. For complete list of
approved channels in your country of the AP-365 and AP-367 access points, refer to the Aruba Downloadable
Regulatory Table at support.arubanetworks.com.
Mounting kits for use with the 360 Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
2Aruba 360 Series Outdoor Access Points | Installation Guide
Hardware Overview

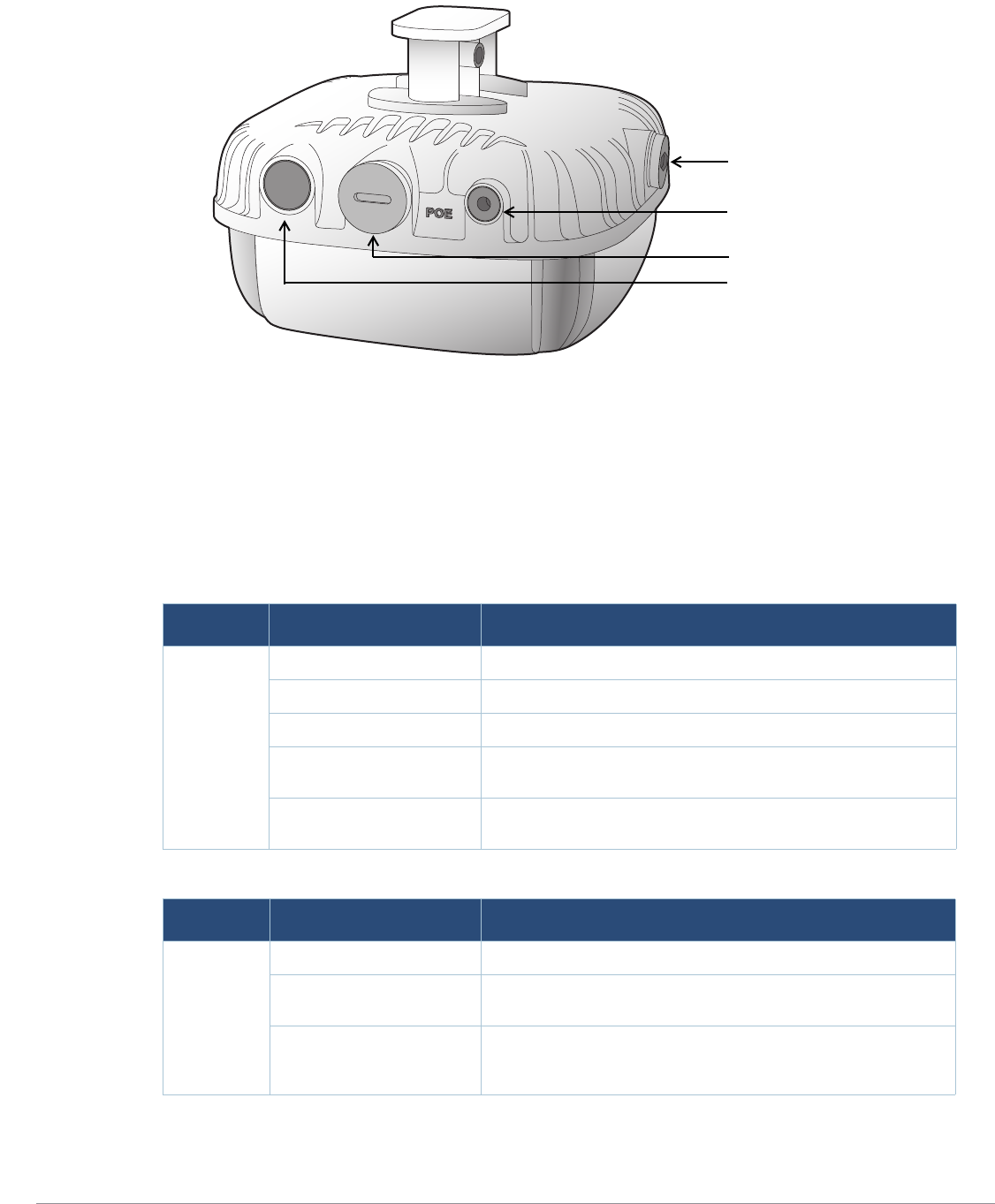

Figure 1 360 Series Access Point
LED
The 360 Series access point is equipped with one LED that indicates the system status of the device.
This LED can be configured via ArubaOS (for AP-365 and AP-367) or Aruba Instant (for IAP-365 and
IAP-367) software into three separate modes:
Normal mode (by default): See Table 1
Off mode: LED is off
Blink mode: LED blinks green (synchronized)
USB Console Port
The USB Micro-B console port allows you to connect the AP to a terminal or a laptop for direct local
management. Use the included USB console cable to connect the AP. You can download the
Table 1 360 Series LED Status during Boot Up
LED Color/State Meaning
System LED Off No power to AP
Red Initial power-up
Green - Flashing AP booting
Green - Steady AP ready and 1000Mbps Ethernet link established. The LED
turns off after 1200 seconds
Green - Yellow, 6 seconds
period AP ready and 10/100Mbps Ethernet link established. The LED
turns off after 1200 seconds
Table 2 360 Series LED Status during Operation
LED Color/State Meaning
System LED Solid Red General fault
One blink off every 3
seconds Radio 0 fault (5 GHz)
Two quick blink off 0.5
seconds apart cycled every
3 seconds
Radio 1 fault (2.4GHz)
Grounding Point
Ethernet Port
Air Vent
USB Console Port, Reset
button and LED
Aruba 360 Series Outdoor Access Points | Installation Guide 3
necessary driver for USB-UART adapter from support.arubanetworks.com under the Tools &
Resources tab.
Use the following setting to access the terminal:
Reset Button
To reset the 360 Series access points to factory default settings, press and hold down the reset
button using a small, narrow object such as a paper clip while the device is powered on.
Ethernet Ports
360 Series access point is equipped with one 10/100/1000Base-T auto-sensing MDI/MDX Ethernet
port. This port supports wired-network connectivity, in addition to Power over Ethernet (PoE) from
IEEE 802.3af compliant power sources.This device accepts 57V DC (802.3af) nominal as a standard
powered device (PD) from power sourcing equipment, including PoE midspan injector or a PoE-
sourcing network infrastructure.
The port has an RJ-45 female connectors with the pin-out shown in Figure 2.

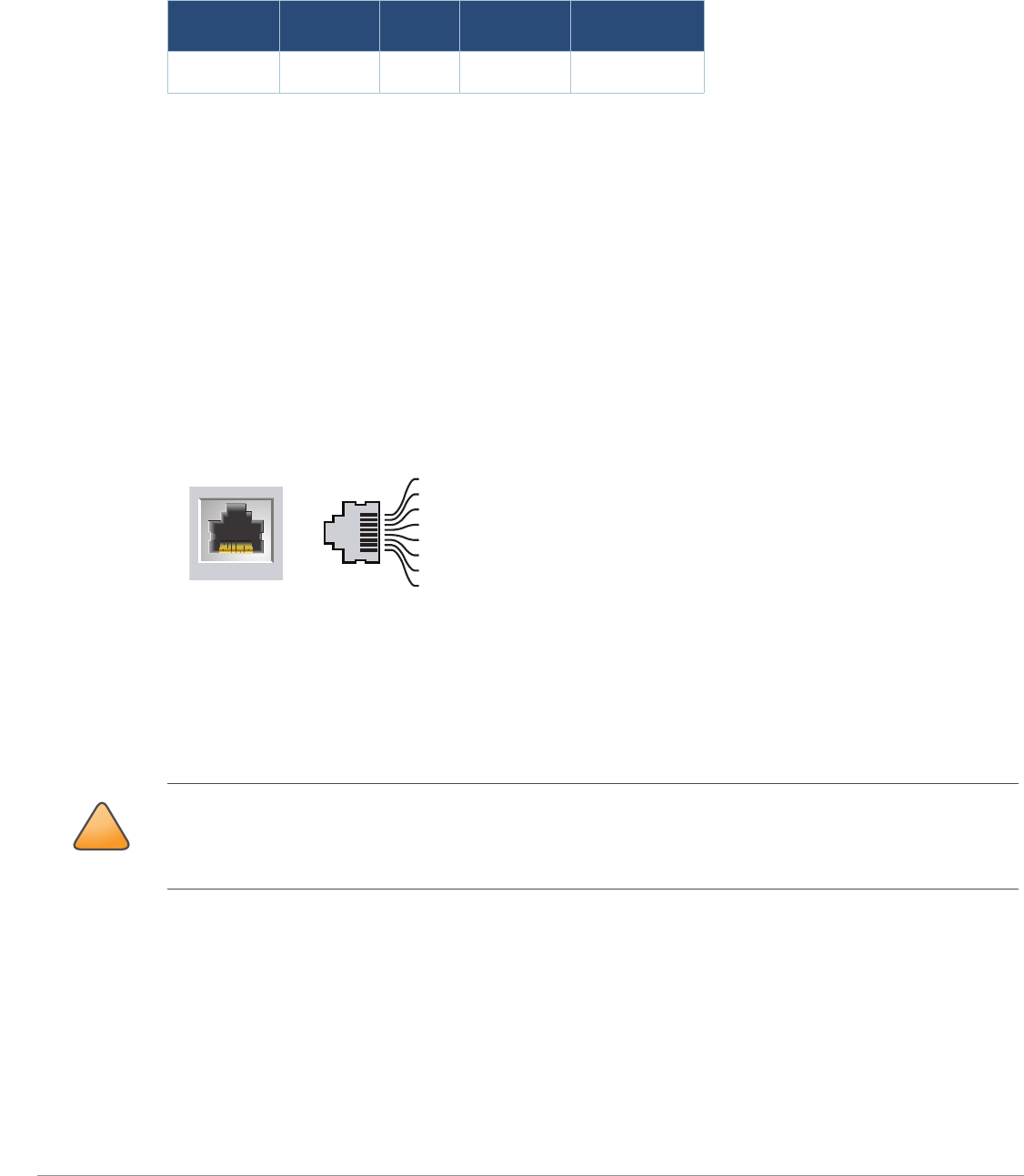

Figure 2 Gigabit Ethernet Port Pin-Out
Grounding Point
Always remember to protect the access point by installing grounding lines. The ground connection
must be complete before connecting power to the access point enclosure.
Before You Begin
Table 3 Console Settings
Baud Rate Data Bits Parity Stop Bits Flow Control
9600 8 None 1 None
1000Base-T Gigabit
Ethernet Port
RJ-45 Female
Pin-Out
Signal Name
1
2
3
4
5
6
7
8
BI_DC+
BI_DC-
BI_DD+
BI_DD-
BI_DA+
BI_DA-
BI_DB+
BI_DB-
Function
Bi-directional pair +C, POE Positive
Bi-directional pair -C, POE Positive
Bi-directional pair +D, POE Negative
Bi-directional pair -D, POE Negative
Bi-directional pair +A, POE Negative
Bi-directional pair -A, POE Negative
Bi-directional pair +B, POE Positive
Bi-directional pair -B, POE Positive
!
CAUTION
FCC Statement: Improper termination of access points installed in the United States configured to non-US
model controllers will be in violation of the FCC grant of equipment authorization. Any such willful or
intentional violation may result in a requirement by the FCC for immediate termination of operation and may
be subject to forfeiture (47 CFR 1.80).
4Aruba 360 Series Outdoor Access Points | Installation Guide
Pre-Installation Network Requirements
After WLAN planning is complete and the appropriate products and their placement have been
determined, the Aruba controller(s) must be installed and initial setup performed before the Aruba
access points are deployed.
For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software version
installed on your controller.
Pre-Installation Checklist
Before installing your 360 Series access points, be sure that you have the items listed below:
Cat5E UTP or better cable of required length
802.3af-compliant PoE source
For AP-365 and AP-367 only:
Aruba Mobility Controller provisioned on the network:
Layer 2/3 network connectivity to your access point
One of the following network services:
Aruba Discovery Protocol (ADP)
DNS server with an “A” record
DHCP Server with vendor-specific options
Verifying Pre-Installation Connectivity
Before installing access points in a network environment, make sure that they are able to locate and
connect to the controller after power on.
!
CAUTION
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please refer to the ArubaOS User
Guide/Aruba Instant User Guide for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande fréquence 2.4 GHz et 5 GHz. Merci de vous
referrer au ArubaOS User Guide/Aruba Instant User Guide pour les details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet. Weitere Informationen bezlüglich
Einschränkungen finden Sie im ArubaOS User Guide/Aruba Instant User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare riferimento alla ArubaOS User Guide/
Aruba Instant User Guide per avere informazioni detagliate sulle restrizioni.
The instructions for this section are applicable to the AP-365 and AP-367 only.
Aruba Networks, Inc. in compliance with governmental requirements, has designed the 360 Series access
points so that only authorized network administrators can change the settings. For more information about
access point configuration, refer to the ArubaOS Quick Start Guide/Aruba Instant Quick Start Guide and
ArubaOS User Guide/Aruba Instant User Guide.
The instructions for this section are applicable to the AP-365 and AP-367 only.
Aruba 360 Series Outdoor Access Points | Installation Guide 5
Specifically, you must verify the following conditions:
When connected to the network, each access point is assigned a valid IP address.
Access points are able to locate the controller.
Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the controller.
Outdoor Planning and Deployment Considerations
Prior to deploying an outdoor wireless network, the environment must be evaluated to plan for a
successful Aruba WLAN deployment. Successfully evaluating the environment enables the proper
selection of Aruba routers and antennas and assists in the determination of their placement for
optimal RF coverage. This process is considered WLAN or RF planning and Aruba’s system engineers
can assist in the outdoor planning process.
For WLAN systems being installed outdoors in the USA, the following requirements must be met.
1. Systems must be professionally installed by a qualified engineer familiar with WLAN, including
Aruba trained partners and resellers.
2. Operation in the 5600-5650-MHz band is prohibited.
3. When within 35 km distance of a TDWR, the center frequency of the WLAN must be separated
from the TDWR center frequency by 30 MHz.
a. If the radar is operating from 5600-5610 MHz, disable the use of channel 116 (5580 MHz).
b. If the radar is operating from 5630-5650 MHz, disable the use of channel 132 (5660 MHz).
For TWDR locations in the US please refer to www.wispa.org/tdwr-locations-and-frequencies.
Identifying Specific Installation Locations
You can mount the 360 Series access point on a wall or pole. Use the access point placement map
generated by Aruba’s RF Plan software application to determine the proper installation location(s).
Each location should be as close as possible to the center of the intended coverage area and should
be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/
interference sources will impact RF propagation and should have been accounted for during the
planning phase and adjusted for in RF plan.
Identifying Known RF Absorbers/Reflectors/Interference Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during the
installation phase is critical. Make sure that these sources are taken into consideration when you
attach an AP to its fixed location. Examples of sources that degrade RF performance include:
Cement and brick
Objects that contain water
Metal
Microwave ovens
Wireless phones and headsets
Installing the Access Point
Service to all Aruba products should be performed by an AMCP certified technician or similar.
6Aruba 360 Series Outdoor Access Points | Installation Guide
Using the Mounting Kits
The 360 Series can be installed on a wall or attached to a pole by using applicable mounting kits. The
AP-365/IAP-365 access point is equipped with built-in omni-directional antennas which are optimized
for horizontal mounted orientation of the 365 access point. The AP-367/IAP-367 access point is
equipped with built-in directional antennas which are optimized for vertical mounted orientation of
the 367 access point.
Grounding the AP
The grounding must be completed before powering up the access point. The grounding wire should
be #8 AWG.
1. Peel the cover of one end of the grounding wire and place the bare grounding wire into the
included copper lug, and press firmly with the crimping pliers.
2. Fasten the copper lug to the grounding hole on the AP with the included M4 x6 screw.
Connecting the Ethernet Cable
To connect the Ethernet cable to the access point, perform the following steps using the cable gland
that ships with your access point.
Table 4 Applicable Mounting Kits for 360 Series
Part Number Description Applicable for
AP-365/IAP-365?
Applicable for
AP-367/IAP-367?
AP-270-MNT-V1 Long mount kit for wall and vertical pole
mounting, 300 mm from vertical mounting
asset.
Yes No
AP-270-MNT-V2 Short mount kit for wall and vertical pole
mounting, 75 mm from vertical mounting asset. Yes No
AP-270-MNT-H1 Hanging mount kit for hanging from inclined or
horizontal structure. Yes Yes
AP-270-MNT-H2 Flush mount kit for wall and ceiling mounting. Yes Yes
The 360 Series access point does not ship with any mounting kits. These mounting kits are available as
accessories and must be ordered separately.
For installation instructions on AP-270-MNT-V1, AP-270-MNT-V2, AP-270-MNT-H1 and AP-270-MNT-H2, please
refer to the AP-270-MNT-V1 Installation Guide, AP-270-MNT-V2 Installation Guide, AP-270-MNT-H1 Installation
Guide and AP-270-MNT-H2 Installation Guide respectively.
WARNING
Failure to use the included Ethernet cable gland can lead to connectivity and POE issues.
The cable is not included and must be purchased separately. Purchase a suitable UV-resistant, outdoor rated,
CAT 5E or better RJ45 cable for use with the access point.
Aruba 360 Series Outdoor Access Points | Installation Guide 7

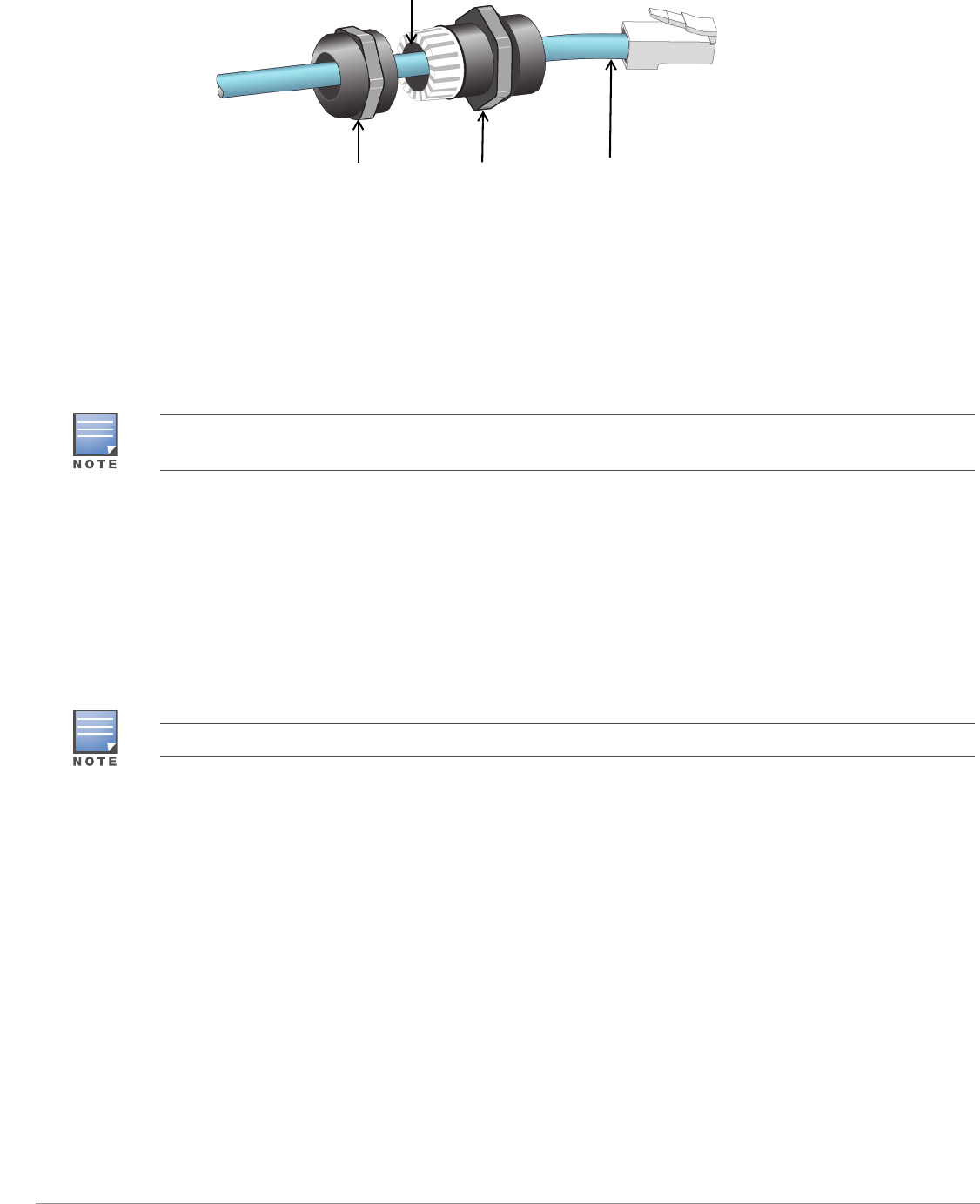

Figure 3 Installing the Cable Gland
1. Slide the sealing nut over the cable (without the RJ45 connector attached to the end).
2. Slide the clamping ring over the cable.
3. Using a crimping tool, attach the shielded RJ45 connector to the end of the cable.
4. Remove the weatherproof cap on the Ethernet port.
5. Insert the RJ45 connector to the Ethernet port.
6. Screw the clamping ring onto the Ethernet port.
7. Screw the sealing nut onto the clamping ring.
Verifying Post-Installation Connectivity
The integrated LED on the AP can be used to verify that the access point is receiving power and
initializing successfully (see l and l). Refer to the ArubaOS Quick Start Guide for further details on
verifying post-installation network connectivity.
Configuring the Access Point
Access Point Provisioning/Reprovisioning
Provisioning parameters are unique to each access point. These local access point parameters are
initially configured on the controller which are then pushed out to the AP and stored on the AP itself.
Aruba recommends that provisioning settings be configured via the ArubaOS Web UI only. Refer to
the ArubaOS User Guide for complete details.
Access Point Configuration
Configuration parameters are network or controller specific and are configured and stored on the
controller. Network configuration settings are pushed out to the AP(s) but remain stored on the
controller.
Configuration settings can be configured via the ArubaOS Web UI or ArubaOS CLI. Refer to the
ArubaOS User Guide for complete details.
Sealing Nut Clamping Ring CAT 5E or Better Cable
Seals
The seals inside the clamping ring by factory default is applicable for cables with 5-8.5 mm diameter. In the
cable gland kit, another seals is provided for use with the cables with 7-10 mm diameter.
The instructions for this section are applicable to the AP-365 and AP-367 only.
© Copyright 2016 Hewlett Packard Enterprise Development LP
www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: 408.227.4500
Fax 408.227.4550
a Hewlett Packard
Enterprise company
8Aruba 360 Series Outdoor Access Points | Installation Guide
Contacting Aruba Networks
Open Source Code
This product includes code licensed under the GNU General Public License, the GNU Lesser General Public
License, and/or certain other open source licenses. A complete machine-readable copy of the source code
corresponding to such code is available upon request. This offer is valid to anyone in receipt of this information
and shall expire three years following the date of the final distribution of this product version by Hewlett Packard
Enterprise Company. To obtain such source code, send a check or money order in the amount of US $10.00 to:
Hewlett Packard Enterprise Company
Attn: General Counsel
3000 Hanover Street
Palo Alto, CA 94304
USA
Warranty
This hardware product is protected by an Aruba warranty. For details, see Aruba Networks standard warranty
terms and conditions.
Website Support
Main Site arubanetworks.com
Support Site support.arubanetworks.com
Airheads Social Forums and Knowledge
Base community.arubanetworks.com
North American Telephone 1-800-943-4526 (Toll Free)
1-408-754-1200
International Telephones arubanetworks.com/support-services/contact-support/
Software Licensing Site licensing.arubanetworks.com/
End of Support Information arubanetworks.com/support-services/end-of-life-products/
end-of-life-policy/
Security Incident
Response Team (SIRT) arubanetworks.com/support-service/security-bulletins/
Support Email Addresses
Americas, EMEA, and APAC support@arubanetworks.com
Security Incident
Response Team (SIRT) sirt@arubanetworks.com
Aruba 360 Series Outdoor Access Point
Regulatory Compliance and Safety Information Guide
0511954-01 | October 2016 1
Introduction
This document contains domestic and international regulatory compliance and safety information for the access
point. To ensure that this device complies with the regulatory standards for your region, please refer to the
sections below.
Electrical and Environmental Specifications
Regulatory Information
Proper Disposal of Aruba Equipment
Electrical and Environmental Specifications
For additional specifications on this product, please refer to the product data sheet at www.arubanetworks.com.
Electrical
Ethernet:
One 10/100/1000 Base-T auto-sensing Ethernet interface (RJ-45)
Power:
Maximum (worst-case) power consumption: 12.95W (802.3af PoE)
Power over Ethernet (PoE): 802.3af complaint source
Connect only to IEC 60950-1 or IEC 60601-1 3rd edition products and power sources.
Environmental
Operating:
Temperature: -40°C to +50°C (-40°F to +122°F)
Humidity: 5% to 93% non-condensing
Storage and transport
Temperature: -40°C to +70°C (-40°F to +158°F)
Regulatory Information
The following regulatory model names apply to the 360 Series access points:
AP-365/IAP-365: APEX0365
AP-367/IAP-367: APEX0367
Aruba provides a multi-language document that contains country-specific restrictions and additional safety and
regulatory information for all Aruba access points. This document can be viewed or downloaded from the
following location: www.arubanetworks.com/safety_addendum.
FCC
This device is electronically labeled.
To view the FCC ID for controller-managed access points:
1. Log into the controller WebUI
2. Navigate to Maintenance > Controller > About
!
All Aruba access points should be professionally installed by an Aruba Certified Mobility Professional (ACMP).
The installer is responsible for ensuring that grounding is available and meets applicable national and electrical
codes.
!
Tous les points d'accès Aruba doivent impérativement être installés par un professionnel agréé. Ce dernier
doit s'assurer que l'appareil est mis à la terre et que le circuit de mise à la terre est conforme aux codes
électriques nationaux en vigueur.
2Aruba 360 Series Outdoor Access Point | Regulatory Compliance and Safety Information Guide
To view the FCC ID for Instant access points:
1. Log into the virtual controller WebUI
2. Navigate to Maintenance > About
FCC Class B Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio or TV technician for help.
Industry Canada
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
Déclaration d’Industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
!
RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits. This
equipment must be installed and operated in accordance with provided instructions and the antenna(s) used
for this transmitter must be installed to provide a separation distance of at least 20cm from all persions and
must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provided with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
!
Déclaration sur les limites d'exposition aux radiofréquences :cet équipement est conforme aux limites
d'exposition aux rayonnements radioélectriques spécifiées par la FCC. Il doit être installé et utilisé à une
distance minimale de 20 cm par rapport à votre corps pour les fréquences de 2,4 et 5 GHz. Cet émetteur-
récepteur ne doit pas être utilisé ou situé à proximité d'autres antennes ou émetteurs-récepteurs.
!
The device could automatically discontinue transmission in case of absence of information to transmit, or
operational failure. Note that this is not intended to prohibit transmission of control or signaling information
or the use of repetitive codes where required by the technology.
!
Any changes or modifications not expressly approved by the grantee of this device could void the user’s
authority to operate this equipment.
!
Toute modification effectuée sur cet équipement sans l'autorisation expresse de la partie responsable de la
conformité est susceptible d'annuler son droit d'utilisation.
Aruba 360 Series Outdoor Access Point | Regulatory Compliance and Safety Information Guide 3
EU Regulatory Conformance
Aruba Networks Inc., hereby declares that the 320 Series Wireless Access Points are in compliance
with directives listed below:
EMC Directive 2014
Low Voltage Directive 2014
R&TTE Directive 1999
REACH Regulation (EC) No.: 1907/2006
RoHS Directive 2011
WEEE Directive 2012
A Declaration of Conformity for these directives is available for viewing at www.arubanetworks.com.
EMC Class B Warning
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로 하며 , 모든 지역에서 사용할 수 있습니다 .
!
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator and your
body.
!
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement
non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la
source de rayonnement et votre corps.
!
(i) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-
5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and
non-point-to-point operation as appropriate; and
(ii) Users should also be advised that high power radars are allocated as primary users (i.e. priority users) of
the bands 5650-5850MHz and that these radars could cause interference and/or damage to LE-LAN devices.
!
(i) pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis (pour les dispositifs
utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation
point à point et l'exploitation non point à point, selon le cas;
(ii) Les utilisateurs devraient aussi être avisés, d’une part, que les utilisateurs de radars de haute puissance
sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) des bandes de 5 650 à 5 850 MHz et, d’autre
part, que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs de RL-EL.
!
This radio transmitter (IC: 4675A-APEX0365367) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this
list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with
this device.
!
Le présent émetteur radio (IC: 4675A-APEX0365367) a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés ci dessous et ayant un gain admissible maximal. Les types d'antenne non
inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
4Aruba 360 Series Outdoor Access Point | Regulatory Compliance and Safety Information Guide
RF Warning
해당무선설비는 전파혼신의 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다
Medical
1. Equipment not suitable for use in the presence of flammable mixtures.
2. Connect to only IEC 60950-1 or IEC 60601-1 3rd edition certified products and power sources. The end user is
responsible for the resulting medical system complies with the requirements of IEC 60601-1 3rd edition.
3. Wipe with a dry cloth, no additional maintenance required.
4. No serviceable parts, the unit must be sent back to the manufacturer for repair.
5. No modifications are allowed without Aruba approval.
第十二條
　　經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計
之特性及功能。
第十四條
　　低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時
方得繼續使用。
　　前項合法通信，指依電信法規定作業之無線電通信。
　　低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。
Proper Disposal of Aruba Equipment
Dispose of Aruba products per local regulation. For the most current information about Global Environmental
Compliance and Aruba products, see our website at www.arubanetworks.com.
Waste of Electrical and Electronic Equipment
Aruba products at end of life are subject to separate collection and treatment in the EU
Member States, Norway, and Switzerland and therefore are marked with the symbol shown at
the left (crossed-out wheelie bin). The treatment applied at end of life of these products in
these countries shall comply with the applicable national laws of countries implementing
Directive 2002/96EC on Waste of Electrical and Electronic Equipment (WEEE).
India RoHS
This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules,
governed by the Ministry of Environment & Forests, Government of India.
European Union RoHS
Aruba products also comply with the EU Restriction of Hazardous Substances Directive
2011/65/EC (RoHS). EU RoHS restricts the use of specific hazardous materials in the
manufacture of electrical and electronic equipment. Specifically, restricted materials
under the RoHS Directive are Lead (including Solder used in printed circuit assemblies),
Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Aruba products are subject to the exemptions
listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). Products and packaging will
be marked with the “RoHS” label shown at the left indicating conformance to this directive.
Expected Service Life 10 years. For additional compliance information, refer to the label on the side of this device.
© Copyright 2016 Hewlett Packard Enterprise Development LP
www.arubanetworks.com
Phone: 408.227.4500
Fax: 408.227.4550
5Aruba 360 Series Outdoor Access Point | Regulatory Compliance and Safety Information Guide
China RoHS
Aruba products also comply with China environmental declaration requirements and are labeled
with the “EFUP 10” label shown at the left.
10
ssemblies)
Plastic and Polymeric Parts)
Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts
This table shows where these substances may be found in the supply chain of
products, as
of the date of sal
(
The Environment
Friendly Use Period (EFUP) for all enclosed products and their parts are
per the symbol shown here. The Environment
Friendly Use Period is valid only when the
product is operated under the conditions defined in the product manual.

Navigation menu
