Aruba 318 Series Wireless Access Point
Installation Guide
Rev 03 | February 2018 1
The Aruba 318 Series access points support IEEE 802.11ac Wave 2 standard, delivering high performance with
the MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g/n
wireless services.
The 318 Series wireless access point provides the following capabilities:
IEEE802.11a/b/g/n/ac operation as a wireless access point
IEEE802.11a/b/g/n/ac operation as a wireless air monitor
IEEE802.11a/b/g/n/ac spectrum monitor
Compatibility with IEEE 802.3at PoE
Guide Overview
“Hardware Overview” on page2 provides a detailed hardware overview of the 318 Series access points.
“Before You Begin” on page4 provides key questions to ask and items to consider when deploying a wireless
network.
“Installing the AP” on page6 describes the multi-step process for a successful installation and deployment of
the 318 Series access points.
“Safety and Regulatory Compliance” on page10 provides an overview of safety and regulatory compliance
information.
Package Contents
318 Series access point
Ethernet cable gland x1
USB console cable
Copper lug x1
M4 x 6 screw x1
Startup guide
Simplified Declaration of Conformity
The weatherproof caps for Ethernet and Console interfaces are connected to the access point, not loose in the
package.
Mounting kits for use with the 318 Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
2Aruba 318 Series Wireless Access Point | Installation Guide
Hardware Overview

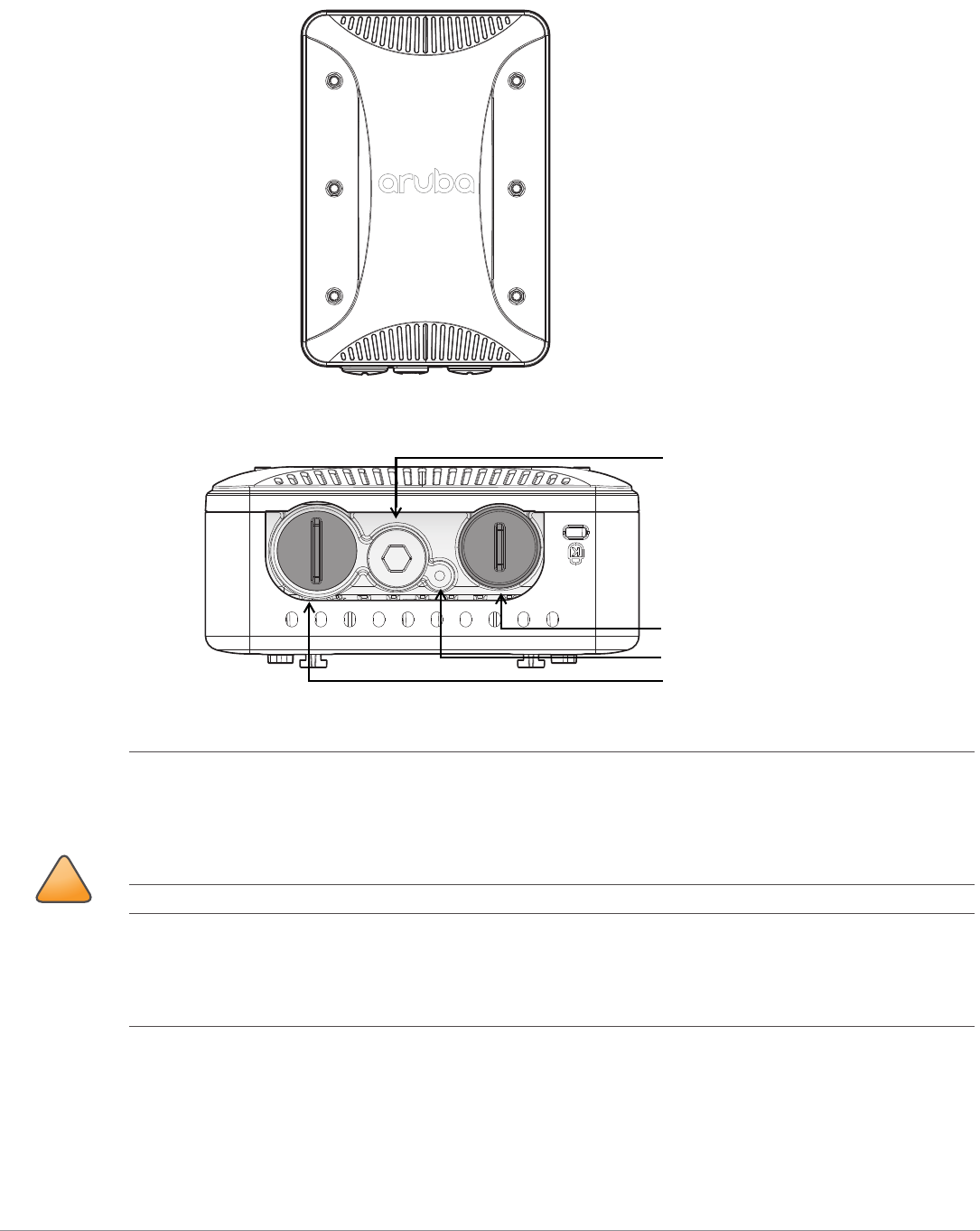

Figure 1 318 Series Front View
Figure 2 318 Series Bottom View
LED
The 318 Series access point is equipped with one LED that indicates the system status of the access point.
E0/POE
E1/SFP
Grounding Point
USB Console Port, Reset button and LED
!
CAUTION
External antennas for this device must be installed by an Aruba Certified Mobility Professional (ACMP) or other
Aruba-certified technician, using manufacturer-approved antennas only.
The Equivalent Isotropically Radiated Power (EIRP) levels for all external antenna devices must not exceed the
regulatory limit set by the host country/domain.
Installers are required to record the antenna gain for this device in the system management software. A list of
approved antennas can be found at: http://www.arubanetworks.com/assets/og/OG_AP-318Series.pdf.
Les antennes externes pour cet appareil doivent être installées par un professionnel de la mobilité certifié Aruba
(ACMP) ou un autre technicien certifié Aruba, en utilisant uniquement des antennes approuvées par le fabricant.
Les niveaux équivalents de puissance à rayonnement isotrope (EIRP) pour tous les périphériques d'antenne
externe ne doivent pas dépasser la limite réglementaire définie par le pays hôte / domaine.
Les installateurs doivent enregistrer le gain d'antenne pour cet appareil dans le logiciel de gestion du système.
Aruba 318 Series Wireless Access Point | Installation Guide 3
Table 1 318 Series LED Meanings during Boot Up
Table 2 318 Series LED Meanings during Operation
USB Console Port
The USB Micro-B console port allows you to connect the access point to a laptop or serial console for direct
management. Use the included USB console cable to connect the access point. You can download the necessary
driver for USB-UART adapter from support.arubanetworks.com under the Tools & Resources tab.
Use the following setting to access the terminal:
Reset Button
The reset button can be used to return the access point to factory default settings. To reset the access point:
1. Power off the access point.
2. Press and hold the reset button using a small, narrow object, such as a paper clip.
3. Power-on the access point without releasing the reset button. The system LED will flash within 5 seconds.
4. Release the reset button.
The system LED will flash again within 15 seconds indicating that the reset is completed. The access point will
now continue to boot with the factory default settings.
LED Color/State Meaning
System LED Off No power to AP
Red Initial power-up
Green - Flashing AP booting
Green - Steady AP ready and 1000Mbps Ethernet link established. The LED
turns off after 1200 seconds
Green - Yellow, 6 seconds
period AP ready and 10/100Mbps Ethernet link established. The LED
turns off after 1200 seconds
LED Color/State Meaning
System LED Solid Red General fault
One blink off every 3
seconds Radio 0 fault (5 GHz)
Two quick blink off 0.5
seconds apart cycled every
3 seconds
Radio 1 fault (2.4GHz)
You need a proper Allen wrench (8mm) to open the cover of the USB Console port.
Table 3 Console Settings
Baud Rate Data Bits Parity Stop Bits Flow Control
9600 8 None 1 None
4Aruba 318 Series Wireless Access Point | Installation Guide
Ethernet Port
318 Series access point is equipped with one 10/100/1000 Base-T auto-sensing MDI/MDX Ethernet port. This port
supports wired-network connectivity, in addition to Power over Ethernet (PoE) from IEEE 802.3at compliant
power sources.
This access point accepts 56V DC (802.3at) nominal as a standard powered device (PD) from a Power Sourcing
Equipment (PSE) such as a PoE midspan injector, or network infrastructure that supports PoE.
This port has an RJ-45 female connector with the pin-outs shown in Figure 3.

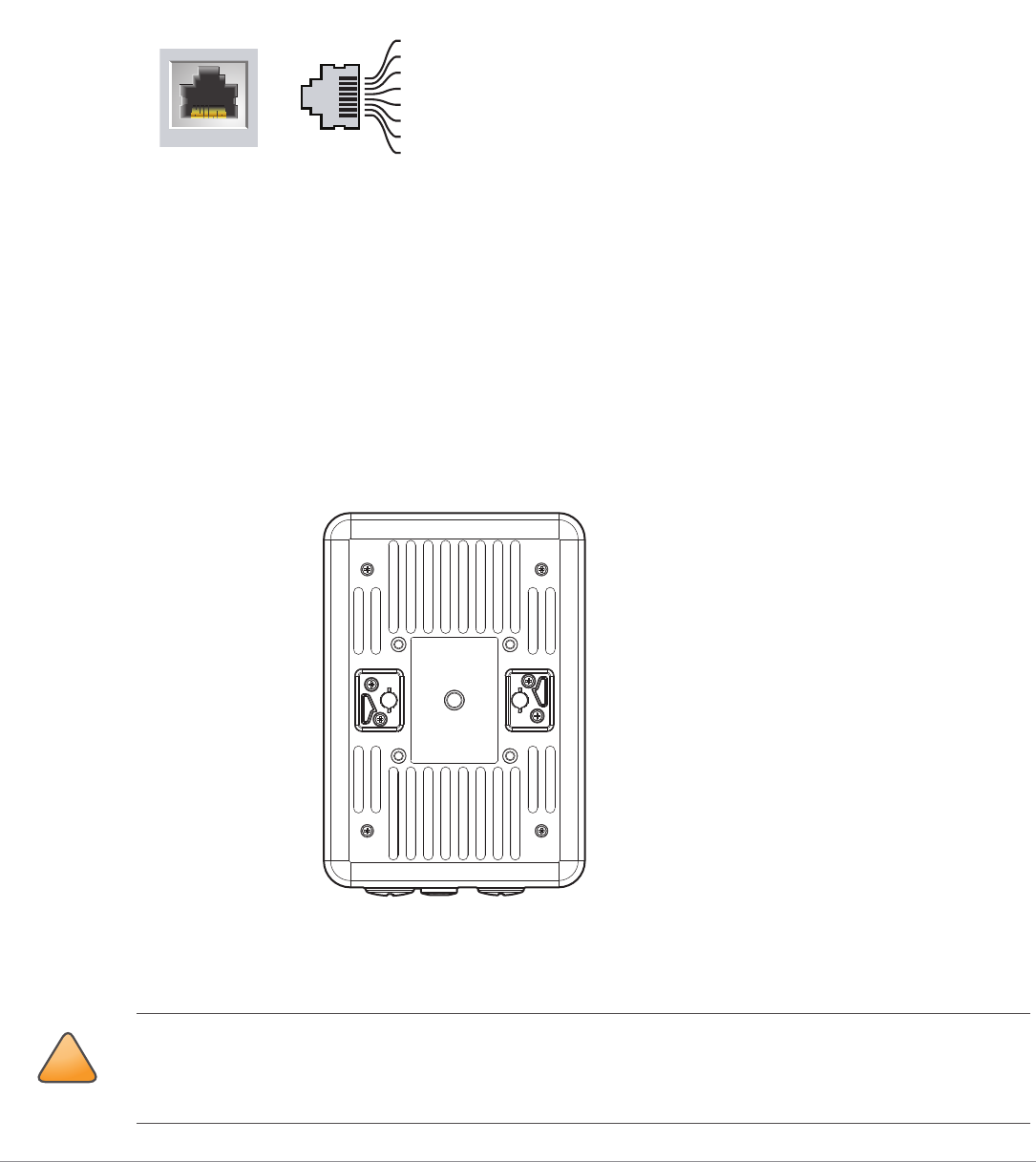

Figure 3 Gigabit Ethernet Port Pin-Out
Grounding Point
Always remember to protect the access point by installing grounding lines. The ground connection must be
complete before connecting power to the access point enclosure.
SFP Port
The 318 Series access point is equipped with one 1000 Base-X small form-factor pluggable (SFP) port for fiber-
optic network connections. The applicable SFP modules includes:
Aruba SFP-LX-EXT SFP module (part number: Q8N52A)
Aruba SFP-SX-EXT SFP module (part number Q8N53A)
The applicable SFP cable gland is Aruba CKIT-OD-SFP SFP cable gland (part number: Q8N54A). The SFP module
and cable gland are sold separately. Contact your Aruba sales representative for details.
Figure 4 318 Series Rear View
Before You Begin
1000Base-T Gigabit
Ethernet Port
RJ-45 Female
Pin-Out
Signal Name
1
2
3
4
5
6
7
8
BI_DC+
BI_DC-
BI_DD+
BI_DD-
BI_DA+
BI_DA-
BI_DB+
BI_DB-
Function
Bi-directional pair +C, POE Positive
Bi-directional pair -C, POE Positive
Bi-directional pair +D, POE Negative
Bi-directional pair -D, POE Negative
Bi-directional pair +A, POE Negative
Bi-directional pair -A, POE Negative
Bi-directional pair +B, POE Positive
Bi-directional pair -B, POE Positive
!
CAUTION
FCC Statement: Improper termination of access points installed in the United States configured to non-US
model controllers will be in violation of the FCC grant of equipment authorization. Any such willful or
intentional violation may result in a requirement by the FCC for immediate termination of operation and may
be subject to forfeiture (47 CFR 1.80).
Aruba 318 Series Wireless Access Point | Installation Guide 5
Pre-Installation Network Requirements
After WLAN planning is complete and the appropriate products and their placement have been determined, the
Aruba controller(s) must be installed and initial setup performed before the Aruba access points are deployed.
For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software version installed on your
controller.
Pre-Installation Checklist
Before installing your access point, be sure that you have the items listed below:
CAT5E UTP cable or better
IEEE 802.3at compliant PoE source
For 318 Series access point running ArubaOS only:
Aruba controller provisioned on the network
Layer 2/3 network connectivity to your access point
One of the following network services:
Aruba Discovery Protocol (ADP)
DNS server with an “A” record
DHCP Server with vendor specific options
!
CAUTION
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please refer to the ArubaOS/Instant
User Guide for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande fréquence 2.4 GHz et 5 GHz. Merci de vous
referrer au ArubaOS/Instant User Guide pour les details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet. Weitere Informationen bezlüglich
Einschränkungen finden Sie im ArubaOS/Instant User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare riferimento alla ArubaOS/Instant User
Guide per avere informazioni detagliate sulle restrizioni.
!
CAUTION
To meet regulatory restrictions, the access point must be professionally installed.
The instructions in this section are applicable to the 318 Series access points running ArubaOS only.
Aruba in compliance with governmental requirements, has designed the 318 Series such that only authorized
network administrators can change configuration settings. For more information about AP configuration, refer
to the ArubaOS Quick Start Guide and ArubaOS/Instant User Guide.
!
CAUTION
Access points are radio transmission devices and as such are subject to governmental regulation. Network
administrators responsible for the configuration and operation of access points must comply with local
broadcast regulations. Specifically, access points must use channel assignments appropriate to the location in
which the access point will be used.
6Aruba 318 Series Wireless Access Point | Installation Guide
Verifying Pre-Installation Connectivity
Before you install access points in a network environment, make sure that the access points will be able to locate
and connect to the controller when they are powered on. Specifically, you must verify the following conditions:
When connected to the network, each access point is assigned a valid IP address.
Access points are able to locate the controller.
Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the controller.
Identifying Specific Installation Locations
Use the AP placement map generated by Aruba’s RF Plan software application to determine the proper
installation location(s). Each location should be as close as possible to the center of the intended coverage area
and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/
interference sources will impact RF propagation and should have been accounted for during the planning phase
and adjusted for in RF plan.
Identifying Known RF Absorbers/Reflectors/Interference Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during the installation
phase is critical. Make sure that these sources are taken into consideration when you attach an AP to its fixed
location. Examples of sources that degrade RF performance include:
Cement and brick
Objects that contain water
Metal
Microwave ovens
Wireless phones and headsets
Installing the AP
Using Mount Kits
The 318 Series access points can be installed on a wall or attached to a pole by using mount kits. The AP-220-
MNT-W1 Mount Kit is directly compatible, while the AP-270-MNT-V1, AP-270-MNT-V2, AP-270-MNT-H1 and AP-
270-MNT-H2 mount kit are compatible when the AP-270-MNT-ADP adapter is utilized.
The instructions in this section are applicable to the 318 Series access points running ArubaOS only.
Service to all Aruba products should be performed by trained service personnel only.
Table 4 Applicable Mount Kits for 318 Series Access Point
Part Number Description
JW046A AP-220-MNT-W1 flat surface wall/ceiling black AP basic flat surface mount kit
JW047A AP-220-MNT-W1W flat surface wall/ceiling white AP basic flat surface mount kit
JW056A AP-270-MNT-ADP AP-228 to AP-270-MNT-XX Outdoor Mount Adapter
JW052A AP-270-MNT-V1 long mount kit for wall and vertical pole mounting, 300 mm from
vertical mounting asset.
Aruba 318 Series Wireless Access Point | Installation Guide 7
Grounding the Access Point
The grounding must be completed before powering up the access point. The grounding wire should be #8 AWG.
1. Peel the cover of one end of the grounding wire and place the bare grounding wire into the included copper
lug, and press firmly with the crimping pliers.
2. Fasten the copper lug to the grounding hole on the access point with the included M4 x6 screw.
Connecting the Ethernet Cable
To connect the Ethernet cable to the access point, perform the following steps using the Ethernet cable glands
that ships with your access point.

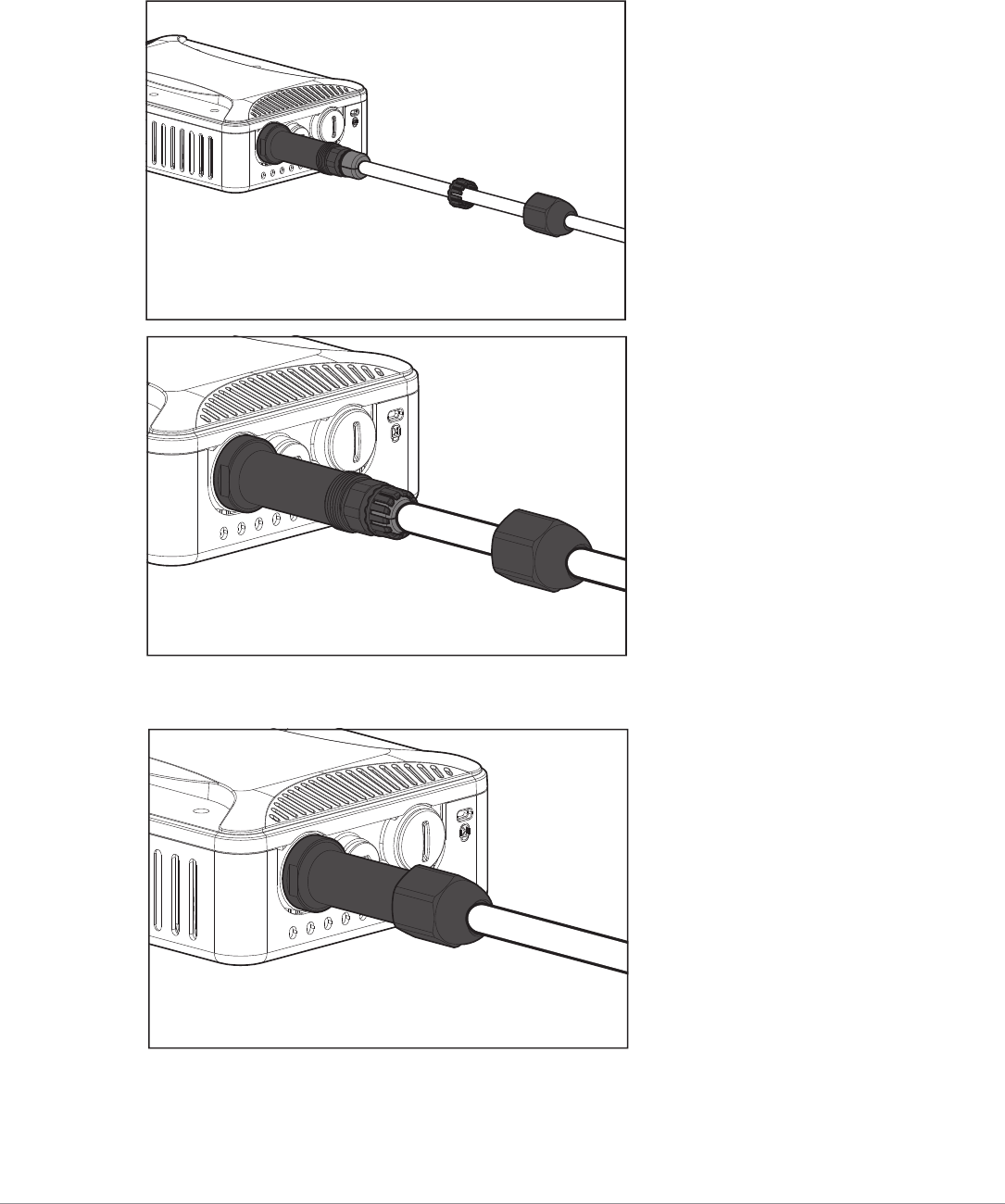

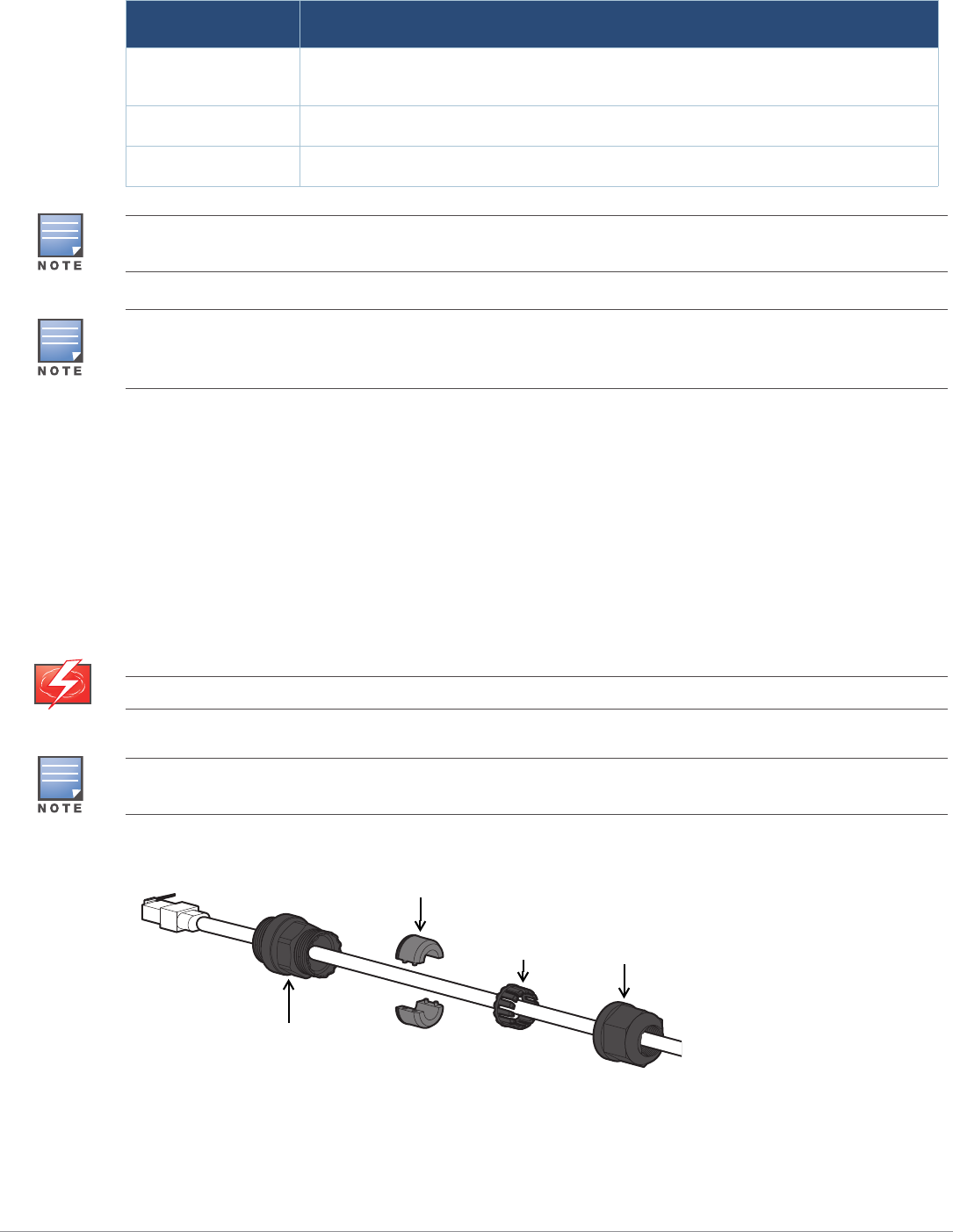

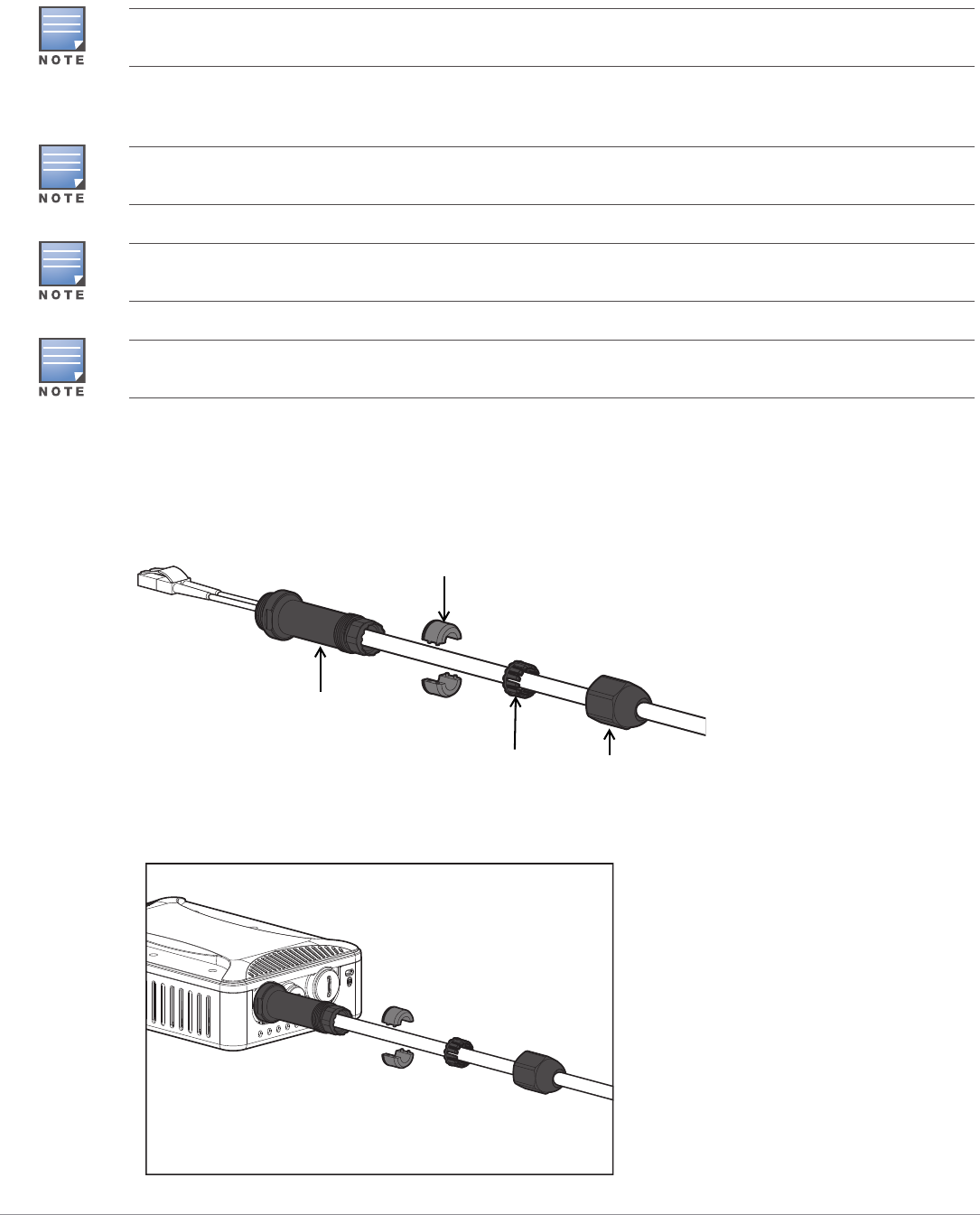

Figure 5 Installing the Ethernet Cable Gland
1. Remove the dust cap from the Ethernet port
2. Slide the sealing nut, clip, split grommet and gland body over the cable.
3. Insert the RJ45 connector to the Ethernet port.
4. Screw the gland body onto the Ethernet port.
5. Combine the two split parts of the grommet over the cable, and move it towards the gland body until it
locates at the recess of the gland body.
JW053A AP-270-MNT-V2 short mount kit for wall and vertical pole mounting, 75 mm from
vertical mounting asset.
JW054A AP-270-MNT-H1 mount kit for hanging from inclined or horizontal structure.
JW055A AP-270-MNT-H2 flush mount kit for wall and ceiling mounting.
Table 4 Applicable Mount Kits for 318 Series Access Point
Part Number Description
The 318 Series access point does not ship with any mount kits. These mount kits are available as accessories
and must be ordered separately.
For installation instructions on AP-220-MNT-W1, AP-270-MNT-V1, AP-270-MNT-V2, AP-270-MNT-H1 and AP-270-
MNT-H2 mount kit, please refer to the AP-270-MNT-V1 Installation Guide, AP-270-MNT-V2 Installation Guide, AP-
270-MNT-H1 Installation Guide and AP-270-MNT-H2 Installation Guide respectively.
WARNING
Failure to use the included Ethernet cable glands can lead to connectivity and POE issues.
The cable is not included and must be purchased separately. Purchase a suitable UV-resistant, outdoor rated,
CAT 5E or better RJ45 cable for use with the access point.
Sealing Nut
Clip
Gland Body
Split Grommet
8Aruba 318 Series Wireless Access Point | Installation Guide
6. Move the clip towards the gland body, passing over the grommet, until the wavy end of the clip properly fits
into the wavy end of the gland body.
7. Screw the sealing nut onto the gland body
Connecting the Fiber-optic Cable
To connect the fiber-optic cable to the access point, perform the following steps.
1. Remove the dust cap from the SFP port.
2. Insert the SFP module into the SFP port, and ensure it in place.
3. Slide the sealing nut, clip, split grommet and gland body over the cable.
Figure 6 Sliding the Fiber-optic Cable Gland Components over the Cable
4. Insert the optic fiber connector of the cable into the SFP module.
5. Screw the gland body onto the SFP port
Figure 7 Screwing the Gland Body onto the SFP Port
Two grommets are provided in the package for use with the Ethernet cables. One is applicable for cables with
4-6 mm diameter, and another is applicable for cables with 6-10 mm diameter.
The fiber-optic cable is not included in the package and must be purchased separately. Purchase a suitable UV-
resistant, outdoor rated cable for use with the access point.
When the fiber-optic cable (with the cable gland) is connected to the access point, the AP-270-MNT-H2 mount
kit is not applicable for mounting the access point.
When using the AP-270-MNT-H1 mount kit, the access point with the fiber-optic cable (with the cable gland)
connected can only tilt down 30 degree in maximum.
Sealing Nut
Clip
Gland Body
Split Grommet
Aruba 318 Series Wireless Access Point | Installation Guide 9
6. Combine the two split parts of the grommet over the cable, and move it towards the gland body until it
locates at the recess of the gland body.
7. Move the clip towards the gland body, passing over the grommet, until the wavy end of the clip properly fits
into the wavy end of the gland body.
Figure 8 Installing the Fiber-optic Cable Gland
8. Screw the sealing nut onto the gland body.
Figure 9 Completed Installation
Verifying Post-Installation Connectivity
10 Aruba 318 Series Wireless Access Point | Installation Guide
The integrated LEDs on the access point can be used to verify that the access point is receiving power and
initializing successfully (see Table 1 and Table 2). For instructions on initial setup and software configuration,
refer to the AP Software Quick Start Guide.
Electrical and Environmental Specifications
Electrical
Ethernet
One 10/100/1000Base-T auto-sensing Ethernet RJ-45 Interfaces
Power over Ethernet (IEEE 802.3at compliant)
Environmental
Operating
Temperature: -40ºC to 55ºC (-40ºF to 131ºF)
Storage
Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
Humidity: 5% to 93% non-condensing
For additional specifications on this product, please refer to the data sheet. The data sheet can be found at
www.arubanetworks.com.
Regulatory Model Name
The following regulatory model names apply to the 318 Series:
AP-318: APIN0318
Safety and Regulatory Compliance
FCC
To view the FCC ID for controller-managed access points:
1. Log into the controller WebUI
2. Navigate to Maintenance > Controller > About
To view the FCC ID for Instant access points:
1. Log into the virtual controller WebUI
2. Navigate to Maintenance > About
!
CAUTION
RF Radiation Exposure Statement: This equipment complies with RF radiation exposure limits. This equip-
ment should be installed and operated with a minimum distance of 13.78 inches (35 cm) between the radiator
and your body for 2.4 GHz and 5 GHz operations. This transmitter must not be co-located or operating in con-
junction with any other antenna or transmitter.
!
CAUTION
Déclaration de la concernant l’exposition aux rayonnements à fréquence radioélectrique (FR): Cet appa-
reil est conforme aux limites d’exposition aux rayonnements FR établies par la FCC. Il doit être installé et utilisé
à une distance minimale de 35 cm (13,78 pouces) entre le radiateur et votre corps, qu’il opère sur la bande 2,4
GHz ou 5 GHz. Cet émetteur ne doit pas être installé ou utilisé à proximité immédiate d’une autre antenne ni
d’un autre transmetteur.
!
CAUTION
The device could automatically discontinue transmission in case of absence of information to transmit, or ope-
rational failure. Note that this is not intended to prohibit transmission of control or signaling information or
the use of repetitive codes where required by the technology.
Aruba 318 Series Wireless Access Point | Installation Guide 11
FCC Class B Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio or TV technician for help.
Canada
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
When operated in the 5.15 to 5.25 GHz frequency range, this device is restricted to indoor use to reduce the
potential for harmful interference with co-channel Mobile Satellite Systems.
Déclaration d’Industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Pour un fonctionnement dans la bande de fréquences comprises entre 5,15 et 5,25 GHz, son utilisation est
limitée à un environnement intérieur afin de réduire la possibilité d’interférences nuisibles avec les systèmes
mobiles par satellite opérant sur le même canal.
!
CAUTION
Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
!
CAUTION
Toute modification effectuée sur cet équipement sans l'autorisation expresse de la partie responsable de la
conformité est susceptible d'annuler son droit d'utilisation.
!
CAUTION
Aruba access points must be installed by a professional installer. The professional installer is responsible for
ensuring that grounding is available and it meets applicable local and national electrical codes.
!
CAUTION
(i) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-
5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and
non-point-to-point operation as appropriate; and
(ii) Users should also be advised that high power radars are allocated as primary users (i.e. priority users) of the
bands 5650-5850MHz and that these radars could cause interference and/or damage to LE-LAN devices.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
12 Aruba 318 Series Wireless Access Point | Installation Guide
Canadian Caution
This radio transmitter model APIN0318 has been approved by Industry Canada to operate with the antenna
typeslisted in the table in the online ordering guide (link provided below) with the maximum permissible gain
indicated. Antenna types not included in this list, having a gaingreater than the maximum gain indicated for that
type, are strictly prohibited for usewith this device.
http://www.arubanetworks.com/assets/og/OG_AP-318Series.pdf
Le présent transmetteur radio modèle APIN0318 a été approuvé par Industrie Canada pour fonctionner avec les
types d'antennesindiqués dans le tableau du guide de commande en ligne (lien fourni ci-dessous) avec le gain
permissible maximum indiqué. Il est strictement défendu d'utiliser avec cet appareil lestypes d'antennes non
inclus dans cette liste, ayant un gain supérieur au gain maximumindiqué pour ce type.
http://www.arubanetworks.com/assets/og/OG_AP-318Series.pdf
EU Regulatory Conformance
Aruba hereby declares that the 318 Series wireless access points are in compliance with
directives listed below:
EMC Directive 2014
Low Voltage Directive 2014
RED Directive 2014
REACH Regulation (EC) No.: 1907/2006
RoHS Directive 2011
WEEE Directive 2012
A Declaration of Conformity for these directives is available for viewing at www.arubanetworks.com.
Medical
1. Equipment not suitable for use in the presence of flammable mixtures.
2. Connect to only IEC 60950-1 or IEC 60601-1 certified products and power sources. The end user is
responsible for the resulting medical system complies with the requirements of IEC 60601-1.
3. Wipe with a dry cloth, no additional maintenance required.
4. No serviceable parts, the unit must be sent back to the manufacturer for repair.
5. No modifications are allowed without Aruba approval.
Taiwan
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計
之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時
方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。
Brazil
Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência
em sistemas devidamente autorizados.
!
CAUTION
(i) pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis (pour les dispositifs util-
isant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation
point à point et l'exploitation non point à point, selon le cas;
(ii) Les utilisateurs devraient aussi être avisés, d’une part, que les utilisateurs de radars de haute puissance
sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) des bandes de 5 650 à 5 850 MHz et, d’autre
part, que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs de RL-EL.
Aruba 318 Series Wireless Access Point | Installation Guide 13
México
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o
dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debeaceptar cualquier interferencia,
incluyendo la que pueda causar su operación no deseada.
Proper Disposal of Aruba Equipment
For the most current information about Global Environmental Compliance and Aruba products, see our website
at www.arubanetworks.com.
Waste of Electrical and Electronic Equipment
Aruba products at end of life are subject to separate collection and treatment in the EU
Member States, Norway, and Switzerland and therefore are marked with the symbol shown
at the left (crossed-out wheelie bin). The treatment applied at end of life of these products in
these countries shall comply with the applicable national laws of countries implementing
Directive 2002/96EC on Waste of Electrical and Electronic Equipment (WEEE).
European Union RoHS
Aruba products also comply with the EU Restriction of Hazardous Substances Directive
2011/65/EC (RoHS). EU RoHS restricts the use of specific hazardous materials in the
manufacture of electrical and electronic equipment. Specifically, restricted materials
under the RoHS Directive are Lead (including Solder used in printed circuit assemblies),
Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Aruba products are subject to the exemptions
listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). Products and packaging will
be marked with the “RoHS” label shown at the left indicating conformance to this Directive.
China RoHS
Aruba products also comply with China environmental declaration requirements and are labeled
with the “EFUP 25” label shown at the left.
ᴹᴹ∂ᴹᇣ⢙䍘༠᰾
Hazardous Materials Declaration
䜘Ԧ〠
(Parts)
ᴹ∂ᴹᇣ⢙䍘ᡆݳ㍐˄Hazardous Substance˅
䫵
˄Pb˅
⊎
˄Hg˅
䭹
˄Cd˅
ޝԧ䬜
˄Cr6+˅
ཊⓤ㚄㤟
˄PBB˅
ཊⓤҼ㤟䟊
˄PBDE˅
⭥䐟⁑ඇ
(circuit modules) XOOOO O
⭥㔶৺⭥㔶㓴Ԧ
(Cables & Cable A
ssemblies)
OOOOO O
䠁䜘Ԧ
(Metal Parts) OOOOO O
ກᯉ઼㚊ਸ⢙䜘Ԧ
(
Plastic and Polymeric Parts)
OOOOO O
O: 㺘⽪䈕ᴹ∂ᴹᇣ⢙䍘൘䈕䜘Ԧᡰᴹ൷䍘ᶀᯉѝⲴਜ਼䟿൷൘ SJ/T11363-2006 ḷ߶㿴ᇊⲴ䲀䟿㾱≲
ԕлDŽ
Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts
is below the relevant threshold of the SJ/T11363-2006 standard.
X: 㺘⽪䈕ᴹ∂ᴹᇣ⢙䍘㠣ቁ൘䈕䜘ԦⲴḀа൷䍘ᶀᯉѝⲴਜ਼䟿䎵ࠪ SJ/T11363-2006 ḷ߶㿴ᇊⲴ䲀
䟿㾱≲DŽIndicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
ሩ䬰ѻᰕⲴᡰӗ૱ˈᵜ㺘ᱮ⽪ᓄ䬮Ⲵ⭥ᆀؑӗ૱ਟ㜭वਜ਼䘉Ӌ⢙䍘DŽ
This table shows where these substances may be found in the supply chain of
electronic information
products, as
of the date of sal
e of the enclosed product.
↔ḷᘇѪ䪸ሩᡰ⎹৺ӗ૱Ⲵ⧟؍֯⭘ᵏḷᘇ.ḀӋ䴦䜘ԦՊᴹањн਼Ⲵ⧟؍֯⭘ᵏ
(
ֻྲ,⭥⊐অݳ⁑ඇ)䍤൘ަӗ૱к.
↔⧟؍֯⭘ᵏ䲀ਚ䘲⭘Ҿӗ૱ᱟ൘ӗ૱ѝᡰ㿴ᇊⲴᶑԦлᐕ.
The Environment
-
Friendly Use Period (EFUP) for all enclosed products and their parts are
per the symbol shown here. The Environment
-
Friendly Use Period is valid only when the
product is operated under the conditions defined in the product manual.
www.arubanetworks.com
3333 Scott Boulevard
Santa Clara, California 95054
USA
14 Aruba 318 Series Wireless Access Point | Installation Guide
Contacting Support
Copyright
© Copyright 2018 Hewlett Packard Enterprise Development LP
Open Source Code
This product includes code licensed under the GNU General Public License, the GNU Lesser General Public
License, and/or certain other open source licenses. A complete machine-readable copy of the source code
corresponding to such code is available upon request. This offer is valid to anyone in receipt of this information
and shall expire three years following the date of the final distribution of this product version by Hewlett Packard
Enterprise Company. To obtain such source code, send a check or money order in the amount of US $10.00 to:
Hewlett Packard Enterprise Company
Attn: General Counsel
3000 Hanover Street
Palo Alto, CA 94304
USA
Warranty
This hardware product is protected by an Aruba warranty. For details, see Aruba Networks standard warranty
terms and conditions.
Software End User License Agreement
To view the Software End User License Agreement, visit http://support.arubanetworks.com, open the
Documentation tab, then select Software End User License Agreement.
Main Site arubanetworks.com
Support Site support.arubanetworks.com
Airheads Social Forums and Knowledge
Base
community.arubanetworks.com
North American Telephone 1-800-943-4526 (Toll Free)
1-408-754-1200
International Telephones arubanetworks.com/support-services/contact-support/
Software Licensing Site hpe.com/networking/support
End-of-life Information arubanetworks.com/support-services/end-of-life
Security Incident
Response Team (SIRT)
Site: arubanetworks.com/support-service/security-bulletins/
Email: sirt@arubanetworks.com
