Unified Wired-WLAN Walljack (HP 527 Dual Radio
802.11ac) quick start guide
This quick start guide shows you how to install and get started using the HP 527
Dual Radio 802.11ac Unified Wired-WLAN Walljack (RMN BJNGA-FB0005) JH048A
(AM), JH049A (WW), JH050A (JP), JH051A(IL), JH052A (20 pack AM), JH053A (20
pack WW), hereafter referred to as the HP 527.

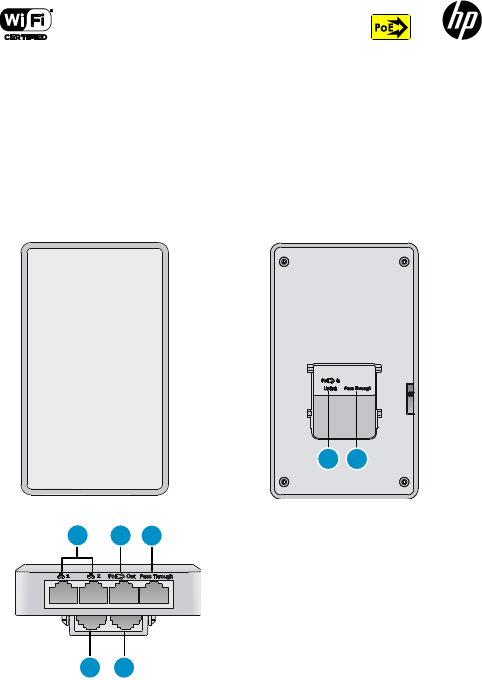

Hardware overview
Back view
1: Pass Through port
2: Uplink port
Front view
Bottom views
3: GigabitEthernet LAN ports 1 and 2
4: PoE Out GigabitEthernet LAN port 3
5: Pass Through port
1 2
345
1
2
2
Package contents
The HP 527, mounting bracket, screws, MAC address label, and documentation.
Ports
Three Gigabit Ethernet ports: Auto-sensing 1000Base-T Ethernet ports with
RJ-45 connectors.
One Gigabit Ethernet uplink port: Auto-sensing 1000Base-T Ethernet port with
RJ-45 connector.
One pair of pass-through ports: Work with Cat5 cabling as well as an analog
telephone cable.
Radio and antennas
The HP 527 supports IEEE 802.11a/b/g/n/ac. It has two internal antennas supporting
2x2 MIMO with two spatial streams at a rate of up to 850 Mbps.
Reset button
The reset button is accessible through a hole on the side panel of the HP 527. To
reset the HP 527, insert a paper clip into the reset button hole, and press and
quickly release the button. To reset the HP 527 to factory defaults, press and hold
the button more than 5 seconds until the status LEDs (Power, Radio, and Uplink)
flash, then release.
Status LEDs
Status LEDs power
PoE Out
Uplink
LAN ports 1, 2, and 3
Radio
3
Power
Uplink
Radio
LAN (1 to 3)
PoE
Description
Off
Off
Off
Off
Off
The AP has no power.
Steady orange
Off
Off
Off
Off
Power applied. If the
power LED remains
orange after several
minutes, the AP failed to
load the software.
Green, flashing
every 2 seconds
(0.5Hz)
Off
Off
Off
Off
The AP is starting up.
Green, flashing
every 2 seconds
(1Hz)
Off
Off
Off
Off
The AP is looking for an IP
address or building the list
of VLANS on which to
perform discovery.
The power, uplink, and radio LEDs are
flashing green in sequence.
Off
Off
The AP has obtained an IP
address and is attempting
to discover a controller.
Steady green
The uplink and radio
LEDs are flashing
green alternately.
Off
Off
The AP has found a
controller and is
attempting to establish a
tunnel with it.
The power and uplink LEDs
are alternately flashing green
(slowly).
Off
Off
Off
The AP is performing
Ethernet negotiation, and
is waiting for the Ethernet
link to come up.
Steady green
Off
Any
Any
Any
The uplink interface is not
connected or there is no
network activity.
Steady green
Flashing
green
Any
Any
Any
The uplink interface is
active on a valid
1000Mbps link.
Steady green
Flashing
orange
Any
Any
Any
The uplink interface is
active on a valid 100Mbps
link.
Steady green
Any
Off
Any
Any
The radio interfaces are
disabled or there is no
network activity.
Steady green
Any
Flashing
green
Any
Any
Only the 2.4GHz radio
interface is transmitting or
receiving data.
Steady green
Any
Flashing
orange
Any
Any
Only the 5GHz radio
interface is transmitting or
receiving data.
4
Power
Uplink
Radio
LAN (1 to 3)
PoE
Description
Steady green
Any
Flashing
green
and
orange
alternate
ly
Any
Any
Both 2.4GHz and 5GHz
radio interfaces are
transmitting or receiving
data.
Steady green
Any
Any
Off
Any
The uplink interface is
disabled or there is no
network activity.
Steady green
Any
Any
Flashing green
Any
The LAN interfaces are
active on a valid
1000Mbps link.
Steady green
Any
Any
Flashing
orange
Any
The LAN interfaces
are active on a valid
100Mbps link.
Steady green
Any
Any
Any
Off
No PoE device is
connected.
Steady green
Any
Any
Any
On
A PoE device is connected.
Powering the HP 527
The HP 527 can be powered by using a local power source, an uninterruptible power
supply (UPS), a user-supplied power generator, or a PoE-enabled switch that
provides 10/100 Mbps or 10/100/1000 Mbps Ethernet ports.
Before you connect power to the AP, verify that the power supply is steady.
The HP 527 supports an 802.3af PoE PSE connection to one device on LAN port 3.
This feature is dependent on the power source of the HP 527, as follows:
Supports 802.3af class 1/2/3 PoE Out when the 803.3at (PoE+) power supply
mode is used.
Do not support PoE Out when the standard 803.3af power supply mode is used.
Important information to read before installing
Professional installation is required. For indoor installation only. Before installing or
using the AP, consult with a professional installer trained in RF installation and
knowledgeable in local regulations including building and wiring codes, safety,
channel, power, and license requirements for the intended country. The end user is
responsible for ensuring that installation and use comply with local safety and radio
regulations.
5
To avoid possible bodily injury or equipment damage, read the following safety
recommendations before you install an HP 527. The recommendations do not cover
every possible hazardous condition.
Install with six inches or more of clearance around the walljack.
Keep the chassis clean and dust-free.
Make sure the ground is dry and flat and anti-slip measures are in place.
Do not place the AP in a moist area and avoid liquid surrounding the AP.
Keep the chassis and installation tools away from walkways.
Installation
1. Place the mounting bracket, with the UP arrow pointing up, on the electrical
outlet box, and then use two of the supplied mounting screws to secure the
bracket to the box.
The two long mounting screws are for a US electrical box. The two short
mounting screws are for an EU electrical outlet box.
Long mounting screw Short mounting screw
6

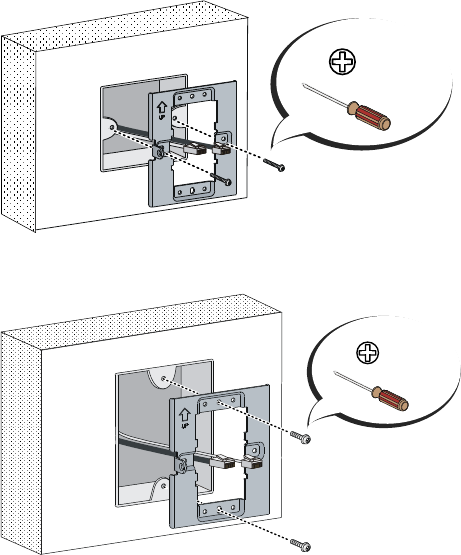

Figure 1 Securing the mounting bracket to an electrical outlet box (EU)
Figure 2 Securing the mounting bracket to an electrical outlet box (US)
M3.5 × 25
M3.5 × 25
7

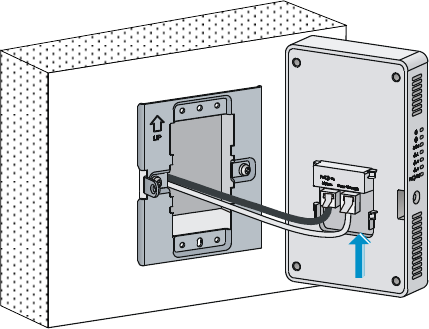

2. Connect the network cable from the box to the RJ-45 Uplink port on the back of
the HP 527. If required, also connect the cable providing support for
pass-through devices to the Pass Through port on the back of the HP 527.
Figure 3 Connecting the network cable
8
3. Align the installation hole in the rear of the AP with the standout on the
mounting bracket.

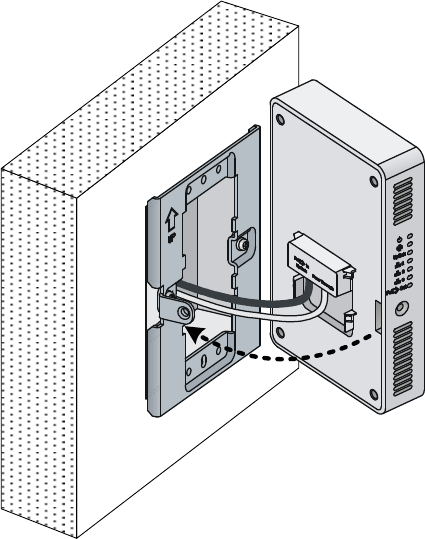

Figure 4 Aligning the installation hole
9
4. Push the HP 527 onto the mounting bracket, and then slide it down until it is
fully engaged. Then secure the AP to the bracket by using the Phillips-head
screw or the security-head security Torx-10 screw.
Do not let go of the HP 527 until you confirm that it is securely in place.

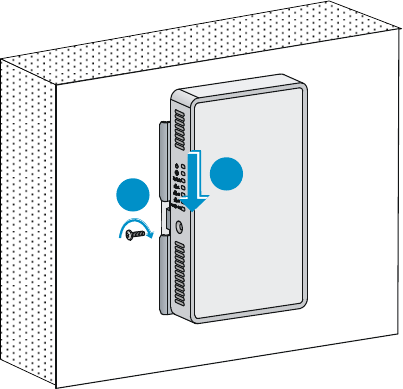

Figure 5 Securing the AP
1
2
/ PC
Wireless AP
10

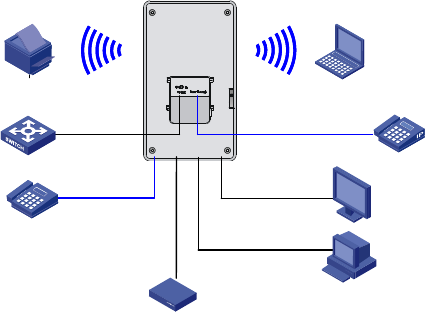

Provided access services
After the installation is complete, connect equipment to the HP 527 as follows:
Technical support
For worldwide technical support information, see the HP support website at
www.hp.com/networking/support.
Other regulatory information
For important safety, environmental, and regulatory information, see Safety and
Compliance Information for Server, Storage, Power, Networking, and Rack Products,
available at www.hp.com/support/Safety-Compliance-EnterpriseProducts.
Caution
This product can’t use channel 12/13 for 2.4GHz band and the country code is
locked that the users can’t modify it.
Printer Laptop
Phone
IP
Phone
PoE Switch
IP TV
PC
Pass Through
IP
Pass Through
11
Notice for Brazil, Aviso aos usuários no Brasil

Este equipamento opera em caráter secundário, isto é, não tem direito a proteção
contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode
causar interferência a sistemas operando em caráter primário.
Notice for Mexico, Notificación México
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este
equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda
causar su operación no deseada.
Notice for Korea
B 급 기기
( 가정용 방송통신 기자재 )
이 기기는 가정용 (B 급 ) 전자파
적합기기로서주 로 가정에서 사용하는 것을
목적으로 하며 , 모든 지역에서 사용할 수
있습니다 .
Class B (broadcasting
communication device for home
use)
This device obtained EMC registration mainly
for home use (Class B) and may be used in all
areas.
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수
없음
Notice for Taiwan
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者
均 不得擅自變更頻率、加大功率或變更原設計之特性及功能
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干 擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合
法通 信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受
合法通 信或工業、科學及醫療用電波輻射性電機設備之干擾。
12
Eurasian Economic Commission
Евразийская экономическая комиссия
Еуразиялық экономикалық комиссия
Євразійська економічна комісія
HP 527 Dual Radio 802.11ac Unified Wired-WLAN Walljack (JH049A)
Точка доступа HP 527 Single Radio 802.11n Устройство Unified
Wired WLAN Walljack (JG972A)
HP 527 Single Radio 802.11n бірыңғай сымды WLAN қабырға
розеткасы (JG972A)
Настінна об’єднана дротова точка доступу HP 527 802.11n WLAN
з одним радіомодулем (JG972A)
(RMN BJNGA-FB0003)
13
Manufacturer
Производитель
Өндіруші
Виробник
Hewlett-Packard Company, 3000 Hanover
Street, Palo Alto, California 94304-1185, U.S.A
Made In China
Изготовлено в Китае
Қытайда жасалған
Виготовлено в Китаї
Local Representatives
Местные представители
Жергілікті өкілдері
Місцеві представники
HP Russia:ЗАО «Хьюлетт-Паккард А.О.», 125171, Россия,
Москва, Ленинградское шоссе, 16А, стр. 3
Тел./факс: +7 (495) 797 35 00/+7 (495) 287 89 05
HP Belarus: ИООО «Хьюлетт-Паккард Бел», 220030,
Беларусь, г. Минск, ул. Интернациональная, 36-1
Тел./факс: +375 (17) 392 28 18, +375 (17) 392 28 21
HP Kazakhstan: ТОО «ХЬЮЛЕТТ-ПАККАРД (К)», 050040
Республика Казахстан, г. Алматы, ул. Тимирязева 28В,
бизнес-центр «Алатау Гранд», 1й этаж
Тел./факс: +7 (727) 355 35 5 0/+7 (727) 355 35 5 1
HP Kazakhstan: ЖШС «Хьюлетт-Паккард (К)», 050040,
Қазақстан, Алматы қ., Бостандық ауданы, Тимирязев к-сі, 28В,
тел./факс: +7 (727) 355 35 50, +7 (727) 355 35 51
Product overview
The HP 527 Access Point supports IEEE 802.11a/b/g/n/ac. It has two internal
antennas supporting 2x2 MIMO with two spatial streams at a rate of up to 850
Mbps. The Access Point has three Gigabit Ethernet ports, one Gigabit Ethernet
uplink port and one pair of pass-through ports.
14
Обзор продукта
Өнімді жалпы шолу
Огляд продукту
Manufacturing date
The manufacturing date is defined by the serial number.
CCYMBBBZZZ (HP serial number format for this product)
Valid date formats include:
Y (Y) = Year of Manufacture (Where Y indicates the year counting from within
each new decade, with 2000 as the starting point. For example, 2 for 2002.
The year 2010 is indicated by 0, 2011 by 1, and so forth. YY indicates the year
using a base year of 2000. For example, 02 for 2002 and 12 for 2012)
M (M) = Month of Manufacture (For M, 1-9 for January to September, 0 for
October, A for November, B for December. For MM, actual calendar month
1-12)
Дата изготовления
Дата изготовления определяется по серийному номеру.
CCYMBBBZZZ (формат серийных номеров HP для данного изделия)
Действительные форматы даты:
Y (Y) = год производства (где Y обозначает год, отсчитываемый в каждом
новом десятилетии, начиная с 2000. Например, 2 для 2002. Для
обозначения 2010 используется 0, для 2011 – 1 и т. д. YY обозначает год,
при этом базовым годом является 2000. Например, 02 обозначает 2002,
12 обозначает 2012)
M (M) = месяц производства (где для M цифры с 1 по 9 обозначают
месяцы с января по сентябрь соответственно, 0 обозначает октябрь, A –
ноябрь, B – декабрь. MM обозначает календарный месяц с 1 по 12)
15
Өндірілген күні
Өндірілген күні сериялық нөмір арқылы анықталады.
CCYMBBBZZZ (Осы өнімге арналған HP сериялық нөмірі)
Жарамды күн пішімдері келесіні қамтиды:
Y (Y) = Жасалған жылы (мұнда Y әрпі 2000 бастапқы нүктесінен бастап
әрбір жаңа декада ішінде есептелетін жылды көрсетеді. Мысалы, 2 саны
2002 жылды көрсетеді. 0 саны 2010 жылды, 1 саны 2011 жылды және т.с.с.
2000 бастапқы жыл болып, YY әріптері жылды көрсетеді. Мысалы, 02 саны
– 2002 жылды және 12 саны 2012 жылды көрсетеді)
M (M) = Жасалған айы (мұнда M, 1-9 сандары қаңтар мен қыркүйек
аралығындағы айларды, 0 саны қазан айын, A әрпі қараша айын және B
әрпі желтоқсан айын білдіреді. Мұнда MM әріптері 1-12 аралығындағы
нақты күнтізбе айын білдіреді)
Дата виробництва
Дата виробництва зашифрована в серійному номері.
Формат серійного номера HP для цього продукту: CCYMBBBZZZ
Нижче наведено можливі формати дати виготовлення.
Y (Y) — рік виготовлення, де Y указує на останню цифру року (відлік
ведеться з 2000 р.). Наприклад, 2 позначає 2002 рік, 0 — 2010, 1 — 2011
тощо. YY указують на дві останні цифри року, починаючи з 2000-го.
Наприклад, 02 означає 2002 рік, а 12 — 2012 рік.
M (M) — місяць виробництва. Для значення M можуть використовуватися
цифри або літери: цифри 1–9 позначають місяці із січня по вересень, 0 —
жовтень, A — листопад, B — грудень. Варіант MM — це традиційне
позначення календарного місяця (з 1-го по 12-й).
Environmental Conditions
Operating temperature:
32°F to 115°F (0°C to 45°C)
Operating relative humidity:
5% to 95%, noncondensing
Non-operating/Storage temperature:
–40°F to +158°F (–40°C to +70°C)
Non-operating/Storage relative
humidity:
5% to 95%, noncondensing
16
Altitude:
Up to 13,123 ft (4 km)
Условия окружающей среды
Рабочая температура:
от 32 до 115°F (от 0 до 45°C)
Относительная влажность при
эксплуатации:
от 5% до 95%, без конденсации
Температура при отсутствии
эксплуатации/при хранении:
от -40 до +158°F (от -40 до +70°C)
Относительная влажность при
отсутствии эксплуатации/при
хранении:
от 5% до 95%, без конденсации
Высота над уровнем моря:
до 13 123 футов (4 км)
Қоршаған орта шарттары
Жұмыс температурасы:
0°C – 45°C (32°F – 115°F)
Жұмыс істейтін салыстырмалы ауа
ылғалдылығы:
5% - 95%, конденсацияланбаған
Жұмыс істемейтін/Сақтау
температурасы:
-40°C пен +70°C (-40°F пен +158°F)
Жұмыс істемейтін/Сақтау
салыстырмалы ауа ылғалдылығы:
5% - 95%, конденсацияланбаған
Биіктік:
4 км-ға дейін (13 123 фут)
Умови експлуатації
Температура (робоча):
від 0 до 45 ℃ (від 32 до 115 ℃)
Відносна вологість (робоча):
від 5 до 95% (без конденсації)
Температура (неробоча/для
зберігання):
від –40 до +70 °C (від –40 до
+158 °F)
Відносна вологість (неробоча/для
зберігання):
від 5 до 95% (без конденсації)
17
Висота над рівнем моря:
до 4 км (13 123 футів)
Specifications
Physical characteristics
Dimensions:
150 × 86 × 35 mm (5.9× 3.39 × 1.38 in)
Weight:
0.24 kg (8.47 oz)
Mounting position:
Standard US or EU electrical box
Electrical characteristic
PoE
IEEE 802.3af and 802.3at PoE compliant
for Gigabit Ethernet
Power adapter
Input : 100 VAC to 240 VAC,
Output :+48 V @ 0.63 A
Ports
Ethernet ports
A 10/100/1000 Mbps uplink Ethernet
port that supports PoE In.
Three 10/1000 Mbps downlink Ethernet
ports, one of which supports PoE Out.
A pair of RJ-45 Pass Through ports.
48V DC
The local power port is used for
connecting +48 VDC power to the
device.
Console
Micro USB console port
USB
Standard USB port
18
Memory and processor
CPU
Atheros AR9557
Storage media
Nor Flash 4MB, Nand Flash 128MB
Memory
DDR2 256
Performance
Radios
802.11 a/b/g/n/ac
Radio operation modes
Client access, Local mesh, Packet
capture
AP operation modes
Managed
Wi-Fi Alliance Certification
a/b/g/n/ac Wi-Fi Certified
Технические характеристики
Физические характеристики
Размеры:
120 x 86 x 35 мм (4,72 x 3,39 x 1,38
дюйма)
Вес:
0,19 кг (6,70 унции)
Монтажное положение:
стандартный распределительный
шкаф для США или стран
Европейского Союза
Электрические характеристики
Соответствие стандартам IEEE 802.3af
и 802.3at PoE для Gigabit Ethernet
19
Порты
Порт Ethernet восходящей связи
10/100/1000 Мбит/с,
поддерживающий PoE In.
Три порта Ethernet нисходящей связи
10/100 Мбит/с, один из которых
поддерживает PoE Out.
Пара портов сквозного переключения
RJ-45.
Процессор и память
ЦП
Одноядерный, 560 МГц, AR9344
Носитель данных
Nor Flash 4 Мбайт, Nand Flash 128
Мбайт
Память
DDR2, 128 Мбайт
Производительность
Радиомодули
802.11 b/g/n
Режимы работы радиомодулей
Клиентский доступ, локальная сеть,
захват пакетов
Режимы работы точки доступа
Управляемое
Сертификат партнера Wi-Fi
Сертификат b/g/n Wi-Fi
Техникалық сипаттары
Физикалық сипаттамалары
Өлшемдер:
120 × 86 × 35 мм (4.72 × 3.39 × 1.38
дюйм)
Салмағы:
0,19 кг (6.70 унция)
Бекіту позициясы:
Стандартты АҚШ немесе ЕО электр
шкафы
20
Электрикалық сипаттамасы
Gigabit Ethernet үшін үйлесімді IEEE
802.3af PoE және 802.3at PoE
Порттар
PoE In мүмкіндігіне қолдау көрсететін
10/100/1000 Мбит/с Ethernet порты;
Үш 10/100 Мбит/с Ethernet порты,
олардың біреуі PoE Out мүмкіндігіне
қолдау көрсетеді;
Екі RJ-45 өтпелі порты.
Жад және процессор
Орталық процессор
562 МГц жиілікте AR9344 бір ядролық
процессоры
Сақтау құралы
Nor типті 4 МБ флэш жады, Nand типті
128 МБ флэш жады
Жад
DDR2 128 Мбайт
Өнімділік
Радио байланысы
802.11 b/g/n
Радио байланыс режимдері
Клиенттік кіру, жергілікті аралас,
бумаларды алу
Кіру нүктесінің жұмыс режимдері
Басқарылатын
Wi-Fi Alliance сертификатталуы
b/g/n Wi-Fi сертификатталған
21
Технічні характеристики
Фізичні характеристики
Розміри:
120 × 86 × 35 мм (4,72 × 3,39 × 1,38
дюйма)
Вага:
0,19 кг (6,70 унції)
Монтаж:
у стандартний електричний
розподільний щит (для США та ЄС)
Електричні характеристики
Gigabit Ethernet сумісний із IEEE
802.3af і 802.3at PoE
Порти
Порт Uplink Ethernet 10/100/1000
Мбіт/с із підтримкою PoE In.
Три порти Downlink Ethernet 10/100
Мбіт/с, один із яких має підтримку PoE
Out.
Пара транзитних портів RJ-45 Pass
Through.
Пам’ять і процесор
ЦП:
AR9344, одноядерний із частотою
560 МГц
Носій даних:
Nor-флеш 4 МБ, Nand-флеш 128 МБ
Пам’ять:
DDR2 128 МБ
22
Продуктивність
Радіомодулі:
802.11 b/g/n
Режими роботи радіомодулів:
клієнтський доступ, локальна петля,
перехоплення пакетів
Режими роботи точки доступу:
керовані
Сертифікація Wi-Fi Alliance:
сертифікація Wi-Fi для b/g/n
