Hewlett Packard Enterprise MRLBB1301 802.11ac WLAN Radio Module User Manual

Hewlett-Packard Co 802.11ac WLAN Radio Module

User Manual

HP
Product External Specifications
For
802.11ac PCI Express Card
Model Number : MRLBB-1301
Revision: 1.0
ii
Contents
1.0 SCOPE........................................................................................................................................................................... 3
1.1 DOCUMENT................................................................................................................................................................. 3
1.2 PRODUCT FEATURES.................................................................................................................................................. 3
2.0 REQUIREMENTS ....................................................................................................................................................... 4
2.1 RADIO CARD SPECIFICATIONS .................................................................................................................................. 4
2.2 GENERAL SECTION .................................................................................................................................................... 4
2.3 SOFTWARE REQUIREMENTS ...................................................................................................................................... 5
2.3.1 Security................................................................................................................................................................ 5
2.4 MECHANICAL REQUIREMENTS .......................................................................................................................... 5
3
1.0 Scope
1.1 Document
This document is to specify the product requirements for 802.11ac PCI Express. This PCI Express card is based on
BCM chip that complied with IEEE 802.11ac from 5GHz, and it is also backward compatible to comply with IEEE
802.11a and IEEE 802.11n standard.
1.2 Product Features
a) Dualband8.a/b/g/n/acradio
i) streamsxMIMO
ii) ./Goperation
iii) .Gbpsdatarate
b) MiniatureRFconnectors
c) PCIexpressminicardformfactor
d) toCoperation
e) ROHScomplaint
f) Lowcost,highlyintegrateddesign
4
2.0 Requirements
The following sections identify the detailed requirements of the 802.11ac PCI Express.
2.1 Radio Card Specifications
Specification
Description
Frequenc
y
Rang
e
2400–2500
MHz
4900–5845
MHz
Ac
tual
operating
frequ
e
ncies
depend
on
reg
u
lator
y
a
ppro
val
for
the
countr
y
of
us
e.
Wire
less
Mediu
m
Direct
Sequence
Sp
rea
d
Spe
c
trum
(DSSS),
Orthogonal
Freque
ncy
Di
vision
Multipl
exing
(OFDM),
Spatial
multiplexing
(MIMO)
Ne
twork
Standards
802
.11a
,
802.11b,
802.11g,
802.11n,
80
2.11ac
draft
Channel
Band
width
Supported
20,
40,
and
80
MHz
Spatial
Streams
3
(3x3
configuration
)
Als
o
s
upport
1
and
2
s
t
reams
modes
Da
ta
Rate
s
Supp
orted
802.11b:
1,
2,
5.5,
11
Mbps
802.11g:
1,
2,
5.5,
11,
6,
9,
12,
18,
24,
36,
48,
and
54
Mbps
80
2.11a
:
6,
9,
12,
18,
24,
36,
48,
and
54
Mbps
802.11n:
MCS0
up
to
MCS23
(450
Mbps)
80
2.11a
c:
NSS1-MCS0
up
to
NSS3-MCS9
(1300
Mbps)
Maximu
m
A
v
ailable
Conducte
d
T
r
an
smit
Power
2.4
GHz:
25.65
dBm
5
GHz:
24.90
dBm
Ac
tual
tran
smit
po
wer
may
be
limited
by
the
c
ountr
y
of
operation.
T
r
ansmi
t
Power
Control
1d
B
ste
p
Op
era
t
ing
T
e
mpe
r
atu
r
e
0
°
C
to
55°C
No
n-ope
ra
ting/Storage
T
e
mp
era
t
ure
-40°
C
to
70°C
2.2 General Section
# Feature Detailed Description
2.2.1 Antenna Connector
 Three UFL compatible antenna connectors
2.2.2 Operating Voltage
 3.3VDC +/- 5%
2.2.3 Current
Consumption
 5.1W is use on continue TX
2.2.4 Form Factor and
Interface
 Mini-card form factor with signal of PCI-e Gen1 X1 lane
5
2.3 Software Requirements
The Configuration Software supports Linux driver. This configuration software includes the following functions:
 Information
Information allows you to monitor network status.
 Configuration
Configuration allows you to configure parameters for wireless networking.
 Security
Supports enhanced security WEP, 802.1x, WPA and WPA2.
2.3.1 Security
# Feature Detailed Description
2.3.1.1 Encryption  RC4 encryption algorithm
 Support 64-bit and 128-bit WEP encryption
 Support open system (OSA) and shared key authentication (SKA)
2.3.1.2 WEP Management  Four WEP keys can be selected
 STA with WEP off will never associate any AP with WEP enabled
 WEP Key Format: Option for Hex format
2.3.1.3 802.1x  Support EAP-TLS, EAP-TTLS, and EAP-PEAP
2.3.1.4 WPA/WPA2  Support WPA/WPA2-PSK and WPA/WPA2-EAP
 Support Cipher Mode AES and TKIP
2.4 Mechanical Requirements
ThemechanicaldimensionsoftheMapletreeradiocardshallconformtothebasePCIExpressMiniCard
ElectromechanicalSpecificationRevision.section..forFullMini‐card.
6
FCC Statement:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
This device and its antenna(s) must not be co-located with any other transmitters except in accordance
with FCC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated
simultaneously without C2P.
This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment
only.
7
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all
the rules that apply to the product into which this certified RF module is integrated.
Additional testing and certification may be necessary when multiple modules are used.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host
this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority
to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation
with the antenna while this end product is installed and operated. The end user has to be informed that the
FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user
has to also be informed that any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment. If the size of the end product is smaller than
8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This
device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
RTPMRLBB1301 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19
statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause undesired operation.
8
IC Statement
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être
exploités. Sélection d'autres canaux n'est pas possible.
This device and its antenna(s) must not be co-located with any other transmitters except in accordance
with IC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated
simultaneously without reassessment permissive change.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une
autre antenne ou transmetteur.
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz,
5470-5600 MHz and 5650-5725 MHz
Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350
MHz, 5470-5600 MHz et 5650-5725 MHz
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux.
The maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to
comply with the e.i.r.p. limit.
le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et
5470-5725 MHz doit se conformer à la limite de p.i.r.e.;
Users should also be advised that high-power radars are allocated as primary users (i.e. priority
users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference
and/or damage to LE-LAN devices.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont
désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-
5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
9
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance
requirement of the end product, which integrates this module.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation
with the antenna while this end product is installed and operated. The end user has to be informed that the
IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user
has to also be informed that any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment. IC statement is required to be available in the
users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX IC : 466F-
MRLBB1301 ".
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne
d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire
les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain
de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement
d'une communication satisfaisante.
This radio transmitter (identify the device by certification number, or model number if Category II) has been
approved by Industry Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle
s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour
chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au
gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
10

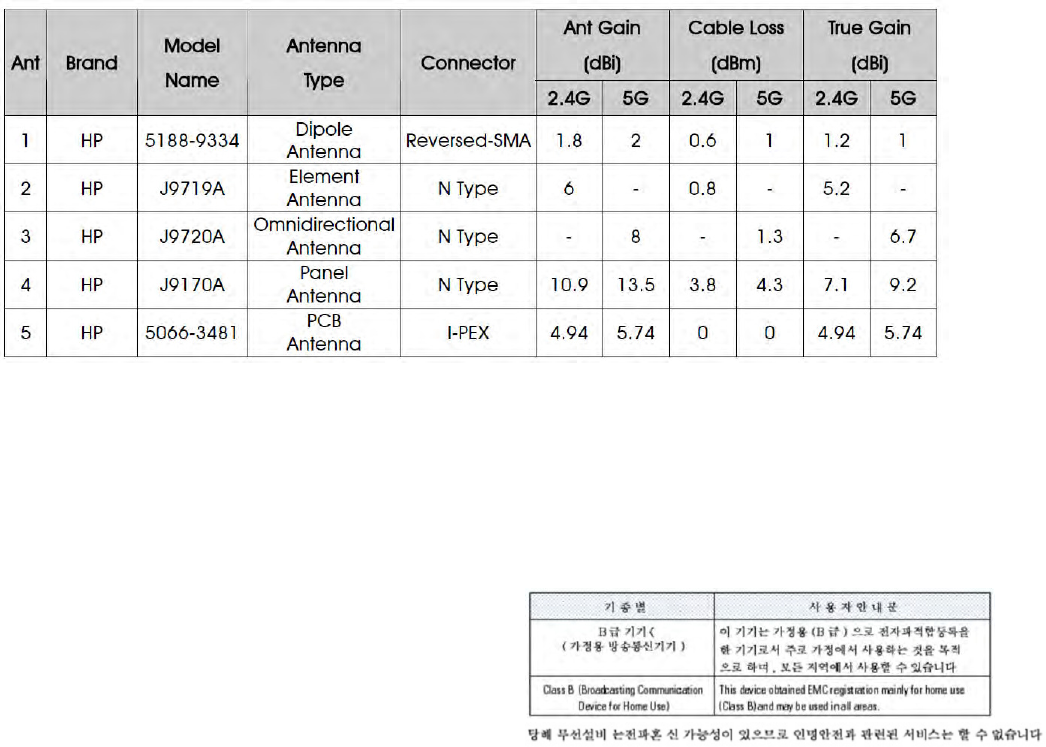

Antenna List :
Notic
e
for
Braz
il,
A
v
iso
ao
s
us
u
á
rios
no
Bras
il
Este
equipamento
opera
em
car
á
ter
secund
á
ri
o,
isto
é
,
n
ã
o
tem
direito
a
proteç
ã
o
contra
inter
f
er
ê
nc
i
a
prejudicial,
mesmo
de
e
staç
õ
e
s
do
mes
m
o
tipo,
e
n
ã
o
pode
cau
sar
inte
rf
er
ê
n
cia
a
sistem
as
operando
em
car
á
ter
p
r
im
á
r
io
.
Notice
for
Korea
Notice
for
T
a
iwan
低󰥈率電波輻射性電機管理辦法
第十二條
經型式認證合格之低󰥈率射頻電機，非經許可，公司商號或使用者均
不得擅自變更頻率󰥉大󰥈率或變更原設計之特性
及󰥈能
第十四條
低󰥈率射頻電機之使用不得影響飛航安󰠑及干擾合法通信；經發現有干
擾現象時，應立即停用，並改善至無干擾時方得
繼續使用前項合法通
信，指依電信法規定作業之無線電通信低󰥈率射頻電機須忍受合法通
信或工業科學及醫療用
電波輻射性電機設備之干擾
在
5.25-5.35
秭赫頻帶󰠐操作之無線資訊傳輸設備，限於室󰠐使用
11
FCC & IC:
Power level-antenna combination for 2400 ~ 2483.5MHz / 5725 ~ 5850MHz :
Maximum Conducted Output Power
For 2.4GHz Band:
Mode 1 (Ant.1 Dipole antenna / 1.2dBi)
MCS0 (20MHz): 25.47 dBm ;
MCS0 (40MHz): 19.47 dBm
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 19.45 dBm
Mode 2 (Ant.2 Element antenna / 5.2dBi)
MCS0 (20MHz): 25.29 dBm ;
MCS0 (40MHz): 18.58 dBm
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 18.62 dBm
Mode 3 (Ant.4 Panel antenna / 7.1dBi)
MCS0 (20MHz): 25.47 dBm ;
MCS0 (40MHz): 18.77 dBm
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 18.97 dBm
Mode 4 (Ant.5 PCB antenna / 4.94dBi)
MCS0 (20MHz): 25.47 dBm ;
MCS0 (40MHz): 20.83 dBm
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 21.09 dBm
For 5GHz Band:
Mode 5 (Ant.1 Dipole antenna / 1dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 21.42 dBm ;
802.11ac MCS0/Nss3 (80MHz): 22.09 dBm
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 21.42 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.04 dBm
Mode 6 (Ant.3 Omnidirectional Antenna / 6.7dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 21.42 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.04 dBm
Mode 7 (Ant.4 Panel Antenna / 9.2dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 21.27 dBm ;
802.11ac MCS0/Nss3 (80MHz): 21.01 dBm
Mode 8 (Ant.5 PCB antenna / 5.74dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 22.20 dBm ;
802.11ac MCS0/Nss3 (80MHz): 21.81 dBm
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1- Dipole Antenna - 2.4GHz
12
Mode 2. EUT + Antenna 2- Element Antenna - 2.4GHz
Mode 3. EUT + Antenna 4- Panel Antenna - 2.4GHz
Mode 4. EUT + Antenna 5- PCB Antenna - 2.4GHz
Mode 5. EUT + Antenna 1- Dipole Antenna - 5GHz
Mode 6. EUT + Antenna 3- Omnidirectional Antenna - 5GHz
Mode 7. EUT + Antenna 4- Panel Antenna - 5GHz
Mode 8. EUT + Antenna 5- PCB Antenna - 5GHz
13
Power level-antenna combination for 5150 ~ 5350MHz / 5470 ~ 5725MHz:
Maximum Conducted Output Power
Band 1:
Mode 1 (Ant.1 Dipole antenna / 1dBi)
802.11ac MCS0/Nss1 (20MHz): 16.85 dBm ;
802.11ac MCS0/Nss3 (20MHz): 16.97 dBm ;
802.11ac MCS0/Nss1 (40MHz): 16.92 dBm ;
802.11ac MCS0/Nss3 (40MHz): 16.95 dBm ;
802.11ac MCS0/Nss1 (80MHz): 15.98 dBm ;
802.11ac MCS0/Nss3 (80MHz): 16.60 dBm
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
802.11ac MCS0/Nss1 (20MHz): 11.67 dBm ;
802.11ac MCS0/Nss3 (20MHz): 16.17 dBm ;
802.11ac MCS0/Nss1 (40MHz): 14.60 dBm ;
802.11ac MCS0/Nss3 (40MHz): 16.10 dBm ;
802.11ac MCS0/Nss1 (80MHz): 13.71 dBm ;
802.11ac MCS0/Nss3 (80MHz): 14.88 dBm
Mode 3 (Ant.4 Panel antenna / 9.2dBi)
802.11ac MCS0/Nss1 (20MHz): 9.68 dBm ;
802.11ac MCS0/Nss3 (20MHz): 13.78 dBm ;
802.11ac MCS0/Nss1 (40MHz): 12.30 dBm ;
802.11ac MCS0/Nss3 (40MHz): 13.79 dBm ;
802.11ac MCS0/Nss1 (80MHz): 12.89 dBm ;
802.11ac MCS0/Nss3 (80MHz): 13.50 dBm
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
802.11ac MCS0/Nss1 (20MHz): 12.20 dBm ;
802.11ac MCS0/Nss3 (20MHz): 16.97 dBm ;
802.11ac MCS0/Nss1 (40MHz): 15.24 dBm ;
802.11ac MCS0/Nss3 (40MHz): 16.95 dBm ;
802.11ac MCS0/Nss1 (80MHz): 16.97 dBm ;
802.11ac MCS0/Nss3 (80MHz): 16.89 dBm
Band 2:
Mode 1 (Ant.1 Dipole antenna / 1dBi) 802.11ac
MCS0/Nss1 (20MHz): 23.81 dBm ; 802.11ac
MCS0/Nss3 (20MHz): 23.80 dBm ; 802.11ac
MCS0/Nss1 (40MHz): 22.67 dBm ; 802.11ac
MCS0/Nss3 (40MHz): 23.65 dBm ; 802.11ac
MCS0/Nss1 (80MHz): 16.84 dBm ; 802.11ac
MCS0/Nss3 (80MHz): 17.23 dBm
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
802.11ac MCS0/Nss1 (20MHz): 18.50 dBm ;
802.11ac MCS0/Nss3 (20MHz): 23.26 dBm ;
802.11ac MCS0/Nss1 (40MHz): 18.58 dBm ;
802.11ac MCS0/Nss3 (40MHz): 21.70 dBm ;
802.11ac MCS0/Nss1 (80MHz): 14.62 dBm ;
802.11ac MCS0/Nss3 (80MHz): 15.60 dBm
Mode 3 (Ant.4 Panel antenna / 9.2dBi)
802.11ac MCS0/Nss1 (20MHz): 16.77 dBm ;
802.11ac MCS0/Nss3 (20MHz): 20.79 dBm ;
802.11ac MCS0/Nss1 (40MHz): 18.06 dBm ;
802.11ac MCS0/Nss3 (40MHz): 18.83 dBm ;
802.11ac MCS0/Nss1 (80MHz): 13.40 dBm ;
802.11ac MCS0/Nss3 (80MHz): 13.66 dBm
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
802.11ac MCS0/Nss1 (20MHz): 19.02 dBm ;
802.11ac MCS0/Nss3 (20MHz): 23.80 dBm ;
802.11ac MCS0/Nss1 (40MHz): 20.29 dBm ;
802.11ac MCS0/Nss3 (40MHz): 23.65 dBm ;
802.11ac MCS0/Nss1 (80MHz): 15.38 dBm ;
802.11ac MCS0/Nss3 (80MHz): 16.55 dBm
14
Band 3:
Mode 1 (Ant.1 Dipole antenna / 1dBi) 802.11ac
MCS0/Nss1 (20MHz): 23.83 dBm ; 802.11ac
MCS0/Nss3 (20MHz): 23.98 dBm ; 802.11ac
MCS0/Nss1 (40MHz): 23.84 dBm ; 802.11ac
MCS0/Nss3 (40MHz): 23.73 dBm ; 802.11ac
MCS0/Nss1 (80MHz): 23.67 dBm ; 802.11ac
MCS0/Nss3 (80MHz): 23.89 dBm
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
802.11ac MCS0/Nss1 (20MHz): 18.50 dBm ;
802.11ac MCS0/Nss3 (20MHz): 23.29 dBm ;
802.11ac MCS0/Nss1 (40MHz): 21.53 dBm ;
802.11ac MCS0/Nss3 (40MHz): 23.26 dBm ;
802.11ac MCS0/Nss1 (80MHz): 23.28 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.16 dBm
Mode 3 (Ant.4 Panel antenna / 9.2dBi)
802.11ac MCS0/Nss1 (20MHz): 16.77 dBm ;
802.11ac MCS0/Nss3 (20MHz): 20.70 dBm ;
802.11ac MCS0/Nss1 (40MHz): 19.28 dBm ;
802.11ac MCS0/Nss3 (40MHz): 20.74 dBm ;
802.11ac MCS0/Nss1 (80MHz): 20.72 dBm ;
802.11ac MCS0/Nss3 (80MHz): 20.66 dBm
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
802.11ac MCS0/Nss1 (20MHz): 20.77 dBm ;
802.11ac MCS0/Nss3 (20MHz): 23.91 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.20 dBm ;
802.11ac MCS0/Nss3 (40MHz): 23.73 dBm ;
802.11ac MCS0/Nss1 (80MHz): 23.67 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.89 dBm
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1- Dipole Antenna - 5GHz
Mode 2. EUT + Antenna 3- Omnidirectional Antenna - 5GHz
Mode 3. EUT + Antenna 4- Panel Antenna - 5GHz
Mode 4. EUT + Antenna 5- PCB Antenna - 5GHz
15
Japan:
Power level-antenna combination for 2400 ~ 2483.5MHz:
Maximum Conducted Output Power
Mode 1 (Ant.1 Dipole antenna / 1.2dBi)
802.11b : 11.189dBm/MHz
802.11g : 11.185dBm/MHz
802.11n : 11.191dBm/MHz MCS 0 (HT20) ;
11.151dBm/MHz MCS 16 (HT20)
802.11n : 8.186dBm/MHz MCS 0 (HT40) ;
8.145dBm/MHz MCS 16 (HT40)
Mode 2 (Ant.2 Element antenna / 5.2dBi)
802.11b : 12.112dBm/MHz
802.11g : 11.996dBm/MHz
802.11n : 12.127dBm/MHz MCS 0 (HT20) ;
12.121dBm/MHz MCS 16 (HT20)
802.11n : 9.083dBm/MHz MCS 0 (HT40) ;
9.041dBm/MHz MCS 16 (HT40)
Mode 3 (Ant.4 Panel antenna / 9.4dBi)
802.11b : 11.428dBm/MHz
802.11g : 11.335dBm/MHz
802.11n : 11.419dBm/MHz MCS 0 (HT20) ;
11.437dBm/MHz MCS 16 (HT20)
802.11n : 8.428dBm/MHz MCS 0 (HT40) ;
8.437dBm/MHz MCS 16 (HT40)
Mode 4 (Ant.5 PCB antenna / 4.94dBi)
802.11b : 12.076dBm/MHz
802.11g : 12.094dBm/MHz
802.11n : 12.097dBm/MHz MCS 0 (HT20) ;
12.098dBm/MHz MCS 16 (HT20)
802.11n : 9.034dBm/MHz MCS 0 (HT40) ;
9.085dBm/MHz MCS 16 (HT40)
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1- Dipole Antenna - 2.4GHz
Mode 2. EUT + Antenna 2- Element Antenna - 2.4GHz
Mode 3. EUT + Antenna 4- Panel Antenna - 2.4GHz
Mode 4. EUT + Antenna 5- PCB Antenna - 2.4GHz
16
Power level-antenna combination for 5150 ~ 5350MHz:
Maximum Conducted Output Power
Mode 1 (Ant.1 Dipole antenna / 1dBi)
MCS0/NSS1
Band 1:
IEEE 802.11a : 8.507 dBm/MHz
IEEE 802.11ac : 8.843 dBm/MHz (VHT20) ;
5.089 dBm/MHz (VHT40);
3.241 dBm/MHz (VHT80)
Band 2:
IEEE 802.11a : 8.641 dBm/MHz
IEEE 802.11ac : 9.041 dBm/MHz (VHT20) ;
5.084 dBm/MHz (VHT40);
2.942 dBm/MHz (VHT80)
MCS0/NSS3
Band 1:
IEEE 802.11ac : 8.954 dBm/MHz (VHT20) ; 5.105
dBm/MHz (VHT40);
2.925 dBm/MHz (VHT80)
Band 2:
IEEE 802.11ac : 9.200 dBm/MHz (VHT20) ; 5.160
dBm/MHz (VHT40);
2.623 dBm/MHz (VHT80)
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
MCS0/NSS1
Band 1:
IEEE 802.11a : 9.894 dBm/MHz
IEEE 802.11ac : 9.998 dBm/MHz (VHT20) ;
6.992 dBm/MHz (VHT40);
3.963 dBm/MHz (VHT80)
Band 2:
IEEE 802.11a : 9.990 dBm/MHz
IEEE 802.11ac : 9.967 dBm/MHz (VHT20) ;
6.925 dBm/MHz (VHT40);
3.962 dBm/MHz (VHT80)
MCS0/NSS3
Band 1:
IEEE 802.11ac : 9.975 dBm/MHz (VHT20) ;
6.976 dBm/MHz (VHT40);
3.925 dBm/MHz (VHT80)
Band 2:
IEEE 802.11ac : 9.970 dBm/MHz (VHT20) ;
6.975 dBm/MHz (VHT40);
3.942 dBm/MHz (VHT80)
Mode 3 (Ant.4 Panel antenna / 11.5dBi)
MCS0/NSS1
Band 1:
IEEE 802.11a : 9.241 dBm/MHz
IEEE 802.11ac : 9.287 dBm/MHz (VHT20) ;
6.225 dBm/MHz (VHT40);
3.251 dBm/MHz (VHT80)
Band 2:
IEEE 802.11a : 9.229 dBm/MHz
IEEE 802.11ac : 9.286 dBm/MHz (VHT20) ;
6.203 dBm/MHz (VHT40);
3.220 dBm/MHz (VHT80)
MCS0/NSS3
Band 1:
IEEE 802.11ac : 9.287 dBm/MHz (VHT20) ;
17
6.297 dBm/MHz (VHT40);
3.673 dBm/MHz (VHT80) Band 2:
IEEE 802.11ac : 9.296 dBm/MHz (VHT20) ;
6.298 dBm/MHz (VHT40); 3.642 dBm/MHz (VHT80)
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
MCS0/NSS1
Band 1:
IEEE 802.11a : 9.994 dBm/MHz
EEE 802.11ac : 9.038 dBm/MHz (VHT20) ;
6.908 dBm/MHz (VHT40); 3.839 dBm/MHz (VHT80)
Band 2:
IEEE 802.11a : 9.846 dBm/MHz
IEEE 802.11ac : 9.007 dBm/MHz (VHT20) ;
6.924 dBm/MHz (VHT40); 3.904 dBm/MHz (VHT80)
MCS0/NSS3
Band 1:
IEEE 802.11ac : 9.881 dBm/MHz (VHT20) ;
6.948 dBm/MHz (VHT40);
3.899 dBm/MHz (VHT80)
Band 2: IEEE 802.11ac :
9.832 dBm/MHz (VHT20) ; 6.948 dBm/MHz
(VHT40); 3.961 dBm/MHz (VHT80)
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1 - Dipole Antenna - 5GHz
Mode 2. EUT + Antenna 3 - Omnidirectional Antenna - 5GHz
Mode 3. EUT + Antenna 4 - Panel Antenna - 5GHz
Mode 4. EUT + Antenna 5 - PCB Antenna - 5GHz
18
Power level-antenna combination for 5470 ~ 5725MHz:
Maximum Conducted Output Power
Mode 1 (Ant.1 Dipole antenna / 1dBi)
MCS0/NSS1
IEEE 802.11a : 8.089 dBm/MHz
IEEE 802.11ac : 8.796 dBm/MHz (VHT20) ;
4.882 dBm/MHz (VHT40);
2.369 dBm/MHz (VHT80)
MCS0/NSS3
IEEE 802.11ac : 9.493 dBm/MHz (VHT20) ;
4.936 dBm/MHz (VHT40);
2.239 dBm/MHz (VHT80)
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
MCS0/NSS1
IEEE 802.11a : 14.572 dBm/MHz
IEEE 802.11ac : 15.071 dBm/MHz (VHT20) ;
11.946 dBm/MHz (VHT40);
8.117 dBm/MHz (VHT80)
MCS0/NSS3
IEEE 802.11ac : 15.077 dBm/MHz (VHT20) ;
11.945 dBm/MHz (VHT40);
8.166 dBm/MHz (VHT80)
Mode 3 (Ant.4 Panel antenna / 11.5dBi)
MCS0/NSS1
IEEE 802.11a : 16.211 dBm/MHz
IEEE 802.11ac : 16.291 dBm/MHz (VHT20) ;
13.263 dBm/MHz (VHT40);
10.232 dBm/MHz (VHT80)
MCS0/NSS3
IEEE 802.11ac : 16.296 dBm/MHz (VHT20) ;
13.292 dBm/MHz (VHT40);
10.654 dBm/MHz (VHT80)
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
MCS0/NSS1
IEEE 802.11a : 13.308 dBm/MHz
IEEE 802.11ac : 14.111 dBm/MHz (VHT20) ;
11.065 dBm/MHz (VHT40);
7.308 dBm/MHz (VHT80)
MCS0/NSS3
IEEE 802.11ac : 14.482 dBm/MHz (VHT20) ;
11.464 dBm/MHz (VHT40);
7.585 dBm/MHz (VHT80)
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1 - Dipole Antenna - 5GHz
Mode 2. EUT + Antenna 3 - Omnidirectional Antenna - 5GHz
Mode 3. EUT + Antenna 4 - Panel Antenna - 5GHz
Mode 4. EUT + Antenna 5 - PCB Antenna - 5GHz
19
NCC: IEEE 802.11n/ac
Power level-antenna combination for 2400 ~ 2483.5MHz / 5725 ~ 5850MHz :
Maximum Conducted Output Power
For 2.4GHz Band:
Mode 1 (Ant.1 Dipole antenna / 1.2dBi)
MCS0 (20MHz): 25.47 dBm ;
MCS0 (40MHz): 19.47 dBm ;
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 19.45 dBm ;
Mode 2 (Ant.2 Element antenna / 5.2dBi)
MCS0 (20MHz): 25.29 dBm ;
MCS0 (40MHz): 18.58 dBm ;
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 18.62 dBm ;
Mode 3 (Ant.4 Panel antenna / 7.1dBi)
MCS0 (20MHz): 25.47 dBm ;
MCS0 (40MHz): 18.77 dBm ;
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 18.97 dBm ;
Mode 4 (Ant.5 PCB antenna / 4.94dBi)
MCS0 (20MHz): 25.47 dBm ;
MCS0 (40MHz): 20.83 dBm ;
MCS16 (20MHz): 25.65 dBm ;
MCS16 (40MHz): 21.09 dBm ;
For 5GHz Band:
Mode 5 (Ant.1 Dipole antenna / 1dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 21.42 dBm ;
802.11ac MCS0/Nss3 (80MHz): 22.09 dBm
Mode 6 (Ant.3 Omnidirectional Antenna / 6.7dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 21.42 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.04 dBm
Mode 7 (Ant.4 Panel Antenna / 9.2dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 21.27 dBm ;
802.11ac MCS0/Nss3 (80MHz): 21.01 dBm
Mode 8 (Ant.5 PCB antenna / 5.74dBi)
802.11ac MCS0/Nss1 (20MHz): 24.40 dBm ;
802.11ac MCS0/Nss3 (20MHz): 24.90 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.76 dBm ;
802.11ac MCS0/Nss3 (40MHz): 24.24 dBm ;
802.11ac MCS0/Nss1 (80MHz): 22.20 dBm ;
802.11ac MCS0/Nss3 (80MHz): 21.81 dBm
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1- Dipole Antenna - 2.4GHz
Mode 2. EUT + Antenna 2- Element Antenna - 2.4GHz
Mode 3. EUT + Antenna 4- Panel Antenna - 2.4GHz
Mode 4. EUT + Antenna 5- PCB Antenna - 2.4GHz
Mode 5. EUT + Antenna 1- Dipole Antenna - 5GHz
20
Mode 6. EUT + Antenna 3- Omnidirectional Antenna - 5GHz
Mode 7. EUT + Antenna 4- Panel Antenna - 5GHz
Mode 8. EUT + Antenna 5- PCB Antenna - 5GHz
21
NCC: 802.11a/b/g
Power level-antenna combination for 2400 ~ 2483.5MHz / 5725 ~ 5850MHz :
Maximum Conducted Output Power
Mode 1 (Ant.1 Dipole antenna / 1.2dBi)
11b: 25.03 MHz
11g: 25.70 MHz
Mode 2 (Ant.2 Element antenna / 5.2dBi)
11b: 25.03 MHz
11g: 25.36 MHz
Mode 3 (Ant.4 Panel antenna / 7.1dBi)
11b: 19.07 MHz
11g: 25.70 MHz
Mode 4 (Ant.5 PCB antenna / 4.94dBi)
11b: 25.23 MHz
11g: 25.70 MHz
Mode 5 (Ant.1 Dipole antenna / 1dBi)
11a: 24.54 MHz
Mode 6 (Ant.3 Omnidirectional Antenna / 6.7dBi)
11a: 24.54 MHz
Mode 7 (Ant.4 Panel Antenna / 9.2dBi)
11a: 24.54 MHz
Mode 8 (Ant.5 PCB antenna / 5.74dBi)
11a: 24.54 MHz
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1- Dipole Antenna - 2.4GHz
Mode 2. EUT + Antenna 2- Element Antenna - 2.4GHz
Mode 3. EUT + Antenna 4- Panel Antenna - 2.4GHz
Mode 4. EUT + Antenna 5- PCB Antenna - 2.4GHz
Mode 5. EUT + Antenna 1- Dipole Antenna - 5GHz
Mode 6. EUT + Antenna 3- Omnidirectional Antenna - 5GHz
Mode 7. EUT + Antenna 4- Panel Antenna - 5GHz
Mode 8. EUT + Antenna 5- PCB Antenna - 5GHz
22
NCC: IEEE 802.11n / ac
Power level-antenna combination for 5250 ~ 5350MHz / 5470 ~ 5725MHz :
Maximum Conducted Output Power
Band 2:
Mode 1 (Ant.1 Dipole antenna / 1dBi)
802.11ac MCS0/Nss1 (20MHz): 16.96 dBm ;
802.11ac MCS0/Nss3 (20MHz): 16.94 dBm ;
802.11ac MCS0/Nss1 (40MHz): 16.80 dBm ;
802.11ac MCS0/Nss3 (40MHz): 16.74 dBm
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
802.11ac MCS0/Nss1 (20MHz): 11.50 dBm ;
802.11ac MCS0/Nss3 (20MHz): 16.14 dBm ;
802.11ac MCS0/Nss1 (40MHz): 14.21 dBm ;
802.11ac MCS0/Nss3 (40MHz): 16.28 dBm
Mode 3 (Ant.4 Panel antenna / 9.2dBi)
802.11ac MCS0/Nss1 (20MHz): 10.00 dBm ;
802.11ac MCS0/Nss3 (20MHz): 13.75 dBm ;
802.11ac MCS0/Nss1 (40MHz): 12.49 dBm ;
802.11ac MCS0/Nss3 (40MHz): 13.66 dBm
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
802.11ac MCS0/Nss1 (20MHz): 12.39 dBm ;
802.11ac MCS0/Nss3 (20MHz): 16.94 dBm ;
802.11ac MCS0/Nss1 (40MHz): 15.22 dBm ;
802.11ac MCS0/Nss3 (40MHz): 16.74 dBm
Band 3:
Mode 1 (Ant.1 Dipole antenna / 1dBi)
802.11ac MCS0/Nss1 (20MHz): 23.83 dBm ;
802.11ac MCS0/Nss3 (20MHz): 23.98 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.84 dBm ;
802.11ac MCS0/Nss3 (40MHz): 23.73 dBm ;
802.11ac MCS0/Nss1 (80MHz): 23.67 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.89 dBm
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
802.11ac MCS0/Nss1 (20MHz): 18.50 dBm ;
802.11ac MCS0/Nss3 (20MHz): 23.29 dBm ;
802.11ac MCS0/Nss1 (40MHz): 21.53 dBm ;
802.11ac MCS0/Nss3 (40MHz): 23.26 dBm ;
802.11ac MCS0/Nss1 (80MHz): 23.28 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.16 dBm
Mode 3 (Ant.4 Panel antenna / 9.2dBi)
802.11ac MCS0/Nss1 (20MHz): 16.77 dBm ;
802.11ac MCS0/Nss3 (20MHz): 20.70 dBm ;
802.11ac MCS0/Nss1 (40MHz): 19.28 dBm ;
802.11ac MCS0/Nss3 (40MHz): 20.74 dBm ;
802.11ac MCS0/Nss1 (80MHz): 20.72 dBm ;
802.11ac MCS0/Nss3 (80MHz): 20.66 dBm
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
802.11ac MCS0/Nss1 (20MHz): 20.77 dBm ;
802.11ac MCS0/Nss3 (20MHz): 23.91 dBm ;
802.11ac MCS0/Nss1 (40MHz): 23.20 dBm ;
802.11ac MCS0/Nss3 (40MHz): 23.73 dBm ;
802.11ac MCS0/Nss1 (80MHz): 23.67 dBm ;
802.11ac MCS0/Nss3 (80MHz): 23.89 dBm
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1- Dipole Antenna - 5GHz
Mode 2. EUT + Antenna 3- Omnidirectional Antenna - 5GHz
Mode 3. EUT + Antenna 4- Panel Antenna - 5GHz
Mode 4. EUT + Antenna 5- PCB Antenna - 5GHz
23
NCC: IEEE 802.11a
Power level-antenna combination for 5250 ~ 5350MHz / 5470 ~ 5725MHz :
Maximum Conducted Output Power
Band 2:
Mode 1 (Ant.1 Dipole antenna / 1dBi)
11a: 16.85 dBm
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
11a: 11.56 dBm
Mode 3 (Ant.4 Panel antenna / 9.2dBi)
11a: 10.04 dBm
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
11a: 12.44 dBm\
Band 3:
Mode 1 (Ant.1 Dipole antenna / 1dBi)
11a: 23.96 dBm
Mode 2 (Ant.3 Omnidirectional antenna / 6.7dBi)
11a: 18.38 dBm
Mode 3 (Ant.4 Panel antenna / 9.2dBi)
11a: 16.65 dBm
Mode 4 (Ant.5 PCB antenna / 5.74dBi)
11a: 20.80 dBm
The following test modes were performed for all tests:
Mode 1. EUT + Antenna 1- Dipole Antenna - 5GHz
Mode 2. EUT + Antenna 3- Omnidirectional Antenna - 5GHz
Mode 3. EUT + Antenna 4- Panel Antenna - 5GHz
Mode 4. EUT + Antenna 5- PCB Antenna - 5GHz
