Product External Specifications
For
802.11ac PCI Express Card
Model Number : MRLBB-1403
Revision: 1.0
ii
Contents
1.0 SCOPE........................................................................................................................................................................... 3
1.1 DOCUMENT................................................................................................................................................................. 3
1.2 PRODUCT FEATURES.................................................................................................................................................. 3
2.0 REQUIREMENTS ....................................................................................................................................................... 4
2.1 RADIO CARD SPECIFICATIONS .................................................................................................................................. 4
2.2 GENERAL SECTION .................................................................................................................................................... 4
2.3 SOFTWARE REQUIREMENTS ...................................................................................................................................... 5
2.3.1 Security ................................................................................................................................................................ 5
2.4 MECHANICAL REQUIREMENTS .......................................................................................................................... 5
3
1.0 Scope
1.1 Document
This document is to specify the product requirements for 802.11ac PCI Express. This PCI Express card is based on
QCA (Qualcomm Atheros) chip that complied with IEEE 802.11ac from 5GHz, and it is also backward compatible to
comply with IEEE 802.11a and IEEE 802.11n standard.
1.2 Product Features
a) Dualband8.a/n/acradio
i) streamsxMIMO
ii) Goperation
iii) .Gbpsdatarate
b) MiniatureRFconnectors
c) PCIexpressminicardformfactor
d) toCoperation
e) ROHScomplaint
f) Lowcost,highlyintegrateddesign
4
2.0 Requirements
The following sections identify the detailed requirements of the 802.11ac PCI Express.
2.1 Radio Card Specifications
Specification
Description
Frequenc
y
Rang
e
4900–5845
MHz
Ac
tual
operating
frequ
e
ncies
depend
on
reg
u
lator
y
a
ppro
val
for
the
countr
y
of
us
e.
Wire
less
Mediu
m
Orthogonal
Freque
ncy
Di
vision
Multipl
exing
(OFDM),
Spatial
multiplexing
(MIMO)
Ne
twork
Standards
802
.11a
,
802.11n,
80
2.11ac
Channel
Band
width
Supported
20,
40,
and
80
MHz
Spatial
Streams
3
(3x3
configuration
)
Als
o
s
upport
1
and
2
s
t
reams
modes
Da
ta
Rate
s
Supp
orted
80
2.11a
:
6,
9,
12,
18,
24,
36,
48,
and
54
Mbps
802.11n:
MCS0
up
to
MCS23
(450
Mbps)
80
2.11a
c:
NSS1-MCS0
up
to
NSS3-MCS9
(1300
Mbps)
Maximu
m
A
v
ailable
Conducte
d
T
r
an
smit
Power
5
GHz:
24.45
dBm
Ac
tual
tran
smit
po
wer
may
be
limited
by
the
c
ountr
y
of
operation.
T
r
ansmi
t
Power
Control
1d
B
ste
p
Op
era
t
ing
T
e
mpe
r
atu
r
e
5°
C
to
40
°C
No
n-ope
ra
ting/Storage
T
e
mp
era
t
ure
-40°
C
to
70°C
2.2 General Section
# Feature Detailed Description
2.2.1 Antenna Connector
 Three UFL compatible antenna connectors
2.2.2 Operating Voltage
 3.3VDC +/- 5%
2.2.3 Current
Consumption
 5.1W is use on continue TX
2.2.4 Form Factor and
Interface
 Mini-card form factor with signal of PCI-e Gen1 X1 lane
5
2.3 Software Requirements
The Configuration Software supports Linux driver. This configuration software includes the following functions:
 Information
Information allows you to monitor network status.
 Configuration
Configuration allows you to configure parameters for wireless networking.
 Security
Supports enhanced security WEP, 802.1x, WPA and WPA2.
2.3.1 Security
# Feature Detailed Description
2.3.1.1 Encryption  RC4 encryption algorithm
 Support 64-bit and 128-bit WEP encryption
 Support open system (OSA) and shared key authentication (SKA)
2.3.1.2 WEP Management  Four WEP keys can be selected
 STA with WEP off will never associate any AP with WEP enabled
 WEP Key Format: Option for Hex format
2.3.1.3 802.1x  Support EAP-TLS, EAP-TTLS, and EAP-PEAP
2.3.1.4 WPA/WPA2  Support WPA/WPA2-PSK and WPA/WPA2-EAP
 Support Cipher Mode AES and TKIP
2.4 Mechanical Requirements
ThemechanicaldimensionsoftheMapletreeradiocardshallconformtothebasePCIExpressMiniCard
ElectromechanicalSpecificationRevision.section..forFullMini‐card.
6
FCC Statement:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located with any other transmitters except in accordance
with FCC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated
simultaneously without C2P.
This device is restricted for indoor use.
7
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all
the rules that apply to the product into which this certified RF module is integrated.
Additional testing and certification may be necessary when multiple modules are used.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host
this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority
to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation
with the antenna while this end product is installed and operated. The end user has to be informed that the
FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user
has to also be informed that any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment. If the size of the end product is smaller than
8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This
device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
B94MRLBB1403 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19
statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause undesired operation.
8
IC Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
This device and its antenna(s) must not be co-located with any other transmitters except in accordance
with IC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated
simultaneously without reassessment permissive change.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une
autre antenne ou transmetteur.
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz,
5470-5600 MHz and 5650-5725 MHz
Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350
MHz, 5470-5600 MHz et 5650-5725 MHz
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux.
The maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to
comply with the e.i.r.p. limit.
le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et
5470-5725 MHz doit se conformer à la limite de p.i.r.e.
Users should also be advised that high-power radars are allocated as primary users (i.e. priority
users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference
and/or damage to LE-LAN devices.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont
désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-
5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation
as appropriate.
le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon
le cas.
For indoor use only.
Pour une utilisation en intérieur uniquement.
9
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance
requirement of the end product, which integrates this module.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation
with the antenna while this end product is installed and operated. The end user has to be informed that the
IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user
has to also be informed that any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment. IC statement is required to be available in the
users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX IC : 466F-
MRLBB1403 ".

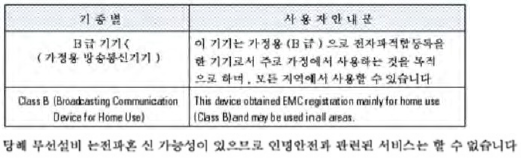

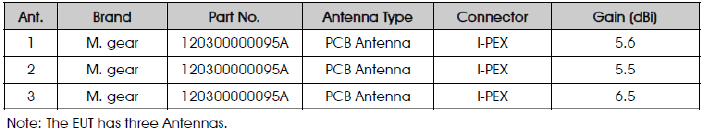

This radio transmitter (466F-MRLBB1403) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (466F-MRLBB1403) a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise
pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur
au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
