Hewlett Packard Enterprise MSR1200N Indoor Wireless Mesh Router User Manual rev 1
Aruba Networks, Inc. Indoor Wireless Mesh Router rev 1
User manual rev 1
1

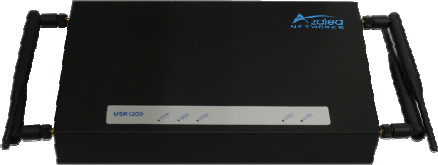

MSR1200, MSR1K2SN0, MSR1K2SN0-US
High Performance Indoor Dual-radio Wireless Access Point/ Wireless Mesh Router
Features and Benefits
• Advanced 802.11n technology, greatly improving network bandwidth and coverage
• Uses proprietary Adaptive Wireless Routing (AWR) technology to form a reliable and
scalable wireless network, offering automatic network optimization and restoration
and supporting multiple gateways
• Uses proprietary fast roaming technology to realize seamless roaming
• Uses proprietary intelligent RF technology, offering automatic network forming,
automatic channel optimization and power control to reduce interference and
improve performance
• Uses proprietary wireless video optimization technology, greatly improving the quality
of video over wireless
• Uses proprietary multi-hop and long-distance transmission optimization technology,
greatly improving the network flexibility
• Centralized device and configuration management effectively increases network
deployment and operation efficiency
• Supports both centralized forwarding and local forwarding
• Supports IPv6, meeting users’ requirement for the next generation Internet
• Supports China WLAN security standard WAPI
• Able to establish highly reliable, secure, high performance, scalable, easy-to-deploy
and easy-to-manage wireless broadband network with other wireless APs, mesh
routers, multi-service wireless controllers and wireless network management
systems
2
Technical Specification
Radio:
Dual radio modules
Supports 802.11a/b/g/n*(*802.11n needs to purchase licenses)
Frequency Bands (country-specific restrictions apply):
2.400-2.483GHz, 4.90-4.99GHz, 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.85GHz
Modulation:
DSSS (CCK, DQPSK, DBPSK)
OFDM (BPSK, QPSK, 16QAM, 64QAM)
Association Rates (Mbps):
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5 and 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n 20MHz: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)；2Nss:
130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
802.11n 40MHz: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)；2Nss:
270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Receiver sensitivity:
802.11a:
-95dBm@6Mbps, -95dBm@9Mbps, -94dBm@12Mbps, -92dBm@18Mbps,
-88dBm@24Mbps, -85dBm@36Mbps, -81dBm@48Mbps, -79dBm@54Mbps
802.11b:
-95dBm@1Mbps, -95dBm@5.5Mbps, -91dBm@11Mbps
802.11g:
-95dBm@6Mbps, -95dBm@9Mbps, -94dBm@12Mbps, -93dBm@18Mbps,
-90dBm@24Mbps, -86dBm@36Mbps, -82dBm@48Mbps, -80dBm@54Mbps
802.11a/n(
HT20
):
-95dBm@MCS0, -93dBm@MCS1, -90dBm@MCS2,
-87dBm@MCS3, -84dBm@ MCS4, -80dBm@ MCS5, -79dBm@ MCS6, -77dBm@
MCS7
802.11a/n
(HT40)
:
-91dBm@MCS0, -90dBm@MCS1, -87dBm@MCS2,
-84dBm@MCS3, -82dBm@ MCS4, -78dBm@ MCS5, -76dBm@ MCS6, -74dBm@
MCS7
802.11b/g/n(
HT20
):
-95dBm@MCS0, -94dBm@MCS1, -92dBm@MCS2,
-88dBm@MCS3, -85dBm@MCS4, -80dBm@MCS5, -79dBm@MCS6,
-77dBm@MCS7
802.11b/g/n(HT40): -90dBm@MCS0, -90dBm@MCS1, -89dBm@MCS2,
-85dBm@MCS3, -82dBm@MCS4, -78dBm@MCS5, -77dBm@MCS6,
Note: The device, for sale in USA market, cannot be chosen country specification
and the choice for working frequency range is fixed.
3
-74dBm@MCS7
Mesh Features
Auto network forming
Auto topology optimization
Auto routing optimization
Multi-hop backhaul
Multiple gateways
Adaptive Wireless Routing (AWR)
Fast roaming
Supports L2/L3 networking mode
Supports centralized forwarding/local forwarding mode
Supports centralized/non-centralized control mode
802.11n Basic Capability
2x2 MIMO, PHY data rate up to 300 Mbps
20 MHz and 40MHz frequency bands
Software Features
Software image: Azalea AOS4.1 or above
Roaming technology: Supports cross L2 and L3 roaming
Load balance: based on the number of users or traffic
Link check: supports uplink reachability check
Wireless video optimization technology
Wireless security management and control
Long-distance transmission optimization
Power control: supports manual and auto adjustment
Channel selection: supports manual configuration and auto selection
Routing technology: static route, OSPF
Adaptive Wireless Routing (AWR)
Supports IPv6
Supports VLAN, STP
IPv4/IPv6
IPv4 and IPv6 dual-stack
DHCPv4/v6 Server
4
DHCPv4/v6 Relay
DHCPv4/v6 Client
IPv6 ND
Pingv4/v6, TraceRTv4/v6
IPv4/IPv6 static routing
QoS
Supports WMM
Bandwidth control
Azalea wireless video optimization technology
Supports the mapping from wireless QoS to/from VLAN and IP QoS
Security
802.11i, WEP, WPA, WPA2
TKIP (128bit), PSK, AES (128 bit), TLS and TTLS
MAC address filter
User isolation
802.1x, Web Portal authentication
SSID hide
Supports WAPI
Rouge AP detect
Management
SNMP v1/v2/v3c
Telnet, FTP, HTTP, HTTPS
NTP: NTP Client
Interfaces
10/100/1000M BASE-T Ethernet interface (RJ-45)
Console port
Antenna connector: 4 RP-SMA
Hardware Features
Dimensions: 260 x 160 x 48 mm (W x L x H)
Weight: 1.60 kg
5
Environment:
─ Storage temperature: -25 to 85°C; Operating tempera ture: 0 to 50°C
─ Storage humidity: 5%~95% (non-condensing); Operating humidity: 10%~95%
(non-condensing)
Shock & Vibration: ETSI 300-19-2-4 SpecT41.E class 4M3
System memory: 128 MB DRAM; 16 MB flash
Power supply:
─ PoE in: 802.3af
─ AC input (power adaptor): Input 100-245VAC, output 48V 38W
LED indicators: Power, Ethernet port, Radio port
Supports Reset button
Power consumption: <10W
Transport: ISTA 2A
Accessories
A variety of accessories are available for use with the Azalea routers. These include indoor
antennas, outdoor antennas, feeders, RF cables, power splitters, arresters, waterproof
accessories, Ethernet cables, power cables, console cables. Please see your local
representative for additional details.
Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
The 5150-5250 MHz frequency band is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
6
FCC MPE Reminding
To satisfy FCC RF exposure requirements, a separation distance of 26 cm or more should be
maintained between the antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended. The
antenna used for this transmitter must not be co-located in conjunction with any other antenna
or transmitter.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each antenna
type indicated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
Antenna Type: Reverse Omnidirectional Antenna, 50 Ohm
Gain of antenna:5.0dBi max.
