RAP-2WG Wireless Remote Access Point
Installation Guide
About the RAP-2WG
The Aruba RAP-2WG is part of a comprehensive wireless network solution. This
device works in conjunction with other Aruba products, such as Aruba Mobility
Controllers, and provides the following capabilities:
zRemote Access Point (RAP)
zProtocol-independent networking functionality
zIEEE 802.11 b/g operation as a wireless Access Point
zCentral management, configuration, and upgrade through an Aruba Mobility
Controller
zWireless Transceiver

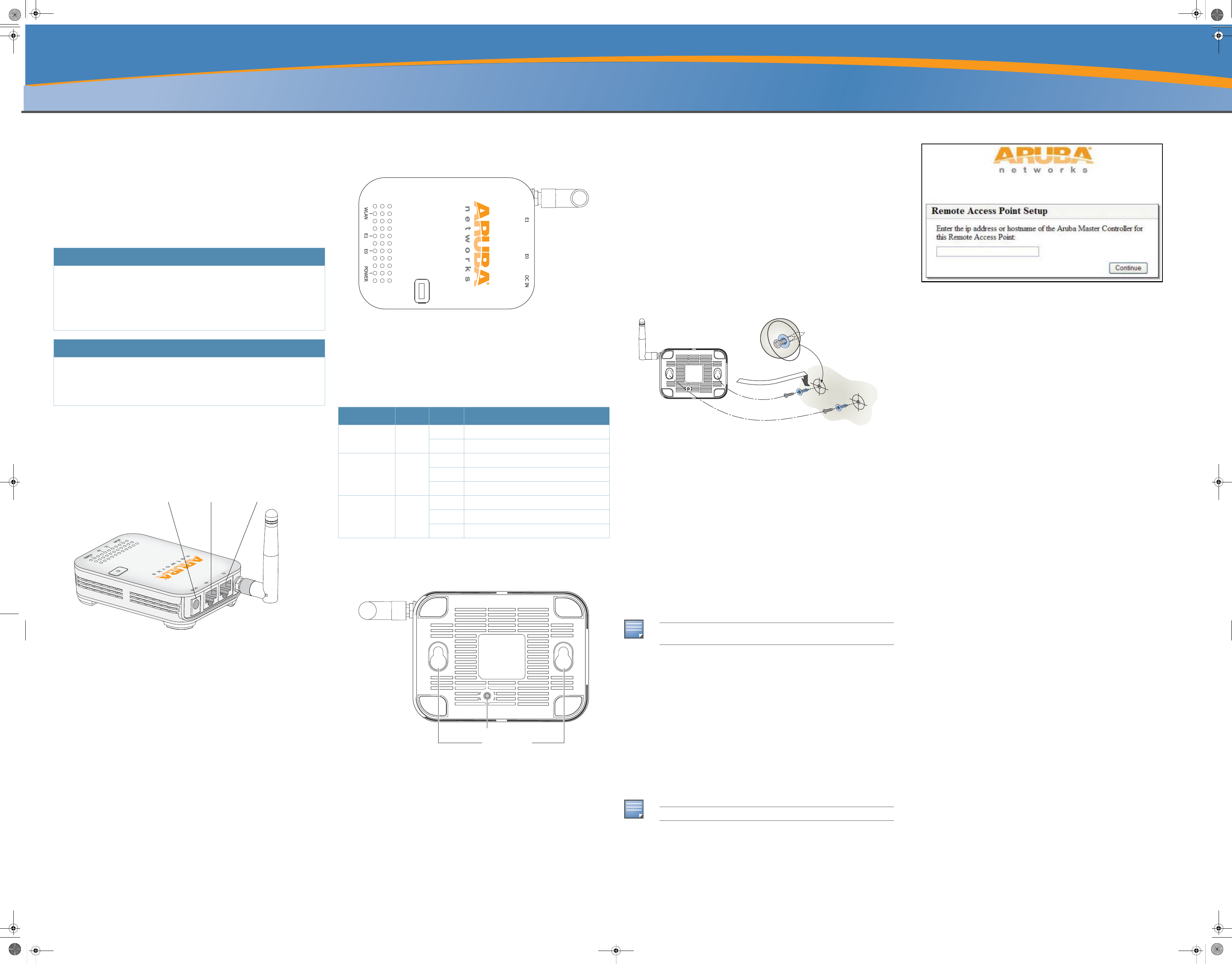

RAP-2WG Overview
Rear View
Figure 1 Rear View
10/100Base-T Ethernet Ports
The RAP-2WG has two 10/100Base-T (RJ-45) Ethernet ports for wired network
connectivity.
zE0: Uplink port
zE1: LAN port
DC IN (Power Socket)
The RAP-2WG power adapter (included) connects to the DC IN port. The RAP-2WG
does not have an On/Off switch. The device turns on when the power adapter is
attached and plugged into a power outlet. The device turns off when you disconnect
the power adapter from the power source (outlet).
Antenna
The antenna allows client devices to connect to the RAP-2WG wirelessly.
Top View
Figure 2 Top View
LEDs
The RAP-2WG has four LED indicators that display the status of the device.
zWLAN: Indicates wireless status and activity.
zE1:Indicates activity and/or status on this port.
zE0: Indicates activity and/or status on this port
zPOWER: When lit, the RAP-2WG is powered on.
Bottom View
Figure 3 Bottom View
Reset Button
To reset the RAP-2WG, insert a small, narrow object, such as a pin or paperclip, into
the hole indicated in Figure 3 and press the button for 5 seconds, while powering on
the RAP-2WG. This returns the RAP-2WG to factory defaults.
Wall Mount Slots
The wall mount slots illustrated in Figure 3 accommodate mounting the RAP-2WG
on the wall or other vertical surfaces. Mounting hardware is not included.
RAP-2WG Installation
Tabletop Mounting
The RAP-2WG is equipped with four rubber feet designed to support the device on a
flat surface without damaging it. Install the RAP-2WG on a flat level surface.
Wall Mounting
The wall mount slots, on the back of the RAP-2WG, accommodate wall mounting or
mounting to other vertical surfaces.
1. Install two screws in the wall or vertical surface. If attaching the device to
drywall, Aruba recommends using appropriate wall anchors (not included).
2. Align the AP mounting slots to capture the surface screws (see Figure 4).
Wall Mounting
Figure 4 Built-in Wall Mount Slots
Connecting the Required Cables
The RAP-2WG must be connected to a network device that has access to the
Internet, such as a router or modem. To complete the installation of the RAP-2WG:
1. Connect one end of the provided RJ-45 cable to port E0 on the RAP-2WG.
2. Connect the other end of the RJ-45 cable to a free RJ-45 port on your modem or
router.
3. Attach the provided power adapter to the DC IN port on the RAP-2WG.
4. Connect the other end of the power adapter to a power outlet.
The RAP-2WG is now powered on. To verify this, ensure that the PWR LED is solid
green.
Verifying Successful Installation
Once the RAP-2WG’s PWR LED has come up, the device will take 2 to 3 minutes to
complete the boot cycle. Once the boot cycle is complete, you can connect to your
company or corporate network.
Provisioning at Home
If your IT administrator instructed you to provision your RAP-2WG, complete the
following steps after the RAP-2WG has been powered.
1. Connect one end of a second RJ-45 cable to port E1 on the RAP-2WG and the
other end to your computer.
2. Open a web browser and navigate to any URL.
3. An Aruba web page will appear (see Figure 5), requesting the IP address of the
master controller. Enter the IP address provided to you by your IT
administrator.
The RAP-2WG will connect to the designated master controller and download the
necessary provisioning information. When the RAP-2WG comes back up, it is ready
to use.
Figure 5 Manual Provisioning Page
Specifications
Mechanical
Device Dimensions (antenna stowed) (HxWxD):
z125mm x 70mm x 27mm
z4.92" x 2.75" x 1.06"
Device Weight:
z0.4 lbs / 170 grams
Shipping Dimensions (HxWxD):
z258mm x 167.5mm x 61.5mm
z10.16" x 6.59" x 2.42"
Temperature:
zOperating: 0ºC to 40ºC (32ºF to 122ºF)
zStorage: -10ºC to 70ºC (14ºF to 158ºF)
Relative Humidity:
z15% to 95% non-condensing
Mounting:
zBuilt-in Wall Mount Slots
zTabletop
Antenna:
zIntegrated, detachable articulating tri-band antenna
Visual Status Indicators (LEDs):
zPWR: Power
zWLAN: Wireless LAN
zE0 (WAN/uplink)
zE1 (LAN/downlink)
Electrical
Ethernet:
z2 x 10/100 Base-T auto-sensing Ethernet RJ-45 Interface, MDI/MDX
zIEEE 802.3, IEEE 802.3u
Wireless LAN
Network Standards:
zIEEE 802.11b and IEEE 802.11g
Antenna Type:
zScrew-on, 802.11b/g omni-directional antenna
Antenna Gain:
z1.5 dBi at 2.4GHz
Radio Technology:
zOrthogonal Frequency Division Multiplexing (OFDM)
zDirect Sequence Spread Spectrum (DSSS)
Radio Modulation Type:
z802.11b - CCK, BPSK, QPSK
z802.11g - CCK, BPSK, QPSK, OFDM
Package Contents
z1 x RAP-2WG Remote Access Point
z1 x Installation Guide (this document)
z1 x RJ-45 Ethernet Cable
z1 x Power Adapter
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible,
retain the carton, including the original packing materials. Use them to repack the product
in case there is a need to return it.
Before You Begin
Before installing your RAP-2WG Remote Wireless Access Point, please ensure you
have the following:
z1 x RJ-45 Ethernet Cable
z1 x Power Adapter
zRAP-2WG
Power
Socket
E0 Uplink
RJ-45 Port
E1 LAN
RJ-45 Port
Antenna
LED Color(s) Activity Action
PWR Green On Power on
Off No power
WLAN Green Off Wireless is inactive
On Wireless is active
Flashing Radio mode
Ports (E0, E1) Green Off No link
On Link established
Flashing Ethernet activity
Reset Button
Wall Mount Slots
NOTE
See the Provisioning at Home section if you are unable to connect
successfully.
NOTE
Contact your IT administrator if you are still unable to connect successfully.
RAP2_InstallGuide.fm Page 1 Tuesday, December 23, 2008 9:57 AM
RAP-2WG Wireless Remote
Access Point
Installation Guide
www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: 408.227.4500
Fax 408.227.4550
RAP-2WG Wireless Remote Access Point | Installation Guide
Part Number 0510577-01 | December 2008
Contacting Aruba Networks
Web Site Support
Main Site http://www.arubanetworks.com
Support Site https://support.arubanetworks.com
Software Licensing Site https://licensing.arubanetworks.com/login.php
Wireless Security Incident
Response Team (WSIRT)
http://www.arubanetworks.com/support/wsirt.php
Americas and APAC Support Email support@arubanetworks.com
EMEA Support Email emea.support@arubanetworks.com
WSIRT Email
Please email details of any security
problem found in an Aruba product.
wsirt@arubanetworks.com
Telephone Support
Aruba Corporate +1 (408) 227-4500
FAX +1 (408) 227-4550
Support
United States
Universal Free Phone Service Number (UIFN): Australia, Canada,
China, France, Germany, Hong Kong, Ireland, Israel, Japan, Korea,
Singapore, South Africa, Taiwan, and the UK
All Other Countries
800-WI-FI-LAN (800-943-4526)
+800-4WIFI-LAN (+800-49434-526)
+1 (408) 754-1200
Copyright
© 2008 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System®, Bluescanner,
For Wireless That Works®, Mobile Edge Architecture, People Move. Networks Must Follow., RFprotect, The All
Wireless Workplace Is Now Open For Business, and The Mobile Edge Company® are trademarks of Aruba
Networks, Inc. All rights reserved. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License ("GPL"), GNU Lesser General Public License ("LGPL"), or other Open
Source Licenses. The Open Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation
for this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken
against it with respect to infringement of copyright on behalf of those vendors.
Warranty
This hardware product is protected by the standard Aruba warranty of one year parts/labor. For more
information, refer to the ARUBACARE SERVICE AND SUPPORT TERMS AND CONDITIONS.
Altering this device (such as painting it) voids the warranty.
Media Access Control:
zCSMA/CA with ACK
Supported Frequency Bands 2.4GHz:
z2.400 ~ 2.4835 GHz (Global), channels country specific
Supported Operating Channels:
Supported Countries:
zComplete country list available at http://www.arubanetworks.com/products/aps/
certification
Data Rates:
z802.11b - 1, 2, 5.5, 11 Mbps per channel
z802.11g - 6, 9, 12, 18, 24, 36, 48 and 54 Mbps per channel
Output Transmit Power:
z802.11b: 18 dBm
z802.11g: 17 dBm at 6 Mbps; 14 dBm at 54 Mbps
Miscellaneous Functionality
Maximum Clients:
z128 concurrent client sessions
Radio Band Selection:
zVia Mobility Controller in software
Manageability:
zManagement of all 802.11 parameters
zNetwork Wide AP Management via CLI, WEB GUI and SNMPv3
zAccess Point Profiles, managed by Geographical Location, BSSID and Radio
Type
Encryption (AP and Mobility Controller):
z40 bit / 64 bit / 128 bit / 152 bit WEP, TKIP, AES
Compliance
Aruba provides a multi-language document containing country-specific restrictions
and additional safety and regulatory information for all Aruba hardware products.
You can read or download this document, on our website at www.arubanetworks.com/
safety_addendum.
Certifications
Electromagnetic Compatibility
zFCC DOC Part 15 Class B (digital portion)
zFCC Part 15 Subpart C 15.247
zFCC Part 15 Subpart E 15.407
zICES-003 Class B (Canada)
zRSS 210 (Canada)
zVCCI Class B (Japan)
zTelec 2.4, Channel 14 and 5 GHz approved (Japan)
zCE marked
zMIC (Korea)
zSRRC (China)
zAS/NZS CISPR22: 2002
zAS/NZS 4268
zDGT (Taiwan)
Safety Compliance
zcULus Listed 60950
zIEC 60950
zEN 60950
Disposal of the RAP-2WG
For the most current information about Global Environmental Compliance and
Aruba products, see our website at www.arubanetworks.com/safety_addendum.
This product at end of life is subject to separate collection and
treatment in the EU Member States, Norway, and Switzerland, and
therefore is marked with the symbol shown at the left (crossed out
wheelie bin). The treatment applied at end of life of these products in
these countries shall comply with the applicable national laws
implementing Directive 2002/96EC on Waste of Electrical and Electronic Equipment
(WEEE).
The WEEE Directive 2002/96/EC and RoHS (Restriction of Hazardous Substances)
Directive 2002/95/EC sets collection, recycling and recovery targets for various
categories of electrical products and their waste.
European Union RoHS
The Restriction on Hazardous Substances Directive (RoHS)
(2002/95/EC), which accompanies the WEEE Directive, bans the
use of heavy metals and brominated flame-retardants in the
manufacture of electrical and electronic equipment. Specifically, restricted
materials under the RoHS Directive are Lead (Including Solder used in PCB’s),
Cadmium, Mercury, Hexavalent Chromium, and Bromine.
Aruba declares compliance with the European Union (EU) WEEE Directive (2002/
96/EC). For more information on WEEE, refer to:
http://www.dti.gov.uk/sustainability/weee
China RoHS
Aruba products comply with China environmental declaration
requirements and are labeled with the “EFUP 50” label shown at the
left.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited
to channels 1 through 11.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
Warranty
Standard warranty - 1 year return to manufacturer
802.11b 802.11g
zUS, Canada, Taiwan 11
zETSI up to 13
zUS, Canada, Taiwan 11
zETSI up to 13
zJapan 13
!
CAUTION
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
WARNING
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
NOTE
Note to US model owner: To comply with US FCC regulation, the country
selection function has been completely removed from all US models. The
above function is for non-US models only.
᦭Ქ᦭ኂ‛ ჿ᣿䋼
Hazardous Materials Declaration
᦭Ქ᦭ኂ‛䋼ᚗర⚛Hazardous Substances)
ㇱઙฬ⒓
(Parts)
䪙
Lead
(Pb)
ᳮ
Mercury
(Hg)
䬝
Cadmium
(Cd)
౐ચ䫀
Chromium VI
Compounds
(Cr6+)
ᄙ⒈ 㘨 ⧶
Polybrominated
Biphenyls
(PBB)
ᄙ⒈ੑ䝮
⧶
Polybrominated
Diphenyl Ether
(PBDE)
⬉〝᧼
PCA Board X O O O O O
᧍᪾㒘ઙ
Mechanical
Subassembly
X O O O O O
O:⴫␜䆹᦭Ქ᦭ኂ‛䋼࿷䆹ㇱઙᚲ᦭ဋ䋼᧚ᢱਛ⊛฽㊂ဋ࿷SJ/T11363-2006ᷛಎ㾘ቯ⊛㒢㊂ⷐ᳞એਅޕ
This component does not contain this hazardous substance above the maximum concentration values in homogeneous materials
specified in the SJ/T11363-2006 Industry Standard.
X: ⴫␜䆹᦭Ქ᦭ኂ‛䋼⥋ዋ࿷䆹ㇱઙ⊛ᨱ৻ဋ䋼᧚ᢱਛ⊛฽㊂⿥಴SJ/T11363-2006ᷛಎ㾘ቯ⊛㒢㊂ⷐ᳞ޕ
This component does contain this hazardous substance above the maximum concentration values in homogeneous materials specified
in the SJ/T11363-2006 Industry Standard.
ᇍ䫔ଂП᮹ⱘ᠔ଂѻકᴀ㸼ᰒ⼎կᑨ䫒ⱘ⬉ᄤֵᙃѻકৃ㛑ࣙ৿䖭ѯ⠽䋼ޕ
This table shows where these substances may be found in the supply chain of electronic information products, as of the date of sale of
the enclosed product.
ℸᷛᖫЎ䩜ᇍ᠔⍝ঞѻકⱘ⦃ֱՓ⫼ᳳᷛᖫ
ᶤѯ䳊䚼ӊӮ᳝ϔϾϡৠⱘ⦃ֱՓ⫼ᳳ՟བ⬉∴ऩܗ῵ഫ䌈೼݊ѻકϞ
ℸ⦃ֱՓ⫼ᳳ䰤া䗖⫼Ѣѻકᰃ೼ѻક᠟ݠЁ᠔㾘ᅮⱘᴵӊϟᎹ԰
The Environment- Friendly Use Period (EFUP) for all enclosed products and their parts are per the
symbol shown here. The Environment- Friendly Use Period is valid only when the product is operated
under the conditions defined in the product manual.
Part Number: 0510303-01
RAP2_InstallGuide.fm Page 2 Tuesday, December 23, 2008 9:57 AM

Navigation menu
