Hewlett-Packard Company 11a/b/g Wireless PCI Adapter Users Manual
Users Manual
Wireless LAN PC Card
3CRPAG175
Wireless LAN PCI Adapter
3CRDAG675
Quick Start Guide
http://www.3com.com/
Published October 2003
Quick start guide version 1.0.0
3Com Corporation ■ 350 Campus Drive ■ Marlborough, MA ■ USA 01752
Copyright © 2003 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to
make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation.
3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the
partof 3Com Corporation to provide notification of such revision or change.
3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not
limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make
improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.
3Com is a registered trademark and the 3Com logo is a trademark of 3Com Corporation. Microsoft and Windows are registered trademarks of
Microsoft Corporation. All other company and product names may be trademarks of the respective companies with which they are associated.
Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries.
If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as
a separate document or in the hard copy documentation. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you.
UNITED STATES GOVERNMENT LEGEND
If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the
following:
All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as "Commercial
Computer Software" as defined in DFARS 252.227-7014 (June 1995) or as a "commercial item" as defined in FAR 2.101(a) and as such is provided
with only such rights as are provided in 3Com's standard commercial license for the software. Technical data is provided with limited rights only as
provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion
of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this user guide.
Contents
1Installing Your Wireless LAN Product and Wireless LAN Manager 1
Installation CD 1
Installing your Wireless LAN PC Card: 1
Windows XP, 2000, Me, and 98 SE Installation 1
Inserting Your Wireless LAN PC Card 2
Antennas 2
Installing Your Wireless LAN PCI Adapter 3
Install Procedure for Microsoft Windows 98SE/ME/2000/XP 3
Installing the PCI Adapter into your system 4
Using Wireless LAN Manager 7
Getting Connected with 3Com Wireless LAN Manager 7
Creating New Connections 8
2Troubleshooting 11
Confirming Device Installation 11
Diagnosing Problems 11
Wireless LAN Adapter LED Indicators 12
Removing Your Wireless LAN PC Card 12
Updating the Wireless LAN Product Driver 12
Windows XP and 2000 12
Windows Me and 98 SE 13
ATechnical Support 15
Online Technical Services 15
World Wide Web Site 15
3Com Knowledgebase Web Services 15
3Com FTP Site 15
Support from Your Network Supplier 16
Support from 3Com 16
Returning Products for Repair 16
Regulatory
Compliance Information 17
FCC Part 15 Notice (Applicable to use within the USA) 17
Unintentional Radiator 17
Manufacturer’s Declaration of Conformity 18
Industry Canada Notice (Applicable for use within Canada) 18
Avis de conformité à la réglementation d’Industrie Canada 18
Safety Notice 19
European Community CE Notice 19
Contents
1
1
Installing Your Wireless LAN
Product and Wireless LAN Manager
Installation CD
The Installation CD contains:
■Setup programs and drivers for Windows XP, 2000, Millennium Edition
(Windows Me), 98 Second Edition (SE)
■3Com Wireless LAN Manager
■README.TXT file with updated information about your Wireless LAN Product
■This Wireless LAN Quick Start Guide
■Adobe Acrobat Reader
Installing your Wireless LAN PC Card:
Windows XP, 2000, Me, and 98 SE Installation
If you are accessing this guide as part of your LAN PC Card installation, skip to
step 2 below.
1With the computer on and Windows running, insert the Installation CD into the
CD-ROM drive. The auto-start feature starts the installation. If nothing happens
within five seconds, click Start > Run and type d:\setup.exe (where d: is your
CD-ROM drive).
2From the 3Com Wireless Installer main menu, select Install Wireless Product.
3Wait for the installation program to prompt you to insert the PC Card into the slot
(see the illustrations in the next section, "Inserting Your Wireless LAN PC Card").
4Your machine will run through the hardware installation and automatically launch the
Wireless LAN Manager software installation. Respond to the prompts as they appear.
5During the installation process, you may receive prompts for the Windows installation
CD. Insert the CD for your Windows operating system and indicate the correct path.
Your computer goes through a brief installation process during which it displays
several windows indicating what is currently installing.
6Restart the computer whenever you are prompted to do so.
7When Wireless LAN Manager starts, you will be prompted to select the country where
you will be using the 3CRPAG175 Wireless LAN PC Card. It is very important that you
select the correct country so the product is properly configured for that country.
8Your installation is now complete.
NOTE: To simplify installation, please insert CD and run setup before inserting
PC Card.
1Installing Your Wireless LAN Product and Wireless LAN Manager
2
Inserting Your Wireless LAN PC Card
Antennas
The antenna on the 3CRPAG175 Wireless LAN PC Card is an XJACK antenna. Extend or
retract the antenna like a retractable ball-point pen. Press it to extend and use it, press it
again to retract or disable it.
NOTE: The antenna on the 3CRPAG175 Wireless LAN PC Card must be extended
for you to connect to your wireless network. For best results when extending or
retracting the antenna, press the antenna near the "3Com" text.
3CRPAG175
Installing Your Wireless LAN PCI Adapter
3
Installing Your Wireless LAN PCI Adapter
Install Procedure for Microsoft Windows 98SE/ME/2000/XP
Follow these steps to install the Wireless LAN PCI Adapter (do not install your 3Com
Wireless LAN PCI Adapter until instructed):
1Power on your computer and allow Windows to load fully.
2Insert the Installation CD in the CD-ROM and then click Install Software.
3The setup wizard will guide you through all of the installation steps.

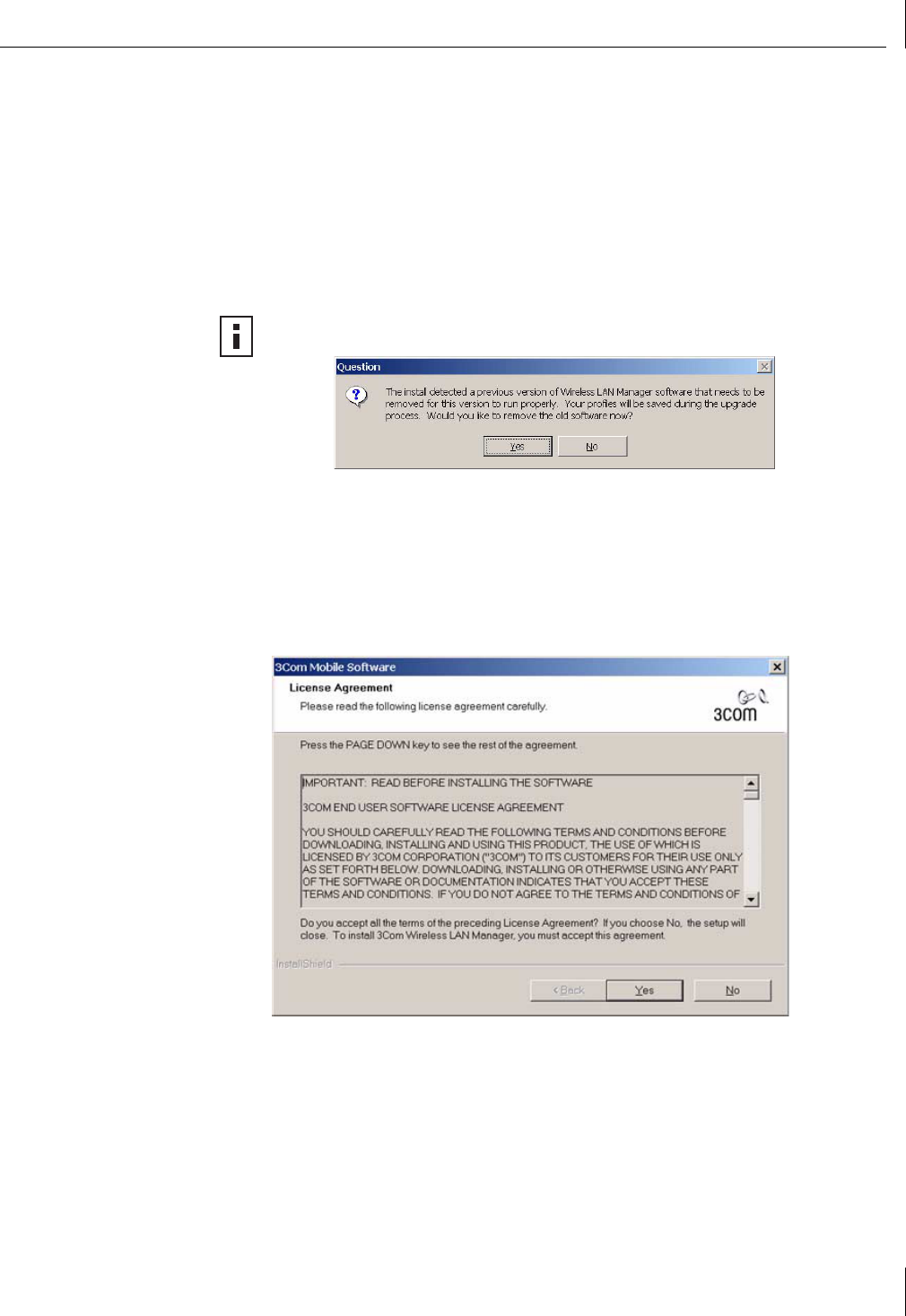

4Click Yes to accept the license agreement.
NOTE: If you receive the following upgrade message:
click Yes to replace your existing software with the new installation. If you are
prompted by the install to reboot your system after the existing software has been
removed, do so and then when Windows finishes restarting, reinsert the CD and
click Install Software to continue installation.
1Installing Your Wireless LAN Product and Wireless LAN Manager
4

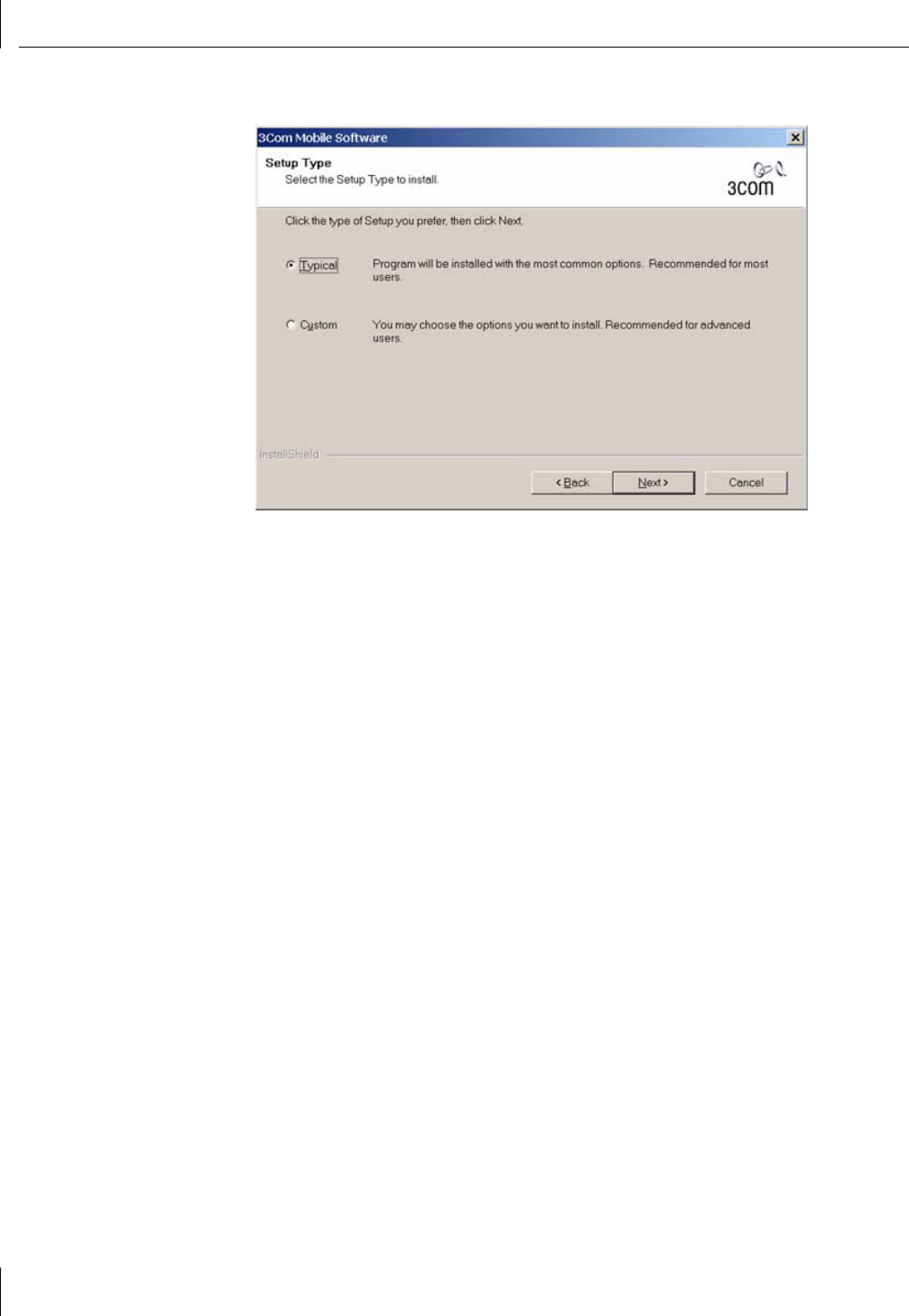

5Select Typical then click Next.
6The installer copies files into the default directory:
C:\Program Files\3Com\WLAN Manager
7The wizard finishes installation. Click Finish to exit the installation program.
8Leave the Installation CD in the CD-ROM while finishing the steps to install the
PCI Adapter into your system.
Installing the PCI Adapter into your system
Follow these steps to install the 3Com Wireless LAN PCI Adapter into your system:
1Shutdown Windows and turn off the power to your computer and unplug the
power cord.
2Remove the cover from your computer.
3Locate an empty PCI slot and remove its slot cover. Save the screw.
Installing Your Wireless LAN PCI Adapter
5

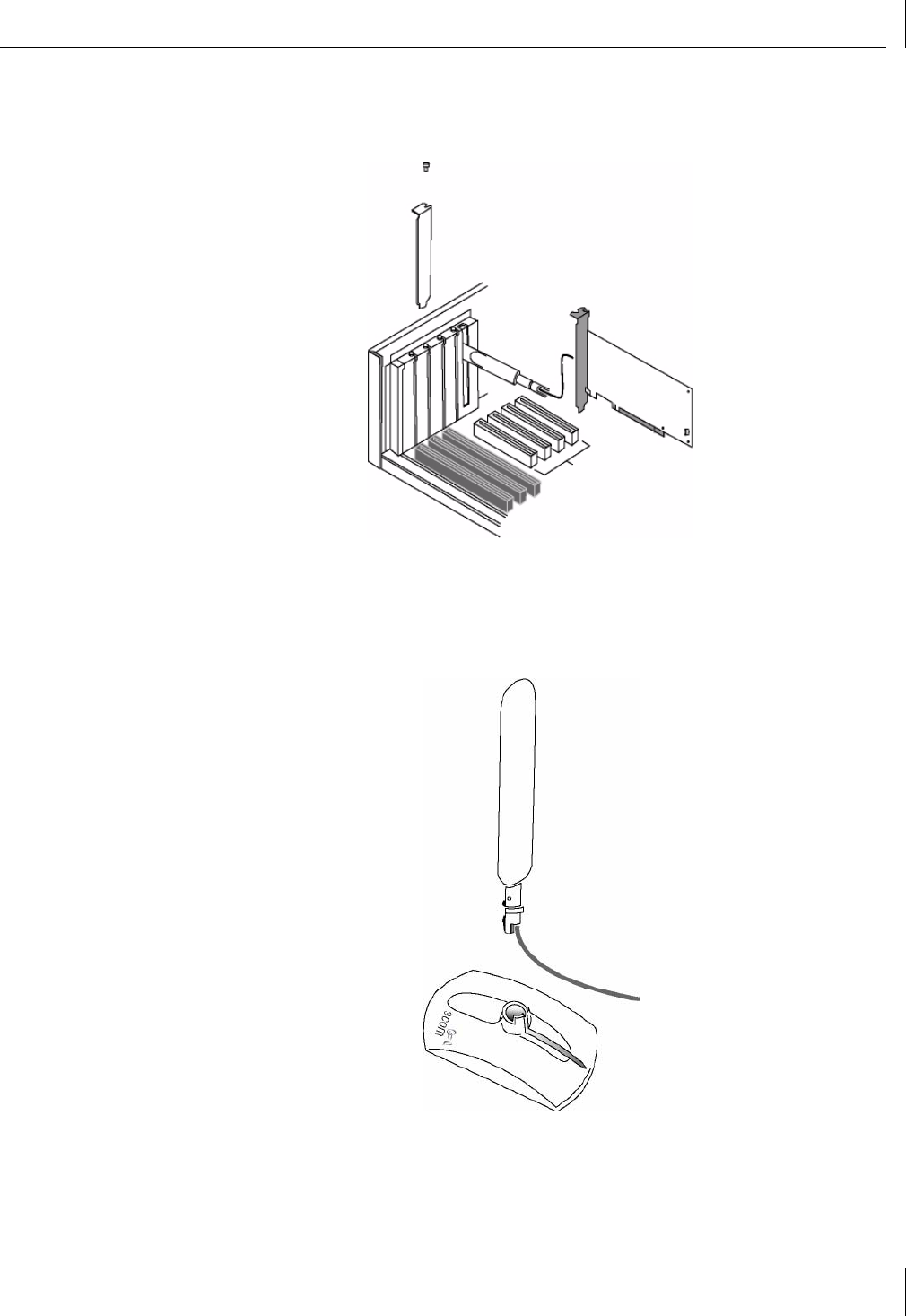

4Slide the antenna through the slot (do not attach the antenna base until after you
have installed the adapter). Carefully insert the Wireless LAN PCI Adapter into the
selected slot until it is seated firmly.
5Secure the card with the screw that you removed earlier.
6Replace the cover for your PC and plug in the PC power cord.
7Attach the antenna onto the base unit.
8Turn on the power to your computer.
9As Windows loads, you may receive the Found New Hardware wizard. Respond to
the prompts as they appear.
1Installing Your Wireless LAN Product and Wireless LAN Manager
6
10 If you are prompted for the drivers, enter D:\, where D: is the location of the CD-ROM
drive where the Installation CD is inserted. If you are prompted with a warning
message stating Digital Signature Not Found or a message stating that the card has
not passed Windows Logo testing, please select Yes or Continue Anyway.
11 During the installation process, you may receive prompts for the Windows installation
CD. Insert the CD for your Windows operating system and indicate the correct path.
Your computer goes through a brief installation process during which it displays
several windows indicating what is currently being installed. Restart the computer
whenever you are prompted.

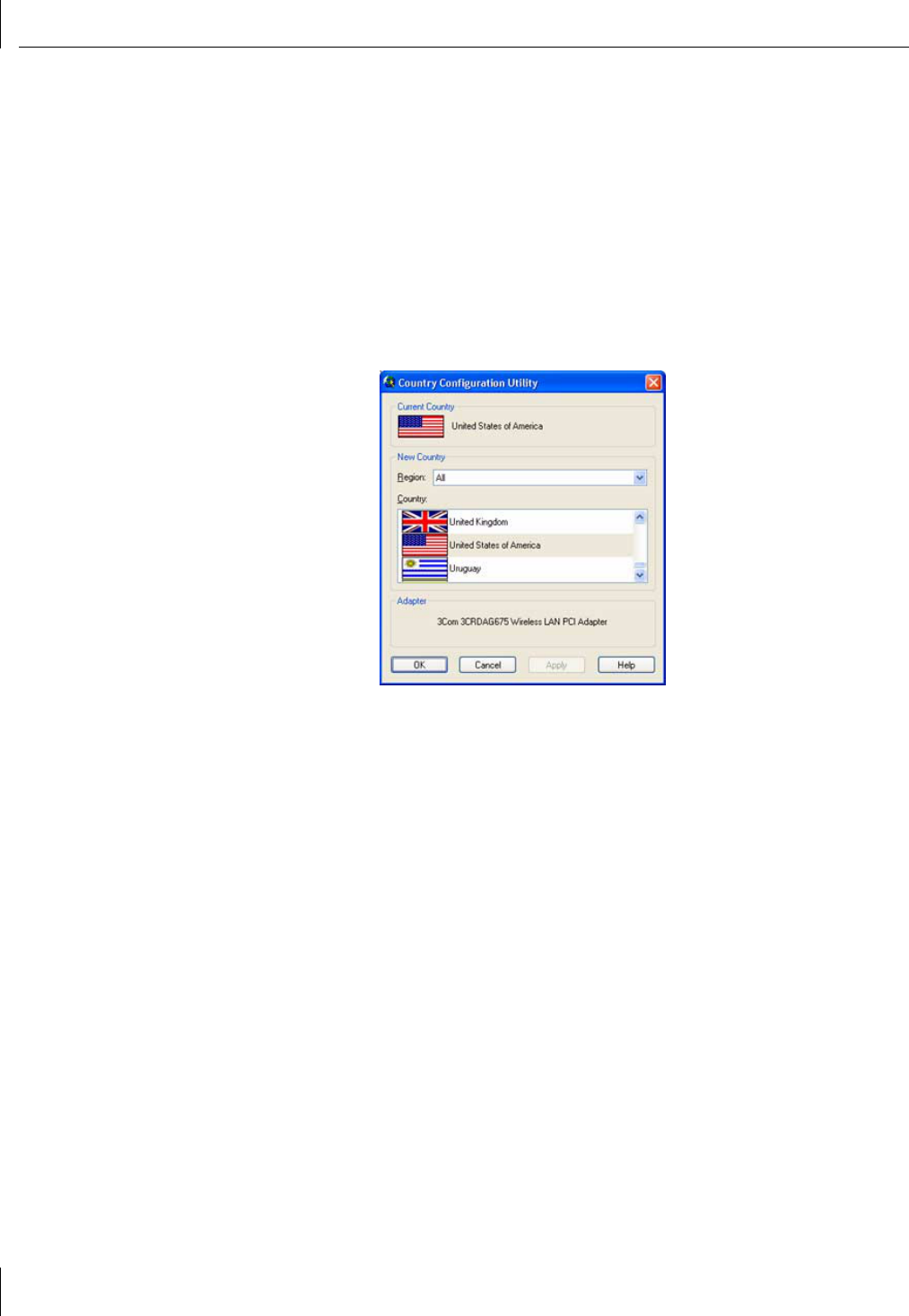

12 You will be prompted for country selection when Windows finishes installing drivers
for your 3Com Wireless LAN PCI Adapter and the 3Com Launcher has started the
Wireless Applet.
Using Wireless LAN Manager
7
Using Wireless LAN Manager
Key Features contained within 3Com Wireless LAN Manager:
■Ad Hoc or Access Point connections
■Wide range of security settings: including
■64, 128, 152 bit WEP
■Light EAP
■802.1x - EAP-TLS, PEAP, EAP-TTLS, MD5
■WPA (WEP, TKIP, AES)
■3Com Dynamic Security Link
■Serial Authentication
■Multiple profile support with automatic profile activation capabilities
■Profiles can be imported and exported for easy multiple machine setup
■For each profile you can specify:
■SSID name
■Security settings
■Applications that will automatically launch, such as VPN software
■Default printer
■File and print sharing for each profile
■Static or Dynamic IP settings
■Autonomous Load Balancing for improved roaming.
After installation, consult with your network administrator and refer to 3Com's Wireless
LAN Manager on line help for detailed information about the Wireless LAN Manager
features and to change your default installation settings.
Getting Connected with 3Com Wireless LAN Manager
Your 3Com Wireless LAN Product has been initially setup as follows:
■This has been set to allow you to connect to any Access Point without encryption or
authentication.
■Encryption: No encryption has been enabled.
If 3Com Wireless LAN Manager does not show an active connection or you want to
connect to a different wireless LAN network then you will need to create a new
connection.
NOTE: Wireless LAN Manager defaults to automatically connect to any wireless
network with no security. This default allows a basic connection to an open access
point.
1Installing Your Wireless LAN Product and Wireless LAN Manager
8
Creating New Connections

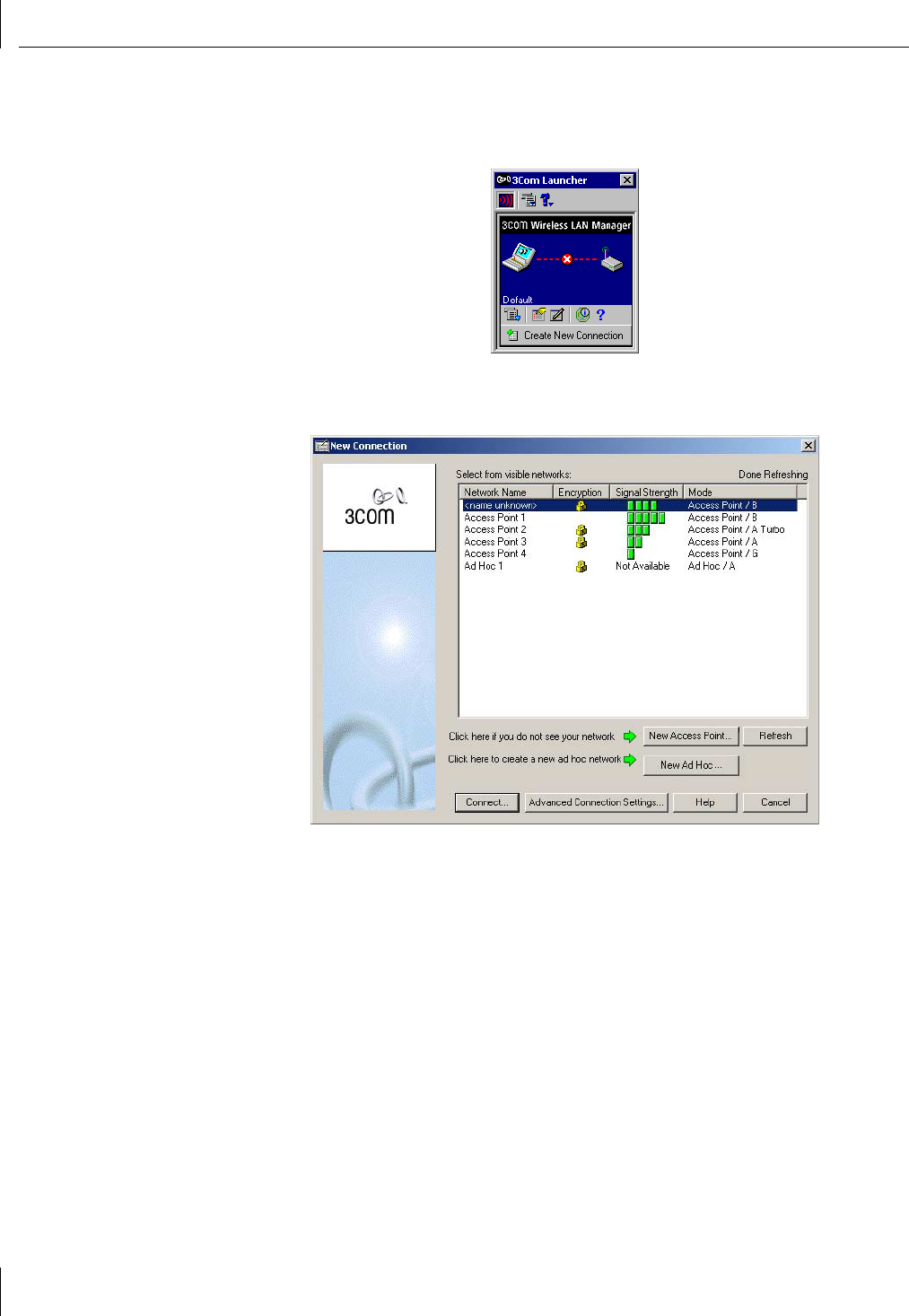

To make a Wireless LAN connection, click the Create New Connection button from the
3Com Launcher application.
This will bring up the “New Connection” window.
The new connection window will show a list of all the Wireless LAN connections that are
available, and the type of network they are.
“Access Point” networks are those with a device (Access Point) that you can use to
connect to a standard network. “Ad Hoc” networks are for allowing direct connections
between two or more computers with Wireless LAN adapters. They are useful if no
Access Points are available.
If you see an Access Point connection with the network name “<name unknown>”, then
the Access Point is choosing to not broadcast its SSID (network name). In this case, you
must know the name of the network before you can connect to it.
To create an Ad Hoc network, click the New Ad Hoc button. If your network is currently
not visible, click the New Access Point button to manually create the network.
After you have selected the network you want to connect to, click the Connect or
Advanced Connection Settings button.
The Connect button will ask you for the minimum amount of information you need
to make a connection.
Getting Connected with 3Com Wireless LAN Manager
9
The Advanced Connection Settings button will allow you to specify additional
information including:
■Profile settings such as profile name, if you just want to save the profile instead of
connecting, and automatic profile selection behavior.
■Security settings for your connection.
■If you want to automatically make a VPN connection
■If you want to automatically launch an application
■The TCP/IP settings for the network
■Advanced settings
After you complete the connection, the connection information will be stored in a profile
with the network name of that connection.
From the 3Com Launcher application, you can return to the profile you have just created
by clicking on the Options Menu ( ) button and selecting that profile from the menu.
After you have created multiple profiles, you can also switch between them with the
Options Menu ( ) button. Selecting the “Automatic Profile Selection” option allows
Wireless LAN Manager to try to choose the best profile for you depending on your
location.
The Profile Manager ( ) button activates the Wireless LAN Profile Manager application.
You can use this application to activate profiles, edit profiles, create new profiles, and
import or export profiles. You can also determine which profiles will be used if the
“Automatic Profile Selection” option is selected, and in what order they will be tried.
The Edit Current Profile ( ) button allows you to make changes to the currently
selected profile. You can also make changes to a profile from the Wireless LAN Profile
Manager, or by creating a new connection for the network name (which will overwrite the
current profile).
The Diagnostics ( ) button will display information about the wireless LAN adapter,
current connection, and visible networks. The Help ( ) button will display help
information about the status of the current connection.
1Installing Your Wireless LAN Product and Wireless LAN Manager
10
11
2Troubleshooting
Confirming Device Installation
1
With your Wireless LAN product installed in the computer, double-click the
My Computer
icon. If you are running Windows XP, click
Start > Control Panel
and go to step 3.
2Double-click the Control Panel icon.
3Double-click the System icon. The System Properties window appears, detailing your
system setup.
4Click the Device Manager tab. A list of devices appears, arranged by type. If you are
using Windows XP or 2000, click the Hardware tab and click Device Manager.
5Double-click Network Adapters. Select: 3Com 3CRPAG175 Wireless LAN PC Card or
3Com 3CRDAG675 Wireless LAN PCI Adapter.
6Double-click the entry to display a description of the current status.
The device status should indicate "This device is working properly."
7Close the windows you have opened until you return to the desktop.
Diagnosing Problems
If you have difficulty using the Wireless LAN Product, try the solutions in the following
table. If you continue to experience difficulty, see the sections, "Removing Your Wireless
LAN Product" and "Updating the Wireless LAN Product driver.
Problem Solutions
Wireless LAN PC Card LED is off Make sure the PC Card is properly inserted in the slot and that the XJACK antenna is fully
extended. Confirm device installations as described above.
Check the Wireless LAN PC Card icon in the Windows Device Manager and make sure the
PC Card type can be recognized.
Wireless LAN PCI Adapter LED is off Follow the PCI adapter installation procedure and make sure the PCI adapter is properly
inserted in the slot. Confirm device installations as described above. Check the Wireless LAN
PCI Adapter icon in the Windows Device Manager and make sure the PCI adapter can be
recognized.
Wireless LAN product installs as an
unknown device
Remove the unknown device and repeat the installation procedure. Make sure you insert the
3Com CD and run the setup. Then insert the Wireless LAN product.
The Windows Add Hardware Wizard
was unable to locate the Wireless LAN
product drivers.
You may have had no CD or the wrong CD inserted in the drive, or the 3Com CD may not
have been ready when the wizard looked for the drivers.
Installation program does not finish or
the driver fails to load
Use the Device Manager to resolve resource conflicts that may exist. Select System from the
Control Panel, and then click the Device Manager tab.
Network association is intermittent. Make sure the XJACK antenna is fully extended. Try reorienting your laptop. For best use of
the antenna:
■Keep the area around the antenna clear from materials that could block radio
transmission, such as metal objects, electronic devices, and cordless telephones.
■If the signal is weak, change the direction of your laptop slightly.
■If necessary, move your computer a few inches to find a better signal.
2Troubleshooting
12
Wireless LAN Adapter LED Indicators
Removing Your Wireless LAN Product
Normally, you would not uninstall the Wireless LAN Product; however, in case a problem
arises, you may want to uninstall and reinstall it. You can uninstall Wireless LAN Manager
any time following the installation. The uninstall removes desktop icons, registry entry
files, and optionally files used by the adapter.
1If you are using Windows 2000, Me, or 98 SE, click Start > Settings > Control Panel.
If you are using Windows XP, click Start > Control Panel.
2Click Add/Remove Programs.
3Select 3Com Wireless LAN Manager.
4Click Change/Remove.
5Click Remove and Next.
6Follow the prompts to uninstall 3Com Wireless LAN Manager.
7When the uninstall is complete, remove the Wireless LAN Product and restart your
computer.
Updating the Wireless LAN Product Driver
To update your Wireless LAN product driver software, find your operating system
below, then follow the procedure.
Windows XP and 2000
1Insert your Wireless LAN PC Card into the PC card slot or your Wireless LAN PCI
adapter in the PCI slot.
2In Windows 2000, select Start > Settings > Control Panel, then double-click the
System icon.
In Windows XP, from your desktop or start menu, right-click My Computer and select
Properties.
Computer operating system does not
recognize the Wireless LAN product.
Make sure the Wireless LAN product is properly installed. Check whether another card is
already in use. Windows XP, 2000, Me, and 98 SE: Check whether the computer has a Plug-
and-Play BIOS. Visit www.3com.com to download the latest drivers. Refer to the Updating
the Wireless LAN product section below.
No network association exists when the
computer becomes active again after
being in sleep mode or after the
Wireless LAN Product is removed and
reinserted
Log out and log in again, or restart the computer to restore the connections.
Problem Solutions
Condition Description
Off The computer does not recognize the Wireless LAN Adapter.
Flashing on and off The Wireless LAN Adapter has power.
Flickering Data transfer is taking place.
Updating the Wireless LAN Product Driver
13
3Select the Hardware tab and click Device Manager.
4If necessary, click the plus sign (+) to expand the Network Adapters tree.
5In Windows 2000, double-click the entry: 3Com 3CRPAG175 Wireless LAN PC Card
or 3Com 3CRDAG675 Wireless LAN PCI Adapter select the Driver tab, and click
Update Driver. In Windows XP, right-click 3Com Wireless LAN Adapter and select
Update Driver. The Hardware Update Wizard window appears. Click next.
6Insert the Installation CD. If the 3Com installation software launches, click Exit to
dismiss the program.
7In Windows 2000, click Display list of known drivers so that I can choose a specific
driver and click Next. In Windows XP, select Install from a list or specific location
(Advanced) and click Next.
8In Windows XP, select Don’t search. I will choose the driver to install and click Next.
9When you are prompted to select an adapter, click Have Disk… and enter the drive
letter for the Installation CD or enter the directory on your hard drive where the
updated driver is located. Click Continue.
10 Select 3Com 3CRPAG175 LAN PC Card or 3Com 3CRDAG675 Wireless LAN PCI
Adapter and click Next. Follow the prompts through the remainder of the driver
update.
11 When the installation has completed, click Finish.
Windows Me and 98 SE
1Insert your Wireless LAN PC Card into the PC card slot.
2From the Windows Start menu, select Settings, then select Control Panel.
3Double-click the System icon, then select Device Manager.
4In the Device Manager window, expand the Network Adapters list.
5Select 3Com 3CRPAG175 Wireless LAN PC Card or 3Com 3CRDAG675 Wireless LAN
PCI Adapter and click Properties.
6Select Driver and click Update Driver.
7In the Update Device Driver Wizard, follow the prompts to install the upgrade.
8When prompted, click Restart for the changes to take effect.
2Troubleshooting
14
15
ATechnical Support
3Com provides easy access to technical support information through a variety of services.
This appendix describes these services.
Information contained in this appendix is correct at time of publication. For the most
recent information, 3Com recommends that you access the 3Com Corporation World
Wide Web site.
Register product for support at esupport.3com.com
Online Technical Services
3Com offers worldwide product support 24 hours a day, 7 days a week, through the
following online systems:
■World Wide Web site
■3Com Knowledgebase Web Services
■3Com FTP site
World Wide Web Site
To access the latest networking information on the 3Com Corporation World Wide Web
site, enter this URL into your Internet browser:
http://www.3com.com/
This service provides access to online support information, such as technical documentation
and a software library, as well as support options that range from technical education to
maintenance and professional services.
3Com Knowledgebase Web Services
The 3Com Knowledgebase is a database of technical information to help you install,
upgrade, configure, or support 3Com products. The Knowledgebase is updated daily with
technical information discovered by 3Com technical support engineers. This
complimentary service, which is available 24 hours a day, 7 days a week to 3Com
customers and partners, is located on the 3Com Corporation World Wide Web site at:
http://knowledgebase.3com.com
3Com FTP Site
Download drivers, patches, software, and MIBs across the Internet from the 3Com public
FTP site. This service is available 24 hours a day, 7 days a week.
To connect to the 3Com FTP site, enter the following information into your FTP client:
■Hostname: ftp.3com.com
■Username: anonymous
■Password: <your Internet e-mail address>
NOTE: With Web browser software, such as Netscape Navigator and
Internet Explorer, you do not need a user name and password.
ATechnical Support
16
Support from Your Network Supplier
If you require additional assistance, consult your network supplier. Many suppliers are
authorized 3Com service partners who are qualified to provide a variety of services,
including network planning, installation, hardware maintenance, application training, and
support services.
When you consult your network supplier, have the following information ready:
■Product model name, part number, and serial number
■A list of system hardware and software, including revision levels
■Diagnostic error messages
■Details about recent configuration changes, if applicable
If you are unable to consult your network supplier, see the following section on how to
contact 3Com.
Support from 3Com
If you are unable to obtain assistance from the 3Com online technical resources or from
your network supplier, 3Com offers technical telephone support services. To find out more
about your support options, go to the Web site associated with your region of the world
shown below.
When you contact 3Com for assistance, have the following information ready:
■Product model name, part number, and serial number
■A list of system hardware and software, including revision levels
■Diagnostic error messages
■Details about recent configuration changes, if applicable
Returning Products for Repair
Before you send a product directly to 3Com for repair, you must first obtain an
authorization number. Products sent to 3Com without authorization numbers will be
returned to the sender unopened, at the sender's expense. To obtain an authorization
number, go to the Web site listed above for your region.
Region URL for Regional Web Site
Asia and the Pacific Rim ap.3com.com/support
Africa, Europe, and the
Middle East
emea.3com.com/support/supportnumbers.html
Latin America lat.3com.com/lat/support
North America csoweb4.3com.com/contactus
17
Regulatory
Compliance Information
FCC Part 15 Notice (Applicable to use within the USA)
Unintentional Radiator
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undersired operation.
2The user may find the following booklet prepared by the Federal Communications Commission helpful:
The Interference Handbook
This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402.
Stock No. 004-000-00345-4.
NOTE: This product contains encryption. It is unlawful to export out of the U.S. without obtaining a
U.S. Export License.
CAUTION: FCC Radio-Frequency Exposure Notice
This device generates and radiates radio-frequency energy. In order to comply with FCC radio-
frequency radiation exposure compliance requirements, a separation distance of at least 2.5 cm
(1.0 inch) for model SL-3040 and at least 20 cm (7.9 inches) for model SL-3045 must be maintained
between the antenna of the device and all persons. This product does not contain any user
serviceable components. Any unauthorized product changes or modifications will invalidate 3Com's
warranty and all applicable regulatory certifications and approvals.
WARNING: This equipment has been tested and found to comply with the limits for a Class B
digital device as applicable, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
■Consult the dealer or an experienced radio/TV technician for help.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range,then it is restricted in
indoor environment only.
3Com declares that 3CRDAG675 ( FCC ID: O9C-SL3045 ) is limited in CH1~CH11 by
specified firmware controlled in USA.
Regulatory Compliance Information
18
Manufacturer’s Declaration of Conformity
PC Card
3Com Corporation, 3930 W. Parkway Blvd., PO Box 704010, West Valley City, UT 84119, (847) 262-0070
Declares that the Product:
Date: June 30, 2003
Brand Name: 3Com Corporation
Model Number: SL-3040
Equipment Type: 802.11b/a/g Wireless PC Card
Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including interference that may cause undesired operation.
PCI Adapter
3Com Corporation, 3930 W. Parkway Blvd., PO Box 704010, West Valley City, UT 84119, (847) 262-0070
Declares that the Product:
Date: Oct, 17 2003
Brand Name: 3Com Corporation
Model Number: SL-3045
Equipment Type: 802.11b/a/g Wireless PCI Adapter
Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including interference that may cause undesired operation.
Industry Canada Notice (Applicable for use within Canada)
This device complies with Canadian RSS-210.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away
from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not
emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website www.hc-sc.gc.ca/rpb.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil est conform à la norme CNR-210 du Canada.
Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, cet appareil doit être
utilisé à l’intérieur seulement et devrait êtra placé loin des fenêtres afin de fournir un écran de blindage maximal.
L’installateur du présent matériel radio doit s’assurer que l’antenne est située ou pointée de manière à ce que
cette derniére n’émette pas de champs radioélectriques supérieurs aux limites spécifiées par Santé Canada pour
le grand public; condulter le Code de sécurité 6, disponible sur le site Web de Santé Canada, à l’adresse
suivante: www.hc-sc.gc.ca/rpb.
3Com Corporation SL-3040
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
3Com Corporation SL-3045
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Safety Notice
19
Safety Notice
This device has been tested and certified according to the following safety standards and is intended for use only
in Information Technology Equipment which has been tested to these or other equivalent standards:
UL Standard 60950 (3rd Edition)/ CSA C22.2 No. 60950
IEC 60950
EN 60950
European Community CE Notice
PC Card, Model SL-3040
0984
PCI Adapter, Model SL-3045
0560
Marking by the above symbol indicates compliance with the essential requirements of Directive 73/23/EC and
the essential requirements of articles 3.1(b), 3.2 and 3.3 of Directive 1999/5/EC. Such marking is indicative that
this equipment meets or exceeds the following technical standards:
■ETS 300 328-2 - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission
systems; data transmission equipment operating in the 2,4GHz ISM band and using spread spectrum
modulation techniques
■prEN 301 893 v1.2.1 - Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN;
Harmonized EN covering essential requirements of article 3.2 of the R & TTE Directive.
■ETN 301 489-17: V.1.1.1 (09-2000) - Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions
for Wideband data and HIPERLAN equipment
■IEC/EN 60950 - Safety of information technology equipment, including electrical business equipment.
■EN50371: Generic standard to demonstrate the compliance of low power electronic and electrical
apparatus with the basic restrictions related to human exposure to electromagnetic fields
(10 MHz – 300 GHz)-General public
Due to frequency restrictions, it is necessary to select your country before using this radio device. Refer to
your 3Com Wireless LAN Manager online help for details.
802.11a Restrictions
■This product is for indoor use only when using channels 36, 40, 44, 48, 52, 56, 60, or 64 (5150-5350 MHz).
■This product cannot be used in 802.11a mode in Greece.
■This product can be used as shown in the table below:
Countries Allowable Frequencies of Operation:
Austria, Liechtenstein, and Switzerland. 5150-5250 MHz only
(Channels 36, 40, 44, and 48).
France and Ireland. 5150-5350 MHz only
(Channels 36, 40, 44, 48, 52, 56, 60, and 64).
Belgium, Denmark, Finland, Germany, Iceland, Italy,
Luxembourg, The Netherlands, Norway, Portugal,
Spain, Sweden, The United Kingdom.
5150-5350 MHz and 5470-5725 MHz
(Channels 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108,
112, 116, 120, 124, 128, 132, 136, and 140).
Greece. No 5 GHz operation allowed at this time.
Regulatory Compliance Information
20
802.11b Restrictions
■In France outdoor use is only permitted in accordance with the rules published by ART
(http://www.art-telecom.fr/dossiers/rlan/puissances-2-4.htm). In metropolitan France channels 1-7 are
allowed (2400-2454MHz).
Additional Country Restrictions (802.11b/g operation)
■In Jordan, this product must be configured to operate on a legal channel. Channels 10-13 are allowed.
Refer to your 3Com Wireless LAN Manager online help for details.
3Com Wireless LAN Product User Guide version 1.0.0
Published October, 2003
