HP ProLiant ML350 G5 Server - Theory
of Operation
Overview
System Architecture
Standard features
Overview
Building on a tradition of excellence, the HP ProLiant family introduces the
fifth generation HP ProLiant ML350 server. The HP ProLiant ML350 G5
server provides Dual-Core performance, enterprise level management, and
highly available redundant options in a modular server form factor.
The new ProLiant ML350 G5 is available with the Intel Xeon 5300 series
Quad core processors and 5000/5100 series dual core processors; these new
processors include a 8 MB Level 2 cache, up to a 1333 MHz front side bus,
and ultra-low power consumption providing outstanding performance and
value for the most demanding server environments.
top
System Architecture
HP Proliant ML350 G5 servers have a well-balanced system architecture for
unprecedented performance and technology improvements

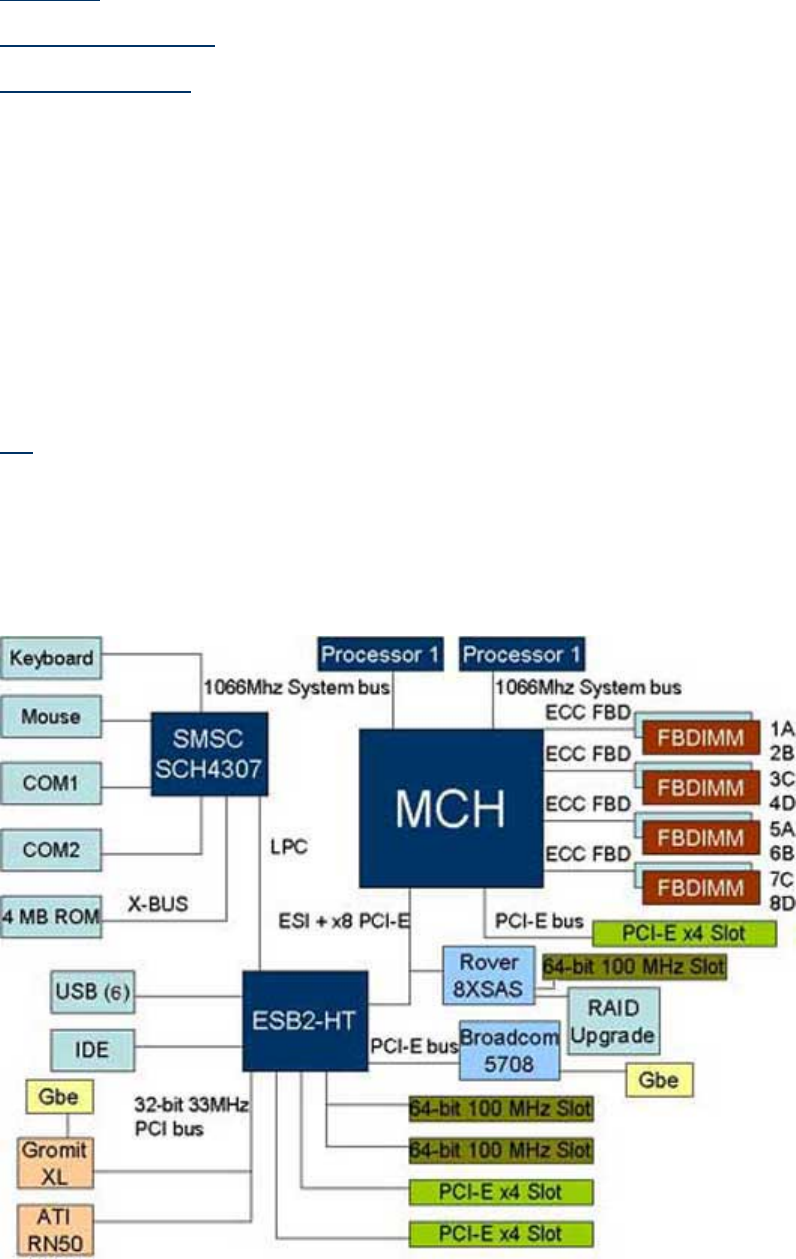

Figure 1: HP Proliant ML350 G5 system architecture block diagram
MCH - Memory Controller Hub. It is the system bus arbortration controller.
ESB2 - Enterprise South Bridge #2. ESB2 is the System I/O controller.
top
Standard features
Processors:
Dual-Core and Quad-Core Intel Xeon 5000 sequence processors with
up to 8 MB Level 2 cache for blazing performance; systems support up
to 2 processors
1333/1066/667 MHz front side bus (FSB).
Intel 5000Z chipset.
Memory:
Eight PC2-5300 FB-DIMMs (DDR2 667) sockets with Online-Spare
support for cost-effective memory configuration and expansion.
Up to 16 GB of memory, supported by (8) slots of PC2-5300 Fully
Buffered DIMMs (DDR2-667); 4:1 interleaving; and online spare
Up to 32 GB of memory supported on Quad-Core (5300 series)
models
NOTE: Memory DIMMs in systems with the Front Side Bus
(FSB) running at 1333 MHz will run at 667 MHz and in
systems with a FSB running at 1066 MHz or 667 MHz the
memory DIMMs will run at 533 MHz.
Storage Controllers:
Entry Models: Smart Array E200i Controller (integrated SAS/SATA
Hot-Plug Controller with RAID 0/1 support).
Base Modes: Smart Array E200i Controller with 128 MB BBWC
included.
128 MB BBWC optional upgrade kit for RAID 5 support also available.
Internal Drive Support:
Up to eight SFF (2.5") or six LFF (3.5") Hot Plug Serial Attached SCSI
(SAS) or Serial-ATA (SATA) hard drives.
Maximum of 4.50 TB of internal storage capacity (using Hot-Plug
SATA drives).
Network Controller:
Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP
Offload Engine, including support for Accelerated iSCSI through an
optional ProLiant Essentials Licensing Kit.
Expansion Slots:
Six total expansion slots.
One 64-bit/133 MHz PCI-X; two 64-bit/100 MHz PCI-X; three x8 PCI
Express (x4 speed).
Optional PCI-X Expander provides additional two 64-bit/100 MHz PCI-
X slots by converting a single PCI Express slot
USB Ports:
Six USB 2.0 ports: (2) front; (2) rear; (2) internal.
Redundancy:
Optional Hot plug redundant power supplies.
Support for optional redundant system fans.
Management:
Integrated Lights-Out 2 (iLO 2) standard for remote management.
Support for ROM-Based Setup Utility (RBSU) and redundant ROM.
Systems Insight Manager, SmartStart, and Automatic Server Recovery
2 (ASR-2).
HP Power Meter and Power Regulator for ProLiant, delivering
integrated power consumption monitoring and server level, policy
based power management for industry leading energy efficiency and
savings on system power and cooling costs.
Deployment/Serviceability:
Optional parallel and second serial port available without using a PCI
slot.
Tool-free chassis entry and component access.
Tool-free motherboard removal.
Universal rail solution supporting both square and round hole rack
environments.
Warranty:
Protected by HP Services and a worldwide network of resellers and
service providers. Three-year Next Business Day, onsite limited global
warranty. Certain restrictions and exclusions apply. Pre-Failure
Notification on processors, memory, and SAS hard drives. SATA hard
drives have a one-year warranty.
top
HP ProLiant ML350 G5 Server - System
Views
Front View
Rear View
Internal View
Front View

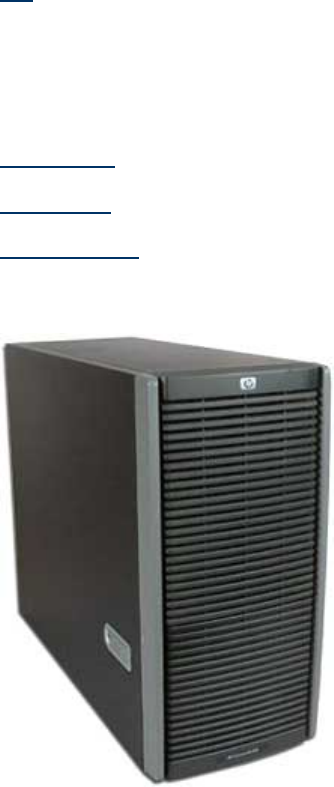

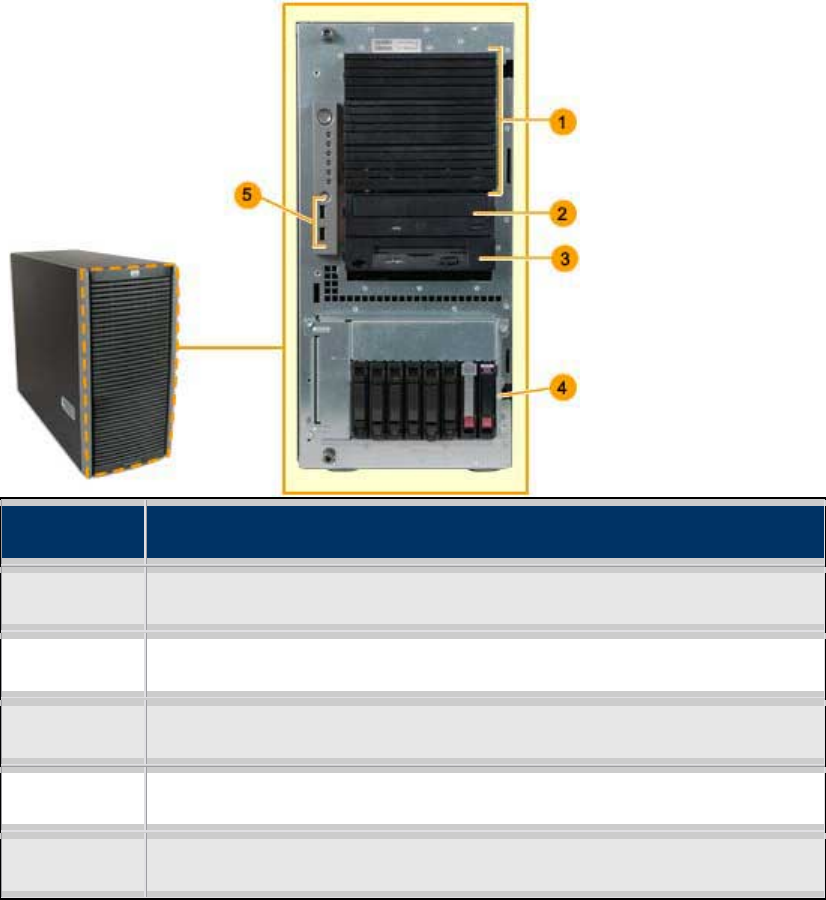

Figure 1: ML350 G5 Server - Front View
Figure 2: Front Panel Components
Item Description
1 Removable media bays (4)
2 CD-ROM drive
3 Floppy disk drive (optional)
4 Hot-plug hard drive bays
5 USB connectors (2)

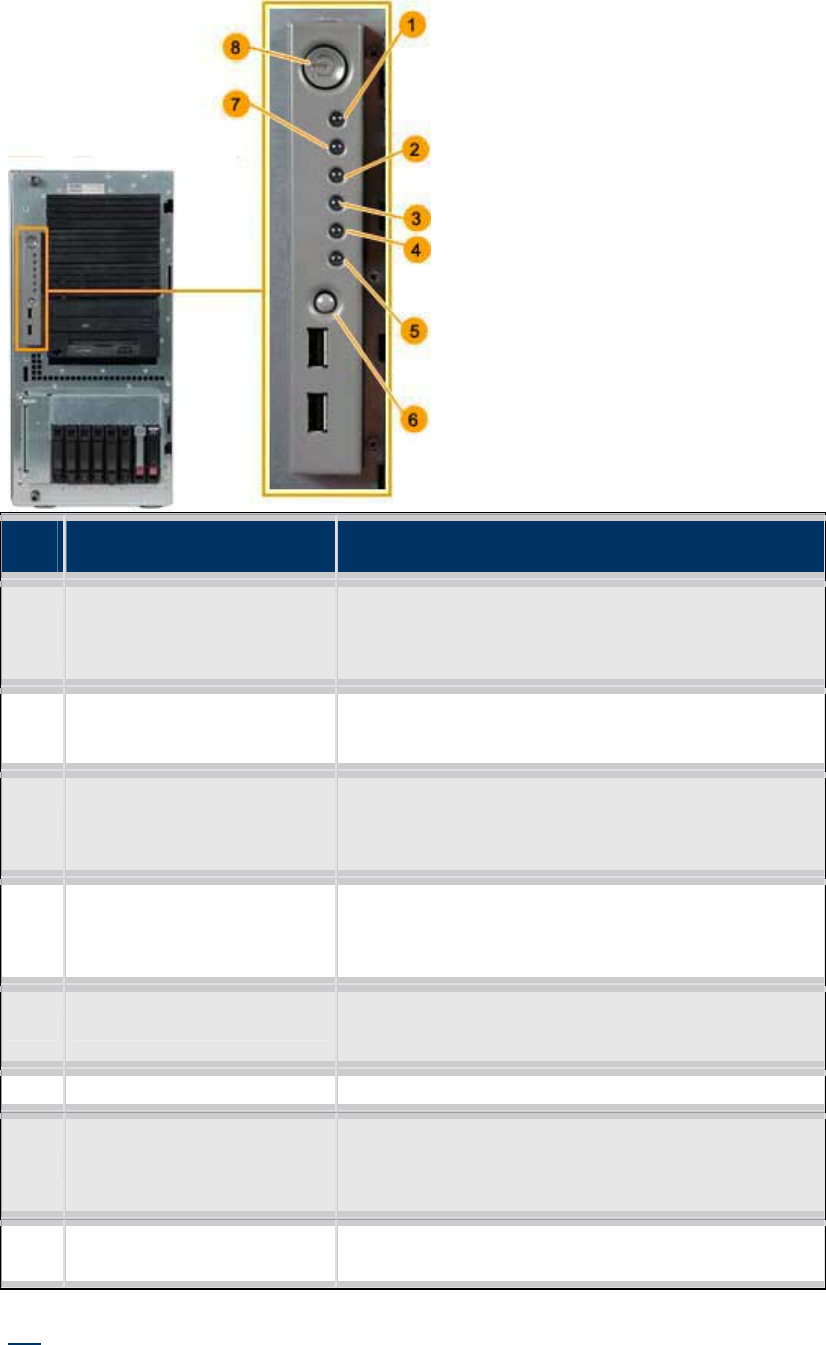

Figure 3: Front panel LEDs and buttons
Item Description Status
1 System power LED Green = Power on
Amber = System shut down, but power still
applied
Off = No power
2 External health LED
(power supply)
Green = Normal
Amber = Power redundancy failure
Red = Critical power supply failure
3 NIC 1 activity LED
Green = Network link
Flashing = Network link and activity
Off = No link to network. If power is off, view
status on the rear panel RJ-45 LEDs
4 NIC 2/iLO activity LED
Green = Network link
Flashing = Network link and activity
Off = No link to network. If power is off, view
status on the rear panel RJ-45 LEDs
5 UID LED Blue = Activated
Flashing = System remotely managed
Off = Deactivated
6 UID button -
7 Internal health LED
Green = Normal
Amber = System degraded.
Red = System critical.
Off = Normal (when in standby mode)
8 Power On/Standby
button -
top
Rear View

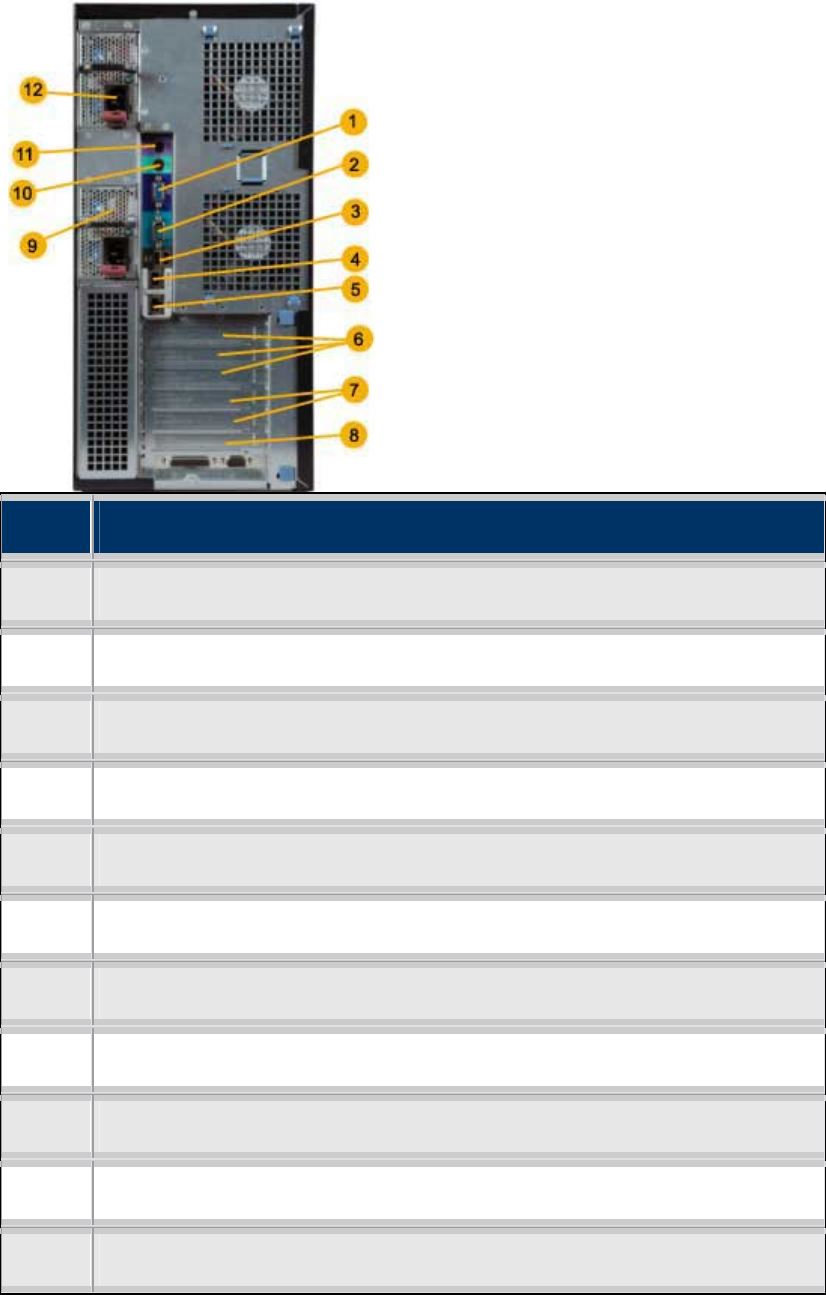

Figure 4: Rear View
Item Description
1 Video connector
2 Serial connector
3 USB connectors (2)
4 RJ-45 Ethernet connector (iLO 2 management)
5 RJ-45 Ethernet connector (data)
6 PCI Express x8 slots (x4 routed)
7 PCI-X slots (100 MHz)
8 PCI-X slot (133 MHz)
9 Optional redundant hot-plug power supply bay
10 Mouse connector
11 Keyboard connector
Item Description
12 Power cord connector

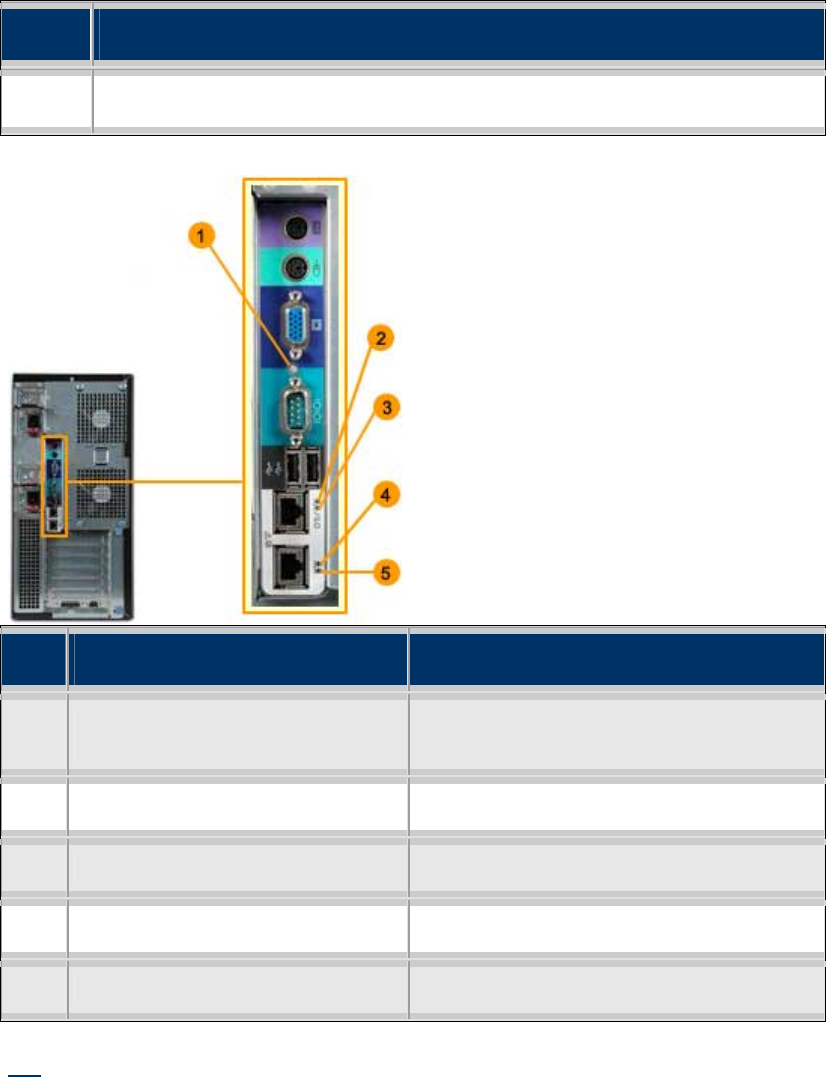

Figure 5: Rear panel LEDs and buttons
Item Description Status
1 UID LED and button Blue = Activated
Flashing blue = Remote inquiry
Off = Deactivated
2 iLO 2/data activity LED Green or flashing = Network activity
Off = No network activity
3 iLO 2/data link LED Green = Linked to network
Off = Not linked to network
4 10/100/1000 NIC activity LED Green or flashing = Network activity
Off = No network activity
5 10/100/1000 NIC link LED Green = Linked to network
Off = Not linked to network
top
Internal View

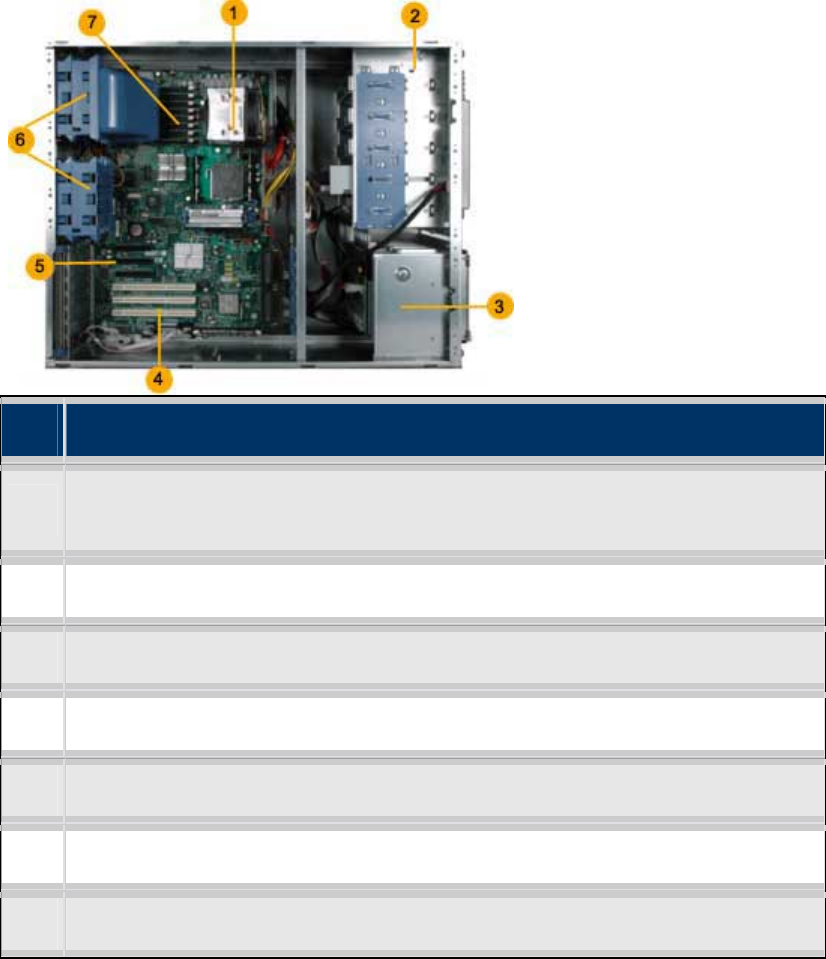

Figure 6: Internal View
Item Description
1 Up to 2 Intel dual-core Xeon 5000 series processors with 4 MB of
cache
2 5 Media bays
3 Support for 8 SFF or 6 LFF SAS and SATA hard drives
4 Eight PC2-5300F slots for up to 32 GB 667 MHz FB-DIMM Memory
5 3 64-bit PCI-X slots
6 3 PCI Express slots
7 Dual redundant fan option

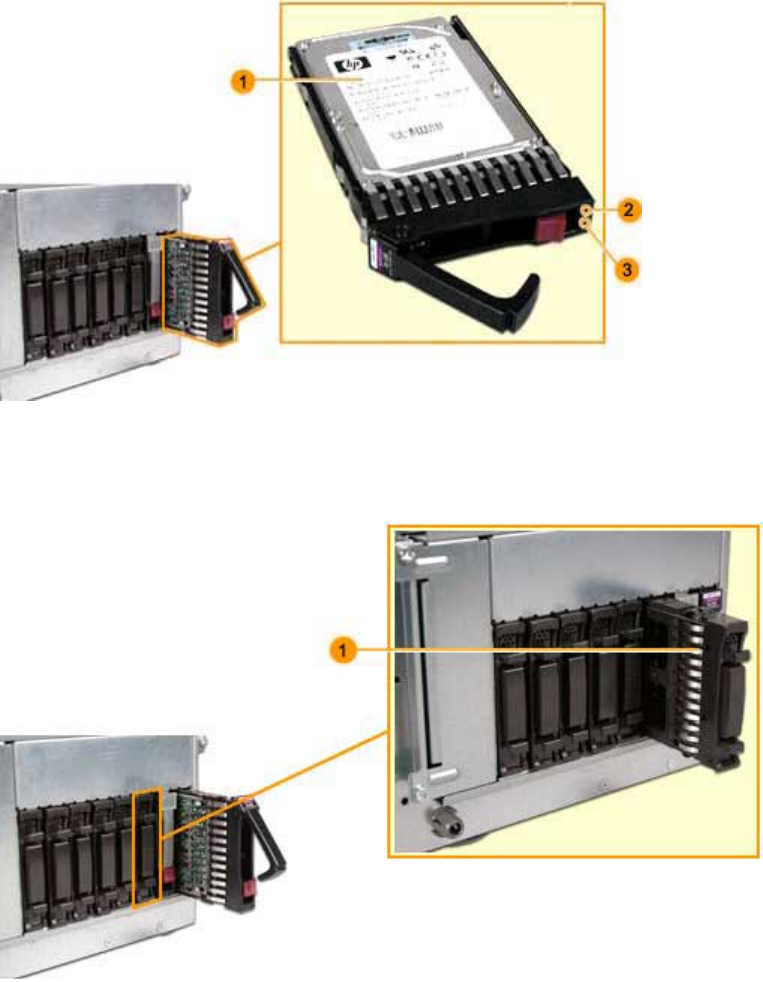

Figure 7: SAS/SATA Hard Drive
1 - SAS/SATA Hard Drive
2 - Fault/UID LED (amber/blue)
3 - Online LED (green)
Figure 8: SAS/SATA Hard Drive Blank
1 - SAS/SATA hard disk drive

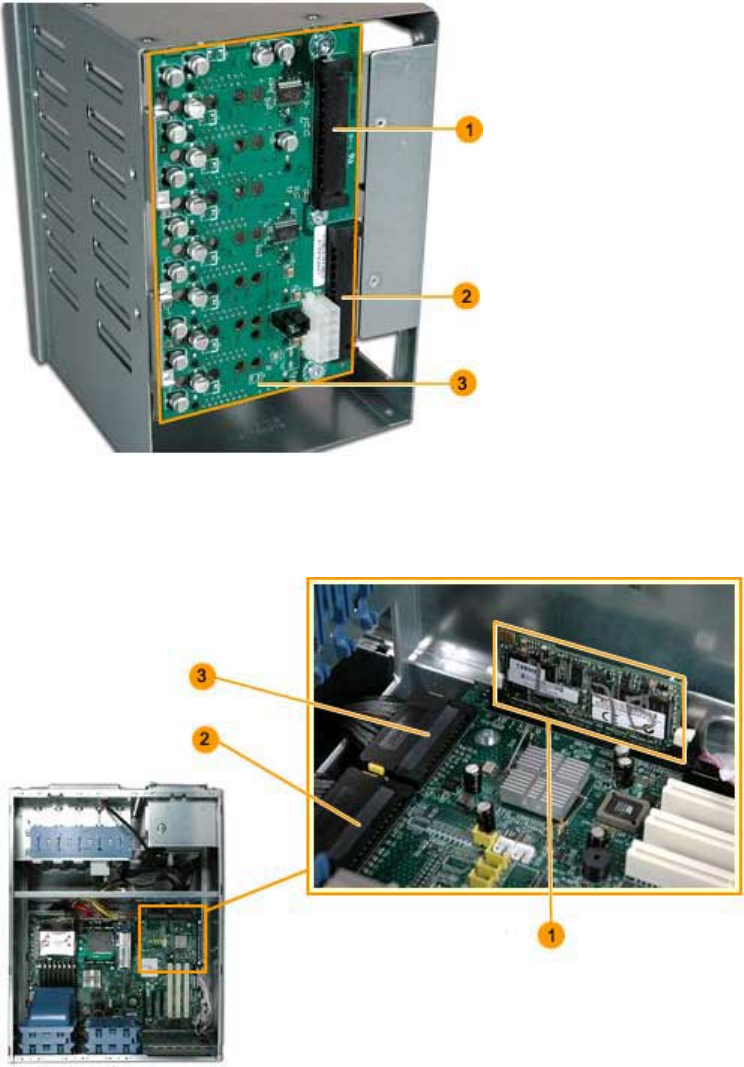

Figure 9: SAS/SATA backplane
1 - SAS/SATA cable connector (drives 5-8)
2 - SAS/SATA cable connector (drives 1-4)
3 - SAS/SATA backplane
Figure 10: Battery-backed write cache option
1 - Smart array battery-backed write cache (64 MB - RAID 0,1; 128 MB -
RAID 5)
2 - SAS/SATA cable connector (drives 1-4)
3 - SAS/SATA cable connector (drives 5-8)

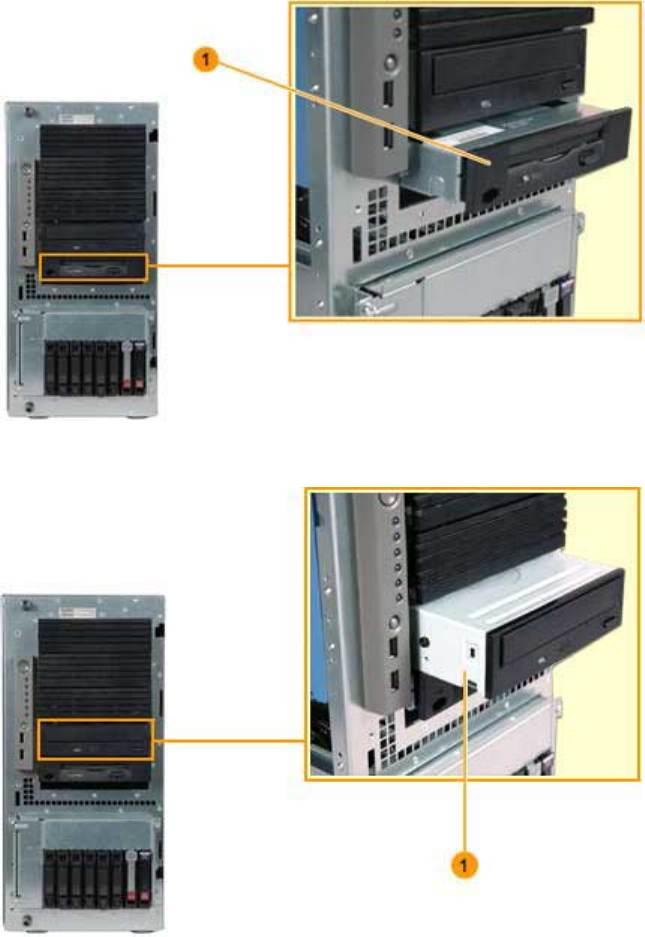

Figure 11: Diskette Drive
1 - Diskette Drive
Figure 12: Optical device
1 - Optical device
Figure 13: Media device blank
1 - Media device blank

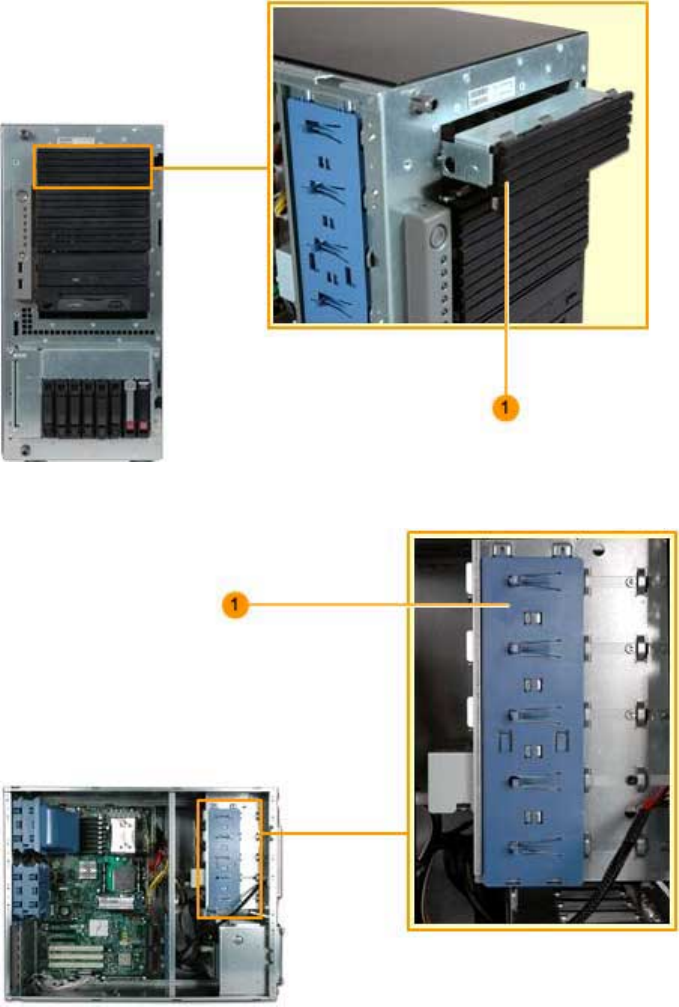

Figure 14: Media retention bracket
1 - Media retention bracket

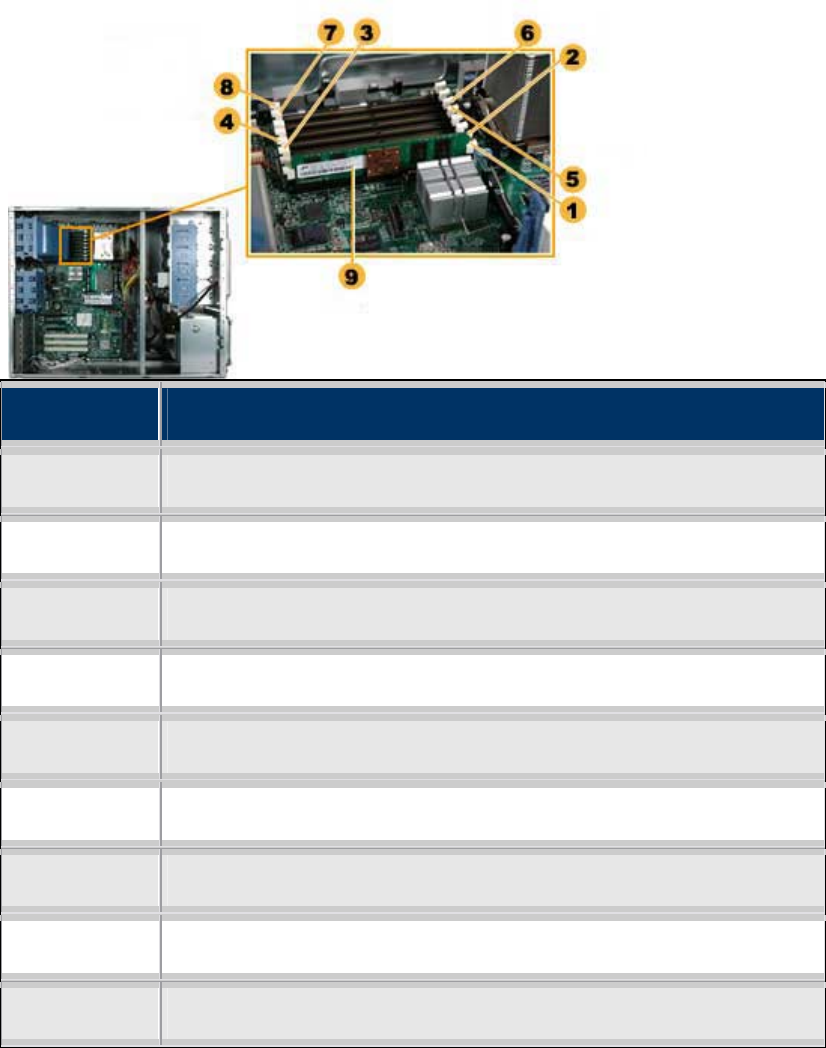

Figure 15: System memory
Item Description
1 Slot 1, Bank A
2 Slot 2, Bank B
3 Slot 3, Bank C
4 Slot 4, Bank D
5 Slot 5, Bank A
6 Slot 6, Bank B
7 Slot 7, Bank C
8 Slot 8, Bank D
9 Standard DIMM module

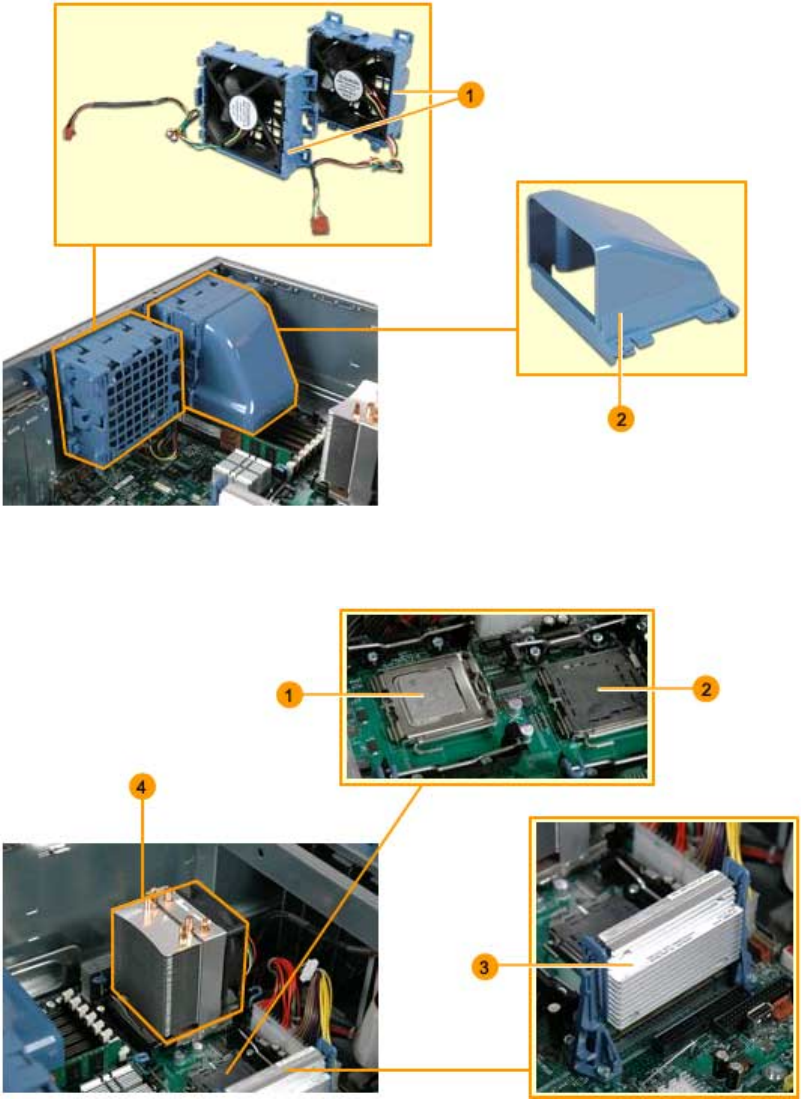

Figure 16: Fan and DIMM baffle
1 - Fans
2 - DIMM baffle
Figure 17: Processor and heat sink
1 - Processor
2 - Processor blank
3 - PPM
4 - Heat sink

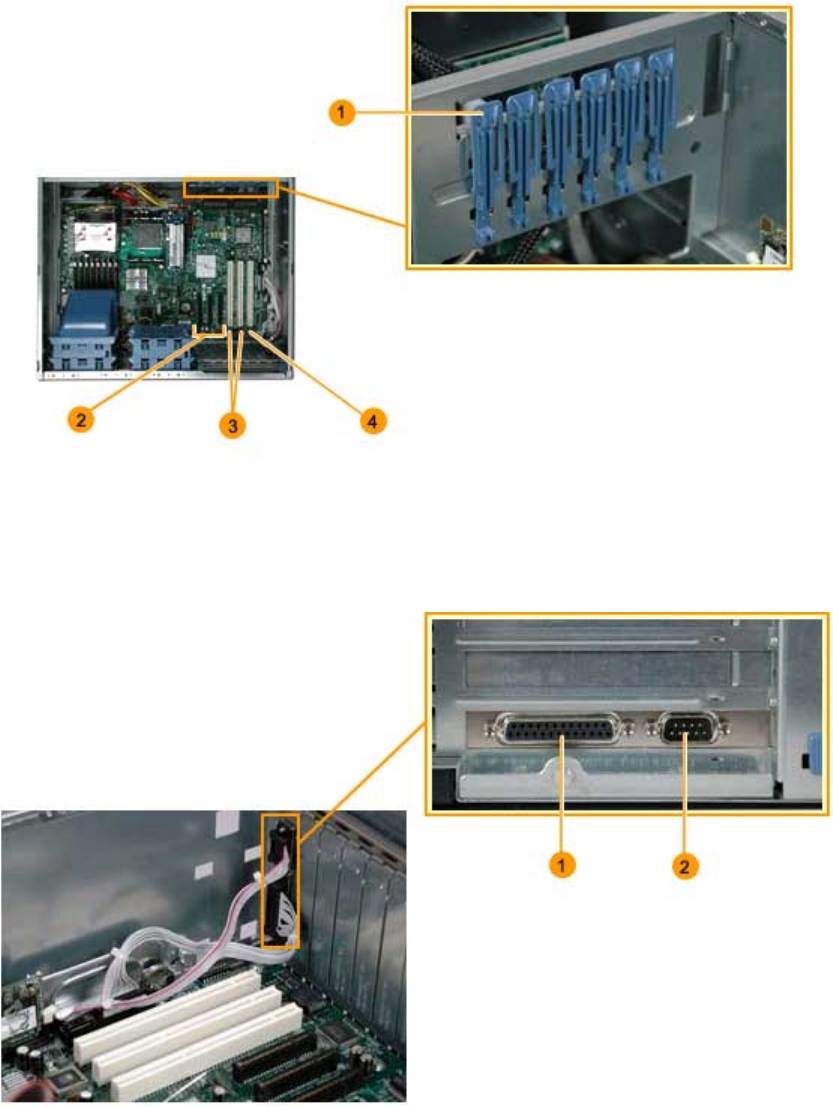

Figure 18: Expansion board options
1 - Full-length PCI expansion slot retention clips
2 - PCI Express x3 slots
3 - PCI-X slots 2-3 (100 MHz)
4 - PCI-X slots 1 (133 MHz)
Figure 19: Parallel/second serial connector option
1 - Parallel connector option
2 - Second serial connector option
Figure 20: Power supply
1 - Power supply 1
2 - Power supply 2 (redundant)
3 - Power supply
Figure 21: System board
Item Description
1 Processor socket 0
2 Processor socket 1
3 IDE connector
4 Diskette drive connector
5 System battery
Item Description
6 System maintenance switch
7 Processor power module
top
