Hexing Electrical MJN916 DCU HexNet User Manual

Hexing Electrical Co.,Ltd DCU HexNet Users Manual

Users Manual

DCU HexNet
MJN916
User Manual
Version Maker Date
V0.0.1 WangGang 2017.01.20
HexingElectricalCo.,Ltd.
〉〉〉DCU HexNet(MJN916)
1.Product Introduction
The DCU HexNet is a highly integrated half-duplex micropower wireless
data transmission device.The DCU HexNet embedded high-performance RF
chip.User programming has very good flexibility. DCU HexNet operating

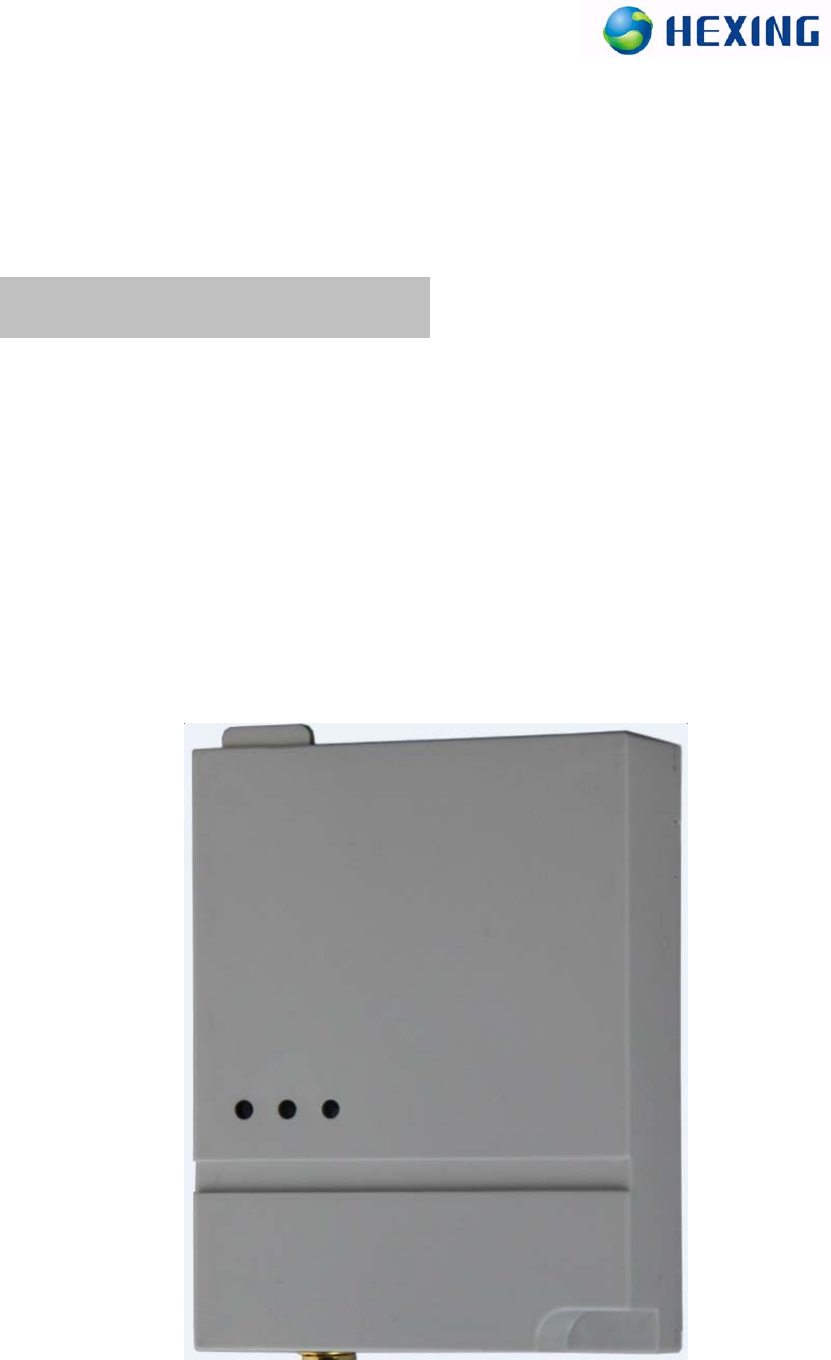

frequency include 916.25-926.65MHz. The real figure as shown in the figure
below.
This DCU HexNet is mainly used in power system, electricity
information collection system.Mainly include the following equipments:
Data Collector,Data concentrator,etc.

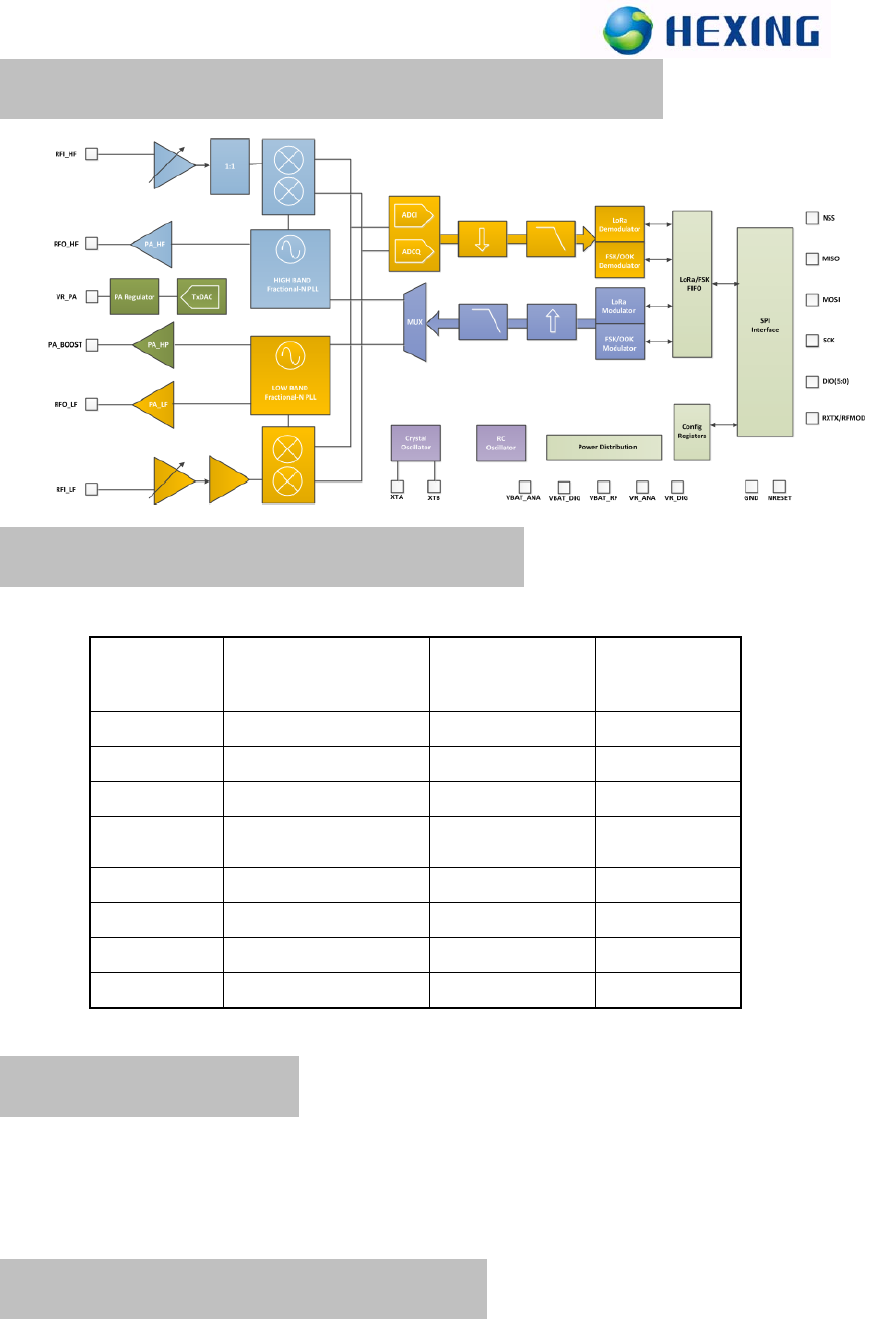

2.RF Module Chip Block Diagram
3.RF Module Pin Definition
Pin number Signal nameSignal categorySignal direction
1,2GNDGNDI
3,4VCCPowerI
5RXDUarttransmitPinO
6TXDUartreceivePinI
7D3.3VPowerO
8//N
9/RSTRESETPinI
1022//N
5. RF operation
Insert the HexNet on users devicecan use uart to communicate with HexNet.User
don’t change anyting of the devicethey will very easy to set up their communication
network.
6. Installation instructions
1Please insert MJN916 on the corresponding interface, and ensure the pin interface
definitions are consistent with MJN916.
2Interfaces are defined as follows
13579
2468
PIN
PIN Interface
definition
Signal
category DirectionDescription
1,2GNDGNDGND
3,4VCCPower
Communicationmoduleanalog
partofthepowersupply,voltageis
5vto15V.
5RXDSignalI
Communicationmoduledata
reception(3.3VTTLlevel),serial
portcommunicatingwiththebase
table.Receivetomodule
6TXDSignalO
Communicationmoduledata
(TTL3.3Vlevel),serialport
communicatingwiththebase
table.Sendfrommodule
7D3.3VPower
Powerprovidedbythemodule,
communicationmoduleofdigital
partofpower,voltageof3.3V+/‐
5%,theminimumcurrent50ma,
withVCCpowersupply,the
isolationopticalcouplingusedto
drivethecommunicationinterface.
8///Reserved
9/RSTResetI
Resetmodule(lowleveleffectively,
effectiveleveltime100
milliseconds)
3Equipment flip cover and seal
4Terminal equipment using the lid well
5Provide equipment machine right alternating current (AC) on the site
6Equipment terminal cover screw to play well, and make seal

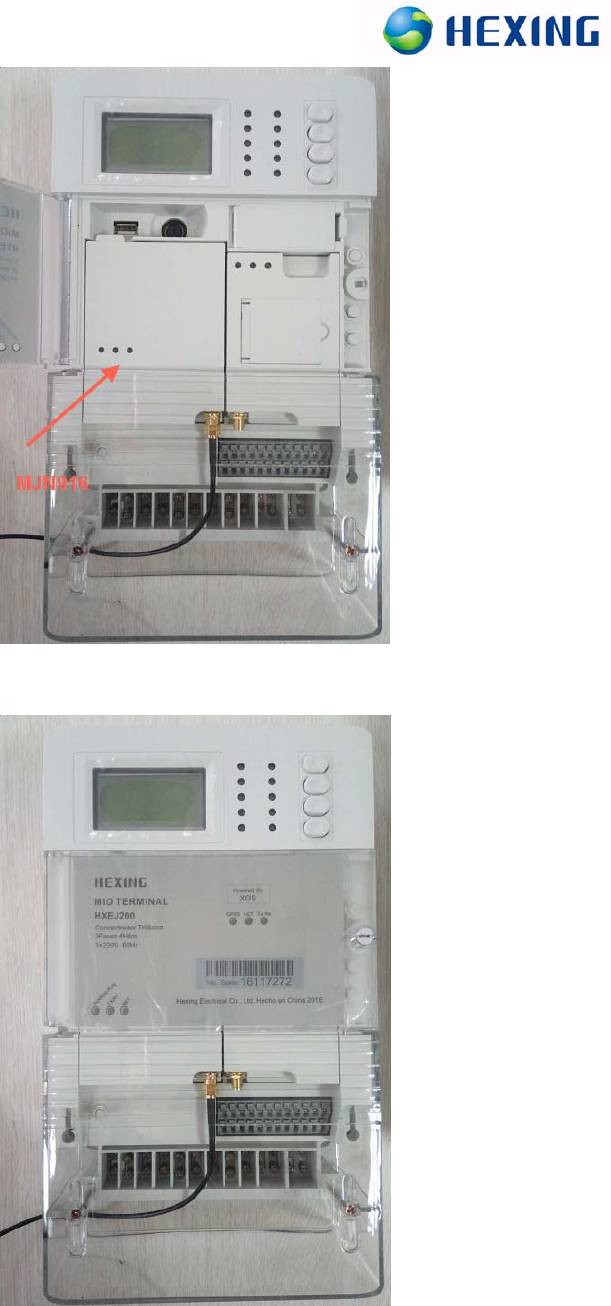

Installedinthesample
Installedinthesample
Installedinthesample

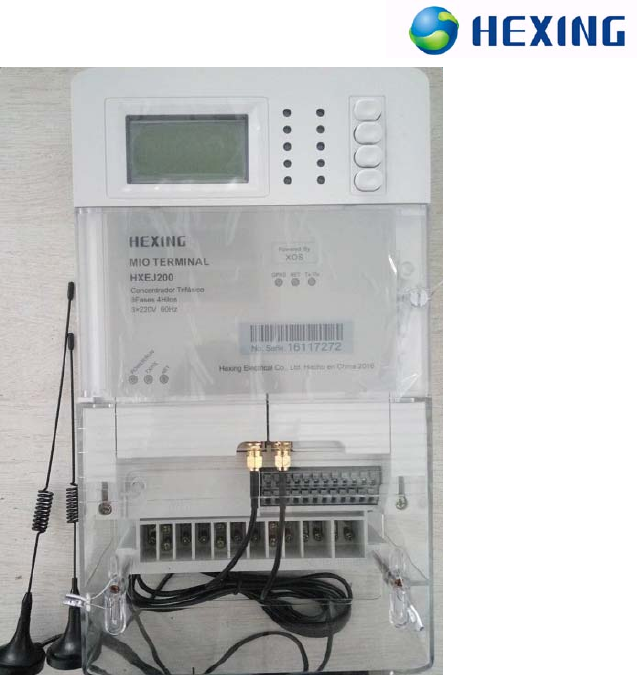

DCU models only for reference.
Note
1 Thank you for using products of Hexing Electrical Co., Ltd. Please read this
warning before using our products. If you have already started to use is that you have
read and accept our all this.
2 All the final explanation and modification rights for all materials were reserved by
Hexing Electrical Co., Ltd.
7. FCC Warning:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement:
To satisfy FCC RF Exposure requirements for this transmission device, a separation distance of
20cm or more should be maintained between the antenna of this device and persons during
operation. To ensure compliance, operation at closer than this distance is not recommended. The
antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
