Hi G Tek IGRF97433 ISO-18000- FIXED RFID INTERROGATOR User Manual USERS MANUAL

Hi-G-Tek Ltd ISO-18000- FIXED RFID INTERROGATOR USERS MANUAL

USERS MANUAL


ProprietaryNotice
ThisdocumentcontainsHi‐G‐TekInc.proprietaryconfidentialinformationandmaynotbeusedor
disclosedtootherpartiesinwholeorinpartwithoutpriorwrittenauthorizationfromHi‐G‐TekInc.
UM4901_Rev1.1

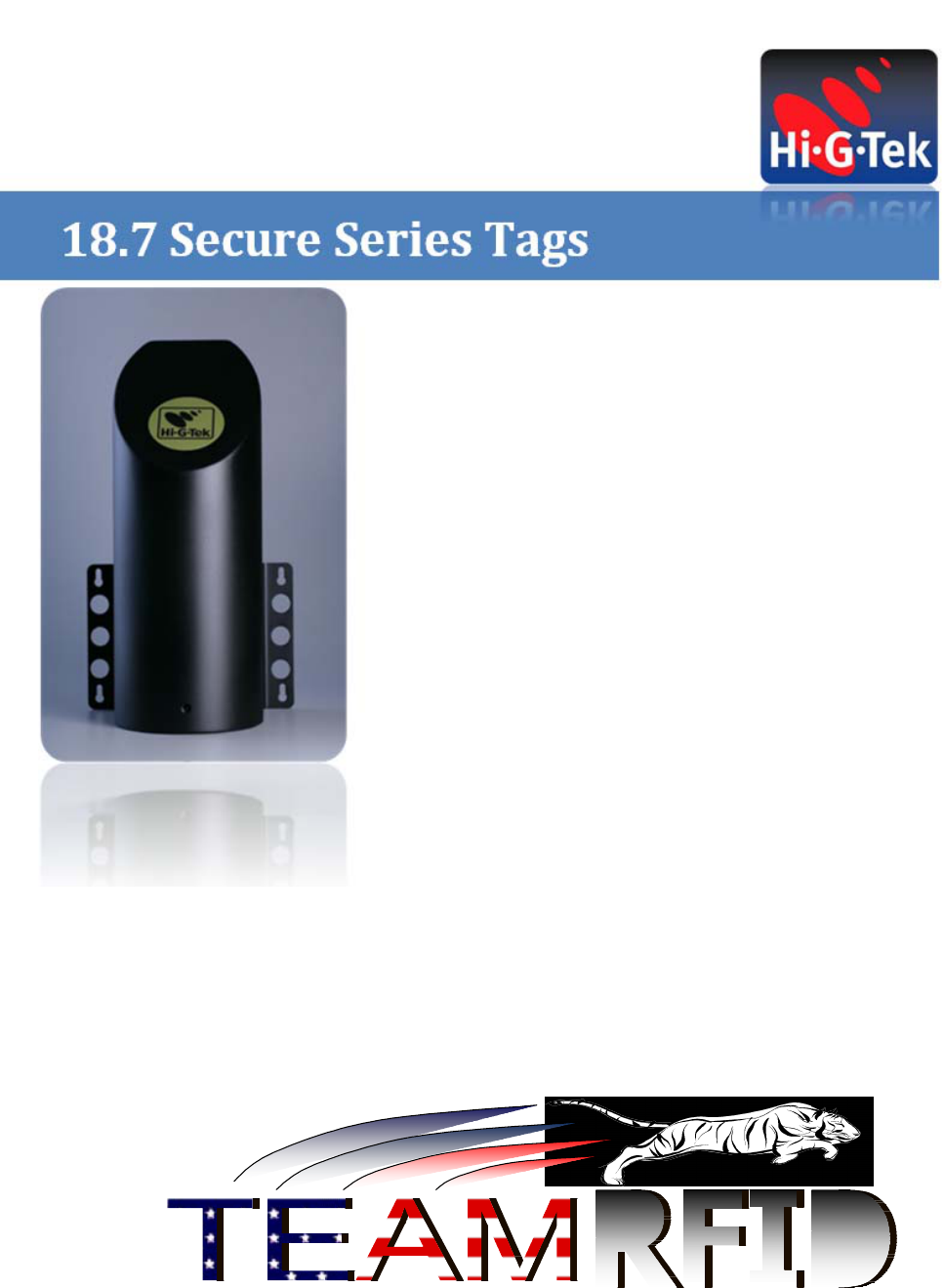

18.7SecureSeriesTags
Unisys
Delivering Global Visibility.
ActiveFixedRFIDInterrogator
CLIN:0001AA
Installation&OperationManual
DisclaimerandLimitationofLiability
Hi‐G‐TekInc.affiliates,officers,directors,employeesandagentsprovidetheinformationcontainedinthis
Manualonan“as‐is”basisanddonotmakeanyexpressorimpliedwarrantiesorrepresentationswith
respecttosuchinformationincluding,withoutlimitation,warrantiesastonon‐infringement,reliability,
fitnessforaparticularpurposeorapplication,usefulness,completenessoraccuracy.
Hi‐G‐TekInc.shallnotinanycircumstancesbeliabletoanypersonforanyspecial,incidental,indirector
consequentialdamages,includingwithoutlimitation,damagesresultingfromuseoforrelianceon
informationpresentedherein,orlossofprofitsorrevenuesorcostsofreplacementgoods,evenif
informedinadvanceofthepossibilityofsuchdamages.
CopyrightNotice
Allrightsreserved.
Nopartofthisdocumentmaybereproducedortransmittedinanyformbyanymeans,photographic,
electronic,mechanicalorotherwise,orusedinanyinformationstorageandretrievalsystem,withoutthe
priorwrittenpermissionofHi‐G‐TekInc.
Thisdocumentissubjecttochangewithoutpriornotice.
ATTENTION
•ThisHi‐G‐Tekproductisdesignedforcommercial/industrialuseonly,andshouldonlybehandledby
personnelauthorizedbyHi‐G‐Tekrepresentatives.
•InstallationmustbeperformedaccordingtothisGuide.
•Usingonlycertifiedantennas:Itistheresponsibilityoftheinstallertoensurethatwhenusingtheoutdoor
antennakitsintheUnitedStates(orwhereFCCrulesapply),onlythoseantennascertifiedwiththeproductare
used.
•Theuseofanyantennaotherthanthosecertifiedwiththeproductisexpresslyforbiddeninaccordancewith
FCCrulesCFR47part15.204andpart15.203.
TheFCCWantsYoutoKnow
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart
15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina
residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.
Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
a)Reorientorrelocatethereceivingantenna.
b)Increasetheseparationbetweentheequipmentandreceiver.
c)Connecttheequipmenttoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
d)Consultthedealeroranexperiencedradio/TVtechnician.
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page3of11
FCCWarning
Modificationsnotexpresslyapprovedbythemanufacturercouldvoidtheuserauthoritytooperatethe
equipmentunderFCCRules.
Instructionsconcerninghumanexposuretoradiofrequencyelectromagneticfields:
Adistanceofatleast20cm.betweentheequipmentandallpersonsshouldbemaintainedduringtheoperationof
theequipment.
FCCID:OB6‐IGRF97433
ActiveFixedRFIDInterrogator:IG‐RF‐97D1‐433,CLIN#0001AA
SpareParts
Hi‐G‐Tekrecommendsthatonlyoriginalproducts,spareandreplacementpartsauthorizedbyHi‐G‐Tek
Inc.beusedforinstallation,serviceandrepair.
Hi‐G‐TekInc.doesnotacceptanyresponsibilityandwillnotbeliableforanyconsequencesdueto
impropermaterialsused.
Hi‐G‐Tek,Inc.
1445ResearchBlvd.
Suite150
Rockville,MD20850
USA
info@higtek.com
Office:+1‐301‐279‐0022
Fax:+1‐301‐279‐0055
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page4of11
TableofContent
1 Introduction......................................................................................................................................................5
2 Installation.........................................................................................................................................................5
2.1 MountingtheFixedRFIDInterrogator.......................................................................................5
2.1.1 Wallmountinginstallation......................................................................................................6
2.1.2 Polemountinginstallation......................................................................................................6
2.1.3 Connectinghookupcables.......................................................................................................7
2.2 Installationaccessoriesandconnectingcables.......................................................................8
3 TechnicalSpecifications............................................................................................................................10
ListofFigures
Figure1:FixedRFIDInterrogator.....................................................................................................................5
Figure2:Wallmountingtheinterrogator.....................................................................................................6
Figure3:Polemounting........................................................................................................................................6
Figure4:BottomviewofInterrogator............................................................................................................7
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page5of11
1 I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
The18.7SeriesActiveFixedRFIDInterrogatorisdesignedtomonitor18.7Secure
SeriesTransponders.
Figure1:FixedRFIDInterrogator
Theunitisconnectedtoahostcontrolcomputer,eitherdirectlyorviaEthernet,and
monitorsalltranspondersinitsvicinity
Theinterrogatorperformsperiodicmonitoringrequestsofalltransponders,by
broadcastinga“wakeup”requestsenttoallthetranspondersandeachoneofthem
respondswithitsapresentstatus.
2 I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
2.1 MountingtheFixedRFIDInterrogator
Thefixedinterrogatorcanbeeitherwallmountedorpolemounted.
SelecttheproperRFcoveragelocation(interrogationrangeupto300ft.)andproceed
asfollows:
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page6of11
Wallmountinginstallation
• Theinterrogatorhastobeinstalledverticallyataheightofabout6ft.above
ground.
• Usesuppliedwallattachmentaccessoriestoattachunittothewall.
• Onceproperlyaligned,mark4drillholesthroughthemountingbracket.
• Mountthedeviceusing4sheetmetalscrewsNo.12x1.5”insertedinto
correspondingstandardplasticanchors.
Figure2:Wallmountingtheinterrogator
2.1.1 Polemountinginstallation
• Usesuppliedpolemountkit(IG‐RF‐ACC‐01)tomountdeviceonapole.
• AttachthepolemountbrackettotheInterrogator’srearsupportplateusingthe
providedboltsandscrewsnuts(includedinthemountingkit,seepage8,kit
content)
• Attachthedevicetothepoleverticallyusingtheprovidedzipties,keepa
minimumheightof6ft.abovetheground.
• RoutetheInterrogator’scablesdownwardasshownbelow
Figure3:Polemounting
Recommended
tying point
communication &
power cords
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page7of11

2.1.2 Connectinghookupcables
ConnectionofcablestotheInterrogatorisachievedfromthebottomoftheunit–see
Figure4.
DCIN ACIN
ETHERRS485-B
RS485-A RS232
FUSE
PWR
Figure4:BottomviewofInterrogator
Thebottomoftheunitcontainsthefollowingconnectorsandaccessories:
• PowerONindicatorLED.
• Powerfuse.
• DCInconnector:12to30Voltdc.
• ACInconnector:100–250VAC50‐60Hz.
• RS232connector:RJ45connectorforlocalconfigurationanddiagnostics.
• RS485connector:RJ45connectorforlocalconfigurationanddiagnostics.
• LANconnector:RJ45Ethernetaccessconnector–forconnectingtocontrolPC.
• RS485connector:RS‐485forcascadingoption(daisychainnetwork).
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page8of11
2.2 Installationaccessoriesandconnectingcables
Item/HGT’sModel#Description
CLIN0001ActiveFixedRFIDInterrogator
0001AB–MountingKit
Hi‐G‐Tek,Model#=IG‐RF‐ACC‐01
• CompliantmountingkitInAccordanceWith(IAW)DoDrequirements.
• Flexiblesurfacemountingforshort‐termandlong‐terminstallations.
KitContent
P/NPartDescriptionQty
IGRFACC01
MOUNTINGKITFORFIXED
INTERROGATOR1
HGT6509
SMOOTHMETALHOSEBANDING
15/32"X0.031" 2
HGT6508
WASHERSPRING1/4"STEEL,ZINC
PLATED. 4
HGT6506 NUT1/4"STEEL,ZINCPLATED 4
HGT6505
SCREWHEXHEAD1/4"NFx5/8"STEEL,
ZINCPLATED 4
HGT6507
WASHERFLAT1/4"X16X1STEEL,ZINC
PLATED 4
HGT6454 READERRFID3POLEMOUNTINGPLATE 1
HGT6510 HOUSINGWITHSCREWFORBANDING 2
0002ADAC/DCPowerCable
Hi‐G‐Tek,Model#=IG‐RF‐ACC‐09
ACpowercordforFixedRFIDInterrogator,standardUSAPlug,20AWG,UL
recognized
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page9of11
Item/HGT’sModel#Description
DC/DCPowerCable
Hi‐G‐Tek,Model#=IG‐RF‐ACC‐04
DCpowercordforFixedRFIDInterrogator
Providedalongwith“Alligator“clips
•
RS485communicationcable,plug
type‐RJ45,IP68rated
Hi‐G‐Tek,Model#=IG‐RF‐ACC‐10
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page10of11
3 T
Te
ec
ch
hn
ni
ic
ca
al
l
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
Communications
• Operatingfrequency
• OmniDirectionalread/write
range
433.92MHZ
Upto300feet(100meters)openspace
Memory
Memorysize 128Kbytesofavailabledatabasetablememory
Dataretention Dataisstoredforaminimumoffiveyears
PowerRequirements
ACMains 100–250VAC,50‐60Hz,6watt
DCMains 12–30VDC
InputPower 6Watt
ControlInterfaces
RS‐232 Forlocalconfigurationanddiagnostics.
Ethernetinterface Forhostaccessandmanagement.
IPv4orIPv6ormixednetworkissupported
RS‐485 forcascadingoption
Environmental
Operatingtemperature ‐25ºCto+55ºC
Storagetemperature ‐40ºCto+70ºC
Hardenedweatherproof ComplieswiththeIEC60529IP64rating
PhysicalDimensions
Size 210x300x520mm
Weight 5400gr
Antenna Internal
Attachmentmethods
Mountingkitsforwalls,postandindustrialtripod
Installation&Operation:ActiveFixedRFIDInterrogator
UM4901_Rev1.1 Page11of11
Standards
• FCCpart15subpartBclassB,subpartCsection15.231
• CompliantwithISO18000‐7:2008standardsandtheDoDinteroperabilityguidelines
• Hazardousenvironment:CertifiedasNon‐Incendive(NI)foroperationin
environmentwhereflammableandexplosivegasesandvaporsmaybepresent
• CompliantwithHEROenvironmenttestingat1‐inchseparation
• ComplieswithapplicableDoD,nationalandinternationalspectrummanagement
policiesandregulationstoincludespectrumcertificationsinaccordancewithDoD
Directive4650.1“ManagementanduseoftheRadioFrequencySpectrum”andDoD
Directive5000.1
