Hi Link Electronic HLK-2MXX WIFI MODULE User Manual
SHENZHEN HI-LINK ELECTRONIC CO., LTD. WIFI MODULE Users Manual
Users Manual
1
Product Specifications
Model: HLK-2M01-XX
Version: 2.0
16 Aug 2011
HI-LINK 802.11B/G USB Module
Shenzhen Hi-Link ElectronicTechnology co.,Ltd
2
Contents
1 Introduction...............................................................................................................3
1.1 Scope:...............................................................................................................3
1.2 Features............................................................................................................3
2 Product Information.................................................................................................4
2.1 Specification Overview....................................................................................4
2.2 Hardware Information......................................................................................4
2.3 Software and system Information....................................................................5
2.3.1 Operating System ............................................................................5
2.3.2 Minimum System Requirement.......................................................5
2.4 Mechanical Information...................................................................................5
2.4.1 PCBA Dimensions (include USB connector)..................................5
3 Agency Approval.......................................................................................................6
4 Environment..............................................................................................................6
4.1 Temperature .....................................................................................................6
4.1.1 Operating Temperature Conditions..................................................6
4.1.2 Non-Operating Temperature Conditions (including warehouse).....6
4.2 Humidity ..........................................................................................................6
4.2.1 Operating Humidity Conditions ......................................................6
4.2.2 Non-Operating Humidity Conditions (including warehouse) .........6
Shenzhen Hi-Link ElectronicTechnology co.,Ltd
3
1 Introduction
The RT2571 based USB module is an IEEE 802.11 b/g standard USB Module
1.1 Scope:
The RT2571 base USB module WLAN Module is designed to operate in 2.4GHz ISM
frequency band. This Module complies with IEEE 802.11b and IEEE 802.11g
standards.
1.2 Features
Complies with IEEE 802.11b, IEEE 802.11g.
Dynamic data rate: Maximum data rate up to 54Mbps. Auto fallback switching
with 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2 and 1Mbps.
Security support for 64/128 WEP / WPA.
Supporting WPS or software API.
Operates in 2.4GHz frequency bands.
Antenna configuration: PCB antenna
Drivers supporting Linux, Window XP/Vista and WinCE 5.0.
RoHS Compliance
Shenzhen Hi-Link ElectronicTechnology co.,Ltd
4
2 Product Information
2.1 Specification Overview
Standards IEEE802.11b and 802.11g
Operating Frequency USA (FCC): 2.412GHz ~ 2.462GHz ISM band
(channel 1 – 11)
Europe (CE): 2.412GHz ~ 2.472GHz ISM band
(channel 1 – 13)
Channel Bandwidth 20MHz
Protocols 802.11b: CCK, QPSK, BPSK
802.11g: OFDM
Antenna PCB antenna
Security WPA, 64/128/152-bit WEP, WPS
Transmit Output Power 11b: 13dBm @ 11Mbps (Typical)
11g: 13dBm @ 54Mbps (Typical)
Receive Sensitivity 11b: -82dBm @ 11Mbps (Typical)
11g: -68dBm @ 54Mpbs (Typical)
Operating Voltage 5V DC ± 5%
Bus Interface USB 2.0
USB Connection A-type USB 2.0 Connector,

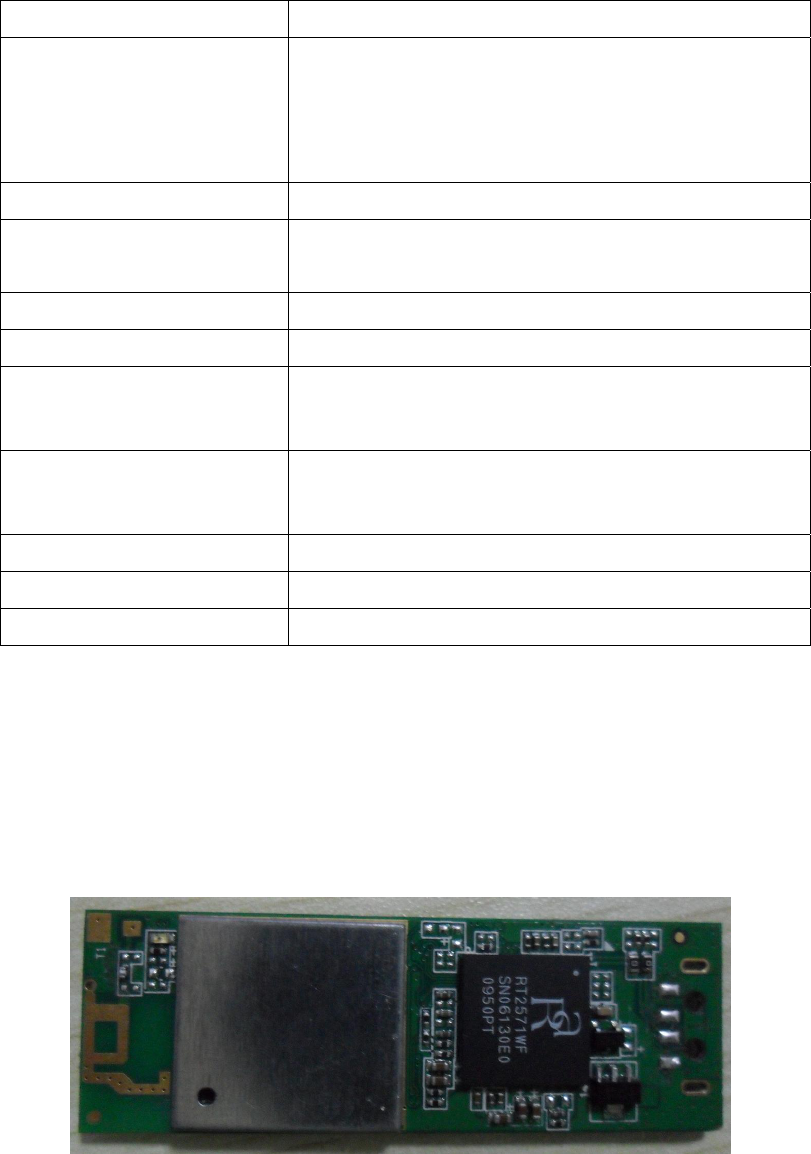

2.2 Hardware Information
The RT2571 based USB module is low-cost compact WLAN USB module. The USB
module uses Ralink RT2571 (MAC) and RT2528 (Transceiver) to implement IEEE
802.11b/g standards.
Shenzhen Hi-Link ElectronicTechnology co.,Ltd
5

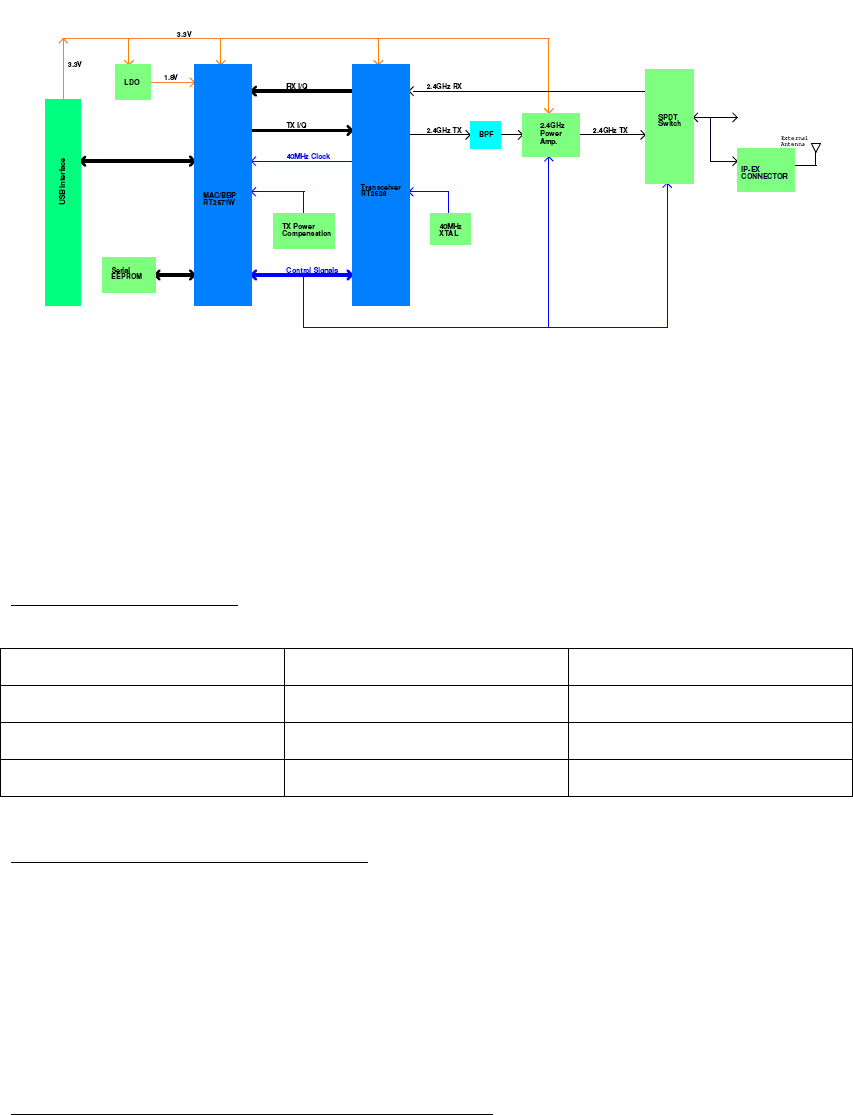

2.2.1 Block Diagram
Figure 1: System Block Diagram of the RT2571 based USB module WLAN Module
2.3 Software and system Information
2.3.1 Operating System
Operation System CPU Supplier Driver
Linux 2.6.x Intel, Atmel Available
Windows 2000/XP/Vista Intel Available
Windows CE 5.0 Intel, Samsung Available
2.3.2 Minimum System Requirement
600MHz or Faster PC
512MB RAM Memory
Available USB 2.0 Interface
2.4 Mechanical Information
2.4.1 PCBA Dimensions (include USB connector)
Size: LxWxH
Weight: ~3.8g
Shenzhen Hi-Link ElectronicTechnology co.,Ltd
60.7*20.2*4.3mm
6
3 Agency Approval
4 Environment
4.1 Temperature
4.1.1 Operating Temperature Conditions
The product is capable of continuous reliable operation when operating in ambient
temperature of 0ºC to +55ºC.
4.1.2 Non-Operating Temperature Conditions (including warehouse)
The product is not damaged or degraded when keeping in the temperature range of -10ºC
to +70ºC.
4.2 Humidity
4.2.1 Operating Humidity Conditions
The product is capable of continuous reliable operation when subjected to relative
humidity in the range of 20% to 80% (non-condensing).
4.2.2 Non-Operating Humidity Conditions (including warehouse)
The product is not damaged or degraded when kept in the relative humidity range from
20% to 80% (non-condensing).
Shenzhen Hi-Link ElectronicTechnology co.,Ltd
This device complies with the following radio frequency and safety standards.
FCC Warning
Important to OEM Manufacturer:
This following FCC Warning must be included in the HOST User Manual.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: The manufacturer is not responsible for any changes or modifications not expressly
approved by the manufacturer for compliance, such modifications could void the user’s authority
to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance.
Note 1: This module certified that complies with RF exposure requirment under portable or
mobile or fixed condition, this module is to be installed only in portable or mobile or fixed
applications.
A portable device is defined as a transmitting device designed to be used so that the radiating
structure(s) of the device is/are within 20 centimeters of the body of the user
A mobile device is defined as a transmitting device designed to be used in other than fixed
locations and to generally be used in such a way that a separation distance of at least 20
centimeters is normally maintained between the transmitter's radiating structure(s) and the body of
the user or nearby persons. Transmitting devices designed to be used by consumers or workers
that can be easily re-located, such as wireless devices associated with a personal computer, are
considered to be mobile devices if they meet the 20 centimeter separation requirement.
A fixed device is defined as a device is physically secured at one location and is not able to be
easily moved to another location.
Note 2: Any modifications made to the module will void the Grant of Certification, this module is
limited to OEM installation only and must not be sold to end-users, end-user has no manual
instructions to remove or install the device, only software or operating procedure shall be placed
in the end-user operating manual of final products.
Note 3: The device must not transmit simultaneously with any other antenna or transmitter.
Note 4: To ensure compliance with all non-transmitter functions the host manufacturer is
responsible for ensuring compliance with the module(s) installed and fully operational. For
example, if a host was previously authorized as an unintentional radiator under the Declaration of
Conformity procedure without a transmitter certified module and a module is added, the host
manufacturer is responsible for ensuring that the after the module is installed and operational the
host continues to be compliant with the Part 15B unintentional radiator requirements. Since this
may depend on the details of how the module is integrated with the host, HI-LINK shall provide
guidance to the host manufacturer for compliance with the Part 15B requirements.
Note 5: FCC ID label on the final system must be labeled with “Contains FCC ID:
ZXVHLK-2MXX” or “Contains transmitter module FCC ID: ZXVHLK-2MXX”.
The transmitter module must be installed and used in strict accordance with the manufacturer's
instructions as described in the user documentation that comes with the host product.
SHENZHEN HI-LINK ELECTRONIC CO., LTD is responsible for the compliance of the
module in all final hosts.
