Hi Link Electronic HLK-RM04 Wireless Router User Manual HLK RM04 UserManual
SHENZHEN HI-LINK ELECTRONIC CO., LTD. Wireless Router HLK RM04 UserManual
User manual
深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd
Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189
Shenzhen Hi-Link Electronic co., Ltd
HLK-RM04 User Manual
ETHERNET
WIFI
Full Function Serial Network/Wireless Module
深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd
Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189
1 Brief Introduction
HLK-RM04 is a new low-cost embedded UART-ETH-WIFI module (serial port - Ethernet -
Wireless network) developed by Shenzhen Hi-Link Electronic co., Ltd
This product is an embedded module based on the universal serial interface network standard,
built-in TCP / IP protocol stack, enabling the user serial port, Ethernet, wireless network (wifi)
interface between the conversions.
Through the HLK-RM04 module, the traditional serial devices do not need to change any
configuration; data can be transmitted through the Internet network. Provide a quick solution for
the user’s serial devices to transfer data via Ethernet.
Picture1.F-structure
2 Summarize
2.1 Technical Specifications
Table2-1Technical Specifications
wireless：IEEE 802.11n、IEEE 802.11g、IEEE 802.11b
Network standard wired：IEEE 802.3、IEEE 802.3u
Wireless transmission
rate
11n: maximum up to 150Mbps
11g: maximum up to 54Mbps
11b: maximum up to 11Mbps
Tracks number 1-11
Frequency range 2.412-2.462G
Emission power <16dBm
Antenna
Antenna type Integral antenna
EthernetWIFI（Client/AP）
Serial Com
深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd
Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189
Functional Parameters
WIFI work mode Client/AP/Router
WDS Function Support WDS wireless bridge connection
Wireless MAC address filtering
Wireless security function switch
64/128/152 bit WEP encryption
Wireless security
WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism
Remote Web management
Configuration file import and export
Network management
WEB software upgrade
Serial to Network
Maximum transmission
rate 230400bps
TCP connection Max connection number>20
UDP connection Max connection number>20
Serial baud rate 50~230400bps
Other Parameters
Status indicator Status indicator
Operating temperature：-20-70℃
Operating humidity：10%-90%RH
Storage temperature：-40-80℃
Environmental standard
Storage humidity：5%-90%RH
Additional properties Frequency bandwidth optional：20MHz、40MHz，
2.2 Hardware Explanation
2.2.1 Mechanical Dimensions

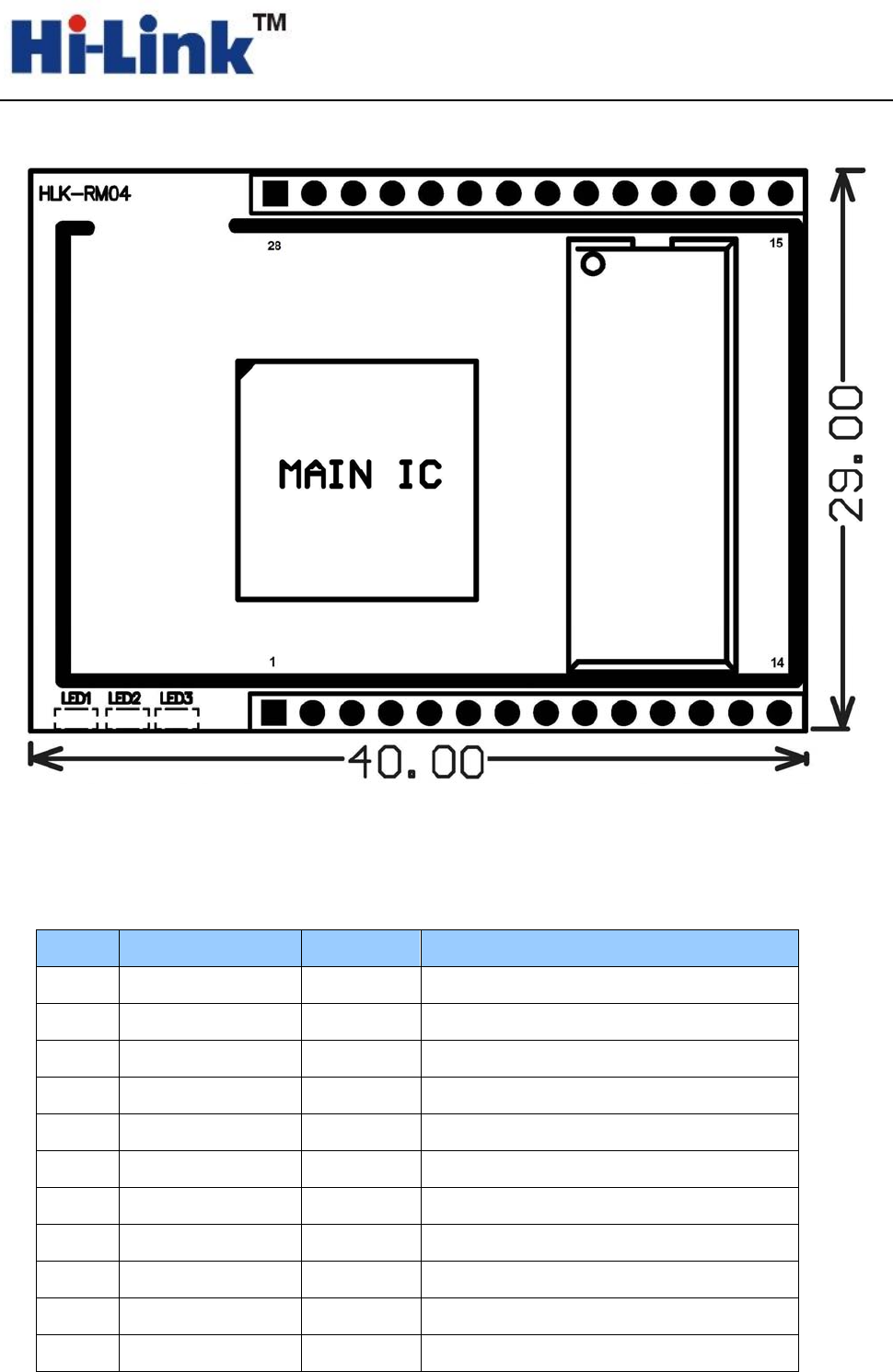

HLK-RM04 Mechanical Dimensions is shown in the following picture：
深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd
Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189
Picture2.Dimensions Unit:mm
2.2.1.1 Contact Pin Interface
The Pin of this product as shown above is defined as follows：
Table2-2 module pin interface
No. Function Direction Explanation
1 VDD5V A 5 Power input
2 GND GND Power ground
3 WLAN_LED O WIFI LED
4 3.3V I 3.3V power output
5 LINK1 I/O Net gape 1 LED indicte
6 USB_P USB signal D-
7 USB_M USB signal D+
8 I2S_SD I2C DATA/GPIO
9 I2S_CLK I2C CLK/GPIO
10 GIOP0 I/O Universal GPIO
11 TXOP1 I/O Net gape 1 TX-P
Regulatory Information
The devices must be installed and used in strict accordance with the instructions as described in
the user documentation that comes with the product.
If the FCC identification number is not visible when the module is installed inside another device,
then the outside of the device into which the module is installed must also display a label referring
to the enclosed module.
This exterior label can use wording such as the following:
“Contains Transmitter Module FCC ID: ZXVHLK-RM04”
When the module is installed inside another device, the user manual of this device must contain
below warning statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This modular could be installed in the fix or mobile devices only, installed in the portable device,
like USB dongle is forbidden. This modular complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. This modular must be installed and operated
with a minimum distance of 20 cm between the radiator and user body.
For manufacturer:
The end product into which the module will be installed should be the fix or mobile devices only,
the portable device, like USB dongle is forbidden.
The end product into which the module will be installed should be installed and operated with a
minimum distance of 20 cm between the radiator and user body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment
