Hi Target Surveying Instrument ZHDQMINI GIS DATA COLLECTOR PRODUCT User Manual Qmini
Hi-Target Surveying Instrument Co., Ltd GIS DATA COLLECTOR PRODUCT Qmini
Users Manual
Qmini M series industrial
GIS data collector
instructions
Handbook revision situation
Revision date Revision number Introduction
March 2012 1 Qmini M series industrial GIS data
collector instructions version 1.0
Catalogue
Preface..............................................................................................................................................1
Chapter 1..........................................................................................................................................3
Products overview.......................................................................................................................3
Product introduction....................................................................................................................4
Product features............................................................................................................................4
Use and the matters needing attention.........................................................................................5
Chapter 2..........................................................................................................................................6
The introduction of Qmini M series industrial GIS data collector...........................................6
The front of Qmini M series industrial data collector..................................................................7
The back of Qmini M series industrial data collector.................................................................8
Interface.......................................................................................................................................9
Touching pen..............................................................................................................................10
Battery........................................................................................................................................10
Data line.....................................................................................................................................11
Condole belt...............................................................................................................................11
Chapter 3........................................................................................................................................12
Basic operation...........................................................................................................................12
Keyboard....................................................................................................................................13

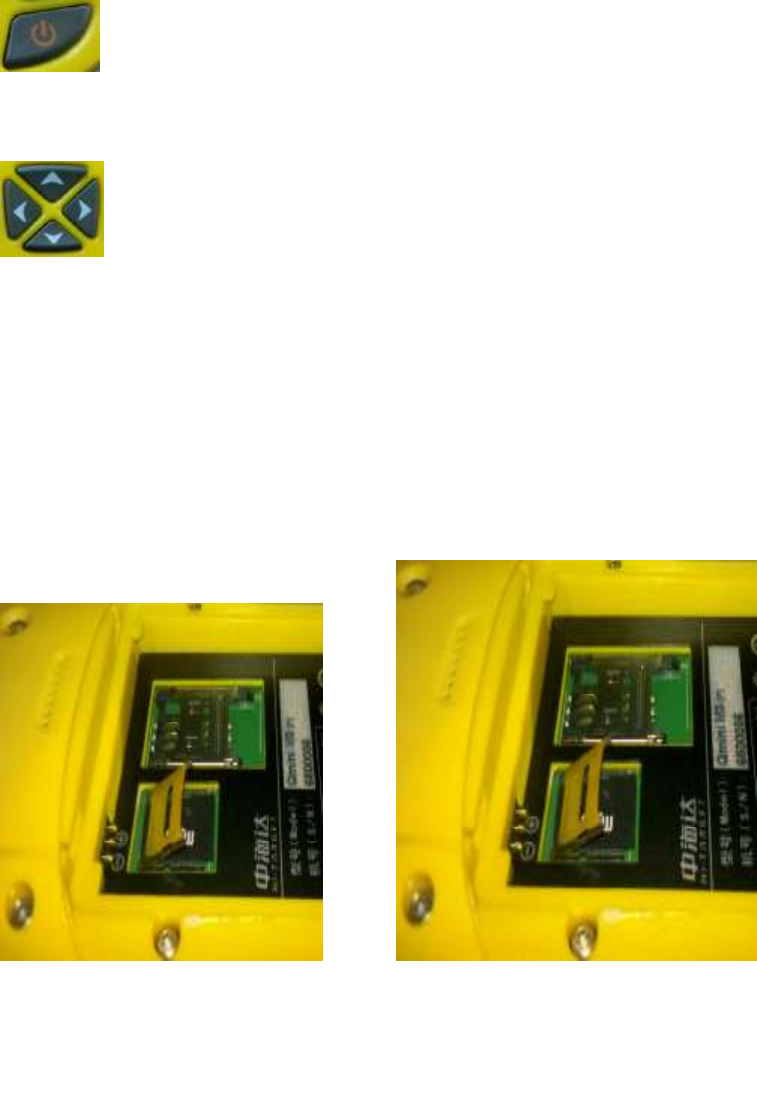

MicroSD card............................................................................................................................14
Power supply system..................................................................................................................15
Switch machine operation..........................................................................................................17
Data obtain................................................................................................................................17
Application functions.................................................................................................................20
Chapter 4........................................................................................................................................21
Technology parameters.............................................................................................................21
Technology parameters.............................................................................................................21
1
Preface
Manual use
Welcome to use Qmini M series industrial GIS data collector instructions。 This manual
applies to Qmini M1 / Qmini M3 / Qmini MR/Qmini MT/Qmini MP series, this manual
introduces how to install, set up and use industry-specific GIS data collector.
Manual introduction
Qmini M series industrial GIS data collector is a new GPS/GIS data collector, even if you
use other types of industrial GIS data collector, please also carefully reading before use
this specification.
Experience demanded
In order to you can better use Qmini M series industrial GIS data collector, HI-TARGET
suggest you have a certain measure knowledge, and carefully read the instruction. If you
have any questions, please refer to the official website of the HI-TARGET: <
http://www.hi-target.com/ >.
Safety technical note
Note: pay attention to tip the content general is operation special place, need to
bring your special attention, please read
Warning:the warning content is general very important tip, if not in warning operate
within the tip, you will cause the damage of the instrument, the loss of the data,
and the collapse of the system, even endanger the security of person.
2
Responsibility absolution
Before you use the product,you should read the introduction carefully. Guangzhou HI-TARGET
surveying and mapping instruments Co., LTD. We will not take the responsibility if you not
operate within the product instruction。
Guangzhou HI-TARGETsurveying and mapping instruments Co., LTD. Is committed to
continuously improve product function and performance, improve the service quality, and keep
the right to change the content of the instruction without notice in advance.
We have to print described in the content and the consistency of the hardware and software to
do an inspection, but don't rule out the possibility of bias, the picture in the instruction for use for
reference only, if you have a product with discrepancies, please use the product kind prevail.
Technology and service
HI-TARGET have set up the“technology and service”section, if you have problems you
settle them through the "service guide" telephone contact regional technology center,
headquarters division or through the "experts on the judgment seat," "technology BBS"
message, we will answer your questions in time.
Related information
You can find the instructions through the following methods:
1,、purchased products from the HI-TARGET will with a CD, open the CD and you can
find the instruction;
2、land the official website of the HI_TARGET, through "downloaded zone"-" product
specifications "and" GIS product "and you can it.
Your suggestion
If you have any Suggestions and opinions about the introduction, please visit the official
website of the HI-TARGET, and leave massage in "technical service" and "advice and
complaint" edition , your feedback on the quality of the information we will be greatly
improved.
3
Chapter 1
Products overview
This chapter introduces
■ Product introduction
■ Product introduction
■ Use and the matters needing attention
4
Product introduction
Qmini M series industrial GIS data collector products are equipped with complete
navigation and positioning function and GIS data acquisition function, with the operating
mode of physical buttons and touch screen, support input in both Chinese and English.
The three industrial standard design, and can be dropped from 1.5 meters high to the
cementfloor without angthing, dustproof and waterproof standard can adapt to complex
work environment in the field. At the same time, the configuration of the large capacity of
lithium battery can meet the requirements of all day work.
Qmini M series industrial GIS data collector with integrated design, and it is equipped
with functions such as collection of GPS, embedded Windows Mobile 6.5 system, digital
camera, microphone, bluetooth communication, mass storage, USB port, SD card
expansion ,ect.
Product features
◊Industrial integration design, with a variety of functions
◊ Can be used as the industrial three proof standard GPS navigation
◊ The built-in digital camera, which can realize image information site acquisition,
automatic GPS coordinates and realize image information matching labeling
◊ The built-in microphone, it can realize voice information site collected
◊with the function of speech play
◊ The built-in bluetooth, to realize the wireless data transmission
5
Use and the matters needing attention
Although Qmini series industrial GIS data collector use the corrosion resistance and
impact resistance materials, but the instrument still need our careful use and maintenance,
and keep it in dry environment as far as possible. In order to improve the stability of the
data collector industrial GIS and use cycle, please avoid industrial GIS data collector
exposed to extreme environment , such as: damp, high temperature, low temperature,
corrosive gas or liquid, etc.
∆ Warning: industrial GIS data terminal in use and preservation must be stipulated in
the temperature range. Detailed requirements, please refer to chapter 4: technical
parameters.
To ensure continuous observation of the satellite tracking and satellite signal quality,
the stations should be set as far as possible over the open place, barriers are not
permission in more than 15 degree place; To reduce the interference of electromagnetic
wave to GNSS satellite signal ,within 200 m strong electromagnetic interference is not
permitted, such as TV tower, microwave station, high voltage transmission line; To avoid
or reduce the happening of the multipath effect, stations should be far away from to the
electromagnetic wave signal reflection strong terrain, features, such as high building,
sliced waters, etc.
FCC ID: O39ZHDQmini
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
6
Chapter 2
The introduction of Qmini M series industrial GIS data
collector
The introduction of this chepter:
■the front of Qmini series industrial GIS data collector
■the back of of Qmini series industrial GIS data collector
■interface
■the appearance of touching pen
■battery
■data line
■ Condole belt
This chapter introduces Qmini series industrial GIS data collector appearance, interface,
battery, touch pen and data, etc.
7

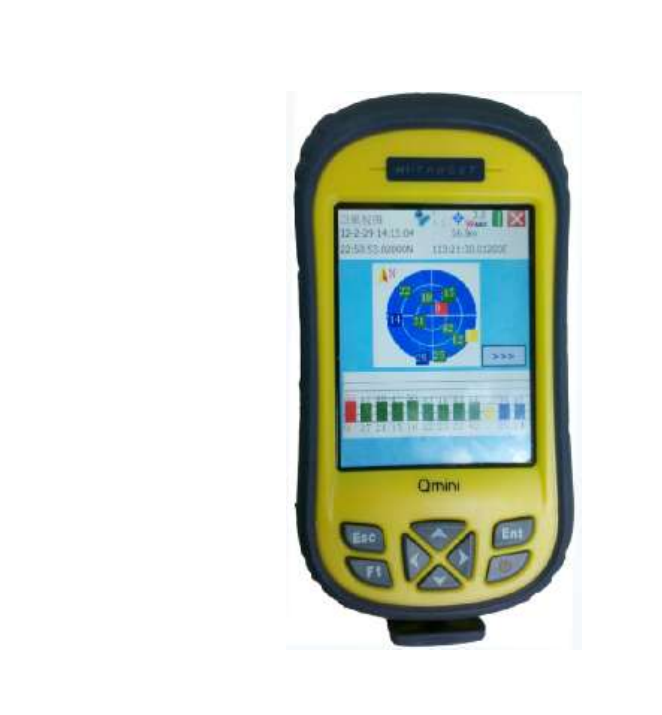

The front of Qmini M series industrial data collector
The front of Qmini series industrial GIS data collector，Including the touch screen,
keyboard, a microphone，protection set ,ect.
Chart2-1◊ Touch screen, 3.7 inch vertical screen can be directly click operation, support
input in both Chinese and English.
◊ Protective set: prevent grind, prevent fell, shock, effective instrument to avoid
scratching.
◊ Keyboard: direction control, the confirmation button, exit button, switch machine etc. Function.
◊ The microphone: built-in microphone can be used for the acquisition of voice messages.
(the microphone is at the bottom of the waterproof plug interface on the left)
8

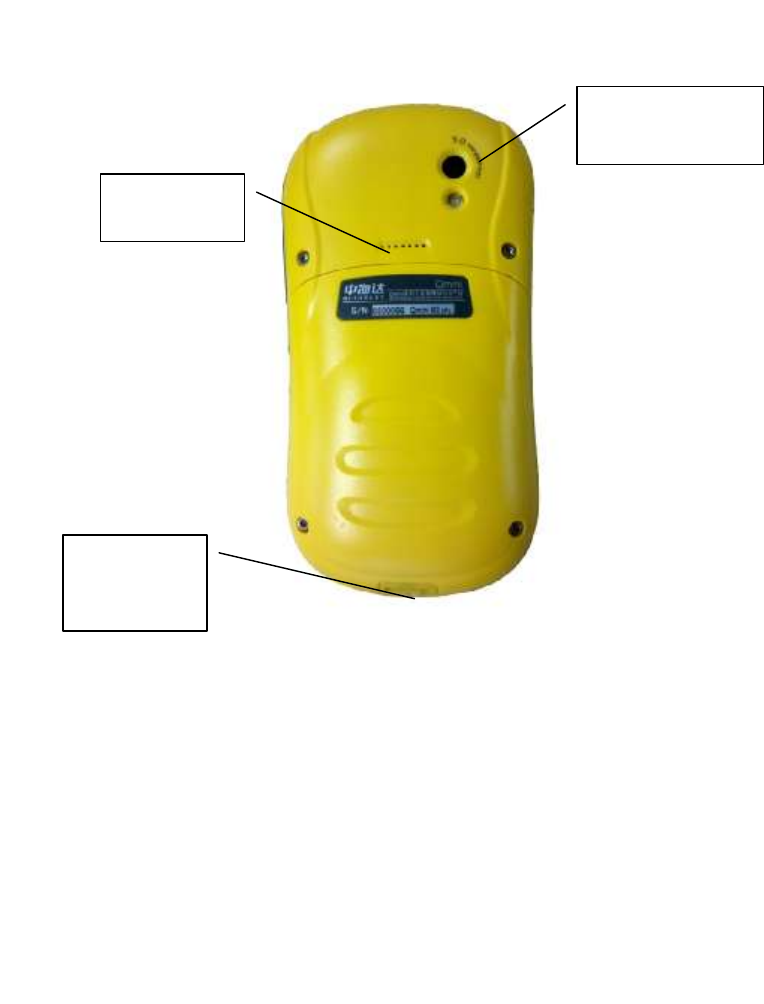

The back of Qmini M series industrial data collector
Qmini series industrial GIS data collector on the back of, including the camera, battery,
the condole belt hole, horn, etc.
◊ Camera: built-in digital camera for video information site collected
◊ Battery: the built-in 3.7 V, 3100 mAh lithium batteries
◊ Condole belt hole: connect the strap can prevent slide.
◊ Horn: instrument real-time operating and state speech broadcast
camera
(with flashfunction)
horn
the condole
belt hole
9
∆ Note: when the horn is in water, it may appear silent or husky, dry it and it will
be back to normal. The loudspeaker and the instrument is completely waterproof, horn
with water will not affect instrument performance, but please timely drying processes.
Interface

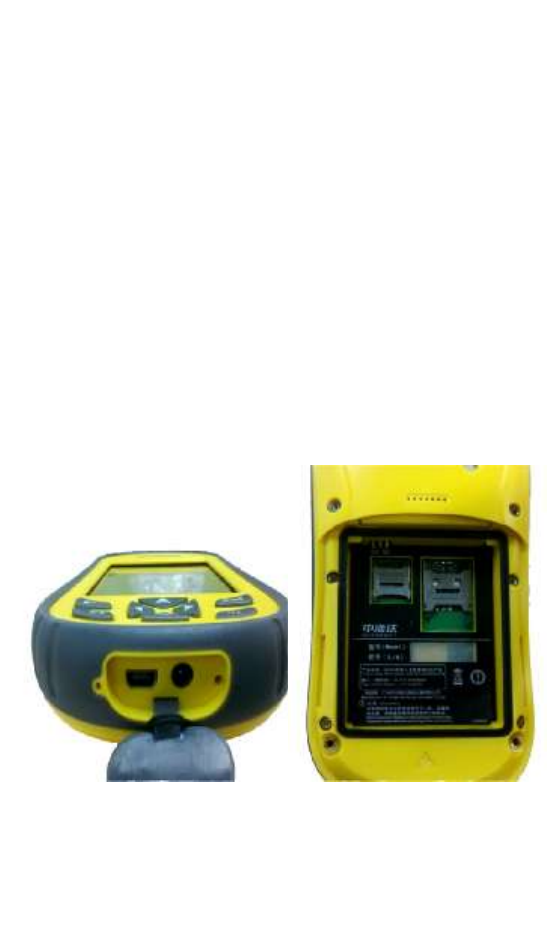

Qmini M series industrial GIS data collector interface position was identified, its main
function is charging and data transmission, installation SD card, etc.
Picture2-3
◇Charging interface: connect the charger for lithium battery charge.
◇USB port: the connection computer, used for data transmission.
◇MicroSD card, can support 32 GB at most.
▲Note:when the charging interface and USB interface are not in use, please cover
stopper, in order to achieve the purpose of waterproof, dustproof.
10

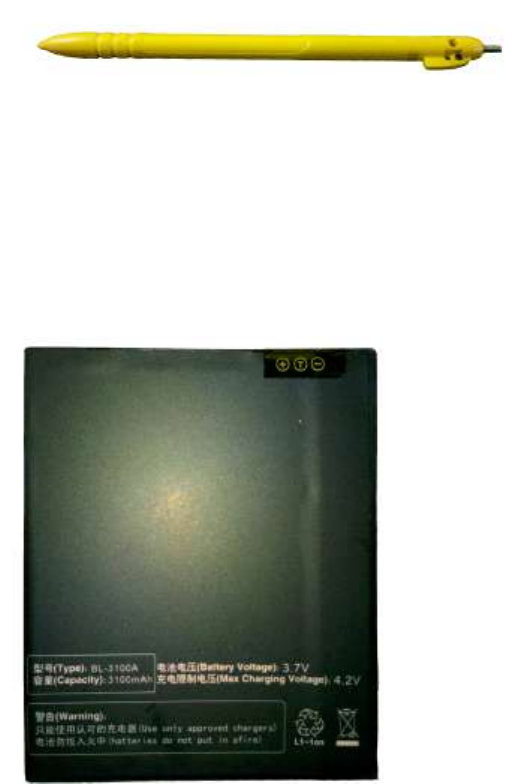

Touching pen
Qmini M series industrial GIS data collector with standard touching pen, located in Qmini
M series industrial GIS data collector condole belt hang line.
Picture2-4
Battery
This illustration shows the standard 3100 mAh lithium battery appearance figure.
Picture2-5
▲notice:In order to protect the environment, when the lithium battery failure, do not
throw them away, please return to HI-TARGET or professional battery recycling units
processing.
11

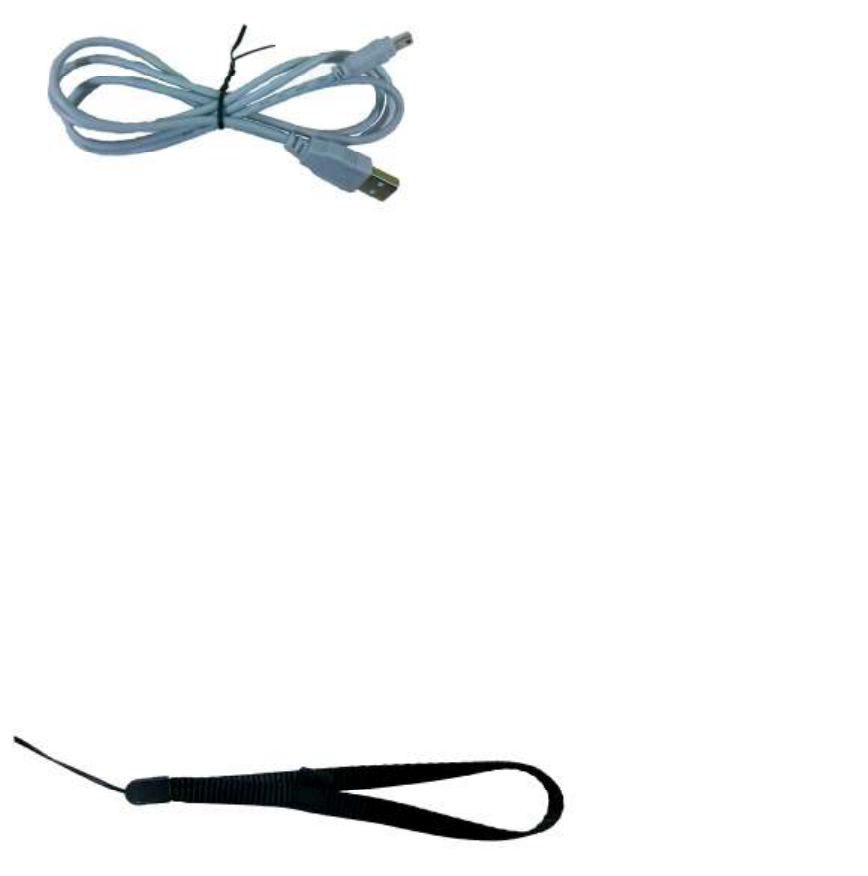

Data line
Picture2-6
◇Industrial GIS data collector interface: used in connection Qmini series industrial GIS
data collector.
◇USB interface: to connect computer USB port , used for data download.
▲Warning: when the cable is not in use,it should be packed in where the place is not easy
to squeeze to prevent damage to the plug.
Condole belt
Because Qmini series industrial GIS data collector are small, in order to prevent the
process of industrial GIS data collector slide, it equipped with antiskid condole belt,please
entangle condole belt when you work .
Picture2-7
12
Chapter 3
Basic operation
The introduction of this section:
▇.keyboard
▇ Touching pen
▇.MicroSD card
▇.Power supply system
▇.Switch machine operation
▇.data obtain
▇.Application functions
13
The HI-tARGET Qmini GIS data collector series industrial setting and operation
can be most completed by touching pen , the common operation can be
completed by the keyboard . Now we will introduce the look and function of the
keyboard simply.
Keyboard

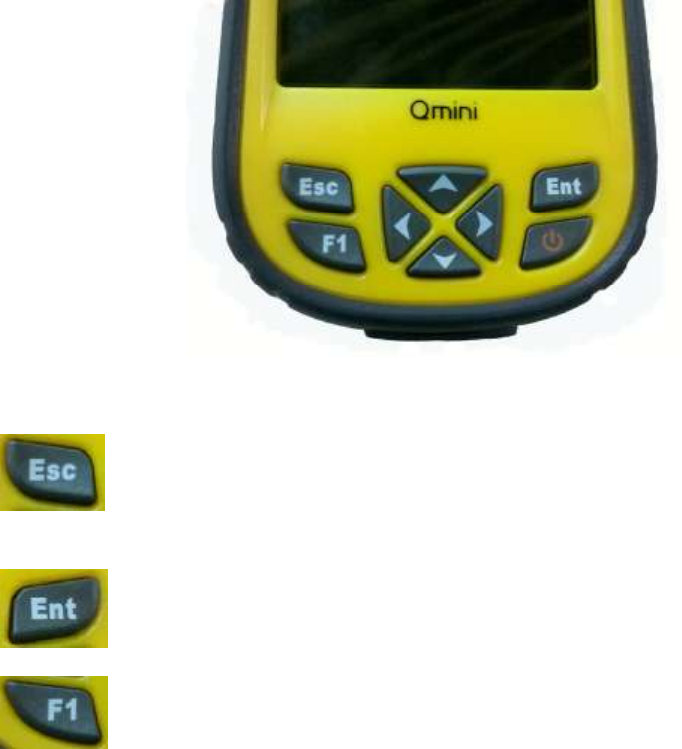

Qmini M series industrial GIS data collector keyboard. The keyboard keys contains: the
confirmation button , exit key, F1 function keys, switch machine key and the direction
key.
Picture3-1
Exit button: on state by short, means to cancel or exit the the current window
operation.
Confirm key: ok button.
Function keys: function shortcut key. By the software function definition,
please refer to the relevant software instructions.
14
Switch mechanical and electrical source key/backlight control key: more than 3
seconds long press turns on/off the phone. On state, hold the button 1 second, switch a
backlight switch.
Navigation keys: move the cursor, to change the content change options
▲notice:when temporarily do not need to use Qmini series industrial GIS data
collector in work, please close a backlight to save electricity, to extend industrial GIS
data collector work time.
MicroSD card
Installation, remove MicroSD card
Picture3-4 picture3-5
As the upper left picture shows ,open the SD card buckled along the OPEN
direction,then lock SD card along the LOCK direction,to complete the installation of the
SD card.
15
Remove the SD card, open the card buckle along the direction of OPEN , remove the SD
card,lock the card slot along the LOCK direction .
▲Note: the MicroSD cards (also named TF card) are small volume external flash memory
storage expansion CARDS, usually used in mobile phone, PDA, users should distinguish it
between the common one. The volume of ordinary SD card are larger than the MicroSD card, not
suitable for Qmini M series industrial GIS data collector use. Qmini M series industrial GIS data
collector can support 32 GB MicroSD card at most for present.
Power supply system

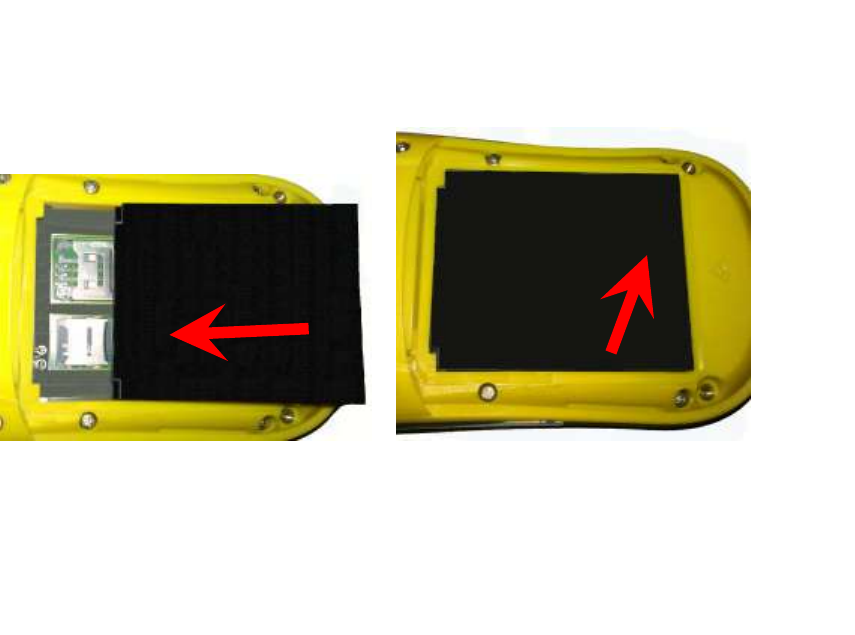

◊ The battery installation and removal
Install the battery, the battery with a metal connector on one end contacts Qmini M series data
collector battery tank copper , pressed the battery in according to the left lower red arrows
figure direction.
Picture3-6 picture3-7
Take out the battery, pull out the battery according to the upper right sign of the red direction
arrow
16
◊ Qmini M series industrial GIS data collector battery, charger model
Table 3-1 Qmini M series industrial GIS data collector battery, charger model
name model
3100 mAh lithium batteries BL-3100A
Lithium battery charger CL-3100A

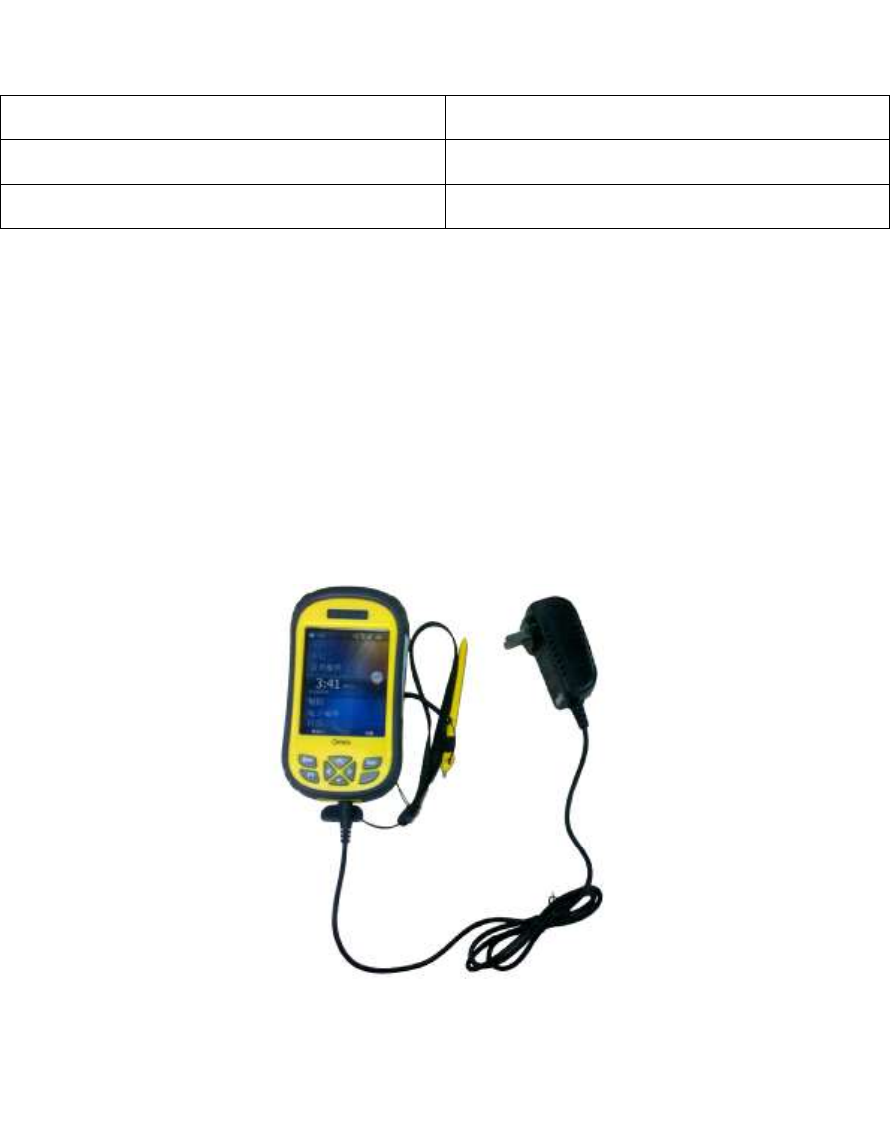

◊charge
Charge should be used when the instrument with standard special charger or seat charger in
certain temperature range charging, and charging time should achieve a certain requirements.
The concrete use method and requirements: charge should be used when the industrial GIS data
collector with standard filling lines, in 10 ℃ ~ 40 ℃ temperature range charge. Used for the first
time in general, there is still a battery power, should first will use up the inside of the electricity
charge again, the first three times must charge 12 hours, after that charging 4 hours. If the
battery are not often in use, it must be charged once a month.
∆Warning: 1The battery and charger manufacturer configuration are only permitted, do not put it
into the fire or metal electrodes with short circuit.
2 If you find the battery has fever, deformation, discharge, smell or other abnormal phenomenon
when the battery is in use 、incharge or in storage, please replace new battery.
17
3, if the use time of the battery significantly shortened, please stop using the battery, the battery
is aging, please replace new battery.
Switch machine operation
Data obtain

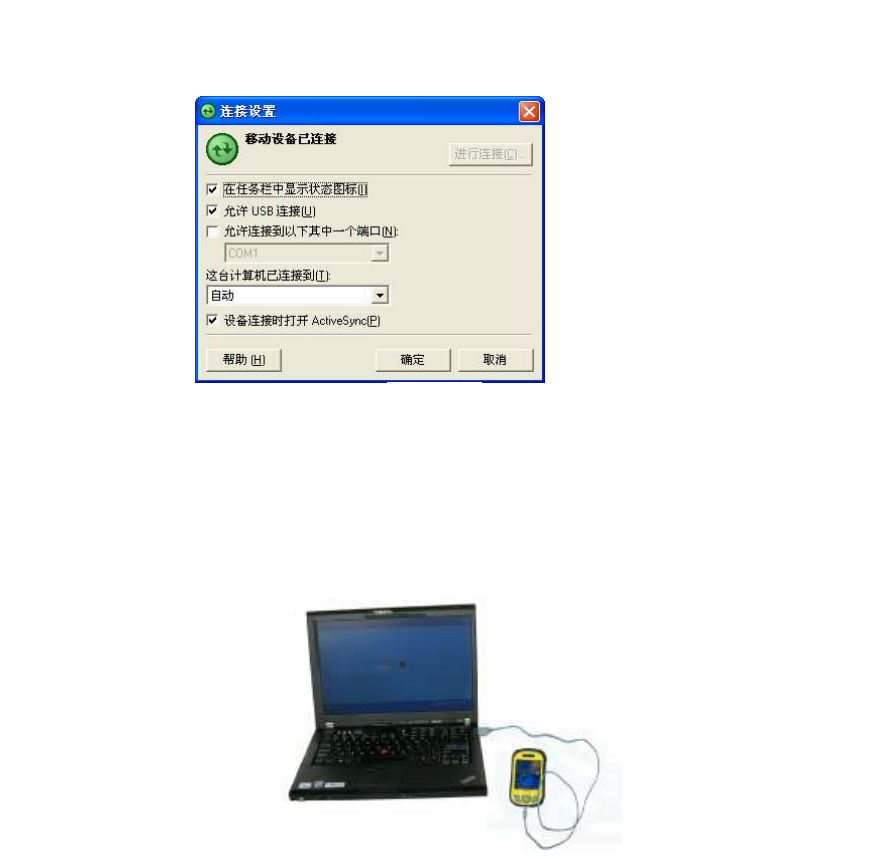

1 install Microsoft ActiveSync
In the incidental CD (tool software \ \ \ ActiveSync connection program), double click MSASYNC45.
Exe file,please follow the instructions to complete installation. After the installation, find
Microsoft ActiveSync operation inr the "start menu" "program" .Set up "allows the USB
connection" In the menu "connection Settings", , as shown in figure 4-21 as shown.
Figure3-11
2 the hardware connection
Opened first Qmini M series industrial GIS data collector, enter the Windows system,it is no need
to open applications. Connect the USB port which with a small data line with the industrial GIS
data collector, connect the other end USB plug with your PC. As shown in figure 4-22 shows.
Figure3-12
18
If you have connected them but the computer can't identify, please take the following method to
solve:

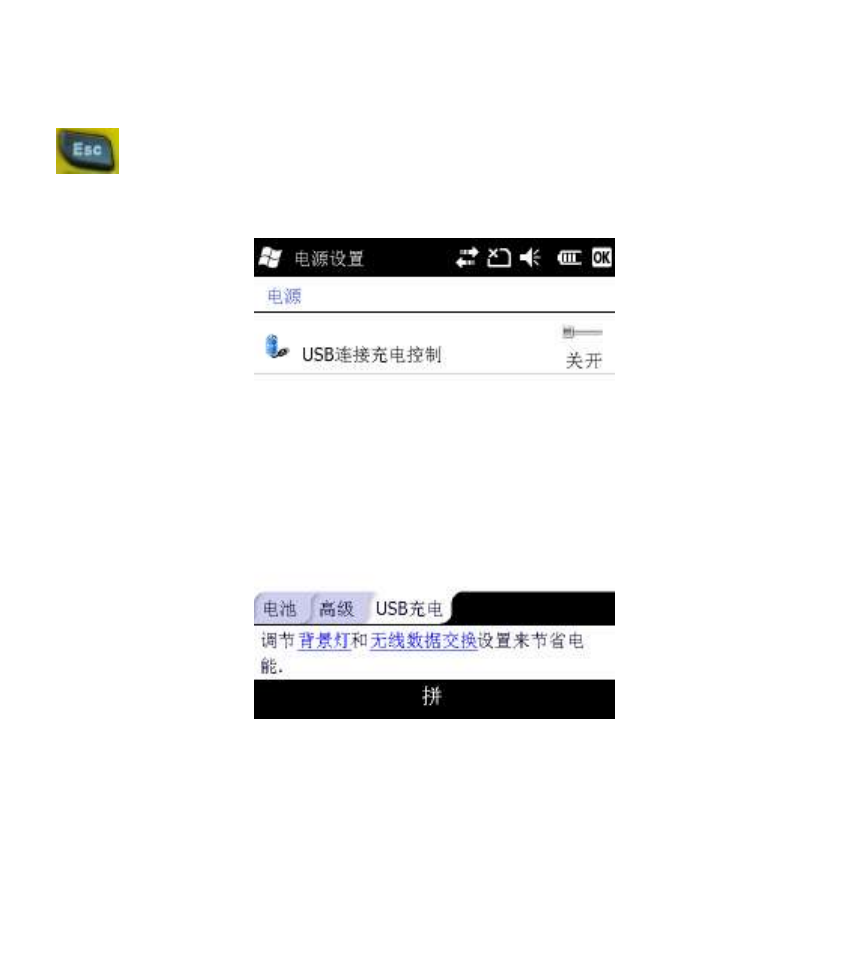

a:close the USB charging in the pow setting model
press to the homepage,select”setting”→”power”→”USB charging”,close the
control switch of the USB charging.(figure3-15)
Figure3-15

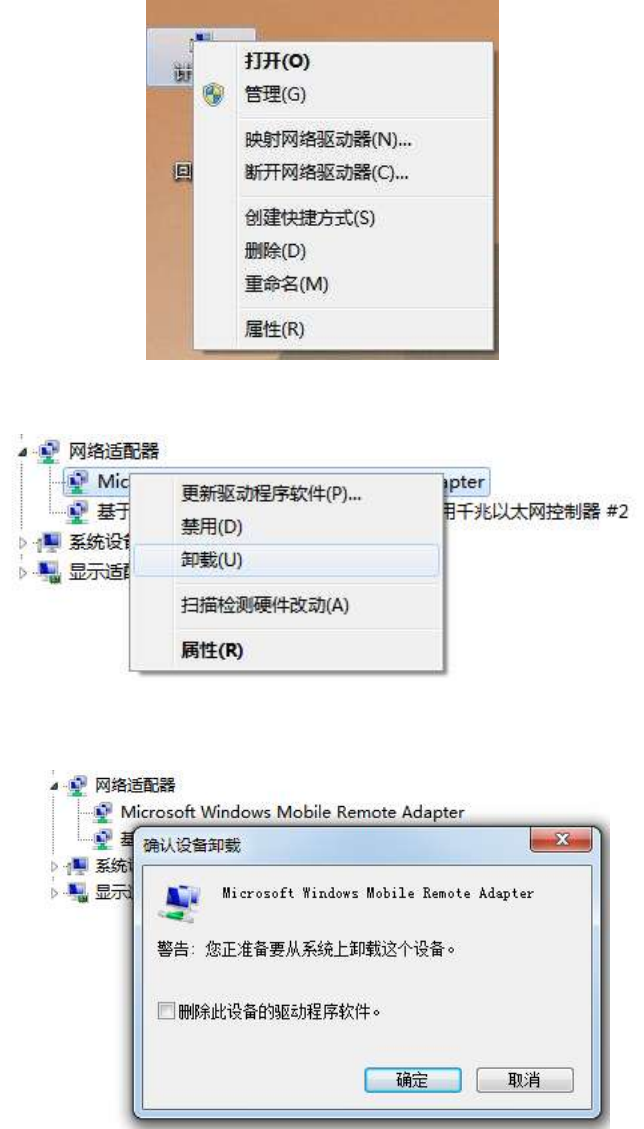

B:To install the driver
Selects "computer" in the computer, choice "management" with the right button, open the
"device manager"-" network Adapter ", right-click uninstall "Microsoft Windows Mobile Remote
Adapter". If you are a Windows 7 system, please don't check "delete this device driver software"
in the "confirmation equipment uninstall" .
19
Figure3-16
Figure3-17
20
Connect the Qmini M series industrial GIS data collector with pc again, if there is a "Windows
Mobile member center" registered tip ,please choose "not registered".
3 software connection
When the cable is connected ,the Microsoft ActiveSync in the computer will tips you "whether
to need to establish cooperation relationship," choose “cancel”，Then Microsoft ActiveSync
popup a hint, click "ok"。Then it has been connected successfully. If it is the first connections,
the computer will tips you to install the driver,just installed Windows compute driver according to
guide,the driver is in "driver \ industrial GIS data collector drive \" of the Incidental CD.
4 download data
Click on the“ browse button”of the the Microsoft ActiveSync,open the resources browser of
Qmini series industrial GIS data collector ,as figure 4-23 shows,you can enter the NandFlash
index and copy data to the computer.
Application functions
Qmini M series industrial GIS data collector is equipde with PPP technology (the technology used
in Qmini MP model), built-in GPS navigation and positioning, digital camera, microphone, and
other functions, but it must be installed with the corresponding software. Qmini M series
industrial GIS data collector is equipped with Hi-Q software,as to how to use Hi-Q software to
operate of the application functions above, please refer to my company's "Hi-Q software
operation instruction" content.
21
Chapter 4
Technology parameters
The introduction of this section
Technology parameters
Technology parameters
This chapter will introduces you related parameters of Qmini M series industrial GIS data collector,
the product function will vary according to the different models. When you refer to this chapter,
please refer to corresponding technical parameters according to the equipment you purchase.
Model Qmini
M1
Qmini
M3
Qmini
MR
Qmini
MT
Qmini
MP
System configuration
Operating system: Windows 6.5
√
√
√
√
√
806MHz high-speed CPU
√
√
√
√
√
Memory: 256MB RAM
√
√
√
√
√
Flash memory:8GB
√
√
√
√
√
Screen: 3.7 inches color touch screen,
640 x 480 resolution
√
√
√
√
√
GPS characteristics
high-touch GPS technology √ √ √ √ √
22
Application function
5 million PXL camera with LED light
supplement √ √ √ √ √
Integrated microphone and speakers √ √ √ √ √
Data communication
Bluetooth √ √ √ √ √
Mini USB Port √ √ √ √ √
Micro SD Card, 32G Max. √ √ √ √ √
power supply performance
standard configuration 3.7V, 3100mAh
lithium battery, working continuously
over 12 hours
√ √ √ √ √
physical performance
10 keys, with 4 direction keys and side
shortcut key √ √ √ √ √
Size: 14cm×8cm×3.5cm √ √ √ √ √
Weight: 36g (contain lithium battery) √ √ √ √ √
Work Tep.: -30℃~+70℃,
Storage Tep.: -40℃~+80℃ √ √ √ √ √
Waterproof and Dustproof √ √ √ √ √
shockproof √ √ √ √ √
