High Flying Electronics Technology HF-Z100C ZigBee Module User Manual
High-Flying Electronics Technology Co., Ltd. ZigBee Module
User Manual
User Manual
1 OF 7
High-Flying Electronics Technology Co., Ltd.
Model :HF-Z100C
Design
Hewei
2014-03-12
Description : ZigBee Module
Verify
Wanghuanming
2014-03-12
Document No.: F20140312
Version : 1.0
Approve
Wenqing
2014-03-12
Release Date: 2014-03-12
Pagination: Of 5
Specification
User Manual
2 OF 7

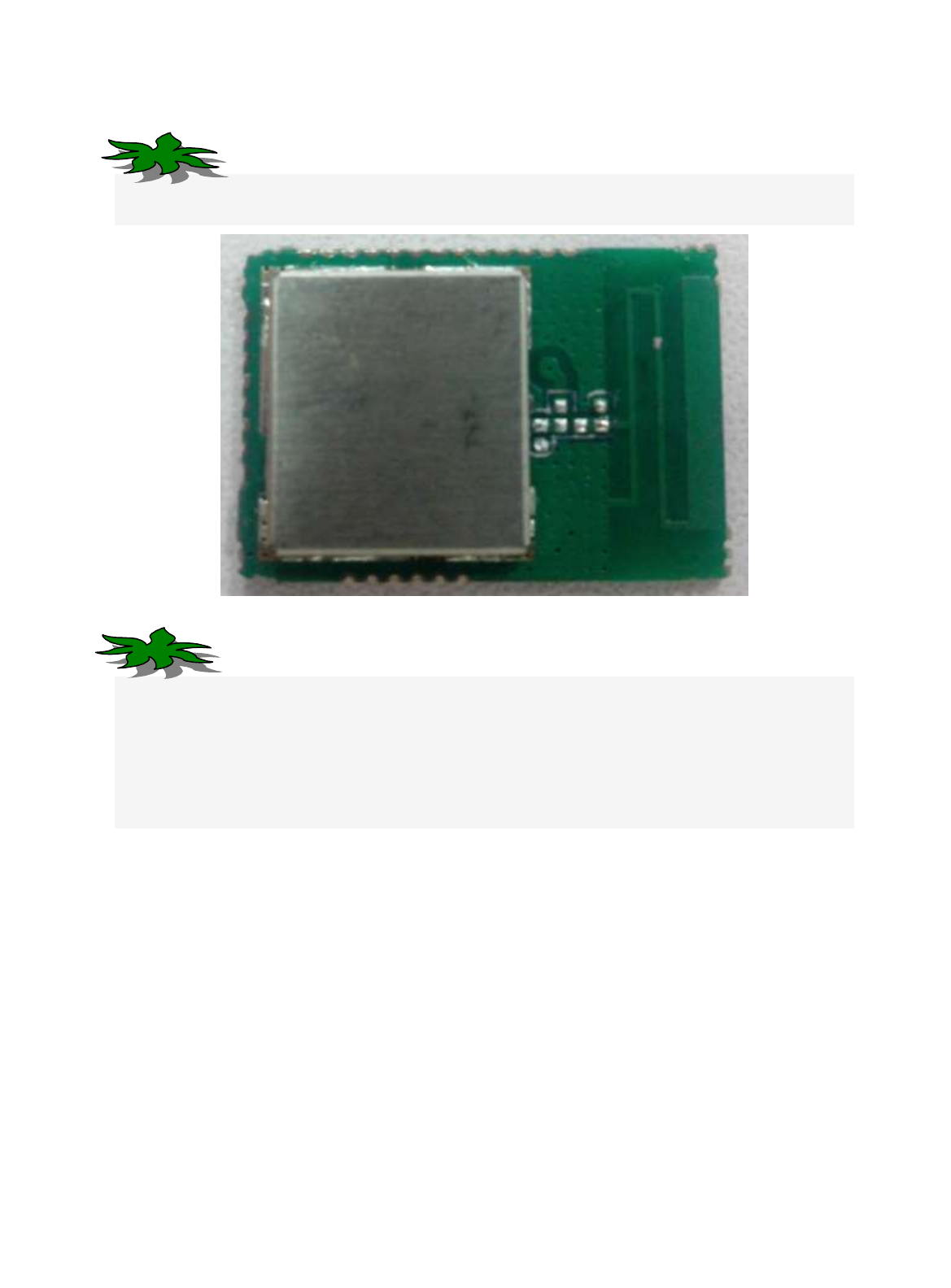

1 .Photo
2 Product Description
HF-Z100C
HF-Z100C is a wireless communication device based on the latest IEEE802.15.4 standard
and Zigbee wireless communication protocol. When compared with the Bluetooth technology, it
comes with the advantages of low complexity, low power, low cost, self-organizing, and so on.
Since it is based on IEEE802.15.4 standard, it allows smooth connections among thousands of
tiny sensors that demand information exchange through radio waves between any two sensors,
with very little energy and high communication efficiency.
Application HF-Z100C module is widely applied to commercial building automation, home
automation control (including smart lighting, sensor, gateway etc that is used in smart home) and
instrument control as the focus. Commercial building can be completed automatically controlled
through HF-Z100C, administrators can effectively manage air conditioning, lighting, fire detection
systems, the switch control system, leading to cost reduction of energy consumption, as well as
labor cost. For the consumer, if the family has installed HF-Z100C module system can easily
monitor the overall operation of the home, effectively control electricity, water, gas usage outside,
they can have security features, for example, to install a wireless home sensors to monitor a
variety of different situations, once the investigation into the abnormal automatically issue a
warning.
User Manual
3 OF 7
3. Product Features:
Low power consumption in low-power standby mode, the standby time is more than 10
times the Bluetooth communication devices
Low cost, by dramatically simplifying the protocol (less than Bluetooth 1/10), reducing
the requirement for communication controller, suitable for large-scale construction
applications
Variable data rates, HF-Z100C works in the 2.4GHz band, providing 250 kbps raw data
rate using standard mode, or up to 2Mbps using Marvell proprietary mode, to meet the
application needs of various rates towards data transmission.
close quarters, the transmission range is generally between 10 ~ 100m indoor, and up to
2km outdoor. After increasing the transmission power, the distance can be further
increased. This is the distance between adjacent nodes. If the route and through the
inter-node communication relay transmission distance will be farther
short delay, faster response speed HF-Z100C, generally from sleep into working
condition just 15ms, nodes are connected into the network just 30ms, further saving
energy. Comparison, Bluetooth requires 3 ~ 10s, WiFi need 3 s
high security, HF-Z100C provides three security modes, including no security settings,
using access control lists (Access Control List, ACL) to prevent illegal access to data and
the use of the Advanced Encryption Standard (AES 128) symmetric password to flexibly
determine their security attributes.
wide range of applications for home and building networks, industrial control, wireless
meter reading, medical equipment, agricultural control and other occasions
User Manual
4 OF 7
4.Product Specification
Model
HF-Z100C
Chipset
88MZ100
Wireless Standard
IEEE802.15.4
Radio Data Rate
250Kbps
Channel
16
Sensitivity @250kbps
（dBm）
-104dBm(Min)
Frequency Range
2.405~2.480GHz
Interface
Refer to Section 5
Antenna Type
Onboard 2dBi（Max）PCB antenna
Input Voltage（V)
DVDD 2.0V-3.6V(Typical DC 3.3V)
Max Current on 9dBm TX
power（mA)
＜60mA
Sleep Current（uA)
＜3uA
Communication Distance
Indoor≥ 50m,Outdoor≥ 300m
Environment
Operating Temperature: -40℃~85℃
Storage Temperature: -40℃~125℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~90% non-condensing
Dimensions (mm)
22.2mm*15.4mm*3.0mm
User Manual
5 OF 7
5. Interface Pin Definition
The module pin reference definition is referred to the table like below. The GPIO assignment is
ONLY reference for the full application on lighting. For some specified application, please refer to
the PINMUX of 88MZ100 datasheet for the flexible GPIO assignment.
Pin Number
Signal Assignment
Reference GPIO Assignment for Lighting
Pin1-2
GND
Ground
Pin3
GPIO12
PWM output-1(Timer1)
Pin4
GPIO13
PWM output-2(Timer1)
Pin5
GPIO14
SWD Clock
Pin6
GPIO15
SWD Data
Pin7
GPIO16
IIC SDA
Pin8
VIO
The IO power
Pin9
GPIO17
IIC CLK
Pin10
GPIO18
PWM output-3(Timer1)
Pin11-13
GND
Ground
Pin14
GPIO21
UART2 TXD
Pin15
GPIO22
UART2 RXD
Pin16
GPIO23
PWM output-4(Timer1)
Pin17
GND
Ground
Pin18
VBAT
The main power
Pin19
GND
Ground
Pin20
GPIO29
Reserve
Pin21
GPIO28
Reserve
Pin22
GND
Ground
Pin23
RESET_N
The reset signal
Pin24
GPIO4
ADCx3 or ADCx1 and Wakeup INTx2
Pin25
GPIO5
Pin26
GPIO6
Pin27
GND
Ground
Pin28
The under GND
Ground
User Manual
6 OF 7
6. FCC Statement:
Federal Communication Commission Interference Statement
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
USER MANUAL OF THE END PRODUCT:
In the user manual of the end product, the end user has to be informed that the equipment
complies with FCC radio-frequency exposure guidelines set forth for an uncontrolled environment.
The end user has to also be informed that any changes or modifications not expressly approved
by the manufacturer could void the user's authority to operate this equipment.
If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement
is required to be available in the user manual: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following" Contains TX FCC ID:
2ACSV-HF-Z100C ". If the size of the end product is larger than 8x10cm, then the following FCC
part 15.19 statement has to also be available on the label: This device complies with Part 15 of
FCC rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
User Manual
7 OF 7
IC warning statements:
-English Warning Statement:
“This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device."
-French Warning Statement:
“Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement."
.
