Hirschmann Car Communication 920510A 920510A User Manual Testreport ETS 300 335
Hirschmann Car Communication GmbH 920510A Testreport ETS 300 335
Users Manual
Test report no. 17010935 Page 1 of 1
EUT: 920510A
FCC ID: XTJ-920510A
FCC Title 47 CFR Part 15
Date of issue: 2017-08-17
Date: 2016-08-19
Created: P9 Controlled: P4 Released: P1
Vers. no. 2.16
m. dudde hochfrequenz-technik
Rottland 5a
D-51429 Bergisch Gladbach/ Germany
Tel: +49 2207-96890
Fax +49 2207-968920
Annex acc. to FCC Title 47 CFR Part 15
relating to
Hirschmann Car Communication GmbH
920510A
Annex no. 5
User Manual
Functional Description
Title 47 - Telecommunication
Part 15 - Radio Frequency Devices
Subpart C – Intentional Radiators
ANSI C63.4-2014
ANSI C63.10-2013

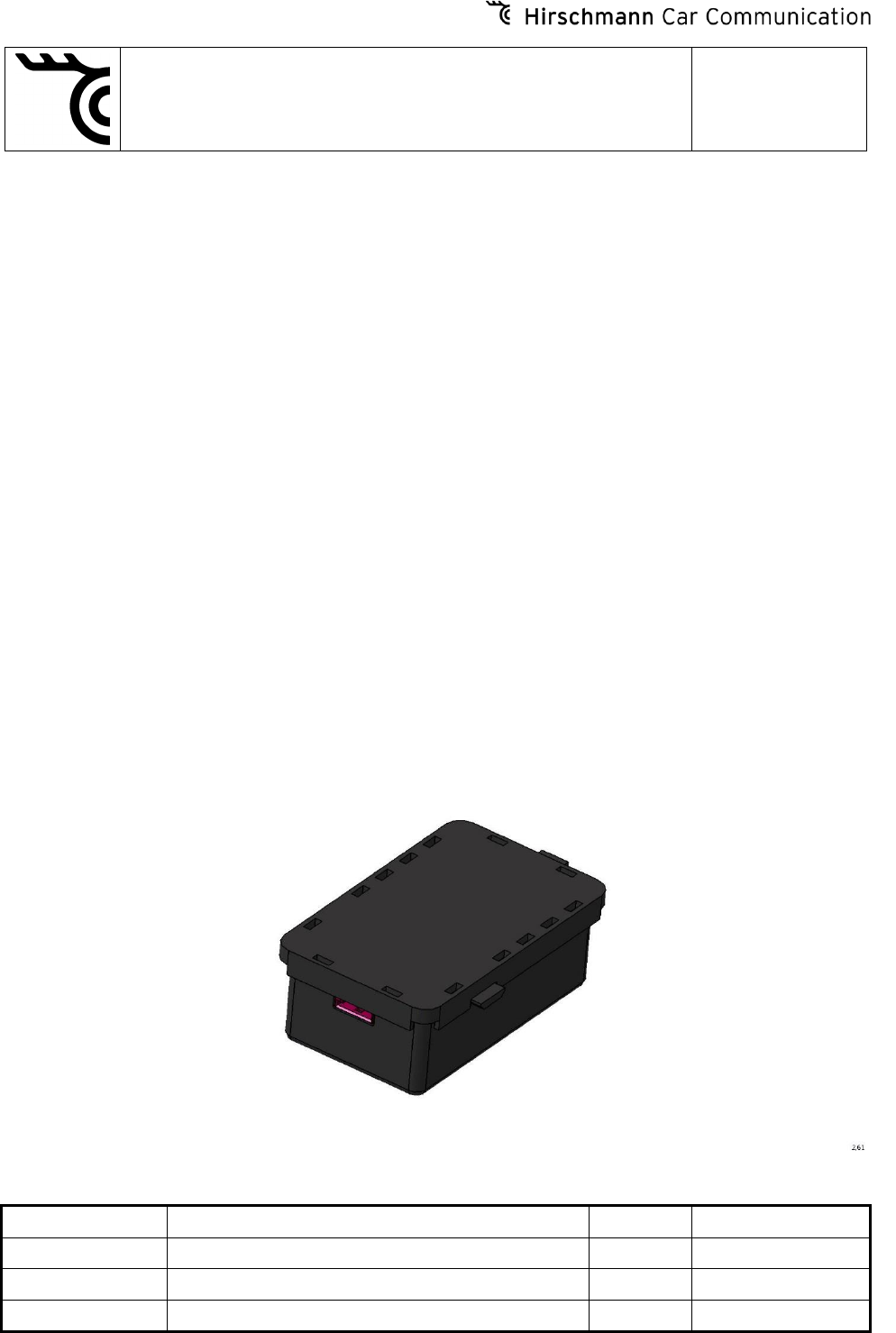

Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
Name, Department
Date
Sign
Author :
J. Nebel, ODA
Release
Distrib
--
page 1 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
920510A
Transceiver Remote Control
User's manual / Operational Description
Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
page 2 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
1 Table of Contents
1 Table of Contents ............................................................................ 2
2 Change history ................................................................................ 3
3 User information ............................................................................. 3
3.1 FCC .................................................................................................................. 3
3.2 IC ..................................................................................................................... 3
4 Overview ......................................................................................... 4
4.1 Block diagram .................................................................................................... 4
4.2 Functional description ......................................................................................... 4
4.3 Installation ........................................................................................................ 4
4.4 Operating temperature range ............................................................................... 4
4.5 Interface ........................................................................................................... 5
5 Operational characteristics .............................................................. 5
5.1 General Information ........................................................................................... 5
5.2 Receiver ............................................................................................................ 6
5.3 Transmitter ....................................................................................................... 6
5.4 Transmission ..................................................................................................... 6
5.5 Frequency creation and Frequency stability ............................................................ 8
5.6 Further signal-sources (clock generators): ............................................................. 8
5.7 ON / OFF State of Oscillators in dependency of operating mode .............................. 8
6 Operational procedures ................................................................... 8
Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
page 3 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
2 Change history
Datum
Chapter
Change
Author
Version
01.03.2017
all
initiale release
Nebel
V1.0
18.05.17
all
mods
Nebel
V1.1
3 User information
3.1 FCC
Section 15.19 statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Section 15.21 statement:
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
3.2 IC
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement
Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
page 4 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
4 Overview
4.1 Block diagram

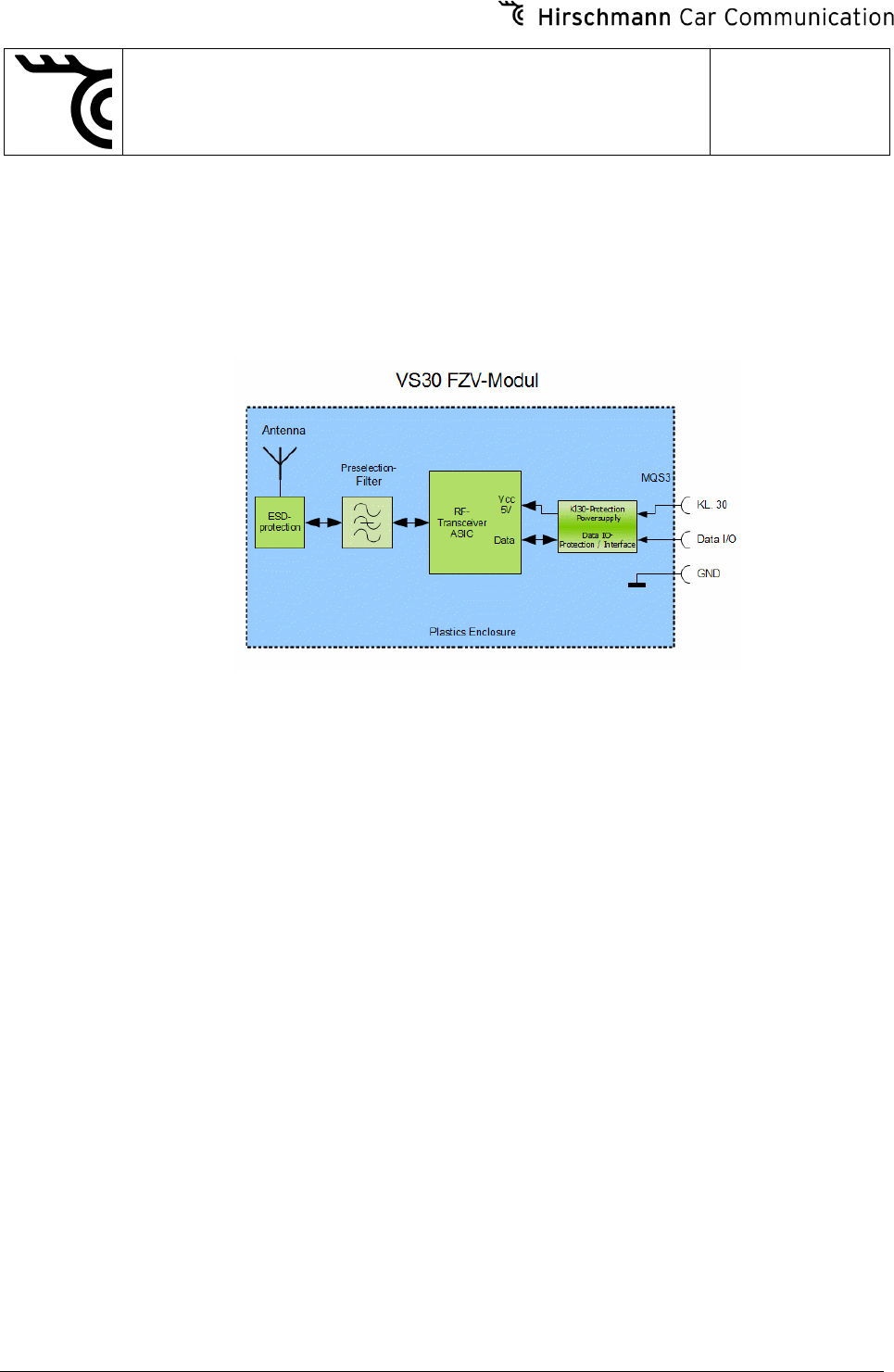

Figure 1: Blockdiagram of the remote control circuit
4.2 Functional description
The RF-Signal is received/transmitted by the integrated antenna and is filtered by a bandpass.
An integrated circuit contains the complete transceiver and antenna switch.
The received signal is matched to the an LNA input, demodulated and transmitted via a digital
interface to the ECU. The implemented µC configures PLL and the RF-frontend to create an
output signal and sets the antenna switch according to the receive/transmit mode.
Received or transmitted signal is limited in bandwidth by a SAW filter.
Both use the same antenna.
4.3 Installation
The remote control box is installed inside a vehicle and behind the cabin cover. Only service
personel is able to touch or handle it.
4.4 Operating temperature range
-40 … +85°C
Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
page 5 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
4.5 Interface
• Supply Voltage (+12V)
• RF-Interface: integrated antenna
• Data-Interface 1-wire [bidirectional, digital, open-collector]

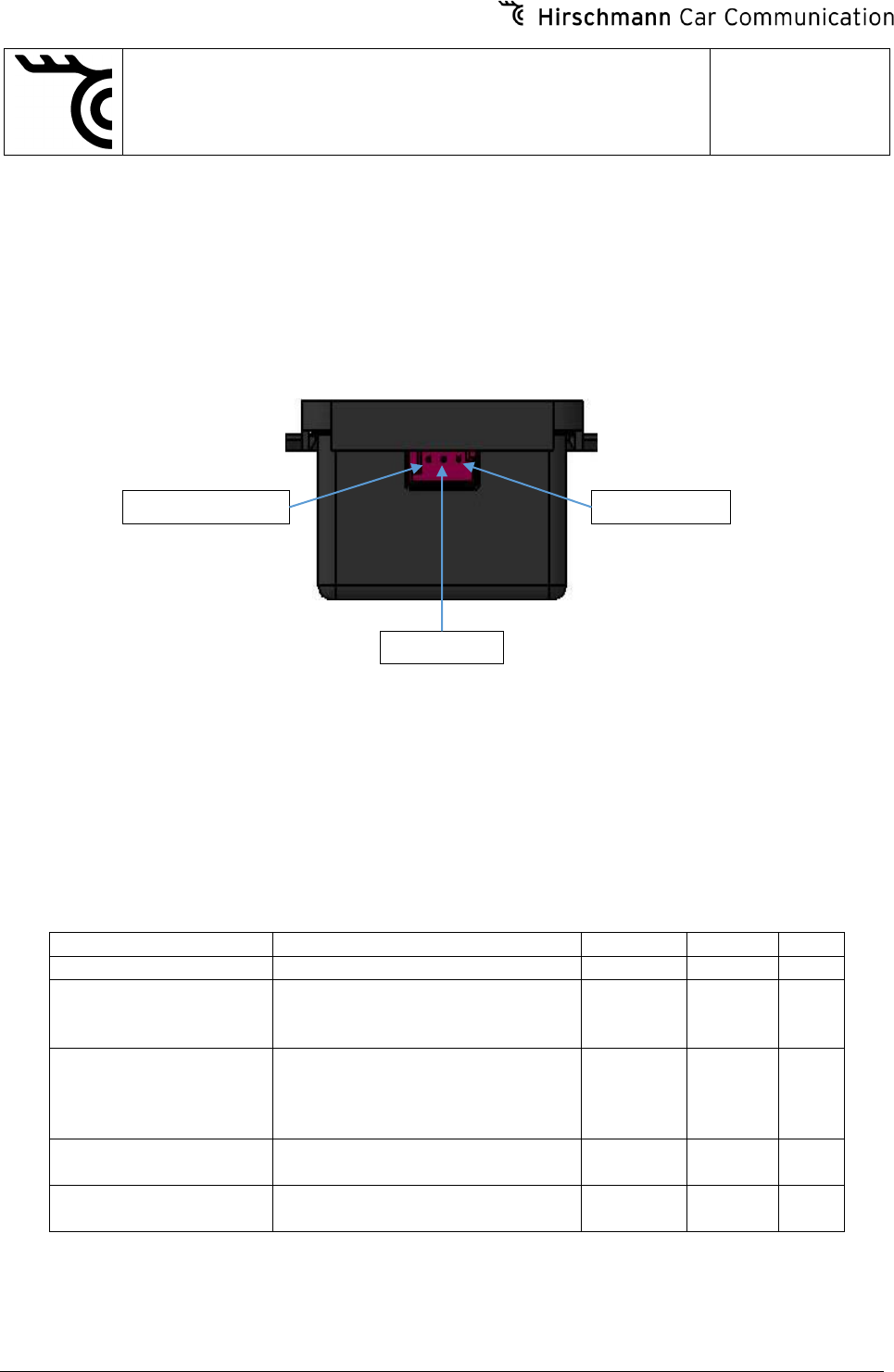

Figure 2: View of the Remote Control Module connector
5 Operational characteristics
5.1 General Information
parameter
min
max
Supply voltage
10
14
V
Current consumption
Cyclic for 55ms pre-signal,
3 channels (f0-450kHz, f0,
f0+450kHz)
700
µA
Current consumption
when strong
interfering signals
Cyclic for 55ms pre-signal,
3 channels (f0-450kHz, f0,
f0+450kHz)
interfering signals > -40dBm
900
µA
Current consumption
(TX)
@+10dBm output power @
50Ohm
40
mA
Frequency range
ECE
USA
433,44
313,98
434,40
314,92
MHz
Pin 1 (Ground)
Pin 2 (Kl.30)
Pin 3 (FZV_DATA)
Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
page 6 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
5.2 Receiver
Receiver category 2 EN300 220-1.
parameter
min
max
Sensitivity
Matched to 50 Ohm
Symbol rate: 10kBaud
Manchester
FSK-Modulation 10kHz
deviation
-98
dBm
Blocking
(ratio of interfering
signal to power of
receiving signal)
150 kHz
30
dB
225 kHz
40
dB
450 kHz
45
dB
800 kHz
50
dB
1500 kHz
60
dB
2500 kHz
70
dB
5000 kHz
80
dB
5.3 Transmitter
parameter
min
max
Transmit power
ECE
+5
+10
dBm
USA
+0
+6
dBm
Conducted measurement of the transmit power
5.4 Transmission
5.4.1 Data rates
for digital 1-wire and RF:
10 kBit / sec 1,0 %
5.4.2 Modulation
Frequency modulation FSK (shifting between two discrete frequencies) with a deviation of
10kHz.
Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
page 7 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
5.4.3 Channel definition
The following table shows the center-frequencies for each channel.
The frequency-separation between two adjacent channels is 450 kHz.
Channel name
Center-frequency
name
Short name
channel 1
CH1
USA/JAP: 314,00 MHz
ECE: 433,47 MHz
channel 2
CH2
USA/JAP: 314,90 MHz
ECE: 434,37 MHz
channel 3
CH3
USA/JAP: 314,45 MHz
ECE: 433,92 MHz
table 1: center frequencies of all channels
5.4.4 Carrier frequency
The carrier frequency has a tolerance (including influences because of temperature,
aging, manufacturing tolerance) of:
ECE: 433,47 MHz 70ppm, 433,92 MHz 70ppm, 434,47 MHz 70ppm
USA, Japan: 314,00 MHz 80ppm, 314,45 MHz 80ppm, 314,90 MHz 80ppm
Transceiver Remote Control
920510A
Stand:
01.03.2017
Version:
V1.1
Status:
approved
page 8 / 8
Vertraulich - Vervielfältigungen u. Verwertung, sowie Weitergabe an Dritte ohne schriftliche Zustimmung der Fa. Hirschmann ist
verboten. Der Ausdruck sowie das persönliche Abspeichern dieses Dokumentes unterliegen nicht dem Änderungsdienst.
Confidential – Copying and usage as well as transfer to third parties without written consent of HCC is prohibited. Printed versions
and local copies are not maintained by change management
5.5 Frequency creation and Frequency stability
The RF-frequencies are created with a fractional N PLL (phase locked loop). The frequency of
the local oscillator is controlled by the fractional N Synthesizer. The discrete channel-
frequencies are configured by digital settings
• The RX and TX- frequency deviation is ±10 kHz
• The RX intermediate frequency (IF) is 250kHz.
• RX receiver channel bandwidth is 165kHz.
• The PLL is referenced to a crystal oscillator
• The crystal oscillator (XTO) is operated at fXTO = 24,2879 MHz
• The tolerance of the crystal is ±70ppm.
5.6 Further signal-sources (clock generators):
• Slow RC Oscillator: fSRC=125kHz ±5% Sleep Time reference in polling mode.
• Fast RC Oscillator: fFRC=6.36MHz±10% System clock reference CPU.
5.7 ON / OFF State of Oscillators in dependency of operating mode
• Polling cycle time : 50ms
• active (without signal): tAKTIV= 3.05ms (typ.)
• Sleep-phase: tSleep=46.95ms (typ.)
Operating mode =>
Init
Polling
TX-Mode
RX-Mode
active
sleep
XTO Oscillator
(fXTO=24,2879MHz)
off
on
off
on
on
FRC Oscillator
(fFRC=6.36MHz)
on
on
off
on
on
SRC Oscillator
(fSRC=125kHz)
off
off
on
off
off
6 Operational procedures
After connecting supply voltage, the module is NOT in normal operating mode.
To get the module into normal operating mode (polling mode):
• Connect supply voltage (12V) and GND
• Pull the data line to GND for a short time (>5ms)
