OVERVIEW
The 72xx SFU residential ONT delivers high
quality VoIP voice service, Ethernet data service
for high-speed internet access and IPTV broad-
cast video plus video on demand services. They
provide the following user features: (see Model
List for exact features)
– 2 POTS ports - voice telephone service
– 4 LAN ports - Ethernet
c
onn
e
c
t
i
v
i
t
y
– WiFi
ports
- WiFi
c
onn
e
c
t
i
v
i
t
y
– CATV
ports
- CATV
and Return
service
–
USB ports
-
data backups
s
e
rv
i
c
e
–
UPS ports
-
UPS
s
e
rv
i
c
e
INSTALLATION
The 72xx SFU ONT can be mounted vertically or
horizontally on any flat surface.
Unpack
Unpack the unit and verify that it is free from
shipping damage.:
Desk Mount
1.) Set the unit on a flat surface considering the
following:
– within reach of the power source
– no thermal obstructions
– not in direct sunlight
– user ability to monitor/operate the unit
Wall Mount
1.) Use wall anchors or wood screws (if mounting
to plywood mounted on a wall), spaced 5.709”
apart center to center for horizontal mounting or
3.543” apart center to center for vertical mount-
ing.
技术要求：
1、标签用于IPHOTONIX室内机项目；
2、折叠后尺寸64X154mm;折叠后封面朝上；
3、材质：70g书写纸；
4、印刷颜色：黑色印刷，双面印；
5、公差±1mm；
6、材料及印刷工艺均满足ROHS要求。
Any Changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate the equipment.
Page 2 4 egaP3 egaP Page 5

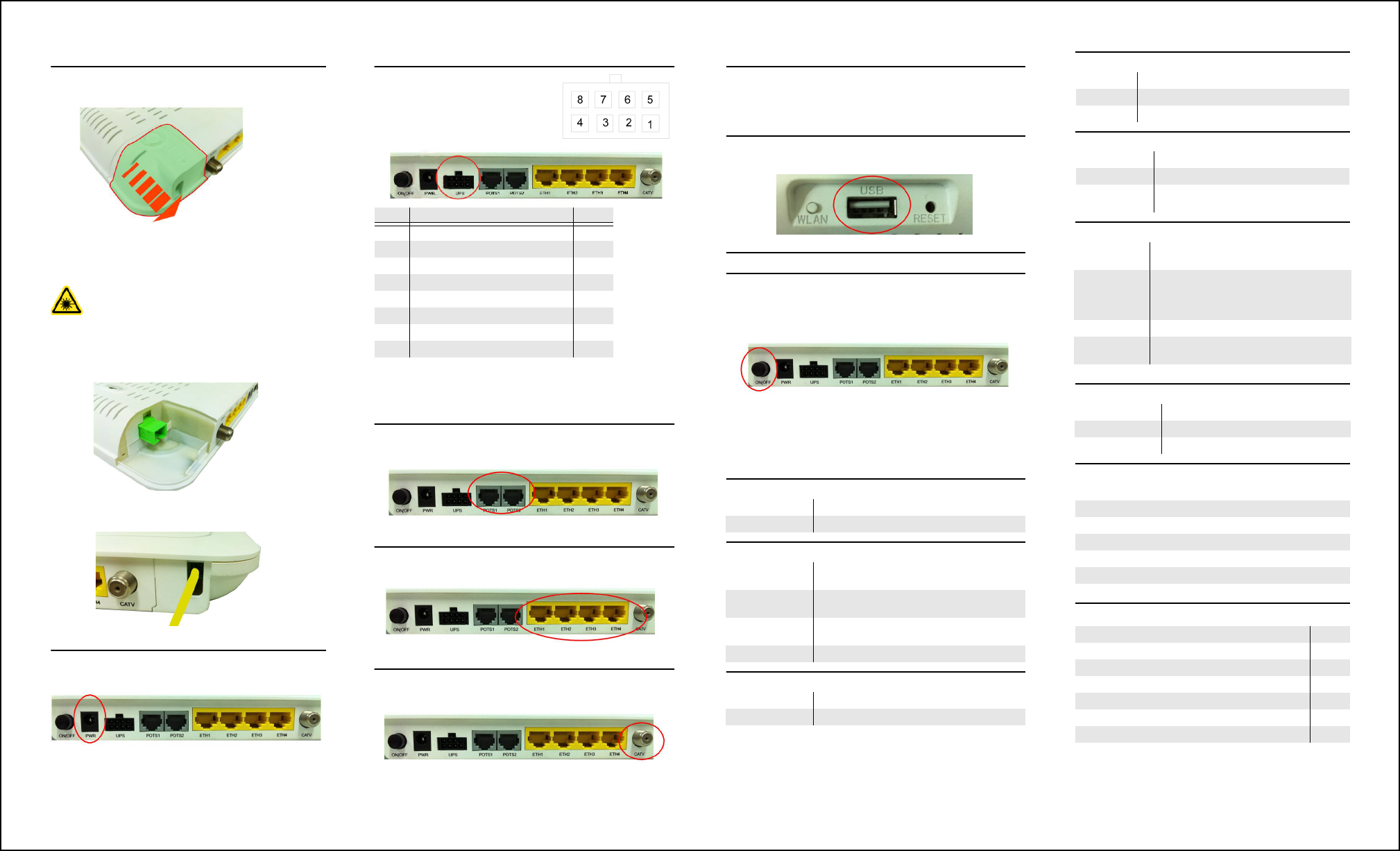

Fiber Connection
1.) On the back left side of the unit is fiber cover.
Slide it off as shown.
2.) With the fiber connector exposed, remove the
dust plug, clean the fiber ends and terminate the
SC equipped fiber.
Danger! . Exposure to invisible
LASER radiation may cause serious
retinal damage or even blindness.
Verify the optical source is disabled through
the use of an optical power meter before
handling optical fibers.
3.) Insert the fiber into the cover slot and slide the
cover back onto the 72xx unit.
DC Power Input
1.) Connect the 2.1mm DC power plug to the
port labeled PWR.
UPS Power and Alarms
1.) The UPS power/alarm
input uses a MOLEX 43025-
0800 connector. Pin orienta-
tion as shown is viewed from
the rear.
Pins for the connector are Molex 46235-5002
NOTICE:
Please adopt
UL
certificated
UPS
which
meets Limited Power Source standard.
POTS Connections
1.) Connect up to 2 phones to the ports labeled POTS1
and POTS2.
LAN Connections
1.) Connect the computers/routers to the ports labeled
ETH1 through ETH4.
CATV Connection
1.) Connect the television to the port labeled CATV.
This port supports Return Service on select models.
PIN NAME ALM
1 Power Input (+12 VDC) –
2 UPS Status: On Battery 1
3 UPS Status: Battery Missing 2
4 Signal Return –
5 Power 12V Return –
6 UPS Status: Replace Bettery 3
7 UPS Status: Low Battery 4
8 No Connection (N/A) –
WiFi Connection
1.) Change the notebook/computer WiFi network
SSID to “iphotonix-ONTxxxx”. This may be changed
manually.
USB Connection
1.) Connect the flash-disk/portable hard disk to the
port labeled USB on the left side of the units.
User Controls
1.) The 72xx SFU ONT is equipped with an ON/OFF
button. User functionality should be limited to this
button.
LED Descriptions
The 72xx SFU ONT has visual LED indicators to
help the user determine the operational state of the
unit. The LEDs are defined as follows:
Power
Battery
MGMT
ON Unit is powered on
OFF Unit is powered off
ON Battery is charged and unit is operating nor-
mally on external power.
Flashing Slow Unit is running off of battery power only.
Check power supply to unit.
Flashing Fast Battery is low and unit may turn off if exter-
nal power is not restored.
OFF Battery is missing or defective.
ON Management channel (OMCI) is active
OFF Management channel (OMCI) is not active.
ETH 1- 4
POTS
FAIL
WLAN
Environmental Requirements
Model List
ON Ethernet link is operational.
Flashing Indicates data transmission / reception.
OFF No Ethernet link or port is not equipped.
ON Line is off hook (call active or in process)
Flashing Slow Indicates ringing line.
OFF Line is on hook (no call in process) or
port is not equipped.
ON Indicates Loss Of Signal (LOS). No opti-
cal signal is present.
Flashing
Slow
Marginal signal indicates a weak optical
signal from carrier. Clean fiber connection
per local practice and check power with an
optical meter.
Flashing Fast Software upgrade has failed.
OFF Optical signal is present and operating nor-
mally.
ON WiFi function is active (+2– -6 range)
Flashing Indicates active data TX/RX
OFF WiFi function is not active
Rated Voltage: DC 12V
Rated Current: 2A
Operating Temperature: +5°C to +40°C
Operating Relative Humidity: 5% to 85%
Storage Temperature: -40°C to +60°C
Storage Relative Humidity: 0% to 95%
Model Functions Select
7259G 2POTS + 4GE + CATV + Return + WiFi
7257G 2POTS + 4GE + CATV + Return
7258G 2POTS + 4GE + CATV + WiFi
7253G 2POTS + 4GE + CATV
7281G 2POTS + 4GE + WiFi
7251G 2POTS + 4GE
