Hisense Electric LCDC0023 Part15 Subpart B-LED LCD TV User Manual ES G130802

Hisense Electric Co., Ltd. Part15 Subpart B-LED LCD TV ES G130802

Contents

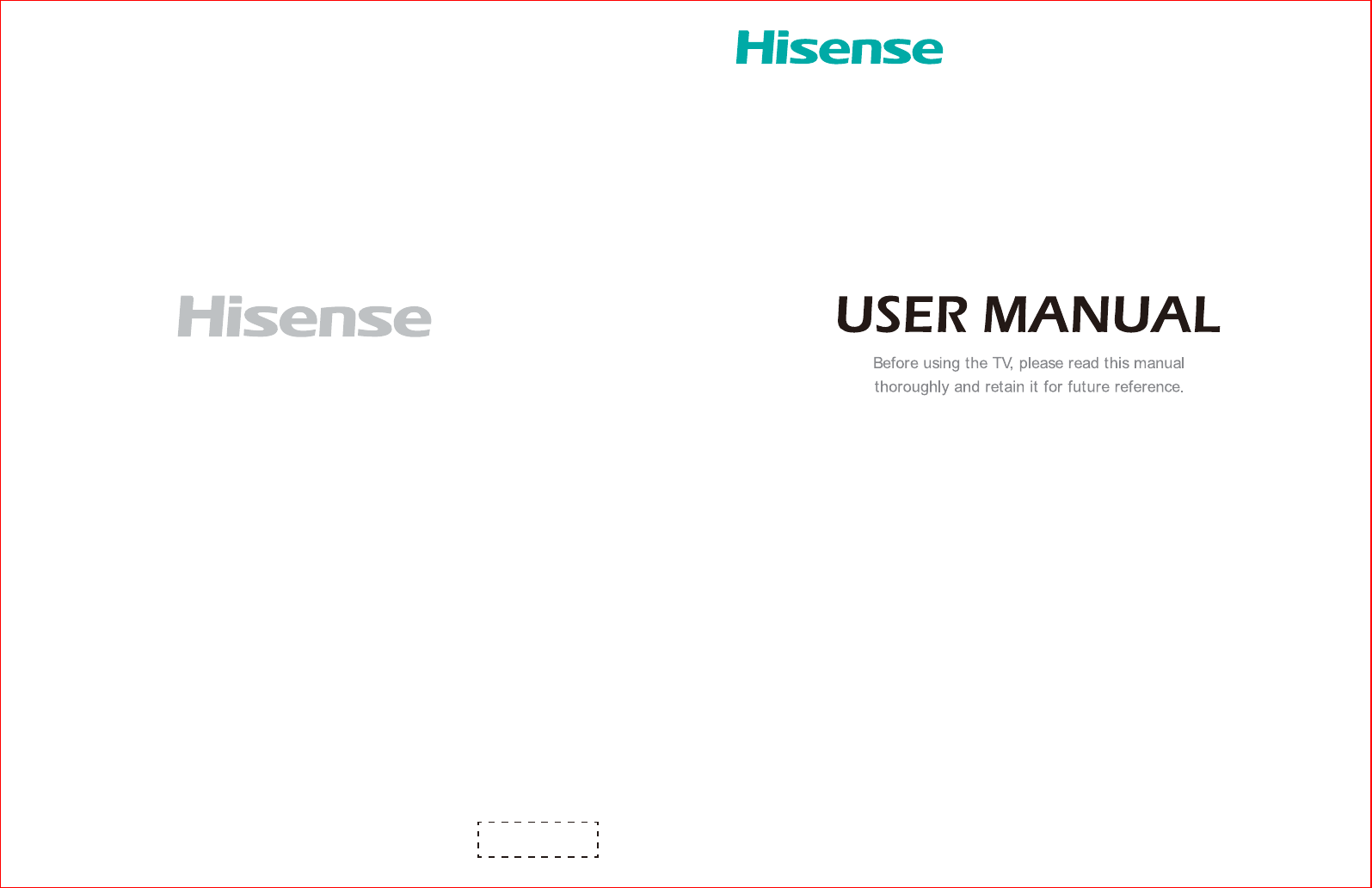

W9HLCDC0023_User Manual 1

English
LHD32K366MH
LTDN39K366MH
LTDN42A300MH
ES-G
দ࡭ᶗᖘ⸷
⢟ᯏਭφ
4-Screws
4.7inch
(120mm)
stand
12inch(304mm)
INPUT
MENU
CH
CH
VOL
VOL
+-
LTDN39K366MH
LHD32K366MH
LTDN42A300MH
If you want to attach the TV to a wall-mount bracket, you should first
remove the stand if it is pre-attached. Carefully place your TV screen face-down
on a cushioned, clean surface to protect the screen from damages and scratches.
Insert four spacers (provided) into the corresponding bracket screw holes on the
back of your TV, then attach the wall-mount bracket to your TV using four screws
(provided) or the screws/spacers provided with the wall-mount bracket.
See the instructions that came with the wall-mount
bracket for screw/washer configurations
and information on how to
correctly hang your TV.
Wall-mount hole
pattern VESA
(mm)
100×100(32”)
200×200(39” 42”)
Wall-mount screw
size (mm)
M4 (32”)
M6 (39” 42”)
To prevent internal damage to
the TV and ensure the TV is
mounted securely, be sure to
use fixing screws (provided).
Note:
Only for 39K366MH
& 42A300MH, 32K366MH
dose not need spacers.
custom,dynamic
Not available.
Not available.
LTDN39K366MH
LHD32K366MH
LTDN42A300MH
