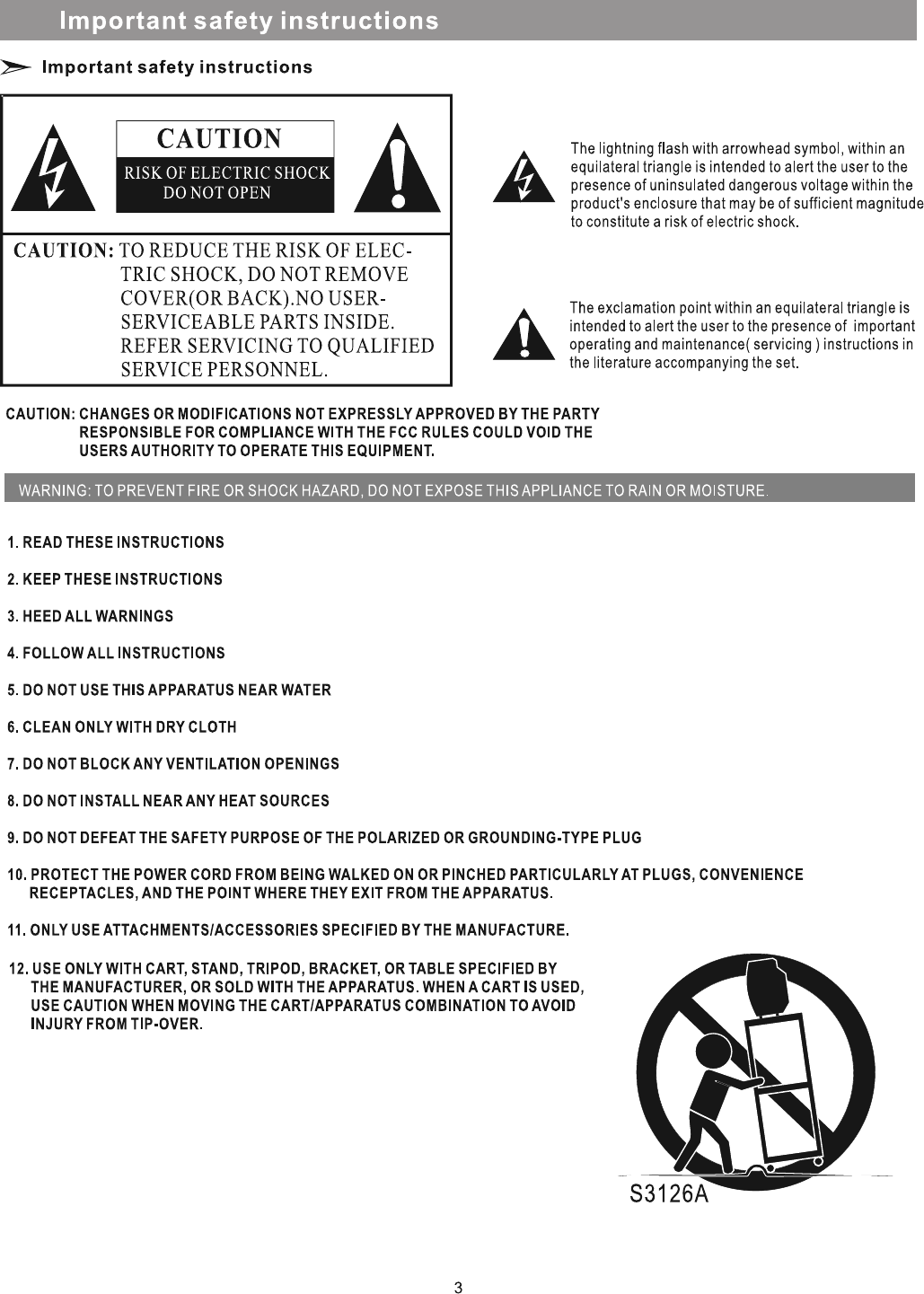

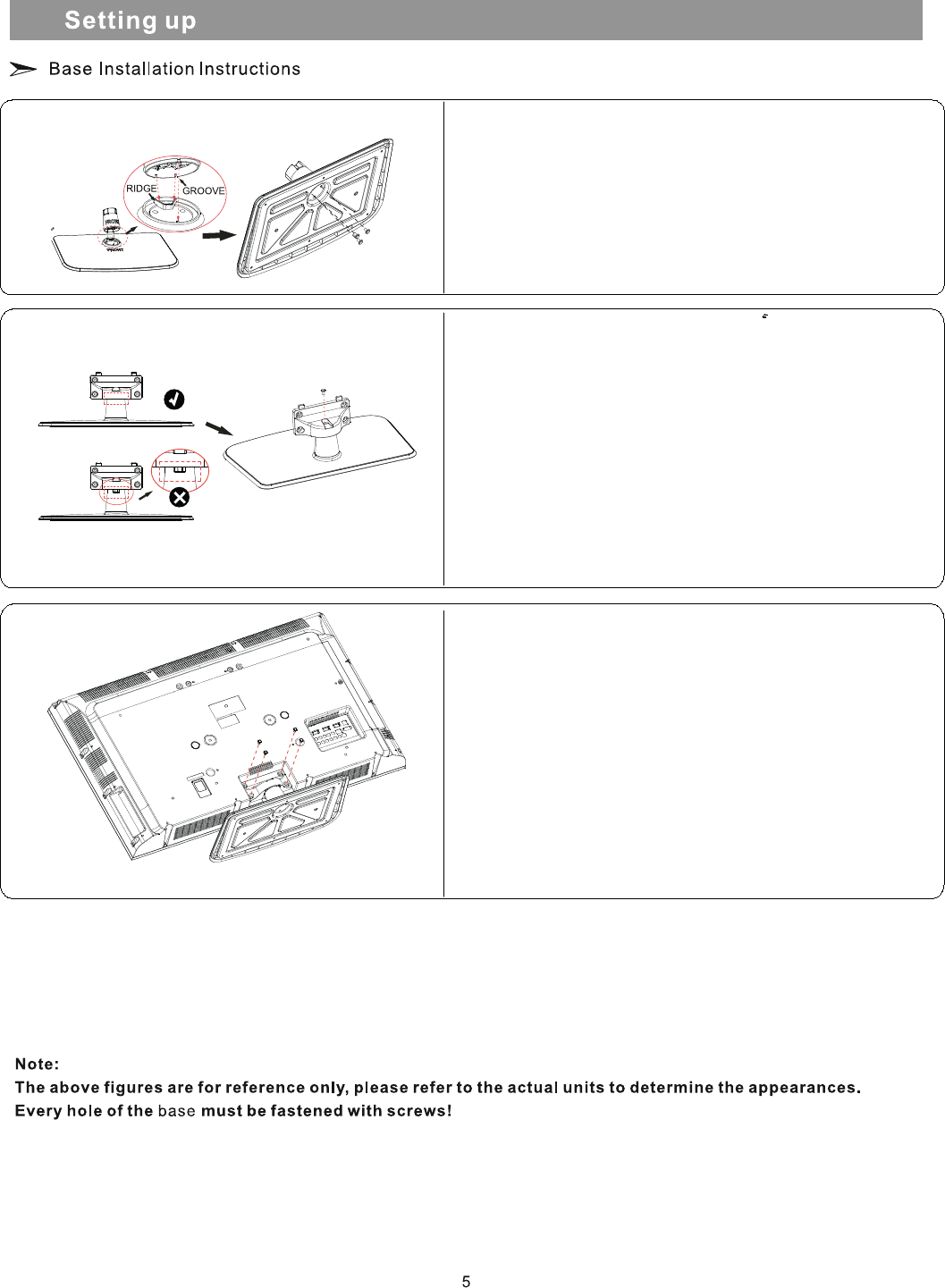

Make sure the front of the stand column match the front of the base
plate. Insert the stand column onto the base plate, aligning the groove
in the column with the ridge in the base plate. Secure the stand column
to the base plate with three screws (M5 x12).
1
2
3
Assemble the stand cover and the stand column well with appropriate
strength("√" is right and "×" is wrong).
Secure the stand cover to the stand column vertically with one screw
(M5 x 12).
Carefully place your TV screen face-down on a cushioned surface to
protect the screen from scratches.
Secure the stand to the TV with the four screws (M5 x 12).
+
_
+-
AC cord
power outlet.

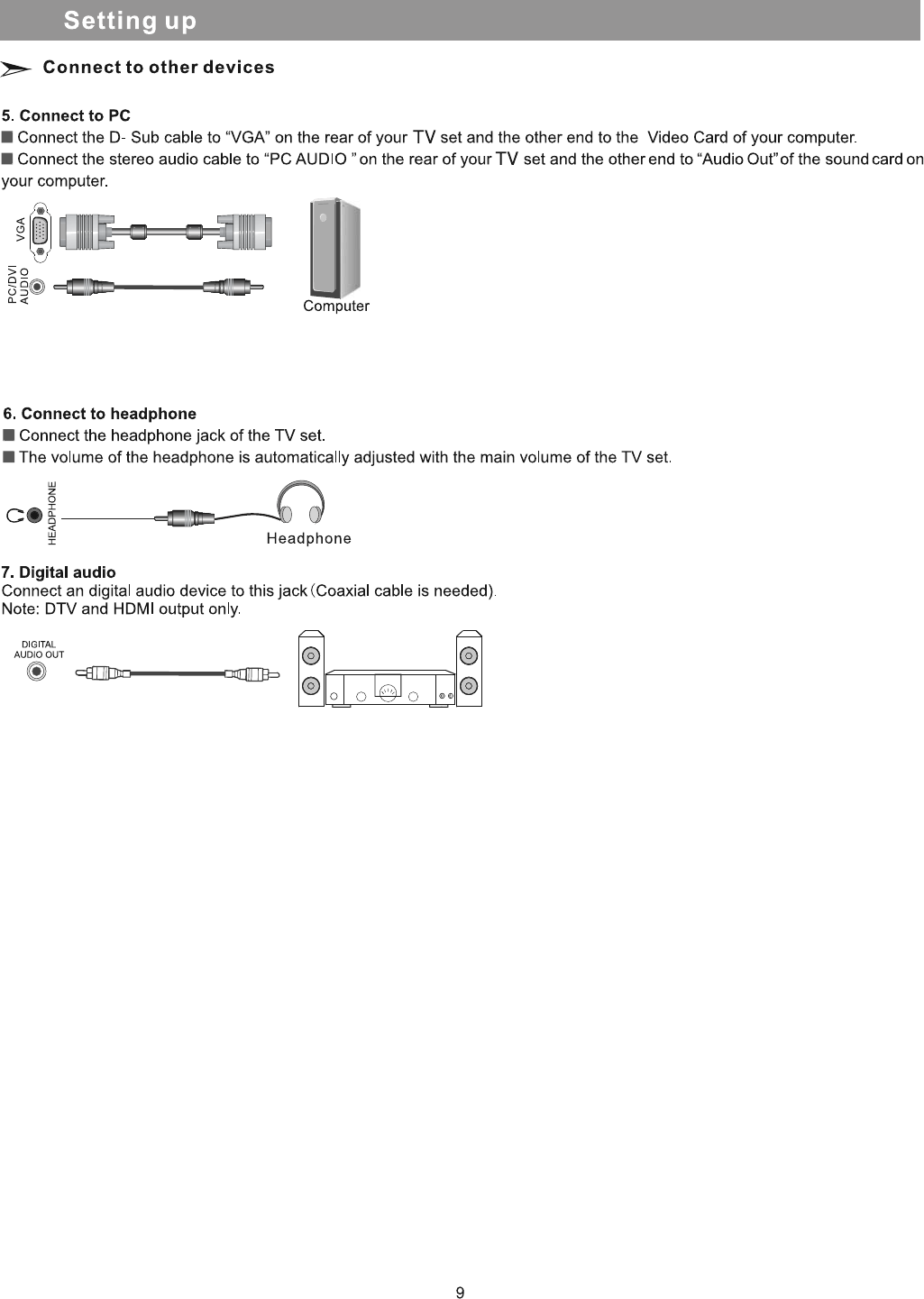

The D-Sub cable will not supplied with the product.
We strongly recommend to use D-Sub cable with 2 cores as shown in the figure.

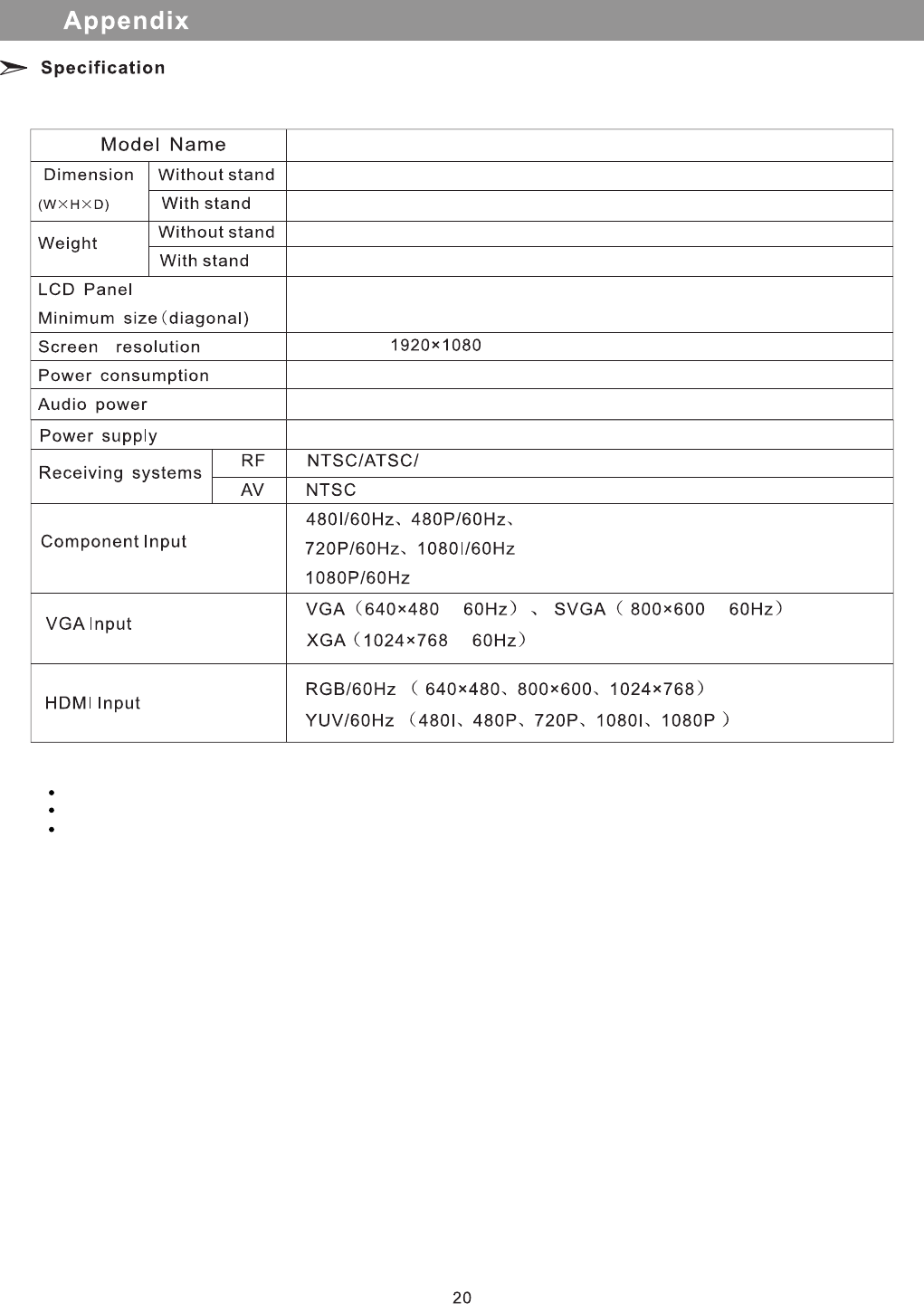

36.14x24.41x11.22(inch)/918×620×285(mm)
120V ~ 60Hz
F39V77C
36.14x21.93x4.72(inch)/918x557x120(mm)
145W
QAM
7W+7W
27.78 lbs/12.6 kg
980mm
24.25 lbs/11 kg

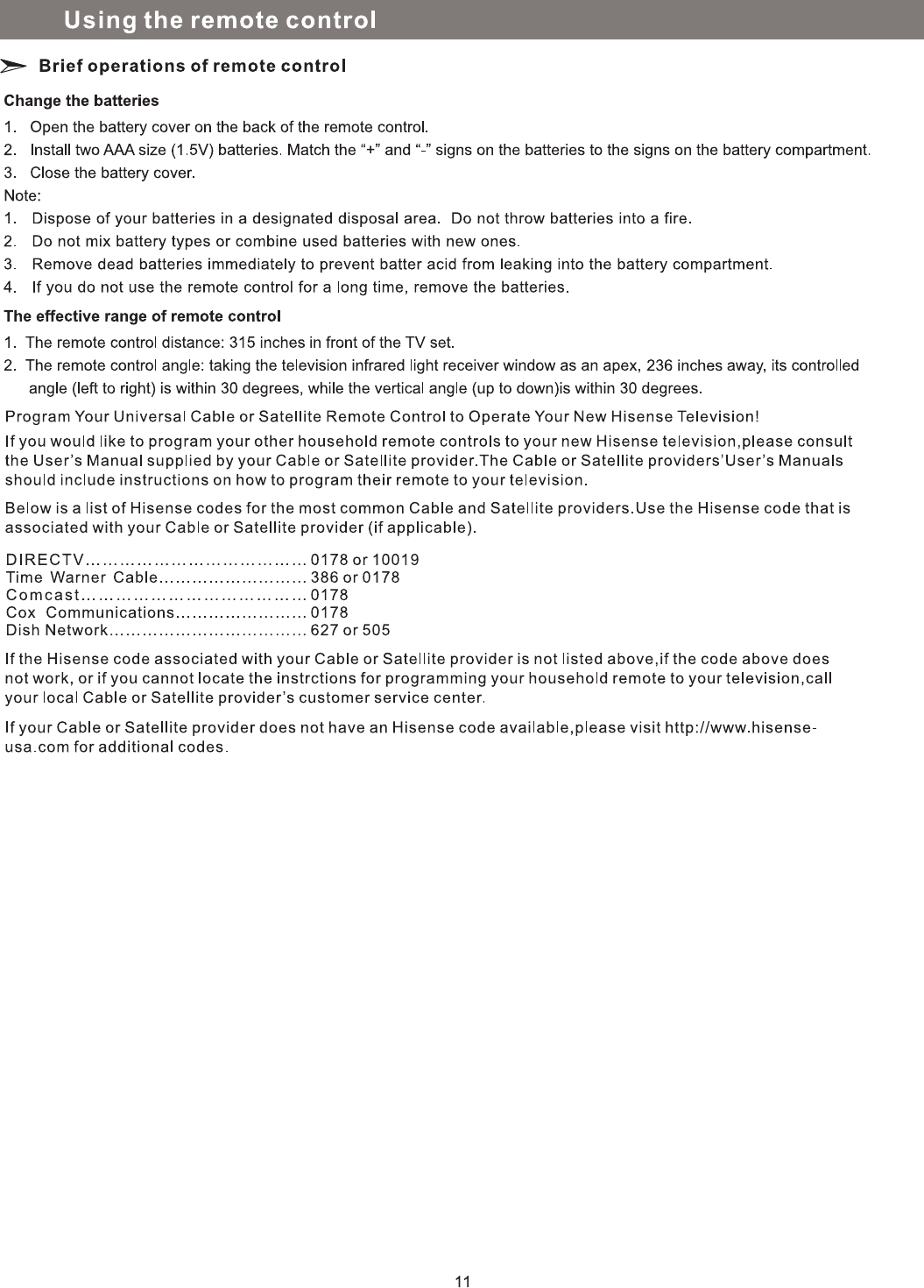

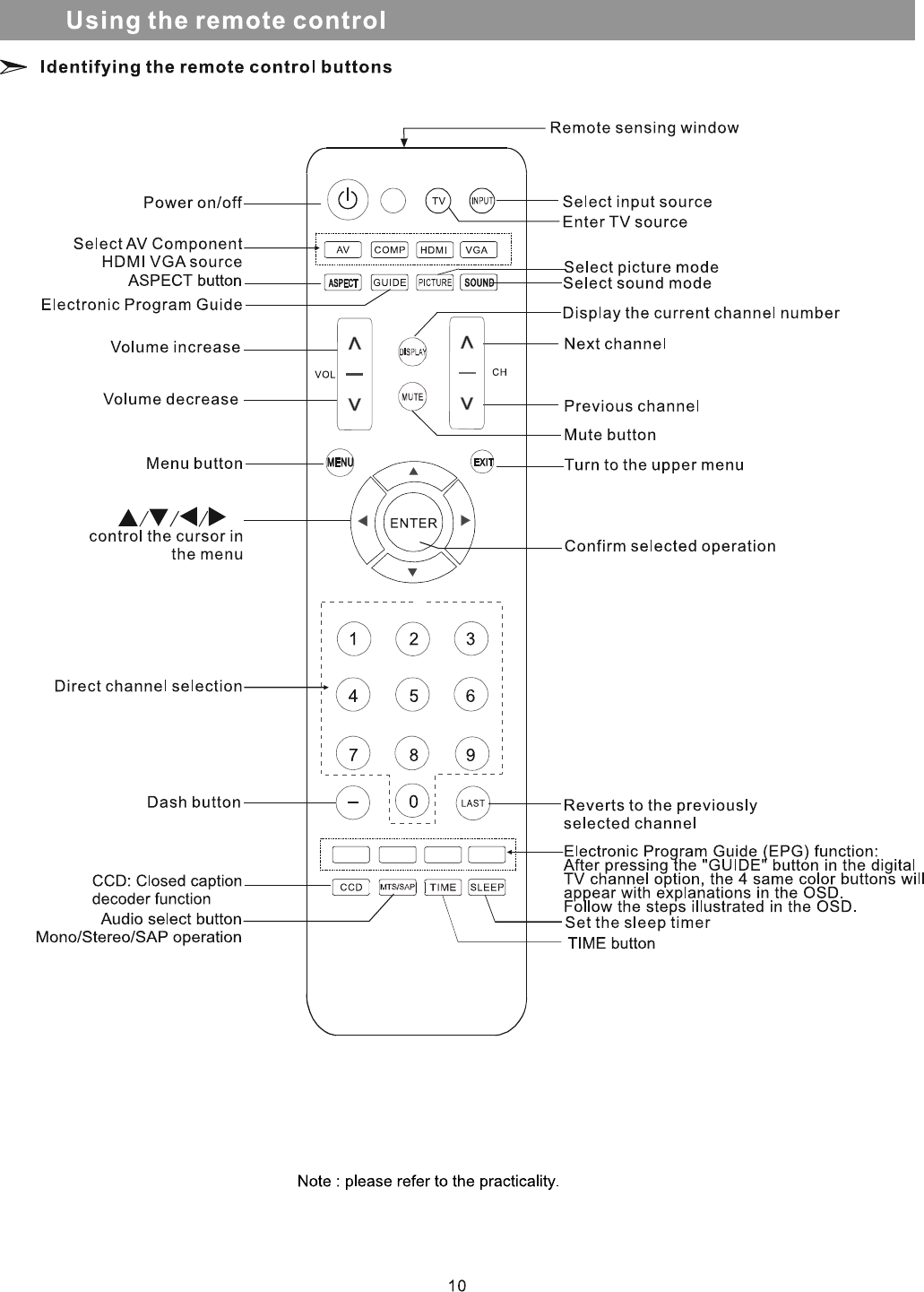

The remote control requires:
Number of Batteries: 2
Type: AAA
Voltage: 1,5Vcc
8
