Connecting Devices to your TV

You have several options for connecting your TV to different devices. The method in which you connect will be based

upon the type of cables you have and the available outputs on your device.

Connecting an antenna, cable set-top box or satellite receiver

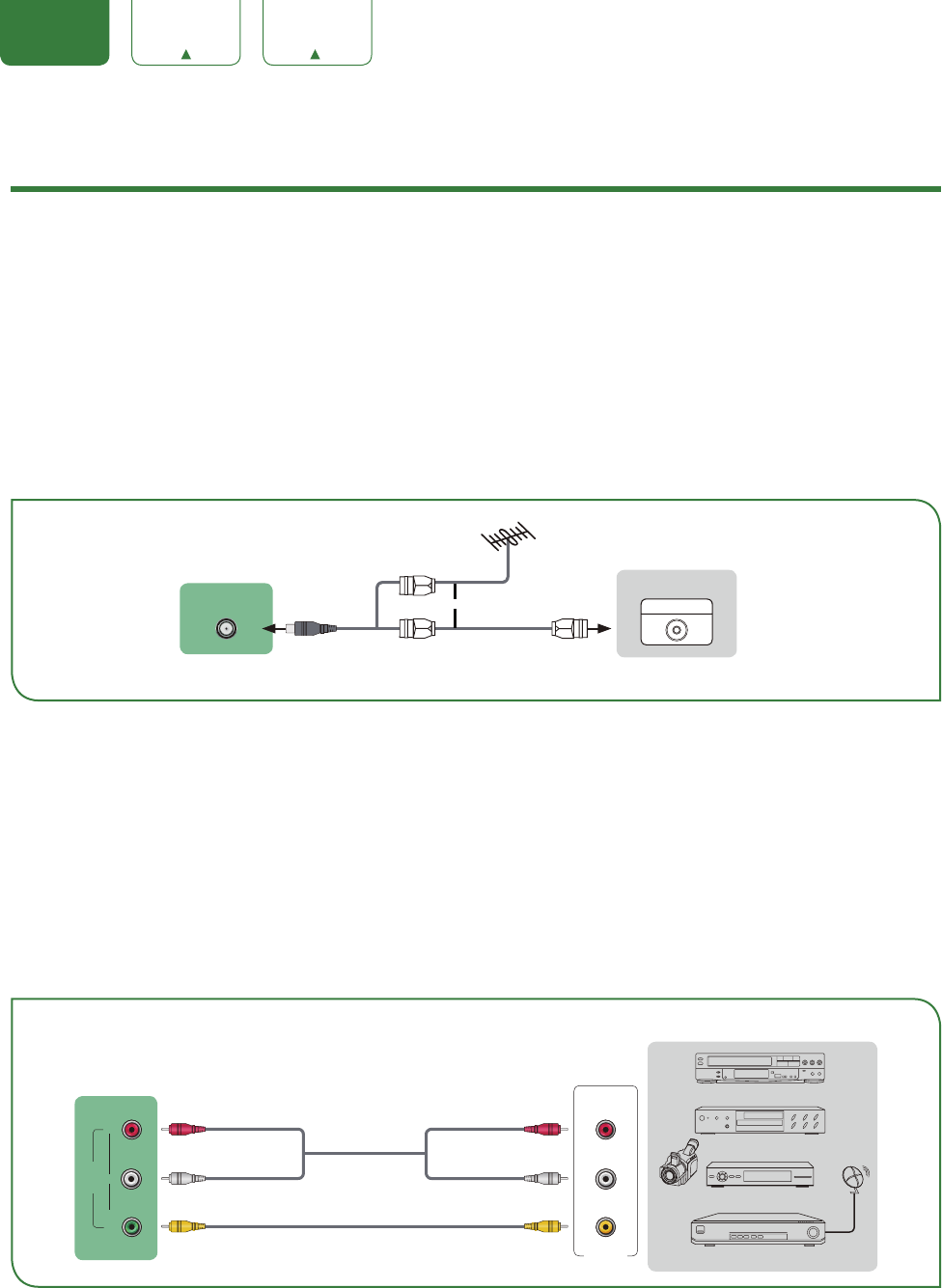

To connect an antenna,cable set-top box or satellite receiver:

1. Connect one end of a coaxial cable (not included) to the RF OUT port on the antenna, cable or satellite box. If you

are using an antenna with twin-lead cable, you may need a 300-75 Ohm adapter (not provided) to connect it to the

back of your TV. Likewise, if you are using several antennas, you may need a combiner (not provided).

2. Connect the other end of the cable to the ANT/CABLE IN port on the side of TV.

3. Using your remote, press the [INPUT] button and select TV as the input source.

Connecting a satellite receiver, DVD player or other audio visual (AV)

device with a composite video cable (yellow/red/white)

To connect an AV device with a composite video cable (not provided):

1. Use the audio and video cables to connect the composite video/audio ports of the external AV device to the AV IN

ports of the TV. (Video = yellow, Audio Left = white, and Audio Right = red)

2. Plug the connected devices into the AV connectors on the TV before switching it on.

3. Using your remote, press the [INPUT] button and select AV as the input source.

or ANT OUT

Cable Set top box

RF Out

EXTERNAL DEVICE

TV PORT

ANT

CABLE IN

AV OUT

Video

White (L)White (L)

Yellow (Video)Yellow or Green (Video)

Video Cable

Red (R)Red (R)

Audio Cable

TV PORTS

EXTERNAL DEVICES

DVD Player/Recorder

Video

Camera Set-top box

Satellite Receiver

Satellite

antenna

cable

VCR

VIDEO LR

AV IN

ENGLISH FRANÇAIS ESPAÑOL

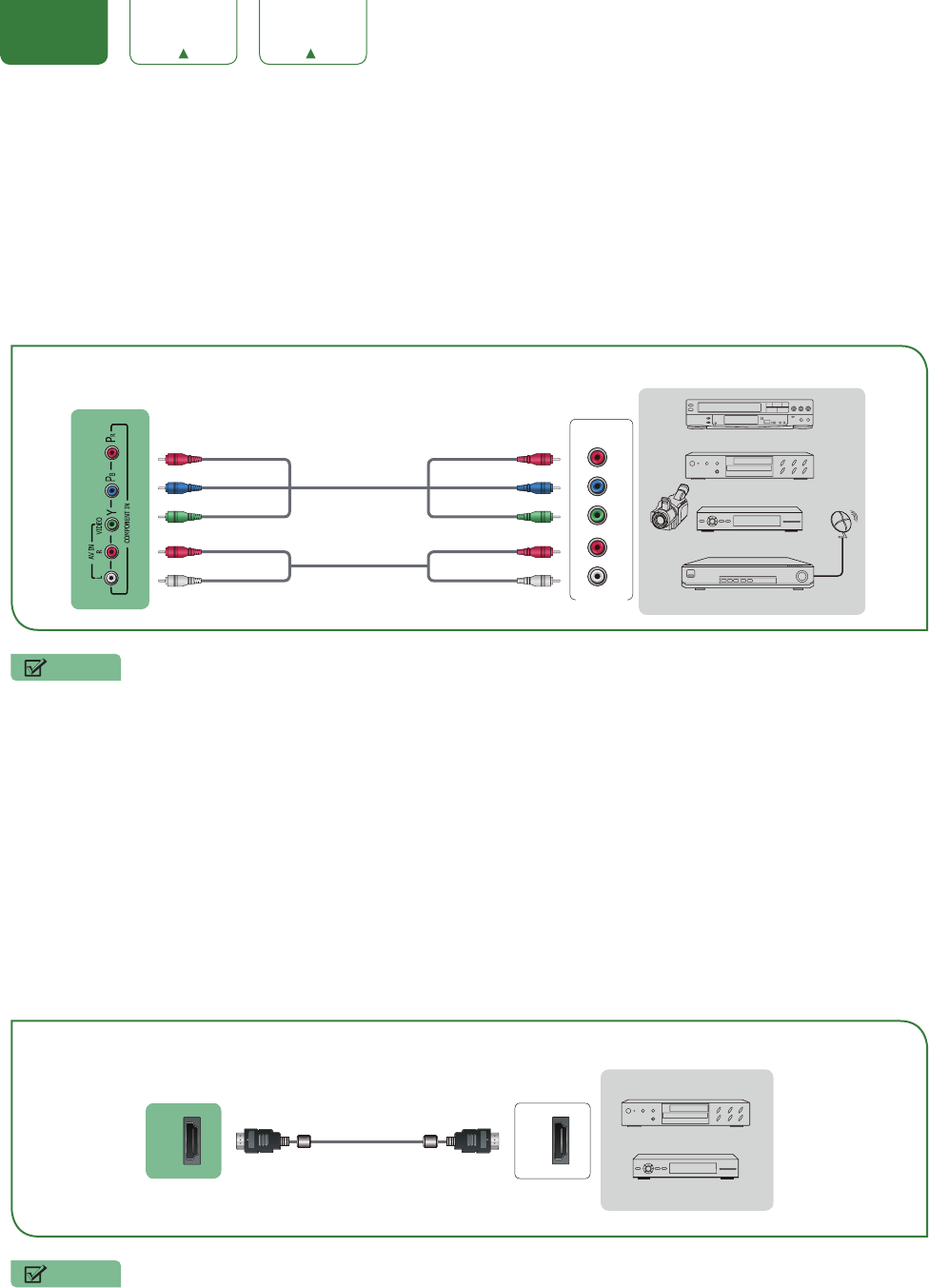

Connecting an AV device with a component video cable (red/blue/green)

To connect an AV device with a component cable (not provided):

1. Use a component video cable to connect the component output ports of the external device to the YPBPR ports

for the TV. (Y = green, PB = blue, and PR = red). Use an audio cable to connect the component audio ports of the

external device to the TV AUDIO (L/R) ports.

2. Plug the connected devices into the YPBPR and L/R ports on the TV before switching it on.

3. Using your remote, press the [INPUT] button and select COMPONENT as the input source.

NOTE

• One AV device can be connected to the TV using a component video or composite video cable.

Connecting an AV device with an HDMI cable

This type of connection supports digital connections between HDMI-enabled AV devices such as a Personal Video

Recorder (PVR), DVD, Blu-Ray, AV receiver and digital devices. In addition, some devices (such as a PVR or DVD

player) require an HDMI signal to be set to Output in the settings of the device.

Please refer to the User Manual that came with your device for step-by-step instructions.

To connect an AV device with an HDMI cable (not provided):

1. Use an HDMI cable to connect the HDMI output port of the AV device to the HDMI port of the TV.

2. Plug the connected devices into the HDMI port on the TV before switching it on.

3. Using your remote, press the [INPUT] button and select the corresponding HDMI input.

NOTES

• Because the HDMI connector provides video and audio signals, it is not necessary to connect an audio cable.

• We strongly recommend to use HDMI Cable with 2 cores as shown in the figure.

EXTERNAL DEVICES

DVD Player/Recorder

Video

Camera Set-top box

Satellite Receiver

Satellite

antenna

cable

VCR

Component

White(L) White(L)

Red(R) Red(R)

Audio Cable

Component Cable

Red(PR/CR) Red(PR/CR)

Blue(PB/CB) Blue(PB/CB)

Green(Y) Green(Y)

TV PORTS

HDMI

EXTERNAL DEVICES

DVD

Set-top Box

TV PORT

HDMI Cable

ENGLISH FRANÇAIS ESPAÑOL

Connecting a headphone

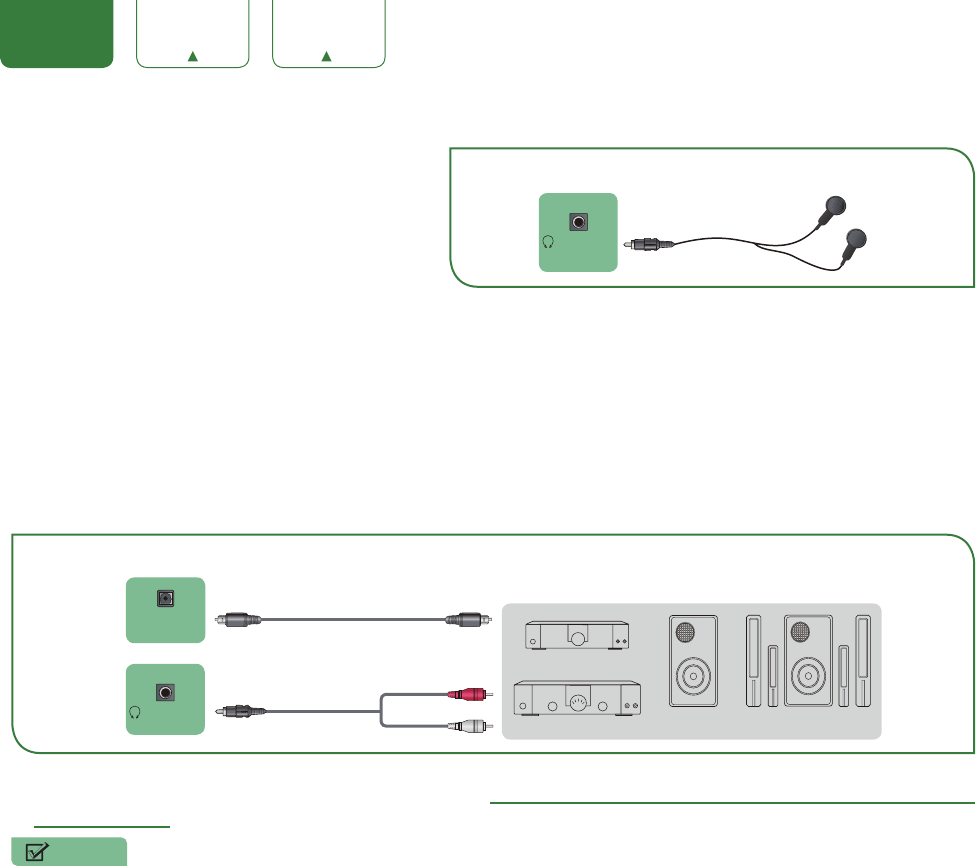

You can connect headphone (not provided) to the

AUDIO OUT port on your TV. While the headphone

is connected, the sound from the built-in speakers

will be disabled.

Connecting speakers or other audio receivers

To connect speakers or other audio receivers with an audio cable (not provided):

1. Use an audio cable to connect the digital audio in port of the audio receiver device to the DIGITAL AUDIO OUT

port of the TV. Another option is to use an RCA Y-cable (1/8”-stereo mini to L/R phono) to connect an analog sound

system to the AUDIO OUT port of the TV.

2. Plug the connected devices into the main power socket before switching on the TV.

• TIP: If you prefer to use Audio Return Channel, then see Connecting a digital sound bar to use Audio Return Channel

(ARC) on page 7.

NOTES

• When a digital audio system is connected to the DIGITAL AUDIO OUT port, decrease the TV and system volume.

• 5.1 CH (channel) audio is available when the TV is connected to an external device that supports a 5.1 channel

surround sound

• You can receive 5.1 channel audio in one of two ways. The first way is to connect the DIGITAL AUDIO OUT port

from the device to the Amplifier. The second way is to connect the DIGITAL AUDIO OUT port on the back of the

TV to the Optical port on the Amplifier. After you’ve completed one of the two methods then be sure to go into the

Advanced Audio Settings of the TV and select RAW to receive the 5.1 channel audio. You will need to also go

into the sound or audio settings of your device to ensure it is set to 5.1 Channel output. It may read ‘Bitstream’, ‘RAW’

or ‘Digital’.

TV PORT EXTERNAL DEVICE

Headphone

AUDIO OUT

EXTERNAL DEVICES

Powerless

Bass Speaker

Speaker

Digital Sound Bar

Audio Amplifier

DIGITAL

AUDIO OUT

TV PORTS

Audio Cable

White(L)

Red(R)

Audio Cable

ENGLISH FRANÇAIS ESPAÑOL

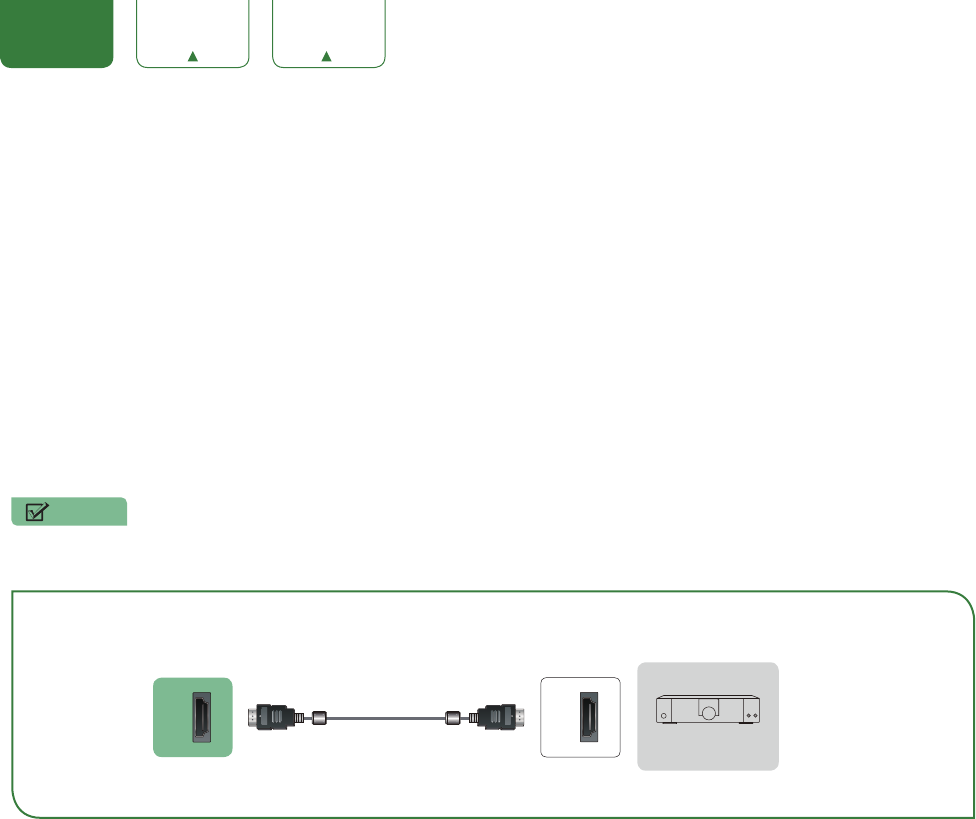

Connecting a digital sound bar to use Audio Return Channel (ARC)

If you’d like to use the Audio Return Channel (ARC) feature to have sound sent from the TV back down an HDMI cable

to a digital sound bar, then you will need to connect the cable to the HDMI / ARC port. By using this feature, you will

also be able to control the sound bar with your TV remote instead of having to use multiple remotes for each device.

To connect a digital sound bar with an HDMI cable (not provided):

1. Connect the cable that’s attached to the sound bar to the HDMI / ARC port on the TV.

2. Turn on the sound bar by pressing the Power button.

3. Press the [MENU] button on your remote and go to System > CEC Function.

4. Turn on the CEC Control setting.

5. Turn on the ARC setting.

6. Press the [MENU] button on you remote and go to Audio > Advanced Audio Settings > TV Speaker& ARC. Set it

to ARC first.

NOTES

• Only digital sound bars that require a wired connection are compatible with the TV.

• If the device has an Input Selector feature then make sure to change it to TV.

HDMI

ARC

HDMI

EXTERNAL DEVICE

TV PORT

HDMI Cable

Digital Sound Bar

ENGLISH FRANÇAIS ESPAÑOL

Using Your TV Remote Control

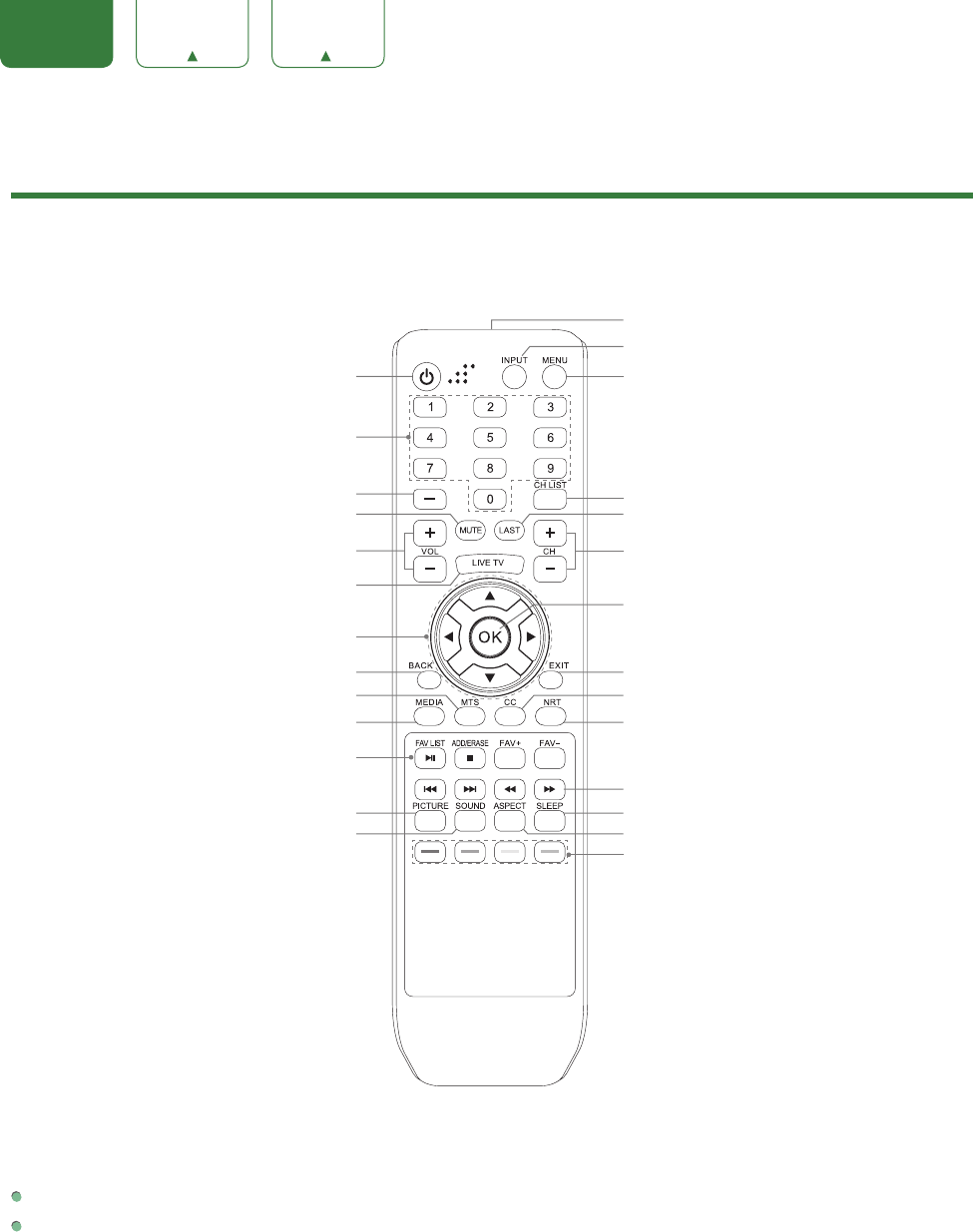

Buttons on your TV remote

Infrared transmitter

Power on / off

Enter Channels / input numbers

Media content control function buttons

Favorite program controlling button

& Media player button

Dash button / Select a digital

sub-channel

D-pad (up/down/left/right navigation

buttons)/Press Up display the Info menu

Volume (up/down)

Choose to leave the Video description

feature On or Off

Enter the Live TV

Return to the previous place in the menu

Change TV input source

The button for the Quick setup menu

Confirmation button/

Display the channel list

Channel (up/down)

Set the audio language(MTS)

Select picture mode

Select sound mode

Mute and restore sound

Exit the application

Turn Closed Caption On/Off

Special function buttons

(No available)

Media player button

Sleep timer button

Zoom button

Display the channel list

Go to the previous channel

Remote control range information

The remote control can work at a distance of up to 26 feet in front of the TV set.

It can work at a 30 degree horizontal or vertical angle.

ENGLISH FRANÇAIS ESPAÑOL

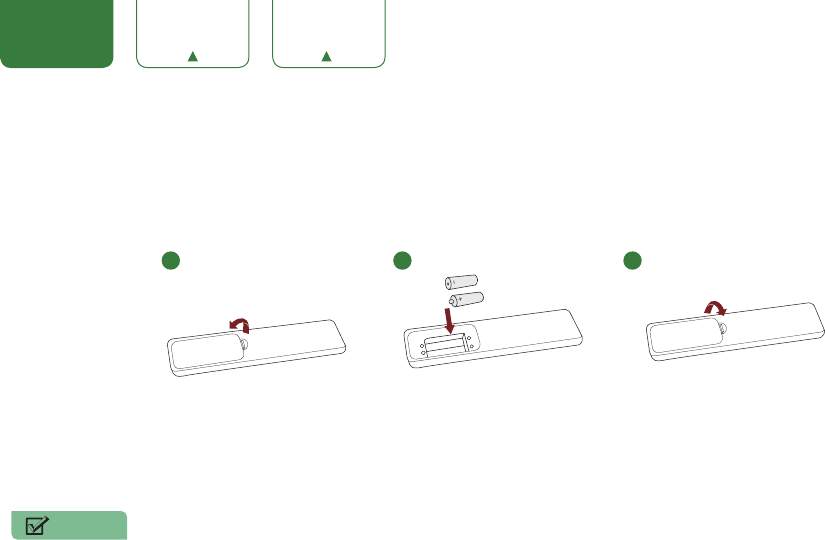

Begin using your remote

1. Press the battery case cover, when the cover is unlocked, pull it backward to open the battery compartment of the

remote control.

2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends

indicated in the battery compartment.

3. Replace the battery compartment cover.

NOTES

•Discard batteries in a designated disposal area. Do not expose batteries (battery pack or batteries installed) to

excessive heat such as sunshine, fire or the like.

•Remove old batteries immediately to prevent them from leaking into the battery compartment.

•If you do not intend to use the remote control for a long time, remove the batteries.

•Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals

touch your skin then wash it immediately.

•Do not mix old and new batteries.

•Do not mix alkaline, standard (carbon-zinc) or rechargeable (NiCd, NiMH, etc.) batteries.

•Do not continue using the remote if it gets warm or hot.

•Call our Support Center immediately on the HISENSE support website.

Program your universal cable or satellite remote control to operate your new HISENSE

television (only for USA)

If you would like to program your other household remote controls to your new HISENSE television,please refer to

the User’s Manual supplied by your Cable or Satellite provider. The Cable or Satellite providers’ User’s Manuals

should include instructions on how to program their remote to your television.

A list of HISENSE codes for the most common Cable and Satellite providers are listed below. Use the HISENSE code

that is associated with your Cable or Satellite provider (if applicable).

DIRECTV

0178, 10178, 10019, 10748, 11314, 11660, 11710, 11780, 12049, 10171, 11204, 11326, 11517, 11564, 11641, 11963,

12002, 12183

Time Warner Cable

386, 0178, 10178, 400, 450, 461, 456, 0748, 1463, 0463, 10463

Comcast

0178, 10178, 10463, 11463, 10748, 11314, 11660, 10171, 11204, 11326, 11517, 11641, 11780, 11785, 11892, 11963,

12002

Cox Communications

0178, 10178, 1326, 1463

Dish Network

505, 627, 538, 720, 659

If the HISENSE code associated with your Cable or Satellite provider is not listed, does not work or you cannot locate

the instructions to program your remote, call your local Cable or Satellite provider’s customer service center.

If your Cable or Satellite provider does not have a HISENSE code available, please contact us.

Using your cable set-top box or satellite receiver remote as a ‘Universal’ remote

If you prefer to use your Cable Set-top Box or Satellite Receiver Remote as a ‘Universal Remote’, then visit the Support

page to view a list of the codes.

1 2 3

Insert the batteriesPress and pull it Press the cover

ENGLISH FRANÇAIS ESPAÑOL

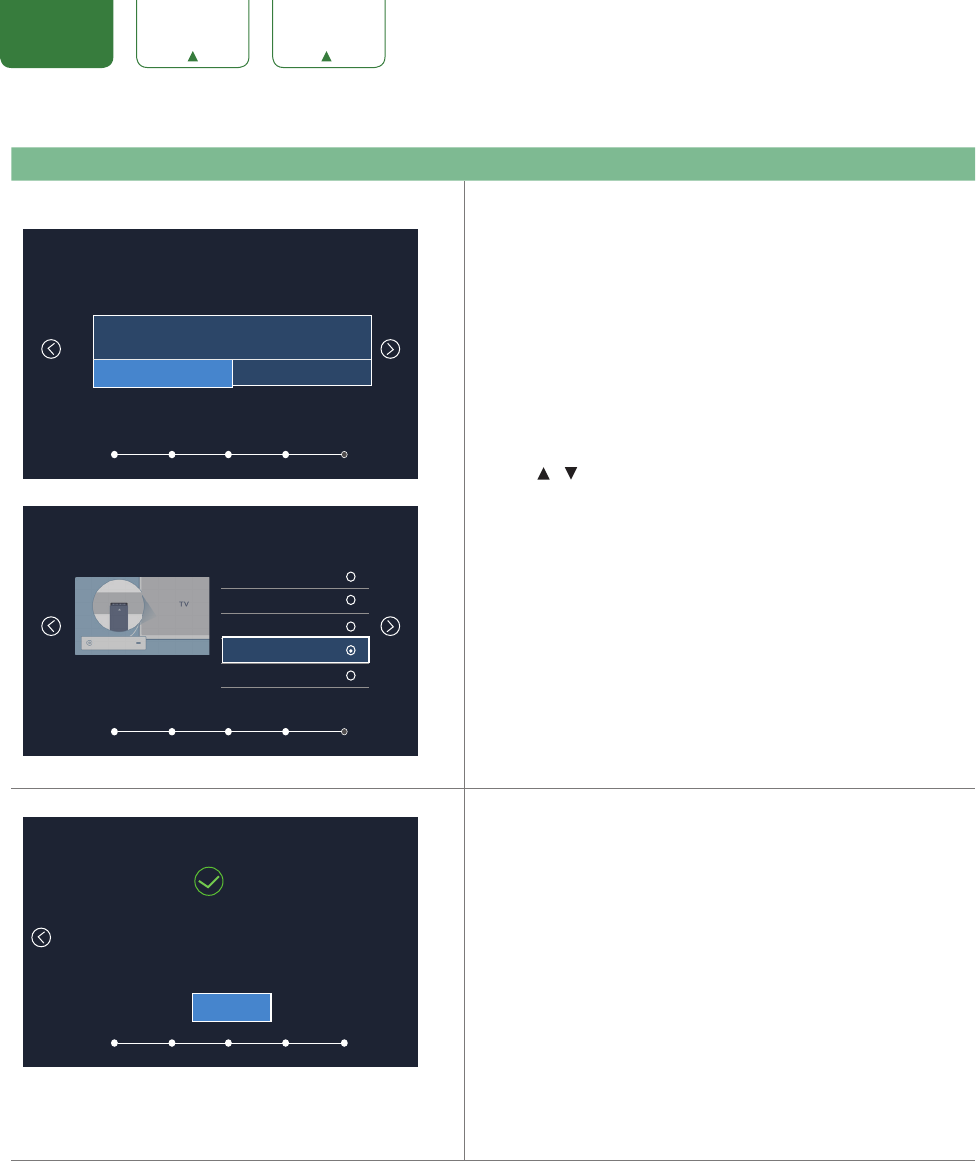

Completing the First-Time Setup Menu

Now that you have attached the TV stand and connected your external devices, it’s time to complete the first-time setup menu.

The Setup Wizard menu appears the first time you turn on the TV. It will assist you to specify the menu language, Picture Mode,

TV Source and Channel Installation.

NOTE

• Before you get started, make sure that the antenna or cable is connected, batteries are in the remote control, and the

power cord is connected.

Screen Task

Language

Language Country Use Mode Input Complete

English

Français

Español

Connect your TV’s Power cord to a power outlet, then press

power. The initial setup screen opens. Press [ / ] button

to select your language, press [OK] button to confirm.

Country

Language Country Use Mode Input Complete

USA

Canada

Mexico

Press [ / ] button to select your country, press [OK]

button to confirm.

Use Mode

Language Country Use Mode Input Complete

Home Mode

Store Mode Press [ / ] to select your Picture Mode: Home Mode or

Store Mode, press [OK] button to confirm.

ENGLISH FRANÇAIS ESPAÑOL

Screen Task

Live TV Source

Language Country Use Mode Input Complete

Do you have a Satellite/Cable box?

Yes No

Live TV Source

Language Country Use Mode Input Complete

Component

HDMI1

HDMI2

A message appears : Do you have a Satellite/Cable box?

If you select “Yes”

Press [ / ] to select your TV Source: TV/AV/Component

/HDMI1/HDMI2/HDMI3, press [OK] button to confirm.

If you select “No”, you are done with setup.

Complete

Language Country Use Mode Input Complete

Congratulations! Setup is now complete!

All you have to do is press INPUT on your TV’s

remote to select the right input (HDMI, Component or AV).

Use the Satellite/Cable box remote to change channels. Enjoy!

Done

Congratulations! Setup is now complete!

All you have to do is press INPUT on your TV’s remote to

select the right input (HDMI, Component or AV).

Use the Satellite/Cable box remote to change channels.

Enjoy!

ENGLISH FRANÇAIS ESPAÑOL

Shortcuts Instructions

Selecting the input source

The first time you turn on your TV, you must select the TV signal source. Your TV stores this information, so you do not

need to change the TV signal source unless it changes. For example, you change from an outside antenna to cable TV.

To select the input source:

1. Turn on your TV, then press the [INPUT] button on the remote. The Input source menu opens.

2. Press [ / ] button to highlight the input source, then press [OK] button.

Changing Channels / Volume

1. Press the [CH

/ -] on the remote control to change the channel.

2. Press the [VOL + / -] on the remote control to adjust the volume.

3. Press the numeric buttons on the remote control to display the corresponding channels.

NOTE

• Changing the channels can also be achieved by directly entering the channel number using the numeric keys on

the remote control. If you are entering a two or three digit channel number, the time between key presses should

be less than 3 seconds.

Channel search guide

When you select TV as input, if no TV channels were saved before, you will be prompted to do a channel search.

Shortcuts Instructions


Press to set the picture mode. It can be set as Energy Saving, Movie, Game, Sport, User, Vivid and Standard, This

mode achieves a certain image display effect by setting the brightness, contrast and color etc.

SOUND

Press to set the sound mode. It can be set as Standard, Theater, Music, Speech, Late Night and User.

MUTE

Press to turn the sound off, press this button again to turn the sound back on. This function is used to switch off sound

temporarily.

SLEEP

It can set the TV to let it enter into the Standby state automatically. Press this button repeatedly to select the proper

sleeping clock mode, and the clock tells you the remaining time before the TV enters Standby state.

ASPECT

Select the screen aspect ratio from Wide, Auto, Normal, Zoom Cinema, 1:1 PIXEL MAP, Panoramic and Direct.

NOTE

• The aspect ratio varies with different sources.

ENGLISH FRANÇAIS ESPAÑOL

Basic Settings

Your HISENSE TV comes with many TV setting features to allow you to customize the picture based on your

viewing preference and environment.

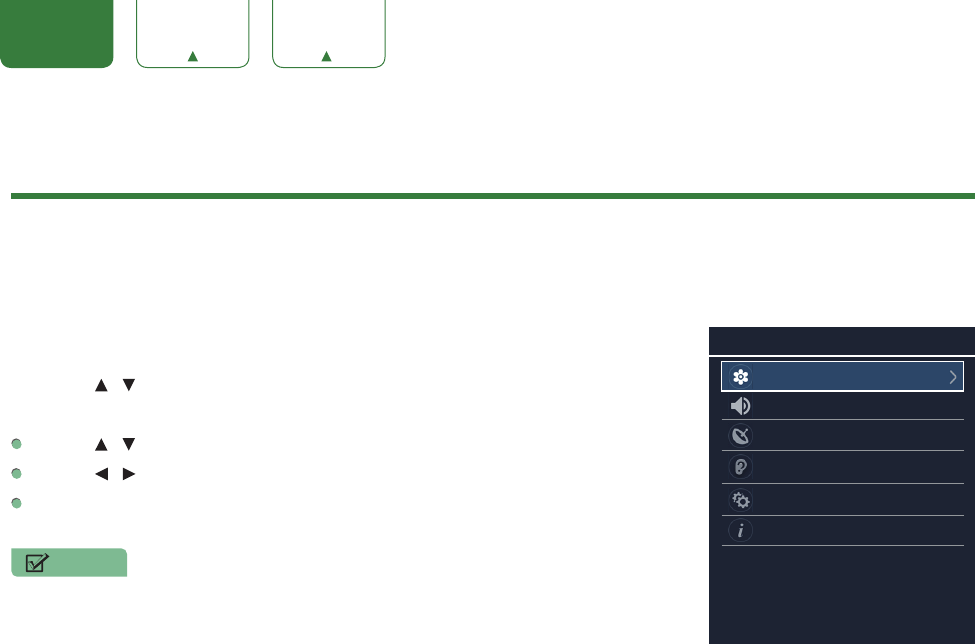

Using the Menu

1. Press [MENU] to open the main menu.

2. Press [ / ] to select a menu option, then press [OK] button to enter the menu.

3. In each menu, you can:

Press

[ / ] to select an item,

Press

[ / ] to adjust the value,

Press

[ OK] to enter the submenu,

4. Press [EXIT] to exit the menu.

NOTE

•The menus in the user manual may vary slightly from the actual screen.

Settings


Audio

Channels

Accessibility

System

About TV

ENGLISH FRANÇAIS ESPAÑOL

Picture Menu

You can adjust:

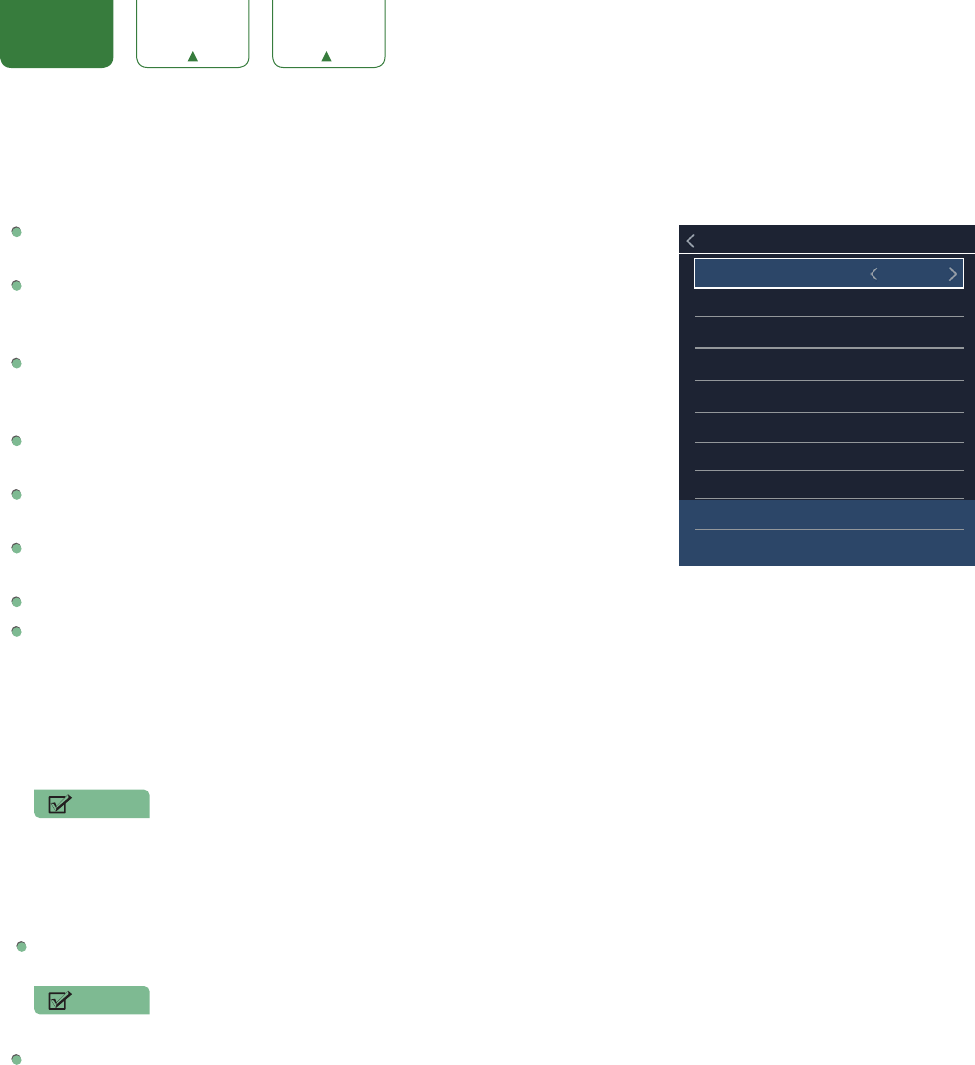

Picture Mode: Adjust the Picture Mode. You can select Energy Saving, Movie,

Game, Sport, User, Vivid and Standard.

Brightness: Increase or decrease the brightness of the picture. Increasing the

brightness can add more light to dark areas of the picture, while decreasing

the brightness can add more darkness to light areas of the picture.

Contrast: Increase or decrease the contrast of the picture. Increase the

contrast to adjust the white areas of the picture or decrease the contrast to

adjust the black areas of the picture.

Color: Adjusts the color intensity of the picture. A low setting may make the

color look faded. A high setting may make the color look artificial.

Tint: Adjusts the color balance of the picture. Use this control to make skin

tones look more natural.

Sharpness: You can increase the sharpness level for clearer images or

decrease the sharpness level for smoother images.

Backlight: Sets the overall brilliance of the screen. You can select Dynamic Backlight or Backlight.

Advanced Picture Settings:

• Adaptive Contrast: Automatically adjusts picture detail and brightness. You can select On or Off.

• Color Temperature: Change the color temperature. You can select the color temperature from three options:

Cool, Normal or Warm.

• Noise Reduction: Select to reduce the noise level of connected equipment: off, Low, Medium and High.

• Overscan: Adjusts the picture’s reproduction rate. You can select On or Off.

NOTE

• Only available in DTV, Component and HDMI(YUV) source.

• Color Tuner: Adjust the Hue, Saturation and Brightness of color settings.

• White Balance: Adjust the intensity of red, green and blue lights to view the true colors of all images in the

picture.

Aspect Ratio: To choose the screen aspect ratio from Wide, Auto, Normal, Zoom Cinema, 1:1 PIXEL MAP,

Panoramic and Direct.

NOTE

• The Aspect Ratio option is different in different inputs. For more information.

Restore Default Picture Settings: Restore all the picture settings in the current picture mode to the factory default

values.

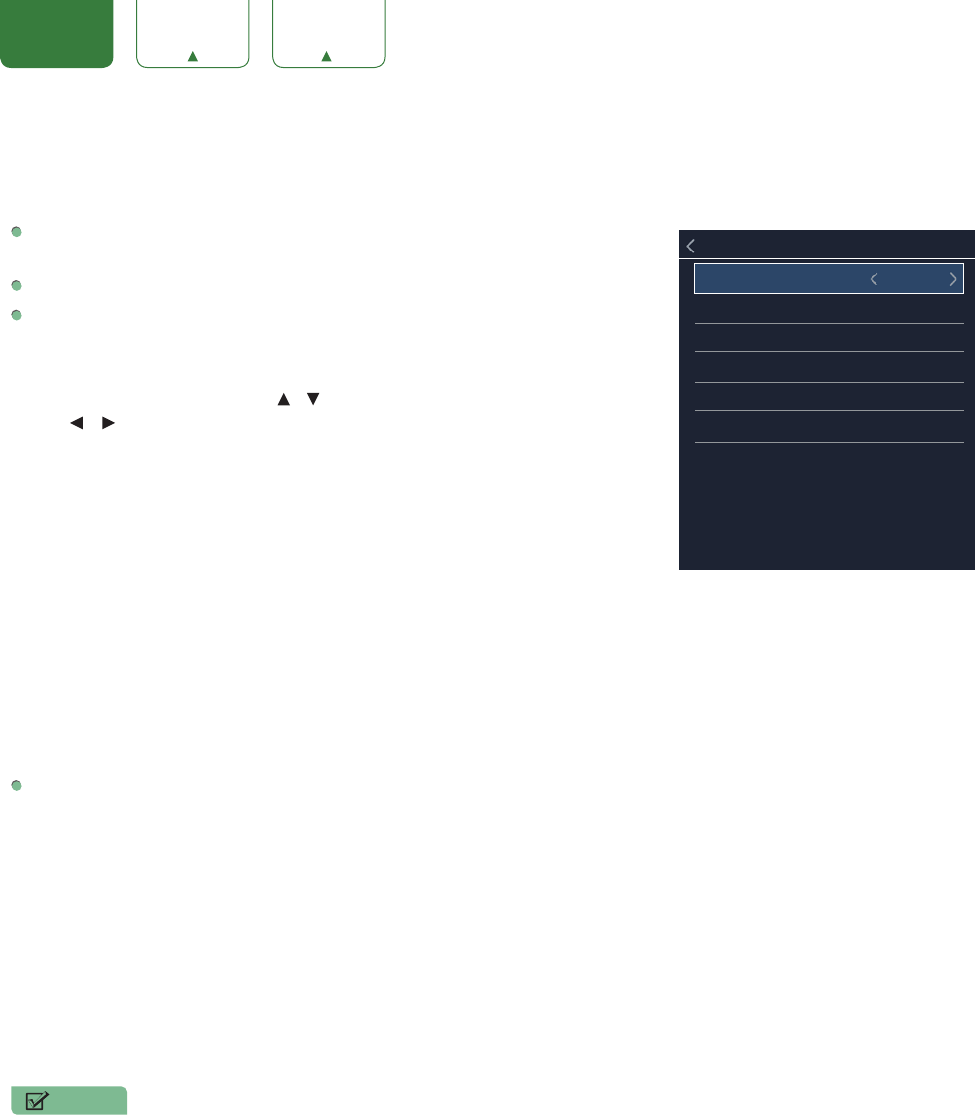

Picture Mode Standard

Brightness 50

Contrast 50

Color 50

Tint 0

Sharpness 10

Backlight

Advanced Picture Settings

Aspect Ratio Wide

Restore Default Picture Settings


ENGLISH FRANÇAIS ESPAÑOL

Audio Menu

You can adjust:

Sound Mode: Select the Sound Mode: Standard, Theater, Music, Speech,

Late Night or User.

• Sound Surround : Select the Sound Surround On or Off.

• Dialog Clarity: Select the Dialog Clarity High, Low or Medium.

• Equalizer: Soften or enhance the sound at specific frequency points.

SAP: Select the default audio stream, you can select Mono, Stereo or SAP

(Second Audio Program).

Mono: Select this option if there is noise or static on weak stereo

broadcasts.

Stereo: Select this option for programs broadcast in stereo.

SAP: Depending on the particular program being broadcast, you can

listen to a foreign-language translation.

NOTE

• Only available in Analog channels.

Preferred Audio Language: Change the default value for audio language.

NOTE

• Only available in Digital channels.

Advanced Audio Settings: Access Advanced Audio settings such as AVC, Digital Audio Out, Digital Audio Delay,

Lip Sync, TV Speaker & ARC, Balance, or Audio Out.

• AVC: Select the AVC On or Off.

• Digital Audio Out: Send digital audio to an external audio system. You can select PCM, RAW or Off.

PCM: PCM outputs two channel audio regardless of the input format.

RAW: When the data stream carries Dolby signal, digital SPDIF outputs Dolby data stream. When the data

stream carries no Dolby signal, it transports PCM data stream.

• Digital Audio Delay: Adjust the digital audio output delay time to sync sound from an external speaker with the

images on the TV.

• Lip Sync: Synchronize the displayed image with the audio output.

• TV Speaker & ARC: Selects where to play TV audio. You can select ARC First, Speaker or Off.

• Balance: Adjust the volume of the left and right speakers.

• Audio Out: Change the way audio is sent through the type of device that’s connected to your TV Audio Out port.

Restore Default Audio Settings: Restore all of the Audio settings in current audio mode to the factory default

values.

Sound Mode Standard

Sound Surround On

Dialog Clarity Medium

Equalizer

SAP Stereo

Preferred Audio Language English

Advanced Audio Settings

Restore Default Audio Settings

Audio

ENGLISH FRANÇAIS ESPAÑOL

Channels Menu

You can adjust:

Tuner Mode: Select the TV signal source. You can select Antenna or Cable.

Auto Channel Scan: Automatically scan for channels to view programming

from your TV source.

Manual Scan: TV should support Manual Scan. User can input the channel

number that he want to search. Then TV can search include STD, HRC and

IRC.

Channel Skip: Skip a channel that your TV picked up during a previous

channel scan search.

Favorite List: Display your Favorite List. You can add or delete channels to

create your favorite list.

Accessibility Menu

You can adjust:

Video Description: Choose to leave the Video description feature On or Off.

Menu Audio : Choose to leave the Audio Menu Prompts On or Off.

Menu Audio Settings : Adjust Menu Audio settings to your preference.

• Volume: Set the Menu Audio volume.

• Rate: Set the Menu Audio speed.

• Pitch: Set the Menu Audio pitch.

High Contrast Menu : Choose to leave the high contrast menu On or Off.

Closed Caption : Select the Closed Caption CC Off, CC On or CC On Mute.

Closed Caption Settings : Adjust Closed Captioning settings.

• Analog Caption: Select an Analog Caption setting from CC1-CC4, Text

1-Text4.

• CC1-CC4: Closed captioning appears in a small banner across the bottom

of the screen. CC1 is usually the “printed” version of the audio. CC2-CC4

display content are provided by the broadcaster.

Text1-Text4: Closed captioning that covers half or all of the screen. Text1-Text4 display content are provided

by the broadcaster.

• Digital Caption: Select a Digital Caption setting: Off, Service1-Service6.

• Digital CC Setting: There are two caption styles. One is the Automatic function set as the broadcaster, while the

other is the Custom style where you can adjust the Size, Font, Text Color, Text Opacity, Background Color etc.

Tuner Mode Antenna

Auto Channel Scan

Manual Scan

Channel Skip

Favorite List

Channels

Video Description Off

Menu Audio On

Menu Audio Settings

High Contrast Menu Off

Closed Caption CC Off

Closed Caption Settings

Accessibility

ENGLISH FRANÇAIS ESPAÑOL

System Menu

You can adjust:

Menu Language: You can select the menu language to English, Spanish or

French.

Location: Choose the location from where you will watch your TV.

Time: Set the current time based on your location.

• Time Zone: Select your local time zone: Eastern, Central, Indiana, Arizona,

Mountain, Pacific, Alaska, Hawaii, Newfoundland and Atlantic.

• Daylight Savings: Press [ / ] to highlight Daylight Savings, then press

[ / ] to select Auto (if your viewing area observes Daylight Savings

Time) or Off (if your viewing area does not observe Daylight Savings Time).

• Auto synchronization: Select Manual (to set the date and time manually)

or Auto (to set the date and time automatically from a TV signal source

based on the time zone you select).

If you selected Manual, set the following options.

Date / Time: You can set time manually or select automatic if the TV is

connected to an antenna or cable source.

Date: Set the current month / day / year.

Time: Set the current time.

• Time Format: Set the time to display in a 12 or 24-hour format.

• Sleep Timer: Specify the amount of time before your TV automatically turns off.

• Menu Timeout: Set the amount of time that you’d like for the menu to display : 10s, 20s , 30s , 60s or Off.

Parental Controls: When you first use this function, the default password is [0000]. Once you input this password,

you can set options.

• Locks: Block or unblock the button of the TV.

US TV Ratings: Restrict TV programs by USA Ratings.

US Movie Ratings: Restrict movies by USA Ratings.

Canadian English/French Ratings: Restrict movies and TV programs by Canadian Ratings.

Open V-Chip: Display an advanced V-Chip ratings table for digital channels (USA only).

Block Unrated : Block unrated TV programs.

• Input Block: Block content from devices that are connected to certain TV ports.

• Change PIN: Change your PIN that you use to access Parental Controls. If you want to change your parental

control password, first enter the new password then enter the same password again.

NOTE

If you forget your password, call the Consumer Electronics Care Center.

• Restore Parental Control Defaults: Restore Parental Controls back to the factory setting.

Following is the description of these ratings.

Menu Language English

Location USA

Time

Parental Controls

CEC Function

Advanced Settings

System

ENGLISH FRANÇAIS ESPAÑOL

US TV Ratings

Age Defined as

TV-Y All children

TV-Y7 Directed to older children

TV-G General audience

TV-PG Parental Guidance suggested

TV-14 Parents strongly cautioned

TV-MA Mature Audience only

Content Defined as

ALL All of the ratings below that rating set blocked

automatically

DSuggestive dialogue

LStrong language

SSexual situations

VViolence

FV Fantasy Violence

US Movie Ratings

Rating Defined as

N/A OFF

GGeneral audience

PG Parental Guidance suggested

PG-13 Parents strongly cautioned

RRestricted

NC-17 No one 17 and under admitted

XAdult audience only

Canadian English Ratings

Rating Defined as

EOFF

CChildren

C8+ Children 8 years and older

GGeneral programming, suitable for all audiences

PG Parental Guidance

14+ Viewers 14 years and older

18+ Adult Programming

ENGLISH FRANÇAIS ESPAÑOL

Canadian French Ratings

Rating Defined as

EOFF

GGeneral

8 ans+ 8+General; Not recommended for young children

13 ans+ Programming may not be suitable for children under

the age of 13

16 ans+ Programming is not be suitable for children under the

age of 16

18 ans+ Programming restricted to adults

NOTE

• As you block ratings, all ratings higher than those that you selected are blocked too. For example, if you choose to

block the MPAA rating R, then the higher ratings (NC-17 and X) are also automatically blocked.

CEC Function: CEC Function lets you control HDMI CEC-compatible devices connected to the HDMI ports on your

TV using the remote control that came with your TV. To use CEC Function, you must set the CEC Control setting to

On.

• CEC Control: Turning CEC function on or off.

• Device Auto Power Off: When HDMI-CEC is turned on, Device Auto Power Off turns off HDMI CEC devices when

you turn off your TV.

• TV Auto Power On: When CEC is turned on and you turn on an HDMI CEC device, TV Auto Power On turns on

your TV automatically.

• Detect: Search all the device connected to our TV.

• Device List: You can display a list of HDMI CEC devices that are connected to your TV and select the source you

want.

• ARC: You can select the ARC on or off.

Advanced Settings: Access the Advanced Settings menu.

• Audio Only: You can select the Audio only On/Off.

• Input Label: Edit the input labels.

• Live TV Source: Select the default input selected by the remote control Live TV button.

• Setup Wizard: Use the Setup Wizard for instructions to help you set up your TV.

• Use Mode: You can select the Home Mode / Store Mode.

About TV Menu

Version: View system information.

USB Firmware Upgrade: You can update the software from the USB device.

Restore To Factory Default: Restore your TV back to the factory default.

ENGLISH FRANÇAIS ESPAÑOL

Media

Digital Media player

Please note that HISENSE will not assume any responsibility for any lost data and cannot guarantee perfect

compatibility with all mass storage devices. Be sure to insert the USB flash drive into the USB 2.0 port. Data Input from

USB Memory Stick only. Do not connect any device to this terminal such as digital camera, keyboard, mouse, etc.

NOTE

•Never remove the USB flash drive or turn off your TV while viewing movie / photo.

Press

[INPUT] button to display the INPUT menu, press [ / ] button to highlight the Media source, then press [OK]

button to confirm. (If you want to exit Media, you can press [INPUT] button to switch to other sources).

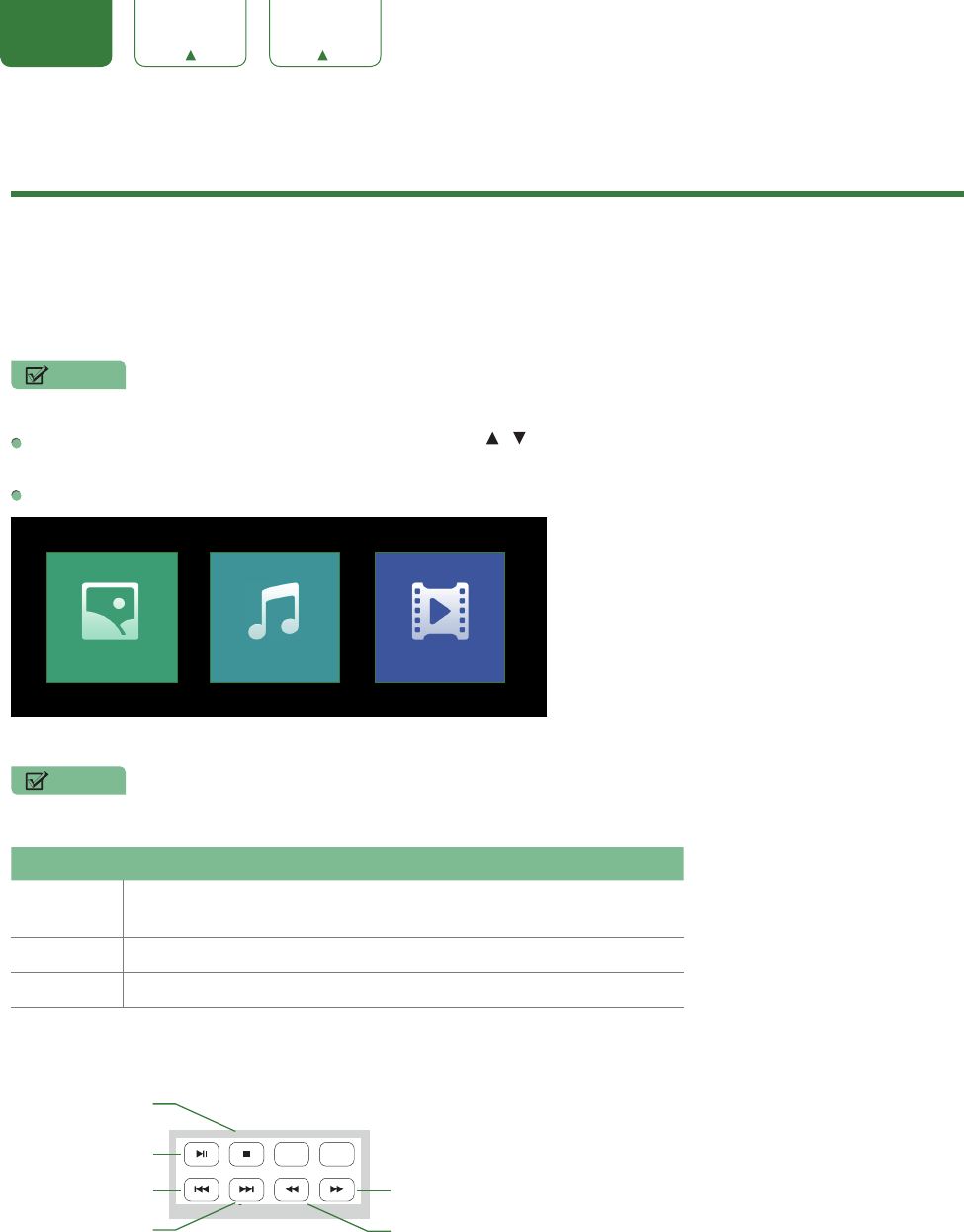

The Media screen displays three panels: Photo, Music and Movie .

Photo Music Movie

File formats that may be supported

NOTE

•Due to differences in programming tools and other factors, some of the file formats that are listed may or may not

be supported.

Medium File Format

Movie .avi (MPEG2, Divx), .mkv (Divx), .mpeg (MPEG2), .wmv (Divx, XviD),

.ts .trp .tp(mpeg) .mp4

Photo .JPG

Music .mp3

Media content control function buttons

When viewing movie / photo, you can press these buttons on the remote control to control movie / photo.

Fast forward

The previous one

The next one

Stop

Fast backward

Play/Pause

ENGLISH FRANÇAIS ESPAÑOL

Browse the Photos

1. Press [ / ] button to switch the media type to Photo.

2. Press [ / / / ] to select the photo you want to view.

3. Press [OK] to browse the photo.

4. Press [BACK] to return to the previous directory.

5. Press [OK] to enter the submenu and press [EXIT] to return to the upper menu.

Tool bar

NOTE

• The menu will change while you are browsing through or pausing your photos.

1 Play / Pause the photo.

2 Stop browsing the photo.

3 Browse the previous photo.

4 Browse the next photo.

5 Allows the photo to rotate 90 degrees anti-clockwise.

6 Allows the photo to rotate 90 degrees clockwise.

7 Zoom the photo.

8 Play mode selection.

Enjoy Music Files

1. Press [ / ] button to switch the media type to Music.

2. Press [ / / / ] to select the music you want to view.

3. Press [OK] to browse the music.

4. Press [BACK] to return to the previous directory.

5. Press [OK] to enter the submenu and press [EXIT] to return to the upper menu.

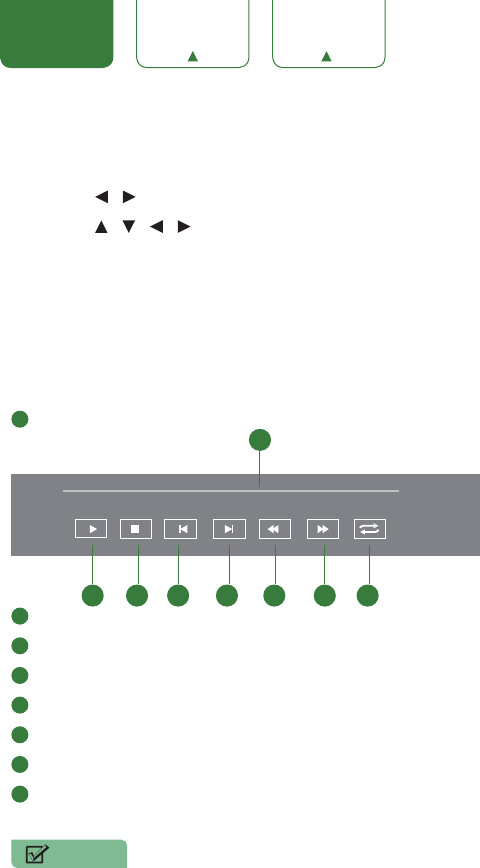

Tool bar

1 Progress bar.

2 Play / Pause the video.

3 Stop playback.

4 Play the previous video.

5 Play the next video.

6 Fast backward. Press [OK] to select the backward speed.

7 Fast forward. Press [OK] to select the forward speed.

8 Play mode selection.

12345

6 7 8

00:00:08 00:07:06

2 3 4 5 6 7 8

ENGLISH FRANÇAIS ESPAÑOL

Enjoy Movie Files

1. Press [ / ] button to switch the media type to Movie.

2. Press [ / / / ] to select the movie you want to view.

3. Press [OK] to play the movie.

4. Press [BACK] to exit the video and return to the previous directory.

5. When enjoying the video, press [OK] button to display the tool bar. Press [EXIT] to return to the upper menu.

Tool bar

1 Progress bar.

2 Play / Pause the video.

3 Stop playback.

4 Play the previous video.

5 Play the next video.

6 Fast backward. Press [OK] to select the backward speed.

7 Fast forward. Press [OK] to select the forward speed.

8 Loop the video.

NOTES

• This TV will only recognize a USB Memory Stick.

• Do not use a USB hub or an extension cable to connect an external hard disk drive to the unit. (Not supported)

• Always insert a USB Memory Stick directly into the USB port.

• A USB Memory Stick is not supplied with this unit.

• We do not guarantee that all USB Memory Sticks can be supported by this unit.

• Be sure to keep a backup copy of the original files on your device before you play them back on this unit. We have

no responsibilities for damage or loss of your stored data.

• To protect your USB Memory Stick files from being erased place the write protect sliding tab in the protect

position.

• When you are ready to remove a USB Memory Stick, set the unit to go into Standby mode to avoid any damage to

your data and the unit.

• A USB Memory Stick that requires its own driver or the device with a special system such as fingerprint recognition

are not supported.

• This unit is not allowed to use the USB Memory Stick which requires an external power supply (500mA or more).

00:00:08 00:09:06

2 3 4 5 6 7 8

ENGLISH FRANÇAIS ESPAÑOL

Quick Problem-Solving Tips

When you experience an issue with your TV, turn it off and on again. If this does not resolve the problem, then refer to

the tips below. If the problem is still not resolved, then contact us.

ISSUES POSSIBLE SOLUTIONS

No sound or picture

• Check if the power cord is plugged into a powered AC outlet.

• Press the [ ] button on the remote control to activate the unit from ‘Standby’

mode.

• Check to see if the LED light is on or not. If it is, then the TV is receiving power.

I have connected an external

source to my TV and I get no

picture and/or sound

• Check for the correct output connection on the external source and for the

correct input connection on the TV.

• Make sure you have made the correct selection for the input mode for the

incoming signal.

When I turn on my TV, there is a

delay for a few seconds before

the picture appears. Is this

normal?

• Yes, this is normal. The TV is initializing and searching for previous setting

information.

The picture is normal but there is

no sound

• Check the volume settings.

• Check if ‘Mute’ mode is set to On.

Sound but no picture or black

and white picture

• If the picture is black and white, unplug the TV from the AC outlet and replug it

after 60 seconds.

• Check that the Color is set to 50 or higher.

• Try different TV channels.

The sound and/or picture is

distorted or appears wavy

• An electric appliance may be affecting the TV. Turn off any appliances that are

nearby and move it farther away from the TV.

• Insert the power plug of the TV set into another power outlet.

The sound and picture is blurry

or cuts out

• If using an external antenna, check the direction, position and connection of the

antenna.

• Adjust the direction of your antenna or reset or fine tune the channel.

A horizontal or vertical stripe

appears on the picture and/or

the picture is shaking

• Check if there is an appliance or electric tool nearby that is causing

interference.

The plastic cabinet makes a

“clicking” type of sound

• The ‘click’ sound can occur when the temperature of the television changes.

This change causes the television cabinet to expand or contract, which makes

the sound. This is normal and the TV is OK.

The remote control does not

work

• Confirm that TV still has power and is operational.

• Change the batteries in the remote control.

• Check if the batteries are correctly installed.

NOTE

• For usage in Mexico , operation of this equipment is subject to the following two conditions : 1 ) it is possible that

this device doesn’t cause any detrimental interference and 2 ) this device must take any kind of interference,

including that which may cause its malfunctioning.

ENGLISH FRANÇAIS ESPAÑOL

Hisense Electric LCDD0069 LED LCD TV User Manual

Hisense Electric Co., Ltd. LED LCD TV

User Manual

Navigation menu

Namespaces

Views

Navigation
