Connecting an antenna, cable set-top box or satellite receiver
To connect an antenna,cable set-top box or satellite receiver:
Connecting an AV device with a composite video cable (yellow/red/white)
You have several options for connecting your TV to different devices. The method in which you connect will be based upon the type
of cables you have and the available outputs on your device.
Connecting Devices to your TV
1. Connect one end of a coaxial cable (not included) to the [RF OUT] jack on the antenna, cable or satellite box. If you are using an
antenna with twin-lead cable, you may need a 300-75 Ohm adapter (not provided) to connect it to the back of your TV. Likewise,
if you are using several antennas, you may need a combiner (not provided).
2. Connect the other end of the cable to the [ANT/CABLE] jack on the side of TV.
3. Using your remote, press the [INPUT] button and select TV as the input source.
To connect an AV device with a composite video cable (not provided):
1. Use the audio and video cables to connect the composite video/audio jacks (of the external AV device) to the [AV IN] jacks
of the TV. (Video = yellow, Audio Left = white, and Audio Right = red).
2. Plug the connected devices into the AV connectors on the TV before switching it on.
3. Using your remote, press the [INPUT] button and select AV as the input source.

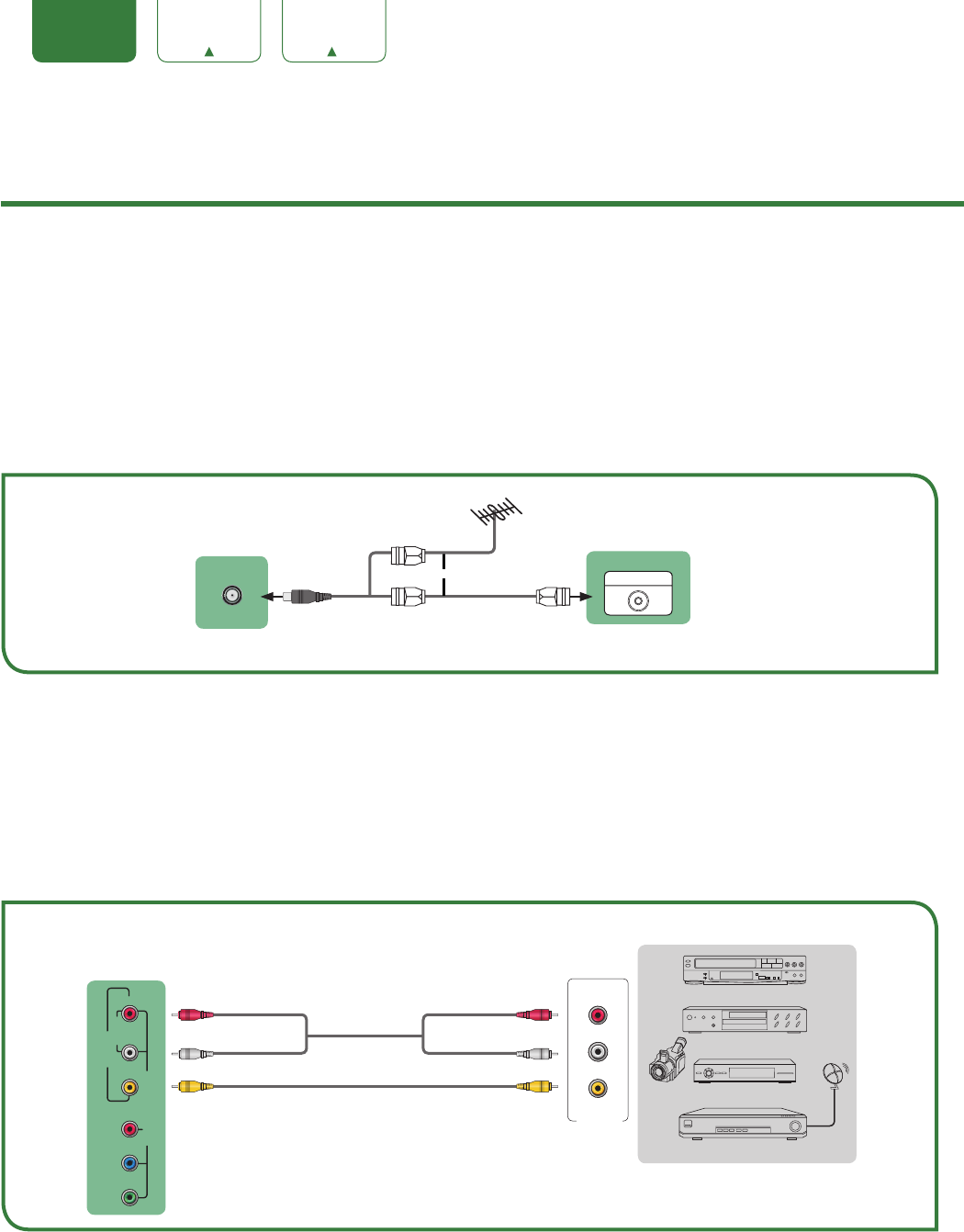

Figure 1. Antenna, cable set-top box or satellite receiver to the TV
Figure 2. AV device with a composite video cable
or ANT OUT
Cable Set top box
RF Out
EXTERNAL DEVICETV JACK
ANT/CABLE
(not included)
TV JACK
(not included)
(not included)
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
AV OUT
Video
L
R
White(L)White(L)
Yellow(Video)Yellow or Green(Video)
Red(R)Red(R)
Audio Cable
L R
AV IN
VIDEO AUDIO
Y PBPR
COMPONENT IN
4
ENGLISH FRANÇAIS ESPAÑOL
HDMI
HDMI
EXTERNAL DEVICES
DVD
Set-top Box
HDMI Cable
NOTES
•Because the HDMI connector provides video and audio signals, it is not necessary to connect an audio cable.
•The HDMI cable will not supplied with the product.
•We strongly recommend to use HDMI Cable with 2 cores as shown in the figure.
NOTE
One AV device can be connected to the TV using a component video or composite video cable.
TV JACK
Connecting an AV device with a component video cable (red/blue/green)
To connect an AV device with a component cable (which is red/blue/green):
1. Use a component video cable (not provided) to connect the component output jacks of the external device to the YPBPR jacks
for the TV. Use an audio cable to connect the component audio jacks of the external device to the TV AUDIO (L/R) jacks.
2. Plug the connected devices into the YPBPR and L/R ports on the TV before switching it on.
3. Using your remote, press the [INPUT] button and select COMPONENT as the input source.

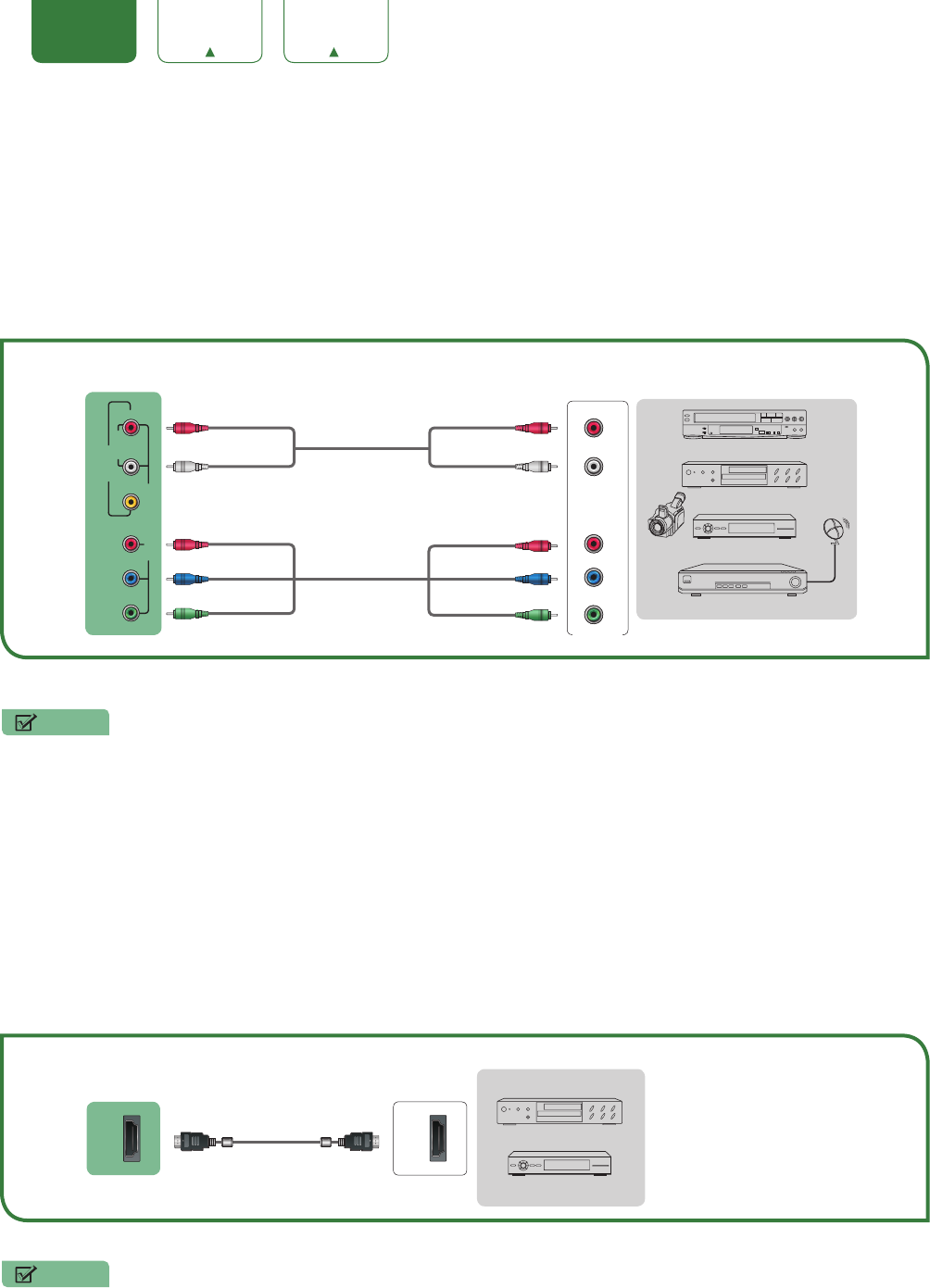

Figure 3. AV device with a component video cable
Connecting an AV device with an HDMI cable
This type of connection supports digital connections between HDMI-enabled AV devices such as a Personal Video Recorder (PVR),
DVD, Blu-Ray, AV receiver and digital devices. In addition, some devices (such as a PVR or DVD player) require an HDMI signal to
be set to Output in the settings of the device.
Please refer to the User Manual that came with your device for step-by-step instructions.
To connect an AV device with an HDMI cable:
1. Use an HDMI cable to connect the [HDMI] output port of the AV device to the [HDMI] jack of the TV.
2. Plug the connected devices into the power socket.
3. Using your remote, press the [INPUT] button and select the corresponding HDMI input.
Figure 4. AV device with an HDMI cable
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
White(L) White(L)
Red(R) Red(R)
Audio Cable
Component Cable
Component
R
L
PR
PB
Y
Red(PR/CR)Red(PR/CR)
Blue(PB/CB) Blue(PB/CB)
Green(Y) Green(Y)
TV JACK
(not included)
(not included)
L R
AV IN
VIDEO AUDIO
Y PBPR
COMPONENT IN
5
ENGLISH FRANÇAIS ESPAÑOL
EXTERNAL DEVICES
EXTERNAL DEVICES
Powerless
Bass Speaker
Speaker
Audio Amplier
Digital Sound Bar
DIGITAL
AUDIO OUT
Connecting speakers (or other audio receivers)
To connect speakers (or other audio receivers) with an audio cable:
Connecting headphones
1. Use an audio cable (not provided) to connect the [DIGITAL AUDIO IN] jack of the audio receiver device to the [DIGITAL AUDIO
OUT] jack of the TV. Another option is to use an RCA Y-cable (1/8”-stereo mini to L/R phono) to connect an analog sound
system to the [AUDIO OUT] jack of the TV.
2. Plug the connected devices into the main power socket before switching on the TV.
You can connect headphones to the [AUDIO OUT] port on your TV. While the headphone is connected, the sound from the built-in
speakers will be disabled.

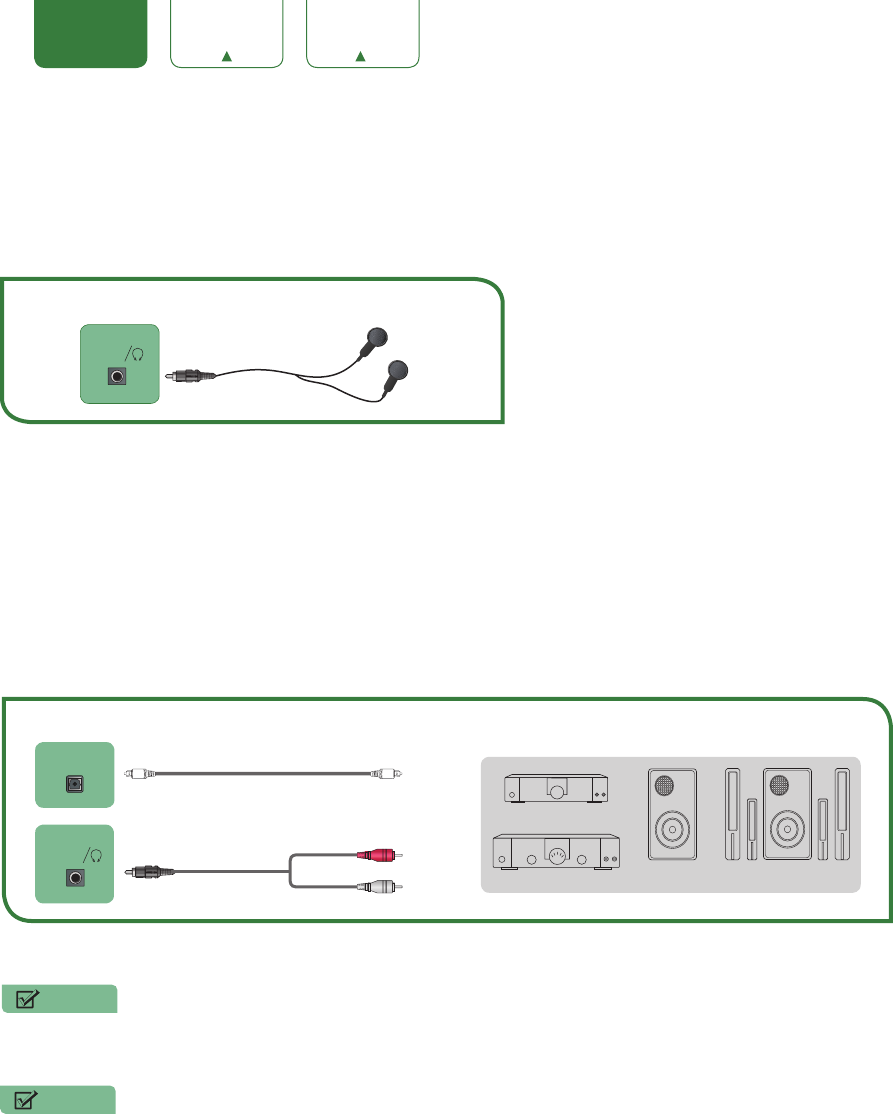

Figure 5. Headphones to the TV
Figure 6. Audio receiver with audio cable
TV JACK
Audio Cable
(not included)
TV JACKS
White(L)
Red(R)
Audio Cable
(not included)
Audio Cable
(not included)
If you prefer to use Audio Return Channel, then follow the steps on the next page under 'Connecting a digital sound bar to
use Audio Return Channel'.
NOTE
• When a digital audio system is connected to the [DIGITAL AUDIO OUT] jack, decrease the TV and system volume.
• 5.1 CH (channel) audio is available when the TV is connected to an external device that supports a 5.1 channel surround sound
• You can receive 5.1 channel audio in one of two ways. The first way is to connect the [DIGITAL AUDIO OUT] jack from the
device to the Amplifier. The second way is to connect the [DIGITAL AUDIO OUT] jack on the back of the TV to the [Optical]
port on the Amplifier. After you’ve completed one of the two methods then be sure to go into the Advanced Audio Settings of the
TV and select RAW to receive the 5.1 channel audio. You will need to also go into the sound or audio settings of your device to
ensure it is set to 5.1 Channel output. It may read ‘Bitstream’, ‘RAW’ or ‘Digital’.
NOTES
AUDIO
OUT
AUDIO
OUT
6
ENGLISH FRANÇAIS ESPAÑOL
Connecting a digital sound bar to use ARC (Audio Return Channel)
If you'd like to use the Audio Return Channel (ARC) feature to have sound sent from the TV back down an HDMI cable to a digital
sound bar, then you will need to connect the cable to the [HDMI (ARC)] port. By using this feature, you will also be able to control
the sound bar with your TV remote instead of having to use multiple remotes for each device.
Only digital sound bars that require a wired connection are compatible with the Smart TV.
To connect a digital sound bar with an HDMI cable:
1. Connect the cable that’s attached to the soundbar to the HDMI (ARC) port on the TV.
2. Turn on the sound bar by pressing the Power button.
3. Press the [Quick Setup menu] button on your remote and go to System > CEC Function
4. Turn on the CEC Control setting.
5. Select Sound > Advance Audio Settings > TV Speaker & ARC and select ARC First.
6. If the device has an ‘Input Selector’ feature then make sure to change it to ‘TV’.
EXTERNAL DEVICES
Digital Sound Bar
HDMI

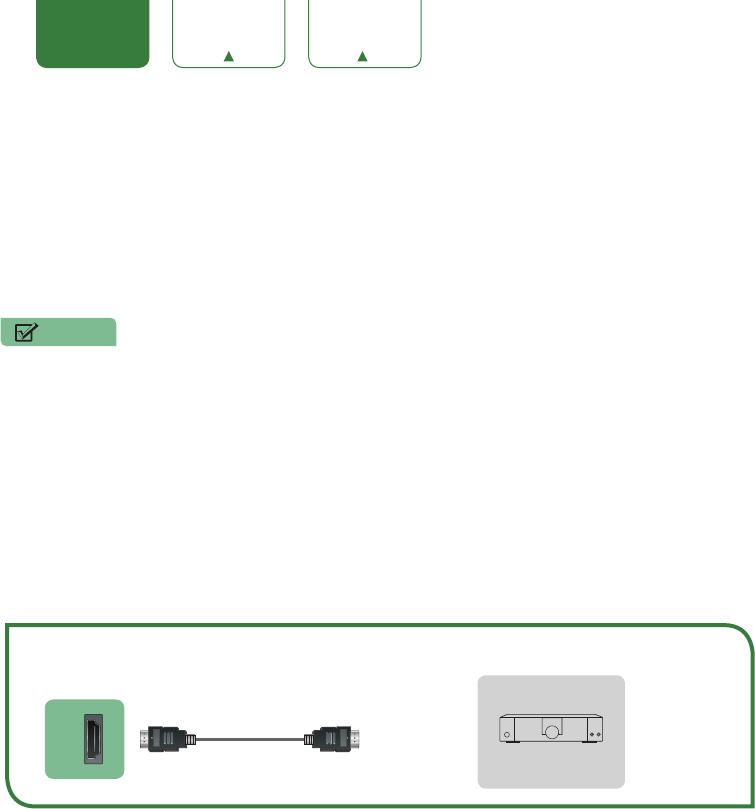

Figure 7. Digital Sound Bar to the HDMI (ARC) port
TV JACK
HDMI Cable
(not included)
NOTE
7
ENGLISH FRANÇAIS ESPAÑOL
Connecting your TV to a Wired or Wireless Network

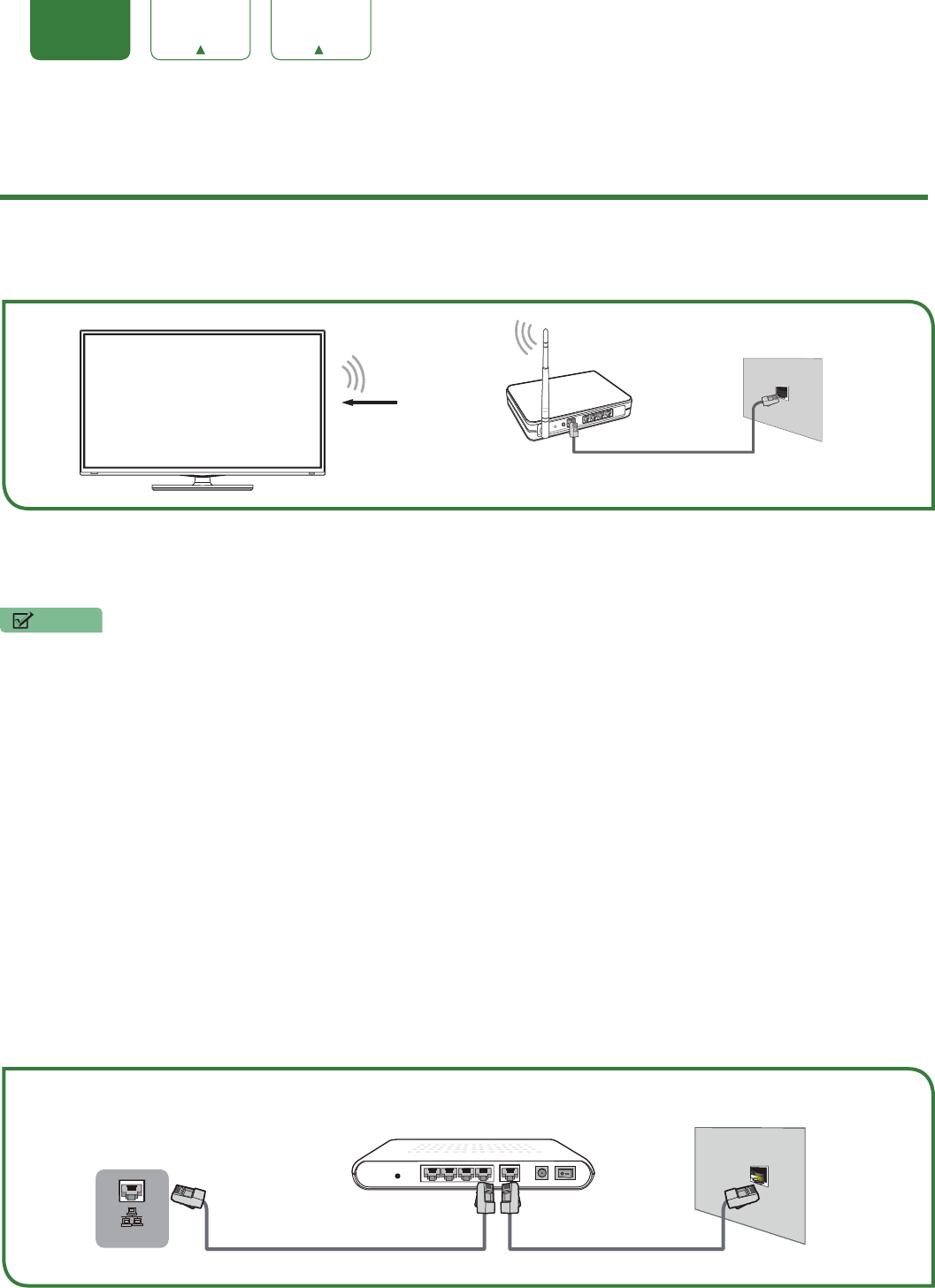

Wireless Adapter
built-in the TV set
LAN Cable

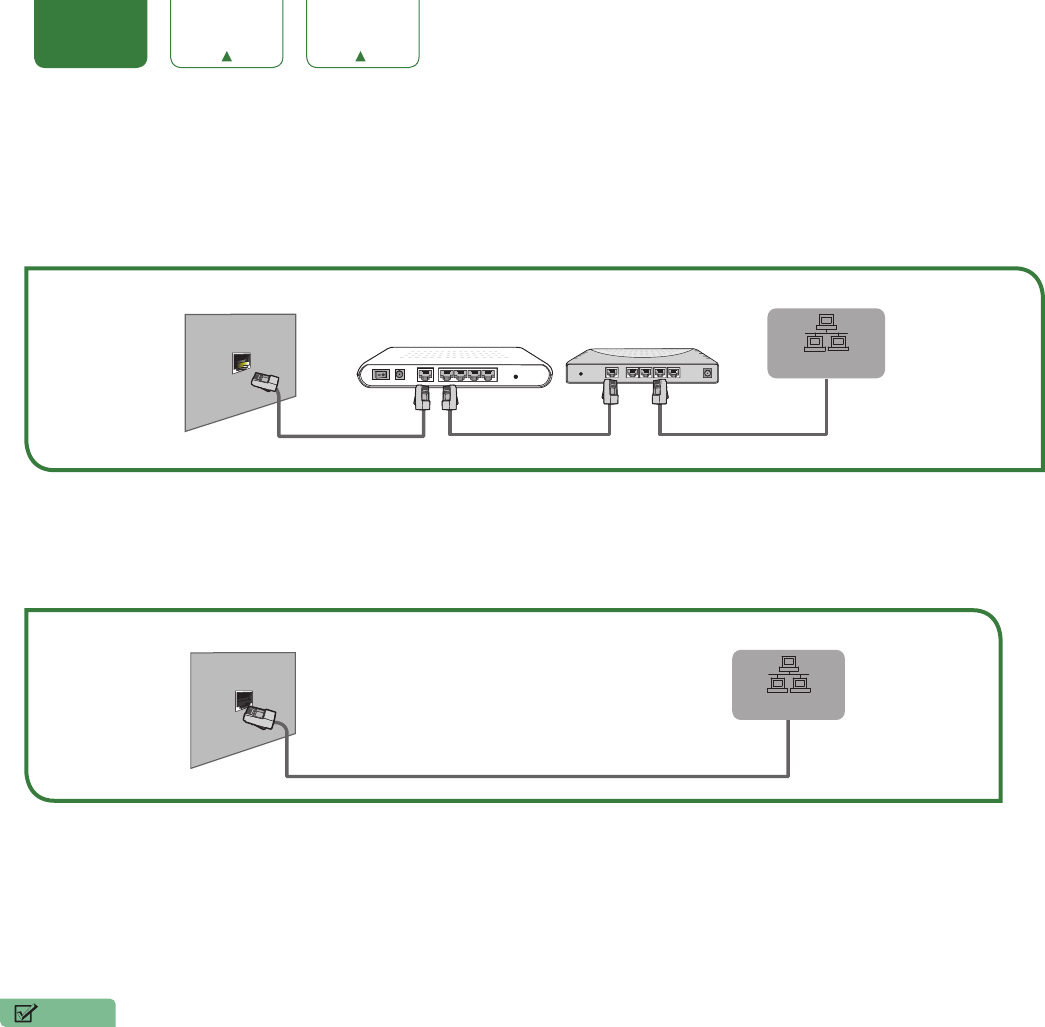

Wireless Router The LAN Port on the Wall
Connecting to a Wired (Ethernet) Network
You have the option to connect your TV to a wireless or wired network to access the Internet.
You can attach your TV to your LAN in one of the three following ways:
Option 1.
• You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5
LAN cable. See the illustration below.
Our built-in wireless LAN adapter supports the IEEE 802.11 b/g/n communication protocols and we recommend that
you use an IEEE 802.11n router. When you play a video over an IEEEE 802.11 b/g connection, the video may not play
smoothly.
• You must use the SHARP built-in Wireless LAN Adapter to use a wireless network because the set does not
support an external USB network adapter.
• To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports
Dynamic Host Configuration Protocol (DHCP), your TV can use a DHCP or static IP address to connect to the
wireless network.
• Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP
sharer is currently being used by another device nearby, this will result in interference and communication failure.
• If you apply a security system other than the systems listed below, it will not work with the TV.
• If Pure High-throughput (Greenfield) 802.11N mode is selected and the Encryption type is set to WEP, TKIP or
TKIP-AES (WPS2 Mixed) for your Access Point (AP), then the TV will not support a connection in compliance with
these Wi-Fi certification specifications.
• If your access point (AP) supports Wi-Fi Protected Setup (WPS), you can connect to the network via Push Button
Configuration (PBC) or PIN (Personal Identification Number). WPS will automatically configure the SSID
and WPA key in either mode.
Figure 8. Connect the TV to a wireless network
Figure 9. Connect a LAN port on the TV to an external modem
Connecting to a Wireless Network
(not included)
NOTES
External Modem
(ADSL / VDSL / Cable TV)
The Modem Port on the Wall
LAN Port on TV
Ethernet Cable Modem Cable
LAN
8
ENGLISH FRANÇAIS ESPAÑOL
• You can attach your TV to your LAN by connecting the [LAN] port on the back of your TV to an IP Sharer which is connected to
an external modem. Use an Ethernet cable for the connection. See the illustration below.
• Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the [LAN] port on
the back of your TV directly to a network wall outlet with an Ethernet cable. See the illustration below.
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol
(DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS, so
you don’t have to enter them manually. Most home networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet
mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get
the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP).
Figure 10. Connect a LAN port on the TV to an IP sharer
Figure 11. Connect a LAN port on the TV to a network wall outlet
You can use ADSL modems that support DHCP if your network requires a static IP address. ADSL modems that support DHCP
also let you use static IP addresses.
Option 2
Option 3
The LAN Port on the Wall LAN Port on TV
Ethernet Cable
LAN
The Modem Port on the Wall
Modem Cable Ethernet Cable Ethernet Cable
LAN Port on TV
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
NOTE
9
ENGLISH FRANÇAIS ESPAÑOL
Using Your TV Remote Control
Buttons on your TV remote
VO
LC
H
OK
CC
BACK
TV
EXIT
INPUT
MTS
NRT
Power on / off
Enter Channels / input numbers
Media content control function buttons
Dash button
Select a digital sub-channel
D-pad (up/down/left/right
navigation buttons)
Volume (up / down)
Multichannel Television Sound (Set the
audio language for the video description)
Narrate (Turn the Video description on or off)
Live TV
Return to the previous place
in the menu or app
Mute and restore sound
Infrared transmitter
Change TV input source
Channel (up / down)
Exit the application
Turn Closed Caption On / Off
Special function buttons
The button for the Quick setup menu
Display the Home screen
Conrm button
Quick access buttons to apps
10
ENGLISH FRANÇAIS ESPAÑOL
Begin using your remote
1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and ( - ) ends indicated in the
battery compartment.
3. Replace the battery compartment cover.
Important Information about the remote and batteries:
• Discardbatteriesinadesignateddisposalarea.Donotthrowthemintoafire.
• Removeoldbatteriesimmediatelytopreventthemfromleakingintothebatterycompartment.
• Ifyoudonotintendtousetheremotecontrolforalongtime,removethebatteries.
• Batterychemicalscancausearash.Ifthebatteriesleak,cleanthebatterycompartmentwithacloth.Ifchemicalstouch
your skin then wash it immediately.
• Donotmixoldandnewbatteries.
• Donotmixalkaline,standard(carbon-zinc)orrechargeable(NiCd,NiMH,etc.)batteries.
• Donotcontinueusingtheremoteifitgetswarmorhot.
Call our Support Center immediately on the SHARP support website.
Remote Control Range Information
The remote control can work at a distance of up to 26 feet in front of the TV set.
It can work at a 30 degree horizontal or vertical angle.
Program Your Universal Cable or Satellite Remote Control to Operate Your New SHARP Television
(only for USA)
If you would like to program your other household remote controls to your new SHARP television,please refer to the User's Manual
supplied by your Cable or Satellite provider. The Cable or Satellite providers' User's Manuals should include instructions on how to
program their remote to your television.
A list of SHARP codes for the most common Cable and Satellite providers are listed below. Use the SHARP code that is associated
with your Cable or Satellite provider (if applicable).
DIRECTV......0178, 10178, 10019, 10748, 11314, 11660, 11710, 11780, 12049, 10171, 11204, 11326, 11517, 11564, 11641, 11963,
12002, 12183
Time Warner Cable......386, 0178, 10178, 400, 450, 461, 456, 0748, 1463, 0463, 10463
Comcast......0178, 10178, 10463, 11463, 10748, 11314, 11660, 10171, 11204, 11326, 11517, 11641, 11780, 11785, 11892, 11963,
12002
Cox Communications......0178, 10178, 1326, 1463
Dish Network......505, 627, 538, 720, 659
If the SHARP code associated with your Cable or Satellite provider is not listed, does not work or you cannot locate the instructions
to program your remote, call your local Cable or Satellite provider’s customer service center.
Insert the batteriesGently push and slide Gently push and slide
If your Cable or Satellite provider does not have a SHARP code available, please contact us.
Using Your Cable Set-top Box or Satellite Receiver Remote as a ‘Universal’ Remote
If you prefer to use your Cable Set-top Box or Satellite Receiver Remote as a ‘Universal Remote’, then visit the Support page to view
a list of the codes.
11
ENGLISH FRANÇAIS ESPAÑOL
You can use shortcuts on the remote control for fast operation. For more information about your TV remote, refer to the Quick Start
Guide in accessories.
Turning your TV on or off
To turn your TV on:
1. Connect the power cord to the back of the TV, then plug the power cord into an AC outlet.
2. When the TV is powered on, press the [ ] button on the remote to turn TV.
To turn your TV off, press the [ ] button on the remote.
NOTES
• When your TV is in standby mode, it is still consuming power. To completely disconnect power, please remove the plug from the
AC outlet.
• If your TV does not receive an input signal for several minutes, it automatically goes into standby mode
Selecting the Input Source
Select the Input Source depending on the video device you have connected to your TV.
To select the input source:
1. Turn on your TV, then press the [INPUT] button on the remote, the list of Source appears.
2. Press the [< / >] buttons to select the input source.
3. Press the [OK] button to confirm your selection.
Using the Live TV
To view broadcast programs, press the [TV] button on your remote.
Channel search guide
When you select TV as input, if no TV channels were saved before, you will be prompted to do a channel search. Before channel
tuning could start, you must specify the tune mode, Antenna or Cable. You can also go to Settings > Channel to change the
channel settings.
Launch Live TV
After channel tuning is done for the first time, the screen will display Live TV operating tips, including: how to show the channel list,
how to view channel info and so on.
[OK] Show channel list
[
v
] View channel info
[Back] View recent channels
View channel info
PRE-CH
Show channel list
Shortcuts Instructions
12
ENGLISH FRANÇAIS ESPAÑOL
To view broadcast programs, select the Live TV icon on the screen or press the [TV] button on your remote.
Viewing Channel information
As you use the [Channel] button on your remote to scroll through channels, an information banner appears on the top of the screen.

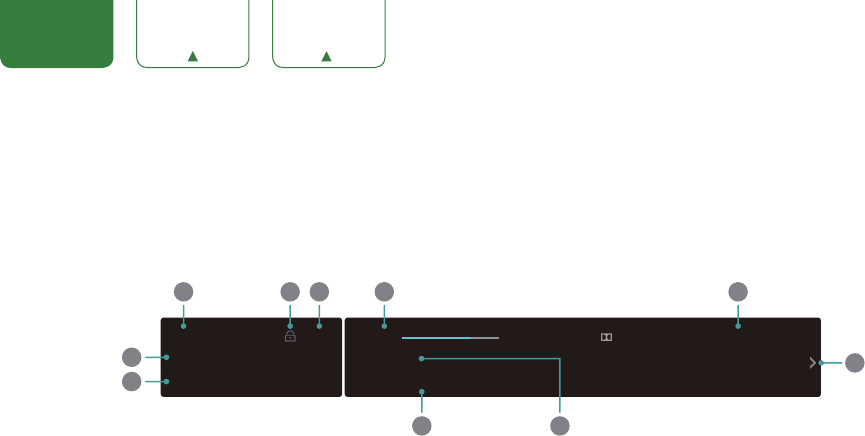

Figure 13. Information banner
The information banner displays the following information:
1. Channel number
2. Lock status
3. Input
4. Start/Stop time progress bar of the current program
5. Show identification
6. Channel name
7. Current date and time
8. Prompt
9. Beginning and end time of the next program
10. Program name
If you are watching a particular channel, you can also press the up arrow on the [D-pad] of your remote to view channel information.
Viewing a channel list
After you have done an automatic channel scan (if you're using an Antenna) or are receiving your channels through a cable provider,
you can view your list of channels by pressing [OK] on your remote.
You will see the channel list display on the right side of the screen.
Creating a 'Favorites' list
To quickly access your most-watched channels, you can create a 'Favorites' list.
To create your 'Favorites' list:
1. Press the [Quick Setup Menu] button on your remote.
2. Press the right arrow button to display the Settings Menu.
3. Select Channel > Favorites List
4. Using the up/down arrows on the D-pad of your remote, select a channel and press [OK].
A heart-shaped indicator will appear beside the channel as confirmation that it has been successfully added.
Viewing your 'Favorites' list
To view channels that you've added to your Favorites list simply press [OK] on your remote to call out the Channel list.
The channel list appears on the right side of the screen and heart-shaped icons are shown next to the channels that make up your
Favorites list.
12
:
09
AM Thu.
30
J
un
.
A
nt
e
nn
a
│
1
/
1 unknown
5
.1
C
H
│
4:
3
│
4
80
i
│
CC
1
:
00
AM - 4:
00
AM AT
05
4
80i
AT05 480i
10:00 PM 1:00 AM
1
6
7
2 3 4 5
9
10
8
AT05-2
5-2
13
ENGLISH FRANÇAIS ESPAÑOL

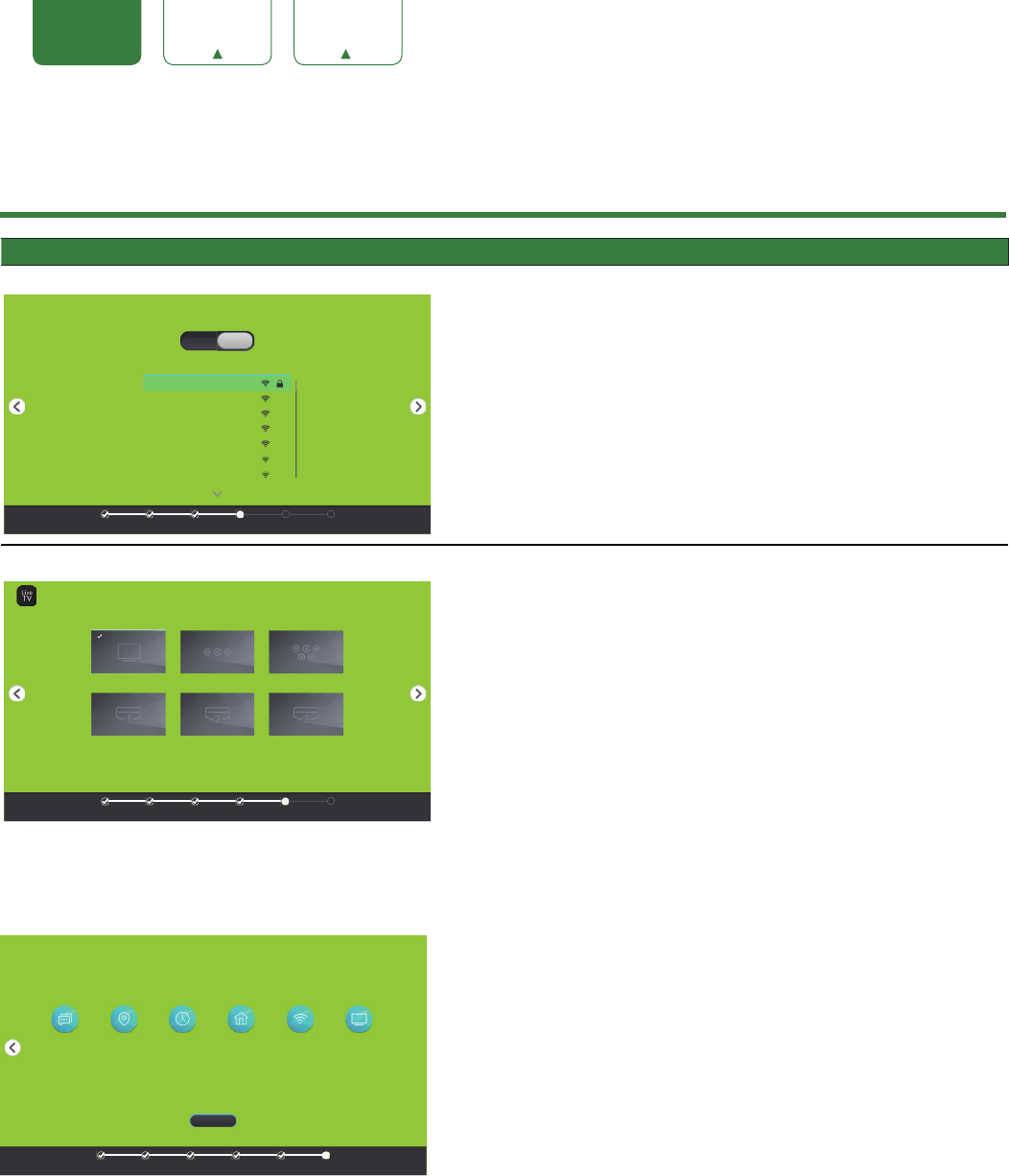

Now that you have attached the TV stand and connected your external devices, it's time to complete the first-time setup menu.
Press the [Power] button on the remote to turn on the TV.
A splash screen that shows the SHARP logo appears. Next, the First-Time Setup Menu begins by prompting you to choose your
Language, Country, and Time Zone.
Screen Task
Language and Location
LANGUAGE AND LOCATION
Language Country Time Zone
United StatesEnglish
Language Terms Mode Network Input Done
Select
1. Using the D-pad arrows of your remote, choose your
Language, Country and Time Zone.
2. Next, navigate to the Forward arrow and press OK.
TIP: The edge of the drop-down boxes and the back and forward
arrows change to blue when you select them.
Terms of Service
TERMS OF SERVICE
Accept EULA
Accept Terms of...
Accept all
The EULA and Terms must be accepted in
order to cont inue.
Language Terms Mode Network Input Done
1. Press [OK] on your remote to select Accept all.
2. When you’re done, then navigate to the Forward arrow and
press [OK].
TV Usage Mode
TV USAGE MODE
TV Mode
Home
Home Mode
In Home Mode, your TV will automat ically adjust the
brightness of your screen based on the ambient light in
the room. This mode uses less energy.
Language Terms Mode Network Input Done
Select Home (which appears by default) and then navigate to the
Forward arrow to press [OK].
NOTE: ‘Store mode’ should only be selected by Retailers who
plan to demonstrate the TV.
Completing the First-Time Setup Menu
14
ENGLISH FRANÇAIS ESPAÑOL
Screen Task
Network Connection
NETWORK CONNECTION
Select a Network
Ethernet WiFi
A2F4-05
A3F6-01
A6F5-19
A1F2-02
A2F4-03
A2F5-01
R22
Language Terms Mode Network Input Done
If your TV does not automatically detect an Ethernet
connection, then select WiFi. When you’re done, select
your network from the list that displays and move to the
next screen.
Live TV Input Source
LIVE TV INPUT SOURCE
HDMI 2HDMI 1 HDMI 3
TV AV COMPONENT
Language Terms Mode Network Input Done
Select how you receive your TV channels. Choose from
one of the following sources below and then move to the
next screen.
• TV
• AV
• COMPONENT
• HDMI
NOTE: If you use an antenna to receive channels,
then you must complete the rst-time setup menu in
order to run a channel scan.
Congratulations! Your TV is now ready to use.
Press [OK] on your remote if you are fine with the selections that appear on the screen. Otherwise, navigate
to the back arrow on the screen to change your selection.
First-time Setup Menu (continued)
CONGRATULATIONS!
Language Terms Mode Network Input Done
Home Mode WiFi TVEnglish United States Eastern
Your TV is now ready to use
OK
15
ENGLISH FRANÇAIS ESPAÑOL
Your SHARP TV comes with many TV setting features to allow you to customize the picture based on your viewing preference and
environment.
Accessing the Quick Setup Menu
You can press the [Quick Setup menu] button [ ] and press the right arrow on the D-pad to view the full menu settings.
The Settings menu consists of the following settings:
• Picture
• Sound
• Channel
• Network
• System
• About TV
Picture Menu
Picture Mode: If you’d like to configure the settings for your picture, then there are
six types of picture modes available: Vivid, Standard, Theater, Energy Saving,
Game and Sport.
Once you choose the mode, you can adjust the picture based on the following
settings:
Brightness: Adjust the Brightness level to generate lighter or darker images.
Contrast: Adjust the Contrast level to increase or decrease how bright images
appear.
Color: Adjust the color intensity of the picture for a more vibrant image.
Aspect Ratio: Adjust the Aspect Ratio to stretch or zoom in on your picture. You
can choose from the following settings: Normal, Zoom, Wide, Cinema, 1:1 PIXEL MAP, Panoramic, Direct or Auto.
Backlight: This TV has a Dynamic Backlight Control setting that you can turn ‘On’ and set to high or low. The Backlight setting
enables you to adjust how bright you want images to appear. In addition, an ECO Sensor setting is available that will enable the
TV to automatically adjust the picture settings according to the amount of ambient light in your room. The Minimum Backlight
setting enables you to adjust how low you want the backlight to be when you view content in a dark or well-lit room. This is a
money-saving feature because it reduces power consumption.
Advanced Picture Settings: Adjust advanced picture settings based on your viewing preference.
• Display: Adjust advanced picture settings in the component source.
• Overscan: Change the video size settings to slightly crop the edges of the displayed image.
• Tint: Adjust the colors from a green to magenta tint to view the natural skin tones of people on the screen.
• Sharpness: Adjust how sharp or soft edges of images appear.
• Noise Reduction: Improve how clear the picture appears by reducing noise.
• Film Mode: Turn off smooth motion and play video as 24 frames per second.
• Adaptive Contrast: Automatically darken dark areas and lighten light areas of images to see more details.
• Color Temperature: Select a preset color temperature.
• White Balance: Adjust the intensity of red, green and blue lights to view the true colors of all images in the picture.
• Color Tuner: Adjust the Hue, Saturation and Brightness of color settings.
Restore Default Picture Settings: Restore all the picture settings in the current picture mode to the factory default values.
Settings
Sound
Channel
Network
System
About TV
Picture Mode
Energy Saving
Brightness
50
Contrast
50
Color
50
Aspect Ratio
Wide
Backlight
Advanced Picture Settings
Restore Default Picture Settings
Basic and Advanced TV Settings
16
ENGLISH FRANÇAIS ESPAÑOL

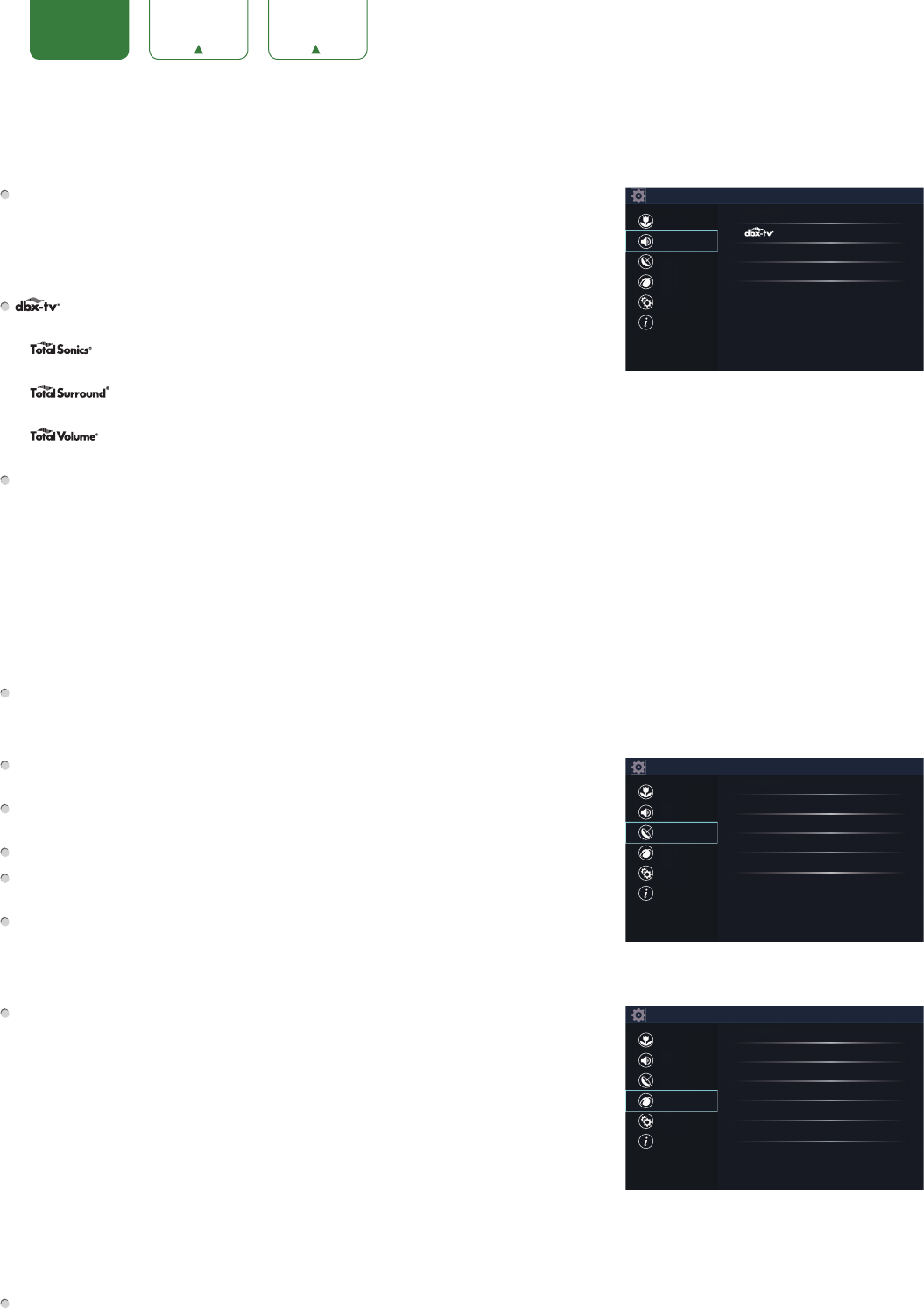

Sound Menu
Sound Mode: Select a preset sound mode to suit the type of content you are
listening to: Standard, Theater, Music, Speech and Late Night.
Set the sound effects to suit your preference:
Configure your audio settings for your sound preferences. Once you choose the
mode, you can adjust the audio based on the following settings:
Audio Enhancements: dbx-tv’s Total Technology™ delivers the best possible
audio experience from your TV.
• Total Sonics: Optimizes overall sound quality by increasing bass,
making dialog clear and natural, and widening the sound field.
• Total Surround: Provides surround sound experience with psycho-
acoustic processing to place sounds beside, behind, and above the viewer. For best results use with Total Sonics.
• Total Volume: Maintains consistent loudness levels from wide dynamic range programs, too-loud commercials, and
channel or input changes.
Advanced Audio Settings: Tune the audio settings and quality of the TV.
• Equalizer: Boost the volume at different frequencies.
• Lip Sync: Synchronize the displayed image with the audio output.
• Balance: Adjust the left and right speaker strength to optimize audio for a specific location.
• Digital Audio Out: Select the digital audio output format that best suits the audio device type.
• Digital Audio Delay: Adjust the digital audio output delay time to sync sound from an external speaker with the images on the
TV.
• TV Speaker & ARC: Select the TV speaker or an external speaker for sound output.
• Audio Out: Change the way audio is sent through the type of device that’s connected to your TV Audio Out port.
Restore Default Audio Settings: Restore all of the audio settings in current audio mode to the factory default values.
Channel Menu
Tuner Mode: Select if you receive TV channels over the air (antenna) or through a
cable set top box as the input will be used during a channel scan.
Auto Channel Scan: Automatically scan for channels to view programming from
your TV source.
Manual Scan: Type in a channel to add it manually to your TV.
Channel Skip: Skip a channel that your TV picked up during a previous channel
scan search.
Favorites List: Quickly access your most-watched channels by creating a Favorites
list.
Network Menu
Network Configuration: Set up the network to gain full access of Smart TV
features.
When the Connection Type is Ethernet, means you choose a wired network
connection to access the Internet.
• Ethernet: Display the network connection status.
• IP Setting Mode: Configure the IP setting for your network connection.
When the Connection Type is Wireless, means you choose a wireless network
connection to access the Internet.
• Advanced Settings: Configure the advanced wireless network settings for the
TV.
• Available Networks: Select an available network to connect. And you can also add wireless network or refresh wireless
network.
When the Connection Type is Off, means you turn off the Internet connection.
Network Information: View information about your network connection.
Settings
Sound
Channel
Network
System
About TV
Sound Mode
Standard
Audio Enhancements
Advanced Audio Settings
Restore Default Audio Settings
Settings
Sound
Channel
Network
System
About TV
Tuner Mode
Cable
Auto Channel Scan
Manual Scan
Channel Skip
Favorites List
Settings
Sound
Channel
Network
System
About TV
Network Conguration
Network Information
Disconnected
Anyview Stream
On
TV Name
Smart TV
Wake on Wireless Network
Off
Wake on LAN
Off
17
ENGLISH FRANÇAIS ESPAÑOL
Anyview Stream: Share video, music or other content from another device on to your TV screen.
TV Name: Choose a name for your TV. The name will be shown to devices that are available for sharing data.
Wake on Wireless Network: Using a wireless connection, turn on your TV with a screencast feature inside an app.
Wake on LAN: Using an Ethernet connection, turn on your TV with a screencast feature inside an app.
System Menu
Location: Choose the location from where you will watch your TV.
Time: Set the current time based on your location.
• Time Zone: Select your time zone.
• Time Format: Set the time to display in a 12 or 24-hour format.
• Daylight Savings: Select whether to apply Daylight Savings Time to the TV.
• Date/Time: Set the Date and Time.
• Power On Timer: Enable the Power On Timer.
• Power Off Timer: Enable the Power Off Timer.
• Sleep Timer: Set the sleep timer to automatically turn the TV Off within a
specified time: Off, 10 Minutes, 20 Minutes, 30 Minutes, 40 Minutes, 50 Minutes,
60 Minutes, 90 Minutes and 120 Minutes.
Language: Adjust the default language settings for the TV.
Parental Controls: Turn On Parental Controls to block children from being able to view certain programs. The default password is
0000. For more information about Parental Controls, See Parental Controls on page 19.
Application Settings: Set settings for apps on your TV.
• Netflix : Remove this TV from your Netflix account. Please contact Netflix if you want to stop being billed for you service.
• ESN : Display the Netflix Electronic Serial Number.
• VUDU : Remove this TV from your VUDU account. Please contact VUDU if you want to stop being billed for you service.
Accessibility: Provide assistive functions for people who experience vision or hearing loss.
• Menu Audio : Choose to leave the Audio Menu Prompts On or Off.
• Video Description: Choose to leave the video description feature On or Off.
• High Contrast Menu : Choose to leave the high contrast menu On or Off.
• Menu Audio Settings: Adjust settings for the Menu Audio function.
Closed Caption: Adjust Closed Captioning settings.
• Caption Control: Select a Caption Control setting from CC Off, CC On, CC On When Mute.
• Analog Caption: Select an Analog Caption setting from Off, CC1-CC4, Text1-Text4.
Off: To turn off the Analog Caption.
CC1-CC4: Closed captioning appears in a small banner across the bottom of the screen. CC1 is usually the “printed” version of
the audio. CC2-CC4 display content are provided by the broadcaster.
Text1-Text4: Closed captioning that covers half or all of the screen. Text1-Text4 display content are provided by the broadcaster.
• Digital Caption: Select a Digital Caption setting: Off,CS1-CS6.
• Digital CC Settings: There are two Caption Styles. One is the Automatic function set as the broadcaster, while the other is the
Custom style where you can adjust the font Size, Font, Text Color, Text Opacity, Background Color etc.
CEC Function: Configure how to control CEC-enabled devices with your TV remote.
• CEC Control: Allow HDMI devices to control each other.
• Device Auto Power Off: Allow CEC-enabled devices to turned off with the TV.
• TV Auto Power On: Allow the TV to turn On with CEC-enabled devices.
• Device Connect: Allow CEC-enabled devices to communicate with each other when connected through an HDMI cable.
• CEC Device Lists: View a list of all CEC-enabled devices.
NOTES
• HDMI cables must be used to connect HDMI CEC-compatible devices to your TV.
• The HDMI CEC feature of the connected device must be turned on.
Settings
Sound
Channel
Network
System
About TV
Location
USA
Time
Language
Parental Controls
Application Settings
Accessibility
Closed Caption
CEC Function
Advanced Settings
18
ENGLISH FRANÇAIS ESPAÑOL
• If you connect an HDMI device that is not HDMI CEC-compatible, all the HDMI-CEC Control features do not work.
• Depending on the connected HDMI device, the HDMI-CEC Control feature may not work.
Advanced Settings: Access the Advanced Settings menu.
• Menu Timeout : Set the amount of time that you’d like for the menu to display: Off, 5s, 10s , 20s , 30s or 60s.
• Use Mode: Set the TV to use in Home or Store Mode (Some models have a Store Mode with 4K Video).
• Input Labels: Edit the input labels.
• Default LiveTV Source: Select the default input selected by the remote control Live TV button.
• SetupWizard: Use the Setup Wizard for instructions to help you set up your TV.
• Power Indicator: Set the power indicator to illuminate when the TV is turned off.
About TV Menu
System Information: View system information.
Legal Disclaimer: Read the Legal Disclaimer.
Check Firmware Upgrade: Check to ensure that your TV has received the latest
firmware.
Signal Diagnosis: Check diagnostic information for current input source.
Restore To Factory Default: Restore your TV back to the factory default.
Settings
Sound
Channel
Network
System
About TV
System Information
Legal Disclaimer
Check Firmware Upgrade
Signal Diagnosis
Restore To Factory Default
19
ENGLISH FRANÇAIS ESPAÑOL
Parental Controls
The Parental Controls setting allows you to block content that is not appropriate for children to watch. You can do this by creating a
4-digit password. The factory-default password is 0000.
Turning Parental Controls 'On'
To access Parental Controls:
1. Press the [Quick Setup Menu] button on your remote.
2. Press the right arrow button to display the full menu settings.
3. Select System > Parental Controls.
4. Press [OK] on your remote, an Enter PIN window displays. Using the numerical keypad on your remote, enter the factory-default
password 0000 and press [OK].
5. Go to Locks.
6. Press the [OK] button to turn the locks On.
You will see the other Parental Control settings change from a greyed out state and become highlighted. When this occurs, begin
adding other settings to the Block Time, Channel Block, Program Block, Input Block, Change PIN or Restore Parental Control
Defaults features.
Block Time: Choose a time of day that you’d like to start blocking certain programs.
Channel Block: Block programs by channels when you turn on the Parental Controls feature.
Program Block: Block certain programs when you turn on the Parental Control feature.
Input Block: Block content from devices that are connected to certain TV ports.
Change PIN: Change your PIN that you use to access Parental Controls.
Restore Parental Control Defaults: Restore Parental Controls back to the factory setting.
Description of U.S. TV Ratings
Content Defined as
AAll
DSuggestive dialog
LCourse or crude language
SSexual situations
VViolence
FV Fantasy Violence
Description of Age-based Ratings
Age Defined as
TV-Y All children
TV-Y7 Directed to older children
TV-G General audience
TV-PG Parental Guidance Suggested
TV-14 Parents strongly cautioned
TV-MA Mature Audiences Only
NOTE
If you forget your password, call the SHARP Consumer Electronics Care Center.
Parental Controls
20
ENGLISH FRANÇAIS ESPAÑOL
U.S. Movie Ratings
Rating Defined as
GGeneral audience
PG Parental Guidance suggested
PG-13 Parents strongly cautioned
RRestricted
NC-17 No one 17 and under permitted
XA rating that has now been superseded by NC-17
Canadian English Ratings
Rating Defined as
CChildren
C8+ Children 8 years and older
GGeneral programming that is suitable for all audiences
PG Parental Guidance
14+ Viewers 14 years and older
18+ Adult Programming
Canadian French Ratings
Rating Defined as
GGeneral (appropriate for all ages and must contain little to no violence or sexual content)
8+ General but inadvisable for young children (could contain scenes disturbing to children under eight).
Recommended for viewing with parent.
13+ Programming is appropriate for children 13 and older and may contain moderate violence, language and some sexual
situations
16+ Recommended for children 16 and older and may contain strong violence, language and sexual content
18+ Programming intended for viewers that are 18 and older. Programming may contain extreme violence and graphic
sexual content/pornography.
NOTE
All ratings that are higher than those you select are also blocked. For example, if you choose to block the PG-13 rating, then the
higher ratings (R and NC-17) are automatically blocked too.
21
ENGLISH FRANÇAIS ESPAÑOL
The simple design of the Home screen menu makes it easy to navigate. It serves as the central location to access Top Apps,
Recommendation, History, Inputs, Media or Apps on the back of the TV that you’ve connected external devices to.
To access the Home screen, press the [] button on your remote control and use the arrows buttons to make your selection.
Getting familiar with the Home screen
Indicators and Icons on the top of the Home screen
You can always view the current time at the top right corner of the Home screen.
If your TV is connected to the Internet through a wireless connection, then an icon will display at the top right corner of the
screen. This location makes it very convenient for you to determine if you still have Internet connectivity as you use the TV.
If your TV is connected to the Internet, then the current weather conditions will display at the top right conner of the screen.
In addition, if you have connected a device (such as a thumb drive) to a USB port and your TV recognizes it, then a device icon
will also display in the same area.
Names of sections that appear on the Home screen
The Home screen displays the following section names:
• Top Apps
• Recommendation
• History
• Inputs
• Media
• Apps
Inputs
Each time you access the Home screen, the icons for your inputs will display on the screen. Inputs that you have connected an
external device to will be highlighted. Inputs that do not have an external device connected to are greyed out.
22
ENGLISH FRANÇAIS ESPAÑOL
Apps
Numerous factory-installed apps are available on the All Apps page for you to enjoy immediately. Additional apps that will work on
this TV are available on the App Installer page and these apps can be installed and uninstalled based on your preference. Once an
app is installed from the App Installer page, then it will appear in the All Apps page.
Opera TV Store
Opera TV Store contains cloud-based apps optimized for your TV. The apps range from Video, Music, Social Networking, Games
and News Information.
To begin using Opera TV Store, you simply need to accept the End-User License Agreement and then select the app that you want
to use.
TV Browser
The TV Browser allows you to surf the Internet on your TV and provides quick access to the Google™ search engine.
To view a website or search using the TV Browser:
1. Using the Navigation buttons on your remote, navigate to TV Browser icon.
2. Press [OK] on your remote.
The browser window displays.
3. Using the navigation buttons on your remote, navigate up to the URL bar to place your cursor there.
4. Press [OK] on your remote to bring up the on-screen keyboard.
5. Type the website address or search term on the text field.
6. Press the [Blue] special function button towards the top of the remote (under the number pad).
The website address or search term you’ve typed populates in the URL bar window.
7. Select the forward arrow (to the right of the URL bar) and press [OK] on your remote to load the page or start the search.
Installing an App
Even though your TV has numerous factory-installed apps, there may be others that you’d like to download.
To install an app:
1. From the Home screen, select the Apps.
2. Navigate to Opera TV Store.
3. Navigate to the Search tab at the top of the screen.
4. Begin typing the name of the app. As you begin typing the first two to three letters the Opera Store suggests words to quicken
your search time.
5. Use the navigation buttons of your remote to select the app.
A page displays that shows a written description of the app.
6. Click on Open or Add to Favorites.
Removing an App
You can only delete apps that you’ve downloaded to the TV. Factory-installed apps can not be deleted.
To delete an app:
1. From the Apps screen, click on the Edit icon.
2. Use the navigation buttons on your remote to select the app that you want to remove.
NOTE
• The app which has a icon at the upper right conner can be removed.
3. Press the [OK] button on your remote. A dialog message displays that asks if you’re sure you want to remove the app.
4. Click on OK. A confirmation message displays and the icon is removed from the Apps list screen.
NOTE
• If an app is deleted,the information related to that app is also removed.
Apps
23
ENGLISH FRANÇAIS ESPAÑOL
Media is a central location for you to upload and view or listen to different types of content (for example, your photos, music and
movies) through the following methods:
• A USB thumb drive or hard drive
• Your mobile phone, tablet or other personal device: You can stream movies, pictures and photos that are stored on your
personal device and play or view the content on your TV.
When you connect your thumb drive or other personal device to the TV, the TV automatically detects it and displays a device icon in
the top right corner of the Home screen.
Panels that appear on the Media screen
The Media screen displays four panels: Picture, Video, Music and All.
File formats that may be supported
NOTE: Due to differences in programming tools and other factors, some of the file formats that are listed may or may not be
supported.
Media File Format
Picture .jpg
Video .avi (MPEG2, Divx), .mkv(Divx), .mpeg(MPEG2), .wmv(Divx, XviD)
Music .avi(mp3, WMA, ac3), .mp3
Browsing Content
To browse through content based on the type that you wish to access:
1. Navigate to the appropriate menu tab on the left side of the screen and select Picture, Video, Music or All. The library of items
displays on the right side of the screen.
2. Navigate to the right side of the screen and click on the name of the folder that contains your content.
3. Make your selection to play or view the content.
If you want to close out of the Media center, then press the [EXIT] button on your remote.
Viewing Pictures as a Slideshow
To view pictures in a slideshow:
1. Navigate to the Picture tab.
2. Make your selection to view the content, press the [OK] button to start the slideshow.
3. Press the [OK] button to call up the below menu. You can use the [D-pad] button of your remote to select these icons that will
control the pictures.
Viewing Video
While viewing videos you will see a number of icons appear at the bottom of the screen. You can use the [D-pad] button of your
remote to select these icons that will control the video.
Media
5. Use the navigation buttons to select the Complete icon.
Moving App Icons around
Apps can not be moved around on the screen.
24
ENGLISH FRANÇAIS ESPAÑOL
The Anyview Cast is an app that enables you to share (or cast) a video, audio or image from your Android-based device to the TV.
From your tablet or phone
To mirror content from your tablet to the TV:
1. Using your remote, press the [ ] button, then press the [ > ] button on the D-pad to display the full menu settings. Go to
Network > Anyview Stream and turn it on.
2. From the Home screen, select the Apps.
3. Navigate to Anyview Cast app.
4. Turn on the wireless display function on your Android-based device.
NOTE
Some Android-based devices may not support casting.
5. Find your TV in the list of devices that displays and select it.
6. Wait for the ‘Creating Connection’ progress bar to complete on the TV screen and the video or image will display in a moment.
Using Anyview Cast to mirror content from your device to the TV screen
Software updates for your TV
The software (also referred to as firmware) is part of what powers your TV. SHARP will provide software updates to continuously
enhance your TV and correct any issues that may impact your user experience; therefore, we recommend that you keep your TV
connected to the Internet to automatically receive updates when they are available.
You can choose to receive updates automatically or check for software updates and install them manually.
Checking for the latest firmware
To manually check for the latest firmware:
1. Using your remote, press the [ ] button.
2. Press the [ > ] button on the D-pad to display the full menu settings.
3. Go to About TV> Check Firmware Upgrade.
25
ENGLISH FRANÇAIS ESPAÑOL
Quick Problem-Solving Tips
When you experience an issue with your TV, turn it off and on again. If this does not resolve the problem, then refer to the tips below.
If the problem is still not resolved, then contact us.
ISSUES POSSIBLE SOLUTIONS
There is no sound or picture from
the TV
• Check to see if the power cord is plugged into a power outlet.
• Press the Power button on the remote control to activate the unit from 'Standby' mode.
• Check to see if the LED light is on or not. If it is, then the TV is receiving power.
I have connected an external
source to my TV and do not see a
picture and/or hear any sound
• Check for the correct output connection on the external source and for the correct input connection on the
TV.
• Make sure you have made the correct selection for the input mode for the incoming signal.
When I turn on my TV, there is a
delay for a few seconds before the
picture appears. Is this normal?
• Yes, this is normal. The TV is initializing and searching for previous setting information.
The picture is normal but there is
no sound
• Check the volume settings.
• Check if 'Mute' mode is set to On.
Sound but no picture or black and
white picture
• If the picture is black and white, unplug the TV from the AC outlet and replug it after 60 seconds.
• Check that the Color is set to 50 or higher.
• Try different TV channels.
The sound and/or picture is
distorted or appears wavy
• An electric appliance may be affecting the TV. Turn off any appliances that are nearby and move it farther
away from the TV.
• Insert the power plug of the TV set into another power outlet.
The sound and picture is blurry or
cuts out
• If using an external antenna, check the direction, position and connection of the antenna.
• Adjust the direction of your antenna or reset or ne tune the channel.
A horizontal or vertical stripe
appears on the picture and/or the
picture is shaking
• Check to see if there is an appliance or electric tool nearby that is causing interference.
The plastic cabinet makes a
"clicking" type of sound
• The 'click' sound can occur when the temperature of the television changes. This change causes the
television cabinet to expand or contract, which makes the sound. This is normal and the TV is OK.
The remote control does not work
• Conrm that TV still has power and is operational.
• Change the batteries in the remote control.
• Check if the batteries are correctly installed.
NOTE
• For usage in Mexico, operation of this equipment is subject to the following two conditions : 1 ) it is possible that this device
doesn’t cause any detrimental interference and 2 ) this device must take any kind of interference, including that which may cause
its malfunctioning.

Navigation menu
