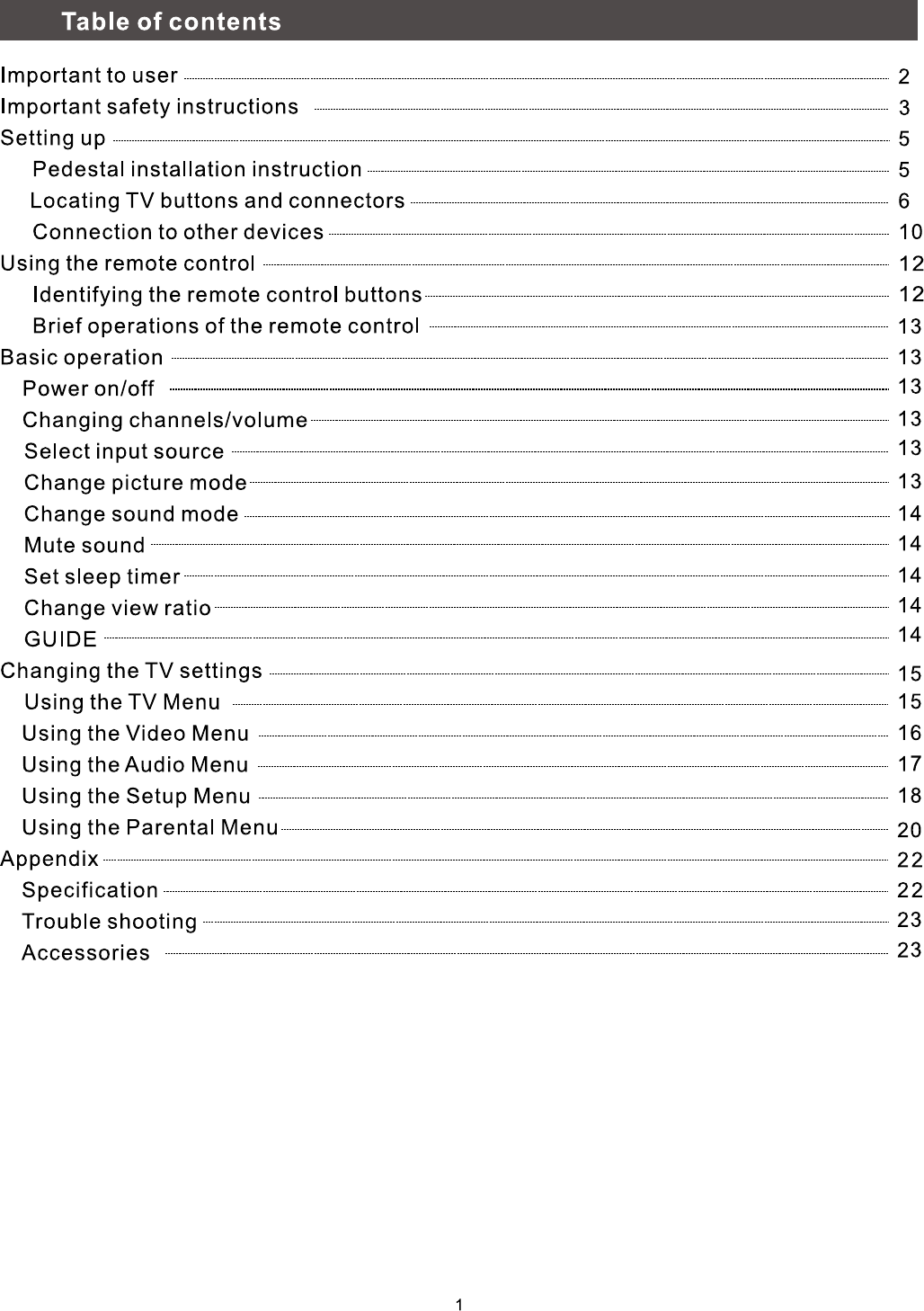

Contents
- 1. User Manual 1
- 2. User Manual 2
- 3. User Manual 3
- 4. User Manual 4
- 5. User Manual 5
User Manual 1
LED TV
USER’S MANUAL
Before using the TV, Please read this manual thoroughly, retain it for
future reference.
English
H19K15E
F24K15E
F26K15E
H32K15E
(H19K15E)
( F24K15E / F26K15E / H32K15E )
2 screws F24K15E
3 screws F26K15E / H32K15E

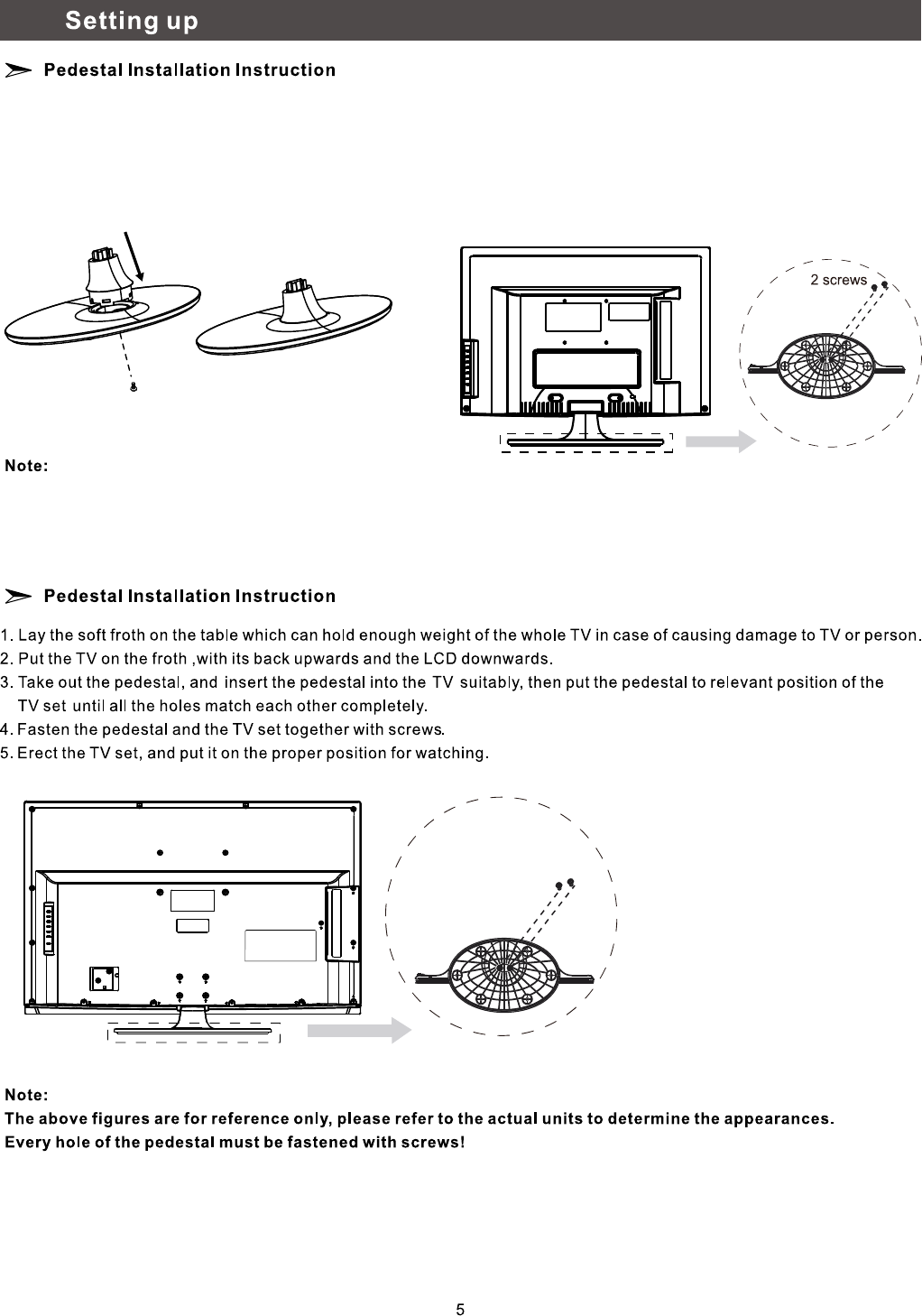

The stand includes four parts, such as neck, faceplate, spacers and screws .
Screws are used for connecting neck with faceplate and attaching the stand to the TV.
1. Attach the neck to the stand faceplate. Use the screw to fix them tightly.
2. Place the TV faced down on a soft cloth or cushion on a table.
3. Attach the stand to the TV set as shown in the picture.
4. Use the screws to fix the stand tightly.
1 screw
STEP 1 STEP 2

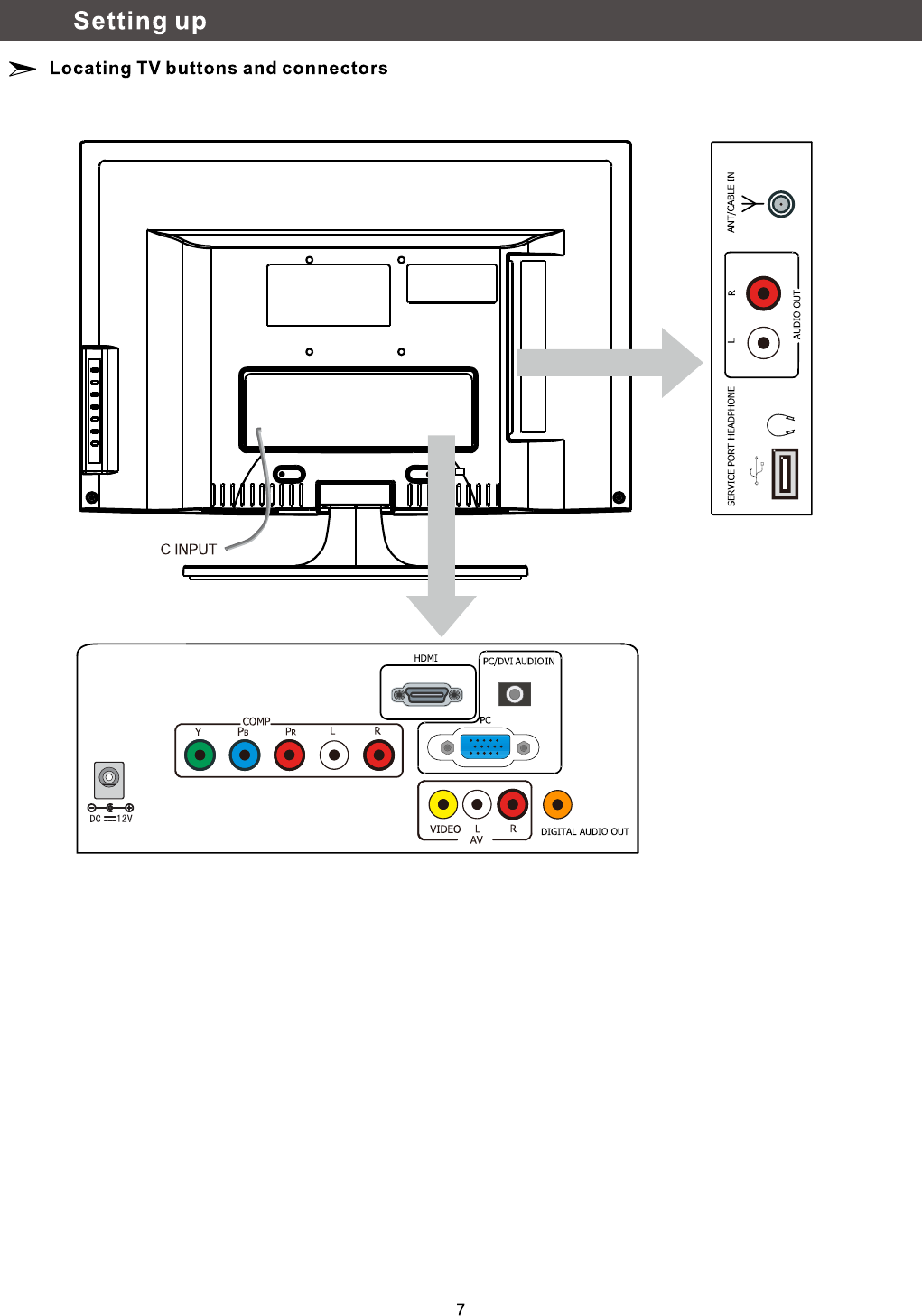

(H19K15E)
D

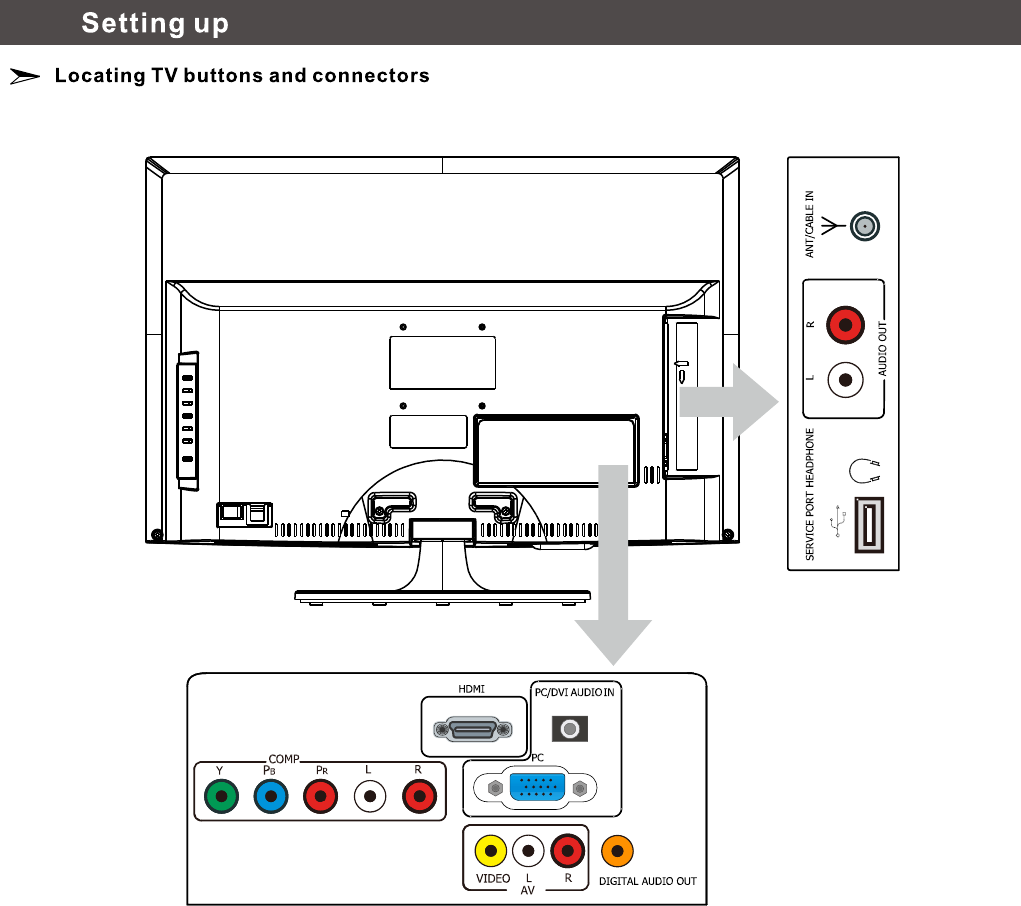

(F24K15E)
8

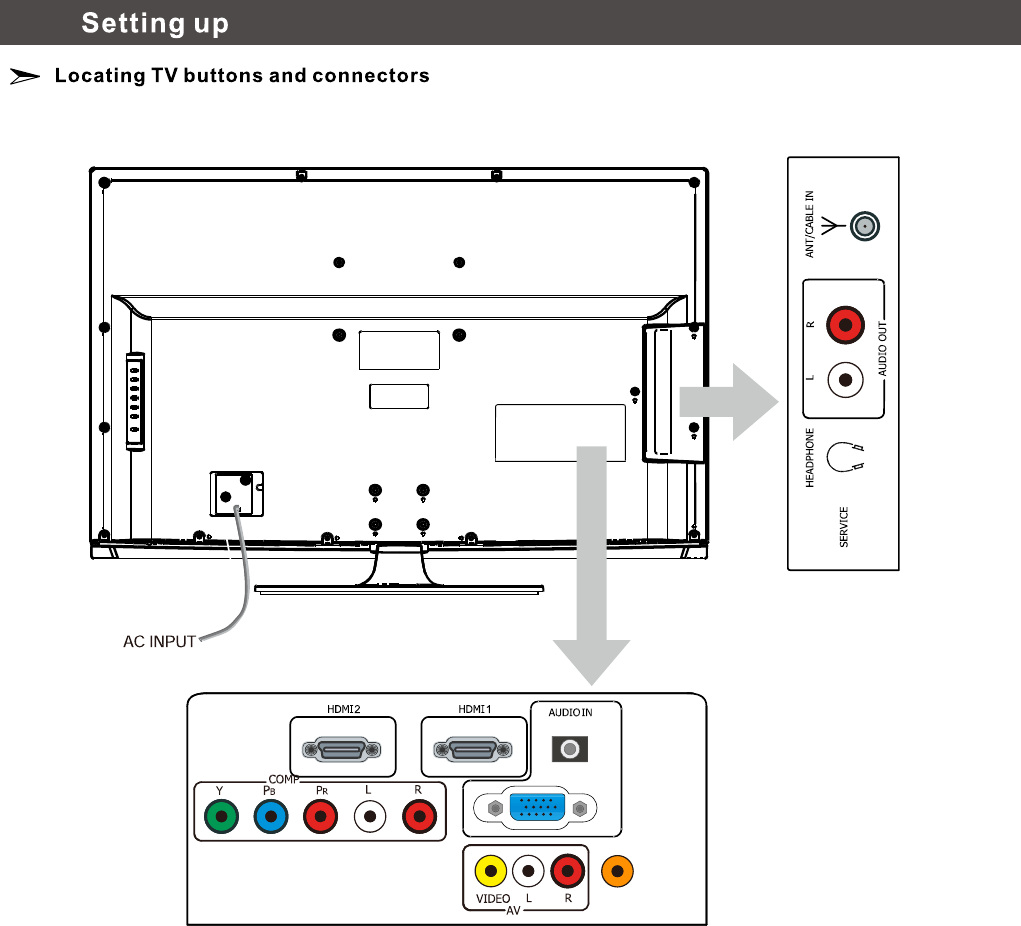

(F26K15E / H32K15E)
VGA
9
COAXIAL
