IC card reader/writer
Operations Manual
DRAFT FCC:ID NEEA02
M-660,670,680A Hitachi ,Ltd.
Caution & Warning
Failure to do the following may result in a decrease in
performance of the apparatus, trouble, breakage, deformation,
discoloring, electric shock, smoke, burning, or other dangers.
Warning
Do not disassemble or modify the product.
Do not insert alien substances such as an iron plate,
a plastic, paper. Do not insert an IC card that is out of the
standard.
While ACCESS LED turns on red, do not remove IC card
and an AC adapter.
When an abnormal smell, emission of smoke, fire or sound
is found, pull up a AC outlet immediately and do not use
them.
The AC adapter must use exclusive use AC adapter of the
attachment.
Caution
・Do not use this apparatus in moist or dusty environments.
・Do not leave this apparatus in high temperature or high
humidity environments and do not exposed to direct
sunlight.
・Do not drop the products from the desk, and do not apply
a strong shock.
・Do not insert the IC card with oil or dust to a Reader/Writer.
・Do not insert IC card upside down, do not insert IC card
revers direction, especially embossed card.
・Do not extend the cable.
・Please do not wipe it with benzene and thinner, alcohol.
・Please do not use IC card which puts the seal and the label,
etc.
DRAFT FCC:ID NEEA02
M-660,670,680A Hitachi ,Ltd.
CHANGES OR MODIFICATION NOT EXPRESSLY APPROVED BY
THE MANUFACTURER FOR COMPLIANCE COULD VOID THE
USER’S AUTHORITY THE OPERATE THE EQUIPMENT.
Note:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with instructions, may cause harmful
interference to ratio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does not harmful interference to ratio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received ,including
interference that may cause undesired operation.
DRAFT FCC:ID NEEA02
M-660,670,680A Hitachi ,Ltd.
CONTENTS
1.Introduction 1
2.Packing List 1
3.Names 2
4.Operation 3
5.General Specifications 5
6.Outer dimensions 6
DRAFT FCC:ID NEEA02
M-660,670,680A 1
Hitachi ,Ltd.
1.Introduction
M−660A(670A,680A) is interface device for organization of IC card
system with connecting to external facilities such as PC by RS-232C
interface.
Before using this apparatus, read this manual and follow the instruction
for proper operation.

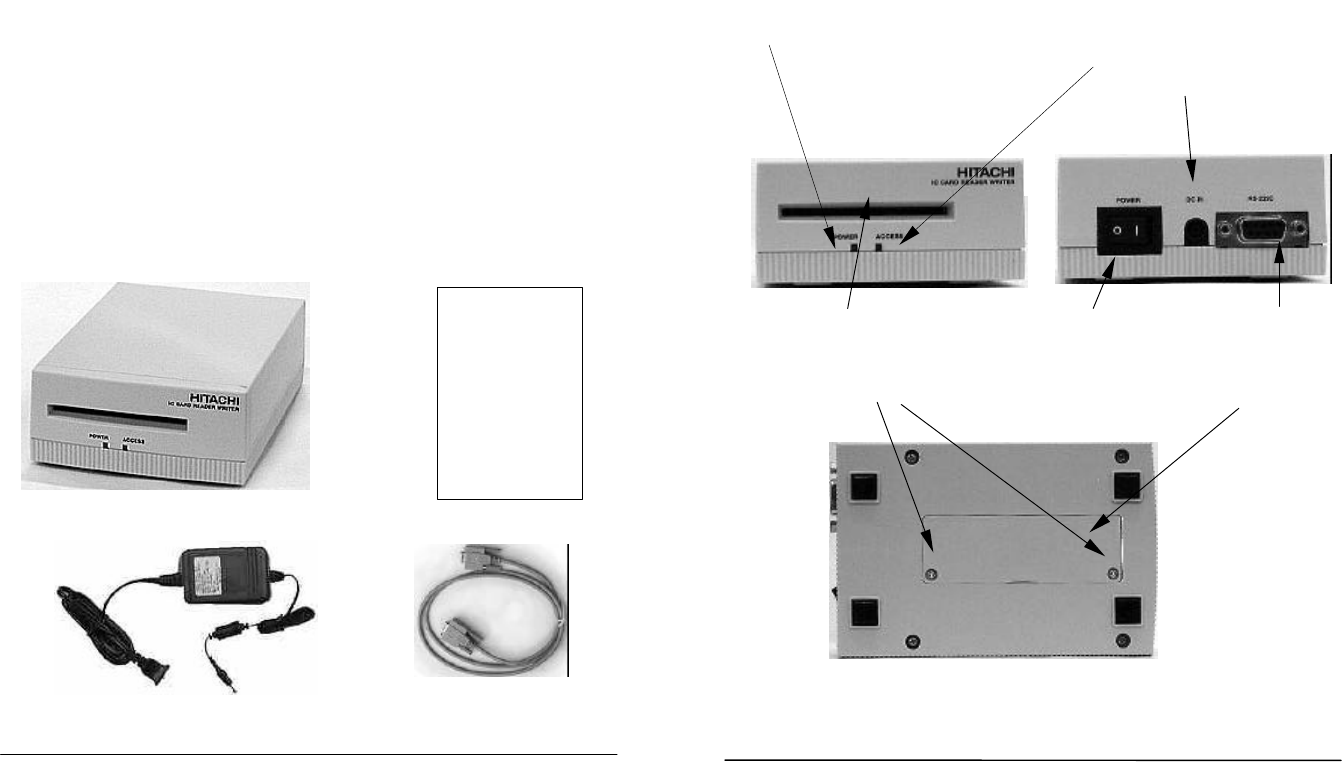

2.Packing List
1)M-660A(or670Aor680A)the apparatus ……………1
2)AC adapter ………………………………1
3)Cable ………………………………1
4)Operations manual ………………………………1
Smart Card Reader/Writer
M-660A
M-670A
M-680A
Operation Manual
HITACHI
M-660A(or 670A,680A)
Operations manual
AC adapter
Cable
DRAFT FCC:ID NEEA02
M-660,670,680A 2
Hitachi ,Ltd.
ACCESS LED
Lighting while energizing to
IC card.
3. Names
Names of each part are following.
POWER LED
Lighting while supplying the
main body power supply
AC adapter inlet
Power source switch RS-232C Interface
IC card insertion entrance
SIM cover
(Only 670A and 680A are used.)
Screw for cover fixation
There is a SIM con
nector when this
screw is removed.
DRAFT FCC:ID NEEA02
M-660,670,680A 3
Hitachi ,Ltd.
4.Operation
4.1 Connection
1)Connect the attached AC adapter to the “DC IN” of the back
side of apparatus, make sure that “POWER” of the back side of the
apparatus must be “O”.
2)Connect the attached RS-232C cable to “RS-232C” of back side of
apparatus and serial interface of PC.
4.2 Power on (preparation of communication)
1)Set the “POWER” switch of back side of the apparatus to “I” side.
Then, POWER LED light on. Preparation is finished.
If you put power on, when IC card is still inside, IC card will be ejected
by automatic ejection. In that case remove IC card from the
apparatus
and power off. Power on again.
4.3 IC card insertion
Insert IC card with “contact”on the upper surface.
Since this apparatus is motor driven, if you insert IC card part of the
way, it will be inserted automatically.
When the motor does not rotate, it is not ready, so do not insert
IC card unreasonably.
4.4 Power off
After ejection of IC card, turn off the power switch. Power LED
light off.
DRAFT FCC:ID NEEA02
M-660,670,680A 4
Hitachi ,Ltd.
4.6 LED
1) The apparatus has 2 LED on the front. they have following
functions.
POWER: Power source ON, OFF and error.
ACCESS: Communication with IC card.
2)LED status correspond to each indications.
NO STATUS POWER
LED
ACCESS
LED
1 Self check ● ●
2 LED test ○ ○ 0.5sec
3 Self check NG △ △
4 Power on ○ ●
5 Accept card insertion ○ △
6 Card activation OK ○ ○
7 Card activation NG ○ △
8 Card eject OK ○ ●
9 Card jam △ △
10 Communication with IC card ○ ○
○ : on △ : blink ● : off
Note 1 : In case at error, LED keeps blind and partial command can be operated.
Note 2 : Jam can be solved after card ejection from the apparatus.
DRAFT FCC:ID NEEA02
M-660,670,680A 5
Hitachi ,Ltd.
5.General Specifications
1)Name IC card Reader/Writer
2)Model M-660A,670A,680A
3)Card insertion/ejection Motor drive
4)Acceptable IC card IC card conforming to ISO7816 with
“T=0”,”T=1”.Note :To Vpp control. The IC
card must be warped or bent under 2mm.
5)Host interface Based on RS-232C interface, asynchronous
6)Power supply DC12V±10% 800mA Max.
7)Durability 250,000 passes
8)Outer Dimensions 90(W)×135(L)×41(H)(mm)
9)Weight About 260g
10)Operating conditions 0∼40℃ 30∼85%RH(no condensation)
11)Storage conditions -10∼50℃ 30∼90%RH(no condensation)
12)AC Adapter model:WL12100D(well electronics co.,LTD)
(I/P:AC120V 60Hz 90mA,O/P:DC12V 1A)
Note: Do not use in conditions in which condensation may form.
It may damage the drive.
DRAFT FCC:ID NEEA02
M-660,670,680A 6
Hitachi ,Ltd.

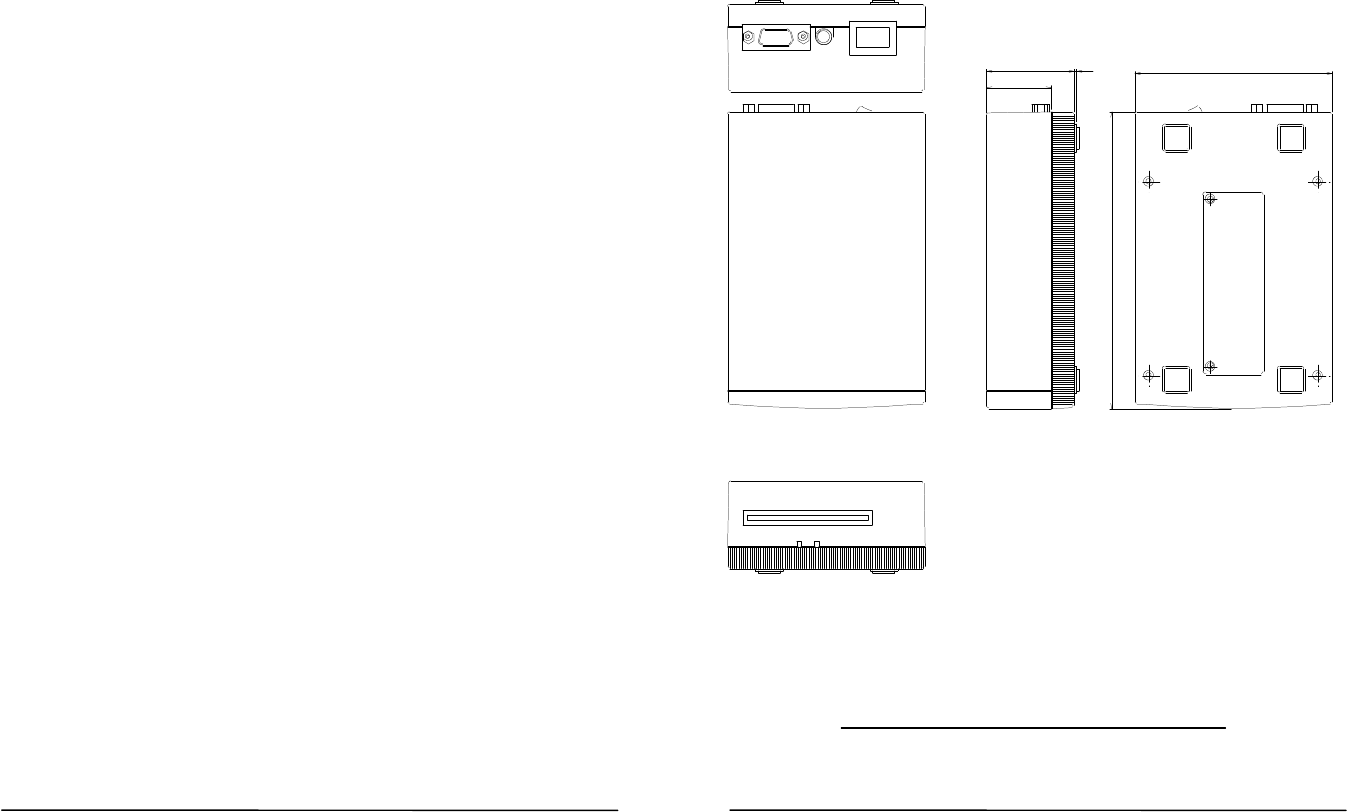

6.Outer dimensions
Smart card Reader/Writer
M−660A Operations manual
V1.00-R00 08.2000
Copyright©2000 Hitachi,Ltd.
All rights reserved.
H I T A C H I
IC CAR D RE ADER W R ITE R
POWER AC CE SS
RS−23
2C
DCI
N
POW
ER
O
N
O
F
F
29 . 5
4 0 1 90
1 3 5
