USER'S MANUAL

MANUEL UTILISATEUR

MANUAL DE USUARIO

READ THE INSTRUCTIONS INSIDE CAREFULLY.

KEEP THIS USER'S MANUAL FOR FUTURE REFERENCE.

For future reference, record the serial number of your monitor.

SERIAL NO.

The serial number is located on the rear of the monitor.

This monitor is ENERGY STAR® compliant when used with a computer equipped with

VESA DPMS.

The ENERGY STAR® emblem does not represent EPA endorsement of any product or

service.

As an ENERGY STAR® Partner, Hitachi,Ltd. has determined that this product meets

the ENERGY STAR® guidelines for energy efficiency.

Color Plasma Display Monitor

Model PW1A

42EDT41

ENGLISH

USER'S MANUAL

Thank you very much for purchasing the HITACHI Plasma Display

Monitor.

Before using your monitor, please carefully read the "SAFETY

INSTRUCTIONS" and this "USER'S MANUAL" so you will know how to

operate the monitor properly. Keep this manual in a safe place. You

will find it useful in the future.

Notes on lnstallation Work:

This product is marketed assuming that it is installed by qualifed

personnel with enough skill and competence. Always have an

installation specialist or your dealer install and set up the product.

HITACHI cannot assume liabilities for damage caused by mistake

in installation or mounting, misuse, modification or a natural

disaster.

Note for Dealers:

After installation, be sure to deliver this manual to the customer

and explain to the customer how to handle the product.

IMPORTANT SAFETY INSTRUCTIONS

SAFETY POINTS YOU SHOULD KNOW ABOUT

YOUR HITACHI PLASMA MONITOR

Our reputation has been built on the quality, performance, and ease of service of HITACHI Plasma monitor.

Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates

safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of

your HITACHI Plasma monitor.

Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a

safety problem should be discovered in your product model.

Follow all warnings and instructions marked on this monitor.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of a

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the appliance.

WARNING: • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS MONITOR TO RAIN OR MOISTURE.

• THE MONITOR SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS

FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THE MONITOR.

NOTE: • There are no user serviceable parts inside the monitor.

• Model and serial numbers are indicated on back side of the monitor.

CAUTION: Adjust only those controls that are covered in the instructions, as improper changes or modifications not

expressly approved by HITACHI could void the user's authority to operate the monitor.

MODIFICATIONS: The FCC requires the user to be notified that any changes or modifications made to this device that are

not expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user's authority

to operate the equipment.

POWER SOURCE

THIS MONITOR IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE POWER CORD INTO A 120

VOLT 60Hz OUTLET.

TO PREVENT ELECTRIC SHOCK, DO NOT USE THE MONITOR'S (POLARIZED) PLUG WITH AN EXTENSION CORD,

RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO

PREVENT BLADE EXPOSURE. NEVER CONNECT THE MONITOR TO DIRECT CURRENT OR ANYTHING OTHER THAN THE

SPECIFIED VOLTAGE.

CAUTION: Never remove the back cover of the monitor as this can expose you to very high voltages and other

hazards. If the monitor does not operate properly, unplug the monitor and call your authorized dealer or

service center.

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Follow all warnings and instructions marked on this monitor.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding- type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11. Only use the attachments/accessories specified by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into apparatus, the

apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

15. Monitors are designed to comply with the recommended

safety standards for tilt and stability.

Do not apply excessive pulling force to the front, or top, of

the cabinet which could cause the product to overturn

resulting in product damage and/or personal injury.

16. Follow instructions for wall, shelf or ceiling mounting as

recommended by the manufacturer.

17. An outdoor antenna should not be located in the vicinity of

overhead power lines or other electrical circuits.

18. If an outside antenna is connected to the receiver be sure the

antenna system is grounded so as to provide some protection

against voltage surges and built up static charges. Section

810 of the National Electric Code, ANSI/NFPA No. 70-1984,

provides information with respect to proper grounding for the

mast and supporting structure, grounding of the lead-in wire to

an antenna discharge unit, size of grounding connectors,

location of antenna-discharge unit, connection to grounding

electrodes and requirements for the grounding electrode.

Note to the CATV system installer: This reminder is provided to

call the CATV system installer's attention to Article 820-40 of the

NEC that provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be connected to

the grounding system of the building, as close to the point of cable

entry as practical.

Do not place any objects on the top of the monitor which

may fall or cause a child to climb to retrieve the objects.

Disposal of this product may require specific instructions

pertaining to your resident state. For disposal or recycling

information, please contact your local authorities or the

Electronic Industries Alliance: www.eiae.org.

PREVENTION OF SCREEN BURN

Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed

(non-moving) patterns can cause permanent damage to the monitor. Such “SCREEN BURNS” constitute misuse and are NOT

COVERED by your HITACHI Factory Warranty.

PUBLIC VIEWING OF COPYRIGHTED MATERIAL

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may

require prior authorization from the broadcaster or owner of the video program material.

ANTENNA

LEAD IN

WIRE

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

NEC NATIONAL ELECTRICAL CODE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUNDING CONDUCTORS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250 PART H)

Important

Please read this User's Manual thoroughly, especially the Important

Safety Instructions on Page 2 to 3 and 6 to 10. Mis-use may cause

damage to your plasma monitor, which could shorten its lifespan, or

cause injury to yourself. Should you encounter any difficulty in the

set-up or operation of your monitor, firstly refer to the Troubleshooting

guide at the rear of this manual.

In the unlikely event of a problem occurring with your plasma monitor,

switch off at the mains sockets, pull out the plugs, and contact your

dealer immediately.

CAUTION

Under no circumstances remove the rear cover of your plasma

monitor.

Never guess or take any chances with electrical equipment of any

kind - it is better to be safe than sorry!

Software Notice

It is prohibited for the end user of this product to copy, reverse

engineer or reverse compile the software included therein, save to

the extent permitted by law.

Plasma Monitor

After the plasma monitor has been on for any length of time, you will

notice that the screen becomes warm. Please note that this is normal.

Sometimes the screen might have some tiny bright or dark spots.

Please note that this is normal.

CAUTION

To prevent scratches or damages to the plasma screen, do not

knock or rub the surface with sharp or hard objects. Clean the screen

with a soft cloth moistened with warm water and dry with a soft cloth.

A mild soap may be used if the screen is extremely dirty. Do not use

harsh or abrasive cleaners!

CAUTION

Use a soft cloth to clean the cabinet and control panel of the monitor.

When excessively soiled dilute a neutral detergent in water, wet and

wring out the soft cloth and afterward wipe with a dry soft cloth.

Never use acid/alkaline detergent, alcoholic detergent, abrasive

cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc.

especially because they would cause discoloration, scratches or

cracks.

Extended definition plasma display panel

The 42-inch color plasma display panel, with a resolution of 852 (H) x

480 (V) pixels, creates a high-definition, large-screen (aspect ratio :

16:9) and low-profile flat display. Free from electromagnetic

interferences from geomagnetic sources and ambient power lines,

the panel produces high-quality display images free from color

misconvergence and display distortion.

High Performance Digital Processor

A wide range of personal computer signals can be handled, from 640

x 400, 640 x 480 VGA to 1600 x 1200 UXGA.(RGB Analog input)

Easy-to-use remote control and on screen

display system

The remote control included eases the work of setting display controls.

Further, the on-screen display system, displays the status of signal

reception and display control settings in an easy-to-view fashion.

Power saving system

The International ENERGY STAR® power saver feature saves power

consumption automatically when input signals are not available.

When connected to a VESA DPMS-compliant PC, the monitor cuts its

power consumption while it is idle.

TruBass

TruBass, SRS and (O) symbol are trademarks of SRS Labs, Inc.

TruBass technology is incorporated under license from SRS Labs, Inc.

FEATURES

ENGLISH

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ........2

FEATURES ....................................................4

SAFETY INSTRUCTIONS ..............................6

COMPONENT NAMES ................................11

Main Unit............................................................................11

Remote control ..................................................................12

Loading Batteries ............................................................12

Handling the Remote Control ..........................................12

INSTALLATION INSTRUCTIONS ................14

Installation..........................................................................14

Anti-tumble measures........................................................14

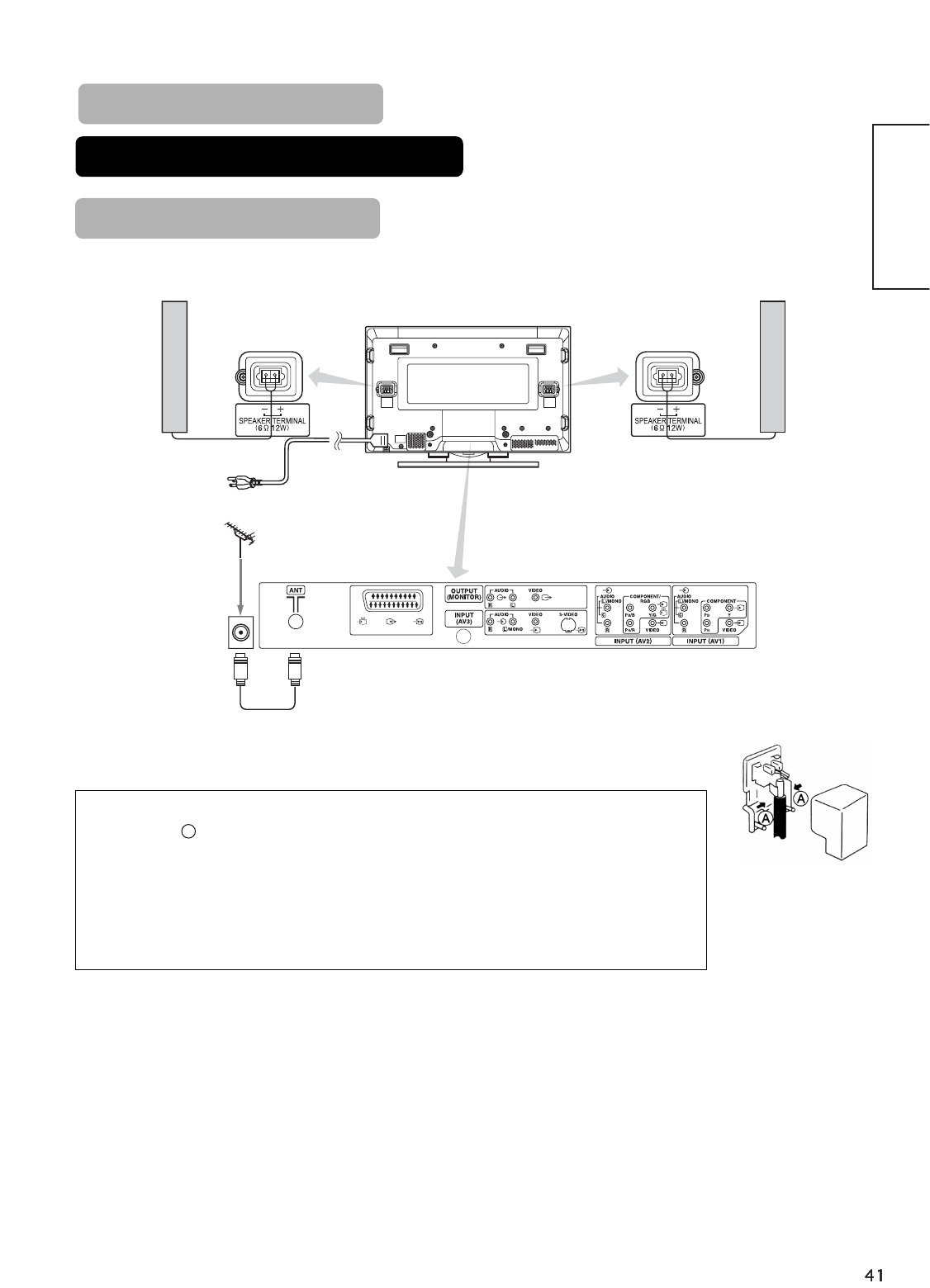

Connecting to a PC ..........................................................15

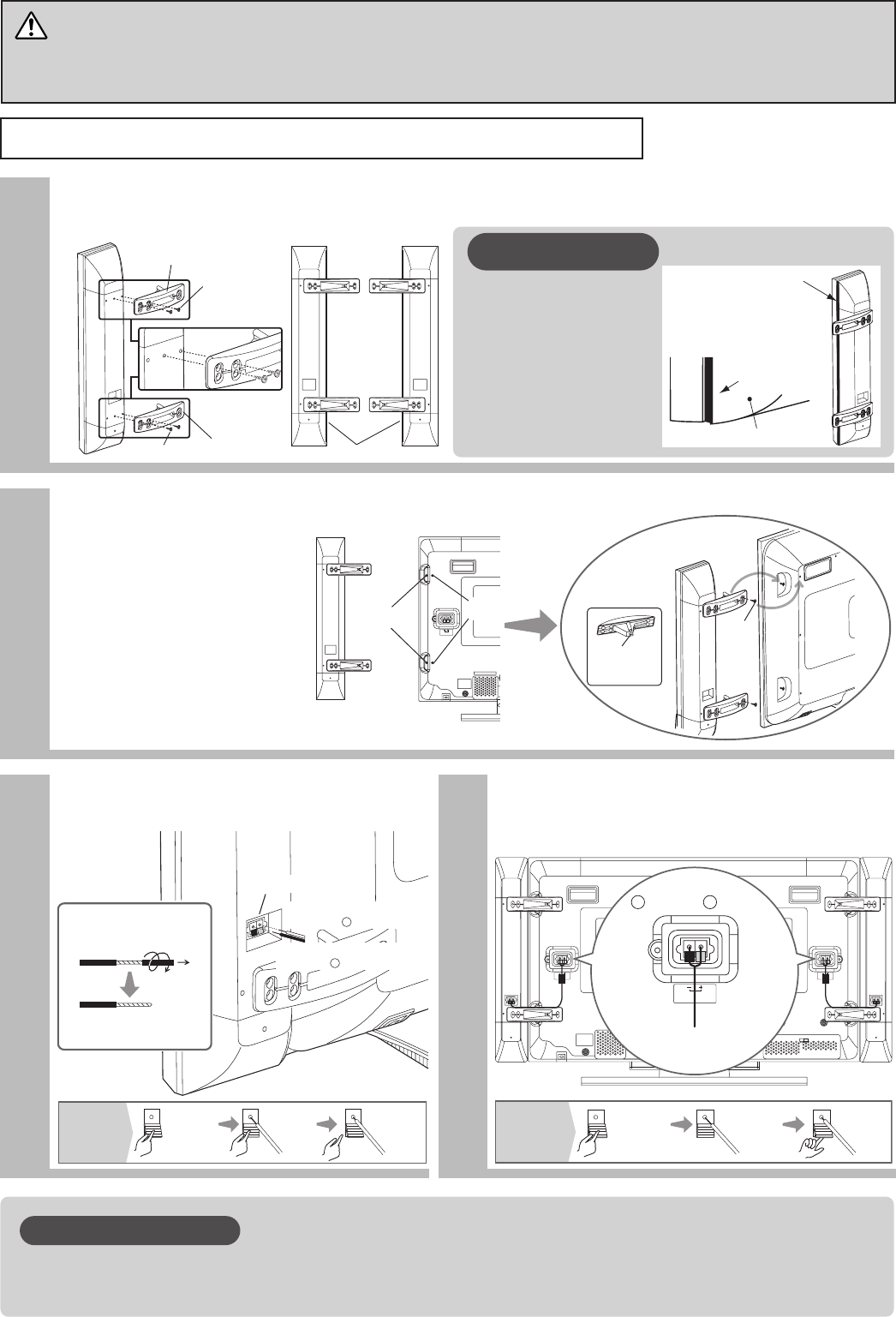

Mounting the Speaker Unit ..............................................16

Power Cord Connection ....................................................16

OPERATING INSTRUCTIONS ....................17

Turning Power On and Off ................................................17

Input Switching ..................................................................18

Volume Adjustment............................................................18

Audio Mute ........................................................................18

Size Switching ..................................................................19

Input Signal Screen Display ..............................................19

Using the Menu Screen ....................................................20

PICTURE MENU ................................................................21

AUDIO MENU ....................................................................22

TIMER MENU ....................................................................22

FUNCTION MENU ............................................................23

SETUP MENU ....................................................................24

LANGUAGE MENU............................................................25

Notes about This Manual

• The information in this manual is subject to change without notice.

• While meticulous care has been taken in the preparation of this manual, you are requested to notify your dealer or us should you have any

comments, views or questions about our product.

• Fully understand the prerequisites to using the product, such as hardware and software specifications and constraints, in using the

product. We are not held liable for damages caused by improper handling of the product.

• Reproduction of this manual in whole or in part without our prior written permission is prohibited.

• The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners.

OTHER FEATURES ....................................25

Automatic Store ................................................................25

Signal Check ....................................................................26

Power Save Mode..............................................................26

IMAGE RETENTION OF PLASMA DISPLAY

......27

NOTES ........................................................27

TROUBLESHOOTING ..................................28

Symptoms That Seemingly Appear to be Failures ............28

Actions to Correct Abnormal Displays ..............................30

Video Unit Function ..........................................................31

Tuner Unit Function ..........................................................41

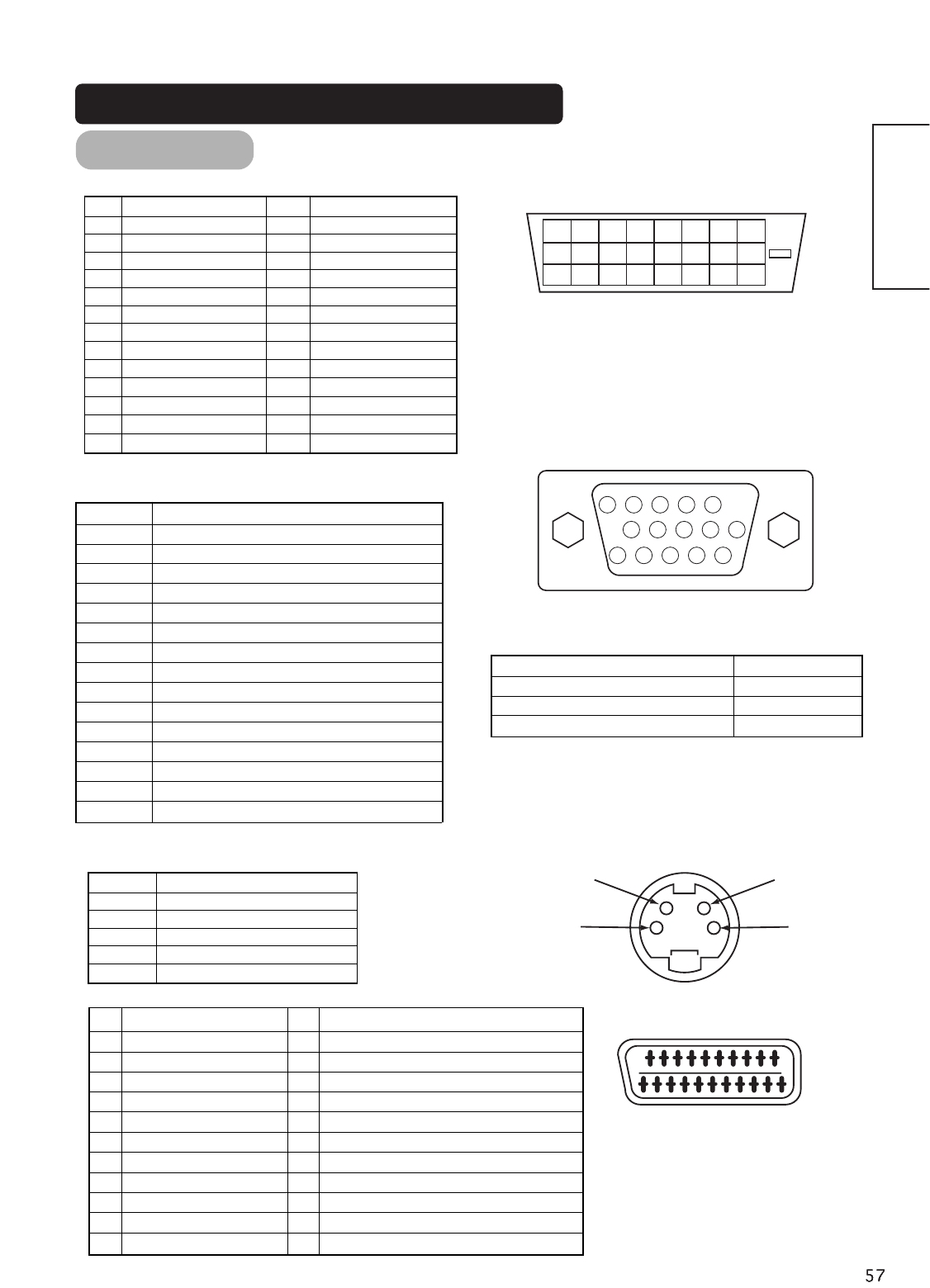

PRODUCT SPECIFICATIONS ......................56

Signal Input........................................................................57

Recommended Signal List ................................................58

SPEAKER INSTALLATION ....................................... 60

SAFETY INSTRUCTIONS

This Plasma monitor has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must

be taken if you are to obtain the best results and safety is to be assured.

Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to

incorrect handling.

This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due

to incorrect handling.

CAUTION

Typical Symbols

WARNING

Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the user and

others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions

thoroughly and fully understand the contents.

About the Symbols

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.

This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left

indicates that disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left

indicates that the power plug should be disconnected from the power outlet).

Never use the monitor if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables,

penetration of liquids or foreign matter, etc. can cause a fire or electrical shock.

In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure

that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be

dangerous.

Do not insert liquids or foreign objects.

Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children

are present.

If liquids or foreign objects should enter the projector, immediately turn off the power switch, disconnect the power plug from the

power outlet and contact your dealer.

• Do not place the monitor in a bathroom.

• Do not expose the monitor to rain or moisture.

• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the monitor.

• Do not place metals, combustibles, etc on or around the monitor.

Never disassemble or modify the monitor.

The monitor contains high voltage components. Modification could result in fire or electrical shock.

• Never remove any fixed cover.

Do not give the monitor any shock or impact.

If the monitor should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet

and contact your dealer.

Do not place the monitor on an unstable surface.

If the monitor should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

• Do not place the monitor on an unstable, slant or vibrant surface such as a wobbly or inclined stand.

Do not obstruct the ventilation of the monitor.

If the ventilation is obstructed during the operation of the monitor or just after switching off the power, it could result in damage

and shorten the lifespan of your monitor due to overheating. Make sure there is ample ventilation.

• Keep a space of 100mm (10cm) or more between the sides, rear and top of the monitor and other objects such as walls.

• Do not place anything around ventilation openings of the monitor.

• Never block ventilation openings.

• Do not put the plasma screen side up.

• Do not cover the monitor with a tablecloth, etc.

• Do not place the monitor on a carpet or bedding, or near a curtain.

Use only the correct power outlet.

Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the

monitor and the safety standard.

• The enclosed power cord must be used depending on the power outlet to be used.

WARNING

Disconnect the

plug from the

power outlet.

Do not

disassemble.

ENGLISH

SAFETY INSTRUCTIONS(continued)

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.

•

Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.

• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead,

obtain an appropriate extension lead or consult your dealer.

• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value,

type and approval as the original. Ensure the fuse cover is returned to its original position.

Be sure to keep safety ground connection.

Connect the ground terminal of AC inlet of this monitor with the ground terminal provided at the power outlet using the enclosed

power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

Be careful in handling the power cord and external connection cables.

If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat,

pressure or tension to the power cord and cables.

If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the monitor or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them

because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.

• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand

holding the plug or connector.

• Do not place the cord near the heater.

• Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.

• Do not touch the power plug when lightening is close to you.

• Avoid coiling the power cord and bending it sharply.

• Protect the power cord from being walked on, pinched particularly at plugs, conveniences receptacles, and the point where they

exit from the apparatus.

• Do not modify the power cord.

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

• Do not allow the battery to be exposed to fire or water.

• Avoid fire or high-temperature environment.

• Do not hold the battery with metallic tweezers.

• Keep the battery in a dark, cool and dry place.

• Do not short circuit the battery.

• Do not recharge, disassemble or solder the battery.

• Do not physically impact the battery.

• Use only the battery specified in the manual of this monitor.

• Make sure the plus and minus terminals are correctly aligned when loading the battery.

• If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or

clothes, rinse well with water.

• Obey the local laws on disposing the battery.

WARNING

Surely connect

the ground wire.

PRECAUTIONS

• Installation environment

Do not obstruct a ventilation hole.

Do not put the monitor on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the monitor.

Do not put the monitor in the following places.

• Hot places such as near heater, place exposed to the direct rays of the sun.

• A place where the temperature is widely changing.

• Places with soot, dust or high humidity.

• Poor air ventilation place.

• Place near fire.

• A wet place such as bathroom, or shower room.

• Place where you can trip over it.

• Always vibrating or strongly vibrating places.

• Distorted or unstable places.

• How to view the monitor

If you use the monitor in too dark a room, your eyes may become tired.

Please use it in a reasonably bright room.

Avoid direct rays of the sun to the screen in order to prevent eye fatigue.

Your eyes will get fatigued after viewing the monitor for long period of time.

Relax your eyes by viewing away from the monitor from time to time.

Please watch the monitor in downward direction.

• Note on image retention

The plasma monitor illuminates phosphor to display images. The phosphor has a finite illumination life. After extended periods of illumination, the

brightness of the phosphor will be degraded to such extent that stationary images would burn-in that part of the screen as grayed-out images.

Tips to prevent such image retention are:

- Do not display images having sharp brightness differences or high-contrast images, such as monochrome characters and graphic patterns,

for long.

- Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to move them using screen

saver function.

- Turn down the contrast and brightness controls.

• How to clean the plasma screen panel of the monitor

Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet.

To prevent scratching or damaging the plasma screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with

a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or

abrasive cleaners.

• How to clean the cabinet of the monitor

Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and

wring out the soft cloth and afterward wipe with a dry soft cloth.

Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially

because they would cause discoloration, scratches or cracks.

CAUTION

Be careful in moving the monitor.

Neglect could result in an injury or damage.

• Do not move the monitor during use. Before moving, disconnect the power plug and all external connections.

• You are advised to move the monitor with two persons.

• Avoid any impact or shock to the monitor; particularly take care of glass screen.

Do not put anything on top of the monitor.

Placing anything on the monitor could result in loss of balance or falling, and cause an injury or damage. Use special caution in

households where children are present.

Avoid a humid or dusty place.

Placing the monitor in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity.

Avoid a high temperature environment.

The heat could have adverse influence on the monitor and other parts, and could result in transformation, melting or fire.

• Do not place the monitor, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

• Do not put the monitor in a place where the temperature is widely changing.

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the monitor is not to be used for prolonged periods of time.

• Before cleaning, turn off and unplug the monitor. Neglect could result in fire or electrical shock.

SAFETY INSTRUCTIONS(continued)

Disconnect the

plug from the

power outlet.

ENGLISH

SAFETY INSTRUCTIONS(continued)

• Prevention of an obstacle to Radio receivers

This monitor has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers.

- Keep the monitor away from Radio.

- Adjust Radio antennas in order for the monitor not to receive interference.

- The antenna cable of Radio should be kept away from the monitor.

- Use a coaxial cable for antenna.

You can check if this monitor influences Radio receivers by turning off all other equipment other than the monitor.

If you find a problem receiving Radio when using the monitor, check the instructions mentioned above.

• Precautions for the cable connection

- Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are

properly made and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing

connections.

- Confirm the connector is fixed tightly when the signal cable is connected.

Also confirm the screws on the connector are tightened.

- Plug the power cord of the monitor into a different socket from that for other equipment, such as Radio etc..

- Use a plug with ground terminal and make sure that it connects to the ground.

• Precaution during transportation

Please pay attention when you transport this monitor because it is heavy.

Furthermore, use the original carton box and its packaging materials when the monitor is transported.

Failure to transport the monitor in any carton except the original carton may result in damage to the monitor.

Save the original carton box and all packing material.

Do not physically impact the remote control.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.

• Do not place heavy objects on the remote control.

Avoid strong rays.

Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause distorted images or noises.

• Avoid radio generator such as a mobile telephone, transceiver, etc. around the monitor.

Set the sound volume at a suitable level.

It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

• Precautions for the installation

- Do not use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved stand

or legs with the fixings provided according to the instructions.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury from tip-over.

- This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the

front, or top, of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury.

- Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

- Only use the attachments/accessories specified by the manufacturer.

- Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

• Other precautions

- Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a

stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or

handicapped people.

- Disposal of this product may require specific instructions pertaining to your resident region.

- Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

SAFETY INSTRUCTIONS(continued)

• FCC (Federal Communications Commission) STATEMENT WARNING

For model 42EDT41 PW1A

WARNING : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a paricular installation. If this equipment

does cause harmful inerference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from where the receive is connected.

- Consult the dealer or an experienced radio / TV technician for help.

Instructions to Users : This equipment complies with the requirements of FCC (Federal Communication Commission) regulations, provided

that following conditions are met.

Video inputs : The input signal amplitude must not exceed the specified level.

CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to

operate the equipment.

Declaration of Conformity

According to 47CFR, Part 2 and 15 for

Class B Personal Computers and

Peripherals; and / or

CPU Boards and Power Supplies used

with Class B Personal Computers:

We: Hitachi America, Ltd. Home Electronics Division

Located at: 900 Hitachi Way. Chula Vista, CA 91914, U.S.A.

Telephone: 1-800-HITACHI

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2

and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the

representative unit tested and found to be compliant with the standards. Records maintained

continue to reflect the equipment being produced can be expected to be within the variation

accepted, due to quantity production and testing on a statistical basis as required by 47CFR §

2.909. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any interference received, including

interference that may cause undesired operation. The above named party is responsible for

ensuring that the equipment complies with the standards of 47CFR § §1 5.101 to 15.109.

Trade name: Plasma Display Monitor

Model Number: 42EDT41 PW1A

ENGLISH

Caution when moving the main unit

• As this product is heavy, whenever it is moved, two

people are required to transport it safely.

• Whenever the unit is moved it should be lifted forwards

using the two handgrips at the back, and the unit should

then be held at the base on both sides for stability.

COMPONENT NAMES

Front

Cabinet

(front frame)

Panel

Remote-control

receiver

PROGRAM DOWM button

(SELECT button)

INPUT SELECT button

(OK button)

PROGRAM UP button

(SELECT button)

• Adjustment buttons are located

on the bottom.

• The back cover is provided with

indications to distinguish the

adjustment buttons.

SUB-POWER button

Control panel

VOLUME

UP/DOWN

buttons

(ADJUST

buttons)

Main power switch

• The main power switch is located at the back, on the

lower surface.

Indicating lamp

External device connection terminals

Rear

RGB input terminals

External

speaker

terminals

Handgrips

HandgripsHandgrips

Main Unit

External

speaker

terminals

MENU button

• ( ) indicates the function while the MENU is displayed on the screen.

Cabinet

(front frame)

COMPONENT NAMES(continued)

Remote control

Loading Batteries

1. Open the battery cover.

• Slide back and remove the battery

cover in the direction of the arrow.

2. Load batteries.

• Load two Size AA batteries included

observing the correct polarities.

3. Close the battery cover.

• Replace the battery cover in the

direction of the arrow and snap it back

into place.

Use the remote control within about 5 m from front of the unit’s

remote-control sensor and within 30 degrees on both sides.

With in 30

degrees

About 5m

About 3m

With in 30

degrees

About 3m

D / N

A / B

FREEZE

ZOOM

AV1

RGB1 RGB2

AV2 AV3 AV4

2-4-12

I / II

P+

P-

DVD

123

456

• Do not use new and old batteries together. The batteries could

explode or leak, resulting in fires, physical injury, or stains.

• When loading batteries, observe their correct polarities as marked

on the product. If loaded in the wrong direction, the batteries

could explode or leak, resulting in fires, physical injury, or stains.

CAUTION

ATTENTION

• Do not drop or impact the remote control.

• Do not splash the remote control with water or put it on a wet

object to avoid possible failures.

• Before leaving the remote control out of use for an extended

period of time, remove the batteries from it.

• If the remote control begins to lack responsiveness, replace the

batteries.

• Strong light such as direct sunlight impinging on the

photoreceptor of the remote control can cause operational

failure. Position this unit to avoid direct contact with such light.

Handling the Remote Control

ENGLISH

COMPONENT NAMES (continued)

Remote control (continued)

Anti-tumble measures

Securing to a wall or pillar

Using a commercially available cord, chain and clamp, secure the set to a firm wall or pillar.

Securing desktop

1) Using wood screws (two), fasten the set to the clamping screw holes on the rear of the stand as shown.

2) Using commercially available wood screws, secure the set firmly in position.

• Refer to the installation instructions concerning mounting of the Desk-top Stand.

The instruction manual is included with the Desk-top Stand.

The Desk-top Stand has been used for the illustrations in this manual.

INSTALLATION INSTRUCTIONS

Installation

• Installation of the wall mount unit and ceiling mount unit can be dangerous, so do not attempt this work

yourself. Ask your dealer to provide the name of a qualified installer.

• In order to prevent an internal temperature increase, maintain a space of 10cm (4 inches : For a desktop set-

up) or more between the sides and other objects such as walls, etc., so that the ventilation holes are not

blocked.(✻)

CAUTION

Have this unit mounted in a stable place. Take measures to prevent it from tumbling down to avoid possible physical injury.

CAUTION

10cm (4 inches) or more*

Cord

chain

Clamp

Two places

Wood screw

Hook

Chain cord or chain

clamp

Wall or Pillar

Use one of the special mount units to install this product. A mount of insufficient strength or inadequate design can cause overturning or

dropping and result in fire, electrical shock or injury. Please note that our company assumes absolutely no responsibility for personal injuries

or property damage caused by use of other mount units or improper installation.

WARNING

Monitor

Desk-top

stand

ENGLISH

Read SAFETY INSTRUCTIONS ( to ) carefully to ensure maximum safety before

proceeding to these steps:

• Choose an appropriate site and install the product on a level table where the stand is secure.

• Install the monitor to have ready access to a power socket available.

• Make sure that the power switch of this device is turned off.

INSTALLATION INSTRUCTIONS (continued)

(1) Make sure that the display signal of the personal computer to be used is compatible with the specifications of this

device.

• See "Product Specifications" concerning the specifications of this device.

(2) Make sure that the power switch of the personal computer is turned off.

(3) Connect the signal input terminal (RGB 1 or RGB 2) on the rear panel of this device to the display signal output

terminal of the personal computer.

• Use a cable that fits the input terminal of this device and the output terminal of the personal computer.

•Depending on the type of personal computer being connected, the use of an optional conversion adapter or the adapter provided with

the personal computer may be necessary in some cases. For details, refer to the instruction manual of the personal computer or ask the

personal computer manufacturer or your local retail dealer.

Connecting to a PC

①Connect the power cord to this device.

➁Connect the power cord plug to the power outlet.

(The type of plug is different from this drawing for some countries.)

Connect the power cord, after completing all other connections.

①

②

INSTALLATION INSTRUCTIONS (continued)

Power Cord Connection

• Use only the power cord provided.

• Do not use a power supply voltage other than that indicated (AC100-240V, 50/60Hz) as this may cause fire or electric shock.

CAUTION

Mounting the Speaker Unit

Refer to the installation instructions concerning mounting of the speaker unit.

The instruction manual is included with the Spaker Unit. Speakers

ENGLISH

OPERATING INSTRUCTIONS

Tur ning Power On and Off

•To turn the monitor power ON, press the main power

switch on the monitor main unit to ON, and then press

the SUB POWER button or the ON/OFF button on the

remote control.

•To turn the monitor power OFF, press the SUB POWER

button or the ON/OFF button on the remote control, and

then press the main power switch on the monitor main

unit to OFF.

• During normal use, the main power switch is set in the ON

position, and the monitor can then be turned ON/OFF using the

SUB POWER button or the ON/OFF button on the remote control.

Indicating lamp

Indicating

lamp Power status Operating

Off Off When the main power switch is set

to OFF.

Lights red Off

(standby)

When the main power switch is

ON, and the OFF button on the

remote control or the SUB POWER

button on the underside of the

front of the frame is OFF.

Lights green On

When the main power switch is

ON, and the ON button on the

remote control or the SUB POWER

button on the underside of the

front of the frame is ON.

Lights orange Off

(Power Save)

When the main power switch is

ON, and the ON button on the

remote control or the SUB POWER

button on the underside of the

front of the frame is ON.

However, the state in POWER

SAVE mode

When the indicating lamp lights in orange or the message “No Sync.

Signal”, “Power Save” or “Invalid Scan Freq.” appears on the screen,

there is something unusual about the status of reception.

See “Power Save Mode” or “Symptoms That Seemingly Appear to be

Failures.”

POWER ON/OFF

button

SUB-POWER button

Main power switch

Indicating lamp

ATTENTION

• Avoid repeatedly turning the monitor on and off at short time

intervals. Failures might result from such operation.

• Turn off the main power switch before leaving the monitor out of

use for an extended period of time.

• If a power failure occurs while the main unit is running, it would

be powered on upon recovery from the failure. Turn off the unit

main power switch before leaving the main unit.

OPERATING INSTRUCTIONS (continued)

Audio Mute

The audio volume can be temporarily mute by pressing

the MUTE button of the remote control.

• When a button is pressed, the volume adjustment

status guide (magenta) will be displayed.

• The volume setting can be lowered by pressing the VOL- button

while the audio is mute.

• The muting can be cancelled by pressing the VOL+ button or

MUTE button while the audio is mute.

When the MUTE button of the remote control is pressed

again, the audio will be restored and the volume display

(green) will appear.

MUTE button

Input Switching

• When a button is pressed, the volume adjustment

status guide will be displayed.

• The volume will increase when the VOL+ (or ▲) button is

pressed while the guide is being displayed.

• The volume will decrease when the VOL- (or ▼) button is

pressed while the guide is being displayed.

Volume Adjustment

The volume can be adjusted by pressing the VOL+ and

VOL- buttons of the remote control (or the ▲and ▼

volume buttons of the monitor unit).

Volume 15

Volume setting value

Adjustment status guide display

VOLUME

UP/DOWN buttons

INPUT SELECT button

RGB buttons

Adjustment status guide display

(The display color will change to magenta.)

VOLUME UP/DOWN

buttons

Volume 15

Volume setting value

Input can be switched by pressing the AV1, AV2, AV3,

AV4, RGB1 or RGB2 buttons of the remote control. And

the way to return to a TV channel is as follows:

• Pressing INPUT SELECT button at RGB2 input screen.

• Pressing some PROGRAM SELECT buttons and select a TV

channel.

• Pressing PROGRAM UP/DOWN buttons at the screen without

OSD(On-screen display).

Input can be switched in the sequence of TV AV1

AV2 AV3 AV4 RGB1 RGB2 by pressing the

INPUT SELECT button of the monitor or the remote

control.

TV AV1 AV2 AV3

RGB2 RGB1 AV4

ENGLISH

Size Switching

Each time the ZOOM button of the remote control is pressed, the screen display area will change in sequence and the

status will be displayed at the bottom of the screen.

* Real mode gives the image of the same shape as it is displayed on a computer monitor.

This mode is only available for VGA (640 X 480) and WVGA (864 X 480).

Normal Full Zoom1

Real Zoom3 Zoom2

ZOOM button

Input Signal Screen Display

RGB2

RGB

H : 48.4kHz

V : 60.1 Hz

-- -- Min.

-- -- : -- --

OFF

Input mode

Signal mode

Input horizontal frequency

Input vertical frequency

The input signal status can be displayed on the screen by pressing the RECALL button of the remote control or the monitor.

• The display will go out in approximately 6 seconds.

Off-timer

On-timer

RGB

OPERATING INSTRUCTIONS (continued)

RECALL button

Display area selection diagram (RGB input)

Resolution Full display Circular display

Display Full Normal Real Zoom1 Zoom2 Zoom3

640 X 480

(VGA)

800 X 600

(SVGA)

1024 X 768

(XGA)

1280 X 1024

(SXGA)

1600 X 1200

(UXGA)

Processes such as compression (thinning) and expansion are performed for the above signal display. Because of this, there is a possibility that

flicker may become noticeable on Zoom (1 ~ 3) depending on the display contents. If this occurs, turning the Vertical Filter On can reduce

the flicker.

* VGA and W-VGA

only

Using the Menu Screen

(On-screen display system)

When the MENU button is pressed, the adjustment menu

screen will be displayed; from there, PC signal adjustment

and setting is possible by using the SELECT button,

ADJUST button and OK button.

• Refer to - concerning the adjustment items and the

settings.

Example: Selecting the Picture screen

1. Press the MENU button to display the Main Menu

screen.

2. Press the OK button to display the Picture Menu

screen. (Use the and SELECT buttons to select

other items.)

3. Use the and SELECT buttons to select the item to

be adjusted and then use the and ADJUST

buttons to adjust (example: Contrast).

• Press the RETURN button to return to the previous screen.

• If there is no operation for a period of one minute, the

Adjustment Menu screen will be closed automatically.


Contrast : + 31

Brightness : – 31

Color : 0

Tint : + 31

Picture Enhancement : Off

Color Temperature : Normal

Color Temp.Adjust

Reset Reset

Select Return Exit

CH+

CH-

OPERATING INSTRUCTIONS (continued)

MENU button

OK button

SELECT/ADJUST

buttons

RETURN buttons

Contrast + 31

Next / Prev Adjust Return

ENGLISH

PICTURE MENU

OPERATING INSTRUCTIONS (continued)

CH+

CH-

CH+

CH-

CH+

CH-

Selected characters Setup hint

Contrast Narrows the gap between

brightness and darkness.

Broadens the gap between

brightness and darkness.

Adjust for maximum visibility to suit the ambient brightness.

This can adjust further till [+40] by pressing and holding cursor

button at [+31]. The color for [+32] to [+40] numbers will change from

white to magenta. This special mode is better for dark scenes.

For brighter scene some parts of the picture might not be clear. We

recommend to set at [+31].

"Panel Life" in the Function Menu should be set to Normal when

Contrast setting is adjusted.

Brightness Black is subdued for

increased overall darkness.

Black is set off for increased

overall brightness.

Adjust to taste.

Color Darkens colors. Lightens colors. Adjust to taste.

Tint Enhances red and weakens

green.

Enhances green and weakens

red.

This is not available to adjust when receiving PAL/SECAM signal.

In this case the character will be grayed out.

Adjust for most realistic skin color.

Picture Enhancement

Off Low Middle High

Sets the clarity of small details to the desired level.

Color Temperature

Cool Normal Warm Black / White

Normally set to Normal.

Color Temp. Adjustment

Off On

Turn On when you wish to change color temperature depending on

the user's preference.

Amplitude Red Brighter scene is decreased in

reddish color.

Brighter scene is increased in

reddish color.

Adjust color temperature depending on the user’s preference. These

settings are independently stored in each of the 4 Color Temperature

modes.

Green Brighter scene is decreased in

greenish color.

Brighter scene is increased in

greenish color.

Blue Brighter scene is decreased in

bluish color.

Brighter scene is increased in

bluish color.

Cut Off Red Dark scene is decreased in

reddish color.

Dark scene is increased in

reddish color.

Green Dark scene is decreased in

greenish color.

Dark scene is increased in

greenish color.

Blue Dark scene is decreased in

bluish color.

Dark scene is increased in

bluish color.

Reset (off the function) (waiting to reset) The original factory settings for the items of this Menu page can be

restored by pressing the OK button.

Selected characters Setup hint

Audio Mode

Movie Music Speech Favorite

Movie: This selects the audio suitable for Movie.

Music: This selects the audio suitable for Music.

Speech: This selects the audio suitable for News, Talk show etc.

Favorite: This mode should be adjusted depending on user’s

preference.

Treble Suppresses treble. Enhances treble. Adjust to taste.

Bass Suppresses bass. Enhances bass. Adjust to taste.

Balance Suppresses right-side sound. Suppresses left-side sound. Adjust to taste.

SRS TruBass

Off Low Middle High

SRS TruBass takes advance of the ability of the human ear to be able

to distinguish between two different tones. By using this ability,

TruBass gives enhanced bass sound that otherwise would not be

heard. Adjust it depending on the user’s preference.

Matrix Surround

Off On

This features the spacious sound effects of a stadium.

Perfect Volume

Off On

This will automatically adjust volume so each channel and input has

the same average volume level.

Reset (off the function) (waiting to reset) The original factory settings for the items of this Menu page can be

restored by pressing the OK button.


Audio

Timer

Function

Setup

Language

Select

OK Set

Audio

Audio Mode : Movie

Treble : + 10

Bass : – 10

Balance : 0 L R

SRS TruBass : Middle

Matrix Surround : Off

Perfect Volume : Off

Reset Reset

Select Set Return

CH+

CH-

AUDIO MENU


Audio

Timer

Function

Setup

Language

Select

OK Set

Timer

Off Timer : 30Min.

On Timer : - - : - -

Select Adjust Return

CH+

CH-

TIMER MENU

Selected characters Setup hint

Off Timer

--Min. 30Min. 60Min.

120Min. 90Min.

This function automatically sets the power to standby status when the

indicated time period has elapsed.

On Timer - - ( : - - )

hours

(- - : )- -

minutes

This automatically sets the power from standby to ON when the

indicated time period has elapsed. The settable time is 00:00~11:59.

Input the required time by SELECT buttons on the remote

control.

OPERATING INSTRUCTIONS (continued)

ENGLISH


Audio

Timer

Function

Setup

Language

Select

OK Set

Function

Screen Saver Off

Screen Wipe On 60Min.

Black Side Panel Off

Video Power Save Off

Freeze Mode Split

Default Zoom Panoramic

Reset Reset

Select Set Return

CH+

CH-

FUNCTION MENU

CH+

CH-

Function

Panel Life Normal

Mode Display Off

ID Number 1

Inverse On 60Min.

Standby White Off

Gamma 2.2

Reset Reset

Select Set Return

Selected characters Setup hint

Screen Saver

Off 5Min. 10Min.

60Min. 40Min. 20Min.

This moves the picture around the screen in small amounts, at set

intervals, to reduce the panel image retention. This is where

stationary objects, such as screen logos, leave a slight image visible

after they should have disappeared.

Screen Wipe On 60Min.

This is used to reduce the panel image retention that can occur with

stationary pictures by the white field signal. Select On (continuous

operation) or 60 Min. (time limit operation) and press the OK button.

Press the MENU or RETURN button on the remote control to return to

normal viewing.

Black Side Panel

Off On

This turns the gray sidebars On/Off when watching normal mode

screen size area. It is always set to Off when the monitor powered

On. It is recommended to set to Off to reduce the panel image

retention.

Video Power Save Optional (grayed out)

Freeze Mode Optional (grayed out)

Default Zoom Optional (grayed out)

Reset (off the function) (waiting to reset) The original factory settings for the items of this Menu page can be

restored by pressing the OK button.

Panel Life

Normal Extend 1 Extend 2

This function is to suppress the contrast of the screen regardless of

the Contrast setting in the Picture Menu. By this control, power

consumption can be reduced or degradation of a panel can be

mitigated.

The order of power consumption is Extend 2 < Extend 1 <

Normal.

If the Contrast setting is changed when this item is set to Extend 1 or

2, it will be changed to Normal automatically.

Mode Display

Off On

This can display the Input Signal Screen Display every time the input

mode and signal mode are changed.

Set to OFF if the Input Signal Screen Display is not needed when

switching signals.

ID Number

1 2 3 4

7 6 5

Assigns ID nos. to the monitors so that they can be controlled

individually (up to 7 monitors can be controlled).

Inverse On 60Min.

This function can change each level of RGB signal invert to reduce

the panel image retention. When this function is required to use,

select On (continuous operation) or 60Min. (time limit operation) and

press the OK button. And press the Menu or Return button to exit.

Standby White

Off 15Min. 30Min.

120Min. 60Min.

This function is also provided against the image retention. If time is

set for this item, the screen changes into the white pattern when the

monitor enters power save mode, and it will continue for the period of

setting time.

Gamma

2.2 2.8

Normally set to 2.2.

OPERATING INSTRUCTIONS (continued)

SETUP MENU


Audio

Timer

Function

Setup

Language

Select

OK Set

Setup

Auto Adjust Adjust

Horizontal Position 0

Vertical Position + 31

Horizontal Clock – 20

Clock Phase 10

Reset Reset

Select Return Exit

Setup

Input Level 0.7V

Frequency Display Off

WVGA Type Off

WXGA Mode Off

Vertical Filter On

Frequency Mode Movie

RGB1 DVI-PC

RGB2 RGB

Select Set Return

CH+

CH-

CH+

CH-

OPERATING INSTRUCTIONS (continued)

* Depending on the type of signal displayed, displays may not be optimized through automatic adjustment. Adjust manually to optimize them.

CH+

CH-

Horizontal Position 0

Next / Prev Adjust Return

Setup

Auto Adjust Adjust

Horizontal Position 0

Vertical Position + 31

Horizontal Clock – 20

Clock Phase 10

Reset Reset

Select Return Exit

CH+

CH-

CH+

CH-

Clock Phase 10

Next / Prev Adjust Return

ENGLISH

OPERATING INSTRUCTIONS (continued)

LANGUAGE MENU


Audio

Timer

Function

Setup

Language

Select

OK Set

Language

English

Français

Español

Select Return Exit

CH+

CH-

Select a language by ▼▲SELECT buttons and press the OK button.

OTHER FEATURES

Automatic Store

Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below.

• The previously recorded items will be lost.

• The signal mode can be identified by the horizontal/vertical sync

frequency and the sync signal polarity. Different signals with which

all the elements are the same or similar will be handled as the

same signal.

Signal Check

Status Display Action

When Mode Display is set to ON,

the input signal is switched or

when the RECALL button is

pressed.

A guide is displayed for the input

terminal and the horizontal and

vertical sync frequency.

When the sync signal is no longer

detected.

• A guide displays No Sync.

Signal, and Power Save (for

approx. 5 sec.)

• When the condition continues

where the sync signal cannot be

detected, indicator lamp of

power source changes in

orange and the mode switches

to power save mode.

Recheck the personal computer

power switch status and the

connection status.

When the input signal does not

match the monitor specifications

or is in an unstable status.

A guide displays Invalid Scan

Freq.

Recheck the input signal

specifications.

! No Sync. Signal

Changes in the signal status are displayed on the screen as they arise.

OTHER FEATURES (continued)

RGB2

RGB

H : 48.4kHz

V : 60.1 Hz

-- -- Min.

-- -- : -- --

OFF

RGB

! Invalid Scan Freq.

Power Save Mode

When the RGB1, RGB2 input is selected

• When this unit is connected to a VESA DPMS computer, the Power Save (Off) mode can be set to be activated automatically when the

computer is not being used to reduce power consumption by this unit.

RGB sync signal Horizontal Yes No Yes No

Vertical Yes Yes No No

PC signal Active (normal display) Blank (no display)

Operation mode On Off

Indicating lamp Lights green Lights orange

Power consumption 310W

3W or less (RGB1)

1W or less (RGB2 ; 100V AC 120V)

3W or less (RGB2 ; 120V AC 240V)

Returning to operating status

• Operate the personal computer, or press either the INPUT SELECT button of the main unit or the RGB1/RGB2 buttons of the remote control.

ENGLISH

NOTES

About screen defects

• High precision technology is used in the making of plasma panels but there may be dark spots (points that do not illuminate) and bright spots

(points that are too bright) in some cases. These do not indicate a malfunction.

About residual images

• In some cases, residual images may remain after the short-term display of still images and another image is displayed, but these will

disappear and return to normalcy. This is not a malfunction.

About the panel screen

• Plasma displays display images by means of electrical discharges inside the panel. Because of this, the temperature of the panel surface may

rise in some cases.Also, plasma displays are made of finely processed glass. A reinforced glass filter is installed over the panel surface but

avoid strong impact because there is still danger of glass breakage.

IMAGE RETENTION OF PLASMA DISPLAY

There are different characteristics that result in panel image retention depending on how the plasma display is used.

Situations and effective usage methods related to ghosting are provided below.

Image retention characteristics of a plasma display

The image retention phenomenon of a plasma panel occurs due to partial phosphor degradation arising from partial character and figure

display.

For example, when the character image as shown in Fig. A at the right is

continuously displayed for a long period of time, the only part of the phosphor

(Red,Green, Blue) that will degrade will be the color of the applicable character

display portion. Consequently, when a white image is displayed on the entire

screen as shown in Fig. a, the character marks displayed up to that time will

become a color difference visible to the eye, but the phosphor will never burn.

The degree of image retention is proportional to the brightness of the characters and figures displayed as well as the display time.

• The tendency of the phosphor is to degrade more the brighter the characters

and figures are displayed. When images of figures with different levels of

brightness, as shown in Fig. B, are continuously displayed for a long period of

time, it becomes easier for image marks at locations when the brighter figures

are displayed to be noticeable.

The image retention images in this document are exaggerated for the purpose of explanation. The actual manner in which the image retention

is seen differs depending on the operation time and brightness.

Methods to Reduce the Occurrence of Image Retention

• Lower the Contrast and Brightness settings of the plasma display as much as possible.

A function is provided in the display that controls the brightness of the screen to reduce degradation of the panel. Using this function makes it

possible to reduce image retention.

(Refer to Panel Life (Extend 1.or Extend 2 shown on )

• Set the plasma monitor to an “Screen Wipe” or “Inverse” display.

The occurrence of image retention when displaying images of identical patterns, such as static images, for long periods of time can be

reduced by displaying a reversed color or completely white screen for about 1 ~ 2 hours after terminating the display.

(Settings can be made using Screen Wipe and Inverse of Function MENU shown on )

• Using in combination with moving images

Since the degradation of the fluorescent material progresses comparatively uniform for moving images, the occurrence of partial image

retention can be controlled. We recommend to use in combination with moving images such as a DVD.

* Please be careful since image retention will occur if display is left in a two screen display state for a long period of time.

* Television broadcasts include images displayed for long periods of time in which the left and right or top and bottom of the image are cut and

broadcast station name or time are displayed for a long period of time at the same portion of the screen. Image retention in these portions can

be expected to occur, so please be aware.

Fig. A Fig. a

Fig. B Fig. b

Symptoms That Seemingly Appear to be Failures

Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer.

TROUBLESHOOTING

Customer servicing can be hazardous.

WARNING

Symptom Point to check See page

• No picture with the power-indicating lamp

off.

•Check the way the power cable is connected.

• Press the power switch.

• The message “No Sync. Signal” or “Power

Save” is displayed.

• No picture with the power indicating lamp

lights in orange.

! No Sync. Signal

No sync signal is detected.

• Check the way the signal cable is connected.

• Make sure that the switch of the computer, imaging equipment ,

etc., is turned on.

• Make sure the computer is not in the power-save mode.

• Check to see if the input selection matches the connection

terminal.

• The message “Invalid Scan Freq.” is

displayed.

! Invalid Scan Freq.

An input signal is not received normally.

• Check to see if the input signal matches the monitor

specifications.

• Check the way the signal cable is connected.

• The power indicating lamp is normally lit but

no picture .

• Check the contrast and brightness settings (adjust them for higher

contrast and brightness).

• Check the way the signal cable is connected.

• The display image appears flowing

slantwise.

• Text displayed across the screen appears

vertically streaked, with the characters in

vertical columns blurred.

• Adjust the dot clock frequency and phase. (Adjust the dot clock

frequency first, the dot clock phase next.)

(RGB input)

• Text displayed across the screen appears

blurred.

• A fine pattern flickers when displayed on the

screen.

• Adjust the dot clock phase for the clearest viewing.

(RGB input)

• The remote control does not work. • Check to see if the batteries are loaded in the remote control in

opposite direction.

• Check to see if the batteries in the remote control are OK.

ENGLISH

TROUBLESHOOTING (continued)

Symptoms That Seemingly Appear to be Failures (continued)

Depending on the kind of system equipment used, images may not be displayed normally. In this case, make the

adjustments suggested below. (only for RGB2)

Actions to Correct Abnormal Displays

• The display image may be momentarily disturbed during clock adjustment but this is not a failure.

TROUBLESHOOTING (continued)

Figure 1

ENGLISH

Video Unit Function

Monitor rear panel

Speaker (R) Speaker (L)

Power

cord

(1) Make sure that the power switch of the monitor is turned off.

(2) Make sure that the power switch of the imaging device is turned off.

(3) Use a commercially available cable and connector to connect the signal input terminal on the rear panel of this

device and the signal output terminal of the imaging device.

INSTALLATION INSTRUCTIONS

Connecting to a Video Imaging Device

• If video equipment with an S video output terminal is used, cabling

by the S video cable is recommended to provide finer video

quality. (If the S video input terminal and the video input terminal

of AV3 connect to the monitor at the same time, S video input

would govern.)

• If the OUTPUT (MONITOR) terminal is connected to an external

monitor with a 75 Ohm terminal, it is possible to view the same

image as on the main unit. But it is possible to monitor only the

composite video signal from AV1, AV2, AV3 or AV4 input that is

displayed on the screen at the time.

• If the adaptor is applied to AV4 input as shown in the drawing, it is

impossible to receive RGB signal.

With DVI-STB and RGB component setup

To component video

equipments.

Please use the connection

cable suitable for the terminal

form of video equipment.

Applicable video signals for each input terminal (See PRODUCT SPECIFICATIONS for details. )

Terminal RCA/SCART DVI D-sub Remarks

Signal CVBS S-video Component RGB PC STB RGB Component

AV1

AV2 Refer to Setup Menu.

AV3

AV4 Refer to Setup Menu.

RGB1 Refer to Setup Menu.

RGB2 Refer to Setup Menu.

(

Use if the

video

equipment

has an

S video

input terminal

To S video output

terminal

To audio output

terminals

To audio output

terminals

To component

output terminals

To component

output terminals

To component

input terminals

To component

input terminals

To composite

input terminal

To audio output

terminals

To audio input

terminals

20 18 16 14 12 10 8 6 4 2

21 19 17 15 13 11 9 7531

VCR

DVD player Set-Top Box

Video disc player

Adaptor

To composite

output terminal

S-video/Composite video

Do not connect both

plugs at the same time.

Use either of them.

[An example of connecting video imaging devices]

OPERATING INSTRUCTIONS

Input Switching

INPUT SELECT button

RGB/VIDEO

buttons

Each time the ZOOM button of the remote control is

pressed, the screen display size will change in sequence

and the status will be displayed at the bottom of the

screen.

Full

Size Switching

• During VIDEO signal input (AV1, AV2, AV3, AV4, RGB1

(set to [DVI-STB]) and RGB2 (set to [Component]))

• The size will fix as Full mode and not change when receiving the

component signal of 1080i/50, 1080i/60 or 720p/60.

4:3 Panoramic Zoom

Full Cinema

Display size selection diagram

When you want to Set the display size Input signal Display screen Remarks

Play a 4:3 image in a 16:9 screen faithfully. 43Blanking occurs on both sides.

Play a 4:3 image in a 16:9 screen with the

height and width of the middle of the

screen enlarged on equal scales and with

both sides appearing somewhat enlarged.

Panoramic

Play a 16:9 VISTA size image in the 4:3

image faithfully reproduced on the 16:9

screen.

Zoom

• The 4:3 image is called a letterbox

image.

• In some cases, some slight blanking may

remain at the top and bottom.

Play a 21:9 Cinema size image in the 4:3

image expanded vertically on the 16:9

screen.

Cinema In some cases, some slight blanking may

remain at the top and bottom.

Play a 4:3 image faithfully in a 16:9 screen

in the standard vertical size and

horizontally squeezed.*

Full

* An image with an aspect ratio of 16:9

shrunk horizontally to 4:3 to display in a

4:3 screen

(4:3 signal)

(Squeeze)

(Vista)

(Cinema)

ZOOM button

Input can be switched by pressing the AV1, AV2, AV3,

AV4, RGB1 or RGB2 buttons of the remote control. And

the way to return to a TV channel is as follows:

• Pressing INPUT SELECT button at RGB2 input screen.

• Pressing some PROGRAM SELECT buttons and select a TV

channel.

• Pressing PROGRAM UP/DOWN buttons at the screen without

OSD(On-screen display).

Input can be switched in the sequence of TV AV1

AV2 AV3 AV4 RGB1 RGB2 by pressing the

INPUT SELECT button of the monitor or the remote

control.

TV AV1 AV2 AV3

RGB2 RGB1 AV4

ENGLISH

ATTENTION

Using a wide-screen monitor

• This monitor has a screen mode selection feature. If an incompatible screen mode is selected to play certain software, such as a TV program,

the image would appear different from the original. Take this into consideration when making screen mode choices.

• Use of this monitor in its enlarged display mode with the wide feature enabled in coffee shops, hotels and other establishments for

commercial or pubic viewing purposes could infringe on the copyright holder’s right protected by Copyright Law.

• When a normal 4:3 image is displayed over the entire screen in the Panoramic mode, parts of the periphery of the image may disappear

and/or appear distorted in some cases. Use the 4:3 mode to view images, which were created in 4:3 mode.

This mode allows 4:3 content to be viewed without picture distortion.

Press

Vertical picture position can be adjusted for [Panoramic], [Zoom] and [Cinema] mode as follows.

1. Press ZOOM button and SELECT buttons during picture size display.

2. Position display will appear.

3. Adjustment range of each picture size are as shown below.

[Panoramic] - 12 to + 12

[Zoom] and [Cinema] - 31 to + 31

4. When 1080i/50 or 1080i/60 component signal is received, vertical position can be adjusted only one step up. (The range: 0 to +1)

Position + 31 Position - 31

Press

OPERATING INSTRUCTIONS (continued)

Displaying MULTI PICTURE

If the PinP button on the remote control is pressed MULTI

PICTURE will display.

Activating the P-in-P mode from the RGB input screen

Pressing the PinP button one time will display 2 pictures.

• This mode can be available from RGB1(DVI-PC) and RGB2(RGB)

input.

• The speaker icon can be shifted up and down by pressing the A/B

button; the audio of the video will be output from the side on which

the speaker icon is located.

• The sub-screen position can be

selected up and down by pressing

SELECT buttons.

• The sub-screen can be selected with

the AV1, AV2, AV3, AV4 and TV

channel number buttons from the

status that the speaker icon appears

on the left side of AV✱as shown in

the diagram to the right.

• Pressing the PinP button again or the RETURN button will cancel

the 2 pictures display.

• "Frequency Mode" in the Setup Menu should be set to Movie when

sub-screen is the component signal of 1080i/50 or 1080i/60.

AV1: Displays the VIDEO input signal of the sub-screen.

Activating the Split mode from the video input screen

Pressing the PinP button one

time will display 2 pictures.

• The speaker icon can be shifted left

and right by pressing the A/B

button; the audio of the video will be

output from the side on which the

speaker icon is located.

• The same video input mode cannot

be selected for both screens at the

same time.

• Pressing the PinP button again or the RETURN button will cancel

the 2 pictures display.

•

When the Video input is set to RGB Video, this Split mode is not possible.

•

Refer to the table for 2 pictures (Split) mode.

PinP button

RETURN button

RGB2

AV1

(Sub-

screen)

AV1 AV2

RECALL button

2 Pictures (Split)

Main Sub

The input signal status can be displayed on the screen

by pressing the RECALL button of the remote control or

the monitor.

• The display will go out in approximately 6 seconds.

AV1

Composite

-- -- Min.

-- -- : -- --

OFF

Input Signal Screen Display

Input mode

Signal mode

Off-timer

On-timer

VIDEO

NOTE

• Even if the input of the horizontal / vertical synchronizing signal (or video signal) stops in the MULTI PICTURE display, the mode will not

change to power save mode.

• Please be careful since image retention will occur if display is left in a MULTI PICTURE display state for a long period of time.

Input terminal AV1 AV4 AV1, AV2 RGB1 RGB2

PAL-N NTSC-M

PAL-M

576i

576p

480i

480p 1080i/50 1080i/60 720p/60 STB Component

AV1

AV4

PAL-N

NTSC-M , PAL-M

AV1

AV2

576i, 576p

480i, 480p

1080i/50

1080i/60

720p/60

RGB1 STB

RGB2 Component

(

Main Sub

A/B button

SELECT button

ENGLISH


Picture Mode Day

Contrast +31

Brightness -31

Color 0

Sharpness +15

Tint 0

Color Temperature Normal

Contrast Mode Normal

Reset Reset

Select Set Return

Picture Day

YNR Off

CNR Off

Film Mode On

PAL Comb Filter On

LTI Off

CTI Off

Black Enhancement Off

Auto Color Off

Reset Reset

Select Set Return


Color Temp. Adjust On

Amplitude

Red – 63

Green 0

Blue – 31

Cut Off

Red + 31

Green 0

Blue + 31

Reset Reset

Select On/Off Return

Picture Day

Color Temp. Adjust

Color Management

Color Decoding

Select Set Return

Picture Day

Color Temp. Adjust

Color Management

Color Decoding

Select Set Return

Picture Day

Color Temp. Adjust

Color Management

Color Decoding

Select Set Return


Color Management On

Magenta + 60

Red + 30

Yellow 0

Green + 60

Cyan + 30

Blue 0

Reset Reset

Select On/Off Return


Color Decoding

RGB R G B

Red 0

Green + 60

Color 0

Tint + 31

Reset Reset

Select Return Exit

OPERATING INSTRUCTIONS (continued)

PICTURE MENU

CH+

CH-

CH+

CH-

Picture Mode Day

Next/Prev Select Return

CH+

CH-


Picture Mode Day

Contrast +31

Brightness -31

Color 0

Sharpness +15

Tint 0

Color Temperature Normal

Contrast Mode Normal

Reset Reset

Select Set Return

Contrast Mode Normal

Next/Prev Select Return

CH+

CH-

CH+

CH-

CH+

CH-

Picture Day

YNR Off

CNR Off

Film Mode On

PAL Comb Filter On

LTI Off

CTI Off

Black Enhancement Off

Auto Color Off

Reset Reset

Select Set Return

CH+

CH-

YNR Off

Next/Prev Select Return

Auto Color Off

Next/Prev On/Off Return

CH+

CH-

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (continued)

Selected characters Setup hint

Picture Mode

Day Night

Day: This setting is best for very bright ambient lighting.

Night: This setting is for normal lighting conditions.

Contrast Narrows the gap between

brightness and darkness.

Broadens the gap between

brightness and darkness.

Adjust for maximum visibility to suit the ambient brightness.

This can adjust further till [+40] by pressing and holding cursor

button at [+31]. The color for [+32] to [+40] numbers will change from

white to magenta. This special mode is better for dark scenes.

For normal viewing we recommend that the Contrast is set to [+31].

"Panel Life" in the Function Menu should be set to Normal when this

Contrast setting is adjusted.

Brightness Black is subdued for

increased overall darkness.

Black is set off for increased

overall brightness.

Adjust to taste.

Color Darkens colors. Lightens colors. Adjust to taste.

Sharpness Soft Sharp Normally set to Centre position Shift to the minus (-) side for a softer

effect and plus (+) for sharper picture.

Tint Enhances red and weakens

green.

Enhances green and weakens

red.

This is not available to adjust when receiving PAL/SECAM signal.

Then the character will be grayed out.

Adjust for most realistic skin color.

Color Temperature

Cool Normal Warm Black / White

Normally set to Cool.

Contrast Mode

Normal Auto Dynamic

Dynamic:Emphasizes the differences between video shadings to

improve the feeling of contrast.

Normal : The gradation of an image is reproduced as faithfully as

possible.

Auto:Detects image brightness and automatically adjusts for natural

brightness.

Reset (off the function) (waiting to reset) The original factory settings for the items of this Menu page can be

restored by pressing the OK button.

YNR

Off Low High

Performs picture signal noise reduction. Turn up to reduce noise.

CNR Performs color signal noise reduction. Turn up to reduce noise.

And it will be fixed as Off only when selecting DVI-STB mode.

Film Mode

Off On

On:Automatically detects the movie film material and faithfully

reproduces the original film image.

Off:Set to OFF when switching between images does not appear

natural.

PAL Comb Filter

Off On

This is available only when receiving a PAL composite signal. Turn On

to reduce the discolorations in fine picture detail and provides purer

color.

LTI

Off Low Middle High

Adjusts the sharpness of the picture signal.

CTI Adjusts the sharpness of the color signal.

Black Enhancement Adjusts the black level compensation.

Auto Color

Off On

This is available only when receiving an NTSC composite/S.Video

signal. This monitors and adjusts the color to maintain constant color

levels. It also maintains natural flesh tones while preserving fidelity of

background colors.

Color Temp. Adjustment

Off On

Turn On when you wish to change color temperature depending on

the user's preference.

Amplitude

Red Brighter scene is decreased in

reddish color.

Brighter scene is increased in

reddish color.

Adjust color temperature depending on the user’s preference. These

settings are independently stored in each of the 4 Color Temperature

modes.

Green Brighter scene is decreased in

greenish color.

Brighter scene is increased in

greenish color.

Blue Brighter scene is decreased in

bluish color.

Brighter scene is increased in

bluish color.

Cut Off

Red Dark scene is decreased in

reddish color.

Dark scene is increased in

reddish color.

Green Dark scene is decreased in

greenish color.

Dark scene is increased in

greenish color.

Blue Dark scene is decreased in

bluish color.

Dark scene is increased in

bluish color.

ENGLISH

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (continued)

Selected characters Setup hint

Color Management

Off On

Turn On when the original balance of each color is required to adjust

depending on the user’s preference.

Magenta Magenta is weakened. Magenta is strengthened.

This adjusts listed colors individually to make them either deeper or

more pure. These settings are independently stored in each of the 4

Color Temperature modes.

Red Red is weakened. Red is strengthened.

Yellow Yellow is weakened. Yellow is strengthened.

Green Green is weakened. Green is strengthened.

Cyan Cyan is weakened. Cyan is strengthened.

Blue Blue is weakened. Blue is strengthened.

Color Decoding

RGB R G B

Select the single color screen when that is required to adjust R/G/B

level individually depending on the user’s preference. And set it back

to RGB mode that indicates all color after adjusting.

Press the OK button every time the setting is changed.

Red Darkens red only. Lightens red only.

This adjusts R/G/B level or tint to make the color appear natural for

the user’s preference. These settings are independently stored in

each of the 4 Color Temperature modes.

Green Darkens green only. Lightens green only.

Color Darkens colors. Lightens colors.

Tint Enhances red and weakens

green.

Enhances green and weakens

red.

FUNCTION MENU

1 item is added to the Menu shown in the page .


Audio

Timer

Function

Setup

Language

Select

OK Set

Function

Screen Saver Off

Screen Wipe On 60Min.

Black Side Panel Off

Video Power Save Off

Freeze Mode Split

Default Zoom Panoramic

Reset Reset

Select Set Return

CH+

CH-

CH+

CH-

Function

Panel Life Normal

Mode Display Off

ID Number 1

Inverse On 60Min.

Standby White Off

Gamma 2.2

Reset Reset

Select Set Return

Selected characters Setup hint

Video Power Save

Off On

This is used to reduce power consumption for video input when there

is no video signal. Setting it On will leads the monitor to the standby

mode when the AV input with no signal is selected.

OPERATING INSTRUCTIONS (continued)

SETUP MENU


Audio

Timer

Function

Setup

Language

Select

OK Set

Setup

System System 2

Color System

Video Input

Audio Input

Scart Output Monitor

RGB1 DVI-STB

RGB2 Component

HDTV

Select Set Return

Setup

System System 2

Color System

Video Input

Audio Input

Scart Output Monitor

RGB1 DVI-STB

RGB2 Component

HDTV

Select Set Return

CH+

CH-

CH+

CH-

MENU OK

Setup

Color System

AV1 Auto

AV2 NTSC-M

AV3 PAL-M

AV4 PAL-N

Select Return Exit

Setup

System System 2

Color System

Video Input

Audio Input

Scart Output Monitor

RGB1 DVI-STB

RGB2 Component

HDTV

Select Set Return

CH+

CH-

Setup

Video Input

AV1 Auto

AV2 Composite/Component

AV3 Auto

AV4 S.Video

Select Return Exit

Setup

Audio Input

AV1 Stereo

AV2 L/Mono

AV3 Stereo

AV4 L/Mono

Select Return Exit

Selected characters Setup hint

System

System1 System2

Do not change the original setting.

(System1 : Europe/Asia, System2 : North America)

Color System

AV1

Auto NTSC-M

PAL-N PAL-M

This should correspond to the color system of the signal from the

equipment that is connected to AV1 video input terminal.

• Normally, set this to Auto. The system of the input signal will be

automatically recognized.

• If the input signal contains much noise or has a low level at Auto and the

operation is found erratic, set this to match the input signal.

• When the component signal is received, this would be not available

(grayed out).

AV2

(Same to AV1)

AV3

AV4

Video Input

AV1

Auto HDTV SDTV/DVD

This should correspond to the signal mode of the signal from the

equipment that is connected to AV1 video input terminal.

• Normally, set this to Auto. The signal mode of the input signal will be

automatically recognized.

• If the input signal contains much noise or has a low level at Auto and the

operation is found erratic, set this to match the input signal.

AV2 (1st step)

RGB Composite/Component

This should correspond to the signal mode of the signal from the

equipment that is connected to AV2 video input terminal.

AV2 (2nd step)

Auto HDTV SDTV/DVD

This step should be set only when [Composite/Component] is selected on

the 1st step. And the procedure is same to AV1.

AV4

S.Video Composite

• If the signal from the equipment that is connected to AV4 Scart input

terminal is S.Video or Composite, set this to correspond to that signal.

• If the signal is RGB, it will be automatically recognized and this setting

will have no effect.

ENGLISH

OPERATING INSTRUCTIONS (continued)

SETUP MENU (continued)

Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below.

OTHER FEATURES

Automatic Store

Menu Display Registration condition

Picture Picture Mode 1 setting is registered.

Contrast For every input function and every

Picture Mode, 1 setting is

registered.

Brightness

Color

Sharpness

Tint

Color Temperature

Contrast Mode

YNR

CNR

Film Mode

PAL Comb Filter

LTI

CTI

Black Enhancement

Auto Color

Color Temp. Adjust

R Amplitude For every Color Temperature, 1

setting is registered.

G Amplitude

B Amplitude

R Cut Off

G Cut Off

B Cut Off

Color Management

For every input function and every

Picture Mode, 1 setting is

registered.

Magenta 1 setting is registered.

Red • The previously recorded items will be lost.

Menu Display Registration condition

Picture Yellow 1 setting is registered.

Green

Cyan

Blue

Color Decoding -

Red For every Color Temperature, 1

setting is registered.

Green

Color For every input function and every

Picture Mode, 1 setting is

registered.

Tint

Function Video Power Save 1 setting is registered.

Setup System 1 setting is registered.

Color System 1 setting is registered.

AV1

AV2

AV3

AV4

Video Input -

AV1 1 setting is registered.

AV2

AV4

Audio Input -

AV1 1 setting is registered.

AV2

AV3

AV4

RGB1

RGB2

Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer.

Customer servicing can be hazardous.

WARNING

Symptom Point to check See page

• The screen becomes dark and the images cannot be seen

during VCR special playback (fast forward, rewind).

• This sometimes occurs when a component output VCR such as

the 480i is connected.

This is not a malfunction; therefore, please take note that this may

occur. When it does occur, change to composite output, or S.video

output.

–

TROUBLESHOOTING

Symptoms That Seemingly Appear to be Failures

ENGLISH

Monitor rear panel

Speaker (R) Speaker (L)

20 18 16 14 12 10 8 6 4 2

21 19 17 15 13 11 9 7531

antenna

When the "ANT" terminal is connected to outdoor antenna instead of CATV system, please note that a good

antenna adaptor is necessary. See the diagram on the right.

Make sure that the power switch of the monitor is turned off.

Connecting Antenna

Precautions when connecting the antenna

• Clamp section A using pliers when installing the coaxial cable. If other types of adaptors are used, be sure

that the core and shielding are good.

• Please use a coaxial cable which is free from interference to connect the antenna. Avoid using a parallel flat

feeder wire as interference may occur, causing reception to be unstable and stripe noise to appear on the

screen.

• Avoid using indoor antenna as this may be affected by interference. Please use CATV net or outdoor

antenna.

• Keep the power cord as far away from the antenna wire as possible.

If there are noise appearance in the picture of VHF-Low band channel, please use the double-shielded cable (not

provided) for RF LEADS to reduce the noise.

VHF(300-Ohm) antenna / UHF antenna

When using a 300-ohm twin lead from an outdoor antenna, connect the VHF or UHF antenna leads to screws of

the VHF or UHF adapter. Plug the adapter into the antenna terminal on the TV.

When both VHF and UHF antennas are connected

Attach an optional antenna cable mixer to the TV antenna terminal, and connect the cables to the antenna mixer.

Consult your dealer or service store for the antenna mixer.

INSTALLATION INSTRUCTIONS

TUNER UNIT FUNCTION

OPERATING INSTRUCTIONS

POWER ON/OFF

button

Input can be switched by pressing the AV1, AV2, AV3,

AV4, RGB1 or RGB2 buttons of the remote control. And

the way to return to a TV channel is as follows:

• Pressing INPUT SELECT button at RGB2 input screen.

• Pressing some PROGRAM SELECT buttons and select a TV

channel.

• Pressing PROGRAM UP/DOWN buttons at the screen without

OSD(On-screen display).

Input can be switched in the sequence of TV AV1

AV2 AV3 AV4 RGB1 RGB2 by pressing the

INPUT SELECT button of the monitor or the remote

control.

VOLUME

UP/DOWN buttons

INPUT SELECT button

(OK button)

PROGRAM UP/DOWN

buttons

TV AV1 AV2 AV3

RGB2 RGB1 AV4

Each time the ZOOM button of the remote control is

pressed, the screen display size will change in sequence

and the status will be displayed at the bottom of the

screen.

• During TV mode

Input Switching Size Switching

INPUT SELECT

button

MUTE button

PROGRAM SELECT

buttons

RGB/VIDEO

buttons

The functions of the buttons located on the bottom

of the monitor change as shown below:

ZOOM button

4:3 Panoramic

Full Cinema Zoom

PROGRAM UP/DOWN button

(SELECT button)

SUB-POWER button

VOLUME UP/DOWN

buttons

(ADJUST buttons)

MENU button

• ( ) indicates the function while the MENU is displayed on the screen.

ENGLISH

OPERATING INSTRUCTIONS (continued)

RECALL button

MULTI PICTURE

button

SELECT buttons

Activating the Split mode from the TV screen

Pressing the MULTI PICTURE button one time will display 2 pictures.

• The speaker icon can be shifted left and right by pressing the A/B button; the audio will be output from the

side on which the speaker icon is located.

• The same signal input cannot be selected for both screens at the same time.

• The TV channel can be changed by pressing the and PROGRAM UP/DOWN buttons on the remote

control.

• The signal input mode of picture-A or picture-B (the one that the speaker icon is located on) can be selected

by pressing INPUT SELECT button on the remote control.

• Pressing the MULTI PICTURE button once again will cancel the multi picture mode.

•

When the Video input is set to RGB Video, multi picture mode is not possible.

•

Refer to the table for 2 pictures (Split) mode.

Activating the 4 pictures mode from the TV screen

Pressing the MULTI MODE button one time at the 2 pictures mode will display 4 pictures.

• Press [A/B] button to select picture A or picture B indicated by a red triangle. For pictures on right, press

SELECT buttons to select picture. The selected channel number would change green.

• The TV channel can be changed by pressing the and PROGRAM UP/DOWN buttons on the remote

control.

•

The audio can only be output from picture A in 4 pictures mode.

•

The same signal input mode cannot be selected for each screens at the same time.

• Pressing the MULTI PICTURE button at the 4 picture mode will cancel the multi picture mode.

And then,

pressing the MULTI PICTURE button again will display the 4 pictures.

• Refer to the table for 4 pictures mode.

Activating the 12 pictures mode from the TV screen

Pressing the MULTI MODE button one time at the 4 pictures mode will display 12 pictures.

• Starting from channel 1, preset channels will automatically display in sequence on the 12 windows.

• This function activates only in TV mode.

• After several seconds, it refreshes the picture one by one.

• Pressing the MULTI PICTURE button at the 12 picture mode will cancel the multi picture mode. And then,

pressing the MULTI PICTURE button again will display the 12 pictures again.

• Pressing the MULTI MODE button at the 12 picture mode will display the 2 pictures (Split) mode.

5AV1

2 pictures (Split) 4 pictures 12 pictures

AV1▼8

1234

5678

9101112

Displaying MULTI PICTURE

MULTI MODE

button

A/B button

PROGRAM UP/DOWN

buttons

If the MULTI PICTURE button on the remote control is

pressed, multi pictures will display. And then three types

of the screen can be selected by pressing the MULTI

MODE button on the remote control.

The multi picture mode will change in the following

sequence each time the MULTI MODE button is pressed.

NOTE

• Even if the input of the horizontal / vertical synchronizing signal (or video signal) stops in the multi picture display, the mode will not change to

power save mode.

• Please be careful since image retention will occur if display is left in a multi picture display state for a long period of time.

Input Signal Screen Display

The TV channel status can be displayed on the screen by

pressing the RECALL button of the remote control.

The display will go out in approximately 6 seconds.

ABCDE

-- -- Min.

-- -- : -- --

OFF

TV position

Name

Sound mode

Off-timer

On-timer

4 Pictures

2 Pictures (Split)

Main Sub

Sub 1

Sub 2

Sub 3

Main

Main Sub

ENGLISH

OPERATING INSTRUCTIONS (continued)

When the FREEZE button on the remote control is pressed, the screen transfers into the

freeze mode.

• There are two types of freezing screen mode, Split and Strobe. These are possible to select at the “Freeze

Mode” setting of the Function Menu.

• The Split mode will display 2 pictures from the same source on the screen with one active picture and the

other still.

• The Strobe mode will display 12 pictures with the last picture active, while other 11 windows are still.

• Pressing the FREEZE button again changes the screen back to the normal picture.

• This function is also available from video input mode besides TV mode. Refer to the table for Freeze function

as below:

FREEZE button

Picture Freezing

1234

5678

9101112

Active

[Split]

[Strobe]

Split Strobe

(

FUNCTION MENU

Selected characters Setup hint

Freeze Mode

Split Strobe

This selects the display condition of the FREEZE mode between Split

(2 pictures) and Strobe (12 pictures).

Default Zoom

Panoramic 4:3

This selects the screen display size that appears first when the power

turned on.

Mode Display Not Available (grayed out)

ID Number Not Available (grayed out)

Inverse Not Available (grayed out)

Standby White Not Available (grayed out)

Gamma Not Available (grayed out)

Refer to the page .(It is same to the Picture Menu of Video Unit function)

But 2 item is added and 5 items are deleted.

SETUP MENU


Audio

Timer

Function

Setup

Locks

Captions

Language

Select

OK Set

Setup

Auto Tuning

Scanning Channel Number: 33

Cancel

[During TV mode]

ENGLISH

OPERATING INSTRUCTIONS (continued)

SETUP MENU (continued)

ENGLISH

OTHER FUNCTIONS

Multi-Channel Telvision Sound

• The MPX button is only useful for Multi-Channel Television Sound signals.

Otherwise pressing this button will have no effect.

Stereo and SAP (2nd Audio program) sound program

When bilingual program is received, sound mode display appears as shown on right.

Press the MPX button to select the sound to be heard.

Each time the button is pressed, Stereo, SAP or Mono appear cyclically on the screen.

ST/SAP Stereo

Mono/SAP SAP

Mono and SAP (2nd Audio program) sound program

When a program is received, sound mode display will appear as shown on right, and you

can press the MPX button to select between SAP and mono sound.

Each time the button is pressed, SAP or Mono appear cyclically on the screen.

Monaural sound

When a monaural program is received, sound mode display will appear.

You can press the MPX button to select the sound mode between monaural and forced mono

(sound is same).

NOTE

If sound signal is not strong enough for quality reception, press the MPX button until Mono appears on the screen to receive a clear mono

sound.

If sound has hiss noise or keep switching between stereo and mono mode or SAP and mono due to signal condition, press the MPX button

until Mono appears on the screen to receive a clear mono sound.

Stereo sound

When a stereo program is received, sound mode display will appear.

You can press the MPX button to select the sound mode between stereo and mono (sound is

same).

OPERATING INSTRUCTIONS (continued)

DVD Player Selection

• You can use this remote control to operate the selected brand of DVD player by pressing the following buttons on the remote control

simultaneously.

Example

To operate HITACHI DVD player, press and hold the RECALL button, followed by the button.

NOTE

Not all models of the listed brands can be operated using this remote control.

Brands of DVD Player Press Brands of DVD Player Press

Hitachi RCA

Pioneer Mitsubishi

Panasonic Onkyo

Toshiba Zenith

Philips Orion

JVC Shinco

Samsung Skyworth

Sony Bubuko

RECALL 1

RECALL 2

RECALL 3

RECALL 4

RECALL 5

RECALL 6

RECALL 7

RECALL 8

RECALL 9

RECALL 0

RECALL INDEX

RECALL MODE

RECALL SUB PAGE

RECALL CANCEL

RECALL REVEAL

RECALL TV/TEXT

RECALL button

TV / TEXT button

MODE button

REVEAL button

INDEX button

SUB PAGE buttons

CANCEL button

OTHER FUNCTIONS (continued)

ENGLISH

Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer.

Customer servicing can be hazardous.

WARNING

TROUBLESHOOTING

Symptoms That Seemingly Appear to be Failures

Symptom Possible reason Remedy

(1) Connection of antenna cable to the TV is

poor.

(2) Corroded or poor antenna connections.

(3) Antenna has moved position.

(4) Adverse weather conditions.

(5) Transmitter problems.

(1) Make new connection and/or change antenna

plug.

(2) Make new connections or renew cable.

(3) Re-align antenna.

(4) None.

(5) Check with local Operator.

(1) Antenna has moved position.

(2) TV not tuned correctly.

(3) Adverse weather conditions.

(4) Transmitter problems.

(5) AV Input not set correctly.

(1) Re-align antenna.

(2) Re-tune or fine tune TV.

(3) None.

(4) Check with local Operator.

(5) Check the external equipment connected.

(1) Interference from electrical or mechanical

motors, fluorescent lights, portable

radios etc.

(1) Check devices for shielding and renew if

necessary or move further from TV.

(1) TV may be in AV mode.

(2) Picture/sound setting set to minimum.

(3) TV in standby or power save mode.

(1) Press the INPUT SELECT button or to buttons

on your remote control to return to normal TV

mode.

(2) Check picture / sound controls (go to MAIN

MENU).

(3) Press POWER ON / OFF button.

snowy picture - poor sound

multiple images - sound O.K

intermittent interference

no picture or sound

PRODUCT SPECIFICATIONS

• The monitor takes at least 30 minutes to attain the status of optimal picture quality.

ENGLISH

PRODUCT SPECIFICATIONS (continued)

①

②

③

④

S-input connector pin specifications

Pin Input signal

1 Y

2Y-GND

3 C

4C-GND

Frame GND

20 18 16 14 12 10 8 6 4 2

21 19 17 15 13 11 9 7531

Scart connector pin specifications

Pin Signal Pin Signal

1AUDIO OUT (RIGHT) 12 Not Used

2AUDIO IN (RIGHT) 13 RGB-R GND

3AUDIO OUT (LEFT/MONO) 14 GND

4AUDIO GND 15 RGB-R / S.VHS CHROMINANCE IN

5RGB-B GND 16 BLANKING SIGNAL

6AUDIO IN (LEFT/MONO) 17 COMPOSITE VIDEO GND

7RGB-B IN 18 BLANKING SIGNAL GND

8AUDIO/RGB SWITCH / 16:9 19 COMPOSITE VIDEO OUT

9RGB-G GND 20 COMPOSITE VIDEO / S.VHS LUMINANCE IN

10 Not Used 21 GND / SHIELD (CHASSIS)

11 RGB-G IN

RGB terminal (D-sub 15-pin connector)

12345

6789

1112131415

• When different kinds of input signals are simultaneously input to

the monitor via a graphics board or the like, the monitor will

automatically select the signals in the following priority order:

*Even in the case of the recommended signals shown on the

following page, there may be instances when correct display is

not possible. In this case, use H/V separate sync, H/V composite

sync.

Sync signal type Priority

H/V separate sync. 1

H/V composite sync. 2

sync.on Green * 3

Pin Input signal

1R (PR/CR)

2G or sync on green (Y)

3B (PB/CB)

4No connection

5No connection

6R.GND (PR/CR, GND)

7G.GND (Y, GND)

8B.GND (PB/CB, GND)

9No connection

10 GND

11 No connection

12 [SDA]

13 H. sync or H/V composite sync

14 V.sync. [V.CLK]

15 [SCL]

( ) : With component input

Signal Input

12345678

910111213141516

17 18 19 20 21 22 23 24

DVI terminal (DVI-D)

Pin Input signal Pin Input signal

1T.M.D.S. Data2- 14 +5V Power

2T.M.D.S. Data2+ 15 Ground (for+5V)

3T.M.D.S. Data2/4 Shield 16 Hot Plug Detect

4T.M.D.S. Data4- 17 T.M.D.S. Data0-

5T.M.D.S. Data4+ 18 T.M.D.S. Data0+

6DDC Clock 19 T.M.D.S. Data0/5 Shield

7DDC Data 20 T.M.D.S. Data5-

8No Connect 21 T.M.D.S. Data5+

9T.M.D.S. Data1- 22 T.M.D.S. Clock Shield

10 T.M.D.S. Data1+ 23 T.M.D.S. Clock+

11 T.M.D.S. Data1/3 Shield 24 T.M.D.S. Clock-

12 T.M.D.S. Data3- Frame GND

13 T.M.D.S. Data3+

Recommended Signal List

PRODUCT SPECIFICATIONS (continued)

With Digital RGB signal input (RGB1 input)

(

With Analog RGB signal input (RGB2 input)

• Make sure that the signal of the equipment to be connected is compatible with the pecifications of this list.

ENGLISH

• The type of video board or connecting cable used may not allow for correct displays adjustment of Horizontal Position, Vertical Position, Horizontal

Clock and Clock Phase.

• The monitor may fail to display an animation image correctly when a signal having a vertical frequency of 85Hz or higher is input to it.

• The monitor differentiates the signal modes according to the horizontal and vertical frequencies and the horizontal and vertical sync signal

polarities. Note that different signals having all these elements alike may be handled as the same signal.

• Displaying images with more than 480 lines of vertical resolution at Full diplay (compressed display) can result in the interpolation of stripes.

No.

Signal mode Horizontal

frequency (kHz)

Dot clock

frequency (MHz) Remarks

Signal Name Resolution Vertical frequency

(Hz)

1NTSC-M

PAL-M 525 59.94 15.73

2PAL-N 625 50.00 15.63

With Composite Input(AV1~AV4 input) and S-video Input (AV3 input).

No.

Signal mode Horizontal

frequency (kHz)

Dot clock

frequency (MHz) Remarks

Signal Name Resolution Vertical frequency

(Hz)

1(NTSC-M,PAL-M)

(PAL-N)

525

625

59.94

50.00

15.73

15.63

With R, G, B Video input (AV2 and AV4 input).

No.

Signal mode Horizontal

frequency (kHz)

Dot clock

frequency (MHz) Remarks

Signal Name Resolution Vertical frequency

(Hz)

1576i 576 50.00 15.63

2480i 480 59.94 15.73

3576p 576 50.00 31.26

4480p 480 59.94 31.47

51080i/50 1080 50.00 28.13

61080i/60 1080 60.00 33.75

7720p/60 720 59.94 44.96

With component input (AV1, AV2 and RGB2-component input).

• The monitor differentiates the signal modes according to the horizontal and vertical frequencies and the horizontal and vertical sync signal

polarities. Note that different signals having all these elements alike may be handled as the same signal.

• Displaying images with more than 480 lines of vertical resolution at Full diplay (compressed display) can result in the interpolation of stripes.

ENGLISH

Speaker Systems for Hitachi Plasma Display Monitor

Application Model: 42PD5000*,42PMA500*,42HDM70,CMP421*

Model

CMPAS14/CMPAS14S User Manual

Thank you for purchasing a Hitachi plasma display speaker system.

READ THE INSTRUCTIONS ON THIS USER MANUAL CAREFULLY.

KEEP THIS USER MANUAL FOR FUTURE REFERENCES.

CAUTION

DO NOT HANDLE MONITOR BY HOLDING THE SPEAKER SYSTEMS.

Please be careful handling the speaker systems. Since the front side of the speaker systems

is fragile, please do NOT press hard or subject impacts.

Caution required

Product Components Specifications

Speakers (x2)

Speaker cable with core (x2)

Cushions (2)

Speaker holder (x4)

Mounting screw (x8)

Type ...............................2 way 3 speakers.

Bass Reflex

Woofer............................80mm cone type x 2 /

each

Tweeter ..........................25mm dome type

Impedance .....................6Ω

Max. input power............50W

RMS input power............20W

External Dimensions ......101.5 (W) x 635.5 (H)

x 90.5 (D) mm / each

Weight............................2.1kg / each

Specifications and design subject to possible

modification without notice, due to

improvements.

00 42型スピーカー統合-五校 03.9.9 3:39 PM ページ1

Be sure to insert the speaker cables securely.

Lock the connection terminal level securely.

Caution required

Caution

Make sure the monitor power is switched off (with the standby/ receive lamp switched off or red)

before you connect or disconnect the speaker cables.

Attach the speaker systems to the monitor.

Attach the speaker brackets to the speaker systems.

Attach the screws in a position that allows you to read the speaker holder orientation markers (R), (L).

screw X 2

Speaker holder

Speaker

holder

(R)

In the case of (R) (L)

Cushion

SPEAKER TERMINAL

(8Ω8W)

Loosen

screws

Monitor rear side

Hook this section

on the loosened

screw

Speaker holder

shown the other side

Remove

screws

Remove

screws

スピーカー端子

(6Ω12W )

Right side

Remove two screws on each side of the monitor

as shown and keep them for re-install. Loosen

two screws on each side of the monitor as

shown so that the speaker holders can be slide

on to them. Insert the loosened screws into the

engaging holes of the speaker holders that are

attached to the speaker system, and slide the

screws downwards. Next, use the previously-

removed screws to fasten the speaker holders

into the mounting holes in the monitor. Tighten

the four screws to secure.

Attach the speaker systems to the monitor.

Attach the connection cables to

the speaker system.

Connect the copper-coloured

wire to the side

Connect the silver-coloured

wire to the side

Speaker terminals

Press down

the lever with

your finger

Remove

your finger

Insert the

wire

How to connect

the speaker

cables

(Speaker side)

Pull off while twisting

Please prepare the supplied

speaker cables.

Treating the wire ends

Attach the speaker connection

cables to the monitor.

スピーカー端子

(6Ω12W )

スピーカー端子

(6Ω12W )

Black Red

Connect

the copper-

colour wire

（）

Connect

the silver-

colour wire

（）

スピーカー端子

(6Ω12 W )

How to connect

the speaker

cables

(Monitor side)

Press the

lever down

Raise the

lever

Insert the

wire

Use of cushions

In some cases, there can

be a gap between the main

unit and the speaker. You

can attach the cushions

provided to the side of the

speaker system, if desired,

to eliminate the gap.

Attach the cushions

to the sides of the

speakers facing the

main unit.

Cushion

Align the cushions

to the front of the

back case and affix

them.

Back case

Notice

00 42型スピーカー統合-五校 03.9.9 3:39 PM ページ2











NOTE:

The information in this manual is subject to change without notice. The manufacturer assumes no responsibility for

any errors that may appear in this manual.

TRADEMARK ACKNOWLEDGEMENT

VGA and XGA are registered trademarks of International Business Machines Corporation.

APPLE and Macintosh are registered trademarks of Apple Computer, Inc.

VESA is a trademark of a nonprofit organization, Video Electronics Standard Association.

All brand or product names are trademarks or registered trademarks of their respective holders.

REMARQUE:

Les particularités de l’écran couleur à plasma sont les suivantes.

Les informations contenues dans ce manuel peuvent être modifiées sans préavis. Le constructeur n’accepte aucune

responsabilité pour les erreurs qui peuvent éventuellement apparaître dans ce manuel.

MARQUES DÉPOSÉES

VGA et XGA sont des marques déposées d’International Business Machines Corporation.

APPEL et Macintosh sont des marques déposées d’Apple Computer Inc.

VESA est une marque déposée d’une organisation sans but lucratif, La Video Electronics Standard Association.

Toutes les marques ou noms de produit sont des marques de commerce ou des marques déposées de leur dépositaire

respectif.

NOTA:

La información contenida en este manual está sujeta a cambios sin previo aviso. El fabricante no será responsable

de los errores que puedan aparecer en este manual.

RECONOCIMIENTO DE MARCAS

VGA y XGA son marcas registradas de International Business Machines Corporation.

APPLE y Macintosh son marcas registradas de Apple Computer, Inc.

VESA es una marca comercial de una organización sin fines de lucro, Video Electronics Standard Association.

Todas las marcas y nombres de productos son marcas comerciales o registradas de sus respectivos titulares.

HD88HP8C300 Printed in China

Hitachi America, LTD. Home Electronics Division

900 Hitachi Way. Chula Vista,

CA 91914, U.S.A.

Tel: +1-800-HITACHI

(+1-800-448-2244)

Hitachi Canada, LTD. Digital Media Division

6740 Campobello Road. Mississauga,

ON L5N 2L8, CANADA

Tel: +1-800-HITACHI

(+1-800-448-2244)

Hitachi 42Edt 01 QR58563 ENG TV Sam
